+title: "Augmented reality | Apple Developer Documentation"
+source: https://developer.apple.com/design/human-interface-guidelines/augmented-reality
+
+# Augmented reality
+
+Augmented reality (or AR) lets you deliver immersive, engaging experiences that seamlessly blend virtual objects with the real world.
+
+![A sketch of an AR icon, suggesting augmented reality. The image is overlaid with rectangular and circular grid lines and is tinted blue to subtly reflect the blue in the original six-color Apple logo.](https://docs-assets.developer.apple.com/published/02ff28e8d3bace3009b72a074f90ae26/technologies-augmented-reality-intro%402x.png)
+
+Using the device’s camera to present the physical world onscreen live, your app can superimpose three-dimensional virtual objects, creating the illusion that these objects actually exist. Depending on the platform and the experiences your app offers, people can reorient the device to explore the objects from different angles, interact with objects using gestures and movement, and even join other people in multiuser AR experiences. For developer guidance, see [ARKit](https://developer.apple.com/documentation/ARKit).
+
+**Offer AR features only on capable devices.** If your app’s primary purpose is AR, make your app available only to devices that support ARKit. If your app includes features that require specific AR capabilities, or if AR features are optional in your app, don’t show people an error if they try to use these features on a device that doesn’t support them; instead, simply avoid offering the feature on an unsupported device. For developer guidance, see [Verifying Device Support and User Permission](https://developer.apple.com/documentation/ARKit/verifying-device-support-and-user-permission).
+
+Note
+
+The following guidance applies to apps that run in iOS and iPadOS. To learn about using ARKit to create immersive augmented reality experiences in visionOS, see [ARKit](https://developer.apple.com/documentation/ARKit).
+
+## [Best practices](https://developer.apple.com/design/human-interface-guidelines/augmented-reality#Best-practices)
+
+**Let people use the entire display.** Devote as much of the screen as possible to displaying the physical world and your app’s virtual objects. Avoid cluttering the screen with controls and information that diminish the immersive experience.
+
+**Strive for convincing illusions when placing realistic objects.** Design detailed 3D assets with lifelike textures to create objects that appear to inhabit the physical environment in which you place them. Using information from ARKit, you can scale objects properly and position them on detected real-world surfaces, reflect environmental lighting conditions and simulate camera grain, cast top-down diffuse object shadows on real-world surfaces, and update visuals as the camera’s position changes. To help avoid breaking the illusion you create, make sure your app updates scenes 60 times per second so objects don’t appear to jump or flicker.
+
+**Consider how virtual objects with reflective surfaces show the environment.** Reflections in ARKit are approximations based on the environment captured by the camera. To help maintain the illusion that an AR experience is real, prefer small or coarse reflective surfaces that downplay the effect of these approximations.
+
+**Use audio and haptics to enhance the immersive experience.** A sound effect or bump sensation is a great way to confirm that a virtual object has made contact with a physical surface or other virtual object. Background music can also help envelop people in the virtual world. For guidance, see [Playing audio](https://developer.apple.com/design/human-interface-guidelines/playing-audio) and [Playing haptics](https://developer.apple.com/design/human-interface-guidelines/playing-haptics).
+
+**Minimize text in the environment.** Display only the information that people need for your app experience.
+
+**If additional information or controls are necessary, consider displaying them in screen space.** Content in _screen space_ appears fixed to a consistent location either in the virtual world or, less commonly, on the device screen. It’s typically easy for people to find and view content in screen space because it remains stationary while the underlying AR environment moves with the device.
+
+**Consider using indirect controls when you need to provide persistent controls.** _Indirect controls_ are not part of the virtual environment — instead, they are 2D controls displayed in screen space. If people need access to persistent controls in your app, consider placing the controls so that people don’t have to adjust how they’re holding the device to reach them. Also, consider using translucency in an indirect control to help avoid blocking the underlying scene. For example, the Measure app uses screen space to display a mix of translucent and opaque controls that people use to measure objects in the real world.
+

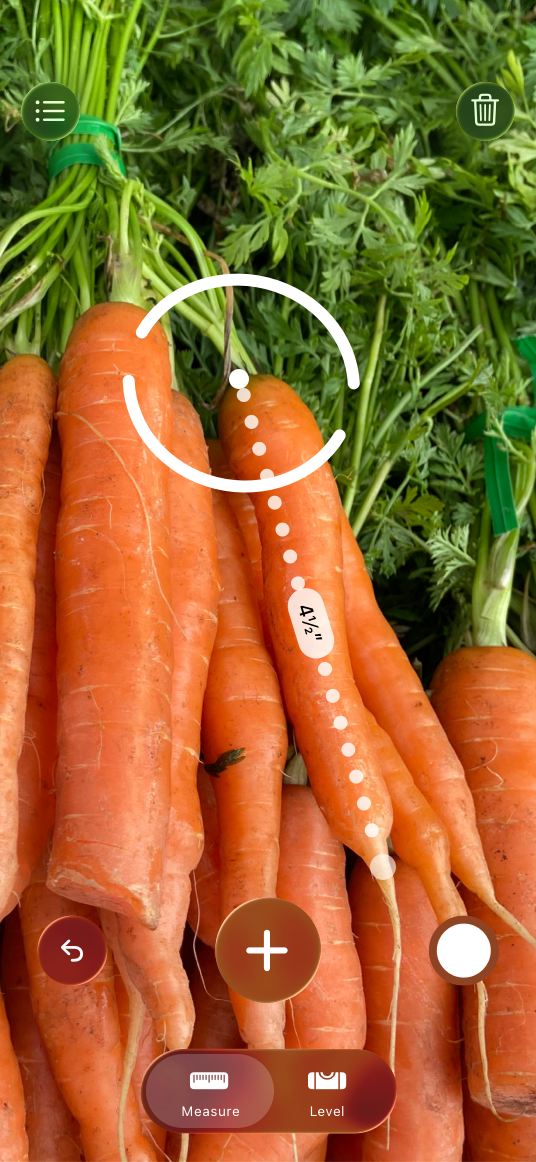

+![A screenshot of the Measure app on iPhone showing a bunch of carrots. A line segment extends from one end of a carrot to the other end. The measurement is four and a half inches.](https://docs-assets.developer.apple.com/published/8a3faa907452d5fdb2771a64ffdcdb62/augmented-reality-measure-carrots%402x.png)
+
+**Anticipate that people will use your app in a wide variety of real-world environments.** People may open your app in a place where there isn’t much room to move around or there aren’t any large, flat surfaces. Clearly communicate your app’s requirements and expectations to people up front to help them understand how their physical environment can affect their AR experience. You might also consider offering different sets of features for use in different environments.
+
+**Be mindful of people’s comfort.** Holding a device at a certain distance or angle for a prolonged period can be fatiguing. To help avoid causing fatigue, consider placing objects at a distance that reduces the need to move the device closer to the object; in a game, consider keeping levels short and intermixed with brief periods of downtime.
+
+**If your app encourages people to move, introduce motion gradually.** For example, you might not want to make people dodge a virtual projectile as soon as they enter your AR game. Give people time to adapt to the AR experience in your app and then progressively encourage movement.
+
+**Be mindful of people’s safety.** When people are immersed in an AR experience, they’re not necessarily aware of their physical surroundings, so making rapid, sweeping, or expansive motions might be dangerous. Consider ways of making your app safe to operate; for example, a game could avoid encouraging large or sudden movements.
+
+## [Providing coaching](https://developer.apple.com/design/human-interface-guidelines/augmented-reality#Providing-coaching)
+
+Before people can enjoy an AR experience in your app, they need to move their device in ways that lets ARKit evaluate the surroundings and detect surfaces. Consider using the built-in coaching view to show people what to do and provide feedback during the initialization process. You can also use the coaching view to help people reinitialize AR — a process known as _relocalization_ — after an AR experience is interrupted by, for example, people switching briefly to a different app. For guidance on relocalization, see [Handling interruptions](https://developer.apple.com/design/human-interface-guidelines/augmented-reality#Handling-interruptions); for developer guidance, see [`ARCoachingOverlayView`](https://developer.apple.com/documentation/ARKit/ARCoachingOverlayView).
+

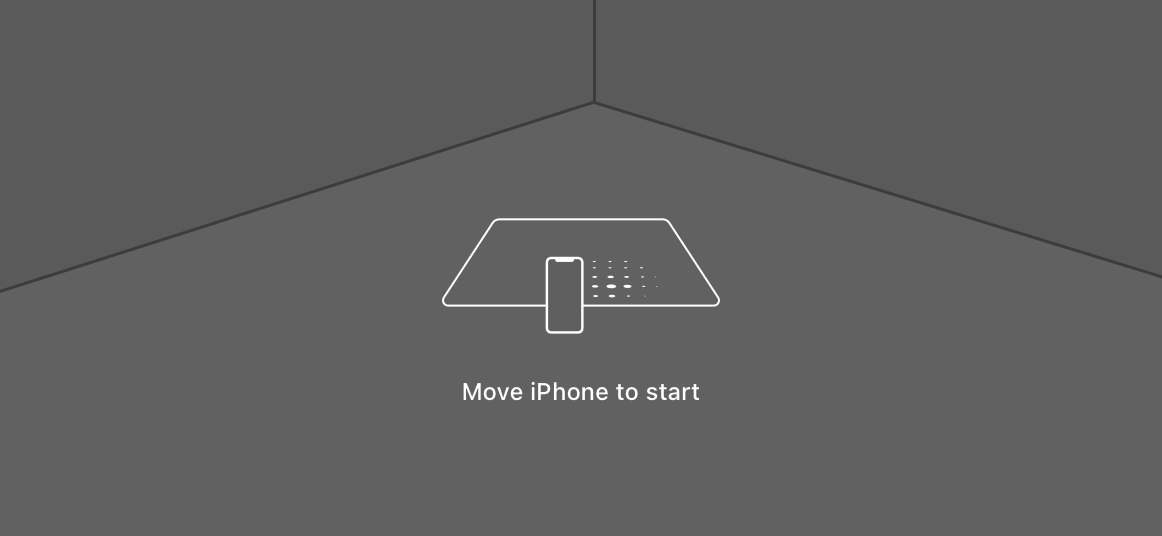

+![An illustration of an iPhone screen showing the corner of a room viewed through the camera. On the screen is a translucent overlay containing the surface-detection indicator. The indicator is a white square with rounded corners projected into the 3D space. A small iPhone is shown scanning back and forth along the base of the square. A circle of dots trailing the iPhone emphasizes the movement.](https://docs-assets.developer.apple.com/published/a8f541f789d28879cd0d2c9862cbdcba/augmented-reality-coaching-overlay%402x.png)
+
+**Hide unnecessary app UI while people are using a coaching view.** By default, the coaching view appears automatically when initialization or relocalization starts, so be prepared to hide unrelated UI to help people concentrate on the coaching view’s instructions.
+
+**If necessary, offer a custom coaching experience.** Although you can configure the system-provided coaching view to help people provide specific information — such as the detection of a horizontal or vertical plane — you might need additional information or want to use a different visual style. If you want to design a custom coaching experience, use the system-provided coaching view for reference.
+
+## [Helping people place objects](https://developer.apple.com/design/human-interface-guidelines/augmented-reality#Helping-people-place-objects)
+
+**Show people when to locate a surface and place an object.** You can use the system-provided coaching view to help people find a horizontal or vertical flat surface on which to place an object. After ARKit detects a surface, your app can display a custom visual indicator to show when object placement is possible. You can help people understand how the placed object will look in the environment by aligning your indicator with the plane of the detected surface.
+

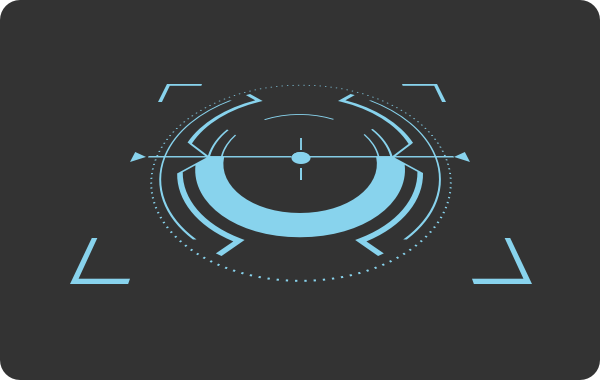

+![An illustration of a complex visual placement indicator consisting of a circular shape with markers indicating a center and diameter, inside right-angle shapes framing a square. The indicator is shown in 3D perspective with the longest edge on the bottom.](https://docs-assets.developer.apple.com/published/b5533e905940a2c62239bc80b16dbc46/augmented-reality-app-specific-indicator%402x.png)App-specific indicator
+
+**When people place an object, immediately integrate that object into the AR environment.** Although surface detection quickly and progressively refines accuracy, it’s best to avoid waiting for more accurate data before placing an object. Use the information available to respond instantly when people place an object; then, when surface detection completes, subtly refine the object’s position if necessary. For example, if people place an object beyond the bounds of the detected surface, gently nudge the object back onto the surface. For developer guidance on refining an object’s position, see [`ARTrackedRaycast`](https://developer.apple.com/documentation/ARKit/ARTrackedRaycast).
+
+**Consider guiding people toward offscreen virtual objects.** Sometimes, it can be difficult for people to locate an object that’s positioned offscreen. When this is the case, you can help people find such objects by offering visual or audible cues. For example, if an object is offscreen to the left, you could display an indicator along the left edge of the screen that guides people to point the camera in that direction.
+
+**Avoid trying to precisely align objects with the edges of detected surfaces.** In AR, surface boundaries are approximations that may change as people’s surroundings are further analyzed.
+
+**Incorporate plane classification information to inform object placement.** For example, only let people place a virtual piece of furniture on a plane that’s classified as “floor,” or require a plane to be classified as “table” in order to place a virtual game board.
+
+## [Designing object interactions](https://developer.apple.com/design/human-interface-guidelines/augmented-reality#Designing-object-interactions)
+
+**Let people use direct manipulation to interact with objects when possible.** It’s more immersive and intuitive when people can interact with onscreen 3D objects by touching them directly, than by using indirect controls in screen space. However, in situations where people are moving around as they use your app, indirect controls can work better.
+

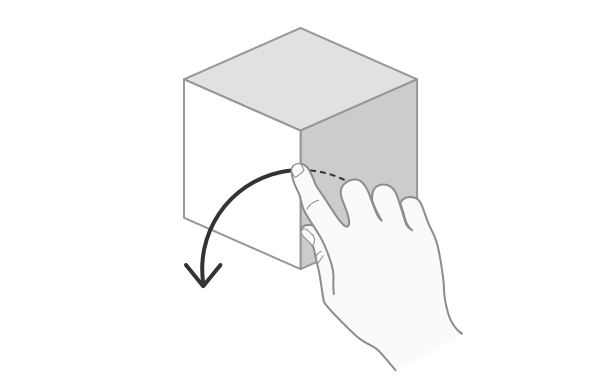

+![An illustration showing a cube and a hand with the index finger touching the cube. There's a curved line intersecting the finger and cube to indicate the movement of the finger to the right as it directly manipulates the object.](https://docs-assets.developer.apple.com/published/e68ef4f9413642524873ee66cd4bba4e/augmented-reality-user-interaction-direct%402x.png)Direct manipulation
+

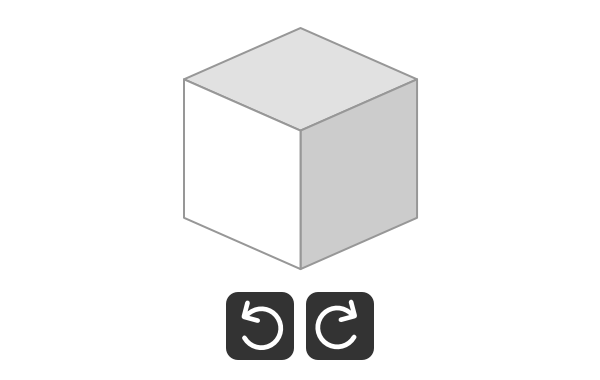

+![An illustration showing a cube. Below the cube are two buttons, each with a circular arrow pointing in the opposite direction, offering indirect ways to rotate the cube.](https://docs-assets.developer.apple.com/published/dcd7ceea5314b22c0bb24dfe45008651/augmented-reality-user-interaction-indirect%402x.png)Indirect controls
+
+**Let people directly interact with virtual objects using standard, familiar gestures.** For example, consider supporting a single-finger drag gesture for moving objects, and a two-finger rotation gesture for spinning objects. For guidance, see [Gestures](https://developer.apple.com/design/human-interface-guidelines/gestures).
+
+**In general, keep interactions simple.** Touch gestures are inherently two-dimensional, but an AR experience involves the three dimensions of the real world. Consider the following approaches to simplifying people’s interactions with virtual objects.
+

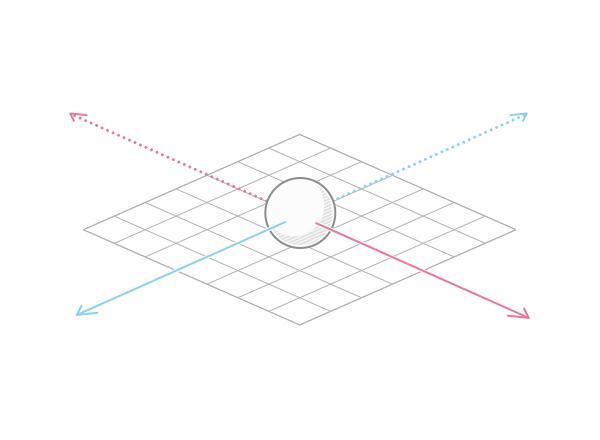

+![An illustration showing a sphere. The base of the sphere is on a grid. Two lines that are parallel to the grid and perpendicular to each other pass through the center of the sphere. There's an arrow at the tip of each line, indicating movement direction across the two-dimensional surface of the grid.](https://docs-assets.developer.apple.com/published/d0ac02ed21a0af9534631b63c824b9d7/augmented-reality-plane-movement%402x.png)Limit movement to the two-dimensional surface on which the object rests.
+

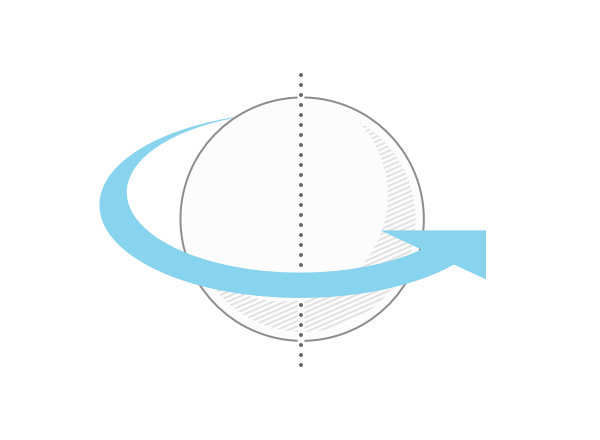

+![An illustration showing a sphere. A dotted line runs vertically through the center of the sphere. An arrow wraps around the outside of the sphere and the vertical line, from left to right, indicating the ability to rotate the sphere around the line.](https://docs-assets.developer.apple.com/published/0c40f98719aee4f83f34e9255fac4f29/augmented-reality-axis-rotation%402x.png)Limit object rotation to a single axis.
+
+**Respond to gestures within reasonable proximity of interactive virtual objects.** It can be difficult for people to be precise when aiming to touch specific points on objects that are small, thin, or placed at a distance. When your app detects a gesture near an interactive object, it’s usually best to assume that people want to affect that object.
+
+**Let people initiate object scaling when it makes sense in your app.** For example, if your app lets people explore an imaginary environment, it probably makes sense to support object scaling because your app doesn’t need to represent the real world. On the other hand, if your app helps shoppers decide on furniture to buy, letting people scale a chair object doesn’t help them visualize how the chair will look in a room.
+
+Tip
+
+Regardless of the purpose of your app, don’t use scaling as a way to adjust the distance of an object. If you enlarge a distant object in an effort to make it appear closer, the result is a larger object that still looks far away.
+
+**Be wary of potentially conflicting gestures.** A two-finger pinch gesture, for example, is similar to a two-finger rotation gesture. If you implement two similar gestures like this, be sure to test your app and make sure they’re interpreted properly.
+
+**Strive for virtual object movement that’s consistent with the physics of your app’s AR environment.** People don’t necessarily expect an object to move smoothly over a rough or uneven surface, but they do expect objects to remain visible during movement. Aim to keep moving objects attached to real-world surfaces and avoid causing objects to jump or vanish and reappear as people resize, rotate, or move them.
+
+**Explore even more engaging methods of interaction.** Gestures aren’t the only way for people to interact with virtual objects in AR. Your app can use other factors, like motion and proximity, to bring content to life. A game character, for example, could turn its head to look at a person as they walk toward it.
+
+## [Offering a multiuser experience](https://developer.apple.com/design/human-interface-guidelines/augmented-reality#Offering-a-multiuser-experience)
+
+When multiple people share your app’s AR experience, each participant maps the environment independently and ARKit automatically merges the maps. For developer guidance, see [`isCollaborationEnabled`](https://developer.apple.com/documentation/ARKit/ARWorldTrackingConfiguration/isCollaborationEnabled).
+
+**Consider allowing people occlusion.** If your app supports placing virtual objects behind people who appear in the device’s camera feed, enhance the illusion of reality by letting the people occlude the objects. For developer guidance, see [Occluding virtual content with people](https://developer.apple.com/documentation/ARKit/occluding-virtual-content-with-people).
+
+**When possible, let new participants enter a multiuser AR experience.** Unless your app requires all participants to join before the experience begins, consider using implicit map merging to let new people quickly join an ongoing AR experience. For developer guidance, see [`isCollaborationEnabled`](https://developer.apple.com/documentation/ARKit/ARWorldTrackingConfiguration/isCollaborationEnabled).
+
+## [Reacting to real-world objects](https://developer.apple.com/design/human-interface-guidelines/augmented-reality#Reacting-to-real-world-objects)
+
+You can enhance an AR experience by using known images and objects in the real-world environment to make virtual content appear. For example, an app that recognizes theater posters for a sci-fi film could cause virtual space ships to emerge from the posters and fly around the environment. Another example is an app for an art museum that presents a virtual tour guide when it recognizes a sculpture. To support experiences like these, your app provides a set of 2D reference images or 3D reference objects, and ARKit indicates when and where it detects any of these items in the current environment. For developer guidance, see [Detecting Images in an AR Experience](https://developer.apple.com/documentation/ARKit/detecting-images-in-an-ar-experience).
+
+**When a detected image first disappears, consider delaying the removal of virtual objects that are attached to it.** ARKit doesn’t track changes to the position or orientation of each detected image. To help prevent virtual objects from flickering, consider waiting up to one second before fading them out or removing them.
+
+**Limit the number of reference images in use at one time.** Image detection performance works best when ARKit looks for 100 or fewer distinct images in the real-world environment. If you need more than 100 reference images, you can change the set of active reference images based on context. For example, a museum guide app could ask permission to use location services to determine the part of the museum a person is in, and then look only for images displayed in that area.
+
+**Limit the number of reference images requiring an accurate position.** Updating the position of a reference image requires more resources. Use a tracked image when the image may move in the environment or when an attached animation or virtual object is small compared to the size of the image.
+
+## [Communicating with people](https://developer.apple.com/design/human-interface-guidelines/augmented-reality#Communicating-with-people)
+
+**If you must display instructional text, use approachable terminology.** AR is an advanced concept that may be intimidating to some people. To help make it approachable, avoid using technical terms like ARKit, world detection, and tracking. Instead, use friendly, conversational terms that most people will understand.
+
+Do| Don’t
+---|---
+Unable to find a surface. Try moving to the side or repositioning your phone.| Unable to find a plane. Adjust tracking.
+Tap a location to place the _[name of object to be placed]_.| Tap a plane to anchor an object.
+Try turning on more lights and moving around.| Insufficient features.
+Try moving your phone more slowly.| Excessive motion detected.
+
+**In a three-dimensional context, prefer 3D hints.** For example, placing a 3D rotation indicator around an object is more intuitive than displaying text-based instructions in a 2D overlay. Avoid displaying textual overlay hints in a 3D context unless people aren’t responding to contextual hints.
+
+![An illustration of a cube. The base of the cube is indicated with a grid, and the active side of the cube is outlined in blue. Arrows follow a continuous circle around the cube to the right, hinting that the cube can be rotated within the 3D context.](https://docs-assets.developer.apple.com/published/43871ef4bb55592e7474b1905da12f98/augmented-reality-3d-hint%402x.png)Prefer a 3D hint in a 3D context.
+
+![An illustration of a cube. The base of the cube is indicated with a grid, and underneath the cube is the word Rotate, hinting that the cube can be rotated within the 3D space.](https://docs-assets.developer.apple.com/published/d60c7354a3ed6528ea35765cd86a970c/augmented-reality-2d-hint%402x.png)If necessary, use a 2D hint in a 3D context.
+
+**Make important text readable.** Use screen space to display text used for critical labels, annotations, and instructions. If you need to display text in 3D space, make sure the text faces people and that you use the same type size regardless of the distance between the text and the labeled object.
+
+**If necessary, provide a way to get more information.** Design a visual indicator that fits with your app experience to show people that they can tap for more information.
+

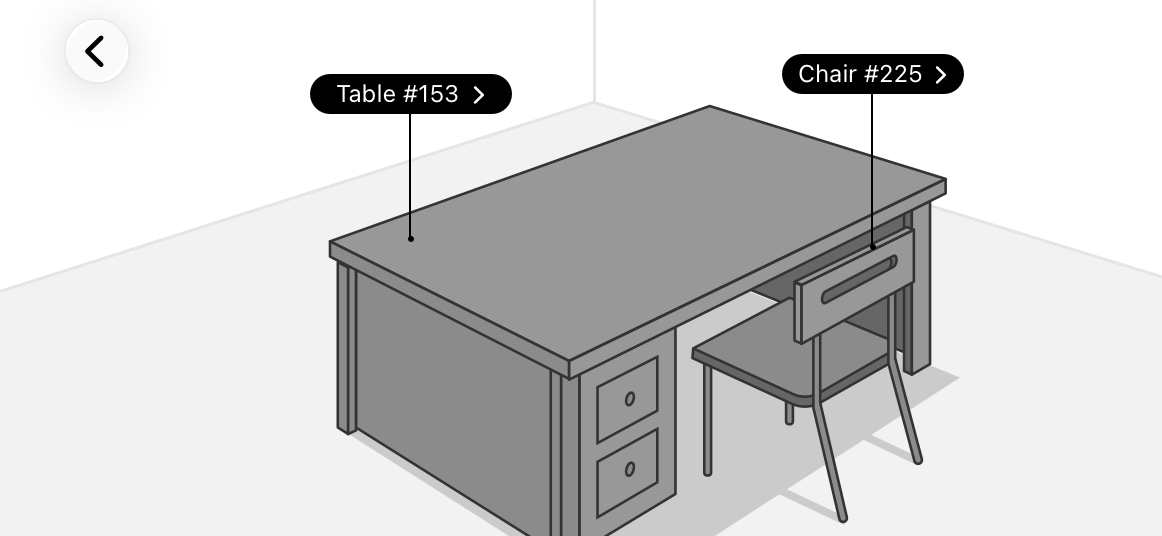

+![An illustration of an iPhone screen in landscape orientation showing the corner of a room viewed through the camera. In the room are two AR objects: a desk and a chair. Each object has a label attached to the object by a vertical line. The label in each object ends with a greater-than sign to indicate the label can be tapped for more information.](https://docs-assets.developer.apple.com/published/341d2c982c2042c369769344be588e6f/augmented-reality-labels%402x.png)
+
+Camera view
+

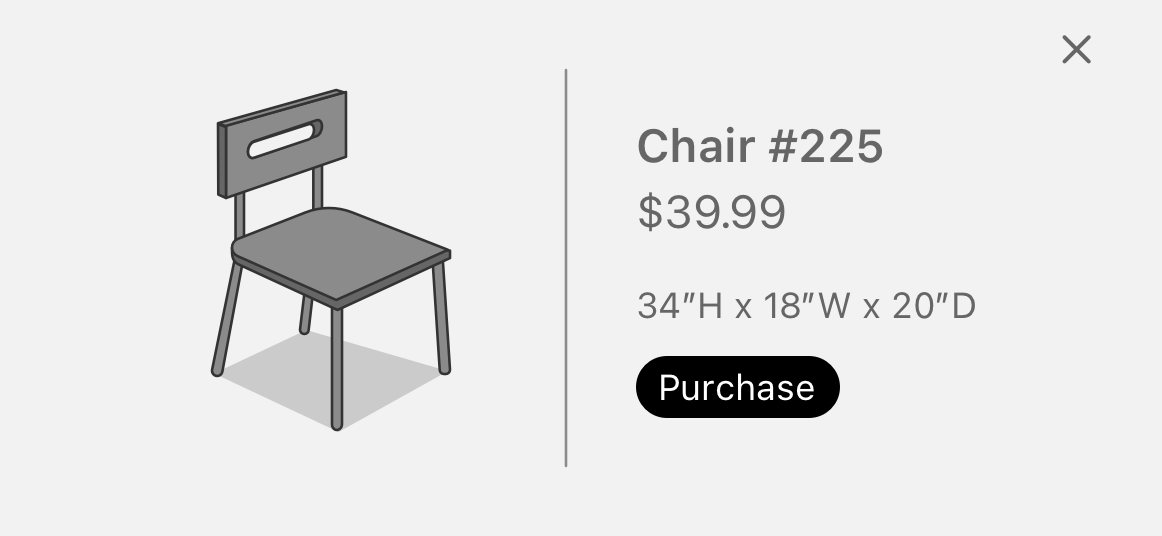

+![An illustration of an iPhone screen in landscape orientation showing a full-screen view with the detailed information for a chair. On the left side of the screen is an image of the chair, in the middle is a vertical separator line, and on the right is the model number, price, and size of the chair.](https://docs-assets.developer.apple.com/published/3dcd4c7352111a30f5fab8370b060836/augmented-reality-popover%402x.png)
+
+Detail view
+
+## [Handling interruptions](https://developer.apple.com/design/human-interface-guidelines/augmented-reality#Handling-interruptions)
+
+ARKit can’t track device position and orientation during an interruption, such as when people briefly switch to another app or accept a phone call. After an interruption ends, previously placed virtual objects are likely to appear in the wrong real-world positions. When you support relocalization, ARKit attempts to restore those virtual objects to their original real-world positions using new information. For developer guidance, see [Managing Session Life Cycle and Tracking Quality](https://developer.apple.com/documentation/ARKit/managing-session-life-cycle-and-tracking-quality).
+
+**Consider using the system-provided coaching view to help people relocalize.** During relocalization, ARKit attempts to reconcile its previous state with new observations of the current environment. To make these observations more useful, you can use the coaching view to help people return the device to its previous position and orientation.
+
+![An illustration of an iPhone screen showing the corner of a room viewed through the camera. On the screen is a translucent overlay containing the surface-detection indicator. The indicator is a white square with rounded corners projected into the 3D space. A small iPhone is shown scanning back and forth along the base of the square. A circle of dots trailing the iPhone emphasizes the movement.](https://docs-assets.developer.apple.com/published/f39344a998cd544223592f8b13c118fb/augmented-reality-vertical-orientation%402x.png)
+
+**Consider hiding previously placed virtual objects during relocalization.** To avoid flickering or other unpleasant visual effects during relocalization, it can be best to hide virtual objects and redisplay them in their new positions.
+
+**Minimize interruptions if your app supports both AR and non-AR experiences.** One way to avoid interruptions is by embedding a non-AR experience within an AR experience so that people can handle the task without exiting and re-entering AR. For example, if your app helps people decide on a piece of furniture to purchase by placing the item in a room, you might let them change the upholstery without leaving the AR experience.
+
+**Allow people to cancel relocalization.** If people don’t position and orient their device near where it was before an interruption, relocalization continues indefinitely without success. If coaching people to resume their session isn’t successful, consider providing a reset button or other way to restart the AR experience.
+
+**Indicate when the front-facing camera is unable to track a face for more than about half a second.** Use a visual indicator to indicate that the camera can no longer track the person’s face. If you need to provide text instructions in this situation, keep them to a minimum.
+
+## [Suggesting problem resolutions](https://developer.apple.com/design/human-interface-guidelines/augmented-reality#Suggesting-problem-resolutions)
+
+**Let people reset the experience if it doesn’t meet their expectations.** Don’t force people to wait for conditions to improve or struggle with object placement. Give them a way to start over again and see if they have better results.
+
+![An illustration showing a corner of a brightly lit office that contains a desk and chair.](https://docs-assets.developer.apple.com/published/13887c5129d1c8add4ff07c5b0ba86e5/augmented-reality-sufficient-lighting%402x.png)Sufficient lighting
+
+![An illustration showing a corner of a dark office that contains a desk and chair.](https://docs-assets.developer.apple.com/published/346b5de0b7f08b0a510192cae8189cab/augmented-reality-insufficient-lighting%402x.png)Insufficient lighting
+
+**Suggest possible fixes if problems occur.** Analysis of the real-world environment and surface detection can fail or take too long for a variety of reasons — insufficient light, an overly reflective surface, a surface without enough detail, or too much camera motion. If your app is notified of these problems, use straightforward, friendly language to offer suggestions for resolving them.
+
+Problem| Possible suggestion
+---|---
+Insufficient features detected.| Try turning on more lights and moving around.
+Excessive motion detected.| Try moving your phone slower.
+Surface detection takes too long.| Try moving around, turning on more lights, and making sure your phone is pointed at a sufficiently textured surface.
+
+## [Icons and badges](https://developer.apple.com/design/human-interface-guidelines/augmented-reality#Icons-and-badges)
+
+Apps can display an AR icon in controls that launch ARKit-based experiences. You can download this icon in [Resources](https://developer.apple.com/design/resources/#ios-apps).
+
+![The AR glyph.](https://docs-assets.developer.apple.com/published/05428c411e6c937857838da1fa944416/augmented-reality-glyph%402x.png)
+
+![A button containing the AR glyph and the text View in AR.](https://docs-assets.developer.apple.com/published/5df46e31e22d0b25d2ad1a5e6342eb1d/augmented-reality-glyph-button%402x.png)
+
+**Use the AR glyph as intended.** The glyph is strictly for initiating an ARKit-based experience. Never alter the glyph (other than adjusting its size and color), use it for other purposes, or use it in conjunction with AR experiences not created using ARKit.
+
+**Maintain minimum clear space.** The minimum amount of clear space required around an AR glyph is 10% of the glyph’s height. Don’t let other elements infringe on this space or occlude the glyph in any way.
+
+![An illustration that shows the AR glyph centered within a frame that represents the minimum clear space to leave around the glyph.](https://docs-assets.developer.apple.com/published/4a22c5126bd05f8291ab3637b01c89b9/augmented-reality-glyph-minimum-clear-space%402x.png)
+
+Apps that include collections of products or other objects can use badging to identify specific items that can be viewed in AR using ARKit. For example, an app that sells vintage collectibles might use a badge to mark items that people can preview in their home before making a purchase.
+

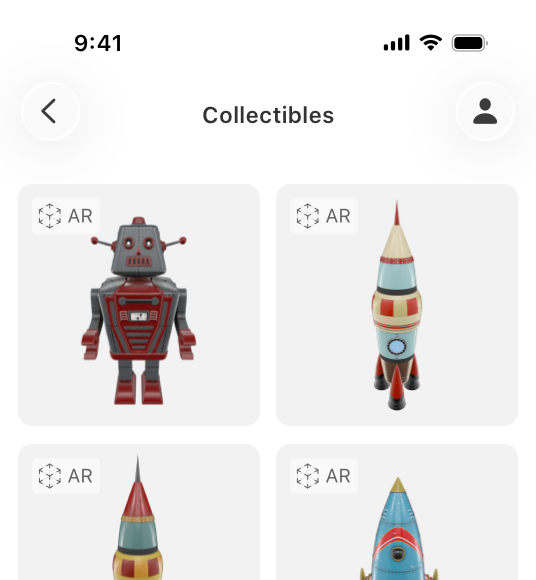

+![An illustration of a partial iPhone screen. On the screen is an app with four gray squares in a grid layout, each containing a picture of a vintage toy: one robot, and three rocket ships. In the upper left corner of each square is the AR badge with the glyph and the text AR.](https://docs-assets.developer.apple.com/published/ebffaa99bc0113cb9c94f8cf5da94ace/augmented-reality-badging%402x.png)
+
+**Use the AR badges as intended and don’t alter them.** You can download AR badges, available in collapsed and expanded form, in [Resources](https://developer.apple.com/design/resources/#ios-apps). Use these images exclusively to identify products or other objects that can be viewed in AR using ARKit. Never alter the badges, change their color, use them for other purposes, or use them in conjunction with AR experiences not created with ARKit.
+
+![The AR badge with both the glyph and the text AR.](https://docs-assets.developer.apple.com/published/65ae0b4baf76d633cb247880b2c4f338/augmented-reality-badge-iconandtext%402x.png)AR badge
+
+![The glyph-only AR badge.](https://docs-assets.developer.apple.com/published/807119fbf8f1c62a35dddde3fdc0a026/augmented-reality-badge-icon%402x.png)Glyph-only AR badge
+
+**Prefer the AR badge to the glyph-only badge.** In general, use the glyph-only badge for constrained spaces that can’t accommodate the AR badge. Both badges work well at their default size.
+
+**Use badging only when your app contains a mixture of objects that can be viewed in AR and objects that cannot.** If all objects in your app can be viewed in AR, then badging is redundant.
+
+**Keep badge placement consistent and clear.** A badge looks best when displayed in one corner of an object’s photo. Always place it in the same corner and make sure it’s large enough to be seen clearly (but not so large that it occludes important detail in the photo).
+
+**Maintain minimum clear space.** The minimum amount of clear space required around an AR badge is 10% of the badge’s height. Don’t allow other elements to infringe on this space and occlude the badge in any way.
+

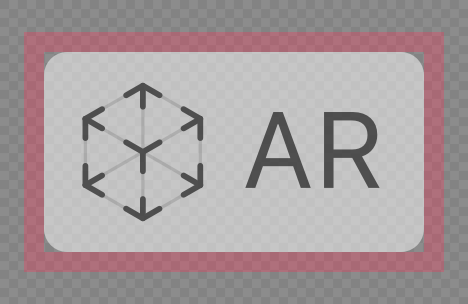

+![An illustration of the AR badge with the AR glyph and text AR. A frame surrounds the badge to indicate leaving clear space around the badge.](https://docs-assets.developer.apple.com/published/ac95fbcb89cd066b471e15c74e0475b4/augmented-reality-badge-iconandtext-clear%402x.png)
+
+![An illustration of the glyph-only AR badge. A frame surrounds the badge to indicate leaving clear space around the badge.](https://docs-assets.developer.apple.com/published/6b63f2ad4df182c7be792b90e56abec7/augmented-reality-badge-icon-clear%402x.png)
+
+## [Platform considerations](https://developer.apple.com/design/human-interface-guidelines/augmented-reality#Platform-considerations)
+
+ _No additional considerations for iOS or iPadOS. Not supported in macOS, tvOS, or watchOS._
+
+### [visionOS](https://developer.apple.com/design/human-interface-guidelines/augmented-reality#visionOS)
+
+With the wearer’s [permission](https://developer.apple.com/design/human-interface-guidelines/privacy#visionOS), you can use ARKit in your visionOS app to detect surfaces in a person’s surroundings, use a person’s hand and finger postions to inform your [custom gestures](https://developer.apple.com/design/human-interface-guidelines/gestures#Designing-custom-gestures-in-visionOS), support interactions that incorporate nearby physical objects into your [immersive experience](https://developer.apple.com/design/human-interface-guidelines/immersive-experiences), and more. For developer guidance, see [ARKit](https://developer.apple.com/documentation/ARKit).
+
+Video with custom controls.
+
+Content description: A recording showing a 3D model of a meteor in visionOS rotating above a physical table.
+
+Play
+
+## [Resources](https://developer.apple.com/design/human-interface-guidelines/augmented-reality#Resources)
+
+#### [Related](https://developer.apple.com/design/human-interface-guidelines/augmented-reality#Related)
+
+[Playing haptics](https://developer.apple.com/design/human-interface-guidelines/playing-haptics)
+
+[Gestures](https://developer.apple.com/design/human-interface-guidelines/gestures)
+
+[Apple Design Resources](https://developer.apple.com/design/resources/#ios-apps)
+
+#### [Developer documentation](https://developer.apple.com/design/human-interface-guidelines/augmented-reality#Developer-documentation)
+
+[ARKit](https://developer.apple.com/documentation/ARKit)
+
+#### [Videos](https://developer.apple.com/design/human-interface-guidelines/augmented-reality#Videos)
+
+[![](https://devimages-cdn.apple.com/wwdc-services/images/124/D9569ADB-FA90-4DB7-9987-A4366BA0E921/6628_wide_250x141_1x.jpg) Qualities of great AR experiences ](https://developer.apple.com/videos/play/wwdc2022/10131)
+
+[![](https://devimages-cdn.apple.com/wwdc-services/images/119/53F3827F-2C69-44D5-9D85-73AF3FF759FD/4965_wide_250x141_1x.jpg) Explore ARKit 5 ](https://developer.apple.com/videos/play/wwdc2021/10073)
+

package/skills/hig-technologies/references/carekit.md

@@ -0,0 +1,224 @@
+---
+title: "CareKit | Apple Developer Documentation"
+source: https://developer.apple.com/design/human-interface-guidelines/carekit
+
+# CareKit
+
+People can use CareKit apps to manage care plans related to a chronic illness like diabetes, recover from an injury or surgery, or achieve health and wellness goals.
+
+![A sketch of the CareKit icon. The image is overlaid with rectangular and circular grid lines and is tinted blue to subtly reflect the blue in the original six-color Apple logo.](https://docs-assets.developer.apple.com/published/ca3abb9c5686138572c9d3649257809f/technologies-CareKit-intro%402x.png)
+
+To learn more about CareKit, see [Research & Care > CareKit](https://www.researchandcare.org/carekit/).
+
+CareKit 2.0 contains two projects, CareKit UI and CareKit Store. CareKit UI provides a wide variety of prebuilt views you can use to create a custom CareKit app. CareKit Store defines a database scheme that incorporates CareKit entities — such as patients, care plans, tasks, and contacts — so you can store and manage data on the patient’s device. CareKit 2.0 provides seamless synchronization between your database and the UI, so you can always keep a care plan up to date. For developer guidance, see [CareKit](https://carekit-apple.github.io/CareKit/documentation/carekit).
+
+## [Data and privacy](https://developer.apple.com/design/human-interface-guidelines/carekit#Data-and-privacy)
+
+Nothing is more important than protecting people’s privacy and safeguarding the extremely sensitive data your CareKit app collects and stores.
+
+**Provide a coherent privacy policy.** During the app submission process, you must provide a URL to a clearly stated privacy policy, so that people can view the policy when they click the link in the App Store page for your app. For developer guidance, see [App information > App Store Connect help](https://help.apple.com/app-store-connect/#/dev219b53a88).
+
+In addition to the data that people enter into your CareKit app, you may be able to access data through iOS features and capabilities. You must receive people’s permission before accessing data through these features, and you must protect people’s data whether people enter it into your app or you get it from the device or the system. For developer guidance, see [Protecting user privacy](https://developer.apple.com/documentation/HealthKit/protecting-user-privacy).
+
+### [HealthKit integration](https://developer.apple.com/design/human-interface-guidelines/carekit#HealthKit-integration)
+
+HealthKit is the central repository for health and fitness data in iOS and watchOS. When you support HealthKit in your CareKit app, you can ask people for permission to access and share their health and fitness data with designated caregivers.
+
+**Request access to health data only when you need it.** It makes sense to request access to weight information when people log their weight, for example, but not immediately after your app launches. When your request is clearly related to the current context, you help people understand your app’s intentions. Also, people can change the permissions they grant, so it’s a good idea to make a request every time your app needs access. For developer guidance, see [`requestAuthorization(toShare:read:completion:)`](https://developer.apple.com/documentation/HealthKit/HKHealthStore/requestAuthorization\(toShare:read:completion:\)).
+
+**Clarify your app’s intent by adding descriptive messages to the standard permission screen.** People expect to see the system-provided permission screen when asked to approve access to health data. Write a few succinct sentences that explain why you need the information and how people can benefit from sharing it with your app. Avoid adding custom screens that replicate the standard permission screen’s behavior or content.
+
+**Manage health data sharing solely through the system’s privacy settings.** People expect to globally manage access to their health information in Settings > Privacy. Don’t confuse people by building additional screens in your app that affect the flow of health data.
+
+For related design guidance, see [HealthKit](https://developer.apple.com/design/human-interface-guidelines/healthkit). For developer guidance, see [HealthKit](https://developer.apple.com/documentation/HealthKit).
+
+### [Motion data](https://developer.apple.com/design/human-interface-guidelines/carekit#Motion-data)
+
+If it’s useful for treatment and if people give permission, your app can get motion information from the device to determine if people are standing still, walking, running, cycling, or driving. When people are walking or running, you can also determine the step count, pace, and number of flights of stairs ascended or descended.
+
+Motion information can also include custom data collected as part of physical therapy. For example, some ResearchKit tasks use device sensors to test flexibility, range of motion, and ambulatory capability.
+
+For developer guidance, see [Core Motion](https://developer.apple.com/documentation/CoreMotion).
+
+### [Photos](https://developer.apple.com/design/human-interface-guidelines/carekit#Photos)
+
+Pictures are a great way to communicate treatment progress. With people’s permission, your app can access the device’s camera and photos to share pictures with a care team. For example, a care plan might include a request for people to share periodic photos of an injury, so the physician can monitor the healing process.
+
+For developer guidance, see [`UIImagePickerController`](https://developer.apple.com/documentation/UIKit/UIImagePickerController).
+
+### [ResearchKit integration](https://developer.apple.com/design/human-interface-guidelines/carekit#ResearchKit-integration)
+
+A ResearchKit app lets people participate in important medical research studies. Your CareKit app can incorporate ResearchKit features to display related surveys, tasks, and charts, if appropriate. ResearchKit also includes an informed consent module, which your CareKit app can use to request people’s permission to collect and share data.
+
+For related design guidance, see [ResearchKit](https://developer.apple.com/design/human-interface-guidelines/researchkit). For developer guidance, see [Research & Care > Developers](https://www.researchandcare.org/developers/).
+
+## [CareKit views](https://developer.apple.com/design/human-interface-guidelines/carekit#CareKit-views)
+
+CareKit UI provides customizable views organized into three categories — tasks, charts, and contacts — and defines several default view styles in each. To design a CareKit app, you simply choose the view styles you need and supply CareKit Store data to display in them.
+
+Each view category is designed to support specific types of content and interaction. To ensure a consistent experience, use each view type for its intended purpose.
+
+Category| Purpose
+---|---
+[Tasks](https://developer.apple.com/design/human-interface-guidelines/carekit#Tasks)| Present tasks, like taking medication or doing physical therapy. Support logging of patient symptoms and other data.

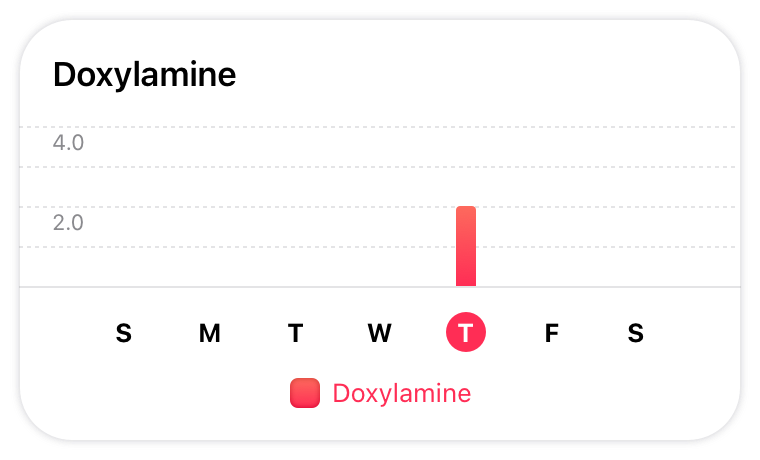

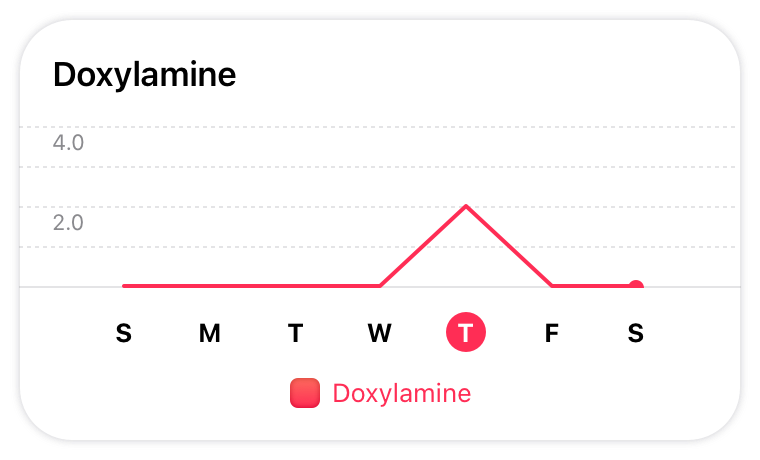

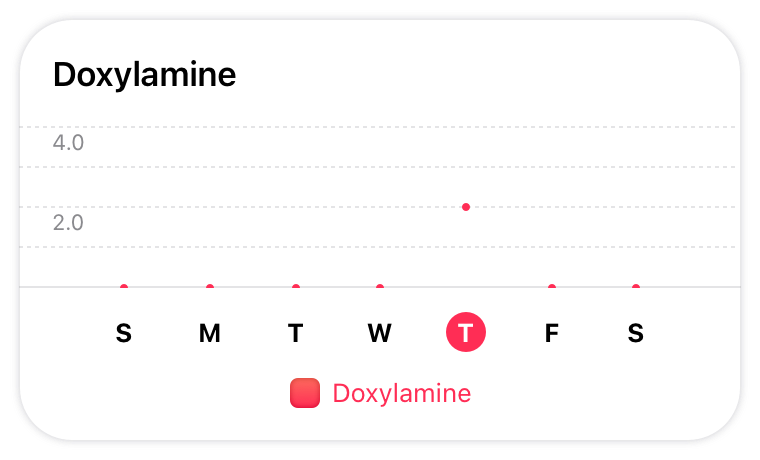

+[Charts](https://developer.apple.com/design/human-interface-guidelines/carekit#Charts)| Display graphical data that can help people understand how their treatment is progressing.

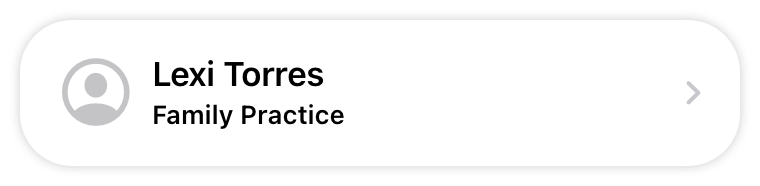

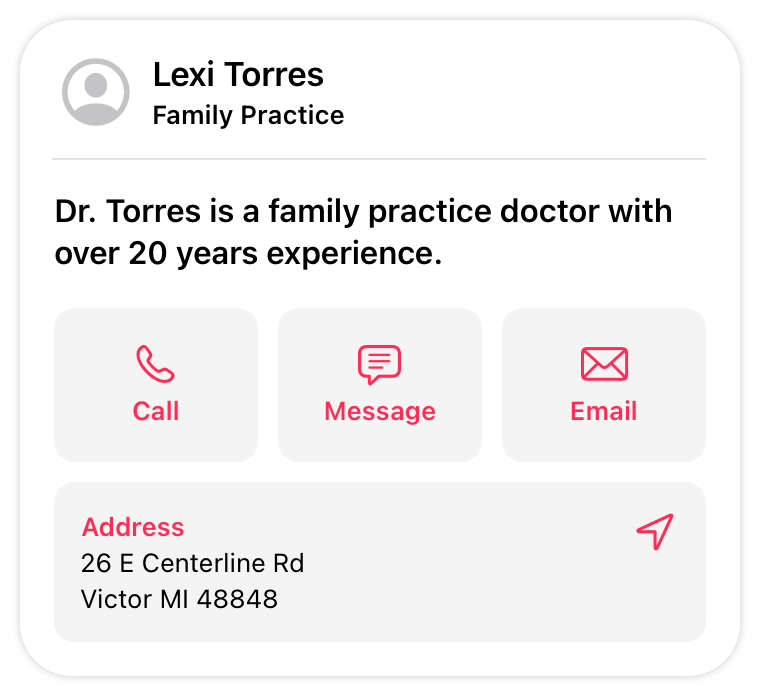

+[Contact views](https://developer.apple.com/design/human-interface-guidelines/carekit#Contact-views)| Display contact information. Support communication through phone, message, and email, and link to a map of the contact’s location.
+

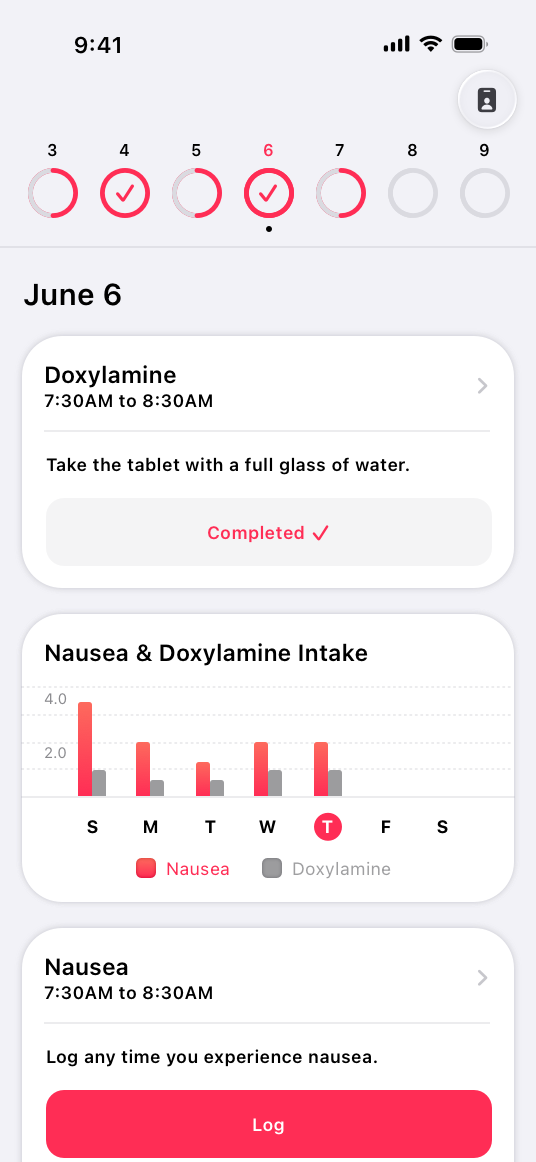

+![A screenshot of a CareKit app screen on iPhone that shows completed and uncompleted days, a medication task, a chart that compares the patient's nausea with their medication intake, and a logging task the patient can use to log each occurrence of nausea.](https://docs-assets.developer.apple.com/published/977d2f1a52a79ab993cf5bc0aa8389ac/carekit-tasks-and-charts%402x.png)
+
+Tasks and charts
+

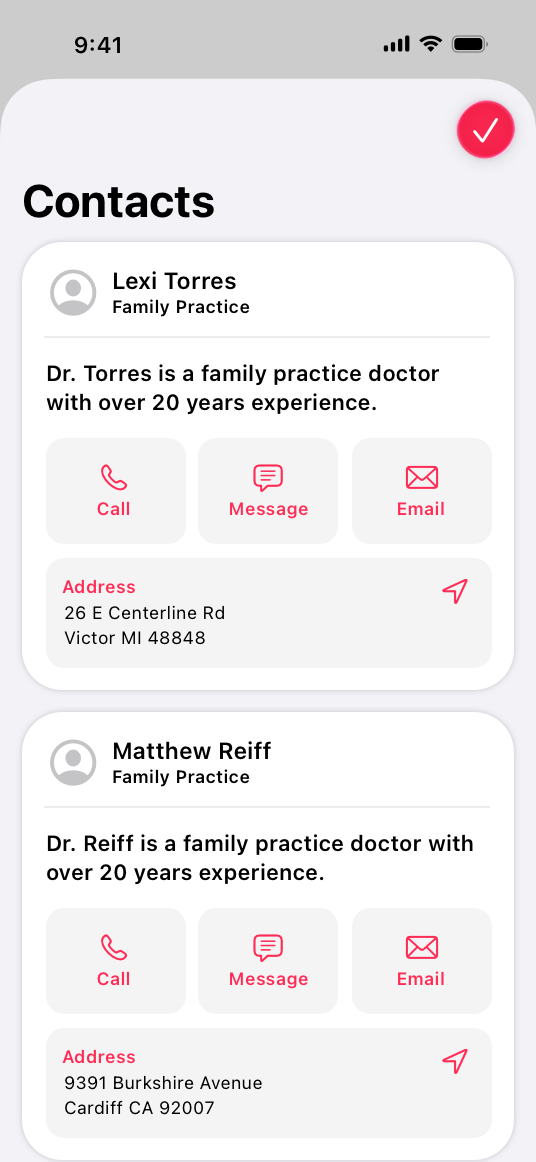

+![A screenshot of a CareKit app screen on iPhone that shows contact information for two doctors, including buttons for phone, message, email, and map directions.](https://docs-assets.developer.apple.com/published/0f6c59a217b3fdb5ca70493daeba877a/carekit-contacts%402x.png)
+
+Contacts
+
+A CareKit UI view consists of a header and may include a stack of content subviews. Located at the top of the view, the header can display text, a symbol, and a disclosure indicator, and can include a separator at its bottom edge. The content stack appears below the header and displays your content subviews in a vertical arrangement.
+

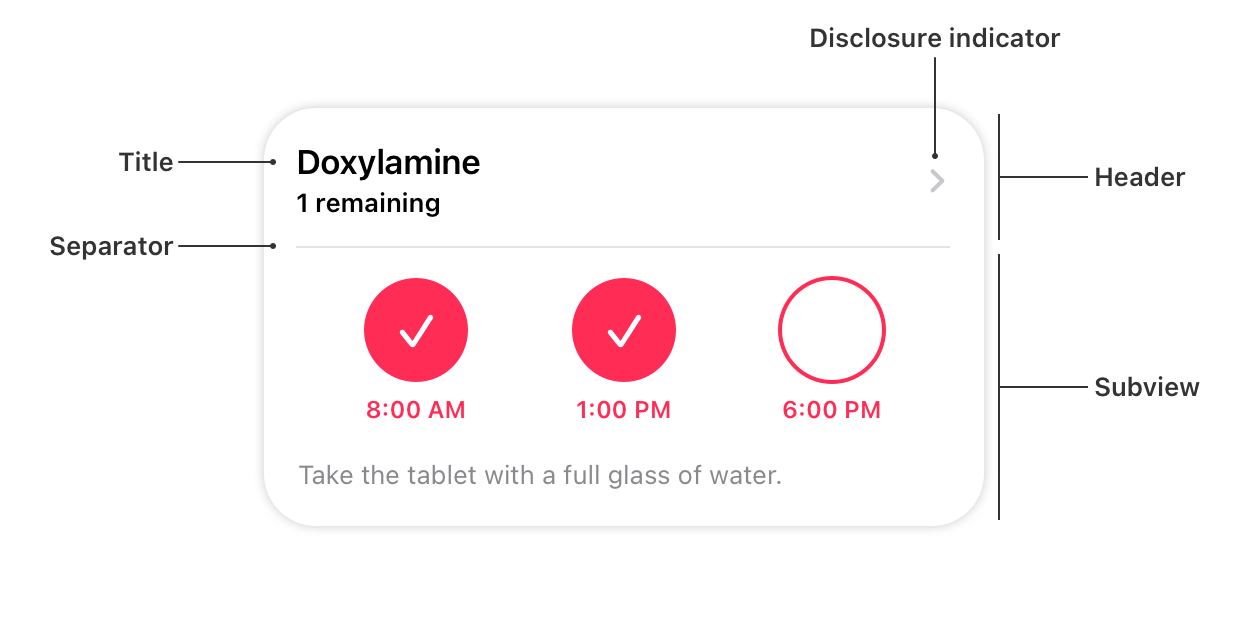

+![An illustration of a CareKit task view. Callouts indicate the header area at the top of the view, which contains the title on the left and an optional disclosure indicator on the right. A subview area below the header includes circular checkmark buttons for marking off medication intake at different times of the day. Additional callouts point to the subview area and the horizontal separator between the header and the subview.](https://docs-assets.developer.apple.com/published/8e48aa29bf75edb650e9b644c2b031f9/carekit-view-components%402x.png)
+
+CareKit UI takes care of all the layout constraints within a view, so you don’t have to worry about breaking existing constraints when you add new subviews to the stack.
+
+### [Tasks](https://developer.apple.com/design/human-interface-guidelines/carekit#Tasks)
+

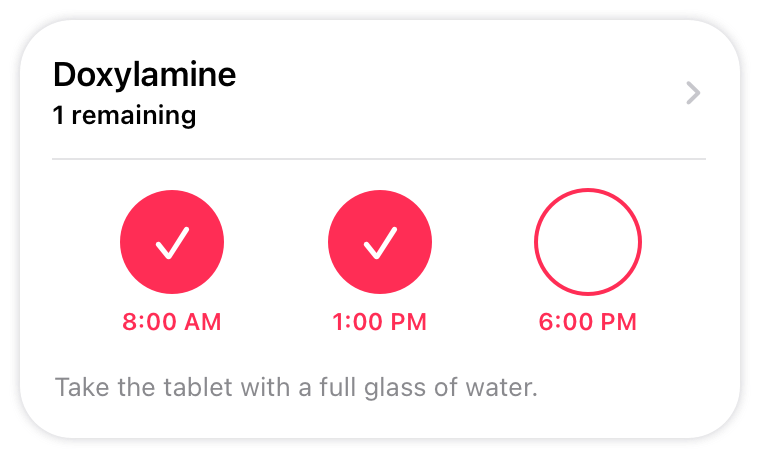

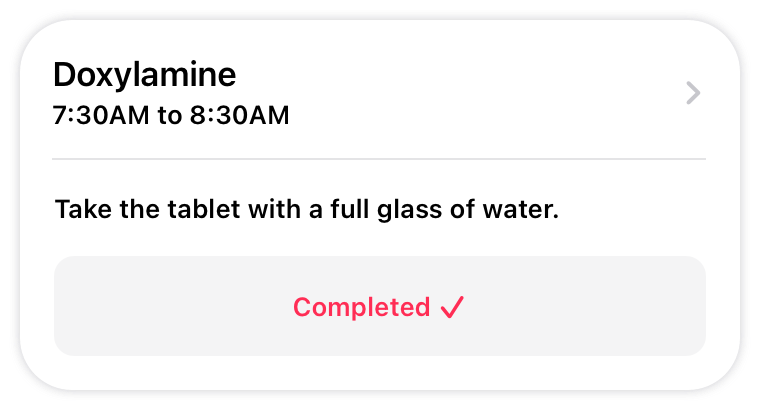

+A care plan generally presents a set of prescribed actions for people to perform, such as taking medication, eating specific foods, exercising, or reporting symptoms. CareKit UI defines several styles of task views you can use to display prescribed actions. Typically, you customize a task view by providing the information to display, often by specifying data stored in an on-device CareKit Store database. In some cases, you might also supply custom UI elements.
+

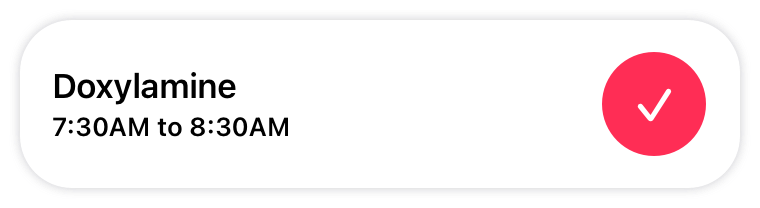

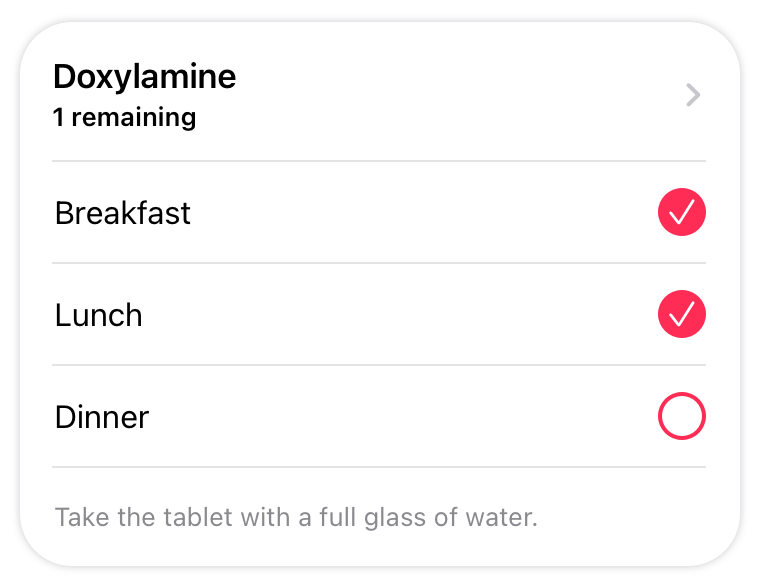

+A task can contain the following types of information.
+
+Information| Required| Description| Example value
+---|---|---|---
+Title| Yes| A word or short phrase that introduces the task.| _Ibuprofen_
+Schedule| Yes| The schedule on which a task must be completed.| _Four times a day_
+Instructions| No| Detailed instructions, recommendations, and warnings.| _Take 1 tablet every 4–6 hours (not to exceed 4 tablets daily)._
+Group ID| No| An identifier you can use to group similar tasks in ways that make sense in your app.| A category identifier like _medication_ or _exercise_.
+
+In CareKit 2.0, CareKit UI defines five styles of task views: simple, instructions, log, checklist, and grid. Each style is designed to support a particular use case.
+
+**Use the simple style for a one-step task.** The default simple-style view consists of a header area that contains a title, subtitle, and button. You provide the title and subtitle, and you can provide a custom image to display in the button when the task is complete. If you don’t supply an image, CareKit shows that a task is complete by filling in the button and displaying a checkmark. Because the default simple-style view doesn’t include a content stack, consider using a different task style if you need to display additional content.
+
+![An illustration of a task for taking a single dose of medicine at a specific time of day. The filled-in circle and checkmark indicate that the task is complete.](https://docs-assets.developer.apple.com/published/a85ed842da7f8c4866c33137ad075e1d/carekit-simple-task%402x.png)
+
+**Use the instructions style when you need to add informative text to a simple task.** For example, if a single-step medication task needs to include additional information — such as “Take on an empty stomach” or “Take at bedtime” — you can use an instructions-style task to display it.
+
+![An illustration of a task for taking a single dose of medicine at a specific time of day. The task includes instructions for how to take the dose. Below the instructions, the task shows the word completed and a checkmark to indicate that the task is complete.](https://docs-assets.developer.apple.com/published/e5b168ae1bdb4df6888510dbced322b6/carekit-instructions-task%402x.png)
+
+**Use the log style to help people log events.** For example, you could use this task style to display a button people can tap whenever they feel nauseated. The log-style task can automatically display a timestamp every time the patient logs an event.
+
+![An illustration of a task for logging incidents of nausea. The task's header area includes a title, a time range, and a disclosure button to display additional details. The subview area includes instructions, a Log button, and a time completed.](https://docs-assets.developer.apple.com/published/b95b554f7b57ae7ccf0d8cd30ff17edb/carekit-log-task%402x.png)
+
+**Use the checklist style to display a list of actions or steps in a multistep task.** For example, if people must take a medication three times per day, you could display the three scheduled times in a checklist. Each checklist item can include a text description and a button that people can tap to mark the item as done. By default, a checklist task can also display instructional text below the list.
+
+![An illustration of a task that directs the patient to take a medicine at breakfast, lunch, and dinner. Filled-in circles containing checkmarks next to breakfast and lunch show that the patient has taken the first two doses.](https://docs-assets.developer.apple.com/published/ab87d6ff81ae4ee55ce96f6ba8442646/carekit-checklist-task%402x.png)
+
+**Use the grid style to display a grid of buttons in a multistep task.** Like the checklist style, the grid style also supports a multistep task, but it displays the steps in a more compact arrangement. You can supply a succinct title for each button (if you need to provide additional description for each button, you might want to use the checklist style instead). By default, a grid-style task can also display instructional text below the grid of buttons. Unlike other task styles, the grid style gives you access to its underlying collection view, which means that you can display custom UI elements in the grid layout.
+
+![An illustration of a task that consists of three circles that represent three doses of a medicine. The first two circles are filled in and contain checkmarks, indicating that the patient has already taken two doses.](https://docs-assets.developer.apple.com/published/9a88f8e5d4239b399b13d5107025304a/carekit-grid-task%402x.png)
+
+**Consider using color to reinforce the meaning of task items.** Color can be a good way to help people understand information at a glance. For example, you could use one color for medications and a different color for physical activities. Always avoid using color as the only way to convey information. For guidance, see [Color](https://developer.apple.com/design/human-interface-guidelines/color).
+
+**Combine accuracy with simplicity when describing a task and its steps.** For example, use a medication’s marketing name instead of its chemical description. Also, when the context of a task helps to clarify meaning, minimize the number of words you use. For example, a daily medication task generally tells people when to take specific medications, so it may be unnecessary to repeat words like _take_.
+
+**Consider supplementing multistep or complex tasks with videos or images.** Visually demonstrating how to perform a task can help people avoid mistakes.
+
+### [Charts](https://developer.apple.com/design/human-interface-guidelines/carekit#Charts)
+
+Chart views let you present data and trends in graphical ways that can help people visualize their progress in a care plan. CareKit chart views can display both current and historical data, and update automatically with new data.
+
+In CareKit 2.0, CareKit UI provides three chart styles: bar, scatter, and line. For each style, you provide a descriptive title and subtitle, supply axis markers — like days of the week — and specify the data set.
+
+![An illustration of a bar chart with days of the week on the x-axis and dosage numbers on the y-axis. The bar on Thursday reaches a value of two on the y-axis, indicating that the medicine was taken twice that day.](https://docs-assets.developer.apple.com/published/a97874787391ab1483b41b1e991874f7/carekit-bar-chart%402x.png)Bar chart
+
+![An illustration of a scatter chart with days of the week on the x-axis and dosage numbers on the y-axis. A dot on Thursday reaches a value of two on the y-axis, indicating that the medicine was taken twice that day.](https://docs-assets.developer.apple.com/published/c858b864bc6bf226d2cf3ce047e23698/carekit-scatter-chart%402x.png)Scatter chart
+
+![An illustration of a line chart with days of the week on the x-axis and dosage numbers on the y-axis. The line is at zero on the y-axis for all days but Thursday, where it reaches a value of two, indicating that the medicine was taken twice that day.](https://docs-assets.developer.apple.com/published/c0d97975de87ccec41d5c82e80b3bab4/carekit-line-chart%402x.png)Line chart
+
+**Consider highlighting narratives and trends to illustrate progress.** For example, your app could display a bar chart that shows a correlation between the number of times people took medication and their level of pain. Displaying such data can encourage better adherence to a care plan.
+
+**Label chart elements clearly and succinctly.** Long, detailed labels can make a chart difficult to read and understand. Keep labels short and avoid repeating the same information. For example, a heart rate chart might use the term _BPM_ in an axis label instead of using it in the label of every data point.
+
+**Use distinct colors.** In general, avoid using different shades of the same color to mean different things. Also ensure that you use colors with sufficient contrast. For related guidance, see [Accessibility](https://developer.apple.com/design/human-interface-guidelines/accessibility).
+
+**Consider providing a legend to add clarity.** If the colors you use to represent different types of data aren’t immediately clear, include a legend that clearly and succinctly describes them.
+
+**Clearly denote units of time.** People need to know whether time-based data is represented in seconds, minutes, hours, days, weeks, months, or years. If you don’t want to include this information in individual data value labels, include it in an axis label or elsewhere on the chart.
+
+**Consolidate large data sets for greater readability.** A large amount of data can make a chart unreadable by reducing the size of individual data points and presenting too much visible information. Look for ways to group and organize data for clarity and simplicity.
+
+**If necessary, offset data to keep charts proportional.** It’s easy for very small data points to get lost or become unreadable in a chart that also contains very large data points. If the difference between data points is significant, find ways to offset or restructure the data so all data points are readable.
+
+For developer guidance, see [CareKit > Chart Interfaces](https://carekit-apple.github.io/CareKit/documentation/carekit/chart-interfaces). To learn about ResearchKit charts, see the [ResearchKit GitHub project](https://github.com/ResearchKit/ResearchKit).
+
+### [Contact views](https://developer.apple.com/design/human-interface-guidelines/carekit#Contact-views)
+
+A care plan typically includes a care team and other trusted individuals who can help patients follow the plan. CareKit UI defines a contact view you can use to help patients communicate with the people in their care plan.
+
+In CareKit 2.0, CareKit UI provides two styles of the contact view: simple and detailed.
+
+![An illustration of a simple contact view that displays a person glyph, followed by a doctor's name and practice type, and a disclosure button to display additional information.](https://docs-assets.developer.apple.com/published/4e1f4b08ca6472985f22dfaebdc82d71/carekit-simple-contact%402x.png)Simple
+
+![An illustration of a detailed contact view that displays a person glyph, followed by a doctor's name and practice type in a header area. In a subview area, the view displays information about the doctor, and buttons for calling, messaging, emailing, and navigating to the doctor's physical address.](https://docs-assets.developer.apple.com/published/8a0dd3b99492a6b0ec10e4c3307d2f94/carekit-detailed-contact%402x.png)Detailed
+
+**Consider using color to categorize care team members.** Color can help people identify care team members at a glance.
+
+## [Notifications](https://developer.apple.com/design/human-interface-guidelines/carekit#Notifications)
+
+Notifications can tell people when it’s time to take medication or complete a task, and badging your app icon can show that there’s an unread message from a caregiver. Apple Watch can also display a notification from your app; for guidance, see [Notifications](https://developer.apple.com/design/human-interface-guidelines/notifications).
+
+**Minimize notifications.** Care plans vary from patient to patient. While one individual may have only a few daily tasks to complete, another may have a long list. Use notifications sparingly so people don’t feel overwhelmed. When possible, consider coalescing multiple items into a single notification.
+
+**Consider providing a detail view.** In addition to providing more information, a notification detail view can help people take immediate action without leaving their current context to open your app. For example, you could use a notification detail view to display a list of pending tasks so that people can quickly mark them as complete.
+
+## [Symbols and branding](https://developer.apple.com/design/human-interface-guidelines/carekit#Symbols-and-branding)
+
+CareKit uses a variety of built-in symbols to help people understand what they can do in a care app. For example, CareKit can display the phone, messaging, and envelope symbols in a contact view and the clock symbol in a log-style task view.
+
+Although you can customize the default symbols, most view styles work best with the CareKit-provided symbols. The exception is the highly customizable grid-style task view, which can display your custom UI in a grid layout.
+
+In a grid view, you might want to display custom symbols that are relevant to the unique content and experience in your app. You could use symbols to indicate the grouping of tasks; for example, a pill to represent medication tasks, or a person walking to represent exercise tasks. In this scenario, consider using [SF Symbols](https://developer.apple.com/design/human-interface-guidelines/sf-symbols) to illustrate custom items in your app.
+
+Using SF Symbols in your app gives you:
+
+  * Designs that coordinate with CareKit’s visual design language
+
+  * Support for creating custom symbols to represent the unique content in your app
+
+
+
+
+**Design a relevant care symbol.** If you need to customize a symbol, be sure the design is closely related to your app or the general concept of health and wellness. Avoid creating a purely decorative symbol or using a corporate logo as a custom symbol.
+
+**Incorporate refined, unobtrusive branding.** People use CareKit apps to help them achieve their health and wellness goals; they don’t want to see advertising. To avoid distracting people from their care plan, subtly incorporate your brand through your app’s use of color and communication style.
+
+## [Platform considerations](https://developer.apple.com/design/human-interface-guidelines/carekit#Platform-considerations)
+
+ _No additional considerations for iOS or iPadOS. Not supported in macOS, tvOS, visionOS, or watchOS._
+
+## [Resources](https://developer.apple.com/design/human-interface-guidelines/carekit#Resources)
+
+#### [Related](https://developer.apple.com/design/human-interface-guidelines/carekit#Related)
+
+[Research & Care > CareKit](https://www.researchandcare.org/carekit/)
+
+#### [Developer documentation](https://developer.apple.com/design/human-interface-guidelines/carekit#Developer-documentation)
+
+[CareKit](https://carekit-apple.github.io/CareKit/documentation/carekit)
+
+[Research & Care > Developers](https://www.researchandcare.org/developers/)
+
+[Protecting user privacy](https://developer.apple.com/documentation/HealthKit/protecting-user-privacy) — HealthKit
+
+[HealthKit](https://developer.apple.com/documentation/HealthKit)
+
+[ResearchKit GitHub project](https://github.com/ResearchKit/ResearchKit)
+
+#### [Videos](https://developer.apple.com/design/human-interface-guidelines/carekit#Videos)
+
+[![](https://devimages-cdn.apple.com/wwdc-services/images/49/196C46B0-DF68-4947-B211-4FEECE415A6E/3408_wide_250x141_1x.jpg) What's new in CareKit ](https://developer.apple.com/videos/play/wwdc2020/10151)
+
+[![](https://devimages-cdn.apple.com/wwdc-services/images/119/EAFF830B-8468-49BA-A5DC-D3A3E8B7F463/4960_wide_250x141_1x.jpg) Build a research and care app, part 1: Setup onboarding ](https://developer.apple.com/videos/play/wwdc2021/10068)
+
+## [Change log](https://developer.apple.com/design/human-interface-guidelines/carekit#Change-log)
+
+Date| Changes
+---|---
+May 2, 2023| Consolidated guidance into one page.
+
