+title: "Pointing devices | Apple Developer Documentation"
+source: https://developer.apple.com/design/human-interface-guidelines/pointing-devices
+
+# Pointing devices
+
+People can use a pointing device like a trackpad or mouse to navigate the interface and initiate actions.
+
+![A sketch of an arrow-shaped pointer, suggesting use of a mouse or trackpad. The image is overlaid with rectangular and circular grid lines and is tinted purple to subtly reflect the purple in the original six-color Apple logo.](https://docs-assets.developer.apple.com/published/d62ce652f0470403da6dfbad1b1ad2b0/inputs-pointing-devices-intro%402x.png)
+
+People appreciate the precision and flexibility that pointing devices offer. On a Mac, people typically expect to combine a pointing device with a keyboard as they navigate apps and the system. On iPad and Apple Vision Pro, a pointing device gives people an additional way to interact with apps and content, without replacing touch, eyes, or gestures.
+
+## [Best practices](https://developer.apple.com/design/human-interface-guidelines/pointing-devices#Best-practices)
+
+**Be consistent when responding to mouse and trackpad gestures.** People expect most gestures to work the same throughout the system, regardless of the app or game they’re using. On a Mac, for example, people rely on the “Swipe between pages” gesture to behave the same way whether they’re browsing individual document pages, webpages, or images.
+
+**Avoid redefining systemwide trackpad gestures.** Even in a game that uses app-specific gestures in a custom way, people expect systemwide gestures to be available; for example, people expect to make familiar gestures to reveal the Dock or Mission Control in macOS. Remember that Mac users can customize the gestures for performing systemwide actions.
+
+**Provide a consistent experience in your app, whether people are using gestures, eyes, a pointing device, or a keyboard.** People expect to move fluidly between multiple types of input, and they don’t want to learn different interactions for each mode or for each app they use.
+
+**Let people use the pointer to reveal and hide controls that automatically minimize or fade out.** In iPadOS, for example, people can reveal the minimized Safari toolbar by holding the pointer over it (the toolbar minimizes again when the pointer moves away). People can also move the pointer to reveal or hide playback controls while they watch a full-screen video.
+
+**Provide a consistent experience when people press and hold a modifier key while interacting with objects in your app.** For example, if people can duplicate an object by pressing and holding the Option key while they drag that object, ensure the result is the same whether they drag using touch or the pointer.
+
+## [Platform considerations](https://developer.apple.com/design/human-interface-guidelines/pointing-devices#Platform-considerations)
+
+ _No additional considerations for iOS. Not supported in tvOS or watchOS._
+
+### [iPadOS](https://developer.apple.com/design/human-interface-guidelines/pointing-devices#iPadOS)
+
+iPadOS builds on the traditional pointer experience, automatically adapting the pointer to the current context and providing rich visual feedback at a level of precision that enhances productivity and simplifies common tasks on a touchscreen device. The iPadOS pointing system gives people an additional way to interact with apps and content — it doesn’t replace touch.
+
+**Allow multiple selection in custom views when necessary.** In iPadOS 15 and later, people can click and drag the pointer over multiple items to select them. As people use the pointer in this way, it expands into a visible rectangle that selects the items it encompasses. Standard nonlist collection views support this interaction by default; if you want to support multiple selection in custom views, you need to implement it yourself. For developer guidance, see [`UIBandSelectionInteraction`](https://developer.apple.com/documentation/UIKit/UIBandSelectionInteraction).
+
+**Distinguish between pointer and finger input only if it provides value.** For example, a scrubber can give people an additional way to target a location in a video when they’re using the pointer. In this scenario, people can drag the playhead using either the pointer or touch, but they can use the pointer to click a precise seek destination.
+
+#### [Pointer shape and content effects](https://developer.apple.com/design/human-interface-guidelines/pointing-devices#Pointer-shape-and-content-effects)
+
+iPadOS integrates the appearance and behavior of both the pointer and the element it moves over, bringing focus to the item the pointer is targeting. You can support the system-provided pointer effects or modify them to suit your experience.
+
+By default, the pointer’s shape is a circle, but it can display a system-defined or custom shape when people move it over specific elements or regions. For example, the pointer automatically uses the familiar I-beam shape when people move it over a text-entry area.
+
+Video with custom controls.
+
+Content description: A video snippet showing the bottom half of a new event popover in Calendar. At the beginning of the video, the pointer is within the URL field and it uses the I-beam shape. As the pointer moves between the URL and Notes fields, it briefly reverts to its default circular shape; when the pointer enters the Notes field, it uses the I-beam shape again.
+
+Play
+
+With a _content effect_ , the UI element or region beneath the pointer can also change its appearance when people hold the pointer over it. Depending on the type of content effect, the pointer can retain its current shape or transform into a shape that integrates with the element’s new appearance.
+
+iPadOS defines three content effects that bring focus to different types of interactive elements in your app: highlight, lift, and hover.
+
+The _highlight_ effect transforms the pointer into a translucent, rounded rectangle that acts as a background for a control and includes a gentle parallax. The subtle highlighting and movement bring focus to the control without distracting people from their task. By default, iPadOS applies the highlight effect to bar buttons, tab bars, segmented controls, and edit menus.
+
+Video with custom controls.
+
+Content description: A video snippet showing a small area at the bottom of a Photos window. Nature photos that show purple flowers, rocks in a stream, and grass are visible just above the tab bar, which shows the Photos and For You tabs. At the beginning of the video, the Photos tab is highlighted. Because bar items receive the highlight effect, the pointer becomes the highlighted rounded rectangle that surrounds the tab’s glyph and title. The highlighted rounded rectangle slides from one tab to the other as the pointer moves.
+
+Play
+
+The _lift_ effect combines a subtle parallax with the appearance of elevation to make an element seem like it’s floating above the screen. As the pointer fades out beneath the element, iPadOS creates the illusion of lift by scaling the element up while adding a shadow below it and a soft specular highlight on top of it. By default, iPadOS applies the lift effect to app icons and to buttons in Control Center.
+
+Video with custom controls.
+
+Content description: A video snippet showing the left end of the Dock in front of the Home Screen. From the left, the visible app icons are Messages, Safari, Music, Mail, and Files. As the pointer moves across the first three icons from the left, it disappears beneath each icon in turn, lifting it slightly and letting it return to its original position before moving to the next icon.
+
+Play
+
+_Hover_ is a generic effect that lets you apply custom scale, tint, or shadow values to an element as the pointer moves over it. The hover effect combines your custom values to bring focus to an item, but it doesn’t transform the default pointer shape.
+
+Video with custom controls.
+
+Content description: A video snippet showing an alert floating above the top half of a new event popover in Calendar. The alert contains text that reads Are you sure you want to discard this new event? and a button titled Discard Changes. As the pointer moves into the alert button, the button background darkens.
+
+Play
+
+#### [Pointer accessories](https://developer.apple.com/design/human-interface-guidelines/pointing-devices#Pointer-accessories)
+
+Pointer accessories are visual indicators that help people understand how they can use the pointer to interact with the current UI element. For example, a pointer approaching a resizable element might display small arrows to indicate that the element allows resizing along a certain axis.
+
+Unlike pointer shapes and content effects, accessories are secondary items that can combine with any pointer to communicate additional information. For developer guidance, see [`UIPointerAccessory`](https://developer.apple.com/documentation/UIKit/UIPointerAccessory).
+
+**Use clear, simple images to create custom accessories.** A pointer accessory is small, so it’s essential to create an image that communicates the pointer interaction without using too many details.
+
+**Consider using the accessory transition to signal a change in an element’s state or behavior.** In addition to animating the appearance and disappearance of pointer accessories, the system also animates the transitions among accessory shapes and positions that can accompany content effects. For example, you could communicate that an add action has become unavailable by transitioning the pointer accessory from the `plus` symbol to the `circle.slash` symbol.
+
+#### [Pointer magnetism](https://developer.apple.com/design/human-interface-guidelines/pointing-devices#Pointer-magnetism)
+
+iPadOS helps people use the pointer to target an element by making the element appear to attract the pointer. People can experience this magnetic effect when they move the pointer close to an element and when they flick the pointer toward an element.
+
+When people move the pointer close to an element, the system starts transforming the pointer’s shape as soon as it reaches the element’s hit region. Because an element’s hit region typically extends beyond its visible boundaries, the pointer begins to transform before it appears to touch the element itself, creating the illusion that the element is pulling the pointer toward it.
+
+Video with custom controls.
+
+Content description: A video snippet showing an area at the bottom of Clock. The World Clock tab is selected and clock images and information for San Francisco, New York, and London are partially visible in the window. As the pointer moves in the tab bar, its highlighted rounded rectangle appearance seems to show a slight resistance as it slides from the World Clock tab to the Alarm tab and back again.
+
+Play
+
+When people flick the pointer toward an element, iPadOS examines the pointer’s trajectory to discover the element that’s the most likely target. When there’s an element in the pointer’s path, the system uses magnetism to pull the pointer toward the element’s center.
+
+By default, iPadOS applies magnetism to elements that use the lift effect (like app icons) and the highlight effect (like bar buttons), but not to elements that use hover. Because an element that supports hover doesn’t transform the default pointer shape, adding magnetism could be jarring and might make people feel that they’ve lost control of the pointer.
+
+The system also applies magnetism to text-entry areas, where it can help people avoid skipping to another line if they make unintended vertical movements while they’re selecting text.
+
+#### [Standard pointers and effects](https://developer.apple.com/design/human-interface-guidelines/pointing-devices#Standard-pointers-and-effects)
+
+**When possible, support the system-provided content effects.** People quickly become accustomed to the content effects they see throughout the system and generally expect their experience to apply to every app they use. To provide a consistent user experience, align your interactions with the design intent of each effect. Specifically:
+
+  * Use highlight for a small element that has a transparent background.
+
+  * Use lift for a small element that has an opaque background.
+
+  * Use hover for large elements and customize the scale, tint, and shadow attributes as needed (for guidance, see [Customizing pointers](https://developer.apple.com/design/human-interface-guidelines/pointing-devices#Customizing-pointers)).
+
+
+
+
+**Prefer the system-provided pointer appearances for standard buttons and text-entry areas.** You can help people feel more comfortable with your app when the pointer behaves in ways they expect.
+
+**Add padding around interactive elements to create comfortable hit regions.** You might need to experiment to determine the right size for an element’s hit region. If the hit region is too small, it can make people feel that they have to be extra precise when interacting with the element. On the other hand, when an element’s hit region is too large, people can feel that it takes a lot of effort to pull the pointer away from the element. In general, it works well to add about 12 points of padding around elements that include a bezel; for elements without a bezel, it works well to add about 24 points of padding around the element’s visible edges.
+
+![An illustration of a button that has a filled, rounded-rectangle bezel. The button is centered on top of a shaded rectangle that extends beyond the button by the same distance on all sides. Centered on each side, a callout indicates that the padding between the button and each edge of the shaded rectangle is 12 points.](https://docs-assets.developer.apple.com/published/3993cfe0b8ec1f79e7c27496d92b240e/padding-for-button-with-bezel%402x.png)
+
+![An illustration of a symbol centered on top of a shaded rectangle that extends beyond the symbol by the same distance on all sides. Centered on each side, a callout indicates that the padding between the symbol and each edge of the shaded rectangle is 24 points.](https://docs-assets.developer.apple.com/published/58bee8289c0508cc5b9e83f030925cb6/padding-for-glyph%402x.png)
+
+![An illustration of a button without a bezel, centered on top of a shaded rectangle that extends beyond the button by the same distance on all sides. Centered on each side, a callout indicates that the padding between the button and each edge of the shaded rectangle is 24 points.](https://docs-assets.developer.apple.com/published/5a79ca3d0a9d4bbd3bf71c23bf8c5da3/padding-for-button-without-bezel%402x.png)
+
+**Create contiguous hit regions for custom bar buttons.** If there’s space between the hit regions of adjacent buttons in a bar, people may experience a distracting motion when the pointer reverts briefly to its default shape as it moves between buttons.
+
+**Specify the corner radius of a nonstandard element that receives the lift effect.** With the system-provided lift effect, the pointer transforms to match the element’s shape as it fades out. By default, the pointer uses the system-defined corner radius to transform into a rounded rectangle. If your element is a different shape — if it’s a circle, for example — you need to provide the radius so the pointer can animate seamlessly into the shape of the element. For developer guidance, see [`UIPointerShape.roundedRect(_:radius:)`](https://developer.apple.com/documentation/UIKit/UIPointerShape-swift.enum/roundedRect\(_:radius:\)).
+
+#### [Customizing pointers](https://developer.apple.com/design/human-interface-guidelines/pointing-devices#Customizing-pointers)
+
+**Prefer system-provided pointer effects for custom elements that behave like standard elements.** When a custom element behaves like a standard one, people generally expect to interact with it using familiar pointer interactions. For example, if buttons in a custom toolbar don’t use the standard highlight effect, people might think they’re broken.
+
+**Use pointer effects in consistent ways throughout your app.** For example, if your app helps people draw, provide a similar pointer experience for every drawing area in your app so that people can apply the knowledge they gain in one area to the others.
+
+**Avoid creating gratuitous pointer and content effects.** People notice when the appearance of the pointer or the UI element beneath it changes, and they expect the changes to be useful. Creating a purely decorative pointer effect can distract and even irritate people without providing any practical value.
+
+**Keep custom pointer shapes simple.** Ideally, the pointer’s shape signals the action people can take in the current context without drawing too much attention to itself. If people don’t instantly understand your custom pointer shape, they’re likely to waste time trying to discover what the shape means.
+
+**Consider enhancing the pointer experience by displaying custom annotations that provide useful information.** For example, you could display X and Y values when people hold the pointer over a graphing area in your app. Keynote uses annotations to display the current width and height of a resizable image.
+

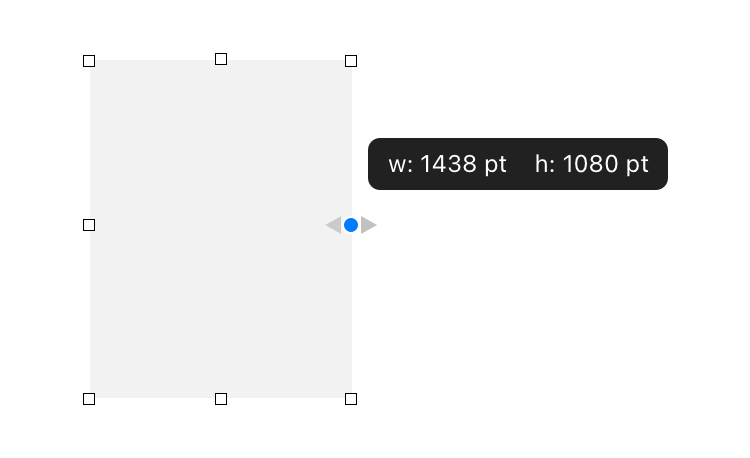

+![An illustration of a custom pointer hovering over a resize handle on the edge of a shaded rectangle. Above the pointer is a small annotation that displays the image’s width and height values against a dark background.](https://docs-assets.developer.apple.com/published/291aebad59eee8712e94047fcca4e7cf/useful-pointer-annotation%402x.png)
+
+**Avoid displaying instructional text with a pointer.** A pointer that displays instructional text can make an app seem complicated and difficult to use. Instead of providing instructions, prioritize clarity and simplicity in your interface, so that people can quickly grasp how to use your app whether they’re using the pointer or touching the screen.
+
+**Consider the interplay of shadow, scale, and element spacing when defining custom hover effects.** In general, reserve scaling for elements that can increase in size without crowding nearby elements. For example, scaling doesn’t work well for a table row because a row can’t expand without overlapping adjacent rows. For an element that has little space around it, consider using a hover effect that includes tint, but not scale and shadow. Note that it doesn’t work well to use shadow without including scale, because an unscaled element doesn’t appear to get closer to the viewer even when its shadow implies that it’s elevated above the screen.
+
+### [macOS](https://developer.apple.com/design/human-interface-guidelines/pointing-devices#macOS)
+
+macOS supports a wide range of standard mouse and trackpad interactions that people can customize. For example, when a click or gesture isn’t a primary way to interact with content, people can often turn it on or off based on their current workflow. People can also choose specific regions of a mouse or trackpad to invoke secondary clicks, and select specific finger combinations and movements for certain gestures.
+
+Click or gesture| Expected behavior| Mouse| Trackpad
+---|---|---|---
+Primary click| Select or activate an item, such as a file or button.| ●| ●
+Secondary click| Reveal contextual menus.| ●| ●
+Scrolling| Move content up, down, left, or right within a view.| ●| ●
+Smart zoom| Zoom in or out on content, such as a web page or PDF.| ●| ●
+Swipe between pages| Navigate forward or backward between individually displayed pages.| ●| ●
+Swipe between full-screen apps| Navigate forward or backward between full-screen apps and spaces.| ●| ●
+Mission Control (double-tap the mouse with two fingers or swipe up on the trackpad with three or four fingers)| Activate Mission Control.| ●| ●
+Lookup and data detectors (force click with one finger or tap with three fingers)| Display a lookup window above selected content.| | ●
+Tap to click| Perform the primary click action using a tap rather than a click.| | ●
+Force click| Click then press firmly to display a Quick Look window or lookup window above selected content. Apply a variable amount of pressure to affect pressure-sensitive controls, such as variable speed media controls.| | ●
+Zoom in or out (pinch with two fingers)| Zoom in or out.| | ●
+Rotate (move two fingers in a circular motion)| Rotate content, such as an image.| | ●
+Notification Center (swipe from the edge of the trackpad)| Display Notification Center.| | ●
+App Exposé (swipe down with three or four fingers)| Display the current app’s windows in Exposé.| | ●
+Launchpad (pinch with thumb and three fingers)| Display the Launchpad.| | ●
+Show Desktop (spread with thumb and three fingers)| Slide all windows out of the way to reveal the desktop.| | ●
+
+#### [Pointers](https://developer.apple.com/design/human-interface-guidelines/pointing-devices#Pointers)
+
+macOS offers a variety of standard pointer styles, which your app can use to communicate the interactive state of an interface element or the result of a drag operation.
+
+Pointer| Name| Meaning| AppKit API
+---|---|---|---
+![A pointer that resembles a diagonal arrow pointing up and to the left.](https://docs-assets.developer.apple.com/published/5be2c381c17d5d868866b3a5de1013f8/pointers-arrow%402x.png)| Arrow| Standard pointer for selecting and interacting with content and interface elements.| [`arrow`](https://developer.apple.com/documentation/AppKit/NSCursor/arrow)
+![A closed, gloved hand.](https://docs-assets.developer.apple.com/published/6680cdb870edf5364f84a483fd2bead9/pointers-closed-hand%402x.png)| Closed hand| Dragging to reposition the display of content within a view—for example, dragging a map around in Maps.| [`closedHand`](https://developer.apple.com/documentation/AppKit/NSCursor/closedHand)
+![A pointer arrow with a small menu-like square to the right of the arrow.](https://docs-assets.developer.apple.com/published/0cb033cee3b55bd4be661b28b928fdc1/pointers-contextual-menu%402x.png)| Contextual menu| A contextual menu is available for the content below the pointer. This pointer is generally shown only when the Control key is pressed.| [`contextualMenu`](https://developer.apple.com/documentation/AppKit/NSCursor/contextualMenu)
+![A plus symbol.](https://docs-assets.developer.apple.com/published/d55eabe14365af873000aa389e5fad6c/pointers-crosshair%402x.png)| Crosshair| Precise rectangular selection is possible, such as when viewing an image in Preview.| [`crosshair`](https://developer.apple.com/documentation/AppKit/NSCursor/crosshair)
+![A small pointer arrowhead with a circle underneath; the circle contains an Ex.](https://docs-assets.developer.apple.com/published/528819d511869de26beb1fd5008ac773/pointers-disappearing-item%402x.png)| Disappearing item| A dragged item will disappear when dropped. If the item references an original item, the original is unaffected. For example, when dragging a mailbox out of the favorites bar in Mail, the original mailbox isn’t removed.| [`disappearingItem`](https://developer.apple.com/documentation/AppKit/NSCursor/disappearingItem)
+![A small pointer arrowhead with a circle underneath; the circle contains a plus symbol.](https://docs-assets.developer.apple.com/published/ccc7052f9bc6fb302d913633c648adcd/pointers-drag-copy%402x.png)| Drag copy| Duplicates a dragged—not moved—item when dropped into the destination. Appears when pressing the Option key during a drag operation.| [`dragCopy`](https://developer.apple.com/documentation/AppKit/NSCursor/dragCopy)
+![A curved arrow, pointing up and to the right.](https://docs-assets.developer.apple.com/published/47dfbfd5f1bf3141dbf875f47446d1fd/pointers-drag-link%402x.png)| Drag link| During a drag and drop operation, creates an alias of the selected file when dropped. The alias points to the original file, which remains unmoved. Appears when pressing the Option and Command keys during a drag operation.| [`dragLink`](https://developer.apple.com/documentation/AppKit/NSCursor/dragLink)
+![Opposing veritcal braces, used to form an insertion marker.](https://docs-assets.developer.apple.com/published/060f443dee8d260a1a1191d7831e36b7/pointers-horizontal-beam%402x.png)| Horizontal I beam| Selection and insertion of text is possible in a horizontal layout, such as a TextEdit or Pages document.| [`iBeam`](https://developer.apple.com/documentation/AppKit/NSCursor/iBeam)
+![An open, gloved hand.](https://docs-assets.developer.apple.com/published/a5daee642ccc8fb3ac550d176b2d1932/pointers-open-hand%402x.png)| Open hand| Dragging to reposition content within a view is possible.| [`openHand`](https://developer.apple.com/documentation/AppKit/NSCursor/openHand)
+![A small pointer arrowhead with a do not enter symbol underneath.](https://docs-assets.developer.apple.com/published/2daaf47bef26569f92f30a9016095dde/pointers-operation-not-allowed%402x.png)| Operation not allowed| A dragged item can’t be dropped in the current location.| [`operationNotAllowed`](https://developer.apple.com/documentation/AppKit/NSCursor/operationNotAllowed)
+![A gloved hand, with the index finger extended.](https://docs-assets.developer.apple.com/published/25193808b5e72d5983ff26764889718a/pointers-pointing-hand%402x.png)| Pointing hand| The content beneath the pointer is a URL link to a webpage, document, or other item.| [`pointingHand`](https://developer.apple.com/documentation/AppKit/NSCursor/pointingHand)
+![A horizontal bar with a downward-pointing arrow at its midpoint.](https://docs-assets.developer.apple.com/published/328443ed3b5dd85c84de91a60ed30b43/pointers-resize-down%402x.png)| Resize down| Resize or move a window, view, or element downward.| [`resizeDown`](https://developer.apple.com/documentation/AppKit/NSCursor/resizeDown)
+![A vertical bar with a left-pointing arrow at its midpoint.](https://docs-assets.developer.apple.com/published/34113d73f24c003f4b3715e0cef8fbf6/pointers-resize-left%402x.png)| Resize left| Resize or move a window, view, or element to the left.| [`resizeLeft`](https://developer.apple.com/documentation/AppKit/NSCursor/resizeLeft)
+![A vertical bar with left- and right-pointing arrows extending from its midpoint.](https://docs-assets.developer.apple.com/published/478726bb1a630013de1f77b3bccde9e0/pointers-resize-left-right%402x.png)| Resize left/right| Resize or move a window, view, or element to the left or right.| [`resizeLeftRight`](https://developer.apple.com/documentation/AppKit/NSCursor/resizeLeftRight)
+![A vertical bar with a right-pointing arrow at its midpoint.](https://docs-assets.developer.apple.com/published/6045fce093cc242bf438393155b77992/pointers-resize-right%402x.png)| Resize right| Resize or move a window, view, or element to the right.| [`resizeRight`](https://developer.apple.com/documentation/AppKit/NSCursor/resizeRight)
+![A horizontal bar with an up-pointing arrow at its midpoint.](https://docs-assets.developer.apple.com/published/34576a4ab42dea114abf11b3ee57a4f8/pointers-resize-up%402x.png)| Resize up| Resize or move a window, view, or element upward.| [`resizeUp`](https://developer.apple.com/documentation/AppKit/NSCursor/resizeUp)
+![A horizontal bar with up- and down-pointing arrows extending from its midpoint.](https://docs-assets.developer.apple.com/published/d55d0d01c955105a957231266affb447/pointers-resize-up-down%402x.png)| Resize up/down| Resize or move a window, view, or element upward or downward.| [`resizeUpDown`](https://developer.apple.com/documentation/AppKit/NSCursor/resizeUpDown)
+![Opposing horizontal braces, used to form an insertion marker.](https://docs-assets.developer.apple.com/published/15923a8cac833b5bb1fd69b4a395c4a9/pointers-vertical-beam%402x.png)| Vertical I beam| Selection and insertion of text is possible in a vertical layout.| [`iBeamCursorForVerticalLayout`](https://developer.apple.com/documentation/AppKit/NSCursor/iBeamCursorForVerticalLayout)
+
+### [visionOS](https://developer.apple.com/design/human-interface-guidelines/pointing-devices#visionOS)
+
+In visionOS, people can attach an external pointing device or keyboard, and use both devices while they continue to use their eyes and hands. If people look at an element and then move the pointer, the system brings focus to the element under the pointer. Your app doesn’t have to do anything to support this behavior.
+
+When a pointing device is attached, the area people are looking at determines the pointer’s context. For example, when people shift their eyes from one window to another, the pointer’s context seamlessly transitions to the new window.
+
+Video with custom controls.
+
+Content description: A recording that shows a pointer moving around, highlighting items, and scrolling content within a Safari window in visionOS. A picture-in-picture window is visible in the bottom left corner of the recording. It shows a person's hand operating a trackpad next to a keyboard outside the field of view. The person's gestures on the trackpad correspond to the pointer movements.
+
+Play
+
+When people use an attached pointing device that supports gestures, like a trackpad or mouse, the pointer hides while people are gesturing, minimizing visual distraction. In this scenario, the pointer remains hidden until people move it, when it reappears in the location they’re looking at.
+
+## [Resources](https://developer.apple.com/design/human-interface-guidelines/pointing-devices#Resources)
+
+#### [Related](https://developer.apple.com/design/human-interface-guidelines/pointing-devices#Related)
+
+[Entering data](https://developer.apple.com/design/human-interface-guidelines/entering-data)
+
+[Keyboards](https://developer.apple.com/design/human-interface-guidelines/keyboards)
+
+#### [Developer documentation](https://developer.apple.com/design/human-interface-guidelines/pointing-devices#Developer-documentation)
+
+[Input events](https://developer.apple.com/documentation/SwiftUI/Input-events) — SwiftUI
+
+[Pointer interactions](https://developer.apple.com/documentation/UIKit/pointer-interactions) — UIKit
+
+[Mouse, Keyboard, and Trackpad](https://developer.apple.com/documentation/AppKit/mouse-keyboard-and-trackpad) — AppKit
+
+#### [Videos](https://developer.apple.com/design/human-interface-guidelines/pointing-devices#Videos)
+
+[![](https://devimages-cdn.apple.com/wwdc-services/images/49/F9A980A7-B00A-4856-9172-FDB610A419E5/3509_wide_250x141_1x.jpg) Design for the iPadOS pointer ](https://developer.apple.com/videos/play/wwdc2020/10640)
+
+## [Change log](https://developer.apple.com/design/human-interface-guidelines/pointing-devices#Change-log)
+
+Date| Changes
+---|---
+June 21, 2023| Updated to include guidance for visionOS.
+

package/skills/hig-inputs/references/remotes.md

@@ -0,0 +1,67 @@
+---
+title: "Remotes | Apple Developer Documentation"
+source: https://developer.apple.com/design/human-interface-guidelines/remotes
+
+# Remotes
+
+The Siri Remote is the primary input method for Apple TV, helping people feel connected to onscreen content from across the room.
+
+![A sketch of an Apple TV remote, suggesting interaction with onscreen content. The image is overlaid with rectangular and circular grid lines and is tinted purple to subtly reflect the purple in the original six-color Apple logo.](https://docs-assets.developer.apple.com/published/04cb8e9dcd1006a14957bda7627222ad/inputs-remotes-intro%402x.png)
+
+In addition to several specific buttons, the Siri Remote combines a clickpad and touch surface to support familiar gestures like swipe and press that people use to navigate tvOS apps, browse channels and content, play and pause media, and make selections.
+
+## [Best practices](https://developer.apple.com/design/human-interface-guidelines/remotes#Best-practices)
+
+**Prefer using standard gestures to perform standard actions.** Unless people are actively playing a game, they expect the remote to behave in standard ways in every app they use. Redefining or repurposing standard remote behaviors can cause confusion and add complexity to your experience. For guidance, see [Gestures](https://developer.apple.com/design/human-interface-guidelines/remotes#Gestures).
+
+**Be consistent with the tvOS focus experience.** The [focus experience](https://developer.apple.com/design/human-interface-guidelines/focus-and-selection) forges a strong connection between people and the content they’re viewing. Reinforce this link in your app by ensuring that you combine gestures with the focus experience in ways that are familiar to people, such as always moving focus in the same direction as the gesture.
+
+**Provide clear feedback that shows people what happens when they make gestures in your app.** For example, lightly resting a thumb on the remote shows people where to swipe down so that they can reveal an info area.
+
+**Define new gestures only when it makes sense in your app.** Within gameplay, for example, custom gestures can be a fun part of the experience. In most other situations, people expect to use standard gestures and may not appreciate having to discover or remember new ones.
+
+**Differentiate between press and tap, and avoid responding to an inadvertent tap.** Pressing is an intentional action, and it works well for choosing a button, confirming a selection, and initiating an action during gameplay. Tap gestures are fine for navigation or showing additional information, but keep in mind that people might cause an inadvertent tap when they rest a thumb on the remote, pick it up, move it around, or hand it to someone else, so it often works well to avoid responding to taps during live video playback.
+
+**Consider using the position of a tap to aid with navigation or gameplay.** The remote can differentiate between up, down, left, and right tap gestures on the touch surface. Respond to positional taps only if it makes sense in the context of your app and if such behavior is intuitive and discoverable.
+
+**In almost all cases, open the parent of the current screen when people press the Back button.** At the top level of an app or game, the parent is the Apple TV Home Screen; within an app, the parent is defined by the app hierarchy, and isn’t necessarily the previous screen. The exception to this standard behavior is when people are actively playing a game, where it can be easy to accidentally press the Back button repeatedly. To avoid disrupting gameplay in this scenario, respond to the Back button by opening an in-game pause menu that lets people use a different interaction to navigate back to the game’s main menu. When the in-game pause menu is open, respond to a Back-button press by closing the menu and resuming the game. Note that people press and hold the Back button to go to the Home Screen from any location. For guidance, see [Buttons](https://developer.apple.com/design/human-interface-guidelines/remotes#Buttons).
+
+**Respond correctly to the Play/Pause button during media playback.** When playing music or video, people expect pressing the Play/Pause button to play, pause, or resume playback.
+
+## [Gestures](https://developer.apple.com/design/human-interface-guidelines/remotes#Gestures)
+
+The clickpad’s touch surface detects swipes and presses.
+
+**Swipe.** Swiping lets people scroll effortlessly through large numbers of items with movement that starts fast and then slows down, based on the strength of the swipe. When people swipe up or down on the edge of the remote, they can speed through items very quickly.
+
+**Press.** People press to activate a control or select an item. Also, people press before swiping to activate scrubbing mode.
+
+## [Buttons](https://developer.apple.com/design/human-interface-guidelines/remotes#Buttons)
+
+Ensure that your app or game responds to specific presses in the following ways.
+
+Button or area| Expected behavior in an app| Expected behavior in a game
+---|---|---
+Touch surface (swipe)| Navigates. Changes focus.| Performs directional pad behavior.
+Touch surface (press)| Activates a control or an item. Navigates deeper.| Performs primary button behavior.
+Back| Returns to previous screen. Exits to Apple TV Home Screen.| Pauses/resumes gameplay. Returns to previous screen, exits to main game menu, or exits to Apple TV Home Screen.
+Play/Pause| Activates media playback. Pauses/resumes media playback.| Performs secondary button behavior. Skips intro video.
+
+## [Compatible remotes](https://developer.apple.com/design/human-interface-guidelines/remotes#Compatible-remotes)
+
+Some remotes that are compatible with Apple TV include buttons for browsing live TV or other channel-based content. For example, a remote might include a button people can use to open an electronic program guide (EPG) and other buttons they can use to browse the guide or change channels. For developer guidance, see [Providing Channel Navigation](https://developer.apple.com/documentation/TVServices/providing-channel-navigation); for design guidance, see [EPG experience](https://developer.apple.com/design/human-interface-guidelines/live-viewing-apps#EPG-experience).
+
+**If your live-viewing app provides an EPG, respond to a remote’s EPG-browsing buttons in ways people expect.** When people press a “guide” or “browse” button, they expect your EPG to open. While they’re viewing your EPG, people expect to navigate through it by pressing a “page up” or “page down” button. Avoid responding to these buttons in other ways while people are browsing the EPG. On the Siri Remote and compatible remotes, people can also tap on the upper or lower area of the Touch surface to browse the EPG. If your app doesn’t support an EPG experience, the system routes these button presses to the default guide app on the viewer’s device.
+
+**While your content plays, respond to a compatible remote’s “page up” or “page down” button by changing the channel.** People expect these buttons to behave differently when they switch between viewing content and browsing an EPG.
+
+## [Platform considerations](https://developer.apple.com/design/human-interface-guidelines/remotes#Platform-considerations)
+
+ _Not supported in iOS, iPadOS, macOS, visionOS, or watchOS._
+
+## [Resources](https://developer.apple.com/design/human-interface-guidelines/remotes#Resources)
+
+#### [Related](https://developer.apple.com/design/human-interface-guidelines/remotes#Related)
+
+[Use your Siri Remote or Apple TV Remote with Apple TV](https://support.apple.com/en-us/HT205305)
+

package/skills/hig-inputs/references/spatial-interactions.md

@@ -0,0 +1,70 @@
+---
+title: "Nearby interactions | Apple Developer Documentation"
+source: https://developer.apple.com/design/human-interface-guidelines/spatial-interactions
+
+# Nearby interactions
+
+Nearby interactions support on-device experiences that integrate the presence of people and objects in the nearby environment.
+
+![A sketch of curved lines beside a circular area containing a smaller circle, suggesting audio approaching a person in a room from a specific direction. The image is overlaid with rectangular and circular grid lines and is tinted purple to subtly reflect the purple in the original six-color Apple logo.](https://docs-assets.developer.apple.com/published/4ee9418314d3a8bbdc8e7586a9e3c787/inputs-nearby-interactions-intro%402x.png)
+
+A great nearby interaction feels intuitive and natural to people, because it builds on their innate awareness of the world around them. For example, a person playing music on their iPhone can continue listening on their HomePod mini when they bring the devices close together, simply by transferring the audio output from their iPhone to the HomePod mini.
+
+Nearby interactions are available on devices that support Ultra Wideband technology (to learn more, see [Ultra Wideband availability](https://support.apple.com/en-us/HT212274)), and rely on the [Nearby Interaction](https://developer.apple.com/documentation/NearbyInteraction) framework. Before participating in nearby interaction experiences, people grant permission for their device to interact while they’re using your app. The Nearby Interaction APIs help you preserve people’s privacy by relying on randomly generated device identifiers that last only as long as the interaction session your app initiates.
+
+## [Best practices](https://developer.apple.com/design/human-interface-guidelines/nearby-interactions#Best-practices)
+
+**Consider a task from the perspective of the physical world to find inspiration for a nearby interaction.** For example, although people can easily use your app’s UI to transfer a song from their iPhone to their HomePod mini, initiating the transfer by bringing the devices close together makes the task feel rooted in the physical world. Discovering the physical actions that inform the concept of a task can help you create an engaging experience that makes performing it feel easy and natural.
+
+**Use distance, direction, and context to inform an interaction.** Although your app may get information from a variety of sources, prioritizing nearby, contextually relevant information can help you deliver experiences that feel organic. For example, if people want to share content with a friend in a crowded room, the iOS share sheet can suggest a likely recipient by using on-device knowledge about the person’s most frequent and recent contacts. Combining this knowledge with information from nearby devices that include the U1 chip can let the share sheet improve the experience by suggesting the closest contact the person is facing.
+
+**Consider how changes in physical distance can guide a nearby interaction.** In the physical world, people generally expect their perception of an object to sharpen as they get closer to it. A nearby interaction can mirror this experience by providing feedback that changes with the proximity of an object. For example, when people use iPhone to find an AirTag, the display transitions from a directional arrow to a pulsing circle as they get closer.
+
+**Provide continuous feedback.** Continuous feedback reflects the dynamism of the physical world and strengthens the connection between a nearby interaction and the task people are performing. For example, when looking for a lost item in Find My, people get continuous updates that communicate the item’s direction and proximity. Keep people engaged by providing uninterrupted feedback that responds to their movements.
+
+**Consider using multiple feedback types to create a holistic experience.** Fluidly transitioning among visual, audible, and haptic feedback can help a nearby interaction’s task feel more engaging and real. Using more than one type of feedback also lets you vary the experience to coordinate with both the task and the current context. For example, while people are interacting with the device screen, visual feedback makes sense; while people are interacting with their environment, audible and haptic feedback often work better.
+
+**Avoid using a nearby interaction as the only way to perform a task.** You can’t assume that everyone can experience a nearby interaction, so it’s essential to provide alternative ways to get things done in your app.
+
+## [Device usage](https://developer.apple.com/design/human-interface-guidelines/nearby-interactions#Device-usage)
+
+**Encourage people to hold the device in portrait orientation.** Holding a device in landscape can decrease the accuracy and availability of information about the distance and relative direction of other devices. If you support only portrait orientation while your nearby interaction feature runs, prefer giving people implicit, visual feedback on how to hold the device for an optimal experience; when possible, avoid explicitly telling people to hold the device in portrait.
+
+**Design for the device’s directional field of view.** Nearby interaction relies on a hardware sensor with a specific field of view similar to that of the Ultra Wide camera in iPhone 11 and later. If a participating device is outside of this field of view, your app might receive information about its distance, but not its relative direction.
+
+**Help people understand how intervening objects can affect the nearby interaction experience in your app.** When other people, animals, or sufficiently large objects come between two participating devices, the accuracy or availability of distance and direction information can decrease. Consider adding advice on avoiding this situation to onboarding or tutorial content you present.
+
+## [Platform considerations](https://developer.apple.com/design/human-interface-guidelines/nearby-interactions#Platform-considerations)
+
+ _No additional considerations for iPadOS. Not supported in macOS, tvOS, or visionOS._
+
+### [iOS](https://developer.apple.com/design/human-interface-guidelines/nearby-interactions#iOS)
+
+On iPhone, Nearby Interaction APIs provide a peer device’s distance and direction.
+
+### [watchOS](https://developer.apple.com/design/human-interface-guidelines/nearby-interactions#watchOS)
+
+On Apple Watch, Nearby Interaction APIs provide a peer device’s distance. Also, all watchOS apps participating in a nearby interaction experience must be in the foreground.
+
+## [Resources](https://developer.apple.com/design/human-interface-guidelines/nearby-interactions#Resources)
+
+#### [Related](https://developer.apple.com/design/human-interface-guidelines/nearby-interactions#Related)
+
+[Feedback](https://developer.apple.com/design/human-interface-guidelines/feedback)
+
+#### [Developer documentation](https://developer.apple.com/design/human-interface-guidelines/nearby-interactions#Developer-documentation)
+
+[Nearby Interaction](https://developer.apple.com/documentation/NearbyInteraction)
+
+#### [Videos](https://developer.apple.com/design/human-interface-guidelines/nearby-interactions#Videos)
+
+[![](https://devimages-cdn.apple.com/wwdc-services/images/119/0F487599-C14E-48B0-AEB0-A752DFF26E95/5165_wide_250x141_1x.jpg) Design for spatial interaction ](https://developer.apple.com/videos/play/wwdc2021/10245)
+
+[![](https://devimages-cdn.apple.com/wwdc-services/images/49/E6812719-14BF-4392-84FC-E1CFC1650B71/3558_wide_250x141_1x.jpg) Meet Nearby Interaction ](https://developer.apple.com/videos/play/wwdc2020/10668)
+
+## [Change log](https://developer.apple.com/design/human-interface-guidelines/nearby-interactions#Change-log)
+
+Date| Changes
+---|---
+June 21, 2023| Changed page title from Spatial interactions.
+

package/skills/hig-patterns/SKILL.md

@@ -0,0 +1,109 @@
+---
+name: hig-patterns
+version: 1.0.0
+description: ">"
+  Apple Human Interface Guidelines interaction and UX patterns. Use this skill when the user asks about
+  "onboarding flow", "user onboarding", "app launch", "loading state", "drag and drop", "search pattern",
+  "settings design", "notifications", "modality", "multitasking", "feedback pattern", "haptics",
+  "undo redo", "file management", data entry, sharing, collaboration, full screen, audio, video,
+  haptic feedback, ratings, printing, help, or account management in Apple apps.
+  Also use when the user says "how should onboarding work", "my app takes too long to load",
+  "should I use a modal here", "how do I handle errors", "when should I ask for permissions",
+  "how to show progress", or "what's the right way to confirm a delete".
+  Cross-references: hig-foundations for underlying principles, hig-platforms for platform specifics,
+  hig-components-layout for navigation, hig-components-content for data display.
+risk: unknown
+source: community
+---
+
+# Apple HIG: Interaction Patterns
+
+Check for `.claude/apple-design-context.md` before asking questions. Use existing context and only ask for information not already covered.
+
+## Key Principles
+
+1. **Minimize modality.** Use modality only when it is critical to get attention, a task must be completed or abandoned, or saving changes is essential. Prefer non-modal alternatives.
+
+2. **Provide clear feedback.** Every action should produce visible, audible, or haptic response. Activity indicators for indeterminate waits, progress bars for determinate, haptics for physical confirmation.
+
+3. **Support undo over confirmation dialogs.** Destructive actions should be reversible when possible. Undo is almost always better than "Are you sure?"
+
+4. **Launch quickly.** Display a launch screen that transitions seamlessly into the first screen. No splash screens with logos. Restore previous state.
+
+5. **Defer sign-in.** Let users explore before requiring account creation. Support Sign in with Apple and passkeys.
+
+6. **Keep onboarding brief.** Three screens max. Let users skip. Teach through progressive disclosure and contextual hints.
+
+7. **Use progressive disclosure.** Show essentials first, let users drill into details. Don't overwhelm with every option on one screen.
+
+8. **Respect user attention.** Consolidate notifications, minimize interruptions, give users control over alerts. Never use notifications for marketing.
+
+## Reference Index
+
+| Reference | Topic | Key content |
+|---|---|---|
+| [charting-data.md](references/charting-data.md) | Charting Data | Data visualization patterns, accessible charts, interactive elements |
+| [collaboration-and-sharing.md](references/collaboration-and-sharing.md) | Collaboration & Sharing | Share sheets, activity views, collaborative editing, SharePlay |
+| [drag-and-drop.md](references/drag-and-drop.md) | Drag and Drop | Drag sources, drop targets, spring loading, multi-item drag, visual feedback |
+| [entering-data.md](references/entering-data.md) | Entering Data | Text fields, pickers, steppers, input validation, keyboard types, autofill |
+| [feedback.md](references/feedback.md) | Feedback | Alerts, action sheets, haptic patterns, sound feedback, visual indicators |
+| [file-management.md](references/file-management.md) | File Management | Document browser, file providers, iCloud integration, document lifecycle |
+| [going-full-screen.md](references/going-full-screen.md) | Going Full Screen | Full-screen transitions, immersive content, exiting full screen |
+| [launching.md](references/launching.md) | Launching | Launch screens, state restoration, cold vs warm launch |
+| [live-viewing-apps.md](references/live-viewing-apps.md) | Live Viewing Apps | Live content display, real-time updates, Live Activities, Dynamic Island |
+| [loading.md](references/loading.md) | Loading | Activity indicators, progress views, skeleton screens, lazy loading, placeholders |
+| [managing-accounts.md](references/managing-accounts.md) | Managing Accounts | Sign in with Apple, passkeys, account creation, credential autofill, account deletion |
+| [managing-notifications.md](references/managing-notifications.md) | Managing Notifications | Permission requests, grouping, actionable notifications, provisional delivery |
+| [modality.md](references/modality.md) | Modality | Sheets, alerts, popovers, full-screen modals, when to use each |
+| [multitasking.md](references/multitasking.md) | Multitasking | iPad Split View, Slide Over, Stage Manager, responsive layout, size class transitions |
+| [offering-help.md](references/offering-help.md) | Offering Help | Contextual tips, onboarding hints, help menus, support links |
+| [onboarding.md](references/onboarding.md) | Onboarding | Welcome screens, feature highlights, progressive onboarding, skip options |
+| [playing-audio.md](references/playing-audio.md) | Playing Audio | Audio sessions, background audio, Now Playing, audio routing, interruptions |
+| [playing-haptics.md](references/playing-haptics.md) | Playing Haptics | Core Haptics, UIFeedbackGenerator, haptic patterns, custom haptics |
+| [playing-video.md](references/playing-video.md) | Playing Video | Video player controls, picture-in-picture, AirPlay, full-screen video |
+| [printing.md](references/printing.md) | Printing | Print dialogs, page setup, AirPrint integration |
+| [ratings-and-reviews.md](references/ratings-and-reviews.md) | Ratings & Reviews | SKStoreReviewController, timing, frequency limits, in-app feedback |
+| [searching.md](references/searching.md) | Searching | Search bars, suggestions, scoped search, results display, recents |
+| [settings.md](references/settings.md) | Settings | In-app vs Settings app, preference organization, toggles, defaults |
+| [undo-and-redo.md](references/undo-and-redo.md) | Undo and Redo | Shake to undo, undo/redo stack, multi-level undo |
+| [workouts.md](references/workouts.md) | Workouts | Workout sessions, live metrics, Always On display, summaries, HealthKit |
+
+## Pattern Selection Guide
+
+| User Goal | Recommended Pattern | Avoid |
+|---|---|---|
+| First app experience | Brief onboarding (max 3 screens) + progressive disclosure | Long tutorials, mandatory sign-up |
+| Waiting for content | Skeleton screens or progress indicators | Blocking spinners with no context |
+| Confirming destructive action | Undo support | Excessive "Are you sure?" dialogs |
+| Collecting user input | Inline validation, smart defaults, autofill | Modal forms for simple inputs |
+| Requesting permissions | Contextual, just-in-time with explanation | Requesting all permissions at launch |
+| Providing feedback | Haptics + visual indicator | Silent actions with no confirmation |
+| Organizing preferences | In-app settings for frequent items | Burying all settings in system Settings app |
+
+## Output Format
+
+1. **Recommended pattern with rationale**, citing the relevant reference file.
+2. **Step-by-step implementation** covering each screen or state.
+3. **Platform variations** for targeted platforms.
+4. **Common pitfalls** that violate HIG for this pattern.
+
+## Questions to Ask
+
+1. Where in the app does this pattern appear? What comes before and after?
+2. Which platforms?
+3. Designing from scratch or improving an existing flow?
+4. Does this involve sensitive actions? (Destructive operations, payments, permissions)
+
+## Related Skills
+
+- **hig-foundations** -- Accessibility, color, typography, and privacy principles underlying every pattern
+- **hig-platforms** -- Platform-specific pattern implementations
+- **hig-components-layout** -- Structural components (tab bars, sidebars, split views) for navigation patterns
+- **hig-components-content** -- Content display within patterns (charts, collections, search results)
+
+---
+
+*Built by [Raintree Technology](https://raintree.technology) · [More developer tools](https://raintree.technology)*
+
+## When to Use
+This skill is applicable to execute the workflow or actions described in the overview.

package/skills/hig-patterns/references/charting-data.md

@@ -0,0 +1,81 @@
+---
+title: "Charting data | Apple Developer Documentation"
+source: https://developer.apple.com/design/human-interface-guidelines/charting-data
+
+# Charting data
+
+Presenting data in a chart can help you communicate information with clarity and appeal.
+
+![A sketch of a bar chart, suggesting data representation. The image is overlaid with rectangular and circular grid lines and is tinted orange to subtly reflect the orange in the original six-color Apple logo.](https://docs-assets.developer.apple.com/published/bc4a2c4e929441fc51874ce49b4a5129/patterns-charting-data-intro%402x.png)
+
+Charts provide efficient ways to communicate complex information without requiring people to read and interpret a lot of text. The graphical nature of charts also gives you additional opportunities to express the personality of your experience and add visual interest to your interface. To learn about the components you use to create a chart, see [Charts](https://developer.apple.com/design/human-interface-guidelines/charts).
+
+A chart can range from a simple graphic that provides glanceable information to a rich, interactive experience that can form the centerpiece of your app and encourage people to explore the data from various perspectives. Whether simple or complex, you can use charts to help people perform data-driven tasks that are important to them, such as:
+
+  * Analyzing trends based on historical or predicted values
+
+  * Visualizing the current state of a process, system, or quantity that changes over time
+
+  * Evaluating different items — or the same item at different times — by comparing data across multiple categories
+
+
+
+
+Not every collection of data needs to be displayed in a chart. If you simply need to provide data — and you don’t need to convey information about it or help people analyze it — consider offering the data in other ways, such as in a list or table that people can scroll, search, and sort.
+
+## [Best practices](https://developer.apple.com/design/human-interface-guidelines/charting-data#Best-practices)
+
+**Use a chart when you want to highlight important information about a dataset.** Charts are visually prominent, so they tend to draw people’s attention. Take advantage of this prominence by clearly communicating what people can learn from the data they care about.
+
+**Keep a chart simple, letting people choose when they want additional details.** Resist the temptation to pack as much data as possible into a chart. Too much data can make a chart visually overwhelming and difficult to use, obscuring the relationships and other information you want to convey. If you have a lot of data to present — or a lot of functionality to provide — consider giving people a way to reveal it gradually. For example, you might let people choose to view different levels of detail or subsets of data to match their interest. To help people learn how to use an interactive chart, you might offer several versions of the chart, each with more functionality than the last.
+
+**Make every chart in your app accessible.** A chart communicates visually through graphical representations of data and visual descriptions. In addition to the visual descriptions you display, it’s crucial to provide both accessibility labels that describe chart values and components, and accessibility elements that help people interact with the chart. For guidance, see [Enhancing the accessibility of a chart](https://developer.apple.com/design/human-interface-guidelines/charts#Enhancing-the-accessibility-of-a-chart).
+
+## [Designing effective charts](https://developer.apple.com/design/human-interface-guidelines/charting-data#Designing-effective-charts)
+
+**In general, prefer using common chart types.** People tend to be familiar with common chart types — such as bar charts and line charts — so using one of these types in your app can make it more likely that people will already know how to read your chart. For guidance, see [Charts](https://developer.apple.com/design/human-interface-guidelines/charts).
+
+**If you need to create a chart that presents data in a novel way, help people learn how to interpret the chart.** For example, when a Watch pairs with iPhone, Activity introduces the Activity rings by animating them individually, showing people how each ring maps to the move, exercise, and stand metrics.
+
+**Examine the data from multiple levels or perspectives to find details you can display to enhance the chart.** For example, viewing the data from a macro level can help you determine high-level summaries that people might be interested in, like totals or averages. From a mid-level perspective, you might find ways to help people identify useful subsets of the data, whereas examining individual data points might help you find ways to draw people’s attention to specific values or items. Displaying information that helps people view the chart from various perspectives can encourage them to engage with it.
+

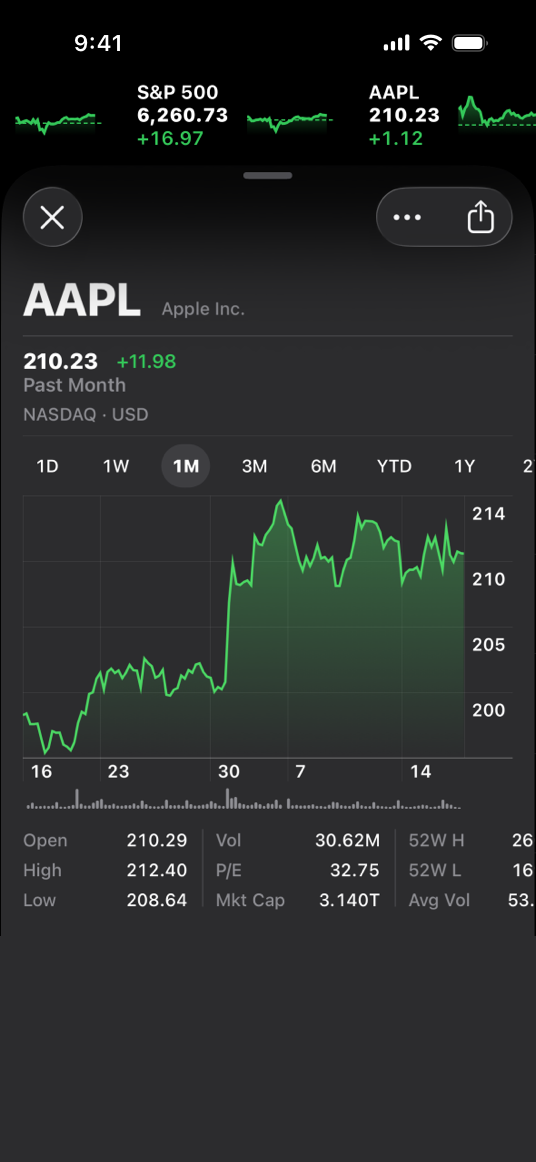

+![A screenshot of the Stocks app on iPhone. The app uses a line chart to depict the performance of a stock over the currently chosen one-month period.](https://docs-assets.developer.apple.com/published/75cea76eff7e6ee353ad230c147be3da/charts-stocks%402x.png)
+

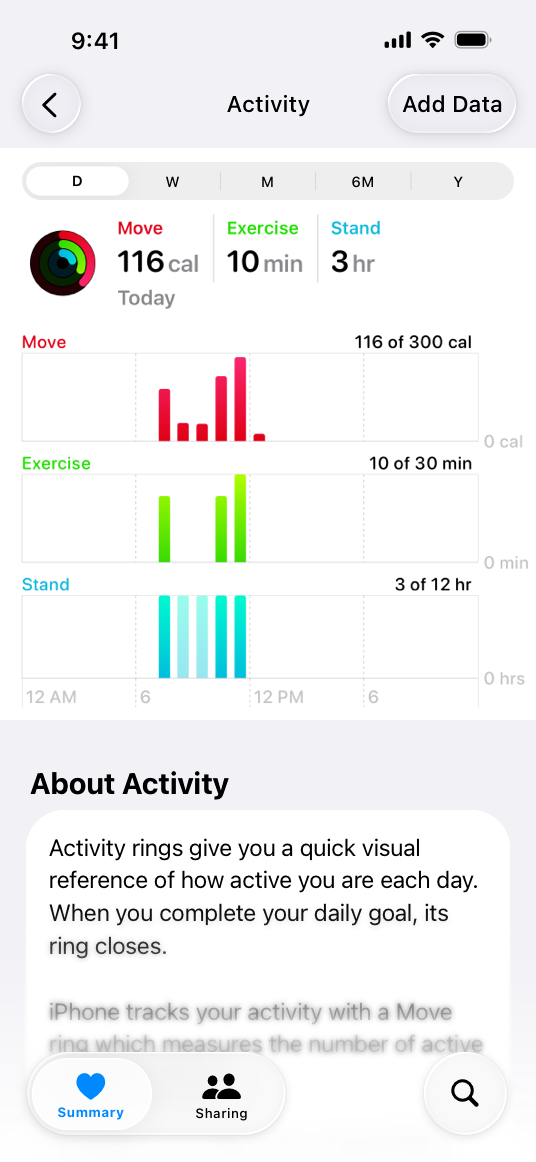

+![A screenshot of the Activity screen in the Health app on iPhone. The app uses a set of three bar charts to depict information from the three Activity Rings over the currently chosen one-day period.](https://docs-assets.developer.apple.com/published/b82e0965a76f384beca174253f9c6113/charts-activity%402x.png)
+
+**Aid comprehension by adding descriptive text to the chart.** Descriptive text titles, subtitles, and annotations help emphasize the most important information in a chart and can highlight actionable takeaways. You can also display brief descriptive text that serves as a headline or summary for a chart, helping people grasp essential information at a glance. For example, Weather displays text that summarizes the information people need right now — such as “Chance of light rain in the next hour” — above the scrolling list of hourly forecasts for the next 24 hours. Although a descriptive headline or summary can make a chart more accessible, it doesn’t take the place of accessibility labels.
+
+**Match the size of a chart to its functionality, topic, and level of detail.** In general, a chart needs to be large enough to comfortably display the details you need to include and expansive enough for the interactivity you want to support. For example, you always want to make it easy for people to read a chart’s details and descriptive text — like labels and annotations — but you might also want to give people enough room to change the scope of a chart or investigate the data from different perspectives. On the other hand, you might want to use a small chart to offer glanceable information about an individual item or to provide a snapshot or preview of a larger version of the chart that people can reveal in a different view.
+
+**Prefer consistency across multiple charts, deviating only when you need to highlight differences.** If multiple charts in your app serve a similar purpose, you generally don’t want to imply that the charts are unrelated by using a different type or style for each one. Also, using a consistent visual approach for the charts in your app lets people use what they learn about one chart to help them understand another. Consider using different chart types and styles when you need to highlight meaningful differences between charts.
+
+**Maintain continuity among multiple charts that use the same data.** When you use multiple charts to help people explore one dataset from different perspectives, it’s important to use one chart type and consistent colors, annotations, layouts, and descriptive text to signal that the dataset remains the same. For example, the Health Trends screen shows small charts that each use a specific visual style to depict a recent trend in an area like steps or resting heart rate. When people choose a chart to reveal all their data in that area, the expanded version uses the same style, colors, marks, and annotations to strengthen the relationship between the versions.
+
+## [Platform considerations](https://developer.apple.com/design/human-interface-guidelines/charting-data#Platform-considerations)
+
+ _No additional considerations for iOS, iPadOS, macOS, tvOS, visionOS, or watchOS._
+
+## [Resources](https://developer.apple.com/design/human-interface-guidelines/charting-data#Resources)
+
+#### [Related](https://developer.apple.com/design/human-interface-guidelines/charting-data#Related)
+
+[Charts](https://developer.apple.com/design/human-interface-guidelines/charts)
+
+#### [Developer documentation](https://developer.apple.com/design/human-interface-guidelines/charting-data#Developer-documentation)
+
+[Swift Charts](https://developer.apple.com/documentation/Charts)
+
+#### [Videos](https://developer.apple.com/design/human-interface-guidelines/charting-data#Videos)
+
+[![](https://devimages-cdn.apple.com/wwdc-services/images/3055294D-836B-4513-B7B0-0BC5666246B0/89D5888B-58DA-4F47-8E3C-998253F6BA98/9954_wide_250x141_1x.jpg) Bring Swift Charts to the third dimension ](https://developer.apple.com/videos/play/wwdc2025/313)
+
+[![](https://devimages-cdn.apple.com/wwdc-services/images/124/FA764D2D-4E15-4E91-91BA-BDAC80FB901B/6694_wide_250x141_1x.jpg) Design app experiences with charts ](https://developer.apple.com/videos/play/wwdc2022/110342)
+
+[![](https://devimages-cdn.apple.com/wwdc-services/images/124/4BBCB61E-65ED-43FE-8F7B-81524E0C96BE/6692_wide_250x141_1x.jpg) Design an effective chart ](https://developer.apple.com/videos/play/wwdc2022/110340)
+
+## [Change log](https://developer.apple.com/design/human-interface-guidelines/charting-data#Change-log)
+
+Date| Changes
+---|---
+September 23, 2022| New page.
+
