+title: "Eyes | Apple Developer Documentation"
+source: https://developer.apple.com/design/human-interface-guidelines/eyes
+
+# Eyes
+
+In visionOS, people look at a virtual object to identify it as a target they can interact with.
+
+![A sketch of a human eye. The image is overlaid with rectangular and circular grid lines and is tinted purple to subtly reflect the purple in the original six-color Apple logo.](https://docs-assets.developer.apple.com/published/126393ded1c486236fc7a9feabea30ea/inputs-eyes-intro%402x.png)
+
+When people look at an interactive element, visionOS highlights it, providing visual feedback that helps them confirm the item is one they want. The visual feedback, or _hover effect_ , shows people that they can use an [indirect gesture](https://developer.apple.com/design/human-interface-guidelines/gestures#visionOS) like tap to interact with the element.
+
+Video with custom controls.
+
+Content description: A recording of the Settings app showing the hover effect appear on several individual settings in turn as someone's eyes move from one to another.
+
+Play
+
+In some cases, the system can automatically display an expanded view of a component after people look at it. For example, when people look at a tab bar, the entire bar resizes to reveal text labels next to each tab. In this scenario, an individual tab also highlights before the tab bar expansion to let people select it before revealing the labels. Another example is a button that can reveal a tooltip when people look at it.
+
+Important
+
+To help preserve people’s privacy, visionOS doesn’t provide direct information about where people are looking before they tap. When you use system-provided components, visionOS automatically tells you when people tap the component. For developer guidance, see [Adopting best practices for privacy and user preferences](https://developer.apple.com/documentation/visionOS/adopting-best-practices-for-privacy).
+
+visionOS also supports _focus effects_ that help people navigate apps and the system using a connected input device like a keyboard or game controller. Focus effects are unrelated to the hover effect; to learn more, see [Focus and selection](https://developer.apple.com/design/human-interface-guidelines/focus-and-selection).
+
+## [Best practices](https://developer.apple.com/design/human-interface-guidelines/eyes#Best-practices)
+
+**Always give people multiple ways to interact with your app.** Design your app to support the accessibility features people use to personalize the ways they interact with their devices. For guidance, see [Accessibility](https://developer.apple.com/design/human-interface-guidelines/accessibility).
+
+**Design for visual comfort.** Help people accomplish their primary task by making sure that the objects they need to use are within their [field of view](https://developer.apple.com/design/human-interface-guidelines/spatial-layout#Field-of-view). When your app or game is running in the Shared Space or a Full Space, the system automatically places the first window or volume people open in a convenient location in front of them. While running in a Full Space, your app or game can also request access to information about a person’s head pose to help you place 3D content appropriately. In all cases, you can improve the visual comfort of your experience when you avoid requiring people to make multiple quick eye adjustments, either over a large area or through multiple levels of depth. For guidance, see [Depth](https://developer.apple.com/design/human-interface-guidelines/spatial-layout#Depth).
+
+**Place content at a comfortable viewing distance.** For example, to help people remain comfortable while they read or engage with content over time, aim to place it at least one meter away. In general, you don’t want to place content very close to people unless they’ll view or interact with it for only a little while.
+
+**Prefer using standard UI components.** System-provided components respond consistently when people look at them. If your custom components use different visual cues to provide visual feedback, it can be difficult for people to learn and remember how these components work.
+
+## [Making items easy to see](https://developer.apple.com/design/human-interface-guidelines/eyes#Making-items-easy-to-see)
+
+**Minimize visual distractions.** When there’s a lot of visual noise, it can be difficult for people to find the object they’re looking for. Visual movement can be even more distracting: When people sense movement — especially in their peripheral vision — they tend to respond automatically by looking at it, making it hard to keep looking at the object they’re interested in. For example, revealing content near a button people are looking at can cause them to involuntarily look at the new content instead of the button.
+
+**Make it easy for people to look at an item by providing enough space around it.** Because eyes naturally tend to make small, quick adjustments in direction even while people are looking at one place, crowding UI objects together can make it difficult for people to look at one of them without jumping to another. You can help ensure that there’s enough space between interactive items by using a margin of at least 16 points around the bounds of each item or by placing items so that their centers are always at least 60 points apart. For additional layout guidance, see [Layout](https://developer.apple.com/design/human-interface-guidelines/layout) and [Spatial layout](https://developer.apple.com/design/human-interface-guidelines/spatial-layout).
+
+**Avoid using a repeating pattern or texture that fills the field of view.** In some cases, people’s eyes can lock onto different elements in a pattern or texture, making the elements appear to have different depths. To avoid this effect, consider using the pattern in a smaller area.
+
+## [Encouraging interaction](https://developer.apple.com/design/human-interface-guidelines/eyes#Encouraging-interaction)
+
+**Consider using subtle visual cues to encourage people to look at the item they’re most likely to want.** For example, it often works well to place the item near the center of the field of view or use techniques like gentle motion, increased contrast, or variations in color or scale to draw people’s attention. In general, prefer cues that are noticeable without being flashy or harsh.
+
+**In general, give an interactive item a rounded shape.** People’s eyes tend to be drawn toward the corners in a shape, making it difficult to keep looking at the shape’s center. The more rounded an item’s shape, the easier it is for people to use their eyes to target it.
+
+![A square button.](https://docs-assets.developer.apple.com/published/d60c5b225c91f041c5ef7e273a9219b6/visionos-eyes-sharp-button-incorrect%402x.png)
+
+![An X in a circle to indicate incorrect usage.](https://docs-assets.developer.apple.com/published/209f6f0fc8ad99d9bf59e12d82d06584/crossout%402x.png)
+
+![A circular button.](https://docs-assets.developer.apple.com/published/61afcfc99cebef8a0feae23fc5803edc/visionos-eyes-rounded-button-correct%402x.png)
+
+![A checkmark in a circle to indicate correct usage.](https://docs-assets.developer.apple.com/published/88662da92338267bb64cd2275c84e484/checkmark%402x.png)
+
+**If you create an interactive component that consists of more than one element, be sure to provide an overall containing shape that visionOS can highlight.** For example, if an image and a label below it combine to act as one interactive component, you need to define a custom region that encompasses both elements, allowing visionOS to highlight the entire region when people look at either element.
+
+## [Custom hover effects](https://developer.apple.com/design/human-interface-guidelines/eyes#Custom-hover-effects)
+
+When it makes sense in your app or game, you can design a hover effect that animates in a custom way when people look at an element, including system-provided or custom UI elements and RealityKit entities. You can use a custom hover effect to replace or augment a standard effect.
+
+Before you start designing custom hover effects, it’s important to understand how they work. To enable a custom hover effect for an element, you create two states or appearances for it: one that shows the custom hover effect and one that doesn’t. When someone looks at the element in your app or game, the system applies your predefined hover effect in a process that’s outside of your software’s process. This means that you don’t know when the system applies a custom hover effect or what state the element is in at that moment. The out-of-process nature of a custom hover effect also means that it can’t run code that requires knowing when people are looking at the element.
+
+As an example that shows what a custom hover effect can and can’t do, consider a photo-browsing app where a photo’s custom effect displays a different symbol depending on whether people have added the photo to Favorites. The app specifies the appropriate symbol for a photo’s custom hover effect and the system displays the effect if people look at the photo. However, the hover effect can’t perform the favoriting action because the system doesn’t tell the app when someone is looking at the photo.
+
+**Prefer using a custom hover effect to emphasize or enhance a special moment in your experience.** People are accustomed to the standard hover effects that provide visual feedback or, in the case of tab bars or tooltips, additional information, so a custom hover effect can be especially noticeable. Adding too many custom hover effects — or using them when standard effects are sufficient — can dilute the impact of your design, distract people from their task, and even cause visual discomfort.
+
+**Choose the right delay.** An element’s custom hover effect can appear instantly, after a short delay, or after a slightly longer delay, depending on how you expect people to interact with the element.
+
+  * **No delay (default).** A custom hover effect that appears without delay tends to be especially useful when the effect is subtle or invites interaction, like when a knob appears on a slider.
+
+  * **Short delay.** Consider using a short delay to let people look at an element and quickly interact with it without waiting for the effect to appear; for example, the expansion of tabs in a tab bar works this way.
+
+  * **Long delay.** If your custom hover effect shows additional information, like when a tooltip appears below a button, a slightly longer delay can work well because most people won’t need to view the additional information every time.
+
+
+
+
+**Aim to keep one or more of the element’s primary views unchanged in both states of a custom hover effect.** When at least one primary view remains constant during a hover effect’s animation, it provides visual stability that can help people follow the element’s transition. If all of an element’s views move or change during a custom hover effect, it can disorient people and make them lose track of what’s happening.
+
+**Thoroughly test custom hover effects.** Testing is the only way to determine whether a custom hover effect looks good, responds appropriately, and makes your experience feel alive without distracting people. Aim to test your custom hover effects while wearing Apple Vision Pro so you can develop intuition about how to use them to enhance your experience.
+
+## [Platform considerations](https://developer.apple.com/design/human-interface-guidelines/eyes#Platform-considerations)
+
+ _Not supported in iOS, iPadOS, macOS, tvOS, or watchOS._
+
+## [Resources](https://developer.apple.com/design/human-interface-guidelines/eyes#Resources)
+
+#### [Related](https://developer.apple.com/design/human-interface-guidelines/eyes#Related)
+
+[Immersive experiences](https://developer.apple.com/design/human-interface-guidelines/immersive-experiences)
+
+[Gestures](https://developer.apple.com/design/human-interface-guidelines/gestures)
+
+[Spatial layout](https://developer.apple.com/design/human-interface-guidelines/spatial-layout)
+
+#### [Developer documentation](https://developer.apple.com/design/human-interface-guidelines/eyes#Developer-documentation)
+
+[Adopting best practices for privacy and user preferences](https://developer.apple.com/documentation/visionOS/adopting-best-practices-for-privacy) — visionOS
+
+#### [Videos](https://developer.apple.com/design/human-interface-guidelines/eyes#Videos)
+
+[![](https://devimages-cdn.apple.com/wwdc-services/images/3055294D-836B-4513-B7B0-0BC5666246B0/CA8CE5A1-B113-403F-BCB7-87871B4BBB52/10053_wide_250x141_1x.jpg) Design hover interactions for visionOS ](https://developer.apple.com/videos/play/wwdc2025/303)
+
+[![](https://devimages-cdn.apple.com/wwdc-services/images/D35E0E85-CCB6-41A1-B227-7995ECD83ED5/C6CDCC79-CCD0-4D2F-A4D1-8FC70DC663DB/8127_wide_250x141_1x.jpg) Design for spatial input ](https://developer.apple.com/videos/play/wwdc2023/10073)
+
+[![](https://devimages-cdn.apple.com/wwdc-services/images/D35E0E85-CCB6-41A1-B227-7995ECD83ED5/2C47B638-090D-4CBB-9E9E-EBE8114536D9/8132_wide_250x141_1x.jpg) Design considerations for vision and motion ](https://developer.apple.com/videos/play/wwdc2023/10078)
+
+## [Change log](https://developer.apple.com/design/human-interface-guidelines/eyes#Change-log)
+
+Date| Changes
+---|---
+June 10, 2024| Added guidance for custom hover effects.
+March 29, 2024| Added artwork showing the visionOS hover effect.
+October 24, 2023| Clarified the difference between focus effects and the visionOS hover effect.
+June 21, 2023| New page.
+

package/skills/hig-inputs/references/focus-and-selection.md

@@ -0,0 +1,120 @@
+---
+title: "Focus and selection | Apple Developer Documentation"
+source: https://developer.apple.com/design/human-interface-guidelines/focus-and-selection
+
+# Focus and selection
+
+Focus helps people visually confirm the object that their interaction targets.
+
+![A sketch of a frame around a circular interface element, suggesting locking focus on an object. The image is overlaid with rectangular and circular grid lines and is tinted purple to subtly reflect the purple in the original six-color Apple logo.](https://docs-assets.developer.apple.com/published/13b5befef4936f31ce74db6aa05b7a0e/inputs-focus-and-selection-intro%402x.png)
+
+Focus supports simplified, component-based navigation. Using inputs like a remote, game controller, or keyboard, people bring focus to the components they want to interact with.
+
+In many cases, focusing an item also selects it. The exception is when automatic selection might cause a distracting context shift, like opening a new view. In tvOS, for example, people use the remote to move focus from item to item as they seek the one they want, but because selecting a focused item opens or activates it, selection requires a separate gesture.
+
+Different platforms communicate focus in different ways. For example, iPadOS and macOS show focus by drawing a ring around an item or highlighting it; tvOS generally uses the [parallax effect](https://developer.apple.com/design/human-interface-guidelines/images#Parallax-effect) to give the focused item an appearance of depth and liveliness. The combination of focus effects and interactions is sometimes called a _focus system_ or _focus model_.
+
+## [Best practices](https://developer.apple.com/design/human-interface-guidelines/focus-and-selection#Best-practices)
+
+**Rely on system-provided focus effects.** System-defined focus effects are precisely tuned to complement interactions with Apple devices, providing experiences that feel responsive, fluid, and lifelike. Incorporating system-provided focus behaviors gives your app consistency and predictability, helping people understand it quickly. Consider creating custom focus effects only if it’s absolutely necessary.
+
+**Avoid changing focus without people’s interaction.** People rely on the focus system to help them know where they are in your app. If you change focus without their interaction, people have to spend time finding the newly focused item, delaying their current task. The exception is when people are moving focus using an input device that lets them make discrete, directional movements — like a keyboard, remote, or game controller — and a previously focused item disappears. In this scenario, there are only a small number of items within one discrete step of the previously focused item, so moving focus to one of these remaining items ensures that the focus indicator is in a location people can easily find. When people aren’t moving focus by using such an input device, you can’t predict the item they’ll target next, so it’s generally best to simply hide the focus indicator when the focused object disappears.
+
+**Be consistent with the platform as you help people bring focus to items in your app.** For example, in iPadOS and macOS, a full keyboard access mode helps people use the keyboard to reach every control, so you only need to support focus for content elements like list items, text fields, and search fields, and not for controls like buttons, sliders, and toggles. In contrast, tvOS users rely on using directional gestures on a remote or game controller (or pressing the arrow keys on an attached keyboard) to reach every onscreen element, so you need to make sure that people can bring focus to every element in your app.
+
+**Indicate focus using visual appearances that are consistent with the platform.** For example, consider a window that contains a list of items. In iPadOS and macOS, the system draws focused list items using white text and a background highlight that matches the app’s accent color, drawing unfocused items using the standard text color and a gray background highlight (for developer guidance, see [`UICollectionView`](https://developer.apple.com/documentation/UIKit/UICollectionView) and [`NSTableView`](https://developer.apple.com/documentation/AppKit/NSTableView)).
+
+**In general, use a focus ring for a text or search field, but use a highlight in a list or collection.** Although you can use a focus ring to draw attention to an item that fills a cell, like a photo, it’s usually easier for people to view lists and collections when an entire row is highlighted.
+
+## [Platform considerations](https://developer.apple.com/design/human-interface-guidelines/focus-and-selection#Platform-considerations)
+
+ _Not supported in iOS or watchOS._
+
+### [iPadOS](https://developer.apple.com/design/human-interface-guidelines/focus-and-selection#iPadOS)
+
+iPadOS 15 and later defines a focus system that supports keyboard interactions for navigating text fields, text views, and sidebars, in addition to various types of collection views and other custom views in your app.
+
+The iPadOS and tvOS focus systems are similar. People perform actions by moving a focus indicator to an item and then selecting it (for guidance, see [tvOS](https://developer.apple.com/design/human-interface-guidelines/focus-and-selection#tvOS)). Although the underlying system is the same, the user experiences are a little different. tvOS uses _directional focus_ , which means people can use the same interaction — that is, swiping the Siri Remote or using only the arrow keys on a connected keyboard — to navigate to every onscreen component. In contrast, iPadOS defines _focus groups_ , which represent specific areas within an app, like a sidebar, grid, or list. Using focus groups, iPadOS can support two different keyboard interactions.
+
+  * Pressing the Tab key moves focus among focus groups, letting people navigate to sidebars, grids, and other app areas.
+
+  * Pressing an arrow key supports a directional focus interaction that’s similar to tvOS, but limited to navigation among items in the same focus group. For example, people can use an arrow key to move through the items in a list or a sidebar.
+
+
+
+
+Onscreen components can indicate focus by using the halo effect or the highlighted appearance.
+
+The _halo_ focus effect — also known as the _focus ring_ — displays a customizable outline around the component. You can apply the halo effect to custom views and to fully opaque content within a collection or list cell, such as an image.
+

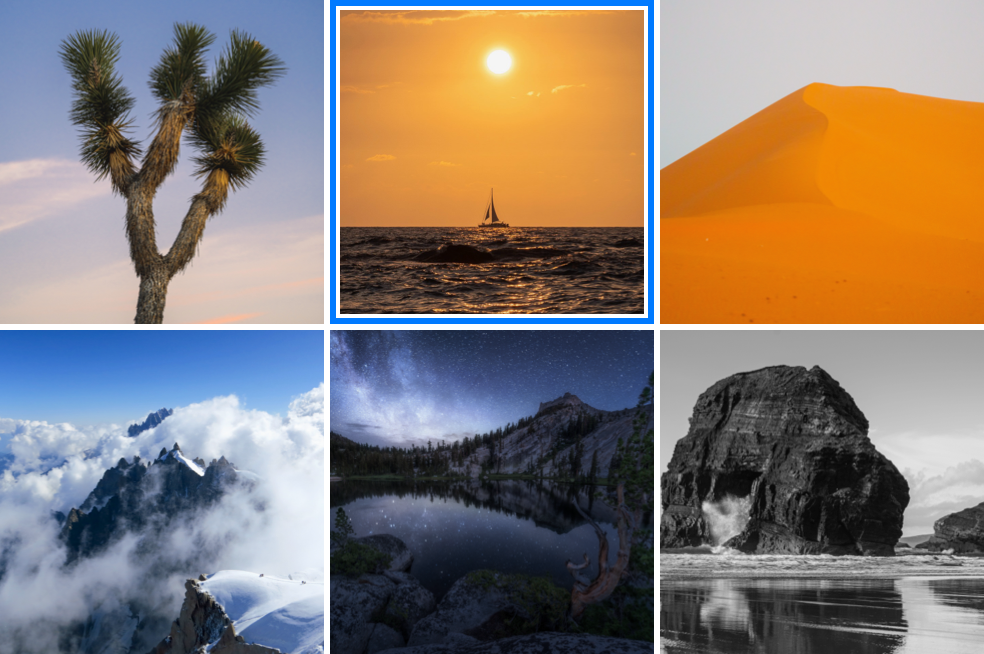

+![An illustration of a collection view of photos showing the standard halo effect that outlines the focused photo.](https://docs-assets.developer.apple.com/published/2bfe6fedc5a6a8ecf6d7e74e9492a096/focus-and-selection-halo-focus-effect%402x.png)
+
+**Customize the halo focus effect when necessary.** By default, the system uses an item’s shape to infer the shape of its halo. If the system-provided halo doesn’t give you the appearance you want, you can refine it to match contours like rounded corners or shapes defined by Bézier paths. You can also adjust a halo’s position if another component occludes or clips it. For example, you might need to ensure that a badge appears above the halo or that a parent view doesn’t clip it. For developer guidance, see [`UIFocusHaloEffect`](https://developer.apple.com/documentation/UIKit/UIFocusHaloEffect).
+

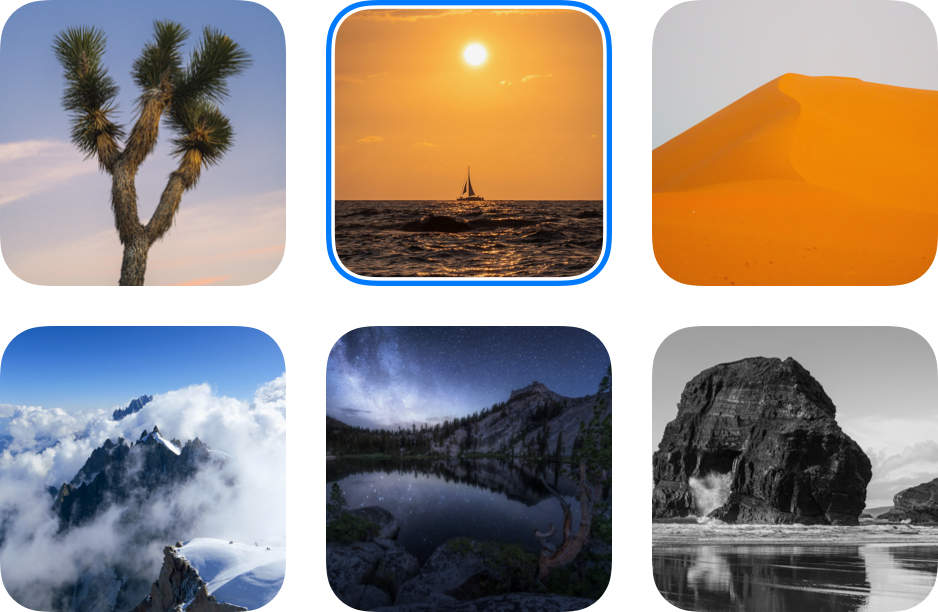

+![An illustration of a collection view of photos showing a rounded-rectangle halo effect that outlines the focused photo.](https://docs-assets.developer.apple.com/published/1a84f872d0624355e89fa03b357ddd13/focus-and-selection-customized-halo%402x.png)
+
+The _highlighted_ appearance — in which the component’s text uses the app’s accent color — also indicates focus, but it’s not a focus effect. The highlight appearance occurs automatically when people select a collection view cell on which you’ve set content configurations (for developer guidance, see [`UICollectionViewCell`](https://developer.apple.com/documentation/UIKit/UICollectionViewCell)).
+

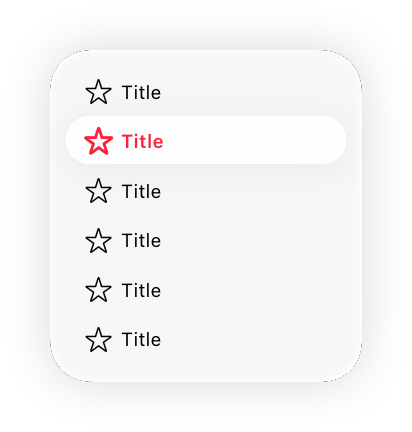

+![An illustration of a list of menu items with the second item highlighted. The item's title and icon are tinted with a red accent color.](https://docs-assets.developer.apple.com/published/01261865c38379fa118f16057a54f23e/focus-and-selection-highlighted-appearance%402x.png)
+
+**Ensure that focus moves through your custom views in ways that make sense.** As people continue pressing the Tab key, focus moves through focus groups in reading order: leading to trailing, and top to bottom. Although focus moves through system-provided views in ways that people expect, you might need to adjust the order in which the focus system visits your custom views. For example, if you want focus to move down through a vertical stack of custom views before it moves in the trailing direction to the next view, you need to identify the stack container as a single focus group. For developer guidance, see [`focusGroupIdentifier`](https://developer.apple.com/documentation/UIKit/UIFocusEnvironment/focusGroupIdentifier).
+
+**Adjust the priority of an item to reflect its importance within a focus group.** When a group receives focus, its _primary item_ automatically receives focus too, making it easy for people to select the item they’re most likely to want. You can make an item primary by increasing its priority. For developer guidance, see [`UIFocusGroupPriority`](https://developer.apple.com/documentation/UIKit/UIFocusGroupPriority).
+
+### [tvOS](https://developer.apple.com/design/human-interface-guidelines/focus-and-selection#tvOS)
+
+**In a full-screen experience, let people use gestures to interact with the content, not to move focus.** When an item displays in full screen, it doesn’t show focus, so people naturally assume that their gestures will affect the object, and not its focus state.
+
+**Avoid displaying a pointer.** People expect to navigate a fixed number of items by changing focus, not by trying to drag a tiny pointer around a huge screen. While free-form movement might make sense during gameplay, such as when looking for a hidden object or flying a plane, use the focus model when people navigate menus and other interface elements. If your app requires a pointer, make sure it’s highly visible and feels integrated with your experience.
+
+**Design your interface to accommodate components in various focus states.** In tvOS, focusable items can have up to five different states, each of which is visually distinct. Because focusing an item often increases its scale, you need to supply assets for the larger, focused size to ensure they always look sharp, and you need to make sure the larger item doesn’t crowd the surrounding interface.
+
+State| Description
+---|---
+![An image of an unfocused button on top of a photograph. A small drop shadow makes it appear very close to the content behind it, with a translucent background infused by the colors of the content, and a high-contrast text color.](https://docs-assets.developer.apple.com/published/bfc53c88dc7a84a9ca45d43d8f7fb550/focus-and-selection-state-unfocused%402x.png)| The viewer hasn’t brought focus to the item. Unfocused items appear less prominent than focused items.

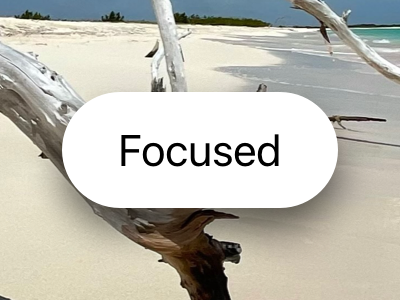

+![An image of a focused button on top of a photograph. It’s larger than an unfocused button, and a drop shadow makes it appear farther away from the content behind it, with an opaque white background and a black text label.](https://docs-assets.developer.apple.com/published/882b1286aa16b7a8d4a6367778a984b9/focus-and-selection-state-focused%402x.png)| The viewer brings focus to the item. A focused item visually stands out from the other onscreen content through elevation to the foreground, illumination, and animation.

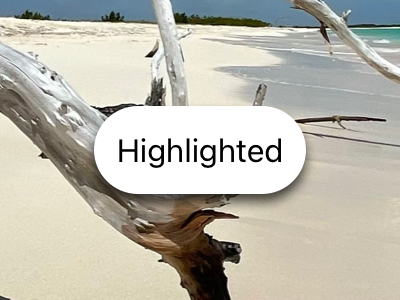

+![An image of a highlighted button on top of a photograph. It’s the same size as an unfocused button, and a drop shadow makes it appear a little farther away from the surface of the content behind it, with an opaque white background and a black text label.](https://docs-assets.developer.apple.com/published/d5388fe044717ba970895f33bdbebe3c/focus-and-selection-state-highlighted%402x.png)| The viewer chooses the focused item. A focused item provides instant visual feedback when people choose it. For example, a button might briefly invert its colors and animate before it transitions to its selected appearance.

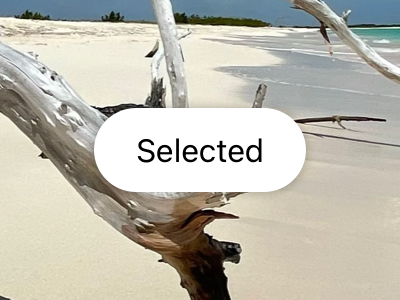

+![An image of a selected button on top of a photograph. It’s the same size as an unfocused button, and a small drop shadow makes it appear very close to the content behind it, with an opaque white background and a black text label.](https://docs-assets.developer.apple.com/published/ea6520ec5576b19ad7952c35a28c2dfc/focus-and-selection-state-selected%402x.png)| The viewer has chosen or activated the item in some way. For example, a heart-shaped button that people can use to favorite a photo might appear filled in the selected state and empty in the deselected state.

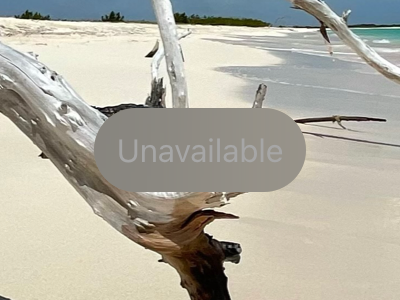

+![An image of an unavailable button on top of a photograph. It’s the same size as an unfocused button. It lacks a drop shadow and appears to rest directly on the content behind it, with a translucent background tinted by the the colors of nearby content, and a low-contrast text color.](https://docs-assets.developer.apple.com/published/c1d9c327cbefe45ef0aeef12b93b956c/focus-and-selection-state-unavailable%402x.png)| The viewer can’t bring focus to the item or choose it. An unavailable item appears inactive.
+
+For developer guidance, see [Adding user-focusable elements to a tvOS app](https://developer.apple.com/documentation/UIKit/adding-user-focusable-elements-to-a-tvos-app).
+
+### [visionOS](https://developer.apple.com/design/human-interface-guidelines/focus-and-selection#visionOS)
+
+visionOS supports the same focus system as in iPadOS and tvOS, letting people use a connected input device like a keyboard or game controller to interact with apps and the system.
+
+Note
+
+When people look at a virtual object to identify it as the object they want to interact with, the system uses the _hover effect_ , not a focus effect, to provide visual feedback (for guidance, see [Eyes](https://developer.apple.com/design/human-interface-guidelines/eyes)). The hover effect isn’t related to the focus system.
+
+## [Resources](https://developer.apple.com/design/human-interface-guidelines/focus-and-selection#Resources)
+
+#### [Related](https://developer.apple.com/design/human-interface-guidelines/focus-and-selection#Related)
+
+[Eyes](https://developer.apple.com/design/human-interface-guidelines/eyes)
+
+[Keyboards](https://developer.apple.com/design/human-interface-guidelines/keyboards)
+
+#### [Developer documentation](https://developer.apple.com/design/human-interface-guidelines/focus-and-selection#Developer-documentation)
+
+[Focus Attributes](https://developer.apple.com/documentation/TVML/focus-attributes) — TVML
+
+[Focus-based navigation](https://developer.apple.com/documentation/UIKit/focus-based-navigation) — UIKit
+
+[About focus interactions for Apple TV](https://developer.apple.com/documentation/UIKit/about-focus-interactions-for-apple-tv) — UIKit
+
+#### [Videos](https://developer.apple.com/design/human-interface-guidelines/focus-and-selection#Videos)
+
+[![](https://devimages-cdn.apple.com/wwdc-services/images/D35E0E85-CCB6-41A1-B227-7995ECD83ED5/C6CDCC79-CCD0-4D2F-A4D1-8FC70DC663DB/8127_wide_250x141_1x.jpg) Design for spatial input ](https://developer.apple.com/videos/play/wwdc2023/10073)
+
+[![](https://devimages-cdn.apple.com/wwdc-services/images/D35E0E85-CCB6-41A1-B227-7995ECD83ED5/38E4EE32-29B5-4478-B8B6-35B8ACA67B16/8130_wide_250x141_1x.jpg) Design for spatial user interfaces ](https://developer.apple.com/videos/play/wwdc2023/10076)
+
+[![](https://devimages-cdn.apple.com/wwdc-services/images/49/F9A980A7-B00A-4856-9172-FDB610A419E5/3509_wide_250x141_1x.jpg) Design for the iPadOS pointer ](https://developer.apple.com/videos/play/wwdc2020/10640)
+
+## [Change log](https://developer.apple.com/design/human-interface-guidelines/focus-and-selection#Change-log)
+
+Date| Changes
+---|---
+October 24, 2023| Clarified the difference between focus effects and the visionOS hover effect.
+June 21, 2023| Updated to include guidance for visionOS.
+

package/skills/hig-inputs/references/game-controls.md

@@ -0,0 +1,156 @@
+---
+title: "Game controls | Apple Developer Documentation"
+source: https://developer.apple.com/design/human-interface-guidelines/game-controls
+
+# Game controls
+
+Precise, intuitive game controls enhance gameplay and can increase a player’s immersion in the game.
+
+![A sketch of a D-pad control from a game controller, suggesting gameplay. The image is overlaid with rectangular and circular grid lines and is tinted purple to subtly reflect the purple in the original six-color Apple logo.](https://docs-assets.developer.apple.com/published/b6c5b8cb6c62c9dd9f5e59ae745d6465/inputs-game-controls-intro%402x.png)
+
+On Apple platforms, a game can support input from physical game controllers or default system interactions, like touch, a remote, or a mouse and keyboard. Players might prefer to use physical game controllers, but there are two important reasons to also support a platform’s default interaction methods:
+
+  * Even though all platforms except watchOS support physical game controllers, not every player might have access to one.
+
+  * Players appreciate games that let them use the platform interaction method they’re most familiar with.
+
+
+
+
+To reach the widest audience and provide the best experience for each platform, keep these factors in mind when choosing the input methods to support.
+
+## [Touch controls](https://developer.apple.com/design/human-interface-guidelines/game-controls#Touch-controls)
+
+For iOS and iPadOS games, supporting touch interaction means that you can provide virtual controls on top of game content while also letting players interact with game elements by touching them directly. You can use the [Touch Controller](https://developer.apple.com/documentation/TouchController) framework to add these virtual controls to your game. Keep the following guidelines in mind to create an enjoyable touch control experience.
+
+**Determine whether it makes sense to display virtual controls on top of game content.** In general, virtual game controls benefit games that offer a large number of actions or require players to control movement. However, sometimes gameplay is more immersive and effective when players can interact directly with in-game objects. Look for opportunities to reduce the amount of virtual controls that overlap your game content by associating actions with in-game gestures instead. For example, consider letting players tap objects to select them instead of adding a virtual selection button.
+
+**Place virtual buttons where they’re easy to access.** Take into account the device’s boundaries and [safe areas](https://developer.apple.com/design/human-interface-guidelines/layout#Guides-and-safe-areas) as well as comfortable locations for controls. Make sure to position buttons where they don’t overlap system features like the Home indicator or Dynamic Island on iPhone. Place frequently used buttons near a player’s thumb, avoiding the circular regions where players expect movement and camera input to happen. Place secondary controls, like menus, at the top of the screen.
+
+![A graphic that shows ideal placement for touch controls for an iPhone in landscape orientation.](https://docs-assets.developer.apple.com/published/dd0cd40a5b38af26ea97072ecf987b24/game-controls-touch-input-heat-map%402x.png)
+
+Placing virtual controls within reach of people’s thumbs can make your game more comfortable to play.
+
+**Make sure controls are large enough.** Make sure frequently used controls are a minimum size of 44x44 pt, and less important controls, such as menus, are a minimum size of 28x28 pt to accommodate people’s fingers.
+
+**Always include visible and tactile press states.** A virtual control feels unresponsive without a visual and physical press state. Help players understand when they successfully interact with a button by adding a visual press state effect, such as a glow, that they can see even when their finger is covering the control. Combine this press state with sound and haptics to enhance the feeling of feedback. For guidance, see [Playing haptics](https://developer.apple.com/design/human-interface-guidelines/playing-haptics).
+

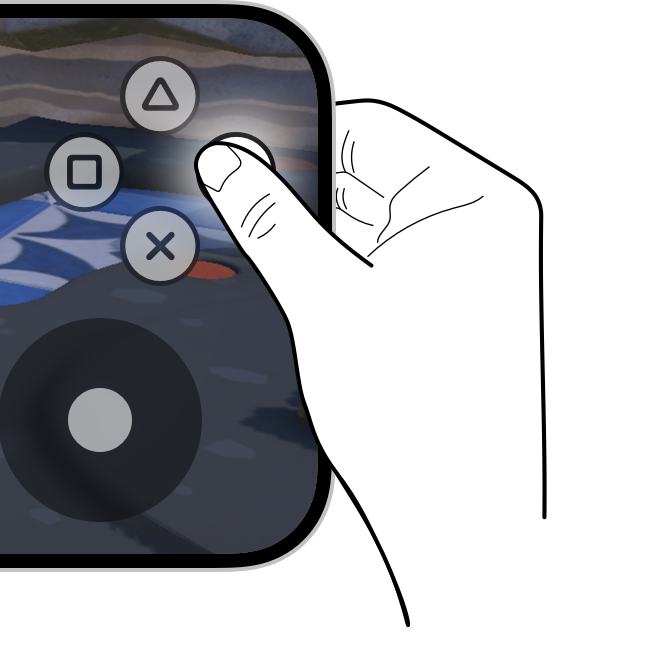

+![A right hand holding an iPhone in landscape orientation. The thumb is pressing down on a virtual button, and the button indicates its press state by increasing its opacity and showing a glow effect around it.](https://docs-assets.developer.apple.com/published/7e633e5b94444a3590ce03fee0d5c3df/game-controls-press-state%402x.png)
+

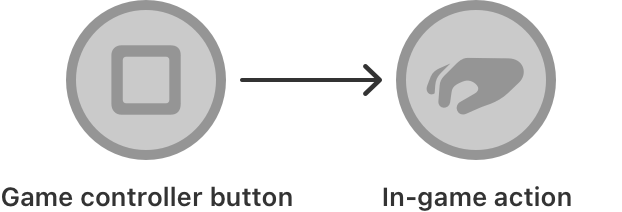

+**Use symbols that communicate the actions they perform.** Choose artwork that visually represents the action each button performs, such as a graphic of a weapon to represent an attack. Avoid using abstract shapes or controller-based naming like A, X, or R1 as artwork, which makes it harder for players to understand and remember what specific controls do.
+
+![A game controller button with a graphic of a square mapping to a virtual button with a graphic of a hand making a gesture to pick up an object.](https://docs-assets.developer.apple.com/published/d5ba7d4086cc786b24b789e29bfd3507/game-controls-button-to-action%402x.png)
+
+**Show and hide virtual controls to reflect gameplay.** Take advantage of the dynamic nature of touch controls and adapt what controls players see onscreen depending on their context. You can hide controls when an action isn’t available or relevant, letting you reduce clutter and help players concentrate on what’s important. For example, consider hiding movement controls until a player touches the screen to reduce the amount of UI overlapping your game content.
+
+  * Visible control
+  * Hidden control
+
+
+

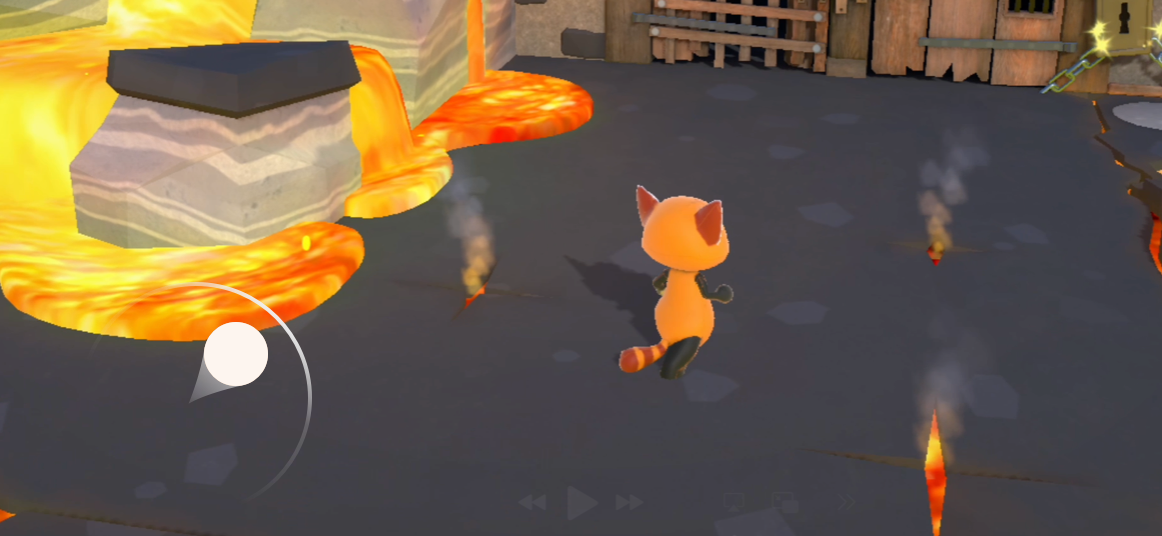

+![A graphic that shows gameplay with a virtual control to move the character that's more visible while the character is moving.](https://docs-assets.developer.apple.com/published/2c9a0444ff10b37e8e5b54a9036d482e/game-controls-thumbstick-in-motion%402x.png)
+
+When the thumbstick moves to the right, it becomes more visible and shows a highlight to indicate the movement direction.
+

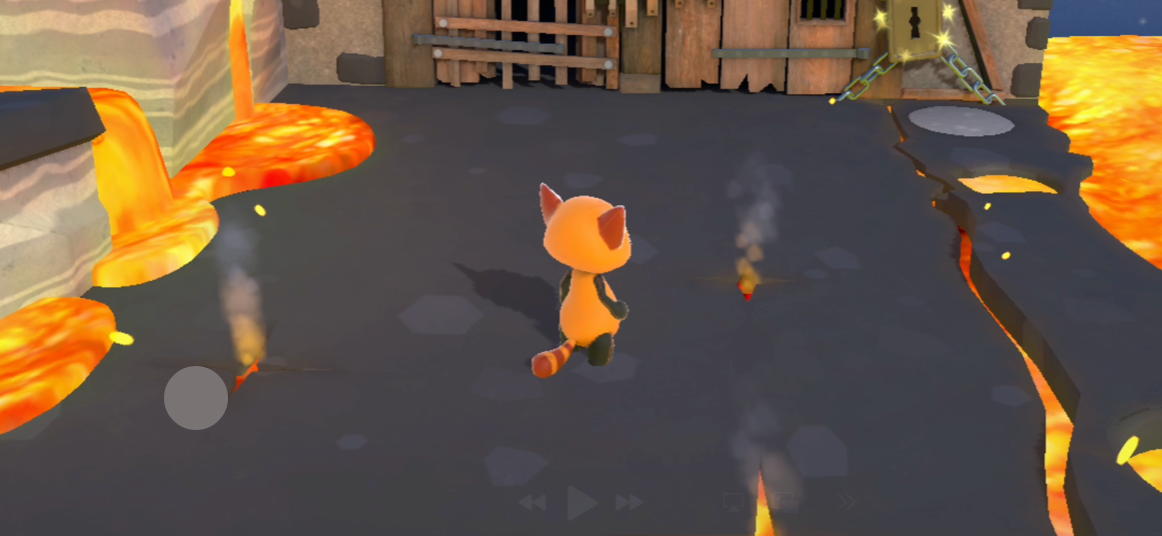

+![A graphic that shows gameplay with a virtual control to move the character that's less visible while the character is at rest.](https://docs-assets.developer.apple.com/published/8feb4b819cccdf9a74fa7c3ccd5d6e42/game-controls-thumbstick-at-rest%402x.png)
+
+When the thumbstick is at rest, the virtual control fades to show it’s not in use.
+

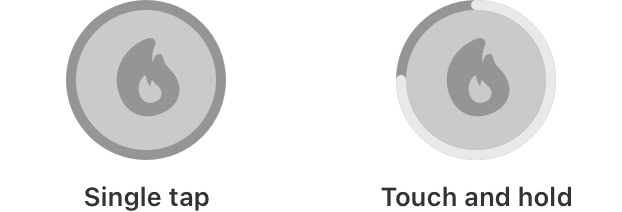

+**Combine functionality into a single control.** Consider redesigning game mechanics that require players to press multiple buttons at the same time or in a sequence. Leverage gestures such as double tap and touch and hold to provide different variations of the same action, such as touch and hold to use a special powered up version of an attack. For multiple actions, such as walking or sprinting, consider combining the actions into a single control.
+
+![A graphic of a virtual button that supports both single tap and touch and hold gestures.](https://docs-assets.developer.apple.com/published/a92df74768951a55f0f4d406eedb6b4a/game-controls-power-up-action%402x.png)
+
+**Map movement and camera controls to predictable behavior.** Typically, players expect to control movement using the left side of their screen, and control camera direction using the right side of their screen. Maximize the amount of space that players can control both movement and the camera direction by using as large of an input area as possible. For movement control, opt to show a virtual thumbstick wherever the player lands their thumb instead of a static thumbstick position. For camera control, opt to use direct touch to pan the camera instead of a virtual thumbstick.
+
+![A graphic that shows placement for movement controls on the left side of the screen, and placement for camera controls on the right side of the screen.](https://docs-assets.developer.apple.com/published/7bc00774e35dd1839091df6f8c16a830/game-controls-camera-thumbstick-zones%402x.png)
+
+## [Physical controllers](https://developer.apple.com/design/human-interface-guidelines/game-controls#Physical-controllers)
+
+**Support the platform’s default interaction method.** A game controller is an optional purchase, but every iPhone and iPad has a touchscreen, every Mac has a keyboard and a trackpad or mouse, every Apple TV has a remote, and every Apple Vision Pro responds to gestures people make with their eyes and hands. If you support game controllers, try to make sure there’s a fallback for using the platform’s default interaction method. For developer guidance, see [Adding touch controls to games that support game controllers in iOS](https://developer.apple.com/documentation/GameController/adding-touch-controls-to-games-that-support-game-controllers-in-ios).
+
+**Tell people about game controller requirements.** In tvOS and visionOS, you can require the use of a physical game controller. The App Store displays a “Game Controller Required” badge to help people identify such apps. Remember that people can open your game at any time, even without a connected controller. If your app requires a game controller, check for its presence and gracefully prompt people to connect one. For developer guidance, see [`GCRequiresControllerUserInteraction`](https://developer.apple.com/documentation/BundleResources/Information-Property-List/GCRequiresControllerUserInteraction).
+
+**Automatically detect whether a controller is paired.** Instead of having players manually set up a physical game controller, you can automatically detect whether a controller is paired and get its profile. For developer documentation, see [Game Controller](https://developer.apple.com/documentation/GameController).
+
+![An illustration of a game controller with callouts that indicate the locations of the controller’s triggers, shoulder buttons, directional pad, and thumbsticks.](https://docs-assets.developer.apple.com/published/40b70c72921efd92b91da0453533baaa/game-controls-controller-anatomy%402x.png)
+
+**Customize onscreen content to match the connected game controller.** To simplify your game’s code, the Game Controller framework assigns standard names to controller elements based on their placement, but the colors and symbols on an actual game controller may differ. Be sure to use the connected controller’s labeling scheme when referring to controls or displaying related content in your interface. For developer guidance, see [`GCControllerElement`](https://developer.apple.com/documentation/GameController/GCControllerElement).
+
+**Map controller buttons to expected UI behavior.** Outside of gameplay, players expect to navigate your game’s UI in a way that matches the familiar behavior of the platform they’re playing on. When not controlling gameplay, follow these conventions across all Apple platforms:
+
+Button| Expected behavior for UI
+---|---
+A| Activates a control
+B| Cancels an action or returns to previous screen
+X| —
+Y| —
+Left shoulder| Navigates left to a different screen or section
+Right shoulder| Navigates right to a different screen or section
+Left trigger| —
+Right trigger| —
+Left/right thumbstick| Moves selection
+Directional pad| Moves selection
+Home/logo| Reserved for system controls
+Menu| Opens game settings or pauses gameplay
+
+**Support multiple connected controllers.** If there are multiple controllers connected, use labels and glyphs that match the one that the player is actively using. If your game supports multiplayer, use the appropriate labels and symbols when referring to a specific player’s controller. If you need to refer to buttons on multiple controllers, consider listing them together.
+
+**Prefer using symbols, not text, to refer to game controller elements.** The Game Controller framework makes [SF Symbols](https://developer.apple.com/design/human-interface-guidelines/sf-symbols) available for most elements, including the buttons on various brands of game controllers. Using symbols instead of text descriptions can be especially helpful for players who aren’t experienced with controllers because it doesn’t require them to hunt for a specific button label during gameplay.
+
+![A screenshot of the SF Symbols app showing symbols in the Gaming category.](https://docs-assets.developer.apple.com/published/c76627e659aa17ab46a638437cc5d33c/game-controls-sf-symbols-gaming-category%402x.png)
+
+## [Keyboards](https://developer.apple.com/design/human-interface-guidelines/game-controls#Keyboards)
+
+Keyboard players appreciate using keyboard bindings to speed up their interactions with apps and games.
+
+**Prioritize single-key commands.** Single-key commands are generally easier and faster for players to perform, especially while they’re simultaneously using a mouse or trackpad. For example, you might use the first letter of a menu item as a shortcut, such as I for Inventory or M for Map; you might also map the game’s main action to the Space bar, taking advantage of the key’s relatively large size.
+
+**Test key binding comfort game using an Apple keyboard.** For example, if a key binding uses the Control key (^) on a non-Apple keyboard, consider remapping it to the Command key (⌘) on an Apple keyboard. On Apple keyboards, the Command key is conveniently located next to the Space bar, making it especially easy to reach when players are using the W, A, S, and D keys.
+
+**Take the proximity of keys into account.** For example, if players navigate using the W, A, S, and D keys, consider using nearby keys to define other high-value commands. Similarly, if there’s a group of closely related actions, it can work well to map their bindings to keys that are physically close together, such as using the number keys for inventory categories.
+
+**Let players customize key bindings.** Although players tend to expect a reasonable set of defaults, many people need to customize a game’s key bindings for personal comfort and play style.
+
+## [Platform considerations](https://developer.apple.com/design/human-interface-guidelines/game-controls#Platform-considerations)
+
+ _No additional considerations for iOS, iPadOS, macOS, or tvOS. Not supported in watchOS._
+
+### [visionOS](https://developer.apple.com/design/human-interface-guidelines/game-controls#visionOS)
+
+**Match spatial game controller behavior to hand input.** In addition to supporting a wide array of wireless game controllers, your visionOS game can also support spatial game controllers such as PlayStation VR2 Sense controller. Allow players to interact with your game in a similar manner to how they interact using their hands. Specifically, support looking at an object and pressing the controller’s left or right trigger button to indirectly interact, or reaching out and pressing the left or right trigger button to directly interact. For more information, see [visionOS](https://developer.apple.com/design/human-interface-guidelines/gestures#visionOS).
+
+## [Resources](https://developer.apple.com/design/human-interface-guidelines/game-controls#Resources)
+
+#### [Related](https://developer.apple.com/design/human-interface-guidelines/game-controls#Related)
+
+[Designing for games](https://developer.apple.com/design/human-interface-guidelines/designing-for-games)
+
+[Gestures](https://developer.apple.com/design/human-interface-guidelines/gestures)
+
+[Keyboards](https://developer.apple.com/design/human-interface-guidelines/keyboards)
+
+[Playing haptics](https://developer.apple.com/design/human-interface-guidelines/playing-haptics)
+
+#### [Developer documentation](https://developer.apple.com/design/human-interface-guidelines/game-controls#Developer-documentation)
+
+[Create games for Apple platforms](https://developer.apple.com/games/)
+
+[Touch Controller](https://developer.apple.com/documentation/TouchController)
+
+[Game Controller](https://developer.apple.com/documentation/GameController)
+
+#### [Videos](https://developer.apple.com/design/human-interface-guidelines/game-controls#Videos)
+
+[![](https://devimages-cdn.apple.com/wwdc-services/images/C03E6E6D-A32A-41D0-9E50-C3C6059820AA/2DB746B8-E0B0-4ED1-B250-902DB7A0F3E7/9196_wide_250x141_1x.jpg) Design advanced games for Apple platforms ](https://developer.apple.com/videos/play/wwdc2024/10085)
+
+[![](https://devimages-cdn.apple.com/wwdc-services/images/119/AD3141F9-6984-4328-9388-551C8677F6A2/4973_wide_250x141_1x.jpg) Tap into virtual and physical game controllers ](https://developer.apple.com/videos/play/wwdc2021/10081)
+
+[![](https://devimages-cdn.apple.com/wwdc-services/images/C03E6E6D-A32A-41D0-9E50-C3C6059820AA/51863C09-0E96-4230-91A3-B85E950FBF3D/9205_wide_250x141_1x.jpg) Explore game input in visionOS ](https://developer.apple.com/videos/play/wwdc2024/10094)
+
+## [Change log](https://developer.apple.com/design/human-interface-guidelines/game-controls#Change-log)
+
+Date| Changes
+---|---
+June 9, 2025| Updated touch control best practices, updated game controller mapping for UI, and added guidance for spatial game controller support in visionOS.
+June 10, 2024| Added guidance for supporting touch controls and changed title from Game controllers.
+
