kmtronic-usb-relay 26.0.1__py3-none-any.whl

kmtronic_usb_relay/four_channel_relay_gui.py

@@ -0,0 +1,324 @@
+import logging
+import threading
+from typing import List, Optional
+
+import customtkinter as ctk
+import tkinter.messagebox as messagebox
+
+from kmtronic_usb_relay.com_utils import SerialComUtils
+from kmtronic_usb_relay.four_channel_relay import RelayController
+

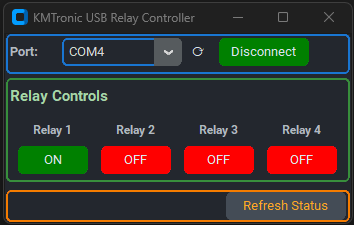

+class RelayControllerGui:
+    """
+    User-friendly GUI for KMTronic USB 4-channel relay module.
+    Provides an interface to connect, control, and monitor relays.
+    """
+
+    def __init__(
+        self,
+        com_port: str = "",
+        controller: Optional[RelayController] = None,
+        relay_names: Optional[List[str]] = None,
+    ):
+        """
+        Initialize the RelayControllerGui.
+
+        Args:
+            com_port (str): Default COM port to select.
+            controller (Optional[RelayController]): Optional pre-initialized RelayController.
+            relay_names (Optional[List[str]]): Optional list of relay names for labeling buttons.
+        """
+        self.controller = controller
+        self.com_port = com_port
+        self.relay_names = relay_names or [f"Relay {i}" for i in range(1, 5)]
+        ctk.set_appearance_mode("dark")
+        ctk.set_default_color_theme("dark-blue")
+        self.root = ctk.CTk()
+        self.root.title("KMTronic USB Relay Controller")
+        self.root.protocol("WM_DELETE_WINDOW", self.close)
+        self.relay_buttons: List[ctk.CTkButton] = []
+        self.combobox = None
+        self.conn_btn = None
+        self._build_ui()
+        self._update_ui()
+
+    def _build_ui(self):
+        """
+        Build the main UI layout, including port selection, relay controls, and action buttons.
+        """
+        main = ctk.CTkFrame(self.root, fg_color="#23272e")
+        main.pack(padx=1, pady=1, fill="both", expand=True)
+        self._build_port_group(main)
+        self._build_relay_group(main)
+        self._build_action_group(main)
+
+    def _build_port_group(self, parent):
+        """
+        Build the serial port selection group in the UI.
+
+        Args:
+            parent: The parent widget to attach this group to.
+        """
+        port_group = ctk.CTkFrame(parent, border_color="#1976D2", border_width=2, fg_color="#23272e")
+        port_group.pack(fill="x", pady=(0, 4), padx=1, ipady=2, ipadx=2)
+        ctk.CTkLabel(
+            port_group, text="Port:", width=50, anchor="w", text_color="#B0B8C1",
+            font=ctk.CTkFont(size=13, weight="bold")
+        ).grid(row=0, column=0, padx=(4, 1), pady=4, sticky="w")
+        ports = SerialComUtils.get_port_names()
+        self.combobox = ctk.CTkComboBox(
+            port_group, values=ports, width=120, fg_color="#23272e", border_color="#1976D2"
+        )
+        self.combobox.grid(row=0, column=1, padx=1, pady=4, sticky="w")
+        self.combobox.set(self.com_port if self.com_port in ports else (ports[0] if ports else ""))
+        ctk.CTkButton(
+            port_group, text="⟳", width=28, command=self.refresh_ports,
+            fg_color="#23272e", border_color="#1976D2"
+        ).grid(row=0, column=2, padx=1, pady=4)
+        self.conn_btn = ctk.CTkButton(
+            port_group, text="Connect", fg_color="#444c56", hover_color="#1976D2",
+            width=90, command=self._toggle_connection
+        )
+        self.conn_btn.grid(row=0, column=3, padx=(6, 1), pady=4)
+        port_group.grid_columnconfigure(4, weight=1)
+
+    def _build_relay_group(self, parent):
+        """
+        Build the relay control buttons in the UI.
+
+        Args:
+            parent: The parent widget to attach this group to.
+        """
+        relay_group = ctk.CTkFrame(parent, border_color="#388E3C", border_width=2, fg_color="#23272e")
+        relay_group.pack(fill="x", pady=(0, 4), padx=1, ipady=2, ipadx=2)
+        ctk.CTkLabel(
+            relay_group, text="Relay Controls", font=ctk.CTkFont(size=15, weight="bold"),
+            text_color="#A5D6A7"
+        ).pack(anchor="w", padx=4, pady=(4, 6))
+        row = ctk.CTkFrame(relay_group, fg_color="#23272e")
+        row.pack(fill="x", padx=6, pady=(0, 4))
+        for i in range(1, 5):
+            col = ctk.CTkFrame(row, fg_color="#23272e")
+            col.pack(side="left", padx=6, expand=True)
+            relay_label = self.relay_names[i - 1] if i - 1 < len(self.relay_names) else f"Relay {i}"
+            ctk.CTkLabel(
+                col, text=relay_label, width=60, anchor="center", text_color="#B0B8C1",
+                font=ctk.CTkFont(size=12, weight="bold")
+            ).pack(pady=(0, 2))
+            btn = ctk.CTkButton(
+                col, text="OFF", fg_color="#444c56", hover_color="#388E3C", width=70,
+                command=lambda n=i: self._toggle_relay(n)
+            )
+            btn.pack()
+            self.relay_buttons.append(btn)
+
+    def _build_action_group(self, parent):
+        """
+        Build the action buttons group (e.g., Refresh Status) in the UI.
+
+        Args:
+            parent: The parent widget to attach this group to.
+        """
+        btn_frame = ctk.CTkFrame(parent, fg_color="#23272e", border_color="#F57C00", border_width=2)
+        btn_frame.pack(fill="x", pady=(4, 0), padx=1, ipady=2, ipadx=2)
+        ctk.CTkButton(
+            btn_frame, text="Refresh Status", command=self._update_status_labels, width=120,
+            fg_color="#444c56", hover_color="#F57C00", text_color="#FFA726"
+        ).pack(side="right", padx=(0, 4))
+
+    def refresh_ports(self):
+        """
+        Refresh the list of available serial ports and update the port selection combobox.
+        Enables or disables the connect button based on port availability.
+        """
+        ports = SerialComUtils.get_port_names()
+        if self.combobox:
+            self.combobox.configure(values=ports)
+            self.combobox.set(self.com_port if self.com_port in ports else (ports[0] if ports else ""))
+        if self.conn_btn:
+            self.conn_btn.configure(state="normal" if ports else "disabled")
+
+    def _toggle_connection(self):
+        """
+        Handle connect/disconnect button click.
+        Starts a background thread to connect or disconnect from the relay controller.
+        """
+        if self.controller:
+            self._run_in_thread(self._disconnect_threaded)
+        else:
+            if self.conn_btn:
+                self.conn_btn.configure(state="disabled", text="Connecting...")
+            self._run_in_thread(self._connect_threaded)
+
+    def _connect_threaded(self):
+        """
+        Attempt to connect to the relay controller in a background thread.
+        On success, updates the UI and relay status. On failure, shows an error dialog.
+        """
+        port = self.combobox.get() if self.combobox else ""
+        try:
+            if self.controller:
+                self.controller.close()
+                self.controller = None
+            controller = RelayController(port, switch_delay=0.1)
+            statuses = controller.get_statuses()  # <-- FIXED
+            if statuses:
+                self.root.after(0, self._on_connect_success, controller, port)
+            else:
+                raise Exception("Failed to read relay status after connecting.")
+        except Exception as e:
+            logging.error(f"Connection failed: {e}")
+            self.root.after(0, lambda: messagebox.showerror("Connection Error", str(e)))
+            self.root.after(0, self._update_ui)
+        finally:
+            self.root.after(0, self._enable_connect_btn)
+
+    def _disconnect_threaded(self):
+        """
+        Disconnect from the relay controller in a background thread.
+        Updates the UI and enables the connect button after disconnecting.
+        """
+        try:
+            if self.controller:
+                self.controller.close()
+                self.controller = None
+        except Exception as e:
+            logging.error(f"Disconnection failed: {e}")
+            self.root.after(0, lambda: messagebox.showerror("Disconnection Error", str(e)))
+        finally:
+            self.root.after(0, self._update_ui)
+            self.root.after(0, self._enable_connect_btn)
+
+    def _on_connect_success(self, controller: RelayController, port: str):
+        """
+        Callback for successful connection.
+        Sets the controller, updates the UI, and refreshes relay statuses.
+
+        Args:
+            controller (RelayController): The connected relay controller instance.
+            port (str): The COM port used for connection.
+        """
+        self.controller = controller
+        self.com_port = port
+        self._update_ui()
+        self._update_status_labels()
+
+    def _enable_connect_btn(self):
+        """
+        Enable the connect/disconnect button after a connection or disconnection attempt.
+        Updates the button text based on connection state.
+        """
+        if self.conn_btn:
+            self.conn_btn.configure(state="normal", text="Disconnect" if self.controller else "Connect")
+
+    def _toggle_relay(self, relay_number: int):
+        """
+        Toggle the state of a relay in a background thread.
+
+        Args:
+            relay_number (int): The relay number to toggle (1-4).
+        """
+        if self.controller:
+            self._run_in_thread(lambda: self._toggle_relay_worker(relay_number))
+
+    def _toggle_relay_worker(self, relay_number: int):
+        """
+        Worker function to toggle relay state.
+        Reads current status and switches relay ON/OFF accordingly.
+
+        Args:
+            relay_number (int): The relay number to toggle (1-4).
+        """
+        try:
+            statuses = self.controller.get_statuses()
+            relay_key = f"R{relay_number}"
+            if statuses.get(relay_key) == "ON":
+                self.controller.turn_off(relay_number)  # <-- FIXED
+            else:
+                self.controller.turn_on(relay_number)   # <-- FIXED
+        except Exception as e:
+            self.root.after(0, lambda e=e: messagebox.showerror("Relay Error", str(e)))
+        self.root.after(0, self._update_status_labels)
+
+    def _update_status_labels(self):
+        """
+        Update the relay button labels and colors to reflect current relay states.
+        If not connected, sets all buttons to unknown state.
+        """
+        if self.controller:
+            try:
+                statuses = self.controller.get_statuses()  # <-- FIXED
+                for i in range(4):
+                    status = statuses.get(f"R{i+1}", "Unknown")
+                    color = "green" if status == "ON" else "red" if status == "OFF" else "gray"
+                    text = status if status in ("ON", "OFF") else "?"
+                    self.relay_buttons[i].configure(text=text, fg_color=color)
+            except Exception as e:
+                messagebox.showerror("Status Error", str(e))
+                for btn in self.relay_buttons:
+                    btn.configure(text="?", fg_color="gray")
+        else:
+            for btn in self.relay_buttons:
+                btn.configure(text="?", fg_color="gray")
+
+    def _update_ui(self):
+        """
+        Update the UI elements (button states, labels) based on connection state.
+        Disables relay buttons if not connected.
+        """
+        is_connected = self.controller is not None
+        if self.conn_btn:
+            self.conn_btn.configure(
+                text="Disconnect" if is_connected else "Connect",
+                fg_color="green" if is_connected else "gray"
+            )
+        for btn in self.relay_buttons:
+            btn.configure(state="normal" if is_connected else "disabled")
+
+    def _run_in_thread(self, func):
+        """
+        Run a function in a background thread to avoid blocking the UI.
+
+        Args:
+            func (Callable): The function to run in a thread.
+        """
+        threading.Thread(target=func, daemon=True).start()
+
+    def run(self):
+        """
+        Start the GUI main loop. Call this method to launch the application.
+        """
+        try:
+            self.root.mainloop()
+        except Exception as e:
+            print(f"Unexpected error: {e}")
+
+    def close(self):
+        """
+        Close the GUI and release resources.
+        Closes the relay controller connection and destroys the main window.
+        """
+        if self.controller:
+            self.controller.close()
+            self.controller = None
+        if self.root.winfo_exists():
+            self.root.destroy()
+
+    def __del__(self):
+        """
+        Destructor to ensure resources are released when the object is deleted.
+        """
+        try:
+            self.close()
+        except Exception:
+            pass
+
+def main():
+    """
+    Entry point for running the GUI as a standalone application.
+    """
+    print("\n--- KMTronic USB Relay Controller GUI ---")
+    RelayControllerGui().run()
+
+if __name__ == "__main__":
+    main()

kmtronic_usb_relay-26.0.1.dist-info/METADATA

@@ -0,0 +1,64 @@
+Metadata-Version: 2.3
+Name: kmtronic-usb-relay
+Version: 26.0.1
+Summary: Python library for KMTronic USB Relay
+Keywords: python,KMTronic,USB,relay,app
+Author: chaitu-ycr
+Author-email: chaitu-ycr <chaitu.ycr@gmail.com>
+License: MIT License
+
+         Copyright (c) 2026 chaitu-ycr
+
+         Permission is hereby granted, free of charge, to any person obtaining a copy
+         of this software and associated documentation files (the "Software"), to deal
+         in the Software without restriction, including without limitation the rights
+         to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
+         copies of the Software, and to permit persons to whom the Software is
+         furnished to do so, subject to the following conditions:
+
+         The above copyright notice and this permission notice shall be included in all
+         copies or substantial portions of the Software.
+
+         THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
+         IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
+         FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
+         AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
+         LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
+         OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
+         SOFTWARE.
+Classifier: Programming Language :: Python :: 3
+Classifier: License :: OSI Approved :: MIT License
+Classifier: Operating System :: Microsoft :: Windows
+Requires-Dist: pyserial
+Requires-Dist: customtkinter
+Requires-Dist: fastapi[all]
+Requires-Dist: nicegui[native]
+Requires-Python: >=3.10, <=3.14
+Project-URL: homepage, https://github.com/chaitu-ycr/kmtronic-usb-relay
+Project-URL: repository, https://github.com/chaitu-ycr/kmtronic-usb-relay
+Project-URL: documentation, https://chaitu-ycr.github.io/kmtronic-usb-relay
+Description-Content-Type: text/markdown
+
+# kmtronic-usb-relay
+
+This project is a Python package for controlling KMTronics USB relay boards. It provides a simple interfaces to interact with the relays, allowing you to turn them on and off programmatically.
+
+It also includes a GUI and FastApi implementation for easy control of the relays.
+
+## usage
+
+### kmtronic_usb_relay_gui
+
+```cmd
+python -m src.kmtronic_usb_relay.four_channel_relay_gui
+```
+
+![kmtronic_usb_relay_gui](https://chaitu-ycr.github.io/kmtronic-usb-relay/images/four_channel_relay_gui.png)
+
+### four_channel_relay_app
+
+```cmd
+python -m src.kmtronic_usb_relay.four_channel_relay_app
+```
+
+## [source manual](https://chaitu-ycr.github.io/kmtronic-usb-relay/source-manual)

kmtronic_usb_relay-26.0.1.dist-info/RECORD

@@ -0,0 +1,8 @@
+kmtronic_usb_relay/__init__.py,sha256=47DEQpj8HBSa-_TImW-5JCeuQeRkm5NMpJWZG3hSuFU,0
+kmtronic_usb_relay/com_utils.py,sha256=gJSJC3rd60QpEKhro-xbRwmIZ-usYsmdlbch3EFa6UI,9621
+kmtronic_usb_relay/four_channel_relay.py,sha256=2W8WSfm5V6bxvtInuTlcNhVkLGh0jl4AR0JHNvurcRk,7542
+kmtronic_usb_relay/four_channel_relay_app.py,sha256=dtNBBq55hUD0C5Q7vwbi11BfTiepm2MT-jhfV7IiCMc,24749
+kmtronic_usb_relay/four_channel_relay_gui.py,sha256=1ub1Ah9iFMwrnnpAmBiQJL7ptPkjCKaSsGsiXOTNyrM,13059
+kmtronic_usb_relay-26.0.1.dist-info/WHEEL,sha256=fAguSjoiATBe7TNBkJwOjyL1Tt4wwiaQGtNtjRPNMQA,80
+kmtronic_usb_relay-26.0.1.dist-info/METADATA,sha256=pRScMJhfwONPSZkN1R-_99FD9iLl3_eBZ0NHHqmj4bI,2748
+kmtronic_usb_relay-26.0.1.dist-info/RECORD,,

kmtronic_usb_relay-26.0.1.dist-info/WHEEL

@@ -0,0 +1,4 @@
+Wheel-Version: 1.0
+Generator: uv 0.9.28
+Root-Is-Purelib: true
+Tag: py3-none-any
