figkit 0.1.0__py3-none-any.whl

figkit/themes.py

@@ -0,0 +1,163 @@
+"""Ready-made themes. Start from one and ``.derive(...)`` your own."""
+
+from __future__ import annotations
+
+from .style import DEFAULT_THEME, MONO, SERIF, Style, Theme
+
+__all__ = ["PAPER", "SLIDE", "DARK", "BLUEPRINT", "MINIMAL", "SOFT", "THEMES",
+           "get_theme"]
+
+#: Muted, serif-labelled look for LaTeX papers.
+PAPER = DEFAULT_THEME.derive(
+    name="paper",
+    font_family=SERIF,
+    font_size=12,
+    color="#111111",
+    stroke_width=1.1,
+    radius=3,
+    palette={
+        "text": "#111111", "muted": "#555555", "line": "#222222",
+        "surface": "#ffffff", "surface_alt": "#f0f0f0",
+        "primary": "#3B6EA5", "primary_soft": "#cfe0f2",
+        "accent": "#B5622A", "accent_soft": "#f2dcc9",
+        "good": "#3E7C4B", "good_soft": "#d6e8da", "bad": "#A93B3B",
+    },
+    box=Style(fill="#ffffff", stroke="#222222", stroke_width=1.1,
+              padding=(6, 10), radius=3),
+    arrow=Style(stroke="#222222", stroke_width=1.1, head_size=7),
+    panel=Style(stroke="#888888", stroke_width=0.9, radius=4),
+    label=Style(font_size=10.5, color="#333333"),
+    styles={
+        "block": Style(fill="#f2f2f2", stroke="#111111", stroke_width=1.2),
+        "blue": Style(fill="#cfe0f2", stroke="#3B6EA5"),
+        "green": Style(fill="#d6e8da", stroke="#3E7C4B"),
+        "warm": Style(fill="#f2dcc9", stroke="#B5622A"),
+        "ghost": Style(fill="none", stroke="#888888", stroke_dash="dashed"),
+    },
+)
+
+#: Bigger type and chunkier strokes, for slides and posters.
+SLIDE = DEFAULT_THEME.derive(
+    name="slide",
+    font_size=19,
+    stroke_width=2.2,
+    radius=10,
+    box=Style(padding=(12, 18), stroke_width=2.2, radius=10),
+    arrow=Style(stroke_width=2.4, head_size=12),
+    label=Style(font_size=15),
+)
+
+#: Light-on-dark, for dark-mode blog posts.
+DARK = DEFAULT_THEME.derive(
+    name="dark",
+    color="#e8eaed",
+    background="#141821",
+    stroke_width=1.5,
+    palette={
+        "text": "#e8eaed", "muted": "#9aa4b2", "line": "#8b95a5",
+        "surface": "#1b1f27", "surface_alt": "#252b36",
+        "primary": "#7aa2f7", "primary_soft": "#26344f",
+        "accent": "#e0af68", "accent_soft": "#3d3222",
+        "good": "#9ece6a", "good_soft": "#2b3a25", "bad": "#f7768e",
+    },
+    box=Style(fill="#252b36", stroke="#8b95a5", color="#e8eaed"),
+    text=Style(color="#e8eaed"),
+    label=Style(color="#c3cad6"),
+    arrow=Style(stroke="#aab4c4"),
+    panel=Style(stroke="#4a5364", fill="none"),
+    matrix=Style(stroke="#1b1f27"),
+    axis=Style(stroke="#9aa4b2"),
+    grid=Style(stroke="#333a47"),
+    styles={
+        "block": Style(fill="#2c3340", stroke="#aab4c4"),
+        "blue": Style(fill="#26344f", stroke="#7aa2f7"),
+        "green": Style(fill="#2b3a25", stroke="#9ece6a"),
+        "warm": Style(fill="#3d3222", stroke="#e0af68"),
+        "ghost": Style(fill="none", stroke="#5c6675", stroke_dash="dashed"),
+        "card": Style(fill="#222834", stroke="#39414f", radius=12),
+    },
+)
+
+#: Technical-drawing look: thin monochrome lines on a tinted ground.
+BLUEPRINT = DEFAULT_THEME.derive(
+    name="blueprint",
+    background="#0b2447",
+    font_family=MONO,
+    font_size=12,
+    color="#dbeafe",
+    stroke_width=1.0,
+    radius=0,
+    palette={"text": "#dbeafe", "line": "#93c5fd", "surface": "#0f2f5c",
+             "primary": "#93c5fd", "muted": "#7ea6d8"},
+    box=Style(fill="none", stroke="#93c5fd", color="#dbeafe", radius=0),
+    arrow=Style(stroke="#93c5fd", head="open", head_size=8),
+    panel=Style(stroke="#5b8fc7", stroke_dash="dashed"),
+    text=Style(color="#dbeafe"),
+    label=Style(color="#bfdbfe", font_size=10),
+    styles={
+        "block": Style(fill="none", stroke="#93c5fd", stroke_width=1.4),
+        "blue": Style(fill="#173f70", stroke="#93c5fd"),
+        "green": Style(fill="#134e4a", stroke="#5eead4"),
+        "warm": Style(fill="#4a3417", stroke="#fbbf24"),
+        "ghost": Style(fill="none", stroke="#5b8fc7", stroke_dash="dashed"),
+        "plain": Style(fill="none", stroke="none"),
+        "card": Style(fill="none", stroke="#5b8fc7", radius=0),
+    },
+)
+
+#: No fills, no rounding — just hairlines and text.
+MINIMAL = DEFAULT_THEME.derive(
+    name="minimal",
+    stroke_width=1.0,
+    radius=0,
+    box=Style(fill="none", stroke="#111111", stroke_width=1.0, radius=0),
+    arrow=Style(stroke="#111111", stroke_width=1.0, head="open", head_size=8),
+    panel=Style(stroke="#aaaaaa", stroke_width=0.8, radius=0),
+    styles={
+        "block": Style(fill="none", stroke="#111111", stroke_width=1.4),
+        "blue": Style(fill="none", stroke="#3B6EA5", stroke_width=1.4),
+        "green": Style(fill="none", stroke="#3E7C4B", stroke_width=1.4),
+        "warm": Style(fill="none", stroke="#B5622A", stroke_width=1.4),
+        "ghost": Style(fill="none", stroke="#aaaaaa", stroke_dash="dashed"),
+        "plain": Style(fill="none", stroke="none"),
+        "card": Style(fill="none", stroke="#cccccc", radius=0),
+    },
+)
+
+#: Rounded pastel cards with soft shadows, for product / blog diagrams.
+SOFT = DEFAULT_THEME.derive(
+    name="soft",
+    font_size=14,
+    radius=12,
+    stroke_width=1.0,
+    palette={"surface": "#ffffff", "surface_alt": "#f6f7f9",
+             "primary": "#6366f1", "primary_soft": "#e0e7ff",
+             "accent": "#f97316", "accent_soft": "#ffedd5",
+             "good": "#10b981", "good_soft": "#d1fae5", "line": "#64748b"},
+    box=Style(fill="#ffffff", stroke="#e2e5ea", stroke_width=1.0, radius=12,
+              padding=(12, 16), shadow={"dy": 2, "blur": 6, "opacity": 0.12}),
+    arrow=Style(stroke="#94a3b8", stroke_width=1.6, head="stealth"),
+    panel=Style(fill="#f6f7f9", stroke="none", radius=16, padding=20),
+    styles={
+        "block": Style(fill="#f6f7f9", stroke="#e2e5ea"),
+        "blue": Style(fill="#e0e7ff", stroke="#c7d2fe"),
+        "green": Style(fill="#d1fae5", stroke="#a7f3d0"),
+        "warm": Style(fill="#ffedd5", stroke="#fed7aa"),
+    },
+)
+
+THEMES = {
+    "default": DEFAULT_THEME, "figkit": DEFAULT_THEME,
+    "paper": PAPER, "slide": SLIDE, "dark": DARK,
+    "blueprint": BLUEPRINT, "minimal": MINIMAL, "soft": SOFT,
+}
+
+
+def get_theme(name) -> Theme:
+    """Look up a built-in theme by name (or pass a Theme straight through)."""
+    if isinstance(name, Theme):
+        return name
+    key = str(name).lower()
+    if key not in THEMES:
+        raise KeyError(f"unknown theme {name!r}; available: {sorted(THEMES)}")
+    return THEMES[key]

figkit-0.1.0.dist-info/METADATA

@@ -0,0 +1,277 @@
+Metadata-Version: 2.4
+Name: figkit
+Version: 0.1.0
+Summary: Design figures with Python code — boxes, arrows, LaTeX and data, exported to SVG/PNG/PDF/HTML
+License-Expression: MIT
+Project-URL: Homepage, https://github.com/philippspohn/figkit
+Project-URL: Repository, https://github.com/philippspohn/figkit
+Project-URL: Issues, https://github.com/philippspohn/figkit/issues
+Project-URL: Changelog, https://github.com/philippspohn/figkit/blob/main/CHANGELOG.md
+Project-URL: Agent manual, https://github.com/philippspohn/figkit/blob/main/AI_MANUAL.md
+Keywords: svg,figures,diagrams,vector,graphics,latex,publication,illustration,scientific-visualization,matplotlib
+Classifier: Development Status :: 4 - Beta
+Classifier: Intended Audience :: Science/Research
+Classifier: Intended Audience :: Developers
+Classifier: Operating System :: OS Independent
+Classifier: Programming Language :: Python :: 3
+Classifier: Programming Language :: Python :: 3.10
+Classifier: Programming Language :: Python :: 3.11
+Classifier: Programming Language :: Python :: 3.12
+Classifier: Programming Language :: Python :: 3.13
+Classifier: Programming Language :: Python :: 3 :: Only
+Classifier: Topic :: Multimedia :: Graphics
+Classifier: Topic :: Scientific/Engineering :: Visualization
+Classifier: Topic :: Text Processing :: Markup
+Classifier: Typing :: Typed
+Requires-Python: >=3.10
+Description-Content-Type: text/markdown
+License-File: LICENSE
+Requires-Dist: fonttools>=4.30
+Provides-Extra: latex
+Requires-Dist: matplotlib>=3.5; extra == "latex"
+Provides-Extra: export
+Requires-Dist: cairosvg>=2.5; extra == "export"
+Provides-Extra: all
+Requires-Dist: matplotlib>=3.5; extra == "all"
+Requires-Dist: cairosvg>=2.5; extra == "all"
+Provides-Extra: dev
+Requires-Dist: matplotlib>=3.5; extra == "dev"
+Requires-Dist: cairosvg>=2.5; extra == "dev"
+Requires-Dist: pytest>=7.0; extra == "dev"
+Requires-Dist: pyflakes>=3.0; extra == "dev"
+Requires-Dist: build>=1.0; extra == "dev"
+Requires-Dist: twine>=5.0; extra == "dev"
+Dynamic: license-file
+
+<p align="center">
+  <img src="https://raw.githubusercontent.com/philippspohn/figkit/main/docs/logo.png" alt="figkit" width="180">
+</p>
+
+<h1 align="center">figkit</h1>
+
+<p align="center">
+  <a href="https://pypi.org/project/figkit/"><img alt="PyPI" src="https://img.shields.io/pypi/v/figkit.svg"></a>
+  <a href="https://pypi.org/project/figkit/"><img alt="Python versions" src="https://img.shields.io/pypi/pyversions/figkit.svg"></a>
+  <a href="https://github.com/philippspohn/figkit/actions/workflows/ci.yml"><img alt="tests" src="https://github.com/philippspohn/figkit/actions/workflows/ci.yml/badge.svg"></a>
+  <a href="LICENSE"><img alt="MIT" src="https://img.shields.io/badge/license-MIT-blue.svg"></a>
+</p>
+
+**Design figures with Python code.** Boxes, arrows, LaTeX, images and data —
+laid out precisely, styled by a cascading theme, exported to SVG, PNG, PDF or
+HTML.
+
+figkit is for the kind of figure you'd otherwise assemble by hand in Figma or
+draw.io: ML paper pipelines, architecture diagrams, research blog explainers.
+Except it's code, so it's diffable, reproducible, parameterisable — and an LLM
+can write it for you (see [`AI_MANUAL.md`](https://github.com/philippspohn/figkit/blob/main/AI_MANUAL.md)).
+
+```python
+from figkit import *
+
+with Figure(pad=24) as fig:
+    a = Box("Encoder", style="block", w=120)
+    b = Box("Decoder", style="blue").right_of(a, gap=60)
+    arrow(a.e, b.w, label="$z$")
+
+fig.save("figure.svg")
+fig.save("figure.png", scale=2)
+```
+

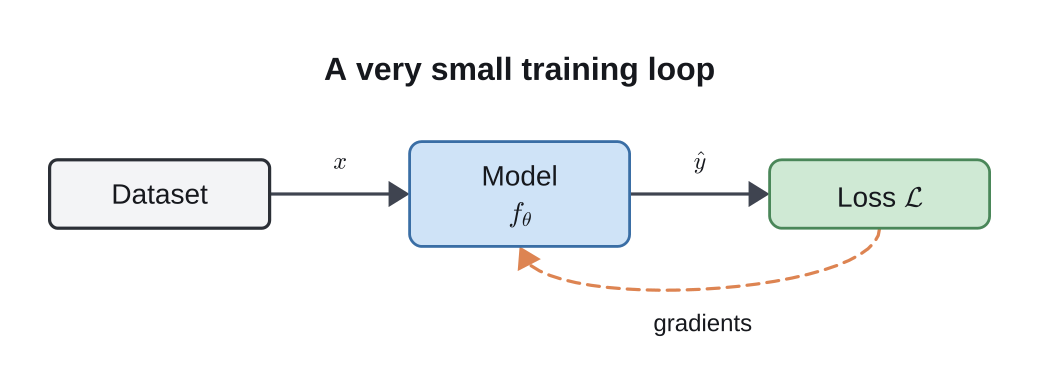

+![quickstart](https://raw.githubusercontent.com/philippspohn/figkit/main/docs/images/00_quickstart.png)
+
+**Check your work without looking at it.** `fig.audit()` reports the mistakes
+that are obvious in a picture and invisible in the code — and stays quiet about
+deliberate overlap, so a clean report means something:
+
+```
+>>> print(fig.audit())
+figkit audit: 2 issues (1 overlap, 1 contrast) in 34 elements
+  overlap    Box('Decoder') covers Text('$z$') (240px², 61% of it)  at (196, 41)
+  contrast   Box('Encoder'): text #dbeafe on #f3f4f6 has contrast 1.1:1 (want 3.0:1)  at (60, 17)
+```
+
+---
+
+## Install
+
+```bash
+pip install figkit              # core: layout, shapes, arrows, SVG/HTML export
+pip install "figkit[latex]"     # + inline $math$ (matplotlib)
+pip install "figkit[export]"    # + PNG/PDF export (cairosvg)
+pip install "figkit[all]"       # everything
+```
+
+Only `fonttools` is required — it's what makes text measurement (and therefore
+layout) accurate. The extras degrade rather than break: without `matplotlib`
+an inline `$formula$` is set as plain text with a warning, and without a
+rasteriser `save("f.png")` raises while SVG and HTML keep working. PNG/PDF
+export also accepts `rsvg-convert`, `resvg`, `inkscape` or headless Chromium
+if you'd rather not install cairo.
+
+---
+
+## What it does
+
+**Accurate measurement.** figkit reads the actual font file and measures glyph
+advances, so `Box("Feature Extractor")` is exactly as wide as its text plus its
+padding — and everything you place relative to it lands where you expect.
+
+**Live anchors.** `box.e` is a reference, not a coordinate. Move the box and
+every arrow attached to it follows.
+
+```python
+b = Box("model").right_of(a, gap=40)
+link = arrow(a.e, b.w)
+b.move(0, 120)          # the arrow follows
+```
+
+**Explicit placement, not auto-layout.** You say where things go; figkit does
+the arithmetic.
+
+```python
+fm = Box("$F_M$").right_of(extractor, gap=24, align="top")
+fn = Box("$F_N$").right_of(extractor, gap=24, align="bottom")
+solver = Box("FMap Solver", style="blue").right_of(fm, gap=40)
+
+elbow(fm.e, solver.w, stub=12)              # -| routing
+mid = between(fm, fn)                        # vertically between two boxes
+frame = fit(solver, cmn, pad=20, label="Fused operation", dash=True)
+```
+
+**Cascading themes.** Base tokens, per-role overrides, CSS-style classes and a
+colour palette — set once, applied everywhere.
+
+```python
+T = PAPER.derive(
+    font_size=13, radius=4,
+    palette={"brand": "#3B6EA5"},
+    box=Style(fill="#ffffff", stroke="#222222", padding=(9, 13)),
+    styles={"solver": Style(fill="@brand", stroke="#1b1b1b")},
+)
+with Figure(theme=T) as fig:
+    Box("FMap Solver", classes="solver")     # or style="solver block"
+```
+
+Classes resolve lazily against whichever theme is in scope, so the same class
+can mean different things inside a differently themed group.
+
+**LaTeX anywhere.** Any `$...$` span in any string is typeset and emitted as
+vector outlines, so exported files don't depend on installed fonts.
+
+```python
+Box("$C_{\\mathcal{MN}} = \\phi^{\\dagger}_{\\mathcal{N}}\\Pi_{\\mathcal{NM}}\\phi_{\\mathcal{M}}$")
+```
+
+**Data is just Python.** A `Frame` maps data coordinates to figure
+coordinates; every mark it draws is an ordinary element you can anchor to.
+
+```python
+fr = Frame(w=430, h=240, xlim=(0, 50), ylim=(0.35, 1.0))
+fr.axes(xlabel="epoch", ylabel="accuracy", grid=True)
+fr.line(xs, ys, stroke="@primary", lw=2)
+arrow(note.se, fr.pt(50, 0.94))       # point at a data coordinate
+```
+
+---
+
+## Gallery
+
+Each figure below is produced by the script of the same name in
+[`examples/`](https://github.com/philippspohn/figkit/tree/main/examples). The
+first two are figkit reproductions of published figures, linked as reference —
+they are not affiliated with or endorsed by their authors.
+

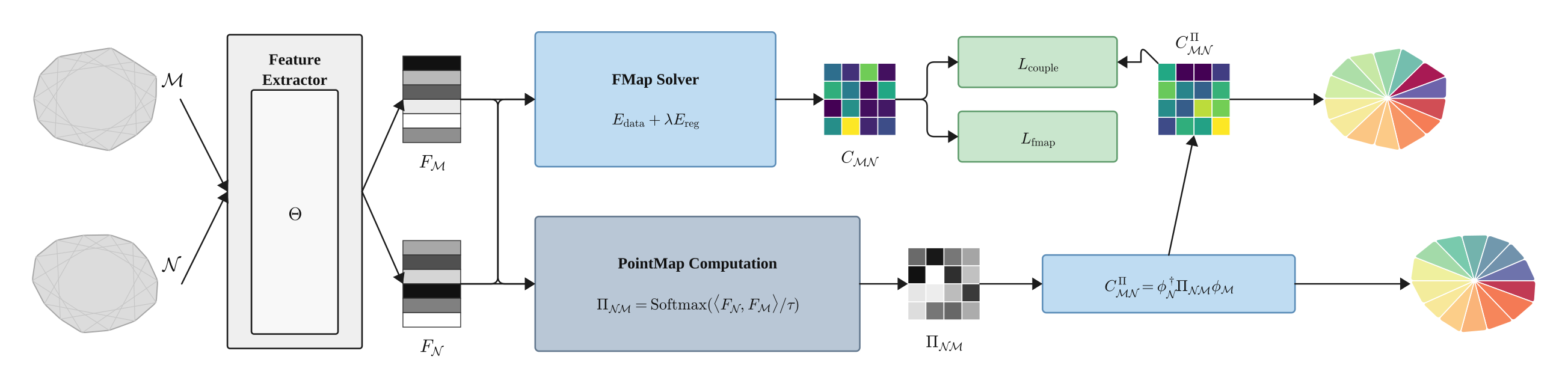

+### `01_pipeline.py` — an ML paper pipeline
+
+Themes, relative placement, live anchors, inline LaTeX, colour matrices,
+elbow routing and hand-built vector graphics. After the pipeline figure in
+[URSSM](https://dongliangcao.github.io/urssm/).
+
+![pipeline](https://raw.githubusercontent.com/philippspohn/figkit/main/docs/images/01_pipeline.png)
+

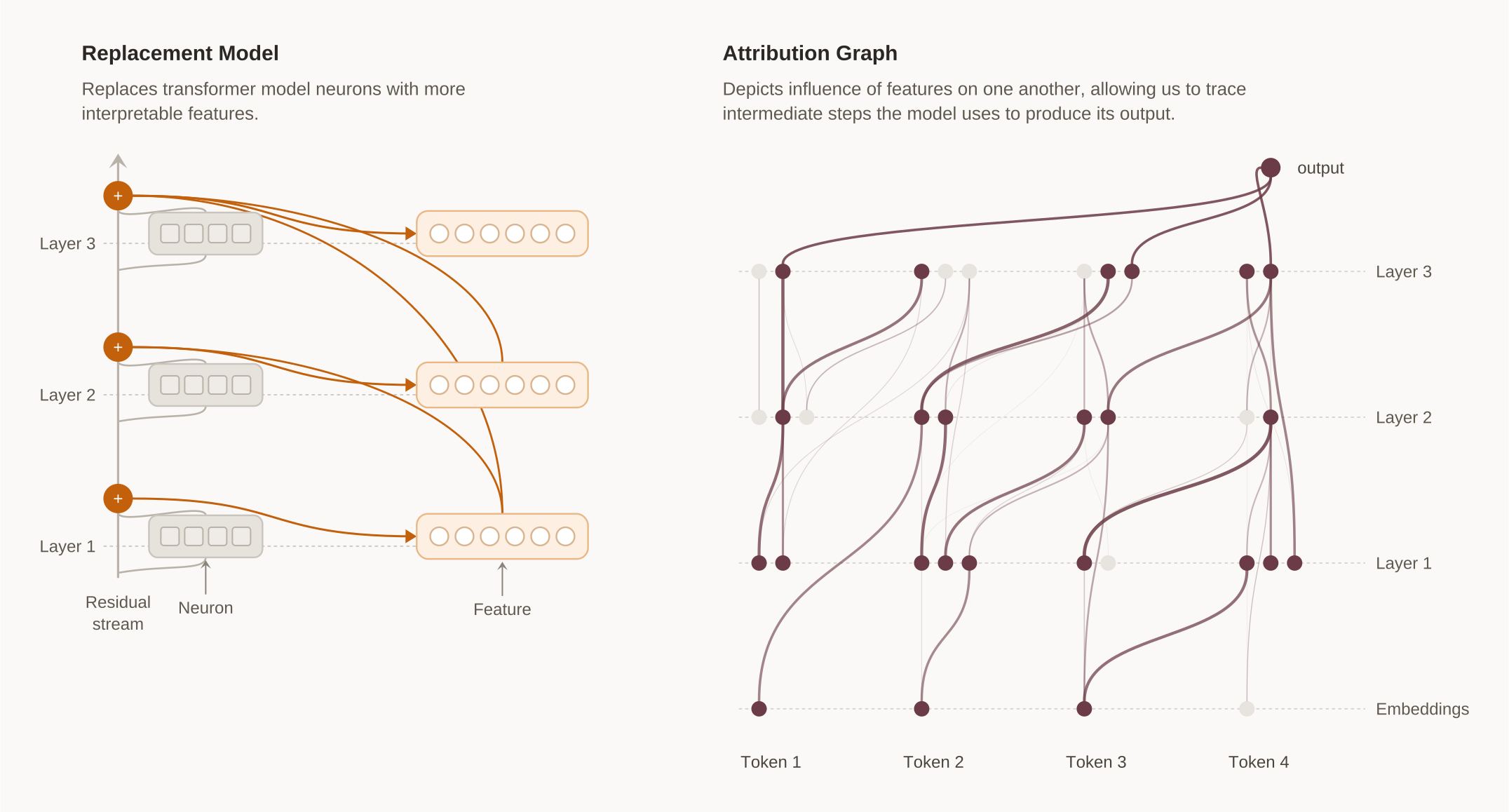

+### `02_attribution.py` — a two-panel blog explainer
+
+Programmatic node grids and hundreds of curved edges whose width and opacity
+come straight from the data. After the replacement-model and attribution-graph
+diagram in Anthropic's
+[Circuit Tracing](https://transformer-circuits.pub/2025/attribution-graphs/methods.html).
+
+![attribution](https://raw.githubusercontent.com/philippspohn/figkit/main/docs/images/02_attribution.png)
+

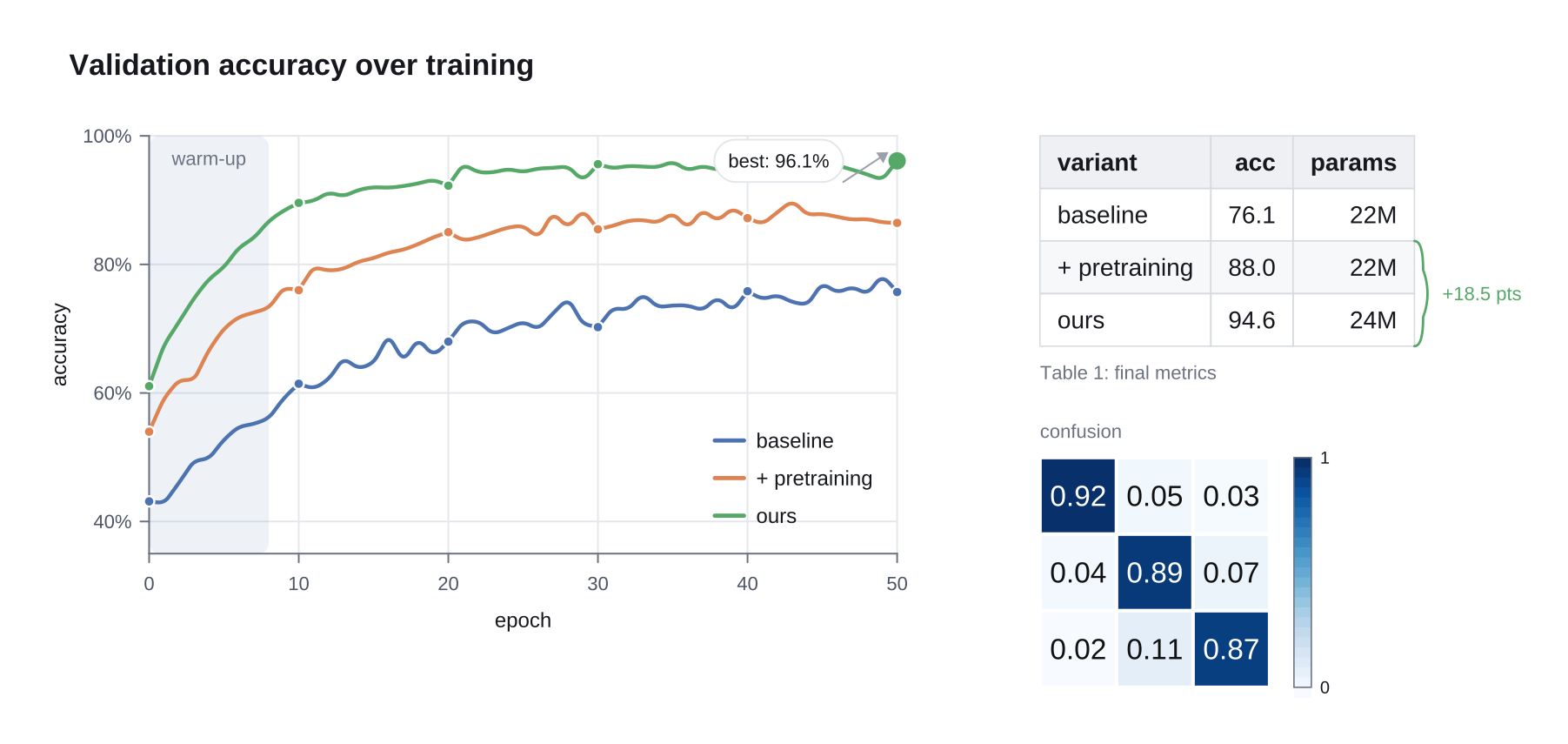

+### `03_data_and_plots.py` — data-driven graphics
+
+A coordinate frame, a legend, a table, a brace and a heatmap with a colour bar.
+
+![plots](https://raw.githubusercontent.com/philippspohn/figkit/main/docs/images/03_data_and_plots.png)
+

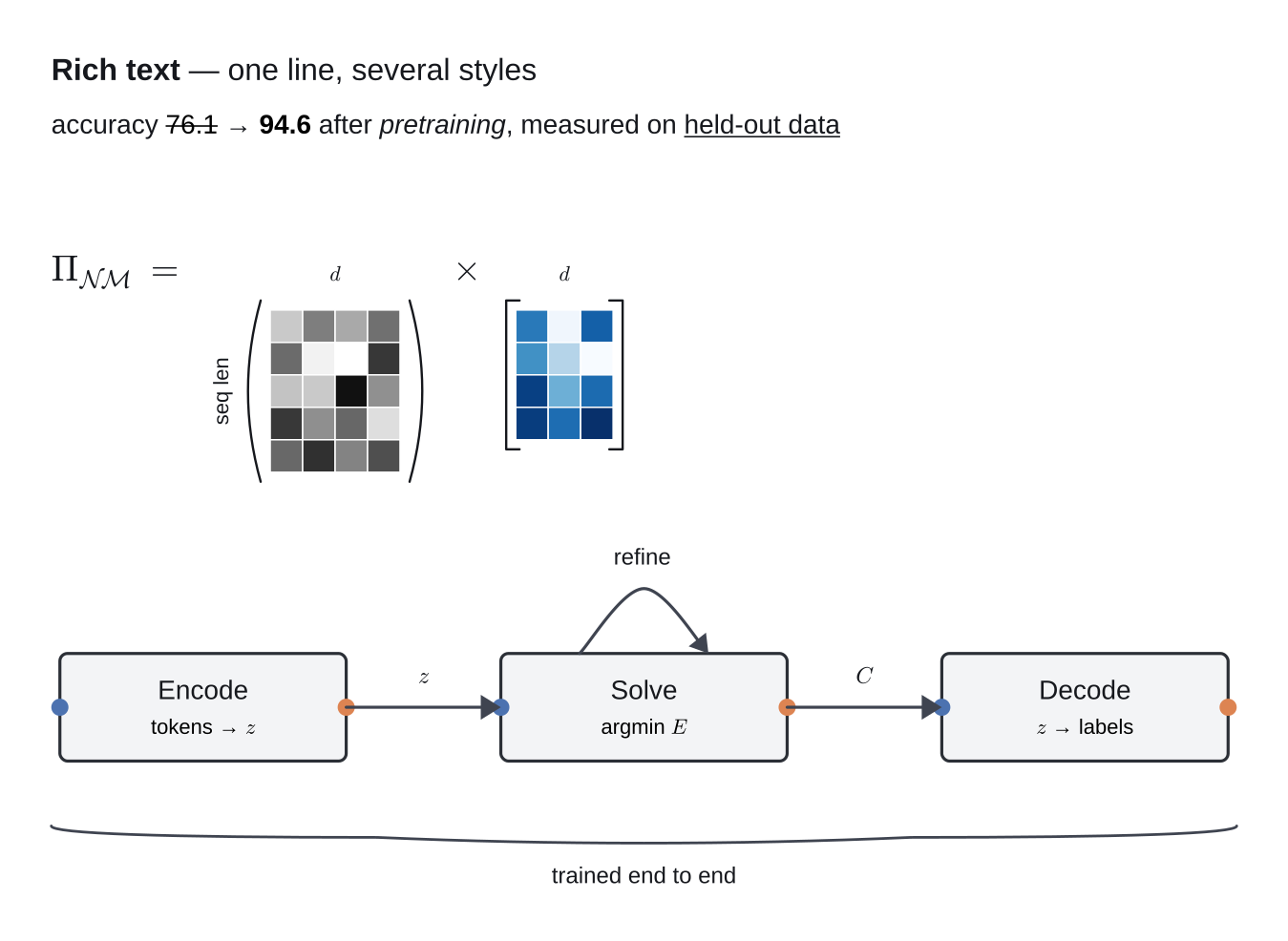

+### `05_rich_text_and_components.py` — spans, components and formulas
+
+Per-word colour and strike-through, a `Component` publishing named ports, and
+`LabelledMatrix` set as an equation with `hstack(align="baseline")`.
+
+![rich text](https://raw.githubusercontent.com/philippspohn/figkit/main/docs/images/05_rich_text_and_components.png)
+

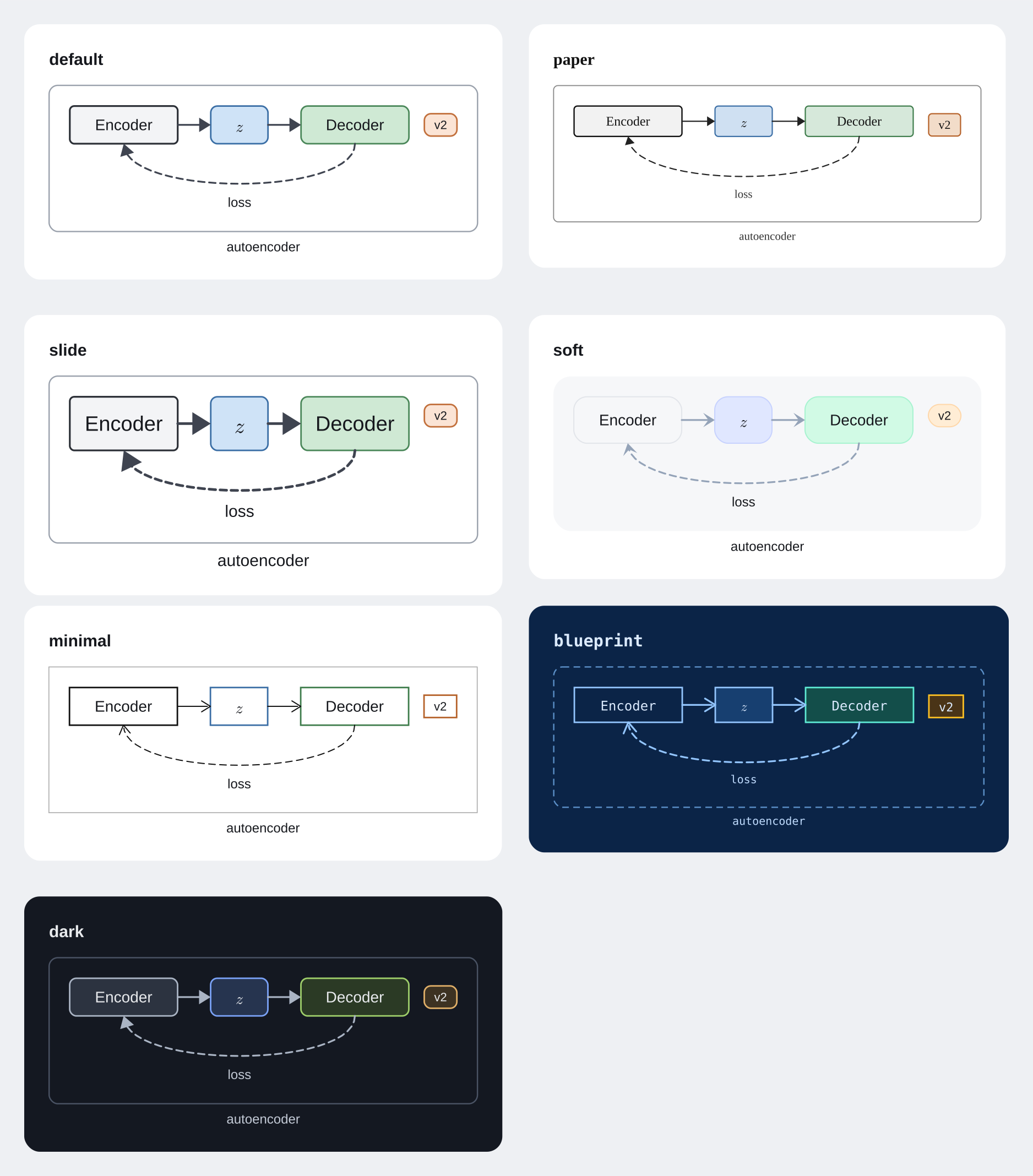

+### `04_themes.py` — one diagram, seven themes
+
+Not a single colour is set on an element — the theme cascade decides
+everything.
+
+![themes](https://raw.githubusercontent.com/philippspohn/figkit/main/docs/images/04_themes.png)
+
+---
+
+## API tour
+
+| | |
+|---|---|
+| **Canvas** | `Figure(w, h, pad, background, theme)`, `fig.save(...)`, `fig.to_svg()` |
+| **Shapes** | `Box` `Pill` `Ellipse` `Circle` `Diamond` `Triangle` `Hexagon` `Parallelogram` `Chevron` `Star` `Cylinder` `Note` `Callout` |
+| **Geometry** | `Line` `Polyline` `Polygon` `Path` `Dot` `Marker` |
+| **Content** | `Text` `Label` `Span` (per-word colour / strike / underline) `Image` |
+| **Composites** | `Matrix` `LabelledMatrix` `Vector` `ColorBar` `Table` `Legend` `Brace` `Bracket` `Panel` `Group` `Spacer` `Component` |
+| **Connectors** | `arrow` `line` `elbow` `curve` `connect` `double_arrow` `self_loop` |
+| **Placement** | `at` `move` `center_at` `right_of` `left_of` `above_of` `below_of` `inside` `align_to` `span_x` `resize` `rotate` |
+| **Layout** | `align` `distribute_h/v` `spread_h/v` `hstack` (incl. `align="baseline"`) `vstack` `grid` `fit` `brace_around` `between` `center_on` `circular` `same_size` `bbox_of` |
+| **Data** | `Frame` (`pt` `line` `scatter` `bars` `area_fill` `region` `axes` `gridlines`), `nice_ticks` |
+| **Checking** | `fig.audit()` → `Report` (`overlap` `overflow` `contrast` `crossing` `degenerate` `offscreen`), `el.ignore_audit()` |
+| **Style** | `Style` `Theme` `use_theme`, classes (`classes=`, `add_class`), themes `PAPER` `SLIDE` `DARK` `BLUEPRINT` `MINIMAL` `SOFT` |
+| **Colour** | `mix` `lighten` `darken` `alpha` `colormap` `palette` `contrast_color` `to_hex` |
+
+Anchors on every element: `n s e w ne nw se sw center`, plus `at_angle(deg)`,
+`uv(u, v)` and offsets like `box.e + (6, 0)`. Connectors add `c.mid` and
+`c.anchor_at(t)`, which stay live as the arrow moves.
+
+---
+
+## Design notes
+
+* **Coordinates are px, y grows downward** — the SVG convention. `n` is the top.
+* **The output is clean SVG.** No wrapper `<g>` soup, no embedded raster of
+  your text: real `<text>` elements by default, real `<path>` outlines when you
+  ask for `text_as_paths=True` (which PNG and PDF export do automatically).
+* **Groups own their children.** `Group(a, b)` and `fit(a, b)` reparent, so the
+  cluster moves as a unit. Use `bbox_of([a, b])` when you only want the bounds.
+* **Text is centred optically**, on the cap-height band, which is what looks
+  right for short labels in boxes.
+* **No runtime layout engine.** Placement happens when you call it. That makes
+  the code easy to reason about and easy to debug — print a `bbox` and you know
+  exactly where something is.
+
+---
+
+## Development
+
+```bash
+pip install -e ".[dev]"
+pytest                       # 277 tests; every example must audit clean
+python -m pyflakes figkit
+python examples/01_pipeline.py
+```
+
+See [CONTRIBUTING.md](https://github.com/philippspohn/figkit/blob/main/CONTRIBUTING.md) for what the test suite expects — in
+particular, that new audit checks come with tests for the cases they must
+*not* report.
+
+## License
+
+MIT

figkit-0.1.0.dist-info/RECORD

@@ -0,0 +1,28 @@
+figkit/__init__.py,sha256=P7M60JWyKK3A12mTpluJKB6zrRZxgByRp0c_HPLERyU,5045
+figkit/audit.py,sha256=TYcPxQbz05fR1uRA4Uw2MGMdF1ZHZhivOkom1UnY2t8,23266
+figkit/colors.py,sha256=hHA_DwVSYK0XVzmmckVUe7HTxGYS8YHVkzg6oxLsKy8,11567
+figkit/component.py,sha256=RX8awtDt4xEl1B88CeD3Xgb3rLsbW6Wh7m_d-iiMBZc,4157
+figkit/components.py,sha256=BS__IydHQrKH5m5okVUelQAf-l1qWcGq5zVdnlgR55A,28499
+figkit/connectors.py,sha256=i9OL7YkGR7SKhrdOHU0EsjqmIQfsb9BCk0RXfFK2gKI,26745
+figkit/core.py,sha256=9tGZVefWpKbFFA1Ksoyp0Lpm_6sFbEZT99ixlksscVQ,35372
+figkit/export.py,sha256=A-Cb9xNXZ0FTG-yvPiTBN_hjhbmKQNAA7bNPAPNebaM,11118
+figkit/figure.py,sha256=Nyb4fcaernE2KolJfoMgha9W7WoXRMGCucwMjyIOCbg,11329
+figkit/fonts.py,sha256=X_LakcguGAWEyCync8_f30rT_Pc4aiD3wcwcO_9HBao,17953
+figkit/frame.py,sha256=TLkitIaXNvkLHi6azTKzr9vsHVbH3M2KtgY0d7op5l0,15926
+figkit/geom.py,sha256=01TkzUsz63nqBjOb3q1cK7IsTqNcb1ZTb90d8H8GZow,15502
+figkit/image.py,sha256=b1O96JIOOd8_Ym8qH4aBtu753PAutKP7ig_RVSvvMb0,11159
+figkit/layout.py,sha256=ZEX1NxDQbx4xwcvqxc1q3_qeUbzNtV9yoFJQ1NxLtCI,18702
+figkit/mathtext.py,sha256=06_KvJ1WDjAv2H4RKeLKHypS9Uy8yKAdf0cIGPSiC-o,11190
+figkit/paint.py,sha256=EEMRgmH3044zGIedUyKTjxJPpj3WD7ahSEE4WrZuqdQ,5373
+figkit/py.typed,sha256=47DEQpj8HBSa-_TImW-5JCeuQeRkm5NMpJWZG3hSuFU,0
+figkit/shapes.py,sha256=_ymTRucrImnLFeg4A9fvOHQ52FN2JsLBgSZ8aIl1OFU,27065
+figkit/style.py,sha256=VYE6eE1sv_oC8F85tyWv2GNXKizFcdmm8xotfjoZAYc,18150
+figkit/svgdoc.py,sha256=7LBxzHV_7js2DRKQPqkVAzxNENBYs6CKLrS4XdRCB_o,4301
+figkit/svgpath.py,sha256=fc-QpU8GE5ITk7rzOCyy8Ej3O4tb3aF81IGCfEZQXt8,15770
+figkit/text.py,sha256=bxcvIVqwJArRGd8sr6eeMFnCELQA4eBB9pKETONv_W8,23377
+figkit/themes.py,sha256=OMEP_xoI5x_xEnyukq24NR6tz4uLzKoUXQDPmEBnxGE,6390
+figkit-0.1.0.dist-info/licenses/LICENSE,sha256=sUbQmDzSHkWDvRX1a5lnjsMY4GCRuQr4A4S3eQV1-Fc,1076
+figkit-0.1.0.dist-info/METADATA,sha256=3arboJpYWa0lu0LfPwwx4jmVdfht6zot2e5rBlqEz60,11767
+figkit-0.1.0.dist-info/WHEEL,sha256=YVMoNqKzERt-wjUZwJ33xBGAwnFl-4cqbYkTtWa4itE,91
+figkit-0.1.0.dist-info/top_level.txt,sha256=cWFe7ZAY9YdgVfNq7yh-0oVBffEIxVxlikvrtPEQ_bU,7
+figkit-0.1.0.dist-info/RECORD,,

figkit-0.1.0.dist-info/WHEEL

@@ -0,0 +1,5 @@
+Wheel-Version: 1.0
+Generator: setuptools (84.0.0)
+Root-Is-Purelib: true
+Tag: py3-none-any
+

figkit-0.1.0.dist-info/licenses/LICENSE

@@ -0,0 +1,21 @@
+MIT License
+
+Copyright (c) 2026 figkit contributors
+
+Permission is hereby granted, free of charge, to any person obtaining a copy
+of this software and associated documentation files (the "Software"), to deal
+in the Software without restriction, including without limitation the rights
+to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
+copies of the Software, and to permit persons to whom the Software is
+furnished to do so, subject to the following conditions:
+
+The above copyright notice and this permission notice shall be included in all
+copies or substantial portions of the Software.
+
+THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
+IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
+FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
+AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
+LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
+OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
+SOFTWARE.

figkit-0.1.0.dist-info/top_level.txt

@@ -0,0 +1 @@
+figkit
