+"""visualize the unit cell as done in VESTA."""
+
+import os
+import numpy as np
+from matplotlib.backends.backend_qt5agg import FigureCanvasQTAgg as FigureCanvas
+from matplotlib.figure import Figure
+from mpl_toolkits.mplot3d.art3d import Poly3DCollection
+import Dans_Diffraction as dif
+import matplotlib.cm as cm
+import matplotlib.colors as mcolors
+import matplotlib.pyplot as plt
+
+# Import Dans_Diffraction internal functions for plotting
+from Dans_Diffraction import functions_general as fg
+from Dans_Diffraction import functions_plotting as fp
+from Dans_Diffraction import functions_crystallography as fc
+
+from advisor.domain import angle_to_matrix, get_rotation
+
+# Apply the colormap patch for Dans_Diffraction compatibility
+_old_ensure_cmap = cm._ensure_cmap
+
+def _ensure_cmap_patched(cmap):
+    if isinstance(cmap, np.ndarray):
+        return mcolors.ListedColormap(cmap)
+    return _old_ensure_cmap(cmap)
+
+cm._ensure_cmap = _ensure_cmap_patched
+
+
+class UnitcellVisualizer(FigureCanvas):
+    def __init__(self, width=4, height=4, dpi=100):
+        self.fig = Figure(figsize=(width, height), dpi=dpi)
+        self.axes = self.fig.add_subplot(111, projection='3d')
+        self.cif_file_path = None
+        self._is_initialized = False
+        self.crystal = None
+        super().__init__(self.fig)
+
+        # Set background color to white
+        self.fig.patch.set_facecolor("white")
+        self.axes.set_facecolor("white")
+
+        # Set initial view
+        self.axes.view_init(elev=39, azim=75)
+
+        # Clean axes like Dans_Diffraction
+        self.axes.set_axis_off()
+
+    @property
+    def cif_file_path(self):
+        return self._cif_file_path
+
+    @cif_file_path.setter
+    def cif_file_path(self, cif_file_path: str):
+        # check if the file exists (allow None for initialization)
+        if cif_file_path is not None and not os.path.exists(cif_file_path):
+            raise FileNotFoundError(f"File {cif_file_path} does not exist.")
+        self._cif_file_path = cif_file_path
+
+    @property
+    def is_initialized(self):
+        return self._is_initialized
+
+    @is_initialized.setter
+    def is_initialized(self, is_initialized: bool):
+        self._is_initialized = is_initialized
+
+
+    def set_parameters(self, params: dict):
+        cif_file_path = params["cif_file"]
+        self.cif_file_path = cif_file_path
+        try:
+            self.crystal = dif.Crystal(self.cif_file_path)
+            self.is_initialized = True
+        except Exception as e:
+            print(f"Error loading crystal structure from {cif_file_path}: {e}")
+            self.is_initialized = False
+
+    def visualize_unitcell(self, show_labels=False, is_clear=True):
+        """ read the atom position from the cif file and visualize the unit cell using integrated Dans_Diffraction logic
+        """
+        if not self.is_initialized or self.crystal is None:
+            print("Unitcell visualizer not initialized.")
+            return
+
+        # Clear the current plot
+        self.axes.clear()
+
+        # Set background color to white and clean axes like Dans_Diffraction
+        self.axes.set_facecolor("white")
+        self.axes.set_axis_off()  # Ensure clean look after clearing
+
+        try:
+            # Direct implementation of Dans_Diffraction plot_crystal logic
+            self._plot_crystal_direct(show_labels=show_labels)
+
+            # Set title with crystal info
+            #title = f"Unit Cell: {os.path.basename(self.cif_file_path)}"
+            #if hasattr(self.crystal, 'name') and self.crystal.name:
+            #    title = f"Unit Cell: {self.crystal.name}"
+            #title = f"Unit Cell"
+            #self.axes.set_title(title, fontsize=12, pad=20)
+
+        except Exception as e:
+            print(f"Error visualizing unit cell: {e}")
+            # Fallback: show error message on plot
+            self.axes.text(0.5, 0.5, 0.5, f"Error: {str(e)}",
+                          transform=self.axes.transAxes,
+                          ha='center', va='center')
+
+        # Set initial view
+        self.axes.view_init(elev=30, azim=55)
+
+        # Refresh the canvas
+        self.draw()
+
+    def _plot_crystal_direct(self, show_labels=False):
+        """
+        Plot crystal structure by rendering atomic positions and unit cell boundaries.
+        Based on Dans_Diffraction.classes_plotting.Plotting.plot_crystal method.
+
+        Args:
+            show_labels: If True, display atom labels next to their positions
+        """
+        # Tolerance for determining if atoms are within unit cell boundaries
+        boundary_tolerance = 0.05
+
+        # Generate atomic positions in fractional coordinates for one unit cell
+        fractional_coordinates, element_symbols, atom_labels, occupancies, _, _ = \
+            self.crystal.Structure.generate_lattice(1, 1, 1)
+
+        # Identify unique atom types and create mapping for colors and sizes
+        unique_labels, unique_indices, inverse_indices = np.unique(
+            atom_labels, return_index=True, return_inverse=True
+        )
+        unique_element_types = element_symbols[unique_indices]
+
+        # Assign colors to each unique atom type using rainbow colormap
+        atom_colors = plt.cm.rainbow(np.linspace(0, 1, len(unique_element_types)))
+
+        # Get atomic radii for each element type for visualization
+        atom_radii = fc.atom_properties(unique_element_types, 'Radii')
+
+        # Convert fractional coordinates to Cartesian coordinates
+        cartesian_positions = self.crystal.Cell.calculateR(fractional_coordinates)
+
+        # Center the structure at origin for better visualization
+        center_position = np.mean(cartesian_positions, axis=0)
+        cartesian_positions = cartesian_positions - center_position
+
+        # Create mask for atoms that are visible: within unit cell bounds and sufficiently occupied
+        visible_atom_mask = np.all(
+            np.hstack([
+                fractional_coordinates < (1 + boundary_tolerance),
+                fractional_coordinates > (0 - boundary_tolerance),
+                occupancies.reshape([-1, 1]) > 0.2
+            ]),
+            axis=1
+        )
+
+        # Get maximum lattice parameter for setting axis limits and arrow positioning
+        lim = np.max(self.crystal.Cell.lp()[:3])
+
+        # Plot atoms grouped by element type
+        for atom_type_index in range(len(unique_element_types)):
+            # Calculate total occupancy for this atom type
+            total_occupancy = np.array([
+                occupancies[atom_idx]
+                for atom_idx in range(len(cartesian_positions))
+                if inverse_indices[atom_idx] == atom_type_index
+            ])
+
+            # Skip atom types with zero occupancy
+            if sum(total_occupancy) == 0:
+                continue
+
+            # Get positions for atoms of this type
+            atom_positions = np.array([
+                cartesian_positions[atom_idx, :]
+                for atom_idx in range(len(cartesian_positions))
+                if inverse_indices[atom_idx] == atom_type_index
+            ])
+
+            # Filter to only visible atoms (within unit cell and occupied)
+            visible_atoms_mask = np.array([
+                visible_atom_mask[atom_idx]
+                for atom_idx in range(len(cartesian_positions))
+                if inverse_indices[atom_idx] == atom_type_index
+            ])
+
+            # Create color array for all atoms of this type
+            atom_colors_array = np.tile(
+                atom_colors[atom_type_index],
+                (len(atom_positions[visible_atoms_mask, :]), 1)
+            )
+
+            # Render atoms as 3D scatter points
+            self.axes.scatter(
+                atom_positions[visible_atoms_mask, 0],
+                atom_positions[visible_atoms_mask, 1],
+                atom_positions[visible_atoms_mask, 2],
+                s=1 * atom_radii[atom_type_index],
+                c=atom_colors_array,
+                label=unique_labels[atom_type_index],
+                alpha=1,
+                edgecolors='white',
+                linewidth=0.1
+            )
+
+        # Optionally display atom labels
+        if show_labels:
+            structure_fractional_coords, _, structure_atom_labels, _, _, _ = \
+                self.crystal.Structure.get()
+            structure_cartesian_positions = self.crystal.Cell.calculateR(
+                structure_fractional_coords
+            ) - center_position
+
+            for atom_index in range(len(structure_cartesian_positions)):
+                self.axes.text(
+                    structure_cartesian_positions[atom_index, 0],
+                    structure_cartesian_positions[atom_index, 1],
+                    structure_cartesian_positions[atom_index, 2],
+                    '%2d: %s' % (atom_index, structure_atom_labels[atom_index]),
+                    fontsize=8,
+                    bbox=dict(boxstyle="round,pad=0.2", facecolor='white', alpha=0.8)
+                )
+
+        # Define unit cell box vertices in fractional coordinates
+        unit_cell_box_coords = np.array([
+            [0., 0, 0], [1, 0, 0], [1, 0, 1], [1, 1, 1], [1, 1, 0], [0, 1, 0], [0, 1, 1],
+            [0, 0, 1], [1, 0, 1], [1, 0, 0], [1, 1, 0], [1, 1, 1], [0, 1, 1], [0, 1, 0],
+            [0, 0, 0], [0, 0, 1]
+        ])
+
+        # Convert box coordinates to Cartesian and center
+        bpos = self.crystal.Cell.calculateR(unit_cell_box_coords) - center_position
+
+        # Draw unit cell boundary as gray wireframe
+        self.axes.plot(bpos[:, 0], bpos[:, 1], bpos[:, 2], c='gray', linewidth=1, alpha=0.85)
+
+        # Position coordinate system arrows in corner away from structure
+        arrow_origin = np.array([-lim * 0.4, -lim * 0.4, -lim * 0.4])
+        arrow_scale = lim * 0.15
+
+        # Get normalized lattice vectors from the crystal
+        a_vec = np.array([1, 0, 0])
+        b_vec = np.array([0, 1, 0])
+        c_vec = np.array([0, 0, 1])
+
+        # Transform to real space coordinates
+        a_real = self.crystal.Cell.calculateR(a_vec.reshape(1, -1))[0]
+        b_real = self.crystal.Cell.calculateR(b_vec.reshape(1, -1))[0]
+        c_real = self.crystal.Cell.calculateR(c_vec.reshape(1, -1))[0]
+
+        # Normalize and scale the vectors
+        a_norm = a_real / np.linalg.norm(a_real) * arrow_scale
+        b_norm = b_real / np.linalg.norm(b_real) * arrow_scale
+        c_norm = c_real / np.linalg.norm(c_real) * arrow_scale
+
+        # Draw coordinate arrows with labels
+        self.axes.quiver(arrow_origin[0], arrow_origin[1], arrow_origin[2]+ 1.6*bpos[7, 2],
+                        a_norm[0], a_norm[1], a_norm[2],
+                        color='dodgerblue', arrow_length_ratio=0.15, linewidth=2, alpha=0.9)
+        self.axes.text(arrow_origin[0] + a_norm[0]*1.2, arrow_origin[1] + a_norm[1]*1,
+                      arrow_origin[2] + a_norm[2]*1.2 + 1.6*bpos[7, 2], 'a', color='dodgerblue', fontsize=14, fontweight='bold')
+
+        self.axes.quiver(arrow_origin[0], arrow_origin[1], arrow_origin[2]+ 1.6*bpos[7, 2],
+                        b_norm[0], b_norm[1], b_norm[2],
+                        color='dodgerblue', arrow_length_ratio=0.15, linewidth=2, alpha=0.9)
+        self.axes.text(arrow_origin[0] + b_norm[0]*1.2, arrow_origin[1] + b_norm[1]*1.2,
+                      arrow_origin[2] + b_norm[2]*1.2 + 1.6*bpos[7, 2], 'b', color='dodgerblue', fontsize=14, fontweight='bold')
+
+        self.axes.quiver(arrow_origin[0], arrow_origin[1], arrow_origin[2]+ 1.6*bpos[7, 2],
+                        c_norm[0], c_norm[1], c_norm[2],
+                        color='dodgerblue', arrow_length_ratio=0.15, linewidth=2, alpha=0.9)
+        self.axes.text(arrow_origin[0] + c_norm[0]*1.2, arrow_origin[1] + c_norm[1]*1.2,
+                      arrow_origin[2] + c_norm[2]*1.2 + 1.6*bpos[7, 2], 'c', color='dodgerblue', fontsize=14, fontweight='bold')
+
+        # Set axis limits based on lattice
+        self.axes.set_xlim(-lim/2, lim/2)
+        self.axes.set_ylim(-lim/2, lim/2)
+        self.axes.set_zlim(-lim/2, lim/2)
+
+        # Turn off axis (removes background, grids, ticks, labels) - like Dans_Diffraction
+        #self.axes.set_axis_off()
+        # change view angles
+        # Add legend positioned closer to the unit cell
+        self.axes.legend(fontsize=10, frameon=False, loc='upper left',
+                        bbox_to_anchor=(0.98, 0.98), handletextpad=0.3,
+                        handlelength=1.5, columnspacing=0.1,
+                        fancybox=False, shadow=False)
+        self.fig.tight_layout()
+
+
+
+
+    def visualize_scattering_geometry(self, scattering_angles=None, is_clear=False):
+        """ plotting the scattering plane and the beam as done in the ScatteringVisualizer
+        """
+        if not self.is_initialized or self.crystal is None:
+            print("Unitcell visualizer not initialized.")
+            return
+        if is_clear:
+            # Clear previous plot
+            self.axes.clear()
+        # Plot the x-ray beam
+        if scattering_angles is None:
+            scattering_angles = {
+                "theta": 50,
+                "tth": 150,
+                "phi": 0,
+                "chi": 0,
+            }
+        tth, theta, phi, chi = scattering_angles.get("tth", 150), scattering_angles.get("theta", 50), scattering_angles.get("phi", 0), scattering_angles.get("chi", 0)
+        a_vec = np.array([1, 0, 0])
+        b_vec = np.array([0, 1, 0])
+        c_vec = np.array([0, 0, 1])
+
+        # Transform to real space coordinates
+        a_real = self.crystal.Cell.calculateR(a_vec.reshape(1, -1))[0]
+        b_real = self.crystal.Cell.calculateR(b_vec.reshape(1, -1))[0]
+        c_real = self.crystal.Cell.calculateR(c_vec.reshape(1, -1))[0]
+
+
+
+        # Get scale factor from unit cell if available
+        if self.is_initialized and self.crystal is not None:
+            lim = np.max(self.crystal.Cell.lp()[:3])
+            scale_factor = lim / 2 * 1.5  # Match the unit cell scale
+        else:
+            scale_factor = 1.5  # Default scale if no crystal loaded
+        # Plot the scattering plane - scale it to match unit cell, adjusted for beam from -y
+        plane_width = 0.25 * scale_factor  # narrower in x (rotated 90°)
+        plane_height_bottom = -0.75 * scale_factor  # extends more in y direction
+        plane_height_top = 1.25 * scale_factor
+
+        x_basis = a_real / np.linalg.norm(a_real)
+        # y_basis = cross(a,b)
+        z_basis = np.cross(a_real, b_real) / np.linalg.norm(np.cross(a_real, b_real))
+        y_basis = np.cross(z_basis, x_basis) / np.linalg.norm(np.cross(z_basis, x_basis))
+
+        # Define vertices in local plane coordinates (x-y plane, z=0)
+        local_vertices = np.array([
+            [plane_width*4, plane_height_bottom, 0],   # bottom right in local coords
+            [-plane_width, plane_height_bottom, 0],  # bottom left in local coords
+            [plane_width*4, plane_height_top, 0],      # top right in local coords
+            [-plane_width, plane_height_top, 0],     # top left in local coords
+        ])
+
+        # Transform vertices to real space using crystal basis vectors
+        scatter_plane_vertices = np.zeros_like(local_vertices)
+        for i, vertex in enumerate(local_vertices):
+            # Transform each vertex using the basis vectors
+            # x component uses x_basis, y component uses y_basis, z component uses z_basis (normal to plane)
+            scatter_plane_vertices[i] = (vertex[0] * x_basis +
+                                       vertex[1] * y_basis +
+                                       vertex[2] * z_basis)
+        # coordinate change matrix: change to scattering plane system
+        ccm = np.array([x_basis, y_basis, z_basis]).T
+        scatter_plane_vertices = _rotate_vertices_wrt_plane(scatter_plane_vertices, ccm, phi, chi)
+        scatter_plane_faces = np.array([[0, 1, 3, 2]])  # single face
+        self.axes.add_collection3d(
+            Poly3DCollection(
+                scatter_plane_vertices[scatter_plane_faces],
+                facecolors=[0.3510, 0.7850, 0.9330],  # light blue
+                edgecolors=[0.7, 0.7, 0.7],
+                alpha=0.3,
+            )
+        )
+
+
+
+        # Plot incident beam (k_in) - coming from -y direction in local coords
+        offset = 0
+        k_in_length = 1.3 * scale_factor
+        # In local scattering plane coords: -y_basis direction (rotated 90° from -x)
+        k_in_vec = - k_in_length * y_basis
+        k_in_vec = rotate_vector(k_in_vec, ccm, theta, phi, chi)
+        # Draw colored arrow on top
+        self.axes.quiver(
+            -k_in_vec[0],
+            -k_in_vec[1] - offset,
+            -k_in_vec[2],
+            k_in_vec[0],
+            k_in_vec[1],
+            k_in_vec[2],
+            color=(191 / 255, 44 / 255, 0),
+            alpha=1,
+            linewidth=5,
+            arrow_length_ratio=0.2,
+            zorder=10,
+        )
+
+        # Plot scattered beam (k_out) - in x-y plane, rotated 90° to match -y incident beam
+        k_out_length = 1.3 * scale_factor
+        # Rotated 90° in local coords: incident from -y, scattered at angle tth
+        k_out_vec = ccm @ np.array([np.sin(np.radians(tth)), -np.cos(np.radians(tth)), 0]) * k_out_length
+        k_out_vec = rotate_vector(k_out_vec, ccm, theta, phi, chi)
+        # Draw colored arrow on top
+        self.axes.quiver(
+            0,
+            0 + offset,
+            0,
+            k_out_vec[0],
+            k_out_vec[1],
+            k_out_vec[2],
+            color=(2 / 255, 78 / 255, 191 / 255),
+            linewidth=5,
+            arrow_length_ratio=0.2,
+            zorder=10,
+        )
+
+        # Set axis limits to match unit cell scale
+        if self.is_initialized and self.crystal is not None:
+            self.axes.set_xlim(-lim/2, lim/2)
+            self.axes.set_ylim(-lim/2, lim/2)
+            self.axes.set_zlim(-lim/2, lim/2)
+        else:
+            # Fallback to default limits
+            self.axes.set_xlim(-1, 1)
+            self.axes.set_ylim(-1, 1)
+            self.axes.set_zlim(-1, 1)
+
+        #self.axes.set_axis_off()
+        # Update the canvas
+        self.draw()
+
+    def clear_plot(self):
+        """ clear the plot """
+        self.axes.clear()
+        self.draw()
+
+
+def rotate_vector(vec, ccm, theta, phi, chi):
+    """Convert angles theta, phi, chi to rotation matrix. This rotate the beam or the scattering
+    plane, not the sample.
+    Pay attention to the direction of the rotation.
+
+    Updated for x-y scattering plane (z-axis is normal to scattering plane).
+
+    Args:
+        vec (np.ndarray): vector to rotate
+        ccm (np.ndarray): coordinate change matrix
+        theta (float): rotation about the z-axis in degrees, right-hand rule
+        phi (float): rotation about the x-axis in degrees, right-hand rule
+        chi (float): rotation about the y-axis in degrees, right-hand rule
+
+    Returns:
+        rotated_vec (np.ndarray): Rotated vector
+    """
+
+    matrix = angle_to_matrix(theta, phi, chi)
+    matrix = ccm @ matrix.T @ ccm.T
+    return matrix @ vec
+
+def _rotate_vertices_wrt_plane(vertices, ccm, phi, chi):
+    """Rotate the vertices of the sample with respect to the scattering plane
+
+    Updated for x-y scattering plane (z-axis is normal to scattering plane).
+    phi: rotation about y-axis
+    chi: rotation about x-axis
+    """
+
+    rotation_matrix = get_rotation(phi, chi)
+    rotation_matrix = ccm @ rotation_matrix.T @ ccm.T
+    vertices = np.array(vertices)
+    for i, vertex in enumerate(vertices):
+        vertices[i] = rotation_matrix @ vertex
+    return vertices
+
+
+
+
+
+
+if __name__ == "__main__":
+    import matplotlib
+    import matplotlib.pyplot as plt
+
+    # Set matplotlib to use a non-interactive backend for testing
+    matplotlib.use('Agg')  # Use Agg backend for saving files
+
+    print(f"Using matplotlib backend: {matplotlib.get_backend()}")
+    print("Testing UnitcellVisualizer...")
+
+    # Create visualizer
+    viz = UnitcellVisualizer(width=10, height=8)
+
+    # Test with both available CIF files
+    cif_files = ['data/nacl.cif', 'data/LSCO.cif']
+
+    for cif_file in cif_files:
+        if os.path.exists(cif_file):
+            print(f"Processing {cif_file}...")
+
+            # Set CIF file path
+            viz.set_parameters({'cif_file': cif_file})
+
+            # Create visualization
+            viz.visualize_unitcell()
+
+            # Create output filename
+            base_name = os.path.splitext(os.path.basename(cif_file))[0]
+            output_file = f'figures/unitcell_{base_name}.png'
+
+            # Ensure figures directory exists
+            os.makedirs('figures', exist_ok=True)
+
+            # Save the plot to file
+            viz.fig.savefig(output_file, dpi=150, bbox_inches='tight',
+                           facecolor='white', edgecolor='none')
+            print(f"Saved unit cell visualization to {output_file}")
+
+        else:
+            print(f"CIF file not found: {cif_file}")
+
+    print("Test completed successfully!")

advisor_scattering-0.5.0.dist-info/METADATA

@@ -0,0 +1,122 @@
+Metadata-Version: 2.4
+Name: advisor-scattering
+Version: 0.5.0
+Summary: Advisor-Scattering: Advanced Visual Scattering Toolkit for Reciprocal-space
+Author: Xunyang Hong
+License: Proprietary
+Project-URL: Homepage, https://github.com/HongXunyang/advisor
+Project-URL: Documentation, https://advisor-scattering.readthedocs.io/en/latest/
+Keywords: scattering,reciprocal-space,pyqt,visualization
+Classifier: Programming Language :: Python :: 3
+Classifier: Programming Language :: Python :: 3 :: Only
+Classifier: License :: Other/Proprietary License
+Classifier: Operating System :: OS Independent
+Classifier: Topic :: Scientific/Engineering
+Requires-Python: >=3.8
+Description-Content-Type: text/markdown
+Requires-Dist: PyQt5>=5.15.11
+Requires-Dist: matplotlib>=3.9.2
+Requires-Dist: numpy>=2.0.2
+Requires-Dist: scipy>=1.13.1
+Requires-Dist: Dans_Diffraction>=3.3.3
+
+# Advisor-Scattering — Advanced Visual Scattering Toolkit for Reciprocal-space
+
+![Python](https://img.shields.io/badge/python-3.9+-blue.svg)
+![PyQt5](https://img.shields.io/badge/PyQt5-5.15+-green.svg)
+
+Advisor-Scattering is a PyQt5 desktop app for X-ray scattering/diffraction experiments. It helps you convert scattering angles ↔ momentum transfer (HKL), explore scattering geometry, and visualize structure factors—all with interactive plots. Full docs on *[Read the Docs](https://advisor-scattering.readthedocs.io/en/latest/)*.
+
+![Demo video](https://raw.githubusercontent.com/HongXunyang/advisor/main/docs/source/_static/showcase.gif)
+or use the link below to view the demo video.
+▶  [Demo video (MP4)](https://raw.githubusercontent.com/HongXunyang/advisor/main/docs/source/_static/showcase.mp4)
+
+
+## Features
+- Convert scattering angles to momentum transfer (HKL) and vice versa.
+- Visualize scattering geometry and unit cells
+- Compute and visualize structure factors in reciprocal space.
+- CIF file drop-in support
+
+
+## Install
+- Python 3.8+ with PyQt5, numpy, scipy, matplotlib, Dans_Diffraction (see `requirements.txt`).
+
+From PyPI:
+```bash
+pip install advisor-scattering
+```
+
+From source:
+```bash
+python -m venv .venv
+source .venv/bin/activate  # .venv\Scripts\activate on Windows
+pip install -r requirements.txt
+pip install .
+```
+
+## Run
+```bash
+advisor-scattering
+# or
+advisor
+# or
+python -m advisor
+```
+
+*Note: the install command is `pip install advisor-scattering`, and the import is `import advisor`*.
+
+------
+
+## Minimal workflow (60 seconds)
+1) Launch the app.
+2) Enter lattice constants/angles and beam energy, or drop a CIF file.
+3) Click **Initialize**.
+4) Use the feature tabs (Scattering Geometry / Structure Factor) to calculate and visualize.
+

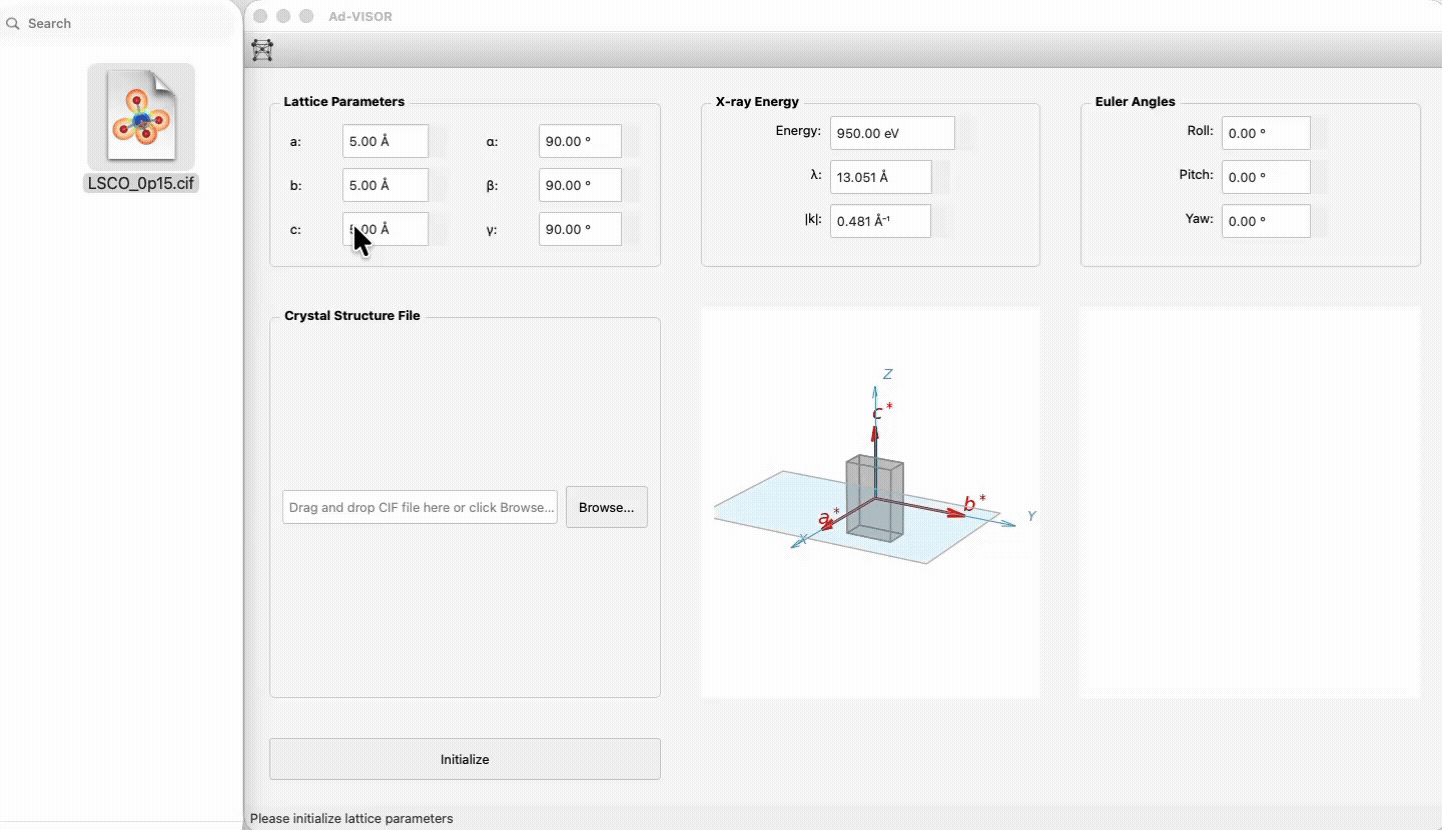

+![Init flow](https://raw.githubusercontent.com/HongXunyang/advisor/main/docs/source/_static/init.gif)
+
+----
+
+## Using the app
+
+### 1. Initialization window
+- Enter lattice constants (a, b, c) and angles (alpha, beta, gamma); beam energy auto-updates wavelength/|k|.
+- Optional: drop a CIF to autofill lattice parameters and preview the unit cell.
+- Adjust Euler angles (roll, pitch, yaw) to orient the sample relative to the scattering plane;
+- Click **Initialize** to load the main interface and pass parameters to all tabs.
+
+### 2. Scattering Geometry tab
+- Angles → HKL: enter 2θ/θ/χ/φ, compute HKL.
+- HKL → Angles: enter HKL, compute feasible angles.
+- HK to Angles (fixed 2θ) and HKL scan (fixed 2θ) subtabs for trajectory planning.
+
+![Scattering geometry demo](https://raw.githubusercontent.com/HongXunyang/advisor/main/docs/source/_static/scattering_geometry_tab_demo.gif)
+

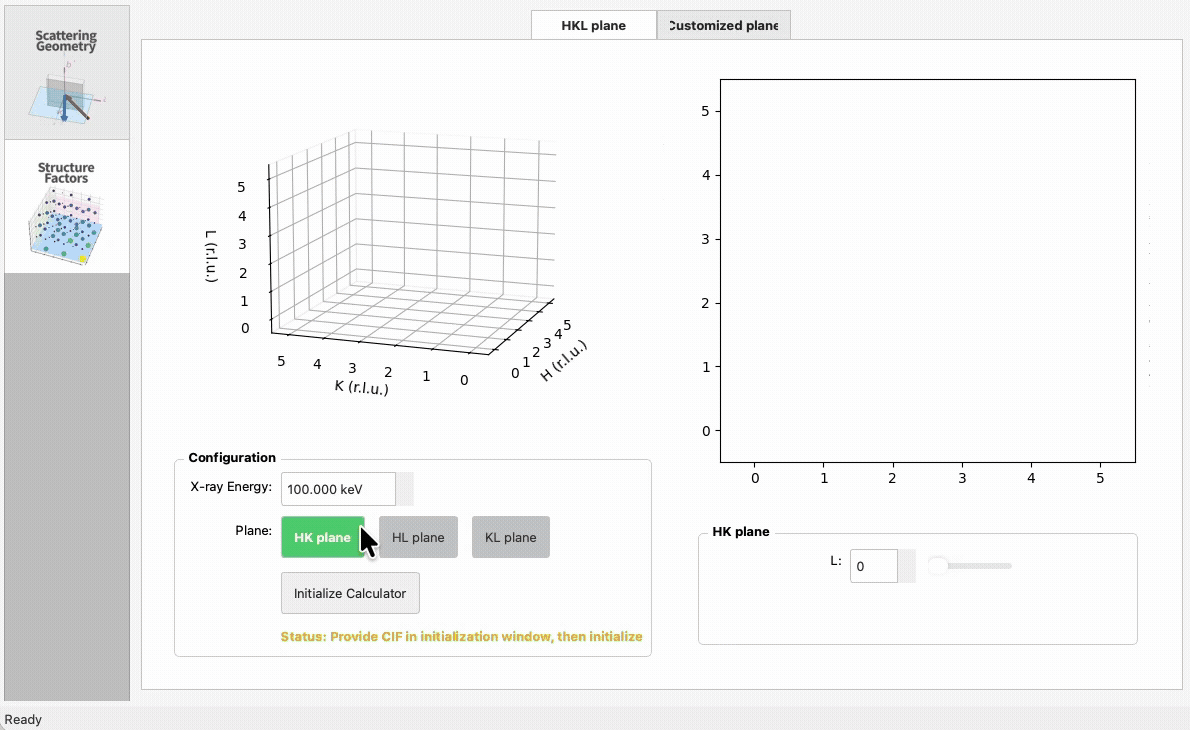

+### 3. Structure Factor tab
+- Requires a CIF (from init) and an energy in the tab.
+- HKL plane: explore a 3D HKL cube with linked HK/HL/KL slices.
+- Customized plane: choose U/V vectors and a center to sample an arbitrary plane in reciprocal space.
+
+![Structure factor demo](https://raw.githubusercontent.com/HongXunyang/advisor/main/docs/source/_static/structure_factor_tab_demo.gif)
+
+### 4. Resetting
+Use the toolbar button or **File → Reset Parameters** to return to the init window, clear the CIF lock, and re-enter parameters.
+
+------
+
+## Project structure (at a glance)
+```
+advisor/          application package
+  app.py          bootstrap
+  controllers/    app/feature coordinators
+  domain/         math and geometry helpers (no PyQt)
+  features/       per-feature domain/controller/ui code
+  ui/             shared UI pieces (init window, main window, base tab, visualizers)
+  resources/      QSS, icons, config JSON, sample data
+docs/             Sphinx sources and assets
+```
+
+## Documentation
+- Full Sphinx docs live in `docs/` and on *[Read the Docs](https://advisor-scattering.readthedocs.io/en/latest/)*.
+- Appendix covers scattering angle definitions and HKL conventions.
