+# PySourceviz
+
+**English** | [简体中文](https://github.com/LiaoPan/PySourceviz/blob/main/README.zh-CN.md)
+
+[![Tests](https://github.com/LiaoPan/PySourceviz/actions/workflows/tests.yml/badge.svg)](https://github.com/LiaoPan/PySourceviz/actions/workflows/tests.yml)
+[![Quality gates](https://github.com/LiaoPan/PySourceviz/actions/workflows/quality-gates.yml/badge.svg)](https://github.com/LiaoPan/PySourceviz/actions/workflows/quality-gates.yml)
+
+PySourceviz turns MNE-Python cortical source estimates into consistent,
+publication-friendly surface figures with a selectable BrainSpace or Nilearn
+renderer. It keeps source-estimate semantics in MNE, uses FreeSurfer anatomy
+for the mesh and medial wall, and renders four comparable views with one
+whole-brain activation colorbar.
+
+The v0.1 visual defaults are an inflated cortical surface, white background,
+soft white-to-light-gray sulcal shading, a transparent low-value overlay, and
+this anatomical order:
+
+```text
+LH lateral | LH medial | RH medial | RH lateral
+```
+
+For source-localization overview figures, PySourceviz recommends the inflated
+surface used by default in
+[`mne.SourceEstimate.plot`](https://mne.tools/stable/generated/mne.SourceEstimate.html#mne.SourceEstimate.plot).
+Inflation exposes activation that would be hidden inside sulci and avoids
+visually equating detailed fold boundaries with the spatial resolution of the
+inverse solution. It changes only display coordinates: source vertices,
+activation values, timing, interpolation, thresholds, and color limits remain
+unchanged. `pial` and `white` remain available when their anatomy is the
+intended subject of the figure.
+
+## Result gallery
+

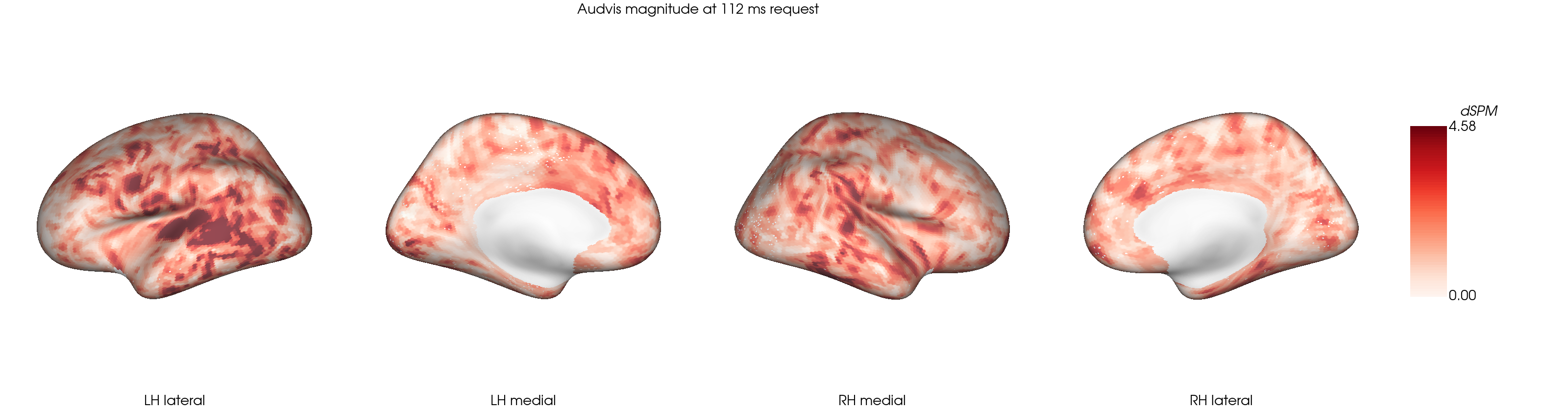

+**PySourceviz · MNE audvis dSPM · inflated surface · 110 ms actual sample**
+
+![PySourceviz MNE audvis source estimate at a 112 ms request](https://raw.githubusercontent.com/LiaoPan/PySourceviz/main/assets/pysourceviz-sample-112ms.png)
+
+The requested time above is 112 ms. The STC is sampled every 10 ms, so
+PySourceviz selects 110 ms and records that actual sample in the returned
+metadata.
+

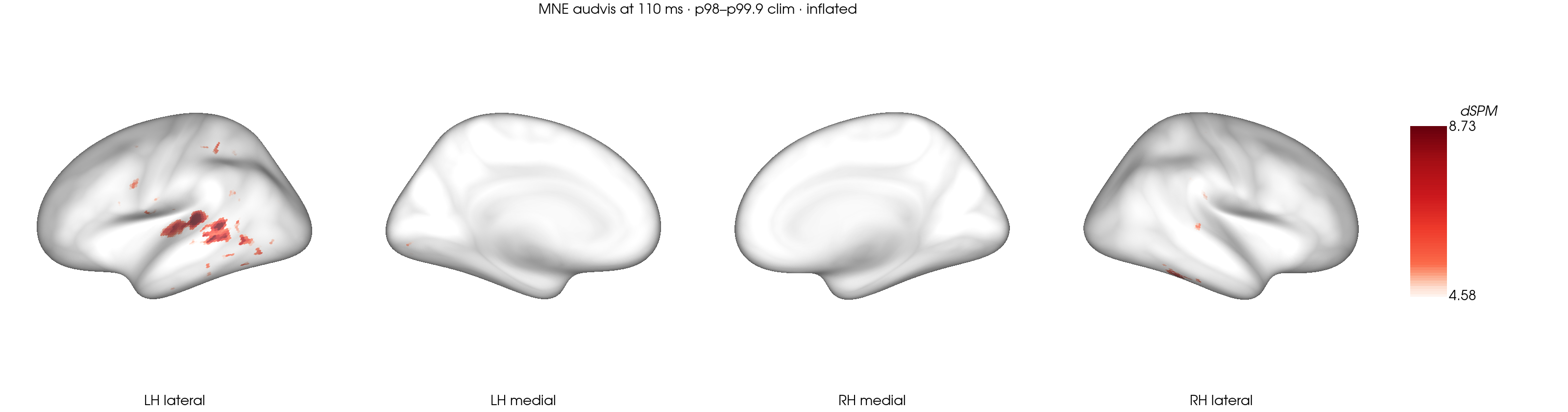

+**PySourceviz · BrainSpace backend · inflated surface · p98-p99.9 color controls**
+
+![BrainSpace renderer using the shared audvis activation](https://raw.githubusercontent.com/LiaoPan/PySourceviz/main/assets/nilearn-comparison/brainspace.png)
+

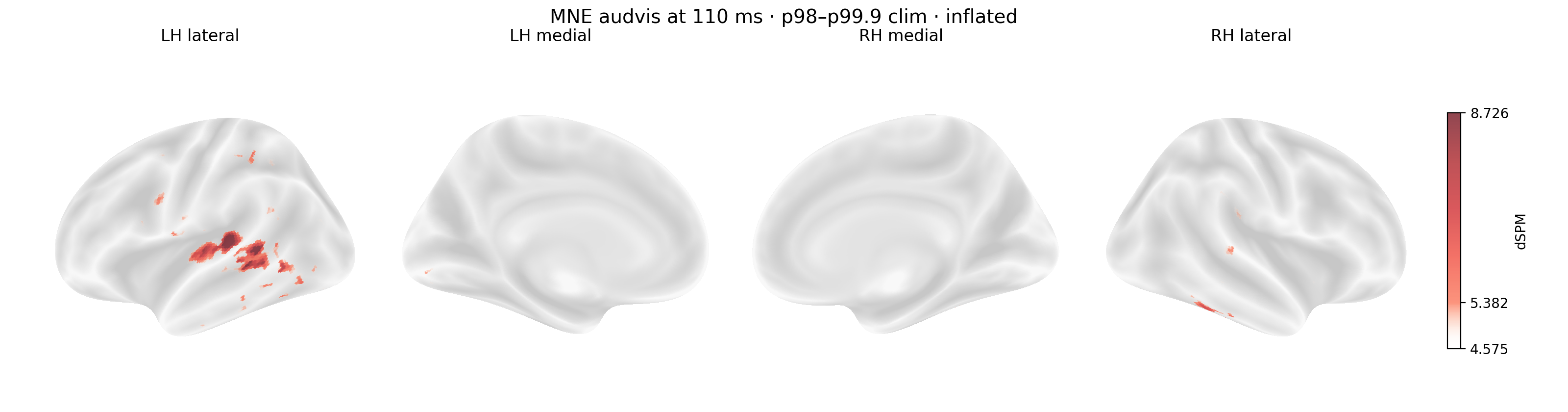

+**PySourceviz · Nilearn backend · inflated surface · the same activation and limits**
+
+![Nilearn renderer using the same audvis activation](https://raw.githubusercontent.com/LiaoPan/PySourceviz/main/assets/nilearn-comparison/nilearn.png)
+
+Both images above are produced by built-in PySourceviz backends. They use the
+same STC and time sample. They also use the same inflated geometry, expanded
+vertex values, medial-wall mask, FreeSurfer `sulc` background, colormap, and
+color limits; only the final renderer changes. The white-gray texture is
+therefore retained on the inflated coordinates rather than being tied to pial
+geometry.
+

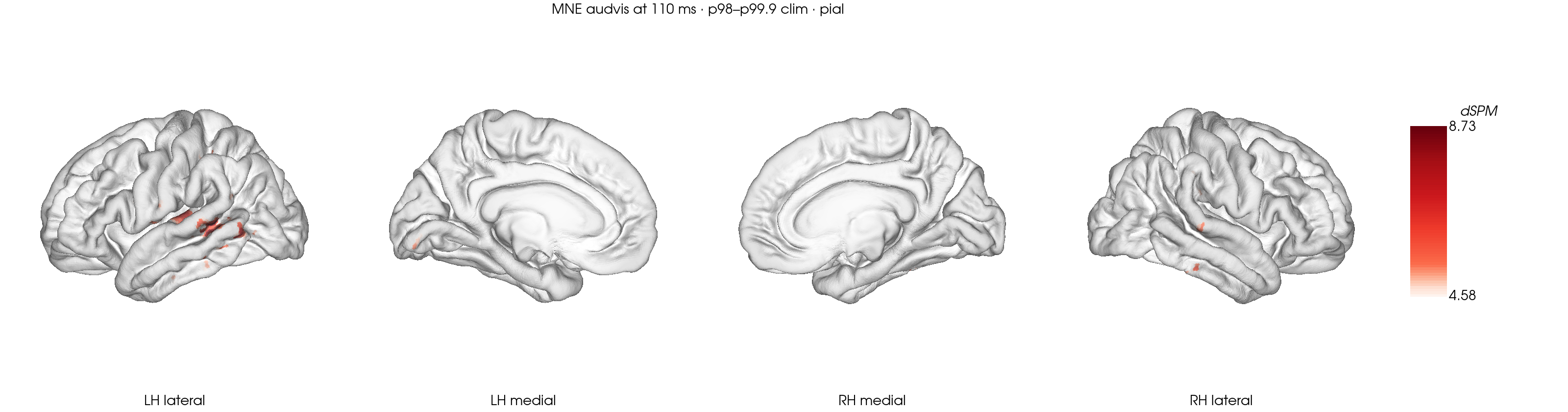

+**PySourceviz · BrainSpace · pial surface · optional anatomical view**
+
+![Optional BrainSpace pial-surface rendering](https://raw.githubusercontent.com/LiaoPan/PySourceviz/main/assets/nilearn-comparison/brainspace-pial.png)
+
+This pial view is included as an optional anatomical presentation.
+It is not the recommended default for source-localization overviews. Use it
+when the relationship to native gyral and sulcal folding is itself important.
+The source estimate, selected 110 ms sample, interpolation, threshold, and
+p98-p99.9 color controls are unchanged; only the display geometry differs.
+
+## Quickstart
+
+Install PySourceviz with its default BrainSpace backend from PyPI after the
+release is published:
+
+```bash
+python -m pip install PySourceviz
+```
+
+Install the optional Nilearn backend when you want Matplotlib-based surface
+figures as well:
+
+```bash
+python -m pip install "PySourceviz[nilearn]"
+```
+
+Load an MNE surface STC, point `subjects_dir` to the directory that contains
+the matching FreeSurfer subject, and save a PNG:
+
+```python
+from pathlib import Path
+
+import mne
+
+from pysourceviz import plot_source
+
+
+stc = mne.read_source_estimate("/data/inverse/audvis")
+subjects_dir = Path("/data/freesurfer/subjects")
+
+info = plot_source(
+    stc,
+    subjects_dir=subjects_dir,
+    backend="brainspace",
+    template="native",
+    time=0.112,
+    units="dSPM",
+    title="Auditory response · 112 ms request",
+    output="figures/audvis_112ms.png",
+)
+
+print(info["selected_time"])  # actual nearest STC sample, for example 0.11
+print(info["color_range"])    # shared whole-brain display range
+print(info["output"])         # resolved PNG path
+```
+
+Render the same prepared source map with Nilearn by changing one argument:
+
+```python
+nilearn_info = plot_source(
+    stc,
+    subjects_dir=subjects_dir,
+    backend="nilearn",
+    template="native",
+    time=0.112,
+    clim={"kind": "percent", "lims": [98, 99, 99.9]},
+    units="dSPM",
+    title="Auditory response · Nilearn",
+    output="figures/audvis_112ms_nilearn.png",
+)
+```
+
+Time selection, interpolation, threshold, `clim`, colormap, layout, output
+size, and returned scientific metadata have the same meaning for both
+backends. Nilearn is imported only when `backend="nilearn"` is selected.
+
+For `stc.subject == "fsaverage"`, the example expects files such as
+`/data/freesurfer/subjects/fsaverage/surf/lh.inflated`. `subjects_dir` is one
+level above the subject; it is not the `fsaverage` directory itself.
+
+## Complete usage reference
+
+The recipes below enumerate every supported source family and public control.
+All time values are seconds. PySourceviz never modifies the input STC.
+
+### Supported source-estimate families
+
+| MNE object | PySourceviz v0.1 behavior |
+| --- | --- |
+| `mne.SourceEstimate` | Real scalar cortical data; supports `mode="magnitude"` and `mode="signed"`. |
+| `mne.VectorSourceEstimate` | Cortical vector magnitude; signed display is not defined. |
+| `mne.MixedSourceEstimate` | Uses only the cortical surface component. |
+| `mne.MixedVectorSourceEstimate` | Uses the cortical surface component and converts vectors to magnitude. |
+| `mne.VolSourceEstimate` / `mne.VolVectorSourceEstimate` | Unsupported volume-only data; use a volume plotting workflow instead. |
+
+Complex STCs are unsupported. PySourceviz also does not compute inverse
+solutions or silently turn volumetric results into cortical surface data.
+
+### Choose BrainSpace or Nilearn
+
+BrainSpace is the backward-compatible default and uses VTK. Nilearn is an
+optional Matplotlib-based renderer:
+
+```python
+plot_source(
+    stc,
+    subjects_dir=subjects_dir,
+    backend="brainspace",
+    time=0.112,
+    output="brainspace.png",
+)
+
+plot_source(
+    stc,
+    subjects_dir=subjects_dir,
+    backend="nilearn",
+    time=0.112,
+    output="nilearn.png",
+)
+```
+
+Both calls pass the same prepared vertex arrays to the selected renderer. A
+static-only save returns `info["plotter"] is None`. Without a static-only save,
+that field contains a BrainSpace plotter or a Matplotlib `Figure`, respectively.
+Call `.close()` on a retained BrainSpace plotter or
+`matplotlib.pyplot.close(info["plotter"])` on a retained Nilearn figure when it
+is no longer needed.
+
+### Select a time or reduce a time window
+
+`time=None` is valid for an STC that already has exactly one sample:
+
+```python
+plot_source(single_time_stc, subjects_dir=subjects_dir, time=None)
+```
+
+A numeric request chooses the nearest actual sample. `time="peak"` chooses the
+sample containing the largest whole-brain magnitude:
+
+```python
+plot_source(stc, subjects_dir=subjects_dir, time=0.112)
+plot_source(stc, subjects_dir=subjects_dir, time="peak")
+```
+
+For an inclusive window, use either the signed/absolute mean or non-negative
+RMS reduction:
+
+```python
+plot_source(
+    stc,
+    subjects_dir=subjects_dir,
+    time_window=(0.080, 0.160),
+    reduce="mean",
+)
+
+plot_source(
+    stc,
+    subjects_dir=subjects_dir,
+    time_window=(0.080, 0.160),
+    reduce="rms",
+    mode="magnitude",
+)
+```
+
+`time` and `time_window` are mutually exclusive. Signed RMS is rejected because
+RMS has no sign.
+
+### Choose native, fsaverage, or another matching subject
+
+`template="native"` resolves to `stc.subject`. An explicit subject name must
+match `stc.subject`:
+
+```python
+plot_source(
+    stc_native,
+    subjects_dir=subjects_dir,
+    template="native",
+    time=0.112,
+)
+
+plot_source(
+    stc_fsaverage,
+    subjects_dir=subjects_dir,
+    template="fsaverage",
+    time=0.112,
+)
+
+plot_source(
+    stc_study_average,
+    subjects_dir=subjects_dir,
+    template="my_study_average",
+    time=0.112,
+)
+```
+
+Cross-subject registration is deliberately external. Morph first with MNE,
+then plot the already matching result:
+
+```python
+import mne
+
+
+morph = mne.compute_source_morph(
+    stc_native,
+    subject_from=stc_native.subject,
+    subject_to="fsaverage",
+    subjects_dir=subjects_dir,
+)
+stc_fsaverage = morph.apply(stc_native)
+
+plot_source(
+    stc_fsaverage,
+    subjects_dir=subjects_dir,
+    template="fsaverage",
+    time=0.112,
+    output="subject_on_fsaverage.png",
+)
+```
+
+### Choose cortical anatomy and display interpolation
+
+All three supported FreeSurfer surfaces are explicit:
+
+```python
+plot_source(stc, subjects_dir=subjects_dir, time=0.112, surface="inflated")
+plot_source(stc, subjects_dir=subjects_dir, time=0.112, surface="pial")
+plot_source(stc, subjects_dir=subjects_dir, time=0.112, surface="white")
+```
+
+`inflated` is the recommended default for source-localization overview
+figures. It unfolds buried cortex without changing the data assigned to each
+vertex. Use `pial` when the relationship to native cortical folding is itself
+important, and `white` when the gray-white boundary is the intended anatomy;
+neither alternative changes the inverse solution.
+
+Sparse source vertices can be expanded to the display mesh in three ways:
+
+```python
+# Recommended default: let MNE propagate until the surface is covered.
+plot_source(stc, subjects_dir=subjects_dir, time=0.112, smoothing_steps=None)
+
+# Legacy piecewise-constant nearest-source assignment.
+plot_source(
+    stc,
+    subjects_dir=subjects_dir,
+    time=0.112,
+    smoothing_steps="nearest",
+)
+
+# Exact non-negative number of adjacency-propagation iterations.
+plot_source(stc, subjects_dir=subjects_dir, time=0.112, smoothing_steps=5)
+```
+
+This is same-subject display interpolation, not Gaussian or statistical
+smoothing. Thresholds and color limits are computed from original sparse
+values before display expansion.
+
+### Choose magnitude or signed color semantics
+
+Magnitude is non-negative and defaults to the sequential `Reds` colormap:
+
+```python
+plot_source(
+    stc,
+    subjects_dir=subjects_dir,
+    time=0.112,
+    mode="magnitude",
+    cmap="Reds",
+    units="dSPM",
+)
+```
+
+Signed scalar data default to `RdBu_r` and a symmetric range:
+
+```python
+plot_source(
+    stc_scalar,
+    subjects_dir=subjects_dir,
+    time_window=(0.080, 0.160),
+    reduce="mean",
+    mode="signed",
+    output="signed_mean.png",
+)
+```
+
+Signed mode is unavailable for vector and mixed-vector STCs.
+
+### Choose a threshold and color limits
+
+Leave the hard display mask disabled, use a numerical cutoff, or resolve a
+percentile from the combined sparse hemispheres:
+
+```python
+plot_source(stc, subjects_dir=subjects_dir, time=0.112, threshold=None)
+plot_source(stc, subjects_dir=subjects_dir, time=0.112, threshold=3.0)
+plot_source(stc, subjects_dir=subjects_dir, time=0.112, threshold="95%")
+```
+
+Color limits support a robust percentile, an explicit range, and MNE-style
+three-control dictionaries:
+
+```python
+plot_source(stc, subjects_dir=subjects_dir, time=0.112, clim="robust")
+
+plot_source(stc, subjects_dir=subjects_dir, time=0.112, clim=(0.0, 12.5))
+
+plot_source(
+    stc,
+    subjects_dir=subjects_dir,
+    time=0.112,
+    clim={"kind": "percent", "lims": [98, 99, 99.9]},
+)
+
+plot_source(
+    stc,
+    subjects_dir=subjects_dir,
+    time=0.112,
+    clim={"kind": "value", "lims": [3.0, 4.0, 6.0]},
+)
+
+plot_source(
+    stc_signed,
+    subjects_dir=subjects_dir,
+    time=0.112,
+    mode="signed",
+    clim={"kind": "percent", "pos_lims": [95, 99, 99.9]},
+)
+```
+
+`robust_percentile=98.0` changes the percentile used by `clim="robust"`. For
+dictionary clim, the lower, middle, and upper controls set the start of the
+visibility ramp, the middle palette color/full overlay opacity, and the
+saturation point. These controls and thresholds are visualization choices,
+not tests of statistical significance.
+
+### Choose layout, styling, and output behavior
+
+Use a four-panel row or a two-by-two grid, and optionally control the rest of
+the presentation:
+
+```python
+plot_source(stc, subjects_dir=subjects_dir, time=0.112, layout="row")
+plot_source(stc, subjects_dir=subjects_dir, time=0.112, layout="grid")
+
+plot_source(
+    stc,
+    subjects_dir=subjects_dir,
+    time=0.112,
+    title="Auditory response",
+    colorbar=False,
+    background="white",
+    size=(1600, 420),
+    scale=(2, 2),
+    output="auditory.png",
+)
+
+plot_source(
+    stc,
+    subjects_dir=subjects_dir,
+    time=0.112,
+    background=(1.0, 1.0, 1.0),
+    transparent=True,
+    output="auditory_transparent.png",
+)
+```
+
+The output/display combinations are:
+
+```python
+# Save a PNG and close the static renderer (show defaults to False here).
+saved = plot_source(
+    stc,
+    subjects_dir=subjects_dir,
+    time=0.112,
+    output="source.png",
+)
+
+# Open an interactive window (show defaults to True with no output).
+interactive = plot_source(stc, subjects_dir=subjects_dir, time=0.112, show=True)
+
+# Save and also create a separate interactive scene.
+both = plot_source(
+    stc,
+    subjects_dir=subjects_dir,
+    time=0.112,
+    output="source_and_window.png",
+    show=True,
+)
+
+# Retain an offscreen plotter without saving or opening a window.
+offscreen = plot_source(stc, subjects_dir=subjects_dir, time=0.112, show=False)
+offscreen["plotter"].close()
+```
+
+`output` accepts PNG paths only and creates missing parent directories. The
+default logical size is 1600 x 420 for `layout="row"` and 900 x 760 for
+`layout="grid"`; screenshot `scale=(2, 2)` doubles both pixel axes.
+
+### Compare conditions with one shared scale
+
+Use the same preregistered or pooled range for every condition instead of a
+separate robust range per image:
+
+```python
+shared_clim = (0.0, 12.5)
+
+info_a = plot_source(
+    stc_condition_a,
+    subjects_dir=subjects_dir,
+    time=0.112,
+    clim=shared_clim,
+    title="Condition A",
+    output="condition_a.png",
+)
+info_b = plot_source(
+    stc_condition_b,
+    subjects_dir=subjects_dir,
+    time=0.112,
+    clim=(0.0, 12.5),
+    title="Condition B",
+    output="condition_b.png",
+)
+
+assert info_a["color_range"] == info_b["color_range"] == shared_clim
+```
+
+### Inspect returned metadata
+
+Every call returns a dictionary containing the resolved template and surface,
+interpolation setting, time/window selection, threshold, whole-brain color
+range and control points, colormap, layout, logical/pixel size controls, output
+path, and `plotter`. Useful checks include:
+
+```python
+for key in (
+    "backend",
+    "template",
+    "surface",
+    "smoothing_steps",
+    "selected_time",
+    "sampled_time_window",
+    "threshold",
+    "color_range",
+    "color_control_points",
+    "output",
+):
+    print(key, info[key])
+```
+
+### Run the bundled examples
+
+| Program | Purpose |
+| --- | --- |
+| `examples/basic_usage.py` | Reusable BrainSpace/Nilearn fixed-time, window-RMS, and shared-clim helpers. |
+| `examples/real_data_validation.py` | Five-image acceptance set plus a JSON provenance manifest. |
+| `examples/compare_nilearn_backend.py` | Controlled BrainSpace/Nilearn comparison from one surface STC. |
+
+```bash
+python examples/basic_usage.py
+
+python examples/real_data_validation.py \
+    --stc-base /data/fsaverage_audvis_trunc-meg \
+    --subjects-dir /data/subjects \
+    --subject fsaverage \
+    --output-dir validation-output
+
+python examples/compare_nilearn_backend.py \
+    --stc-base /data/fsaverage_audvis_trunc-meg \
+    --subjects-dir /data/subjects \
+    --subject fsaverage \
+    --output-dir renderer-comparison
+```
+
+## Complete `plot_source()` parameter reference
+
+The table is synchronized with the public function signature. “Required” means
+there is no default; all arguments after `stc` are keyword-only.
+
+| Parameter | Default | Accepted values and effect |
+| --- | --- | --- |
+| `stc` | required | Real `mne.SourceEstimate`, vector surface STC, or mixed STC with a cortical component. |
+| `subjects_dir` | required | Path containing the matching FreeSurfer subject directory. |
+| `backend` | `"brainspace"` | `"brainspace"` or optional `"nilearn"`; scientific preprocessing is shared. |
+| `template` | `"native"` | `"native"` or an explicit subject name equal to `stc.subject`. |
+| `surface` | `"inflated"` | `"inflated"`, `"pial"`, or `"white"`. |
+| `smoothing_steps` | `None` | Automatic MNE coverage, `"nearest"`, or a non-negative integer. |
+| `time` | `None` | Seconds, `"peak"`, or `None`; mutually exclusive with `time_window`. |
+| `time_window` | `None` | Inclusive `(start, stop)` seconds or `None`. |
+| `reduce` | `"mean"` | `"mean"` or `"rms"` for a time window. |
+| `mode` | `"magnitude"` | `"magnitude"` or scalar `"signed"`. |
+| `threshold` | `None` | Non-negative number, percentile string such as `"95%"`, or `None`. |
+| `clim` | `"robust"` | `"robust"`, `(lower, upper)`, or MNE-style three-control dictionary. |
+| `robust_percentile` | `98.0` | Percentile in `(0, 100]` used by robust limits. |
+| `cmap` | `None` | Matplotlib colormap name or mode-aware default. |
+| `units` | `None` | Optional activation colorbar title. |
+| `layout` | `"row"` | `"row"` or `"grid"`. |
+| `title` | `None` | Optional figure title. |
+| `colorbar` | `True` | Show or hide the shared activation colorbar. |
+| `background` | `"white"` | Matplotlib color name or RGB triple. |
+| `output` | `None` | Optional `.png` path; missing parent directories are created. |
+| `size` | `None` | Logical `(width, height)` or the layout-specific default. |
+| `scale` | `(2, 2)` | Positive integer screenshot scale for each pixel axis. |
+| `transparent` | `False` | Use an alpha background for saved PNG output. |
+| `show` | `None` | `True`, `False`, or output-aware default behavior. |
+
+## FreeSurfer `subjects_dir` in detail
+
+For `subject="sample"` and `surface="inflated"`, PySourceviz reads:
+
+```text
+<subjects_dir>/sample/surf/lh.inflated
+<subjects_dir>/sample/surf/rh.inflated
+<subjects_dir>/sample/surf/lh.sulc
+<subjects_dir>/sample/surf/rh.sulc
+<subjects_dir>/sample/label/lh.cortex.label
+<subjects_dir>/sample/label/rh.cortex.label
+```
+
+Missing surface or sulc files are fatal and their full paths appear in the
+error. Missing cortex labels emit one warning and disable medial wall masking
+for the affected hemisphere, so install or generate those labels before making
+final figures.
+
+## Display interpolation and source-space resolution
+
+`smoothing_steps=None` asks MNE to propagate sparse source values over surface
+adjacency until the display mesh is covered. `smoothing_steps="nearest"`
+reproduces the piecewise-constant legacy view. A non-negative integer requests
+an exact number of propagation iterations; if it is too small for a dense mesh,
+MNE warns rather than pretending the surface was completely filled.
+
+Interpolation is applied to a one-time display copy. Numeric/percentile
+thresholds, robust limits, and percent clim controls are computed from combined
+left/right sparse values before expansion, so repeated dense vertices cannot
+bias a percentile. The input STC is unchanged.
+
+Very coarse inverse source spaces can remain visibly patchy even with automatic
+interpolation. For scientifically smoother spatial detail, improve the
+source-space resolution in the forward/inverse model or use an explicitly
+reported analysis-stage smoothing method. Do not hide a low-resolution inverse
+solution with undocumented plotting-only Gaussian blur.
+
+## Display threshold, color limits, and inference
+
+A threshold is an optional hard display mask: values below it become fully
+transparent after surface expansion. Abrupt masking can make isolated patches
+look prominent. MNE-style clim dictionaries instead create a gradual
+transparent-to-visible transition around peak regions.
+
+The bundled audvis reference uses:
+
+```python
+clim={"kind": "percent", "lims": [98, 99, 99.9]}
+```
+
+It starts the ramp at the 98th percentile, reveals more localized activation
+than the stricter p99 example, and avoids a cortex-wide red cast. Signed data
+use `pos_lims` with a diverging palette.
+
+Neither threshold nor clim performs a statistical significance test,
+multiple-comparison correction, or inference. Determine significance in the
+analysis pipeline, then choose display controls that faithfully communicate
+that result. When color must be quantitatively comparable, use a shared clim
+for every condition.
+
+## Layout, PNG output, and metadata
+
+The row layout is `LH lateral | LH medial | RH medial | RH lateral`. The grid
+places LH/RH lateral views on the first row and LH/RH medial views on the
+second. BrainSpace uses global camera rotations internally; the anatomical
+labels describe the hemisphere-relative view shown to the reader.
+
+Static-only output returns `plotter=None`. Interactive or explicitly retained
+scenes return a BrainSpace plotter or Nilearn Matplotlib `Figure`, according to
+`backend`. The caller should close retained renderer objects. Returned
+`selected_time` is always an actual STC sample, and `sampled_time_window`
+records the first and last samples included in a window.
+
+## Reproduce the real-data acceptance set
+
+The workflow follows MNE's
+[source-estimate visualization tutorial](https://mne.tools/stable/auto_tutorials/inverse/60_visualize_stc.html).
+With an existing MNE sample dataset:
+
+```bash
+python examples/real_data_validation.py \
+    --sample-data-dir /path/to/MNE-sample-data \
+    --output-dir validation-output
+```
+
+Or use an explicit two-hemisphere STC base and subject anatomy:
+
+```bash
+python examples/real_data_validation.py \
+    --stc-base /data/fsaverage_audvis_trunc-meg \
+    --subjects-dir /data/subjects \
+    --subject fsaverage \
+    --output-dir validation-output
+```
+
+The script creates fixed 112 ms, RMS 80-160 ms, inflated, pial, and shared-clim
+comparison images plus `validation.json`. Its 0.65x comparison control checks
+display consistency only; it is not an independent experimental condition.
+`--download` opts into MNE's roughly 1.45 GB sample download. The default never
+starts that download.
+
+## Compare the built-in BrainSpace and Nilearn renderers
+
+Install the optional backend in an editable source checkout:
+
+```bash
+python -m pip install -e ".[nilearn]"
+```
+
+The repository keeps `comparison` as a compatibility alias for the controlled
+acceptance workflow:
+
+```bash
+python -m pip install -e ".[comparison]"
+```
+
+Nilearn's `plot_img_on_surf` accepts a 3D Niimg-like volume and projects voxels
+onto a surface. An MNE surface `SourceEstimate` already contains values at
+cortical vertices, so converting it to a volume and projecting it back would
+add interpolation and would not be a controlled renderer comparison. The
+PySourceviz Nilearn backend therefore keeps the shared time selection, display
+interpolation, medial-wall mask, threshold, colormap, and color range, then
+passes the same vertex arrays to Nilearn's `plot_surf_stat_map`.
+
+The often-cited `plot_img_on_surf` gallery image is a different data case. Its
+3D motor statistical map has negative and positive voxels, uses a diverging
+`RdBu_r` palette, and projects multiple volumetric samples near the cortical
+depth/normal. The audvis dSPM reference here is non-negative at the selected
+sample, so the sequential `Reds` palette is scientifically appropriate rather
+than inventing a blue negative branch.
+
+Run the controlled comparison with explicit settings:
+
+```bash
+python examples/compare_nilearn_backend.py \
+    --stc-base /data/fsaverage_audvis_trunc-meg \
+    --subjects-dir /data/subjects \
+    --subject fsaverage \
+    --time 0.112 \
+    --surface inflated \
+    --smoothing-steps auto \
+    --clim-percent 98 99 99.9 \
+    --mode magnitude \
+    --cmap Reds \
+    --output-dir renderer-comparison
+```
+
+The comparison defaults to the recommended `surface="inflated"` and automatic
+interpolation (`smoothing_steps=None`; CLI spelling `--smoothing-steps auto`).
+It creates
+`brainspace.png`, `nilearn.png`, and `comparison.json`. Both images share the
+1600 x 420 logical canvas, four-view order, source sample, activation array,
+sulcal anatomy, cmap, and `(vmin, vmax)`. To inspect native folding explicitly,
+pass `--surface pial`; to inspect the gray-white boundary, pass
+`--surface white`.
+
+The manifest records source/surface vertex counts, density ratio, versions,
+pixel sizes, `display_value_range`, and `display_sign_counts`. BrainSpace/VTK
+and Nilearn/Matplotlib can still look different because VTK shades point-data
+actors, while Nilearn uses mean vertex-to-face averaging on triangular faces.
+This affects surface appearance, not the prepared source values. Use
+`plot_img_on_surf` only when the source result genuinely is a 3D NIfTI volume
+and the volume-to-surface projection is scientifically intended.
+
+## Building and publishing
+
+For an editable development environment with tests and release tools:
+
+```bash
+python -m pip install -e ".[dev]"
+python -m pytest -q
+```
+
+The release helper resolves the project root from its own location. From the
+repository root, run:
+
+```bash
+./scripts/release.sh build
+./scripts/release.sh testpypi --clean
+# After installing and testing the TestPyPI candidate:
+./scripts/release.sh pypi --reuse
+```
+
+Every target builds with PEP 517 unless `--reuse` is selected, and runs
+Twine's strict metadata check before any upload. `--clean` removes only old
+`.tar.gz` and `.whl` files. `--reuse` rechecks and uploads the exact existing
+pair, so the PyPI release can match the tested TestPyPI artifacts. Production
+upload asks for `publish`; use `--yes` only for an intentional non-interactive
+release. Override the interpreter or output directory with
+`PYSOURCEVIZ_PYTHON` or `PYSOURCEVIZ_DIST_DIR`. Without `--clean` or
+`--reuse`, the helper refuses to overwrite existing distributions. Run
+`./scripts/release.sh --help` for the complete command reference.
+
+For the equivalent manual workflow, update the version in `pyproject.toml`,
+make sure `dist/` contains no artifacts from an older version, then build both
+the source distribution and wheel with the modern PEP 517 frontend:
+
+The PyPI long description cannot resolve repository-relative images, so this
+README uses GitHub Raw URLs. Always
+push the release commit containing the gallery assets to GitHub before either
+upload so all four result images are already reachable.
+
+```bash
+python -m build
+python -m twine check --strict dist/*
+```
+
+Upload to TestPyPI first and install the candidate without resolving runtime
+dependencies from the test index:
+
+```bash
+python -m twine upload --repository testpypi dist/*
+python -m pip install --index-url https://test.pypi.org/simple/ --no-deps PySourceviz
+```
+
+After testing the candidate, publish the same checked artifacts to PyPI:
+
+```bash
+python -m twine upload dist/*
+```
+
+Enter an API token through Twine/keyring or the upload prompt; never write a
+token into this repository. See the official
+[PyPA packaging tutorial](https://packaging.python.org/en/latest/tutorials/packaging-projects/)
+for the standards-based build and upload flow.
+
+## Common errors
+
+| Message or symptom | Meaning and action |
+| --- | --- |
+| `template='native' requires stc.subject` | Set the STC subject when creating/loading it, or use a correctly matching explicit template. |
+| `STC subject space ... does not match` | Morph the STC externally with `mne.compute_source_morph`; do not relabel it. |
+| `Required FreeSurfer surface file(s) missing` | Point `subjects_dir` one level above the subject and install the requested surface plus `lh/rh.sulc`. |
+| `Cortex label file(s) missing` warning | Medial wall masking is disabled for that hemisphere; restore `lh/rh.cortex.label` before final export. |
+| `STC has multiple time samples` | Set `time`, `time="peak"`, or `time_window`. |
+| Large piecewise-constant activation patches | Use `smoothing_steps=None`; if a coarse source-space resolution remains visible, improve the inverse model instead of adding hidden plotting blur. |
+| `output must use the .png extension` | Export PNG directly; convert formats afterward if needed. |
+| `backend="nilearn" requires the optional Nilearn renderer` | Install `PySourceviz[nilearn]`, then rerun the same call. |
+| Native VTK window/backend failure | Configure a supported VTK backend for the machine or render in a desktop session. |
+
+## Known limits
+
+PySourceviz v0.1 renders real cortical scalar STCs, vector-surface magnitude,
+and the surface portion of mixed STCs through BrainSpace or optional Nilearn.
+It does not render volume-only or complex STCs, compute inverse solutions,
+perform cross-subject morphing, or conduct statistical inference. Its
+same-subject adjacency propagation is display interpolation; it must not be
+interpreted as Gaussian/statistical smoothing or an increase in source-space
+resolution.
