+  AUTOGENERATED - DO NOT EDIT.
+  This file is a copy of the repository root README.md, written by `npm run sync:readme` (which runs as part of `npm run build`).
+  Edit the root README.md instead; any changes made here will be overwritten on the next build.
+-->
+
+<p align="center">
+  <img src="https://raw.githubusercontent.com/ShiraJoseph/signalkin/main/assets/logo.png" alt="signalkin" width="112">
+</p>
+
+# signalkin
+
+[![npm](https://img.shields.io/npm/v/signalkin.svg)](https://www.npmjs.com/package/signalkin)
+[![license](https://img.shields.io/badge/license-MIT-blue.svg)](LICENSE)
+[![Angular 22](https://img.shields.io/badge/Angular-22-dd0031.svg)](https://angular.dev)
+[![@ngrx/signals 21](https://img.shields.io/badge/%40ngrx%2Fsignals-21-purple.svg)](https://ngrx.io/guide/signals)
+
+Performant relationship management (1:many, 2:1) and collection methods for [`@ngrx/signals`](https://ngrx.io/guide/signals) entities.
+
+---
+
+## Contents
+
+- [Install](#install)
+- [Usage](#usage)
+  - [`withEntityAccessors`](#method-withentityaccessorsconfigs)
+  - [`withEntityRelationship`](#method-withentityrelationshipfrom-to-options)
+  - [`withTransitiveRelationship`](#method-withtransitiverelationship-from-to-through--)
+  - [Customization](#customization)
+- [Recipes](#recipes)
+  - [Transit map](#transit-map-the-segment-between-two-stations)
+  - [Quartets](#quartets-an-ensemble-keyed-by-its-players-plus-a-transitive-walk)

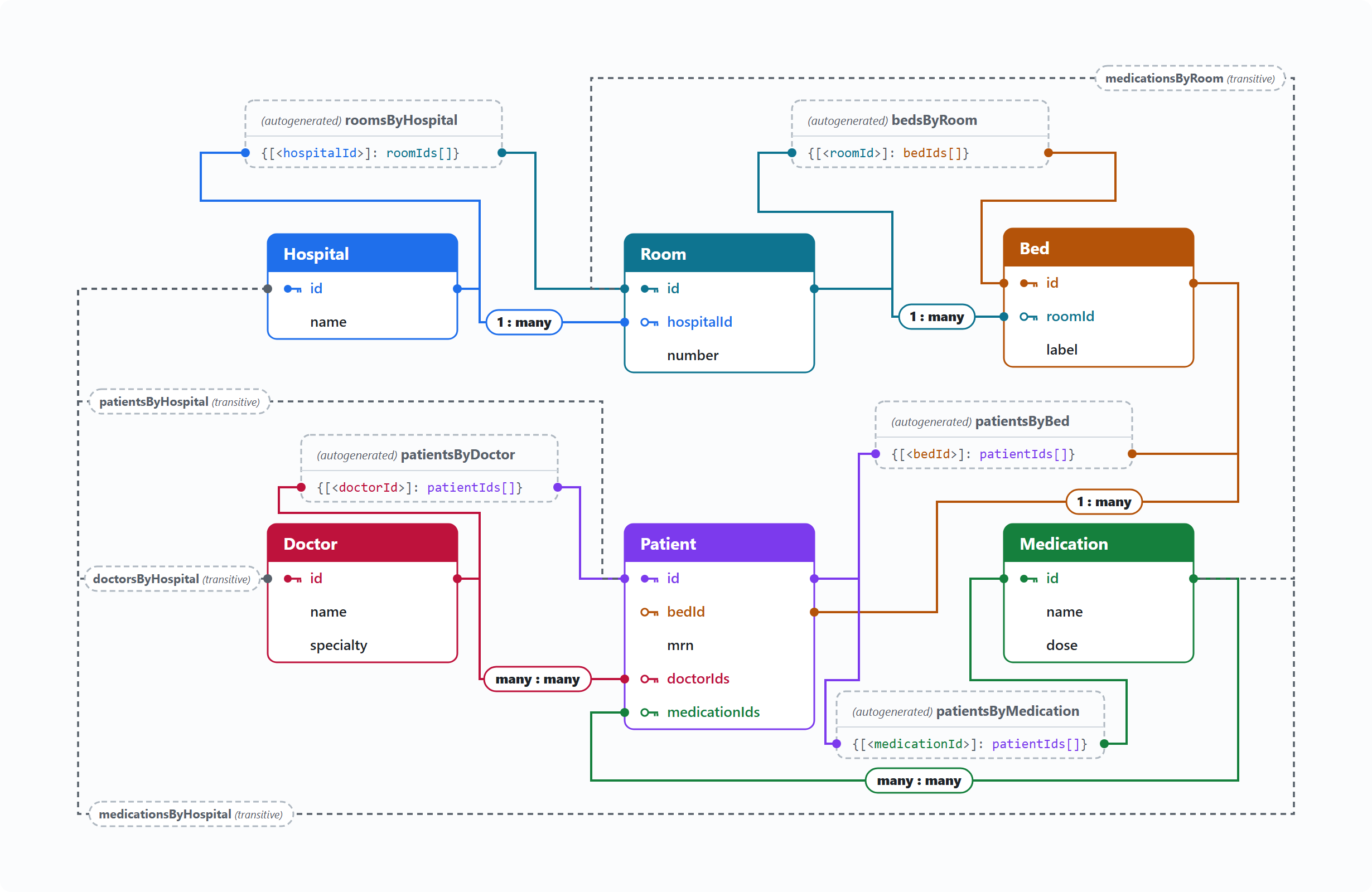

+  - [Hospital](#hospital-a-deep-hierarchy--many-to-many-loaded-from-an-api)
+- [Contributing](#contributing)
+- [License](#license)
+
+---
+## Install
+
+```
+npm install signalkin
+```
+
+Peer dependencies: `@angular/core` and `@ngrx/signals`
+
+_See the [NgRx SignalStore entity management guide](https://ngrx.io/guide/signals/signal-store/entity-management) to learn about entity signals and how to use them!_
+
+---
+
+## Usage
+
+### Method: `withEntityAccessors(...configs)`
+- Reduces boilerplate around entity signals (no need for `patchState`).
+
+#### 1. Add to signal store
+```ts
+...
+import { withEntityAccessors } from 'signalkin'; // <-- import
+
+interface Task { id: string; }
+
+export const TaskStore = signalStore(
+    ...
+    withEntities(entityConfig({ entity: type<Task>(), collection: 'task'})),
+    withEntityAccessors() // <--- Add this
+);
+```
+
+#### 2. Receive a bunch of getters/setters
+```ts
+@Component({
+  selector: 'app-root'
+})
+export class App {
+  constructor(){
+    store = inject(TaskStore);
+
+    // <-- you get free access to these signals:
+    store.tasks(); // Array<Task>
+    store.taskMap(); // Record<string, Task>
+    store.taskCount(); // number
+    store.taskById(id); // Task
+    store.hasTask(id); // boolean
+
+    // <-- as well as these signal setters:
+    store.addTask(task);
+    store.addTasks(tasks);
+    store.prependTask(task);
+    store.prependTasks(tasks);
+    store.setTask(task);
+    store.setTasks(tasks);
+    store.setAllTasks(tasks);
+    store.upsertTask(task);
+    store.upsertTasks(tasks);
+    store.updateTask(id, changes);
+    store.updateTasks(ids, changes);
+    store.updateAllTasks(changes)
+    store.removeTask(id);
+    store.removeTasks(ids);
+    store.removeAllTasks();
+
+    // <-- and entity order modifiers
+    store.swapTasks(taskA, taskB);
+    store.reorderTasks(orderedTasks);
+    store.moveTaskToIndex(task, index);
+  }
+}
+```
+
+---
+
+### Method: `withEntityRelationship(from, to, options?)`
+- Lets you link two collections with primary and foreign keys - for frontend "database" management without the O(n^2) lookups
+
+#### 1. Add to signalStore
+```ts
+import { withEntityRelationship } from 'signalkin'; // <-- import
+
+interface Author { id: string; }
+interface Editor { id: string; }
+interface Book { id: string; authorId: string; editorIds: string[] } // <-- ids for the related entities
+
+export const LibraryStore = signalStore(
+  ...
+  withEntities(entityConfig({ entity: type<Book>(), collection: 'book' })),
+  withEntities(entityConfig({ entity: type<Author>(), collection: 'author' })),
+  withEntities(entityConfig({ entity: type<Editor>(), collection: 'editor' })),
+
+  // <-- Add these after your entities to describe their relationships:
+  withEntityRelationship(
+    { collection: 'author', count: 1 },
+    { collection: 'book', count: 'many' }
+  ), // use any number or 'many' as the count
+  withEntityRelationship(
+    { collection: 'book', count: 'many' },
+    { collection: 'editor', count: 2 } // two editors per book
+  )
+);
+```
+
+#### 2. Receive cross-entity signals, methods and auto-updates to ids
+```ts
+@Component({
+  selector: 'app-root'
+})
+export class App {
+  constructor(){
+    store = inject(LibraryStore);
+
+    // <-- You get free access to these signal getters:
+    store.bookHasAuthor(book, author);
+    store.authorHasBook(author, book);
+    store.bookCountByAuthor(author);
+    store.authorCountByBook(book); // (in a 1:many relationship this will always be 1)
+
+    store.booksByAuthor(author);
+    store.bookIdsByAuthor(author);
+    store.authorByBook(book);
+    store.authorIdByBook(book);
+
+    // These getters are mostly useful only when dealing with >1 counts like 2:many
+    // They require ALL books be passed in to identify an author; if you need the author of one book just use `store.bookById(id).authorId`
+    store.authorByBooks(...books);
+    store.authorIdByBooks(...books);
+
+    // <-- as well as these signal setters, which will update foreign key values for all entities involved:
+    store.addBookToAuthor(authorId, bookId);
+    store.removeBookFromAuthor(authorId, bookId);
+    store.moveBookToAuthor(bookId, authorId);
+
+    // <-- and entity order modifiers
+    store.indexOfAuthorBook(book);
+    store.swapAuthorBooks(bookA, bookB);
+    store.reorderAuthorBooks(orderedBooks);
+    store.moveAuthorBookToIndex(book, index);
+
+    // <-- with 2+ owners (a book has 2 editors):
+    store.indexOfEditorByBook(editor, book);
+    store.swapEditorsByBook(editorA, editorB, book);
+    store.reorderEditorsByBook(orderedEditors, book);
+    store.moveEditorByBookToIndex(editor, index, book);
+    store.booksByEditorAtIndex(editor, 0);
+    store.bookIdsByEditorAtIndex(editor, 0);
+  }
+}
+```
+
+---
+
+### Method: `withTransitiveRelationship({ from, to, through, ... })`
+
+- Lookups between two collections that walk through intermediary collection(s)
+
+#### 1. Add to signalStore
+```ts
+...
+import { ..., withTransitiveRelationship } from 'signalkin'; // <-- import
+
+interface Team { id: string; }
+interface Project { id: string; teamId: string } // <-- add an id to the child for the parent entity
+interface Task {id: string; projectId: string} // <-- add an id to the child for the parent entity (no need for the "grandparent" id)
+
+export const TaskStore = signalStore(
+  ...
+  withEntities(entityConfig({ entity: type<Team>(), collection: 'team' })),
+  withEntities(entityConfig({ entity: type<Project>(), collection: 'project' })),
+  withEntities(entityConfig({ entity: type<Task>(), collection: 'task' })),
+
+  // Define 2 or more relationships
+  withEntityRelationship({ collection: 'team', count: 1 }, { collection: 'project', count: 'many' }),
+  withEntityRelationship({ collection: 'project', count: 1 }, { collection: 'task', count: 'many' }),
+
+  withTransitiveRelationship({ from: 'team', to: 'task', through: 'project' }), // <-- Add this to get a "grandparent" relationship
+);
+```
+#### 2. Receive grandparent-to-grandchild signals getters:
+```ts
+@Component({
+  selector: 'app-root'
+})
+export class App {
+  constructor(){
+    store = inject(TaskStore);
+
+    // <-- Now you get access to these getters:
+    store.tasksByTeam(team);
+    store.taskIdsByTeam(team);
+
+    // <-- As well as the reverse direction:
+    store.teamsByTask(task);
+    store.teamIdsByTask(task);
+  }
+}
+```
+
+---
+
+### Customization
+
+#### Custom id property
+- Set `selectId` / `selectForeignId` for a collection that keys on something other than `id` or `<foreignCollection>Id`:
+
+```ts
+withEntityRelationship(
+  { collection: 'team', count: 1, selectId: 'id2' }, // <-- Bypass the default that looks for the primary key `id` on each team
+  { collection: 'project', count: 'many', selectId: 'id2', selectForeignId: 'teamId2' }, // <-- Bypass the default that looks for the foreign key `teamId` (or teamIds for a 'many' relationship) on each project
+  // `selectForeignId` also takes a callback, but doing so will prevent signalkin from cleaning up foreign keys for you
+
+)
+```
+
+#### Pluralization
+- Default pluralization adds an `s` to the collection name. Set `plural` / `fromPlural` / `toPlural` for an irregular noun:
+
+```ts
+
+withEntityAccessors({ ...libraryConfig, plural: 'libraries' }); // <-- plural
+withEntityRelationship({ collection: 'library', count: 'many', plural: 'libraries' }, ...); // <-- plural
+withTransitiveRelationship({from: 'library', to: 'shelf', through: ['row'], fromPlural: 'libraries', toPlural: 'shelves'}); // <-- fromPlural, toPlural
+```
+
+#### Disable auto-updates
+- If you don't want signalkin to update the store on your behalf you can turn it off, one relationship at a time:
+```ts
+withEntityRelationship(
+  { collection: 'team', count: 1},
+  { collection: 'project', count: 'many'},
+  {
+    autoIndex: false, // <-- stop signalkin from automatically building lookup tables from foreign keys like {'authorId1': 'bookId1'}
+    syncForeignKeys: false, // <-- stop signalkin from clearing a project's teamId when you delete its team
+    compositeLookups: false // <-- stop signalkin from building many-to-one lookup tables like {'editor1editor2': 'bookId1'}
+  }
+);
+```
+---
+
+## Recipes
+
+### Transit map: the segment between two stations
+
+- **Description:** Exactly two stations are joined by one track `Segment`; a station touches many segments; a segment carries many trips. A `count: 2` side makes the pair of station ids a composite key, so you can look the segment up from its two endpoints.
+

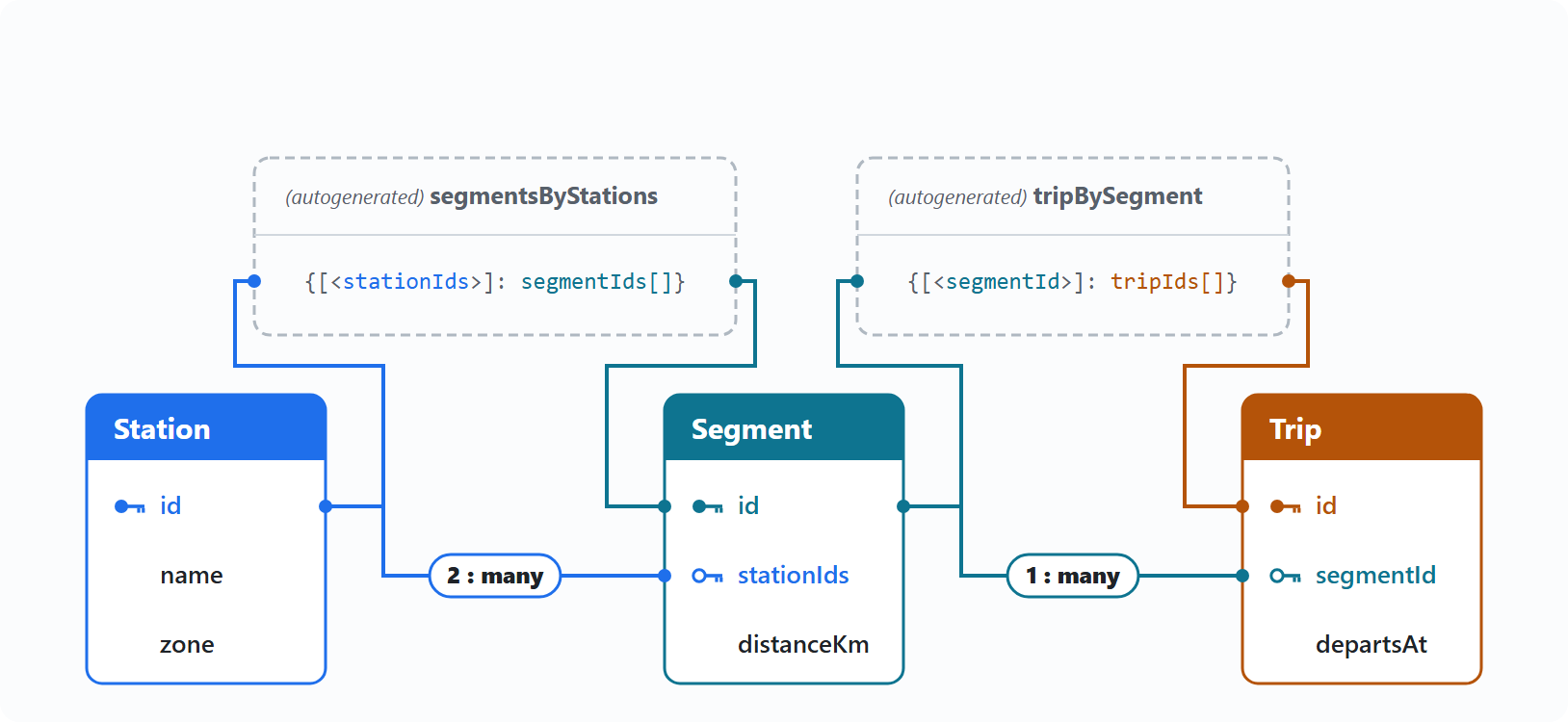

+![Transit diagram: Station, Segment, and Trip entities with the autogenerated segmentsByStations and tripBySegment lookup maps](https://raw.githubusercontent.com/ShiraJoseph/signalkin/main/assets/transit.png)
+
+```ts
+interface Station { id: string; name: string; zone: number; }
+interface Segment { id: string; stationIds: [string, string]; distanceKm: number; }
+interface Trip { id: string; segmentId: string; departsAt: string; }
+
+export const NetworkStore = signalStore(
+  withEntities(entityConfig({ entity: type<Station>(), collection: 'station' })),
+  withEntities(entityConfig({ entity: type<Segment>(), collection: 'segment' })),
+  withEntities(entityConfig({ entity: type<Trip>(), collection: 'trip' })),
+  withEntityAccessors(),
+  withEntityRelationship({ collection: 'station', count: 2 }, { collection: 'segment', count: 'many' }),
+  withEntityRelationship({ collection: 'segment', count: 1 }, { collection: 'trip', count: 'many' }),
+);
+```
+
+```ts
+@Component({
+  template: `
+    @if (store.segmentByStations(from(), to()); as segment) {
+      <p>{{ segment.distanceKm }} km | {{ store.tripCountBySegment(segment.id) }} trips/day</p>
+    }
+  `,
+})
+export class RouteInfo {
+  store = inject(NetworkStore);
+  from = input.required<string>();
+  to = input.required<string>();
+}
+```
+
+---
+
+### Quartets: an ensemble keyed by its players, plus a transitive walk
+
+- **Description:** A string quartet is defined by its four players; a musician plays in many ensembles; an ensemble gives many performances. `count: 4` makes the set of four musician ids a composite key, and a transitive lookup walks a musician through their ensembles to every performance.
+

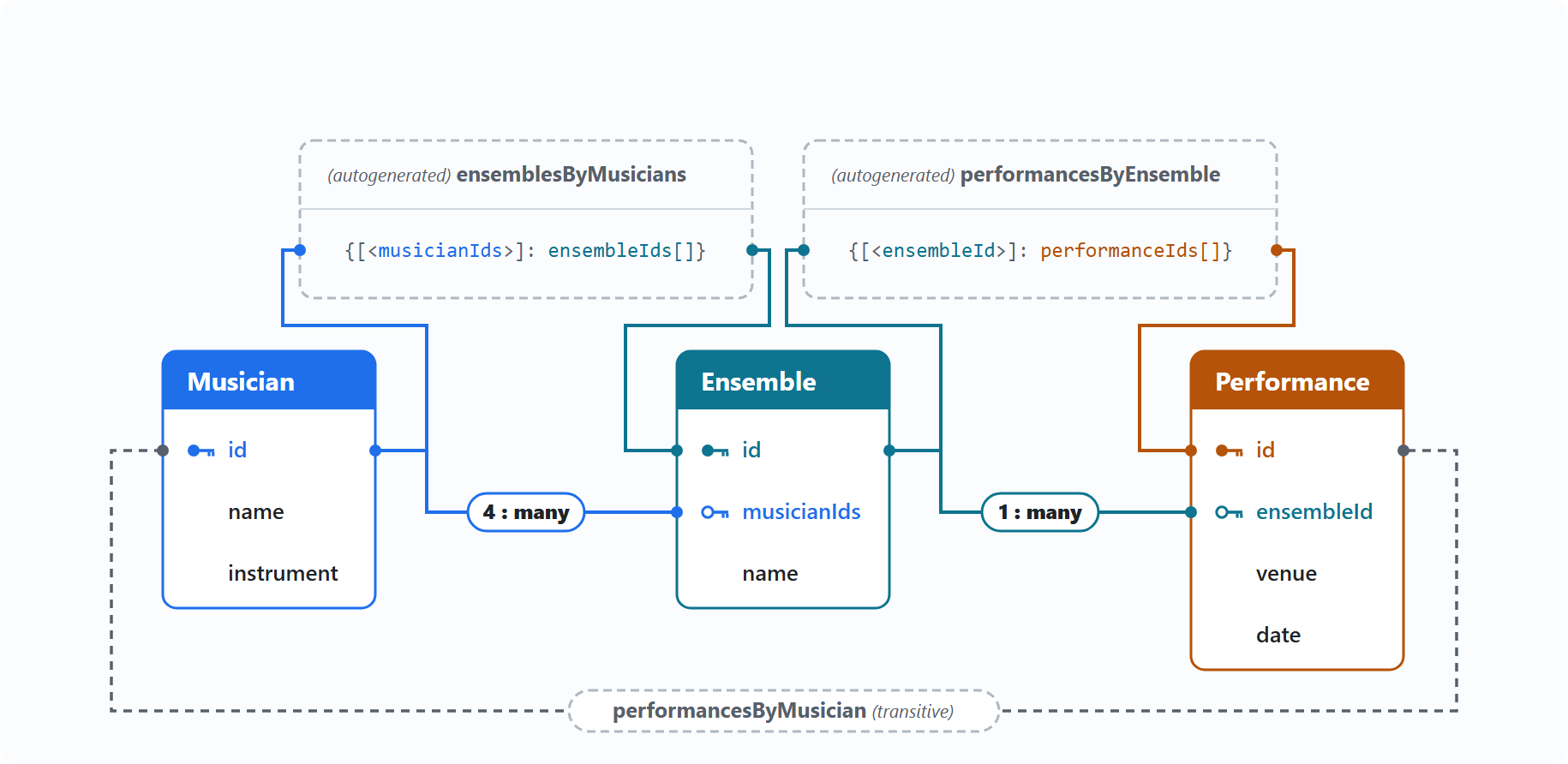

+![Quartet diagram: Musician, Ensemble, and Performance entities with the autogenerated ensemblesByMusicians and performancesByEnsemble lookup maps, plus the transitive performancesByMusician lookup](https://raw.githubusercontent.com/ShiraJoseph/signalkin/main/assets/quartet.png)
+
+```ts
+interface Musician { id: string; name: string; instrument: string; }
+interface Ensemble { id: string; name: string; musicianIds: [string, string, string, string]; }
+interface Performance { id: string; ensembleId: string; venue: string; date: string; }
+
+export const ConcertStore = signalStore(
+  withEntities(entityConfig({ entity: type<Musician>(), collection: 'musician' })),
+  withEntities(entityConfig({ entity: type<Ensemble>(), collection: 'ensemble' })),
+  withEntities(entityConfig({ entity: type<Performance>(), collection: 'performance' })),
+  withEntityAccessors(),
+  withEntityRelationship({ collection: 'musician', count: 4 }, { collection: 'ensemble', count: 'many' }),
+  withEntityRelationship({ collection: 'ensemble', count: 1 }, { collection: 'performance', count: 'many' }),
+  withTransitiveRelationship({ from: 'musician', to: 'performance', through: 'ensemble' }),
+);
+```
+
+```ts
+@Component({
+  template: `
+    @if (store.ensembleByMusicians(violin1(), violin2(), viola(), cello()); as ensemble) {
+      <p>{{ ensemble.name }} - {{ store.performancesByMusician(violin1()).length }} performances</p>
+    }
+  `,
+})
+export class QuartetCard {
+  store = inject(ConcertStore);
+  violin1 = input.required<string>();
+  violin2 = input.required<string>();
+  viola = input.required<string>();
+  cello = input.required<string>();
+  musicians = []
+}
+```
+
+---
+
+### Hospital: a deep hierarchy + many-to-many, loaded from an API
+
+- **Description:** A hospital has rooms, rooms have beds, a bed holds a patient; a patient is linked to many doctors and many medications. Transitive lookups walk the whole chain - `medicationsByHospital` even crosses the patient→medication many-to-many - and `rxMethod` loads the graph from an API into the store, where every index builds itself.
+
+![Hospital diagram: the Hospital, Room, Bed, Patient, Doctor, and Medication entities with five autogenerated lookup maps and four transitive lookups](https://raw.githubusercontent.com/ShiraJoseph/signalkin/main/assets/hospital.png)
+
+```ts
+interface Hospital { id: string; name: string; }
+interface Room { id: string; hospitalId: string; number: string; }
+interface Bed { id: string; roomId: string; label: string; }
+interface Patient { id: string; bedId: string; mrn: string; doctorIds: string[]; medicationIds: string[]; }
+interface Doctor { id: string; name: string; specialty: string; }
+interface Medication { id: string; name: string; dose: string; }
+interface HospitalGraph { hospitals: Hospital[]; rooms: Room[]; beds: Bed[]; patients: Patient[]; doctors: Doctor[]; medications: Medication[]; }
+
+export const HospitalStore = signalStore(
+  withEntities(entityConfig({ entity: type<Hospital>(), collection: 'hospital' })),
+  withEntities(entityConfig({ entity: type<Room>(), collection: 'room' })),
+  withEntities(entityConfig({ entity: type<Bed>(), collection: 'bed' })),
+  withEntities(entityConfig({ entity: type<Patient>(), collection: 'patient' })),
+  withEntities(entityConfig({ entity: type<Doctor>(), collection: 'doctor' })),
+  withEntities(entityConfig({ entity: type<Medication>(), collection: 'medication' })),
+  withEntityAccessors(),
+  withEntityRelationship({ collection: 'hospital', count: 1 }, { collection: 'room', count: 'many' }),
+  withEntityRelationship({ collection: 'room', count: 1 }, { collection: 'bed', count: 'many' }),
+  withEntityRelationship({ collection: 'bed', count: 1 }, { collection: 'patient', count: 'many' }),
+  withEntityRelationship({ collection: 'doctor', count: 'many' }, { collection: 'patient', count: 'many' }),
+  withEntityRelationship({ collection: 'patient', count: 'many' }, { collection: 'medication', count: 'many' }),
+  withTransitiveRelationship({ from: 'hospital', to: 'patient', through: ['room', 'bed'] }),
+  withTransitiveRelationship({ from: 'hospital', to: 'medication', through: ['room', 'bed', 'patient'] }),
+  withTransitiveRelationship({ from: 'hospital', to: 'doctor', through: ['room', 'bed', 'patient'] }),
+  withTransitiveRelationship({ from: 'room', to: 'medication', through: ['bed', 'patient'] }),
+  withMethods((store, http = inject(HttpClient)) => ({
+    load: rxMethod<string>(
+      pipe(
+        switchMap((hospitalId) => http.get<HospitalGraph>(`/api/hospitals/${hospitalId}/graph`)),
+        tap((graph) => {
+          store.setAllHospitals(graph.hospitals);
+          store.setAllRooms(graph.rooms);
+          store.setAllBeds(graph.beds);
+          store.setAllPatients(graph.patients);
+          store.setAllDoctors(graph.doctors);
+          store.setAllMedications(graph.medications);
+        }),
+      ),
+    ),
+  })),
+);
+```
+
+```ts
+@Component({
+  template: `
+    <h3>{{ store.hospitalById(hospitalId())?.name }}</h3>
+    <p>
+      {{ store.patientsByHospital(hospitalId()).length }} patients,
+      {{ store.medicationsByHospital(hospitalId()).length }} medications in use
+    </p>
+  `,
+})
+export class HospitalDashboard {
+  store = inject(HospitalStore);
+  hospitalId = input.required<string>();
+
+  constructor() {
+    this.store.load(this.hospitalId); // rxMethod takes the signal and reloads when it changes
+  }
+}
+```
+
+---
+## Contributing
+
+Contributions are welcome!
+
+### Project structure
+
+This repo is an Angular workspace with two projects:
+- `projects/signalkin` (the published library, source in `src/lib`) and
+- `projects/sandbox` (a throwaway app whose `demo.store.typecheck.ts` asserts the generated types resolve through the built package).
+
+Everything is a plain `signalStoreFeature` built only on public `@angular/core` + `@ngrx/signals` APIs, with no state duplication for FK-derived links (indexes are `computed`) and no effects or watchers.
+
+_For AI Agents: [`AGENTS.md`](AGENTS.md)._
+
+### Submitting
+1. Add tests, including a sandbox type assertion for any type-level change.
+2. Make sure all three pass:
+```
+npm run build            # sync the README, then build the library to dist/signalkin (build this before the sandbox)
+npx ng build sandbox     # type-check the sandbox against the built package
+npx ng test signalkin    # vitest suite
+```
+3. Create a feature branch with your name and short description and open a PR on `main`.
+
+---
+
+## License
+
+MIT
