+# Signal K Data Connector
+
+Secure, encrypted UDP data transmission between Signal K servers with advanced bandwidth optimization.
+
+[![Tests](https://img.shields.io/badge/tests-209%20passed-brightgreen)](https://github.com/KEGustafsson/signalk-data-connector)
+[![License: MIT](https://img.shields.io/badge/License-MIT-yellow.svg)](https://opensource.org/licenses/MIT)
+[![Node.js](https://img.shields.io/badge/node-%3E%3D14.0.0-brightgreen)](https://nodejs.org/)
+

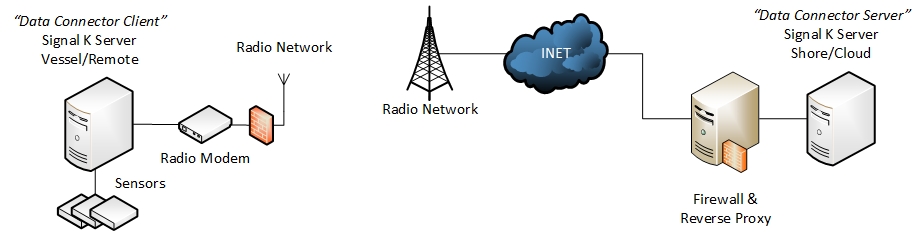

+![Data Connector Concept](https://raw.githubusercontent.com/KEGustafsson/signalk-data-connector/refs/heads/main/doc/dataconnectorconcept.jpg)
+
+---
+
+## Table of Contents
+
+- [Overview](#overview)
+- [Getting Started](#getting-started)
+  - [Installation](#installation)
+  - [Quick Start](#quick-start)
+- [Configuration](#configuration)
+  - [Server Mode](#server-mode-receiver)
+  - [Client Mode](#client-mode-sender)
+  - [Web Dashboard](#web-dashboard)
+  - [Configuration Files](#configuration-files)
+- [Network Monitoring](#network-monitoring)
+- [Performance](#performance)
+  - [Bandwidth Comparison](#bandwidth-comparison)
+  - [Smart Batching](#smart-batching)
+  - [Optimization Tips](#optimization-tips)
+- [Security](#security)
+  - [Encryption](#encryption)
+  - [Secret Key Requirements](#secret-key-requirements)
+  - [Best Practices](#best-practices)
+- [Troubleshooting](#troubleshooting)
+- [Development](#development)
+  - [Architecture](#architecture)
+  - [Project Structure](#project-structure)
+  - [Build Commands](#build-commands)
+  - [Testing](#testing)
+  - [Technical Reference](#technical-reference)
+  - [Contributing](#contributing)
+- [License](#license)
+
+---
+
+## Overview
+
+Signal K Data Connector is a Signal K Node Server plugin that enables real-time data sharing between vessels or shore stations over UDP. It combines AES-256-GCM authenticated encryption with Brotli compression to deliver secure, bandwidth-efficient transmission — achieving up to **97% bandwidth reduction** compared to raw data.
+
+**Key capabilities:**
+
+| Feature | Description |
+|---------|-------------|
+| Encrypted transport | AES-256-GCM authenticated encryption with per-message unique IV |
+| Brotli compression | Quality-10 compression with 85–97% reduction on typical data |
+| Binary protocol | Zero JSON overhead in the wire format |
+| Path dictionary | 170+ Signal K paths mapped to numeric IDs (10–20% savings) |
+| MessagePack | Optional binary serialization (15–25% additional savings) |
+| Smart batching | Adaptive packet sizing that prevents UDP fragmentation |
+| Sentence filtering | Exclude NMEA sentences (GSV, GSA, etc.) to reduce bandwidth |
+| Network monitoring | TCP ping with RTT measurement published to Signal K |
+| Web dashboard | Real-time bandwidth, compression, and path analytics |
+| Hot-reload config | Configuration files reload automatically on change |
+
+---
+
+## Getting Started
+
+### Installation
+
+```bash
+cd ~/.signalk/node_modules/
+git clone https://github.com/KEGustafsson/signalk-data-connector.git
+cd signalk-data-connector
+npm install
+npm run build
+```
+
+Restart your Signal K server after installation.
+
+### Quick Start
+
+1. Open **Admin UI → Plugin Config → Signal K Data Connector**
+2. Choose an operation mode:
+   - **Server** — receives data from remote clients
+   - **Client** — sends data to a remote server
+3. Set the **UDP port** (must match between client and server)
+4. Enter a **32-character encryption key** (must be identical on both ends)
+5. For client mode, enter the **server IP address**
+6. Enable the plugin and verify data flow in the web dashboard
+
+> **Tip:** Start with the default settings. Enable path dictionary and MessagePack later for additional bandwidth savings.
+
+---
+
+## Configuration
+
+The plugin provides a custom React-based configuration UI that dynamically adapts to the selected operation mode, showing only relevant settings.
+
+**Access:** Admin UI → Plugin Config → Signal K Data Connector
+
+### Server Mode (Receiver)
+
+| Setting | Description |
+|---------|-------------|
+| Operation Mode | Server/Client selector |
+| UDP Port | Port to listen on (1024–65535) |
+| Encryption Key | 32-character secret key |
+| MessagePack | Enable binary serialization |
+| Path Dictionary | Enable path encoding |
+
+### Client Mode (Sender)
+
+| Setting | Description |
+|---------|-------------|
+| Operation Mode | Server/Client selector |
+| UDP Port | Port to send to |
+| Encryption Key | 32-character secret key (must match server) |
+| Destination Address | Server IP or hostname |
+| Heartbeat Interval | Keep-alive message frequency (seconds) |
+| Connectivity Test Target | Address to ping for network monitoring |
+| Connectivity Test Port | Port to test (80, 443, etc.) |
+| Check Interval | How often to test connectivity (minutes) |
+| MessagePack | Enable binary serialization |
+| Path Dictionary | Enable path encoding |
+
+Additional client settings are available in the web dashboard:
+- **Delta timer** — collection interval (100–10000 ms)
+- **Subscription paths** — Signal K paths to transmit
+- **Sentence filter** — NMEA sentences to exclude (e.g., `GSV, GSA, VTG`)
+
+### Web Dashboard
+
+**Access:** `http://[signalk-server]:3000/plugins/signalk-data-connector`
+
+The dashboard provides real-time monitoring and configuration controls.
+
+**Client mode:**
+- Delta timer and subscription management
+- Sentence filter configuration
+- Upload/download bandwidth with compression ratio
+- Bandwidth savings display (actual bytes saved)
+- Path analytics with per-path data volume breakdown
+- Performance metrics (errors, uptime, deltas sent)
+- Rate history chart (last 150 seconds)
+
+**Server mode:**
+- Download bandwidth and packet rate
+- Bandwidth savings display
+- Incoming path analytics
+- Performance metrics (deltas received, errors)
+- Compression effectiveness tracking
+
+### Configuration Files
+
+These JSON files are stored in the plugin data directory and support hot-reload — changes take effect automatically without restarting.
+
+| File | Purpose | Default |
+|------|---------|---------|
+| `delta_timer.json` | Collection interval in ms | `{"deltaTimer": 1000}` |
+| `subscription.json` | Signal K paths to subscribe | `{"context": "*", "subscribe": [...]}` |
+| `sentence_filter.json` | NMEA sentences to exclude | `{"sentences": []}` |
+
+### API Endpoints
+
+All endpoints are rate-limited to 20 requests per minute per IP.
+
+| Method | Endpoint | Description |
+|--------|----------|-------------|
+| GET | `/plugins/signalk-data-connector/config/:filename` | Read a configuration file |
+| POST | `/plugins/signalk-data-connector/config/:filename` | Update a configuration file |
+| GET | `/plugins/signalk-data-connector/metrics` | Real-time statistics and performance data |
+| GET | `/plugins/signalk-data-connector/paths` | Path dictionary information |
+| GET | `/plugins/signalk-data-connector/plugin-config` | Current plugin configuration |
+| POST | `/plugins/signalk-data-connector/plugin-config` | Update plugin configuration |
+| GET | `/plugins/signalk-data-connector/plugin-schema` | Plugin schema definition |
+
+---
+
+## Network Monitoring
+
+In client mode, the plugin measures **Round Trip Time (RTT)** using TCP ping to monitor connectivity and latency.
+
+**How it works:**
+1. TCP ping is sent to the configured test address and port at the configured interval
+2. RTT is published to local Signal K at `networking.modem.rtt` (value in seconds)
+3. If subscribed, RTT data is transmitted to the remote server with other data
+
+**To enable RTT transmission:** Add `networking.modem.rtt` to your subscription paths.
+
+**Use cases:**
+- Monitor cellular or satellite modem latency
+- Track connection quality over time
+- Trigger alerts on high latency
+- Analyze network performance trends
+
+---
+
+## Performance
+

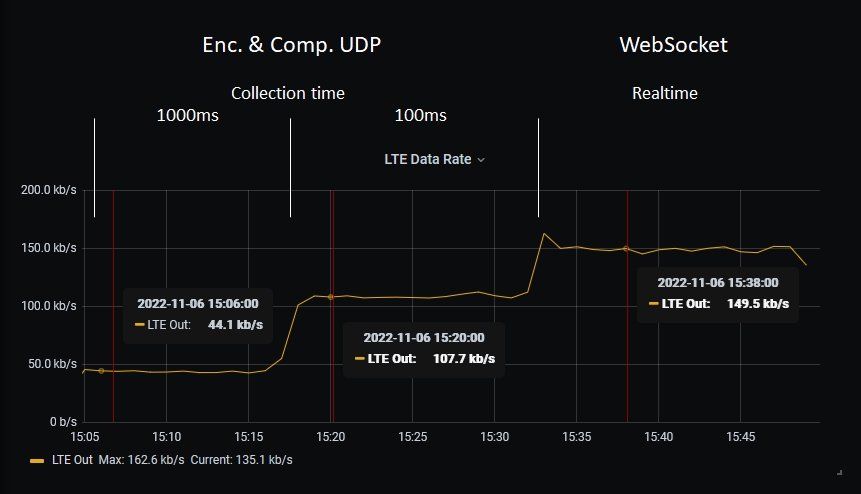

+### Bandwidth Comparison
+
+![Data Rate Comparison](https://raw.githubusercontent.com/KEGustafsson/signalk-data-connector/refs/heads/main/doc/datarate.jpg)
+
+| Mode | Bandwidth | Reduction vs. WebSocket |
+|------|-----------|------------------------|
+| 1000 ms collection | ~44.1 kb/s | ~70% |
+| 100 ms collection | ~107.7 kb/s | ~28% |
+| WebSocket real-time | ~149.5 kb/s | — |
+
+Typical compression results on Signal K data:
+
+```
+Original: 19,293 bytes → Encrypted + Compressed: 622 bytes (96.78% reduction)
+```
+
+### Smart Batching
+
+The plugin uses adaptive smart batching to keep UDP packets under the MTU limit (1400 bytes), preventing fragmentation that can cause data loss.
+
+1. **Rolling average** — tracks bytes-per-delta using exponential smoothing
+2. **Dynamic batch sizing** — calculates optimal deltas per packet based on recent sizes
+3. **Early send trigger** — sends immediately when a batch reaches the predicted size limit
+4. **Self-learning** — continuously adapts as data patterns change
+
+```
+Example: Initial estimate 5 deltas/batch → After learning: 11 deltas/batch
+         All packets stay well under 1400 bytes
+```
+
+### Optimization Tips
+
+For the best bandwidth efficiency:
+
+1. **Increase delta timer** — 1000 ms gives optimal compression; lower values increase bandwidth
+2. **Enable path dictionary** — saves 10–20% by replacing path strings with numeric IDs
+3. **Enable MessagePack** — saves 15–25% with binary serialization
+4. **Filter NMEA sentences** — exclude GSV, GSA, VTG to remove unnecessary data
+5. **Review subscriptions** — subscribe only to paths you need
+
+---
+
+## Security
+
+### Encryption
+
+All data is encrypted with **AES-256-GCM**, providing authenticated encryption in a single operation.
+
+| Property | Detail |
+|----------|--------|
+| Algorithm | AES-256-GCM |
+| IV | 12 bytes, unique per message |
+| Auth tag | 16 bytes, tamper detection |
+| Wire format | `[IV (12 bytes)][Encrypted Data][Auth Tag (16 bytes)]` |
+| Overhead | 28 bytes per packet |
+
+**Security features:**
+- Tamper detection — any modification causes decryption failure
+- Rate-limited API endpoints (20 req/min/IP)
+- Input validation on all parameters
+- Key entropy checking — rejects weak keys
+- XSS protection in the web UI
+- Stateless UDP — no session state to compromise
+
+### Secret Key Requirements
+
+- Exactly **32 characters** (256 bits)
+- Minimum **8 unique characters**
+- Must match on both client and server
+
+Generate a secure key:
+
+```bash
+openssl rand -base64 32 | cut -c1-32
+```
+
+**Valid examples:**
+```
+Abc123!@#XYZ456$%^uvw789&*()pqr0
+K9#mP2$nQ7@rS4%tU6^vW8*xY3!zA5&
+abcdefgh12345678901234567890abcd
+```
+
+**Invalid examples:**
+```
+aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa   # All same character
+abababababababababababababababab   # Insufficient diversity
+MySecretKey123                     # Too short
+```
+
+### Best Practices
+
+1. Use strong, randomly generated keys (`openssl rand` recommended)
+2. Never commit keys to version control
+3. Rotate keys periodically (every 6–12 months)
+4. Monitor logs for decryption failures (may indicate attacks or key mismatch)
+5. Restrict UDP access with firewall rules to known IP addresses
+6. Test configuration in a safe environment before production deployment
+
+---
+
+## Troubleshooting
+
+### Plugin Not Loading
+
+- Verify `npm install` completed successfully
+- Check Signal K server logs for errors
+- Ensure plugin directory is `~/.signalk/node_modules/signalk-data-connector`
+- Verify Node.js version ≥ 14.0.0
+
+### Web UI Not Accessible
+
+- Run `npm run build` to generate UI files
+- Verify `public/` directory exists with built files
+- Clear browser cache and refresh
+
+### No Data Transmission
+
+**Client side:**
+1. Confirm encryption keys match on both ends
+2. Verify UDP port and destination address
+3. Check firewall allows UDP traffic on the configured port
+4. Confirm subscription paths are valid Signal K paths
+5. Verify delta timer is running (check metrics in web dashboard)
+
+**Server side:**
+1. Verify UDP port is not blocked by firewall
+2. Confirm encryption key matches the client
+3. Check Signal K logs for decryption errors
+4. Verify client is sending data (check client metrics)
+
+**Common error messages:**
+
+| Message | Cause |
+|---------|-------|
+| `Unsupported state or unable to authenticate data` | Mismatched encryption keys |
+| `Invalid packet size` | Corrupted data or network issues |
+| `Secret key must be exactly 32 characters` | Invalid key length |
+
+### Poor Performance
+
+- Increase delta timer for better compression (1000 ms recommended)
+- Enable path dictionary and MessagePack
+- Filter unnecessary NMEA sentences
+- Check network latency with the ping monitor
+- Monitor CPU usage (Brotli compression at quality 10 is CPU-intensive)
+
+### Debug Logging
+
+Enable in Signal K plugin settings to see:
+- Connection monitor status and ping results
+- Configuration file changes (automatic reload)
+- Delta transmission statistics
+- Compression ratios and packet sizes
+- Error messages with full context
+
+---
+
+## Development
+
+### Architecture
+
+**Data pipeline:**
+
+```
+Client (Sender):
+  Signal K Deltas → Filter → [Path Encode] → [MessagePack] → Brotli → AES-256-GCM → UDP
+
+Server (Receiver):
+  UDP → AES-256-GCM → Brotli → [MessagePack] → [Path Decode] → Signal K
+```
+
+The plugin core is decomposed into focused modules:
+
+| Module | Responsibility |
+|--------|---------------|
+| `index.js` | Plugin entry point, shared state, file watchers, lifecycle |
+| `lib/constants.js` | Shared constants and batch size calculation |
+| `lib/CircularBuffer.js` | Fixed-size circular buffer for O(1) metrics history |
+| `lib/crypto.js` | AES-256-GCM encryption and decryption |
+| `lib/metrics.js` | Bandwidth tracking, path analytics, error recording |
+| `lib/pathDictionary.js` | Signal K path encoding (170+ paths) |
+| `lib/pipeline.js` | Compress → encrypt → send / receive → decrypt → decompress |
+| `lib/routes.js` | HTTP route handlers, rate limiting, config file I/O |
+
+Modules are wired together via factory functions that receive a shared `state` object by reference, enabling cross-module state access without globals.
+
+### Project Structure
+
+```
+signalk-data-connector/
+├── index.js                    # Plugin entry, state, watchers, lifecycle
+├── lib/
+│   ├── CircularBuffer.js       # Fixed-size circular buffer
+│   ├── constants.js            # Shared constants and utilities
+│   ├── crypto.js               # AES-256-GCM encryption module
+│   ├── metrics.js              # Metrics, bandwidth, path analytics
+│   ├── pathDictionary.js       # Signal K path encoding (170+ paths)
+│   ├── pipeline.js             # Pack/unpack pipeline (compress, encrypt, UDP)
+│   └── routes.js               # HTTP routes and rate limiting
+├── src/
+│   ├── webapp/
+│   │   ├── index.js            # Web dashboard (vanilla JS)
+│   │   └── styles.css
+│   └── components/
+│       └── PluginConfigurationPanel.jsx  # React config panel
+├── __tests__/                  # 209 tests across 9 files
+│   ├── crypto.test.js
+│   ├── pathDictionary.test.js
+│   ├── compression.test.js
+│   ├── full-pipeline.test.js
+│   ├── smartBatching.test.js
+│   ├── config.test.js
+│   ├── index.test.js
+│   ├── webapp.test.js
+│   └── integration-pipe.test.js
+└── public/                     # Built UI files (generated)
+```
+
+### Build Commands
+
+```bash
+npm run dev            # Development build with watch mode
+npm run build          # Production build
+npm test               # Run all 209 tests
+npm run test:watch     # Run tests in watch mode
+npm run test:coverage  # Generate coverage report
+npm run lint           # Check code style
+npm run lint:fix       # Auto-fix linting issues
+npm run format         # Format code with Prettier
+```
+
+### Testing
+
+The test suite covers all critical paths with 209 tests across 9 files:
+
+| Test file | Scope |
+|-----------|-------|
+| `crypto.test.js` | Encryption, decryption, key validation |
+| `pathDictionary.test.js` | Path encoding and decoding |
+| `compression.test.js` | Brotli compression effectiveness |
+| `full-pipeline.test.js` | End-to-end compression + encryption round-trip |
+| `smartBatching.test.js` | Rolling average, batch limits, size verification |
+| `config.test.js` | Configuration file creation, loading, hot-reload |
+| `index.test.js` | Plugin lifecycle, schema validation |
+| `webapp.test.js` | Web UI metrics and API endpoints |
+| `integration-pipe.test.js` | Full input → backend → frontend data flow |
+
+Run a specific test suite:
+
+```bash
+npm test -- crypto.test.js
+npm test -- full-pipeline.test.js
+npm test -- --coverage
+```
+
+### Technical Reference
+
+**Packet format:**
+
+```
+[IV (12 bytes)][Encrypted Data][Auth Tag (16 bytes)]
+Total overhead: 28 bytes per packet
+```
+
+**Compression pipeline (detailed):**
+
+```
+Client side:
+  JSON.stringify(delta)           → Serialization
+  → [pathDictionary.encode()]     → Optional: numeric path IDs
+  → [msgpack.encode()]            → Optional: binary format
+  → brotli.compress(quality=10)   → Maximum compression
+  → encryptBinary(key)            → AES-256-GCM
+  → UDP send
+
+Server side:
+  UDP receive
+  → decryptBinary(key)            → Verify + decrypt
+  → brotli.decompress()
+  → [msgpack.decode()]
+  → [pathDictionary.decode()]
+  → JSON.parse()
+  → Signal K handleMessage()
+```
+
+**Smart batching constants:**
+
+| Constant | Value | Purpose |
+|----------|-------|---------|
+| Safety margin | 85% | Target 85% of MTU (1190 bytes effective) |
+| Smoothing factor | 0.2 | Rolling average weight (20% new, 80% old) |
+| Initial estimate | 200 bytes | Starting bytes-per-delta assumption |
+| Min deltas | 1 | Always send at least 1 delta |
+| Max deltas | 50 | Cap to prevent excessive batching latency |
+
+**Performance characteristics:**
+
+| Metric | Value |
+|--------|-------|
+| Compression ratio | 85–97% on typical Signal K data |
+| Packet latency | 20–30 ms (serialize → compress → encrypt) |
+| Throughput | 10–100 Hz update rates |
+| Memory | Constant O(1) with circular buffers |
+
+### Contributing
+
+1. Fork the repository
+2. Create a feature branch: `git checkout -b feature/name`
+3. Make changes and add tests
+4. Run `npm test` and `npm run lint` (all must pass)
+5. Run `npm run build` (must succeed)
+6. Commit with clear messages using conventional format
+7. Submit a pull request
+
+**Requirements for all contributions:**
+- All 209 tests pass
+- No ESLint errors or warnings
+- Code formatted with Prettier
+- Test coverage for new features
+- README updated if adding features
+
+**Commit message format:**
+
+```
+type: description
+
+Types: feat, fix, docs, style, refactor, perf, test, chore
+```
+
+---
+
+## License
+
+MIT License — Copyright (c) 2024 Karl-Erik Gustafsson
+
+See [LICENSE](LICENSE) file for details.
