+# Sferic Charts

-This version is a temporary placeholder for this package. An operational version to replace this has been submitted for review and is awaiting a staged release.
+GPU-accelerated charting for the browser. Sferic renders millions of data points
+at interactive frame rates with WebGL2, ships with a dark, glowing default theme,
+and uses a fluent builder API. Zero runtime dependencies.
+

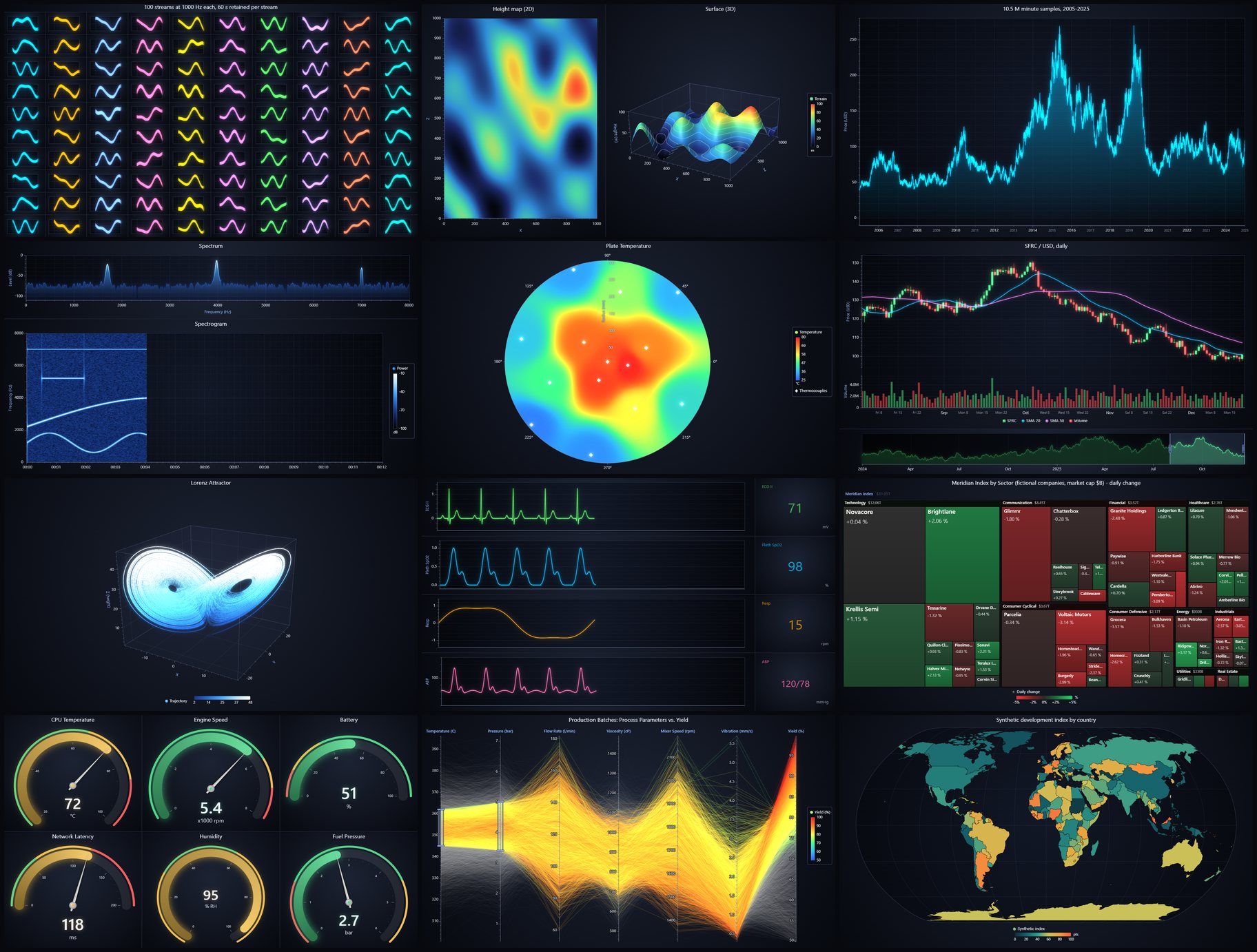

+![Sferic gallery: real-time dashboards, 3D surfaces, heatmaps, trading, polar, treemap, gauges, parallel coordinates, map](https://raw.githubusercontent.com/murr2k/sferic-charts/main/docs/gallery.jpg)
+
+> A *sferic* is the broadband radio impulse emitted by a lightning stroke.
+
+## Highlights
+
+- **Large data:** 10M+ point line charts stay interactive through a per-chunk min/max
+  level-of-detail pyramid; 1M-point scatter plots with per-point colors pan smoothly.
+- **Real-time:** scrolling, sweeping and multi-channel streaming; a 100-chart live
+  dashboard renders in about 9 ms per frame on an integrated GPU.
+- **Precision:** data is stored per chunk relative to a float64 origin, so epoch
+  timestamps zoom down to microseconds without jitter.
+- **Unlimited charts per page:** all charts share one WebGL context and draw into
+  their own canvases, avoiding the browser's limit of about 16 WebGL contexts.
+- **Looks good by default:** five themes (`storm`, `daylight`, `aurora`, `lagoon`, `graphite`);
+  the default `storm` adds GPU bloom glow. Series palettes are validated for
+  color-vision-deficiency separation.
+
+## Chart types
+
+| Family | What you get |
+|---|---|
+| `ChartXY` | Line, point, point-line, area, area range, step, spline, heatmap grid, scrolling heatmap, box and whiskers, OHLC / candlestick, rectangles, segments, ellipses |
+| Axes | Numeric, logarithmic, DateTime (years to microseconds), elapsed Time; stacked and opposite axes; scroll strategies; bands, constant lines, custom ticks |
+| `Dashboard` | Grid of any charts on one canvas, draggable splitters, synchronized axes and cursors |
+| `Chart3D` | Point, line, surface grid, scrolling surface, mesh model, box series; orbit camera |
+| `Polar`, `Spider` | Polar line, point, area, polygon and heatmap series; radar charts |
+| `Pie`, `Gauge`, `Funnel`, `Pyramid` | Pie and donut, animated gauges, funnel and pyramid |
+| `BarChart` | Vertical, horizontal, grouped, stacked, animated (racing) bars |
+| `ZoomBandChart`, `ParallelCoordinateChart` | Overview range selector; brushing and LUT-colored parallel coordinates |
+| `TreeMapChart`, `SunburstChart` | Hierarchies with drill-down |
+| `DataGrid`, `Map` | Canvas data grid with sparklines and change flashes; world map from TopoJSON or GeoJSON |
+
+## Quick start
+
+```bash
+npm install sferic-charts
+```
+
+The package ships an ES module, a UMD/CommonJS build and TypeScript declarations for
+both.
+
+```ts
+import { sferic, AxisTickStrategies, Themes } from 'sferic-charts'
+
+const chart = sferic()
+  .ChartXY({ container: 'chart', theme: Themes.storm })
+  .setTitle('Day-ahead Power Price')
+
+chart.axisX.setTickStrategy(AxisTickStrategies.DateTime)
+chart.axisY.setTitle('Price').setUnits('EUR/MWh')
+
+chart
+  .addLineSeries()
+  .setName('Day-ahead')
+  .appendJSON([
+    { x: new Date(2025, 2, 3, 0).getTime(), y: 61.4 },
+    { x: new Date(2025, 2, 3, 1).getTime(), y: 58.9 },
+  ])
+```
+
+`container` takes an element or an element id; without one the chart fills the window.
+Sferic requires WebGL2 (all current desktop and mobile browsers).
+
+### Real-time streaming
+
+```ts
+import { sferic, AxisTickStrategies, AxisScrollStrategies } from 'sferic-charts'
+
+const chart = sferic().ChartXY({ container: 'chart' })
+chart.axisX
+  .setTickStrategy(AxisTickStrategies.Time)
+  .setScrollStrategy(AxisScrollStrategies.scrolling)
+  .setDefaultInterval((s) => ({ end: s.dataMax ?? 0, start: (s.dataMax ?? 0) - 10_000, stopAxisAfter: false }))
+
+const series = chart.addLineSeries().setMaxSampleCount(100_000)
+let t = 0
+setInterval(() => {
+  const ys = Float32Array.from({ length: 50 }, () => Math.random())
+  series.appendSamples({ start: t, step: 1, yValues: ys })
+  t += 50
+}, 50)
+```
+
+### Heatmap with a color palette
+
+```ts
+import { sferic, LUT, PalettedFill, regularColorSteps, Themes } from 'sferic-charts'
+
+const theme = Themes.storm
+const chart = sferic().ChartXY({ container: 'chart', theme })
+const lut = new LUT({ steps: regularColorSteps(0, 100, theme.examples.intensityColorPalette), units: 'dB' })
+chart
+  .addHeatmapGridSeries({ columns: 1000, rows: 1000, dataOrder: 'rows' })
+  .setFillStyle(new PalettedFill({ lut }))
+  .setIntensityInterpolation('bilinear')
+  .invalidateIntensityValues(matrix) // number[][], rows x columns
+chart.legend.add(lut, { name: 'Level' })
+```
+
+### Dashboards
+
+```ts
+const dash = sferic().Dashboard({ container: 'app', numberOfColumns: 2, numberOfRows: 2 })
+const a = dash.createChartXY({ columnIndex: 0, rowIndex: 0 })
+const b = dash.createChartXY({ columnIndex: 1, rowIndex: 0 })
+const g = dash.createGaugeChart({ columnIndex: 0, rowIndex: 1, columnSpan: 2 })
+```
+
+## Porting from LightningChart JS
+
+Many Sferic builder methods share names with LightningChart JS (`ChartXY`,
+`Dashboard`, `axisX`, `setTickStrategy`, `addLineSeries`, `appendSamples`,
+`addHeatmapGridSeries`, `LUT`, `PalettedFill`, ...), so much existing code maps over
+with small edits. Sferic does not export a function under that product's name; alias
+the factory yourself if you want to keep your call sites:
+
+```ts
+import { sferic as lightningChart } from 'sferic-charts'
+```
+
+Theme names differ (use `Themes.storm` and friends), no license key is needed, and
+less common APIs and visual details are not identical. The gallery examples are the
+best reference for what is covered.
+
+## How it works
+
+- One process-wide WebGL2 context. Each standalone chart or dashboard owns a single
+  visible 2D canvas; per frame it draws backgrounds and grids (Canvas2D), renders all
+  GPU content into the shared context and copies it in, then draws axes, labels,
+  legends and cursors (Canvas2D).
+- Lines are instanced capsules with signed-distance antialiasing in the fragment
+  shader; points are instanced quads with SDF shapes; heatmaps are float textures
+  colored through a LUT texture.
+- Series data lives in chunks of up to 32K points, each relative to its own float64
+  origin. Chunk buffers are only ever re-specified whole (no partial updates of
+  buffers in flight, which stall ANGLE/D3D11); newly appended samples are drawn from
+  a small per-frame tail buffer until committed.
+- Glow is a bloom post-process over multiple render targets. MSAA is enabled only for
+  charts that draw un-antialiased triangles (3D, filled polygons).
+- Rendering is on demand: nothing is drawn unless data, layout, interaction or an
+  animation changed.
+
+## Performance
+
+Measured with `npm run bench` on an Intel Arc integrated GPU at 1920x1080 (headless
+Chrome): the wall time of each rendered frame, CPU and GPU, synchronized with a
+1-pixel readback (about 0.4 ms of each figure).
+
+| Scenario | Median cost per frame |
+|---|---|
+| 10 channels x 1 kHz streaming | 3.2 ms |
+| 1000x1000 heatmap, wheel zooming | 3.2 ms |
+| Real-time FFT spectrogram | 3.7 ms |
+| 10M-point line, wheel zooming | 4.3 ms |
+| 100 live charts in one dashboard | 9.1 ms |
+| 1M-point scatter, per-point colors, panning | 11.5 ms |
+
+## Development
+
+```bash
+git clone https://github.com/murr2k/sferic-charts.git
+cd sferic-charts
+npm install
+npm run dev              # gallery at http://127.0.0.1:8779 (run.cmd on Windows)
+npm run typecheck
+npm run build:lib        # library bundle and type declarations
+npm run build            # static gallery build
+npm test                 # map decoder hostile-input tests
+npm run snap             # screenshot every example headlessly; fails on page or WebGL errors
+npm run test:browser     # context loss, no-WebGL, GPU memory and accessibility checks
+npm run bench            # GPU-synced cost per rendered frame
+npm run verify:package   # pack, install into a clean project, check imports and types
+```
+
+`prepublishOnly` runs typecheck, tests, the library build and `verify:package`, so a
+broken or stale build cannot be published.
+
+Releases publish from GitHub Actions: bump `version` in `package.json`, move the
+CHANGELOG's `[Unreleased]` entries under the new version, commit, then push a `vX.Y.Z`
+tag. The release workflow runs the same gate and publishes with npm trusted publishing
+(no stored token, with a provenance attestation).
+
+`snap` and `bench` drive your installed Chrome or Edge through puppeteer-core and need
+the dev server running. Gallery examples live in `gallery/examples/`, one file each,
+and are discovered automatically.
+
+## License
+
+MIT. See [LICENSE](https://github.com/murr2k/sferic-charts/blob/main/LICENSE).
+
