playwright-ws-trace 1.0.0

package/LICENSE

@@ -0,0 +1,22 @@
+MIT License
+
+Copyright (c) 2024 kabaneridev
+
+Permission is hereby granted, free of charge, to any person obtaining a copy
+of this software and associated documentation files (the "Software"), to deal
+in the Software without restriction, including without limitation the rights
+to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
+copies of the Software, and to permit persons to whom the Software is
+furnished to do so, subject to the following conditions:
+
+The above copyright notice and this permission notice shall be included in all
+copies or substantial portions of the Software.
+
+THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
+IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
+FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
+AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
+LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
+OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
+SOFTWARE.
+

package/README.md

@@ -0,0 +1,151 @@
+# playwright-ws-trace 🔌
+
+> WebSocket frame tracing for Playwright - see every WebSocket message in your traces!
+
+[![npm version](https://badge.fury.io/js/playwright-ws-trace.svg)](https://www.npmjs.com/package/playwright-ws-trace)
+
+Microsoft rejected our [PR #38427](https://github.com/microsoft/playwright/pull/38427) to add WebSocket tracing to Playwright. So we made it ourselves. 💪
+
+## Features
+
+- 📡 **Record WebSocket frames** - Captures all sent and received frames during test execution
+- 🔍 **View in trace viewer** - Browse WebSocket connections and frames in the standard Playwright trace viewer
+- 🎯 **Filter by type** - New "WS" filter in the Network tab to show only WebSocket traffic
+- 📊 **Frame details** - See direction (sent/received), timestamps, and payload data
+- 📝 **JSON formatting** - Automatically formats JSON payloads for readability
+
+## Installation
+
+```bash
+npm install playwright-ws-trace
+# or
+yarn add playwright-ws-trace
+# or
+pnpm add playwright-ws-trace
+```
+
+The package automatically patches your Playwright installation on install. That's it!
+
+## Usage
+
+### 1. Enable tracing in your tests
+
+Configure in `playwright.config.ts`:
+
+```typescript
+import { defineConfig } from '@playwright/test';
+
+export default defineConfig({
+  use: {
+    trace: 'on', // or 'on-first-retry', 'retain-on-failure'
+  },
+});
+```
+
+Or start tracing manually:
+
+```typescript
+import { test } from '@playwright/test';
+
+test('websocket test', async ({ page, context }) => {
+  await context.tracing.start({ snapshots: true, screenshots: true });
+
+  await page.goto('https://your-websocket-app.com');
+  // Your test actions...
+
+  await context.tracing.stop({ path: 'trace.zip' });
+});
+```
+
+### 2. View WebSocket traces
+
+Use the standard Playwright trace viewer:
+
+```bash
+npx playwright show-trace ./test-results/my-test/trace.zip
+```
+
+Or open from HTML report - click "View Trace" on any test.
+
+### 3. Find WebSocket data
+
+In the trace viewer:
+1. Click the **Network** tab
+2. Click the **WS** filter to show only WebSocket traffic
+3. Click on a WebSocket connection to see frames
+4. View sent (↑) and received (↓) frames with full payload data
+

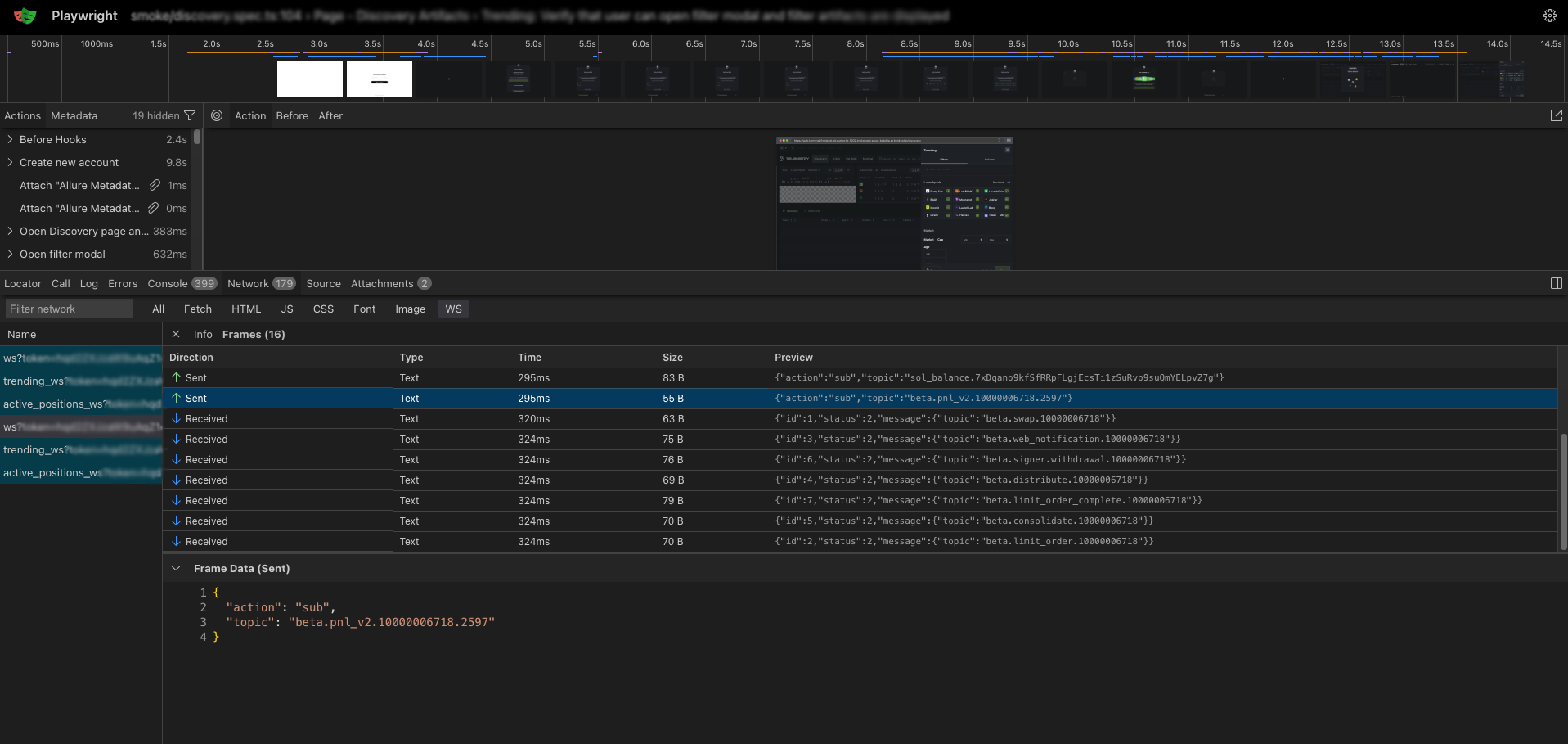

+## Screenshot
+
+![Trace Viewer with WS filter](https://raw.githubusercontent.com/kabaneridev/playwright-ws-trace/main/demo.png)
+
+## How it works
+
+This package patches Playwright on install:
+
+1. **Recording** (`tracing.js`) - Hooks into CDP events to capture:
+   - `webSocketCreated` - Connection opened
+   - `webSocketFrameSent` - Frame sent to server
+   - `webSocketFrameReceived` - Frame received from server
+   - `webSocketClosed` - Connection closed
+   - `webSocketError` - Connection error
+
+2. **Trace Viewer** - Replaces the bundled viewer with a patched version that:
+   - Adds "WS" filter to Network tab
+   - Displays WebSocket connections and frames
+   - Shows frame direction, timestamp, and payload
+
+## Compatibility
+
+| Playwright | Status |
+|------------|--------|
+| 1.50.x - 1.56.x | ✅ Tested |
+| 1.40.0+    | ⚠️ Should work |
+
+## After Playwright Updates
+
+When you update Playwright, the patches need to be reapplied:
+
+```bash
+# Reinstall to reapply patches
+npm uninstall playwright-ws-trace && npm install playwright-ws-trace
+
+# Or run postinstall manually
+node node_modules/playwright-ws-trace/scripts/postinstall.js --force
+```
+
+## Troubleshooting
+
+### Patches not applying
+
+Run the postinstall script with `--force`:
+
+```bash
+node node_modules/playwright-ws-trace/scripts/postinstall.js --force
+```
+
+### WS filter not showing
+
+Make sure the patched trace viewer was installed. Check that:
+```bash
+ls node_modules/playwright-core/lib/vite/traceViewer/
+```
+Contains files from this package.
+
+### WebSocket frames not recorded
+
+Ensure tracing is enabled in your config with `trace: 'on'` or similar.
+
+## Contributing
+
+PRs welcome! The original PR to Playwright is at [#38427](https://github.com/microsoft/playwright/pull/38427).
+
+If Microsoft ever accepts WebSocket tracing into Playwright core, this package will become obsolete - and that's a good thing! 🎉
+
+## License
+
+MIT - do whatever you want with it.
+
+---
+
+Made with ❤️ because Microsoft said no.
