 # Langflower

-> **Disclaimer:** Langflower is currently in internal testing. Anyone can
-> download and try it, but some functions may not be stable.
-
-Langflower is a local visual workflow for a project folder: a node graph
-that runs agents, tools, checks, and human gates on your machine. You
-author the pipeline on a canvas in the browser you already have. The LLM
-is a node in that graph, not the product — the topology you wire decides
-what happens next. Data, custom nodes, and workflows stay in that folder.
-
-**Not another chat harness. A local node graph.**
-
-The unit of work is a **reactive node**: typed inputs, typed outputs.
-Each port fires on its own — a node can emit on one output without
-waiting for the rest, so the node chooses the path. That is enough for
-cycles and conditional branches, not only a straight chain. An LLM agent
-is the same kind of node — prompt and tools in, response out. Coding,
-chat, agent-to-agent dialogue, and custom gates are the same idea: pick
-the graph, not a fixed loop.
-
-![Langflower starter workflow](https://raw.githubusercontent.com/earthdmitriy/langflower/master/docs/img/starter.png)
-
-The default **starter** workflow: an onboarding helper plus a Writer
-sub-agent for workflows and custom nodes.
-
-![Langflower dev workflow](https://raw.githubusercontent.com/earthdmitriy/langflower/master/docs/img/lf_dev.png)
-
-**Langflower dev** — the workflow used to develop Langflower itself.
-Memory tools, ts-scan (MCP), and custom **LF Dev Tools** merge in a tool
-collection and fan out to the agents. The prompt passes **lf-review-gate**
-first (format, typecheck, tests) so Plan starts from a green tree. A
-human review gate accepts the plan, then Coder works; the result must
-pass lf-review-gate again, then a human review gate.
-
-## Why Langflower
-
-- **The graph is the harness.** QA, review, build, and tests sit on the
-  topology, so the agent cannot skip them or declare itself finished. A
-  review-gate has no path around it.
-- **Safe tools, not a general shell.** Wrap format, build, and unit tests
-  as custom nodes that expose a **ToolHandle**. You do not need a general
-  bash tool that could accidentally wipe all data from your disk. If a
-  command must stay open-ended, the workflow can still ask for approval
-  first.
-- **Your browser, not a bundled one.** Close the tab and free those
-  resources; the server keeps the run. Reopen it, and the UI catches up.
-
-Versus chat-style harnesses (OpenCode-like): order comes from the graph,
-not from the model deciding it is done. Versus cloud graph tools
-(Langflow, n8n): the same idea of wiring nodes, aimed at a folder on
-your machine — home or a closed network with internal providers — not at
-hosting a service.
-
-**MCP** and **skills** work as usual. Custom nodes sit on top of the same
-**ToolHandle** contract as built-ins.
-
-## Quick start
-
-If you do not want to bother with a terminal, use the **desktop
-launcher**. Pick a project folder, click **Start**, and the editor opens
-in the browser you already have. Several folders can run at once, each
-on its own port. The launcher takes care of missing Node.js and
-Langflower, and checks for Langflower updates for you. It does not
-update itself — download a newer zip when you want a new window.
+> **Disclaimer:** Langflower is currently in internal testing. Anyone can download and try it, but some functions may not be stable.
+
+**AI workflows where the graph controls what happens next.**
+
+Langflower is a local visual workflow for a project folder: a node graph that runs agents, tools, checks, and human gates on your machine.
+
+You build the workflow on a canvas in the browser you already have. The LLM is a node in that graph, not the product — **the topology you wire decides what happens next.**
+
+> **Not another chat harness. A local node graph.**
+

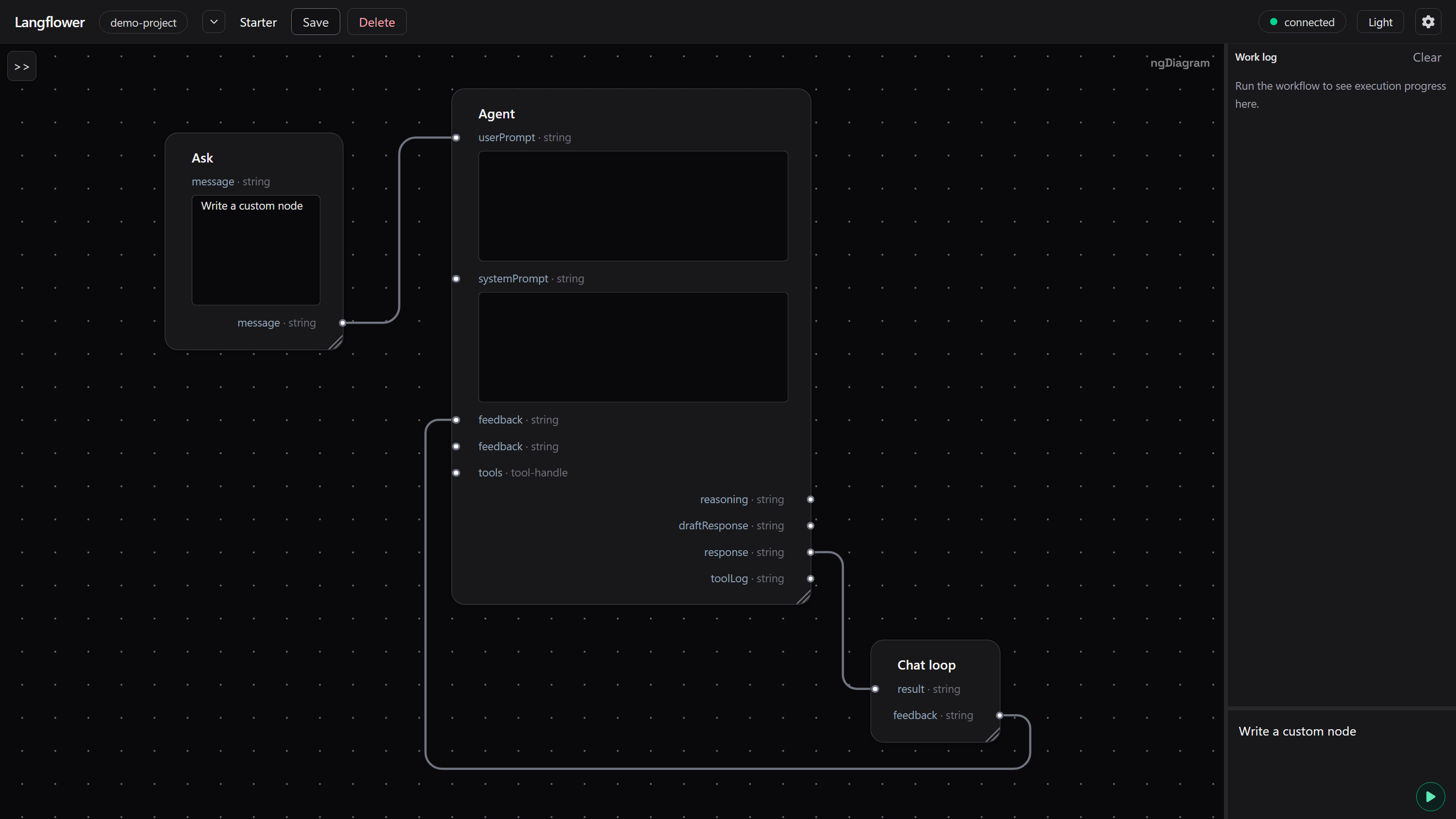

+![Ask feeds an Agent; Chat loop sends feedback back into the Agent](https://raw.githubusercontent.com/earthdmitriy/langflower/master/docs/img/Hero.png)
+
+A chat loop is just a graph.
+
+Connect an agent, route its output, add feedback, and let the graph decide what happens next.
+
+From there, the same graph can grow into multi-agent workflows, review gates, parallel work, coding agents, custom tools, and long-running processes.
+
+---
+
+## From a chat loop to real workflows
+
+The basic loop is only the beginning.
+
+### Agents can talk to agents
+
+Agent-to-agent dialogue is just another graph pattern.
+
+Connect one agent's output to another agent's input. Add feedback paths when the second agent needs to challenge or refine the first.
+

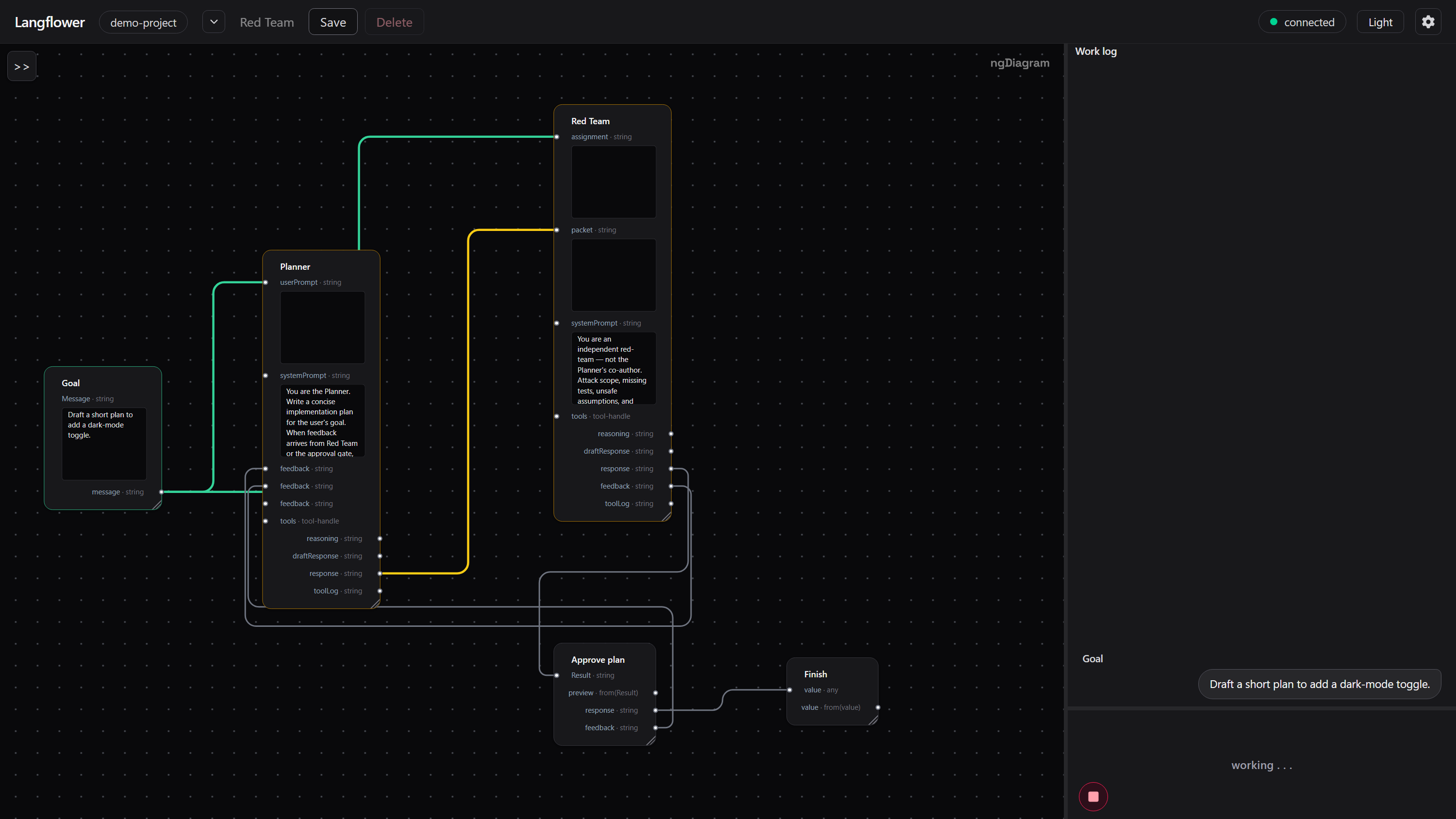

+![Planner and Red Team agents with a feedback path between them](https://raw.githubusercontent.com/earthdmitriy/langflower/master/docs/img/plan-red-team.png)
+
+There is no special "multi-agent mode".
+
+**Agents communicate through the graph.**
+
+---
+
+### Add capabilities
+
+Start with an agent. Then add the capabilities your workflow needs.
+
+Skills, tools, and specialized sub-agents can become parts of the same graph.
+

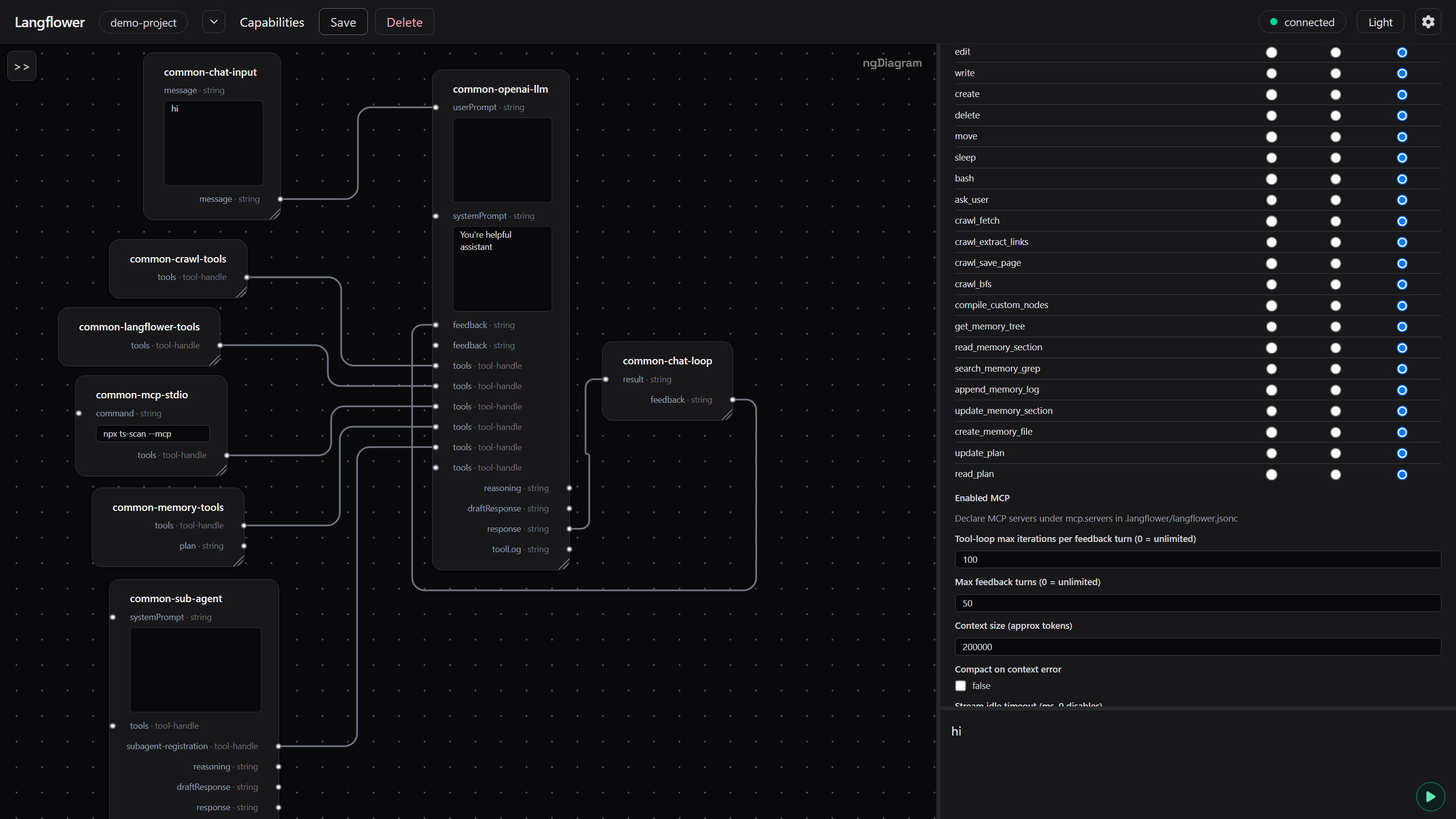

+![Crawl, Langflower, Memory, and MCP tools plus a sub-agent on one agent, with a chat loop and tool permissions open](https://raw.githubusercontent.com/earthdmitriy/langflower/master/docs/img/capabilities.png)
+
+Tools live on the graph too. Wire a pack, an MCP server, or a sub-agent only to the agent that needs it.
+
+The graph grows without changing the basic execution model.
+
+---
+
+### Put checks into the graph
+
+Don't ask an agent to certify its own work.
+
+Put the check in the graph.
+

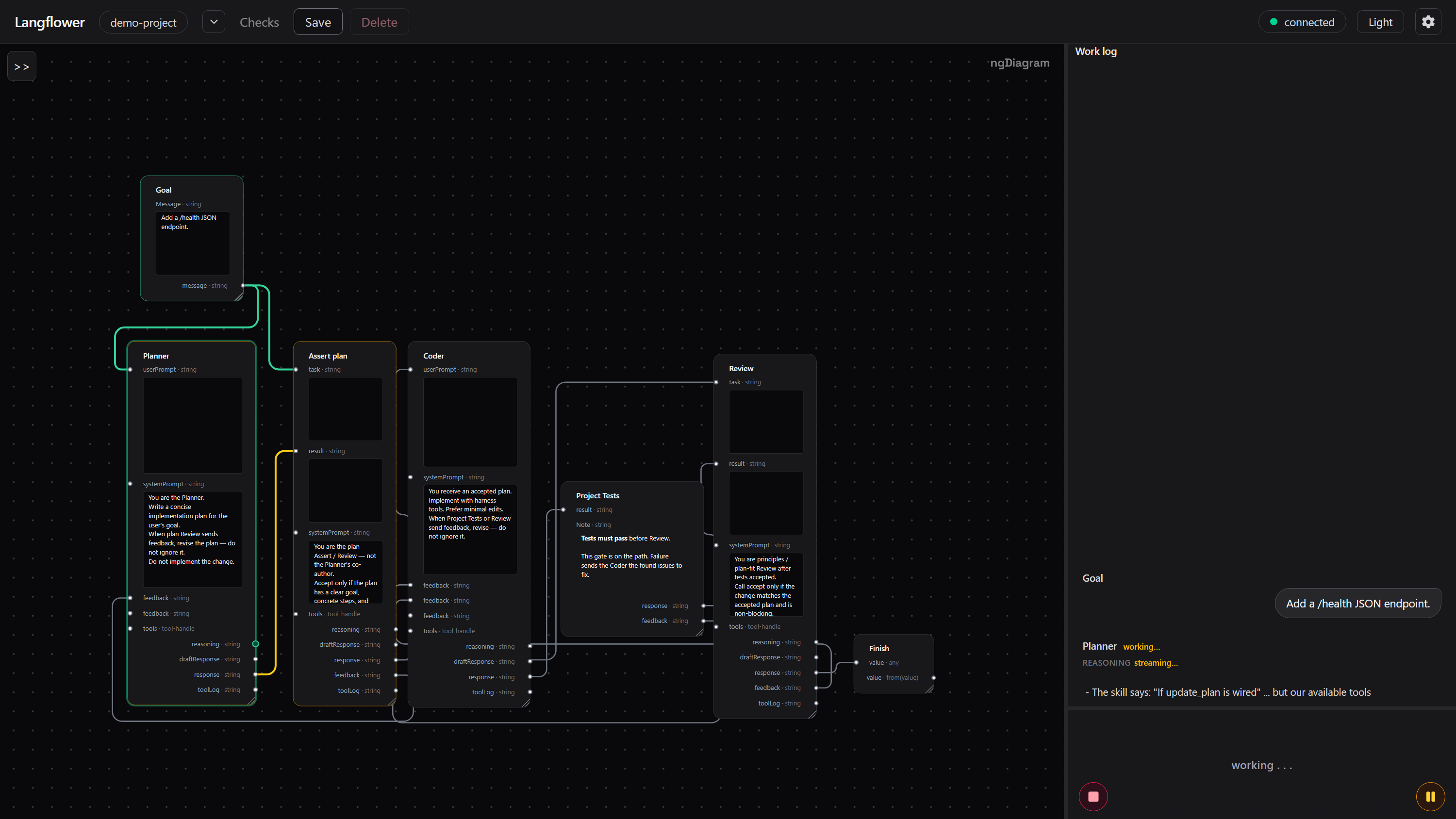

+![Agent response routed through a review gate, with feedback returning to the agent](https://raw.githubusercontent.com/earthdmitriy/langflower/master/docs/img/gate.png)
+
+A check can:
+
+- accept a result and continue;
+- reject it;
+- produce feedback;
+- send the workflow back through another path.
+
+The check is part of the topology, so there is no hidden path around it.
+
+**A retry is a graph path.**
+
+---
+
+### Parallel work
+
+Graphs don't have to be linear.
+
+A workflow can fan out into several independent pieces of work and later merge their results.
+

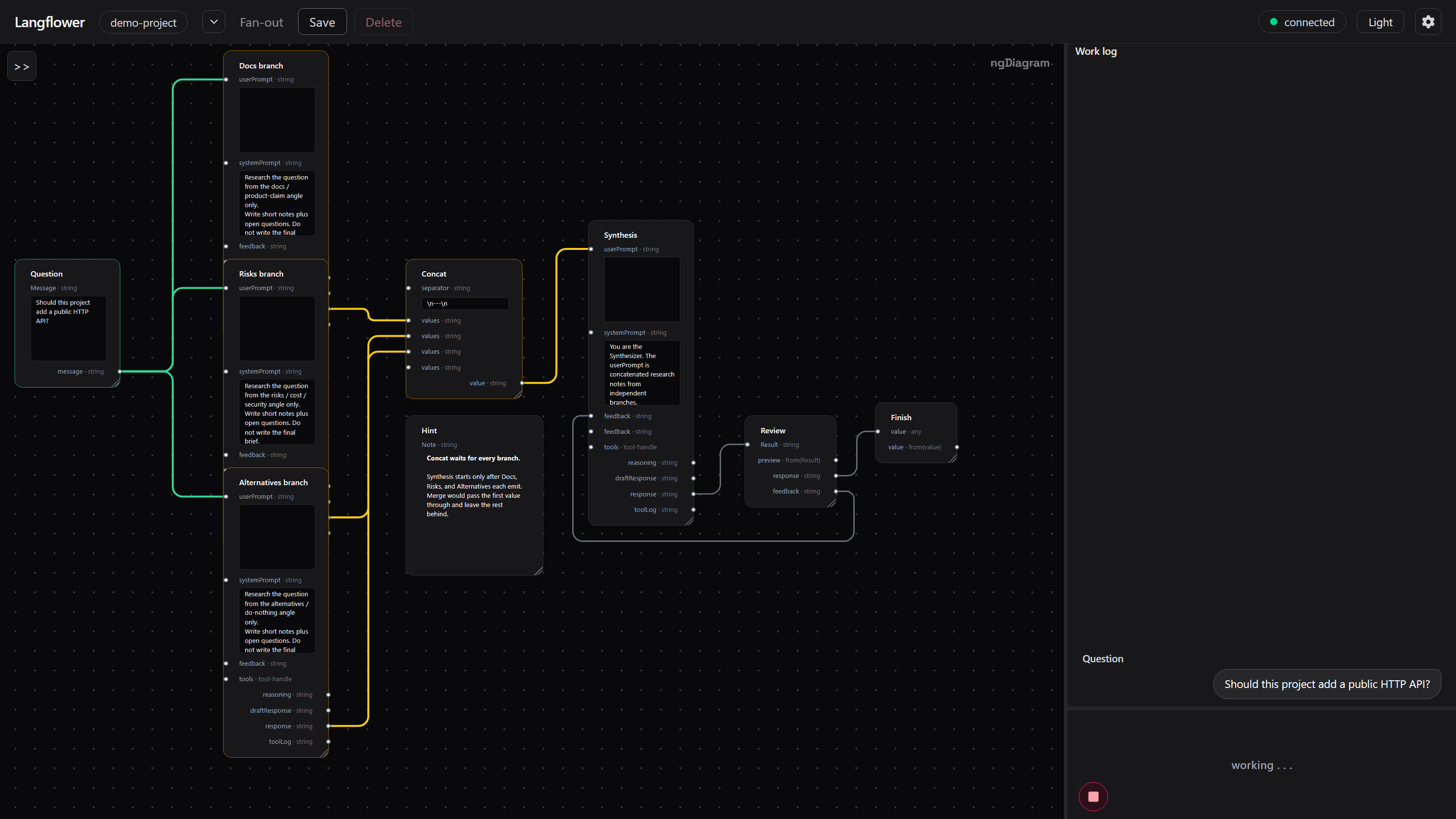

+![Question fanning out to Docs, Risks, and Alternatives, then merging through Concat](https://raw.githubusercontent.com/earthdmitriy/langflower/master/docs/img/fan-out.png)
+
+**Parallel work is a graph, too.**
+
+---
+
+### Give each agent only the capabilities it needs
+
+Don't give every agent every tool.
+
+Give each stage the capabilities it needs.
+

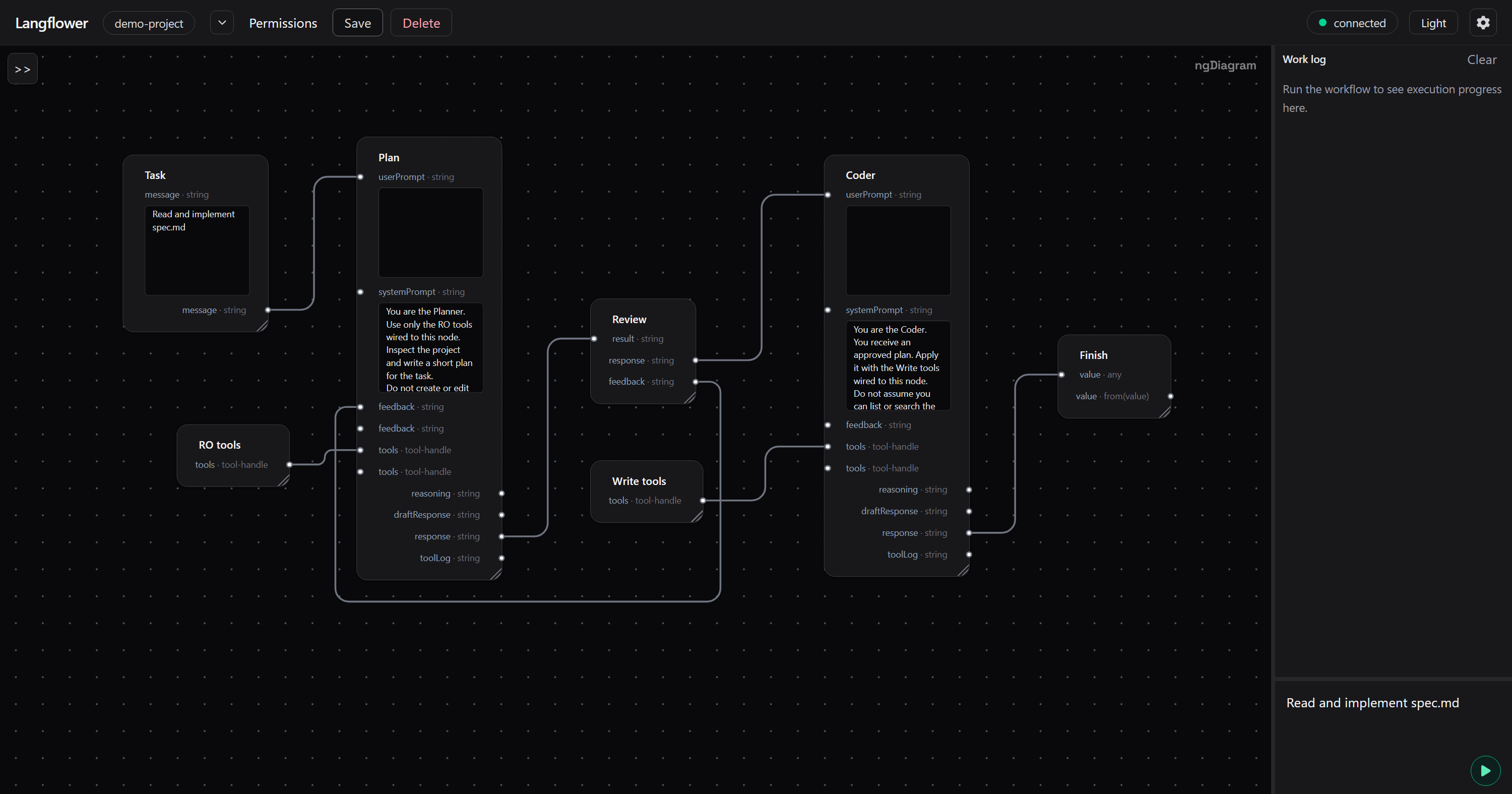

+![Plan wired to RO tools, then after Review a Coder wired to Write tools](https://raw.githubusercontent.com/earthdmitriy/langflower/master/docs/img/permission.png)
+
+A planning agent can inspect a project without being allowed to modify it.
+
+After a human review, the next stage can receive the capabilities required to make changes.
+
+**Permissions can follow the graph.**
+
+---
+
+### A complete coding-agent workflow
+
+The same primitives can be combined into a complete development workflow:
+
+- planning;
+- coding;
+- review;
+- tests;
+- tools;
+- memory;
+- human approval;
+- feedback;
+- parallel work;
+- controlled capabilities.
+

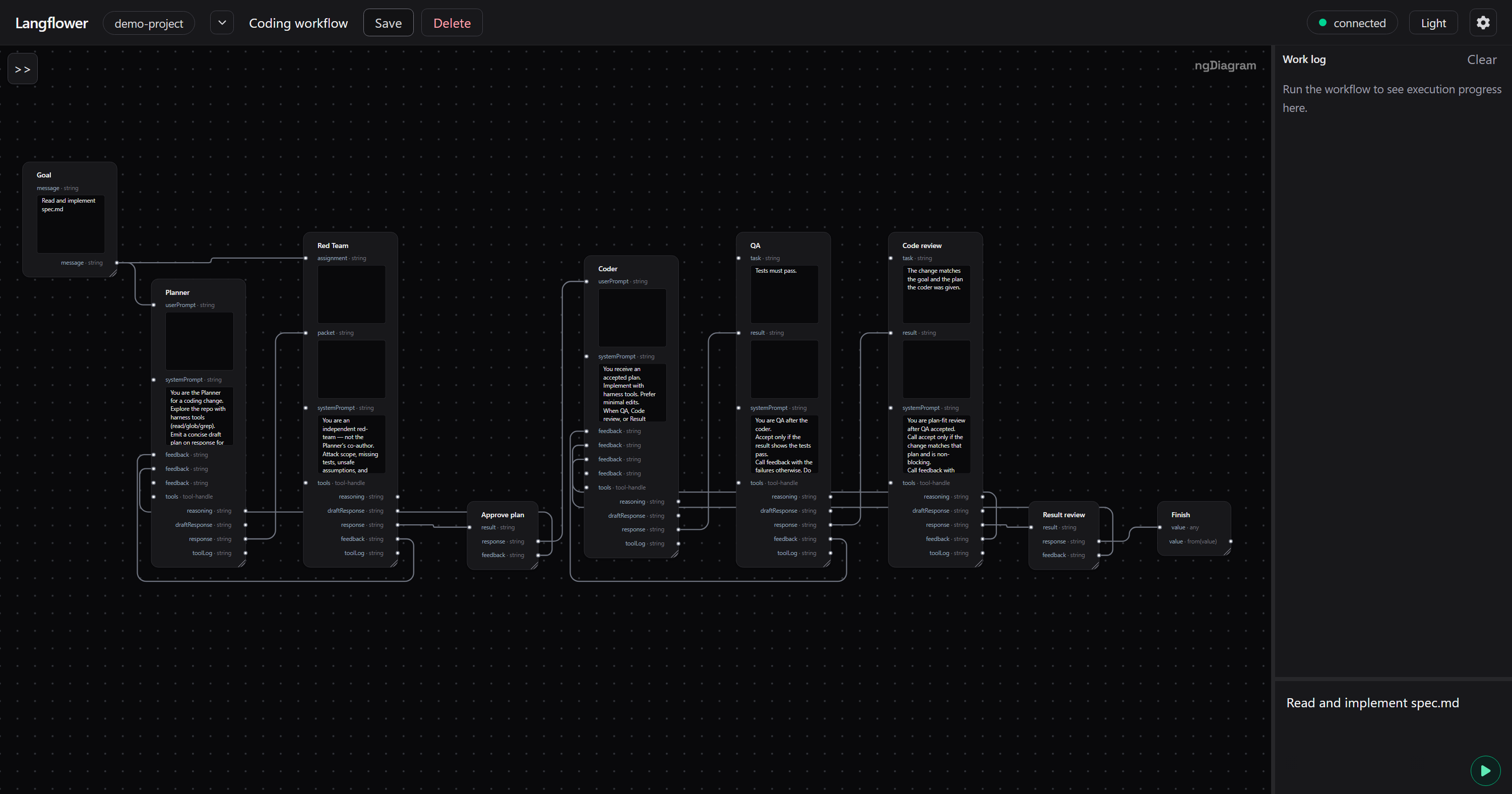

+![Coding workflow from a goal through Planner, Red Team, Coder, QA, review, and Finish](https://raw.githubusercontent.com/earthdmitriy/langflower/master/docs/img/coding_agent.png)
+
+The graph remains the same abstraction whether the workflow has three nodes or thirty.
+
+---
+
+# Watch the graph execute
+
+The graph is not just where you design the workflow.
+
+**It's where you watch it run.**
+

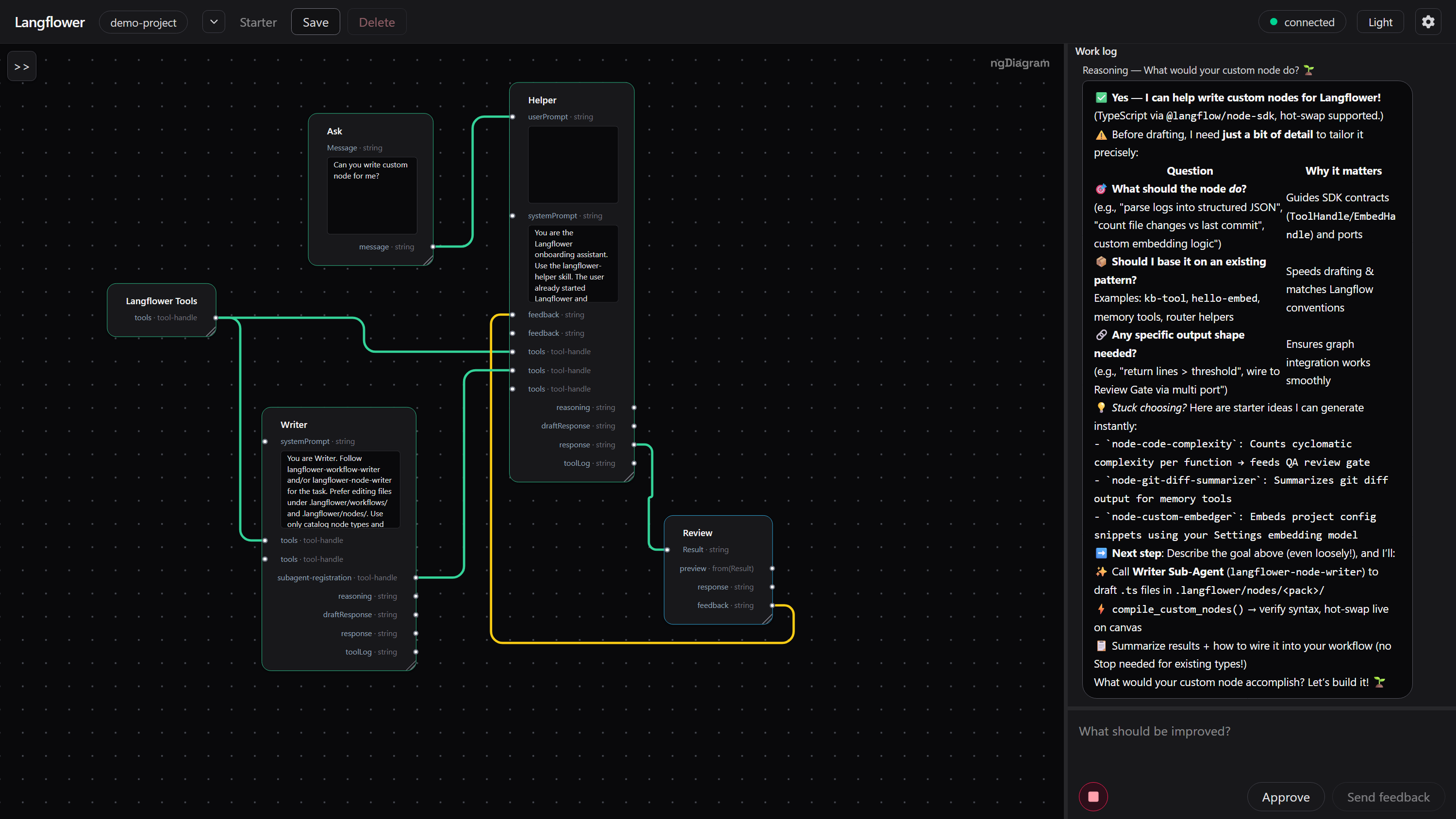

+![Running Starter workflow: green and yellow edges beside the Work log](https://raw.githubusercontent.com/earthdmitriy/langflower/master/docs/img/feed.png)
+
+### See execution on the graph
+
+Langflower shows execution state directly on the canvas.
+
+- **Green** — the node or connection has produced a result.
+- **Yellow** — work is pending.
+- **Gray** — the node or connection has not been activated yet.
+- **Red** — an error occurred on the port.
+
+Events also produce a short pulse animation on the node and port that handled them.
+
+You can see the workflow executing instead of waiting for a final answer and trying to reconstruct what happened afterwards.
+
+---
+
+### Watch agent events
+
+An agent does not have to produce only one final result.
+
+Its output ports can represent different event streams:
+
+- `reasoning`
+- `draftResponse`
+- `toolLog`
+- `response`
+
+As the agent runs, those events can appear in the Work log as they happen.
+

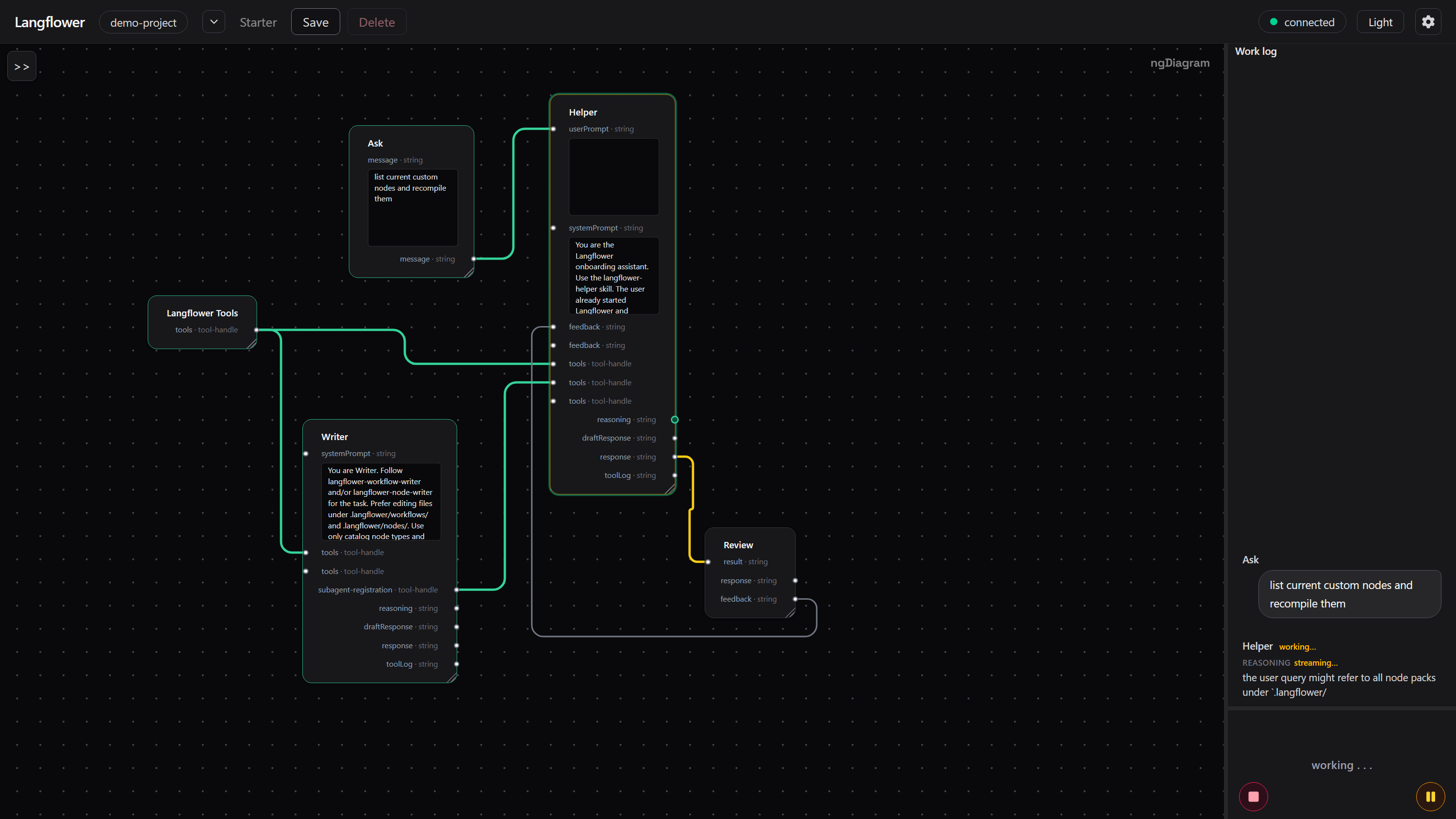

+![Helper streaming reasoning in the Work log, with reasoning, draftResponse, toolLog, and response on the node](https://raw.githubusercontent.com/earthdmitriy/langflower/master/docs/img/events.png)
+
+This makes intermediate work observable without turning it into a separate tracing system.
+
+---
+
+### Inspect any connection
+
+Don't guess what a node received.
+
+Inspect it.
+

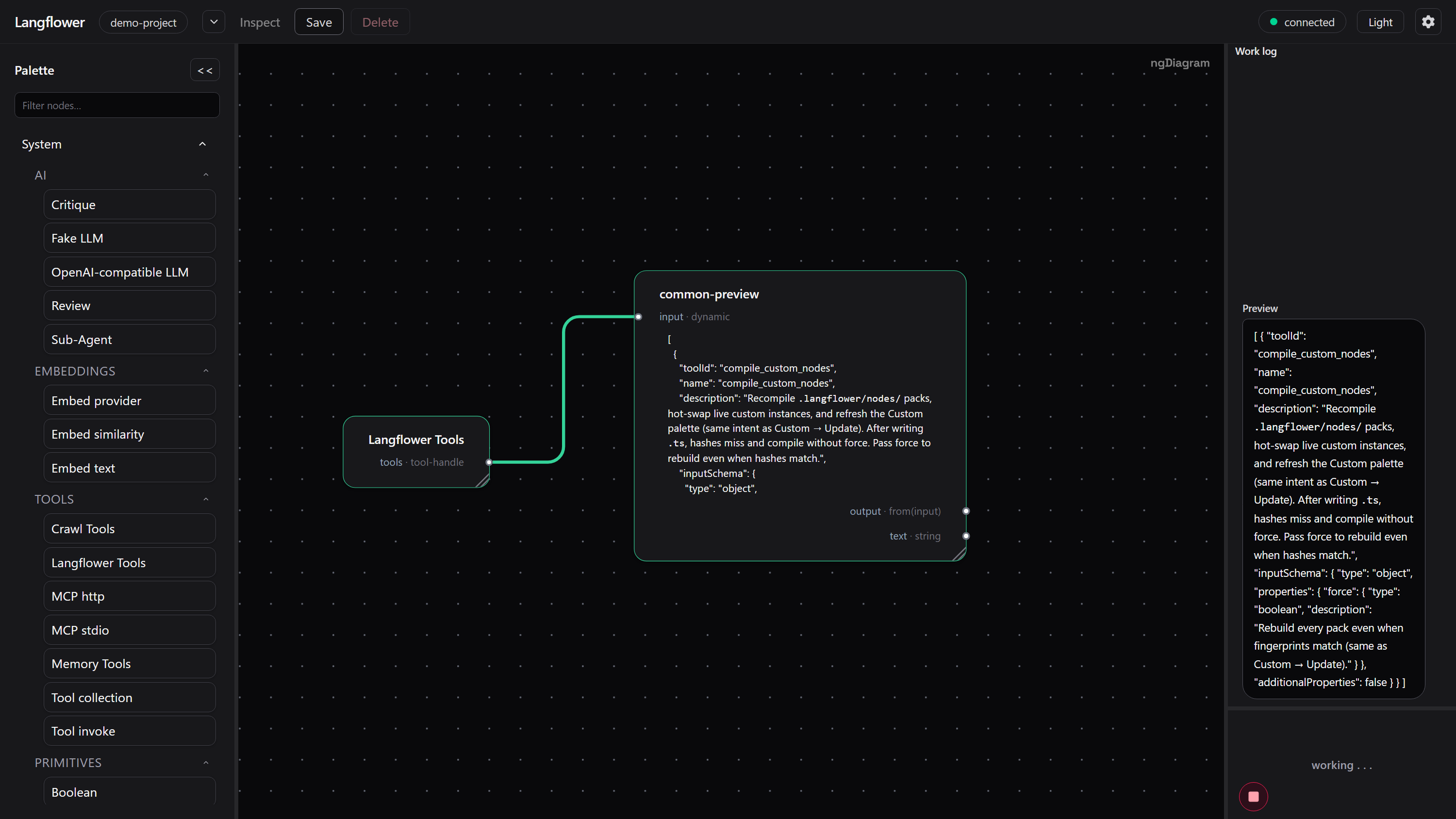

+Any connection can be routed through a Preview node to see the payload of the event flowing through it.
+
+![Preview node showing the Langflower Tools payload, with the same value in the Work log](https://raw.githubusercontent.com/earthdmitriy/langflower/master/docs/img/inspect.png)
+
+This is useful when building and debugging workflows:
+
+**What did this node actually receive?**
+
+**What did the previous node actually emit?**
+
+The answer is visible on the graph.
+
+---
+
+### The Work log is connected to the graph
+
+The Work log is not just a text stream detached from the canvas.
+
+Hover an event in the Work log and Langflower highlights the node that produced the event.
+

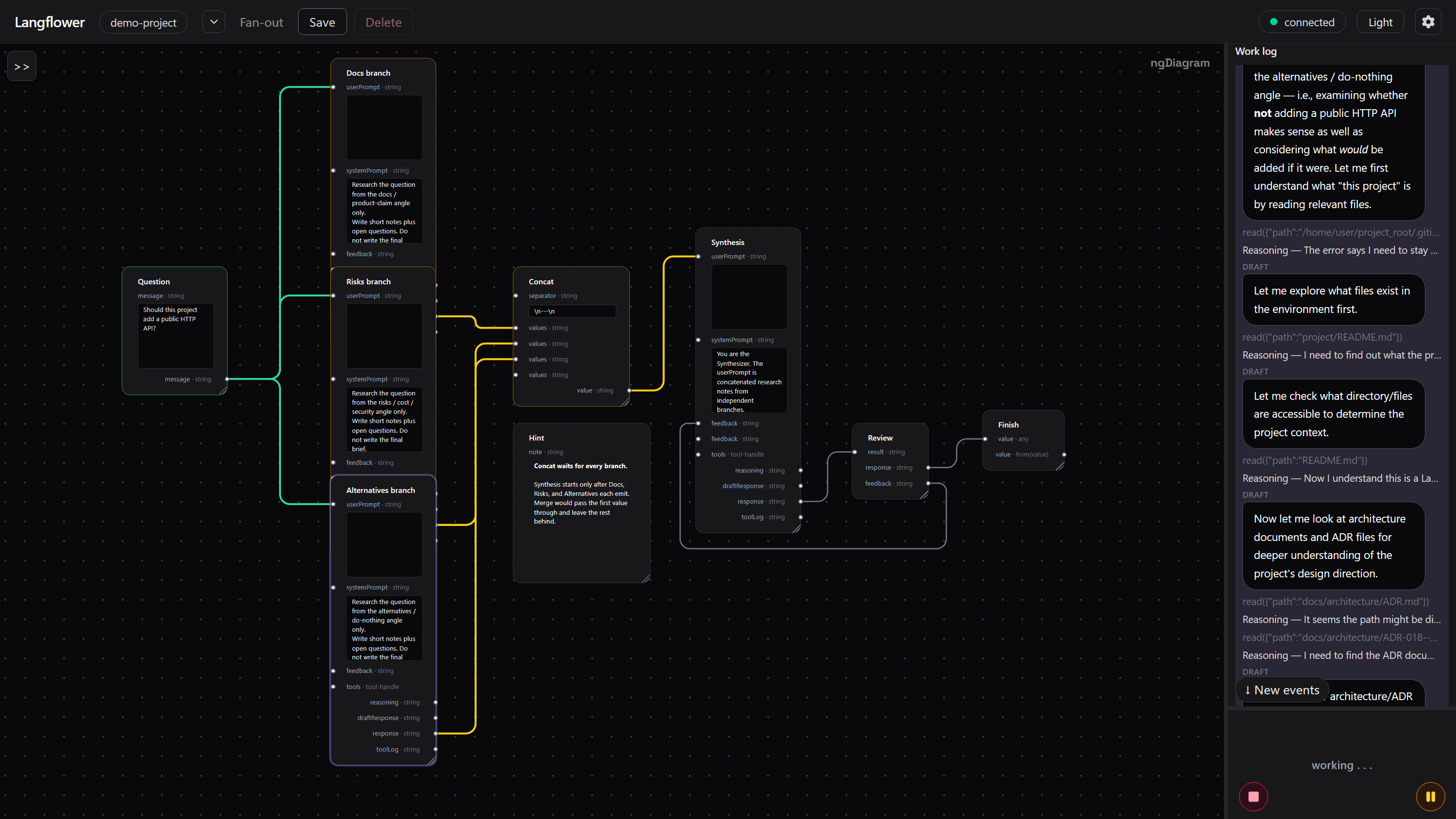

+![Work log research highlighted on the Fan-out branch that produced it](https://raw.githubusercontent.com/earthdmitriy/langflower/master/docs/img/highlight.png)
+
+You can move from:
+
+**graph → event → payload**
+
+or from:
+
+**event → source node**
+
+without losing the context of the workflow.
+
+---
+
+# Why the graph works
+
+The execution model is built around events rather than a single return value.
+
+### Nodes emit events
+
+Nodes don't just return results.
+
+They emit events.
+
+An agent can emit reasoning, a draft, a tool log, and a final response as separate events during one execution.
+
+### Every output port is an independent event stream
+
+Each output port is an RxJS `Observable`.
+
+A node can emit through one port without waiting for its other ports.
+
+That means a single execution can produce different kinds of events independently.
+
+### Edges route events
+
+An edge connects an output stream to an input.
+
+The graph determines where an event goes next.
+
+This makes the graph itself the control flow.
+
+### The graph contains the loop
+
+Langflower workflows are graphs, not just pipelines.
+
+Cycles are first-class.
+
+Feedback, retries, review loops, and iterative agent workflows can all be represented directly as graph paths.
+
+You don't need a special retry mechanism when the workflow itself contains the path back to an earlier node.
+
+### Humans are part of the graph
+
+Review and approval don't have to live outside the workflow.
+
+A human gate can receive a result, wait for a decision, and emit acceptance or feedback back into the graph.
+
+---
+
+# Extend Langflower
+
+If the node you need doesn't exist, build it.
+
+Langflower has a public TypeScript API for writing custom nodes.
+
+### A typed extension boundary
+
+The node API is designed to make the extension contract explicit.
+
+If an extension point is public, its contract should be visible in the types.
+
+Custom nodes use the same runtime model as built-in nodes.
+
+**Reactive at runtime. Typed at the extension boundary. Diagnosable before execution.**
+
+---
+
+### Compile before you run
+
+Langflower includes a compiler for custom nodes and diagnostics for problems found before execution.
+
+This gives a custom-node workflow a straightforward development loop:
+
+```text
+write
+  ↓
+compile
+  ↓
+diagnostics
+  ↓
+fix
+  ↓
+use in workflow
+```
+
+The compiler is part of the development experience, not something you have to reverse-engineer after a runtime failure.
+
+---
+
+### Build reusable node packs
+
+Custom nodes live in node packs inside the project.
+
+```text
+.langflower/
+└── nodes/
+    ├── my-tools/
+    ├── company-tools/
+    └── another-pack/
+```
+
+A node pack gives you a natural unit for developing and reusing a group of related capabilities.
+
+**Build a capability once. Reuse it wherever the workflow needs it.**
+
+---
+
+### Built for coding agents
+
+Langflower ships skills and instructions for coding agents that need to create or modify workflows and custom nodes.
+
+An agent can:
+
+1. inspect the project;
+2. write a custom node;
+3. compile it;
+4. inspect diagnostics;
+5. fix the implementation;
+6. add it to a workflow.
+
+The same environment can therefore be used by both humans and coding agents to extend the workflow system.
+
+---
+
+# Every project gets a starter environment
+
+Langflower does not start with an empty canvas.
+
+A project gets a `.langflower` environment containing workflows, nodes, skills, schemas, instructions, and configuration.
+
+```text
+.langflower/
+├── instructions
+├── workflows
+├── nodes
+├── skills
+├── schemas
+└── config
+```
+
+The exact contents can grow with the project.
+
+The starter environment serves several purposes at once:
+
+- a quick start;
+- working examples;
+- reference implementations;
+- reusable custom nodes;
+- context for coding agents;
+- a place for project-specific workflows and capabilities.
+
+**Langflower gives a project a working environment, not an empty canvas.**
+
+---
+
+# Tools and MCP
+
+Tools are capabilities that can be connected to agents through the graph.
+
+Built-in and custom nodes use the same `ToolHandle` contract.
+
+MCP can provide additional tools without changing the workflow model.
+
+This makes tools another graph-level capability:
+
+> **The workflow decides which agent gets which capability.**
+
+That also means tools can be controlled by the same permissions model used elsewhere in the workflow.
+
+---
+
+# Long-running workflows
+
+The browser is a window into the workflow, not the workflow itself.
+
+The Langflower server owns the live run.
+
+You can close the browser tab while a workflow continues running, then open the UI again and reconnect to the running workflow.
+
+This makes the same model useful for workflows that take longer than a single interactive conversation:
+
+- long-running coding tasks;
+- background jobs;
+- resumable workflows;
+- workflows that pause for human input;
+- workflows that can be interrupted and continued.
+
+The UI is there to observe and control the workflow.
+
+It is not the workflow.
+
+---
+
+# Local architecture
+
+Langflower is designed to run against a project folder on your machine.
+
+```text
+Browser
+   │
+ WebSocket
+   │
+Langflower server
+   │
+Project folder
+```
+
+The browser UI is a thin client over WebSocket.
+
+The server owns:
+
+- workflow execution;
+- custom-node compilation;
+- the live run;
+- access to the project folder.
+
+The workflow, custom nodes, and project data stay with the project.
+
+There is no hosted workflow service required.
+
+This also makes Langflower suitable for local environments and closed networks where the project and its providers need to stay on the machine or inside the network.
+
+---
+
+# Langflower builds Langflower
+
+Langflower is developed using Langflower.
+
+The project itself uses a workflow to coordinate planning, coding, review, tests, tools, and human gates.
+
+![Langflower development workflow](https://raw.githubusercontent.com/earthdmitriy/langflower/master/docs/img/lf_dev.png)
+
+The development workflow combines memory tools, MCP, custom Langflower development tools, review gates, and coding agents.
+
+The point is simple:
+
+**Langflower is not only a tool for building workflows. It is itself built as a workflow-driven system.**
+
+---
+
+# Desktop launcher
+
+If you don't want to start Langflower from a terminal, use the desktop launcher.

 ![Langflower desktop launcher](https://raw.githubusercontent.com/earthdmitriy/langflower/master/docs/img/launcher.png)

-Download a Windows or macOS zip from
-[GitHub Releases](https://github.com/earthdmitriy/langflower/releases).
-Unpack and run `langflower-launcher.exe` or `langflower-launcher`. It is
-a portable app: no installation. The binary is unsigned, so Windows
-Defender and macOS Gatekeeper might warn. On macOS: right-click the
-file → **Open**. No Linux zip yet. Manual:
-[Desktop launcher](https://github.com/earthdmitriy/langflower/blob/master/docs/public/launcher.md).
+Pick a project folder, start Langflower, and the editor opens in the browser you already have.
+
+The launcher is designed to make local Langflower feel like a normal desktop application:
+
+- choose a project folder;
+- keep recent projects;
+- start Langflower;
+- open the UI again after closing the browser tab;
+- run several project instances at once.
+
+No bundled browser is required.

-Langflower does not host a model. Live agent runs need you to **bring
-your own key** (BYOK): add an OpenAI-compatible provider in Settings (gear icon)
-and paste the API key there. Pointing at an environment variable is
-optional. Simple nodes and the Fake LLM work without a key.
+---

-From a terminal:
+# Quick start

-One-shot OS installers (Node LTS if needed + global `langflower`):
-[install/](install/) (`windows.ps1`, `linux.sh`, `macos.sh`).
+## Desktop launcher
+
+Download the Windows or macOS launcher from [GitHub Releases](https://github.com/earthdmitriy/langflower/releases) (tags `launcher-v*`).
+
+[![Launcher release](https://img.shields.io/github/v/release/earthdmitriy/langflower?filter=launcher-v%2A&label=launcher)](https://github.com/earthdmitriy/langflower/releases)
+
+Unpack it and run:
+
+```text
+langflower-launcher.exe
+```
+
+on Windows, or:
+
+```text
+langflower-launcher
+```
+
+on macOS.
+
+The launcher is portable and does not require an installation.
+
+On first use, choose the project folder you want to work with.
+
+---
+
+## From a terminal
+
+Install Langflower globally:

 ```bash
 npm install -g langflower
+```
+
+Then run it:
+
+```bash
 langflower
-# or
+```
+
+Or start it for a specific project:
+
+```bash
 langflower ./my-project
 ```

-From this monorepo (dogfood snapshot, not a registry install):
+From the Langflower monorepo:

 ```bash
 npm run install-local
 npx langflower
 ```

-The CLI opens a local UI at `http://127.0.0.1:4010` (or `--port` / the
-port in `.langflower/config.json`) for the selected folder. Use `-p` to
-run several instances from different folders at once.
+The CLI opens the local UI at:
+
+```text
+http://127.0.0.1:4010
+```
+
+You can change the port with `--port` or through `.langflower/config.json`.
+
+Use `-p` to run multiple Langflower instances for different project folders at the same time.
+
+---

-Full walkthrough: [Getting started](https://github.com/earthdmitriy/langflower/blob/master/docs/public/getting-started.md).
+## Bring your own model

-## How it works
+Langflower does not host a model.
+
+For live agent runs, configure an OpenAI-compatible provider in **Settings** and provide your API key.
+
+You can also point the provider at an environment variable.
+
+Simple nodes and the Fake LLM can be used without a model key.
+
+---
+
+# How it works

 1. Start Langflower with a project folder.
-2. Open a workflow on the canvas, or create one for the task.
-3. Run it and watch agents, tools, checks, and file changes move through
-   visible stages.
-4. Approve, reject, or add feedback when the workflow asks for a human
-   decision.
-5. Find the resulting files and data in the same workspace.
-
-## What it lacks
-
-- **Chat sessions.** You cannot save a chat and reopen it tomorrow.
-  Agent state lives inside the node for now. Maybe later.
-- **Image and video.** No asset management for multimodal models. Not yet.
-- **No built-in IDE or git UI.** We are not reinventing those wheels. Use
-  the editor and git tools you already have.
-
-## Under the hood
-
-The core is a reactive runtime. The **node SDK** is the public contract:
-any node that follows it can run on that runtime. **Common nodes** is the
-built-in catalog. It uses the same SDK as custom node packs.
-
-The **server** compiles user-defined nodes and owns the live run. The
-**UI** is a thin browser client over WebSocket; it does not own the
-workflow.
-
-For a short builder-oriented picture, see
-[How it works](https://github.com/earthdmitriy/langflower/blob/master/docs/public/how-it-works.md).
-
-Maintainers (monorepo only): [docs/RELEASE.md](https://github.com/earthdmitriy/langflower/blob/master/docs/RELEASE.md),
-[packages/cli/README.md](https://github.com/earthdmitriy/langflower/blob/master/packages/cli/README.md).
-
-## Learn more
-
-Shipped with the npm package under [`docs/public/`](https://github.com/earthdmitriy/langflower/tree/master/docs/public):
-
-| Want to…                         | Start here                                                                                                 |
-| -------------------------------- | ---------------------------------------------------------------------------------------------------------- |
-| Start without a terminal         | [Desktop launcher](https://github.com/earthdmitriy/langflower/blob/master/docs/public/launcher.md)         |
-| Install and first run            | [Getting started](https://github.com/earthdmitriy/langflower/blob/master/docs/public/getting-started.md)   |
-| Understand the product           | [Product overview](https://github.com/earthdmitriy/langflower/blob/master/docs/public/product.md)          |
-| Use the canvas and runs          | [Using the editor](https://github.com/earthdmitriy/langflower/blob/master/docs/public/using-the-editor.md) |
-| Browse workflow ideas            | [Workflow ideas](https://github.com/earthdmitriy/langflower/blob/master/docs/public/workflows.md)          |
-| Configure providers and keys     | [Configuration](https://github.com/earthdmitriy/langflower/blob/master/docs/public/configuration.md)       |
-| Add MCP, skills, or custom nodes | [Extending](https://github.com/earthdmitriy/langflower/blob/master/docs/public/extending.md)               |
-| Builder runtime picture          | [How it works](https://github.com/earthdmitriy/langflower/blob/master/docs/public/how-it-works.md)         |
+2. Open an existing workflow or create one.
+3. Run the workflow.
+4. Watch events move through the visible graph.
+5. Inspect event payloads when needed.
+6. Approve, reject, or provide feedback when the workflow reaches a human gate.
+7. Find the resulting files and data in the same project workspace.
+
+---
+
+# What it lacks
+
+Langflower is intentionally still small, and some things are not implemented yet.
+
+### Chat sessions
+
+You cannot save a chat and reopen it tomorrow as a persistent conversation.
+
+Agent state currently lives inside the node.
+
+### Image and video
+
+There is no asset-management layer for multimodal models yet.
+
+### Built-in IDE or Git UI
+
+Langflower is not trying to replace your editor or Git client.
+
+Use the tools you already have for editing, reviewing, committing, and navigating the project.
+
+---
+
+# Learn more
+
+- [Getting started](https://github.com/earthdmitriy/langflower/blob/master/docs/public/getting-started.md) — installation and first run
+- [Product overview](https://github.com/earthdmitriy/langflower/blob/master/docs/public/product.md) — the product model and core concepts
+- [Using the editor](https://github.com/earthdmitriy/langflower/blob/master/docs/public/using-the-editor.md) — canvas, workflows, and runs
+- [Workflow ideas](https://github.com/earthdmitriy/langflower/blob/master/docs/public/workflows.md) — examples of workflows you can build
+- [Configuration](https://github.com/earthdmitriy/langflower/blob/master/docs/public/configuration.md) — providers, keys, ports, and project configuration
+- [Extending Langflower](https://github.com/earthdmitriy/langflower/blob/master/docs/public/extending.md) — custom nodes, node packs, MCP, and skills
+- [How it works](https://github.com/earthdmitriy/langflower/blob/master/docs/public/how-it-works.md) — the builder/runtime architecture
+- [Desktop launcher](https://github.com/earthdmitriy/langflower/blob/master/docs/public/launcher.md) — running Langflower without the CLI
+
+---
+
+## In one sentence
+
+**Langflower turns an AI agent from a chat loop into a visible, inspectable workflow whose graph controls what happens next.**
