package/README.md
CHANGED
|
@@ -13,7 +13,7 @@ selection, lighting and camera work.
|
|
|
13
13
|
It covers the same ground as the official 2D `Beckhoff.TwinCAT.HMI.XTS.Controls`
|
|
14
14
|
viewer, using real CAD geometry in three dimensions.
|
|
15
15
|
|
|
16
|
-
|
|
17
17
|
|
|
18
18
|
## Installation
|
|
19
19
|
|
|
@@ -79,6 +79,23 @@ No asset hosting is required. GLBs stream from the matching
|
|
|
79
79
|
[asset hosting](docs/USING-THE-COMPONENT.md#1-glb-assets--zero-config-by-default)
|
|
80
80
|
to self-host them instead.
|
|
81
81
|
|
|
82
|
+
## Module catalogue
|
|
83
|
+
|
|
84
|
+
Every image on this page comes out of the component itself, through the same
|
|
85
|
+
`exportScreenshot()` a consumer calls, and shows a layout a line would
|
|
86
|
+
actually be built as — a 5 m racetrack with four stations, a buffer loop
|
|
87
|
+
beside it. See [docs/screenshots](docs/screenshots/README.md) for the capture
|
|
88
|
+
script and [`playground/src/configs.ts`](playground/src/configs.ts) for the
|
|
89
|
+
layouts themselves.
|
|
90
|
+
|
|
91
|
+
| | | |
|
|
92
|
+
| ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ | ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
|
|
93
|
+

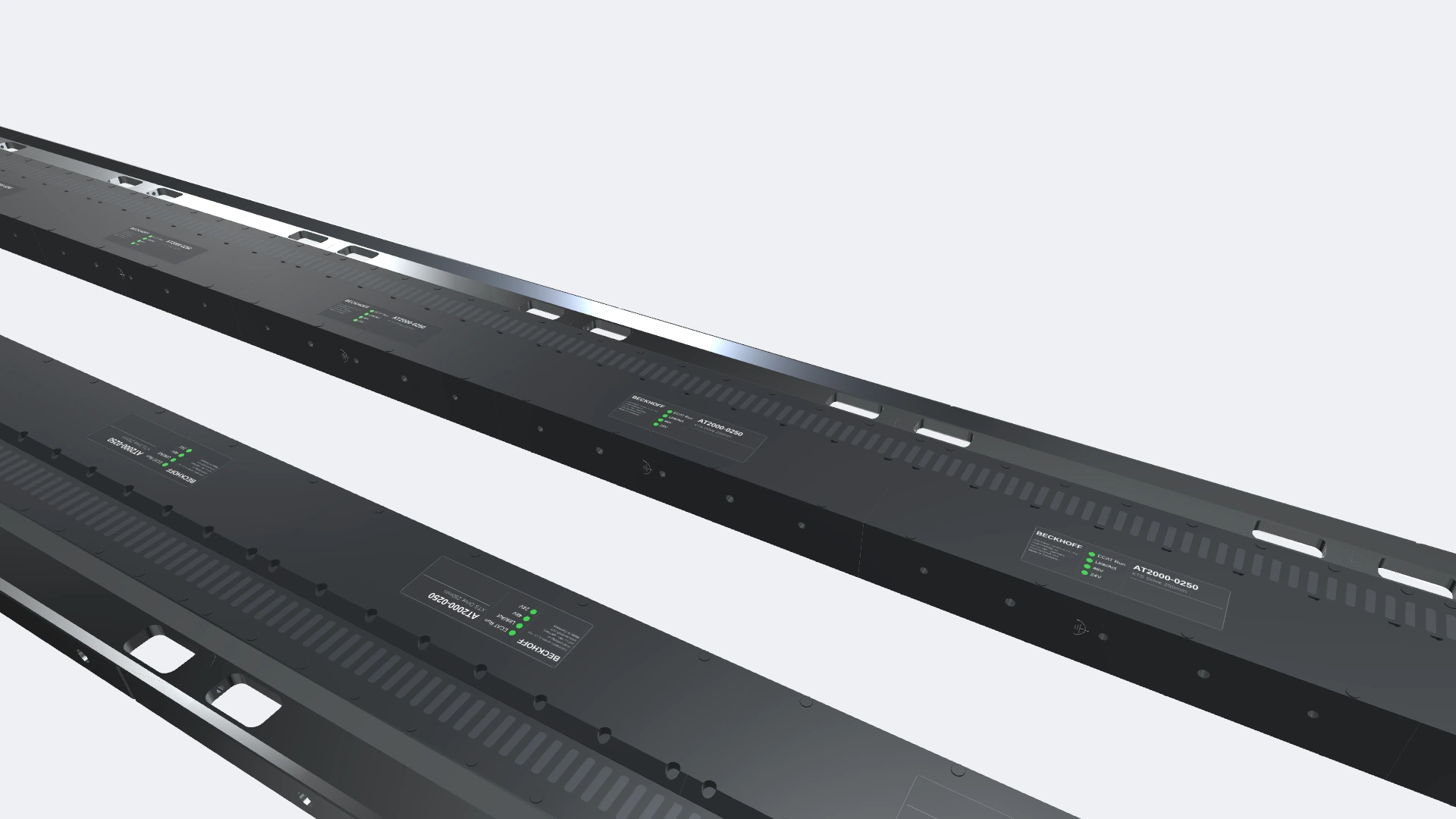

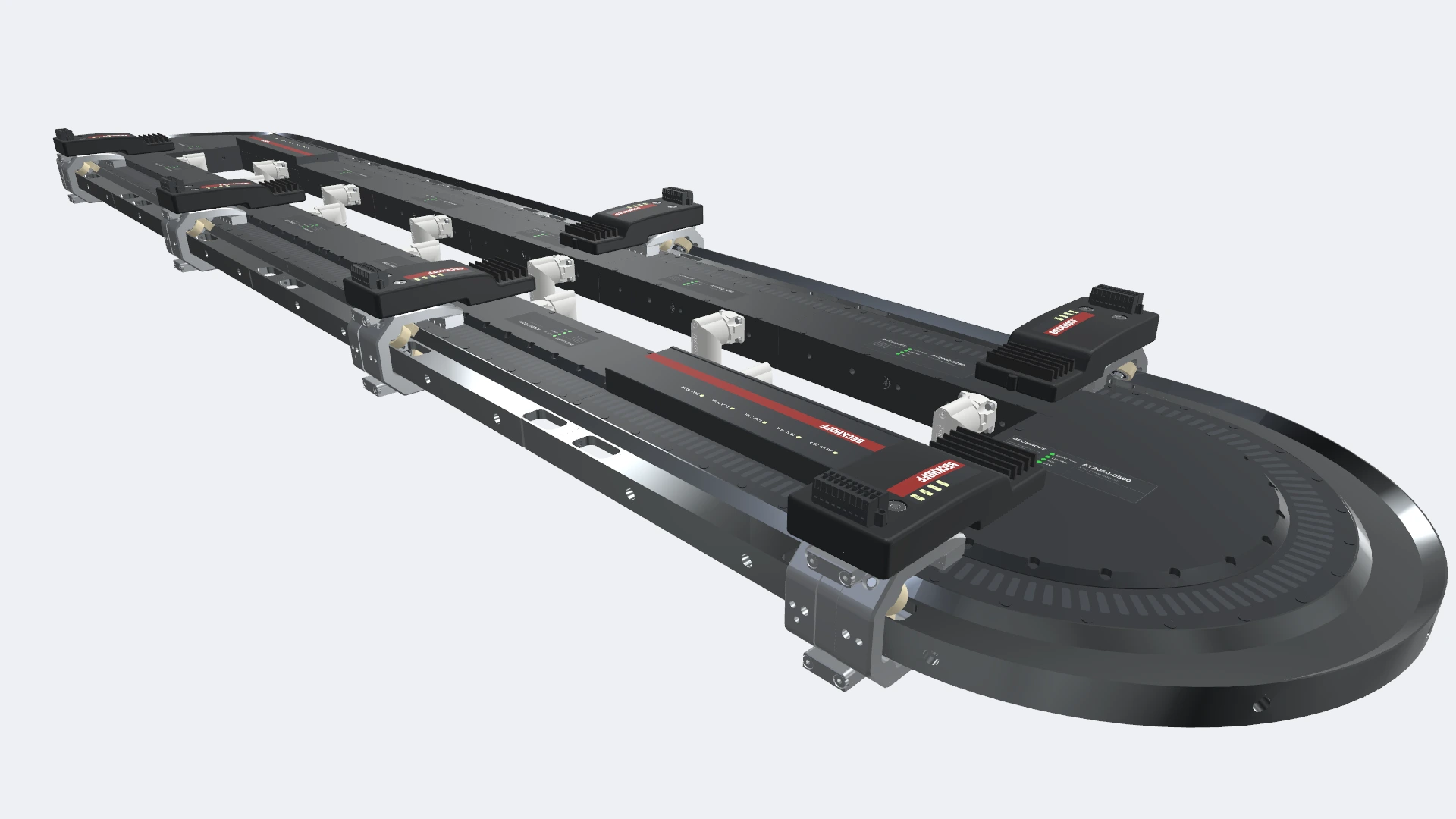

| <br>**Standard AT** — AT2001 infeed, AT2000 straights and the AT2050 180° clothoid reversal. | <br>**Eco AT2200 / AT2202** — 500 mm straights, which pair naturally with the 500 mm reversal. | <br>**NCT AT2002 / AT2102** — high modules carrying AT8200 tool carriers on the movers. |
|
|
94
|
+
| <br>**Hygienic ATH** — stainless housings, sealed joints and the ATH9011 mover. | <br>**Hepco GFX2** — the procedural GFX rail profile with a GFX2 1TC carriage instead of the Beckhoff guiding rail. | <br>**Real materials, not CAD colours** — anodised housing, stator packs, printed type plate with its LED row. |
|
|
95
|
+
|
|
96
|
+
The GLBs ship with a named PBR material library rather than the CAD sources'
|
|
97
|
+
placeholder colours — see [Asset pipeline](#asset-pipeline).
|
|
98
|
+
|
|
82
99
|
## Features
|
|
83
100
|
|
|
84
101
|
**Geometry and layout.** The full Beckhoff module and mover catalogue —
|
|
@@ -160,13 +177,19 @@ for the tools, the snap kinds and the full API.
|
|
|
160
177
|
|
|
161
178
|
## Gallery
|
|
162
179
|
|
|
163
|
-
|
|
|
164
|
-
|
|
|
165
|
-
| <br>A packaging line and a buffer loop side by side, placed with `trackTransform`. | <br>Station tubes with their stop markers, ghost movers parked on the stops, and cleanroom / manual-access zones. |
|
|

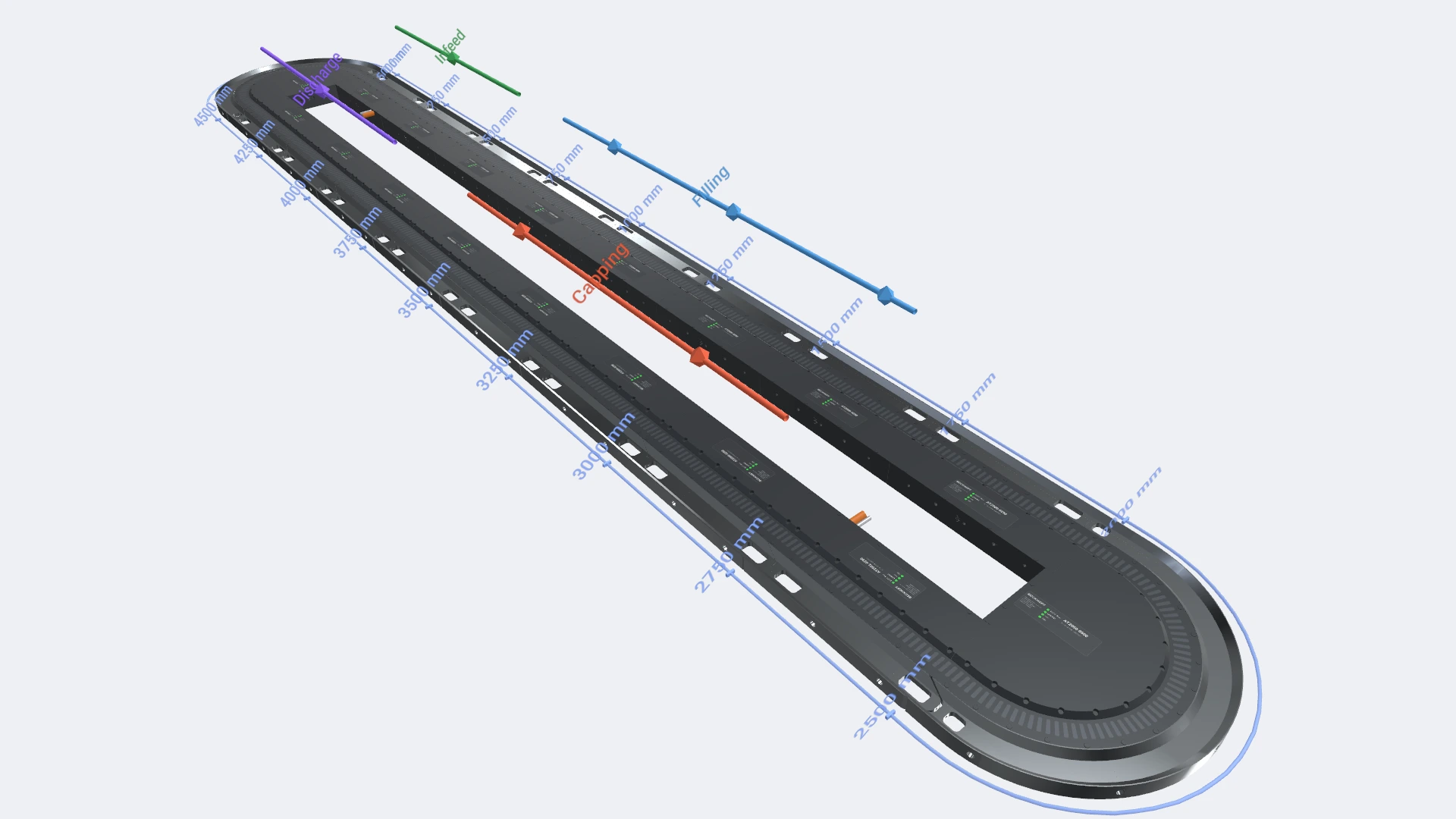

183
|
+
| <br>Dimensions along the track, stepped out from the modules they measure. | <br>Vertex-colour gradient along the centerline, fed from `(positionMm, value)` samples. |
|
|
184
|
+
| <br>Two movers of the line parked at a 1 mm overlap — `checkMoverCollisions()` reports the penetration. | <br>Emissive tint on the GLB plus camera-facing warning and error icons, on modules and movers alike. |
|
|

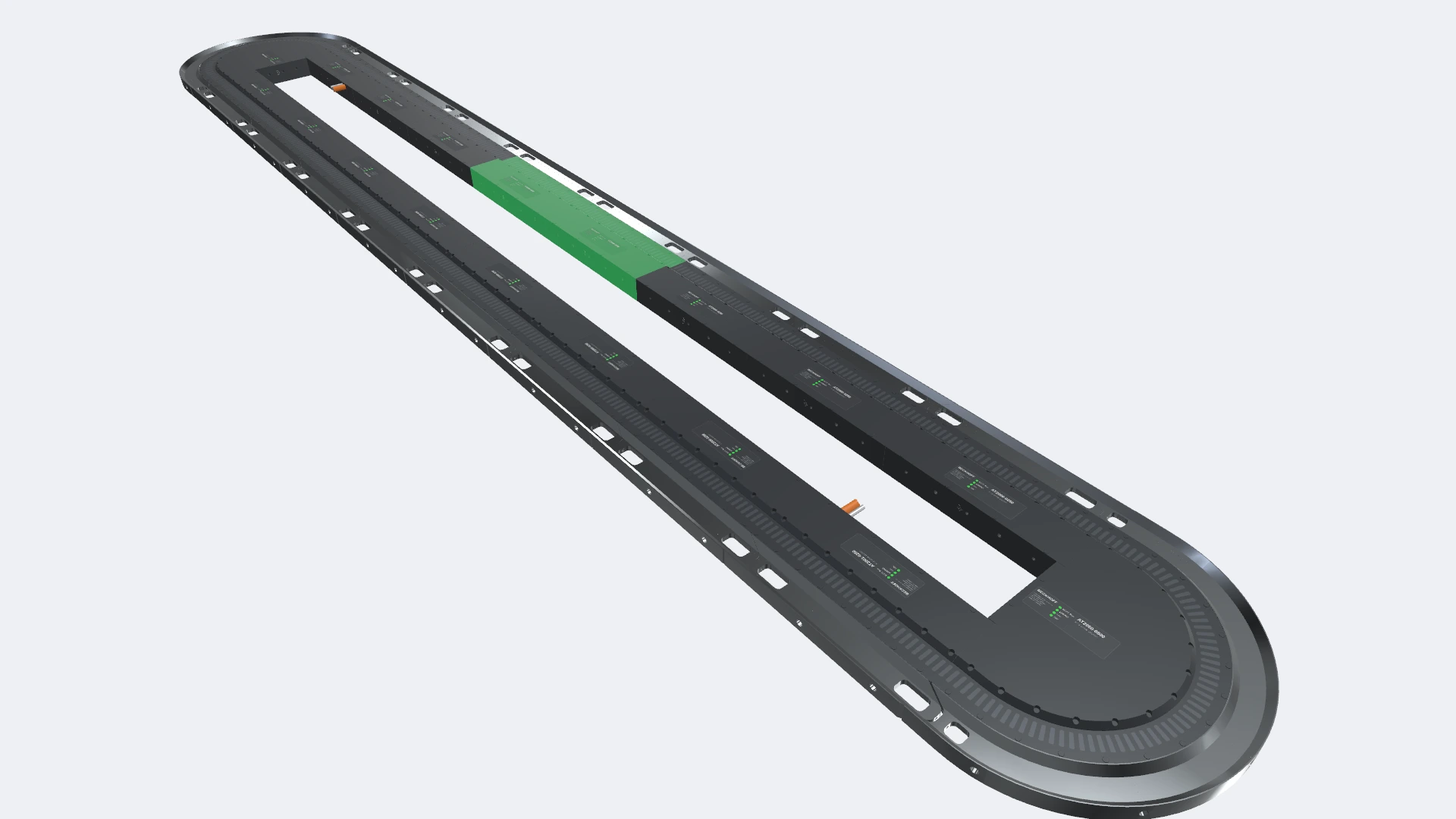

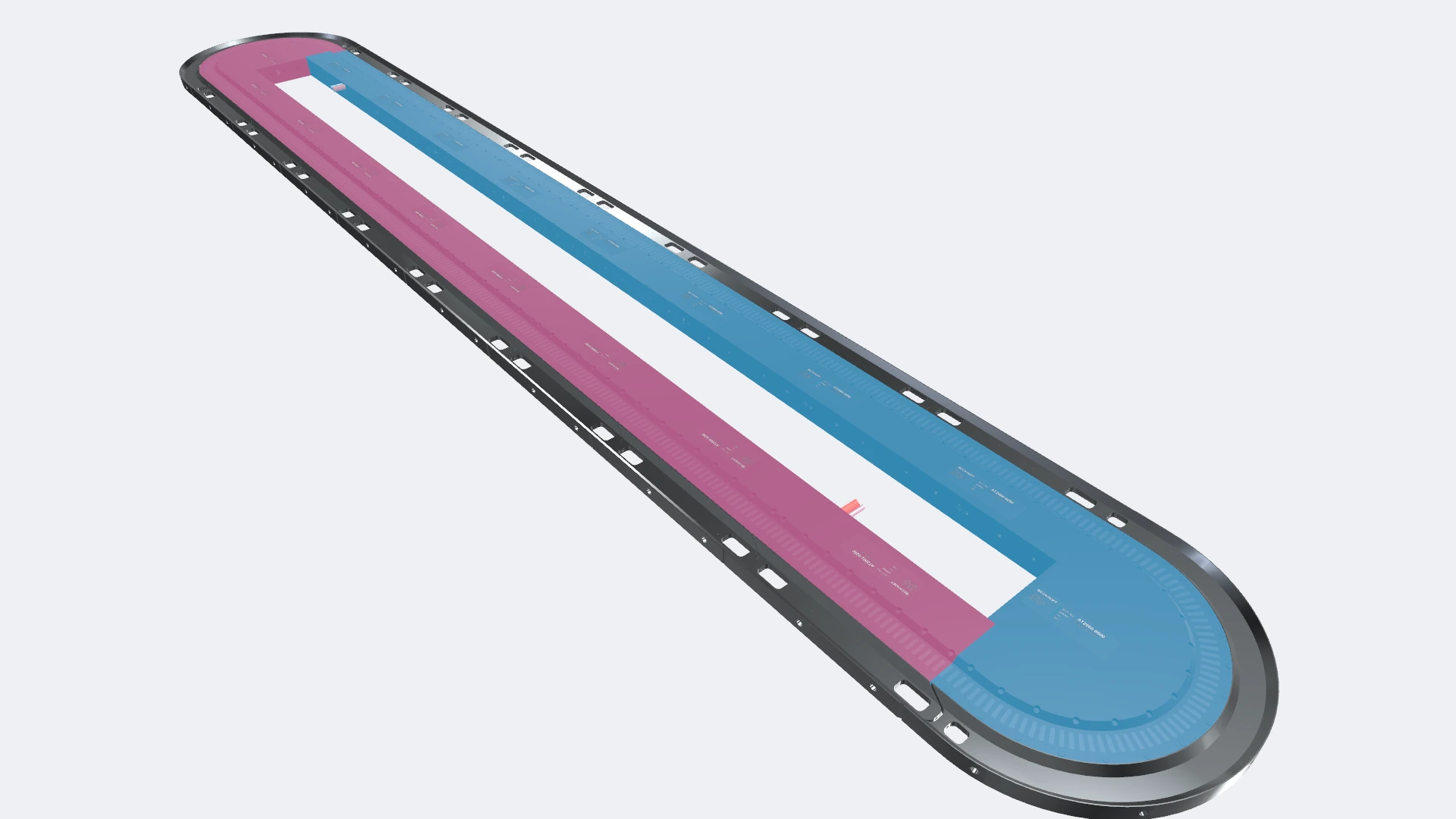

185
|
+
| <br>`feedSegmentHighlights` tints whole electrical strands; the pink one wraps the loop seam. | <br>A distance across the loop with ΔX/ΔY guides and two annotations, placed through `viewerRef.current.measurements`. |
|
|
186
|
+
| <br>Selection tints the GLB itself — two modules green, one mover orange — rather than overlaying a wireframe. | <br>Opt-in PCF-soft shadows over the procedurally built indoor environment. |
|
|
187
|
+
| <br>750 movers on three ovals, animated at 60 Hz with no React commits in steady state. | |
|
|
188
|
+
|
|
189
|
+
|
|
190
|
+
|
|
191
|
+

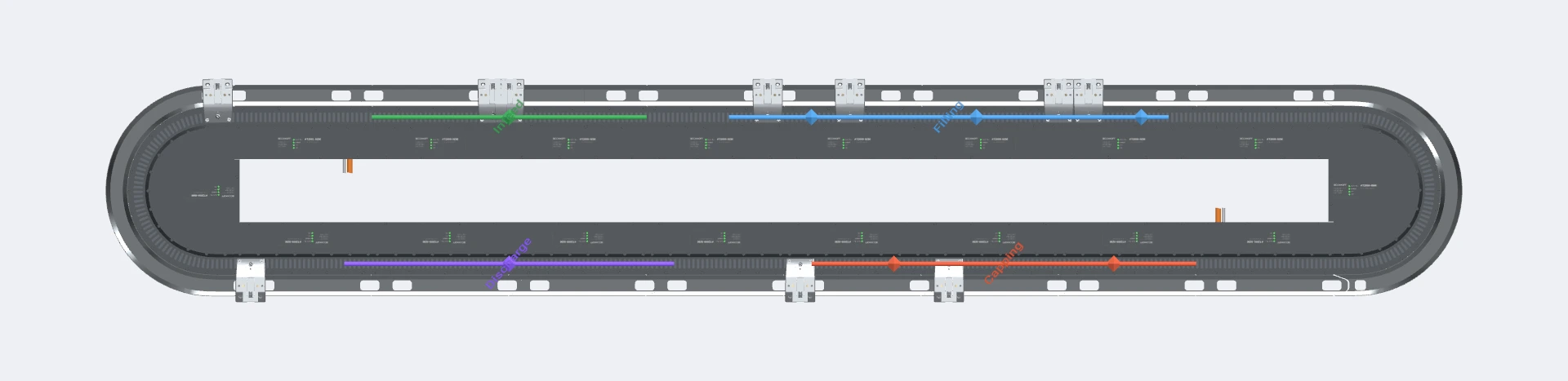

`exportScreenshot({ mode: 'top-down' })` — orthographic, fitted to the scene
|
|
192
|
+
AABB. The same view is available live through `projection="orthographic"`.
|
|
170
193
|
|
|
171
194
|
## Troubleshooting
|
|
172
195
|
|
|
@@ -223,6 +246,10 @@ pnpm build
|
|
|
223
246
|
feature and lets you switch demos, drive movers, toggle lighting and shadows,
|
|
224
247
|
compose multi-track layouts and live-edit calibration overrides.
|
|
225
248
|
|
|
249
|
+
`pnpm docs:capture-screenshots` re-shoots the whole image strip on this page
|
|
250
|
+
from that playground, unattended — see
|
|
251
|
+
[docs/screenshots](docs/screenshots/README.md).
|
|
252
|
+
|
|
226
253
|
### Asset pipeline
|
|
227
254
|
|
|
228
255
|
