@salilvnair/dui 1.0.11 → 1.0.13

package/README.md

@@ -1,48 +1,74 @@
+<div align="center">
+
 # @salilvnair/dui

-**Daakia UI** — a React 19 + TypeScript component library shared across
-[daakia](https://github.com/salilvnair) and ck8t. 65+ components, a
-CSS-variable theme system, and a Monaco-backed code editor that's entirely
-optional — install it only if you use it.
+**Daakia UI** — a React 19 + TypeScript component library of **281 components**,
+every colour a CSS variable, and a Monaco-backed editor you only pay for if you
+use it.

 [![npm version](https://img.shields.io/npm/v/@salilvnair/dui.svg)](https://www.npmjs.com/package/@salilvnair/dui)
+[![npm downloads](https://img.shields.io/npm/dm/@salilvnair/dui.svg)](https://www.npmjs.com/package/@salilvnair/dui)
 [![license](https://img.shields.io/npm/l/@salilvnair/dui.svg)](https://github.com/salilvnair/dui/blob/main/LICENSE)
+[![types](https://img.shields.io/badge/types-included-3178c6.svg)](#typescript)
+
+**[Live demo](https://salilvnair.com/framework/dui/)** ·
+[Component catalog](#component-catalog) ·
+[Theming](#theming) ·
+[Changelog](./CHANGELOG.md)
+
+</div>
+
+![DUI — 281 components, a live playground, live retheming, light and dark](https://raw.githubusercontent.com/salilvnair/dui/main/media/dui-showcase.gif)

-Repository: **https://github.com/salilvnair/dui**
+<sub>Ninety seconds of it. The full walkthrough is
+[here as an mp4](https://raw.githubusercontent.com/salilvnair/dui/main/media/dui-showcase.mp4),
+and the thing itself is [live](https://salilvnair.com/framework/dui/) — every
+component has a playground, examples you can copy, and a props table.</sub>

 ---

 ## Table of contents

-- [Features](#features)
+- [Why this exists](#why-this-exists)
 - [Install](#install)
 - [Quick start](#quick-start)
+- [What you get](#what-you-get)
+  - [A playground on every component](#a-playground-on-every-component)
+  - [Every colour is a variable](#every-colour-is-a-variable)
+  - [Light and dark, both first-class](#light-and-dark-both-first-class)
+  - [Every prop documented, in the app](#every-prop-documented-in-the-app)
 - [Component catalog](#component-catalog)
 - [Theming](#theming)
 - [The code editor — Monaco is optional](#the-code-editor--monaco-is-optional)
 - [Extending MarkdownView's language support](#extending-markdownviews-language-support)
 - [TypeScript](#typescript)
 - [Local development](#local-development)
+- [Screenshots, video and the demo site](#screenshots-video-and-the-demo-site)
 - [Publishing to npm](#publishing-to-npm)
 - [License](#license)

 ---

-## Features
-
-- **65+ components** — inputs, buttons, navigation, display, overlays,
-  layout, and a full debug/editor toolkit (see [catalog](#component-catalog))
-- **CSS-variable theming** — every color is a `--color-*` custom property;
-  retheme by overriding variables on `:root` or any container, no rebuild
-- **Size system** — one `size` prop (`xxs`–`xxxl`) threaded through every
-  component via `<DuiProvider>`, or override per-instance
-- **Optional Monaco editor** — `EditorView`/`DiffEditorView`/`DebugEditorView`
-  render a plain-text fallback out of the box; Monaco is a genuinely optional
-  peer dependency, not a hard requirement (see below — this is the part of
-  the library most worth understanding before you adopt it)
-- **Tree-shakeable ESM** — compiled output, real `.d.ts` types, multi-entry
-  build so `import '@salilvnair/dui/monaco-setup'` is the *only* way Monaco
-  code ever enters your bundle
+## Why this exists
+
+DUI was extracted from [daakia](https://github.com/salilvnair/daakia) and ck8t
+so the two could stop maintaining the same forty components twice. That origin
+is visible in what it is good at — dense, professional, tool-shaped UI: tables
+that sort, panels that split, an editor that takes breakpoints, a file browser,
+a props table, a request flow. It is not a marketing-site kit.
+
+Three things follow from being a library two real apps depend on:
+
+- **Nothing is a hard dependency that does not have to be.** Monaco,
+  vis-network and the rest are optional peers. `dist/index.js` contains zero
+  references to any of them, and that is
+  [checked at release](#publishing-to-npm), not just claimed.
+- **Retheming is a colour change, not a fork.** Every token is a
+  `--color-*` custom property. Override a variable on `:root`, or on one
+  container to theme a single panel differently.
+- **One size prop, threaded through everything.** `xxs`–`xxxl` set once on
+  `<DuiProvider>`, overridable per instance, consistent between a button and
+  the select next to it.

 ## Install

@@ -59,100 +85,602 @@ import '@salilvnair/dui/style.css';
 ## Quick start

 ```tsx
-import { DuiProvider, ButtonView, TextInputView, TabView } from '@salilvnair/dui';
+import { DuiProvider, ButtonView, TextInputView } from '@salilvnair/dui';
 import '@salilvnair/dui/style.css';

 export function App() {
+  const [value, setValue] = useState('');
   return (
     <DuiProvider size="md">
       <TextInputView placeholder="Search…" value={value} onChange={setValue} />
-      <ButtonView onClick={handleSubmit}>Submit</ButtonView>
+      <ButtonView variant="primary" onClick={handleSubmit}>Submit</ButtonView>
     </DuiProvider>
   );
 }
 ```

 `DuiProvider` is optional — every component works standalone with sensible
-defaults. Wrap your app in it when you want a single place to set the
-default `size` or accent color for the whole tree.
+defaults. Wrap your app in it when you want one place to set the default size
+or accent colour for the whole tree.
+
+---
+
+## What you get
+

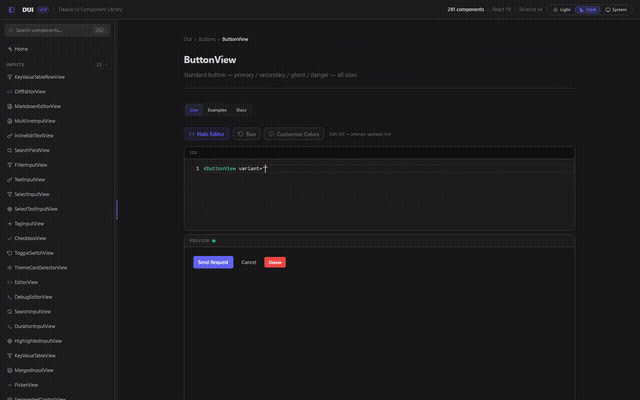

+### A playground on every component
+
+Every one of the 281 components opens on an editable JSX snippet with a live
+preview under it. Change a prop, see it, copy the line out.
+
+![Editing the JSX for ButtonView and the preview updating live](https://raw.githubusercontent.com/salilvnair/dui/main/media/sections/playground.gif)
+

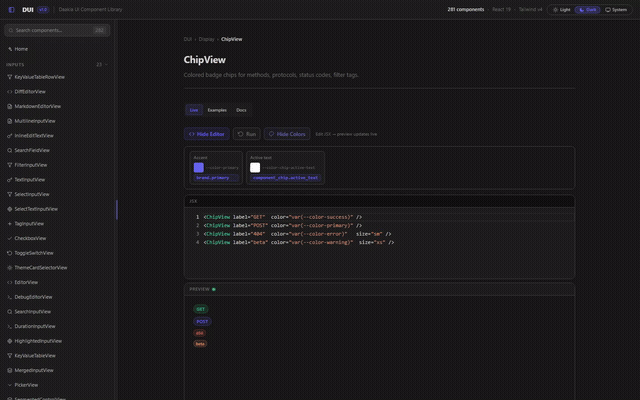

+### Every colour is a variable
+
+Theming is not a config file you rebuild — it is a CSS custom property. The
+showcase exposes the variables each component reads, so you can drag one and
+watch what it touches before writing a line.
+
+![Dragging the accent variable and the chips repainting as it moves](https://raw.githubusercontent.com/salilvnair/dui/main/media/sections/theming.gif)
+
+### Light and dark, both first-class
+
+Not a dark theme with a light afterthought. Every token is defined for both
+grounds, and the switch is a `data-theme` attribute.
+
+![The same panel on the light ground and back to dark](https://raw.githubusercontent.com/salilvnair/dui/main/media/sections/themes.gif)
+
+<details>
+<summary>The catalog on the light ground</summary>
+
+Every group has a light contact sheet too, in
+[`media/sheets-light/`](https://github.com/salilvnair/dui/tree/main/media/sheets-light) —
+the same components, the same captures, the other theme. Two of them:
+

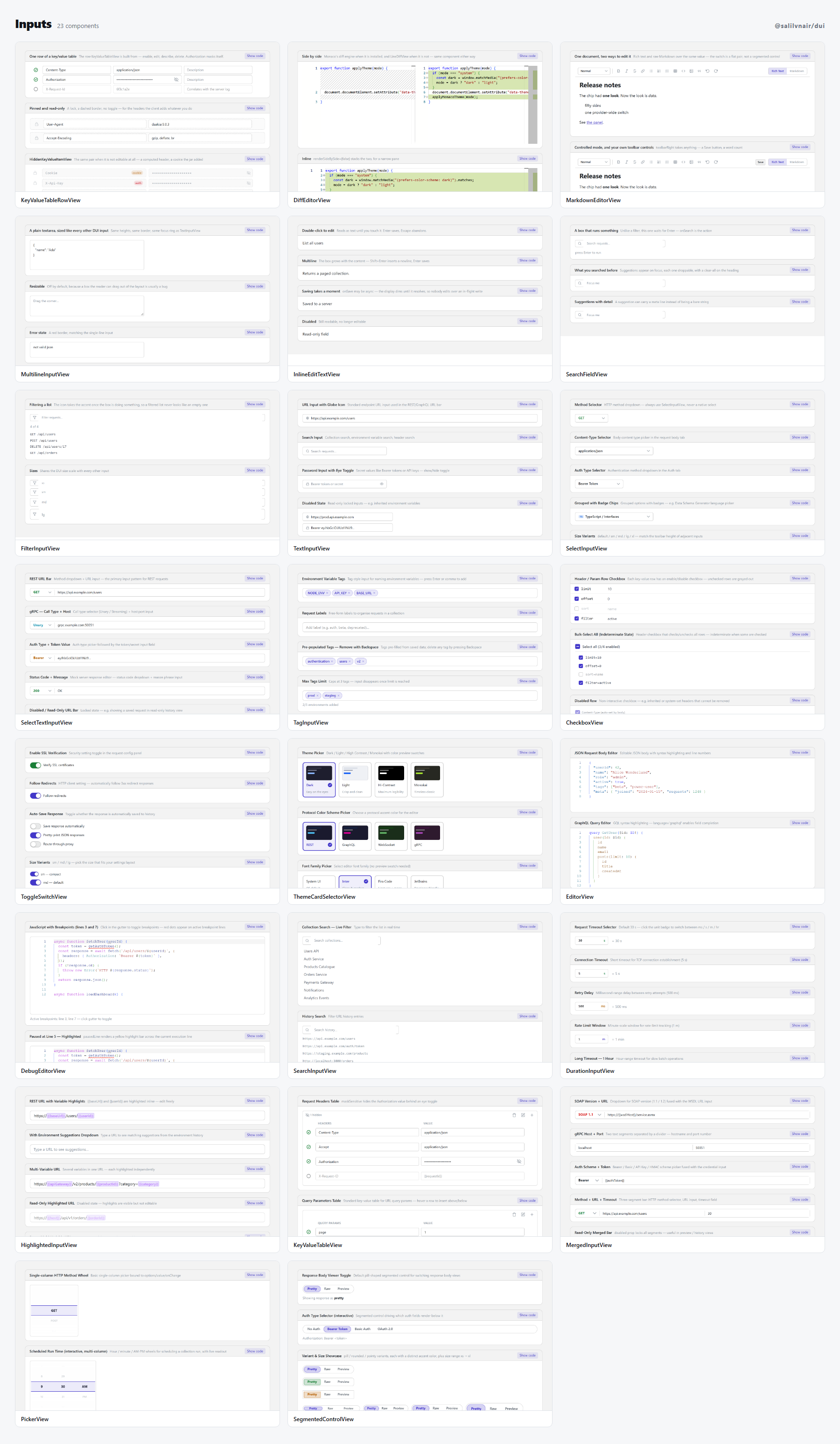

+![Inputs, on the light ground](https://raw.githubusercontent.com/salilvnair/dui/main/media/sheets-light/inputs.png)
+

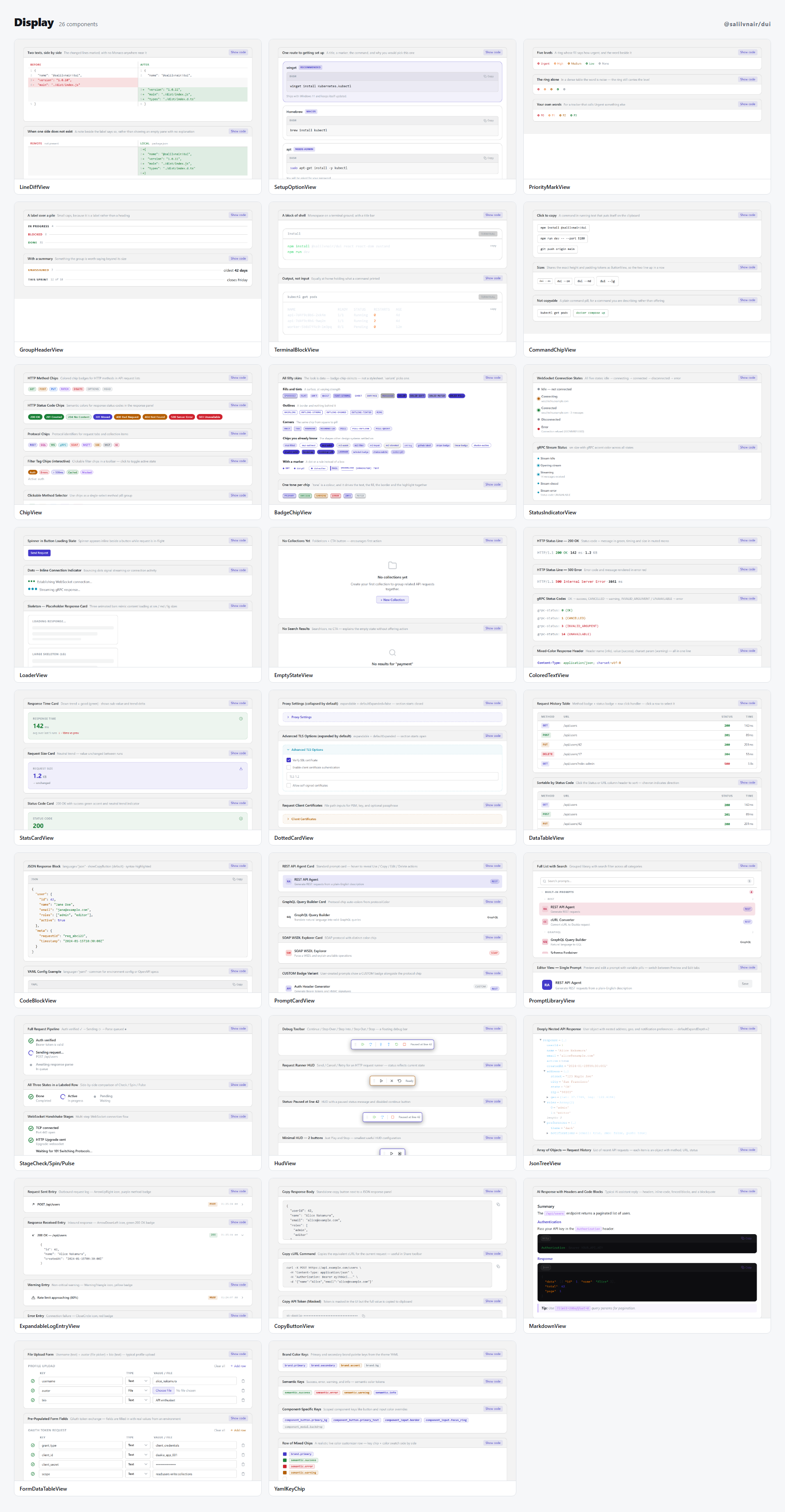

+![Display, on the light ground](https://raw.githubusercontent.com/salilvnair/dui/main/media/sheets-light/display.png)
+
+Or add `?theme=light` to any component's address in the
+[live demo](https://salilvnair.com/framework/dui/#/chips?theme=light).
+
+</details>
+

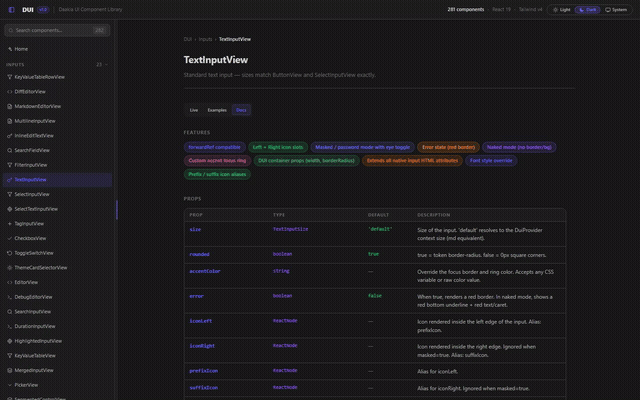

+### Every prop documented, in the app
+
+Each component carries its own props table — name, type, default, and what it
+does — beside the examples rather than in a separate site that drifts.
+
+![Scrolling the props table for TextInputView](https://raw.githubusercontent.com/salilvnair/dui/main/media/sections/docs.gif)
+
+### And the rest of it
+
+<table>
+<tr>
+<td width="50%">
+

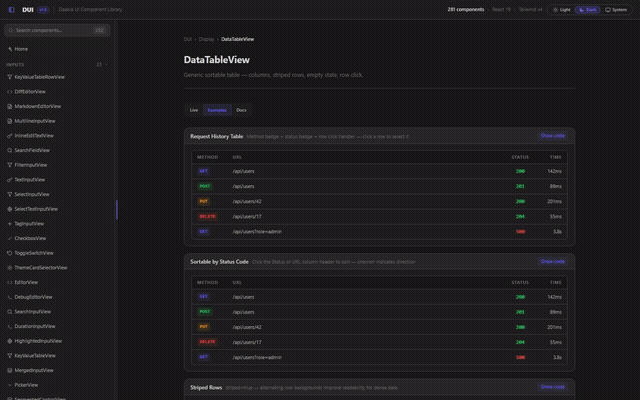

+**Tables and data grids** — sorting, sticky headers, editable cells, column
+visibility, pagination, virtualisation.
+
+![A data table sorting, with the source shown under it](https://raw.githubusercontent.com/salilvnair/dui/main/media/sections/data.gif)
+
+</td>
+<td width="50%">
+

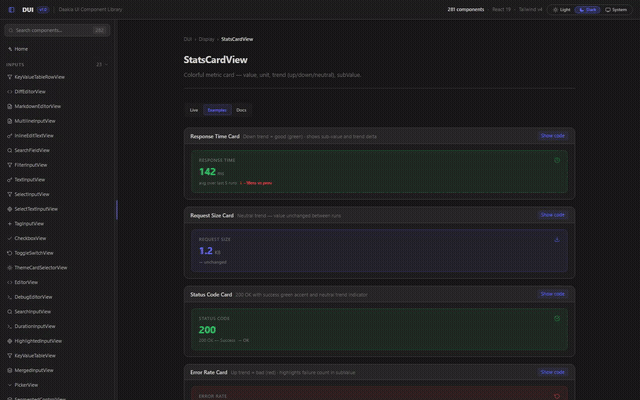

+**Dashboards** — stat cards, sparklines, heatmap calendars, a kanban board.
+
+![Stat cards, a sparkline, a heatmap calendar and a kanban board](https://raw.githubusercontent.com/salilvnair/dui/main/media/sections/dashboards.gif)
+
+</td>
+</tr>
+<tr>
+<td width="50%">
+

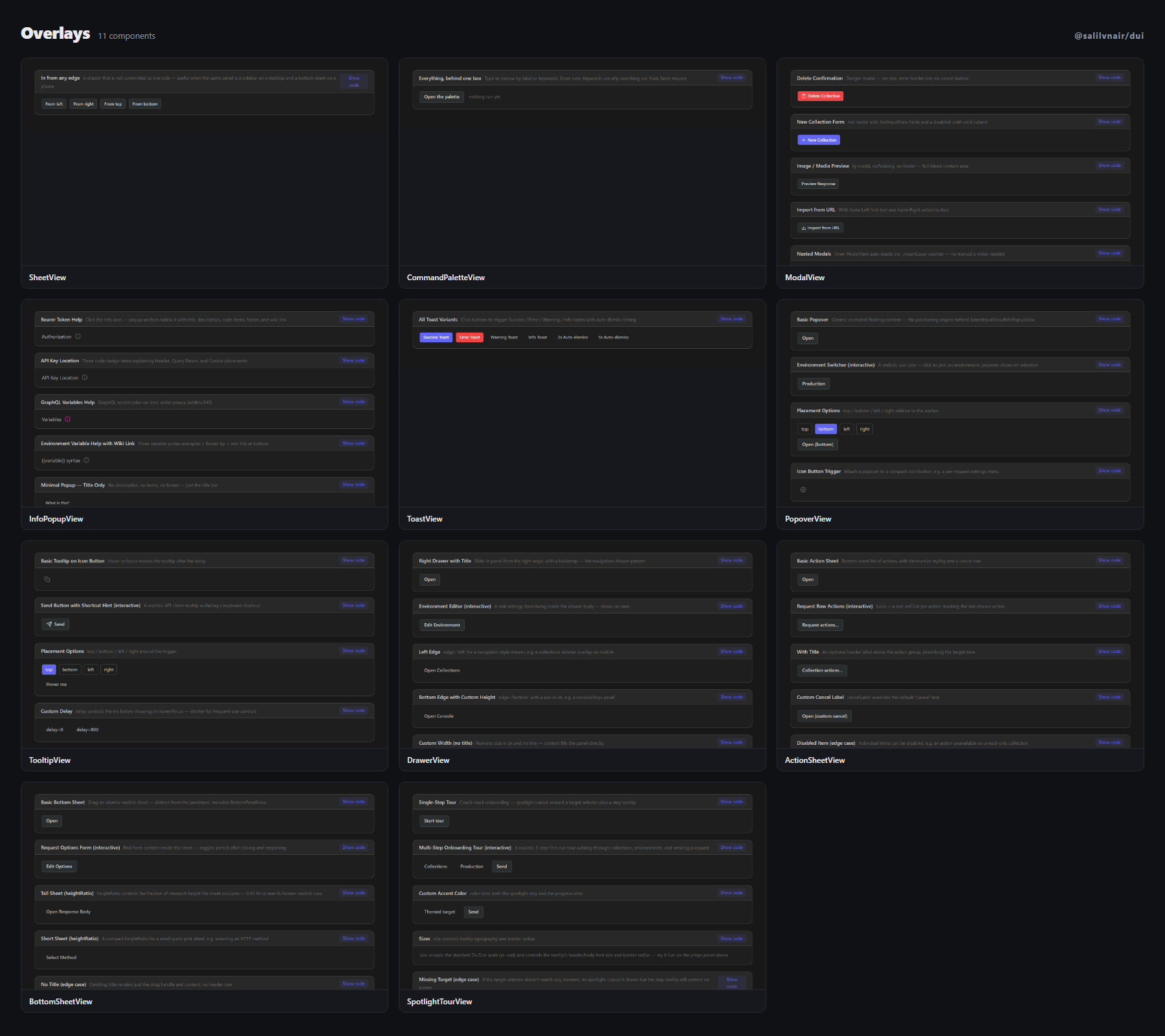

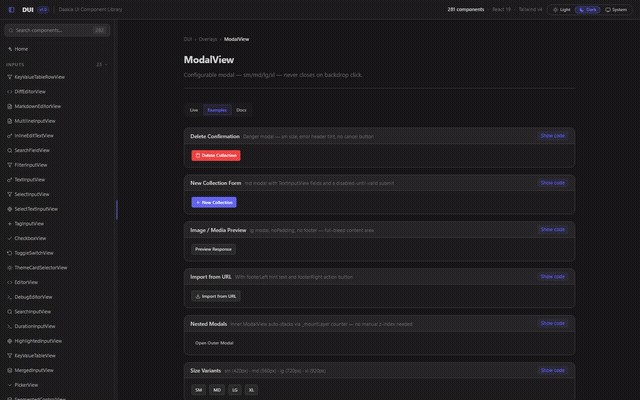

+**Overlays** — modals that stack themselves, drawers off any edge, popovers,
+tooltips, action sheets, a spotlight tour.
+
+![A modal opening over the examples and closing on Escape](https://raw.githubusercontent.com/salilvnair/dui/main/media/sections/overlays.gif)
+
+</td>
+<td width="50%">
+

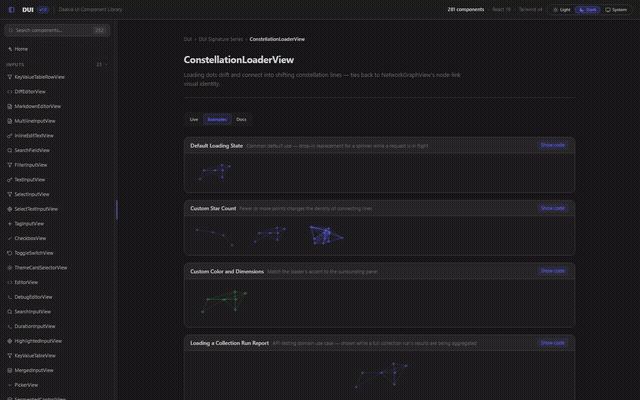

+**Motion** — loaders, streaming text, a command orb, and the signature series.
+
+![A constellation loader, a breathing loader, streaming text and a command orb](https://raw.githubusercontent.com/salilvnair/dui/main/media/sections/motion.gif)
+
+</td>
+</tr>
+</table>
+

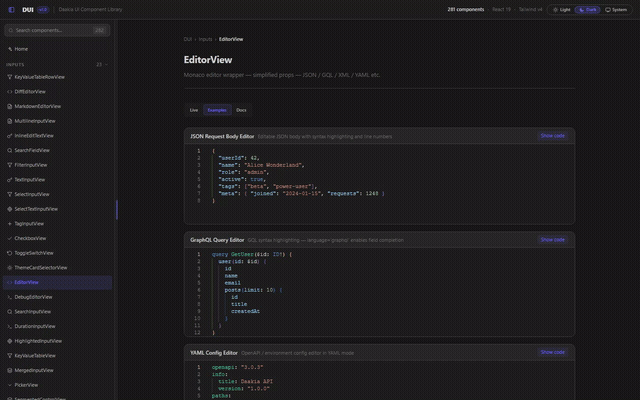

+**The editor**, with Monaco installed or without it — see
+[Monaco is optional](#the-code-editor--monaco-is-optional).
+
+![EditorView with Monaco, and the plain-text fallback beside it](https://raw.githubusercontent.com/salilvnair/dui/main/media/sections/editor.gif)
+

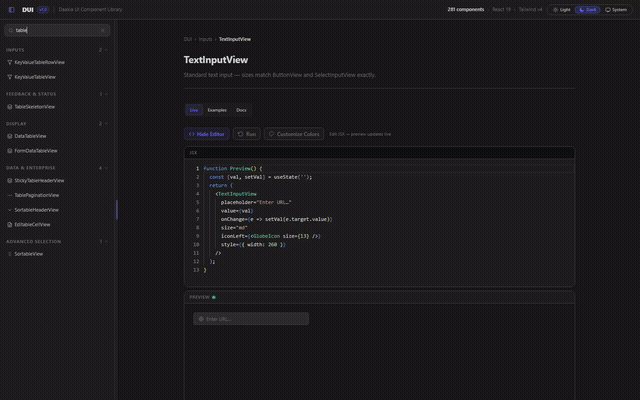

+**All 281 of them, searchable** — the showcase's sidebar is the fastest way to
+find the component you half-remember.
+
+![Searching the sidebar for "table", then for "picker"](https://raw.githubusercontent.com/salilvnair/dui/main/media/sections/catalog.gif)
+
+---

 ## Component catalog

+<!-- catalog:start -->
+
+<!-- Generated by `npm run catalog` from media/components.dark.json — do not edit by hand. -->
+
+**281 components** across 18 groups.
+Every name links to that component running in the live demo; every group opens to a
+contact sheet and a table of what is in it.
+
 <details>

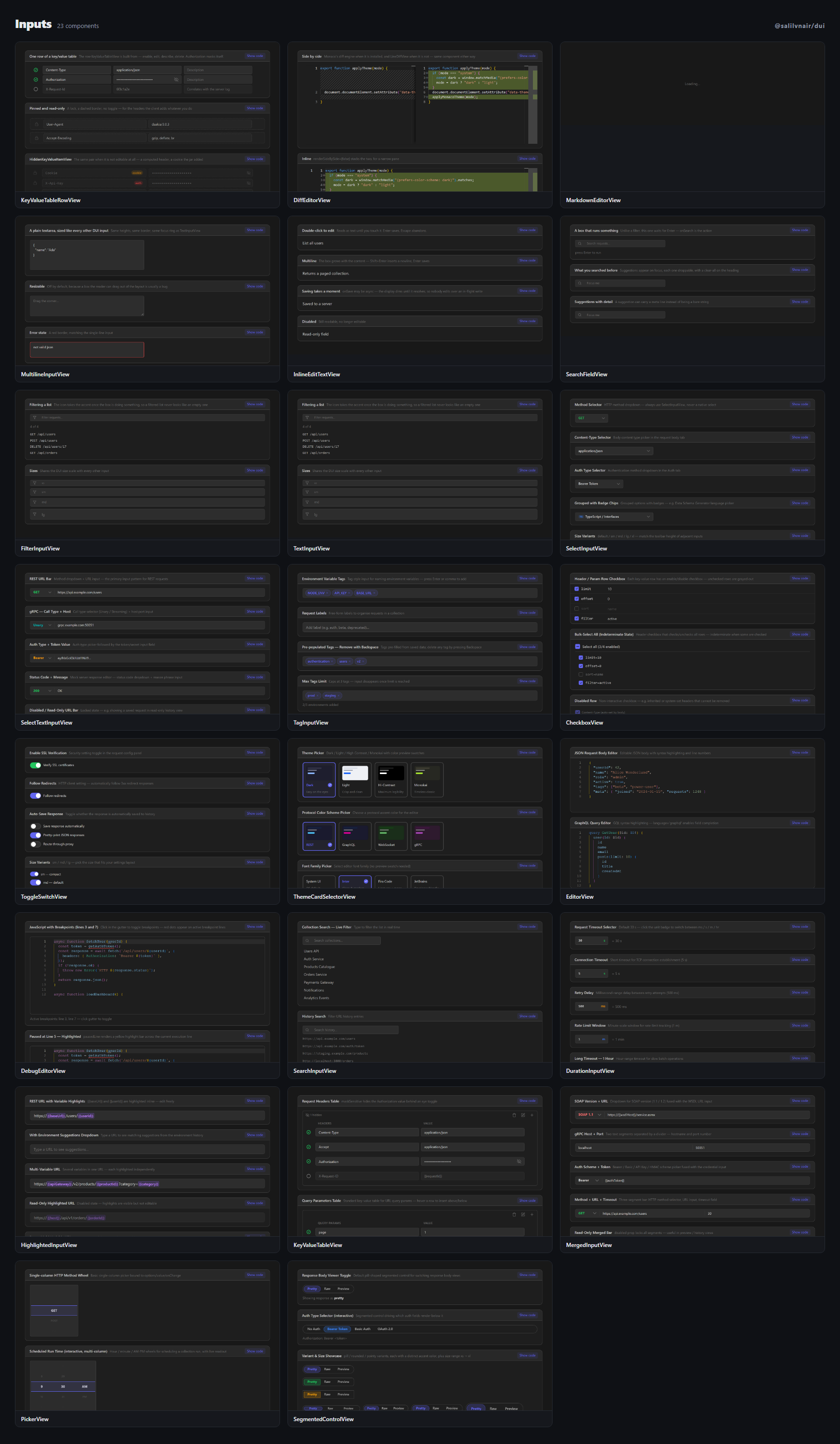

-<summary><b>Inputs</b> (14)</summary>
+<summary><b>Inputs</b> (23)</summary>
+
+![Inputs — KeyValueTableRowView, DiffEditorView, MarkdownEditorView, MultilineInputView, InlineEditTextView, SearchFieldView, FilterInputView, TextInputView, SelectInputView, SelectTextInputView, TagInputView, CheckboxView, ToggleSwitchView, ThemeCardSelectorView, EditorView, DebugEditorView, SearchInputView, DurationInputView, HighlightedInputView, KeyValueTableView, MergedInputView, PickerView, SegmentedControlView](https://raw.githubusercontent.com/salilvnair/dui/main/media/sheets/inputs.png)
+
+| Component | What it is |
+| --- | --- |
+| [`KeyValueTableRowView`](https://salilvnair.com/framework/dui/#/keyvaluerow) | The row KeyValueTableView is built from, exported on its own — and HiddenKeyValueItemView, the same pair when it cann… |
+| [`DiffEditorView`](https://salilvnair.com/framework/dui/#/diffeditor) | The diff twin of EditorView — a line diff out of the box, upgrading itself to Monaco the moment a consumer opts in. |
+| [`MarkdownEditorView`](https://salilvnair.com/framework/dui/#/markdowneditor) | A rich editor over one Markdown document — rich text and raw source over the same value, and dialogs the host cannot… |
+| [`MultilineInputView`](https://salilvnair.com/framework/dui/#/multilineinput) | The textarea wearing the same clothes as the rest of the input family — same heights, border and focus ring. |
+| [`InlineEditTextView`](https://salilvnair.com/framework/dui/#/inlineedittext) | A field that does not look like one — reads as text until double-clicked, and its onSave may be async. |
+| [`SearchFieldView`](https://salilvnair.com/framework/dui/#/searchfield) | The filter box's sibling that runs something — Enter acts, and it offers what you searched before. |
+| [`FilterInputView`](https://salilvnair.com/framework/dui/#/filterinput) | The box above a list that narrows it — acts on every keystroke, and keeps saying it is a filter rather than a search. |
+| [`TextInputView`](https://salilvnair.com/framework/dui/#/textinput) | Standard text input — sizes match ButtonView and SelectInputView exactly. |
+| [`SelectInputView`](https://salilvnair.com/framework/dui/#/selectinput) | Portal dropdown with keyboard nav — replaces all StyledDropdown usages. |
+| [`SelectTextInputView`](https://salilvnair.com/framework/dui/#/selecttextinput) | Combined method selector + URL input in one bordered pill — URL bar pattern. |
+| [`TagInputView`](https://salilvnair.com/framework/dui/#/taginput) | Multi-value tag input — Enter or comma to add, Backspace to remove. |
+| [`CheckboxView`](https://salilvnair.com/framework/dui/#/checkbox) | Checkbox — checked / unchecked / indeterminate / disabled — with accent colors. |
+| [`ToggleSwitchView`](https://salilvnair.com/framework/dui/#/toggle) | On/off toggle with sm/md/lg sizes, accent color, label positions, disabled state. |
+| [`ThemeCardSelectorView`](https://salilvnair.com/framework/dui/#/themecardselector) | Card-based theme picker with color swatch previews and checkmark selection. |
+| [`EditorView`](https://salilvnair.com/framework/dui/#/editor) | Monaco editor wrapper — simplified props — JSON / GQL / XML / YAML etc. |
+| [`DebugEditorView`](https://salilvnair.com/framework/dui/#/debugeditor) | Monaco editor with breakpoint gutter, paused-line highlight, and variable-hover tooltips. |
+| [`SearchInputView`](https://salilvnair.com/framework/dui/#/searchinput) | URL-bar style search input with optional prefix icon and suffix clear button. |
+| [`DurationInputView`](https://salilvnair.com/framework/dui/#/durationinput) | Number input with ms / s / m / hr unit selector dropdown. |
+| [`HighlightedInputView`](https://salilvnair.com/framework/dui/#/highlightedinput) | {{variable}} highlighted URL input with autocomplete dropdown — the Daakia URL bar. |
+| [`KeyValueTableView`](https://salilvnair.com/framework/dui/#/keyvaluetable) | KV table — toolbar · add/delete/bulk-clear · enable toggle · maskSensitive · autocompleteKeys · showDescription · pin… |
+| [`MergedInputView`](https://salilvnair.com/framework/dui/#/mergedinput) | Unified single-border input bar — merge select dropdowns, text inputs, inline buttons, and dividers into one pill. |
+| [`PickerView`](https://salilvnair.com/framework/dui/#/picker) | Scrollable wheel picker — single column or multi-column (hour/min/AM-PM) — momentum scroll, snap, and depth-fade anim… |
+| [`SegmentedControlView`](https://salilvnair.com/framework/dui/#/segmentedcontrol) | Pill-shaped segmented control — solid sliding indicator with a springy bounce transition — pill / rounded / pointy sh… |

-`TextInputView` · `MultilineInputView` · `SelectInputView` ·
-`SelectTextInputView` · `SegmentedControlView` · `TagInputView` ·
-`CheckboxView` · `ToggleSwitchView` · `SliderView` · `DurationInputView` ·
-`HighlightedInputView` · `SearchInputView` · `KeyValueTableView` ·
-`MergedInputView`
+</details>
+
+<details>

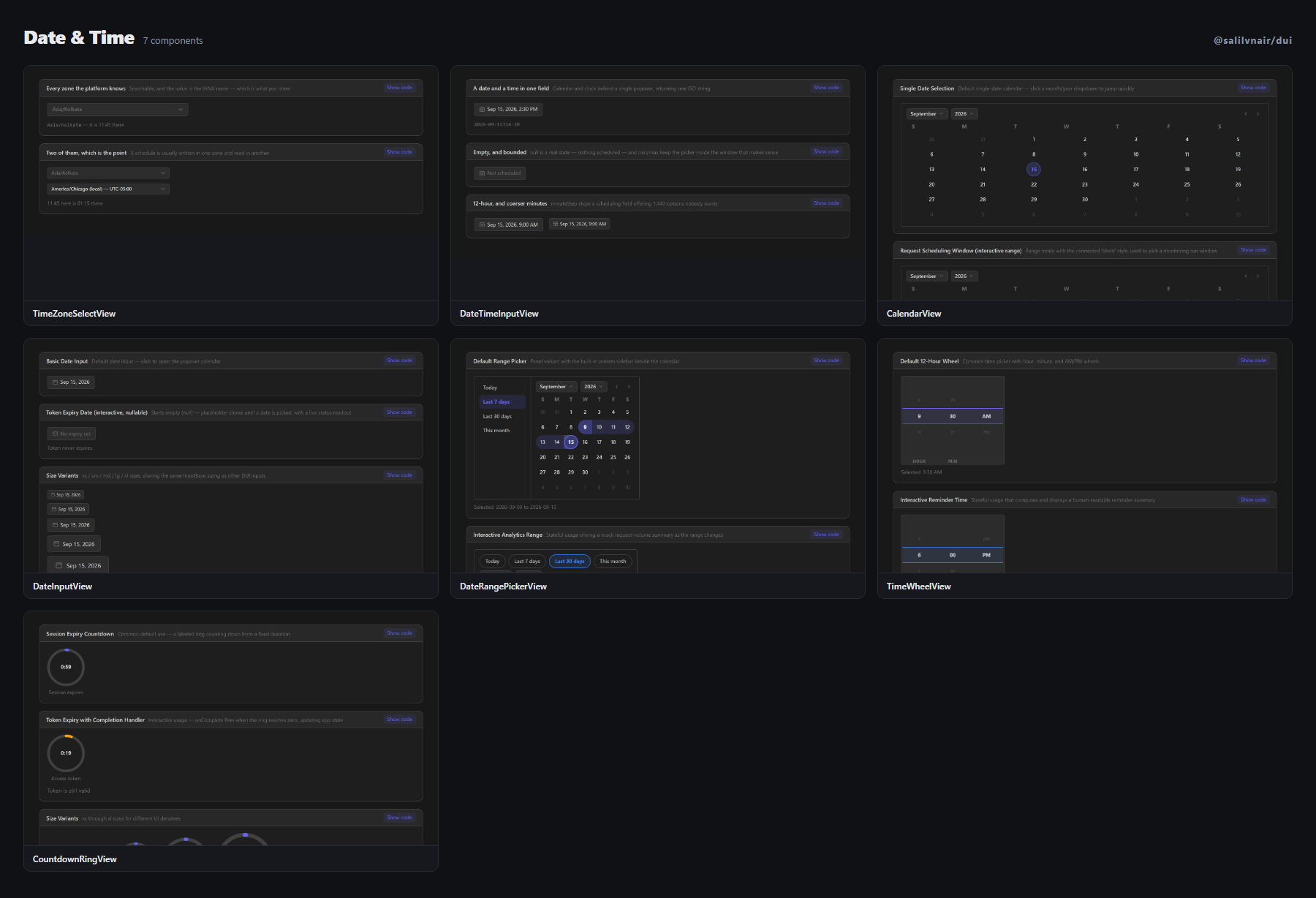

+<summary><b>Date & Time</b> (7)</summary>
+
+![Date & Time — TimeZoneSelectView, DateTimeInputView, CalendarView, DateInputView, DateRangePickerView, TimeWheelView, CountdownRingView](https://raw.githubusercontent.com/salilvnair/dui/main/media/sheets/date-time.png)
+
+| Component | What it is |
+| --- | --- |
+| [`TimeZoneSelectView`](https://salilvnair.com/framework/dui/#/timezoneselect) | Every zone the platform knows, searchable — from the platform rather than a bundled table, so it does not go stale. |
+| [`DateTimeInputView`](https://salilvnair.com/framework/dui/#/datetimeinput) | A date and a time in one field, returning one ISO string — with null as a real state rather than an empty one. |
+| [`CalendarView`](https://salilvnair.com/framework/dui/#/calendar) | Month grid calendar — single / range / multi select, min/max bounds, animated month transitions. |
+| [`DateInputView`](https://salilvnair.com/framework/dui/#/dateinput) | Text field trigger + CalendarView popover — the standard date field pattern. |
+| [`DateRangePickerView`](https://salilvnair.com/framework/dui/#/daterangepicker) | Range calendar + quick presets (Today / Last 7 days / Last 30 days / This month). |
+| [`TimeWheelView`](https://salilvnair.com/framework/dui/#/timewheel) | Prop-driven wrapper over PickerView columns for hour/minute/AM-PM — 12h or 24h mode, configurable minute step. |
+| [`CountdownRingView`](https://salilvnair.com/framework/dui/#/countdownring) | Circular countdown ring + digit readout — target Date or durationSeconds, onComplete callback. |

 </details>

 <details>
-<summary><b>Editor / Debug toolkit</b></summary>

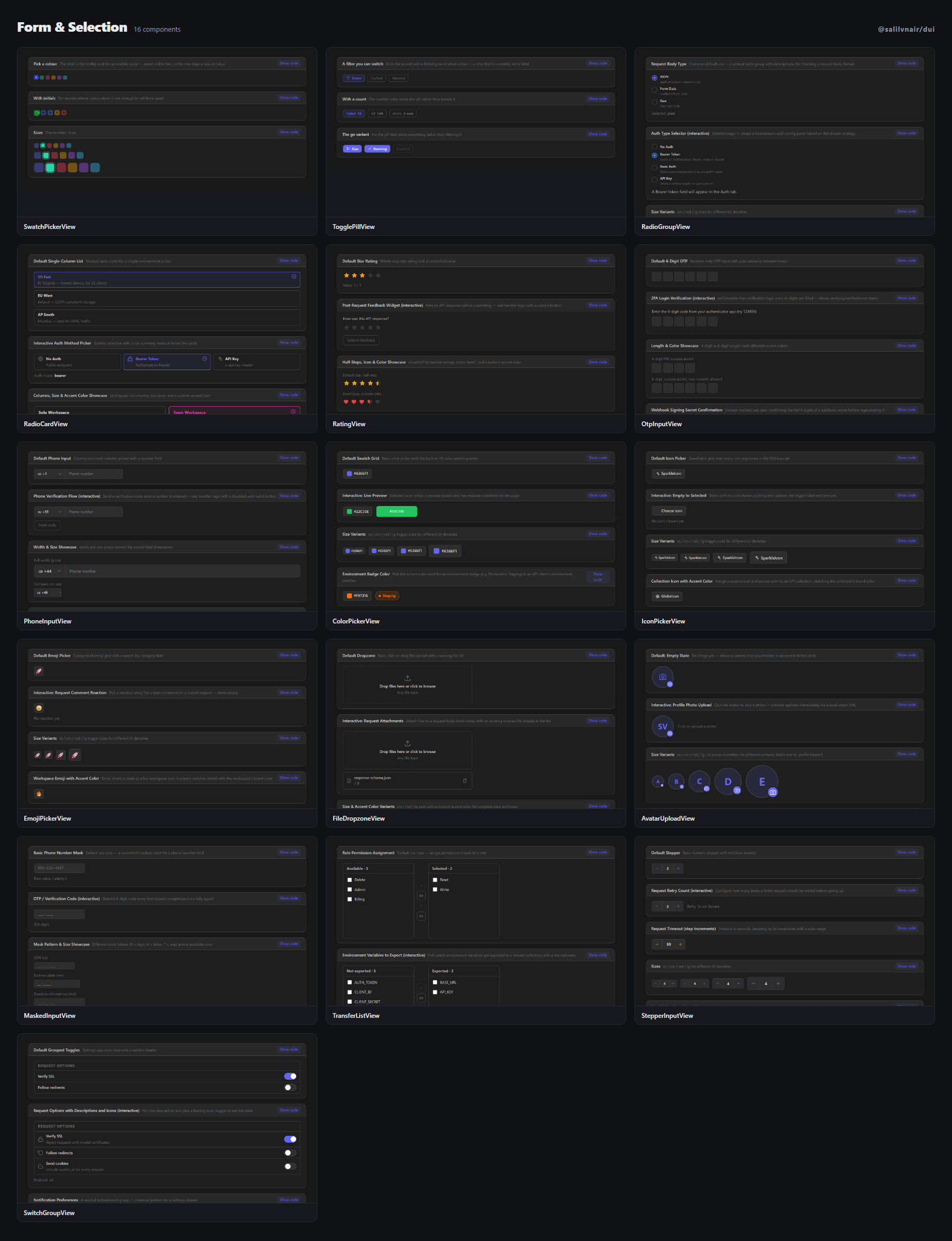

+<summary><b>Form & Selection</b> (16)</summary>
+
+![Form & Selection — SwatchPickerView, TogglePillView, RadioGroupView, RadioCardView, RatingView, OtpInputView, PhoneInputView, ColorPickerView, IconPickerView, EmojiPickerView, FileDropzoneView, AvatarUploadView, MaskedInputView, TransferListView, StepperInputView, SwitchGroupView](https://raw.githubusercontent.com/salilvnair/dui/main/media/sheets/form-selection.png)
+
+| Component | What it is |
+| --- | --- |
+| [`SwatchPickerView`](https://salilvnair.com/framework/dui/#/swatchpicker) | Choosing between things identified by colour. |
+| [`TogglePillView`](https://salilvnair.com/framework/dui/#/togglepill) | A chip that is a control — the pill above a list that switches one facet on and off, with an optional count inside it. |
+| [`RadioGroupView`](https://salilvnair.com/framework/dui/#/radiogroup) | Radio list with optional descriptions — vertical or horizontal layout. |
+| [`RadioCardView`](https://salilvnair.com/framework/dui/#/radiocard) | Big selectable cards — plan pickers, mode selectors — grid layout via `columns`. |
+| [`RatingView`](https://salilvnair.com/framework/dui/#/rating) | Star or heart rating input — half-step precision, hover preview, read-only mode. |
+| [`OtpInputView`](https://salilvnair.com/framework/dui/#/otpinput) | Auto-advance OTP/PIN boxes — paste splits across cells, onComplete callback. |
+| [`PhoneInputView`](https://salilvnair.com/framework/dui/#/phoneinput) | Country-code select + number field in one bordered pill. |
+| [`ColorPickerView`](https://salilvnair.com/framework/dui/#/colorpicker) | Swatch grid + native hue canvas + hex input, popover trigger. |
+| [`IconPickerView`](https://salilvnair.com/framework/dui/#/iconpicker) | Searchable grid over every DUI icon — popover trigger. |
+| [`EmojiPickerView`](https://salilvnair.com/framework/dui/#/emojipicker) | Categorized emoji grid with search — popover trigger. |
+| [`FileDropzoneView`](https://salilvnair.com/framework/dui/#/filedropzone) | Drag-drop upload zone — per-file progress bars, remove action. |
+| [`AvatarUploadView`](https://salilvnair.com/framework/dui/#/avatarupload) | Circular avatar preview with a camera-overlay upload button. |
+| [`MaskedInputView`](https://salilvnair.com/framework/dui/#/maskedinput) | Pattern-masked text input — `9`=digit, `A`=letter, `*`=any, literal separators auto-insert. |
+| [`TransferListView`](https://salilvnair.com/framework/dui/#/transferlist) | Dual listbox — available ↔ selected — move one or move-all controls. |
+| [`StepperInputView`](https://salilvnair.com/framework/dui/#/stepperinput) | Numeric +/- stepper — iOS UIStepper pattern — min/max/step. |
+| [`SwitchGroupView`](https://salilvnair.com/framework/dui/#/switchgroup) | Settings.app-style grouped toggle rows — section header, per-row description, disabled state. |

-`EditorView` · `DebugEditorView` · `DiffEditorView` · `DebugView` — see
-[Monaco is optional](#the-code-editor--monaco-is-optional) before adopting these.
+</details>
+
+<details>
+<summary><b>Feedback & Status</b> (14)</summary>
+

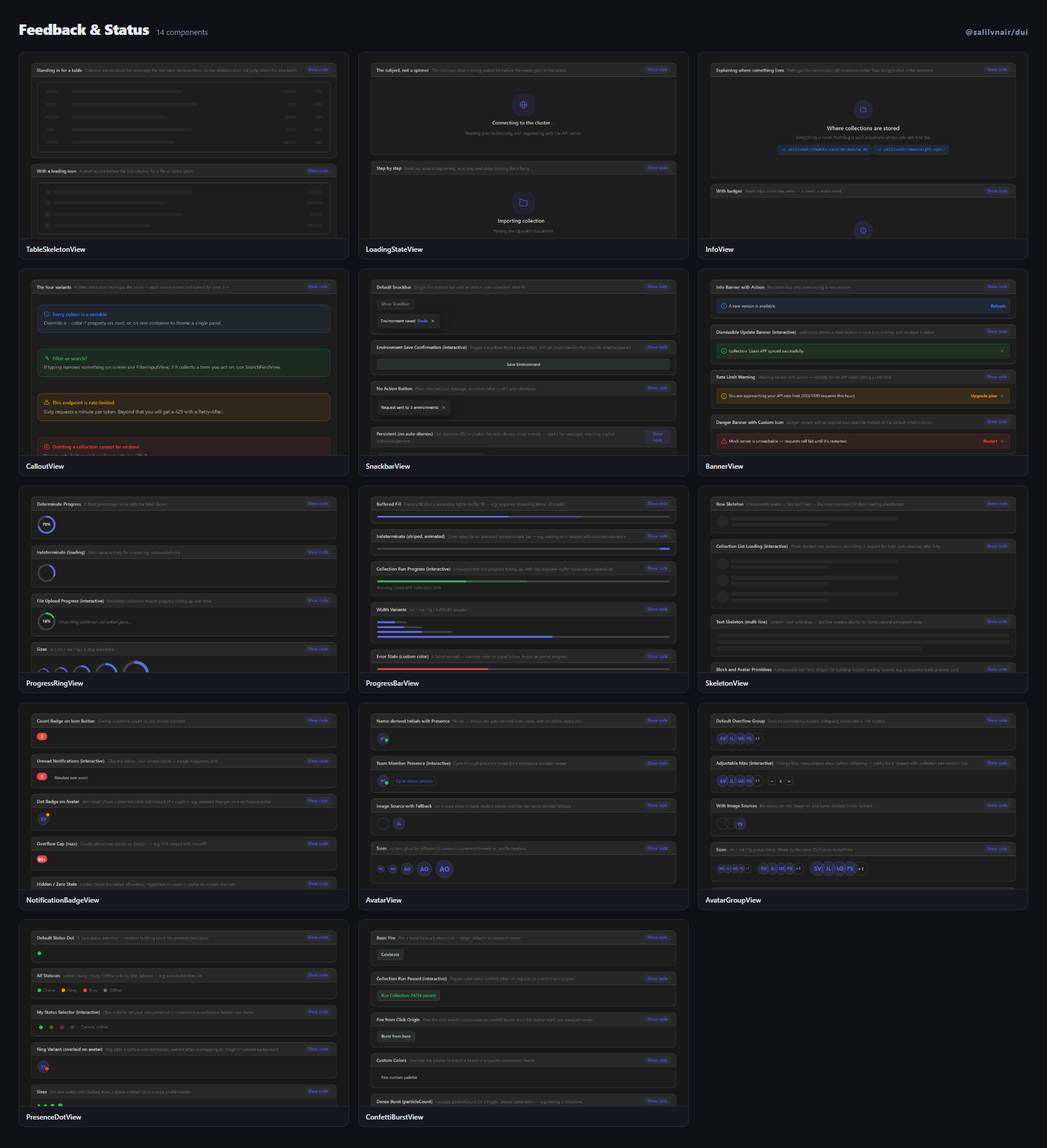

+![Feedback & Status — TableSkeletonView, LoadingStateView, InfoView, CalloutView, SnackbarView, BannerView, ProgressRingView, ProgressBarView, SkeletonView, NotificationBadgeView, AvatarView, AvatarGroupView, PresenceDotView, ConfettiBurstView](https://raw.githubusercontent.com/salilvnair/dui/main/media/sheets/feedback-status.png)
+
+| Component | What it is |
+| --- | --- |
+| [`TableSkeletonView`](https://salilvnair.com/framework/dui/#/tableskeleton) | The placeholder a table shows while its rows load — declared with the same column widths, so nothing jumps when the d… |
+| [`LoadingStateView`](https://salilvnair.com/framework/dui/#/loadingstate) | The screen shown while something is fetched — the subject drawn large, and a component that says so itself once the w… |
+| [`InfoView`](https://salilvnair.com/framework/dui/#/infoview) | An explanatory block for settings and empty states — what this is, and where on disk it lives, with paths as pills ra… |
+| [`CalloutView`](https://salilvnair.com/framework/dui/#/callout) | The titled block that interrupts a page to say something the reader needs — info, tip, warning, danger. |
+| [`SnackbarView`](https://salilvnair.com/framework/dui/#/snackbar) | Single-line bottom bar + action, auto-dismiss timer pauses on hover — distinct from the stacked-corner ToastView. |
+| [`BannerView`](https://salilvnair.com/framework/dui/#/banner) | Persistent dismissible top strip — info / success / warning / danger variants. |
+| [`ProgressRingView`](https://salilvnair.com/framework/dui/#/progressring) | Circular determinate/indeterminate progress — distinct from GaugeView (metric gauge). |
+| [`ProgressBarView`](https://salilvnair.com/framework/dui/#/progressbar) | Linear progress — buffer fill and striped-indeterminate variants. |
+| [`SkeletonView`](https://salilvnair.com/framework/dui/#/skeleton) | Composable shimmer primitives — text / block / avatar / row — for custom loading layouts. |
+| [`NotificationBadgeView`](https://salilvnair.com/framework/dui/#/notificationbadge) | Dot/count badge overlay anchor for icons and avatars. |
+| [`AvatarView`](https://salilvnair.com/framework/dui/#/avatar) | Image or initials fallback, with an optional presence-status dot. |
+| [`AvatarGroupView`](https://salilvnair.com/framework/dui/#/avatargroup) | Stacked overlapping avatars with a "+N" overflow bubble. |
+| [`PresenceDotView`](https://salilvnair.com/framework/dui/#/presencedot) | Tiny online/away/busy/offline status primitive. |
+| [`ConfettiBurstView`](https://salilvnair.com/framework/dui/#/confettiburst) | Canvas confetti burst triggered imperatively via ref — fire() from any event handler. |

 </details>

 <details>
-<summary><b>Buttons</b> (4)</summary>
+<summary><b>Buttons</b> (8)</summary>
+

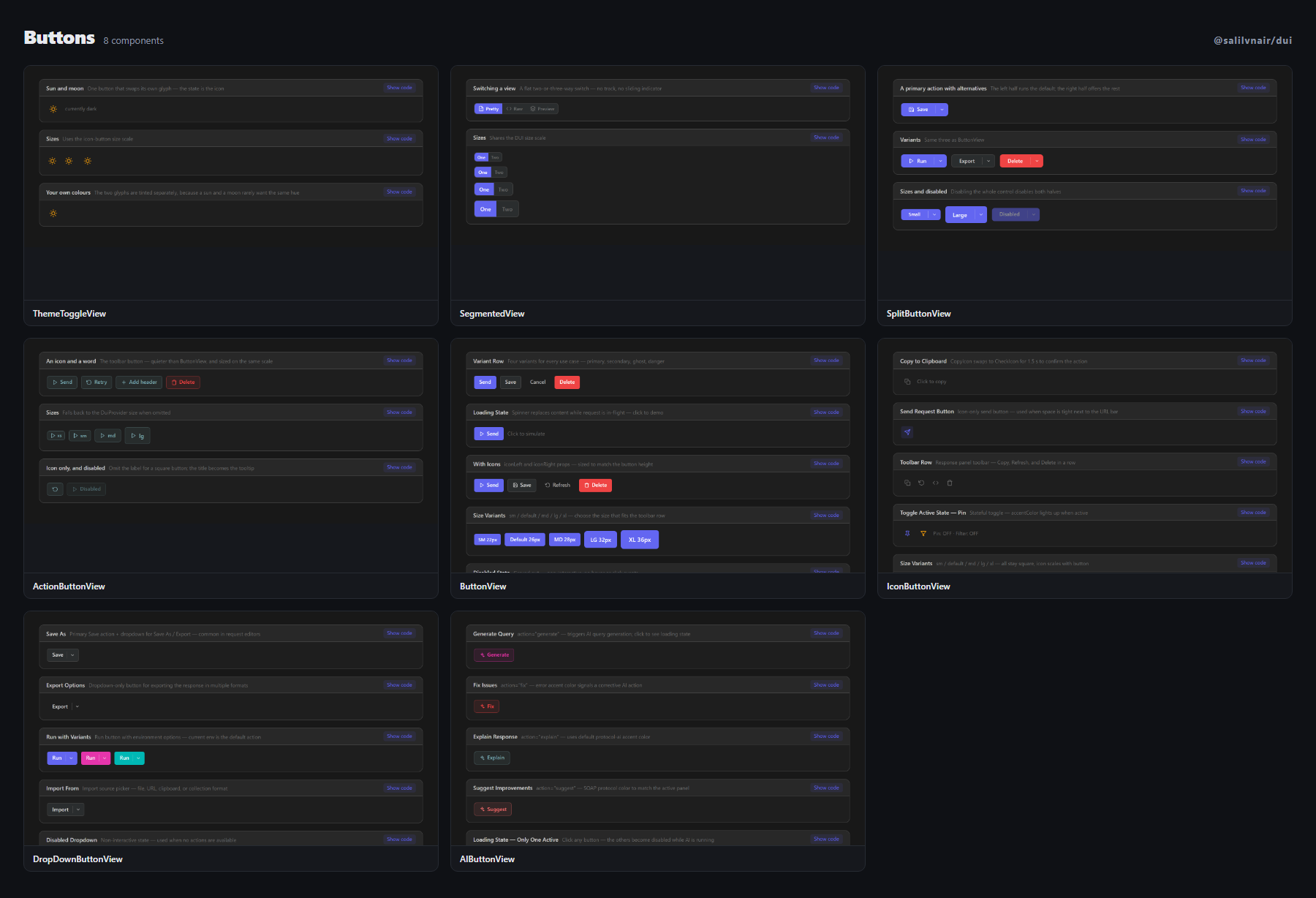

+![Buttons — ThemeToggleView, SegmentedView, SplitButtonView, ActionButtonView, ButtonView, IconButtonView, DropDownButtonView, AIButtonView](https://raw.githubusercontent.com/salilvnair/dui/main/media/sheets/buttons.png)

-`ButtonView` · `IconButtonView` · `DropDownButtonView` · `SplitButtonView` ·
-`SegmentedView` · `AIButtonView`
+| Component | What it is |
+| --- | --- |
+| [`ThemeToggleView`](https://salilvnair.com/framework/dui/#/themetoggle) | One button, two states — the sun and the moon tinted independently, for a header with no room for three segments. |
+| [`SegmentedView`](https://salilvnair.com/framework/dui/#/segmented) | The flat cousin of SegmentedControlView — no track, no sliding indicator, for switching a view rather than operating… |
+| [`SplitButtonView`](https://salilvnair.com/framework/dui/#/splitbutton) | A default action and its close relatives in one control — Save, with Save As and Export behind the chevron. |
+| [`ActionButtonView`](https://salilvnair.com/framework/dui/#/actionbutton) | The toolbar button — quieter than ButtonView, louder than IconButtonView, and sized on the same scale as both. |
+| [`ButtonView`](https://salilvnair.com/framework/dui/#/button) | Standard button — primary / secondary / ghost / danger — all sizes. |
+| [`IconButtonView`](https://salilvnair.com/framework/dui/#/iconbutton) | Square icon-only buttons — ghost / filled — toggle support — all sizes. |
+| [`DropDownButtonView`](https://salilvnair.com/framework/dui/#/dropdownbutton) | Split button — primary action + chevron dropdown — Save as, Export as, etc. |
+| [`AIButtonView`](https://salilvnair.com/framework/dui/#/aibutton) | AI action button — generate · fuzz · explain · fix · ask · suggest — loading state. |

 </details>

 <details>
-<summary><b>Navigation</b> (5)</summary>
+<summary><b>Navigation</b> (11)</summary>
+

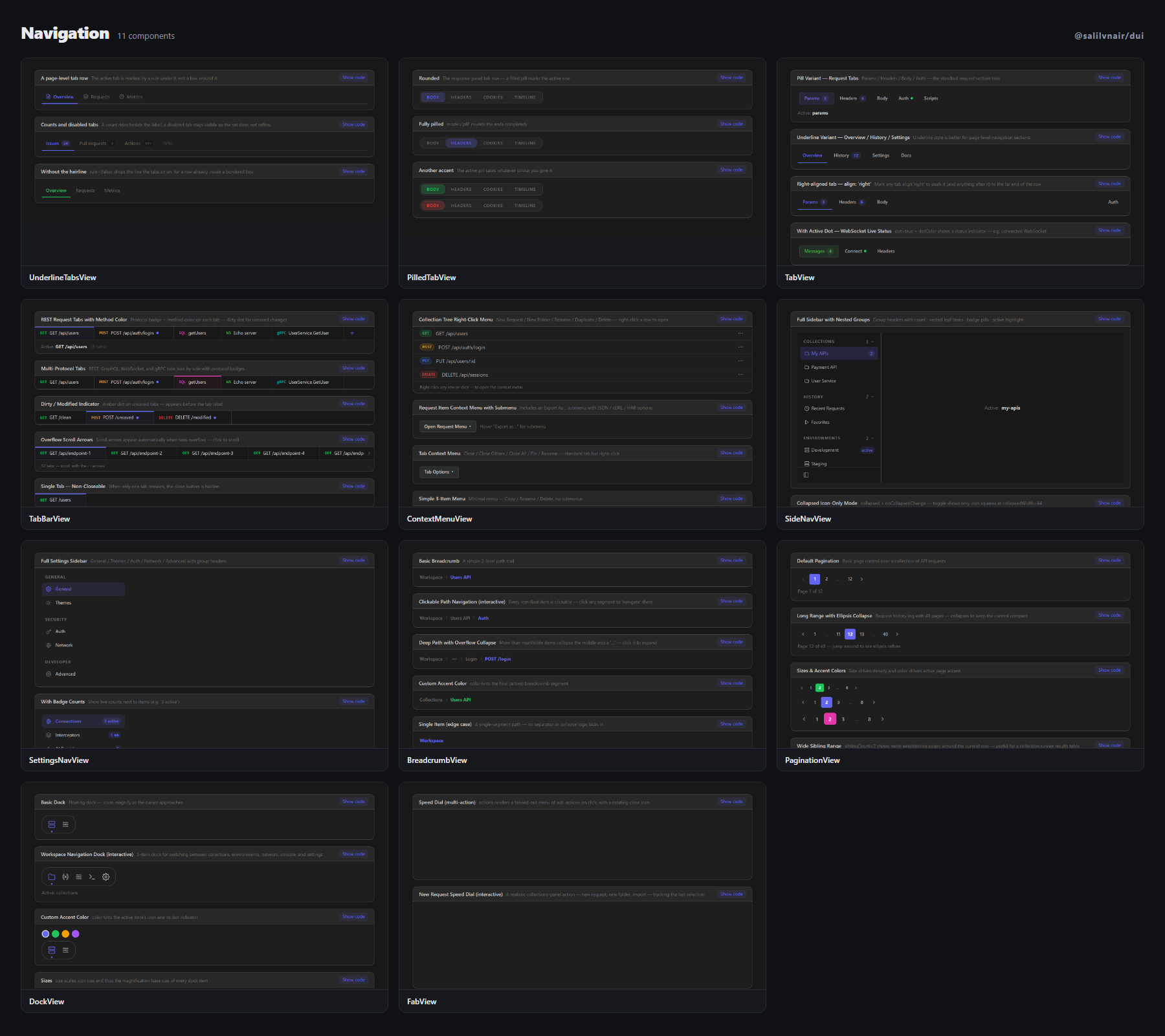

+![Navigation — UnderlineTabsView, PilledTabView, TabView, TabBarView, ContextMenuView, SideNavView, SettingsNavView, BreadcrumbView, PaginationView, DockView, FabView](https://raw.githubusercontent.com/salilvnair/dui/main/media/sheets/navigation.png)
+
+| Component | What it is |
+| --- | --- |
+| [`UnderlineTabsView`](https://salilvnair.com/framework/dui/#/underlinetabs) | The page-level tab row — active marked by a rule rather than a box, with counts beside the labels. |
+| [`PilledTabView`](https://salilvnair.com/framework/dui/#/pilledtab) | A compact tab row for inside a panel — a filled pill marks the active one, rounded or fully pilled. |
+| [`TabView`](https://salilvnair.com/framework/dui/#/tabs) | pill · underline variants — sliding indicator, badges, dots — all with accentColor. |
+| [`TabBarView`](https://salilvnair.com/framework/dui/#/tabbar) | Editor-style protocol tab bar — store-free, drag-free, scroll arrows, dirty dot. |
+| [`ContextMenuView`](https://salilvnair.com/framework/dui/#/contextmenu) | Recursive context menu with submenus — portal rendered — collection tree style. |
+| [`SideNavView`](https://salilvnair.com/framework/dui/#/sidenav) | Collapsible left sidebar nav with nested items and icon-only collapse mode. |
+| [`SettingsNavView`](https://salilvnair.com/framework/dui/#/settingsnav) | Settings-style grouped nav with badges, descriptions, active state. |
+| [`BreadcrumbView`](https://salilvnair.com/framework/dui/#/breadcrumb) | Path breadcrumb trail with overflow-collapse into a "…" for long paths. |
+| [`PaginationView`](https://salilvnair.com/framework/dui/#/pagination) | Page number control with ellipsis collapse for long ranges. |
+| [`DockView`](https://salilvnair.com/framework/dui/#/dock) | Floating icon dock — icons magnify as the cursor approaches. |
+| [`FabView`](https://salilvnair.com/framework/dui/#/fab) | Floating action button — standard, extended (with label), or speed-dial with sub-actions. |

-`TabView` · `TabBarView` · `PilledTabView` · `ContextMenuView` ·
-`SideNavView` · `SettingsNavView`
+</details>
+
+<details>
+<summary><b>Display</b> (26)</summary>
+
+![Display — LineDiffView, SetupOptionView, PriorityMarkView, GroupHeaderView, TerminalBlockView, CommandChipView, ChipView, BadgeChipView, StatusIndicatorView, LoaderView, EmptyStateView, ColoredTextView, StatsCardView, DottedCardView, DataTableView, CodeBlockView, PromptCardView, PromptLibraryView, StageCheck/Spin/Pulse, HudView, JsonTreeView, ExpandableLogEntryView, CopyButtonView, MarkdownView, FormDataTableView, YamlKeyChip](https://raw.githubusercontent.com/salilvnair/dui/main/media/sheets/display.png)
+
+| Component | What it is |
+| --- | --- |
+| [`LineDiffView`](https://salilvnair.com/framework/dui/#/linediff) | Two texts side by side with the changed lines marked — and no Monaco anywhere near it. |
+| [`SetupOptionView`](https://salilvnair.com/framework/dui/#/setupoption) | One card per route to getting installed — winget, Homebrew, apt — turning a wall of platform instructions into a list… |
+| [`PriorityMarkView`](https://salilvnair.com/framework/dui/#/prioritymark) | The priority marker on an issue row — the ring is the signal, the word is a courtesy that a dense table can drop. |
+| [`GroupHeaderView`](https://salilvnair.com/framework/dui/#/groupheader) | The row above a group in a grouped list or a board column — set as a label, not a heading, so eight of them do not re… |
+| [`TerminalBlockView`](https://salilvnair.com/framework/dui/#/terminalblock) | Commands and their output on a terminal ground — a terminal, whether it holds what you type or what came back. |
+| [`CommandChipView`](https://salilvnair.com/framework/dui/#/commandchip) | A command rendered inline that copies itself when clicked — for the places a reader is about to retype something they… |
+| [`ChipView`](https://salilvnair.com/framework/dui/#/chips) | Colored badge chips for methods, protocols, status codes, filter tags. |
+| [`BadgeChipView`](https://salilvnair.com/framework/dui/#/badgechip) | The pill that labels a thing — fifty skins, chosen by `variant` or set for the whole product by DuiProvider. |
+| [`StatusIndicatorView`](https://salilvnair.com/framework/dui/#/statusindicator) | Connection status dot — idle · connecting · connected · disconnected · error. |
+| [`LoaderView`](https://salilvnair.com/framework/dui/#/loader) | Loading states — spinner · dots · skeleton · pulse · progress-bar. |
+| [`EmptyStateView`](https://salilvnair.com/framework/dui/#/emptystate) | Empty state placeholder with icon, title, message, and optional CTA button. |
+| [`ColoredTextView`](https://salilvnair.com/framework/dui/#/coloredtext) | Token-colored text — HTTP status lines, gRPC codes, SOAP faults. |
+| [`StatsCardView`](https://salilvnair.com/framework/dui/#/statscard) | Colorful metric card — value, unit, trend (up/down/neutral), subValue. |
+| [`DottedCardView`](https://salilvnair.com/framework/dui/#/dottedcard) | Dotted-border expandable card — useful for optional config sections. |
+| [`DataTableView`](https://salilvnair.com/framework/dui/#/datatable) | Generic sortable table — columns, striped rows, empty state, row click. |
+| [`CodeBlockView`](https://salilvnair.com/framework/dui/#/codeblock) | Read-only code block — language label, copy button, optional line numbers. |
+| [`PromptCardView`](https://salilvnair.com/framework/dui/#/promptcard) | Single prompt library row card — colored avatar initials, title, description, protocol badge, CUSTOM badge, hover act… |
+| [`PromptLibraryView`](https://salilvnair.com/framework/dui/#/promptlibrary) | Full Prompt Library panel — list (search + sections + categories) + editor (avatar header + tabs + preview/edit toggl… |
+| [`StageCheck/Spin/Pulse`](https://salilvnair.com/framework/dui/#/stageview) | Step-level status indicators — completed (check), active (spin), pending (pulse) — for multi-step pipelines and reque… |
+| [`HudView`](https://salilvnair.com/framework/dui/#/hudview) | Generic floating draggable toolbar — store-free counterpart of DebugHud. |
+| [`JsonTreeView`](https://salilvnair.com/framework/dui/#/jsontree) | Recursive JSON / object / array value tree with editor-style token colors. |
+| [`ExpandableLogEntryView`](https://salilvnair.com/framework/dui/#/logentry) | Expandable log row with icon, title, colored badge, timestamp chip, and chevron. |
+| [`CopyButtonView`](https://salilvnair.com/framework/dui/#/copybutton) | Icon-only button that copies text to clipboard. |
+| [`MarkdownView`](https://salilvnair.com/framework/dui/#/markdownview) | Renders Markdown (GFM) with syntax-highlighted code blocks, inline code, tables, task lists, blockquotes, and copy-bu… |
+| [`FormDataTableView`](https://salilvnair.com/framework/dui/#/formdatatable) | Multipart/form-data key-value table with file upload support. |
+| [`YamlKeyChip`](https://salilvnair.com/framework/dui/#/yamlkeychip) | Compact type-labeled chip for YAML/JSON keys. |
+
+</details>
+
+<details>
+<summary><b>Overlays</b> (11)</summary>
+
+![Overlays — SheetView, CommandPaletteView, ModalView, InfoPopupView, ToastView, PopoverView, TooltipView, DrawerView, ActionSheetView, BottomSheetView, SpotlightTourView](https://raw.githubusercontent.com/salilvnair/dui/main/media/sheets/overlays.png)
+
+| Component | What it is |
+| --- | --- |
+| [`SheetView`](https://salilvnair.com/framework/dui/#/sheet) | A panel that slides in from any edge — for content that is a sidebar on a wide screen and a bottom sheet on a narrow… |
+| [`CommandPaletteView`](https://salilvnair.com/framework/dui/#/commandpalette) | The Ctrl+K box. |
+| [`ModalView`](https://salilvnair.com/framework/dui/#/modal) | Configurable modal — sm/md/lg/xl — never closes on backdrop click. |
+| [`InfoPopupView`](https://salilvnair.com/framework/dui/#/infopopup) | Help popup anchored near a ? |
+| [`ToastView`](https://salilvnair.com/framework/dui/#/toast) | Toast notification stack — success · error · warning · info — auto-dismiss. |
+| [`PopoverView`](https://salilvnair.com/framework/dui/#/popover) | Generic anchored floating-content primitive — the positioning engine behind SelectInputView/InfoPopupView, exposed st… |
+| [`TooltipView`](https://salilvnair.com/framework/dui/#/tooltip) | Hover/focus tooltip primitive — top/bottom/left/right placement, configurable delay. |
+| [`DrawerView`](https://salilvnair.com/framework/dui/#/drawer) | Slide-in overlay panel from any edge, with backdrop — navigation-drawer pattern. |
+| [`ActionSheetView`](https://salilvnair.com/framework/dui/#/actionsheet) | Bottom list of actions + destructive styling + cancel. |
+| [`BottomSheetView`](https://salilvnair.com/framework/dui/#/bottomsheet) | Drag-to-dismiss mobile sheet — distinct from the persistent, resizable BottomPanelView. |
+| [`SpotlightTourView`](https://salilvnair.com/framework/dui/#/spotlighttour) | Coach-mark onboarding — spotlight cutout around a target selector + step tooltip + progress dots. |

 </details>

 <details>
-<summary><b>Display</b> (19)</summary>
+<summary><b>Layout</b> (24)</summary>
+

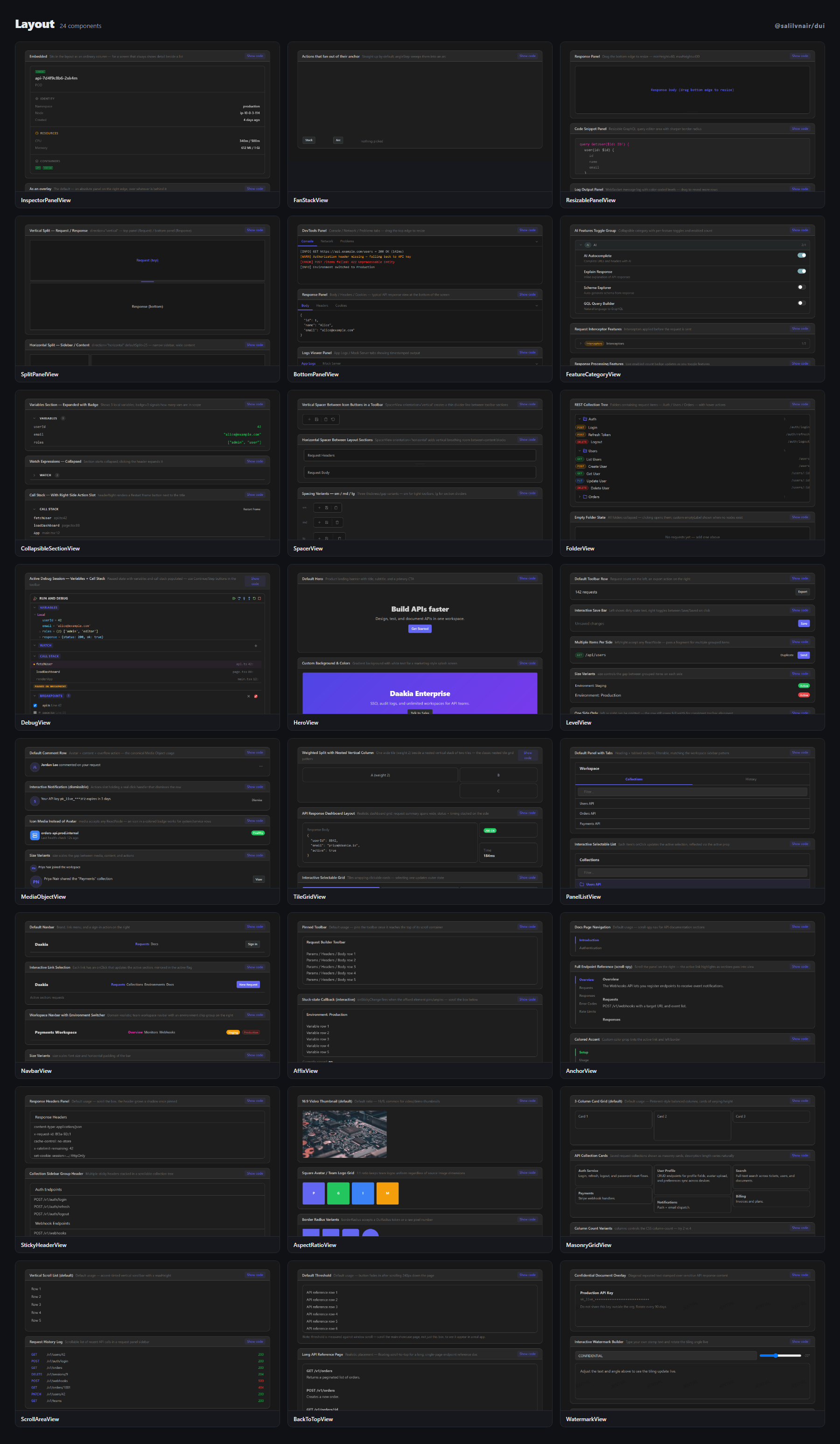

+![Layout — InspectorPanelView, FanStackView, ResizablePanelView, SplitPanelView, BottomPanelView, FeatureCategoryView, CollapsibleSectionView, SpacerView, FolderView, DebugView, HeroView, LevelView, MediaObjectView, TileGridView, PanelListView, NavbarView, AffixView, AnchorView, StickyHeaderView, AspectRatioView, MasonryGridView, ScrollAreaView, BackToTopView, WatermarkView](https://raw.githubusercontent.com/salilvnair/dui/main/media/sheets/layout.png)
+
+| Component | What it is |
+| --- | --- |
+| [`InspectorPanelView`](https://salilvnair.com/framework/dui/#/inspectorpanel) | The detail panel beside a list — an overlay on a narrow screen and a permanent third column on a wide one, from one p… |
+| [`FanStackView`](https://salilvnair.com/framework/dui/#/fanstack) | A small set of actions that spring out of a floating anchor — straight up, or swept into an arc. |
+| [`ResizablePanelView`](https://salilvnair.com/framework/dui/#/resizablepanel) | Single-pane panel with bottom-edge drag handle to resize height — no store dependency. |
+| [`SplitPanelView`](https://salilvnair.com/framework/dui/#/splitpanel) | Split-pane container — horizontal or vertical — drag pill, double-click to reset. |
+| [`BottomPanelView`](https://salilvnair.com/framework/dui/#/bottompanel) | DevTools-style resizable bottom panel with tab bar and collapse toggle. |
+| [`FeatureCategoryView`](https://salilvnair.com/framework/dui/#/featurecategory) | Expandable feature category with toggle switches and enabled count badge. |
+| [`CollapsibleSectionView`](https://salilvnair.com/framework/dui/#/collapsiblesection) | Expandable section with chevron toggle, colored chip title, count badge, and a right-side action slot. |
+| [`SpacerView`](https://salilvnair.com/framework/dui/#/spacerview) | Thin divider line for separating groups in icon rails, toolbars, or any flex container. |
+| [`FolderView`](https://salilvnair.com/framework/dui/#/folderview) | Generic folder tree component with expand/collapse, hover action buttons, DUI ContextMenuView on 3-dot, and DUI Modal… |
+| [`DebugView`](https://salilvnair.com/framework/dui/#/debugview) | Editor-style Run & Debug sidebar panel — Variables (scoped tree), Watch expressions, Call Stack, Breakpoints. |
+| [`HeroView`](https://salilvnair.com/framework/dui/#/hero) | Banner section — title/subtitle/CTA, size-driven min-height. |
+| [`LevelView`](https://salilvnair.com/framework/dui/#/level) | Space-between horizontal toolbar row primitive. |
+| [`MediaObjectView`](https://salilvnair.com/framework/dui/#/mediaobject) | Avatar/icon + content + actions row. |
+| [`TileGridView`](https://salilvnair.com/framework/dui/#/tilegrid) | Nested ancestor/parent/child tile grid. |
+| [`PanelListView`](https://salilvnair.com/framework/dui/#/panellist) | Heading + tabs + filterable block list. |
+| [`NavbarView`](https://salilvnair.com/framework/dui/#/navbar) | Top app bar — brand, link menu, burger collapse on narrow widths. |
+| [`AffixView`](https://salilvnair.com/framework/dui/#/affix) | Sticky-on-scroll wrapper — pins once it reaches offsetTop. |
+| [`AnchorView`](https://salilvnair.com/framework/dui/#/anchor) | Scroll-spy in-page navigation — highlights the section in view, click to jump. |
+| [`StickyHeaderView`](https://salilvnair.com/framework/dui/#/stickyheader) | Sticky section header that grows a shadow once pinned. |
+| [`AspectRatioView`](https://salilvnair.com/framework/dui/#/aspectratio) | Fixed aspect-ratio box for image/video containers. |
+| [`MasonryGridView`](https://salilvnair.com/framework/dui/#/masonrygrid) | Pinterest-style column-balanced layout — pure CSS columns, no JS measurement. |
+| [`ScrollAreaView`](https://salilvnair.com/framework/dui/#/scrollarea) | Custom accent-tinted scrollbar container primitive. |
+| [`BackToTopView`](https://salilvnair.com/framework/dui/#/backtotop) | Floating scroll-to-top button — fades in past a scroll threshold. |
+| [`WatermarkView`](https://salilvnair.com/framework/dui/#/watermark) | Repeated diagonal text/logo overlay. |
+
+</details>
+
+<details>
+<summary><b>Data & Enterprise</b> (16)</summary>
+

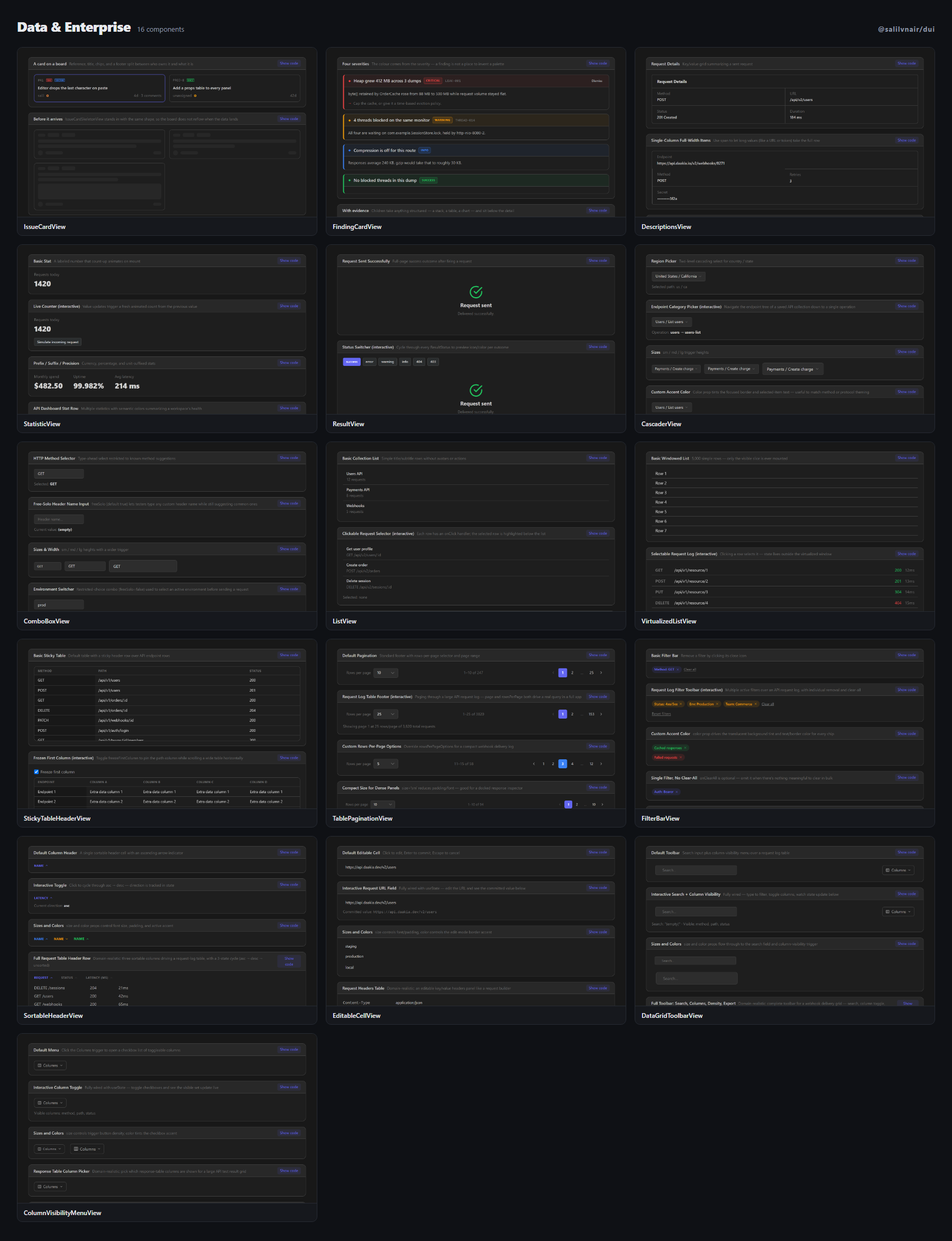

+![Data & Enterprise — IssueCardView, FindingCardView, DescriptionsView, StatisticView, ResultView, CascaderView, ComboBoxView, ListView, VirtualizedListView, StickyTableHeaderView, TablePaginationView, FilterBarView, SortableHeaderView, EditableCellView, DataGridToolbarView, ColumnVisibilityMenuView](https://raw.githubusercontent.com/salilvnair/dui/main/media/sheets/data-enterprise.png)
+
+| Component | What it is |
+| --- | --- |
+| [`IssueCardView`](https://salilvnair.com/framework/dui/#/issuecard) | The card a tracker board is built from — everything but the title is a slot, with a matching skeleton so the board ne… |
+| [`FindingCardView`](https://salilvnair.com/framework/dui/#/findingcard) | One finding from an analysis — with remediation kept apart from the detail, because what was found and what to do are… |
+| [`DescriptionsView`](https://salilvnair.com/framework/dui/#/descriptions) | Read-only label/value grid for entity detail views. |
+| [`StatisticView`](https://salilvnair.com/framework/dui/#/statistic) | Inline animated big-number stat with prefix/suffix. |
+| [`ResultView`](https://salilvnair.com/framework/dui/#/result) | Full-page outcome state — success / error / 404 / 403 / warning / info. |
+| [`CascaderView`](https://salilvnair.com/framework/dui/#/cascader) | Multi-level cascading select — region/category trees. |
+| [`ComboBoxView`](https://salilvnair.com/framework/dui/#/combobox) | Free-text input + filtered dropdown suggestions — autocomplete pattern. |
+| [`ListView`](https://salilvnair.com/framework/dui/#/listview) | Generic avatar/title/subtitle/action list primitive. |
+| [`VirtualizedListView`](https://salilvnair.com/framework/dui/#/virtualizedlist) | Windowed rendering for large lists — only mounts rows in (or near) the viewport. |
+| [`StickyTableHeaderView`](https://salilvnair.com/framework/dui/#/stickytableheader) | Sticky header + optional frozen first column for wide/tall tables. |
+| [`TablePaginationView`](https://salilvnair.com/framework/dui/#/tablepagination) | Rows-per-page selector + page-number footer. |
+| [`FilterBarView`](https://salilvnair.com/framework/dui/#/filterbar) | Chip-based row of active filters with a clear-all action. |
+| [`SortableHeaderView`](https://salilvnair.com/framework/dui/#/sortableheader) | Clickable table column header with a sort-direction arrow indicator. |
+| [`EditableCellView`](https://salilvnair.com/framework/dui/#/editablecell) | Click-to-edit table cell — Enter commits, Escape cancels. |
+| [`DataGridToolbarView`](https://salilvnair.com/framework/dui/#/datagridtoolbar) | Table toolbar — search + column-visibility + density cycle + export. |
+| [`ColumnVisibilityMenuView`](https://salilvnair.com/framework/dui/#/columnvisibility) | Checkbox menu to toggle table column visibility. |
+
+</details>
+
+<details>
+<summary><b>Advanced Selection</b> (15)</summary>
+

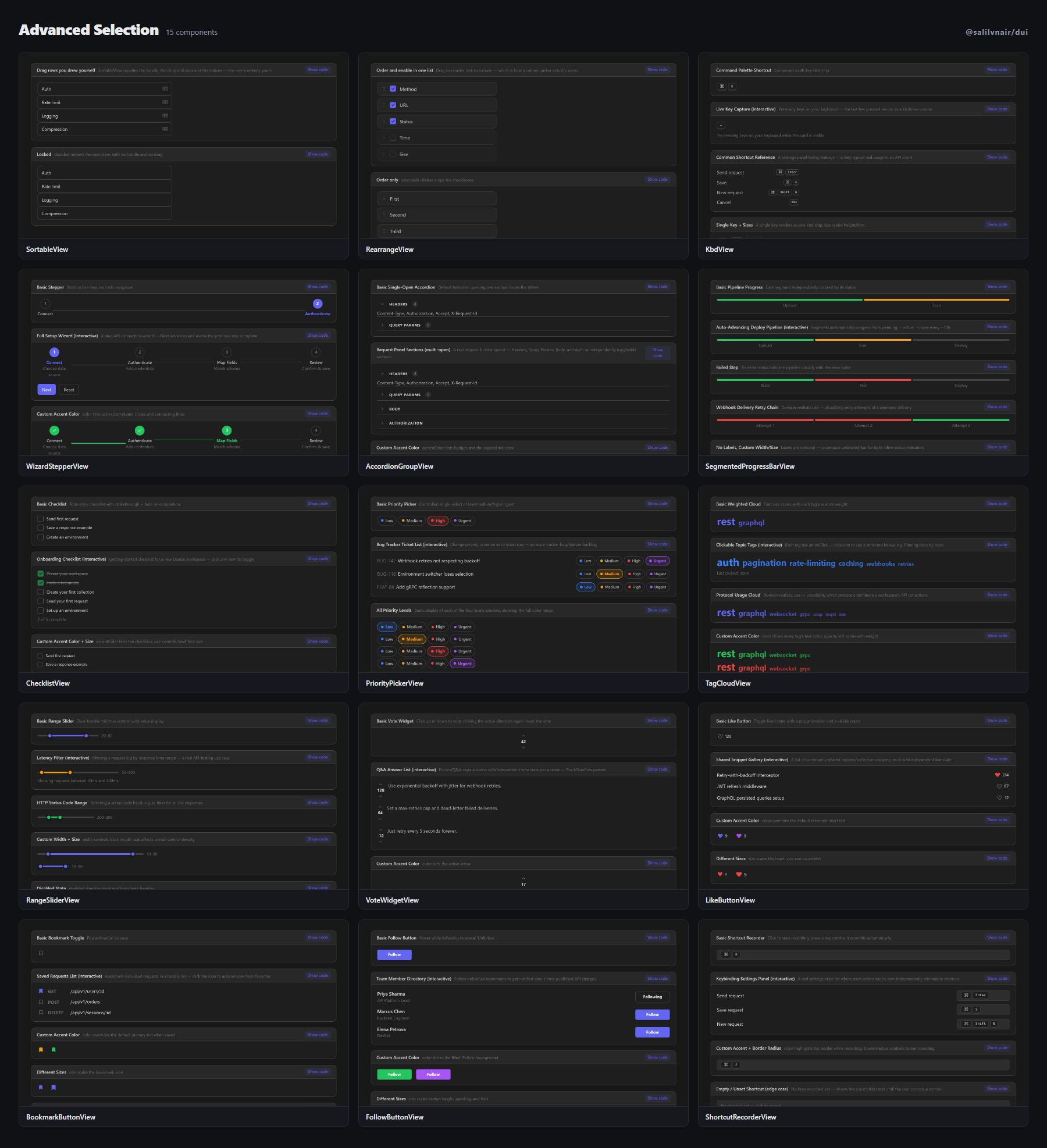

+![Advanced Selection — SortableView, RearrangeView, KbdView, WizardStepperView, AccordionGroupView, SegmentedProgressBarView, ChecklistView, PriorityPickerView, TagCloudView, RangeSliderView, VoteWidgetView, LikeButtonView, BookmarkButtonView, FollowButtonView, ShortcutRecorderView](https://raw.githubusercontent.com/salilvnair/dui/main/media/sheets/advanced-selection.png)
+
+| Component | What it is |
+| --- | --- |
+| [`SortableView`](https://salilvnair.com/framework/dui/#/sortable) | Reordering for rows you draw yourself — it supplies the handle, the drop indicator and the indices, nothing else. |
+| [`RearrangeView`](https://salilvnair.com/framework/dui/#/rearrange) | The column-picker shape — which fields to show and in what order, both questions in one list. |
+| [`KbdView`](https://salilvnair.com/framework/dui/#/kbd) | Hotkey hint chip, composes multiple keys with a "+" separator. |
+| [`WizardStepperView`](https://salilvnair.com/framework/dui/#/wizardstepper) | Multi-step form wizard progress header. |
+| [`AccordionGroupView`](https://salilvnair.com/framework/dui/#/accordiongroup) | Managed single/multi-open accordion group, built on CollapsibleSectionView. |
+| [`SegmentedProgressBarView`](https://salilvnair.com/framework/dui/#/segmentedprogressbar) | Multi-segment progress — e.g. |
+| [`ChecklistView`](https://salilvnair.com/framework/dui/#/checklist) | Todo-style checklist — strikethrough + faded once complete. |
+| [`PriorityPickerView`](https://salilvnair.com/framework/dui/#/prioritypicker) | Low/medium/high/urgent selector with color-coded dots. |
+| [`TagCloudView`](https://salilvnair.com/framework/dui/#/tagcloud) | Weighted tag cloud — font size scales with relative weight. |
+| [`RangeSliderView`](https://salilvnair.com/framework/dui/#/rangeslider) | Dual-handle min/max range — distinct from the single-handle SliderView. |
+| [`VoteWidgetView`](https://salilvnair.com/framework/dui/#/votewidget) | Upvote/downvote counter control. |
+| [`LikeButtonView`](https://salilvnair.com/framework/dui/#/likebutton) | Animated heart/like toggle button — pop animation on like. |
+| [`BookmarkButtonView`](https://salilvnair.com/framework/dui/#/bookmarkbutton) | Animated bookmark/save toggle button. |
+| [`FollowButtonView`](https://salilvnair.com/framework/dui/#/followbutton) | Follow/following state-toggle button — reveals "Unfollow" on hover. |
+| [`ShortcutRecorderView`](https://salilvnair.com/framework/dui/#/shortcutrecorder) | Captures a keybinding — click to record, press keys, renders via KbdView. |
+
+</details>
+
+<details>
+<summary><b>Communication & Content</b> (14)</summary>
+

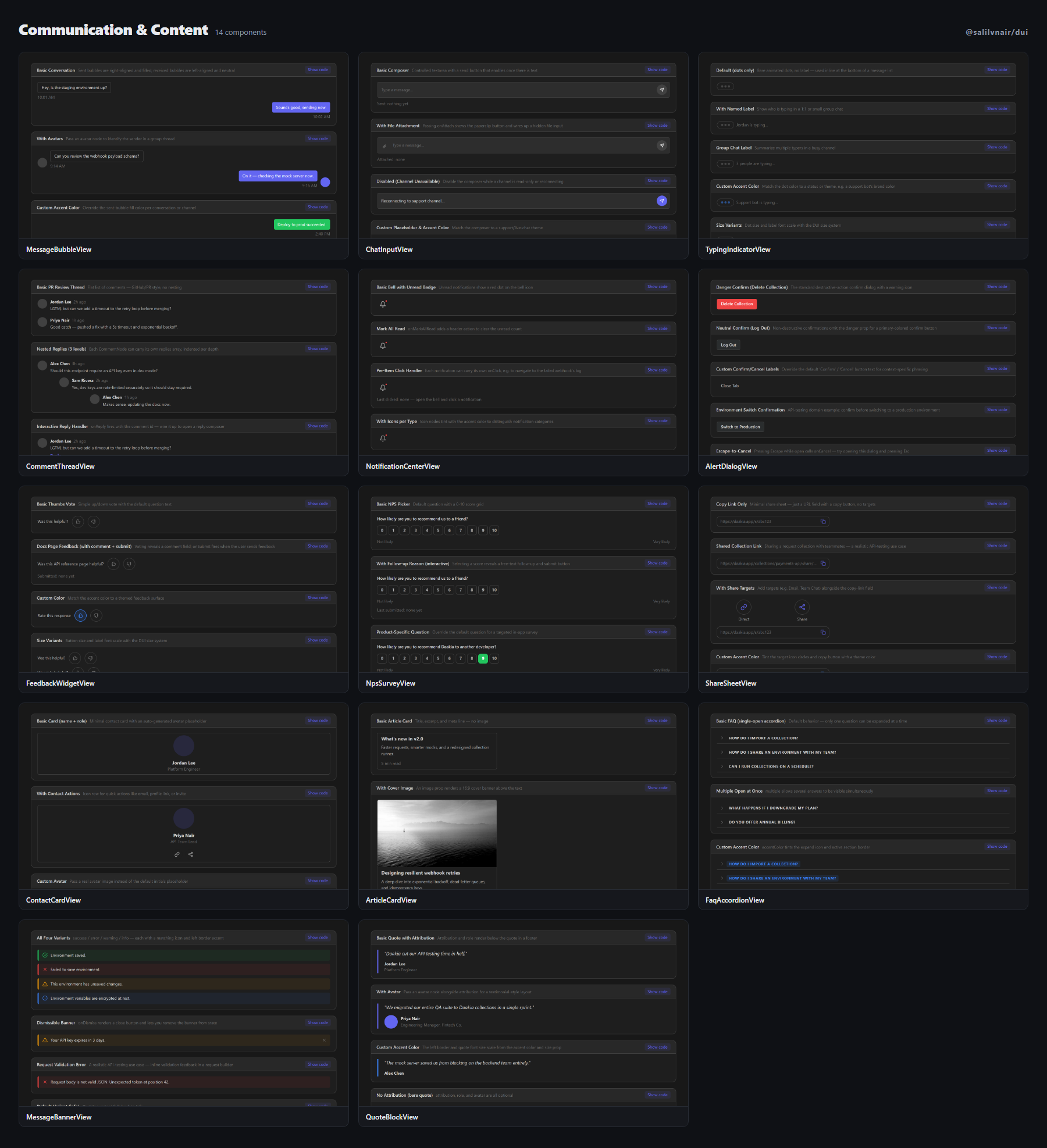

+![Communication & Content — MessageBubbleView, ChatInputView, TypingIndicatorView, CommentThreadView, NotificationCenterView, AlertDialogView, FeedbackWidgetView, NpsSurveyView, ShareSheetView, ContactCardView, ArticleCardView, FaqAccordionView, MessageBannerView, QuoteBlockView](https://raw.githubusercontent.com/salilvnair/dui/main/media/sheets/communication-content.png)
+
+| Component | What it is |
+| --- | --- |
+| [`MessageBubbleView`](https://salilvnair.com/framework/dui/#/messagebubble) | Chat message bubble — sent (right, filled) / received (left, neutral). |
+| [`ChatInputView`](https://salilvnair.com/framework/dui/#/chatinput) | Message composer — auto-growing textarea + attach + send. |
+| [`TypingIndicatorView`](https://salilvnair.com/framework/dui/#/typingindicator) | Animated "…is typing" dots. |
+| [`CommentThreadView`](https://salilvnair.com/framework/dui/#/commentthread) | Nested comment thread with reply action — GitHub/PR-style. |
+| [`NotificationCenterView`](https://salilvnair.com/framework/dui/#/notificationcenter) | Bell icon + dropdown notification list, unread-count badge. |
+| [`AlertDialogView`](https://salilvnair.com/framework/dui/#/alertdialog) | Pre-built confirm/cancel dialog with danger styling — the standard "Are you sure?" pattern. |
+| [`FeedbackWidgetView`](https://salilvnair.com/framework/dui/#/feedbackwidget) | Thumbs up/down + optional comment micro-survey. |
+| [`NpsSurveyView`](https://salilvnair.com/framework/dui/#/npssurvey) | 0-10 Net Promoter Score picker with an optional follow-up text field. |
+| [`ShareSheetView`](https://salilvnair.com/framework/dui/#/sharesheet) | Social share row + copy-link field. |
+| [`ContactCardView`](https://salilvnair.com/framework/dui/#/contactcard) | Avatar + name + role + contact-icon row card. |
+| [`ArticleCardView`](https://salilvnair.com/framework/dui/#/articlecard) | Image + title + excerpt + meta preview card — blog/article listing. |
+| [`FaqAccordionView`](https://salilvnair.com/framework/dui/#/faqaccordion) | Pre-styled Q&A accordion, built directly on AccordionGroupView. |
+| [`MessageBannerView`](https://salilvnair.com/framework/dui/#/messagebanner) | Inline success/error/info/warning message strip. |
+| [`QuoteBlockView`](https://salilvnair.com/framework/dui/#/quoteblock) | Styled blockquote with an optional avatar + attribution line. |
+
+</details>

-`ChipView` · `StatusIndicatorView` · `LoaderView` · `EmptyStateView` ·
-`ColoredTextView` · `StatsCardView` · `DottedCardView` · `DataTableView` ·
-`CodeBlockView` · `MarkdownView` · `PromptCardView` · `PromptLibraryListView` ·
-`PromptLibraryEditorView` · `StageView` · `HudView` · `JsonTreeView` ·
-`ExpandableLogEntryView` · `CopyButtonView` · `YamlKeyChip` ·
-`FeatureCategoryView`
+<details>
+<summary><b>Enterprise & Settings</b> (24)</summary>
+

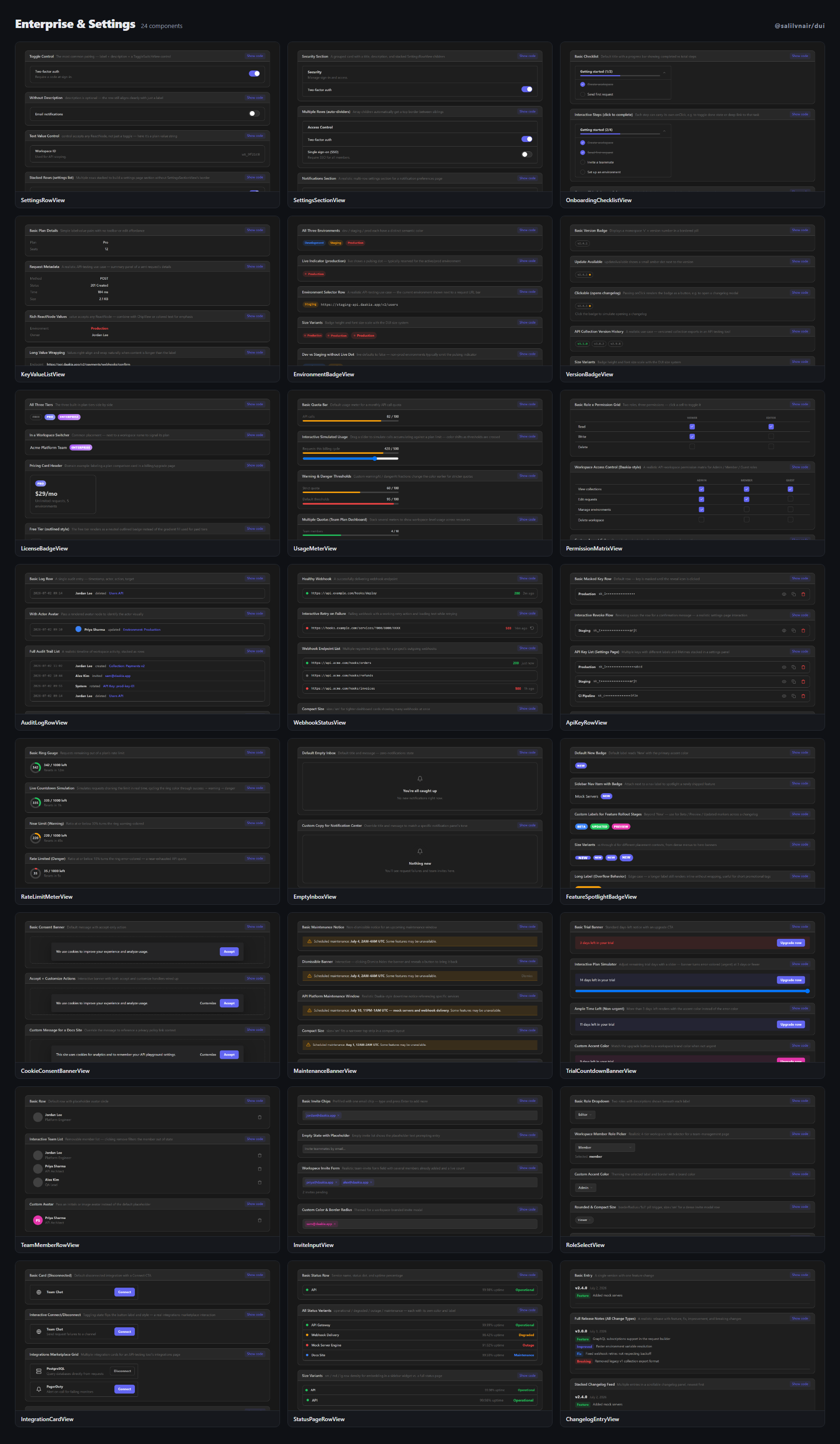

+![Enterprise & Settings — SettingsRowView, SettingsSectionView, OnboardingChecklistView, KeyValueListView, EnvironmentBadgeView, VersionBadgeView, LicenseBadgeView, UsageMeterView, PermissionMatrixView, AuditLogRowView, WebhookStatusView, ApiKeyRowView, RateLimitMeterView, EmptyInboxView, FeatureSpotlightBadgeView, CookieConsentBannerView, MaintenanceBannerView, TrialCountdownBannerView, TeamMemberRowView, InviteInputView, RoleSelectView, IntegrationCardView, StatusPageRowView, ChangelogEntryView](https://raw.githubusercontent.com/salilvnair/dui/main/media/sheets/enterprise-settings.png)
+
+| Component | What it is |
+| --- | --- |
+| [`SettingsRowView`](https://salilvnair.com/framework/dui/#/settingsrow) | Label + description + control row — the standard settings-page primitive. |
+| [`SettingsSectionView`](https://salilvnair.com/framework/dui/#/settingssection) | Grouped settings card with a header — pairs with SettingsRowView. |
+| [`OnboardingChecklistView`](https://salilvnair.com/framework/dui/#/onboardingchecklist) | Collapsible "getting started" progress checklist. |
+| [`KeyValueListView`](https://salilvnair.com/framework/dui/#/keyvaluelist) | Lightweight label:value stacked list — no edit, no toolbar. |
+| [`EnvironmentBadgeView`](https://salilvnair.com/framework/dui/#/environmentbadge) | Colored environment chip with an optional pulsing live indicator. |
+| [`VersionBadgeView`](https://salilvnair.com/framework/dui/#/versionbadge) | Version number chip with an "update available" dot indicator. |
+| [`LicenseBadgeView`](https://salilvnair.com/framework/dui/#/licensebadge) | Plan/tier ribbon badge — Free / Pro / Enterprise. |
+| [`UsageMeterView`](https://salilvnair.com/framework/dui/#/usagemeter) | Quota bar (used/limit) with warning-color thresholds. |
+| [`PermissionMatrixView`](https://salilvnair.com/framework/dui/#/permissionmatrix) | Role x permission checkbox grid. |
+| [`AuditLogRowView`](https://salilvnair.com/framework/dui/#/auditlogrow) | Timestamped actor+action+target log row — audit trail primitive. |
+| [`WebhookStatusView`](https://salilvnair.com/framework/dui/#/webhookstatus) | Webhook endpoint health row — last delivery, status code, retry action. |
+| [`ApiKeyRowView`](https://salilvnair.com/framework/dui/#/apikeyrow) | Masked API key row with reveal/copy/revoke actions. |
+| [`RateLimitMeterView`](https://salilvnair.com/framework/dui/#/ratelimitmeter) | Requests-remaining ring gauge with a reset countdown label. |
+| [`EmptyInboxView`](https://salilvnair.com/framework/dui/#/emptyinbox) | Zero-notifications empty state — pre-styled variant of EmptyStateView. |
+| [`FeatureSpotlightBadgeView`](https://salilvnair.com/framework/dui/#/featurespotlightbadge) | Pulsing "New" badge for recently shipped features. |
+| [`CookieConsentBannerView`](https://salilvnair.com/framework/dui/#/cookieconsentbanner) | Fixed bottom cookie-consent bar with accept/customize actions. |
+| [`MaintenanceBannerView`](https://salilvnair.com/framework/dui/#/maintenancebanner) | Scheduled-downtime notice strip. |
+| [`TrialCountdownBannerView`](https://salilvnair.com/framework/dui/#/trialcountdownbanner) | "N days left in trial" strip with an upgrade CTA. |
+| [`TeamMemberRowView`](https://salilvnair.com/framework/dui/#/teammemberrow) | Avatar + name + role + remove-action row — team management list item. |
+| [`InviteInputView`](https://salilvnair.com/framework/dui/#/inviteinput) | Email-chip input specialized for multi-invite forms. |
+| [`RoleSelectView`](https://salilvnair.com/framework/dui/#/roleselect) | Role dropdown with a per-option description shown beneath the label. |
+| [`IntegrationCardView`](https://salilvnair.com/framework/dui/#/integrationcard) | Logo + name + connect/disconnect card — integrations/marketplace listing. |
+| [`StatusPageRowView`](https://salilvnair.com/framework/dui/#/statuspagerow) | Service + uptime% + status-dot row — status page primitive. |
+| [`ChangelogEntryView`](https://salilvnair.com/framework/dui/#/changelogentry) | Version + date + change-type badges + description block. |

 </details>

 <details>
-<summary><b>Overlays</b> (3)</summary>
+<summary><b>Media & Files</b> (14)</summary>
+

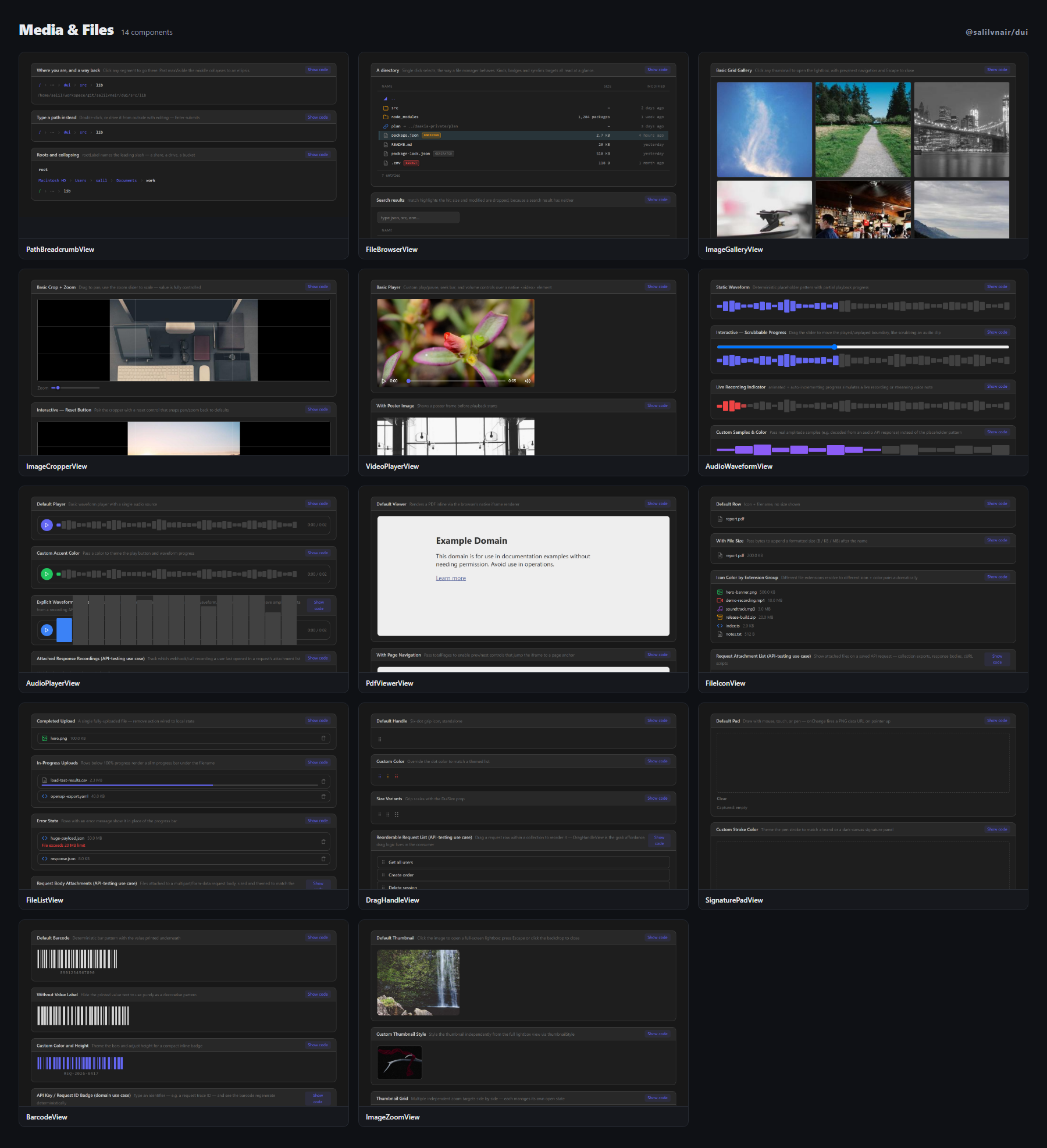

+![Media & Files — PathBreadcrumbView, FileBrowserView, ImageGalleryView, ImageCropperView, VideoPlayerView, AudioWaveformView, AudioPlayerView, PdfViewerView, FileIconView, FileListView, DragHandleView, SignaturePadView, BarcodeView, ImageZoomView](https://raw.githubusercontent.com/salilvnair/dui/main/media/sheets/media-files.png)
+
+| Component | What it is |
+| --- | --- |
+| [`PathBreadcrumbView`](https://salilvnair.com/framework/dui/#/pathbreadcrumb) | The path bar above a file listing — every segment a link back, and a double-click turns the whole thing into a text box. |
+| [`FileBrowserView`](https://salilvnair.com/framework/dui/#/filebrowser) | A directory listing — files, folders and symlinks, with selection and arrival as two separate states in two separate… |
+| [`ImageGalleryView`](https://salilvnair.com/framework/dui/#/imagegallery) | Grid gallery with a click-to-open lightbox — prev/next navigation, Escape to close. |
+| [`ImageCropperView`](https://salilvnair.com/framework/dui/#/imagecropper) | Drag-crop + zoom image editor — fixed crop frame, pannable/zoomable image. |
+| [`VideoPlayerView`](https://salilvnair.com/framework/dui/#/videoplayer) | Custom video controls wrapper — play/pause, seek, volume. |
+| [`AudioWaveformView`](https://salilvnair.com/framework/dui/#/audiowaveform) | Static or animated waveform visualization primitive. |
+| [`AudioPlayerView`](https://salilvnair.com/framework/dui/#/audioplayer) | Waveform + play/pause/seek audio player. |
+| [`PdfViewerView`](https://salilvnair.com/framework/dui/#/pdfviewer) | Paginated PDF preview wrapper — browser native iframe renderer (needs a real PDF URL in production). |
+| [`FileIconView`](https://salilvnair.com/framework/dui/#/fileicon) | Extension-based file-type icon + name + size row. |
+| [`FileListView`](https://salilvnair.com/framework/dui/#/filelist) | Uploaded-files list with per-row progress and remove action. |
+| [`DragHandleView`](https://salilvnair.com/framework/dui/#/draghandle) | Grab-handle primitive for reorderable lists — six-dot grip icon. |
+| [`SignaturePadView`](https://salilvnair.com/framework/dui/#/signaturepad) | Canvas signature capture — draw with mouse/touch/pen, exports a PNG data URL. |
+| [`BarcodeView`](https://salilvnair.com/framework/dui/#/barcode) | Deterministic bar-pattern generator, visually representative — not a scannable encoder. |
+| [`ImageZoomView`](https://salilvnair.com/framework/dui/#/imagezoom) | Click-to-zoom lightbox for a single image. |

-`ModalView` · `InfoPopupView` · `ToastView`
+</details>
+
+<details>
+<summary><b>Data Display & Wow</b> (20)</summary>
+

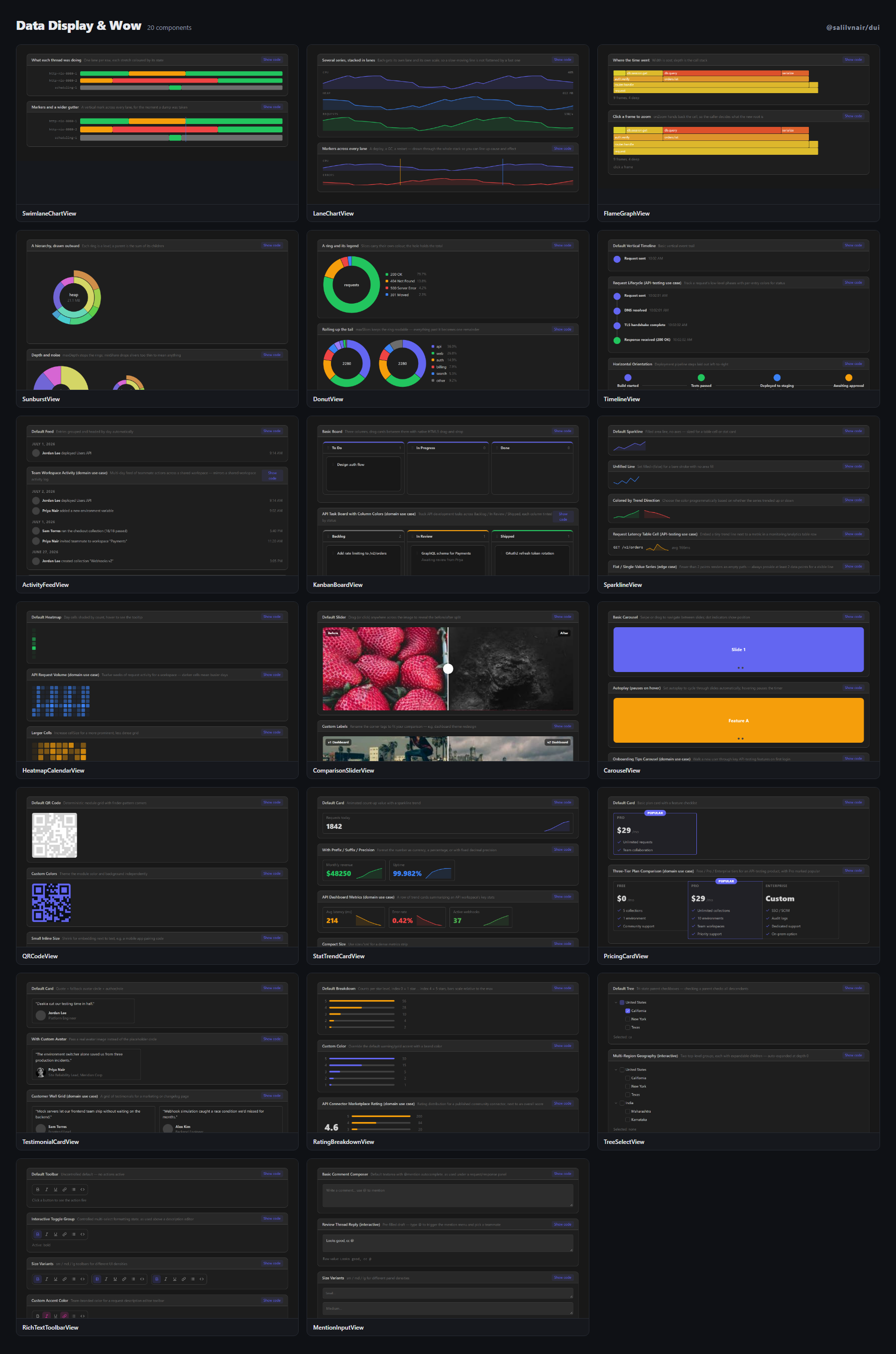

+![Data Display & Wow — SwimlaneChartView, LaneChartView, FlameGraphView, SunburstView, DonutView, TimelineView, ActivityFeedView, KanbanBoardView, SparklineView, HeatmapCalendarView, ComparisonSliderView, CarouselView, QRCodeView, StatTrendCardView, PricingCardView, TestimonialCardView, RatingBreakdownView, TreeSelectView, RichTextToolbarView, MentionInputView](https://raw.githubusercontent.com/salilvnair/dui/main/media/sheets/data-display-wow.png)
+
+| Component | What it is |
+| --- | --- |
+| [`SwimlaneChartView`](https://salilvnair.com/framework/dui/#/swimlanechart) | What each of several things was doing over a period — threads by state, pods by phase — each stretch coloured by the… |
+| [`LaneChartView`](https://salilvnair.com/framework/dui/#/lanechart) | Several metrics over the same period, each in its own lane with its own scale — so a small signal is not flattened by… |
+| [`FlameGraphView`](https://salilvnair.com/framework/dui/#/flamegraph) | The profiler flame graph — a frame is as wide as it is expensive, and clicking one makes it the new root. |
+| [`SunburstView`](https://salilvnair.com/framework/dui/#/sunburst) | Where a total went, one level at a time — a ring per level, drawn outward. |
+| [`DonutView`](https://salilvnair.com/framework/dui/#/donut) | A share-of-total ring, with maxSlices to roll the unreadable tail into one named remainder. |
+| [`TimelineView`](https://salilvnair.com/framework/dui/#/timeline) | Event trail with icon nodes — vertical (default) or horizontal. |
+| [`ActivityFeedView`](https://salilvnair.com/framework/dui/#/activityfeed) | Chronological activity feed, entries grouped by day. |
+| [`KanbanBoardView`](https://salilvnair.com/framework/dui/#/kanbanboard) | Draggable columns + cards board, native HTML5 drag-and-drop. |
+| [`SparklineView`](https://salilvnair.com/framework/dui/#/sparkline) | Tiny inline SVG trend line, no axes — for table cells / stat cards. |
+| [`HeatmapCalendarView`](https://salilvnair.com/framework/dui/#/heatmapcalendar) | GitHub-style contribution heatmap — day cells shaded by count, tooltip on hover. |
+| [`ComparisonSliderView`](https://salilvnair.com/framework/dui/#/comparisonslider) | Before/after drag slider for image comparison. |
+| [`CarouselView`](https://salilvnair.com/framework/dui/#/carousel) | Swipeable card carousel with dot indicators — autoplay pauses on hover. |
+| [`QRCodeView`](https://salilvnair.com/framework/dui/#/qrcode) | QR-style module grid with finder-pattern corners — visual, not spec-compliant/scannable. |
+| [`StatTrendCardView`](https://salilvnair.com/framework/dui/#/stattrendcard) | Animated count-up number + sparkline trend — distinct from the static StatsCardView. |
+| [`PricingCardView`](https://salilvnair.com/framework/dui/#/pricingcard) | Plan comparison card with a "popular" ribbon. |
+| [`TestimonialCardView`](https://salilvnair.com/framework/dui/#/testimonialcard) | Quote + avatar testimonial card. |
+| [`RatingBreakdownView`](https://salilvnair.com/framework/dui/#/ratingbreakdown) | 5-star rating distribution bars — App Store-style rating breakdown. |
+| [`TreeSelectView`](https://salilvnair.com/framework/dui/#/treeselect) | Checkbox-driven hierarchical select — tri-state parent checkboxes over a folder-style tree. |
+| [`RichTextToolbarView`](https://salilvnair.com/framework/dui/#/richtexttoolbar) | Formatting toolbar primitive — bold/italic/underline/link/list/code. |
+| [`MentionInputView`](https://salilvnair.com/framework/dui/#/mentioninput) | @mention autocomplete textarea. |

 </details>

 <details>
-<summary><b>Layout</b> (8)</summary>
+<summary><b>Fun & Micro-interactions</b> (10)</summary>
+

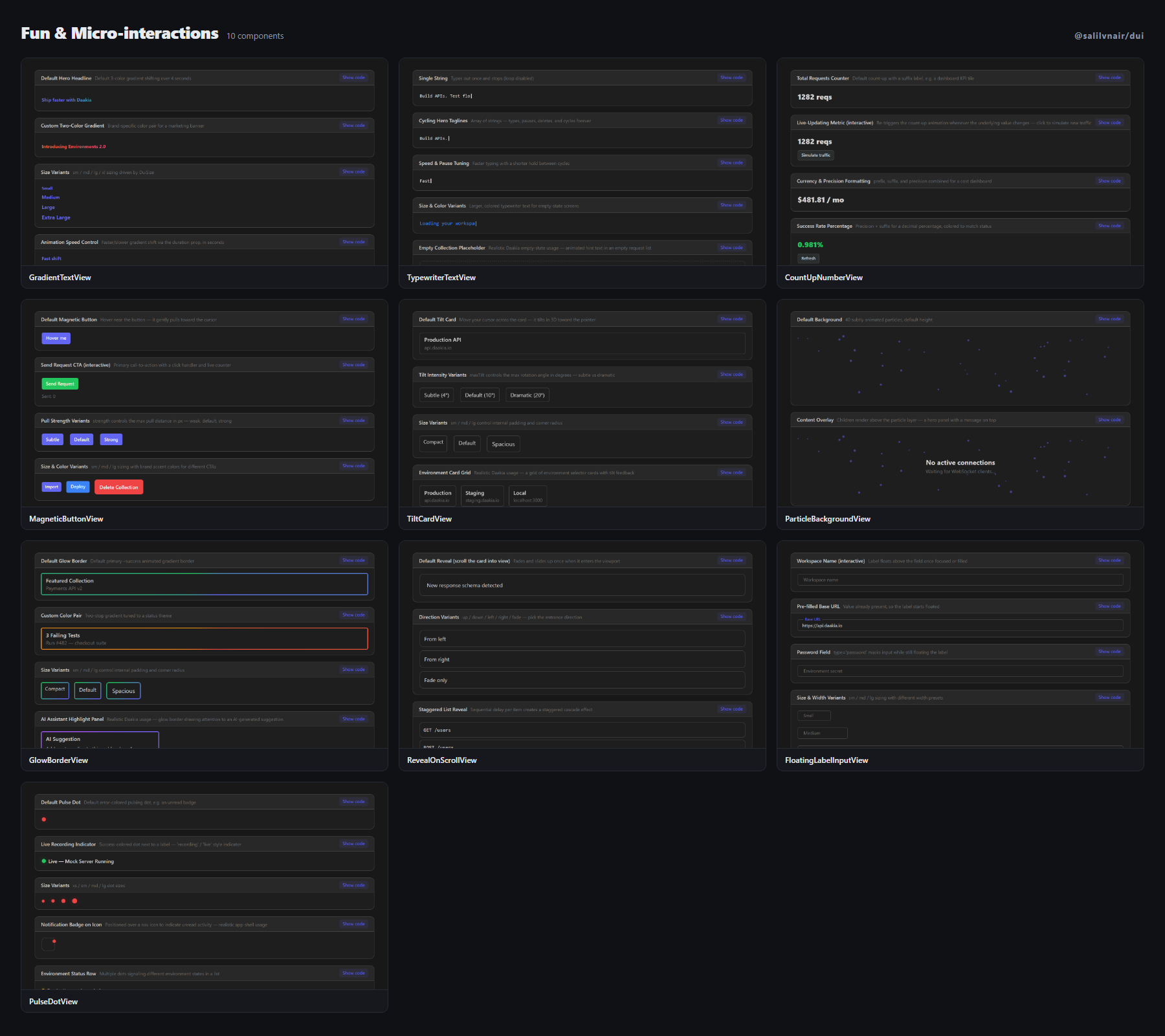

+![Fun & Micro-interactions — GradientTextView, TypewriterTextView, CountUpNumberView, MagneticButtonView, TiltCardView, ParticleBackgroundView, GlowBorderView, RevealOnScrollView, FloatingLabelInputView, PulseDotView](https://raw.githubusercontent.com/salilvnair/dui/main/media/sheets/fun-micro-interactions.png)
+
+| Component | What it is |
+| --- | --- |
+| [`GradientTextView`](https://salilvnair.com/framework/dui/#/gradienttext) | Animated gradient-shifting text. |
+| [`TypewriterTextView`](https://salilvnair.com/framework/dui/#/typewritertext) | Animated typing-effect text. |
+| [`CountUpNumberView`](https://salilvnair.com/framework/dui/#/countupnumber) | Standalone animated number count-up primitive. |
+| [`MagneticButtonView`](https://salilvnair.com/framework/dui/#/magneticbutton) | Cursor-attraction hover button effect. |
+| [`TiltCardView`](https://salilvnair.com/framework/dui/#/tiltcard) | 3D perspective tilt-on-hover card. |
+| [`ParticleBackgroundView`](https://salilvnair.com/framework/dui/#/particlebackground) | Subtle animated particle/dot background. |
+| [`GlowBorderView`](https://salilvnair.com/framework/dui/#/glowborder) | Animated gradient glowing-border wrapper. |
+| [`RevealOnScrollView`](https://salilvnair.com/framework/dui/#/revealonscroll) | Fade/slide-in-on-scroll wrapper. |
+| [`FloatingLabelInputView`](https://salilvnair.com/framework/dui/#/floatinglabelinput) | Floating-label input, distinct from TextInputView's static placeholder. |
+| [`PulseDotView`](https://salilvnair.com/framework/dui/#/pulsedot) | Attention-grabbing pulsing dot primitive — complements StatusIndicatorView. |
+
+</details>

-`ResizablePanelView` · `SplitPanelView` · `BottomPanelView` · `FolderView` ·
-`CollapsibleSectionView` · `SpacerView` · `SettingsNavView` · `SideNavView`
+<details>
+<summary><b>DUI Signature Series</b> (22)</summary>
+

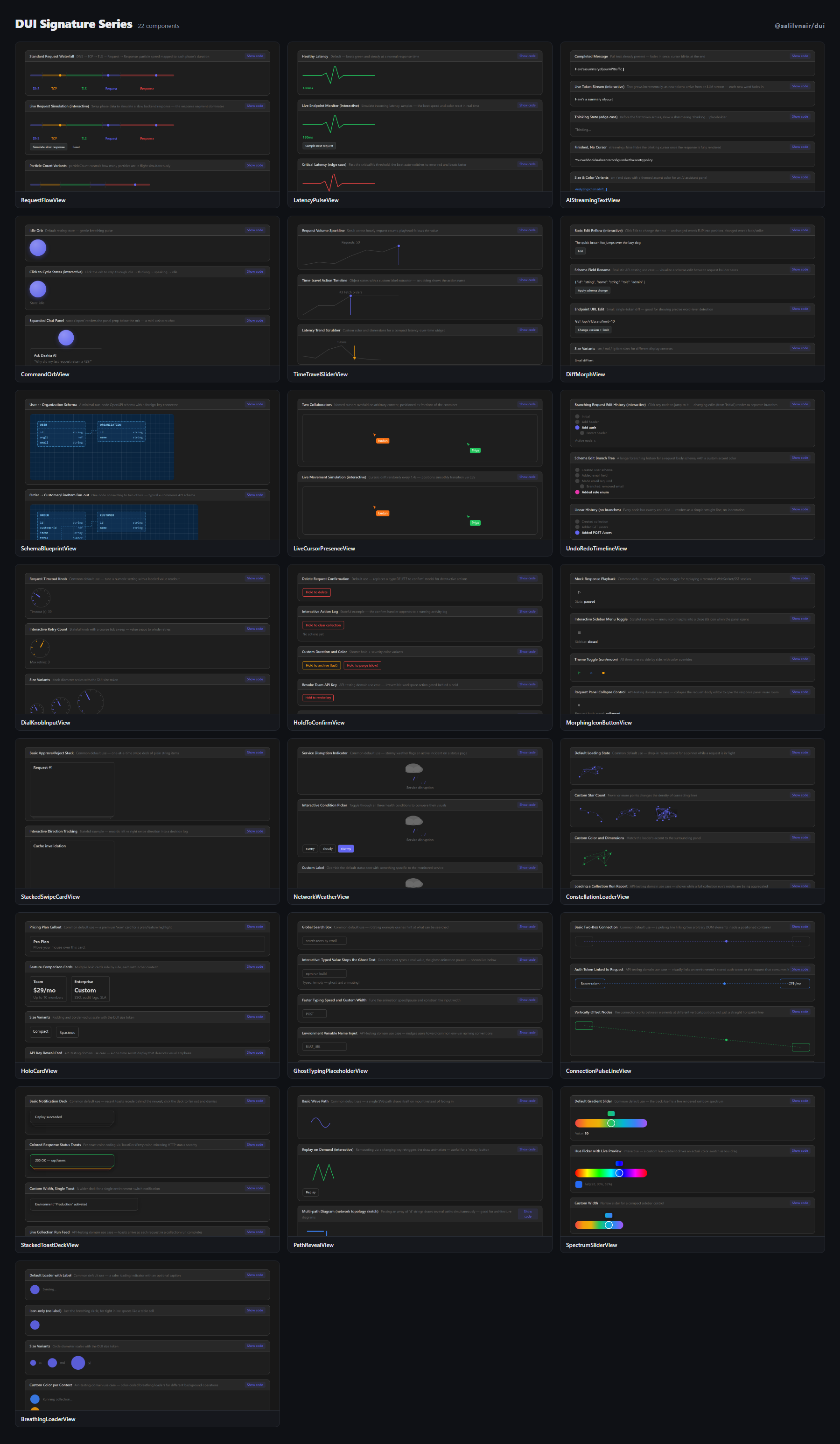

+![DUI Signature Series — RequestFlowView, LatencyPulseView, AIStreamingTextView, CommandOrbView, TimeTravelSliderView, DiffMorphView, SchemaBlueprintView, LiveCursorPresenceView, UndoRedoTimelineView, DialKnobInputView, HoldToConfirmView, MorphingIconButtonView, StackedSwipeCardView, NetworkWeatherView, ConstellationLoaderView, HoloCardView, GhostTypingPlaceholderView, ConnectionPulseLineView, StackedToastDeckView, PathRevealView, SpectrumSliderView, BreathingLoaderView](https://raw.githubusercontent.com/salilvnair/dui/main/media/sheets/dui-signature-series.png)
+
+| Component | What it is |
+| --- | --- |
+| [`RequestFlowView`](https://salilvnair.com/framework/dui/#/requestflow) | Animated network waterfall — particles travel a DNS→TCP→TLS→Request→Response pipe, speed/color mapped to real phase t… |
+| [`LatencyPulseView`](https://salilvnair.com/framework/dui/#/latencypulse) | EKG/vitals-monitor style live pulse line for request latency — a metric that visually "beats" instead of a static lin… |
+| [`AIStreamingTextView`](https://salilvnair.com/framework/dui/#/aistreamingtext) | Token-by-token LLM output renderer — per-token fade-in, thinking shimmer, soft blink cursor. |
+| [`CommandOrbView`](https://salilvnair.com/framework/dui/#/commandorb) | Floating, breathing circular AI-assistant orb — idle pulse → thinking ripple → speaking waveform, expands into a chat… |
+| [`TimeTravelSliderView`](https://salilvnair.com/framework/dui/#/timetravelslider) | Scrub a draggable playhead across a sparkline of past states — a time-travel state scrubber, generalized into a reusa… |
+| [`DiffMorphView`](https://salilvnair.com/framework/dui/#/diffmorph) | Old→new text FLIP-animates unchanged words into their new position while changed words fade/strike — an edit visually… |
+| [`SchemaBlueprintView`](https://salilvnair.com/framework/dui/#/schemablueprint) | JSON Schema / OpenAPI spec rendered as an architectural blueprint — graph-paper background, dashed right-angle connec… |
+| [`LiveCursorPresenceView`](https://salilvnair.com/framework/dui/#/livecursorpresence) | Collaborative cursors with name tags, overlaid on arbitrary content. |
+| [`UndoRedoTimelineView`](https://salilvnair.com/framework/dui/#/undoredotimeline) | History rendered as a branching git-log graph — jump to any node, diverging edits show as visible branches instead of… |
+| [`DialKnobInputView`](https://salilvnair.com/framework/dui/#/dialknobinput) | Rotary analog knob (drag in a circle) with snap-ticks and a haptic-style micro-bounce at each notch — for tactile num… |
+| [`HoldToConfirmView`](https://salilvnair.com/framework/dui/#/holdtoconfirm) | Press-and-hold with a radial fill that must complete before the destructive action fires — replaces "type DELETE to c… |
+| [`MorphingIconButtonView`](https://salilvnair.com/framework/dui/#/morphingiconbutton) | The icon itself SVG-path-morphs between two states (play↔pause, menu↔close, sun↔moon) instead of a crossfade/swap. |
+| [`StackedSwipeCardView`](https://salilvnair.com/framework/dui/#/stackedswipecard) | Swipeable card stack for one-at-a-time approve/reject flows. |
+| [`NetworkWeatherView`](https://salilvnair.com/framework/dui/#/networkweather) | System health/error-rate expressed as literal weather (sunny → cloudy → stormy) instead of a number or status dot. |
+| [`ConstellationLoaderView`](https://salilvnair.com/framework/dui/#/constellationloader) | Loading dots drift and connect into shifting constellation lines — ties back to NetworkGraphView's node-link visual i… |
+| [`HoloCardView`](https://salilvnair.com/framework/dui/#/holocard) | A card with a mouse-position-reactive holographic/iridescent sheen — pure premium-feel "wow" for pricing/feature call… |
+| [`GhostTypingPlaceholderView`](https://salilvnair.com/framework/dui/#/ghosttypingplaceholder) | An input placeholder that types out rotating example queries, pauses, then backspaces into the next one. |
+| [`ConnectionPulseLineView`](https://salilvnair.com/framework/dui/#/connectionpulseline) | A dashed/gradient SVG line connecting two arbitrary DOM elements, with a traveling pulse dot — visually links spatial… |
+| [`StackedToastDeckView`](https://salilvnair.com/framework/dui/#/stackedtoastdeck) | Toasts don't stack vertically — older ones shrink and recede behind the newest like a physical card deck; click the d… |
+| [`PathRevealView`](https://salilvnair.com/framework/dui/#/pathreveal) | Generic SVG stroke-draw reveal primitive — any path/diagram/signature "draws itself" on mount instead of just fading in. |
+| [`SpectrumSliderView`](https://salilvnair.com/framework/dui/#/spectrumslider) | The slider track itself is a live rendered gradient spectrum, and the handle shows a magnified live-color preview bub… |
+| [`BreathingLoaderView`](https://salilvnair.com/framework/dui/#/breathingloader) | An ultra-minimal loading state — a single circle slowly scales/fades in a breathing rhythm — a calmer alternative to… |

 </details>

 <details>
-<summary><b>More</b></summary>
+<summary><b>More</b> (6)</summary>
+

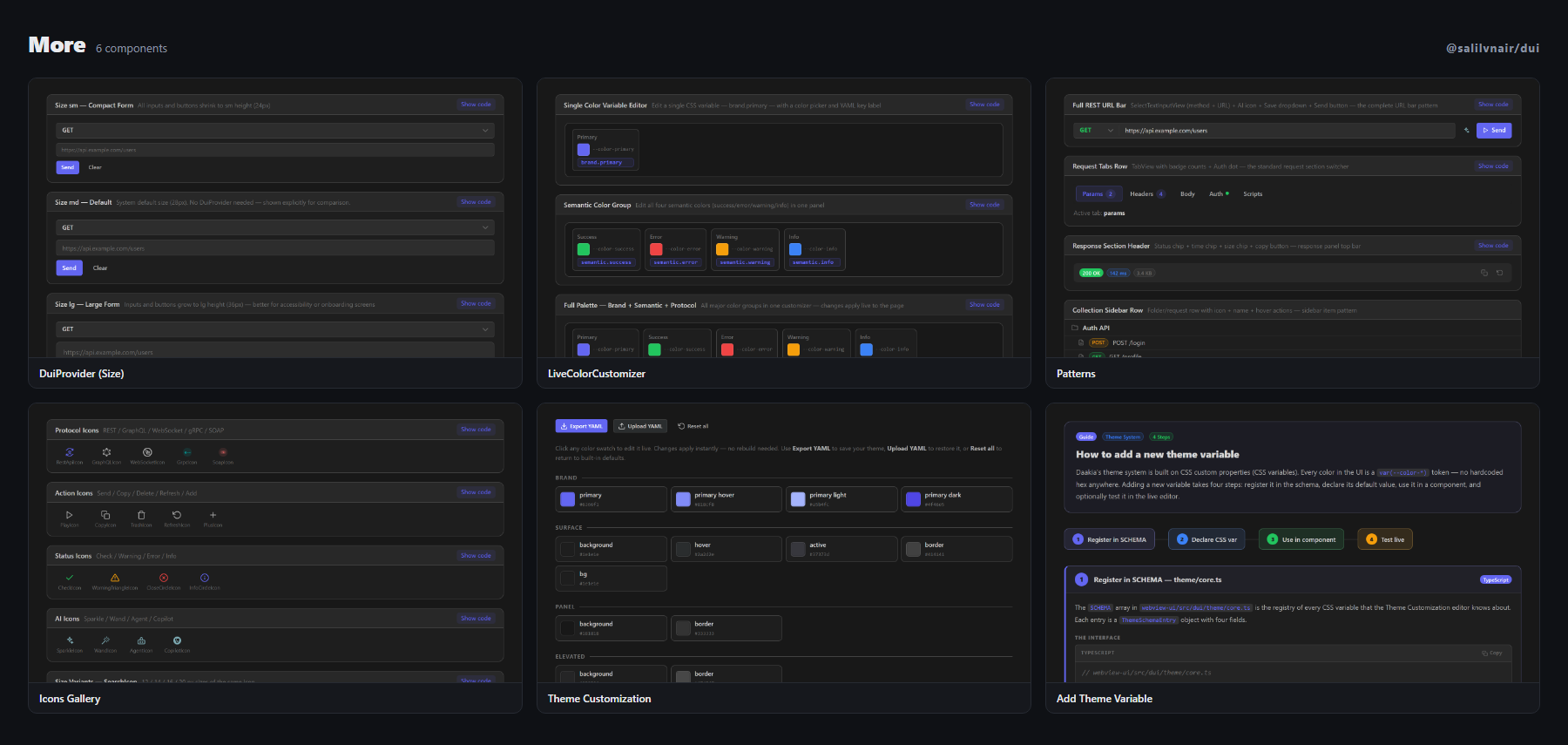

+![More — DuiProvider (Size), LiveColorCustomizer, Patterns, Icons Gallery, Theme Customization, Add Theme Variable](https://raw.githubusercontent.com/salilvnair/dui/main/media/sheets/more.png)

-`DuiProvider` (size/theme context) · `LiveColorCustomizer` ·
-`ThemeCardSelectorView` · `FormDataTableView` · `RearrangeView` ·
-`HiddenKeyValueItemView` · full icon set (`@salilvnair/dui` re-exports every
-icon used internally)
+| Component | What it is |
+| --- | --- |
+| [`DuiProvider (Size)`](https://salilvnair.com/framework/dui/#/duiprovider) | Wrap any subtree with <DuiProvider size="sm\|md\|lg\|xl"> and ALL nested DUI components inherit that size — no prop dril… |
+| [`LiveColorCustomizer`](https://salilvnair.com/framework/dui/#/livecolorpanel) | Interactive color editor that applies CSS custom property changes directly to the document root in real time. |
+| [`Patterns`](https://salilvnair.com/framework/dui/#/patterns) | How DUI components assemble into actual Daakia UI — URL bar · tabs · tree. |
+| [`Icons Gallery`](https://salilvnair.com/framework/dui/#/iconsgallery) | All Daakia icons — searchable by name — click to copy icon name. |
+| [`Theme Customization`](https://salilvnair.com/framework/dui/#/themeconfig) | Export / upload YAML theme files — all 63 CSS color vars, live hot-swap, no rebuild. |
+| [`Add Theme Variable`](https://salilvnair.com/framework/dui/#/themeaddvar) | Step-by-step guide: register a new CSS color variable in SCHEMA, declare it in index.css, use it in any DUI component… |

 </details>

+<!-- catalog:end -->
+
 Every component ships full TypeScript prop types — explore them via your
-editor's autocomplete, or browse `src/lib` in the
-[repo](https://github.com/salilvnair/dui).
+editor's autocomplete, in the [live demo](https://salilvnair.com/framework/dui/),
+or by browsing `src/lib` in this repo.
+
+---

 ## Theming

@@ -168,23 +696,26 @@ CSS-first `@theme` syntax and shipped in `dist/style.css`:
 }
 ```

-Override any subset on `:root` (global) or on a wrapping element (scoped —
-e.g. to theme one panel differently). Programmatic helpers live under the
-`theme/*` subpath exports:
+Override any subset on `:root` (global) or on a wrapping element (scoped — e.g.
+to theme one panel differently). Programmatic helpers live under the `theme/*`
+subpath exports:

 ```ts
-import { SCHEMA } from '@salilvnair/dui/theme/core';       // token schema (group/key/cssVar/comment)
-import { generateYaml } from '@salilvnair/dui/theme/utils'; // export current theme as YAML
+import { SCHEMA } from '@salilvnair/dui/theme/core';        // token schema (group/key/cssVar/comment)
+import { generateYaml } from '@salilvnair/dui/theme/utils';  // export the current theme as YAML
 import { ThemeVarEditor } from '@salilvnair/dui/theme/editor'; // UI for adding a new theme variable
 ```

+Light and dark are the same mechanism: `dist/style.css` defines both sets and
+`document.documentElement`'s `data-theme` attribute chooses between them.
+
 ## The code editor — Monaco is optional

 `EditorView`, `DiffEditorView`, and `DebugEditorView` do **not** require
-`@monaco-editor/react` or `monaco-editor` to be installed. Without them,
-these components render a lightweight plain-text fallback (a styled
-`<textarea>` and a small line-diff view) — fully functional for basic
-editing, just without IntelliSense, breakpoints, or Monaco's diff engine.
+`@monaco-editor/react` or `monaco-editor` to be installed. Without them, these
+components render a lightweight plain-text fallback (a styled `<textarea>` and
+a small line-diff view) — fully functional for basic editing, just without
+IntelliSense, breakpoints, or Monaco's diff engine.

 ```tsx
 import { EditorView } from '@salilvnair/dui';
@@ -207,21 +738,21 @@ import '@salilvnair/dui/monaco-setup';
 That import self-hosts Monaco: inline workers (no CDN — works under a strict
 CSP, e.g. inside a VS Code extension webview), a VS Code–accurate dark/light
 theme, and registration of the real editor implementation. `EditorView`
-automatically starts rendering the Monaco-backed version the moment this
-import has run; skip it and everything still works, just without Monaco.
+automatically starts rendering the Monaco-backed version the moment this import
+has run; skip it and everything still works, just without Monaco.

 **Why not auto-install Monaco, or fall back to a CDN?** `@monaco-editor/react`
 defaults to lazy-loading Monaco assets from a public CDN when you don't
 self-host — a reasonable default for a plain public web page, but wrong for
-CSP-restricted environments (webviews, offline apps, intranets) where that
-CDN is unreachable. Rather than silently guess, this library requires an
-explicit opt-in (`monaco-setup`) and never attempts the CDN path at all.
+CSP-restricted environments (webviews, offline apps, intranets) where that CDN
+is unreachable. Rather than silently guess, this library requires an explicit
+opt-in (`monaco-setup`) and never attempts the CDN path at all.

 **Bundle boundary, verified, not assumed:** `dist/index.js` (the main entry —
 everything except `EditorView` internals) contains zero references to
-`@monaco-editor/react` or `monaco-editor`. Only `dist/monaco-setup.js`
-does. This is checked as part of the release process, not just documented —
-see [Publishing](#publishing-to-npm).
+`@monaco-editor/react` or `monaco-editor`. Only `dist/monaco-setup.js` does.
+This is checked as part of the release process, not just documented — see
+[Publishing](#publishing-to-npm).

 ## Extending MarkdownView's language support

@@ -237,12 +768,15 @@ import lua from 'highlight.js/lib/languages/lua';
 registerMarkdownLanguage('lua', lua); // once, at app startup
 ```

+It registers on its own highlight.js instance, so it will not reconfigure a
+parser your app is already using elsewhere.
+
 ## TypeScript

 Full type declarations ship in `dist/`, generated from source — no
-`@types/@salilvnair__dui` needed. `peerDependencies` cover `react`,
-`react-dom`, and `zustand`; `@monaco-editor/react` and `monaco-editor` are
-`peerDependenciesMeta.optional` peers (see above).
+`@types/@salilvnair__dui` needed. `peerDependencies` cover `react`, `react-dom`,
+and `zustand`; `@monaco-editor/react`, `monaco-editor`, `vis-data` and
+`vis-network` are `peerDependenciesMeta.optional` peers (see above).

 ## Local development

@@ -250,17 +784,98 @@ Full type declarations ship in `dist/`, generated from source — no
 git clone https://github.com/salilvnair/dui.git
 cd dui
 npm install
-npm run dev            # showcase app at localhost:5173
+npm run dev            # the showcase at localhost:5173
 ```

-Open `http://localhost:5173/#dui` for the component showcase — every
-component has a live playground, examples, and prop docs.
+Every panel has an address, so you can go straight to one:
+
+| URL | What it opens |
+| --- | --- |
+| `#/chips` | ChipView, on the Live tab |
+| `#/chips/examples` | …its examples |
+| `#/chips/docs` | …its props table |
+| `#/chips?theme=light` | …on the light ground |
+| `#/chips?capture=1` | the component alone, no chrome — what the catalog images are of, and what the demo site embeds |

 ```bash
-npm run build           # builds the showcase app (for deploying docs/demo)
+npm run build           # builds the showcase app
+npm run build:demo      # the same, into demo-dist/ — this is what the demo site serves
 npm run build:lib       # builds the publishable library into dist/
+npm test                # vitest
 ```

+### How the showcase is split
+
+Worth knowing before adding a component, because two things here are easy to
+undo by accident.
+
+**Panels are lazily imported.** Each component's live view, examples and props
+table load the first time somebody opens that panel, and Rollup groups the
+three into one chunk per component — 236 of them, a median of 7 KB each. Adding
+a panel means adding a `slot(() => import('…'))` entry to `PANELS`, not an
+import at the top of the file. The eager version cost 11.4 MB before anything
+could render.
+
+**Monaco's workers are fetched, not inlined, in the showcase.** The published
+`monaco-setup` builds them into the bundle as blobs, because a consumer inside
+a VS Code webview cannot fetch a worker past the CSP. A web page can, and
+should: inlining put `ts.worker` — the whole TypeScript compiler — base64'd
+into the chunk that has to arrive first, about 8 MB of it. The showcase
+therefore imports `showcase/monacoSetup`, which pairs the same
+`monaco-setup.core` with ordinary `?worker` imports. **Do not point the
+showcase back at `@/monaco-setup`.**
+
+**Monaco itself is fetched in the background**, started at module scope in
+`main.tsx` so it downloads in parallel and blocks nothing. The rule that makes
+this safe: `@monaco-editor/react` lazy-loads Monaco *from a public CDN* unless
+`loader.config({ monaco })` has run first, and this package's position is that
+the CDN path is never taken — it is unreachable under a webview CSP, on an
+intranet, or offline. So nothing mounts an editor until the library's own
+readiness gate flips. `EditorView` and `DiffEditorView` already waited on it;
+the playground waits on it too. **If you add a component that renders
+`@monaco-editor/react` directly, gate it on `useMonacoRuntimeStatus()` — do not
+render it unconditionally.**
+
+Together these took the render path from 3.75 MB gzipped to **430 KB**, in
+seven files. Monaco's 2.6 MB still arrives, just alongside the app instead of
+in front of it, and only the readers who open a code panel wait on it.
+
+## Screenshots, video and the demo site
+
+Everything under `media/` is generated. Nothing in it is edited by hand, and
+the scripts that make it live in `scripts/`.
+
+| Command | What it does |
+| --- | --- |
+| `npm run shots` | Photographs all 281 components into `media/components/` and writes `media/components.dark.json` |
+| `npm run shots:light` | The same on the light ground (gitignored — an intermediate for the light sheets) |
+| `npm run sheets` | One contact sheet per group into `media/sheets/` — what the catalog above embeds |
+| `npm run catalog` | Rewrites the catalog block in this README from the manifest |
+| `npm run demo-video` | Records each segment against the running showcase and stitches the mp4 |
+| `npm run demo-video:gif:short` | The short loop at the top of this file |
+| `npm run demo-video:publish` | Copies the finished video and per-section GIFs into `media/` |
+| `npm run showcase` | All of the video steps, in order |
+
+The capture and video scripts drive the **running** showcase, so start it first:
+
+```bash
+npm run dev -- --port 5180
+```
+
+Two rules the scripts enforce, both learned the hard way:
+
+- **The component list comes from the app, not from the script.** The showcase
+  publishes its sidebar as `window.__DUI_SHOWCASE__`; a hand-maintained copy of
+  281 ids goes stale silently, and the failure mode is a new component that
+  simply never gets photographed.
+- **No unverified footage survives.** Every video segment asserts something is
+  on screen before its clip is kept. A step that quietly did nothing still
+  records perfectly good video of the app in the wrong state, and nothing
+  downstream can tell.
+
+`npm run catalog -- --check` fails if the README's catalog no longer matches the
+manifest, which is the version worth running in CI.
+
 ## Publishing to npm

 > This section is for library maintainers.
@@ -270,14 +885,17 @@ npm run build:lib       # builds the publishable library into dist/
 1. Node.js 18+ and npm 9+
 2. Publish access to the `@salilvnair` scope: `npm login`

-### Step 1 — Bump the version
+### Step 1 — Bump the version and write the changelog

 ```bash
 npm version patch   # bug fix:      1.0.0 -> 1.0.1
-npm version minor    # new feature:  1.0.0 -> 1.1.0
+npm version minor   # new feature:  1.0.0 -> 1.1.0
 npm version major   # breaking:     1.0.0 -> 2.0.0
 ```

+Move the `Unreleased` entries in [CHANGELOG.md](./CHANGELOG.md) under the new
+version before tagging, so the tag and the notes agree.
+
 ### Step 2 — Build

 `prepublishOnly` runs this automatically on `npm publish`, but build first to
@@ -290,7 +908,7 @@ npm run build:lib
 Verify `dist/` contains (at minimum): `index.js`, `index.d.ts`,
 `monaco-setup.js`, `monaco-setup.d.ts`, `style.css`, `theme/*.js`.

-**Sanity-check the Monaco boundary** — this is the one thing worth manually
+**Sanity-check the Monaco boundary** — the one thing worth manually
 re-verifying after any build config change: `dist/index.js` must contain no
 `@monaco-editor/react` or `monaco-editor` import. Only `dist/monaco-setup.js`
 (and its `dist/chunks/*` dependency) should reference them:
@@ -307,7 +925,7 @@ npm pack --dry-run
 ```

 Only `dist/`, `README.md`, `LICENSE`, and `package.json` should appear — no
-`src/`.
+`src/`, and no `media/`.

 ### Step 4 — Test the tarball locally

@@ -319,8 +937,8 @@ npm pack
 npm install /path/to/salilvnair-dui-X.Y.Z.tgz
 ```

-Confirm both paths work: a component that never imports Monaco (build should
-succeed with `@monaco-editor/react`/`monaco-editor` absent from
+Confirm both paths work: a component that never imports Monaco (the build
+should succeed with `@monaco-editor/react`/`monaco-editor` absent from
 node_modules), and — with those installed plus `@salilvnair/dui/monaco-setup`
 imported — a real Monaco-backed `EditorView`.

@@ -334,34 +952,50 @@ npm publish --access public
 npm publish --dry-run --access public
 ```

-### Step 6 — Push tags
+### Step 6 — Push tags, and refresh the demo site

 ```bash
 git push && git push --tags
 ```

+The demo at <https://salilvnair.com/framework/dui/> is a static build of the
+showcase living in the
+[salilvnair.github.io](https://github.com/salilvnair/salilvnair.github.io)
+repo. Refresh it from there:
+
+```bash
+npm run sync-dui-demo   # in salilvnair.github.io
+```
+
 ### Release checklist

-- [ ] `npm version` bumped
+- [ ] `npm version` bumped, and `CHANGELOG.md` updated
 - [ ] `npm run build:lib` succeeds
 - [ ] `npm pack --dry-run` shows only `dist/`, `README.md`, `LICENSE`
 - [ ] Monaco boundary check: `@monaco-editor/react`/`monaco-editor` only referenced from `monaco-setup.js` + its chunk, never `index.js`
 - [ ] Tarball tested in a consumer app, both without and with Monaco installed
+- [ ] `npm run shots && npm run sheets && npm run catalog` if components were added
 - [ ] `npm publish --access public` completed
 - [ ] `git push && git push --tags`
+- [ ] Demo site re-synced

 ### Troubleshooting

 **Consumer's build fails resolving `@monaco-editor/react` even though they never use `EditorView`**
 → Something reintroduced a static import of it into `index.js`. Re-run the
-Monaco boundary grep in Step 2 — this is the one regression this package
-must never ship.
+Monaco boundary grep in Step 2 — this is the one regression this package must
+never ship.

 **Consumer's Monaco editor works in dev but hits a blocked CDN in production**
 → They installed the Monaco packages but never imported
-`@salilvnair/dui/monaco-setup`. `EditorView` never falls back to the CDN
-loader on its own — it only ever renders the plain-text fallback or the
-self-hosted Monaco registered by `monaco-setup`.
+`@salilvnair/dui/monaco-setup`. `EditorView` never falls back to the CDN loader
+on its own — it only ever renders the plain-text fallback or the self-hosted
+Monaco registered by `monaco-setup`.
+
+**`npm run shots` says the showcase is not answering**
+→ The capture scripts drive the running app rather than rendering components in
+isolation. Start `npm run dev -- --port 5180` first, or pass
+`DUI_SHOWCASE_URL` if it is somewhere else.

 ## License
