@jsgorana/node-red-opcua 0.1.0

package/CHANGELOG.md

@@ -0,0 +1,19 @@
+# Changelog
+
+All notable changes to this project will be documented in this file.
+
+## 0.1.0 - Unreleased
+
+Initial pre-release of `@jsgorana/node-red-opcua`.
+
+- Added client nodes: endpoint, read, write, browse, and subscribe.
+- Added bidirectional `opcua-server` node for exposing Node-RED values.
+- Added shared, ref-counted OPC-UA connection management with reconnect handling.
+- Added fail-fast operation timeouts for read/write/browse workflows.
+- Added secure-by-default client certificate validation with persisted PKI storage.
+- Added username/password authentication and Sign/SignAndEncrypt server support.
+- Added batch read/write support.
+- Added shared endpoint subscriptions with per-node monitored items.
+- Added subscribe deadband/data-change filter support.
+- Added polished Node-RED example flows.
+- Added automated tests, linting, and GitHub Actions CI.

package/CONTRIBUTING.md

@@ -0,0 +1,36 @@
+# Contributing
+
+Thanks for helping improve `@jsgorana/node-red-opcua`.
+
+## Requirements
+
+- Node.js 22.9 or newer
+- npm
+
+## Local Setup
+
+```bash
+npm install
+npm run lint
+npm test
+```
+
+The test suite starts local OPC-UA servers as needed; no external OPC-UA server is required.
+
+## Development Notes
+
+- Keep runtime node files under `nodes/`.
+- Keep shared logic in `nodes/lib/` where it can be tested without Node-RED.
+- Add or update tests for behavioral changes.
+- Preserve secure defaults. Development-only security bypasses should be explicit and logged.
+- Do not publish from feature branches or local experiments.
+
+## Before Opening a PR
+
+```bash
+npm run lint
+npm test
+```
+
+Include a short description of the change, the reason for it, and any manual OPC-UA or
+Node-RED validation performed.

package/LICENSE

@@ -0,0 +1,21 @@
+MIT License
+
+Copyright (c) 2026 jsgorana
+
+Permission is hereby granted, free of charge, to any person obtaining a copy
+of this software and associated documentation files (the "Software"), to deal
+in the Software without restriction, including without limitation the rights
+to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
+copies of the Software, and to permit persons to whom the Software is
+furnished to do so, subject to the following conditions:
+
+The above copyright notice and this permission notice shall be included in all
+copies or substantial portions of the Software.
+
+THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
+IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
+FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
+AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
+LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
+OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
+SOFTWARE.

package/README.md

@@ -0,0 +1,506 @@
+# @jsgorana/node-red-opcua
+
+Modern OPC-UA client and server nodes for Node-RED.
+
+Use Node-RED to read, write, browse, and subscribe to industrial OPC-UA servers, or expose
+Node-RED values as an OPC-UA server that PLCs, SCADA systems, historians, and test clients
+can read and write.
+
+This package is built for Node-RED 5.x and current `node-opcua`. It is intended as a clean,
+maintained alternative to older OPC-UA Node-RED packages that have become difficult to rely
+on in modern IIOT deployments.
+

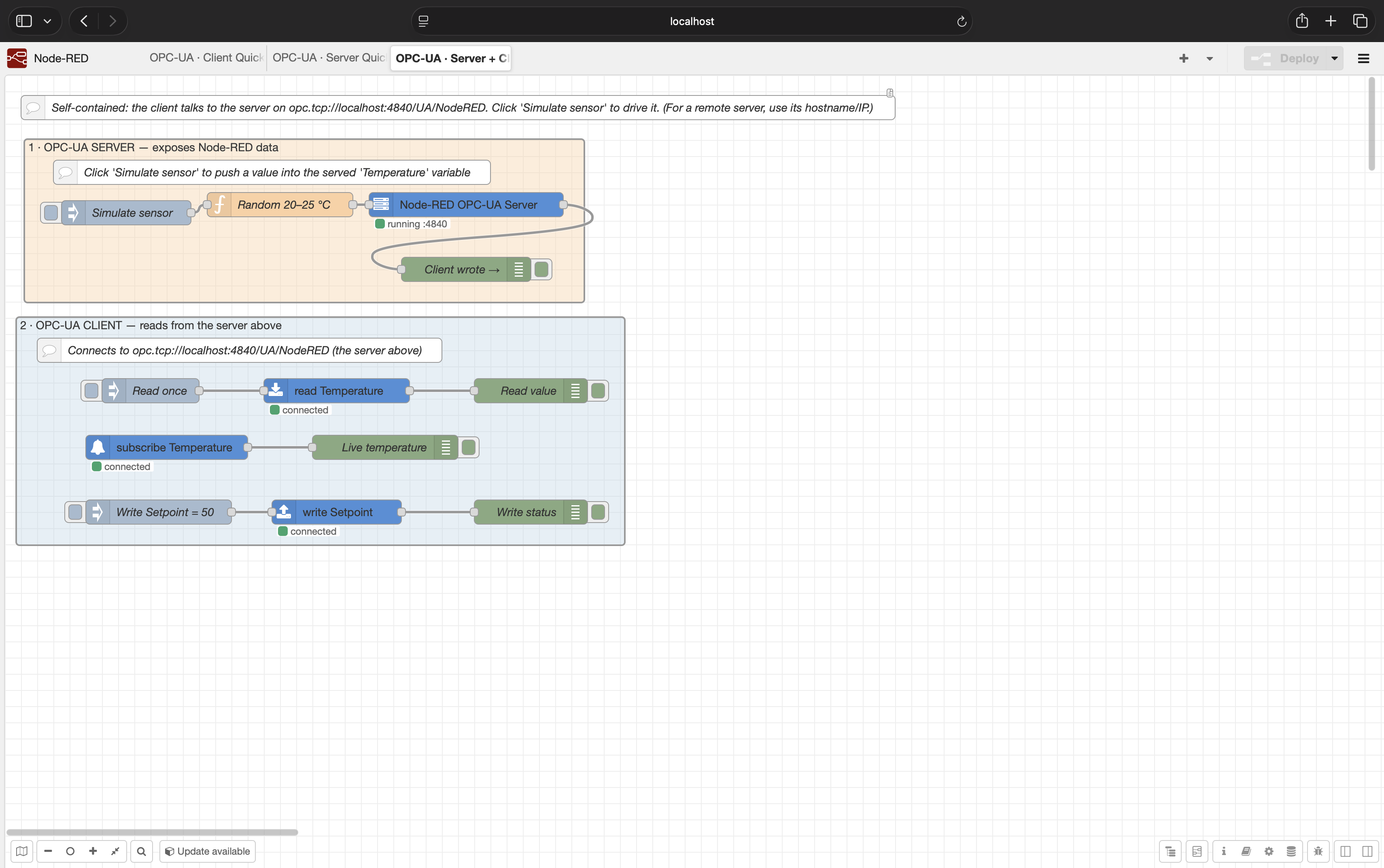

+![Server and client demo flow](https://raw.githubusercontent.com/jsgorana/node-red-opcua/main/docs/assets/server-client-demo-flow.png)
+
+## What You Get
+
+| Node | Use it for |
+| --- | --- |
+| `opcua-endpoint` | Shared OPC-UA client endpoint configuration: URL, security, authentication, timeout, PKI trust behavior |
+| `opcua-read` | Read one or many OPC-UA node values |
+| `opcua-write` | Write one or many OPC-UA node values with explicit data types |
+| `opcua-browse` | Browse an address space from a starting NodeId |
+| `opcua-subscribe` | Subscribe to value changes with sampling, publishing, queue, trigger, and deadband settings |
+| `opcua-server` | Serve Node-RED values as OPC-UA variables and emit messages when OPC-UA clients write |
+
+Core behavior:
+
+- One shared, ref-counted OPC-UA connection per endpoint config node.
+- Automatic reconnect and subscription re-arm after outages.
+- Fail-fast read/write/browse operation timeout so flows do not hang forever.
+- Secure-by-default certificate validation for encrypted client connections.
+- Username/password authentication for client and server use cases.
+- Server-side `None`, `Sign`, and `SignAndEncrypt` endpoint options.
+- Three bundled example flows that are ready to import from the Node-RED Examples menu.
+
+## Requirements
+
+- Node.js `>=22.9.0`
+- Node-RED 5.x recommended
+- Node-RED 4.x is supported by package metadata, but Node-RED 5.x is the primary target
+
+## Installation
+
+### Palette Manager
+
+In Node-RED:
+
+1. Open **Menu -> Manage palette**.
+2. Go to **Install**.
+3. Search for `@jsgorana/node-red-opcua`.
+4. Click **Install**.
+
+### npm
+
+From your Node-RED user directory:
+
+```bash
+npm install @jsgorana/node-red-opcua
+```
+
+Then restart Node-RED if your runtime does not automatically reload installed nodes.
+
+## Fastest Start: Self-Contained Demo
+
+The quickest way to prove the package is working is the bundled **Server + Client Demo**.
+It runs an OPC-UA server and OPC-UA client in the same Node-RED instance, so no PLC,
+simulator, or external server is required.
+
+1. In Node-RED, open **Menu -> Import**.
+2. Select the **Examples** tab.
+3. Open `@jsgorana/node-red-opcua`.
+4. Import **Server + Client Demo**.
+5. Click **Deploy**.
+6. Click **Simulate sensor**.
+7. Watch the read/subscription/debug nodes update.
+

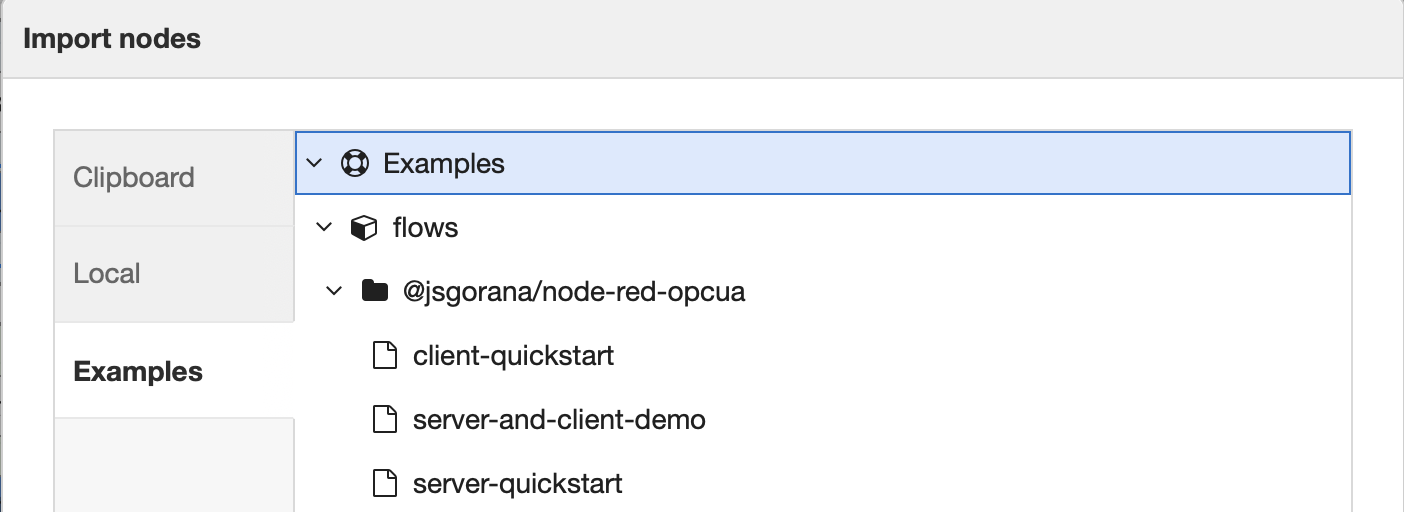

+![Import examples dialog](https://raw.githubusercontent.com/jsgorana/node-red-opcua/main/docs/assets/node-red-import-examples-menu.png)
+
+The demo exposes:
+
+- `ns=1;s=Temperature`
+- `ns=1;s=Setpoint`
+
+The client nodes connect to:
+
+```text
+opc.tcp://localhost:4840/UA/NodeRED
+```
+
+Use `localhost` only when the client and server are in the same runtime/container/host.
+For remote systems, use the OPC-UA server host name or IP address that is reachable from
+Node-RED.
+
+## Example Flows
+
+Import examples from **Menu -> Import -> Examples -> @jsgorana/node-red-opcua**.
+
+### Server + Client Demo
+
+Self-contained flow for first validation. The orange group serves values; the blue group
+reads, writes, and subscribes to the server above it.
+
+![Server and client demo](https://raw.githubusercontent.com/jsgorana/node-red-opcua/main/docs/assets/server-client-demo-flow.png)
+
+### Client Quickstart
+
+Client-only patterns for connecting to your own OPC-UA server:
+
+- Read a value on demand.
+- Write a value.
+- Browse the address space.
+- Subscribe to live value changes.
+

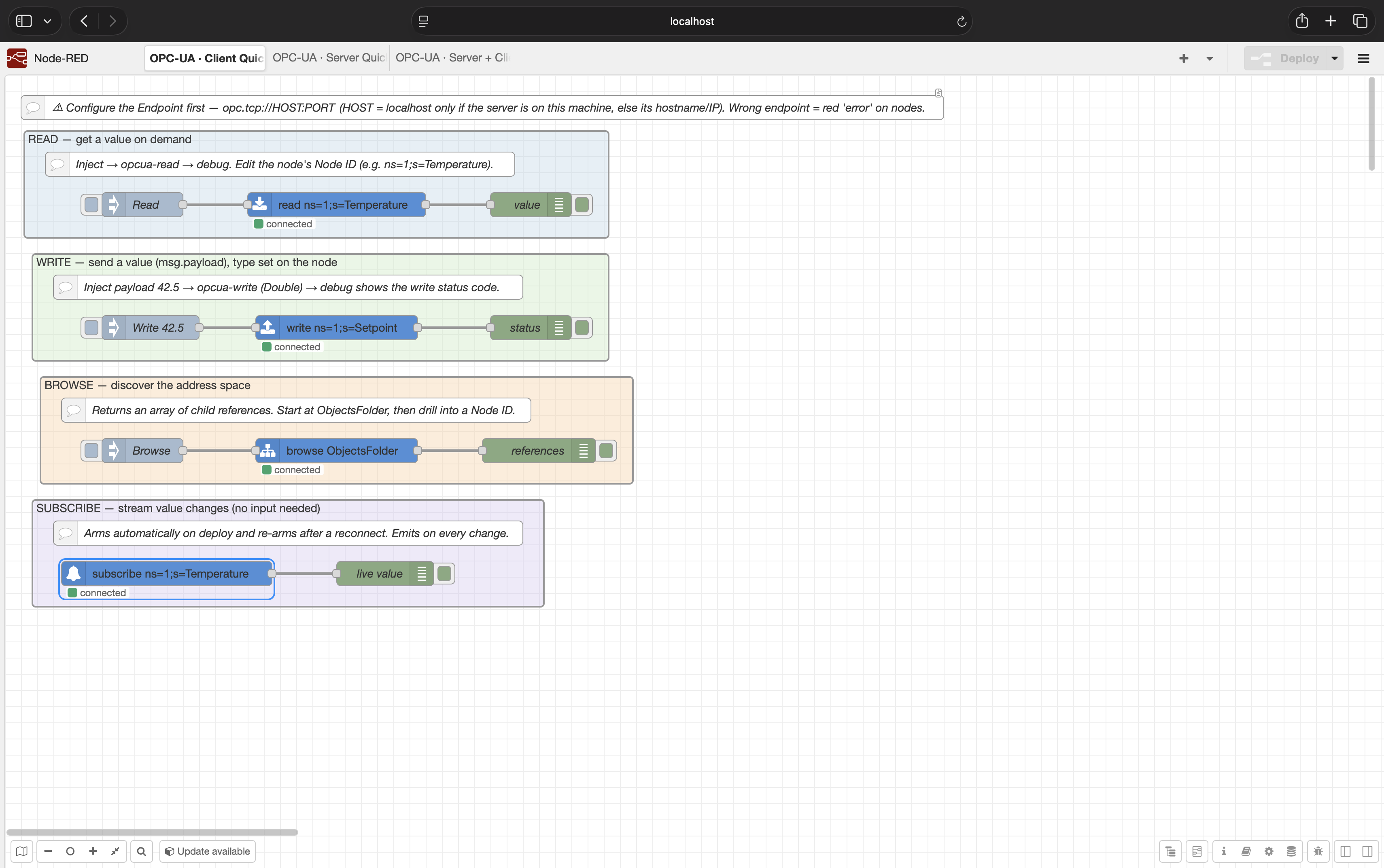

+![Client quickstart flow](https://raw.githubusercontent.com/jsgorana/node-red-opcua/main/docs/assets/client-quickstart-flow.png)
+
+### Server Quickstart
+
+Server-only pattern for exposing Node-RED data outward:
+
+- Feed Node-RED values into served OPC-UA variables.
+- Receive messages when an OPC-UA client writes a variable.
+

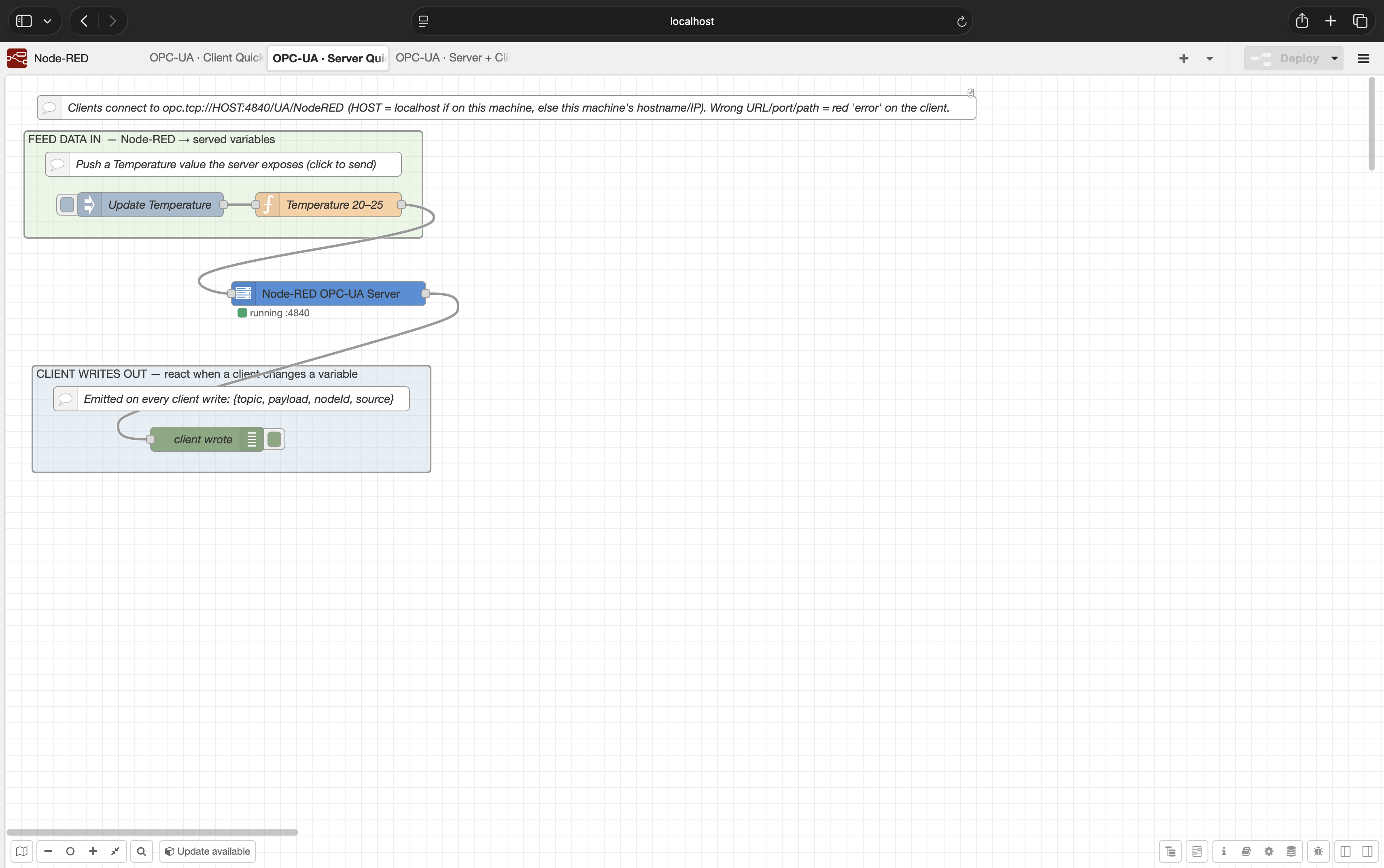

+![Server quickstart flow](https://raw.githubusercontent.com/jsgorana/node-red-opcua/main/docs/assets/server-quickstart-flow.png)
+
+## Client Endpoint Configuration
+
+All client operation nodes use an `opcua-endpoint` config node. Multiple read/write/browse/
+subscribe nodes that point at the same endpoint share one connection and session.
+

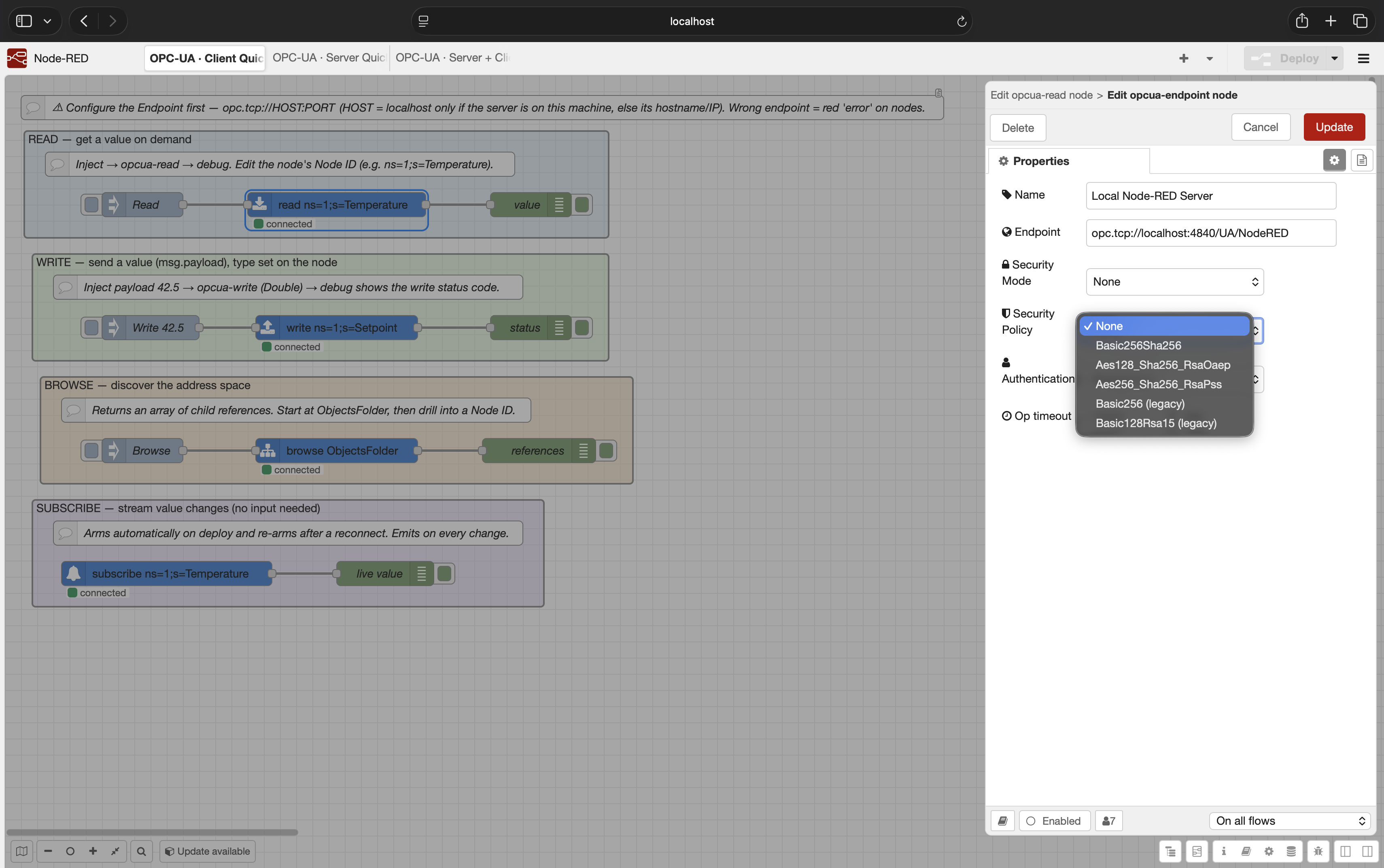

+![Endpoint security configuration](https://raw.githubusercontent.com/jsgorana/node-red-opcua/main/docs/assets/endpoint-security-config.png)
+
+Important fields:
+
+| Field | Meaning |
+| --- | --- |
+| Endpoint | OPC-UA endpoint URL, for example `opc.tcp://192.168.1.20:4840/UA/MyServer` |
+| Security Mode | `None`, `Sign`, or `SignAndEncrypt` |
+| Security Policy | `None`, `Basic256Sha256`, `Aes128_Sha256_RsaOaep`, `Aes256_Sha256_RsaPss`, or legacy policies |
+| Authentication | Anonymous or username/password |
+| Op timeout | Maximum time a read/write/browse operation waits before failing |
+
+For production systems, prefer:
+
+- `Security Mode`: `SignAndEncrypt`
+- `Security Policy`: `Basic256Sha256` or stronger
+- Authentication: username/password if your server supports it
+- Server certificate trusted in the Node-RED PKI store
+
+## Reading Values
+
+### Single Read
+
+Configure `Node ID` on the node, or pass it with `msg.nodeId`.
+
+Input:
+
+```json
+{
+  "nodeId": "ns=1;s=Temperature"
+}
+```
+
+Output:
+
+```json
+{
+  "payload": 23.7,
+  "nodeId": "ns=1;s=Temperature",
+  "statusCode": "Good (0x00000000)"
+}
+```
+
+### Batch Read
+
+Send an array as `msg.nodeIds` or `msg.payload`.
+
+Input:
+
+```json
+{
+  "nodeIds": [
+    "ns=1;s=Temperature",
+    "ns=1;s=Setpoint"
+  ]
+}
+```
+
+Output:
+
+```json
+{
+  "payload": [
+    {
+      "nodeId": "ns=1;s=Temperature",
+      "payload": 23.7,
+      "statusCode": "Good (0x00000000)"
+    },
+    {
+      "nodeId": "ns=1;s=Setpoint",
+      "payload": 50,
+      "statusCode": "Good (0x00000000)"
+    }
+  ],
+  "nodeIds": [
+    "ns=1;s=Temperature",
+    "ns=1;s=Setpoint"
+  ],
+  "statusCodes": [
+    "Good (0x00000000)",
+    "Good (0x00000000)"
+  ]
+}
+```
+
+## Writing Values
+
+### Single Write
+
+Configure `Node ID` and `Data Type` on the node, or override with `msg.nodeId` and
+`msg.dataType`.
+
+Input:
+
+```json
+{
+  "nodeId": "ns=1;s=Setpoint",
+  "dataType": "Double",
+  "payload": 50
+}
+```
+
+Output:
+
+```json
+{
+  "nodeId": "ns=1;s=Setpoint",
+  "statusCode": "Good (0x00000000)"
+}
+```
+
+### Batch Write
+
+Use an array of write descriptors:
+
+```json
+{
+  "payload": [
+    {
+      "nodeId": "ns=1;s=Setpoint",
+      "dataType": "Double",
+      "value": 50
+    },
+    {
+      "nodeId": "ns=1;s=Label",
+      "dataType": "String",
+      "value": "line running"
+    }
+  ]
+}
+```
+
+Output:
+
+```json
+{
+  "nodeIds": [
+    "ns=1;s=Setpoint",
+    "ns=1;s=Label"
+  ],
+  "statusCodes": [
+    "Good (0x00000000)",
+    "Good (0x00000000)"
+  ]
+}
+```
+
+Supported data type names are the `node-opcua` `DataType` enum names, including:
+`Boolean`, `SByte`, `Byte`, `Int16`, `UInt16`, `Int32`, `UInt32`, `Float`, `Double`,
+`String`, and `DateTime`.
+
+## Browsing
+
+`opcua-browse` browses from a configured `Node ID`, or from `msg.nodeId`.
+
+Common starting points:
+
+```text
+RootFolder
+ObjectsFolder
+ns=1;s=SomeObject
+```
+
+Output payload is an array of references:
+
+```json
+[
+  {
+    "nodeId": "ns=1;s=Temperature",
+    "browseName": "1:Temperature",
+    "displayName": "Temperature",
+    "nodeClass": 2,
+    "typeDefinition": "i=63"
+  }
+]
+```
+
+## Subscribing To Changes
+
+`opcua-subscribe` automatically connects and arms its monitored item when the flow starts.
+It has no input. It emits a message each time the server reports a value change.
+

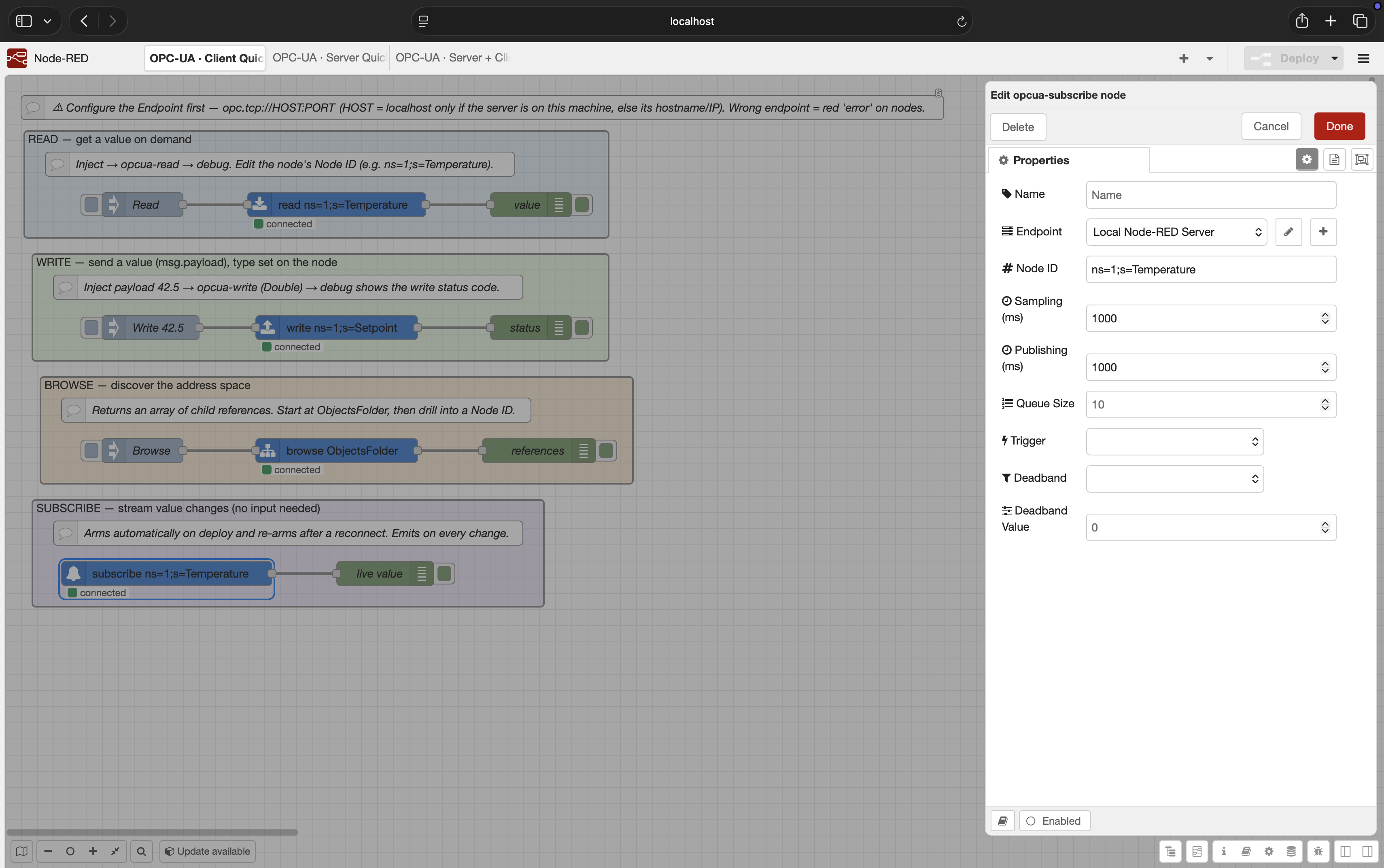

+![Subscribe deadband configuration](https://raw.githubusercontent.com/jsgorana/node-red-opcua/main/docs/assets/subscribe-deadband-config.png)
+
+Output:
+
+```json
+{
+  "payload": 23.9,
+  "nodeId": "ns=1;s=Temperature",
+  "statusCode": "Good (0x00000000)",
+  "sourceTimestamp": "2026-06-28T12:00:00.000Z"
+}
+```
+
+Subscription settings:
+
+| Field | Meaning |
+| --- | --- |
+| Sampling (ms) | How often the server samples the value |
+| Publishing (ms) | How often the subscription publishes notifications |
+| Queue Size | Number of changes to queue if the client cannot process them immediately |
+| Trigger | Status only, status + value, or status + value + timestamp |
+| Deadband | `None`, `Absolute`, or `Percent` |
+| Deadband Value | Threshold for absolute or percent deadband |
+
+All subscribe nodes that share the same endpoint use one OPC-UA subscription with separate
+monitored items. This is friendlier to servers that limit subscription counts.
+
+## Exposing Node-RED As An OPC-UA Server
+
+Use `opcua-server` when you want other OPC-UA clients to read or write data owned by
+Node-RED.
+

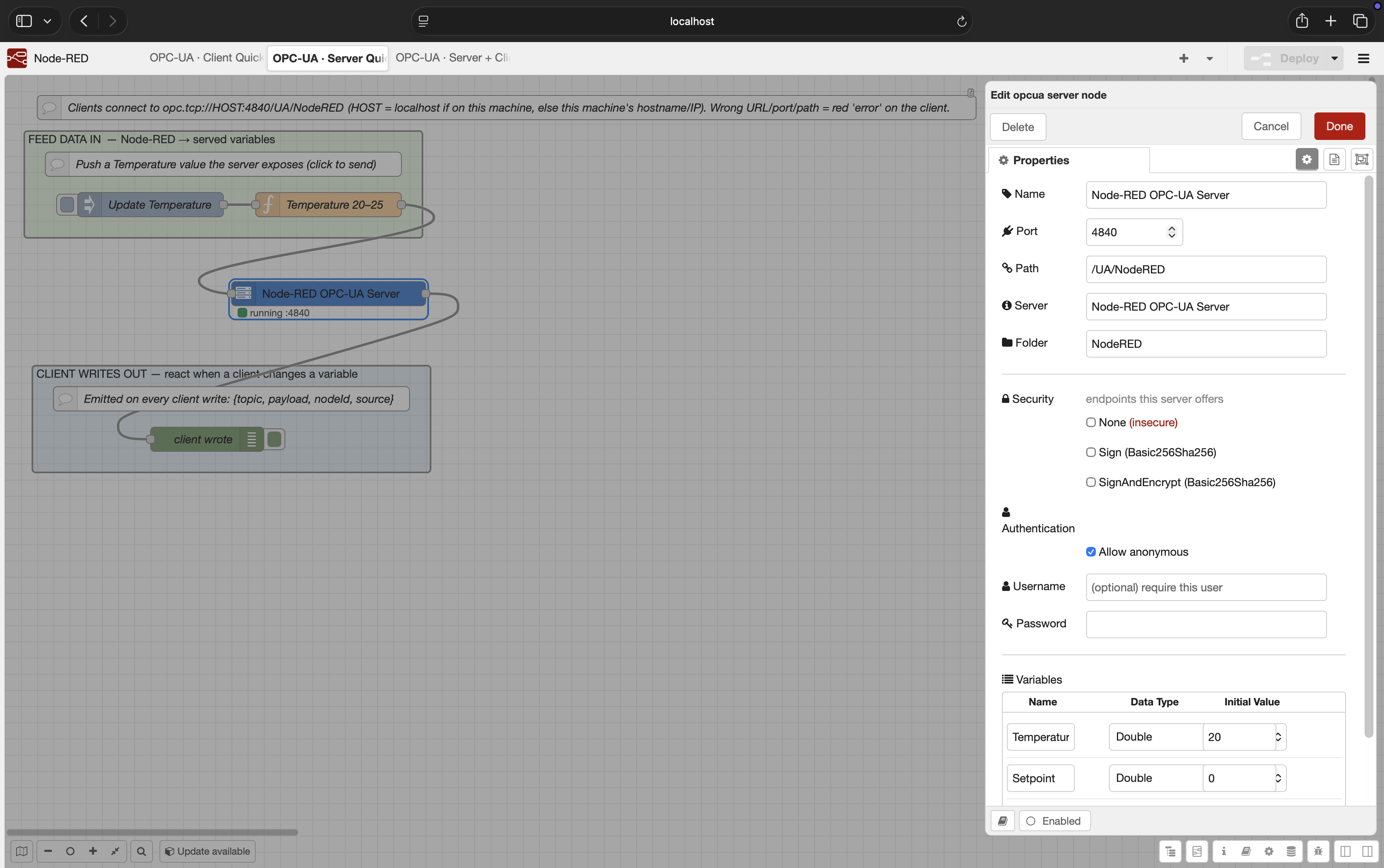

+![Server security configuration](https://raw.githubusercontent.com/jsgorana/node-red-opcua/main/docs/assets/server-security-config.png)
+
+Input message:
+
+```json
+{
+  "topic": "Temperature",
+  "payload": 24.2,
+  "dataType": "Double"
+}
+```
+
+The server exposes that as:
+
+```text
+ns=1;s=Temperature
+```
+
+If an OPC-UA client writes to a served variable, the node emits:
+
+```json
+{
+  "topic": "Setpoint",
+  "payload": 50,
+  "nodeId": "ns=1;s=Setpoint",
+  "source": "client"
+}
+```
+
+Server security options:
+
+- Offer `None`, `Sign`, and/or `SignAndEncrypt` endpoints.
+- Require username/password, allow anonymous, or support both.
+- Validate client certificates in the server PKI trust store.
+- Use `SignAndEncrypt` plus credentials for production-facing servers.
+
+## OPC-UA Security And Certificates
+
+### Client Certificate Trust
+
+For secure client connections (`Sign` or `SignAndEncrypt`), server certificate validation is
+enabled by default.
+
+The client PKI store is created under:
+
+```text
+<Node-RED userDir>/opcua-pki
+```
+
+Important folders:
+
+| Folder | Purpose |
+| --- | --- |
+| `own/certs` | Node-RED client's own application certificate |
+| `trusted/certs` | Server certificates explicitly trusted by this Node-RED instance |
+| `rejected` | Unknown certificates rejected during connection attempts |
+
+If a secure connection fails with `BadCertificateUntrusted`, copy the server certificate
+from `rejected` into `trusted/certs`, then reconnect.
+
+The **Accept untrusted server cert** option is for development only. It disables the trust
+decision and should not be used in production.
+
+### Username And Password
+
+Credentials are stored using Node-RED credentials storage. For production systems, combine
+username/password with `SignAndEncrypt`.
+
+### Server Certificate Trust
+
+The `opcua-server` node stores server-side PKI material under:
+
+```text
+<Node-RED userDir>/opcua-pki/server
+```
+
+When client certificate validation is enabled, unknown client certificates are rejected
+until trusted.
+
+## Docker And Network Notes
+
+`localhost` means "inside this runtime".
+
+Common cases:
+
+- Node-RED and OPC-UA server on the same host: `opc.tcp://localhost:4840/...`
+- Node-RED in Docker, server on host machine: use the host name/IP reachable from the
+  container, not `localhost`.
+- Node-RED in Docker Compose: use the service name if both containers share a network.
+- Remote PLC/server: use the PLC/server IP or DNS name and ensure the OPC-UA port is open.
+
+## Troubleshooting
+
+### Node status says `error` or operation times out
+
+- Confirm the endpoint URL, port, and resource path.
+- Confirm Node-RED can reach the server from its runtime environment.
+- Increase `Op timeout` if the network is slow.
+- Check whether the server requires security or credentials.
+
+### Secure connection fails with `BadCertificateUntrusted`
+
+- Look in `<userDir>/opcua-pki/rejected`.
+- Move the server certificate to `<userDir>/opcua-pki/trusted/certs`.
+- Restart/reconnect the flow.
+- Avoid **Accept untrusted server cert** outside development.
+
+### Username/password fails
+
+- Check whether the server requires `SignAndEncrypt`.
+- Confirm the username and password in the endpoint credentials.
+- Confirm the server supports username/password user tokens for the selected endpoint.
+
+### Browse works but read/write fails
+
+- Confirm the exact NodeId.
+- Confirm the node exposes the `Value` attribute.
+- For writes, confirm the server allows writing and the selected data type matches.
+
+### Subscribe emits nothing
+
+- Confirm the node value actually changes.
+- Check sampling/publishing intervals.
+- Remove deadband while testing.
+- Confirm the server permits subscriptions.
+
+### Node-RED does not show the nodes
+
+- Confirm Node.js is `>=22.9.0`.
+- Confirm the package is installed in the Node-RED user directory or through Palette Manager.
+- Restart Node-RED after installing if needed.
+
+## Development
+
+```bash
+npm install
+npm run lint
+npm test
+```
+
+Run a local test server:
+
+```bash
+node test/helpers/standalone-server.js 4841
+```
+
+It exposes:
+
+```text
+ns=1;s=Temperature
+ns=1;s=Label
+ns=1;s=Setpoint
+```
+
+## Project Status
+
+`0.1.0` is the first public release. The core client/server workflows are implemented and
+tested. Deferred items include OPC-UA method calls, X.509 user authentication, and richer
+server-side address-space modeling.
+
+## License
+
+MIT © jsgorana
