@galihru/orbinexsim 0.1.0 → 0.1.3

package/LICENSE

@@ -1,21 +1,21 @@
-MIT License
-
-Copyright (c) 2026 Galih Ridho Utomo
-
-Permission is hereby granted, free of charge, to any person obtaining a copy
-of this software and associated documentation files (the "Software"), to deal
-in the Software without restriction, including without limitation the rights
-to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
-copies of the Software, and to permit persons to whom the Software is
-furnished to do so, subject to the following conditions:
-
-The above copyright notice and this permission notice shall be included in all
-copies or substantial portions of the Software.
-
-THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
-IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
-FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
-AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
-LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
-OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
-SOFTWARE.
+MIT License
+
+Copyright (c) 2026 Galih Ridho Utomo
+
+Permission is hereby granted, free of charge, to any person obtaining a copy
+of this software and associated documentation files (the "Software"), to deal
+in the Software without restriction, including without limitation the rights
+to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
+copies of the Software, and to permit persons to whom the Software is
+furnished to do so, subject to the following conditions:
+
+The above copyright notice and this permission notice shall be included in all
+copies or substantial portions of the Software.
+
+THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
+IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
+FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
+AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
+LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
+OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
+SOFTWARE.

package/README.md

@@ -1,46 +1,373 @@
-# @galihru/orbinexsim
-
-OrbinexSim adalah wrapper tingkat tinggi agar kamu bisa pakai Orbinex desktop + AR tanpa menulis ribuan baris kode.
-
-## Install
-
-```bash
-npm i @galihru/orbinexsim
-```
-
-## Pemakaian Paling Ringkas
-
-```ts
-import { createOrbinexSim } from "@galihru/orbinexsim";
-
-const sim = createOrbinexSim("#app", {
-  mode: "desktop",
-  model: "Bumi",
-  autoRequestAccess: true,
-});
-
-// pindah ke AR kapan saja
-await sim.launchAr({ camera: true, motionSensors: true });
-```
-
-## API Inti
-
-- `createOrbinexSim(target, options)`
-- `sim.setMode("desktop" | "ar")`
-- `sim.setModel("Bumi")`
-- `sim.launchAr({ camera: true })`
-- `sim.requestAccess({ camera: true, geolocation: true })`
-- `sim.buildQuickReport(radiusMeters)`
-
-## Catatan
-
-- Module ini menggunakan `@galihru/orbinex` untuk kalkulasi dasar orbit.
-- Untuk mode AR, browser/user tetap bisa menolak permission kamera/sensor.
-- Default host viewer: `https://galihru.github.io/OrbinexSimulation/`
-
-## Publish
-
-```bash
-npm run build
-npm publish --access public
-```
+# @galihru/orbinexsim
+
+[![npm version](https://img.shields.io/npm/v/%40galihru%2Forbinexsim?label=npm%20%40galihru%2Forbinexsim)](https://www.npmjs.com/package/@galihru/orbinexsim)
+[![npm downloads](https://img.shields.io/npm/dm/%40galihru%2Forbinexsim?label=downloads)](https://www.npmjs.com/package/@galihru/orbinexsim)
+[![core physics module](https://img.shields.io/npm/v/%40galihru%2Forbinex?label=core%20%40galihru%2Forbinex)](https://www.npmjs.com/package/@galihru/orbinex)
+[![demo](https://img.shields.io/badge/demo-GitHub%20Pages-0A3B7A)](https://galihru.github.io/OrbinexSimulation/)
+
+High-level scientific wrapper for embedding OrbinexSimulation desktop and AR runtimes with a compact TypeScript API.
+
+## 1. What This Module Provides
+
+- Fast embedding of the hosted simulation viewer in desktop or AR mode.
+- Runtime permission orchestration for camera, microphone, geolocation, and motion sensors.
+- Orbit sample utilities backed by [@galihru/orbinex](https://www.npmjs.com/package/@galihru/orbinex).
+- AR marker utilities for marker creation, tracking, catalog proxy ingestion, and primitive model synthesis.
+
+## 2. Demonstration and Related Modules
+
+| Resource | Link |
+| --- | --- |
+| Desktop demo | [https://galihru.github.io/OrbinexSimulation/](https://galihru.github.io/OrbinexSimulation/) |
+| AR demo | [https://galihru.github.io/OrbinexSimulation/ar-view.html](https://galihru.github.io/OrbinexSimulation/ar-view.html) |
+| Wrapper package | [@galihru/orbinexsim](https://www.npmjs.com/package/@galihru/orbinexsim) |
+| Core physics package | [@galihru/orbinex](https://www.npmjs.com/package/@galihru/orbinex) |
+
+## 3. Visual Runtime Evidence with Figure Interpretation
+
+| Column 1: Function area | Column 2: Screenshot evidence |
+| --- | --- |

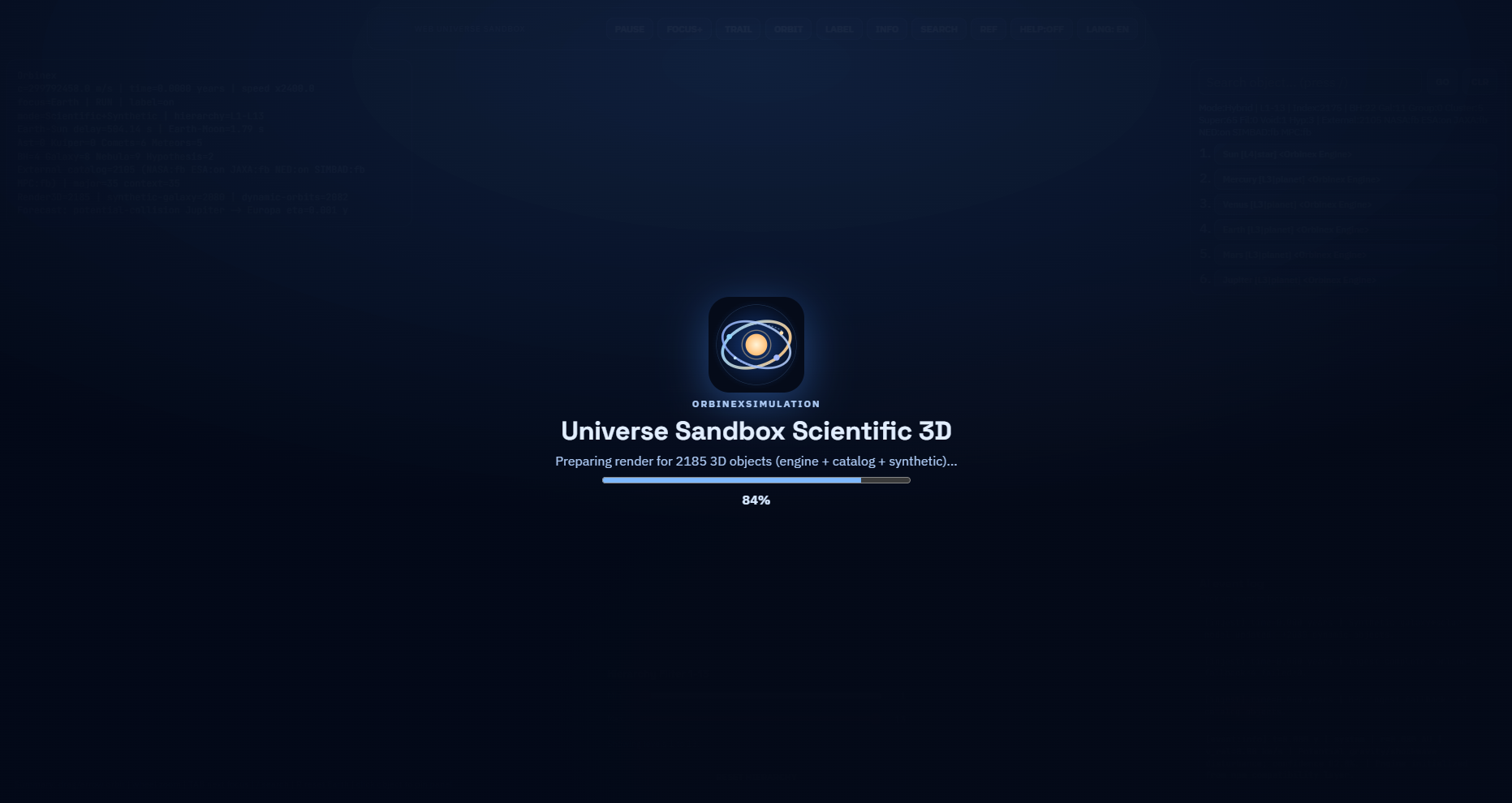

+| Startup render stage | ![Startup render](https://raw.githubusercontent.com/galihru/OrbinexSimulation/main/docs/images/startup-render.png) |

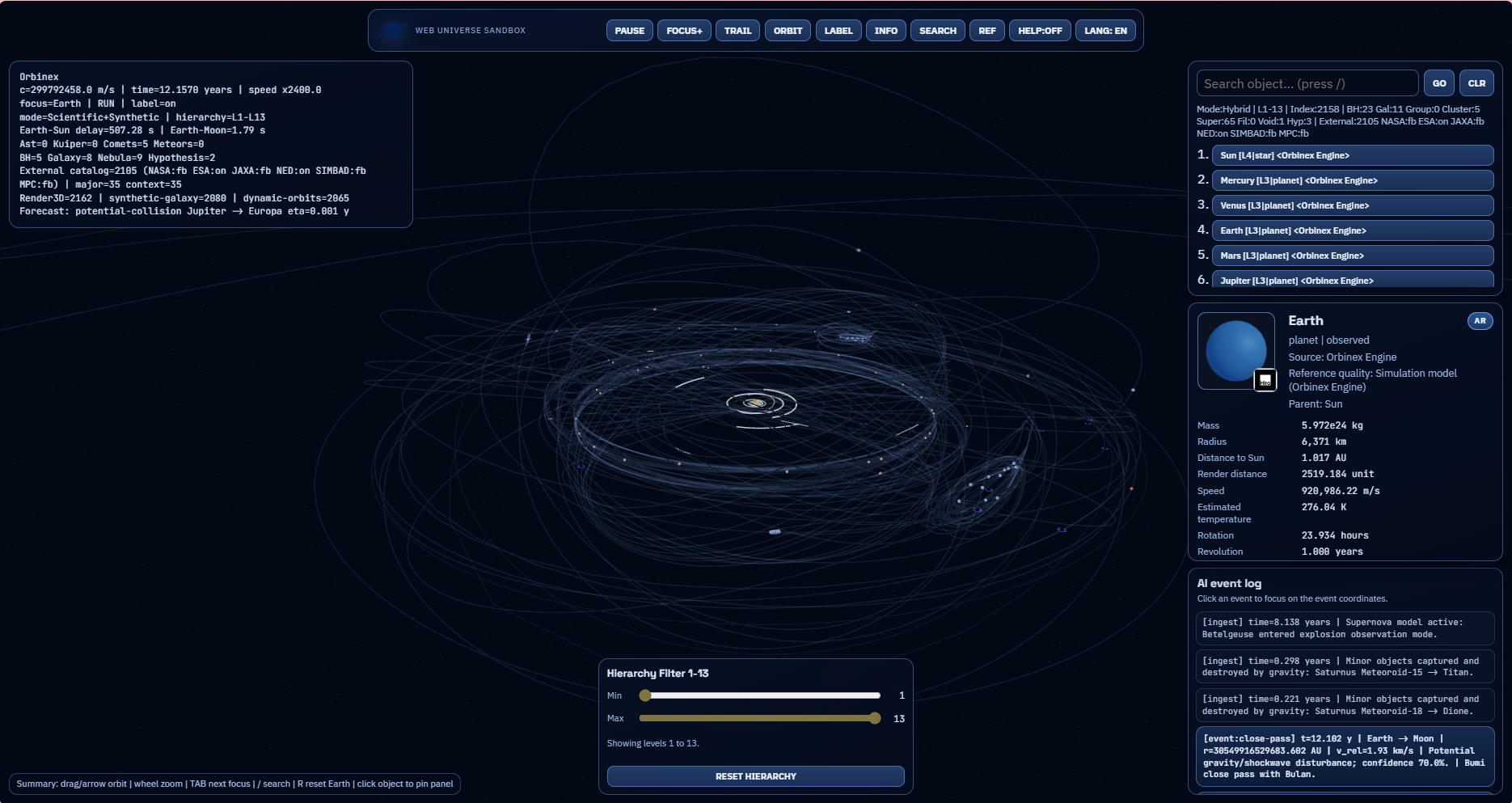

+| Main runtime overview | ![Runtime overview](https://raw.githubusercontent.com/galihru/OrbinexSimulation/main/docs/images/desktop-runtime-overview.png) |

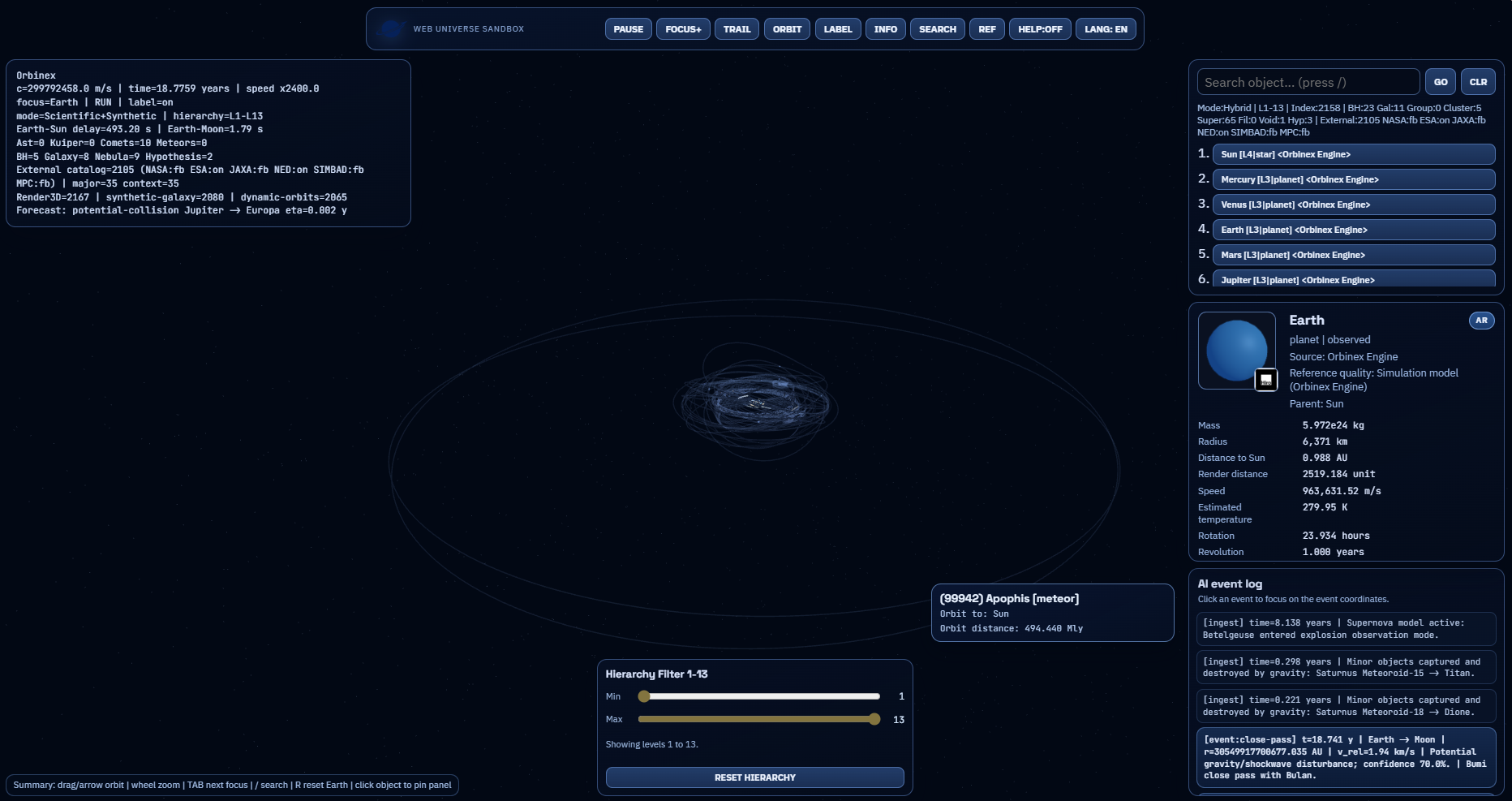

+| Focused runtime state | ![Runtime focused](https://raw.githubusercontent.com/galihru/OrbinexSimulation/main/docs/images/desktop-runtime-focused.png) |

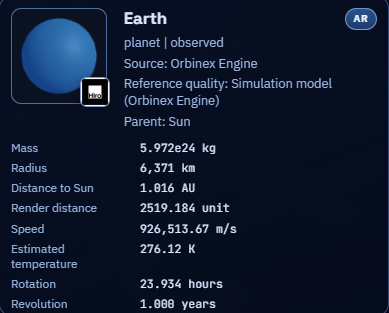

+| Object scientific card | ![Object card](https://raw.githubusercontent.com/galihru/OrbinexSimulation/main/docs/images/object-information-card.png) |

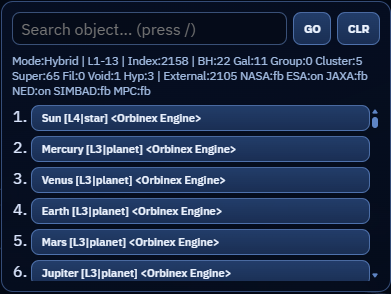

+| Search and event modules | ![Search panel](https://raw.githubusercontent.com/galihru/OrbinexSimulation/main/docs/images/search-panel.png) |

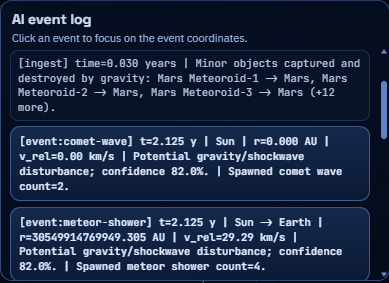

+| Event logging module | ![Event log panel](https://raw.githubusercontent.com/galihru/OrbinexSimulation/main/docs/images/event-log-panel.png) |

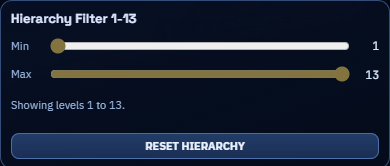

+| Hierarchy filtering module | ![Hierarchy filter panel](https://raw.githubusercontent.com/galihru/OrbinexSimulation/main/docs/images/hierarchy-filter-panel.png) |
+| AR marker reference | ![Hiro marker](https://raw.githubusercontent.com/galihru/OrbinexSimulation/main/docs/images/ar-marker-hiro.png) |
+| AR QR activation bridge | ![AR QR card](https://raw.githubusercontent.com/galihru/OrbinexSimulation/main/docs/images/ar-qr-code.png) |
+| Handheld in-situ AR runtime after marker lock | ![Handheld AR runtime](https://raw.githubusercontent.com/galihru/OrbinexSimulation/main/docs/images/ar-mobile-latest-result.png) |
+
+Figure interpretation notes:
+
+1. Table 1, Column 2, Row 1 documents the initialization stage preceding full scene interactivity.
+2. Table 1, Column 2, Row 2 and Row 3 document high-density and focused-density runtime regimes.
+3. Table 1, Column 2, Row 4 isolates object-level scientific descriptors used in the detail panel API flow.
+4. Table 1, Column 2, Row 5 to Row 7 capture retrieval, event chronology, and hierarchy filtering controls.
+5. Table 1, Column 2, Row 8 and Row 9 capture AR marker anchoring and QR-based mobile activation.
+6. Table 1, Column 2, Row 10 captures handheld mobile evidence where object and label overlays remain stable after marker detection.
+
+## 4. Installation and Environment Requirements
+
+### 4.1 Prerequisites
+
+| Requirement | Recommended version | Notes |
+| --- | --- | --- |
+| Node.js | 20.x LTS or newer | Required for ESM/CJS build artifacts |
+| npm | 10.x or newer | Used for install, build, pack, publish |
+| Browser context | HTTPS for runtime permissions | Needed for camera/geolocation/motion APIs |
+
+### 4.2 Install Command
+
+```bash
+npm install @galihru/orbinexsim
+```
+
+Equivalent commands:
+
+```bash
+pnpm add @galihru/orbinexsim
+yarn add @galihru/orbinexsim
+bun add @galihru/orbinexsim
+```
+
+### 4.3 Sequential Path (Install Module First)
+
+Use this ordered sequence to avoid ambiguity:
+
+1. Install the published wrapper module in your target project.
+
+```bash
+npm install @galihru/orbinexsim
+```
+
+2. Validate installation and resolve lockfile.
+
+```bash
+npm ls @galihru/orbinexsim
+```
+
+3. Integrate and run your app runtime entry.
+
+```bash
+npm run dev
+```
+
+4. If you need source-level package customization, clone this repository and build the local wrapper.
+
+```bash
+git clone https://github.com/galihru/OrbinexSimulation.git
+cd OrbinexSimulation/orbinexsim-npm
+npm ci
+npm run build
+```
+
+### 4.4 Deterministic Local Build of This Package
+
+```bash
+npm ci
+npm run build
+```
+
+Pack for pre-publish validation:
+
+```bash
+npm pack
+```
+
+Publish (requires npm auth and policy-compliant token/2FA setup):
+
+```bash
+npm publish --access public
+```
+
+## 5. Quick Start
+
+```ts
+import { createOrbinexSim } from "@galihru/orbinexsim";
+
+const sim = createOrbinexSim("#app", {
+  mode: "desktop",
+  model: "Bumi",
+  autoRequestAccess: true,
+  width: "100%",
+  height: "72vh"
+});
+
+// Switch runtime mode when needed
+await sim.launchAr({ camera: true, motionSensors: true });
+
+// Scientific quick sample at 1 AU
+console.log(sim.buildQuickReport(1.496e11));
+```
+
+## 6. AR Runtime Integration Example
+
+```ts
+import {
+  bindMarkerTracking,
+  createMarkersFromCatalog,
+  createPrimitiveModelFromCatalogEntry,
+  parseArRequestFromSearch,
+  resolveCatalogProxyUrl,
+  loadCatalogFromProxy,
+  resolveObjectNameForMarker,
+  createDefaultArMarkers,
+  ensureArMarkers,
+  resolveArMarkerHint,
+  requestRuntimePermissions,
+} from "@galihru/orbinexsim/ar-runtime";
+
+const request = parseArRequestFromSearch(window.location.search);
+const markers = createDefaultArMarkers(request.model, request.altModel);
+const markerEls = ensureArMarkers("#ar-scene", markers, {
+  createMissing: true,
+  ensureModelRoot: true,
+});
+
+const stopMarkerTracking = bindMarkerTracking(markerEls, {
+  onMarkerFound: (summary) => {
+    console.log("found", summary.markerModel, summary.markerLabel);
+  },
+});
+
+const catalogProxyUrl = resolveCatalogProxyUrl(window.location.search);
+const proxyEntries = catalogProxyUrl ? await loadCatalogFromProxy(catalogProxyUrl) : [];
+const proxyMarkers = createMarkersFromCatalog(proxyEntries, markers);
+ensureArMarkers("#ar-scene", proxyMarkers, { createMissing: true, ensureModelRoot: true });
+
+if (proxyEntries[0]) {
+  createPrimitiveModelFromCatalogEntry("#model-root-hiro", proxyEntries[0], {
+    includeLabel: true,
+    radiusScale: 1,
+  });
+}
+
+const hint = resolveArMarkerHint(markerEls[0]);
+const objectName = resolveObjectNameForMarker(markerEls[0], request.model);
+const permissions = await requestRuntimePermissions({
+  camera: true,
+  motionSensors: true,
+  geolocation: true,
+  microphone: true,
+});
+
+console.log({ hint, objectName, permissions });
+stopMarkerTracking();
+```
+
+## 7. API Surface
+
+### Main API
+
+| Symbol | Type | Description |
+| --- | --- | --- |
+| `createOrbinexSim(target, options)` | Function | Creates a managed simulation instance and iframe host |
+| `OrbinexSim#setMode(mode)` | Method | Switches desktop or AR runtime |
+| `OrbinexSim#setModel(name)` | Method | Changes active object query |
+| `OrbinexSim#launchAr(options)` | Method | Requests permissions and transitions to AR mode |
+| `OrbinexSim#requestAccess(options)` | Method | Returns a permission summary per capability |
+| `OrbinexSim#createOrbitPreviewSample(radiusMeters)` | Method | Returns orbit sample for selected radius |
+| `OrbinexSim#buildQuickReport(radiusMeters)` | Method | Returns concise report string |
+| `orbitSampleFromAu(au)` | Function | Converts AU to orbit sample around solar mass |
+| `constants` | Object | Shared physical constants |
+
+### AR Runtime API
+
+| Symbol | Description |
+| --- | --- |
+| `parseArRequestFromSearch` | Parses `model`, `altModel`, and `build` query parameters |
+| `createDefaultArMarkers` | Creates default Hiro and Kanji marker configs |
+| `ensureArMarkers` | Ensures marker nodes exist and applies normalized attributes |
+| `bindMarkerTracking` | Subscribes to marker found/lost events with summaries |
+| `resolveObjectNameForMarker` | Resolves marker-linked object with fallback |
+| `resolveArMarkerHint` | Returns marker image/link/label metadata |
+| `resolveCatalogProxyUrl` | Reads external catalog proxy URL from query parameters |
+| `loadCatalogFromProxy` | Loads and normalizes catalog payloads |
+| `createMarkersFromCatalog` | Maps proxy catalog entries to marker configurations |
+| `extractCatalogEntriesFromPayload` | Normalizes arrays or wrapped API payloads |
+| `createPrimitiveModelFromCatalogEntry` | Generates marker-attached primitive model geometry |
+| `requestRuntimePermissions` | Runtime permission helper without creating iframe instance |
+
+## 8. Scientific Formulations Used by the Module
+
+LaTeX notation:
+
+$$
+\mu = G M
+$$
+
+$$
+v = \sqrt{\frac{\mu}{r}}
+$$
+
+$$
+T = 2\pi\sqrt{\frac{a^3}{\mu}}
+$$
+
+$$
+\eta_{\mathrm{years}} = \mathrm{clamp}\left(\frac{d / v_{\mathrm{rel}}}{\mathrm{YEAR\_SECONDS}}, 10^{-7}, 5000\right)
+$$
+
+$$
+\mathrm{confidence} = \mathrm{clamp}\left(0.45 + \frac{0.5}{1 + d/\mathrm{AU}}, 0.45, 0.98\right)
+$$
+
+$$
+r_{\mathrm{visual}} = \mathrm{clamp}\left((0.08 + \log_{10}(\max(r_m, 1)) \cdot 0.04) \cdot \mathrm{radiusScale}, 0.03, 0.68\right)
+$$
+
+Plain-text fallback:
+
+```text
+mu = G * M
+v = sqrt(mu / r)
+T = 2 * pi * sqrt(a^3 / mu)
+
+eta_years = clamp((distance / relative_speed) / YEAR_SECONDS, 1e-7, 5000)
+confidence = clamp(0.45 + 0.5 / (1 + distance / AU), 0.45, 0.98)
+
+r_visual = clamp((0.08 + log10(max(radius_m, 1)) * 0.04) * radiusScale, 0.03, 0.68)
+```
+
+| Formula | Used in | Outcome |
+| --- | --- | --- |
+| `mu = G*M`, `v = sqrt(mu/r)`, `T = 2*pi*sqrt(a^3/mu)` | Orbit preview/sample helpers | Physically interpretable speed and period |
+| `eta ~= distance/speed` + confidence clamp | Forecast summaries | Stable early-warning ranking |
+| Logarithmic visual radius mapping | AR primitive synthesis | Prevents extreme size collapse in marker view |
+
+## 9. Runtime Graph and Architecture (Mermaid)
+
+```mermaid
+flowchart LR
+  A[Consumer App] --> B[createOrbinexSim]
+  B --> C[Hosted Viewer]
+  C --> D[Desktop Runtime]
+  C --> E[AR Runtime]
+  D --> F[Event and Forecast Stream]
+  E --> F
+  F --> G[Scientific Decision Support]
+```
+
+```mermaid
+sequenceDiagram
+  participant APP as Consumer
+  participant SIM as OrbinexSim API
+  participant VIEW as Hosted Runtime
+  participant LOG as Event/Forecast Feed
+
+  APP->>SIM: createOrbinexSim(target, options)
+  SIM->>VIEW: Initialize desktop or AR mode
+  APP->>SIM: launchAr / setModel / requestAccess
+  SIM->>VIEW: Propagate runtime update
+  VIEW->>LOG: Emit state, event, and forecast outputs
+  LOG-->>APP: Structured simulation summary
+```
+
+Mermaid blocks render as diagrams on GitHub. On npm, the same blocks remain readable as deterministic graph text.
+
+```text
+Consumer app -> createOrbinexSim -> hosted viewer
+                                  -> desktop scene updates
+                                  -> optional AR marker flow
+                                  -> event/forecast summaries
+```
+
+## 10. Browser and Permission Notes
+
+| Capability | Requirement |
+| --- | --- |
+| Camera / microphone | Secure context (HTTPS) and user permission |
+| Geolocation | Secure context and browser location policy |
+| Motion sensors | Platform-specific API permission (notably on iOS) |
+| AR marker runtime | Camera access and marker visibility in scene |
+
+Default hosted base URL:
+
+- [https://galihru.github.io/OrbinexSimulation/](https://galihru.github.io/OrbinexSimulation/)
+
+## 11. Build and Publish
+
+### 11.1 npm Token Setup (Safe)
+
+Do not commit a real npm token into this repository.
+
+1. Create or update user-level `.npmrc` (recommended: in home directory, not in repo):
+
+```ini
+//registry.npmjs.org/:_authToken=${NPM_TOKEN}
+```
+
+2. Set token as environment variable in your current shell session.
+
+PowerShell:
+
+```powershell
+$env:NPM_TOKEN="npm_REPLACE_WITH_YOUR_TOKEN"
+```
+
+3. Validate authentication before publish.
+
+```bash
+npm whoami
+```
+
+If a token was exposed accidentally, revoke/rotate it in npm account settings before publishing.
+
+```bash
+npm run build
+npm publish --access public
+```
+
+Release-grade sequence:
+
+```bash
+npm ci
+npm run build
+npm pack
+npm publish --access public
+```
+
+## 12. License
+
+MIT
