isomorfeus-react 16.5.1
Sign up to get free protection for your applications and to get access to all the features.
- checksums.yaml +7 -0
- data/Gemfile +1 -0
- data/README.md +620 -0
- data/isomorfeus-react.gemspec +23 -0
- data/lib/isomorfeus-react.rb +131 -0
- data/lib/isomorfeus/config.rb +84 -0
- data/lib/isomorfeus/top_level.rb +48 -0
- data/lib/isomorfeus/view_helpers.rb +38 -0
- data/lib/lucid_app/api.rb +22 -0
- data/lib/lucid_app/base.rb +7 -0
- data/lib/lucid_app/context.rb +7 -0
- data/lib/lucid_app/mixin.rb +17 -0
- data/lib/lucid_app/native_component_constructor.rb +70 -0
- data/lib/lucid_component/api.rb +97 -0
- data/lib/lucid_component/base.rb +7 -0
- data/lib/lucid_component/event_handler.rb +17 -0
- data/lib/lucid_component/initializer.rb +12 -0
- data/lib/lucid_component/mixin.rb +17 -0
- data/lib/lucid_component/native_component_constructor.rb +131 -0
- data/lib/react.rb +147 -0
- data/lib/react/active_support_support.rb +13 -0
- data/lib/react/component/api.rb +226 -0
- data/lib/react/component/base.rb +9 -0
- data/lib/react/component/elements.rb +78 -0
- data/lib/react/component/event_handler.rb +19 -0
- data/lib/react/component/features.rb +47 -0
- data/lib/react/component/history.rb +36 -0
- data/lib/react/component/initializer.rb +11 -0
- data/lib/react/component/location.rb +15 -0
- data/lib/react/component/match.rb +31 -0
- data/lib/react/component/mixin.rb +19 -0
- data/lib/react/component/native_component_constructor.rb +76 -0
- data/lib/react/component/native_component_validate_prop.rb +37 -0
- data/lib/react/component/props.rb +49 -0
- data/lib/react/component/resolution.rb +71 -0
- data/lib/react/component/should_component_update.rb +14 -0
- data/lib/react/component/state.rb +52 -0
- data/lib/react/component/unsafe_api.rb +33 -0
- data/lib/react/context_wrapper.rb +47 -0
- data/lib/react/function_component/creator.rb +47 -0
- data/lib/react/function_component/resolution.rb +61 -0
- data/lib/react/function_component/runner.rb +19 -0
- data/lib/react/native_constant_wrapper.rb +34 -0
- data/lib/react/pure_component/base.rb +9 -0
- data/lib/react/pure_component/mixin.rb +17 -0
- data/lib/react/redux_component/api.rb +132 -0
- data/lib/react/redux_component/app_store_defaults.rb +38 -0
- data/lib/react/redux_component/app_store_proxy.rb +46 -0
- data/lib/react/redux_component/base.rb +9 -0
- data/lib/react/redux_component/class_store_proxy.rb +50 -0
- data/lib/react/redux_component/component_class_store_defaults.rb +40 -0
- data/lib/react/redux_component/component_instance_store_defaults.rb +41 -0
- data/lib/react/redux_component/initializer.rb +14 -0
- data/lib/react/redux_component/instance_store_proxy.rb +50 -0
- data/lib/react/redux_component/mixin.rb +18 -0
- data/lib/react/redux_component/native_component_constructor.rb +119 -0
- data/lib/react/redux_component/reducers.rb +53 -0
- data/lib/react/ref.rb +19 -0
- data/lib/react/synthetic_event.rb +53 -0
- data/lib/react/version.rb +3 -0
- data/lib/react_dom.rb +31 -0
- data/lib/react_dom_server.rb +17 -0
- metadata +167 -0
checksums.yaml
ADDED
@@ -0,0 +1,7 @@
|
|
1
|
+
---
|
2
|
+
SHA256:
|
3
|
+
metadata.gz: cba3a632d5700b2370b2dc673eabc01aebac34c508680f79b01154ce856e5051
|
4
|
+
data.tar.gz: 4025af5f4037e829aacf72c91316b0da9b312209e92e242a8d8a127d58f1d109
|
5
|
+
SHA512:
|
6
|
+
metadata.gz: 8b178809f4a89d23283c1b0ccfa85f8df7e720388bf5516f70aa5083e38a7e88777992cfe7c92a53de74f0aa0cb78147ead4e8af11a6d58851c266b09fe862a8
|
7
|
+
data.tar.gz: a3da4df7f53d9f86b423750e5166ea214a359290c268d8e800f8254be688843732ce26d29c585dbd8f86f0b7d5580e06bf6afa2b721760024f712b95ccf9c612
|
data/Gemfile
ADDED
@@ -0,0 +1 @@
|
|
1
|
+
gemspec
|
data/README.md
ADDED
@@ -0,0 +1,620 @@
|
|
1
|
+
# isomorfeus-react
|
2
|
+
|
3
|
+
Develop React components for Opal Ruby along with very easy to use and advanced React-Redux Components.
|
4
|
+
|
5
|
+
## Versioning
|
6
|
+
isomorfeus-react version follows the React version which features and API it implements.
|
7
|
+
Isomorfeus-react 16.5.x implements features and the API of React 16.5 and should be used with React 16.5
|
8
|
+
|
9
|
+
## Installation
|
10
|
+
To install React with the matching version:
|
11
|
+
```
|
12
|
+
yarn add react@16.5
|
13
|
+
```
|
14
|
+
then add to the Gemfile:
|
15
|
+
```ruby
|
16
|
+
gem 'isomorfeus-react' # this will also include isomorfeus-redux
|
17
|
+
```
|
18
|
+
then `bundle install`
|
19
|
+
and to your client code add:
|
20
|
+
```ruby
|
21
|
+
require 'isomorfeus-react' # this will also require isomorfeus-redux
|
22
|
+
```
|
23
|
+
## Usage
|
24
|
+
Because isomorfeus-react follows closely the React principles/implementation/API and Documentation, most things of the official React documentation
|
25
|
+
apply, but in the Ruby way, see:
|
26
|
+
- https://reactjs.org/docs/getting-started.html
|
27
|
+
|
28
|
+
Redux is also required, for the more advanced components to function properly.
|
29
|
+
|
30
|
+
React, Redux and accompanying libraries must be imported and made available in the global namespace in the application javascript entry file,
|
31
|
+
with webpack this can be ensured by assigning them to the global namespace:
|
32
|
+
```javascript
|
33
|
+
import * as Redux from 'redux';
|
34
|
+
import React from 'react';
|
35
|
+
import ReactDOM from 'react-dom';
|
36
|
+
global.Redux = Redux;
|
37
|
+
global.React = React;
|
38
|
+
global.ReactDOM = ReactDOM;
|
39
|
+
```
|
40
|
+
|
41
|
+
Following features are presented with its differences to the Javascript React implementation, along with enhancements and the advanced components.
|
42
|
+
|
43
|
+
### Class Components
|
44
|
+
Class Components can be created in two ways, either by inheritance or by including a module.
|
45
|
+
Inheritance:
|
46
|
+
```ruby
|
47
|
+
class MyComponent < React::Component::Base
|
48
|
+
|
49
|
+
end
|
50
|
+
```
|
51
|
+
including a module:
|
52
|
+
```ruby
|
53
|
+
class MyComponent
|
54
|
+
include React::Component::Mixin
|
55
|
+
|
56
|
+
end
|
57
|
+
```
|
58
|
+
|
59
|
+
Each Component must have at least a render block:
|
60
|
+
```ruby
|
61
|
+
class MyComponent < React::Component::Base
|
62
|
+
render do
|
63
|
+
DIV { "some text" }
|
64
|
+
end
|
65
|
+
end
|
66
|
+
```
|
67
|
+
|
68
|
+
Class Component allow for the definition of a custom should_component_update? block, but that is optional:
|
69
|
+
```ruby
|
70
|
+
class MyComponent < React::Component::Base
|
71
|
+
should_component_update? do |next_props, next_state|
|
72
|
+
return true # to always update for example
|
73
|
+
end
|
74
|
+
|
75
|
+
render do
|
76
|
+
DIV { "some text" }
|
77
|
+
end
|
78
|
+
end
|
79
|
+
```
|
80
|
+
A default should_component_update? implementation is supplied. The default should_component_update? implementation for Class Components is most
|
81
|
+
efficient if complex props or state are used.
|
82
|
+
|
83
|
+
**Data flow of a React::Component:**
|
84
|
+
![React::Component Data Flow](https://raw.githubusercontent.com/isomorfeus/isomorfeus-react/master/images/data_flow_component.png)
|
85
|
+
|
86
|
+
|
87
|
+
### Pure Components
|
88
|
+
Pure Components can be created in two ways, either by inheritance or by including a module.
|
89
|
+
Inheritance:
|
90
|
+
```ruby
|
91
|
+
class MyComponent < React::PureComponent::Base
|
92
|
+
|
93
|
+
end
|
94
|
+
```
|
95
|
+
including a module:
|
96
|
+
```ruby
|
97
|
+
class MyComponent
|
98
|
+
include React::PureComponent::Mixin
|
99
|
+
|
100
|
+
end
|
101
|
+
```
|
102
|
+
|
103
|
+
Each Component must have at least a render block:
|
104
|
+
```ruby
|
105
|
+
class MyComponent < React::PureComponent::Base
|
106
|
+
render do
|
107
|
+
DIV { "some text" }
|
108
|
+
end
|
109
|
+
end
|
110
|
+
```
|
111
|
+
|
112
|
+
A PureComponent does not allow for the definition of a custom should_component_update? block. Its using the default React implementation instead.
|
113
|
+
Its recommended to use them only if no props or state are used or if props and state have simple values only, like strings or numbers.
|
114
|
+
|
115
|
+
**Data flow of a React::PureComponent:**
|
116
|
+
![React::PureComponent Data Flow](https://raw.githubusercontent.com/isomorfeus/isomorfeus-react/master/images/data_flow_component.png)
|
117
|
+
|
118
|
+
### Function Components
|
119
|
+
Function Components are created using a Ruby DSL that is used within the creator class:
|
120
|
+
```ruby
|
121
|
+
class React::FunctionComponent::Creator
|
122
|
+
function_component 'MyComponent' do |props|
|
123
|
+
SPAN { props.text }
|
124
|
+
end
|
125
|
+
# Javascript .-notation can be used for the component name:
|
126
|
+
function_component 'MyObject.MyComponent' do |props|
|
127
|
+
SPAN { props.text }
|
128
|
+
end
|
129
|
+
end
|
130
|
+
```
|
131
|
+
This creates a native javascript components.
|
132
|
+
The file containing the creator must be explicitly required, because the automatic resolution of Javascript constant names
|
133
|
+
is not done by opal-autoloader.
|
134
|
+
|
135
|
+
A Function Component can then be used in other Components:
|
136
|
+
```ruby
|
137
|
+
class MyComponent < React::PureComponent::Base
|
138
|
+
render do
|
139
|
+
MyComponent(text: 'some text')
|
140
|
+
MyObject.MyComponent(text: 'more text')
|
141
|
+
end
|
142
|
+
end
|
143
|
+
```
|
144
|
+
To get the native component, for example to pass it in props, javascript inlining can be used:
|
145
|
+
```ruby
|
146
|
+
Route(path: '/fun_fun/:count', exact: true, component: `MyObject.MyComponent`)
|
147
|
+
```
|
148
|
+
|
149
|
+

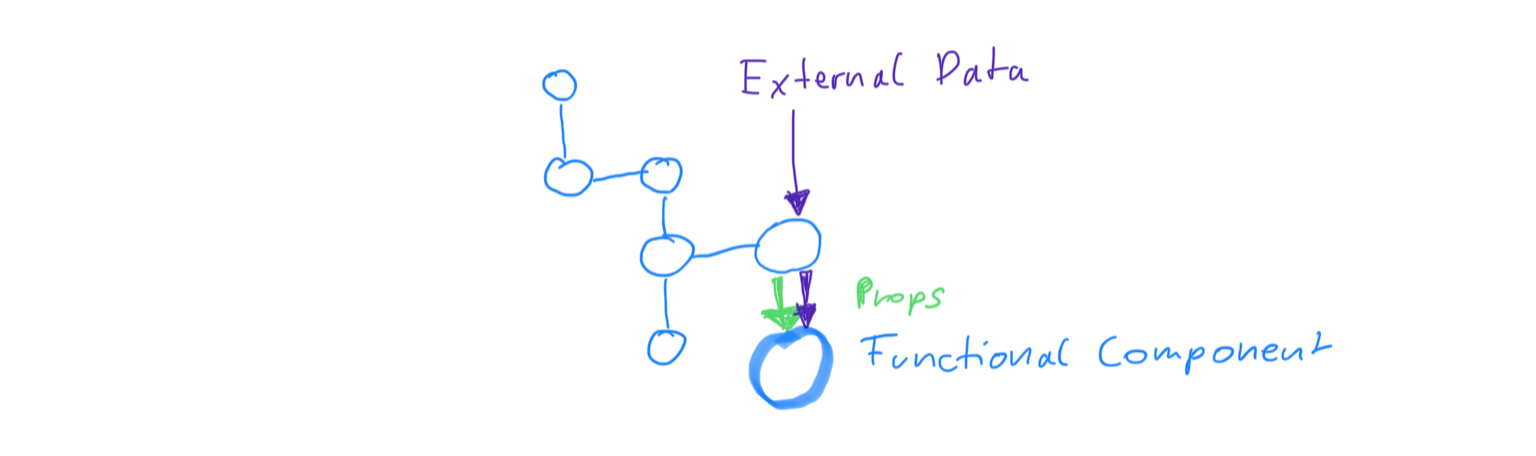

**Data flow of a React::FunctionComponent:**
|
150
|
+
![React::FunctionComponent Data Flow](https://raw.githubusercontent.com/isomorfeus/isomorfeus-react/master/images/data_flow_function_component.png)
|
151
|
+
|
152
|
+
### Props
|
153
|
+
In ruby props are underscored: `className -> class_name`. The conversion for React is done automatically.
|
154
|
+
Within a component props can be accessed using `props`:
|
155
|
+
```ruby
|
156
|
+
class MyComponent < React::PureComponent::Base
|
157
|
+
render do
|
158
|
+
DIV { props.text }
|
159
|
+
end
|
160
|
+
end
|
161
|
+
```
|
162
|
+
Props are passed as argument to the component:
|
163
|
+
```ruby
|
164
|
+
class MyOtherComponent < React::PureComponent::Base
|
165
|
+
render do
|
166
|
+
MyComponent(text: 'some other text')
|
167
|
+
end
|
168
|
+
end
|
169
|
+
```
|
170
|
+
Props can be declared and type checked and a default value can be given:
|
171
|
+
```ruby
|
172
|
+
class MyComponent < React::PureComponent::Base
|
173
|
+
prop :text, class: String # a required prop of class String, class must match exactly
|
174
|
+
prop :other, is_a: Enumerable # a required prop, which can be a Array for example, but at least must be a Enumerable
|
175
|
+
prop :cool, default: 'yet some more text' # a optional prop with a default value
|
176
|
+
prop :even_cooler, class: String, required: false # a optional prop, which when given, must be of class String
|
177
|
+
|
178
|
+
render do
|
179
|
+
DIV { props.text }
|
180
|
+
end
|
181
|
+
end
|
182
|
+
```
|
183
|
+
|
184
|
+
### State
|
185
|
+
State can be accessed in components using `state`:
|
186
|
+
```ruby
|
187
|
+
class MyComponent < React::PureComponent::Base
|
188
|
+
render do
|
189
|
+
if state.toggled
|
190
|
+
DIV { 'toggled' }
|
191
|
+
else
|
192
|
+
DIV { 'not toggled' }
|
193
|
+
end
|
194
|
+
end
|
195
|
+
end
|
196
|
+
```
|
197
|
+
State can be intialized like so:
|
198
|
+
```ruby
|
199
|
+
class MyComponent < React::PureComponent::Base
|
200
|
+
state.toggled = false
|
201
|
+
|
202
|
+
render do
|
203
|
+
if state.toggled
|
204
|
+
DIV { 'toggled' }
|
205
|
+
else
|
206
|
+
DIV { 'not toggled' }
|
207
|
+
end
|
208
|
+
end
|
209
|
+
end
|
210
|
+
```
|
211
|
+
State can be changed like so, the component setState() will be called:
|
212
|
+
```ruby
|
213
|
+
class MyComponent < React::PureComponent::Base
|
214
|
+
render do
|
215
|
+
if some_condition_is_met
|
216
|
+
|
217
|
+
state.toggled = true # calls components setState to cause a render
|
218
|
+
|
219
|
+
# or if a callback is needed:
|
220
|
+
|
221
|
+
set_state({toggled: true}) do
|
222
|
+
# some callback code here
|
223
|
+
end
|
224
|
+
end
|
225
|
+
if state.toggled
|
226
|
+
DIV { 'toggled' }
|
227
|
+
else
|
228
|
+
DIV { 'not toggled' }
|
229
|
+
end
|
230
|
+
end
|
231
|
+
end
|
232
|
+
```
|
233
|
+
When changing state, the state is not immediately available, just like in React! For example:
|
234
|
+
```ruby
|
235
|
+
class MyComponent < React::PureComponent::Base
|
236
|
+
render do
|
237
|
+
previous_state_value = state.variable
|
238
|
+
state.variable = next_state_value # even though this looks like a assignment, it causes a side effect
|
239
|
+
# state may be updated after the next render cycle
|
240
|
+
next_state_value == state.variable # very probably false here until next render
|
241
|
+
previous_state_value == state.variable # probably true here until next render
|
242
|
+
|
243
|
+
# to work with next_state_value, wait for the next render cycle, or just keep using the next_state_value variable here instead of state.value
|
244
|
+
end
|
245
|
+
end
|
246
|
+
```
|
247
|
+
To make the side effect of a set_state more visible, state can be set by using a method call instead of a assignment:
|
248
|
+
```ruby
|
249
|
+
class MyComponent < React::PureComponent::Base
|
250
|
+
render do
|
251
|
+
previous_state_value = state.variable
|
252
|
+
state.variable(next_state_value) # setting state with a method call, it causes a side effect
|
253
|
+
# state may be updated after the next render cycle
|
254
|
+
next_state_value == state.variable # very probably false here until next render
|
255
|
+
previous_state_value == state.variable # probably true here until next render
|
256
|
+
|
257
|
+
# to work with next_state_value, wait for the next render cycle, or just keep using the next_state_value variable here instead of state.value
|
258
|
+
end
|
259
|
+
end
|
260
|
+
```
|
261
|
+
### Lifecycle Callbacks
|
262
|
+
All lifecycle callbacks that are available in the matching React version are available as DSL. Callback names are underscored.
|
263
|
+
Callback names prefixed with UNSAFE_ in React are prefixed with unsafe_ in ruby.
|
264
|
+
Example:
|
265
|
+
```ruby
|
266
|
+
class MyComponent < React::Component::Base
|
267
|
+
render do
|
268
|
+
SPAN { 'some more text' }
|
269
|
+
end
|
270
|
+
|
271
|
+
component_did_mount do
|
272
|
+
`console.log("MyComponent mounted!")`
|
273
|
+
end
|
274
|
+
end
|
275
|
+
```
|
276
|
+
|
277
|
+
### Events
|
278
|
+
Event names are underscored in ruby: `onClick` becomes `on_click`. The conversion for React is done automatically.
|
279
|
+
|
280
|
+
|
281
|
+
Event handlers must be declared using the `event_handler` DSL. This is to make sure, that they are not recreated during render and can be properly
|
282
|
+
compared by reference by shouldComponentUpdate(). Use the DSL like so:
|
283
|
+
```ruby
|
284
|
+
class MyComponent < React::Component::Base
|
285
|
+
event_handler :handle_click do |event|
|
286
|
+
state.toggler = !state.toggler
|
287
|
+
end
|
288
|
+
|
289
|
+
render do
|
290
|
+
SPAN(on_click: :handle_click) { 'some more text' }
|
291
|
+
SPAN(on_click: :handle_click) { 'a lot more text' } # event handlers can be reused
|
292
|
+
end
|
293
|
+
end
|
294
|
+
```
|
295
|
+
|
296
|
+
To the event handler the event is passed as argument. The event is a ruby object `React::SyntheticEvent` and supports all the methods, properties
|
297
|
+
and events as the React.Synthetic event. Methods are underscored. Example:
|
298
|
+
```ruby
|
299
|
+
class MyComponent < React::Component::Base
|
300
|
+
event_handler :handle_click do |event|
|
301
|
+
event.prevent_default
|
302
|
+
event.current_target
|
303
|
+
end
|
304
|
+
|
305
|
+
render do
|
306
|
+
SPAN(on_click: :handle_click) { 'some more text' }
|
307
|
+
end
|
308
|
+
end
|
309
|
+
```
|
310
|
+
Targets of the event, like current_target, are wrapped Elements as supplied by opal-browser.
|
311
|
+
|
312
|
+
#### Events and Function Components
|
313
|
+
The event_handler DSL can be used within the React::FunctionComponent::Creator. However, function component dont react by themselves to events,
|
314
|
+
the event handler must be applied to a element.
|
315
|
+
```ruby
|
316
|
+
class React::FunctionComponent::Creator
|
317
|
+
event_handler :show_red_alert do |event|
|
318
|
+
`alert("RED ALERT!")`
|
319
|
+
end
|
320
|
+
|
321
|
+
event_handler :show_orange_alert do |event|
|
322
|
+
`alert("ORANGE ALERT!")`
|
323
|
+
end
|
324
|
+
|
325
|
+
function_component 'AFunComponent' do
|
326
|
+
SPAN(on_click: props.on_click) { 'Click for orange alert! ' } # event handler passed in props, applied to a element
|
327
|
+
SPAN(on_click: :show_red_alert) { 'Click for red alert! ' } # event handler directly applied to a element
|
328
|
+
end
|
329
|
+
|
330
|
+
function_component 'AnotherFunComponent' do
|
331
|
+
AFunComponent(on_click: :show_orange_alert, text: 'Fun') # event handler passed as prop, but must be applied to element, see above
|
332
|
+
end
|
333
|
+
end
|
334
|
+
```
|
335
|
+
### Render blocks
|
336
|
+
render or element or component blocks work like ruby blocks, the result of the last expression in a block is returned and then rendered,
|
337
|
+
but only if it is a string or a React Element.
|
338
|
+
HTML Elements and Components at any place in the blocks are rendered too.
|
339
|
+
Examples:
|
340
|
+
```ruby
|
341
|
+
class MyComponent < React::Component::Base
|
342
|
+
render do
|
343
|
+
SPAN { "string" } # this string is rendered in a SPAN HTML Element
|
344
|
+
SPAN { "another string" } # this string is rendered in a SPAN too
|
345
|
+
end
|
346
|
+
end
|
347
|
+
```
|
348
|
+
```ruby
|
349
|
+
class MyComponent < React::Component::Base
|
350
|
+
render do
|
351
|
+
"string" # this string is NOT rendered, its not returned from the block and its not wrapped in a Element,
|
352
|
+
# to render it, wrap it in a element or fragment
|
353
|
+
"another string" # this string is returned from the block, so its rendered
|
354
|
+
end
|
355
|
+
end
|
356
|
+
```
|
357
|
+
```ruby
|
358
|
+
class MyComponent < React::Component::Base
|
359
|
+
render do
|
360
|
+
Fragment { "string" } # this string is rendered without surrounding element
|
361
|
+
100 # this is not a string, so its NOT rendered, to render it, simply convert it to a string: "#{100}" or 100.to_s
|
362
|
+
end
|
363
|
+
end
|
364
|
+
```
|
365
|
+
### Rendering HTML or SVG Elements
|
366
|
+
Elements are rendered using a DSL which provides all Elements supported by React following these specs:
|
367
|
+
- https://www.w3.org/TR/html52/fullindex.html#index-elements
|
368
|
+
- https://www.w3.org/TR/SVG11/eltindex.html
|
369
|
+
|
370
|
+
The DSL can be used like so:
|
371
|
+
```ruby
|
372
|
+
class MyComponent < React::Component::Base
|
373
|
+
render do
|
374
|
+
SPAN { 'some more text' } # upper case
|
375
|
+
span { 'so much text' } # lower case
|
376
|
+
end
|
377
|
+
end
|
378
|
+
```
|
379
|
+
Use whichever you prefer. There are some clashes with opal ruby kernel methods, like `p 'text'`, that may have to be considered.
|
380
|
+
|
381
|
+
### Accessibility
|
382
|
+
Props like `aria-label` must be written underscored `aria_label`. They are automatically converted for React. Example:
|
383
|
+
```ruby
|
384
|
+
class MyComponent < React::Component::Base
|
385
|
+
render do
|
386
|
+
SPAN(aria_label: 'label text') { 'some more text' }
|
387
|
+
end
|
388
|
+
end
|
389
|
+
```
|
390
|
+
|
391
|
+
### Fragments
|
392
|
+
Fragments can be created like so:
|
393
|
+
```ruby
|
394
|
+
class MyComponent < React::Component::Base
|
395
|
+
render do
|
396
|
+
Fragment do
|
397
|
+
SPAN { 'useful text' }
|
398
|
+
SPAN { 'extremely useful text' }
|
399
|
+
end
|
400
|
+
end
|
401
|
+
end
|
402
|
+
```
|
403
|
+
|
404
|
+
### Portals
|
405
|
+
Portals can be created like so:
|
406
|
+
```ruby
|
407
|
+
class MyComponent < React::Component::Base
|
408
|
+
render do
|
409
|
+
Portal(`document.querySelector('div')`) do
|
410
|
+
SPAN { 'useful text' }
|
411
|
+
end
|
412
|
+
end
|
413
|
+
end
|
414
|
+
```
|
415
|
+
Portals currently require a native DOM node as argument. (This may change to something conveniently provided by opal-browser.)
|
416
|
+
|
417
|
+
### StrictMode
|
418
|
+
React.StrictMode can be used like so:
|
419
|
+
```ruby
|
420
|
+
class MyComponent < React::Component::Base
|
421
|
+
render do
|
422
|
+
StrictMode do
|
423
|
+
SPAN { 'useful text' }
|
424
|
+
end
|
425
|
+
end
|
426
|
+
end
|
427
|
+
```
|
428
|
+
|
429
|
+
### Ref
|
430
|
+
Refs must be declared using the `ref` DSL. This is to make sure, that they are not recreated during render and can be properly
|
431
|
+
compared by reference by shouldComponentUpdate(). Use the DSL like so:
|
432
|
+
```ruby
|
433
|
+
class MyComponent < React::Component::Base
|
434
|
+
ref :my_ref # a simple ref
|
435
|
+
ref :my_other_ref do |ref| # a ref with block
|
436
|
+
ref.current
|
437
|
+
end
|
438
|
+
|
439
|
+
render do
|
440
|
+
SPAN(ref: :my_ref) { 'useful text' } # refs can then be passed as prop
|
441
|
+
end
|
442
|
+
end
|
443
|
+
```
|
444
|
+
If the ref declaration supplies a block, the block receives a `React::Ref` ruby instance as argument. `ref.current`may then be the ruby component or
|
445
|
+
native DOM node. ()The latter may change to something conveniently provided by opal-browser.)
|
446
|
+
|
447
|
+
### React Javascript Components
|
448
|
+
Native React Javascript Components must be available in the global namespace. When importing them with webpack,
|
449
|
+
this can be ensured by assigning them to the global namespace:
|
450
|
+
```javascript
|
451
|
+
import * as Sem from 'semantic-ui-react'
|
452
|
+
global.Sem = Sem;
|
453
|
+
```
|
454
|
+
They can then be used like so:
|
455
|
+
```ruby
|
456
|
+
class MyComponent < React::Component::Base
|
457
|
+
render do
|
458
|
+
Sem.Button(as: 'a') { 'useful text' }
|
459
|
+
end
|
460
|
+
end
|
461
|
+
```
|
462
|
+
|
463
|
+
Some Javascript components accept another Javascript component as property, like for example React Router. The Ruby class won't work here,
|
464
|
+
instead the Javascript React component of the Ruby class must be passed.
|
465
|
+
It can be accessed by using Opals JS syntax to get the React Component of the Ruby class:
|
466
|
+
```ruby
|
467
|
+
Route(path: '/', strict: true, component: MyComponent.JS[:react_component])
|
468
|
+
```
|
469
|
+
Native Javascript components can be passed using the Javascript inlining of Opal, this also works for function components:
|
470
|
+
```ruby
|
471
|
+
Route(path: '/a_button', strict: true, component: `Sem.Button`)
|
472
|
+
```
|
473
|
+
|
474
|
+
### Context
|
475
|
+
A context can be created using `React.create_context(constant_name, default_value)`. Constant_name must be a string like `"MyContext"`.
|
476
|
+
The context withs its Provider and Consumer can then be used like a component:
|
477
|
+
```ruby
|
478
|
+
React.create_context("MyContext", 'div')
|
479
|
+
|
480
|
+
class MyComponent < React::Component::Base
|
481
|
+
render do
|
482
|
+
MyContext.Provider(value="span") do
|
483
|
+
MyOtherComponent()
|
484
|
+
end
|
485
|
+
end
|
486
|
+
end
|
487
|
+
```
|
488
|
+
or the consumer:
|
489
|
+
```ruby
|
490
|
+
class MyOtherComponent < React::Component::Base
|
491
|
+
render do
|
492
|
+
MyContext.Consumer do |value|
|
493
|
+
Sem.Button(as: value) { 'useful text' }
|
494
|
+
end
|
495
|
+
end
|
496
|
+
end
|
497
|
+
```
|
498
|
+
|
499
|
+
### Using React Router
|
500
|
+
First the Components of React Router must be imported and made available in the global context:
|
501
|
+
```javascript
|
502
|
+
import * as ReactRouter from 'react-router';
|
503
|
+
import * as ReactRouterDOM from 'react-router-dom';
|
504
|
+
import { BrowserRouter, Link, NavLink, Route, Switch } from 'react-router-dom';
|
505
|
+
|
506
|
+
global.ReactRouter = ReactRouter;
|
507
|
+
global.ReactRouterDOM = ReactRouterDOM;
|
508
|
+
global.BrowserRouter = BrowserRouter;
|
509
|
+
global.Link = Link;
|
510
|
+
global.NavLink = NavLink;
|
511
|
+
global.Route = Route;
|
512
|
+
global.Switch = Switch;
|
513
|
+
```
|
514
|
+
Only import whats needed, or import HashRouter instead of BrowserRouter.
|
515
|
+
Then the Router components can be used as an other component:
|
516
|
+
```ruby
|
517
|
+
class RouterComponent < React::Component::Base
|
518
|
+
render do
|
519
|
+
DIV do
|
520
|
+
BrowserRouter do
|
521
|
+
Switch do
|
522
|
+
Route(path: '/my_path/:id', exact: true, component: MyOtherComponent.JS[:react_component])
|
523
|
+
Route(path: '/', strict: true, component: MyCompnent.JS[:react_component])
|
524
|
+
end
|
525
|
+
end
|
526
|
+
end
|
527
|
+
end
|
528
|
+
end
|
529
|
+
```
|
530
|
+
The Javascript React components of the ruby class must be passed as shown above. The child components then get the Router props
|
531
|
+
(match, history, location) passed in their props. They can be accessed like this:
|
532
|
+
```ruby
|
533
|
+
class MyOtherComponent < React::Component::Base
|
534
|
+
|
535
|
+
render do
|
536
|
+
Sem.Container(text_align: 'left', text: true) do
|
537
|
+
DIV do
|
538
|
+
SPAN { 'match :id is: ' }
|
539
|
+
SPAN { props.match.id }
|
540
|
+
end
|
541
|
+
DIV do
|
542
|
+
SPAN { 'location pathname is: ' }
|
543
|
+
SPAN { props.location.pathname }
|
544
|
+
end
|
545
|
+
DIV do
|
546
|
+
SPAN { 'number of history entries: ' }
|
547
|
+
SPAN { props.history.length }
|
548
|
+
end
|
549
|
+
end
|
550
|
+
end
|
551
|
+
end
|
552
|
+
```
|
553
|
+
Otherwise the React Router documentation applies: https://reacttraining.com/react-router/
|
554
|
+
|
555
|
+
### React::ReduxComponent
|
556
|
+
This component is like a React::Component and in addition to it, allows do manage its state conveniently over redux using a simple DSL:
|
557
|
+
- `store` - works similar like the components state, but manages the components state with redux
|
558
|
+
- `class_store` - allows to have a class state, when changing this state, all instances of the component class change the state and render
|
559
|
+
- `app_store` - allows to access application state, when changing this state, all instances that have requested the same variables, will render.
|
560
|
+
```ruby
|
561
|
+
class MyComponent < React::PureComponent::Base
|
562
|
+
store.a_var = 100 # set a initial value for the instance
|
563
|
+
class_store.another_var = 200 # set a initial value for the class
|
564
|
+
render do
|
565
|
+
# in a React::ReduxComponent state can be used for local state managed by react:
|
566
|
+
state.some_var
|
567
|
+
# in addition to that, store can be used for local state managed by redux:
|
568
|
+
store.a_var
|
569
|
+
# and for managing class state:
|
570
|
+
class_store.another_var
|
571
|
+
# and for managing application wide state:
|
572
|
+
app_store.yet_another_var
|
573
|
+
end
|
574
|
+
end
|
575
|
+
```
|
576
|
+
Provided some middleware is used for redux, state changes using `store` or `class_store` can be watched, debugged and otherwise handled by redux
|
577
|
+
middleware.
|
578
|
+
|
579
|
+
The lifecycle callbacks starting with `unsafe_` are not supported.
|
580
|
+
Overwriting should_component_update is also not supported.
|
581
|
+
|
582
|
+
**Data flow of a React::ReduxComponent:**
|
583
|
+
![React::ReduxComponent Data Flow](https://raw.githubusercontent.com/isomorfeus/isomorfeus-react/master/images/data_flow_redux_component.png)
|
584
|
+
|
585
|
+
### LucidApp and LucidComponent
|
586
|
+
A LucidComponent works very similar like a React::ReduxComponent, the same `store` and `class_store` is available. The difference is, that the
|
587
|
+
data changes are passed using props instead of setting component state. Therefore, a LucidComponent needs a LucidApp as outer component.
|
588
|
+
LucidApp sets up a React::Context Provider, LucidComponent works as a React::Context Consumer.
|
589
|
+
```ruby
|
590
|
+
class MyApp < LucidApp::Base # is a React::Context provider
|
591
|
+
render do
|
592
|
+
MyComponent()
|
593
|
+
end
|
594
|
+
end
|
595
|
+
|
596
|
+
class MyComponent < LucidComponent::Base # is a React::Context Consumer
|
597
|
+
store.a_var = 100 # set a initial value for the instance
|
598
|
+
class_store.another_var = 200 # set a initial value for the class
|
599
|
+
render do
|
600
|
+
# in a LucidComponent state can be used for local state managed by react:
|
601
|
+
state.some_var
|
602
|
+
# in addition to that, store can be used for local state managed by redux:
|
603
|
+
store.a_var
|
604
|
+
# and for managing class state:
|
605
|
+
class_store.another_var
|
606
|
+
# and for managing application wide state:
|
607
|
+
app_store.yet_another_var
|
608
|
+
end
|
609
|
+
end
|
610
|
+
```
|
611
|
+
|
612
|
+
The lifecycle callbacks starting with `unsafe_` are not supported.
|
613
|
+
Overwriting should_component_update is also not supported.
|
614
|
+
|
615
|
+
**Data flow of a LucidComponent within a LucidApp:**
|
616
|
+
![LucidComponent within a LucidApp Data Flow](https://raw.githubusercontent.com/isomorfeus/isomorfeus-react/master/images/data_flow_lucid_component.png)
|
617
|
+
|
618
|
+
### Development Tools
|
619
|
+
The React Developer Tools allow for analyzing, debugging and profiling components. A very helpful toolset and working very nice with isomorfeus-react:
|
620
|
+
https://github.com/facebook/react-devtools
|
