wizardflow 0.1.0__tar.gz

wizardflow-0.1.0/.gitignore

@@ -0,0 +1,16 @@
+__pycache__/
+*.py[cod]
+*.egg-info/
+.eggs/
+build/
+dist/
+.pytest_cache/
+.venv/
+venv/
+# uv resolves this in CI (uv run / uv build); a zero-dependency library doesn't
+# ship a lockfile, and tracking it would only sweep it into the sdist.
+uv.lock
+# Generated traces from the example scripts (e.g. examples/quickstart.json) —
+# regenerated on each run, not tracked. Scoped to examples/ so it never touches
+# the embedded UI bundle (src/wizardflow/_ui/), which must ship in the package.
+/examples/*.json

wizardflow-0.1.0/CONTRIBUTING.md

@@ -0,0 +1,51 @@
+# Contributing to the WizardFlow Python SDK
+
+This SDK lives in `sdk/python/` of the WizardFlow monorepo. It's pure Python with
+no runtime dependencies; `pytest` is the only dev dependency.
+
+## Local development
+
+Work against a local checkout with an editable install:
+
+```bash
+cd sdk/python
+pip install -e ".[dev]"
+```
+
+`tests/conftest.py` puts `src/` on the path, so the suite also runs without any
+install.
+
+## Tests
+
+```bash
+cd sdk/python
+pytest
+```
+
+The tests pin the emitted schema shape and the recording semantics (step
+folding, completed-only persistence, atomic write, `id=` targeting, unknown-node
+fast-fail, …).
+
+## Schema contract
+
+The JSON this SDK serializes to is defined by `src/types/agenttrace.ts` in the
+monorepo frontend — that TypeScript type is the schema of record. Change it and
+the serializer (`src/wizardflow/client.py`) plus its tests must change in
+lockstep; they must not drift.
+
+## Refreshing the bundled UI
+
+The bundled viewer lives in `src/wizardflow/_ui/` and is committed so a
+standalone SDK checkout (and the published package) works without the website
+source or a Node build step. Refresh it from the monorepo frontend after UI
+changes:
+
+```bash
+cd sdk/python
+python scripts/build_ui.py
+```
+
+That script runs the shared Next frontend with
+`NEXT_PUBLIC_WIZARDFLOW_TARGET=local`, copies the static export into
+`src/wizardflow/_ui/`, and removes hosted-only legal route artifacts (`Impressum`
+/ `Datenschutz`). The SDK UI keeps the GitHub project link.

wizardflow-0.1.0/LICENSE

@@ -0,0 +1,21 @@
+MIT License
+
+Copyright (c) 2026 Leon Koch
+
+Permission is hereby granted, free of charge, to any person obtaining a copy
+of this software and associated documentation files (the "Software"), to deal
+in the Software without restriction, including without limitation the rights
+to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
+copies of the Software, and to permit persons to whom the Software is
+furnished to do so, subject to the following conditions:
+
+The above copyright notice and this permission notice shall be included in all
+copies or substantial portions of the Software.
+
+THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
+IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
+FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
+AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
+LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
+OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
+SOFTWARE.

wizardflow-0.1.0/PKG-INFO

@@ -0,0 +1,340 @@
+Metadata-Version: 2.4
+Name: wizardflow
+Version: 0.1.0
+Summary: Python SDK for recording agent flows into the WizardFlow / AgentTrace file format.
+Project-URL: Homepage, https://getwizardflow.com
+Project-URL: Documentation, https://getwizardflow.com
+Author: Leon Koch
+License: MIT License
+
+        Copyright (c) 2026 Leon Koch
+
+        Permission is hereby granted, free of charge, to any person obtaining a copy
+        of this software and associated documentation files (the "Software"), to deal
+        in the Software without restriction, including without limitation the rights
+        to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
+        copies of the Software, and to permit persons to whom the Software is
+        furnished to do so, subject to the following conditions:
+
+        The above copyright notice and this permission notice shall be included in all
+        copies or substantial portions of the Software.
+
+        THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
+        IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
+        FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
+        AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
+        LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
+        OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
+        SOFTWARE.
+License-File: LICENSE
+Keywords: agents,langgraph,llm,observability,tracing
+Classifier: Development Status :: 3 - Alpha
+Classifier: Intended Audience :: Developers
+Classifier: License :: OSI Approved :: MIT License
+Classifier: Operating System :: OS Independent
+Classifier: Programming Language :: Python :: 3
+Classifier: Programming Language :: Python :: 3.9
+Classifier: Programming Language :: Python :: 3.10
+Classifier: Programming Language :: Python :: 3.11
+Classifier: Programming Language :: Python :: 3.12
+Classifier: Programming Language :: Python :: 3.13
+Classifier: Topic :: Software Development :: Libraries :: Python Modules
+Classifier: Typing :: Typed
+Requires-Python: >=3.9
+Provides-Extra: dev
+Requires-Dist: pytest>=7; extra == 'dev'
+Description-Content-Type: text/markdown
+
+# WizardFlow Python SDK
+
+**A lightweight tracer for Python agents.** Drop three calls into your code —
+`init`, `log`, `end_message` — and turn a messy multi-agent run into a portable
+trace you can replay as an interactive graph or export to Markdown/HTML. Because
+the trace is just a JSON file, anyone can replay it: hand it to a teammate or PM
+and they drop it into **[getwizardflow.com](https://getwizardflow.com)** in the
+browser — no Python, no install. Lightweight by design: pure Python, **zero
+runtime dependencies**, no daemon, no setup.
+

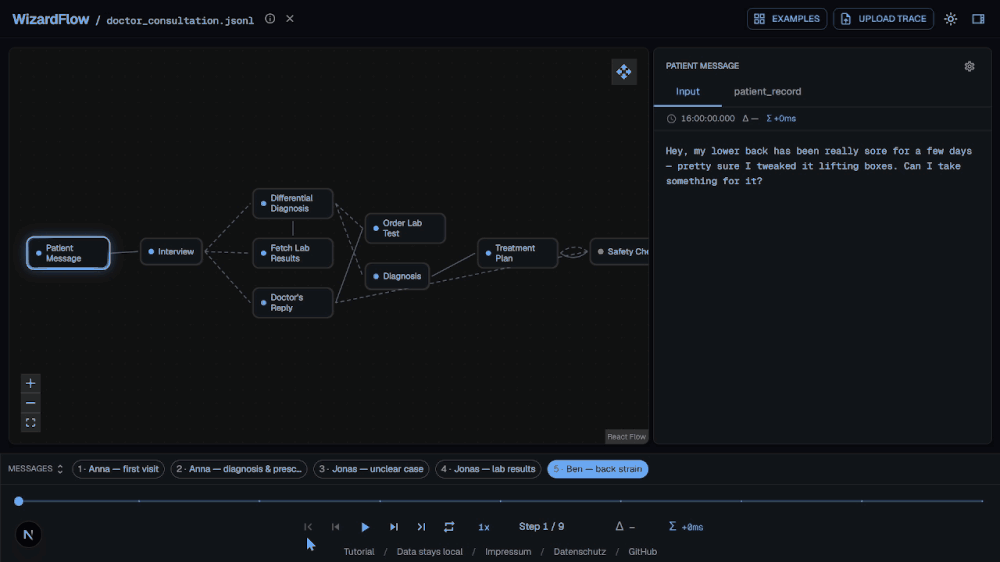

+![WizardFlow replaying an agent run](https://raw.githubusercontent.com/lkleonk/wizardflow/main/sdk/python/assets/demo.gif)
+
+The JSON it produces is a small, documented schema: a `graph { nodes, edges }`
+plus `messages[] → steps[] → payloads[] { label, value }`.
+
+## Install
+
+```bash
+pip install wizardflow
+```
+
+No runtime dependencies. Developing the SDK itself? See
+[CONTRIBUTING.md](https://github.com/lkleonk/wizardflow/blob/main/sdk/python/CONTRIBUTING.md).
+
+## Quickstart
+
+```python
+import wizardflow
+
+wizardflow.init(
+    output_dir="traces",                # where trace files are written
+    file_prefix="run",                  # optional; defaults to "wizardflow"
+    description="A small router-based agent run.",
+    nodes=["user_input", "router", "planner", "tool_node", "final_response"],
+    edges=[("user_input", "router"), ("router", "planner")],
+)
+
+# Every log names its message in the first argument.
+wizardflow.log("msg-1", "router", "llm_input", prompt)    # same node, two payloads ->
+wizardflow.log("msg-1", "router", "llm_output", output)   #   folded into one step
+wizardflow.log("msg-1", "tool_node")                       # visited, no payloads
+wizardflow.end_message("msg-1")                            # -> writes the trace
+```
+
+There is **no `save()`** and no autosave: `log()` only accumulates in memory,
+and `end_message(id)` is the one call that writes the trace. Writes happen at
+message boundaries — one write per finished message, however many `log()` calls
+it contains. `init()` returns a client and also stashes it as the module
+default, so the bare `wizardflow.log(...)` form above works.
+
+**Concurrency-safe.** Multi-agent setups end messages from many threads/tasks at
+once; an internal lock serializes the mutation-and-write so the shared part file
+is never corrupted and no message is lost or duplicated. Each write is atomic, so
+the file on disk is always a complete, valid trace.
+
+## Targeting a message
+
+The first argument to `log` is the message id, so overlapping messages never
+collide — interleave them freely (as concurrent agents do) and each step routes
+to the right message:
+
+```python
+wizardflow.log("msg-1", "classifier", "input", text_a)
+wizardflow.log("msg-2", "classifier", "input", text_b)   # a different message
+wizardflow.log("msg-1", "generator", "output", answer_a)
+wizardflow.end_message("msg-1")          # writes msg-1
+wizardflow.end_message("msg-2")          # writes msg-2
+```
+
+Pass the **string `id`**, never a handle object — safe to hand to a callback or
+across threads. A message is created on first reference and finalized by
+`end_message`; `end_message(id, title="...")` optionally gives it a human title.
+
+## LangGraph: automatic topology
+
+Instead of listing `nodes`/`edges` by hand, read them straight from a compiled
+LangGraph app:
+
+```python
+app = workflow.compile(checkpointer=memory)
+
+wizardflow.init_from_langgraph(app, output_dir="traces", file_prefix="trace")
+
+wizardflow.log("msg-1", "planner", "Input", state)   # runtime logging unchanged
+wizardflow.end_message("msg-1")
+```
+
+You can keep the extracted LangGraph topology and still choose node accent
+colors for important nodes:
+
+```python
+wizardflow.init_from_langgraph(
+    app,
+    output_dir="traces",
+    file_prefix="trace",
+    node_colors={
+        "router": "#A78BFA",
+        "retriever": "#22D3EE",
+        "generator": "#60A5FA",
+    },
+)
+```
+
+By default, a color key that does not match an extracted node id raises a
+`WizardFlowError` so typos fail fast. With `silent=True`, unknown color keys are
+ignored.
+
+It extracts node ids (keeping `__start__` / `__end__`) and directed edges, and
+marks runtime branches with `"conditional": true` (deterministic and parallel
+fan-out edges stay plain):
+
+```json
+{
+  "edges": [
+    { "source": "__start__", "target": "router" },
+    { "source": "router", "target": "planner", "conditional": true },
+    { "source": "planner", "target": "final_response" }
+  ]
+}
+```
+
+LangGraph is **not** a dependency — extraction is duck-typed on `app.get_graph()`.
+A non-LangGraph object raises `LangGraphExtractionError`; missing conditional
+metadata never fails extraction (the edge is just emitted plain). Call it
+**after `compile()`**, when the topology actually exists.
+
+## API (v0.1)
+
+- `init(output_dir=, file_prefix="wizardflow", name=, description=, nodes=, edges=, meta=, silent=False, max_bytes=256_000) -> Client`
+  - `description` lands in `meta.description` (matches the schema field).
+  - `nodes=` enables fast-fail: `log()` to an undeclared node raises
+    `UnknownNodeError` immediately (unless silenced).
+  - `output_dir` is optional; omitted, traces are written in cwd.
+  - `file_prefix` is optional; omitted, filenames start with `wizardflow`.
+  - `max_bytes` caps each part file before rotation (see below).
+- `init_from_langgraph(app, output_dir=, file_prefix="wizardflow", name=, description=, meta=, node_colors=, silent=False, max_bytes=...) -> Client`
+  - same as `init`, but `nodes`/`edges` come from `app.get_graph()`.
+  - `node_colors` maps extracted node ids to CSS colors such as `"#A78BFA"`.
+- `log(id, node, label=None, content=None)` — the first positional is the
+  **message id**, the second is the node. With `label`/`content` it records a
+  payload; bare `log(id, "node")` records a visit with no payloads. The message
+  is created on first reference; this only accumulates in memory.
+- `end_message(id, title=None)` — finalize a message and write the trace;
+  returns the current trace path. The **only** call that touches disk. Optional `title`
+  sets the message's human title. Idempotent.
+- `Client.current_path` — the trace file currently being written.
+- `to_dict()` / `to_json()` — inspect the active part (completed messages).
+
+### How saving works
+
+`end_message` triggers an **atomic write**: write to `<part>.tmp`, then
+`os.replace` over the part file. The file is always a complete, loadable
+`AgentTraceFile`. Only **completed** messages are written; an in-progress
+message lives in memory until it ends.
+
+### Rotation (no single huge file)
+
+There's no natural "end" to a chatbot trace, so the SDK caps file size instead.
+Each run writes a timestamped entry file whose name carries the run-start time:
+
+```
+wizardflow__2026-06-08T16-29-09-123Z.json
+```
+
+The name's `wizardflow` is the `file_prefix`; the timestamp is captured when
+`init()` creates the client. If the active part would exceed `max_bytes` (~256
+KB by default), it's sealed and the next message starts a fresh part:
+
+```
+wizardflow__2026-06-08T16-29-09-123Z.json
+wizardflow__2026-06-08T16-29-09-123Z__part2.json
+wizardflow__2026-06-08T16-29-09-123Z__part3.json
+```
+
+Rotation only ever happens at a **message boundary**, never mid-message (a lone
+message larger than the cap gets its own oversized part). A smaller cap keeps
+each rewrite — and the write lock held across it — short, which matters when
+many agents end messages concurrently; raise it for fewer files at the cost of
+heavier rewrites. `max_bytes` is clamped to a hard ceiling (1 MB) so an
+accidental huge value can't stall concurrent writers. Each part is a
+**self-contained, valid trace** (full graph + its slice of messages), chained
+via `meta`:
+
+```json
+"meta": { "part": 2, "prevPart": "...Z.json", "nextPart": "...__part3.json" }
+```
+
+A single-part trace stays clean (no `part` metadata). There's no `partCount` —
+the total is genuinely unknown while a continuous run is still logging; follow
+`nextPart` to walk to the end. Since names are timestamped, read the real file
+back from the client's `current_path` (also the path `end_message` returns).
+
+### Logging
+
+Rotation emits an `INFO` notice on the `wizardflow` logger. Following library
+convention, the SDK attaches a `NullHandler` and configures nothing — you see
+nothing unless you opt in:
+
+```python
+import logging
+logging.getLogger("wizardflow").setLevel(logging.INFO)
+```
+
+This is separate from `silent=` (which governs raise-vs-swallow for *errors*).
+
+### Step folding
+
+Consecutive `log()` calls to the **same** node within a message fold into a
+single step with multiple payloads (e.g. a router step carrying both
+`llm_input` and `llm_output`). A `log()` to a different node starts a new step.
+
+## Examples
+
+Fuller runnable examples live in
+[`examples/`](https://github.com/lkleonk/wizardflow/tree/main/sdk/python/examples):
+
+- **`quickstart.py`** — a small linear agent; two messages, the second finalized
+  with an `end_message(..., title=...)` title.
+- **`multibranch.py`** — `router` fans out into a planner/tool path and a
+  retriever path that rejoin at `generator`. Two messages take different
+  branches, so each logs only the nodes it actually visited.
+
+## CLI
+
+The `wizardflow` command has three subcommands: `ui`, `md`, and `html`. Every
+one takes the trace file as a positional argument **or** via `--path` (pass one,
+not both):
+
+```bash
+wizardflow ui   run.json
+wizardflow md   run.json
+wizardflow html run.json
+# --path is equivalent everywhere:
+wizardflow ui --path run.json
+```
+
+### `wizardflow ui` — local viewer
+
+```bash
+wizardflow ui run.json [--host 127.0.0.1] [--port 0] [--no-open]
+```
+
+Binds a stdlib HTTP server, serves the static WizardFlow UI bundled in the SDK
+package, and opens the selected trace in your browser.
+
+| flag | default | meaning |
+| --- | --- | --- |
+| `--host` | `127.0.0.1` | interface to bind |
+| `--port` | `0` | port to bind; `0` asks the OS for a free port |
+| `--no-open` | off | print the local URL instead of launching a browser |
+
+### `wizardflow md` — export to Markdown
+
+```bash
+wizardflow md run.json                 # -> stdout
+wizardflow md run.json -o run.md       # -> file
+wizardflow md run.json --no-mermaid    # omit the graph diagram
+```
+
+Renders the full trace as Markdown: a metadata table, a Mermaid `flowchart` of
+the graph, then each message's steps and payloads (scalars inline; multi-line
+strings and dict/list values in fenced code blocks; conditional edges drawn
+dashed).
+
+| flag | default | meaning |
+| --- | --- | --- |
+| `-o`, `--output` | — | write to this file instead of stdout |
+| `--mermaid` | on | include the Mermaid graph diagram |
+| `--no-mermaid` | — | omit the Mermaid graph diagram |
+
+### `wizardflow html` — export to HTML
+
+```bash
+wizardflow html run.json               # -> stdout
+wizardflow html run.json -o run.html   # -> file
+```
+
+Emits a single self-contained document — inline CSS, **no JavaScript, no
+external assets** — that opens offline in any browser and follows your OS
+light/dark mode. Messages-only by design: no graph/Mermaid (use `md` for that).
+
+| flag | default | meaning |
+| --- | --- | --- |
+| `-o`, `--output` | — | write to this file instead of stdout |
+
+Rendered samples (`*.md`, `*.html`) live in the [repo's
+`examples/`](https://github.com/lkleonk/wizardflow/tree/main/sdk/python/examples).
+
+## Status / not yet
+
+- **Timestamps** are wall-clock at log time — fine for slow/live runs, wrong if
+  steps fire faster than ms resolution or you import after the fact. (Open
+  design item: explicit per-step timestamps.)
