vme-py 0.1.0__tar.gz

vme_py-0.1.0/.gitignore

@@ -0,0 +1,108 @@
+# Byte-compiled / optimized / DLL files
+__pycache__/
+*.py[cod]
+*$py.class
+
+# C extensions
+*.so
+
+# Distribution / packaging
+.Python
+build/
+develop-eggs/
+dist/
+downloads/
+eggs/
+.eggs/
+lib/
+lib64/
+parts/
+sdist/
+var/
+wheels/
+*.egg-info/
+.installed.cfg
+*.egg
+MANIFEST
+
+# PyInstaller
+#  Usually these files are written by a python script from a template
+#  before PyInstaller builds the exe, so as to inject date/other infos into it.
+*.manifest
+*.spec
+
+# Installer logs
+pip-log.txt
+pip-delete-this-directory.txt
+
+# Unit test / coverage reports
+htmlcov/
+.tox/
+.coverage
+.coverage.*
+.cache
+nosetests.xml
+coverage.xml
+*.cover
+.hypothesis/
+.pytest_cache/
+
+# Translations
+*.mo
+*.pot
+
+# Django stuff:
+*.log
+local_settings.py
+db.sqlite3
+
+# Flask stuff:
+instance/
+.webassets-cache
+
+# Scrapy stuff:
+.scrapy
+
+# Sphinx documentation
+docs/_build/
+
+# PyBuilder
+target/
+
+# Jupyter Notebook
+.ipynb_checkpoints
+
+# pyenv
+.python-version
+
+# celery beat schedule file
+celerybeat-schedule
+
+# SageMath parsed files
+*.sage.py
+
+# Environments
+.env
+.venv
+env/
+venv/
+ENV/
+env.bak/
+venv.bak/
+
+# Spyder project settings
+.spyderproject
+.spyproject
+
+# Rope project settings
+.ropeproject
+
+# mkdocs documentation
+/site
+
+# mypy
+.mypy_cache/
+
+# Output written by usage.py (the checked-in examples are the other files there)
+examples/output/usage-*.png
+

vme_py-0.1.0/LICENSE

@@ -0,0 +1,21 @@
+MIT License
+
+Copyright (c) 2019 Oskar Jarczyk
+
+Permission is hereby granted, free of charge, to any person obtaining a copy
+of this software and associated documentation files (the "Software"), to deal
+in the Software without restriction, including without limitation the rights
+to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
+copies of the Software, and to permit persons to whom the Software is
+furnished to do so, subject to the following conditions:
+
+The above copyright notice and this permission notice shall be included in all
+copies or substantial portions of the Software.
+
+THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
+IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
+FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
+AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
+LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
+OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
+SOFTWARE.

vme_py-0.1.0/PKG-INFO

@@ -0,0 +1,307 @@
+Metadata-Version: 2.5
+Name: vme-py
+Version: 0.1.0
+Summary: Turn a list of budget expenses into a Sankey diagram you can share as a PNG.
+Project-URL: Homepage, https://github.com/oskar-j/visualize-my-expenses
+Project-URL: Source, https://github.com/oskar-j/visualize-my-expenses
+Project-URL: Issues, https://github.com/oskar-j/visualize-my-expenses/issues
+Project-URL: Changelog, https://github.com/oskar-j/visualize-my-expenses/releases
+Author: Oskar Jarczyk
+License-Expression: MIT
+License-File: LICENSE
+Keywords: budget,expenses,personal-finance,plot,sankey,visualization
+Classifier: Development Status :: 3 - Alpha
+Classifier: Environment :: Console
+Classifier: Intended Audience :: End Users/Desktop
+Classifier: Operating System :: OS Independent
+Classifier: Programming Language :: Python :: 3
+Classifier: Programming Language :: Python :: 3 :: Only
+Classifier: Programming Language :: Python :: 3.9
+Classifier: Programming Language :: Python :: 3.10
+Classifier: Programming Language :: Python :: 3.11
+Classifier: Programming Language :: Python :: 3.12
+Classifier: Programming Language :: Python :: 3.13
+Classifier: Programming Language :: Python :: 3.14
+Classifier: Topic :: Office/Business :: Financial :: Accounting
+Classifier: Topic :: Scientific/Engineering :: Visualization
+Requires-Python: >=3.9
+Requires-Dist: click>=8.0
+Requires-Dist: matplotlib>=3.5
+Provides-Extra: all
+Requires-Dist: openpyxl>=3.0; extra == 'all'
+Requires-Dist: plotly>=5.0; extra == 'all'
+Provides-Extra: excel
+Requires-Dist: openpyxl>=3.0; extra == 'excel'
+Provides-Extra: html
+Requires-Dist: plotly>=5.0; extra == 'html'
+Description-Content-Type: text/markdown
+
+# visualize-my-expenses
+
+[![PyPI](https://img.shields.io/pypi/v/vme-py)](https://pypi.org/project/vme-py/)
+[![CI](https://github.com/oskar-j/visualize-my-expenses/actions/workflows/ci.yml/badge.svg?branch=master)](https://github.com/oskar-j/visualize-my-expenses/actions/workflows/ci.yml)
+
+Turn a month of budget rows into a Sankey diagram you can share as a PNG.
+
+```bash
+pip install vme-py
+vme render budget.csv -c PLN -o august.png --month 2026-08
+```
+

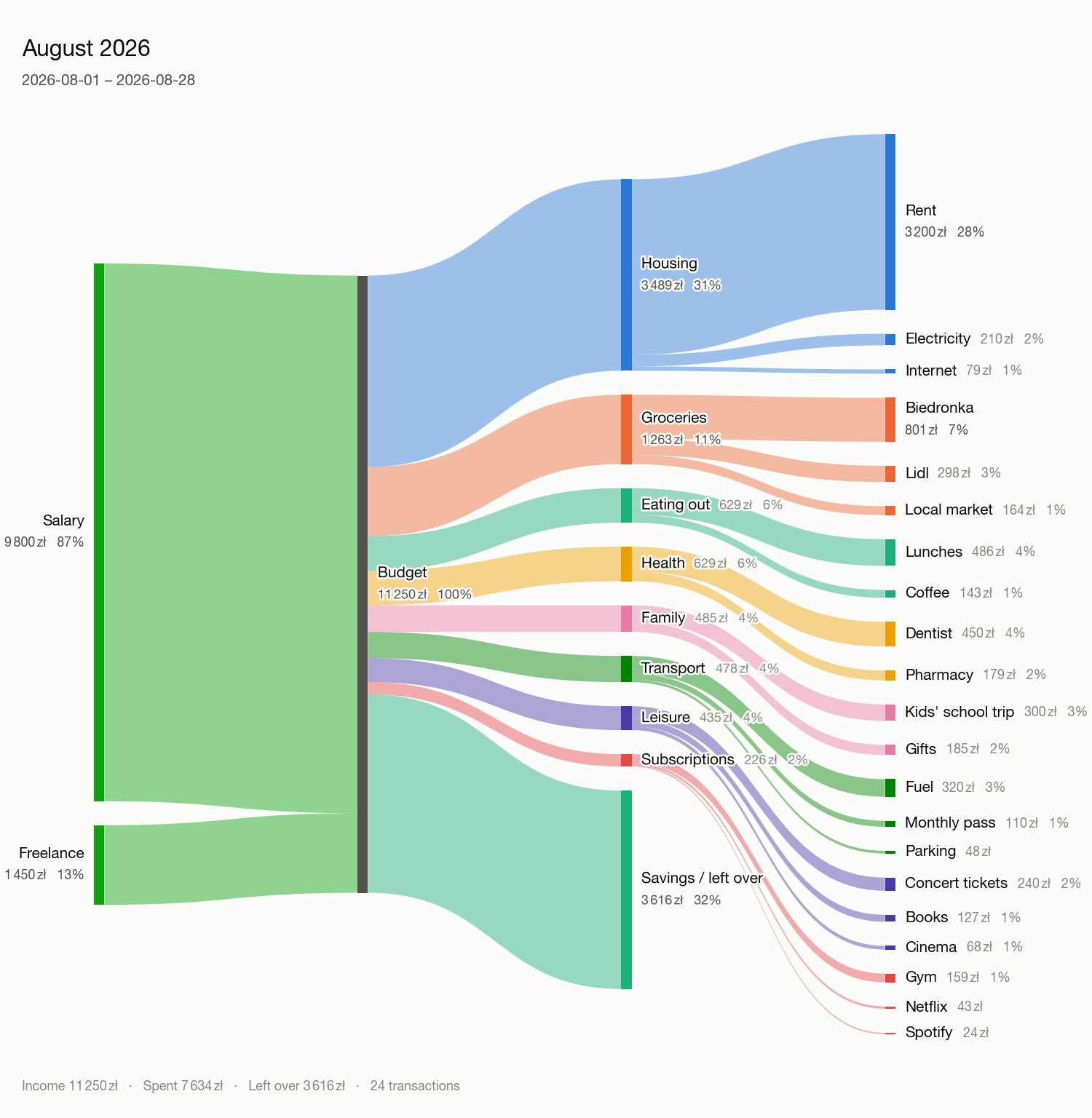

+![A Sankey diagram of one month of spending](https://raw.githubusercontent.com/oskar-j/visualize-my-expenses/master/examples/output/budget-august.png)
+
+Money flows left to right: income sources → your budget → categories → what you
+actually bought. Whatever you did not spend leaves as **Savings / left over**, so
+the picture always balances.
+
+---
+
+## Install
+
+```bash
+pip install vme-py
+```
+
+The package is called `vme-py` on PyPI; the command it installs and the module
+you import are both `vme`. If you only want the command, give it an environment
+of its own:
+
+```bash
+uv tool install vme-py        # or: pipx install vme-py
+```
+
+Python 3.9 or newer. The core needs only `click` and `matplotlib` — no browser,
+no headless Chrome, no network. Two optional extras:
+
+| Extra | Adds | For |
+|---|---|---|
+| `vme-py[excel]` | `openpyxl` | reading `.xlsx` workbooks |
+| `vme-py[html]` | `plotly` | writing an interactive `.html` version |
+| `vme-py[all]` | both | |
+
+```bash
+pip install "vme-py[all]"
+```
+
+To work on the code, install from a clone instead:
+
+```bash
+git clone https://github.com/oskar-j/visualize-my-expenses
+cd visualize-my-expenses
+uv sync                       # .venv as pinned by uv.lock: the package, both extras, the dev tools
+# or: python -m venv .venv && source .venv/bin/activate && pip install -e ".[all]"
+```
+
+## Try it in 30 seconds
+
+```bash
+vme sample budget.csv                       # writes an example file
+vme render budget.csv -c PLN -o august.png  # draws it
+```
+
+## Input formats
+
+Point `vme` at whatever your bank or budget app exports; the format is guessed
+from the file name, and `--format` overrides the guess.
+
+| Format | Extensions | Notes |
+|---|---|---|
+| CSV / TSV | `.csv` `.tsv` `.txt` | separator and encoding are sniffed |
+| JSON | `.json` | an array of rows, or `{"expenses": [...]}` |
+| JSON Lines | `.jsonl` `.ndjson` | one row per line |
+| OFX / QFX | `.ofx` `.qfx` | most US banks, Quicken, MS Money |
+| QIF | `.qif` | older Quicken exports |
+| ISO 20022 camt | `.xml` `.camt` | camt.052/053/054 SEPA statements |
+| Excel | `.xlsx` `.xlsm` | needs the `excel` extra |
+
+`vme formats` prints the same list.
+
+Column names are matched loosely, so a bank export usually works untouched —
+`Posted Date`, `Description`, `Transaction Amount`, `Debit/Credit`, `kwota` and
+`waluta` are all understood. Amounts written as `1,234.56`, `1.234,56`,
+`1 234,56`, `(12.00)`, `120.00-` or `$1,234.56` all parse.
+
+The minimum a CSV needs is an amount:
+
+```csv
+date,category,label,amount,currency,kind
+2026-08-01,Income,Salary,9800.00,PLN,income
+2026-08-02,Housing,Rent,3200.00,PLN,expense
+2026-08-04,Groceries,Biedronka,412.85,PLN,expense
+```
+
+`category` groups, `label` is the detail inside the group, `kind` is `income` or
+`expense`. Leave `kind` out and the direction is inferred: if any amount is
+negative the file is read as a bank statement (negative = money out); if none
+is, every row is spending.
+
+## Multiple currencies
+
+Each row carries its own currency, and `-c/--currency` says which one the
+*picture* is drawn in. Anything else needs a rate — one unit of that currency
+expressed in the report currency:
+
+```bash
+vme render trip.csv -c PLN --rate EUR=4.30 --rate UAH=0.095 --rate USD=3.95
+```
+

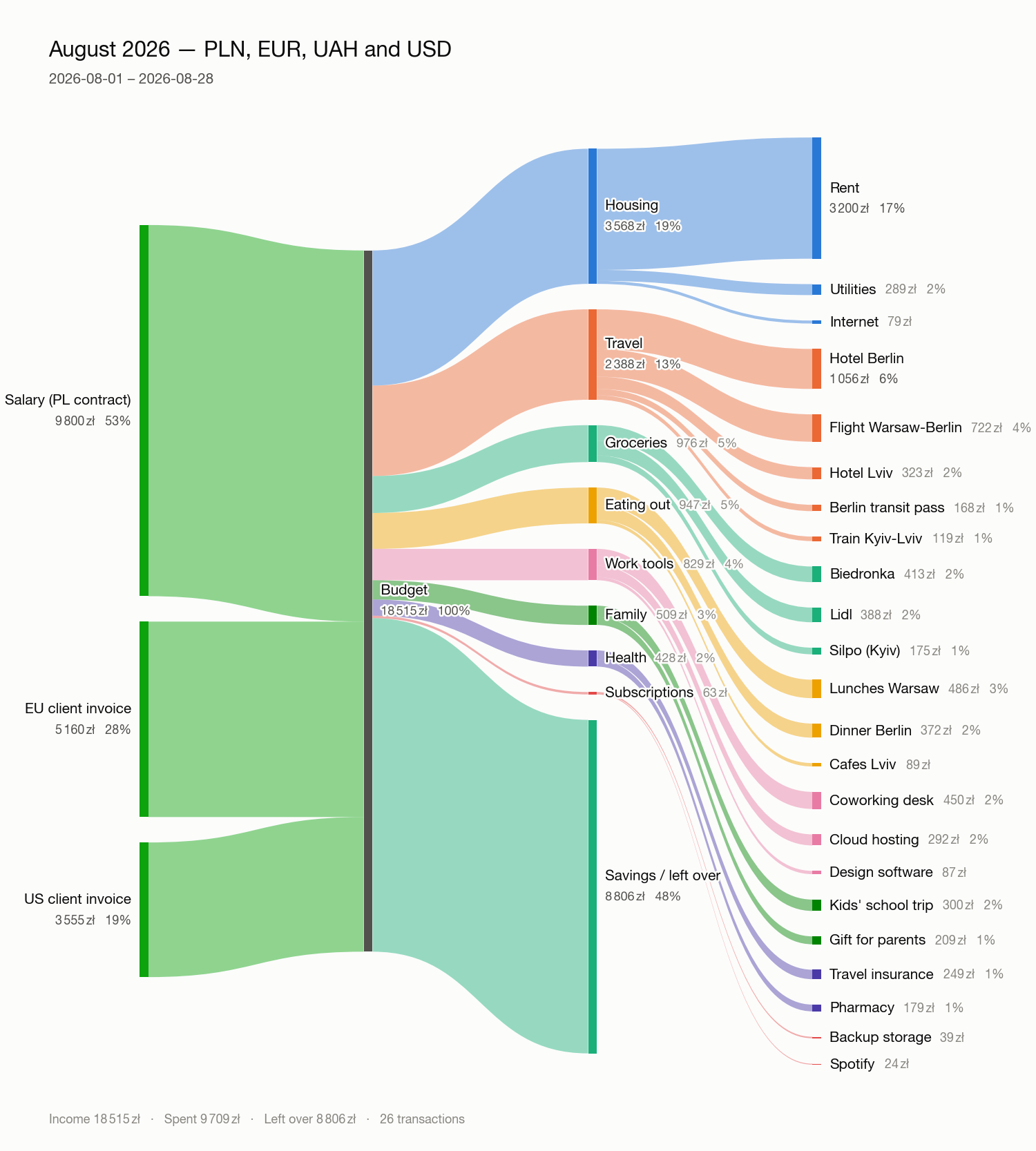

+![A month of spending across four currencies](https://raw.githubusercontent.com/oskar-j/visualize-my-expenses/master/examples/output/trip-multicurrency.png)
+
+Rates can live in a file instead (`--rates rates.json`), as JSON or CSV:
+
+```json
+{ "base": "PLN", "rates": { "EUR": 4.30, "USD": 3.95, "UAH": 0.095 } }
+```
+
+```csv
+currency,rate
+EUR,4.30
+UAH,0.095
+```
+
+A `--rate` flag overrides the same currency in the file. Rates are never fetched
+from the internet: the same input has to draw the same picture next month, and a
+rate that quietly changes between two runs would break that.
+
+Around 50 currencies — including EUR, PLN, UAH, CZK, GBP, USD, JPY and BTC —
+know their own symbol, decimal places and separators, so amounts are written the
+way that currency is normally written (`1 234,50 zł`, `€1,234.50`, `¥1,235`).
+Anything else still works and prints its ISO code. `vme currencies` lists them.
+
+Forget a rate and the error tells you what to add:
+
+```
+error: rows are in EUR (Euro), UAH (Ukrainian hryvnia) but the report is in PLN.
+Give a rate for each one, for example:  --rate EUR=4.30   (one EUR is worth 4.30 PLN)
+```
+
+## Command line
+
+```
+vme render   SOURCE   draw a Sankey diagram
+vme summary  SOURCE   print the same breakdown as a table
+vme check    SOURCE   report anything that would stop it being plotted
+vme formats           list the input formats
+vme currencies        list the known currencies
+vme sample   FILE     write an example file to start from
+```
+
+Useful `render` options:
+
+| Option | Does |
+|---|---|
+| `-o out.png` | `.png`, `.svg`, `.pdf` or `.html` — picked by extension |
+| `-c PLN` | currency the report is drawn in |
+| `-m 2026-08` | one month; also `-y 2026` and `-p START..END` |
+| `--top 8` | keep the 8 biggest categories, fold the rest into "Other" |
+| `--min-share 1` | fold anything under 1% of the total |
+| `--max-labels 6` | most detail rows to show inside one category |
+| `--no-detail` | stop at categories, skip the label column |
+| `--theme dark` | dark background |
+| `--width 1600 --dpi 200` | image size; height scales with the row count |
+| `--transparent` | transparent background |
+| `--sign statement` | force how a negative amount is read |
+| `--open` | open the file when it is done |
+
+Sharing a picture in a chat app: the defaults (1600px wide, 200 dpi, light
+theme) are already sized for it. For a dark-mode chat, add `--theme dark`.
+

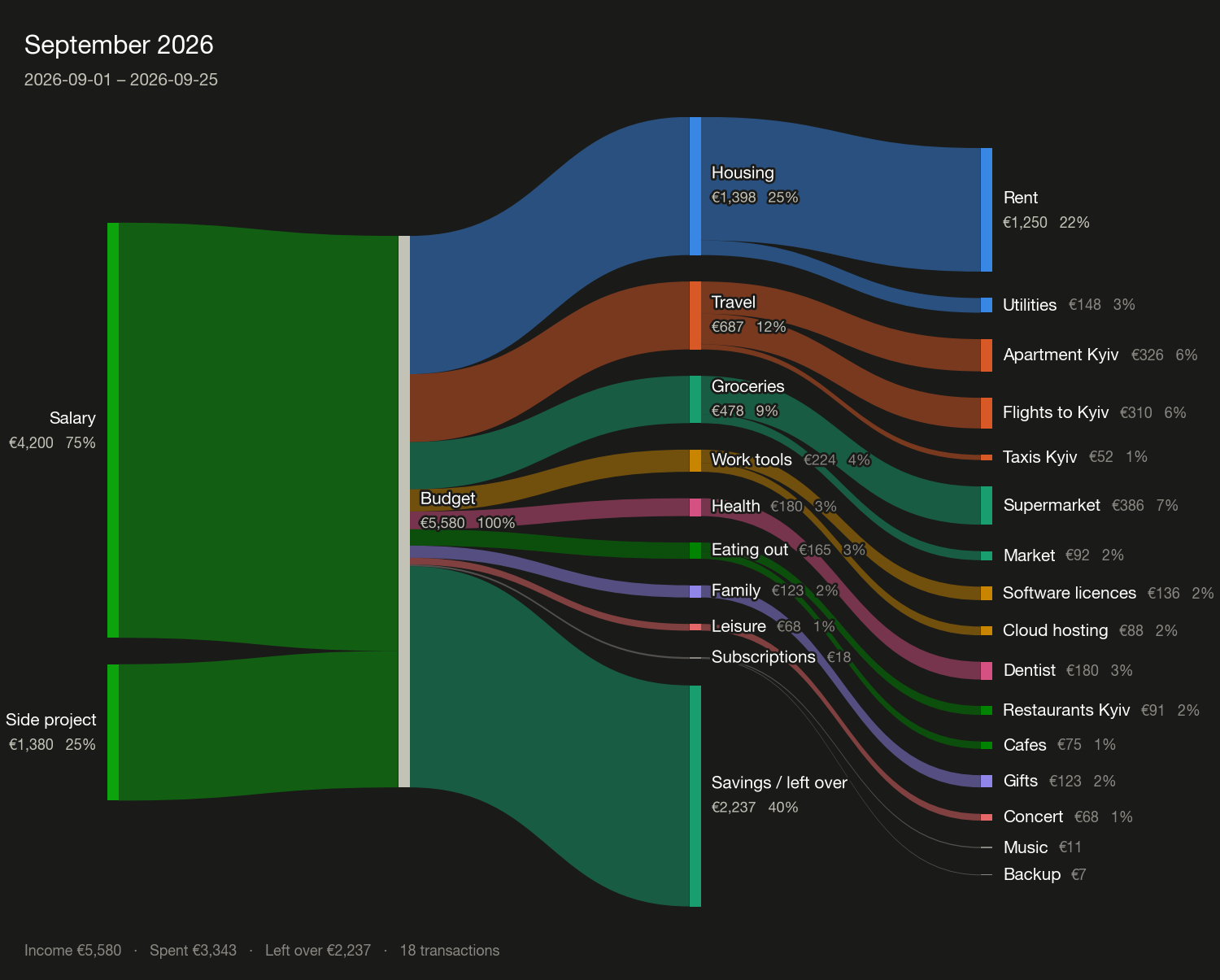

+![The same data in the dark theme](https://raw.githubusercontent.com/oskar-j/visualize-my-expenses/master/examples/output/september-dark.png)
+
+## Python API
+
+`Visualizer` is the whole public surface.
+
+```python
+from vme import Visualizer
+
+Visualizer.from_file("august.csv", currency="PLN").create_png("august.png")
+```
+
+Or build the rows yourself — dicts, namedtuples and `Expense` objects all work:
+
+```python
+from vme import Expense, Visualizer
+
+rows = [
+    Expense(category="Income",  label="Salary", amount=9800, currency="PLN", kind="income"),
+    Expense(category="Housing", label="Rent",   amount=3200, currency="PLN"),
+    Expense(category="Food",    label="Lidl",   amount=412,  currency="PLN"),
+]
+
+v = Visualizer(rows, currency="PLN", title="August 2026", theme="light")
+v.print_to_console()
+v.create_png("august.png", width=1600, dpi=200)
+```
+
+| Method | Does |
+|---|---|
+| `Visualizer.from_file(path, fmt=None, ...)` | read any supported file |
+| `create_png(path)` | write a PNG (also `.svg`, `.pdf`) |
+| `create_html(path)` | write an interactive plotly page — needs the `html` extra |
+| `save(path)` | pick the writer from the extension |
+| `show_plot()` | open an interactive window |
+| `print_to_console()` | the breakdown as text |
+| `graph()` | the `SankeyGraph`, if you want to draw it yourself |
+| `problems()` | what is wrong with the rows, as a list |
+
+Constructor arguments: `currency`, `rates`, `period`, `sign`, `title`,
+`subtitle`, `theme`, `top_categories`, `max_labels`, `min_share`, `detail`,
+`show_savings`, `group_income`, `verbose`.
+
+Below `Visualizer` sit `vme.io` (loading), `vme.sankey` (rows → graph),
+`vme.plotting` (graph → picture) and `vme.currencies`; each is usable on its own.
+
+## Development
+
+```bash
+uv sync                 # or: pip install -e ".[all]" pytest ruff
+uv run pytest
+uv run ruff check src tests
+```
+
+`uv.lock` pins the development environment, and CI installs from it with
+`--locked`, so after changing a dependency in `pyproject.toml` run `uv lock` and
+commit both files. The lock never reaches PyPI — `pip install vme-py` gets the
+version ranges from `pyproject.toml` — and working from a clone with pip simply
+ignores it.
+
+Layout:
+
+```
+src/vme/
+  models.py       Expense, Node, Link, SankeyGraph
+  currencies.py   currency metadata, formatting, rate files
+  tools.py        amount/date/direction parsing, row coercion
+  io/             one module per input format, self-registering
+  data_store.py   row storage, sign conventions, conversion, validation
+  sankey.py       rows -> graph (folding, savings branch)
+  plotting.py     layout + the matplotlib and plotly backends
+  theme.py        light and dark palettes
+  cli.py          the click commands
+```
+
+The colour palettes are checked for colour-blind separation and for contrast
+against their own background, and every node carries a visible label, so no
+reading of the chart depends on telling two colours apart.
+
+### Releasing
+
+Every pull request is linted, tested (Linux on Python 3.9–3.14, plus macOS and
+Windows) and built into a wheel that is installed and run. A merge to `master`
+does all of that again and then publishes to PyPI — but only if the version in
+`pyproject.toml` is not on PyPI yet. So a release is two steps:
+
+1. in the pull request, bump the version with `uv version --bump patch` (or
+   `minor`), which updates `pyproject.toml` and `uv.lock` together — edit
+   `pyproject.toml` by hand and you need `uv lock` as well, or CI fails;
+2. merge it.
+
+CI uploads through PyPI's trusted publishing, so no API token is stored
+anywhere; then it tags the commit `vX.Y.Z` and creates a GitHub release with the
+built files. A merge that leaves the version alone publishes nothing. PyPI never
+takes the same version twice, so a broken release is fixed by the next one.
+
+## Licence
+
+MIT — see [LICENSE](https://github.com/oskar-j/visualize-my-expenses/blob/master/LICENSE).

vme_py-0.1.0/README.md

@@ -0,0 +1,269 @@
+# visualize-my-expenses
+
+[![PyPI](https://img.shields.io/pypi/v/vme-py)](https://pypi.org/project/vme-py/)
+[![CI](https://github.com/oskar-j/visualize-my-expenses/actions/workflows/ci.yml/badge.svg?branch=master)](https://github.com/oskar-j/visualize-my-expenses/actions/workflows/ci.yml)
+
+Turn a month of budget rows into a Sankey diagram you can share as a PNG.
+
+```bash
+pip install vme-py
+vme render budget.csv -c PLN -o august.png --month 2026-08
+```
+
+![A Sankey diagram of one month of spending](https://raw.githubusercontent.com/oskar-j/visualize-my-expenses/master/examples/output/budget-august.png)
+
+Money flows left to right: income sources → your budget → categories → what you
+actually bought. Whatever you did not spend leaves as **Savings / left over**, so
+the picture always balances.
+
+---
+
+## Install
+
+```bash
+pip install vme-py
+```
+
+The package is called `vme-py` on PyPI; the command it installs and the module
+you import are both `vme`. If you only want the command, give it an environment
+of its own:
+
+```bash
+uv tool install vme-py        # or: pipx install vme-py
+```
+
+Python 3.9 or newer. The core needs only `click` and `matplotlib` — no browser,
+no headless Chrome, no network. Two optional extras:
+
+| Extra | Adds | For |
+|---|---|---|
+| `vme-py[excel]` | `openpyxl` | reading `.xlsx` workbooks |
+| `vme-py[html]` | `plotly` | writing an interactive `.html` version |
+| `vme-py[all]` | both | |
+
+```bash
+pip install "vme-py[all]"
+```
+
+To work on the code, install from a clone instead:
+
+```bash
+git clone https://github.com/oskar-j/visualize-my-expenses
+cd visualize-my-expenses
+uv sync                       # .venv as pinned by uv.lock: the package, both extras, the dev tools
+# or: python -m venv .venv && source .venv/bin/activate && pip install -e ".[all]"
+```
+
+## Try it in 30 seconds
+
+```bash
+vme sample budget.csv                       # writes an example file
+vme render budget.csv -c PLN -o august.png  # draws it
+```
+
+## Input formats
+
+Point `vme` at whatever your bank or budget app exports; the format is guessed
+from the file name, and `--format` overrides the guess.
+
+| Format | Extensions | Notes |
+|---|---|---|
+| CSV / TSV | `.csv` `.tsv` `.txt` | separator and encoding are sniffed |
+| JSON | `.json` | an array of rows, or `{"expenses": [...]}` |
+| JSON Lines | `.jsonl` `.ndjson` | one row per line |
+| OFX / QFX | `.ofx` `.qfx` | most US banks, Quicken, MS Money |
+| QIF | `.qif` | older Quicken exports |
+| ISO 20022 camt | `.xml` `.camt` | camt.052/053/054 SEPA statements |
+| Excel | `.xlsx` `.xlsm` | needs the `excel` extra |
+
+`vme formats` prints the same list.
+
+Column names are matched loosely, so a bank export usually works untouched —
+`Posted Date`, `Description`, `Transaction Amount`, `Debit/Credit`, `kwota` and
+`waluta` are all understood. Amounts written as `1,234.56`, `1.234,56`,
+`1 234,56`, `(12.00)`, `120.00-` or `$1,234.56` all parse.
+
+The minimum a CSV needs is an amount:
+
+```csv
+date,category,label,amount,currency,kind
+2026-08-01,Income,Salary,9800.00,PLN,income
+2026-08-02,Housing,Rent,3200.00,PLN,expense
+2026-08-04,Groceries,Biedronka,412.85,PLN,expense
+```
+
+`category` groups, `label` is the detail inside the group, `kind` is `income` or
+`expense`. Leave `kind` out and the direction is inferred: if any amount is
+negative the file is read as a bank statement (negative = money out); if none
+is, every row is spending.
+
+## Multiple currencies
+
+Each row carries its own currency, and `-c/--currency` says which one the
+*picture* is drawn in. Anything else needs a rate — one unit of that currency
+expressed in the report currency:
+
+```bash
+vme render trip.csv -c PLN --rate EUR=4.30 --rate UAH=0.095 --rate USD=3.95
+```
+
+![A month of spending across four currencies](https://raw.githubusercontent.com/oskar-j/visualize-my-expenses/master/examples/output/trip-multicurrency.png)
+
+Rates can live in a file instead (`--rates rates.json`), as JSON or CSV:
+
+```json
+{ "base": "PLN", "rates": { "EUR": 4.30, "USD": 3.95, "UAH": 0.095 } }
+```
+
+```csv
+currency,rate
+EUR,4.30
+UAH,0.095
+```
+
+A `--rate` flag overrides the same currency in the file. Rates are never fetched
+from the internet: the same input has to draw the same picture next month, and a
+rate that quietly changes between two runs would break that.
+
+Around 50 currencies — including EUR, PLN, UAH, CZK, GBP, USD, JPY and BTC —
+know their own symbol, decimal places and separators, so amounts are written the
+way that currency is normally written (`1 234,50 zł`, `€1,234.50`, `¥1,235`).
+Anything else still works and prints its ISO code. `vme currencies` lists them.
+
+Forget a rate and the error tells you what to add:
+
+```
+error: rows are in EUR (Euro), UAH (Ukrainian hryvnia) but the report is in PLN.
+Give a rate for each one, for example:  --rate EUR=4.30   (one EUR is worth 4.30 PLN)
+```
+
+## Command line
+
+```
+vme render   SOURCE   draw a Sankey diagram
+vme summary  SOURCE   print the same breakdown as a table
+vme check    SOURCE   report anything that would stop it being plotted
+vme formats           list the input formats
+vme currencies        list the known currencies
+vme sample   FILE     write an example file to start from
+```
+
+Useful `render` options:
+
+| Option | Does |
+|---|---|
+| `-o out.png` | `.png`, `.svg`, `.pdf` or `.html` — picked by extension |
+| `-c PLN` | currency the report is drawn in |
+| `-m 2026-08` | one month; also `-y 2026` and `-p START..END` |
+| `--top 8` | keep the 8 biggest categories, fold the rest into "Other" |
+| `--min-share 1` | fold anything under 1% of the total |
+| `--max-labels 6` | most detail rows to show inside one category |
+| `--no-detail` | stop at categories, skip the label column |
+| `--theme dark` | dark background |
+| `--width 1600 --dpi 200` | image size; height scales with the row count |
+| `--transparent` | transparent background |
+| `--sign statement` | force how a negative amount is read |
+| `--open` | open the file when it is done |
+
+Sharing a picture in a chat app: the defaults (1600px wide, 200 dpi, light
+theme) are already sized for it. For a dark-mode chat, add `--theme dark`.
+
+![The same data in the dark theme](https://raw.githubusercontent.com/oskar-j/visualize-my-expenses/master/examples/output/september-dark.png)
+
+## Python API
+
+`Visualizer` is the whole public surface.
+
+```python
+from vme import Visualizer
+
+Visualizer.from_file("august.csv", currency="PLN").create_png("august.png")
+```
+
+Or build the rows yourself — dicts, namedtuples and `Expense` objects all work:
+
+```python
+from vme import Expense, Visualizer
+
+rows = [
+    Expense(category="Income",  label="Salary", amount=9800, currency="PLN", kind="income"),
+    Expense(category="Housing", label="Rent",   amount=3200, currency="PLN"),
+    Expense(category="Food",    label="Lidl",   amount=412,  currency="PLN"),
+]
+
+v = Visualizer(rows, currency="PLN", title="August 2026", theme="light")
+v.print_to_console()
+v.create_png("august.png", width=1600, dpi=200)
+```
+
+| Method | Does |
+|---|---|
+| `Visualizer.from_file(path, fmt=None, ...)` | read any supported file |
+| `create_png(path)` | write a PNG (also `.svg`, `.pdf`) |
+| `create_html(path)` | write an interactive plotly page — needs the `html` extra |
+| `save(path)` | pick the writer from the extension |
+| `show_plot()` | open an interactive window |
+| `print_to_console()` | the breakdown as text |
+| `graph()` | the `SankeyGraph`, if you want to draw it yourself |
+| `problems()` | what is wrong with the rows, as a list |
+
+Constructor arguments: `currency`, `rates`, `period`, `sign`, `title`,
+`subtitle`, `theme`, `top_categories`, `max_labels`, `min_share`, `detail`,
+`show_savings`, `group_income`, `verbose`.
+
+Below `Visualizer` sit `vme.io` (loading), `vme.sankey` (rows → graph),
+`vme.plotting` (graph → picture) and `vme.currencies`; each is usable on its own.
+
+## Development
+
+```bash
+uv sync                 # or: pip install -e ".[all]" pytest ruff
+uv run pytest
+uv run ruff check src tests
+```
+
+`uv.lock` pins the development environment, and CI installs from it with
+`--locked`, so after changing a dependency in `pyproject.toml` run `uv lock` and
+commit both files. The lock never reaches PyPI — `pip install vme-py` gets the
+version ranges from `pyproject.toml` — and working from a clone with pip simply
+ignores it.
+
+Layout:
+
+```
+src/vme/
+  models.py       Expense, Node, Link, SankeyGraph
+  currencies.py   currency metadata, formatting, rate files
+  tools.py        amount/date/direction parsing, row coercion
+  io/             one module per input format, self-registering
+  data_store.py   row storage, sign conventions, conversion, validation
+  sankey.py       rows -> graph (folding, savings branch)
+  plotting.py     layout + the matplotlib and plotly backends
+  theme.py        light and dark palettes
+  cli.py          the click commands
+```
+
+The colour palettes are checked for colour-blind separation and for contrast
+against their own background, and every node carries a visible label, so no
+reading of the chart depends on telling two colours apart.
+
+### Releasing
+
+Every pull request is linted, tested (Linux on Python 3.9–3.14, plus macOS and
+Windows) and built into a wheel that is installed and run. A merge to `master`
+does all of that again and then publishes to PyPI — but only if the version in
+`pyproject.toml` is not on PyPI yet. So a release is two steps:
+
+1. in the pull request, bump the version with `uv version --bump patch` (or
+   `minor`), which updates `pyproject.toml` and `uv.lock` together — edit
+   `pyproject.toml` by hand and you need `uv lock` as well, or CI fails;
+2. merge it.
+
+CI uploads through PyPI's trusted publishing, so no API token is stored
+anywhere; then it tags the commit `vX.Y.Z` and creates a GitHub release with the
+built files. A merge that leaves the version alone publishes nothing. PyPI never
+takes the same version twice, so a broken release is fixed by the next one.
+
+## Licence
+
+MIT — see [LICENSE](https://github.com/oskar-j/visualize-my-expenses/blob/master/LICENSE).
