+# tvccointreg
+
+**Time-Varying-Coefficient regression and Generalized Cointegration in Python.**
+
+`tvccointreg` implements the *generalized cointegration* framework of
+
+> **Hall, S. G., Swamy, P. A. V. B., & Tavlas, G. S. (2015).**
+> *A Note on Generalizing the Concept of Cointegration.*
+
+together with the surrounding Swamy time-varying-coefficient (TVC) literature
+(Swamy & Mehta 1975; Swamy, Tavlas, Hall & co-authors 2003–2014; Granger 2008).
+
+Conventional cointegration (Engle–Granger 1987) is an *inherently linear*
+concept: it can only recover a structural relationship if that relationship
+happens to be linear in unit-root variables. Most economic theory, however,
+implies **nonlinear** relationships among variables that are **nonstationary but
+not necessarily unit-root**. `tvccointreg` lets you:
+
+- estimate a model that is **linear in variables but with time-varying
+  coefficients** — the Swamy–Mehta / Granger representation of *any* nonlinear
+  relationship (eq. 7);
+- **decompose** each coefficient into a **bias-free structural component** plus
+  **omitted-variable bias** and **measurement-error bias** using *coefficient
+  drivers* (eq. 8);
+- **test for generalized cointegration** — i.e. whether the bias-free structural
+  partial derivative is nonzero — with **standard** χ²/normal inference (no
+  Dickey–Fuller tables);
+- produce **journal-quality tables** (text / LaTeX booktabs / HTML) and
+  **publication-quality plots** with the MATLAB **Parula** colormap by default.
+
+---
+
+## Table of contents
+
+- [Installation](#installation)
+- [The 60-second tour](#the-60-second-tour)
+- [Concepts: how the paper maps to the code](#concepts-how-the-paper-maps-to-the-code)
+- [The estimator](#the-estimator)
+- [API reference](#api-reference)
+- [Detailed syntax](#detailed-syntax)
+- [Visualizations](#visualizations)
+- [Worked example: spurious vs. real](#worked-example-spurious-vs-real)
+- [Testing](#testing)
+- [Citing](#citing)
+- [References](#references)
+
+---
+
+## Installation
+
+```bash
+# from a clone of the repo
+git clone https://github.com/merwanroudane/tvccointreg.git
+cd tvccointreg
+pip install -e .
+
+# with the optional ADF / test extras
+pip install -e ".[dev]"
+```
+
+Requirements: `numpy`, `scipy`, `pandas`, `matplotlib`. `statsmodels` is optional
+(used only for the ADF stationarity diagnostic and some examples).
+
+---
+
+## The 60-second tour
+
+```python
+from tvccointreg import TVCModel, DriverSpec
+from tvccointreg.datasets import simulate_nonlinear_cointegration
+
+# 1) A nonlinear relationship between nonstationary variables.
+sim = simulate_nonlinear_cointegration(T=300, seed=1, nonlinearity=0.4)
+
+# 2) Partition the drivers into the three sets (Assumption 1 / eq. 8).
+spec = DriverSpec(
+    names=list(sim.drivers.columns),
+    bias_free=["x_lag", "y_lag"],   # true coefficient variation
+    omitted=["w"],                  # omitted-variable bias
+    measurement=[],                 # measurement-error bias
+)
+
+# 3) Fit by iteratively rescaled GLS.
+res = TVCModel(sim.y, sim.X, sim.drivers, driver_spec=spec).fit()
+
+# 4) Journal table + generalized cointegration test.
+print(res.summary())
+res.coint_test()
+```
+
+```
+==============================================================================
+      Time-Varying-Coefficient Regression  /  Generalized Cointegration
+==============================================================================
+Dep. variable: y                       No. observations: 300
+No. coefficients: 2                    No. drivers: 3
+Estimator: Iteratively rescaled GLS    Covariance: GLS
+R-squared: 0.8311                      Log-likelihood: -78.07
+Converged: True                        Resid ADF p-value: 0.0000
+==============================================================================
+Variable    Coef (mean)  Bias-free    Std.Err          t    p-value    G-Coint
+------------------------------------------------------------------------------
+x                0.3283     0.3392     0.0698     4.8614     0.0000 ***     Yes
+==============================================================================
+                   Signif.: *** p<0.01  ** p<0.05  * p<0.10
+       Bias-free = structural derivative; G-Coint via Wald test on it.
+==============================================================================
+```
+
+On this DGP the recovered bias-free coefficient correlates **0.99** with the
+true time-varying derivative, and the residuals are stationary (ADF p ≈ 0) —
+exactly the standard-inference result the paper proves.
+
+---
+
+## Concepts: how the paper maps to the code
+
+| Paper (Hall–Swamy–Tavlas 2015) | Symbol | In `tvccointreg` |
+|---|---|---|
+| TVC model, eq. (7) | `y_t = γ_0t + γ_1t x_1t + … + γ_{K-1,t} x_{K-1,t}` | `TVCModel(y, X, drivers)` |
+| Coefficient-driver eq., eq. (8) | `γ_jt = π_j0 + Σ_d π_jd z_dt + ε_jt` | `DriverSpec(...)` + the drivers matrix |
+| Three components of a coefficient | bias-free / omitted-variable / measurement-error | `DriverSpec(bias_free=, omitted=, measurement=)` |
+| Concentrated model | `y_t = w_t'π + u_t`, `u_t = Σ_j x_jt ε_jt` | `estimation.build_design`, `estimation.irgls` |
+| Variance structure | `Var(u_t) = Σ_j σ_j² x_jt²` | `estimation.variance_components` (Hildreth–Houck–Swamy) |
+| Consistent estimator (§3.3) | iteratively rescaled GLS | `TVCModel.fit(method="irgls")` |
+| Bias-free component | `γ_jt^BF = π_j0 + Σ_{d∈BF} π_jd z_dt` | `res.bias_free_coefficients()` |
+| Generalized cointegration, eqs. (5)–(6) | `∂y/∂x ≠ 0` ⇔ bias-free component ≠ 0 | `res.coint_test()` |
+| Standard inference (§3.3) | χ² Wald / normal, **not** Dickey–Fuller | Wald + delta-method t in `cointegration.py` |
+| Drivers vs. instruments (Table 1) | drivers *should* be correlated with the misspecification | the `omitted` / `measurement` sets |
+
+### The definition, in one line
+
+> *y* and *x* are **generalized-cointegrated** if, holding all other relevant
+> preexisting conditions *w* constant, the **bias-free** part of `∂y/∂x` is
+> nonzero.
+
+Cointegration is thus a property of the **real-world structural relationship**,
+not of any particular statistical model — and it survives nonlinearity *and*
+omitted regressors.
+
+---
+
+## The estimator
+
+Substituting the driver equation (8) into the TVC model (7) gives a model that
+is linear in the stacked parameter vector `π`:
+
+```
+y_t = w_t' π + u_t ,   w_t = ( x_0t·z_t , x_1t·z_t , … ) ,   u_t = Σ_j x_jt ε_jt
+Var(u_t | x_t) = Σ_j σ_j² x_jt²          (Hildreth–Houck–Swamy structure)
+```
+
+`tvccointreg` then:
+
+1. **OLS** start on the concentrated design `W`.
+2. **Variance components** `σ_j²` from a non-negative regression of squared
+   residuals on squared regressors (`scipy.optimize.nnls`).
+3. **GLS** with weights `1/h_t`, `h_t = Σ_j σ_j² x_jt²`; iterate to convergence
+   (*iteratively rescaled GLS*).
+4. **Recover** the time-varying coefficients
+   `γ_jt = z_t'π_j + ε̂_jt`, where the random part is the best linear predictor
+   `ε̂_jt = σ_j² x_jt u_t / h_t`.
+5. **Decompose** `γ_jt` into bias-free / omitted / measurement parts using the
+   driver-set masks, and **test** the bias-free block.
+
+Inference uses the GLS covariance `(W'Ω⁻¹W)⁻¹` (the paper's standard-inference
+result) or a heteroskedasticity-robust sandwich (`cov_type="robust"`).
+
+> **Note / honest caveat.** As in the paper, validity hinges on *Assumption 1* —
+> that the chosen drivers genuinely span the bias components. This is an
+> identifying assumption, not something the data can confirm; choose drivers that
+> are plausibly correlated with the suspected misspecification (Table 1).
+
+---
+
+## API reference
+
+### `TVCModel(y, X, drivers, driver_spec=None, driver_sets=None, add_const=True, index=None)`
+Build a model. `y` (T,), `X` (T, K−1), `drivers` (T, m). A constant regressor and
+a constant driver are added automatically. Accepts NumPy arrays or pandas
+objects (column names are picked up automatically).
+
+- **`.fit(method="irgls", max_iter=100, tol=1e-8, cov_type="gls", verbose=False)`**
+  → `TVCResults`.
+
+### `DriverSpec(names, bias_free=[], omitted=[], measurement=[])`
+Three-set partition of the drivers. Any driver not listed defaults to
+`bias_free`. `.describe()` prints the partition.
+
+### `TVCResults`
+| Method | Returns |
+|---|---|
+| `.summary(fmt="text"|"latex"|"html")` | journal-style table |
+| `.coef_table()` | per-regressor average coefficient frame |
+| `.coint_test(alpha=0.05, skip_const=True)` | tidy DataFrame of test results (and `.coint_results_`) |
+| `.tv_coefficients(include_random=True)` | T×K time-varying coefficients |
+| `.bias_free_coefficients()` | T×K bias-free (structural) coefficients |
+| `.components(regressor)` | bias-free / omitted / measurement / random / total |
+| `.coefficient_se()` | pointwise standard errors |
+| `.diagnostics()` | R², log-lik, convergence, residual ADF |

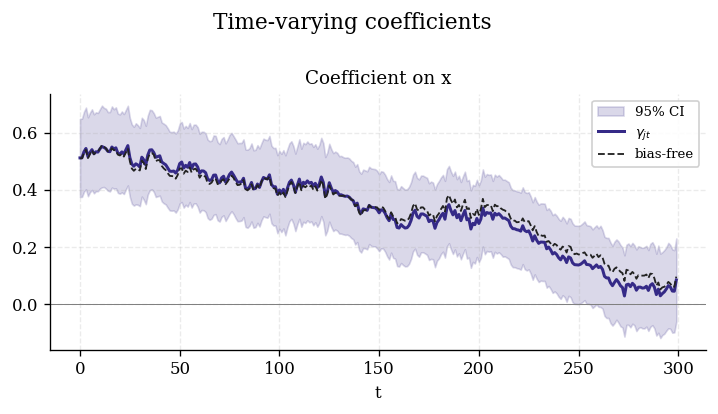

+| `.plot_coefficients(...)` | TVC paths with CI bands |

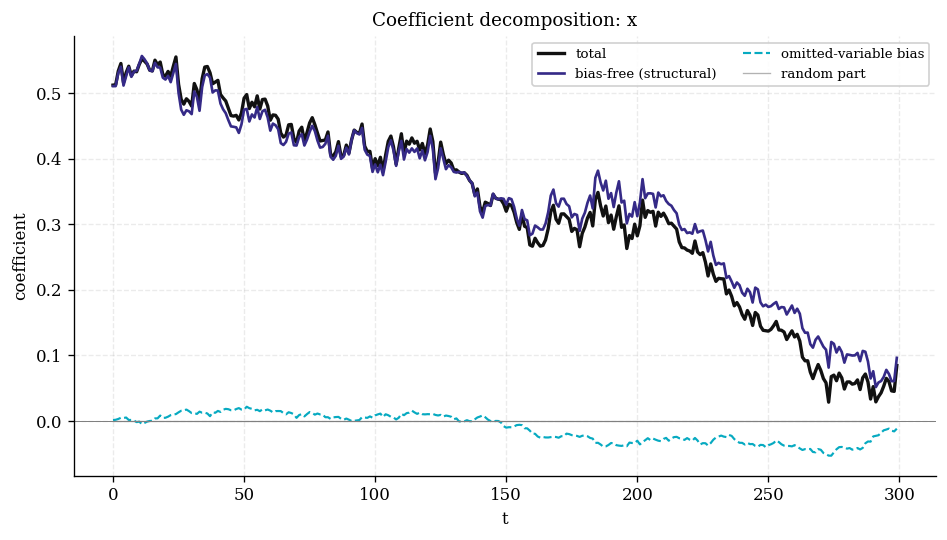

+| `.plot_decomposition(regressor)` | the three-component decomposition |

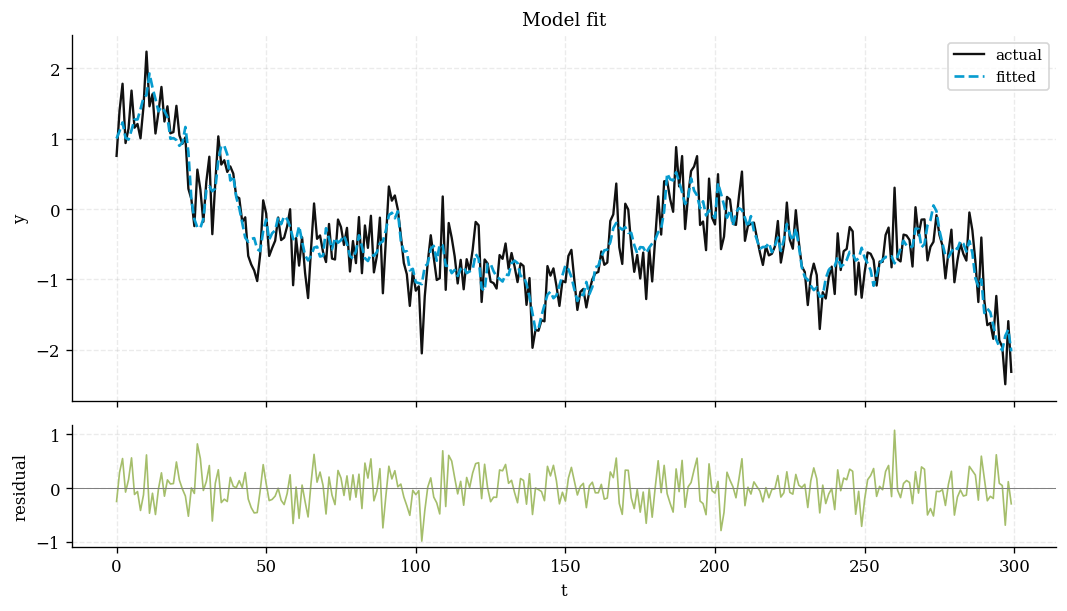

+| `.plot_fit()` | actual vs fitted + residuals |

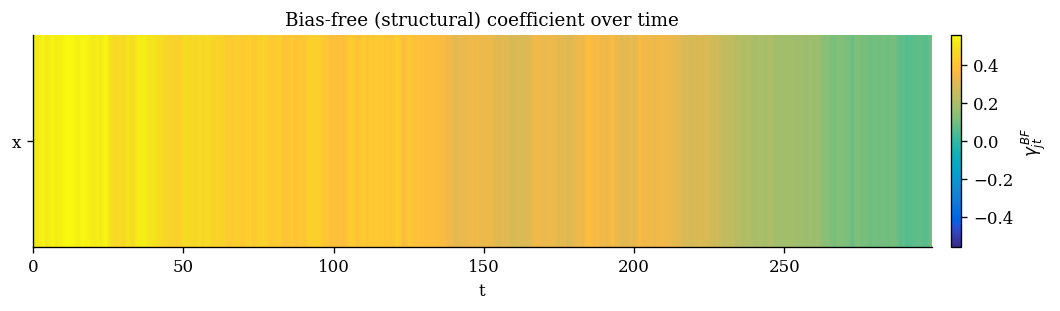

+| `.plot_coint_heatmap()` | Parula heatmap of bias-free paths |
+
+### Datasets
+- `simulate_nonlinear_cointegration(T, seed, nonlinearity, omitted, measurement_error)`
+- `simulate_spurious(T, seed)`
+
+### Colormaps
+`parula_colors(n)`, `matlab_jet_colors(n)`, `turbo_colors(n)`, `bluered_colors(n)`,
+`sinha_colors(n)`, `resolve_colorscale("Parula", n)`, `get_cmap("parula")`.
+
+---
+
+## Detailed syntax
+
+**Using raw NumPy arrays and reading off a specific test:**
+
+```python
+import numpy as np
+from tvccointreg import TVCModel, DriverSpec
+
+res = TVCModel(y, X, Z,                       # y:(T,), X:(T,K-1), Z:(T,m)
+               driver_sets={"bias_free": ["z1"],
+                            "omitted":   ["z2"],
+                            "measurement": ["z3"]}).fit()
+
+ct = res.coint_test()
+print(ct.loc["x1", "cointegrated"], ct.loc["x1", "p_value"])
+```
+
+**Robust covariance and OLS (homoskedastic) comparison:**
+
+```python
+res_robust = TVCModel(y, X, Z, driver_spec=spec).fit(cov_type="robust")
+res_ols    = TVCModel(y, X, Z, driver_spec=spec).fit(method="ols")
+```
+
+**Exporting a LaTeX table for a paper:**
+
+```python
+with open("table1.tex", "w") as f:
+    f.write(res.summary(fmt="latex"))
+```
+
+**Pulling the time-varying coefficient path of one regressor:**
+
+```python
+gamma_x = res.tv_coefficients()["x"]          # pandas Series indexed by t
+bf_x    = res.bias_free_coefficients()["x"]
+```
+
+---
+
+## Visualizations
+
+All plots default to the MATLAB **Parula** colormap and return a matplotlib
+`Figure`.
+
+| | |
+|---|---|
+| `plot_coefficients()` | `plot_decomposition("x")` |
+| ![coefficients](https://raw.githubusercontent.com/merwanroudane/tvccointreg/main/docs/img/coefficients.png) | ![decomposition](https://raw.githubusercontent.com/merwanroudane/tvccointreg/main/docs/img/decomposition.png) |
+| `plot_fit()` | `plot_coint_heatmap()` |
+| ![fit](https://raw.githubusercontent.com/merwanroudane/tvccointreg/main/docs/img/fit.png) | ![heatmap](https://raw.githubusercontent.com/merwanroudane/tvccointreg/main/docs/img/heatmap.png) |
+
+---
+
+## Worked example: spurious vs. real
+
+`examples/spurious_vs_real.py` reproduces the central point of the paper:
+
+```
+================ SPURIOUS (independent random walks) ================
+Naive OLS slope = 1.125  (p = 5.97e-46)   <- spuriously 'significant'
+Generalized cointegration: NO (p = 0.708)
+
+================ GENUINE generalized cointegration ================
+Generalized cointegration: YES (p = 1.34e-35)
+```
+
+A naive OLS regression of one random walk on another is wildly "significant",
+yet the generalized-cointegration test on the bias-free component correctly
+finds **no** structural relationship.
+
+---
+
+## Empirical application: the US consumption function (real data)
+
+`examples/real_data_consumption.py` applies the method to **real US quarterly
+macro data** (`statsmodels` `macrodata`, 1959Q1–2009Q3, 202 obs after lagging).
+We model the long-run relationship between **real personal consumption** and
+**real disposable income** (both in logs, both strongly trending / I(1)):
+
+```python
+import numpy as np, pandas as pd
+from statsmodels.datasets import macrodata
+from tvccointreg import TVCModel, DriverSpec
+
+d = macrodata.load_pandas().data
+d.index = pd.period_range("1959Q1", periods=len(d), freq="Q")
+zscore = lambda s: (s - s.mean()) / s.std(ddof=0)
+
+y = np.log(d["realcons"]).rename("log_cons")
+X = np.log(d[["realdpi"]]).rename(columns={"realdpi": "log_inc"})
+drivers = pd.DataFrame({
+    "inc_lag":  zscore(np.log(d["realdpi"]).shift(1)),
+    "trend":    zscore(pd.Series(np.arange(len(d)), index=d.index)),
+    "realint":  zscore(d["realint"]),
+    "unemp":    zscore(d["unemp"]),
+    "cons_lag": zscore(np.log(d["realcons"]).shift(1)),
+})
+df = pd.concat([y, X, drivers], axis=1).dropna()
+
+spec = DriverSpec(
+    names=["inc_lag", "trend", "realint", "unemp", "cons_lag"],
+    bias_free=["inc_lag", "trend"],   # true elasticity variation
+    omitted=["realint", "unemp"],     # interest-rate / labour-market channels
+    measurement=["cons_lag"],         # dynamics / measurement
+)
+res = TVCModel(df["log_cons"], df[["log_inc"]], df[spec.names],
+               driver_spec=spec, index=df.index.astype(str)).fit()
+print(res.summary())
+print(res.coint_test())
+```
+
+**Result (verbatim output):**
+
+```
+==============================================================================
+      Time-Varying-Coefficient Regression  /  Generalized Cointegration
+==============================================================================
+Dep. variable: log_cons                No. observations: 202
+No. coefficients: 2                    No. drivers: 5
+Estimator: Iteratively rescaled GLS    Covariance: GLS
+R-squared: 0.9999                      Log-likelihood: 752.32
+Converged: True                        Resid ADF p-value: 0.0000
+==============================================================================
+Variable    Coef (mean)  Bias-free    Std.Err          t    p-value    G-Coint
+------------------------------------------------------------------------------
+log_inc          0.3886     0.3886     0.0528     7.3626     0.0000 ***     Yes
+==============================================================================
+```
+
+| regressor | avg_bias_free | std_err | t_stat | wald | df | p_value | cointegrated |
+|---|---|---|---|---|---|---|---|
+| log_inc | 0.3886 | 0.0528 | 7.3626 | 56.9504 | 3 | 0.0000 | **True** |
+
+**Reading the result.**
+
+- **Generalized cointegration is confirmed** between consumption and income
+  (Wald = 56.95, 3 df, *p* ≈ 0): the bias-free structural elasticity is firmly
+  nonzero, so the long-run relationship is genuine, not spurious.
+- **Standard inference is valid here**: the composite residuals are stationary
+  (ADF *p* = 1.9 × 10⁻⁷), exactly the condition under which Hall–Swamy–Tavlas
+  show the TVC test uses ordinary χ²/normal critical values rather than
+  Dickey–Fuller ones.
+- The **bias-free income elasticity drifts down over the sample**, from **0.43
+  (1959Q2)** to **0.34 (2009Q3)** — the *direct* income channel after the
+  dynamics (`cons_lag`) and omitted business-cycle conditions (`realint`,
+  `unemp`) are stripped out into the bias terms. A declining direct sensitivity
+  of consumption to current income over five decades is consistent with greater
+  consumption smoothing / financial deepening.
+

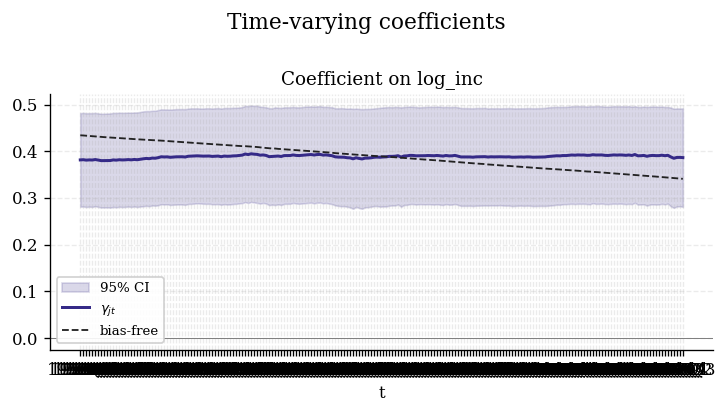

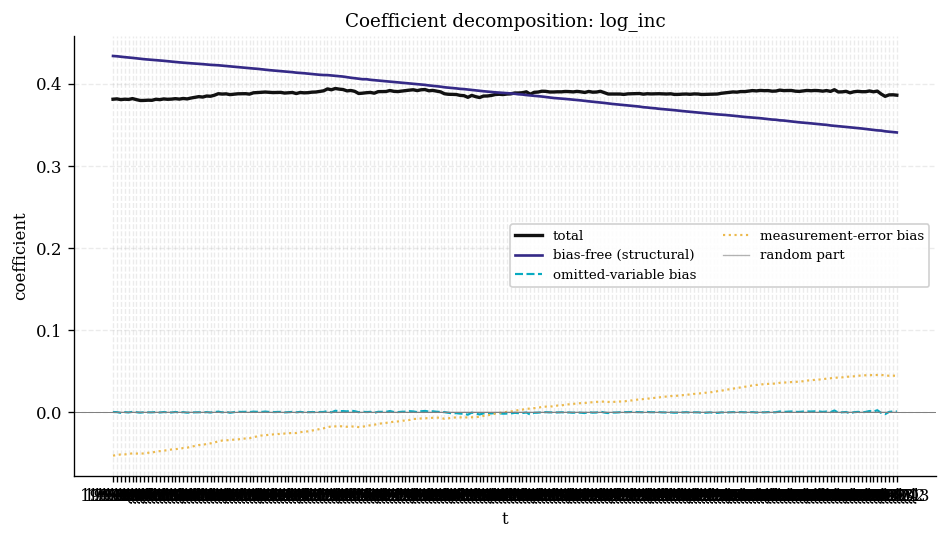

+| Bias-free income elasticity over time | Coefficient decomposition |
+|---|---|
+| ![mpc](https://raw.githubusercontent.com/merwanroudane/tvccointreg/main/docs/img/consumption_mpc.png) | ![decomp](https://raw.githubusercontent.com/merwanroudane/tvccointreg/main/docs/img/consumption_decomp.png) |
+
+Run it yourself:
+
+```bash
+python examples/real_data_consumption.py
+```
+
+---
+
+## Testing
+
+```bash
+pip install -e ".[dev]"
+pytest -q
+```
+
+The suite checks coefficient recovery, that the three components sum exactly to
+the total coefficient, detection of genuine generalized cointegration, rejection
+of spurious relationships, and the Parula palette/colorscale helpers.
+
+---
+
+## Publishing (maintainer notes)
+
+The package is PyPI-ready (`python -m build` + `twine check` both pass).
+
+**First release — manual upload with an API token**
+
+1. Create accounts on [TestPyPI](https://test.pypi.org/) and
+   [PyPI](https://pypi.org/), and generate an API token for each
+   (Account settings → API tokens).
+2. Build and check:
+   ```bash
+   python -m build
+   python -m twine check dist/*
+   ```
+3. Dry-run on TestPyPI first, then install from there to confirm:
+   ```bash
+   python -m twine upload --repository testpypi dist/*
+   pip install --index-url https://test.pypi.org/simple/ \
+       --extra-index-url https://pypi.org/simple/ tvccointreg
+   ```
+4. Upload to the real PyPI:
+   ```bash
+   python -m twine upload dist/*
+   ```
+   When prompted, use `__token__` as the username and the API token (starting
+   with `pypi-`) as the password.
+
+**Subsequent releases — automated via Trusted Publishing (recommended)**
+
+`.github/workflows/publish.yml` publishes automatically when you publish a
+GitHub Release. One-time setup: on PyPI add a *Trusted Publisher*
+(Project → Publishing) for repository `merwanroudane/tvccointreg`, workflow
+`publish.yml`, environment `pypi`. After that, no tokens or secrets are needed —
+just bump `version` in `pyproject.toml` and `__version__`, tag, and publish a
+Release.
+
+> **Remember:** a version number can only be uploaded to PyPI **once**. Bump the
+> version for every release.
+
+---
+
+## Citing
+
+If you use this package, please cite both the package and the underlying paper.
+
+```bibtex
+@software{roudane_tvccointreg,
+  author  = {Merwan Roudane},
+  title   = {tvccointreg: Time-Varying-Coefficient Regression and
+             Generalized Cointegration in Python},
+  year    = {2026},
+  url     = {https://github.com/merwanroudane/tvccointreg}
+}
+
+@incollection{hall_swamy_tavlas_2015,
+  author  = {Hall, Stephen G. and Swamy, P. A. V. B. and Tavlas, George S.},
+  title   = {A Note on Generalizing the Concept of Cointegration},
+  year    = {2015}
+}
+```
+
+---
+
+## References
+
+- Hall, S. G., Swamy, P. A. V. B., & Tavlas, G. S. (2015). *A Note on
+  Generalizing the Concept of Cointegration.*
+- Hall, S. G., Swamy, P. A. V. B., & Tavlas, G. S. (2014). *Time Varying
+  Coefficient Models; A Proposal for Selecting the Coefficient Driver Sets.*
+  University of Leicester WP 14/18.
+- Swamy, P. A. V. B., & Mehta, J. S. (1975). *Bayesian and non-Bayesian Analysis
+  of Switching Regressions and of Random Coefficient Regression Models.* JASA.
+- Swamy, P. A. V. B., Tavlas, G. S., Hall, S. G., et al. (2010). *Nonparametric
+  Nonstationary Regression.*
+- Granger, C. W. J. (2008). *Non-linear Models: Where Do We Go Next —
+  Time-Varying Parameter Models?* Studies in Nonlinear Dynamics & Econometrics.
+- Hildreth, C., & Houck, J. P. (1968). *Some Estimators for a Linear Model with
+  Random Coefficients.* JASA.
+- Engle, R. F., & Granger, C. W. J. (1987). *Co-integration and Error
+  Correction.* Econometrica.
+- Cramér, H. (1946). *Mathematical Methods of Statistics.*
+
+---
+
+## Author
+
+**Dr Merwan Roudane** · merwanroudane920@gmail.com ·
+[github.com/merwanroudane](https://github.com/merwanroudane)
+
+Released under the MIT License.
