+# Changelog
+
+All notable changes to this project are documented in this file.
+The format follows [Keep a Changelog](https://keepachangelog.com/en/1.1.0/),
+and this project uses [Semantic Versioning](https://semver.org/).
+
+## [0.1.2] - 2026-10-01
+
+### Added
+
+- Published to PyPI: `pip install trainspotter`. The README's images and links
+  are rewritten to absolute URLs at build time so they work on the project
+  page.
+- `trainspotter --version`.
+
+## [0.1.1] - 2026-09-30
+
+### Fixed
+
+- `lr_schedule` reported a short warmup as an "LR discontinuity" when the log
+  was coarse (the real `transformers.Trainer` example: a 20-step warmup
+  logged every 5 steps, so each logged interval covers 25% of the LR range).
+  A jump is now reported only if it stands out from the logged intervals
+  around it, and the message gives the step gap instead of always saying
+  "in a single step".
+- Slope p-values print as `p<0.0001` instead of `p=0` when the normal
+  approximation underflows.
+- An enormous rise reads as "300x its minimum" instead of "29891.0%", and a
+  one-step span reads "step 320" instead of "steps 320-320".
+- HTML report: rounding the axis ends outward drew a gridline and tick label
+  above the chart frame (the divergence example's loss chart showed a "5"
+  over its legend); ticks now stay inside the plotted range. Off-scale value
+  labels at the right edge sit beside their markers instead of on the frame.
+
+## [0.1.0] - 2026-09-24
+
+### Added
+
+- Readers for Hugging Face `trainer_state.json`, generic CSV/JSONL metric
+  logs, Weights & Biases history CSV exports, PyTorch Lightning
+  `CSVLogger` `metrics.csv`, and TensorBoard event files (optional
+  `tensorboard` extra).
+- Nine detectors: loss spikes, divergence (NaN/Inf and sustained growth),
+  plateaus, overfitting onset, LR schedule anomalies, gradient-norm
+  explosions/clipping saturation, throughput regressions, eval-metric
+  noise, and a loss-floor/leakage heuristic.
+- `trainspotter analyze`: terminal, JSON, and self-contained HTML reports;
+  `--fail-on warning|error` for CI gating.
+- `trainspotter watch`: tails a growing log file and prints new findings
+  as they appear.
+- Real example logs under `examples/`, generated by training a small
+  numpy MLP on scikit-learn's digits dataset with deliberately induced
+  pathologies (`examples/generate_examples.py`).

trainspotter-0.1.2/LICENSE

@@ -0,0 +1,21 @@
+MIT License
+
+Copyright (c) 2026 Anton Soloviev
+
+Permission is hereby granted, free of charge, to any person obtaining a copy
+of this software and associated documentation files (the "Software"), to deal
+in the Software without restriction, including without limitation the rights
+to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
+copies of the Software, and to permit persons to whom the Software is
+furnished to do so, subject to the following conditions:
+
+The above copyright notice and this permission notice shall be included in all
+copies or substantial portions of the Software.
+
+THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
+IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
+FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
+AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
+LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
+OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
+SOFTWARE.

trainspotter-0.1.2/PKG-INFO

@@ -0,0 +1,333 @@
+Metadata-Version: 2.5
+Name: trainspotter
+Version: 0.1.2
+Summary: Automatic diagnosis of loss curves and training logs: spot divergence, spikes, overfitting, LR and throughput problems before you burn another GPU-day.
+Project-URL: Homepage, https://antonsoo.github.io/trainspotter/
+Project-URL: Repository, https://github.com/antonsoo/trainspotter
+Project-URL: Issues, https://github.com/antonsoo/trainspotter/issues
+Project-URL: Changelog, https://github.com/antonsoo/trainspotter/blob/main/CHANGELOG.md
+Author-email: Anton Soloviev <anton@praviel.com>
+License: MIT
+License-File: LICENSE
+Keywords: cli,diagnostics,huggingface,loss-curve,machine-learning,mlops,pytorch,training
+Classifier: Development Status :: 4 - Beta
+Classifier: Intended Audience :: Science/Research
+Classifier: License :: OSI Approved :: MIT License
+Classifier: Programming Language :: Python :: 3
+Classifier: Programming Language :: Python :: 3.10
+Classifier: Programming Language :: Python :: 3.11
+Classifier: Programming Language :: Python :: 3.12
+Classifier: Topic :: Scientific/Engineering :: Artificial Intelligence
+Classifier: Typing :: Typed
+Requires-Python: >=3.10
+Requires-Dist: numpy>=1.24
+Provides-Extra: dev
+Requires-Dist: mypy>=1.10; extra == 'dev'
+Requires-Dist: pytest-cov>=5.0; extra == 'dev'
+Requires-Dist: pytest>=8.0; extra == 'dev'
+Requires-Dist: ruff>=0.6; extra == 'dev'
+Requires-Dist: scikit-learn>=1.3; extra == 'dev'
+Requires-Dist: tbparse>=0.0.8; extra == 'dev'
+Provides-Extra: examples
+Requires-Dist: scikit-learn>=1.3; extra == 'examples'
+Provides-Extra: tensorboard
+Requires-Dist: tbparse>=0.0.8; extra == 'tensorboard'
+Description-Content-Type: text/markdown
+
+# trainspotter
+
+**Spot what went wrong in a training run before you burn another GPU-day.**
+Automatic diagnosis of loss curves and training logs.
+
+[![License: MIT](https://img.shields.io/badge/license-MIT-blue.svg)](https://github.com/antonsoo/trainspotter/blob/main/LICENSE)
+![Python 3.10+](https://img.shields.io/badge/python-3.10%2B-blue.svg)
+[![Live demo](https://img.shields.io/badge/live%20demo-sample%20reports-4fc3f7)](https://antonsoo.github.io/trainspotter/)
+[![Hugging Face](https://img.shields.io/badge/Hugging%20Face-workbench-ffd21e)](https://huggingface.co/spaces/antonsoloviev/trainspotter)
+
+Every ML engineer has stared at a TensorBoard or W&B chart trying to answer
+"is this run okay?" -- and caught the answer late: a spike that should have
+triggered a restart three hours ago, an eval curve that's been overfitting
+since epoch 4, a learning-rate schedule that never actually warmed up. The
+signal was in the log the whole time. trainspotter reads the log a run
+already writes and turns eyeballing into a report: which pathologies were
+detected, where (step ranges), the evidence behind each, and the usual
+fixes. It runs post-hoc on a finished log, live via `watch` on a growing
+one, or as a CI gate that fails the build.
+
+## Report
+

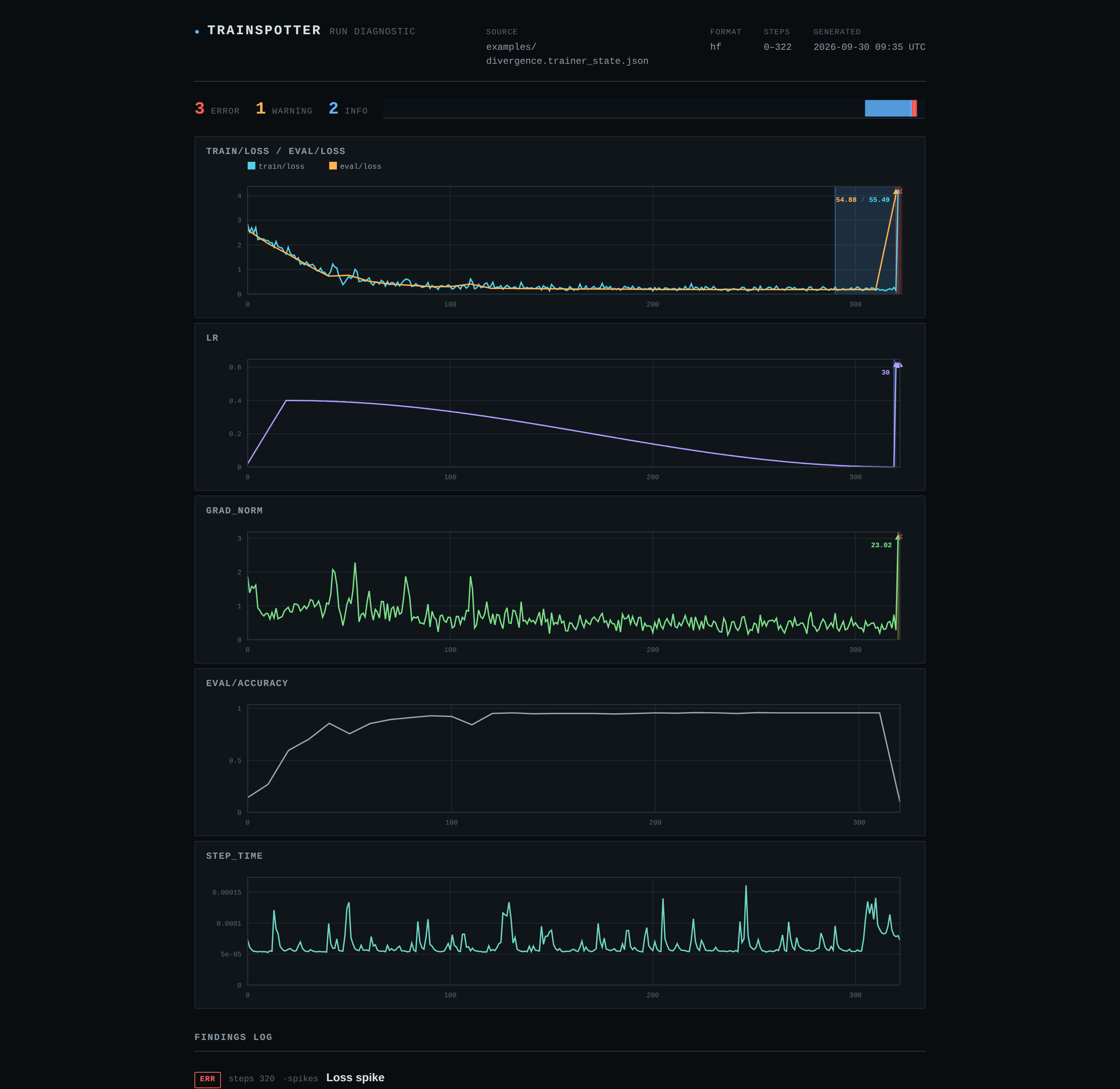

+![Top of the trainspotter HTML report on the divergence example: a header with the run's source and step range, an error/warning/info summary with a health-strip timeline, and the combined train/loss + eval/loss chart -- 320 steps of ordinary cosine-schedule training, shaded regions marking detected findings, then a labeled spike as the run breaks -- followed by the findings log, error findings first: two loss spikes and the divergence itself.](https://raw.githubusercontent.com/antonsoo/trainspotter/main/docs/assets/html-report-divergence.png)
+
+*(top of the report -- [full report, all 5 charts + all 6 findings](https://github.com/antonsoo/trainspotter/blob/main/docs/assets/html-report-divergence-full.png))*
+

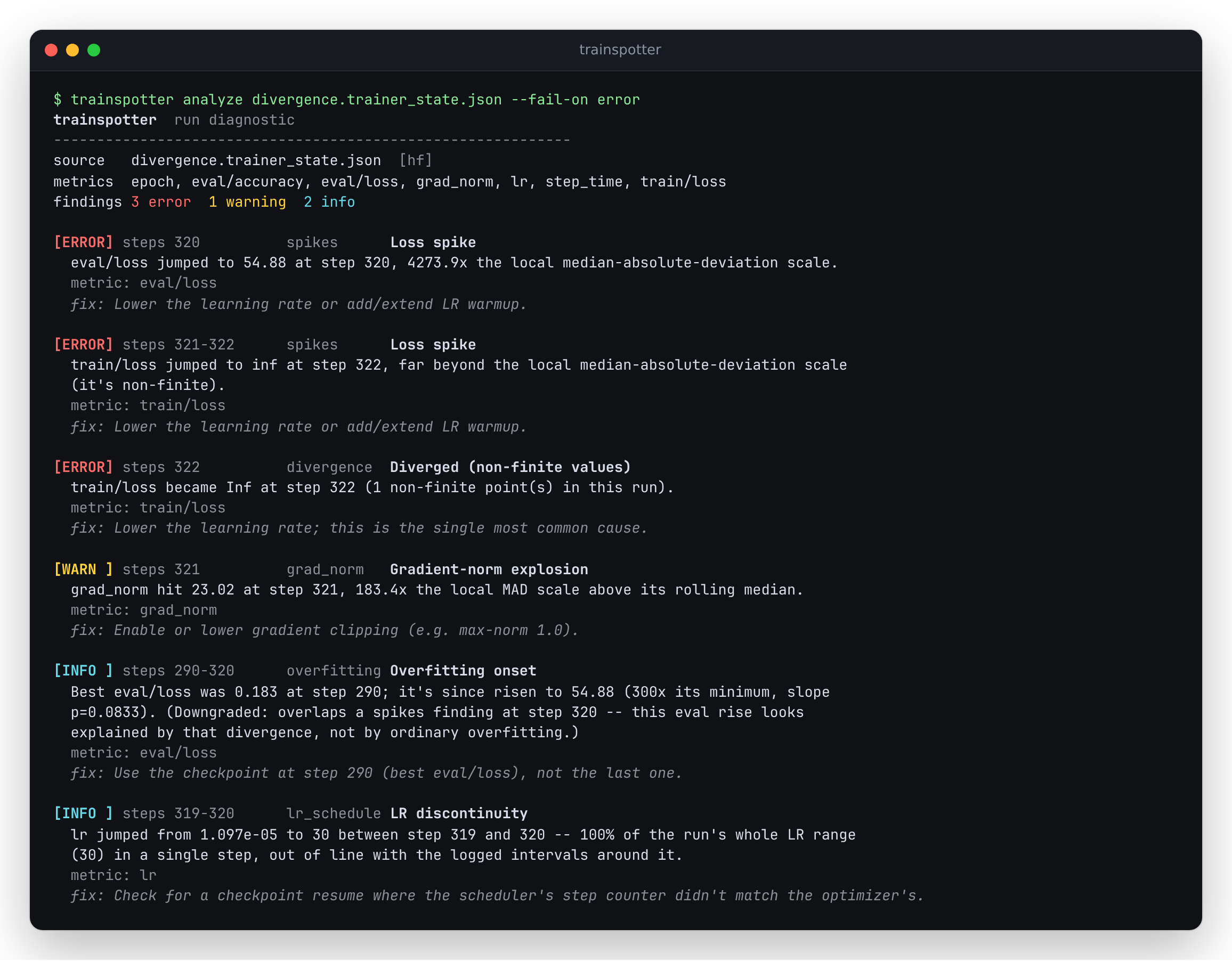

+![Terminal output of `trainspotter analyze divergence.trainer_state.json --fail-on error`, showing all 6 findings ordered by severity -- three ERROR findings (two loss spikes, the divergence) first, then one WARNING (the gradient-norm explosion), then two INFO (the downgraded overfitting onset and the LR discontinuity) -- each with step range, detector name, message, and a one-line fix suggestion.](https://raw.githubusercontent.com/antonsoo/trainspotter/main/docs/assets/terminal-divergence.png)
+
+Browse every example's full HTML report at
+**[antonsoo.github.io/trainspotter](https://antonsoo.github.io/trainspotter/)**
+(built by `scripts/build_site.py`). Both images above are real output from `examples/divergence.trainer_state.json` (see
+[Real demo data](#real-demo-data) for exactly how that log was produced).
+
+## Quickstart
+
+```bash
+pip install trainspotter
+git clone --depth 1 https://github.com/antonsoo/trainspotter && cd trainspotter
+trainspotter analyze examples/divergence.trainer_state.json
+```
+
+Or point it at your own log:
+
+```bash
+trainspotter analyze path/to/trainer_state.json --output html --out report.html
+```
+
+## Features
+
+- **Five readers**, auto-detected from the file: Hugging Face
+  `trainer_state.json`, generic CSV/JSONL, Weights & Biases history CSV
+  exports, PyTorch Lightning `CSVLogger` `metrics.csv`, and TensorBoard
+  event files (`pip install trainspotter[tensorboard]`).
+- **Nine detectors** -- see the [table below](#detectors) -- each with a
+  documented algorithm, tunable thresholds, and stated false-positive modes.
+- **Three report formats**: a color-coded terminal report, JSON (stable
+  schema, for tooling), and a self-contained HTML report (inline SVG
+  charts, no CDN, no JavaScript -- opens from disk, works offline forever).
+- **CI gating**: `--fail-on warning|error` exits non-zero if any finding at
+  or above that severity was found.
+- **Live tailing**: `trainspotter watch <file>` re-reads a growing log on
+  an interval and prints only newly-appeared findings.
+- **numpy is the only required dependency.** No pandas, no plotting
+  library, no web framework. (`tensorboard` support is an optional extra
+  since parsing the event-file format properly needs `tbparse`.)
+
+## Usage
+
+```bash
+# Terminal report (default), with a CI-style exit code
+trainspotter analyze run/trainer_state.json --fail-on error
+
+# Machine-readable JSON
+trainspotter analyze run/trainer_state.json --output json > findings.json
+
+# Self-contained HTML report
+trainspotter analyze run/trainer_state.json --output html --out report.html
+
+# Force a reader instead of auto-detecting from the extension
+trainspotter analyze run/metrics.csv --format lightning
+
+# Tail a log that's still being written
+trainspotter watch run/trainer_state.json --interval 5 --fail-on error
+```
+
+Real terminal output (from `examples/overfitting.trainer_state.json`, one
+finding shown):
+
+```
+[WARN ] steps 125-799      overfitting Overfitting onset
+  Best eval/loss was 0.526 at step 125; it's since risen to 0.5554 (5.6%, slope p<0.0001).
+  Meanwhile train/loss kept falling over the same range (slope < 0) -- the classic
+  overfitting signature.
+  metric: eval/loss
+  fix: Use the checkpoint at step 125 (best eval/loss), not the last one.
+```
+
+### CI usage
+
+```yaml
+- name: Diagnose the training run
+  run: trainspotter analyze runs/latest/trainer_state.json --fail-on error
+  # exits 1 if any error-severity pathology was detected
+```
+
+## Detectors
+
+Every detector's full algorithm and false-positive list lives in its
+module's docstring (`src/trainspotter/detectors/*.py`); this table is the
+summary.
+
+| Detector | Detects | How | Stated false-positive modes |
+|---|---|---|---|
+| `spikes` | A sudden jump in a loss metric | Modified z-score (`0.6745·(x−median)/MAD`) against a trailing rolling median/MAD; flags \|z\| > 6 | Deliberate LR restarts/curriculum jumps; bumpy metrics with a too-small window |
+| `divergence` | NaN/Inf, or sustained upward drift | Any non-finite value; or an OLS slope > 0 with p < 0.05 over the tail window, and the last value ≥ 1.5× the running minimum | Metrics meant to increase (only checks loss-type metrics by default); a temporary cyclic-schedule upswing |
+| `plateau` | A metric that's stalled, not just converged | Sliding-window OLS slope test (p ≥ 0.2 = not significant) plus a < 2% relative-change guard; suppressed if the window has already recovered ≥ 80% of the metric's total drop, or `lr` has decayed to ≤ 30% of its peak | A real stall near a coincidentally low value, or right as an unrelated LR decay finishes, can be wrongly suppressed by the convergence check |
+| `overfitting` | Train still improving while eval worsens | Finds eval's running-minimum step; tests whether the slope after it is significantly positive (p < 0.1) and ≥ 1% above the minimum | A noisy eval set can show a false uptick; a mid-run change in eval data |
+| `lr_schedule` | Missing warmup, LR rising after its peak, discontinuities | Ramp check on the first value vs. peak; running-max monotonicity after the peak; a jump of ≥ 20% of the LR's total range that isn't one leg of a steady ramp | Cyclic/warm-restart schedules trip the last two by design; step-decay drops are reported as `info` |
+| `grad_norm` | Gradient-norm explosions and clipping saturation | Same z-score as `spikes` (one-sided) for explosions, threshold 10 (higher than `spikes`' 6 -- a single z of 6-8 is common early-training noise); fraction of a trailing window within 0.5% of its own max, for saturation | Norms logged post-clip are saturated by construction; an isolated explosion with no coinciding loss spike is weaker evidence than one that lines up with a `spikes` finding |
+| `throughput` | Step-time / throughput regressions | Median step time, early-run baseline window vs. recent window, flags ≥ 1.4× | Checkpoint/eval steps inflate single points; early-run kernel/dataloader warmup can pollute the baseline |
+| `eval_noise` | An eval metric too noisy to rank checkpoints by | Median absolute step-to-step jitter as a fraction of the run's total improvement; flags ≥ 15% | An already-converged run has small total improvement by construction |
+| `loss_floor` | Implausibly low train loss very early (heuristic) | Loss < 0.05 absolute **and** < 5% of its starting value within the first 10% of steps | Explicitly a heuristic: an easy task, a small-scale loss, or a resumed checkpoint all look identical to this |
+
+### Trust the healthy case
+
+A tool that flags an unremarkable run gets ignored, and recall on real
+incidents matters less than that first impression -- so trainspotter is
+tested for silence, not just for alarms. **On the healthy baseline run,
+trainspotter reports no warnings**, and `tests/test_examples_regression.py`
+asserts this on every commit, alongside asserting that the other four
+examples still flag the pathology they were built to demonstrate. Findings
+are also ordered errors-first, then warnings, then info (chronological
+within a level) -- so on a run that *did* break, the thing that broke
+leads the report instead of sitting below routine early-training noise.
+
+## How it works
+
+**Data model.** Every reader converges on one shape
+(`trainspotter.model.Run`): a dict of named metric series, each a list of
+`(step, value, wall_time)` points. Detectors and reports only ever see
+this shape -- they have no idea whether the log came from `transformers`,
+a CSV, or TensorBoard. Readers normalize common spellings (`loss` /
+`train_loss` / `training_loss` all become `train/loss`; `learning_rate` /
+`lr` become `lr`) but pass anything unrecognized straight through, so a
+custom metric like `eval/bleu` still reaches the detectors under its own
+name.
+
+**Robust statistics, not raw thresholds.** Spikes and gradient-norm
+explosions are judged by a *modified z-score* against a trailing rolling
+median and MAD (median absolute deviation), not a mean/stddev: a mean and
+stddev are themselves dragged around by the very outlier you're trying to
+detect, while the median and MAD barely move. This is the same construction
+Iglewicz & Hoaglin describe for outlier labeling. Plateau and overfitting
+use an ordinary-least-squares slope with a normal-approximation t-test
+(`math.erf`-based, no `scipy` dependency) rather than eyeballing "did it go
+up or down."
+
+**Charts don't let one spike flatten the rest of the curve.** The HTML
+report's axis logic (`report/html_report.py`) picks tick spacing with
+Heckbert's "nice numbers" algorithm (`Graphics Gems`, 1990 -- 1/2/5x10^n
+steps, not whatever an even split of the range happens to produce) and
+floors the axis at 0 for the non-negative metrics trainspotter charts
+(loss, LR, grad_norm, accuracy, step time), instead of padding below zero.
+If the max is more than 1.5x the 99th percentile, the axis caps at that
+instead of stretching to fit one outlier -- the point is still drawn,
+clamped to the top edge with a small triangle and its real value labeled
+next to it, not hidden.
+
+**Every finding is honest about its own limits.** Each detector's
+docstring states its false-positive modes in plain language (see the table
+above, or the source for the full version) -- this isn't boilerplate, it's
+meant to be read before you act on a finding. `loss_floor` is explicitly
+labeled a heuristic, not a statistical test, because there's no
+distribution-free way to know a loss is "too low" without knowing the task.
+
+## Real demo data
+
+Nothing in `examples/` is fabricated. All five logs were produced by
+`examples/generate_examples.py`, which trains a small hand-written numpy
+MLP (64 → 32 ReLU → 10, softmax cross-entropy, every gradient computed and
+applied by hand -- no autodiff framework) on scikit-learn's `load_digits`
+dataset (1797 real 8×8 handwritten-digit images, bundled with
+scikit-learn, no download). It's deterministic (seeded) and takes about
+three seconds to regenerate on this machine:
+
+```bash
+uv sync --extra examples   # or: pip install scikit-learn
+uv run python examples/generate_examples.py
+```
+
+| File | What it is | How the pathology was actually induced |
+|---|---|---|
+| `baseline` | A normal, unremarkable run | Full dataset, weight decay, cosine LR with warmup. **On this run, trainspotter reports no warnings** -- see [Trust the healthy case](#trust-the-healthy-case) for why that's asserted by a test, not just eyeballed |
+| `divergence` | A genuine crash after real training | 320 steps (80% of the run) of ordinary warmup + cosine-decay training -- loss ~2.8 -> ~0.15, eval accuracy up to ~96% -- then a simulated incident at step 320: the LR schedule jumps to 30 **and** the loss function switches to a version with the classic missing-max-subtraction softmax bug. Plain high LR alone was tried first and *didn't* produce real divergence -- see the note in `divergence_run()`'s docstring for why (softmax cross-entropy's gradient is bounded by construction) |
+| `overfitting` | Genuine overfitting | Only 4 training examples per class (40 total), no regularization, 800 steps -- the model memorizes the training set while held-out eval loss turns upward after step 125 |
+| `missing_warmup` | No LR ramp-up | LR set to a constant 0.5 from step 0, no warmup phase at all |
+| `throughput_drop` | A real, measured slowdown | Steps 150-259 insert an actual `time.sleep(0.02)` per step (simulating e.g. I/O contention) -- `step_time` in the log is genuinely measured wall-clock time, not a fabricated number |
+
+Each file is committed in both HF `trainer_state.json` format
+(`<name>.trainer_state.json`) and generic CSV (`<name>.csv`), written from
+the same in-memory log so the two are guaranteed consistent.
+
+### A real `transformers.Trainer` run
+
+`examples/transformers_tinygpt2.trainer_state.json` is a genuine
+`trainer_state.json` written by `transformers.Trainer` itself (not the
+numpy MLP above): a real 2-layer, 64-dim GPT-2 (`GPT2LMHeadModel` from a
+from-scratch `GPT2Config`, ~330K parameters), trained for 6 epochs / 726
+steps on CPU on a small hand-written toy corpus (short sentences about
+training, tokenized with the real `gpt2` tokenizer), in about 90 seconds
+on this machine. Regenerate it with
+`examples/generate_transformers_example.py` (needs `torch` + `transformers`
+in a separate environment -- see the script's docstring for the exact
+install commands; they are *not* project dependencies).
+
+Running trainspotter against it caught a real bug in the HF reader during
+development: `Trainer.train()` appends one extra `log_history` entry after
+training ends -- a run summary with `train_runtime`, `train_samples_per_second`,
+and a `train_loss` key that is the *average* loss over the whole run, not a
+per-step reading. The reader's first version merged that average straight
+into the `train/loss` series (since `train_loss` is one of the recognized
+spellings of `loss`), which showed up as a fake spike on the run's last
+step. The fix -- detect that entry by its unique `train_runtime` key and
+route it to run metadata instead of a metric point -- is
+`src/trainspotter/readers/hf.py`'s `_SUMMARY_MARKER_KEY`, and
+`tests/test_readers.py::test_hf_trainer_state_excludes_the_final_run_summary_entry`
+pins it. This is exactly the kind of gap a hand-written fixture can miss
+and a real framework's output finds immediately -- the reason this example
+was worth the extra `torch` install.
+
+It also exposed a false positive, now fixed: the first version reported an
+`lr_schedule` "LR discontinuity" at steps 5-10, because `logging_steps=5`
+logs the 20-step warmup so coarsely that each logged interval covers 25% of
+the run's LR range. The discontinuity check now reports a jump only when it
+stands out from the logged intervals around it (a neighbor moving the same
+way at no less than half the per-step rate makes it one leg of a steady
+ramp), and says how many steps the interval spans. On this run trainspotter
+reports nothing, which
+`tests/test_detector_lr_schedule.py::test_the_real_transformers_run_has_no_lr_finding`
+pins.
+
+## Accuracy and limitations
+
+- Every threshold in this README and in the detector table is a default,
+  not a law of nature -- they're tuned to be reasonable on the example
+  runs above, not validated against a large corpus of real training
+  incidents. Expect to adjust `window`, `threshold`, `alpha`, etc. for your
+  own runs' scale and logging frequency.
+- **Readers are tested against real files**, not remembered schemas: every
+  reader in `tests/test_readers.py` is exercised against a file this repo's
+  test suite writes to disk in the documented format. The TensorBoard
+  reader is tested against a real event file written by TensorBoard's own
+  `EventFileWriter`.
+- **Detectors are tested against synthetic signals with known ground
+  truth**: a spike planted at step *k* must be found at step *k*; a clean
+  curve must produce zero findings. See `tests/test_detector_*.py`. A
+  separate regression test (`tests/test_examples_regression.py`) runs the
+  whole detector set against all five real example logs and asserts the
+  healthy baseline stays quiet while the other four still flag what
+  they're supposed to.
+- No detector here is a substitute for understanding your training run.
+  They're heuristics built to reduce how often you have to stare at a
+  chart by eye, not a certified diagnosis -- read the false-positive modes
+  in the [detector table](#detectors) before trusting a finding blindly.
+- `trainspotter watch` re-reads the whole file on every poll (default
+  every 2s) rather than tailing new bytes; fine for the log sizes this
+  tool targets (thousands to tens of thousands of steps), not designed for
+  gigabyte-scale logs.
+- The OLS significance tests (`plateau`, `overfitting`, `divergence`'s
+  sustained-growth check) use a normal approximation to the t-distribution,
+  accurate for windows of about 30+ points; on shorter windows they're
+  slightly anti-conservative, which is why each detector also requires a
+  minimum window size before trusting the test.
+
+## Development
+
+```bash
+uv sync --all-extras --dev
+uv run pytest                        # 64 tests
+uv run ruff check src tests examples
+uv run mypy src
+```
+
+See [CONTRIBUTING.md](https://github.com/antonsoo/trainspotter/blob/main/CONTRIBUTING.md) for the detector-contribution
+pattern.
+
+## Contributing
+
+Issues and PRs are welcome -- see [CONTRIBUTING.md](https://github.com/antonsoo/trainspotter/blob/main/CONTRIBUTING.md).
+
+## License
+
+[MIT](https://github.com/antonsoo/trainspotter/blob/main/LICENSE) &copy; 2026 Anton Soloviev
+
+---
+
+<sub>Part of [Officina](https://antonsoo.github.io/officina/), a set of small open-source tools by [Anton Soloviev](https://github.com/antonsoo).</sub>
