termfits 0.1.0__tar.gz

termfits-0.1.0/CHANGELOG.md

@@ -0,0 +1,14 @@
+# Changelog
+
+## 0.1.0 — 2026-10-13
+
+First release.
+
+- Truecolour half-block rendering: a 100 x 100 character view shows 100 x 200 pixels.
+- Zoom (steps of sqrt 2) and pan; block-mean or block-max binning when zoomed out.
+- Radio defaults: display limits from a robust (MAD) noise estimate, -1 to +10 sigma;
+  pixel value in BUNIT and in sigma; restoring beam shown in the status bar and drawn.
+- Local noise re-estimate from the region in view.
+- Ten colour maps, including a diverging map centred on the median.
+- Data cubes (step through planes) and multi-extension files.
+- RA/Dec readout via astropy WCS; built-in reader for plain images if astropy is missing.

termfits-0.1.0/LICENSE

@@ -0,0 +1,21 @@
+MIT License
+
+Copyright (c) 2026 Ian Heywood
+
+Permission is hereby granted, free of charge, to any person obtaining a copy
+of this software and associated documentation files (the "Software"), to deal
+in the Software without restriction, including without limitation the rights
+to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
+copies of the Software, and to permit persons to whom the Software is
+furnished to do so, subject to the following conditions:
+
+The above copyright notice and this permission notice shall be included in all
+copies or substantial portions of the Software.
+
+THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
+IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
+FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
+AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
+LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
+OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
+SOFTWARE.

termfits-0.1.0/MANIFEST.in

@@ -0,0 +1,4 @@
+include LICENSE README.md CHANGELOG.md
+recursive-include tests *.py
+prune docs
+prune .github

termfits-0.1.0/PKG-INFO

@@ -0,0 +1,162 @@
+Metadata-Version: 2.4
+Name: termfits
+Version: 0.1.0
+Summary: A terminal FITS image viewer with zoom and pan, tuned for radio images
+Author-email: Ian Heywood <email.ian.heywood@gmail.com>
+License: MIT
+Project-URL: Homepage, https://github.com/ianheywood/termfits
+Project-URL: Issues, https://github.com/ianheywood/termfits/issues
+Keywords: fits,astronomy,radio astronomy,terminal,viewer,tui
+Classifier: Development Status :: 4 - Beta
+Classifier: Environment :: Console
+Classifier: Intended Audience :: Science/Research
+Classifier: License :: OSI Approved :: MIT License
+Classifier: Operating System :: POSIX
+Classifier: Operating System :: MacOS
+Classifier: Programming Language :: Python :: 3
+Classifier: Topic :: Scientific/Engineering :: Astronomy
+Classifier: Topic :: Scientific/Engineering :: Visualization
+Requires-Python: >=3.9
+Description-Content-Type: text/markdown
+License-File: LICENSE
+Requires-Dist: numpy>=1.21
+Requires-Dist: astropy>=5.0
+Provides-Extra: test
+Requires-Dist: pytest>=7; extra == "test"
+Dynamic: license-file
+
+# termfits
+
+A FITS image viewer that runs in your terminal, built for quick looks at radio images
+over SSH: no X forwarding, no VNC, no copying files back to your laptop.
+

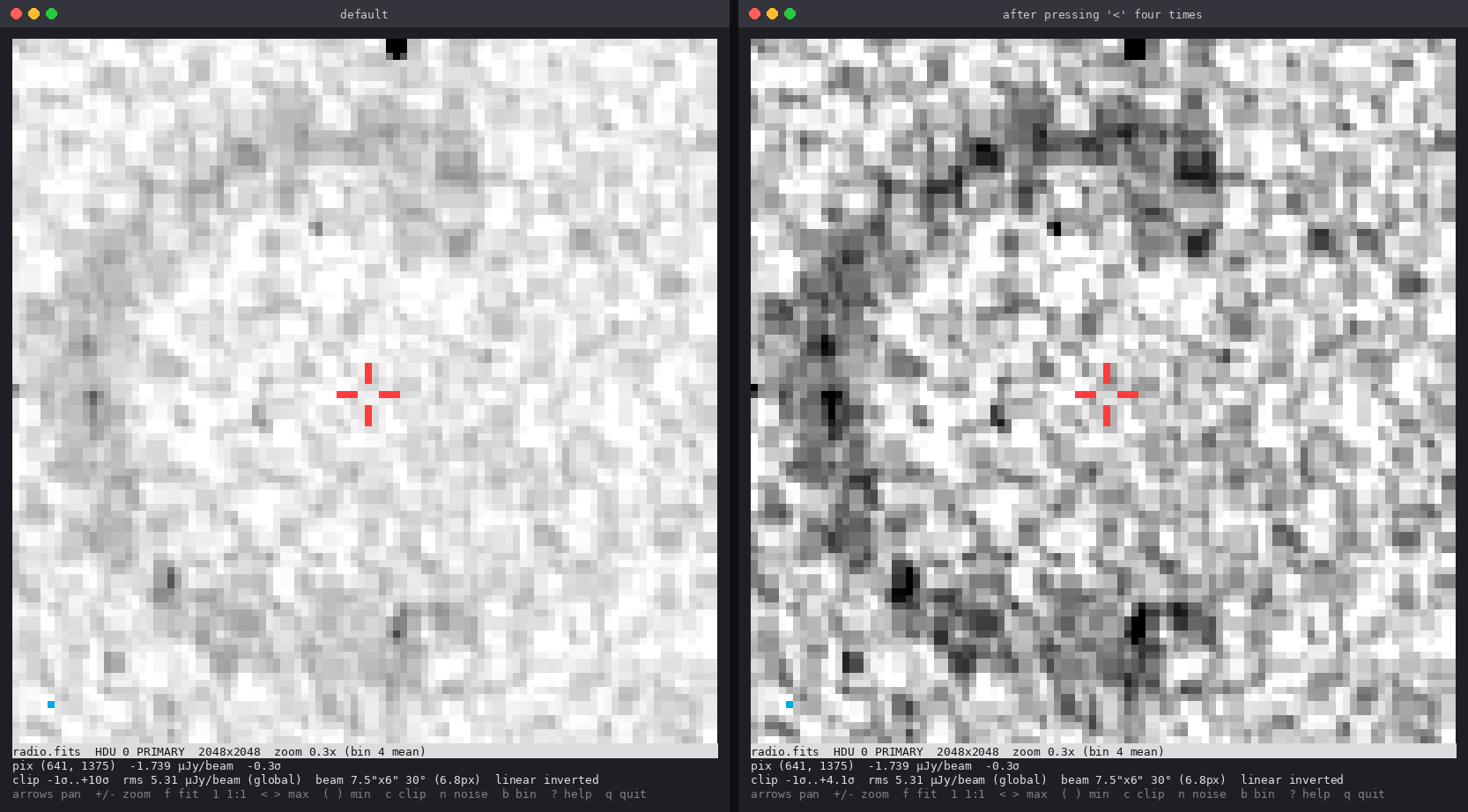

+![termfits showing a radio field: default limits vs a tightened upper limit](https://raw.githubusercontent.com/ianheywood/termfits/main/docs/images/radio_sigma_limits.png)
+
+It draws the image with Unicode half-block characters in 24-bit colour. Each character
+cell holds two pixels, so a 100 x 100 character window shows a 100 x 200 grid of
+roughly square pixels. You can zoom, pan, step through cube planes and switch extensions,
+and the status bar reports the pixel value, its significance in sigma, the position
+in RA/Dec, the noise and the beam.
+
+## Install
+
+```bash
+pip install termfits
+```
+
+This installs a `termfits` command. termfits needs Python 3.9+, numpy and astropy, and
+a terminal with truecolour support: most current terminals have it, including iTerm2,
+GNOME Terminal, Konsole, kitty, WezTerm, Alacritty, Windows Terminal (via WSL) and tmux
+with `set -g default-terminal "tmux-256color"` and `set -as terminal-features ",*:RGB"`.
+It runs on Linux and macOS, or under WSL on Windows.
+
+## Use
+
+```bash
+termfits image.fits
+termfits cube.fits --plane 120 --cmap inferno
+termfits image.fits --sigma-hi 4           # tighter limits for faint emission
+termfits image.fits --width 100 --height 50  # square-ish view for a square image
+```
+
+Make your terminal at least 100 columns by 104 rows for the default view (100 x 100
+plus a 4-line status bar), or set `--width` / `--height` to fit. Terminal characters are
+about twice as tall as they are wide, so `--height` set to half of `--width` gives a
+square viewing area.
+
+Press `?` in the viewer for the key list.
+
+| Keys | Action |
+|---|---|
+| arrows or `h j k l` | pan by 10% of the view |
+| Shift+arrows or `H J K L` | pan by half the view |
+| `+` / `-` | zoom in / out |
+| `f` / `1` / `r` | fit image / 1:1 / reset |
+| `<` `>` | lower / raise the upper display limit (sigma) |
+| `(` `)` | lower / raise the lower display limit (sigma) |
+| `c` | cycle clip mode: sigma, 99.5, 99, 98, 95 %, min/max |
+| `n` / `N` | measure the noise in the current view / back to the whole image |
+| `b` | zoomed-out binning: block mean / block max |
+| `m` / `M` | next / previous colour map |
+| `s` | cycle stretch: linear, sqrt, log, asinh |
+| `e` / `x` | toggle beam ellipse / crosshair |
+| `[` `]` | previous / next plane (channel, Stokes) |
+| `Tab` | next image extension |
+| `q` or `Esc` | quit |
+
+`termfits image.fits --snapshot` prints one frame to stdout and exits, which is handy
+for logs or notebooks.
+
+## Radio defaults
+
+- **Display limits from the noise.** The rms is estimated as 1.4826 x the median
+  absolute deviation, which bright sources barely affect. The default range is -1 to
+  +10 sigma about the median. Press `n` to re-measure the noise from the region in view
+  when it varies across the field (e.g. towards the primary-beam edge).
+- **Values in sigma.** The status bar shows the pixel under the crosshair in BUNIT
+  (scaled to Jy, mJy or µJy so the rms reads sensibly) and in sigma.
+- **Beam.** BMAJ/BMIN/BPA from the header are shown in arcsec and pixels, and the beam
+  is drawn in the lower-left corner once it is large enough to see.
+- **Blanked pixels** (NaNs, e.g. outside a primary-beam cut) are drawn in a muted purple
+  so they are not mistaken for zero.
+
+## Zoomed out: what you can and can't trust
+
+When the image is larger than the view, blocks of pixels are combined into one screen
+pixel; none are skipped.
+

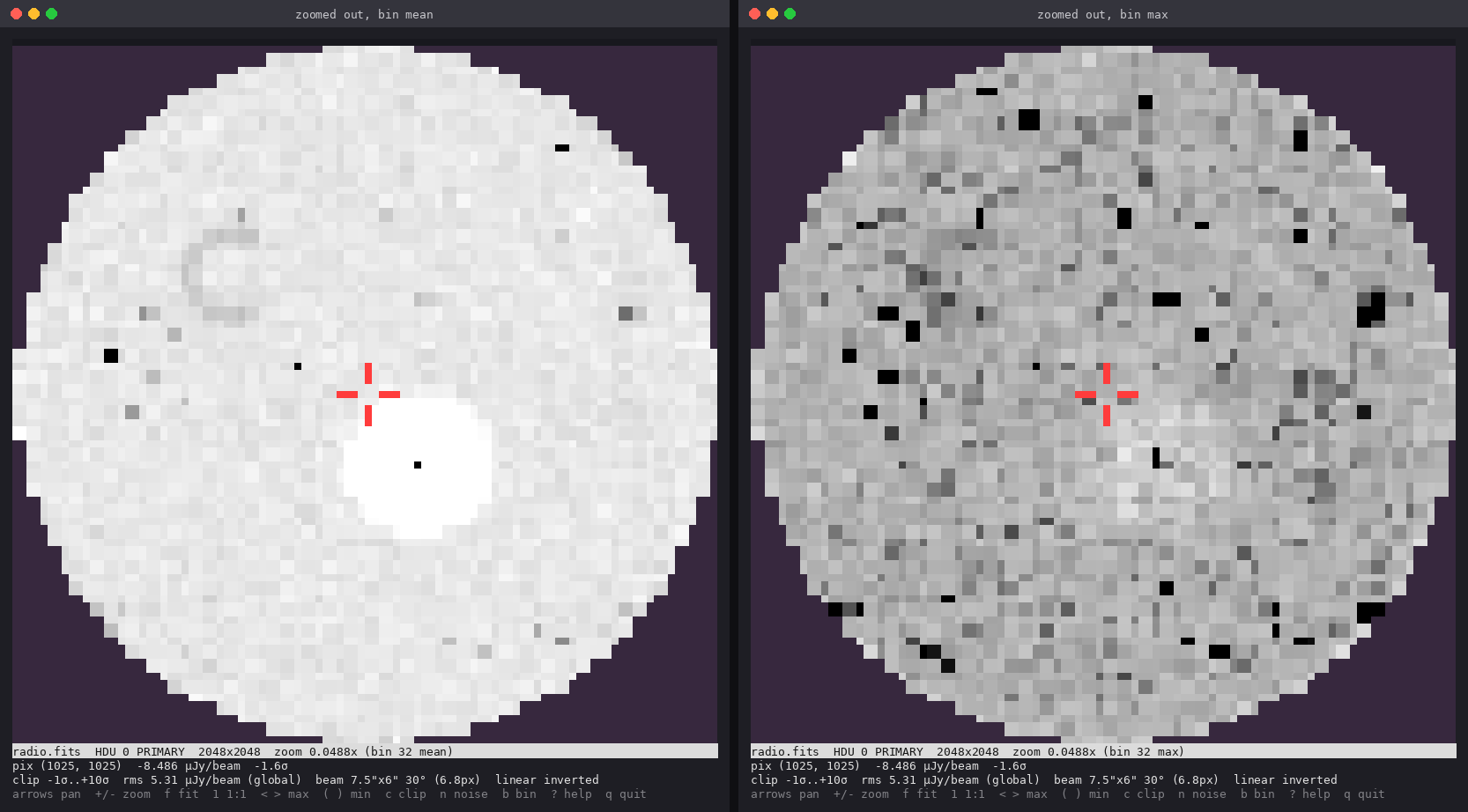

+![Block mean vs block max for the whole field](https://raw.githubusercontent.com/ianheywood/termfits/main/docs/images/mean_vs_max.png)
+
+- **Block mean** (default) lowers the noise, so faint *extended* emission stands out,
+  but faint *compact* sources are diluted and can vanish.
+- **Block max** (`b`) keeps every compact source visible, but it also lifts the
+  background: the maximum of many noise pixels sits around +3 sigma, so noise peaks
+  look like sources.
+
+Use either for finding candidates, then press `1` to inspect them at full resolution.
+For decisions about marginal detections, use a full-resolution viewer such as CARTA
+or DS9.
+
+## Colour maps
+

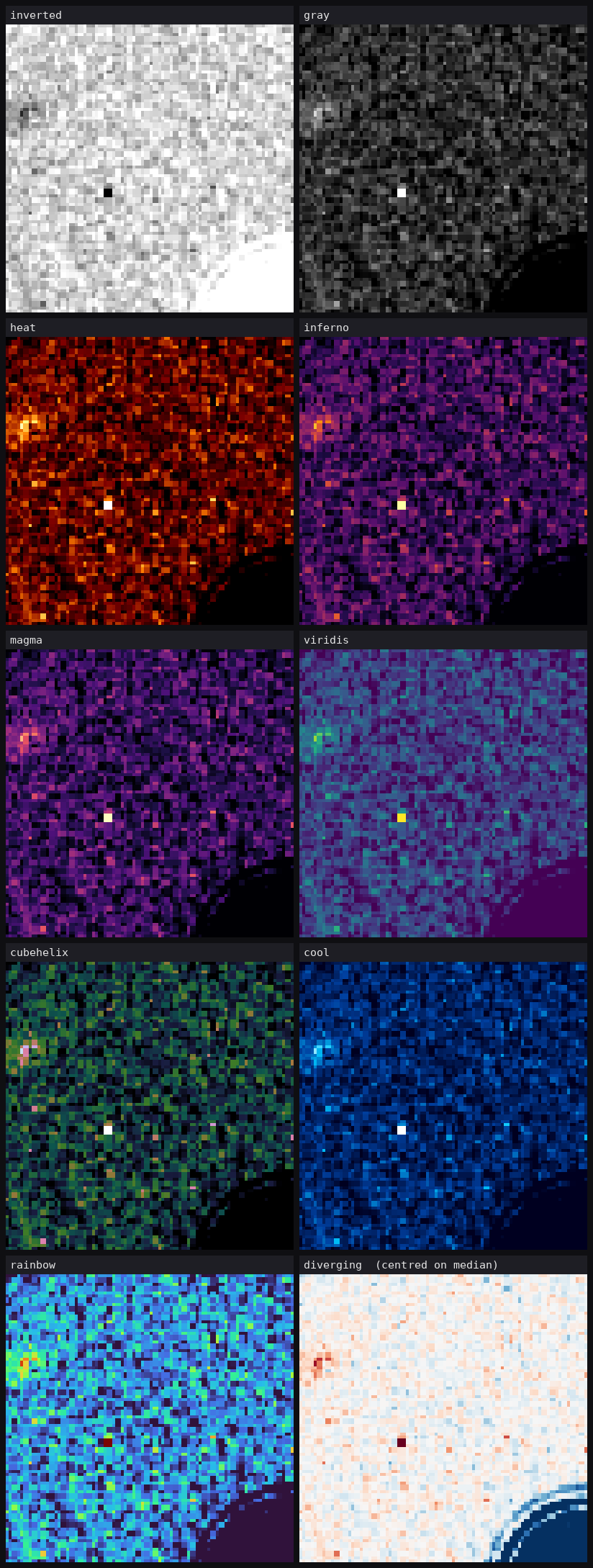

+![The ten colour maps on the same field](https://raw.githubusercontent.com/ianheywood/termfits/main/docs/images/colourmaps.png)
+
+`inverted` (default) and `gray`; `heat` (DS9-style); `inferno`, `magma`, `viridis` and
+`cubehelix`, which are perceptually uniform and the best colour choices for faint
+features; `cool`; `rainbow` (turbo-like, good for bright high-dynamic-range regions,
+but it creates false contours in noise); and `diverging`, which is centred on the
+median so negative sidelobes show blue and positive emission red.
+
+Truecolour gives the full range; `--256` is a fallback for terminals without it, and
+colour maps get coarse there (6 levels per channel).
+
+## Data support
+
+- 2-D images, and cubes of any dimension: extra axes (FREQ, STOKES, ...) are
+  flattened into planes stepped with `[` and `]`.
+- Multi-extension files: every image HDU is reachable with `Tab`.
+- RA/Dec readout from the celestial WCS via astropy.
+- Large images: one plane is loaded into memory as float32 (about 400 MB for
+  10k x 10k). The first zoom-out builds the binned copies, which takes a few seconds;
+  after that it is quick.
+- If astropy is missing, a built-in reader handles plain uncompressed images, without
+  WCS.
+
+Not yet supported: per-channel beams stored in a CASA `BEAMS` table (the header beam is
+used), and tile-compressed images without astropy.
+
+## Development
+
+```bash
+git clone https://github.com/ianheywood/termfits
+cd termfits
+pip install -e ".[test]"
+pytest
+```
+
+The screenshots in `docs/images` were rendered from termfits' own output, using
+synthetic data.
+
+## Licence
+
+MIT. See [LICENSE](LICENSE).

termfits-0.1.0/README.md

@@ -0,0 +1,135 @@
+# termfits
+
+A FITS image viewer that runs in your terminal, built for quick looks at radio images
+over SSH: no X forwarding, no VNC, no copying files back to your laptop.
+
+![termfits showing a radio field: default limits vs a tightened upper limit](https://raw.githubusercontent.com/ianheywood/termfits/main/docs/images/radio_sigma_limits.png)
+
+It draws the image with Unicode half-block characters in 24-bit colour. Each character
+cell holds two pixels, so a 100 x 100 character window shows a 100 x 200 grid of
+roughly square pixels. You can zoom, pan, step through cube planes and switch extensions,
+and the status bar reports the pixel value, its significance in sigma, the position
+in RA/Dec, the noise and the beam.
+
+## Install
+
+```bash
+pip install termfits
+```
+
+This installs a `termfits` command. termfits needs Python 3.9+, numpy and astropy, and
+a terminal with truecolour support: most current terminals have it, including iTerm2,
+GNOME Terminal, Konsole, kitty, WezTerm, Alacritty, Windows Terminal (via WSL) and tmux
+with `set -g default-terminal "tmux-256color"` and `set -as terminal-features ",*:RGB"`.
+It runs on Linux and macOS, or under WSL on Windows.
+
+## Use
+
+```bash
+termfits image.fits
+termfits cube.fits --plane 120 --cmap inferno
+termfits image.fits --sigma-hi 4           # tighter limits for faint emission
+termfits image.fits --width 100 --height 50  # square-ish view for a square image
+```
+
+Make your terminal at least 100 columns by 104 rows for the default view (100 x 100
+plus a 4-line status bar), or set `--width` / `--height` to fit. Terminal characters are
+about twice as tall as they are wide, so `--height` set to half of `--width` gives a
+square viewing area.
+
+Press `?` in the viewer for the key list.
+
+| Keys | Action |
+|---|---|
+| arrows or `h j k l` | pan by 10% of the view |
+| Shift+arrows or `H J K L` | pan by half the view |
+| `+` / `-` | zoom in / out |
+| `f` / `1` / `r` | fit image / 1:1 / reset |
+| `<` `>` | lower / raise the upper display limit (sigma) |
+| `(` `)` | lower / raise the lower display limit (sigma) |
+| `c` | cycle clip mode: sigma, 99.5, 99, 98, 95 %, min/max |
+| `n` / `N` | measure the noise in the current view / back to the whole image |
+| `b` | zoomed-out binning: block mean / block max |
+| `m` / `M` | next / previous colour map |
+| `s` | cycle stretch: linear, sqrt, log, asinh |
+| `e` / `x` | toggle beam ellipse / crosshair |
+| `[` `]` | previous / next plane (channel, Stokes) |
+| `Tab` | next image extension |
+| `q` or `Esc` | quit |
+
+`termfits image.fits --snapshot` prints one frame to stdout and exits, which is handy
+for logs or notebooks.
+
+## Radio defaults
+
+- **Display limits from the noise.** The rms is estimated as 1.4826 x the median
+  absolute deviation, which bright sources barely affect. The default range is -1 to
+  +10 sigma about the median. Press `n` to re-measure the noise from the region in view
+  when it varies across the field (e.g. towards the primary-beam edge).
+- **Values in sigma.** The status bar shows the pixel under the crosshair in BUNIT
+  (scaled to Jy, mJy or µJy so the rms reads sensibly) and in sigma.
+- **Beam.** BMAJ/BMIN/BPA from the header are shown in arcsec and pixels, and the beam
+  is drawn in the lower-left corner once it is large enough to see.
+- **Blanked pixels** (NaNs, e.g. outside a primary-beam cut) are drawn in a muted purple
+  so they are not mistaken for zero.
+
+## Zoomed out: what you can and can't trust
+
+When the image is larger than the view, blocks of pixels are combined into one screen
+pixel; none are skipped.
+
+![Block mean vs block max for the whole field](https://raw.githubusercontent.com/ianheywood/termfits/main/docs/images/mean_vs_max.png)
+
+- **Block mean** (default) lowers the noise, so faint *extended* emission stands out,
+  but faint *compact* sources are diluted and can vanish.
+- **Block max** (`b`) keeps every compact source visible, but it also lifts the
+  background: the maximum of many noise pixels sits around +3 sigma, so noise peaks
+  look like sources.
+
+Use either for finding candidates, then press `1` to inspect them at full resolution.
+For decisions about marginal detections, use a full-resolution viewer such as CARTA
+or DS9.
+
+## Colour maps
+
+![The ten colour maps on the same field](https://raw.githubusercontent.com/ianheywood/termfits/main/docs/images/colourmaps.png)
+
+`inverted` (default) and `gray`; `heat` (DS9-style); `inferno`, `magma`, `viridis` and
+`cubehelix`, which are perceptually uniform and the best colour choices for faint
+features; `cool`; `rainbow` (turbo-like, good for bright high-dynamic-range regions,
+but it creates false contours in noise); and `diverging`, which is centred on the
+median so negative sidelobes show blue and positive emission red.
+
+Truecolour gives the full range; `--256` is a fallback for terminals without it, and
+colour maps get coarse there (6 levels per channel).
+
+## Data support
+
+- 2-D images, and cubes of any dimension: extra axes (FREQ, STOKES, ...) are
+  flattened into planes stepped with `[` and `]`.
+- Multi-extension files: every image HDU is reachable with `Tab`.
+- RA/Dec readout from the celestial WCS via astropy.
+- Large images: one plane is loaded into memory as float32 (about 400 MB for
+  10k x 10k). The first zoom-out builds the binned copies, which takes a few seconds;
+  after that it is quick.
+- If astropy is missing, a built-in reader handles plain uncompressed images, without
+  WCS.
+
+Not yet supported: per-channel beams stored in a CASA `BEAMS` table (the header beam is
+used), and tile-compressed images without astropy.
+
+## Development
+
+```bash
+git clone https://github.com/ianheywood/termfits
+cd termfits
+pip install -e ".[test]"
+pytest
+```
+
+The screenshots in `docs/images` were rendered from termfits' own output, using
+synthetic data.
+
+## Licence
+
+MIT. See [LICENSE](LICENSE).

termfits-0.1.0/pyproject.toml

@@ -0,0 +1,47 @@
+[build-system]
+requires = ["setuptools>=64"]
+build-backend = "setuptools.build_meta"
+
+[project]
+name = "termfits"
+dynamic = ["version"]
+description = "A terminal FITS image viewer with zoom and pan, tuned for radio images"
+readme = "README.md"
+license = { text = "MIT" }
+authors = [{ name = "Ian Heywood", email = "email.ian.heywood@gmail.com" }]
+requires-python = ">=3.9"
+dependencies = [
+    "numpy>=1.21",
+    "astropy>=5.0",
+]
+keywords = ["fits", "astronomy", "radio astronomy", "terminal", "viewer", "tui"]
+classifiers = [
+    "Development Status :: 4 - Beta",
+    "Environment :: Console",
+    "Intended Audience :: Science/Research",
+    "License :: OSI Approved :: MIT License",
+    "Operating System :: POSIX",
+    "Operating System :: MacOS",
+    "Programming Language :: Python :: 3",
+    "Topic :: Scientific/Engineering :: Astronomy",
+    "Topic :: Scientific/Engineering :: Visualization",
+]
+
+[project.optional-dependencies]
+test = ["pytest>=7"]
+
+[project.scripts]
+termfits = "termfits.viewer:main"
+
+[project.urls]
+Homepage = "https://github.com/ianheywood/termfits"
+Issues = "https://github.com/ianheywood/termfits/issues"
+
+[tool.setuptools.dynamic]
+version = { attr = "termfits.__version__" }
+
+[tool.setuptools.packages.find]
+where = ["src"]
+
+[tool.pytest.ini_options]
+testpaths = ["tests"]

termfits-0.1.0/setup.cfg

@@ -0,0 +1,4 @@
+[egg_info]
+tag_build =
+tag_date = 0
+

termfits-0.1.0/src/termfits/__init__.py

@@ -0,0 +1,7 @@
+"""termfits - a terminal FITS image viewer with zoom and pan, tuned for radio images."""
+
+__version__ = "0.1.0"
+
+from .viewer import Viewer, main, robust_stats, CMAPS, STRETCHES  # noqa: E402,F401
+
+__all__ = ["Viewer", "main", "robust_stats", "CMAPS", "STRETCHES", "__version__"]

termfits-0.1.0/src/termfits/__main__.py

@@ -0,0 +1,4 @@
+from .viewer import main
+
+if __name__ == "__main__":
+    main()
