tensor-ee 0.1.0__tar.gz
This diff represents the content of publicly available package versions that have been released to one of the supported registries. The information contained in this diff is provided for informational purposes only and reflects changes between package versions as they appear in their respective public registries.
- tensor_ee-0.1.0/LICENSE +21 -0
- tensor_ee-0.1.0/MANIFEST.in +2 -0
- tensor_ee-0.1.0/PKG-INFO +172 -0
- tensor_ee-0.1.0/README.md +131 -0
- tensor_ee-0.1.0/build_support.py +21 -0
- tensor_ee-0.1.0/pyproject.toml +52 -0
- tensor_ee-0.1.0/setup.cfg +4 -0
- tensor_ee-0.1.0/tensor_ee/__init__.py +28 -0
- tensor_ee-0.1.0/tensor_ee/_swin_parameters.py +304 -0
- tensor_ee-0.1.0/tensor_ee/blocks/__init__.py +0 -0
- tensor_ee-0.1.0/tensor_ee/blocks/raster/__init__.py +36 -0
- tensor_ee-0.1.0/tensor_ee/blocks/raster/activations.py +183 -0
- tensor_ee-0.1.0/tensor_ee/blocks/raster/conv.py +183 -0
- tensor_ee-0.1.0/tensor_ee/blocks/raster/merge.py +66 -0
- tensor_ee-0.1.0/tensor_ee/blocks/raster/outputs.py +211 -0
- tensor_ee-0.1.0/tensor_ee/blocks/raster/pooling.py +182 -0
- tensor_ee-0.1.0/tensor_ee/blocks/raster/resample.py +64 -0
- tensor_ee-0.1.0/tensor_ee/blocks/window/__init__.py +44 -0
- tensor_ee-0.1.0/tensor_ee/blocks/window/activations.py +54 -0
- tensor_ee-0.1.0/tensor_ee/blocks/window/attention.py +366 -0
- tensor_ee-0.1.0/tensor_ee/blocks/window/conv.py +323 -0
- tensor_ee-0.1.0/tensor_ee/blocks/window/linear.py +129 -0
- tensor_ee-0.1.0/tensor_ee/blocks/window/merge.py +67 -0
- tensor_ee-0.1.0/tensor_ee/blocks/window/normalization.py +197 -0
- tensor_ee-0.1.0/tensor_ee/blocks/window/patch.py +362 -0
- tensor_ee-0.1.0/tensor_ee/blocks/window/pooling.py +275 -0
- tensor_ee-0.1.0/tensor_ee/blocks/window/resample.py +286 -0
- tensor_ee-0.1.0/tensor_ee/blocks/window/segformer.py +718 -0
- tensor_ee-0.1.0/tensor_ee/blocks/window/swin.py +602 -0
- tensor_ee-0.1.0/tensor_ee/blocks/window/swin_upernet_config.py +361 -0
- tensor_ee-0.1.0/tensor_ee/blocks/window/upernet.py +1016 -0
- tensor_ee-0.1.0/tensor_ee/comparison.py +213 -0
- tensor_ee-0.1.0/tensor_ee/compatibility.py +180 -0
- tensor_ee-0.1.0/tensor_ee/compiler.py +356 -0
- tensor_ee-0.1.0/tensor_ee/converter/__init__.py +72 -0
- tensor_ee-0.1.0/tensor_ee/converter/build.py +120 -0
- tensor_ee-0.1.0/tensor_ee/converter/convert.py +388 -0
- tensor_ee-0.1.0/tensor_ee/converter/export.py +846 -0
- tensor_ee-0.1.0/tensor_ee/converter/graph.py +417 -0
- tensor_ee-0.1.0/tensor_ee/converter/operations.py +790 -0
- tensor_ee-0.1.0/tensor_ee/converter/plan.py +675 -0
- tensor_ee-0.1.0/tensor_ee/converter/recognizers.py +1273 -0
- tensor_ee-0.1.0/tensor_ee/converter/request.py +146 -0
- tensor_ee-0.1.0/tensor_ee/converter/run.py +950 -0
- tensor_ee-0.1.0/tensor_ee/core/__init__.py +8 -0
- tensor_ee-0.1.0/tensor_ee/core/errors.py +25 -0
- tensor_ee-0.1.0/tensor_ee/core/grid.py +323 -0
- tensor_ee-0.1.0/tensor_ee/core/metadata.py +398 -0
- tensor_ee-0.1.0/tensor_ee/core/ops.py +336 -0
- tensor_ee-0.1.0/tensor_ee/core/precision.py +133 -0
- tensor_ee-0.1.0/tensor_ee/core/tensor.py +129 -0
- tensor_ee-0.1.0/tensor_ee/examples/__init__.py +1 -0
- tensor_ee-0.1.0/tensor_ee/examples/nonwater.py +251 -0
- tensor_ee-0.1.0/tensor_ee/layouts/__init__.py +17 -0
- tensor_ee-0.1.0/tensor_ee/layouts/boundaries.py +103 -0
- tensor_ee-0.1.0/tensor_ee/layouts/raster.py +117 -0
- tensor_ee-0.1.0/tensor_ee/layouts/shift.py +226 -0
- tensor_ee-0.1.0/tensor_ee/layouts/window.py +201 -0
- tensor_ee-0.1.0/tensor_ee/models/__init__.py +16 -0
- tensor_ee-0.1.0/tensor_ee/models/fixtures.py +119 -0
- tensor_ee-0.1.0/tensor_ee/models/segformer_b0/__init__.py +9 -0
- tensor_ee-0.1.0/tensor_ee/models/segformer_b0/configuration.py +209 -0
- tensor_ee-0.1.0/tensor_ee/models/segformer_b0/decoder.py +130 -0
- tensor_ee-0.1.0/tensor_ee/models/segformer_b0/encoder.py +90 -0
- tensor_ee-0.1.0/tensor_ee/models/swin_t224/__init__.py +30 -0
- tensor_ee-0.1.0/tensor_ee/models/swin_t224/configuration.py +103 -0
- tensor_ee-0.1.0/tensor_ee/models/swin_t224/decoder.py +53 -0
- tensor_ee-0.1.0/tensor_ee/models/swin_t224/encoder.py +50 -0
- tensor_ee-0.1.0/tensor_ee/onnx_import.py +431 -0
- tensor_ee-0.1.0/tensor_ee/outputs.py +16 -0
- tensor_ee-0.1.0/tensor_ee/primitives.py +110 -0
- tensor_ee-0.1.0/tensor_ee/receptive_field.py +257 -0
- tensor_ee-0.1.0/tensor_ee/resnet_models.py +185 -0
- tensor_ee-0.1.0/tensor_ee/segwater_inference.py +235 -0
- tensor_ee-0.1.0/tensor_ee/segwater_preprocessing.py +182 -0
- tensor_ee-0.1.0/tensor_ee/segwater_pytorch.py +249 -0
- tensor_ee-0.1.0/tensor_ee/semantics.py +389 -0
- tensor_ee-0.1.0/tensor_ee/smp.py +155 -0
- tensor_ee-0.1.0/tensor_ee/swin.py +197 -0
- tensor_ee-0.1.0/tensor_ee/swin_workflow.py +470 -0
- tensor_ee-0.1.0/tensor_ee/tiling.py +287 -0
- tensor_ee-0.1.0/tensor_ee/weight_assets.py +371 -0
- tensor_ee-0.1.0/tensor_ee/weight_mapping.py +51 -0
- tensor_ee-0.1.0/tensor_ee/weights/__init__.py +14 -0
- tensor_ee-0.1.0/tensor_ee/weights/assets.py +160 -0
- tensor_ee-0.1.0/tensor_ee/weights/constants.py +156 -0
- tensor_ee-0.1.0/tensor_ee.egg-info/PKG-INFO +172 -0
- tensor_ee-0.1.0/tensor_ee.egg-info/SOURCES.txt +89 -0
- tensor_ee-0.1.0/tensor_ee.egg-info/dependency_links.txt +1 -0
- tensor_ee-0.1.0/tensor_ee.egg-info/requires.txt +23 -0
- tensor_ee-0.1.0/tensor_ee.egg-info/top_level.txt +1 -0
tensor_ee-0.1.0/LICENSE
ADDED
|
@@ -0,0 +1,21 @@
|
|
|
1
|
+
MIT License
|
|
2
|
+
|
|
3
|
+
Copyright (c) 2026 Noel Ivan Ulloa
|
|
4
|
+
|
|
5
|
+
Permission is hereby granted, free of charge, to any person obtaining a copy
|
|
6
|
+
of this software and associated documentation files (the "Software"), to deal
|
|
7
|
+
in the Software without restriction, including without limitation the rights
|
|
8
|
+
to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
|
|
9
|
+
copies of the Software, and to permit persons to whom the Software is
|
|
10
|
+
furnished to do so, subject to the following conditions:
|
|
11
|
+
|
|
12
|
+
The above copyright notice and this permission notice shall be included in all
|
|
13
|
+
copies or substantial portions of the Software.
|
|
14
|
+
|
|
15
|
+
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
|
|
16
|
+
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
|
|
17
|
+
FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
|
|
18
|
+
AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
|
|
19
|
+
LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
|
|
20
|
+
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
|
|
21
|
+
SOFTWARE.
|
tensor_ee-0.1.0/PKG-INFO
ADDED
|
@@ -0,0 +1,172 @@
|
|
|
1
|
+
Metadata-Version: 2.4
|
|
2
|
+
Name: tensor-ee
|
|
3
|
+
Version: 0.1.0
|
|
4
|
+
Summary: Experimental building blocks for running pretrained PyTorch models natively in Google Earth Engine: a restricted CNN compiler (the SegWater U-Net; standard SMP Unet and UnetPlusPlus on ResNet and VGG encoders), a converter for supported attention models (SMP SegFormer-B0; SMP UPerNet with timm's Swin-T), and a planner and runner for staged exports.
|
|
5
|
+
Author: Noel Ivan Ulloa
|
|
6
|
+
License-Expression: MIT
|
|
7
|
+
Project-URL: Repository, https://github.com/noelEOS/tensor-ee
|
|
8
|
+
Project-URL: Issues, https://github.com/noelEOS/tensor-ee/issues
|
|
9
|
+
Project-URL: Documentation, https://github.com/noelEOS/tensor-ee/blob/main/docs/README.md
|
|
10
|
+
Project-URL: Changelog, https://github.com/noelEOS/tensor-ee/blob/main/CHANGELOG.md
|
|
11
|
+
Keywords: earth-engine,pytorch,geospatial,remote-sensing,neural-networks
|
|
12
|
+
Classifier: Development Status :: 3 - Alpha
|
|
13
|
+
Classifier: Intended Audience :: Science/Research
|
|
14
|
+
Classifier: Operating System :: OS Independent
|
|
15
|
+
Classifier: Programming Language :: Python :: 3
|
|
16
|
+
Classifier: Programming Language :: Python :: 3.11
|
|
17
|
+
Classifier: Programming Language :: Python :: 3.12
|
|
18
|
+
Classifier: Topic :: Scientific/Engineering :: Artificial Intelligence
|
|
19
|
+
Classifier: Topic :: Scientific/Engineering :: GIS
|
|
20
|
+
Requires-Python: >=3.11
|
|
21
|
+
Description-Content-Type: text/markdown
|
|
22
|
+
License-File: LICENSE
|
|
23
|
+
Requires-Dist: earthengine-api>=1.7.0
|
|
24
|
+
Requires-Dist: torch>=2.10
|
|
25
|
+
Requires-Dist: numpy>=1.26
|
|
26
|
+
Provides-Extra: test
|
|
27
|
+
Requires-Dist: pytest>=9.0.3; extra == "test"
|
|
28
|
+
Provides-Extra: resnet
|
|
29
|
+
Requires-Dist: torchvision>=0.20; extra == "resnet"
|
|
30
|
+
Provides-Extra: onnx
|
|
31
|
+
Requires-Dist: onnx>=1.22; extra == "onnx"
|
|
32
|
+
Requires-Dist: onnxruntime>=1.20; extra == "onnx"
|
|
33
|
+
Provides-Extra: segwater
|
|
34
|
+
Requires-Dist: segmentation-models-pytorch==0.5.0; extra == "segwater"
|
|
35
|
+
Provides-Extra: swin
|
|
36
|
+
Requires-Dist: segmentation-models-pytorch==0.5.0; extra == "swin"
|
|
37
|
+
Requires-Dist: timm==1.0.30; extra == "swin"
|
|
38
|
+
Provides-Extra: plot
|
|
39
|
+
Requires-Dist: matplotlib>=3.8; extra == "plot"
|
|
40
|
+
Dynamic: license-file
|
|
41
|
+
|
|
42
|
+
# TensorEE
|
|
43
|
+
|
|
44
|
+
[](https://github.com/noelEOS/tensor-ee/actions/workflows/tests.yml)
|
|
45
|
+
|
|
46
|
+
**Run supported PyTorch models inside Google Earth Engine, without deploying a
|
|
47
|
+
model-serving endpoint.** TensorEE expresses neural-network inference as Earth Engine
|
|
48
|
+
image and array operations. Larger models can run in stages, saving intermediate
|
|
49
|
+
features as Earth Engine assets.
|
|
50
|
+
|
|
51
|
+

|
|
52
|
+
|
|
53
|
+
Python builds the computation graph; Earth Engine evaluates the forward pass. Weights
|
|
54
|
+
are embedded constants or reads from EE table assets. Unsupported operations are refused,
|
|
55
|
+
not approximated. The [Vertex AI integration](https://developers.google.com/earth-engine/guides/ee-vertex-overview)
|
|
56
|
+
shown alongside it uses a separately deployed model endpoint.
|
|
57
|
+
|
|
58
|
+
## A real example
|
|
59
|
+
|
|
60
|
+

|
|
61
|
+
|
|
62
|
+

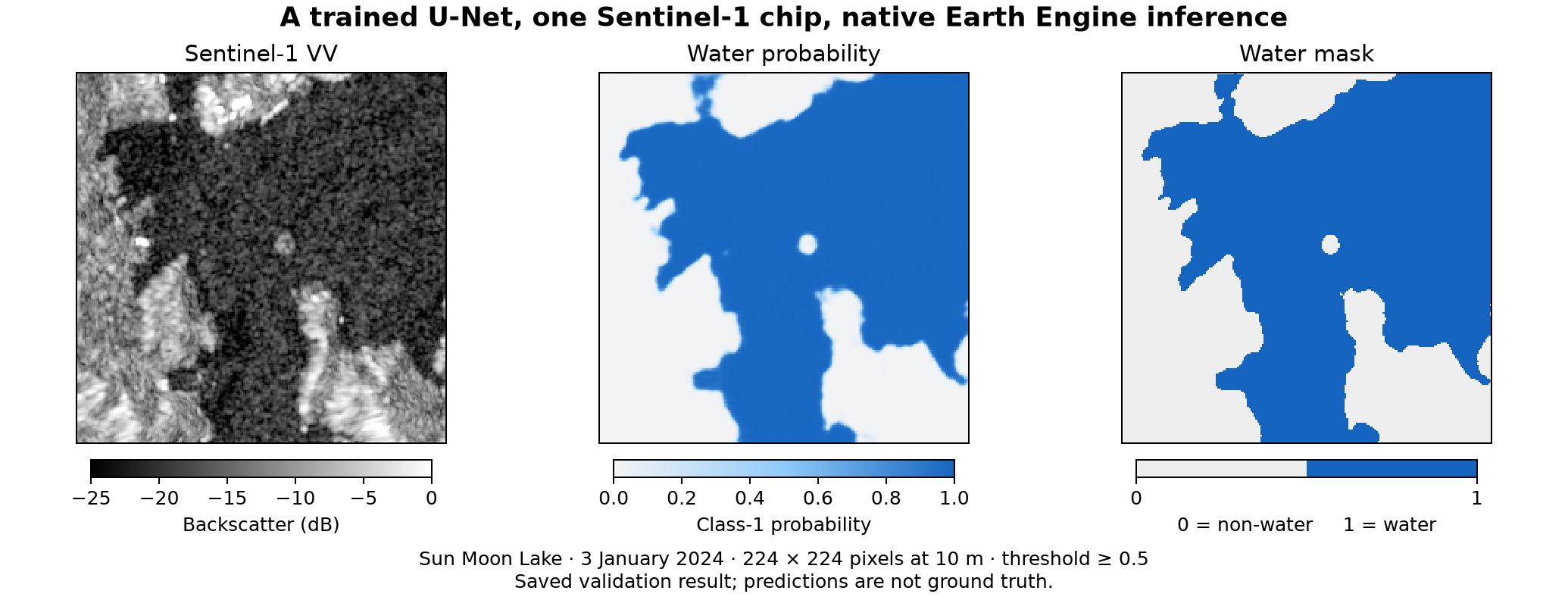

*A trained ResNet18 U-Net on one 224 × 224 Sentinel-1 chip: Sun Moon Lake, Taiwan,
|
|
63
|
+
3 January 2024. Prediction, not ground truth. [Validation](https://github.com/noelEOS/tensor-ee/blob/main/docs/validation.md) ·
|
|
64
|
+
[Walkthrough](https://github.com/noelEOS/tensor-ee/blob/main/docs/water-chip.md). Contains modified Copernicus Sentinel data (2024).*
|
|
65
|
+
|
|
66
|
+
## Get started
|
|
67
|
+
|
|
68
|
+
- **[Run the Code Editor demo](https://github.com/noelEOS/tensor-ee/blob/main/CODE_EDITOR.md).** No install or checkpoint. The trained
|
|
69
|
+
U-Net reads public weights; you need an Earth Engine account and a
|
|
70
|
+
[registered Cloud project](https://developers.google.com/earth-engine/guides/access)
|
|
71
|
+
where you can create an image asset. The demo exports one chip, billed to your project.
|
|
72
|
+
- **[Try the offline example](https://github.com/noelEOS/tensor-ee/blob/main/README.md#install).** Build a small CNN's graph locally, with no
|
|
73
|
+
credentials or cloud calls.
|
|
74
|
+
- **[Convert an attention model](https://github.com/noelEOS/tensor-ee/blob/main/docs/getting-started.md#5-convert-an-attention-model).**
|
|
75
|
+
Start with random weights, inspect the conversion report, then plan the stages.
|
|
76
|
+
|
|
77
|
+
## What you can run
|
|
78
|
+
|
|
79
|
+
| Model or approach | Entry point | Availability |
|
|
80
|
+
|---|---|---|
|
|
81
|
+
| SegWater ResNet18 U-Net, 224 × 224 | [Code Editor demo](https://github.com/noelEOS/tensor-ee/blob/main/CODE_EDITOR.md); `compile_model` for CNNs | Trained EE weights are public; the Code Editor demo needs no checkpoint |
|
|
82
|
+
| Fixed Swin-T/UPerNet, 224 × 224 | [Three-stage workflow](https://github.com/noelEOS/tensor-ee/blob/main/docs/swin.md) | Trained EE weights are public; this workflow also needs a local checkpoint, not yet public |
|
|
83
|
+
| SMP SegFormer-B0 or UPerNet with timm's Swin encoder | [Attention converter](https://github.com/noelEOS/tensor-ee/blob/main/docs/converter.md) | Conversion examples use random weights; the report identifies settings outside the validated records |
|
|
84
|
+
|
|
85
|
+
You can also compose a model from the [block catalogue](https://github.com/noelEOS/tensor-ee/blob/main/docs/building-blocks.md).
|
|
86
|
+
It has 78 blocks: 16 in `tensor_ee/blocks/raster` and 62 in `tensor_ee/blocks/window`.
|
|
87
|
+
The [browser demo](https://github.com/noelEOS/tensor-ee/blob/main/DEMO.md) runs either trained model with a local checkpoint;
|
|
88
|
+
its `--offline` mode previews the interface without one.
|
|
89
|
+
|
|
90
|
+
## Staged inference
|
|
91
|
+
|
|
92
|
+
Saving intermediate features lets a model run as several bounded EE graphs and avoids
|
|
93
|
+
recomputing earlier stages. In the fixed Swin workflow below, each step waits for its
|
|
94
|
+
predecessor's export to complete. The decoder reads both C4 and the earlier features.
|
|
95
|
+
|
|
96
|
+

|
|
97
|
+
|
|
98
|
+

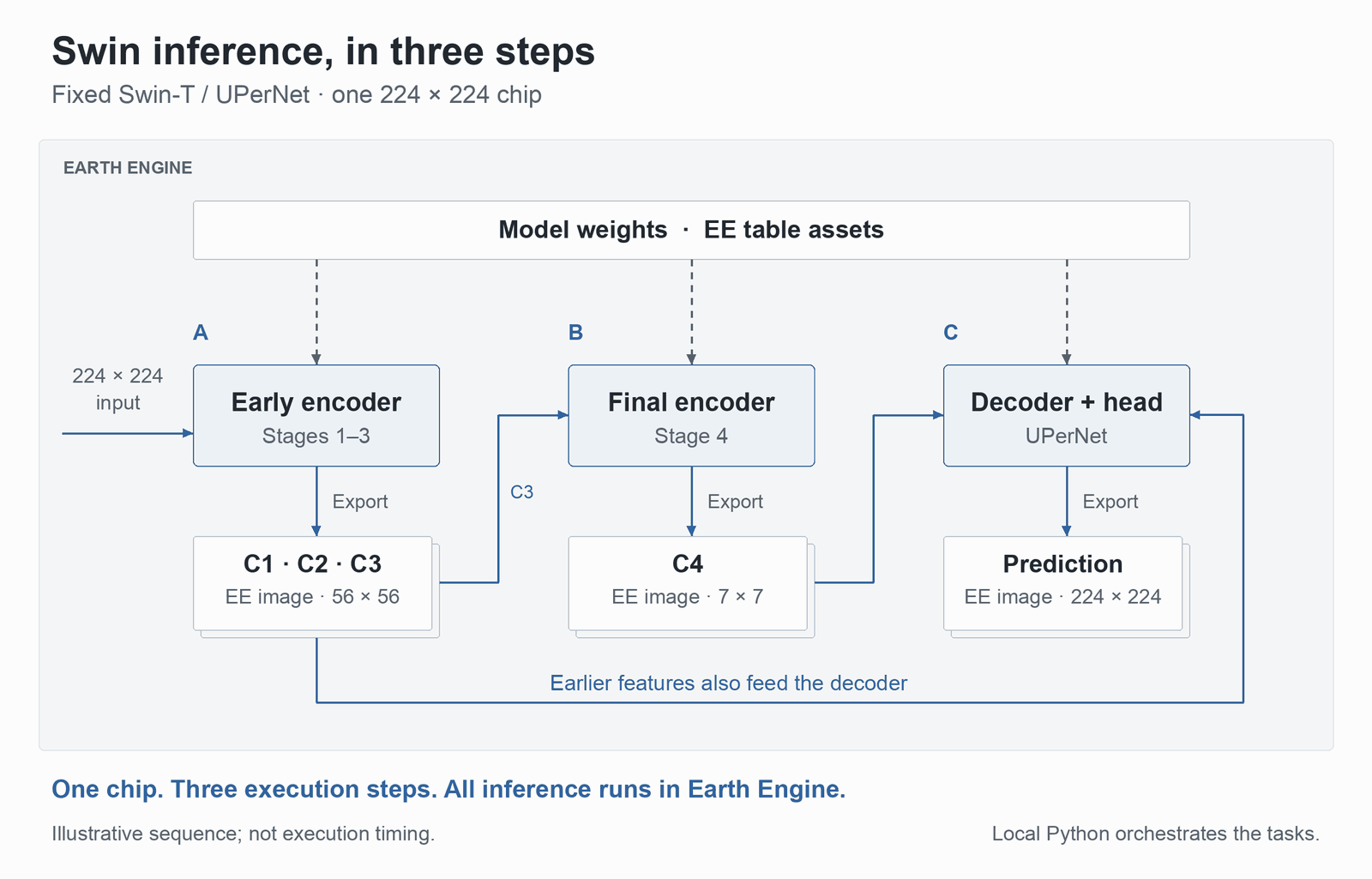

*Illustrative sequence, not execution timing. [Static diagram](https://raw.githubusercontent.com/noelEOS/tensor-ee/main/docs/images/swin-staged-inference.png).*
|
|
99
|
+
|
|
100
|
+
Weights live in EE table assets; saved features and predictions live in EE image assets.
|
|
101
|
+
The checkpoint, manifest and task state are local files. This workflow needs no GCS bucket.
|
|
102
|
+
The [Swin guide](https://github.com/noelEOS/tensor-ee/blob/main/docs/swin.md) details the three steps, including the validity summary
|
|
103
|
+
saved with C1–C3. Other models can use different cuts: the [converter planner](https://github.com/noelEOS/tensor-ee/blob/main/docs/converter.md#3-plan)
|
|
104
|
+
chooses stages under explicit limits.
|
|
105
|
+
|
|
106
|
+
## Install
|
|
107
|
+
|
|
108
|
+
Python 3.11 or newer.
|
|
109
|
+
|
|
110
|
+
```sh
|
|
111
|
+
python -m pip install tensor-ee
|
|
112
|
+
```
|
|
113
|
+
|
|
114
|
+
Build a small CNN's graph offline, with no credentials or cloud calls:
|
|
115
|
+
|
|
116
|
+
```sh
|
|
117
|
+
python -m tensor_ee.examples.nonwater --prepare
|
|
118
|
+
```
|
|
119
|
+
|
|
120
|
+
Expect `"status": "offline_graph_only"` in the report.
|
|
121
|
+
[Getting started](https://github.com/noelEOS/tensor-ee/blob/main/docs/getting-started.md)
|
|
122
|
+
covers optional extras, PyTorch's download size and CPU-only installation, and the
|
|
123
|
+
steps for running in Earth Engine.
|
|
124
|
+
|
|
125
|
+
For the tests, tools, demos and checkout examples, install from source:
|
|
126
|
+
|
|
127
|
+
```sh
|
|
128
|
+
git clone https://github.com/noelEOS/tensor-ee.git
|
|
129
|
+
cd tensor-ee
|
|
130
|
+
python -m venv .venv && source .venv/bin/activate
|
|
131
|
+
python -m pip install '.[test]'
|
|
132
|
+
python -m pytest -q tests/test_nonwater_example.py
|
|
133
|
+
```
|
|
134
|
+
|
|
135
|
+
Expect `2 passed` from the example's tests.
|
|
136
|
+
|
|
137
|
+
## Evidence and limits
|
|
138
|
+
|
|
139
|
+
- **Experimental, with restricted support.** Only the settings in the
|
|
140
|
+
[block catalogue](https://github.com/noelEOS/tensor-ee/blob/main/docs/building-blocks.md) have validation evidence. A conversion can
|
|
141
|
+
report settings outside those records; converting them does not validate them.
|
|
142
|
+
- **Numerical agreement is not model accuracy.** The [model evidence](https://github.com/noelEOS/tensor-ee/blob/main/docs/model.md)
|
|
143
|
+
records live comparisons with PyTorch and ONNX Runtime, offline graph identity,
|
|
144
|
+
and the inputs each result covers. The absolute logit target is 1e-4; segmentation
|
|
145
|
+
accuracy is not measured.
|
|
146
|
+
- **Known exception.** The U-Net's synthetic upper-left impulse chip has a largest
|
|
147
|
+
absolute logit difference of 1.6510487e-4, above the target; probabilities and the
|
|
148
|
+
water mask agree ([record](https://github.com/noelEOS/tensor-ee/blob/main/docs/history/cnn/SEGWATER_PYTORCH_RESULTS.md)).
|
|
149
|
+
- **EE limits still apply.** Inference uses EE computation and storage, with their costs
|
|
150
|
+
and quotas. The figures make no speed or cost comparison with Vertex AI.
|
|
151
|
+
- **Weights and training data.** Both trained models' EE weights are public under
|
|
152
|
+
[CC BY 4.0](https://github.com/noelEOS/tensor-ee/blob/main/WEIGHTS-LICENSE.md); their [manifests](https://github.com/noelEOS/tensor-ee/tree/main/data/manifests/) list the assets.
|
|
153
|
+
Checkpoint files are not yet public. Training used Sentinel-1 chips with water labels
|
|
154
|
+
derived from Sentinel-2; a fuller dataset description is not yet published
|
|
155
|
+
([provenance](https://github.com/noelEOS/tensor-ee/blob/main/docs/model.md#training-data-and-provenance)).
|
|
156
|
+
|
|
157
|
+
## Documentation
|
|
158
|
+
|
|
159
|
+
[Getting started](https://github.com/noelEOS/tensor-ee/blob/main/docs/getting-started.md) · [API guide](https://github.com/noelEOS/tensor-ee/blob/main/docs/api.md) ·
|
|
160
|
+
[Converter guide](https://github.com/noelEOS/tensor-ee/blob/main/docs/converter.md) · [Block catalogue](https://github.com/noelEOS/tensor-ee/blob/main/docs/building-blocks.md) ·
|
|
161
|
+
[All guides and evidence](https://github.com/noelEOS/tensor-ee/blob/main/docs/README.md) ·
|
|
162
|
+
[Changelog](https://github.com/noelEOS/tensor-ee/blob/main/CHANGELOG.md)
|
|
163
|
+
|
|
164
|
+
## Licence, citation and attribution
|
|
165
|
+
|
|
166
|
+
Code and documentation: [MIT](https://github.com/noelEOS/tensor-ee/blob/main/LICENSE). Trained weights: [CC BY 4.0](https://github.com/noelEOS/tensor-ee/blob/main/WEIGHTS-LICENSE.md),
|
|
167
|
+
including the checkpoints when published. Satellite data and third-party libraries keep
|
|
168
|
+
their own terms. The Sentinel-1 examples contain modified Copernicus Sentinel data (2024).
|
|
169
|
+
To cite TensorEE, use [CITATION.cff](https://github.com/noelEOS/tensor-ee/blob/main/CITATION.cff) and record the commit used.
|
|
170
|
+
|
|
171
|
+
See [CONTRIBUTING](https://github.com/noelEOS/tensor-ee/blob/main/CONTRIBUTING.md) for contributions and [SECURITY.md](https://github.com/noelEOS/tensor-ee/blob/main/SECURITY.md) for
|
|
172
|
+
private vulnerability reports.
|
|
@@ -0,0 +1,131 @@
|
|
|
1
|
+
# TensorEE
|
|
2
|
+
|
|
3
|
+
[](https://github.com/noelEOS/tensor-ee/actions/workflows/tests.yml)
|
|
4
|
+
|
|
5
|
+
**Run supported PyTorch models inside Google Earth Engine, without deploying a
|
|
6
|
+
model-serving endpoint.** TensorEE expresses neural-network inference as Earth Engine
|
|
7
|
+
image and array operations. Larger models can run in stages, saving intermediate
|
|
8
|
+
features as Earth Engine assets.
|
|
9
|
+
|
|
10
|
+

|
|
11
|
+
|
|
12
|
+
Python builds the computation graph; Earth Engine evaluates the forward pass. Weights
|
|
13
|
+
are embedded constants or reads from EE table assets. Unsupported operations are refused,
|
|
14
|
+
not approximated. The [Vertex AI integration](https://developers.google.com/earth-engine/guides/ee-vertex-overview)
|
|
15
|
+
shown alongside it uses a separately deployed model endpoint.
|
|
16
|
+
|
|
17
|
+
## A real example
|
|
18
|
+
|
|
19
|
+

|
|
20
|
+
|
|
21
|
+
*A trained ResNet18 U-Net on one 224 × 224 Sentinel-1 chip: Sun Moon Lake, Taiwan,
|
|
22
|
+
3 January 2024. Prediction, not ground truth. [Validation](https://github.com/noelEOS/tensor-ee/blob/main/docs/validation.md) ·
|
|
23
|
+
[Walkthrough](https://github.com/noelEOS/tensor-ee/blob/main/docs/water-chip.md). Contains modified Copernicus Sentinel data (2024).*
|
|
24
|
+
|
|
25
|
+
## Get started
|
|
26
|
+
|
|
27
|
+
- **[Run the Code Editor demo](https://github.com/noelEOS/tensor-ee/blob/main/CODE_EDITOR.md).** No install or checkpoint. The trained
|
|
28
|
+
U-Net reads public weights; you need an Earth Engine account and a
|
|
29
|
+
[registered Cloud project](https://developers.google.com/earth-engine/guides/access)
|
|
30
|
+
where you can create an image asset. The demo exports one chip, billed to your project.
|
|
31
|
+
- **[Try the offline example](https://github.com/noelEOS/tensor-ee/blob/main/README.md#install).** Build a small CNN's graph locally, with no
|
|
32
|
+
credentials or cloud calls.
|
|
33
|
+
- **[Convert an attention model](https://github.com/noelEOS/tensor-ee/blob/main/docs/getting-started.md#5-convert-an-attention-model).**
|
|
34
|
+
Start with random weights, inspect the conversion report, then plan the stages.
|
|
35
|
+
|
|
36
|
+
## What you can run
|
|
37
|
+
|
|
38
|
+
| Model or approach | Entry point | Availability |
|
|
39
|
+
|---|---|---|
|
|
40
|
+
| SegWater ResNet18 U-Net, 224 × 224 | [Code Editor demo](https://github.com/noelEOS/tensor-ee/blob/main/CODE_EDITOR.md); `compile_model` for CNNs | Trained EE weights are public; the Code Editor demo needs no checkpoint |
|
|
41
|
+
| Fixed Swin-T/UPerNet, 224 × 224 | [Three-stage workflow](https://github.com/noelEOS/tensor-ee/blob/main/docs/swin.md) | Trained EE weights are public; this workflow also needs a local checkpoint, not yet public |
|
|
42
|
+
| SMP SegFormer-B0 or UPerNet with timm's Swin encoder | [Attention converter](https://github.com/noelEOS/tensor-ee/blob/main/docs/converter.md) | Conversion examples use random weights; the report identifies settings outside the validated records |
|
|
43
|
+
|
|
44
|
+
You can also compose a model from the [block catalogue](https://github.com/noelEOS/tensor-ee/blob/main/docs/building-blocks.md).
|
|
45
|
+
It has 78 blocks: 16 in `tensor_ee/blocks/raster` and 62 in `tensor_ee/blocks/window`.
|
|
46
|
+
The [browser demo](https://github.com/noelEOS/tensor-ee/blob/main/DEMO.md) runs either trained model with a local checkpoint;
|
|
47
|
+
its `--offline` mode previews the interface without one.
|
|
48
|
+
|
|
49
|
+
## Staged inference
|
|
50
|
+
|
|
51
|
+
Saving intermediate features lets a model run as several bounded EE graphs and avoids
|
|
52
|
+
recomputing earlier stages. In the fixed Swin workflow below, each step waits for its
|
|
53
|
+
predecessor's export to complete. The decoder reads both C4 and the earlier features.
|
|
54
|
+
|
|
55
|
+

|
|
56
|
+
|
|
57
|
+
*Illustrative sequence, not execution timing. [Static diagram](https://raw.githubusercontent.com/noelEOS/tensor-ee/main/docs/images/swin-staged-inference.png).*
|
|
58
|
+
|
|
59
|
+
Weights live in EE table assets; saved features and predictions live in EE image assets.
|
|
60
|
+
The checkpoint, manifest and task state are local files. This workflow needs no GCS bucket.
|
|
61
|
+
The [Swin guide](https://github.com/noelEOS/tensor-ee/blob/main/docs/swin.md) details the three steps, including the validity summary
|
|
62
|
+
saved with C1–C3. Other models can use different cuts: the [converter planner](https://github.com/noelEOS/tensor-ee/blob/main/docs/converter.md#3-plan)
|
|
63
|
+
chooses stages under explicit limits.
|
|
64
|
+
|
|
65
|
+
## Install
|
|
66
|
+
|
|
67
|
+
Python 3.11 or newer.
|
|
68
|
+
|
|
69
|
+
```sh
|
|
70
|
+
python -m pip install tensor-ee
|
|
71
|
+
```
|
|
72
|
+
|
|
73
|
+
Build a small CNN's graph offline, with no credentials or cloud calls:
|
|
74
|
+
|
|
75
|
+
```sh
|
|
76
|
+
python -m tensor_ee.examples.nonwater --prepare
|
|
77
|
+
```
|
|
78
|
+
|
|
79
|
+
Expect `"status": "offline_graph_only"` in the report.
|
|
80
|
+
[Getting started](https://github.com/noelEOS/tensor-ee/blob/main/docs/getting-started.md)
|
|
81
|
+
covers optional extras, PyTorch's download size and CPU-only installation, and the
|
|
82
|
+
steps for running in Earth Engine.
|
|
83
|
+
|
|
84
|
+
For the tests, tools, demos and checkout examples, install from source:
|
|
85
|
+
|
|
86
|
+
```sh
|
|
87
|
+
git clone https://github.com/noelEOS/tensor-ee.git
|
|
88
|
+
cd tensor-ee
|
|
89
|
+
python -m venv .venv && source .venv/bin/activate
|
|
90
|
+
python -m pip install '.[test]'
|
|
91
|
+
python -m pytest -q tests/test_nonwater_example.py
|
|
92
|
+
```
|
|
93
|
+
|
|
94
|
+
Expect `2 passed` from the example's tests.
|
|
95
|
+
|
|
96
|
+
## Evidence and limits
|
|
97
|
+
|
|
98
|
+
- **Experimental, with restricted support.** Only the settings in the
|
|
99
|
+
[block catalogue](https://github.com/noelEOS/tensor-ee/blob/main/docs/building-blocks.md) have validation evidence. A conversion can
|
|
100
|
+
report settings outside those records; converting them does not validate them.
|
|
101
|
+
- **Numerical agreement is not model accuracy.** The [model evidence](https://github.com/noelEOS/tensor-ee/blob/main/docs/model.md)
|
|
102
|
+
records live comparisons with PyTorch and ONNX Runtime, offline graph identity,
|
|
103
|
+
and the inputs each result covers. The absolute logit target is 1e-4; segmentation
|
|
104
|
+
accuracy is not measured.
|
|
105
|
+
- **Known exception.** The U-Net's synthetic upper-left impulse chip has a largest
|
|
106
|
+
absolute logit difference of 1.6510487e-4, above the target; probabilities and the
|
|
107
|
+
water mask agree ([record](https://github.com/noelEOS/tensor-ee/blob/main/docs/history/cnn/SEGWATER_PYTORCH_RESULTS.md)).
|
|
108
|
+
- **EE limits still apply.** Inference uses EE computation and storage, with their costs
|
|
109
|
+
and quotas. The figures make no speed or cost comparison with Vertex AI.
|
|
110
|
+
- **Weights and training data.** Both trained models' EE weights are public under
|
|
111
|
+
[CC BY 4.0](https://github.com/noelEOS/tensor-ee/blob/main/WEIGHTS-LICENSE.md); their [manifests](https://github.com/noelEOS/tensor-ee/tree/main/data/manifests/) list the assets.
|
|
112
|
+
Checkpoint files are not yet public. Training used Sentinel-1 chips with water labels
|
|
113
|
+
derived from Sentinel-2; a fuller dataset description is not yet published
|
|
114
|
+
([provenance](https://github.com/noelEOS/tensor-ee/blob/main/docs/model.md#training-data-and-provenance)).
|
|
115
|
+
|
|
116
|
+
## Documentation
|
|
117
|
+
|
|
118
|
+
[Getting started](https://github.com/noelEOS/tensor-ee/blob/main/docs/getting-started.md) · [API guide](https://github.com/noelEOS/tensor-ee/blob/main/docs/api.md) ·
|
|
119
|
+
[Converter guide](https://github.com/noelEOS/tensor-ee/blob/main/docs/converter.md) · [Block catalogue](https://github.com/noelEOS/tensor-ee/blob/main/docs/building-blocks.md) ·
|
|
120
|
+
[All guides and evidence](https://github.com/noelEOS/tensor-ee/blob/main/docs/README.md) ·
|
|
121
|
+
[Changelog](https://github.com/noelEOS/tensor-ee/blob/main/CHANGELOG.md)
|
|
122
|
+
|
|
123
|
+
## Licence, citation and attribution
|
|
124
|
+
|
|
125
|
+
Code and documentation: [MIT](https://github.com/noelEOS/tensor-ee/blob/main/LICENSE). Trained weights: [CC BY 4.0](https://github.com/noelEOS/tensor-ee/blob/main/WEIGHTS-LICENSE.md),
|
|
126
|
+
including the checkpoints when published. Satellite data and third-party libraries keep
|
|
127
|
+
their own terms. The Sentinel-1 examples contain modified Copernicus Sentinel data (2024).
|
|
128
|
+
To cite TensorEE, use [CITATION.cff](https://github.com/noelEOS/tensor-ee/blob/main/CITATION.cff) and record the commit used.
|
|
129
|
+
|
|
130
|
+
See [CONTRIBUTING](https://github.com/noelEOS/tensor-ee/blob/main/CONTRIBUTING.md) for contributions and [SECURITY.md](https://github.com/noelEOS/tensor-ee/blob/main/SECURITY.md) for
|
|
131
|
+
private vulnerability reports.
|
|
@@ -0,0 +1,21 @@
|
|
|
1
|
+
"""Setuptools build step: the wheel ships the tensor_ee package only.
|
|
2
|
+
|
|
3
|
+
T01-T06 shipped a filtered research closure beside tensor_ee (``SWIN_MODULES``,
|
|
4
|
+
pinned to docs/evidence/t01-runtime-imports.json). Since L06 the runtime closure
|
|
5
|
+
of the library, the converter, the two reference models and the SegWater recipe
|
|
6
|
+
is tensor_ee plus third-party dependencies (docs/evidence/l06-runtime-imports.json),
|
|
7
|
+
and pyproject.toml finds ``tensor_ee*`` only. So nothing is filtered any more:
|
|
8
|
+
this step builds tensor_ee unchanged and refuses any other package, so that a
|
|
9
|
+
research folder cannot ship again by a change to the package list. This file is
|
|
10
|
+
build tooling, not runtime.
|
|
11
|
+
"""
|
|
12
|
+
from setuptools.command.build_py import build_py
|
|
13
|
+
|
|
14
|
+
PACKAGE = "tensor_ee"
|
|
15
|
+
|
|
16
|
+
|
|
17
|
+
class RuntimeOnlyBuild(build_py):
|
|
18
|
+
def find_package_modules(self, package, package_dir):
|
|
19
|
+
if package != PACKAGE and not package.startswith(PACKAGE + "."):
|
|
20
|
+
raise ValueError(f"only the {PACKAGE} package ships in the wheel; refusing {package!r}")
|
|
21
|
+
return super().find_package_modules(package, package_dir)
|
|
@@ -0,0 +1,52 @@
|
|
|
1
|
+
[build-system]
|
|
2
|
+
requires = ["setuptools>=83"]
|
|
3
|
+
build-backend = "setuptools.build_meta"
|
|
4
|
+
|
|
5
|
+
[project]
|
|
6
|
+
name = "tensor-ee"
|
|
7
|
+
version = "0.1.0"
|
|
8
|
+
description = "Experimental building blocks for running pretrained PyTorch models natively in Google Earth Engine: a restricted CNN compiler (the SegWater U-Net; standard SMP Unet and UnetPlusPlus on ResNet and VGG encoders), a converter for supported attention models (SMP SegFormer-B0; SMP UPerNet with timm's Swin-T), and a planner and runner for staged exports."
|
|
9
|
+
readme = "README.md"
|
|
10
|
+
license = "MIT"
|
|
11
|
+
license-files = ["LICENSE"]
|
|
12
|
+
authors = [{name = "Noel Ivan Ulloa"}]
|
|
13
|
+
requires-python = ">=3.11"
|
|
14
|
+
classifiers = [
|
|
15
|
+
"Development Status :: 3 - Alpha",
|
|
16
|
+
"Intended Audience :: Science/Research",
|
|
17
|
+
"Operating System :: OS Independent",
|
|
18
|
+
"Programming Language :: Python :: 3",
|
|
19
|
+
"Programming Language :: Python :: 3.11",
|
|
20
|
+
"Programming Language :: Python :: 3.12",
|
|
21
|
+
"Topic :: Scientific/Engineering :: Artificial Intelligence",
|
|
22
|
+
"Topic :: Scientific/Engineering :: GIS",
|
|
23
|
+
]
|
|
24
|
+
keywords = ["earth-engine", "pytorch", "geospatial", "remote-sensing", "neural-networks"]
|
|
25
|
+
dependencies = ["earthengine-api>=1.7.0", "torch>=2.10", "numpy>=1.26"]
|
|
26
|
+
|
|
27
|
+
[project.urls]
|
|
28
|
+
Repository = "https://github.com/noelEOS/tensor-ee"
|
|
29
|
+
Issues = "https://github.com/noelEOS/tensor-ee/issues"
|
|
30
|
+
Documentation = "https://github.com/noelEOS/tensor-ee/blob/main/docs/README.md"
|
|
31
|
+
Changelog = "https://github.com/noelEOS/tensor-ee/blob/main/CHANGELOG.md"
|
|
32
|
+
|
|
33
|
+
[project.optional-dependencies]
|
|
34
|
+
test = ["pytest>=9.0.3"]
|
|
35
|
+
resnet = ["torchvision>=0.20"]
|
|
36
|
+
onnx = ["onnx>=1.22", "onnxruntime>=1.20"]
|
|
37
|
+
segwater = ["segmentation-models-pytorch==0.5.0"]
|
|
38
|
+
swin = ["segmentation-models-pytorch==0.5.0", "timm==1.0.30"]
|
|
39
|
+
plot = ["matplotlib>=3.8"]
|
|
40
|
+
|
|
41
|
+
[tool.setuptools]
|
|
42
|
+
include-package-data = false
|
|
43
|
+
|
|
44
|
+
[tool.setuptools.cmdclass]
|
|
45
|
+
build_py = "build_support.RuntimeOnlyBuild"
|
|
46
|
+
|
|
47
|
+
[tool.setuptools.packages.find]
|
|
48
|
+
include = ["tensor_ee*"]
|
|
49
|
+
|
|
50
|
+
[tool.pytest.ini_options]
|
|
51
|
+
testpaths = ["tests"]
|
|
52
|
+
pythonpath = ["."]
|
|
@@ -0,0 +1,28 @@
|
|
|
1
|
+
"""Experimental PyTorch-compatible building blocks for native Earth Engine."""
|
|
2
|
+
|
|
3
|
+
from importlib.metadata import PackageNotFoundError as _PackageNotFoundError, version as _distribution_version
|
|
4
|
+
|
|
5
|
+
try:
|
|
6
|
+
__version__ = _distribution_version("tensor-ee")
|
|
7
|
+
except _PackageNotFoundError:
|
|
8
|
+
__version__ = "0.1.0" # Source checkouts need no installed distribution metadata.
|
|
9
|
+
|
|
10
|
+
from .comparison import PixelTensor, compare_segmentation
|
|
11
|
+
from .compatibility import CompatibilityReport, check_compatibility
|
|
12
|
+
from .compiler import CompiledModel, Grid, Raster, UnsupportedOperation, WeightProvider, compile_model
|
|
13
|
+
from .primitives import (concatenate, conv2d, eval_dropout, from_image, gelu, leaky_relu, nearest_upsample,
|
|
14
|
+
pool2d, relu, residual_add, sigmoid, silu, softmax, tanh)
|
|
15
|
+
from .outputs import SegmentationOutputs, binary_threshold, segmentation_outputs
|
|
16
|
+
from .weight_assets import FeatureCollectionWeightProvider, effective_convolutions, export_weights
|
|
17
|
+
from .weight_mapping import MatchedWeightProvider
|
|
18
|
+
|
|
19
|
+
__all__ = [
|
|
20
|
+
"PixelTensor", "compare_segmentation",
|
|
21
|
+
"CompatibilityReport", "check_compatibility",
|
|
22
|
+
"CompiledModel", "Grid", "Raster", "UnsupportedOperation", "WeightProvider",
|
|
23
|
+
"compile_model", "from_image", "conv2d", "pool2d", "nearest_upsample",
|
|
24
|
+
"concatenate", "residual_add", "relu", "sigmoid", "leaky_relu", "silu", "gelu", "tanh", "eval_dropout", "softmax",
|
|
25
|
+
"SegmentationOutputs", "segmentation_outputs", "binary_threshold",
|
|
26
|
+
"FeatureCollectionWeightProvider", "MatchedWeightProvider",
|
|
27
|
+
"effective_convolutions", "export_weights",
|
|
28
|
+
]
|
