+# STRIDE: STReam Insight and Drift Explanation
+
+A Python Toolkit for Concept Drift Detection, Characterization, and Explanation
+
+[![ECML PKDD 2026](https://img.shields.io/badge/ECML--PKDD_2026-Demo_Track-1E88E5.svg)](https://michalredm.github.io/stride-website/assets/pdf/paper.pdf)
+[![DOI: 10.1007/978-3-032-37685-5_32](https://img.shields.io/badge/DOI-10.1007%2F978--3--032--37685--5__32-blue.svg)](https://link.springer.com/chapter/10.1007/978-3-032-37685-5_32)
+[![PyPI version](https://img.shields.io/pypi/v/stride-xai.svg)](https://pypi.org/project/stride-xai/)
+[![Python Versions](https://img.shields.io/pypi/pyversions/stride-xai.svg)](https://pypi.org/project/stride-xai/)
+[![Website](https://img.shields.io/badge/Website-STRIDE-0A66C2?logo=googlechrome&logoColor=white)](https://michalredm.github.io/stride-website/)
+[![Live Demo](https://static.streamlit.io/badges/streamlit_badge_black_white.svg)](https://stream-insight-and-drift-explanation.streamlit.app/)
+[![CI](https://github.com/KubaCzech/STRIDE/actions/workflows/ci.yml/badge.svg)](https://github.com/KubaCzech/STRIDE/actions/workflows/ci.yml)
+[![Code style: ruff](https://img.shields.io/endpoint?url=https://raw.githubusercontent.com/astral-sh/ruff/main/assets/badge/v2.json)](https://github.com/astral-sh/ruff)
+[![License: MIT](https://img.shields.io/badge/license-MIT-green.svg)](https://github.com/KubaCzech/STRIDE/blob/main/LICENSE)
+
+[Website](https://michalredm.github.io/stride-website/) &bull; [Live Dashboard](https://stream-insight-and-drift-explanation.streamlit.app/) &bull; [Springer Chapter](https://link.springer.com/chapter/10.1007/978-3-032-37685-5_32) &bull; [Paper (PDF)](https://michalredm.github.io/stride-website/assets/pdf/paper.pdf) &bull; [Architecture](#three-layer-architecture) &bull; [Quickstart](#quickstart) &bull; [Citation](#citation)
+
+---
+
+## Overview
+
+Concept drift in streaming environments degrades machine learning models when underlying data distributions evolve over time. Traditional drift detectors (e.g., DDM, EDDM, ADWIN) signal **when** classifier accuracy drops, but treat the model and data as black boxes—failing to explain **how** the distribution shifted or **where** in the feature space decision boundaries deteriorated.
+
+**STRIDE** (*STReam Insight and Drift Explanation*) bridges this diagnostic gap. Presented at **ECML PKDD 2026** (Demo Track), STRIDE is an open-source Python framework and interactive dashboard that orchestrates analytical signals across three concurrent layers:
+
+1. **Data Layer** (*How*): Monitors raw input distributions and cluster geometry independently of the model.
+2. **Model Layer** (*When*): Tracks predictive performance metrics and fires sequential drift alerts.
+3. **Explanation Layer** (*Where*): Adapts Explainable AI (xAI) methods to locate local decision boundary shifts, identify drift-driving features, and detect recurring concepts.
+
+Instead of triggering post-hoc explanations only after significant performance degradation, STRIDE executes a **synchronous pipeline** that processes incoming windows across all three layers in parallel. This design enables analysts to trace the emergence of drift and observe the evolution of model logic in real time.
+
+---
+

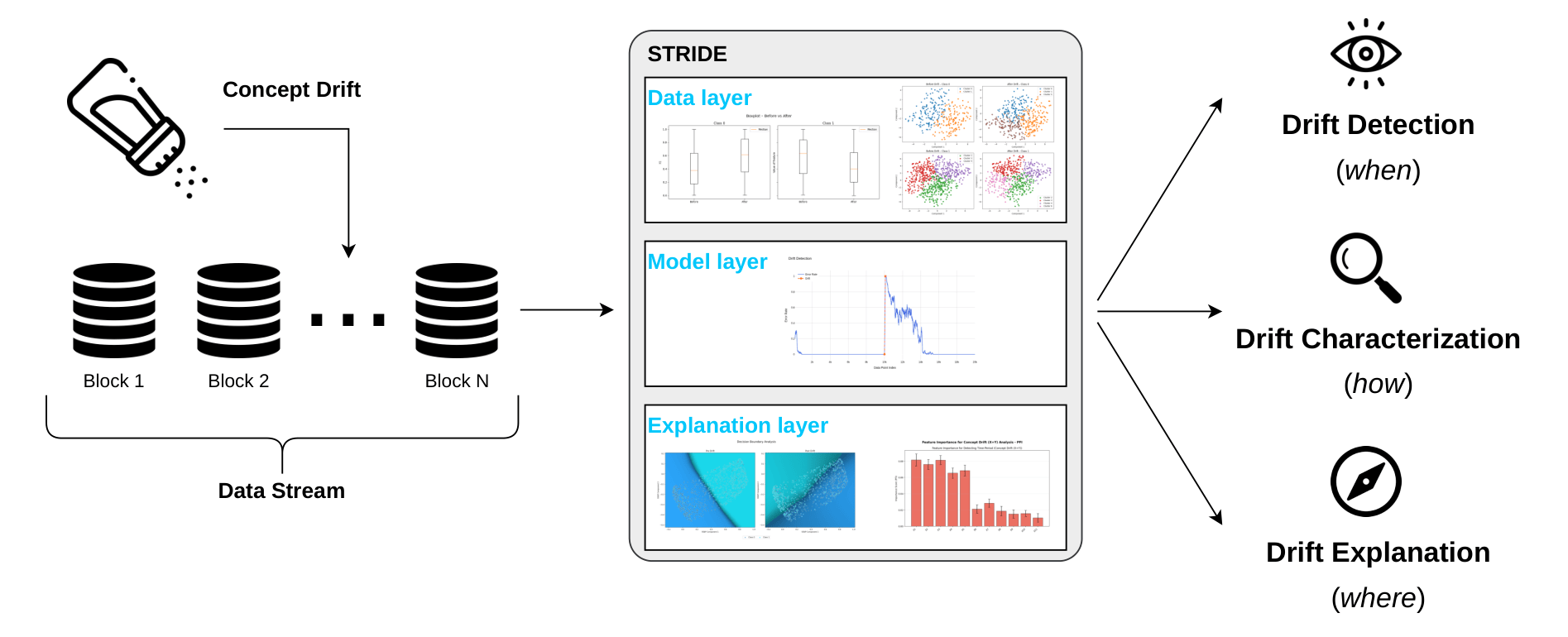

+## Three-Layer Architecture
+
+![STRIDE Synchronous Processing Pipeline](https://raw.githubusercontent.com/KubaCzech/STRIDE/main/assets/pipeline.png)
+
+### 1. Data Layer (Statistical & Geometric Shifts)
+Evaluates covariate shifts independent of the predictive model:
+* **Descriptive Statistics & Divergences**: Computes class-conditional moments, variances, and 1D Wasserstein distances to evaluate distribution movement.
+* **Non-Parametric Hypothesis Tests**: Two-sample Kolmogorov-Smirnov (KS) and Anderson-Darling tests detect significant univariate distribution differences between sliding windows.
+* **Clustering Dynamics**: Evaluates density shifts using X-means clustering, applying the Hungarian algorithm to track cluster splitting, migration, and centroid displacement across consecutive batches.
+
+### 2. Model Layer (Performance Triggers)
+Tracks streaming model health and online error rates:
+* **Streaming Detectors**: Integrates the [River](https://riverml.xyz/) stream learning ecosystem, supporting Drift Detection Method (DDM) and related sequential algorithms.
+* **Continuous Error Profiling**: Real-time evaluation of error rate trajectories, warning bands, and predictive confidence across sliding windows.
+
+### 3. Explanation Layer (Model-Agnostic Interpretability)
+Explains the mechanics of detected drift within the classifier's feature space:
+* **Supervised Decision Boundary Maps (SDBM)**: Projects high-dimensional feature spaces into 2D to visualize how class separation boundaries rotate, compress, or deform between pre-drift and post-drift states.
+* **Feature Importance Attribution**: Evaluates both model-centric (SHAP, Permutation Feature Importance) and data-centric importance shifts to differentiate features driving model degradation from those preserving predictive utility.
+* **Recurring Concept Analysis**: Extracts prototype representations per window and applies HDBSCAN clustering to distance matrices, distinguishing re-emerging historical concepts from novel anomalies.
+
+---
+
+## Interactive Dashboard
+
+STRIDE includes a reactive [Streamlit](https://streamlit.io/) dashboard designed for interactive forensics and exploratory research.
+
+* **Replay Streams**: Step through continuous streams or jump directly to detected drift points.
+* **Comparative Window Analysis**: Compare pre-drift reference windows with post-drift detection windows across all three analytical layers side by side.
+* **Dynamic Configuration**: Adjust sliding window sizes, statistical test significance thresholds ($\alpha$), and classifier architectures on the fly.
+* **Hosted Demo**: An interactive demo is deployed at [stream-insight-and-drift-explanation.streamlit.app](https://stream-insight-and-drift-explanation.streamlit.app/).
+
+---
+
+## Quickstart
+
+### Running the Interactive Dashboard
+
+Launch the dashboard locally:
+
+```bash
+streamlit run dashboard/app.py
+```
+
+The application opens at `http://localhost:8501`.
+
+### Python API Usage
+
+STRIDE exposes a clean programmatic API under the `stride` namespace. After installation (see below), no `sys.path` manipulation is required:
+
+```python
+from stride.datasets import HyperplaneDriftDataset
+from stride.xai.stats import StatisticalTestsDriftDetector, StatisticalTestType
+from stride.models import RandomForestModel
+
+# 1. Generate a synthetic streaming dataset with rotating hyperplane drift
+dataset = HyperplaneDriftDataset()
+X, y = dataset.generate(
+    n_samples_before=1000,
+    n_samples_after=1000,
+    n_features=5,
+    n_drift_features=2,
+    drift_width=100,
+    random_seed=42,
+)
+
+# 2. Partition into reference (pre-drift) and detection (post-drift) windows
+X_ref, y_ref = X.iloc[:1000], y.iloc[:1000]
+X_det, y_det = X.iloc[1000:], y.iloc[1000:]
+
+# 3. Train a streaming classifier on the reference window
+model = RandomForestModel()
+model.fit(X_ref, y_ref)
+
+# 4. Detect and characterize distribution shifts via non-parametric statistical tests
+detector = StatisticalTestsDriftDetector(X_ref, y_ref, X_det, y_det)
+has_drift = detector.detect(StatisticalTestType.KolmogorovSmirnov)
+
+print(f"Drift detected: {has_drift}")
+print(f"Per-feature test outcomes: {detector.drift_flags}")
+```
+
+Top-level convenience imports are also available directly from `stride`:
+
+```python
+import stride
+
+model = stride.RandomForestModel()
+detector = stride.DescriptiveStatisticsDriftDetector(...)
+```
+
+---
+
+## Installation
+
+### Prerequisites
+
+* Python 3.10, 3.11, or 3.12
+* Git
+
+### From PyPI (Recommended for Users)
+
+Install the core package directly from PyPI:
+
+```bash
+pip install stride-xai
+```
+
+Optional capability extras can be installed as needed:
+```bash
+pip install "stride-xai[all]"        # All extras (visualizations, XAI, deep learning, dashboard)
+pip install "stride-xai[dashboard]"  # Interactive Streamlit dashboard dependencies
+pip install "stride-xai[xai]"        # SHAP and LIME explainers
+```
+
+### From Source (Development)
+
+1. **Clone the repository**:
+   ```bash
+   git clone https://github.com/KubaCzech/STRIDE.git
+   cd STRIDE
+   ```
+
+2. **Create and activate a virtual environment**:
+   ```bash
+   # Linux / macOS
+   python3 -m venv .venv
+   source .venv/bin/activate
+
+   # Windows (PowerShell)
+   python -m venv .venv
+   .venv\Scripts\Activate.ps1
+   ```
+
+3. **Install the package and its dependencies**:
+   ```bash
+   pip install --upgrade pip
+   pip install -r requirements.txt
+   pip install -e .
+   ```
+
+   The editable install (`-e .`) registers the `stride` package in your environment so that `from stride.datasets import ...` works without any `sys.path` manipulation.
+
+   **Optional extras** can be appended in brackets to install additional capability groups:
+
+   | Extra | Installs |
+   |---|---|
+   | `pip install -e ".[vis]"` | `matplotlib`, `seaborn`, `plotly` |
+   | `pip install -e ".[drift]"` | `river` (online stream learning) |
+   | `pip install -e ".[clustering]"` | `pyclustering`, `hdbscan`, `umap-learn` |
+   | `pip install -e ".[xai]"` | `shap`, `lime` |
+   | `pip install -e ".[deeplearning]"` | `tensorflow>=2.15` (for SSNP boundary projection) |
+   | `pip install -e ".[dashboard]"` | `streamlit`, `icecream` |
+   | `pip install -e ".[all]"` | All of the above |
+
+4. **Verify the installation**:
+   ```bash
+   python -m unittest discover tests
+   ```
+
+---
+
+## Supported Drift Scenarios & Models
+
+### Synthetic Drift Generators
+* **Hyperplane Drift**: Continuously rotating hyperplane in $d$-dimensional space simulating gradual concept drift.
+* **SEA Drift**: Abrupt decision threshold displacement with noise features.
+* **RBF Drift**: Non-linear cluster movement and centroid translation in continuous feature space.
+* **Linear Weight Inversion (LWI)**: Correlation inversion testing model sensitivity to feature attribution flips.
+* **Multi-Window Generators**: Mixed, Sine, STAGGER, and Random Tree streams for multi-concept scenarios.
+* **Real-World Benchmarks**: Pre-configured support for benchmark datasets (e.g., Electricity, Covertype, NOAA weather).
+
+### Model Implementations
+* Multi-Layer Perceptrons (MLP / Neural Networks)
+* Random Forests
+* Support Vector Machines (SVM)
+* Logistic Regression & incremental online models via River
+
+---
+
+## Project Structure
+
+```text
+STRIDE/
+├── assets/                         # Architecture diagrams and visual documentation
+│   └── pipeline.png
+├── dashboard/                      # Streamlit interactive application
+│   ├── app.py                      # Application entry point
+│   ├── assets/                     # Dashboard styles and custom CSS
+│   ├── components/                 # UI tabs (Data, Model, Explanation layers)
+│   └── config/                     # Dashboard-only widget schemas & presets
+│       ├── dataset_schemas.py      # Dataset UI configuration (decoupled from core)
+│       └── model_schemas.py        # Model UI configuration (decoupled from core)
+├── src/                            # PyPA src-layout root
+│   ├── stride/                     # Canonical Python package (import as `stride`)
+│   │   ├── __init__.py             # Top-level public API & convenience re-exports
+│   │   ├── exceptions.py           # Domain exception hierarchy (StrideError, …)
+│   │   ├── py.typed                # PEP 561 marker for static type checkers
+│   │   ├── common/                 # Shared utilities and window helpers
+│   │   ├── datasets/               # Streaming data generators and real datasets
+│   │   │   ├── hyperplane_drift.py
+│   │   │   ├── sea_drift.py
+│   │   │   ├── rbf_drift.py
+│   │   │   ├── linear_weight_inversion_drift.py
+│   │   │   ├── *_multi_window.py   # Multi-concept stream generators
+│   │   │   ├── csv_dataset.py
+│   │   │   └── river_dataset.py
+│   │   ├── drift/                  # Sequential drift detectors
+│   │   │   └── binary_descriptor.py  # BinaryErrorDriftDescriptor (DDM-based)
+│   │   ├── models/                 # Model wrappers with fit/predict API
+│   │   │   ├── mlp.py              # Multi-Layer Perceptron
+│   │   │   └── random_forest.py    # Random Forest
+│   │   ├── plotting/               # Stream-level matplotlib visualizations
+│   │   └── xai/                    # Explainable AI analyzers
+│   │       ├── boundary/           # Decision boundary maps (SDBM / SSNP)
+│   │       ├── clustering/         # X-means clustering dynamics
+│   │       ├── importance/         # SHAP & Permutation Feature Importance
+│   │       ├── recurrence/         # ProTree prototype & HDBSCAN concept detection
+│   │       └── stats/              # Statistical tests (KS, AD, Wasserstein)
+│   └── DDM/                        # Backward-compatibility bridge → stride.drift
+├── tests/                          # Automated test suite
+├── pyproject.toml                  # PEP 621 package metadata, extras, and ruff config
+└── requirements.txt                # Pinned runtime dependencies
+```
+
+---
+
+## Citation
+
+If you use STRIDE in your research, please cite our paper from the **ECML PKDD 2026 Demo Track**:
+
+```bibtex
+@inproceedings{nagorka2026stride,
+  title     = {{STReam Insight and Drift Explanation (STRIDE): A Python Toolkit for Concept Drift Detection and Explanation}},
+  author    = {Nag{\'o}rka, Wojciech and Redmer, Micha{\l} and Czech, Kuba and Aksoy, Deniz and Stefanowski, Jerzy},
+  booktitle = {Machine Learning and Knowledge Discovery in Databases. Applied Data Science Track, Demo Track and Industrial Track (ECML PKDD)},
+  series    = {Lecture Notes in Computer Science},
+  pages     = {348--352},
+  year      = {2026},
+  publisher = {Springer, Cham},
+  doi       = {10.1007/978-3-032-37685-5_32},
+  url       = {https://link.springer.com/chapter/10.1007/978-3-032-37685-5_32}
+}
+```
+
+---
+
+## Authors & Acknowledgments
+
+* **Wojciech Nagórka** &bull; Poznań University of Technology
+* **Michał Redmer** &bull; Poznań University of Technology
+* **Kuba Czech** &bull; Poznań University of Technology
+* **Deniz Aksoy** &bull; Poznań University of Technology
+* **Jerzy Stefanowski** &bull; Poznań University of Technology
+
+**Funding**: The research by Jerzy Stefanowski was funded by the National Science Centre, Poland, under OPUS grant no. `2023/51/B/ST6/00545`.
+
+Project Website: [https://michalredm.github.io/stride-website/](https://michalredm.github.io/stride-website/)
+
+---
+
+## License
+
+This project is licensed under the MIT License. See the [LICENSE](https://github.com/KubaCzech/STRIDE/blob/main/LICENSE) file for details.
+
