+# satprint -- Satellite Terrain to 3D-Printable Models
+
+**Pick a place on a map. Get a watertight STL of its terrain and buildings, a multi-color 3MF ready for a multi-material printer, and a GLB with satellite imagery draped over it.**
+
+satprint turns real elevation data into a solid relief model scaled to your
+printer: the terrain on top, four walls and a flat base. Cities can carry their
+OpenStreetMap buildings, and the multi-color 3MF splits the model into land,
+water, buildings and a border frame, one filament each.
+
+**Documentation: [suchanek.github.io/satprint](https://suchanek.github.io/satprint/)**
+
+```
+satellite elevation  ->  heightmap (meters)       ->  STL solid
+AWS Terrain Tiles        clamp sea, smooth,           terrain + walls + base
+(SRTM, ASTER, GMTED)     scale to mm, exaggerate      + OSM buildings
+                                                      + land/water/border 3MF
+```
+

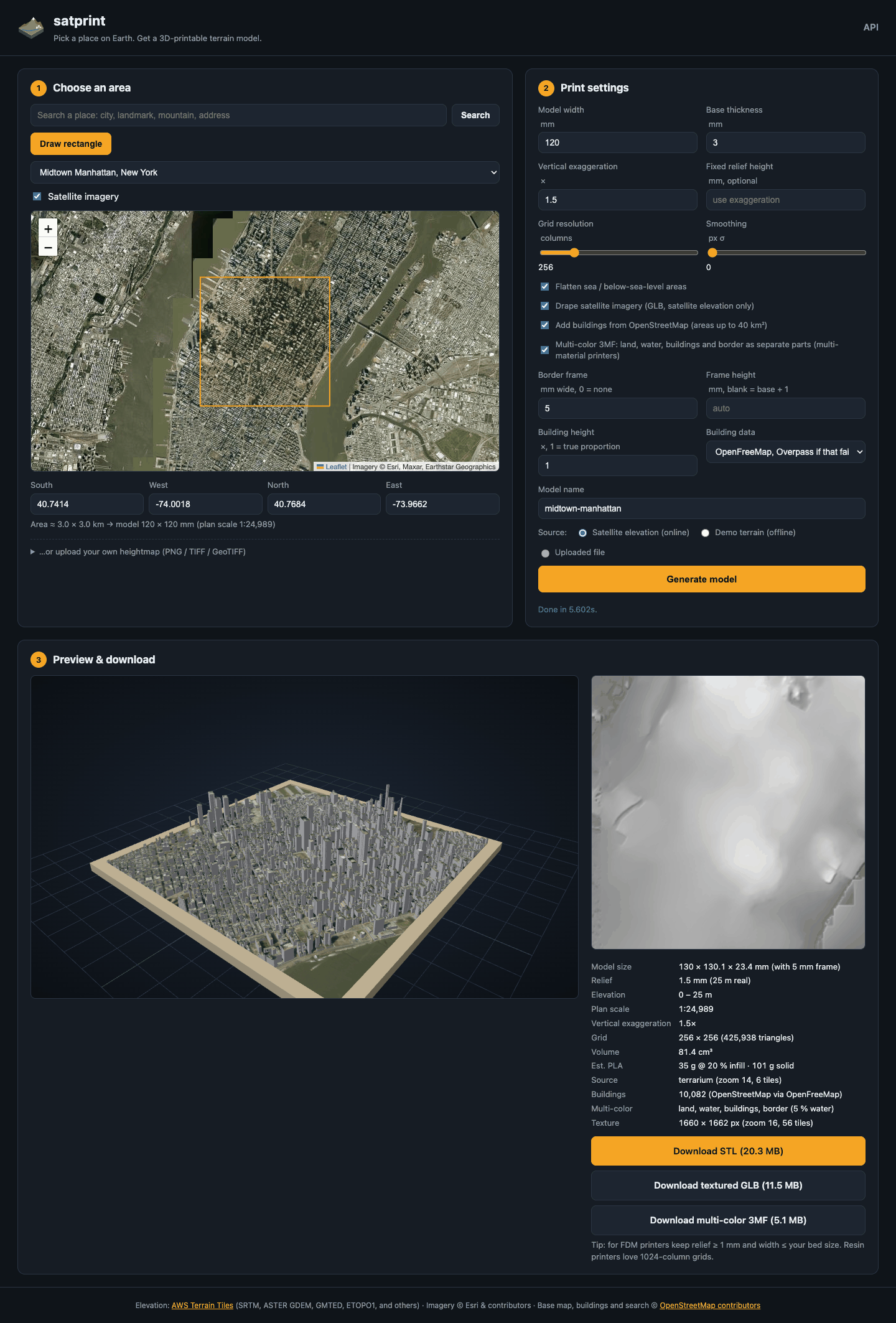

+![satprint web UI](https://raw.githubusercontent.com/suchanek/satprint/v0.2.1/docs/screenshot.png)
+

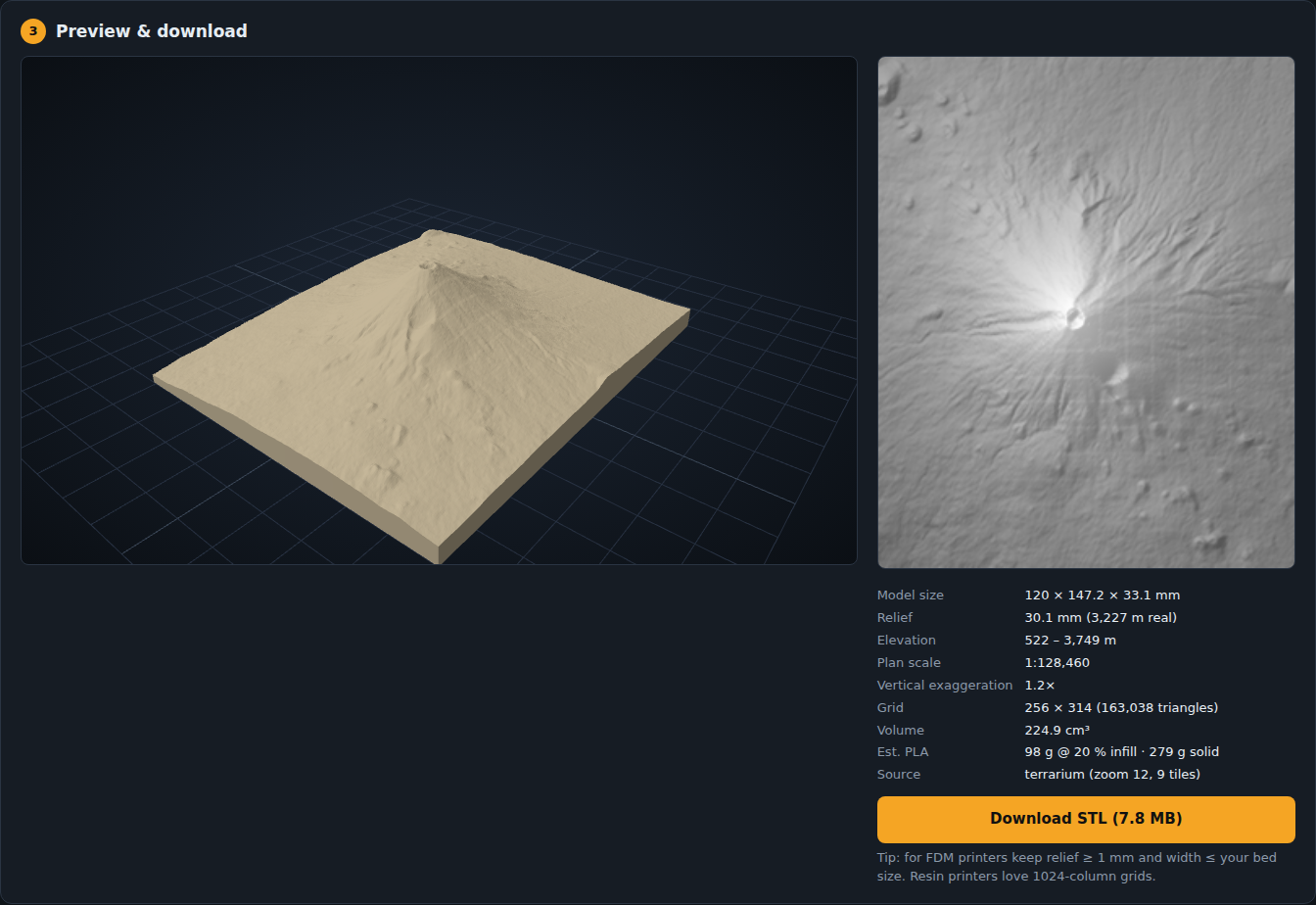

+Mount Fuji from real elevation tiles, 120 mm wide, 1.2x exaggeration:
+
+![Mount Fuji preview](https://raw.githubusercontent.com/suchanek/satprint/v0.2.1/docs/fuji-preview.png)
+
+## Features
+
+- **Real elevation, no API key.** Elevation comes from the public
+  [AWS Terrain Tiles](https://registry.opendata.aws/terrain-tiles/) set
+  (SRTM, ASTER, GMTED and others), cached under `~/.cache/satprint/tiles`. You
+  can also upload a 16-bit PNG, TIFF or GeoTIFF heightmap, or use a procedural
+  demo terrain that needs no network.
+- **Print-aware output.** True plan scale, vertical exaggeration or a fixed
+  relief height, base thickness, sea-level flattening, Gaussian smoothing and
+  grids up to 1024 columns. Each build reports model size, scale, triangle
+  count, volume and an estimated PLA weight.
+- **Watertight by construction.** Every edge is shared by exactly two
+  outward-wound triangles, so slicers (Bambu Studio, PrusaSlicer, Cura,
+  Chitubox) load the STL without repair.
+- **Buildings** from OpenStreetMap, as closed solids standing on the terrain.
+  Landmark towers keep their setbacks where OSM maps them as `building:part`
+  shapes, domes, onion domes, cones and pyramids get their roof shapes, and
+  overlapping footprints are merged so no two solids pass through each other.
+  A few landmarks, such as the Sphere in Las Vegas, get exact shapes. Heights
+  are in true proportion by default, with a multiplier. OpenFreeMap, Overpass
+  or Overture Maps.
+- **Multi-color 3MF.** Land, water, buildings and an optional border frame are
+  separate parts of one object, already on filaments 1 to 4 in Bambu Studio.
+  Water is the OSM sea, rivers and lakes, plus the flattened sea.
+- **Border frame.** A rectangular rim around the model, 1 mm above the base by
+  default, in the STL, GLB and 3MF.
+- **Textured GLB.** Satellite imagery draped over the terrain and the roofs,
+  for viewing in Blender, macOS Quick Look or a web viewer. The web preview
+  shows it.
+- **Search and presets.** Search any place by name, or pick one of 67 presets:
+  37 cities and landmarks, which turn buildings on, and 30 mountains and
+  landscapes.
+- **Web app, CLI and REST API.** Builds run as background jobs, and the page
+  shows each stage with tile counts. Interactive API docs are at `/docs`.
+
+## Install
+
+satprint needs Python 3.12 or 3.13.
+
+```bash
+git clone https://github.com/suchanek/satprint.git
+cd satprint
+poetry install                   # add --extras geotiff for GeoTIFF georeferencing
+```
+
+Without Poetry, `pip install -e .` in a virtual environment installs the app.
+See [Installation](https://suchanek.github.io/satprint/install/) for Docker.
+
+## Run the web app
+
+```bash
+satprint serve                   # http://127.0.0.1:7417
+satprint serve --host 0.0.0.0 --port 7417
+```
+
+1. **Choose an area.** Search for a place, pick a preset, click **Draw
+   rectangle** and drag on the map, or type the bounds. The hint line shows the
+   real size of the area and the model it makes.
+2. **Set the print.** Model width, base thickness, vertical exaggeration
+   (1.5x to 3x reads well for most landscapes; 1x is true scale) or a fixed
+   relief height. Resolution sets the grid columns: 256 is fine for FDM, 512
+   to 1024 for resin. Check **Add buildings** for a city, and **Multi-color
+   3MF** plus a **Border frame** width for a multi-material print.
+3. **Generate.** The textured model appears in the 3D preview. Download the
+   STL to print in one color, the 3MF to print in several, or the GLB to view.
+
+After you change the code, restart `satprint serve` to pick up the change.
+
+## Print in several colors
+
+The multi-color 3MF holds up to four parts, in this filament order:
+
+| Filament | Part | Display color |
+|---|---|---|
+| 1 | `land` | green |
+| 2 | `water` | blue |
+| 3 | `buildings` | white |
+| 4 | `border` | dark gray |
+
+To print it on a Bambu printer with an AMS:
+
+1. In Bambu Studio, set up four filaments in the left sidebar, or sync them
+   from the AMS.
+2. Open the 3MF. Bambu Studio reports that it loads "geometry only", as it does
+   for any 3MF it did not write; the part names and filaments still come
+   through.
+3. To check or change a part's filament, open the object list: in the left
+   sidebar, under **Process**, click **Objects** and expand the model.
+4. Slice. The preview shows each part in its filament's color.
+
+Other slicers open the same parts with every part on filament 1; assign the
+filaments by hand.
+
+## Command line
+
+```bash
+# Matterhorn, 120 mm wide, 2x exaggeration
+satprint build --bbox 45.93 7.58 46.02 7.72 --width 120 --exaggeration 2 -o matterhorn.stl
+
+# Fixed 15 mm relief, smoothed, with a hillshade preview PNG
+satprint build --bbox 36.02 -112.25 36.20 -111.95 --relief 15 --smoothing 1 \
+               --preview canyon.png -o grand-canyon.stl
+
+# Midtown Manhattan with buildings, plus a textured GLB
+satprint build --bbox 40.7414 -73.9997 40.7684 -73.9683 --width 150 \
+               --buildings --glb midtown.glb -o midtown.stl
+
+# Venice as a four-color 3MF: land, water, buildings and a 5 mm border frame
+satprint build --bbox 45.43 12.32 45.446 12.343 --buildings --frame 5 \
+               --3mf venice.3mf -o venice.stl
+
+# From your own DEM in meters, 12 km across
+satprint build --file dem.tif --ground-width 12000 -o dem.stl
+
+# Offline demo terrain
+satprint build --synthetic -o demo.stl
+```
+
+Bounds are `SOUTH WEST NORTH EAST` in decimal degrees. The command prints a
+JSON summary: elevation range, scale, triangle count, volume and a watertight
+check. `satprint build --help` lists every option.
+
+## REST API
+
+| Method | Path | Purpose |
+|---|---|---|
+| `GET` | `/api/presets` | Named example areas, grouped |
+| `GET` | `/api/search?q=...` | Place search; each hit has a `bbox` |
+| `POST` | `/api/upload` | Multipart heightmap upload; returns an `upload_id` |
+| `POST` | `/api/model` | Build a model; returns stats, a preview PNG and download URLs |
+| `POST` | `/api/jobs` | Same body as `/api/model`, built in the background; returns a `job_id` |
+| `GET` | `/api/jobs/{id}` | Job `status`, current `stage` with `done` and `total`, and the `/api/model` response as `result` when done |
+| `GET` | `/api/model/{id}/{name}.stl` | Binary STL |
+| `GET` | `/api/model/{id}/{name}.glb` | Textured GLB, when `glb_url` is set |
+| `GET` | `/api/model/{id}/{name}.3mf` | Multi-color 3MF, when `threemf_url` is set (`"multicolor": true`) |
+| `GET` | `/api/model/{id}/heightmap.png` | Hillshade preview |
+
+```bash
+curl -s localhost:7417/api/model -H 'content-type: application/json' -d '{
+  "source": "terrarium",
+  "bbox": {"south": 35.28, "west": 138.65, "north": 35.45, "east": 138.82},
+  "width_mm": 150, "exaggeration": 1.2, "resolution": 512, "name": "fuji"
+}' | python -c 'import json,sys; j=json.load(sys.stdin); print(j["stl_url"], j["info"]["height_mm"])'
+```
+
+## How the scaling works
+
+- **Plan scale** is `width_mm / ground_width_m`. The depth follows the true
+  aspect ratio of the area, from great-circle distances along the center lines
+  of the bounding box.
+- **Vertical scale** is the plan scale times the exaggeration, so
+  `exaggeration = 1` is a true-scale model. With `relief_mm` set, the vertical
+  scale puts the highest point exactly that far above the base, and the
+  effective exaggeration is reported back.
+- **Sea level.** Samples below 0 m (bathymetry in the source data) are clamped
+  to 0 by default, so coastlines print as a flat plane.
+- **Buildings** use the plan scale for their heights, so `building_scale = 1`
+  keeps them in true proportion to the map.
+
+## Data sources
+
+| Data | Source | Cache |
+|---|---|---|
+| Elevation | [AWS Terrain Tiles](https://registry.opendata.aws/terrain-tiles/) | `~/.cache/satprint/tiles` |
+| Imagery (GLB texture) | Esri World Imagery | `~/.cache/satprint/imagery` |
+| Buildings and water | [OpenFreeMap](https://openfreemap.org) vector tiles, zoom 14, rebuilt from OSM about weekly | `~/.cache/satprint/vtiles` |
+| Buildings, fallback; roof shapes | [Overpass API](https://wiki.openstreetmap.org/wiki/Overpass_API), 0.01° tiles | `~/.cache/satprint/osm` |
+| Buildings, optional | [Overture Maps](https://overturemaps.org) GeoParquet on S3, per release | `~/.cache/satprint/overture` |
+| Place search | [Nominatim](https://nominatim.org), one request per second | in memory |
+
+- **Buildings.** A building with no `height` or `building:levels` tag gets 8 m.
+  Building parts are extruded from the ground, ignoring `min_height`, so
+  nothing floats. Buildings sink 0.3 mm into the terrain so they fuse with it
+  when sliced. Areas are limited to 40 km² with buildings on, and very small
+  footprints are dropped. A building that crosses a vector-tile edge arrives as
+  two solids that meet at the edge.
+- **Roof shapes.** Roofs tagged `roof:shape` dome, onion, cone or pyramidal
+  get that shape, from `roof:height` or `roof:levels`, else a hemisphere-like
+  height from the footprint's size. Other roofs are flat. The vector tiles
+  carry no roof tags, so a small Overpass query adds them; if it fails, the
+  roofs are flat and the build says so. A shaped roof starts no lower than the
+  larger flat roofs around it, and smaller parts standing on it, such as a
+  lantern on a dome, stand in a hole cut in the roof, so the solids never pass
+  through each other.
+- **Landmarks.** A few buildings that roof tags cannot describe are replaced by
+  exact shapes from published dimensions: so far the Sphere in Las Vegas, a
+  157 m sphere cut by the ground at 112 m.
+- **Overture Maps.** Choose it with "Building data" or
+  `--building-source overture`. It merges OSM with Microsoft and Google
+  footprints, so it finds buildings OSM lacks, and keeps the roof tags. It
+  needs the `overture` extra (`pip install "satprint[overture]"`, about
+  190 MB with pyarrow; the Docker image has it).
+- **Overpass.** Choose it with "Building data" in the web app or
+  `--building-source overpass` on the CLI, for the latest OSM edits. The
+  default "auto" uses it only if OpenFreeMap fails. Its tiles download two at a
+  time, busy answers are retried with backoff, and a server that times out is
+  skipped for 10 minutes. When some tiles fail, the rest stay cached, so
+  generating again fetches only the missing ones.
+- **Imagery.** The texture is at most 2048 px on its longer side. Esri's terms
+  of use govern the imagery. Set `"texture": false` to skip it.
+
+## Limits
+
+- Source resolution is about 30 m (SRTM) over most land and about 10 m at zoom
+  14 where available, so areas smaller than about 2 km look blocky. Smoothing
+  helps.
+- Elevation and imagery downloads are capped at 64 tiles per request. Shrink the
+  area or lower the resolution if you hit the cap.
+- The multi-color split works one grid cell at a time, so a river narrower than
+  a cell does not show. Raise the resolution to keep it.
+- The GLB is for viewing. FDM slicers ignore textures, so print the STL or the
+  3MF.
+- Built models live in memory, the last 32. A download link is valid until the
+  server restarts.
+
+## Layout
+
+```
+satprint/
+  terrain.py    elevation sources (terrain tiles, synthetic, file), imagery, scaling, hillshade
+  mesh.py       heightmap to watertight solid, land/water split, frame, STL, GLB and 3MF writers
+  buildings.py  OSM buildings to closed solids on the terrain, roof shapes
+  landmarks.py  exact shapes for a few landmarks
+  overture.py   Overture Maps building source (overture extra)
+  water.py      water map and the multi-color 3MF parts
+  osm.py        OpenFreeMap, Overpass and Nominatim clients
+  presets.py    named example areas
+  app.py        FastAPI backend, background jobs, in-memory model store
+  cli.py        satprint serve / satprint build
+  static/       web app: index.html, style.css, app.js (Leaflet and three.js from CDNs)
+tests/          pytest suite, offline: every network client is faked
+```
+
+## Development
+
+```bash
+poetry install --with dev
+pre-commit install
+pytest -q
+```
+
+The pre-commit hooks run the standard file checks, ruff, detect-secrets, ty and
+pytest. `pycodekg` and `dockg` index the repo for agents through `.mcp.json`;
+they are global tools, not dependencies. To build the docs site locally, run
+`poetry install --with docs` and `mkdocs serve`.
+
+## Docker
+
+A prebuilt image for `linux/amd64` and `linux/arm64` is on Docker Hub:
+
+```bash
+docker run -d -p 7417:7417 -v satprint-tiles:/home/satprint/.cache/satprint egsuchanek/satprint
+```
+
+Then open http://localhost:7417. See
+[Installation](https://suchanek.github.io/satprint/install/#with-docker) to
+build the image yourself.
+
+## License
+
+MIT. See [LICENSE](https://github.com/suchanek/satprint/blob/main/LICENSE).
+
+Map data: Terrain Tiles © Mapzen and AWS Open Data (SRTM, ASTER GDEM, GMTED2010,
+ETOPO1, NED, EU-DEM and others). Imagery © Esri, Maxar, Earthstar Geographics.
+Street map, buildings, water and search © OpenStreetMap contributors, under the
+ODbL. Overture buildings © Overture Maps Foundation and OpenStreetMap
+contributors, under the ODbL.
+
+## Citation
+
+If you use satprint in your research or project, please cite it:
+
+> Suchanek, E. G. (2026). *satprint: Satellite Terrain to 3D-Printable Models* (Version 0.2.1) [Software]. Flux-Frontiers. https://doi.org/10.5281/zenodo.23094151
+
+```bibtex
+@software{suchanek_satprint,
+  author    = {Suchanek, Eric G.},
+  title     = {{satprint}: Satellite Terrain to 3D-Printable Models},
+  version   = {0.2.1},
+  year      = {2026},
+  publisher = {Flux-Frontiers},
+  url       = {https://github.com/suchanek/satprint},
+  doi       = {10.5281/zenodo.23094151},
+}
+```
+
+The DOI is the Zenodo concept DOI, which always resolves to the newest
+archived release. The citation metadata is also in [CITATION.cff](https://github.com/suchanek/satprint/blob/main/CITATION.cff). See the
+[changelog](https://github.com/suchanek/satprint/blob/main/CHANGELOG.md) for release history.
+
