sagaconf-1.0.1/LICENSE
ADDED
|
@@ -0,0 +1,21 @@
|
|
|
1
|
+
MIT License
|
|
2
|
+
|
|
3
|
+
Copyright (c) 2021-2026 Mehdi Foroozandeh
|
|
4
|
+
|
|
5
|
+
Permission is hereby granted, free of charge, to any person obtaining a copy
|
|
6
|
+
of this software and associated documentation files (the "Software"), to deal
|
|
7
|
+
in the Software without restriction, including without limitation the rights
|
|
8
|
+
to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
|
|
9
|
+
copies of the Software, and to permit persons to whom the Software is
|
|
10
|
+
furnished to do so, subject to the following conditions:
|
|
11
|
+
|
|
12
|
+
The above copyright notice and this permission notice shall be included in all
|
|
13
|
+
copies or substantial portions of the Software.
|
|
14
|
+
|
|
15
|
+
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
|
|
16
|
+
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
|
|
17
|
+
FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
|
|
18
|
+
AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
|
|
19
|
+
LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
|
|
20
|
+
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
|
|
21
|
+
SOFTWARE.
|
sagaconf-1.0.1/PKG-INFO
ADDED
|
@@ -0,0 +1,231 @@
|
|
|
1
|
+
Metadata-Version: 2.4
|
|
2
|
+
Name: sagaconf
|
|
3
|
+
Version: 1.0.1
|
|
4
|
+
Summary: Calibrated confidence scores (r-values) for chromatin state annotations from SAGA methods.
|
|
5
|
+
Author: Mehdi Foroozandeh
|
|
6
|
+
License-Expression: MIT
|
|
7
|
+
Project-URL: Homepage, https://github.com/mehdiforoozandeh/SAGAconf
|
|
8
|
+
Requires-Python: >=3.9
|
|
9
|
+
Description-Content-Type: text/markdown
|
|
10
|
+
License-File: LICENSE
|
|
11
|
+
Requires-Dist: numpy<2,>=1.21
|
|
12
|
+
Requires-Dist: pandas>=1.3
|
|
13
|
+
Requires-Dist: scipy>=1.7
|
|
14
|
+
Requires-Dist: scikit-learn>=0.24
|
|
15
|
+
Requires-Dist: matplotlib>=3.4
|
|
16
|
+
Requires-Dist: seaborn>=0.11
|
|
17
|
+
Requires-Dist: pybedtools>=0.9
|
|
18
|
+
Provides-Extra: test
|
|
19
|
+
Requires-Dist: pytest>=7; extra == "test"
|
|
20
|
+
Dynamic: license-file
|
|
21
|
+
|
|
22
|
+
<picture>
|
|
23
|
+
<source media="(prefers-color-scheme: dark)" srcset="https://raw.githubusercontent.com/mehdiforoozandeh/SAGAconf/main/docs/graphical_abstract_dark.svg">
|
|
24
|
+

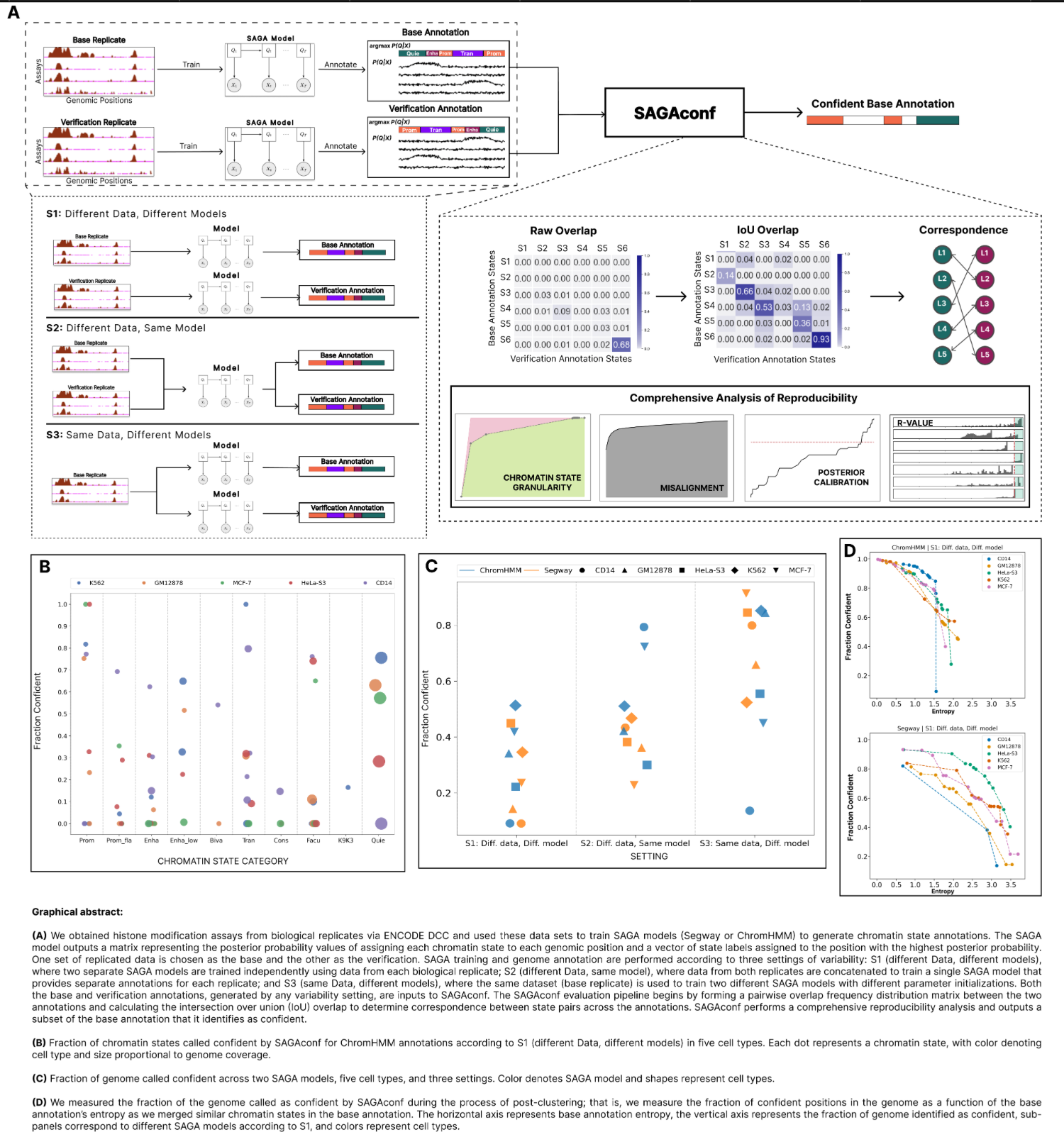

<img alt="SAGAconf compares two replicate chromatin state annotations, gives each genomic bin an r-value, and keeps the reproducible calls." src="https://raw.githubusercontent.com/mehdiforoozandeh/SAGAconf/main/docs/graphical_abstract_light.svg">
|
|
25
|
+
</picture>
|
|
26
|
+
|
|
27
|
+
# SAGAconf
|
|
28
|
+
|
|
29
|
+
[](https://pypi.org/project/sagaconf/)
|
|
30
|
+
[](LICENSE)
|
|
31
|
+
[](https://doi.org/10.1101/gr.278343.123)
|
|
32
|
+
|
|
33
|
+
SAGAconf gives a calibrated confidence score to each call in a chromatin state annotation.
|
|
34
|
+
Segmentation and genome annotation (SAGA) methods, such as ChromHMM and Segway, label every
|
|
35
|
+
genomic bin with a chromatin state. Many of these labels do not reproduce across replicates.
|
|
36
|
+
SAGAconf compares a base annotation with a verification annotation and gives each bin an
|
|
37
|
+
**r-value**: a score for how well its state call reproduces. You can then keep only the
|
|
38
|
+
reproducible calls for downstream analysis. SAGAconf works with any SAGA method, because it
|
|
39
|
+
reads only the posterior probability matrix.
|
|
40
|
+
|
|
41
|
+
- Paper: Foroozandeh Shahraki, Farahbod and Libbrecht, *Robust chromatin state annotation*,
|
|
42
|
+
[Genome Research 34(3):469–483, 2024](https://doi.org/10.1101/gr.278343.123).
|
|
43
|
+
- Blog post: [Reproducibility as a measure of confidence](https://medium.com/@mehdiforoozandehsh/reproducibility-as-a-measure-of-confidence-7454b72f984e).
|
|
44
|
+
|
|
45
|
+
## Install
|
|
46
|
+
|
|
47
|
+
```bash
|
|
48
|
+
pip install sagaconf
|
|
49
|
+
```
|
|
50
|
+
|
|
51
|
+
SAGAconf needs Python 3.9 or later. The `active-regions` mode also needs
|
|
52
|
+
[bedtools](https://bedtools.readthedocs.io/) on your `PATH`.
|
|
53
|
+
|
|
54
|
+
## Quick start
|
|
55
|
+
|
|
56
|
+
Parse the posteriors of each annotation, then compare the two parsed files:
|
|
57
|
+
|
|
58
|
+
```bash
|
|
59
|
+
sagaconf parse --saga chmm base_posteriors/ 200 base/
|
|
60
|
+
sagaconf parse --saga chmm verif_posteriors/ 200 verif/
|
|
61
|
+
sagaconf run base/parsed_posterior.bed verif/parsed_posterior.bed results/
|
|
62
|
+
```
|
|
63
|
+
|
|
64
|
+
`results/r_values.bed` holds one r-value per bin. `results/confident_segments.bed` holds the
|
|
65
|
+
reproducible subset of the base annotation (this file needs mnemonics; see
|
|
66
|
+
[Known issues](#known-issues)).
|
|
67
|
+
|
|
68
|
+
To run the full example on ChromHMM's sample data, run [`example/run.sh`](example/run.sh).
|
|
69
|
+
|
|
70
|
+
## Input
|
|
71
|
+
|
|
72
|
+
SAGAconf compares two annotations of the same genome:
|
|
73
|
+
|
|
74
|
+
- The **base** annotation is the one you want to score.
|
|
75
|
+
- The **verification** annotation comes from a replicate. It can come from different data and
|
|
76
|
+
a different model (setting S1 in the paper), the same model trained on both replicates (S2),
|
|
77
|
+
or the same data with a different random initialization (S3).
|
|
78
|
+
|
|
79
|
+
`sagaconf run` reads one **parsed posterior** file per annotation. The file has one row per
|
|
80
|
+
genomic bin and `K + 3` columns: `chr`, `start`, `end`, and one posterior probability for
|
|
81
|
+
each of the `K` states. The file can be BED (tab-separated) or CSV. `sagaconf parse` writes
|
|
82
|
+
this file from the output of ChromHMM or Segway:
|
|
83
|
+
|
|
84
|
+
- **ChromHMM:** run `LearnModel` with `-printposterior`. Give `sagaconf parse` the directory
|
|
85
|
+
of `*_posterior.txt` files (one file per cell type and chromosome).
|
|
86
|
+
- **Segway:** give `sagaconf parse` the directory of `posterior<i>.bedGraph` files (one file
|
|
87
|
+
per state).
|
|
88
|
+
|
|
89
|
+
## Commands
|
|
90
|
+
|
|
91
|
+
### `sagaconf parse`
|
|
92
|
+
|
|
93
|
+
```
|
|
94
|
+
sagaconf parse --saga {chmm,segway} [--out-format {bed,csv}] POSTERIORDIR RESOLUTION OUTDIR
|
|
95
|
+
```
|
|
96
|
+
|
|
97
|
+
| Argument | Meaning |
|
|
98
|
+
|---|---|
|
|
99
|
+
| `POSTERIORDIR` | Directory with the SAGA model's posterior files. |
|
|
100
|
+
| `RESOLUTION` | Bin size of the SAGA model, in bp. |
|
|
101
|
+
| `OUTDIR` | Directory for `parsed_posterior.bed` (or `.csv`). SAGAconf creates it if it does not exist. |
|
|
102
|
+
| `--saga` | The SAGA model that wrote the posteriors: `chmm` or `segway`. |
|
|
103
|
+
| `--out-format` | `bed` (default) or `csv`. |
|
|
104
|
+
|
|
105
|
+
### `sagaconf run`
|
|
106
|
+
|
|
107
|
+
```
|
|
108
|
+
sagaconf run BASE VERIF OUTDIR [--mode MODE] [options]
|
|
109
|
+
```
|
|
110
|
+
|
|
111
|
+
| Option | Default | Meaning |
|
|
112
|
+
|---|---|---|
|
|
113
|
+
| `--mode` | `full` | The analysis to run. See the table below. |
|
|
114
|
+
| `-bm`, `--base-mnemonics FILE` | none | State names for the base annotation. |
|
|
115
|
+
| `-vm`, `--verif-mnemonics FILE` | none | State names for the verification annotation. |
|
|
116
|
+
| `-s`, `--chr21-only` | off | Analyse chr21 only, for a quick check. |
|
|
117
|
+
| `-w`, `--window-size BP` | 1000 | Window around each bin, in bp. |
|
|
118
|
+
| `-to`, `--iou-threshold` | 0.75 | IoU overlap that makes two states correspond. |
|
|
119
|
+
| `-tr`, `--repr-threshold` | 0.8 | r-value that makes a bin reproduced (α in the paper). |
|
|
120
|
+
| `-k`, `--merge-k K` | none | Merge the base states down to `K` states. |
|
|
121
|
+
| `--ccre-file FILE` | none | cCRE BED file. The `active-regions` mode needs it. |
|
|
122
|
+
| `--meuleman-file FILE` | none | Meuleman et al. DHS index for the `active-regions` mode. If you omit it, SAGAconf skips that step. |
|
|
123
|
+
| `-v`, `--verbose` | off | Report the analysis steps that fail. |
|
|
124
|
+
|
|
125
|
+
| Mode | What it writes |
|
|
126
|
+
|---|---|
|
|
127
|
+
| `full` | All analyses: r-values, confident segments, overlap, calibration, granularity and misalignment reports. |
|
|
128
|
+
| `quick` | The essential reports only. |
|
|
129
|
+
| `rvalues` | `r_values.bed` only. |
|
|
130
|
+
| `celltype` | The per-annotation analyses (overlap, calibration, granularity, misalignment). |
|
|
131
|
+
| `seglength` | Reproducibility as a function of position in a segment. |
|
|
132
|
+
| `merge` | The reports after merging the base states down to `-k` states. |
|
|
133
|
+
| `active-regions` | r-values genome-wide and in cCREs (and in Meuleman DHSs if you give the file). |
|
|
134
|
+
|
|
135
|
+
`python -m sagaconf` runs the same command as `sagaconf`.
|
|
136
|
+
|
|
137
|
+
### Mnemonics file
|
|
138
|
+
|
|
139
|
+
A mnemonics file gives each state a biological name. It is a tab-separated file with the
|
|
140
|
+
header `old` and `new`. The `old` column holds the state number, in the column order of the
|
|
141
|
+
parsed posterior file. The numbers can start at 0 or at 1. The `new` column holds the name.
|
|
142
|
+
SAGAconf shortens each name to its first 4 characters (and to 3 characters after an
|
|
143
|
+
underscore), so `Enhancer_low` becomes `Enha_low`.
|
|
144
|
+
[`example/example_mnemonics.txt`](example/example_mnemonics.txt) is an example:
|
|
145
|
+
|
|
146
|
+
```
|
|
147
|
+
old new
|
|
148
|
+
1 Enhancer_low
|
|
149
|
+
2 Enhancer
|
|
150
|
+
3 Promoter_flanking
|
|
151
|
+
```
|
|
152
|
+
|
|
153
|
+
## Output
|
|
154
|
+
|
|
155
|
+
`sagaconf run` writes these files in `OUTDIR` in `full` mode:
|
|
156
|
+
|
|
157
|
+
| File | Content |
|
|
158
|
+
|---|---|
|
|
159
|
+
| `r_values.bed` | The r-value of each bin: `chr`, `start`, `end`, `MAP` (the most probable state), `r_value`. |
|
|
160
|
+
| `r_values_UCSC_GenomeBrowser.bed` | The r-values as a UCSC Genome Browser track. |
|
|
161
|
+
| `r_values_report.txt` | The average r-value, genome-wide and per state. |
|
|
162
|
+
| `rval_hist` | Histograms of r-values per state. |
|
|
163
|
+
| `confident_segments.bed` | The reproducible subset of the base annotation, one row per bin. |
|
|
164
|
+
| `confident_segments_dense.bed` | The same subset, with adjacent bins of one state merged into segments. |
|
|
165
|
+
| `ratio_robust.txt` | The fraction of bins that are reproduced, genome-wide and per state. |
|
|
166
|
+
| `overlap_ratio.txt` | The naive overlap per state. |
|
|
167
|
+
| `NMI.txt` | Mutual information, with and without the posteriors. |
|
|
168
|
+
| `coverages1.txt`, `coverages2.txt` | The genome coverage of each state in the base and verification annotations. |
|
|
169
|
+
| `heatmap`, `heatmap_w` | IoU overlap between the states of the two annotations, with `w = 0` and with `w > 0`. |
|
|
170
|
+
| `binned_posterior_heatmap` | IoU overlap against the binned posteriors of the base annotation. |
|
|
171
|
+
| `granularity`, `barplot`, `AUC_mAUC.txt` | The state-merging curve and the area under it (auSMC) per state. |
|
|
172
|
+
| `len_bound`, `len_bound_overall` | Overlap as a function of `w`, per state and genome-wide. |
|
|
173
|
+
| `calib/` | Posterior calibration curves per state. |
|
|
174
|
+
| `Dist_vs_Corresp/`, `Dist_vs_Corresp_3/` | Overlap and correspondence as a function of `w`. |
|
|
175
|
+
|
|
176
|
+
Each plot is written as PDF and SVG. Each `.txt` file next to a plot holds the plotted values.
|
|
177
|
+
|
|
178
|
+
## Known issues
|
|
179
|
+
|
|
180
|
+
These issues come from the version of SAGAconf that the paper used. This release keeps them,
|
|
181
|
+
so that its results match that version exactly. Fixes will come in later releases.
|
|
182
|
+
|
|
183
|
+
- In `full` mode, `-k` does not merge states.
|
|
184
|
+
- In `full` mode without mnemonics, SAGAconf does not write the genome-wide results
|
|
185
|
+
(including `confident_segments.bed` and the UCSC track). Give `-bm` and `-vm` to get them.
|
|
186
|
+
- In `merge` mode, SAGAconf can stop with a `KeyError` after it writes the merge reports.
|
|
187
|
+
|
|
188
|
+
## Legacy interface
|
|
189
|
+
|
|
190
|
+
The original scripts still work, with the same flags and the same output:
|
|
191
|
+
|
|
192
|
+
```bash
|
|
193
|
+
python SAGAconf_parser.py --saga chmm POSTERIORDIR 200 OUTDIR
|
|
194
|
+
python SAGAconf.py [-q | --r_only | --ct_only | ...] BASE VERIF OUTDIR
|
|
195
|
+
```
|
|
196
|
+
|
|
197
|
+
`sagaconf run` also accepts the original flag names (`--r_only`, `--windowsize`,
|
|
198
|
+
`--base_mnemonics`, and so on). In the original scripts, the `--active_regions` mode reads
|
|
199
|
+
`src/biointerpret/GRCh38-cCREs.bed` and `src/biointerpret/Meuleman.tsv` relative to the
|
|
200
|
+
working directory.
|
|
201
|
+
|
|
202
|
+
The code as the paper used it is on the [`legacy`](https://github.com/mehdiforoozandeh/SAGAconf/tree/legacy)
|
|
203
|
+
branch (tag `v0-legacy`). That branch also keeps the scripts that produced the paper's figures.
|
|
204
|
+
|
|
205
|
+
## Tests
|
|
206
|
+
|
|
207
|
+
[`tests/golden/`](tests/golden) checks that this version gives byte-identical output to the
|
|
208
|
+
legacy version. It runs both versions on the same input and compares every file they write,
|
|
209
|
+
and everything they print. [`tests/golden/gate.py`](tests/golden/gate.py) describes the method.
|
|
210
|
+
The check passes on synthetic data and on the paper's GM12878 ChromHMM and Segway annotations.
|
|
211
|
+
|
|
212
|
+
## Citation
|
|
213
|
+
|
|
214
|
+
```bibtex
|
|
215
|
+
@article{foroozandeh2024robust,
|
|
216
|
+
title = {Robust chromatin state annotation},
|
|
217
|
+
author = {Foroozandeh Shahraki, Mehdi and Farahbod, Marjan and Libbrecht, Maxwell W.},
|
|
218
|
+
journal = {Genome Research},
|
|
219
|
+
volume = {34},
|
|
220
|
+
number = {3},
|
|
221
|
+
pages = {469--483},
|
|
222
|
+
year = {2024},
|
|
223
|
+
doi = {10.1101/gr.278343.123}
|
|
224
|
+
}
|
|
225
|
+
```
|
|
226
|
+
|
|
227
|
+

|
|
228
|
+
|
|
229
|
+
## License
|
|
230
|
+
|
|
231
|
+
SAGAconf is available under the [MIT License](LICENSE).
|
sagaconf-1.0.1/README.md
ADDED
|
@@ -0,0 +1,210 @@
|
|
|
1
|
+
<picture>
|
|
2
|
+
<source media="(prefers-color-scheme: dark)" srcset="https://raw.githubusercontent.com/mehdiforoozandeh/SAGAconf/main/docs/graphical_abstract_dark.svg">
|
|
3
|
+
<img alt="SAGAconf compares two replicate chromatin state annotations, gives each genomic bin an r-value, and keeps the reproducible calls." src="https://raw.githubusercontent.com/mehdiforoozandeh/SAGAconf/main/docs/graphical_abstract_light.svg">
|
|
4
|
+
</picture>
|
|
5
|
+
|
|
6
|
+
# SAGAconf
|
|
7
|
+
|
|
8
|
+
[](https://pypi.org/project/sagaconf/)
|
|
9
|
+
[](LICENSE)
|
|
10
|
+
[](https://doi.org/10.1101/gr.278343.123)
|
|
11
|
+
|
|
12
|
+
SAGAconf gives a calibrated confidence score to each call in a chromatin state annotation.
|
|
13
|
+
Segmentation and genome annotation (SAGA) methods, such as ChromHMM and Segway, label every
|
|
14
|
+
genomic bin with a chromatin state. Many of these labels do not reproduce across replicates.
|
|
15
|
+
SAGAconf compares a base annotation with a verification annotation and gives each bin an
|
|
16
|
+
**r-value**: a score for how well its state call reproduces. You can then keep only the
|
|
17
|
+
reproducible calls for downstream analysis. SAGAconf works with any SAGA method, because it
|
|
18
|
+
reads only the posterior probability matrix.
|
|
19
|
+
|
|
20
|
+
- Paper: Foroozandeh Shahraki, Farahbod and Libbrecht, *Robust chromatin state annotation*,
|
|
21
|
+
[Genome Research 34(3):469–483, 2024](https://doi.org/10.1101/gr.278343.123).
|
|
22
|
+
- Blog post: [Reproducibility as a measure of confidence](https://medium.com/@mehdiforoozandehsh/reproducibility-as-a-measure-of-confidence-7454b72f984e).
|
|
23
|
+
|
|
24
|
+
## Install
|
|
25
|
+
|
|
26
|
+
```bash
|
|
27
|
+
pip install sagaconf
|
|
28
|
+
```
|
|
29
|
+
|
|
30
|
+
SAGAconf needs Python 3.9 or later. The `active-regions` mode also needs
|
|
31
|
+
[bedtools](https://bedtools.readthedocs.io/) on your `PATH`.
|
|
32
|
+
|
|
33
|
+
## Quick start
|
|
34
|
+
|
|
35
|
+
Parse the posteriors of each annotation, then compare the two parsed files:
|
|
36
|
+
|
|
37
|
+
```bash
|
|
38
|
+
sagaconf parse --saga chmm base_posteriors/ 200 base/
|
|
39
|
+
sagaconf parse --saga chmm verif_posteriors/ 200 verif/
|
|
40
|
+
sagaconf run base/parsed_posterior.bed verif/parsed_posterior.bed results/
|
|
41
|
+
```
|
|
42
|
+
|
|
43
|
+
`results/r_values.bed` holds one r-value per bin. `results/confident_segments.bed` holds the
|
|
44
|
+
reproducible subset of the base annotation (this file needs mnemonics; see
|
|
45
|
+
[Known issues](#known-issues)).
|
|
46
|
+
|
|
47
|
+
To run the full example on ChromHMM's sample data, run [`example/run.sh`](example/run.sh).
|
|
48
|
+
|
|
49
|
+
## Input
|
|
50
|
+
|
|
51
|
+
SAGAconf compares two annotations of the same genome:
|
|
52
|
+
|
|
53
|
+
- The **base** annotation is the one you want to score.
|
|
54
|
+
- The **verification** annotation comes from a replicate. It can come from different data and
|
|
55
|
+
a different model (setting S1 in the paper), the same model trained on both replicates (S2),
|
|
56
|
+
or the same data with a different random initialization (S3).
|
|
57
|
+
|
|
58
|
+
`sagaconf run` reads one **parsed posterior** file per annotation. The file has one row per
|
|
59
|
+
genomic bin and `K + 3` columns: `chr`, `start`, `end`, and one posterior probability for
|
|
60
|
+
each of the `K` states. The file can be BED (tab-separated) or CSV. `sagaconf parse` writes
|
|
61
|
+
this file from the output of ChromHMM or Segway:
|
|
62
|
+
|
|
63
|
+
- **ChromHMM:** run `LearnModel` with `-printposterior`. Give `sagaconf parse` the directory
|
|
64
|
+
of `*_posterior.txt` files (one file per cell type and chromosome).
|
|
65
|
+
- **Segway:** give `sagaconf parse` the directory of `posterior<i>.bedGraph` files (one file
|
|
66
|
+
per state).
|
|
67
|
+
|
|
68
|
+
## Commands
|
|
69
|
+
|
|
70
|
+
### `sagaconf parse`
|
|
71
|
+
|
|
72
|
+
```
|
|
73
|
+
sagaconf parse --saga {chmm,segway} [--out-format {bed,csv}] POSTERIORDIR RESOLUTION OUTDIR
|
|
74
|
+
```
|
|
75
|
+
|
|
76
|
+
| Argument | Meaning |
|
|
77
|
+
|---|---|
|
|
78
|
+
| `POSTERIORDIR` | Directory with the SAGA model's posterior files. |
|
|
79
|
+
| `RESOLUTION` | Bin size of the SAGA model, in bp. |
|
|
80
|
+
| `OUTDIR` | Directory for `parsed_posterior.bed` (or `.csv`). SAGAconf creates it if it does not exist. |
|
|
81
|
+
| `--saga` | The SAGA model that wrote the posteriors: `chmm` or `segway`. |
|
|
82
|
+
| `--out-format` | `bed` (default) or `csv`. |
|
|
83
|
+
|
|
84
|
+
### `sagaconf run`
|
|
85
|
+
|
|
86
|
+
```
|
|
87
|
+
sagaconf run BASE VERIF OUTDIR [--mode MODE] [options]
|
|
88
|
+
```
|
|
89
|
+
|
|
90
|
+
| Option | Default | Meaning |
|
|
91
|
+
|---|---|---|
|
|
92
|
+
| `--mode` | `full` | The analysis to run. See the table below. |
|
|
93
|
+
| `-bm`, `--base-mnemonics FILE` | none | State names for the base annotation. |
|
|
94
|
+
| `-vm`, `--verif-mnemonics FILE` | none | State names for the verification annotation. |
|
|
95
|
+
| `-s`, `--chr21-only` | off | Analyse chr21 only, for a quick check. |
|
|
96
|
+
| `-w`, `--window-size BP` | 1000 | Window around each bin, in bp. |
|
|
97
|
+
| `-to`, `--iou-threshold` | 0.75 | IoU overlap that makes two states correspond. |
|
|
98
|
+
| `-tr`, `--repr-threshold` | 0.8 | r-value that makes a bin reproduced (α in the paper). |
|
|
99
|
+
| `-k`, `--merge-k K` | none | Merge the base states down to `K` states. |
|
|
100
|
+
| `--ccre-file FILE` | none | cCRE BED file. The `active-regions` mode needs it. |
|
|
101
|
+
| `--meuleman-file FILE` | none | Meuleman et al. DHS index for the `active-regions` mode. If you omit it, SAGAconf skips that step. |
|
|
102
|
+
| `-v`, `--verbose` | off | Report the analysis steps that fail. |
|
|
103
|
+
|
|
104
|
+
| Mode | What it writes |
|
|
105
|
+
|---|---|
|
|
106
|
+
| `full` | All analyses: r-values, confident segments, overlap, calibration, granularity and misalignment reports. |
|
|
107
|
+
| `quick` | The essential reports only. |
|
|
108
|
+
| `rvalues` | `r_values.bed` only. |
|
|
109
|
+
| `celltype` | The per-annotation analyses (overlap, calibration, granularity, misalignment). |
|
|
110
|
+
| `seglength` | Reproducibility as a function of position in a segment. |
|
|
111
|
+
| `merge` | The reports after merging the base states down to `-k` states. |
|
|
112
|
+
| `active-regions` | r-values genome-wide and in cCREs (and in Meuleman DHSs if you give the file). |
|
|
113
|
+
|
|
114
|
+
`python -m sagaconf` runs the same command as `sagaconf`.
|
|
115
|
+
|
|
116
|
+
### Mnemonics file
|
|
117
|
+
|
|
118
|
+
A mnemonics file gives each state a biological name. It is a tab-separated file with the
|
|
119
|
+
header `old` and `new`. The `old` column holds the state number, in the column order of the
|
|
120
|
+
parsed posterior file. The numbers can start at 0 or at 1. The `new` column holds the name.
|
|
121
|
+
SAGAconf shortens each name to its first 4 characters (and to 3 characters after an
|
|
122
|
+
underscore), so `Enhancer_low` becomes `Enha_low`.
|
|
123
|
+
[`example/example_mnemonics.txt`](example/example_mnemonics.txt) is an example:
|
|
124
|
+
|
|
125
|
+
```
|
|
126
|
+
old new
|
|
127
|
+
1 Enhancer_low
|
|
128
|
+
2 Enhancer
|
|
129
|
+
3 Promoter_flanking
|
|
130
|
+
```
|
|
131
|
+
|
|
132
|
+
## Output
|
|
133
|
+
|
|
134
|
+
`sagaconf run` writes these files in `OUTDIR` in `full` mode:
|
|
135
|
+
|
|
136
|
+
| File | Content |
|
|
137
|
+
|---|---|
|
|
138
|
+
| `r_values.bed` | The r-value of each bin: `chr`, `start`, `end`, `MAP` (the most probable state), `r_value`. |
|
|
139
|
+
| `r_values_UCSC_GenomeBrowser.bed` | The r-values as a UCSC Genome Browser track. |
|
|
140
|
+
| `r_values_report.txt` | The average r-value, genome-wide and per state. |
|
|
141
|
+
| `rval_hist` | Histograms of r-values per state. |
|
|
142
|
+
| `confident_segments.bed` | The reproducible subset of the base annotation, one row per bin. |
|
|
143
|
+
| `confident_segments_dense.bed` | The same subset, with adjacent bins of one state merged into segments. |
|
|
144
|
+
| `ratio_robust.txt` | The fraction of bins that are reproduced, genome-wide and per state. |
|
|
145
|
+
| `overlap_ratio.txt` | The naive overlap per state. |
|
|
146
|
+
| `NMI.txt` | Mutual information, with and without the posteriors. |
|
|
147
|
+
| `coverages1.txt`, `coverages2.txt` | The genome coverage of each state in the base and verification annotations. |
|
|
148
|
+
| `heatmap`, `heatmap_w` | IoU overlap between the states of the two annotations, with `w = 0` and with `w > 0`. |
|
|
149
|
+
| `binned_posterior_heatmap` | IoU overlap against the binned posteriors of the base annotation. |
|
|
150
|
+
| `granularity`, `barplot`, `AUC_mAUC.txt` | The state-merging curve and the area under it (auSMC) per state. |
|
|
151
|
+
| `len_bound`, `len_bound_overall` | Overlap as a function of `w`, per state and genome-wide. |
|
|
152
|
+
| `calib/` | Posterior calibration curves per state. |
|
|
153
|
+
| `Dist_vs_Corresp/`, `Dist_vs_Corresp_3/` | Overlap and correspondence as a function of `w`. |
|
|
154
|
+
|
|
155
|
+
Each plot is written as PDF and SVG. Each `.txt` file next to a plot holds the plotted values.
|
|
156
|
+
|
|
157
|
+
## Known issues
|
|
158
|
+
|
|
159
|
+
These issues come from the version of SAGAconf that the paper used. This release keeps them,
|
|
160
|
+
so that its results match that version exactly. Fixes will come in later releases.
|
|
161
|
+
|
|
162
|
+
- In `full` mode, `-k` does not merge states.
|
|
163
|
+
- In `full` mode without mnemonics, SAGAconf does not write the genome-wide results
|
|
164
|
+
(including `confident_segments.bed` and the UCSC track). Give `-bm` and `-vm` to get them.
|
|
165
|
+
- In `merge` mode, SAGAconf can stop with a `KeyError` after it writes the merge reports.
|
|
166
|
+
|
|
167
|
+
## Legacy interface
|
|
168
|
+
|
|
169
|
+
The original scripts still work, with the same flags and the same output:
|
|
170
|
+
|
|
171
|
+
```bash
|
|
172
|
+
python SAGAconf_parser.py --saga chmm POSTERIORDIR 200 OUTDIR
|
|
173
|
+
python SAGAconf.py [-q | --r_only | --ct_only | ...] BASE VERIF OUTDIR
|
|
174
|
+
```
|
|
175
|
+
|
|
176
|
+
`sagaconf run` also accepts the original flag names (`--r_only`, `--windowsize`,
|
|
177
|
+
`--base_mnemonics`, and so on). In the original scripts, the `--active_regions` mode reads
|
|
178
|
+
`src/biointerpret/GRCh38-cCREs.bed` and `src/biointerpret/Meuleman.tsv` relative to the
|
|
179
|
+
working directory.
|
|
180
|
+
|
|
181
|
+
The code as the paper used it is on the [`legacy`](https://github.com/mehdiforoozandeh/SAGAconf/tree/legacy)
|
|
182
|
+
branch (tag `v0-legacy`). That branch also keeps the scripts that produced the paper's figures.
|
|
183
|
+
|
|
184
|
+
## Tests
|
|
185
|
+
|
|
186
|
+
[`tests/golden/`](tests/golden) checks that this version gives byte-identical output to the
|
|
187
|
+
legacy version. It runs both versions on the same input and compares every file they write,
|
|
188
|
+
and everything they print. [`tests/golden/gate.py`](tests/golden/gate.py) describes the method.
|
|
189
|
+
The check passes on synthetic data and on the paper's GM12878 ChromHMM and Segway annotations.
|
|
190
|
+
|
|
191
|
+
## Citation
|
|
192
|
+
|
|
193
|
+
```bibtex
|
|
194
|
+
@article{foroozandeh2024robust,
|
|
195
|
+
title = {Robust chromatin state annotation},
|
|
196
|
+
author = {Foroozandeh Shahraki, Mehdi and Farahbod, Marjan and Libbrecht, Maxwell W.},
|
|
197
|
+
journal = {Genome Research},
|
|
198
|
+
volume = {34},
|
|
199
|
+
number = {3},
|
|
200
|
+
pages = {469--483},
|
|
201
|
+
year = {2024},
|
|
202
|
+
doi = {10.1101/gr.278343.123}
|
|
203
|
+
}
|
|
204
|
+
```
|
|
205
|
+
|
|
206
|
+

|
|
207
|
+
|
|
208
|
+
## License
|
|
209
|
+
|
|
210
|
+
SAGAconf is available under the [MIT License](LICENSE).
|
|
@@ -0,0 +1,34 @@
|
|
|
1
|
+
[build-system]
|
|
2
|
+
requires = ["setuptools>=77"]
|
|
3
|
+
build-backend = "setuptools.build_meta"
|
|
4
|
+
|
|
5
|
+
[project]
|
|
6
|
+
name = "sagaconf"
|
|
7
|
+
version = "1.0.1"
|
|
8
|
+
description = "Calibrated confidence scores (r-values) for chromatin state annotations from SAGA methods."
|
|
9
|
+
readme = "README.md"
|
|
10
|
+
license = "MIT"
|
|
11
|
+
license-files = ["LICENSE"]
|
|
12
|
+
authors = [{ name = "Mehdi Foroozandeh" }]
|
|
13
|
+
requires-python = ">=3.9"
|
|
14
|
+
dependencies = [
|
|
15
|
+
"numpy>=1.21,<2",
|
|
16
|
+
"pandas>=1.3",
|
|
17
|
+
"scipy>=1.7",
|
|
18
|
+
"scikit-learn>=0.24",
|
|
19
|
+
"matplotlib>=3.4",
|
|
20
|
+
"seaborn>=0.11",
|
|
21
|
+
"pybedtools>=0.9",
|
|
22
|
+
]
|
|
23
|
+
|
|
24
|
+
[project.optional-dependencies]
|
|
25
|
+
test = ["pytest>=7"]
|
|
26
|
+
|
|
27
|
+
[project.scripts]
|
|
28
|
+
sagaconf = "sagaconf.cli:main"
|
|
29
|
+
|
|
30
|
+
[project.urls]
|
|
31
|
+
Homepage = "https://github.com/mehdiforoozandeh/SAGAconf"
|
|
32
|
+
|
|
33
|
+
[tool.setuptools.packages.find]
|
|
34
|
+
include = ["sagaconf"]
|
|
@@ -0,0 +1 @@
|
|
|
1
|
+
|
|
@@ -0,0 +1,55 @@
|
|
|
1
|
+
import os
|
|
2
|
+
import pandas as pd
|
|
3
|
+
|
|
4
|
+
|
|
5
|
+
def chrhmm_initialize_bin(chrom, numbins, res):
|
|
6
|
+
empty_bins = []
|
|
7
|
+
next_start = 0
|
|
8
|
+
for _ in range(numbins):
|
|
9
|
+
empty_bins.append(
|
|
10
|
+
[chrom, next_start, int(next_start+res)])
|
|
11
|
+
next_start = int(next_start+res)
|
|
12
|
+
empty_bins = pd.DataFrame(empty_bins, columns=['chr', 'start', 'end'])
|
|
13
|
+
empty_bins['start'] = empty_bins['start'].astype("int32")
|
|
14
|
+
empty_bins['end'] = empty_bins['end'].astype("int32")
|
|
15
|
+
return empty_bins
|
|
16
|
+
|
|
17
|
+
|
|
18
|
+
def read_posterior_file(filepath):
|
|
19
|
+
with open(filepath,'r') as posteriorfile:
|
|
20
|
+
lines = posteriorfile.readlines()
|
|
21
|
+
vals = []
|
|
22
|
+
for il in range(len(lines)):
|
|
23
|
+
ilth_vals = lines[il].split('\t')
|
|
24
|
+
ilth_vals[-1] = ilth_vals[-1].replace("\n","")
|
|
25
|
+
vals.append(ilth_vals)
|
|
26
|
+
vals = pd.DataFrame(vals[2:], columns=["posterior{}".format(i.replace("E","")) for i in vals[1]])
|
|
27
|
+
vals = vals.astype("float32")
|
|
28
|
+
return vals
|
|
29
|
+
|
|
30
|
+
|
|
31
|
+
def ChrHMM_read_posteriordir(posteriordir, resolution=200):
|
|
32
|
+
'''
|
|
33
|
+
for each file in posteriordir
|
|
34
|
+
Initialize emptybins based on chromsizes
|
|
35
|
+
fill in the posterior values for each slot
|
|
36
|
+
return DF
|
|
37
|
+
'''
|
|
38
|
+
ls = os.listdir(posteriordir)
|
|
39
|
+
to_parse = []
|
|
40
|
+
for f in ls:
|
|
41
|
+
# if rep in f:
|
|
42
|
+
to_parse.append(f)
|
|
43
|
+
|
|
44
|
+
parsed_posteriors = {}
|
|
45
|
+
for f in to_parse:
|
|
46
|
+
fileinfo = f.split("_")
|
|
47
|
+
if "chr" in fileinfo[-2]:
|
|
48
|
+
posteriors = read_posterior_file(posteriordir + '/' + f)
|
|
49
|
+
bins = chrhmm_initialize_bin(fileinfo[-2], len(posteriors), resolution)
|
|
50
|
+
posteriors = pd.concat([bins, posteriors], axis=1)
|
|
51
|
+
parsed_posteriors[fileinfo[-2]] = posteriors
|
|
52
|
+
|
|
53
|
+
parsed_posteriors = pd.concat([parsed_posteriors[c] for c in sorted(list(parsed_posteriors.keys()))], axis=0)
|
|
54
|
+
parsed_posteriors = parsed_posteriors.reset_index(drop=True)
|
|
55
|
+
return parsed_posteriors
|
