# s3view
|
|
45
|
+
|
|
46
|
+
[](https://github.com/lgbouma/s3view/actions/workflows/ci.yml)
|
|
47
|
+
[](https://www.python.org/)
|
|
48
|
+
[](LICENSE)
|
|
49
|
+
|
|
50
|
+

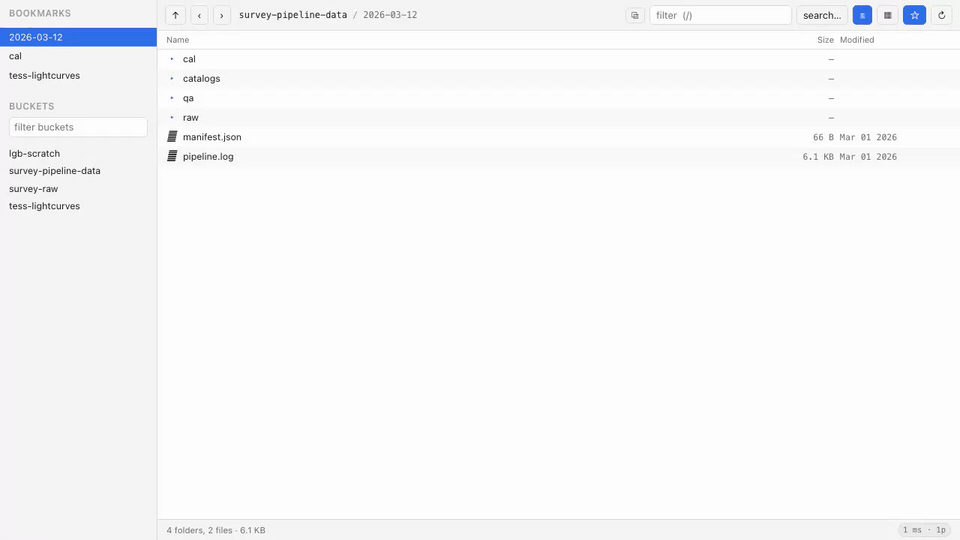

A fast, lightweight S3 browser for astronomy. It behaves like a file
|
|
51
|
+
manager — click through prefixes, preview things, hit space bar — but it
|
|
52
|
+
**streams instead of downloading**.
|
|
53
|
+
|
|
54
|
+
Compatible with: FITS, ASDF, movies, standard image formats, PDFs, standard
|
|
55
|
+
text formats.
|
|
56
|
+
|
|
57
|
+
Run from command line:
|
|
58
|
+
```
|
|
59
|
+
s3view # open your default location
|
|
60
|
+
s3view s3://bucket/prefix/ # open somewhere specific
|
|
61
|
+
s3view --set-start s3://bucket/prefix/ # remember that as the default
|
|
62
|
+
```
|
|
63
|
+
|
|
64
|
+
It starts a local server, opens your browser and prints a URL. `Ctrl-C` quits.
|
|
65
|
+
On first run, with nothing configured, it lists your buckets and lets you pick.
|
|
66
|
+
|
|
67
|
+

|
|
68
|
+
|
|
69
|
+
## Installation
|
|
70
|
+
|
|
71
|
+
```bash
|
|
72
|
+
uv tool install 's3view[all]'
|
|
73
|
+
```
|
|
74
|
+
|
|
75
|
+
One command, no clone, and nothing added to the environments you work in.
|
|
76
|
+
`[all]` brings the preview stack with it — astropy, numpy, Pillow, matplotlib,
|
|
77
|
+
PyYAML — so every feature is on from the first run. Python 3.10+; no boto3, no
|
|
78
|
+
web framework, no build step, no `npm install`.
|
|
79
|
+
|
|
80
|
+
To try it without installing anything at all:
|
|
81
|
+
|
|
82
|
+
```bash
|
|
83
|
+
uvx 's3view[all]' s3://bucket/prefix/
|
|
84
|
+
```
|
|
85
|
+
|
|
86
|
+
Or use whichever packaging tool you already have:
|
|
87
|
+
|
|
88
|
+
```bash
|
|
89
|
+
pipx install 's3view[all]'
|
|
90
|
+
pip install 's3view[all]'
|
|
91
|
+
```
|
|
92
|
+
|
|
93
|
+
Leave the `[all]` off for a minimal install. `botocore` is the only hard
|
|
94
|
+
dependency; everything the extras would have added degrades gracefully, and
|
|
95
|
+
s3view tells you at launch what is live (`thumbnails:on fits:on`). The one
|
|
96
|
+
combination to avoid is an isolated install *without* the extras: a `pipx` or
|
|
97
|
+
`uv tool` environment cannot see the astropy and Pillow in your normal
|
|
98
|
+
environment, so FITS, ASDF and thumbnails quietly switch off.
|
|
99
|
+
|
|
100
|
+
### Running from a checkout
|
|
101
|
+
|
|
102
|
+
For development, or if you would rather s3view used the scientific stack you
|
|
103
|
+
have already built than carry its own copy of it:
|
|
104
|
+
|
|
105
|
+
```bash
|
|
106
|
+
git clone git@github.com:lgbouma/s3view.git /my/preferred/dir/s3view
|
|
107
|
+
echo 'export PATH="/my/preferred/dir/s3view/bin:$PATH"' >> ~/.bashrc # or ~/.zshrc
|
|
108
|
+
exec $SHELL
|
|
109
|
+
```
|
|
110
|
+
|
|
111
|
+
`bin/s3view` runs the checkout under whichever `python3` is first on your PATH.
|
|
112
|
+
That is the point — it inherits your stack — but it also means that environment
|
|
113
|
+
needs `botocore`, and a per-project virtualenv frequently does not even when
|
|
114
|
+
your usual environment does. If the wrong interpreter wins, name the right one:
|
|
115
|
+
|
|
116
|
+
```bash
|
|
117
|
+
export S3VIEW_PYTHON="$HOME/envs/astro/bin/python"
|
|
118
|
+
```
|
|
119
|
+
|
|
120
|
+
`pip install -e /my/preferred/dir/s3view` is the same idea with a console
|
|
121
|
+
script instead of a PATH entry, and edits still take effect immediately.
|
|
122
|
+
|
|
123
|
+
### Optional dependencies
|
|
124
|
+
|
|
125
|
+
Everything below degrades gracefully, and the launch banner says which of them
|
|
126
|
+
are live.
|
|
127
|
+
|
|
128
|
+
| package | enables |
|
|
129
|
+
|---|---|
|
|
130
|
+
| `pillow` | image thumbnails, and previews of formats browsers cannot decode |
|
|
131
|
+
| `numpy` | any array preview at all |
|
|
132
|
+
| `astropy` | FITS previews (zscale in particular) |
|
|
133
|
+
| `pyyaml` | ASDF previews |
|
|
134
|
+
| `matplotlib` | colormaps beyond grayscale |
|
|
135
|
+
|
|
136
|
+
### Credentials and endpoints
|
|
137
|
+
|
|
138
|
+
Standard botocore resolution: environment variables, `~/.aws/credentials`,
|
|
139
|
+
`AWS_PROFILE`, SSO, instance roles. Override per run with `--profile` and
|
|
140
|
+
`--region`. Non-AWS S3-compatible stores work via `--endpoint-url` (MinIO,
|
|
141
|
+
Ceph, Cloudflare R2, Wasabi).
|
|
142
|
+
|
|
143
|
+
**Buckets you can read but do not own.** S3's `ListBuckets` returns only the
|
|
144
|
+
buckets owned by the calling account. A bucket shared with you cross-account
|
|
145
|
+
through a bucket policy is fully readable yet never appears in that list — a
|
|
146
|
+
common arrangement for shared project data. s3view therefore adds any bucket it
|
|
147
|
+
knows you can reach (bookmarked, or the one you are in) to the sidebar and marks
|
|
148
|
+
it with a `·`. To reach one for the first time, either pass it on the command
|
|
149
|
+
line or press `⌘L` and type the `s3://` path, then bookmark it with ☆.
|
|
150
|
+
|
|
151
|
+
## What it previews
|
|
152
|
+
|
|
153
|
+
| type | how |
|
|
154
|
+
|---|---|
|
|
155
|
+
| **FITS** (`.fits`, `.fit`, `.fts`, `.fz`) | strided ranged reads; HDU picker, stretch, colormap, resolution, full header text |
|
|
156
|
+
| **ASDF** (`.asdf`) | same, driven by the YAML tree and block index; pick any named array (`roman.data`, `roman.err`, `roman.dq`, …) and read the tree |
|
|
157
|
+
| mp4 / mov / webm / m4v | streamed from S3 by range request, with a running "~X MB transferred" readout |
|
|
158
|
+
| png / jpg / gif / webp / tif | presigned direct load; server-side thumbnail for formats the browser cannot decode |
|
|
159
|
+
| txt / json / yaml / cfg / param / log / py / csv | first 256 KB via one ranged read |
|
|
160
|
+
| pdf | presigned, in an iframe |
|
|
161
|
+
| anything else | metadata plus a download link |
|
|
162
|
+
|
|
163
|
+
Array previews share one interface: choose the HDU or array, a stretch
|
|
164
|
+
(`zscale`, `asinh`, `log`, `99.5%`, `minmax`), a colormap, and a resolution from
|
|
165
|
+
256 to 1024 px. The footer always reports what it actually read — e.g.
|
|
166
|
+
`2.1 s · read ~8.4 MB of 191 MB (4.2%)` — so the cost is never hidden from you.
|
|
167
|
+
|
|
168
|
+
Containers the browser cannot decode (mkv, avi) offer **Open in player**, which
|
|
169
|
+
hands the presigned URL to IINA or VLC — still streaming, never downloading.
|
|
170
|
+
|
|
171
|
+
## Configuration
|
|
172
|
+
|
|
173
|
+
`~/.config/s3view/config.json`, written on first run. Set `start` to open
|
|
174
|
+
somewhere by default:
|
|
175
|
+
|
|
176
|
+
```json
|
|
177
|
+
{
|
|
178
|
+
"start": "s3://your-bucket/your/prefix/",
|
|
179
|
+
"bookmarks": [
|
|
180
|
+
{"name": "your-prefix", "uri": "s3://your-bucket/your/prefix/"}
|
|
181
|
+
],
|
|
182
|
+
"profile": null,
|
|
183
|
+
"region": null,
|
|
184
|
+
"endpoint_url": null,
|
|
185
|
+
"page_size": 1000,
|
|
186
|
+
"presign_expires": 3600,
|
|
187
|
+
"external_player": "IINA"
|
|
188
|
+
}
|
|
189
|
+
```
|
|
190
|
+
|
|
191
|
+
`start` accepts any `s3://bucket/prefix/`; leave it `null` for the bucket picker.
|
|
192
|
+
`s3view --set-start s3://bucket/prefix/` writes it for you, and ☆ manages
|
|
193
|
+
bookmarks. No bucket names are baked into the source.
|
|
194
|
+
|
|
195
|
+
## Security
|
|
196
|
+
|
|
197
|
+
The server binds `127.0.0.1` only, and every API call requires a token generated
|
|
198
|
+
fresh at startup and carried in the URL it opens. Without this, any web page you
|
|
199
|
+
happened to have open could quietly read your buckets through localhost.
|
|
200
|
+
Requests arriving with a foreign `Origin` header are rejected.
|
|
201
|
+
|
|
202
|
+
Presigned URLs default to one-hour expiry and are minted only for objects you
|
|
203
|
+
actually open. **Copy URL** puts one on your clipboard deliberately — treat it
|
|
204
|
+
as a password for that object until it expires.
|
|
205
|
+
|
|
206
|
+
## Development
|
|
207
|
+
|
|
208
|
+
```bash
|
|
209
|
+
pip install -e ".[test]"
|
|
210
|
+
pytest
|
|
211
|
+
```
|
|
212
|
+
|
|
213
|
+
The suite needs **no AWS credentials and no network**. It builds synthetic FITS
|
|
214
|
+
and ASDF files in memory and serves them through a fake S3 that records every
|
|
215
|
+
ranged read, so the tests can assert on *how much* was fetched — the property
|
|
216
|
+
the whole program exists to protect. Both the contiguous and strided read paths
|
|
217
|
+
are exercised and checked against each other for identical pixels.
|
|
218
|
+
|
|
219
|
+
CI runs on Python 3.10–3.13 on Linux plus macOS, and a separate job installs
|
|
220
|
+
*only* botocore to prove the optional dependencies really do degrade gracefully
|
|
221
|
+
rather than crashing.
|
|
222
|
+
|
|
223
|
+
### Releasing
|
|
224
|
+
|
|
225
|
+
Version lives in one place, `s3view/__init__.py`; `pyproject.toml` reads it
|
|
226
|
+
from there. To cut a release, bump it, commit, then:
|
|
227
|
+
|
|
228
|
+
```bash
|
|
229
|
+
git tag v0.1.1 && git push origin v0.1.1
|
|
230
|
+
```
|
|
231
|
+
|
|
232
|
+
The `release` workflow builds the sdist and wheel, refuses the tag if it
|
|
233
|
+
disagrees with `s3view.__version__`, installs the wheel into a clean
|
|
234
|
+
environment and starts the CLI from it, then uploads to PyPI through [trusted
|
|
235
|
+
publishing](https://docs.pypi.org/trusted-publishers/) — there is no API token
|
|
236
|
+
anywhere in the repository or its secrets. Running the workflow by hand
|
|
237
|
+
(`workflow_dispatch`) does everything except the upload, which is the way to
|
|
238
|
+
rehearse a release: PyPI never allows a version number to be reused, even after
|
|
239
|
+
the file is deleted.
|
|
240
|
+
|
|
241
|
+
To re-record the README animation (needs `playwright` and `ffmpeg`, neither of
|
|
242
|
+
them a runtime dependency):
|
|
243
|
+
|
|
244
|
+
```bash
|
|
245
|
+
pip install playwright && playwright install chromium
|
|
246
|
+
python tools/record_demo.py # -> docs/demo.gif
|
|
247
|
+
```
|
|
248
|
+
|
|
249
|
+
## Why it is fast
|
|
250
|
+
|
|
251
|
+
**Video and audio never pass through this program.** The page is handed a
|
|
252
|
+
short-lived presigned S3 URL and the browser's own media stack range-requests it
|
|
253
|
+
directly, so seeking is cheap no matter how large the file. Measured from inside
|
|
254
|
+
the browser against a 731 MB mp4, on a ~2.4 MB/s link:
|
|
255
|
+
|
|
256
|
+
| request | result |
|
|
257
|
+
|---|---|
|
|
258
|
+
| first 64 KB | `206`, 717 ms |
|
|
259
|
+
| 64 KB from the **middle** | `206`, 321 ms |
|
|
260
|
+
| 64 KB from the **end** | `206`, 251 ms |
|
|
261
|
+
|
|
262
|
+
**Array images are read by byte range, not downloaded.** Both FITS and ASDF are
|
|
263
|
+
self-describing: a small ranged read of the metadata is enough to compute the
|
|
264
|
+
exact byte offset of every row of every array. s3view then fetches only the rows
|
|
265
|
+
the preview needs, in parallel, and bins the columns it already has in memory.
|
|
266
|
+
For a 200 MB, 4088×4088 float32 detector frame:
|
|
267
|
+
|
|
268
|
+
| preview | bytes read | time |
|
|
269
|
+
|---|---|---|
|
|
270
|
+
| 256 px | 4.2 MB (2.2%) | ~1.3 s |
|
|
271
|
+
| 512 px | 8.4 MB (4.2%) | ~2.1 s |
|
|
272
|
+
| 1024 px | 16.7 MB (8.7%) | ~3.8 s |
|
|
273
|
+
| downloading it instead | 200 MB | ~90 s |
|
|
274
|
+
|
|
275
|
+
Ranged reads bypass botocore's request machinery: the object is presigned once
|
|
276
|
+
and every range is pulled over a pooled HTTPS connection, because signing 512
|
|
277
|
+
separate requests costs more CPU than the transfer costs bandwidth.
|
|
278
|
+
|
|
279
|
+
**Listings are paginated and virtualized.** A prefix of 1000 objects renders
|
|
280
|
+
about 60 DOM nodes; the next page is prefetched in the background while you read
|
|
281
|
+
the current one. A prefix holding 187 GB across 1000 files opens as fast as an
|
|
282
|
+
empty one.
|
|
283
|
+
|
|
284
|
+
**Thumbnails are lazy and rate-limited.** Only tiles actually on screen are
|
|
285
|
+
requested, three at a time, cached on disk under `~/.cache/s3view`. Array
|
|
286
|
+
thumbnails in gallery view cost megabytes each, so they sit behind a toggle.
|
|
287
|
+
|
|
288
|
+
## Known limitations
|
|
289
|
+
|
|
290
|
+
- Array previews sample rows rather than averaging them vertically, so a
|
|
291
|
+
decimated view of a crowded field aliases. Columns *are* averaged. Raise the
|
|
292
|
+
resolution to sample more rows.
|
|
293
|
+
- ASDF blocks compressed with `lz4` or `blosc` cannot be read by range and are
|
|
294
|
+
not supported; uncompressed, `zlib` and `bzip2` blocks are.
|
|
295
|
+
- `GetBucketLocation` is frequently denied on cross-account buckets, so the
|
|
296
|
+
region is taken from the `x-amz-bucket-region` header on HeadBucket instead.
|
|
297
|
+
If both are denied, s3view falls back to your configured default region.
|
|
298
|
+
- Chrome will not load video in a hidden or background tab; if a movie sits on a
|
|
299
|
+
spinner, bring the window to the front.
|
|
300
|
+
- Read-only. There is no upload, rename, or delete.
|
s3view-0.1.0/README.md
ADDED
|
@@ -0,0 +1,257 @@
|
|
|
1
|
+
# s3view
|
|
2
|
+
|
|
3
|
+
[](https://github.com/lgbouma/s3view/actions/workflows/ci.yml)
|
|
4
|
+
[](https://www.python.org/)
|
|
5
|
+
[](LICENSE)
|
|
6
|
+
|
|
7
|
+
A fast, lightweight S3 browser for astronomy. It behaves like a file
|
|
8
|
+
manager — click through prefixes, preview things, hit space bar — but it
|
|
9
|
+
**streams instead of downloading**.
|
|
10
|
+
|
|
11
|
+
Compatible with: FITS, ASDF, movies, standard image formats, PDFs, standard
|
|
12
|
+
text formats.
|
|
13
|
+
|
|
14
|
+
Run from command line:
|
|
15
|
+
```
|
|
16
|
+
s3view # open your default location
|
|
17
|
+
s3view s3://bucket/prefix/ # open somewhere specific
|
|
18
|
+
s3view --set-start s3://bucket/prefix/ # remember that as the default
|
|
19
|
+
```
|
|
20
|
+
|
|
21
|
+
It starts a local server, opens your browser and prints a URL. `Ctrl-C` quits.
|
|
22
|
+
On first run, with nothing configured, it lists your buckets and lets you pick.
|
|
23
|
+
|
|
24
|
+

|
|
25
|
+
|
|
26
|
+
## Installation
|
|
27
|
+
|
|
28
|
+
```bash
|
|
29
|
+
uv tool install 's3view[all]'
|
|
30
|
+
```
|
|
31
|
+
|
|
32
|
+
One command, no clone, and nothing added to the environments you work in.
|
|
33
|
+
`[all]` brings the preview stack with it — astropy, numpy, Pillow, matplotlib,
|
|
34
|
+
PyYAML — so every feature is on from the first run. Python 3.10+; no boto3, no
|
|
35
|
+
web framework, no build step, no `npm install`.
|
|
36
|
+
|
|
37
|
+
To try it without installing anything at all:
|
|
38
|
+
|
|
39
|
+
```bash
|
|
40
|
+
uvx 's3view[all]' s3://bucket/prefix/
|
|
41
|
+
```
|
|
42
|
+
|
|
43
|
+
Or use whichever packaging tool you already have:
|
|
44
|
+
|
|
45
|
+
```bash
|
|
46
|
+
pipx install 's3view[all]'
|
|
47
|
+
pip install 's3view[all]'
|
|
48
|
+
```
|
|
49
|
+
|
|
50
|
+
Leave the `[all]` off for a minimal install. `botocore` is the only hard
|
|
51
|
+
dependency; everything the extras would have added degrades gracefully, and
|
|
52
|
+
s3view tells you at launch what is live (`thumbnails:on fits:on`). The one
|
|
53
|
+
combination to avoid is an isolated install *without* the extras: a `pipx` or
|
|
54
|
+
`uv tool` environment cannot see the astropy and Pillow in your normal
|
|
55
|
+
environment, so FITS, ASDF and thumbnails quietly switch off.
|
|
56
|
+
|
|
57
|
+
### Running from a checkout
|
|
58
|
+
|
|
59
|
+
For development, or if you would rather s3view used the scientific stack you
|
|
60
|
+
have already built than carry its own copy of it:
|
|
61
|
+
|
|
62
|
+
```bash
|
|
63
|
+
git clone git@github.com:lgbouma/s3view.git /my/preferred/dir/s3view
|
|
64
|
+
echo 'export PATH="/my/preferred/dir/s3view/bin:$PATH"' >> ~/.bashrc # or ~/.zshrc
|
|
65
|
+
exec $SHELL
|
|
66
|
+
```
|
|
67
|
+
|
|
68
|
+
`bin/s3view` runs the checkout under whichever `python3` is first on your PATH.
|
|
69
|
+
That is the point — it inherits your stack — but it also means that environment
|
|
70
|
+
needs `botocore`, and a per-project virtualenv frequently does not even when
|
|
71
|
+
your usual environment does. If the wrong interpreter wins, name the right one:
|
|
72
|
+
|
|
73
|
+
```bash
|
|
74
|
+
export S3VIEW_PYTHON="$HOME/envs/astro/bin/python"
|
|
75
|
+
```
|
|
76
|
+
|
|
77
|
+
`pip install -e /my/preferred/dir/s3view` is the same idea with a console
|
|
78
|
+
script instead of a PATH entry, and edits still take effect immediately.
|
|
79
|
+
|
|
80
|
+
### Optional dependencies
|
|
81
|
+
|
|
82
|
+
Everything below degrades gracefully, and the launch banner says which of them
|
|
83
|
+
are live.
|
|
84
|
+
|
|
85
|
+
| package | enables |
|
|
86
|
+
|---|---|
|
|
87
|
+
| `pillow` | image thumbnails, and previews of formats browsers cannot decode |
|
|
88
|
+
| `numpy` | any array preview at all |
|
|
89
|
+
| `astropy` | FITS previews (zscale in particular) |
|
|
90
|
+
| `pyyaml` | ASDF previews |
|
|
91
|
+
| `matplotlib` | colormaps beyond grayscale |
|
|
92
|
+
|
|
93
|
+
### Credentials and endpoints
|
|
94
|
+
|
|
95
|
+
Standard botocore resolution: environment variables, `~/.aws/credentials`,
|
|
96
|
+
`AWS_PROFILE`, SSO, instance roles. Override per run with `--profile` and
|
|
97
|
+
`--region`. Non-AWS S3-compatible stores work via `--endpoint-url` (MinIO,
|
|
98
|
+
Ceph, Cloudflare R2, Wasabi).
|
|
99
|
+
|
|
100
|
+
**Buckets you can read but do not own.** S3's `ListBuckets` returns only the
|
|
101
|
+
buckets owned by the calling account. A bucket shared with you cross-account
|
|
102
|
+
through a bucket policy is fully readable yet never appears in that list — a
|
|
103
|
+
common arrangement for shared project data. s3view therefore adds any bucket it
|
|
104
|
+
knows you can reach (bookmarked, or the one you are in) to the sidebar and marks
|
|
105
|
+
it with a `·`. To reach one for the first time, either pass it on the command
|
|
106
|
+
line or press `⌘L` and type the `s3://` path, then bookmark it with ☆.
|
|
107
|
+
|
|
108
|
+
## What it previews
|
|
109
|
+
|
|
110
|
+
| type | how |
|
|
111
|
+
|---|---|
|
|
112
|
+
| **FITS** (`.fits`, `.fit`, `.fts`, `.fz`) | strided ranged reads; HDU picker, stretch, colormap, resolution, full header text |
|
|
113
|
+
| **ASDF** (`.asdf`) | same, driven by the YAML tree and block index; pick any named array (`roman.data`, `roman.err`, `roman.dq`, …) and read the tree |
|
|
114
|
+
| mp4 / mov / webm / m4v | streamed from S3 by range request, with a running "~X MB transferred" readout |
|
|
115
|
+
| png / jpg / gif / webp / tif | presigned direct load; server-side thumbnail for formats the browser cannot decode |
|
|
116
|
+
| txt / json / yaml / cfg / param / log / py / csv | first 256 KB via one ranged read |
|
|
117
|
+
| pdf | presigned, in an iframe |
|
|
118
|
+
| anything else | metadata plus a download link |
|
|
119
|
+
|
|
120
|
+
Array previews share one interface: choose the HDU or array, a stretch
|
|
121
|
+
(`zscale`, `asinh`, `log`, `99.5%`, `minmax`), a colormap, and a resolution from
|
|
122
|
+
256 to 1024 px. The footer always reports what it actually read — e.g.
|
|
123
|
+
`2.1 s · read ~8.4 MB of 191 MB (4.2%)` — so the cost is never hidden from you.
|
|
124
|
+
|
|
125
|
+
Containers the browser cannot decode (mkv, avi) offer **Open in player**, which
|
|
126
|
+
hands the presigned URL to IINA or VLC — still streaming, never downloading.
|
|
127
|
+
|
|
128
|
+
## Configuration
|
|
129
|
+
|
|
130
|
+
`~/.config/s3view/config.json`, written on first run. Set `start` to open
|
|
131
|
+
somewhere by default:
|
|
132
|
+
|
|
133
|
+
```json
|
|
134
|
+
{
|
|
135
|
+
"start": "s3://your-bucket/your/prefix/",
|
|
136
|
+
"bookmarks": [
|
|
137
|
+
{"name": "your-prefix", "uri": "s3://your-bucket/your/prefix/"}
|
|
138
|
+
],
|
|
139
|
+
"profile": null,
|
|
140
|
+
"region": null,
|
|
141
|
+
"endpoint_url": null,
|
|
142
|
+
"page_size": 1000,
|
|
143
|
+
"presign_expires": 3600,
|
|
144
|
+
"external_player": "IINA"
|
|
145
|
+
}
|
|
146
|
+
```
|
|
147
|
+
|
|
148
|
+
`start` accepts any `s3://bucket/prefix/`; leave it `null` for the bucket picker.
|
|
149
|
+
`s3view --set-start s3://bucket/prefix/` writes it for you, and ☆ manages
|
|
150
|
+
bookmarks. No bucket names are baked into the source.
|
|
151
|
+
|
|
152
|
+
## Security
|
|
153
|
+
|
|
154
|
+
The server binds `127.0.0.1` only, and every API call requires a token generated
|
|
155
|
+
fresh at startup and carried in the URL it opens. Without this, any web page you
|
|
156
|
+
happened to have open could quietly read your buckets through localhost.
|
|
157
|
+
Requests arriving with a foreign `Origin` header are rejected.
|
|
158
|
+
|
|
159
|
+
Presigned URLs default to one-hour expiry and are minted only for objects you
|
|
160
|
+
actually open. **Copy URL** puts one on your clipboard deliberately — treat it
|
|
161
|
+
as a password for that object until it expires.
|
|
162
|
+
|
|
163
|
+
## Development
|
|
164
|
+
|
|
165
|
+
```bash
|
|
166
|
+
pip install -e ".[test]"
|
|
167
|
+
pytest
|
|
168
|
+
```
|
|
169
|
+
|
|
170
|
+
The suite needs **no AWS credentials and no network**. It builds synthetic FITS
|
|
171
|
+
and ASDF files in memory and serves them through a fake S3 that records every
|
|
172
|
+
ranged read, so the tests can assert on *how much* was fetched — the property
|
|
173
|
+
the whole program exists to protect. Both the contiguous and strided read paths
|
|
174
|
+
are exercised and checked against each other for identical pixels.
|
|
175
|
+
|
|
176
|
+
CI runs on Python 3.10–3.13 on Linux plus macOS, and a separate job installs
|
|
177
|
+
*only* botocore to prove the optional dependencies really do degrade gracefully
|
|
178
|
+
rather than crashing.
|
|
179
|
+
|
|
180
|
+
### Releasing
|
|
181
|
+
|
|
182
|
+
Version lives in one place, `s3view/__init__.py`; `pyproject.toml` reads it
|
|
183
|
+
from there. To cut a release, bump it, commit, then:
|
|
184
|
+
|
|
185
|
+
```bash
|
|
186
|
+
git tag v0.1.1 && git push origin v0.1.1
|
|
187
|
+
```
|
|
188
|
+
|
|
189
|
+
The `release` workflow builds the sdist and wheel, refuses the tag if it
|
|
190
|
+
disagrees with `s3view.__version__`, installs the wheel into a clean
|
|
191
|
+
environment and starts the CLI from it, then uploads to PyPI through [trusted
|
|
192
|
+
publishing](https://docs.pypi.org/trusted-publishers/) — there is no API token
|
|
193
|
+
anywhere in the repository or its secrets. Running the workflow by hand
|
|
194
|
+
(`workflow_dispatch`) does everything except the upload, which is the way to
|
|
195
|
+
rehearse a release: PyPI never allows a version number to be reused, even after
|
|
196
|
+
the file is deleted.
|
|
197
|
+
|
|
198
|
+
To re-record the README animation (needs `playwright` and `ffmpeg`, neither of
|
|
199
|
+
them a runtime dependency):
|
|
200
|
+
|
|
201
|
+
```bash
|
|
202
|
+
pip install playwright && playwright install chromium
|
|
203
|
+
python tools/record_demo.py # -> docs/demo.gif
|
|
204
|
+
```
|
|
205
|
+
|
|
206
|
+
## Why it is fast
|
|
207
|
+
|
|
208
|
+
**Video and audio never pass through this program.** The page is handed a
|
|
209
|
+
short-lived presigned S3 URL and the browser's own media stack range-requests it
|
|
210
|
+
directly, so seeking is cheap no matter how large the file. Measured from inside
|
|
211
|
+
the browser against a 731 MB mp4, on a ~2.4 MB/s link:
|
|
212
|
+
|
|
213
|
+
| request | result |
|
|
214
|
+
|---|---|
|
|
215
|
+
| first 64 KB | `206`, 717 ms |
|
|
216
|
+
| 64 KB from the **middle** | `206`, 321 ms |
|
|
217
|
+
| 64 KB from the **end** | `206`, 251 ms |
|
|
218
|
+
|
|
219
|
+
**Array images are read by byte range, not downloaded.** Both FITS and ASDF are
|
|
220
|
+
self-describing: a small ranged read of the metadata is enough to compute the
|
|
221
|
+
exact byte offset of every row of every array. s3view then fetches only the rows
|
|
222
|
+
the preview needs, in parallel, and bins the columns it already has in memory.
|
|
223
|
+
For a 200 MB, 4088×4088 float32 detector frame:
|
|
224
|
+
|
|
225
|
+
| preview | bytes read | time |
|
|
226
|
+
|---|---|---|
|
|
227
|
+
| 256 px | 4.2 MB (2.2%) | ~1.3 s |
|
|
228
|
+
| 512 px | 8.4 MB (4.2%) | ~2.1 s |
|
|
229
|
+
| 1024 px | 16.7 MB (8.7%) | ~3.8 s |
|
|
230
|
+
| downloading it instead | 200 MB | ~90 s |
|
|
231
|
+
|
|
232
|
+
Ranged reads bypass botocore's request machinery: the object is presigned once
|
|
233
|
+
and every range is pulled over a pooled HTTPS connection, because signing 512
|
|
234
|
+
separate requests costs more CPU than the transfer costs bandwidth.
|
|
235
|
+
|
|
236
|
+
**Listings are paginated and virtualized.** A prefix of 1000 objects renders
|
|
237
|
+
about 60 DOM nodes; the next page is prefetched in the background while you read
|
|
238
|
+
the current one. A prefix holding 187 GB across 1000 files opens as fast as an
|
|
239
|
+
empty one.
|
|
240
|
+
|
|
241
|
+
**Thumbnails are lazy and rate-limited.** Only tiles actually on screen are
|
|
242
|
+
requested, three at a time, cached on disk under `~/.cache/s3view`. Array
|
|
243
|
+
thumbnails in gallery view cost megabytes each, so they sit behind a toggle.
|
|
244
|
+
|
|
245
|
+
## Known limitations
|
|
246
|
+
|
|
247
|
+
- Array previews sample rows rather than averaging them vertically, so a
|
|
248
|
+
decimated view of a crowded field aliases. Columns *are* averaged. Raise the
|
|
249
|
+
resolution to sample more rows.
|
|
250
|
+
- ASDF blocks compressed with `lz4` or `blosc` cannot be read by range and are
|
|
251
|
+
not supported; uncompressed, `zlib` and `bzip2` blocks are.
|
|
252
|
+
- `GetBucketLocation` is frequently denied on cross-account buckets, so the
|
|
253
|
+
region is taken from the `x-amz-bucket-region` header on HeadBucket instead.
|
|
254
|
+
If both are denied, s3view falls back to your configured default region.
|
|
255
|
+
- Chrome will not load video in a hidden or background tab; if a movie sits on a
|
|
256
|
+
spinner, bring the window to the front.
|
|
257
|
+
- Read-only. There is no upload, rename, or delete.
|
|
@@ -0,0 +1,52 @@
|
|
|
1
|
+
[build-system]
|
|
2
|
+
requires = ["setuptools>=77"] # PEP 639 license expressions
|
|
3
|
+
build-backend = "setuptools.build_meta"
|
|
4
|
+
|
|
5
|
+
[project]
|
|
6
|
+
name = "s3view"
|
|
7
|
+
dynamic = ["version"] # single source: s3view/__init__.py
|
|
8
|
+
description = "Fast, lightweight S3 browser with true video streaming and remote FITS/ASDF previews"
|
|
9
|
+
readme = "README.md"
|
|
10
|
+
requires-python = ">=3.10"
|
|
11
|
+
license = "MIT"
|
|
12
|
+
license-files = ["LICENSE"]
|
|
13
|
+
authors = [{ name = "Luke Bouma", email = "bouma.luke@gmail.com" }]
|
|
14
|
+
keywords = ["s3", "astronomy", "fits", "asdf", "quicklook", "streaming", "browser"]
|
|
15
|
+
classifiers = [
|
|
16
|
+
"Development Status :: 4 - Beta",
|
|
17
|
+
"Environment :: Web Environment",
|
|
18
|
+
"Intended Audience :: Science/Research",
|
|
19
|
+
"Operating System :: OS Independent",
|
|
20
|
+
"Programming Language :: Python :: 3",
|
|
21
|
+
"Topic :: Scientific/Engineering :: Astronomy",
|
|
22
|
+
"Topic :: System :: Filesystems",
|
|
23
|
+
]
|
|
24
|
+
dependencies = ["botocore>=1.29"]
|
|
25
|
+
|
|
26
|
+
[project.urls]
|
|
27
|
+
Homepage = "https://github.com/lgbouma/s3view"
|
|
28
|
+
Repository = "https://github.com/lgbouma/s3view"
|
|
29
|
+
Issues = "https://github.com/lgbouma/s3view/issues"
|
|
30
|
+
|
|
31
|
+
[project.optional-dependencies]
|
|
32
|
+
images = ["pillow"]
|
|
33
|
+
fits = ["astropy", "numpy"]
|
|
34
|
+
asdf = ["pyyaml", "numpy"]
|
|
35
|
+
all = ["pillow", "astropy", "numpy", "pyyaml", "matplotlib"]
|
|
36
|
+
test = ["pytest", "pillow", "astropy", "numpy", "pyyaml"]
|
|
37
|
+
|
|
38
|
+
[project.scripts]
|
|
39
|
+
s3view = "s3view.cli:main"
|
|
40
|
+
|
|
41
|
+
[tool.setuptools.dynamic]
|
|
42
|
+
version = { attr = "s3view.__version__" }
|
|
43
|
+
|
|
44
|
+
[tool.setuptools.packages.find]
|
|
45
|
+
include = ["s3view*"]
|
|
46
|
+
|
|
47
|
+
[tool.setuptools.package-data]
|
|
48
|
+
s3view = ["static/*"]
|
|
49
|
+
|
|
50
|
+
[tool.pytest.ini_options]
|
|
51
|
+
testpaths = ["tests"]
|
|
52
|
+
addopts = "-q"
|
|
@@ -0,0 +1,41 @@
|
|
|
1
|
+
"""The one hard dependency, checked with an explanation instead of a traceback.
|
|
2
|
+
|
|
3
|
+
Optional dependencies degrade quietly and report themselves in the startup
|
|
4
|
+
banner. botocore cannot degrade -- there is no browsing without it -- so its
|
|
5
|
+
absence gets a message. The usual cause is a shadowed interpreter: s3view run
|
|
6
|
+
from a checkout picks up whichever python3 is first on PATH, which is often a
|
|
7
|
+
project virtualenv rather than the environment that has botocore.
|
|
8
|
+
"""
|
|
9
|
+
|
|
10
|
+
import sys
|
|
11
|
+
|
|
12
|
+
_MISSING = """\
|
|
13
|
+
s3view needs botocore, and the interpreter running it does not have it:
|
|
14
|
+
|
|
15
|
+
{exe}
|
|
16
|
+
|
|
17
|
+
Any one of these fixes it:
|
|
18
|
+
|
|
19
|
+
* Install s3view as a self-contained tool. This is the recommended route:
|
|
20
|
+
it brings its own dependencies and cannot be shadowed.
|
|
21
|
+
|
|
22
|
+
uv tool install 's3view[all]'
|
|
23
|
+
|
|
24
|
+
* Add botocore to the interpreter above.
|
|
25
|
+
|
|
26
|
+
{exe} -m pip install botocore
|
|
27
|
+
|
|
28
|
+
* If you run s3view from a checkout, point it at an interpreter that
|
|
29
|
+
already has botocore.
|
|
30
|
+
|
|
31
|
+
export S3VIEW_PYTHON=/path/to/python
|
|
32
|
+
"""
|
|
33
|
+
|
|
34
|
+
|
|
35
|
+
def require_botocore():
|
|
36
|
+
"""Exit with an explanation if botocore is not importable."""
|
|
37
|
+
try:
|
|
38
|
+
import botocore # noqa: F401
|
|
39
|
+
except ImportError:
|
|
40
|
+
sys.stderr.write(_MISSING.format(exe=sys.executable))
|
|
41
|
+
raise SystemExit(1)
|
