@@ -0,0 +1,21 @@
|
|
|
1
|
+
MIT License
|
|
2
|
+
|
|
3
|
+
Copyright (c) 2026 Ernesto Crespo
|
|
4
|
+
|
|
5
|
+
Permission is hereby granted, free of charge, to any person obtaining a copy
|
|
6
|
+
of this software and associated documentation files (the "Software"), to deal
|
|
7
|
+
in the Software without restriction, including without limitation the rights
|
|
8
|
+
to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
|
|
9
|
+
copies of the Software, and to permit persons to whom the Software is
|
|
10
|
+
furnished to do so, subject to the following conditions:
|
|
11
|
+
|
|
12
|
+
The above copyright notice and this permission notice shall be included in all
|
|
13
|
+
copies or substantial portions of the Software.
|
|
14
|
+
|
|
15
|
+
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
|
|
16
|
+
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
|
|
17
|
+
FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
|
|
18
|
+
AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
|
|
19
|
+
LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
|
|
20
|
+
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
|
|
21
|
+
SOFTWARE.
|
|
@@ -0,0 +1,341 @@
|
|
|
1
|
+
Metadata-Version: 2.4
|
|
2
|
+
Name: reflex-react-joyride
|
|
3
|
+
Version: 0.1.0
|
|
4
|
+
Summary: Reflex custom component for react-joyride: guided product tours and onboarding walkthroughs, with controlled mode, theming, custom tooltips and Python-driven controls
|
|
5
|
+
Author-email: Ernesto Crespo <ecrespo@gmail.com>
|
|
6
|
+
License: MIT
|
|
7
|
+
Project-URL: Homepage, https://github.com/ecrespo/reflex-react-joyride
|
|
8
|
+
Project-URL: Source, https://github.com/ecrespo/reflex-react-joyride
|
|
9
|
+
Project-URL: Issues, https://github.com/ecrespo/reflex-react-joyride/issues
|
|
10
|
+
Keywords: reflex,reflex-custom-components,react-joyride,joyride,tour,onboarding,walkthrough,product-tour
|
|
11
|
+
Classifier: Development Status :: 4 - Beta
|
|
12
|
+
Classifier: Environment :: Web Environment
|
|
13
|
+
Classifier: Intended Audience :: Developers
|
|
14
|
+
Classifier: License :: OSI Approved :: MIT License
|
|
15
|
+
Classifier: Programming Language :: Python :: 3
|
|
16
|
+
Classifier: Programming Language :: Python :: 3.10
|
|
17
|
+
Classifier: Programming Language :: Python :: 3.11
|
|
18
|
+
Classifier: Programming Language :: Python :: 3.12
|
|
19
|
+
Classifier: Programming Language :: Python :: 3.13
|
|
20
|
+
Classifier: Topic :: Software Development :: Libraries :: Python Modules
|
|
21
|
+
Classifier: Topic :: Software Development :: User Interfaces
|
|
22
|
+
Classifier: Typing :: Typed
|
|
23
|
+
Requires-Python: >=3.10
|
|
24
|
+
Description-Content-Type: text/markdown
|
|
25
|
+
License-File: LICENSE
|
|
26
|
+
Requires-Dist: reflex>=0.9.11
|
|
27
|
+
Dynamic: license-file
|
|
28
|
+
|
|
29
|
+
# reflex-react-joyride
|
|
30
|
+
|
|
31
|
+
Guided product tours and onboarding walkthroughs for [Reflex](https://reflex.dev), powered by [react-joyride](https://react-joyride.com) v3.
|
|
32
|
+
|
|
33
|
+
- Wraps **react-joyride 3.2.0** through its `useJoyride` hook, so the tour's controls are reachable from Python
|
|
34
|
+
- Typed props for everything: `Step`, `TourOptions`, `Locale`, `TourStyles`, `FloatingOptions` — `snake_case` in Python, `camelCase` in the browser
|
|
35
|
+
- **Uncontrolled** (`run`) or **controlled** (`step_index`) mode, whichever fits your State
|
|
36
|
+
- **Python actions**: `start`, `next_step`, `prev_step`, `go_to`, `skip`, `reset`, `replay`, `stop`, `open_tooltip`, `get_state`
|
|
37
|
+
- One catch-all `on_event` plus a dedicated trigger per event (`on_tour_start`, `on_step_after`, `on_target_not_found`, ...) with a flat, JSON-safe payload
|
|
38
|
+
- **Custom tooltip and beacon** written as ordinary Reflex components
|
|
39
|
+
- Step content and titles accept Reflex components, not just strings
|
|
40
|
+
- Constants mirroring react-joyride's literals: `EVENTS`, `ACTIONS`, `STATUS`, `LIFECYCLE`, `ORIGIN`
|
|
41
|
+
|
|
42
|
+
## Screenshots
|
|
43
|
+
|
|
44
|
+
The four pages of the demo app, in order:
|
|
45
|
+
|
|
46
|
+
| | |
|
|

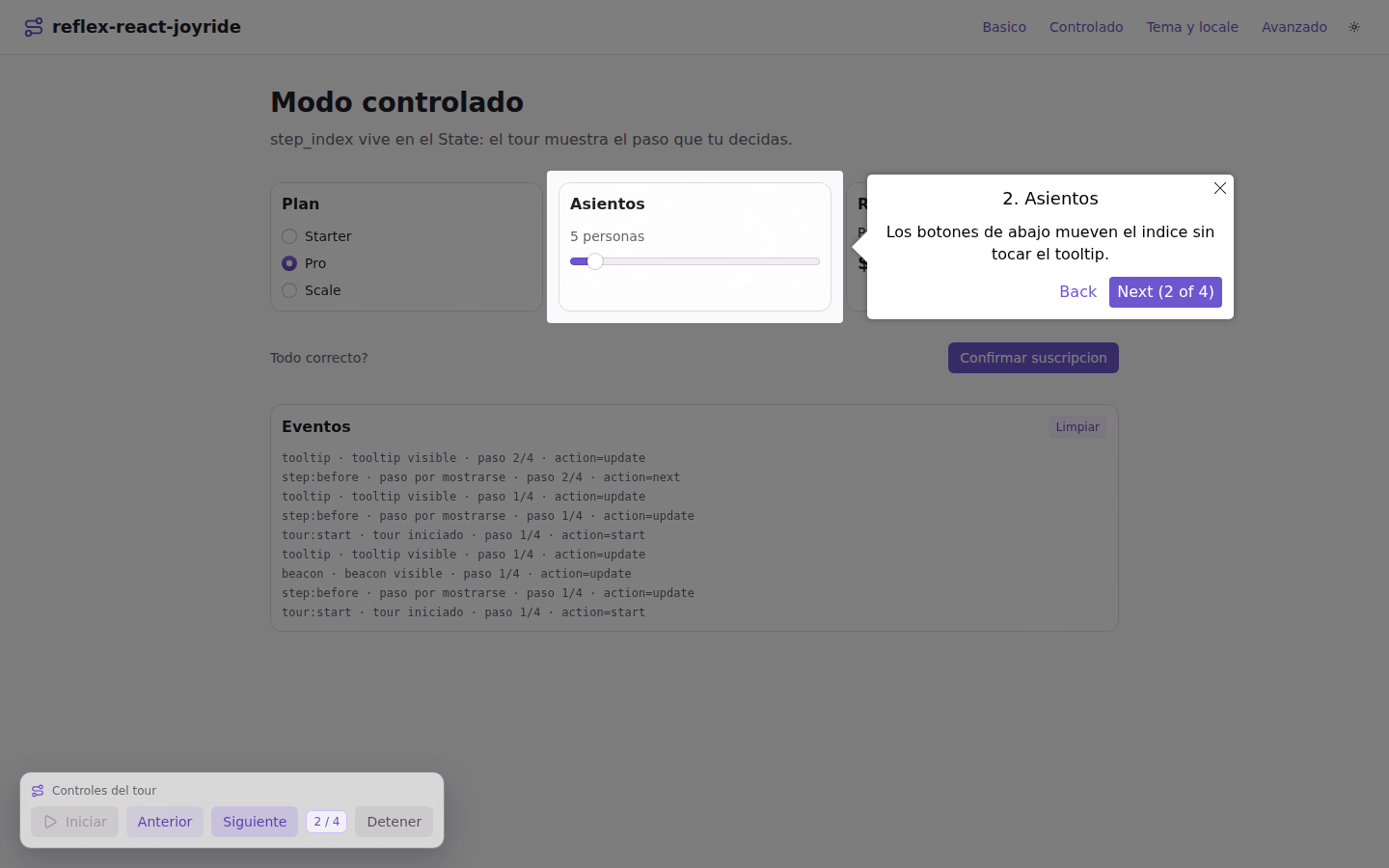

47
|
+
| --- | --- |
|
|
48
|
+
|  |  |
|
|
49
|
+

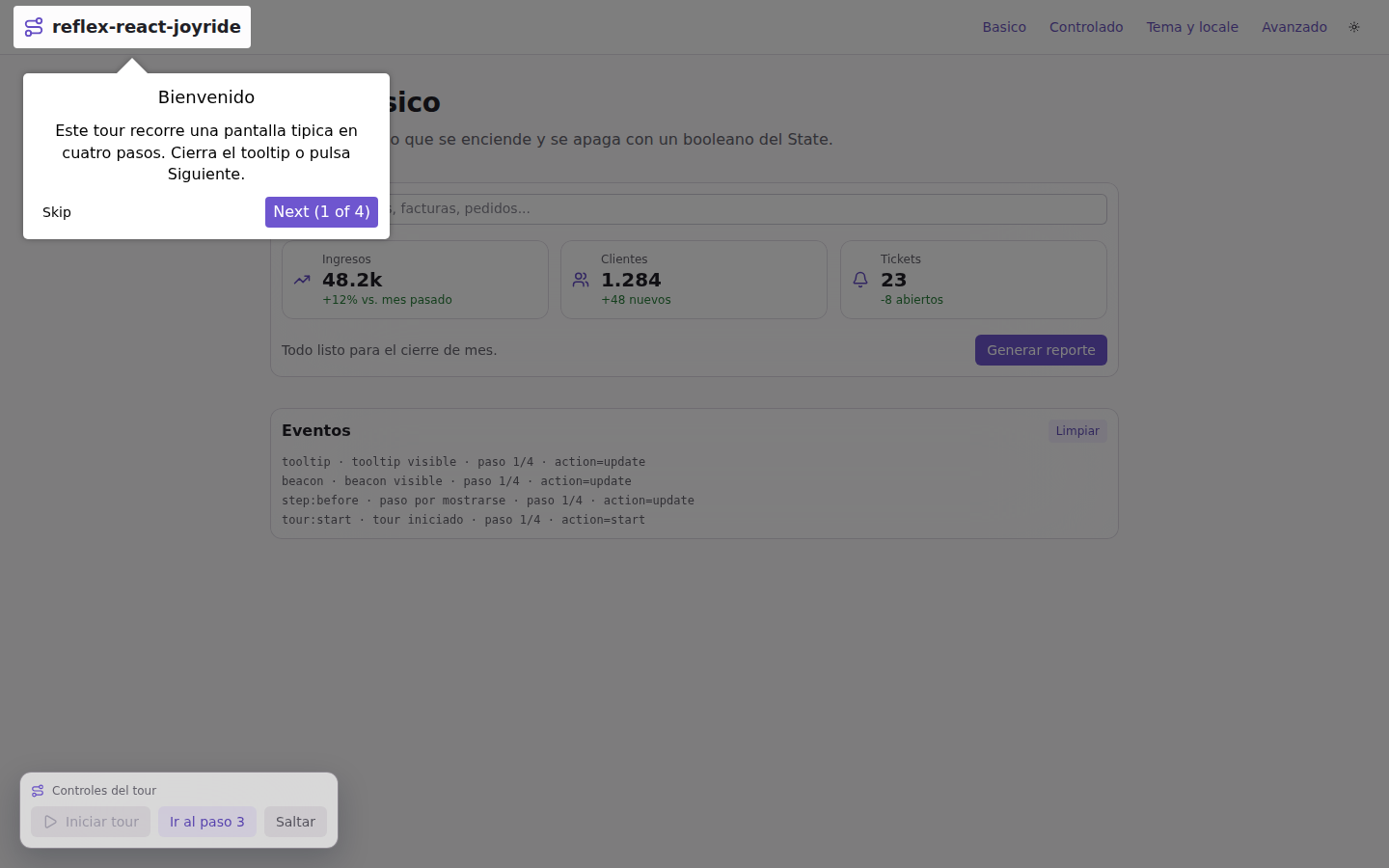

| A continuous tour over a small dashboard, with the event log filling up | Controlled mode: the step index lives in the State and external buttons drive it |
|
|
50
|
+
|  |  |
|
|
51
|
+

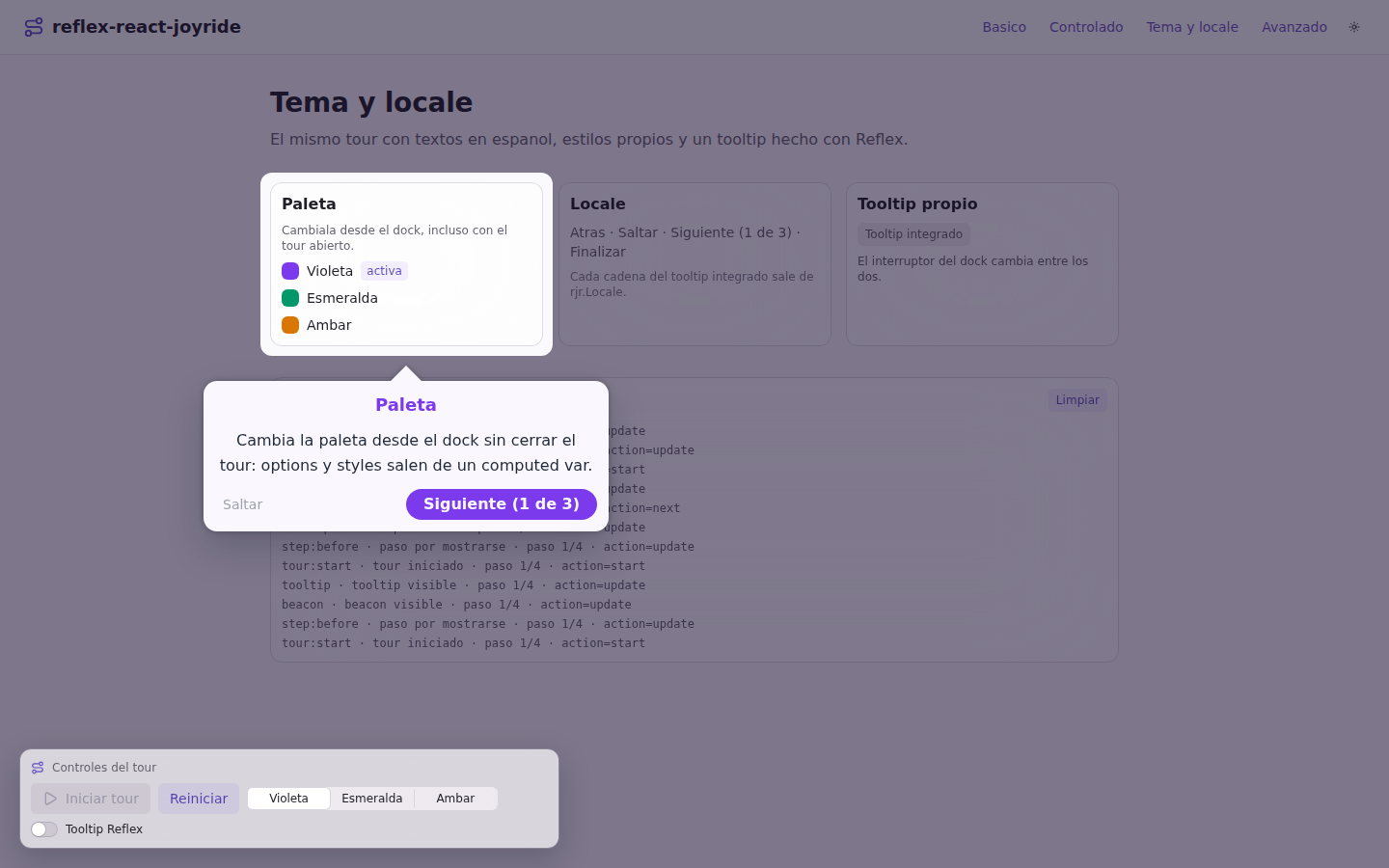

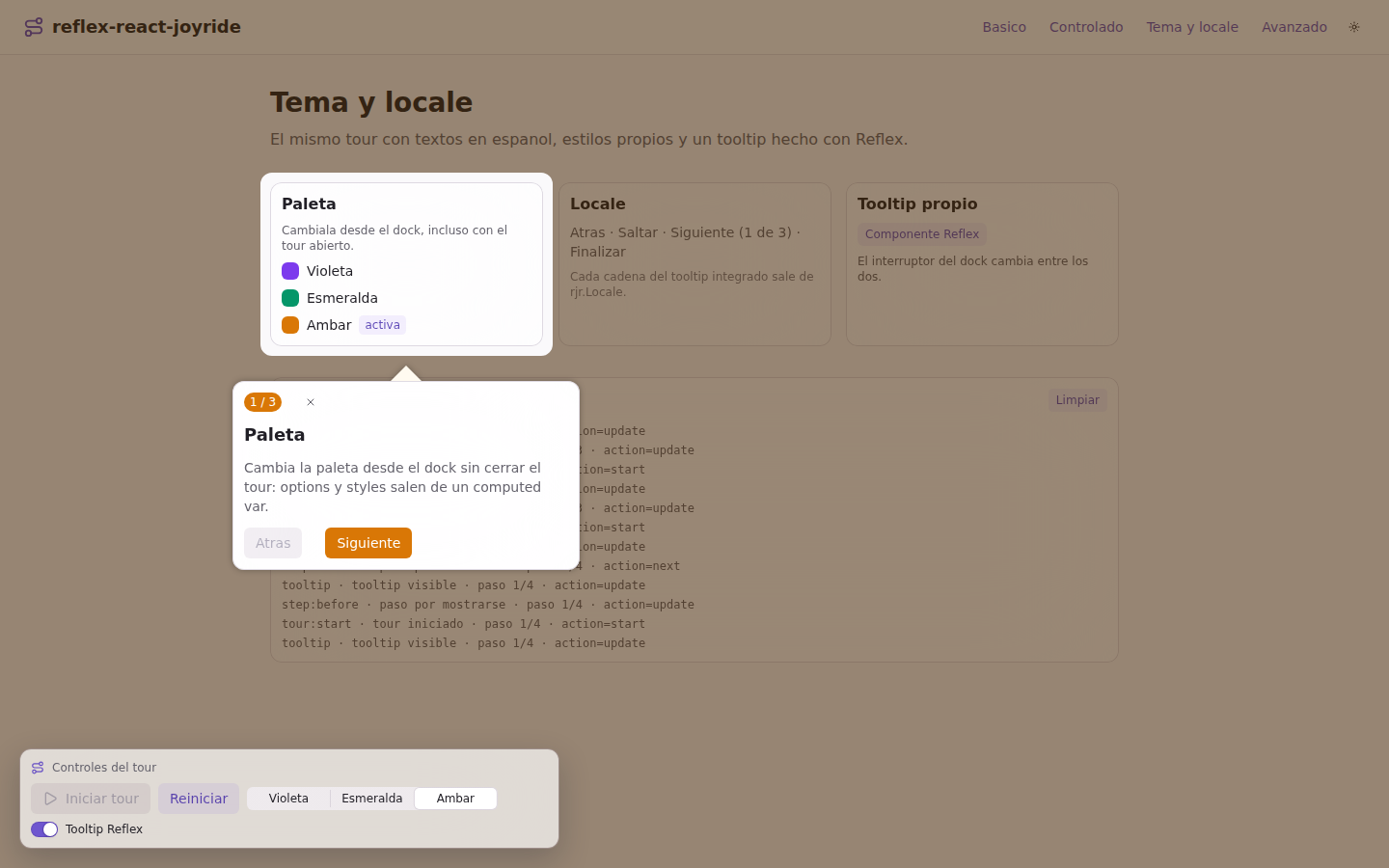

| `locale`, `options` and `styles` restyling the built-in tooltip | The same step rendered by a Reflex component through the `tooltip` render prop |
|
|
52
|
+
|  |  |
|
|
53
|
+

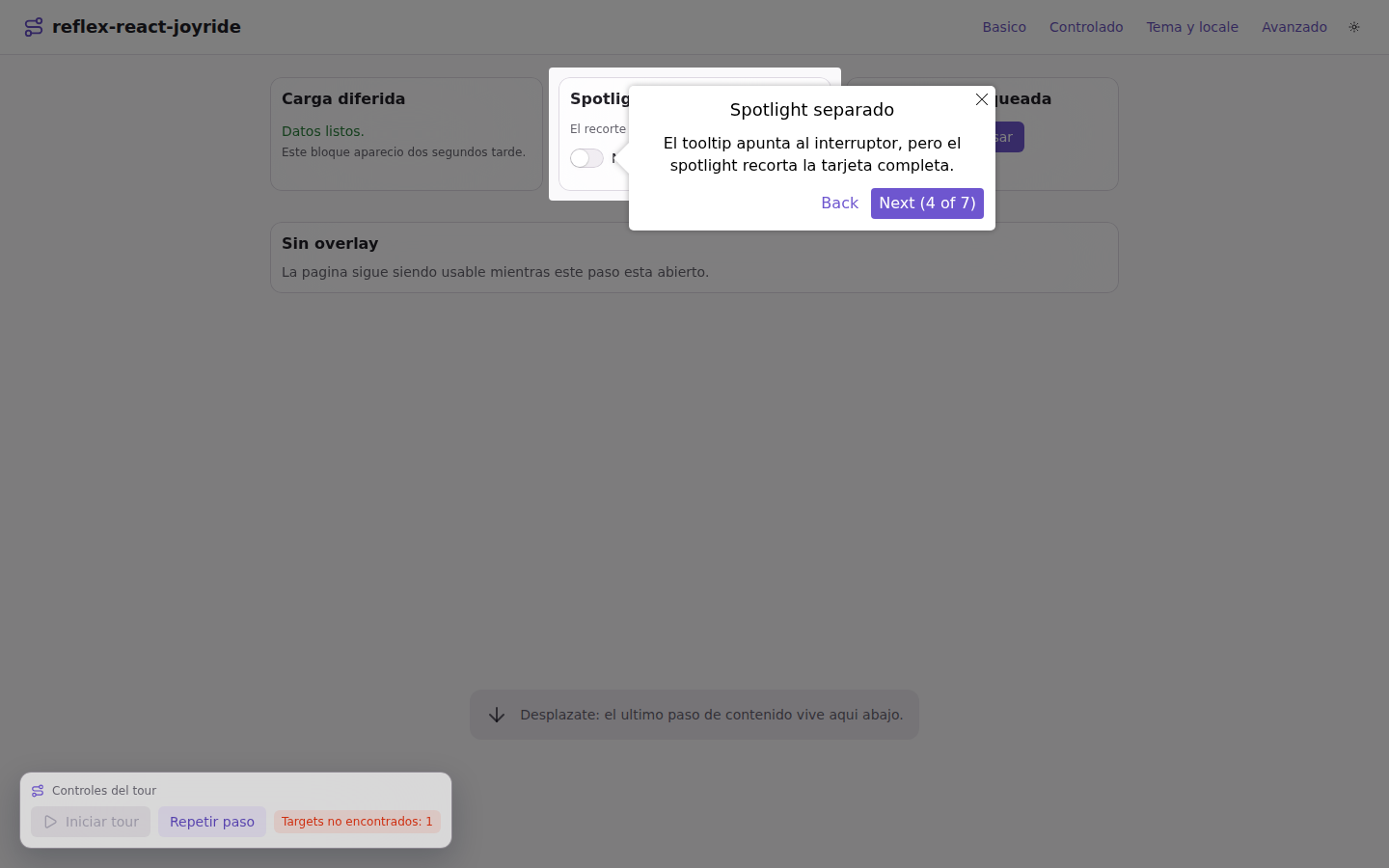

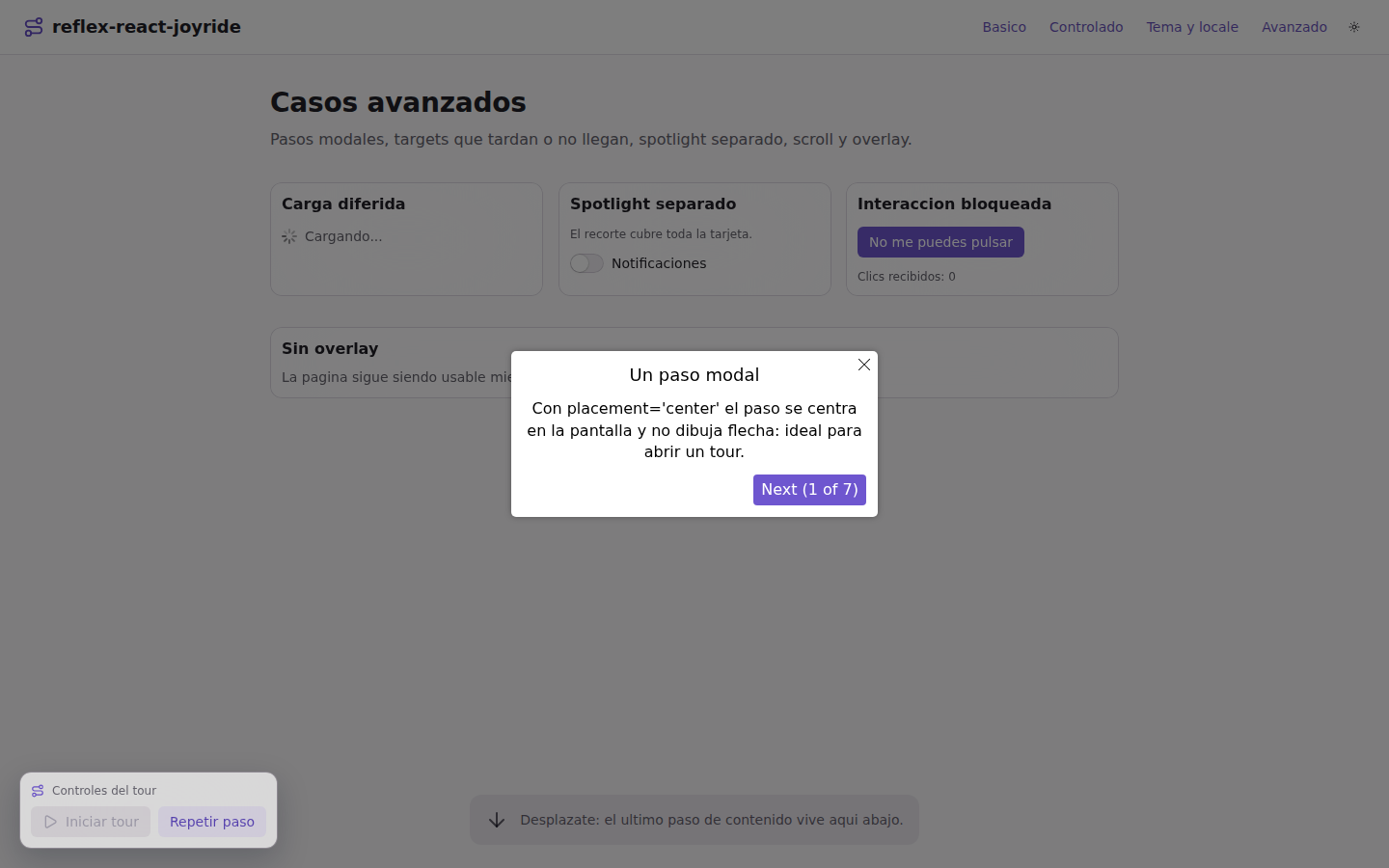

| `placement="center"` on `body` for a modal-like opening step | A spotlight over a different element than the one the tooltip points at |
|
|
54
|
+
|
|
55
|
+
## Installation
|
|
56
|
+
|
|
57
|
+
```bash
|
|
58
|
+
pip install reflex-react-joyride
|
|
59
|
+
# or
|
|
60
|
+
uv add reflex-react-joyride
|
|
61
|
+
```
|
|
62
|
+
|
|
63
|
+
## Quick start
|
|
64
|
+
|
|
65
|
+
```python
|
|
66
|
+
import reflex as rx
|
|
67
|
+
import reflex_react_joyride as rjr
|
|
68
|
+
|
|
69
|
+
|
|
70
|
+
class TourState(rx.State):
|
|
71
|
+
run: bool = False
|
|
72
|
+
|
|
73
|
+
@rx.event
|
|
74
|
+
def start(self):
|
|
75
|
+
self.run = True
|
|
76
|
+
|
|
77
|
+
@rx.event
|
|
78
|
+
def finished(self, event: rjr.JoyrideEvent):
|
|
79
|
+
self.run = False
|
|
80
|
+
|
|
81
|
+
|
|
82
|
+
def index() -> rx.Component:
|
|
83
|
+
return rx.vstack(
|
|
84
|
+
rjr.joyride(
|
|
85
|
+
tour_id="welcome",
|
|
86
|
+
run=TourState.run,
|
|
87
|
+
continuous=True,
|
|
88
|
+
steps=[
|
|
89
|
+
rjr.Step(target="#logo", title="Welcome", content="This is the app."),
|
|
90
|
+
rjr.Step(target="#cta", content="Start here.", placement="top"),
|
|
91
|
+
],
|
|
92
|
+
options=rjr.TourOptions(show_progress=True, primary_color="#7c3aed"),
|
|
93
|
+
on_tour_end=TourState.finished,
|
|
94
|
+
),
|
|
95
|
+
rx.heading("Acme", id="logo"),
|
|
96
|
+
rx.button("Get started", id="cta"),
|
|
97
|
+
rx.button("Take the tour", on_click=TourState.start),
|
|
98
|
+
)
|
|
99
|
+
```
|
|
100
|
+
|
|
101
|
+
## Steps
|
|
102
|
+
|
|
103
|
+
A step needs a `target` (any CSS selector) and some `content`. Everything in
|
|
104
|
+
`TourOptions` can be overridden per step:
|
|
105
|
+
|
|
106
|
+
```python
|
|
107
|
+
rjr.Step(
|
|
108
|
+
target="#sidebar",
|
|
109
|
+
title="Navigation",
|
|
110
|
+
content=rx.vstack(rx.text("Every section lives here."), rx.code("Cmd+K")),
|
|
111
|
+
placement="right", # top | bottom | left | right | auto | center (+ -start / -end)
|
|
112
|
+
spotlight_padding=16,
|
|
113
|
+
show_progress=True,
|
|
114
|
+
id="sidebar", # echoed back as event["step_id"]
|
|
115
|
+
data={"section": "nav"}, # echoed back as event["step_data"], keys untouched
|
|
116
|
+
)
|
|
117
|
+
```
|
|
118
|
+
|
|
119
|
+
`target="body"` with `placement="center"` gives a modal-like step, which is a
|
|
120
|
+
good opener. Plain dicts work as well as `Step` objects, and so do steps kept in
|
|
121
|
+
a State var:
|
|
122
|
+
|
|
123
|
+
```python
|
|
124
|
+
class State(rx.State):
|
|
125
|
+
steps: list[dict] = [{"target": "#logo", "content": "Hi", "show_progress": True}]
|
|
126
|
+
|
|
127
|
+
|
|
128
|
+
rjr.joyride(steps=State.steps)
|
|
129
|
+
```
|
|
130
|
+
|
|
131
|
+
`snake_case` keys are converted to the `camelCase` react-joyride expects, both
|
|
132
|
+
for literal props (in Python) and for values coming from the State (in the
|
|
133
|
+
browser), so you never have to write `spotlightPadding` yourself. Keys that are
|
|
134
|
+
already `camelCase` pass through untouched.
|
|
135
|
+
|
|
136
|
+
## Theming
|
|
137
|
+
|
|
138
|
+
`options` sets behaviour and colors for the whole tour, `styles` overrides the
|
|
139
|
+
CSS of every element react-joyride renders, and `locale` replaces the strings:
|
|
140
|
+
|
|
141
|
+
```python
|
|
142
|
+
rjr.joyride(
|
|
143
|
+
steps=STEPS,
|
|
144
|
+
options=rjr.TourOptions(
|
|
145
|
+
primary_color="#059669",
|
|
146
|
+
background_color="#f2fbf7",
|
|
147
|
+
overlay_color="rgba(4, 47, 36, 0.55)",
|
|
148
|
+
show_progress=True,
|
|
149
|
+
skip_beacon=True, # go straight to the tooltip, no beacon
|
|
150
|
+
spotlight_radius=12,
|
|
151
|
+
buttons=["back", "skip", "primary"],
|
|
152
|
+
width=420,
|
|
153
|
+
z_index=1000,
|
|
154
|
+
),
|
|
155
|
+
styles=rjr.TourStyles(
|
|
156
|
+
tooltip={"border_radius": "14px", "box_shadow": "0 18px 40px rgba(15, 23, 42, 0.18)"},
|
|
157
|
+
button_primary={"border_radius": "999px", "padding": "8px 18px"},
|
|
158
|
+
),
|
|
159
|
+
locale=rjr.Locale(
|
|
160
|
+
back="Atrás",
|
|
161
|
+
close="Cerrar",
|
|
162
|
+
last="Finalizar",
|
|
163
|
+
next="Siguiente",
|
|
164
|
+
next_with_progress="Siguiente ({current} de {total})",
|
|
165
|
+
skip="Saltar",
|
|
166
|
+
),
|
|
167
|
+
)
|
|
168
|
+
```
|
|
169
|
+
|
|
170
|
+
CSS properties inside `styles` are converted too: `border_radius` becomes
|
|
171
|
+
`borderRadius`.
|
|
172
|
+
|
|
173
|
+
## Controlled mode
|
|
174
|
+
|
|
175
|
+
Pass `step_index` and react-joyride stops advancing on its own — it renders
|
|
176
|
+
exactly the step your State asks for. Move the index from `on_step_after`:
|
|
177
|
+
|
|
178
|
+
```python
|
|
179
|
+
class State(rx.State):
|
|
180
|
+
run: bool = False
|
|
181
|
+
index: int = 0
|
|
182
|
+
|
|
183
|
+
@rx.event
|
|
184
|
+
def advance(self, event: rjr.JoyrideEvent):
|
|
185
|
+
self.index = max(0, event["index"] + (-1 if event["action"] == rjr.ACTIONS.PREV else 1))
|
|
186
|
+
|
|
187
|
+
@rx.event
|
|
188
|
+
def skip_missing(self, event: rjr.JoyrideEvent):
|
|
189
|
+
self.index = event["index"] + 1
|
|
190
|
+
|
|
191
|
+
@rx.event
|
|
192
|
+
def finished(self, _event: rjr.JoyrideEvent):
|
|
193
|
+
self.run, self.index = False, 0
|
|
194
|
+
|
|
195
|
+
|
|
196
|
+
rjr.joyride(
|
|
197
|
+
steps=STEPS,
|
|
198
|
+
run=State.run,
|
|
199
|
+
step_index=State.index,
|
|
200
|
+
continuous=True,
|
|
201
|
+
on_step_after=State.advance,
|
|
202
|
+
on_target_not_found=State.skip_missing,
|
|
203
|
+
on_tour_end=State.finished,
|
|
204
|
+
)
|
|
205
|
+
```
|
|
206
|
+
|
|
207
|
+
This is what you want when a step should only open after your own code did
|
|
208
|
+
something — finished a request, opened a drawer, switched a tab.
|
|
209
|
+
|
|
210
|
+
## Events
|
|
211
|
+
|
|
212
|
+
Every trigger receives the same flat dict:
|
|
213
|
+
|
|
214
|
+
| key | meaning |
|
|
215
|
+
| --- | --- |
|
|
216
|
+
| `type` | the event, e.g. `tour:start`, `step:after`, `error:target_not_found` |
|
|
217
|
+
| `action` | what triggered it: `start`, `next`, `prev`, `close`, `skip`, `update`, ... |
|
|
218
|
+
| `index`, `size`, `is_last_step` | where we are in the tour |
|
|
219
|
+
| `status` | `idle`, `ready`, `waiting`, `running`, `paused`, `skipped`, `finished` |
|
|
220
|
+
| `lifecycle` | `init`, `ready`, `beacon`, `tooltip`, `complete`, ... |
|
|
221
|
+
| `origin` | which control fired it: `button_primary`, `overlay`, `keyboard`, ... |
|
|
222
|
+
| `controlled`, `waiting`, `scrolling` | tour flags |
|
|
223
|
+
| `step_id`, `step_target`, `step_title`, `step_data` | about the current step |
|
|
224
|
+
| `error` | the message for `error` events |
|
|
225
|
+
|
|
226
|
+
Triggers: `on_event` (all of them), `on_tour_start`, `on_tour_end`,
|
|
227
|
+
`on_status_change`, `on_step_before`, `on_step_after`, `on_beacon`,
|
|
228
|
+
`on_tooltip`, `on_scroll_start`, `on_scroll_end`, `on_target_not_found`,
|
|
229
|
+
`on_error`.
|
|
230
|
+
|
|
231
|
+
Compare against the constants instead of raw strings:
|
|
232
|
+
|
|
233
|
+
```python
|
|
234
|
+
@rx.event
|
|
235
|
+
def on_tour_event(self, event: rjr.JoyrideEvent):
|
|
236
|
+
if event["type"] == rjr.EVENTS.TOUR_END and event["status"] in rjr.FINISHED_STATUSES:
|
|
237
|
+
self.onboarding_done = True
|
|
238
|
+
```
|
|
239
|
+
|
|
240
|
+
## Python actions
|
|
241
|
+
|
|
242
|
+
Give the tour a `tour_id` and you can drive it from anywhere, without keeping
|
|
243
|
+
the index in your State:
|
|
244
|
+
|
|
245
|
+
```python
|
|
246
|
+
rx.button("Start", on_click=rjr.start("welcome"))
|
|
247
|
+
rx.button("Step 3", on_click=rjr.go_to("welcome", 2))
|
|
248
|
+
rx.button("Next", on_click=rjr.next_step("welcome"))
|
|
249
|
+
rx.button("Replay this step", on_click=rjr.replay("welcome"))
|
|
250
|
+
rx.button("Skip", on_click=rjr.skip("welcome"))
|
|
251
|
+
```
|
|
252
|
+
|
|
253
|
+
`start`, `stop`, `next_step`, `prev_step`, `go_to`, `close`, `skip`, `reset`,
|
|
254
|
+
`replay`, `open_tooltip`, and `get_state(tour_id, callback)` which sends the
|
|
255
|
+
current tour state to an event handler. They are no-ops (with a console warning)
|
|
256
|
+
when no tour with that id is mounted.
|
|
257
|
+
|
|
258
|
+
The tour still needs `run=True` to be running; the actions drive a running tour,
|
|
259
|
+
they do not switch it on.
|
|
260
|
+
|
|
261
|
+
## Custom tooltip and beacon
|
|
262
|
+
|
|
263
|
+
Pass a function returning a Reflex component. It receives what react-joyride
|
|
264
|
+
passes to a custom tooltip, plus `current`, `total`, `progress`, `content`,
|
|
265
|
+
`title`, `stepId`, `stepData`, `isFirstStep` and `isLastStep` (these are
|
|
266
|
+
JavaScript props, so their keys stay `camelCase`):
|
|
267
|
+
|
|
268
|
+
```python
|
|
269
|
+
def tooltip(props):
|
|
270
|
+
return rx.card(
|
|
271
|
+
rx.vstack(
|
|
272
|
+
rx.badge(props["progress"], radius="full"),
|
|
273
|
+
rx.heading(props["title"], size="4"),
|
|
274
|
+
rx.text(props["content"], size="2"),
|
|
275
|
+
rx.hstack(
|
|
276
|
+
rx.button(
|
|
277
|
+
"Back",
|
|
278
|
+
variant="soft",
|
|
279
|
+
on_click=rjr.prev_step("welcome"),
|
|
280
|
+
disabled=props["isFirstStep"].to(bool),
|
|
281
|
+
),
|
|
282
|
+
rx.button(
|
|
283
|
+
rx.cond(props["isLastStep"].to(bool), "Done", "Next"), on_click=rjr.next_step("welcome")
|
|
284
|
+
),
|
|
285
|
+
),
|
|
286
|
+
),
|
|
287
|
+
width="360px",
|
|
288
|
+
)
|
|
289
|
+
|
|
290
|
+
|
|
291
|
+
rjr.joyride(steps=STEPS, tour_id="welcome", tooltip=tooltip, beacon=lambda _p: rx.box(...))
|
|
292
|
+
```
|
|
293
|
+
|
|
294
|
+
The component is rendered inside react-joyride's own wrapper, so the ARIA
|
|
295
|
+
attributes and positioning are handled for you. It can read your State like any
|
|
296
|
+
other component.
|
|
297
|
+
|
|
298
|
+
## Rendering above the overlay
|
|
299
|
+
|
|
300
|
+
react-joyride portals the overlay into `document.body`, and Reflex's Radix theme
|
|
301
|
+
root is a stacking context (`z-index: 0`), so the overlay paints above the whole
|
|
302
|
+
app no matter how large a `z-index` you give your own elements. If you need
|
|
303
|
+
something clickable while a tour runs — a control bar, a chat widget — render
|
|
304
|
+
the tour inside the app instead and give your element a higher `z-index` than
|
|
305
|
+
the tour's:
|
|
306
|
+
|
|
307
|
+
```python
|
|
308
|
+
(rx.box(id="tour-root"),)
|
|
309
|
+
(rjr.joyride(steps=STEPS, portal_element="#tour-root", options=rjr.TourOptions(z_index=1000)),)
|
|
310
|
+
(rx.box(my_controls, position="fixed", bottom="1rem", left="1rem", z_index="1200"),)
|
|
311
|
+
```
|
|
312
|
+
|
|
313
|
+
Otherwise anything under the overlay is inert while a step is open, which is
|
|
314
|
+
usually exactly what you want.
|
|
315
|
+
|
|
316
|
+
## Demo app
|
|
317
|
+
|
|
318
|
+
The `react_joyride_demo/` folder is a four page Reflex app covering the basics,
|
|
319
|
+
controlled mode, theming with a Reflex tooltip, and the awkward cases (targets
|
|
320
|
+
that appear late or never, spotlight targets, scrolling, modal steps, blocked
|
|
321
|
+
interaction):
|
|
322
|
+
|
|
323
|
+
```bash
|
|
324
|
+
uv sync
|
|
325
|
+
cd react_joyride_demo
|
|
326
|
+
uv run reflex run
|
|
327
|
+
```
|
|
328
|
+
|
|
329
|
+
## Development
|
|
330
|
+
|
|
331
|
+
```bash
|
|
332
|
+
uv sync # creates .venv and installs the package in editable mode
|
|
333
|
+
uv run pytest
|
|
334
|
+
uv run ruff check .
|
|
335
|
+
uv run ruff format --check .
|
|
336
|
+
uv run reflex component build # generates the .pyi stubs and builds dist/
|
|
337
|
+
```
|
|
338
|
+
|
|
339
|
+
## License
|
|
340
|
+
|
|
341
|
+
MIT © Ernesto Crespo
|
|
@@ -0,0 +1,313 @@
|
|
|
1
|
+
# reflex-react-joyride
|
|
2
|
+
|
|
3
|
+
Guided product tours and onboarding walkthroughs for [Reflex](https://reflex.dev), powered by [react-joyride](https://react-joyride.com) v3.
|
|
4
|
+
|
|
5
|
+
- Wraps **react-joyride 3.2.0** through its `useJoyride` hook, so the tour's controls are reachable from Python
|
|
6
|
+
- Typed props for everything: `Step`, `TourOptions`, `Locale`, `TourStyles`, `FloatingOptions` — `snake_case` in Python, `camelCase` in the browser
|
|
7
|
+
- **Uncontrolled** (`run`) or **controlled** (`step_index`) mode, whichever fits your State
|
|
8
|
+
- **Python actions**: `start`, `next_step`, `prev_step`, `go_to`, `skip`, `reset`, `replay`, `stop`, `open_tooltip`, `get_state`
|
|
9
|
+
- One catch-all `on_event` plus a dedicated trigger per event (`on_tour_start`, `on_step_after`, `on_target_not_found`, ...) with a flat, JSON-safe payload
|
|
10
|
+
- **Custom tooltip and beacon** written as ordinary Reflex components
|
|
11
|
+
- Step content and titles accept Reflex components, not just strings
|
|
12
|
+
- Constants mirroring react-joyride's literals: `EVENTS`, `ACTIONS`, `STATUS`, `LIFECYCLE`, `ORIGIN`
|
|
13
|
+
|
|
14
|
+
## Screenshots
|
|
15
|
+
|
|
16
|
+
The four pages of the demo app, in order:
|
|
17
|
+
|
|
18
|
+
| | |
|
|
19
|
+
| --- | --- |
|
|
20
|
+
|  |  |
|
|
21
|
+
| A continuous tour over a small dashboard, with the event log filling up | Controlled mode: the step index lives in the State and external buttons drive it |
|
|
22
|
+
|  |  |
|
|
23
|
+
| `locale`, `options` and `styles` restyling the built-in tooltip | The same step rendered by a Reflex component through the `tooltip` render prop |
|
|
24
|
+
|  |  |
|
|
25
|
+
| `placement="center"` on `body` for a modal-like opening step | A spotlight over a different element than the one the tooltip points at |
|
|
26
|
+
|
|
27
|
+
## Installation
|
|
28
|
+
|
|
29
|
+
```bash
|
|
30
|
+
pip install reflex-react-joyride
|
|
31
|
+
# or
|
|
32
|
+
uv add reflex-react-joyride
|
|
33
|
+
```
|
|
34
|
+
|
|
35
|
+
## Quick start
|
|
36
|
+
|
|
37
|
+
```python
|
|
38
|
+
import reflex as rx
|
|
39
|
+
import reflex_react_joyride as rjr
|
|
40
|
+
|
|
41
|
+
|
|
42
|
+
class TourState(rx.State):
|
|
43
|
+
run: bool = False
|
|
44
|
+
|
|
45
|
+
@rx.event
|
|
46
|
+
def start(self):
|
|
47
|
+
self.run = True
|
|
48
|
+
|
|
49
|
+
@rx.event
|
|
50
|
+
def finished(self, event: rjr.JoyrideEvent):
|
|
51
|
+
self.run = False
|
|
52
|
+
|
|
53
|
+
|
|
54
|
+
def index() -> rx.Component:
|
|
55
|
+
return rx.vstack(
|
|
56
|
+
rjr.joyride(
|
|
57
|
+
tour_id="welcome",
|
|
58
|
+
run=TourState.run,
|
|
59
|
+
continuous=True,
|
|
60
|
+
steps=[
|
|
61
|
+
rjr.Step(target="#logo", title="Welcome", content="This is the app."),
|
|
62
|
+
rjr.Step(target="#cta", content="Start here.", placement="top"),
|
|
63
|
+
],
|
|
64
|
+
options=rjr.TourOptions(show_progress=True, primary_color="#7c3aed"),
|
|
65
|
+
on_tour_end=TourState.finished,
|
|
66
|
+
),
|
|
67
|
+
rx.heading("Acme", id="logo"),
|
|
68
|
+
rx.button("Get started", id="cta"),
|
|
69
|
+
rx.button("Take the tour", on_click=TourState.start),
|
|
70
|
+
)
|
|
71
|
+
```
|
|
72
|
+
|
|
73
|
+
## Steps
|
|
74
|
+
|
|
75
|
+
A step needs a `target` (any CSS selector) and some `content`. Everything in
|
|
76
|
+
`TourOptions` can be overridden per step:
|
|
77
|
+
|
|
78
|
+
```python
|
|
79
|
+
rjr.Step(
|
|
80
|
+
target="#sidebar",
|
|
81
|
+
title="Navigation",
|
|
82
|
+
content=rx.vstack(rx.text("Every section lives here."), rx.code("Cmd+K")),
|
|
83
|
+
placement="right", # top | bottom | left | right | auto | center (+ -start / -end)
|
|
84
|
+
spotlight_padding=16,
|
|
85
|
+
show_progress=True,
|
|
86
|
+
id="sidebar", # echoed back as event["step_id"]
|
|
87
|
+
data={"section": "nav"}, # echoed back as event["step_data"], keys untouched
|
|
88
|
+
)
|
|
89
|
+
```
|
|
90
|
+
|
|
91
|
+
`target="body"` with `placement="center"` gives a modal-like step, which is a
|
|
92
|
+
good opener. Plain dicts work as well as `Step` objects, and so do steps kept in
|
|
93
|
+
a State var:
|
|
94
|
+
|
|
95
|
+
```python
|
|
96
|
+
class State(rx.State):
|
|
97
|
+
steps: list[dict] = [{"target": "#logo", "content": "Hi", "show_progress": True}]
|
|
98
|
+
|
|
99
|
+
|
|
100
|
+
rjr.joyride(steps=State.steps)
|
|
101
|
+
```
|
|
102
|
+
|
|
103
|
+
`snake_case` keys are converted to the `camelCase` react-joyride expects, both
|
|
104
|
+
for literal props (in Python) and for values coming from the State (in the
|
|
105
|
+
browser), so you never have to write `spotlightPadding` yourself. Keys that are
|
|
106
|
+
already `camelCase` pass through untouched.
|
|
107
|
+
|
|
108
|
+
## Theming
|
|
109
|
+
|
|
110
|
+
`options` sets behaviour and colors for the whole tour, `styles` overrides the
|
|
111
|
+
CSS of every element react-joyride renders, and `locale` replaces the strings:
|
|
112
|
+
|
|
113
|
+
```python
|
|
114
|
+
rjr.joyride(
|
|
115
|
+
steps=STEPS,
|
|
116
|
+
options=rjr.TourOptions(
|
|
117
|
+
primary_color="#059669",
|
|
118
|
+
background_color="#f2fbf7",
|
|
119
|
+
overlay_color="rgba(4, 47, 36, 0.55)",
|
|
120
|
+
show_progress=True,
|
|
121
|
+
skip_beacon=True, # go straight to the tooltip, no beacon
|
|
122
|
+
spotlight_radius=12,
|
|
123
|
+
buttons=["back", "skip", "primary"],
|
|
124
|
+
width=420,
|
|
125
|
+
z_index=1000,
|
|
126
|
+
),
|
|
127
|
+
styles=rjr.TourStyles(
|
|
128
|
+
tooltip={"border_radius": "14px", "box_shadow": "0 18px 40px rgba(15, 23, 42, 0.18)"},
|
|
129
|
+
button_primary={"border_radius": "999px", "padding": "8px 18px"},
|
|
130
|
+
),
|
|
131
|
+
locale=rjr.Locale(
|
|
132
|
+
back="Atrás",
|
|
133
|
+
close="Cerrar",
|
|
134
|
+
last="Finalizar",
|
|
135
|
+
next="Siguiente",
|
|
136
|
+
next_with_progress="Siguiente ({current} de {total})",
|
|
137
|
+
skip="Saltar",
|
|
138
|
+
),
|
|
139
|
+
)
|
|
140
|
+
```
|
|
141
|
+
|
|
142
|
+
CSS properties inside `styles` are converted too: `border_radius` becomes
|
|
143
|
+
`borderRadius`.
|
|
144
|
+
|
|
145
|
+
## Controlled mode
|
|
146
|
+
|
|
147
|
+
Pass `step_index` and react-joyride stops advancing on its own — it renders
|
|
148
|
+
exactly the step your State asks for. Move the index from `on_step_after`:
|
|
149
|
+
|
|
150
|
+
```python
|
|
151
|
+
class State(rx.State):
|
|
152
|
+
run: bool = False
|
|
153
|
+
index: int = 0
|
|
154
|
+
|
|
155
|
+
@rx.event
|
|
156
|
+
def advance(self, event: rjr.JoyrideEvent):
|
|
157
|
+
self.index = max(0, event["index"] + (-1 if event["action"] == rjr.ACTIONS.PREV else 1))
|
|
158
|
+
|
|
159
|
+
@rx.event
|
|
160
|
+
def skip_missing(self, event: rjr.JoyrideEvent):
|
|
161
|
+
self.index = event["index"] + 1
|
|
162
|
+
|
|
163
|
+
@rx.event
|
|
164
|
+
def finished(self, _event: rjr.JoyrideEvent):
|
|
165
|
+
self.run, self.index = False, 0
|
|
166
|
+
|
|
167
|
+
|
|
168
|
+
rjr.joyride(
|
|
169
|
+
steps=STEPS,
|
|
170
|
+
run=State.run,
|
|
171
|
+
step_index=State.index,
|
|
172
|
+
continuous=True,
|
|
173
|
+
on_step_after=State.advance,
|
|
174
|
+
on_target_not_found=State.skip_missing,
|
|
175
|
+
on_tour_end=State.finished,
|
|
176
|
+
)
|
|
177
|
+
```
|
|
178
|
+
|
|
179
|
+
This is what you want when a step should only open after your own code did
|
|
180
|
+
something — finished a request, opened a drawer, switched a tab.
|
|
181
|
+
|
|
182
|
+
## Events
|
|
183
|
+
|
|
184
|
+
Every trigger receives the same flat dict:
|
|
185
|
+
|
|
186
|
+
| key | meaning |
|
|
187
|
+
| --- | --- |
|
|
188
|
+
| `type` | the event, e.g. `tour:start`, `step:after`, `error:target_not_found` |
|
|
189
|
+
| `action` | what triggered it: `start`, `next`, `prev`, `close`, `skip`, `update`, ... |
|
|
190
|
+
| `index`, `size`, `is_last_step` | where we are in the tour |
|
|
191
|
+
| `status` | `idle`, `ready`, `waiting`, `running`, `paused`, `skipped`, `finished` |
|
|
192
|
+
| `lifecycle` | `init`, `ready`, `beacon`, `tooltip`, `complete`, ... |
|
|
193
|
+
| `origin` | which control fired it: `button_primary`, `overlay`, `keyboard`, ... |
|
|
194
|
+
| `controlled`, `waiting`, `scrolling` | tour flags |
|
|
195
|
+
| `step_id`, `step_target`, `step_title`, `step_data` | about the current step |
|
|
196
|
+
| `error` | the message for `error` events |
|
|
197
|
+
|
|
198
|
+
Triggers: `on_event` (all of them), `on_tour_start`, `on_tour_end`,
|
|
199
|
+
`on_status_change`, `on_step_before`, `on_step_after`, `on_beacon`,
|
|
200
|
+
`on_tooltip`, `on_scroll_start`, `on_scroll_end`, `on_target_not_found`,
|
|
201
|
+
`on_error`.
|
|
202
|
+
|
|
203
|
+
Compare against the constants instead of raw strings:
|
|
204
|
+
|
|
205
|
+
```python
|
|
206
|
+
@rx.event
|
|
207
|
+
def on_tour_event(self, event: rjr.JoyrideEvent):
|
|
208
|
+
if event["type"] == rjr.EVENTS.TOUR_END and event["status"] in rjr.FINISHED_STATUSES:
|
|
209
|
+
self.onboarding_done = True
|
|
210
|
+
```
|
|
211
|
+
|
|
212
|
+
## Python actions
|
|
213
|
+
|
|
214
|
+
Give the tour a `tour_id` and you can drive it from anywhere, without keeping
|
|
215
|
+
the index in your State:
|
|
216
|
+
|
|
217
|
+
```python
|
|
218
|
+
rx.button("Start", on_click=rjr.start("welcome"))
|
|
219
|
+
rx.button("Step 3", on_click=rjr.go_to("welcome", 2))
|
|
220
|
+
rx.button("Next", on_click=rjr.next_step("welcome"))
|
|
221
|
+
rx.button("Replay this step", on_click=rjr.replay("welcome"))
|
|
222
|
+
rx.button("Skip", on_click=rjr.skip("welcome"))
|
|
223
|
+
```
|
|
224
|
+
|
|
225
|
+
`start`, `stop`, `next_step`, `prev_step`, `go_to`, `close`, `skip`, `reset`,
|
|
226
|
+
`replay`, `open_tooltip`, and `get_state(tour_id, callback)` which sends the
|
|
227
|
+
current tour state to an event handler. They are no-ops (with a console warning)
|
|
228
|
+
when no tour with that id is mounted.
|
|
229
|
+
|
|
230
|
+
The tour still needs `run=True` to be running; the actions drive a running tour,
|
|
231
|
+
they do not switch it on.
|
|
232
|
+
|
|
233
|
+
## Custom tooltip and beacon
|
|
234
|
+
|
|
235
|
+
Pass a function returning a Reflex component. It receives what react-joyride
|
|
236
|
+
passes to a custom tooltip, plus `current`, `total`, `progress`, `content`,
|
|
237
|
+
`title`, `stepId`, `stepData`, `isFirstStep` and `isLastStep` (these are
|
|
238
|
+
JavaScript props, so their keys stay `camelCase`):
|
|
239
|
+
|
|
240
|
+
```python
|
|
241
|
+
def tooltip(props):
|
|
242
|
+
return rx.card(
|
|
243
|
+
rx.vstack(
|
|
244
|
+
rx.badge(props["progress"], radius="full"),
|
|
245
|
+
rx.heading(props["title"], size="4"),
|
|
246
|
+
rx.text(props["content"], size="2"),
|
|
247
|
+
rx.hstack(
|
|
248
|
+
rx.button(
|
|
249
|
+
"Back",
|
|
250
|
+
variant="soft",
|
|
251
|
+
on_click=rjr.prev_step("welcome"),
|
|
252
|
+
disabled=props["isFirstStep"].to(bool),
|
|
253
|
+
),
|
|
254
|
+
rx.button(
|
|
255
|
+
rx.cond(props["isLastStep"].to(bool), "Done", "Next"), on_click=rjr.next_step("welcome")
|
|
256
|
+
),
|
|
257
|
+
),
|
|
258
|
+
),
|
|
259
|
+
width="360px",
|
|
260
|
+
)
|
|
261
|
+
|
|
262
|
+
|
|
263
|
+
rjr.joyride(steps=STEPS, tour_id="welcome", tooltip=tooltip, beacon=lambda _p: rx.box(...))
|
|
264
|
+
```
|
|
265
|
+
|
|
266
|
+
The component is rendered inside react-joyride's own wrapper, so the ARIA
|
|
267
|
+
attributes and positioning are handled for you. It can read your State like any
|
|
268
|
+
other component.
|
|
269
|
+
|
|
270
|
+
## Rendering above the overlay
|
|
271
|
+
|
|
272
|
+
react-joyride portals the overlay into `document.body`, and Reflex's Radix theme
|
|
273
|
+
root is a stacking context (`z-index: 0`), so the overlay paints above the whole
|
|
274
|
+
app no matter how large a `z-index` you give your own elements. If you need
|
|
275
|
+
something clickable while a tour runs — a control bar, a chat widget — render
|
|
276
|
+
the tour inside the app instead and give your element a higher `z-index` than
|
|
277
|
+
the tour's:
|
|
278
|
+
|
|
279
|
+
```python
|
|
280
|
+
(rx.box(id="tour-root"),)
|
|
281
|
+
(rjr.joyride(steps=STEPS, portal_element="#tour-root", options=rjr.TourOptions(z_index=1000)),)
|
|
282
|
+
(rx.box(my_controls, position="fixed", bottom="1rem", left="1rem", z_index="1200"),)
|
|
283
|
+
```
|
|
284
|
+
|
|
285
|
+
Otherwise anything under the overlay is inert while a step is open, which is
|
|
286
|
+
usually exactly what you want.
|
|
287
|
+
|
|
288
|
+
## Demo app
|
|
289
|
+
|
|
290
|
+
The `react_joyride_demo/` folder is a four page Reflex app covering the basics,
|
|
291
|
+
controlled mode, theming with a Reflex tooltip, and the awkward cases (targets
|
|
292
|
+
that appear late or never, spotlight targets, scrolling, modal steps, blocked
|
|
293
|
+
interaction):
|
|
294
|
+
|
|
295
|
+
```bash
|
|
296
|
+
uv sync
|
|
297
|
+
cd react_joyride_demo
|
|
298
|
+
uv run reflex run
|
|
299
|
+
```
|
|
300
|
+
|
|
301
|
+
## Development
|
|
302
|
+
|
|
303
|
+
```bash
|
|
304
|
+
uv sync # creates .venv and installs the package in editable mode
|
|
305
|
+
uv run pytest
|
|
306
|
+
uv run ruff check .
|
|
307
|
+
uv run ruff format --check .
|
|
308
|
+
uv run reflex component build # generates the .pyi stubs and builds dist/
|
|
309
|
+
```
|
|
310
|
+
|
|
311
|
+
## License
|
|
312
|
+
|
|
313
|
+
MIT © Ernesto Crespo
|
