@@ -0,0 +1,21 @@
|
|
|
1
|
+
MIT License
|
|
2
|
+
|
|
3
|
+
Copyright (c) 2026 Ernesto Crespo
|
|
4
|
+
|
|
5
|
+
Permission is hereby granted, free of charge, to any person obtaining a copy
|
|
6
|
+
of this software and associated documentation files (the "Software"), to deal
|
|
7
|
+
in the Software without restriction, including without limitation the rights
|
|
8
|
+
to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
|
|
9
|
+
copies of the Software, and to permit persons to whom the Software is
|
|
10
|
+
furnished to do so, subject to the following conditions:
|
|
11
|
+
|
|
12
|
+
The above copyright notice and this permission notice shall be included in all
|
|
13
|
+
copies or substantial portions of the Software.
|
|
14
|
+
|
|
15
|
+
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
|
|
16
|
+
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
|
|
17
|
+
FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
|
|
18
|
+
AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
|
|
19
|
+
LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
|
|
20
|
+
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
|
|
21
|
+
SOFTWARE.
|
|
@@ -0,0 +1,235 @@
|
|
|
1
|
+
Metadata-Version: 2.4
|
|
2
|
+
Name: reflex-monocharts
|
|
3
|
+
Version: 0.1.1
|
|
4
|
+
Summary: Monochromatic, rounded chart cards for Reflex - a Python port of the Monocharts design system built on rx.recharts.
|
|
5
|
+
Author-email: Ernesto Crespo <ecrespo@gmail.com>
|
|
6
|
+
License-Expression: MIT
|
|
7
|
+
Project-URL: Homepage, https://github.com/ecrespo/reflex-monocharts
|
|
8
|
+
Project-URL: Source, https://github.com/ecrespo/reflex-monocharts
|
|
9
|
+
Project-URL: Issues, https://github.com/ecrespo/reflex-monocharts/issues
|
|
10
|
+
Keywords: reflex,reflex-custom-components,charts,recharts,monocharts,dataviz
|
|
11
|
+
Classifier: Development Status :: 4 - Beta
|
|
12
|
+
Classifier: Intended Audience :: Developers
|
|
13
|
+
Classifier: Programming Language :: Python :: 3.10
|
|
14
|
+
Classifier: Programming Language :: Python :: 3.11
|
|
15
|
+
Classifier: Programming Language :: Python :: 3.12
|
|
16
|
+
Classifier: Programming Language :: Python :: 3.13
|
|
17
|
+
Classifier: Topic :: Scientific/Engineering :: Visualization
|
|
18
|
+
Requires-Python: >=3.10
|
|
19
|
+
Description-Content-Type: text/markdown
|
|
20
|
+
License-File: LICENSE
|
|
21
|
+
Requires-Dist: reflex>=0.9.0
|
|
22
|
+
Provides-Extra: dev
|
|
23
|
+
Requires-Dist: build; extra == "dev"
|
|
24
|
+
Requires-Dist: twine; extra == "dev"
|
|
25
|
+
Requires-Dist: pytest>=8; extra == "dev"
|
|
26
|
+
Requires-Dist: pytest-cov>=5; extra == "dev"
|
|
27
|
+
Requires-Dist: ruff>=0.6; extra == "dev"
|
|
28
|
+
Requires-Dist: bandit[toml]>=1.7; extra == "dev"
|
|
29
|
+
Requires-Dist: pip-audit>=2.7; extra == "dev"
|
|
30
|
+
Dynamic: license-file
|
|
31
|
+
|
|
32
|
+
# reflex-monocharts
|
|
33
|
+
|
|
34
|
+

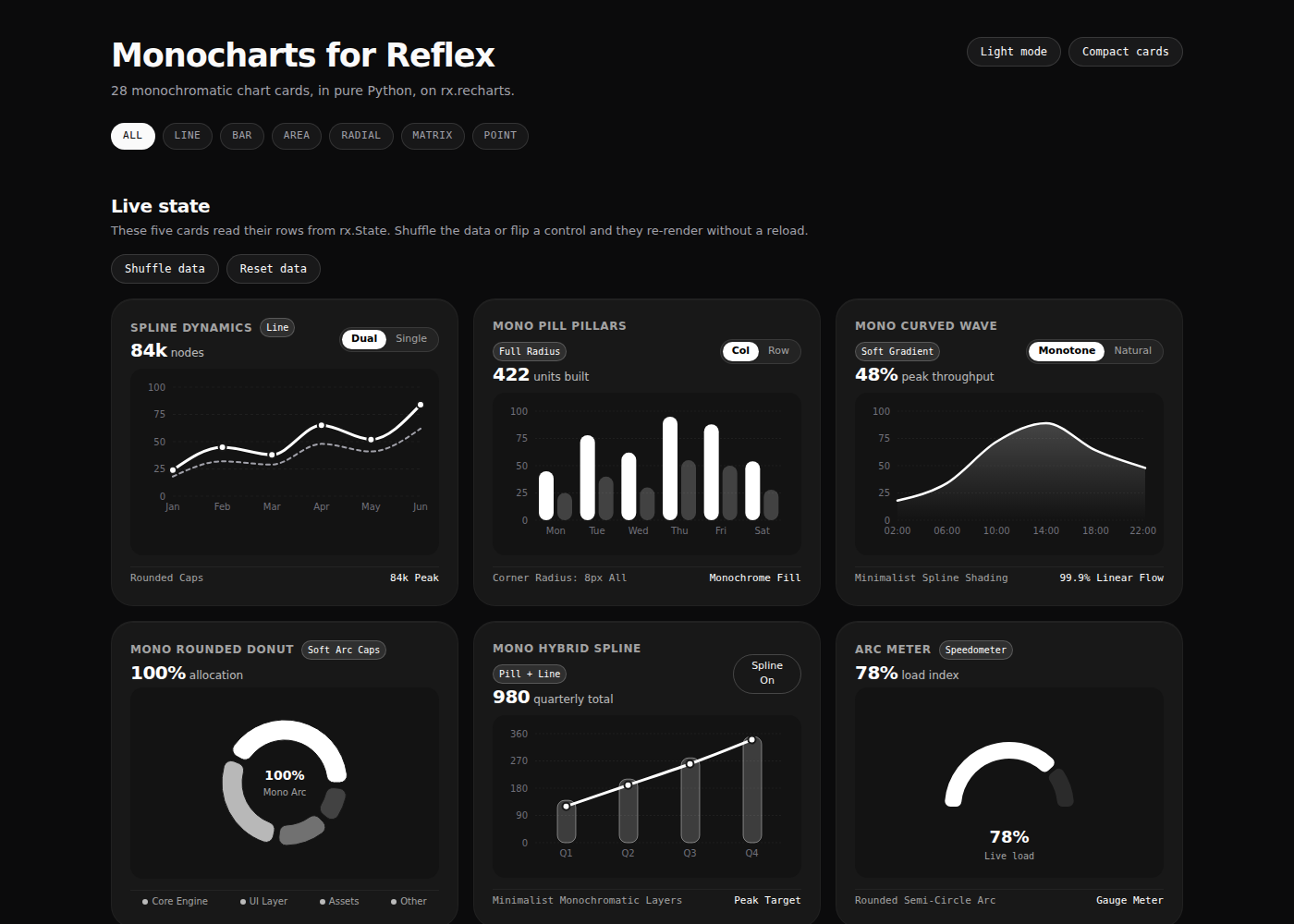

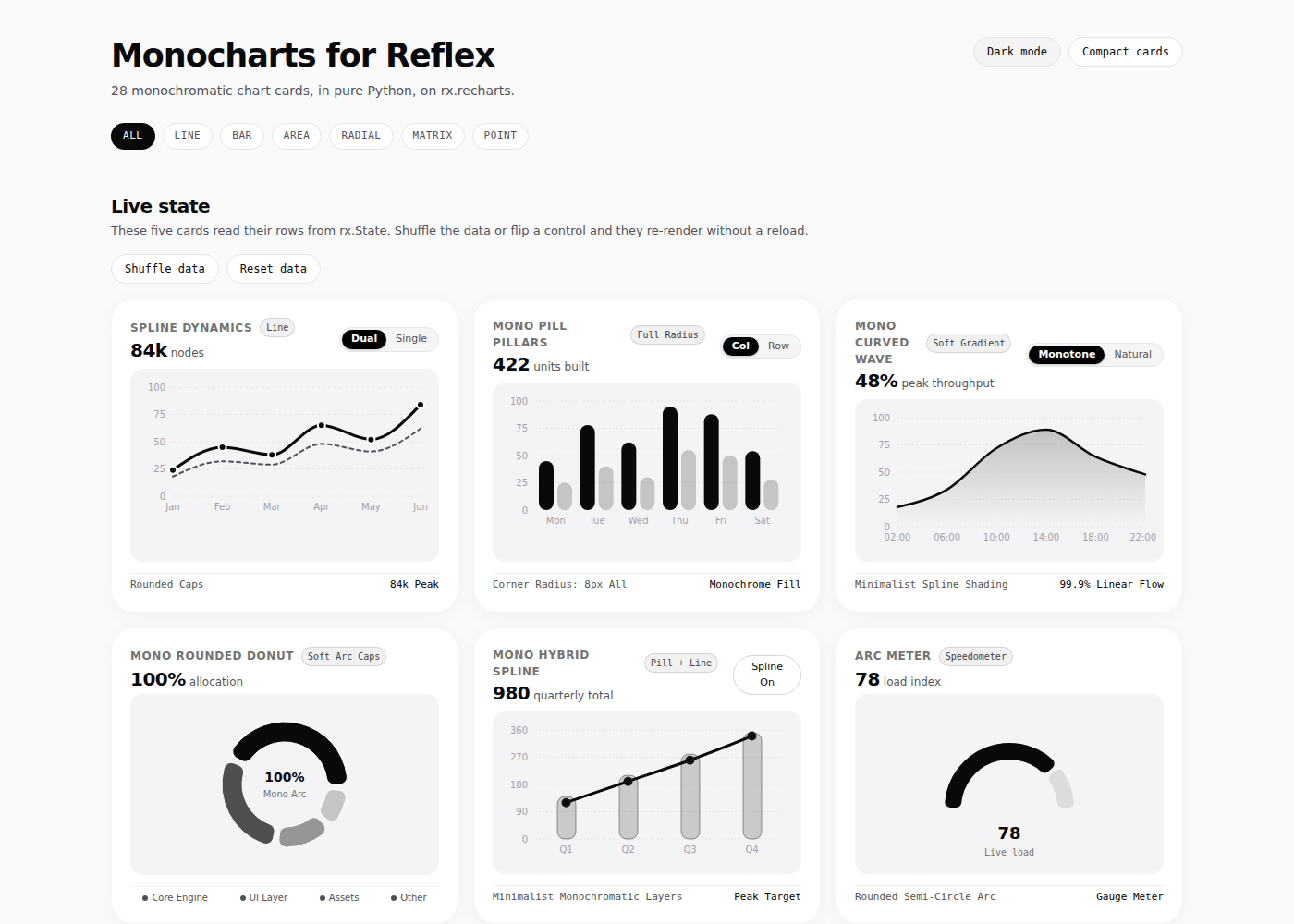

Monochromatic, rounded chart cards for [Reflex](https://reflex.dev) — a pure-Python
|
|
35
|
+
port of the [Monocharts](https://github.com/Subhan-code/Monocharts) design system.
|
|
36
|
+
|
|
37
|
+
28 components: splines, pill bars, gradient areas, donuts, radars, radial gauges,
|
|
38
|
+
bullet targets, treemaps, heatmaps, candlesticks, Sankey bands and a GitHub-style
|
|
39
|
+
contribution grid. All one hue, all rounded, dark and light.
|
|
40
|
+
|
|
41
|
+
```bash
|
|
42
|
+
pip install reflex-monocharts
|
|
43
|
+
```
|
|
44
|
+
|
|
45
|
+

|
|
46
|
+

|
|
47
|
+
|
|
48
|
+
## Why a port and not a wrapper
|
|
49
|
+
|
|
50
|
+
Monocharts ships as copy-paste React/TSX built on Recharts and Tailwind, with the
|
|
51
|
+
data hard-coded in each component. Reflex already wraps Recharts, so this library
|
|
52
|
+
rebuilds the *design system* in Python instead of shipping JavaScript:
|
|
53
|
+
|
|
54
|
+
- **No npm dependency and no Tailwind requirement.** Every class is translated to
|
|
55
|
+
Reflex style props, so the cards drop into any Reflex app unchanged.
|
|
56
|
+
- **Data-driven.** Each chart takes `data` plus `*_key` arguments and binds to
|
|
57
|
+
`rx.State`. Call it with no arguments and you get the original demo card.
|
|
58
|
+
- **Reactive theming.** `theme=` accepts `"dark"`, `"light"`, or a state Var, so a
|
|
59
|
+
toggle re-themes every card without a reload. `compact=` works the same way.
|
|
60
|
+
|
|
61
|
+
## Quick start
|
|
62
|
+
|
|
63
|
+
```python
|
|
64
|
+
import reflex as rx
|
|
65
|
+
from reflex_monocharts import monocharts as mc
|
|
66
|
+
|
|
67
|
+
|
|
68
|
+
class State(rx.State):
|
|
69
|
+
theme: str = "dark"
|
|
70
|
+
traffic: list[dict] = [
|
|
71
|
+
{"hour": "02:00", "hits": 18},
|
|
72
|
+
{"hour": "06:00", "hits": 34},
|
|
73
|
+
{"hour": "10:00", "hits": 72},
|
|
74
|
+
]
|
|
75
|
+
|
|
76
|
+
@rx.event
|
|
77
|
+
def toggle_theme(self):
|
|
78
|
+
self.theme = "light" if self.theme == "dark" else "dark"
|
|
79
|
+
|
|
80
|
+
|
|
81
|
+
def index() -> rx.Component:
|
|
82
|
+
return rx.vstack(
|
|
83
|
+
rx.button("Toggle theme", on_click=State.toggle_theme),
|
|
84
|
+
mc.area(
|
|
85
|
+
State.traffic,
|
|
86
|
+
x_key="hour",
|
|
87
|
+
value_key="hits",
|
|
88
|
+
theme=State.theme,
|
|
89
|
+
title="Traffic",
|
|
90
|
+
badge="Live",
|
|
91
|
+
unit="requests",
|
|
92
|
+
),
|
|
93
|
+
mc.gauge(84, theme=State.theme),
|
|
94
|
+
width="420px",
|
|
95
|
+
)
|
|
96
|
+
```
|
|
97
|
+
|
|
98
|
+
Long names are available too — `mc.area` is `mono_rounded_area_chart`.
|
|
99
|
+
|
|
100
|
+
## The catalog
|
|
101
|
+
|
|
102
|
+
| Short name | Function | What it draws |
|
|
103
|
+
| --- | --- | --- |
|
|
104
|
+
| `mc.line` | `mono_rounded_line_chart` | Spline with a dashed baseline series |
|
|
105
|
+
| `mc.step` | `mono_rounded_step_chart` | Discrete staircase |
|
|
106
|
+
| `mc.sparkline` | `mono_rounded_sparkline_chart` | Stacked telemetry rows with micro splines |
|
|
107
|
+
| `mc.kpi` | `mono_rounded_kpi_card_chart` | Big KPI over a gradient sparkline |
|
|
108
|
+
| `mc.bar` | `mono_rounded_bar_chart` | Pill bars, as columns or rows |
|
|
109
|
+
| `mc.stacked_bar` | `mono_rounded_stacked_bar_chart` | Tonal stack with rounded ends |
|
|
110
|
+
| `mc.composed` | `mono_rounded_composed_chart` | Outlined columns plus a spline |
|
|
111
|
+
| `mc.waterfall` | `mono_rounded_waterfall_chart` | Floating delta pillars |
|
|
112
|
+
| `mc.funnel` | `mono_rounded_funnel_chart` | Horizontal pipeline stages |
|
|
113
|
+
| `mc.bullet` | `mono_rounded_bullet_chart` | Progress bars with benchmark markers |
|
|
114
|
+
| `mc.pyramid` | `mono_rounded_pyramid_chart` | Hierarchy tiers |
|
|
115
|
+
| `mc.candlestick` | `mono_rounded_candlestick_chart` | OHLC candles with rounded wicks |
|
|
116
|
+
| `mc.area` | `mono_rounded_area_chart` | Curved area with a soft gradient |
|
|
117
|
+
| `mc.range` | `mono_rounded_range_chart` | Floating min-max band |
|
|
118
|
+
| `mc.stream` | `mono_rounded_stream_chart` | Two natural-spline waves |
|
|
119
|
+
| `mc.donut` | `mono_rounded_donut_chart` | Donut with rounded caps and a centre readout |
|
|
120
|
+
| `mc.radar` | `mono_rounded_radar_chart` | Multi-axis polygon web |
|
|
121
|
+
| `mc.polar` | `mono_rounded_polar_chart` | 360-degree radial pillars |
|
|
122
|
+
| `mc.radial_group` | `mono_rounded_radial_bar_group` | Half-circle arc group |
|
|
123
|
+
| `mc.radial_gauge` | `mono_rounded_radial_gauge_chart` | Concentric progress rings |
|
|
124
|
+
| `mc.gauge` | `mono_rounded_gauge_arc` | 240-degree speedometer dial |
|
|
125
|
+
| `mc.meter` | `mono_rounded_meter_chart` | Semicircle meter |
|
|
126
|
+
| `mc.scatter` | `mono_rounded_scatter_chart` | Weighted node matrix |
|
|
127
|
+
| `mc.bubble` | `mono_rounded_bubble_chart` | Outlined bubbles, area-encoded |
|
|
128
|
+
| `mc.heatmap` | `mono_rounded_heatmap_chart` | Labelled density matrix |
|
|
129
|
+
| `mc.treemap` | `mono_rounded_treemap_chart` | Rounded partition tiles |
|
|
130
|
+
| `mc.sankey` | `mono_rounded_sankey_chart` | Curved flow bands |
|
|
131
|
+
| `mc.activity` | `mono_activity_heatmap` | Contribution grid (green/blue/purple/mono) |
|
|
132
|
+
|
|
133
|
+
## Common arguments
|
|
134
|
+
|
|
135
|
+
Every chart accepts these, on top of its own `*_key` arguments:
|
|
136
|
+
|
|
137
|
+
| Argument | Meaning |
|
|
138
|
+
| --- | --- |
|
|
139
|
+
| `data` | Rows to plot. Omit for the built-in demo dataset. |
|
|
140
|
+
| `theme` | `"dark"`, `"light"`, or a state Var. |
|
|
141
|
+
| `compact` | Short card instead of tall. Accepts a Var. |
|
|
142
|
+
| `title` / `badge` | The uppercase eyebrow and the pill beside it. |
|
|
143
|
+
| `value` / `unit` | The headline metric and its muted suffix. Derived from the data when omitted. |
|
|
144
|
+
| `footer_left` / `footer_right` | The two monospace footer captions. |
|
|
145
|
+
| `control` | A component rendered flush right in the header. |
|
|
146
|
+
| `**props` | Any extra style props, forwarded to the card. |
|
|
147
|
+
|
|
148
|
+
## Interactive controls
|
|
149
|
+
|
|
150
|
+
The originals bake their toggles into the component. Here the option is a prop,
|
|
151
|
+
so it can be wired to your own state — `mono_segmented` renders the matching pill
|
|
152
|
+
control:
|
|
153
|
+
|
|
154
|
+
```python
|
|
155
|
+
from reflex_monocharts import mono_segmented, monocharts as mc
|
|
156
|
+
|
|
157
|
+
|
|
158
|
+
class State(rx.State):
|
|
159
|
+
curve: str = "monotone"
|
|
160
|
+
|
|
161
|
+
@rx.event
|
|
162
|
+
def set_curve(self, value: str):
|
|
163
|
+
self.curve = value
|
|
164
|
+
|
|
165
|
+
|
|
166
|
+
mc.area(
|
|
167
|
+
curve=State.curve,
|
|
168
|
+
control=mono_segmented(
|
|
169
|
+
[("monotone", "Monotone"), ("natural", "Natural")],
|
|
170
|
+
State.curve,
|
|
171
|
+
State.set_curve,
|
|
172
|
+
theme=State.theme,
|
|
173
|
+
),
|
|
174
|
+
)
|
|
175
|
+
```
|
|
176
|
+
|
|
177
|
+
The same pattern drives `series=` on the line card, `orientation=` on the bar card
|
|
178
|
+
and `show_trend=` on the hybrid card.
|
|
179
|
+
|
|
180
|
+
## Building your own cards
|
|
181
|
+
|
|
182
|
+
The chrome is exported, so a custom chart can sit in the same system:
|
|
183
|
+
|
|
184
|
+
```python
|
|
185
|
+
from reflex_monocharts import mono_card, mono_header, mono_stage, mono_footer, mono_tooltip
|
|
186
|
+
|
|
187
|
+
mono_card(
|
|
188
|
+
mono_header("My Metric", "Custom", "1,204", "events", theme="dark"),
|
|
189
|
+
mono_stage(my_chart, theme="dark"),
|
|
190
|
+
mono_footer("Left caption", "Right caption", theme="dark"),
|
|
191
|
+
theme="dark",
|
|
192
|
+
)
|
|
193
|
+
```
|
|
194
|
+
|
|
195
|
+
`ink()`, `ink_alpha()`, `pick()` and `is_dark()` from `reflex_monocharts.theme`
|
|
196
|
+
resolve the monochrome palette for either a plain theme string or a Var.
|
|
197
|
+
|
|
198
|
+
## Notes and deliberate differences
|
|
199
|
+
|
|
200
|
+
- **Badge and footer rule are theme-aware here.** Upstream hard-codes
|
|
201
|
+
`bg-white/10 text-white` and `border-white/5`, which is invisible on the light
|
|
202
|
+
card; this port resolves both per theme.
|
|
203
|
+
- **The tooltip is `rx.recharts.graphing_tooltip`** styled to match the original's
|
|
204
|
+
blurred dark panel. Recharts' `content` render-prop takes a React component,
|
|
205
|
+
which Reflex cannot pass, so the styling is reproduced through
|
|
206
|
+
`content_style` / `item_style` / `label_style`.
|
|
207
|
+
- **Gradients are defined in a hidden sibling `<svg>`** with a process-unique id,
|
|
208
|
+
so several gradient-filled cards can share a page.
|
|
209
|
+
- **`mono_activity_heatmap` seeds its RNG** so the grid is stable across
|
|
210
|
+
re-renders. Pass `seed=None` to `data.activity_contributions` for the original
|
|
211
|
+
random behaviour, and use a native `title` tooltip per cell rather than a
|
|
212
|
+
server round-trip for 140 cells.
|
|
213
|
+
- **`mono_rounded_candlestick_chart` needs explicit `low_bound`/`high_bound`**
|
|
214
|
+
when `data` is a state Var, since the price scale cannot be derived at build
|
|
215
|
+
time. `mono_rounded_sankey_chart` computes its band geometry in Python and
|
|
216
|
+
takes a plain list.
|
|
217
|
+
|
|
218
|
+
## Demo app
|
|
219
|
+
|
|
220
|
+
```bash
|
|
221
|
+
cd monocharts_demo
|
|
222
|
+
uv run reflex run
|
|
223
|
+
```
|
|
224
|
+
|
|
225
|
+
The gallery shows every chart, a live-state section wired to `rx.State`, a theme
|
|
226
|
+
toggle, a compact toggle and a category filter.
|
|
227
|
+
|
|
228
|
+
## Credits
|
|
229
|
+
|
|
230
|
+
Design system by [Syed Subhan](https://github.com/Subhan-code) — see
|
|
231
|
+
[Monocharts](https://github.com/Subhan-code/Monocharts) and
|
|
232
|
+
[amicro](https://amicro.vercel.app/mono-charts). This is an independent Python
|
|
233
|
+
port for Reflex, not affiliated with the original project.
|
|
234
|
+
|
|
235
|
+
MIT licensed.
|
|
@@ -0,0 +1,204 @@
|
|
|
1
|
+
# reflex-monocharts
|
|
2
|
+
|
|
3
|
+
Monochromatic, rounded chart cards for [Reflex](https://reflex.dev) — a pure-Python
|
|
4
|
+
port of the [Monocharts](https://github.com/Subhan-code/Monocharts) design system.
|
|
5
|
+
|
|
6
|
+
28 components: splines, pill bars, gradient areas, donuts, radars, radial gauges,
|
|
7
|
+
bullet targets, treemaps, heatmaps, candlesticks, Sankey bands and a GitHub-style
|
|
8
|
+
contribution grid. All one hue, all rounded, dark and light.
|
|
9
|
+
|
|
10
|
+
```bash
|
|
11
|
+
pip install reflex-monocharts
|
|
12
|
+
```
|
|
13
|
+
|
|
14
|
+

|
|
15
|
+

|
|
16
|
+
|
|
17
|
+
## Why a port and not a wrapper
|
|
18
|
+
|
|
19
|
+
Monocharts ships as copy-paste React/TSX built on Recharts and Tailwind, with the
|
|
20
|
+
data hard-coded in each component. Reflex already wraps Recharts, so this library
|
|
21
|
+
rebuilds the *design system* in Python instead of shipping JavaScript:
|
|
22
|
+
|
|
23
|
+
- **No npm dependency and no Tailwind requirement.** Every class is translated to
|
|
24
|
+
Reflex style props, so the cards drop into any Reflex app unchanged.
|
|
25
|
+
- **Data-driven.** Each chart takes `data` plus `*_key` arguments and binds to
|
|
26
|
+
`rx.State`. Call it with no arguments and you get the original demo card.
|
|
27
|
+
- **Reactive theming.** `theme=` accepts `"dark"`, `"light"`, or a state Var, so a
|
|
28
|
+
toggle re-themes every card without a reload. `compact=` works the same way.
|
|
29
|
+
|
|
30
|
+
## Quick start
|
|
31
|
+
|
|
32
|
+
```python
|
|
33
|
+
import reflex as rx
|
|
34
|
+
from reflex_monocharts import monocharts as mc
|
|
35
|
+
|
|
36
|
+
|
|
37
|
+
class State(rx.State):
|
|
38
|
+
theme: str = "dark"
|
|
39
|
+
traffic: list[dict] = [
|
|
40
|
+
{"hour": "02:00", "hits": 18},
|
|
41
|
+
{"hour": "06:00", "hits": 34},
|
|
42
|
+
{"hour": "10:00", "hits": 72},
|
|
43
|
+
]
|
|
44
|
+
|
|
45
|
+
@rx.event
|
|
46
|
+
def toggle_theme(self):
|
|
47
|
+
self.theme = "light" if self.theme == "dark" else "dark"
|
|
48
|
+
|
|
49
|
+
|
|
50
|
+
def index() -> rx.Component:
|
|
51
|
+
return rx.vstack(
|
|
52
|
+
rx.button("Toggle theme", on_click=State.toggle_theme),
|
|
53
|
+
mc.area(
|
|
54
|
+
State.traffic,
|
|
55
|
+
x_key="hour",
|
|
56
|
+
value_key="hits",
|
|
57
|
+
theme=State.theme,
|
|
58
|
+
title="Traffic",
|
|
59
|
+
badge="Live",
|
|
60
|
+
unit="requests",
|
|
61
|
+
),
|
|
62
|
+
mc.gauge(84, theme=State.theme),
|
|
63
|
+
width="420px",
|
|
64
|
+
)
|
|
65
|
+
```
|
|
66
|
+
|
|
67
|
+
Long names are available too — `mc.area` is `mono_rounded_area_chart`.
|
|
68
|
+
|
|
69
|
+
## The catalog
|
|
70
|
+
|
|
71
|
+
| Short name | Function | What it draws |
|
|
72
|
+
| --- | --- | --- |
|
|
73
|
+
| `mc.line` | `mono_rounded_line_chart` | Spline with a dashed baseline series |
|
|
74
|
+
| `mc.step` | `mono_rounded_step_chart` | Discrete staircase |
|
|
75
|
+
| `mc.sparkline` | `mono_rounded_sparkline_chart` | Stacked telemetry rows with micro splines |
|
|
76
|
+
| `mc.kpi` | `mono_rounded_kpi_card_chart` | Big KPI over a gradient sparkline |
|
|
77
|
+
| `mc.bar` | `mono_rounded_bar_chart` | Pill bars, as columns or rows |
|
|
78
|
+
| `mc.stacked_bar` | `mono_rounded_stacked_bar_chart` | Tonal stack with rounded ends |
|
|
79
|
+
| `mc.composed` | `mono_rounded_composed_chart` | Outlined columns plus a spline |
|
|
80
|
+
| `mc.waterfall` | `mono_rounded_waterfall_chart` | Floating delta pillars |
|
|
81
|
+
| `mc.funnel` | `mono_rounded_funnel_chart` | Horizontal pipeline stages |
|
|
82
|
+
| `mc.bullet` | `mono_rounded_bullet_chart` | Progress bars with benchmark markers |
|
|
83
|
+
| `mc.pyramid` | `mono_rounded_pyramid_chart` | Hierarchy tiers |
|
|
84
|
+
| `mc.candlestick` | `mono_rounded_candlestick_chart` | OHLC candles with rounded wicks |
|
|
85
|
+
| `mc.area` | `mono_rounded_area_chart` | Curved area with a soft gradient |
|
|
86
|
+
| `mc.range` | `mono_rounded_range_chart` | Floating min-max band |
|
|
87
|
+
| `mc.stream` | `mono_rounded_stream_chart` | Two natural-spline waves |
|
|
88
|
+
| `mc.donut` | `mono_rounded_donut_chart` | Donut with rounded caps and a centre readout |
|
|
89
|
+
| `mc.radar` | `mono_rounded_radar_chart` | Multi-axis polygon web |
|
|
90
|
+
| `mc.polar` | `mono_rounded_polar_chart` | 360-degree radial pillars |
|
|
91
|
+
| `mc.radial_group` | `mono_rounded_radial_bar_group` | Half-circle arc group |
|
|
92
|
+
| `mc.radial_gauge` | `mono_rounded_radial_gauge_chart` | Concentric progress rings |
|
|
93
|
+
| `mc.gauge` | `mono_rounded_gauge_arc` | 240-degree speedometer dial |
|
|
94
|
+
| `mc.meter` | `mono_rounded_meter_chart` | Semicircle meter |
|
|
95
|
+
| `mc.scatter` | `mono_rounded_scatter_chart` | Weighted node matrix |
|
|
96
|
+
| `mc.bubble` | `mono_rounded_bubble_chart` | Outlined bubbles, area-encoded |
|
|
97
|
+
| `mc.heatmap` | `mono_rounded_heatmap_chart` | Labelled density matrix |
|
|
98
|
+
| `mc.treemap` | `mono_rounded_treemap_chart` | Rounded partition tiles |
|
|
99
|
+
| `mc.sankey` | `mono_rounded_sankey_chart` | Curved flow bands |
|
|
100
|
+
| `mc.activity` | `mono_activity_heatmap` | Contribution grid (green/blue/purple/mono) |
|
|
101
|
+
|
|
102
|
+
## Common arguments
|
|
103
|
+
|
|
104
|
+
Every chart accepts these, on top of its own `*_key` arguments:
|
|
105
|
+
|
|
106
|
+
| Argument | Meaning |
|
|
107
|
+
| --- | --- |
|
|
108
|
+
| `data` | Rows to plot. Omit for the built-in demo dataset. |
|
|
109
|
+
| `theme` | `"dark"`, `"light"`, or a state Var. |
|
|
110
|
+
| `compact` | Short card instead of tall. Accepts a Var. |
|
|
111
|
+
| `title` / `badge` | The uppercase eyebrow and the pill beside it. |
|
|
112
|
+
| `value` / `unit` | The headline metric and its muted suffix. Derived from the data when omitted. |
|
|
113
|
+
| `footer_left` / `footer_right` | The two monospace footer captions. |
|
|
114
|
+
| `control` | A component rendered flush right in the header. |
|
|
115
|
+
| `**props` | Any extra style props, forwarded to the card. |
|
|
116
|
+
|
|
117
|
+
## Interactive controls
|
|
118
|
+
|
|
119
|
+
The originals bake their toggles into the component. Here the option is a prop,
|
|
120
|
+
so it can be wired to your own state — `mono_segmented` renders the matching pill
|
|
121
|
+
control:
|
|
122
|
+
|
|
123
|
+
```python
|
|
124
|
+
from reflex_monocharts import mono_segmented, monocharts as mc
|
|
125
|
+
|
|
126
|
+
|
|
127
|
+
class State(rx.State):
|
|
128
|
+
curve: str = "monotone"
|
|
129
|
+
|
|
130
|
+
@rx.event
|
|
131
|
+
def set_curve(self, value: str):
|
|
132
|
+
self.curve = value
|
|
133
|
+
|
|
134
|
+
|
|
135
|
+
mc.area(
|
|
136
|
+
curve=State.curve,
|
|
137
|
+
control=mono_segmented(
|
|
138
|
+
[("monotone", "Monotone"), ("natural", "Natural")],
|
|
139
|
+
State.curve,
|
|
140
|
+
State.set_curve,
|
|
141
|
+
theme=State.theme,
|
|
142
|
+
),
|
|
143
|
+
)
|
|
144
|
+
```
|
|
145
|
+
|
|
146
|
+
The same pattern drives `series=` on the line card, `orientation=` on the bar card
|
|
147
|
+
and `show_trend=` on the hybrid card.
|
|
148
|
+
|
|
149
|
+
## Building your own cards
|
|
150
|
+
|
|
151
|
+
The chrome is exported, so a custom chart can sit in the same system:
|
|
152
|
+
|
|
153
|
+
```python
|
|
154
|
+
from reflex_monocharts import mono_card, mono_header, mono_stage, mono_footer, mono_tooltip
|
|
155
|
+
|
|
156
|
+
mono_card(
|
|
157
|
+
mono_header("My Metric", "Custom", "1,204", "events", theme="dark"),
|
|
158
|
+
mono_stage(my_chart, theme="dark"),
|
|
159
|
+
mono_footer("Left caption", "Right caption", theme="dark"),
|
|
160
|
+
theme="dark",
|
|
161
|
+
)
|
|
162
|
+
```
|
|
163
|
+
|
|
164
|
+
`ink()`, `ink_alpha()`, `pick()` and `is_dark()` from `reflex_monocharts.theme`
|
|
165
|
+
resolve the monochrome palette for either a plain theme string or a Var.
|
|
166
|
+
|
|
167
|
+
## Notes and deliberate differences
|
|
168
|
+
|
|
169
|
+
- **Badge and footer rule are theme-aware here.** Upstream hard-codes
|
|
170
|
+
`bg-white/10 text-white` and `border-white/5`, which is invisible on the light
|
|
171
|
+
card; this port resolves both per theme.
|
|
172
|
+
- **The tooltip is `rx.recharts.graphing_tooltip`** styled to match the original's
|
|
173
|
+
blurred dark panel. Recharts' `content` render-prop takes a React component,
|
|
174
|
+
which Reflex cannot pass, so the styling is reproduced through
|
|
175
|
+
`content_style` / `item_style` / `label_style`.
|
|
176
|
+
- **Gradients are defined in a hidden sibling `<svg>`** with a process-unique id,
|
|
177
|
+
so several gradient-filled cards can share a page.
|
|
178
|
+
- **`mono_activity_heatmap` seeds its RNG** so the grid is stable across
|
|
179
|
+
re-renders. Pass `seed=None` to `data.activity_contributions` for the original
|
|
180
|
+
random behaviour, and use a native `title` tooltip per cell rather than a
|
|
181
|
+
server round-trip for 140 cells.
|
|
182
|
+
- **`mono_rounded_candlestick_chart` needs explicit `low_bound`/`high_bound`**
|
|
183
|
+
when `data` is a state Var, since the price scale cannot be derived at build
|
|
184
|
+
time. `mono_rounded_sankey_chart` computes its band geometry in Python and
|
|
185
|
+
takes a plain list.
|
|
186
|
+
|
|
187
|
+
## Demo app
|
|
188
|
+
|
|
189
|
+
```bash
|
|
190
|
+
cd monocharts_demo
|
|
191
|
+
uv run reflex run
|
|
192
|
+
```
|
|
193
|
+
|
|
194
|
+
The gallery shows every chart, a live-state section wired to `rx.State`, a theme
|
|
195
|
+
toggle, a compact toggle and a category filter.
|
|
196
|
+
|
|
197
|
+
## Credits
|
|
198
|
+
|
|
199
|
+
Design system by [Syed Subhan](https://github.com/Subhan-code) — see
|
|
200
|
+
[Monocharts](https://github.com/Subhan-code/Monocharts) and
|
|
201
|
+
[amicro](https://amicro.vercel.app/mono-charts). This is an independent Python
|
|
202
|
+
port for Reflex, not affiliated with the original project.
|
|
203
|
+
|
|
204
|
+
MIT licensed.
|
|
@@ -0,0 +1,221 @@
|
|
|
1
|
+
"""Monocharts for Reflex.
|
|
2
|
+
|
|
3
|
+
A Python port of the Monocharts design system: 28 monochromatic, rounded chart
|
|
4
|
+
cards built on ``rx.recharts`` and Reflex layout primitives, with no npm
|
|
5
|
+
dependency and no Tailwind requirement.
|
|
6
|
+
|
|
7
|
+
Every chart is a plain function returning an ``rx.Component``. Called with no
|
|
8
|
+
arguments it renders the original demo card; pass ``data`` (and the matching
|
|
9
|
+
``*_key`` arguments) to bind it to your own state.
|
|
10
|
+
|
|
11
|
+
Example:
|
|
12
|
+
```python
|
|
13
|
+
import reflex as rx
|
|
14
|
+
from reflex_monocharts import monocharts
|
|
15
|
+
|
|
16
|
+
class State(rx.State):
|
|
17
|
+
theme: str = "dark"
|
|
18
|
+
traffic: list[dict] = [{"label": "Jan", "value": 24}]
|
|
19
|
+
|
|
20
|
+
def index() -> rx.Component:
|
|
21
|
+
return monocharts.line(
|
|
22
|
+
State.traffic, value_key="value", secondary_key=None, theme=State.theme
|
|
23
|
+
)
|
|
24
|
+
```
|
|
25
|
+
"""
|
|
26
|
+
|
|
27
|
+
from __future__ import annotations
|
|
28
|
+
|
|
29
|
+
from types import SimpleNamespace
|
|
30
|
+
|
|
31
|
+
from . import data
|
|
32
|
+
from .card import (
|
|
33
|
+
FONT_MONO,
|
|
34
|
+
FONT_SANS,
|
|
35
|
+
mono_card,
|
|
36
|
+
mono_footer,
|
|
37
|
+
mono_header,
|
|
38
|
+
mono_segmented,
|
|
39
|
+
mono_stage,
|
|
40
|
+
)
|
|
41
|
+
from .charts.areas import (
|
|
42
|
+
mono_rounded_area_chart,
|
|
43
|
+
mono_rounded_range_chart,
|
|
44
|
+
mono_rounded_stream_chart,
|
|
45
|
+
)
|
|
46
|
+
from .charts.bars import (
|
|
47
|
+
mono_rounded_bar_chart,
|
|
48
|
+
mono_rounded_composed_chart,
|
|
49
|
+
mono_rounded_funnel_chart,
|
|
50
|
+
mono_rounded_stacked_bar_chart,
|
|
51
|
+
mono_rounded_waterfall_chart,
|
|
52
|
+
)
|
|
53
|
+
from .charts.layout import (
|
|
54
|
+
mono_activity_heatmap,
|
|
55
|
+
mono_rounded_bullet_chart,
|
|
56
|
+
mono_rounded_candlestick_chart,
|
|
57
|
+
mono_rounded_heatmap_chart,
|
|
58
|
+
mono_rounded_pyramid_chart,
|
|
59
|
+
mono_rounded_sankey_chart,
|
|
60
|
+
mono_rounded_treemap_chart,
|
|
61
|
+
)
|
|
62
|
+
from .charts.lines import (
|
|
63
|
+
mono_rounded_kpi_card_chart,
|
|
64
|
+
mono_rounded_line_chart,
|
|
65
|
+
mono_rounded_sparkline_chart,
|
|
66
|
+
mono_rounded_step_chart,
|
|
67
|
+
)
|
|
68
|
+
from .charts.points import mono_rounded_bubble_chart, mono_rounded_scatter_chart
|
|
69
|
+
from .charts.polar import (
|
|
70
|
+
mono_rounded_donut_chart,
|
|
71
|
+
mono_rounded_gauge_arc,
|
|
72
|
+
mono_rounded_meter_chart,
|
|
73
|
+
mono_rounded_polar_chart,
|
|
74
|
+
mono_rounded_radar_chart,
|
|
75
|
+
mono_rounded_radial_bar_group,
|
|
76
|
+
mono_rounded_radial_gauge_chart,
|
|
77
|
+
)
|
|
78
|
+
from .theme import (
|
|
79
|
+
ACCENT,
|
|
80
|
+
CARD_DARK,
|
|
81
|
+
CARD_LIGHT,
|
|
82
|
+
INK_DARK,
|
|
83
|
+
INK_LIGHT,
|
|
84
|
+
STAGE_DARK,
|
|
85
|
+
STAGE_LIGHT,
|
|
86
|
+
ThemeLike,
|
|
87
|
+
ink,
|
|
88
|
+
ink_alpha,
|
|
89
|
+
is_dark,
|
|
90
|
+
pick,
|
|
91
|
+
)
|
|
92
|
+
from .tooltip import mono_gradient, mono_tooltip
|
|
93
|
+
|
|
94
|
+
__version__ = "0.1.1"
|
|
95
|
+
|
|
96
|
+
#: Short aliases, so a whole dashboard reads as ``monocharts.line(...)``.
|
|
97
|
+
monocharts = SimpleNamespace(
|
|
98
|
+
activity=mono_activity_heatmap,
|
|
99
|
+
area=mono_rounded_area_chart,
|
|
100
|
+
bar=mono_rounded_bar_chart,
|
|
101
|
+
bubble=mono_rounded_bubble_chart,
|
|
102
|
+
bullet=mono_rounded_bullet_chart,
|
|
103
|
+
candlestick=mono_rounded_candlestick_chart,
|
|
104
|
+
composed=mono_rounded_composed_chart,
|
|
105
|
+
donut=mono_rounded_donut_chart,
|
|
106
|
+
funnel=mono_rounded_funnel_chart,
|
|
107
|
+
gauge=mono_rounded_gauge_arc,
|
|
108
|
+
heatmap=mono_rounded_heatmap_chart,
|
|
109
|
+
kpi=mono_rounded_kpi_card_chart,
|
|
110
|
+
line=mono_rounded_line_chart,
|
|
111
|
+
meter=mono_rounded_meter_chart,
|
|
112
|
+
polar=mono_rounded_polar_chart,
|
|
113
|
+
pyramid=mono_rounded_pyramid_chart,
|
|
114
|
+
radar=mono_rounded_radar_chart,
|
|
115
|
+
radial_gauge=mono_rounded_radial_gauge_chart,
|
|
116
|
+
radial_group=mono_rounded_radial_bar_group,
|
|
117
|
+
range=mono_rounded_range_chart,
|
|
118
|
+
sankey=mono_rounded_sankey_chart,
|
|
119
|
+
scatter=mono_rounded_scatter_chart,
|
|
120
|
+
sparkline=mono_rounded_sparkline_chart,
|
|
121
|
+
stacked_bar=mono_rounded_stacked_bar_chart,
|
|
122
|
+
step=mono_rounded_step_chart,
|
|
123
|
+
stream=mono_rounded_stream_chart,
|
|
124
|
+
treemap=mono_rounded_treemap_chart,
|
|
125
|
+
waterfall=mono_rounded_waterfall_chart,
|
|
126
|
+
# chrome
|
|
127
|
+
card=mono_card,
|
|
128
|
+
header=mono_header,
|
|
129
|
+
stage=mono_stage,
|
|
130
|
+
footer=mono_footer,
|
|
131
|
+
segmented=mono_segmented,
|
|
132
|
+
tooltip=mono_tooltip,
|
|
133
|
+
)
|
|
134
|
+
|
|
135
|
+
#: Every chart function, in catalog order - handy for building a gallery.
|
|
136
|
+
ALL_CHARTS = (
|
|
137
|
+
mono_activity_heatmap,
|
|
138
|
+
mono_rounded_line_chart,
|
|
139
|
+
mono_rounded_bar_chart,
|
|
140
|
+
mono_rounded_area_chart,
|
|
141
|
+
mono_rounded_donut_chart,
|
|
142
|
+
mono_rounded_composed_chart,
|
|
143
|
+
mono_rounded_scatter_chart,
|
|
144
|
+
mono_rounded_candlestick_chart,
|
|
145
|
+
mono_rounded_kpi_card_chart,
|
|
146
|
+
mono_rounded_pyramid_chart,
|
|
147
|
+
mono_rounded_radial_bar_group,
|
|
148
|
+
mono_rounded_gauge_arc,
|
|
149
|
+
mono_rounded_bullet_chart,
|
|
150
|
+
mono_rounded_sankey_chart,
|
|
151
|
+
mono_rounded_step_chart,
|
|
152
|
+
mono_rounded_stacked_bar_chart,
|
|
153
|
+
mono_rounded_radar_chart,
|
|
154
|
+
mono_rounded_radial_gauge_chart,
|
|
155
|
+
mono_rounded_funnel_chart,
|
|
156
|
+
mono_rounded_heatmap_chart,
|
|
157
|
+
mono_rounded_sparkline_chart,
|
|
158
|
+
mono_rounded_bubble_chart,
|
|
159
|
+
mono_rounded_treemap_chart,
|
|
160
|
+
mono_rounded_stream_chart,
|
|
161
|
+
mono_rounded_meter_chart,
|
|
162
|
+
mono_rounded_waterfall_chart,
|
|
163
|
+
mono_rounded_polar_chart,
|
|
164
|
+
mono_rounded_range_chart,
|
|
165
|
+
)
|
|
166
|
+
|
|
167
|
+
__all__ = [
|
|
168
|
+
"ACCENT",
|
|
169
|
+
"ALL_CHARTS",
|
|
170
|
+
"CARD_DARK",
|
|
171
|
+
"CARD_LIGHT",
|
|
172
|
+
"FONT_MONO",
|
|
173
|
+
"FONT_SANS",
|
|
174
|
+
"INK_DARK",
|
|
175
|
+
"INK_LIGHT",
|
|
176
|
+
"STAGE_DARK",
|
|
177
|
+
"STAGE_LIGHT",
|
|
178
|
+
"ThemeLike",
|
|
179
|
+
"__version__",
|
|
180
|
+
"data",
|
|
181
|
+
"ink",
|
|
182
|
+
"ink_alpha",
|
|
183
|
+
"is_dark",
|
|
184
|
+
"mono_activity_heatmap",
|
|
185
|
+
"mono_card",
|
|
186
|
+
"mono_footer",
|
|
187
|
+
"mono_gradient",
|
|
188
|
+
"mono_header",
|
|
189
|
+
"mono_rounded_area_chart",
|
|
190
|
+
"mono_rounded_bar_chart",
|
|
191
|
+
"mono_rounded_bubble_chart",
|
|
192
|
+
"mono_rounded_bullet_chart",
|
|
193
|
+
"mono_rounded_candlestick_chart",
|
|
194
|
+
"mono_rounded_composed_chart",
|
|
195
|
+
"mono_rounded_donut_chart",
|
|
196
|
+
"mono_rounded_funnel_chart",
|
|
197
|
+
"mono_rounded_gauge_arc",
|
|
198
|
+
"mono_rounded_heatmap_chart",
|
|
199
|
+
"mono_rounded_kpi_card_chart",
|
|
200
|
+
"mono_rounded_line_chart",
|
|
201
|
+
"mono_rounded_meter_chart",
|
|
202
|
+
"mono_rounded_polar_chart",
|
|
203
|
+
"mono_rounded_pyramid_chart",
|
|
204
|
+
"mono_rounded_radar_chart",
|
|
205
|
+
"mono_rounded_radial_bar_group",
|
|
206
|
+
"mono_rounded_radial_gauge_chart",
|
|
207
|
+
"mono_rounded_range_chart",
|
|
208
|
+
"mono_rounded_sankey_chart",
|
|
209
|
+
"mono_rounded_scatter_chart",
|
|
210
|
+
"mono_rounded_sparkline_chart",
|
|
211
|
+
"mono_rounded_stacked_bar_chart",
|
|
212
|
+
"mono_rounded_step_chart",
|
|
213
|
+
"mono_rounded_stream_chart",
|
|
214
|
+
"mono_rounded_treemap_chart",
|
|
215
|
+
"mono_rounded_waterfall_chart",
|
|
216
|
+
"mono_segmented",
|
|
217
|
+
"mono_stage",
|
|
218
|
+
"mono_tooltip",
|
|
219
|
+
"monocharts",
|
|
220
|
+
"pick",
|
|
221
|
+
]
|
