poseaudit 0.1.0__tar.gz

poseaudit-0.1.0/.gitignore

@@ -0,0 +1,8 @@
+.venv/
+__pycache__/
+*.egg-info/
+dist/
+.pytest_cache/
+.ruff_cache/
+examples/coco_elbow/data/
+.hypothesis/

poseaudit-0.1.0/CHANGELOG.md

@@ -0,0 +1,22 @@
+# Changelog
+
+## 0.1.0
+
+First release.
+
+- Measures: tilt, angle, length and ratio, optionally relative to the rest of
+  each image (median or a percentile, of values or of their absolute values,
+  leaving each reading out of its own baseline).
+- Inputs: COCO annotations and results, Ultralytics YOLO pose, supervision
+  `sv.KeyPoints` (with `sv.Detections` for boxes), or arrays; class filters
+  and class-aware matching.
+- Agreement: error, large-error rate, bias, percentile and normal limits of
+  agreement, repeated-measures limits, ICC(A,1), CCC, Pearson r, error by size
+  of the measured part.
+- Gain and squashing: least-squares and robust (Theil-Sen) gain, Bland-Altman
+  and Deming slopes, and the gain keypoint jitter alone gives, with the gap's
+  interval and a one-sided p(squash).
+- Decisions at thresholds, with a separate or count-matched predicted
+  threshold.
+- Intervals resample whole images or named clusters.
+- Output: summary, markdown report, CSV, JSON and a two-panel plot.

poseaudit-0.1.0/CITATION.cff

@@ -0,0 +1,8 @@
+cff-version: 1.2.0
+message: "If you use poseaudit in your work, please cite it as below."
+title: "poseaudit: auditing pose models used as measuring instruments"
+authors:
+  - alias: 8rulerstar
+license: MIT
+repository-code: "https://github.com/8rulerstar/poseaudit"
+version: 0.1.0

poseaudit-0.1.0/LICENSE

@@ -0,0 +1,21 @@
+MIT License
+
+Copyright (c) 2026 8rulerstar
+
+Permission is hereby granted, free of charge, to any person obtaining a copy
+of this software and associated documentation files (the "Software"), to deal
+in the Software without restriction, including without limitation the rights
+to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
+copies of the Software, and to permit persons to whom the Software is
+furnished to do so, subject to the following conditions:
+
+The above copyright notice and this permission notice shall be included in all
+copies or substantial portions of the Software.
+
+THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
+IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
+FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
+AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
+LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
+OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
+SOFTWARE.

poseaudit-0.1.0/PKG-INFO

@@ -0,0 +1,487 @@
+Metadata-Version: 2.5
+Name: poseaudit
+Version: 0.1.0
+Summary: Audit a pose model used as a measuring instrument: how wrong are the angles, tilts and lengths it reads off keypoints?
+Project-URL: Homepage, https://github.com/8rulerstar/poseaudit
+Author: 8rulerstar
+License-Expression: MIT
+License-File: LICENSE
+Keywords: computer vision,evaluation,keypoints,measurement,pose estimation
+Classifier: Development Status :: 3 - Alpha
+Classifier: Intended Audience :: Developers
+Classifier: Intended Audience :: Science/Research
+Classifier: Operating System :: OS Independent
+Classifier: Programming Language :: Python :: 3
+Classifier: Programming Language :: Python :: 3.10
+Classifier: Programming Language :: Python :: 3.11
+Classifier: Programming Language :: Python :: 3.12
+Classifier: Programming Language :: Python :: 3.13
+Classifier: Topic :: Scientific/Engineering :: Image Recognition
+Classifier: Typing :: Typed
+Requires-Python: >=3.10
+Requires-Dist: numpy>=1.23
+Provides-Extra: images
+Requires-Dist: pillow>=12.3; extra == 'images'
+Provides-Extra: plot
+Requires-Dist: matplotlib>=3.6; extra == 'plot'
+Provides-Extra: supervision
+Requires-Dist: supervision>=0.30.6; extra == 'supervision'
+Description-Content-Type: text/markdown
+
+# poseaudit
+
+**Your pose model has a good mAP. How far off are the angles it measures?**
+
+When keypoints are used to *measure* something (a joint angle, a tilt, a length),
+position metrics such as OKS, PCK or pixel error do not say how far off the
+measurement is. `poseaudit` reads the measurement off the ground truth and off
+the prediction and reports the difference the way a measuring instrument is
+judged: how large, how often large, where, biased which way, and how sure you
+can be of each figure. The statistics are the familiar agreement ones (Bland-Altman
+limits, ICC, CCC, Deming and Theil-Sen slopes); what `poseaudit` adds is the
+path to them from the formats computer vision evaluates in (COCO, YOLO,
+supervision): matching, counting what could not be read and why, intervals
+that respect images or subjects, and a check of whether a slope below 1 is
+more than keypoint jitter.
+
+```text
+$ poseaudit audit --format coco --gt gt_200.json --pred pred_yolo11n.json \
+    --angle 5,7,9 --big-error 15 --size-bands 30,60
+angle (5, 7, 9): read 322 of 380 labelled instances
+  not read     no matching prediction 35, prediction lacked a point 23, unmeasurable 0
+  not counted  206 with a point unlabelled in the truth, 79 unmatched predictions
+  |error|      mean 19.55° [17.13 to 22.16], median 12.64°, 95th pct 68.99°
+  >= 15°       43.5% [38.2% to 48.9%]
+  by size      0-30 px 58% (n 134), 30-60 px 37% (n 112), 60+ px 28% (n 76)
+  bias         +2.34° [-1.16 to +6.22], median +0.52°
+  limits       -50.90° to +79.99° (2.5th to 97.5th percentile of errors)
+  gain         0.731 [0.639 to 0.814]; robust 0.784
+  vs jitter    0.871 from keypoint jitter alone; gap -0.140 [-0.199 to -0.077], p(squash) <= 0.002*
+               * swaps and gross failures lower the gain too, and noisy
+                 labels make p small for an honest model: read the gap
+  ! 2.5% of errors fall below the normal limits and 4.3% above them, against 2.5% each for a normal error: use the percentile limits.
+```
+
+That is the left elbow angle (COCO keypoints 5, 7, 9: shoulder, elbow, wrist;
+indices count from 0) of `yolo11n-pose` against COCO's human labels on 200
+val2017 images. The data is in
+[`examples/coco_elbow`](https://github.com/8rulerstar/poseaudit/tree/main/examples/coco_elbow);
+run the command from that folder.
+
+These figures are disagreement between the model and **one human label**, not
+the model's error against the world. COCO's own annotators disagree: placing
+the three points with the spread COCO publishes for repeated labels (its OKS
+sigmas) moves the elbow angle by 11 to 16° on average on these same arms,
+depending on how those sigmas are read (a rough estimate that treats each
+label's points as independent; [`validation/label_noise.py`](https://github.com/8rulerstar/poseaudit/blob/main/validation/label_noise.py)).
+A good part of the 19.55° may be the labels'. With a reference better than
+the model (motion capture, careful relabelling), the same figures describe
+the model.
+
+What a few lines of NumPy would miss:
+
+- **What was not read, and why.** Unlabelled points, unmatched people and
+  missing predicted points are counted apart, so a model that skips the hard
+  cases does not look better for it.
+- **Intervals that respect the data.** Readings from one image are resampled
+  together, and with `--cluster` so are the frames of one video or the photos
+  of one subject (left out, frames count as independent).
+- **The sorting trap.** When the labels are noisy, bias in bands sorted by the
+  truth leans toward squashing even for an unbiased model, the more so the
+  noisier they are ([below](#which-way-you-sort-decides-the-story)).
+- **Decisions.** Whether the prediction lands on the same side of a threshold
+  as the truth, which is what a pass or fail rule depends on.
+
+## Install
+
+```bash
+pip install poseaudit                  # needs only numpy
+pip install "poseaudit[plot]"          # plots (matplotlib)
+pip install "poseaudit[images]"        # --images: read image sizes (Pillow)
+pip install "poseaudit[supervision]"   # from_supervision
+```
+
+## Quick start
+
+```bash
+poseaudit audit --format coco --gt annotations.json --pred results.json \
+    --min-conf 0.5 --angle 5,7,9 --big-error 15 \
+    --report report.md --plot panels.png --csv readings.csv
+```
+
+`--big-error` is required: the error, in the measure's unit, that counts as
+large. `report.md` explains every line of the summary. In Python:
+
+```python
+import poseaudit as pa
+
+truth = pa.load_coco("person_keypoints_val2017.json")
+predicted = pa.load_coco_results(
+    "results.json", "person_keypoints_val2017.json", min_confidence=0.5
+)
+
+result = pa.audit(pa.pair(truth, predicted), pa.angle(5, 7, 9), big_error=15)
+print(result.summary())  # summary(full=True) adds every agreement statistic
+result.to_markdown("report.md")  # sizes, bands, decisions, largest errors
+result.to_csv("readings.csv")  # one row per reading, to recompute anything
+result.plot("panels.png")  # predicted against true, and a Bland-Altman plot
+```
+
+From your own arrays: `xy` of shape (K, 2) in pixel coordinates (not 0 to 1)
+and a boolean `visible` of shape (K,) per object, here a 33-point skeleton:
+
+```python
+import numpy as np
+
+truth = {"frame_001": [pa.Instance.from_keypoints(xy_true, np.ones(33, bool))]}
+predicted = {"frame_001": [pa.Instance.from_keypoints(xy_pred, visible_pred)]}
+result = pa.audit(pa.pair(truth, predicted), pa.angle(23, 25, 27), big_error=10)
+```
+
+## What the demo shows
+
+**Disagreement grows as the arms get smaller.** When the arm segments average
+under 30 px, 58% of elbows are off by 15° or more; above 60 px, 28%. The
+signed bias of +2° hides all of this, and so does a single mAP. The link with
+size is an association; size is not the whole cause. Some of it is geometry:
+a pixel of error turns a short segment further than a long one, for the label
+as much as for the model, and an arm pointing toward the camera looks short
+and is hard to read even on a large person. Small people in COCO are also
+more often occluded, blurred and loosely labelled.
+
+| arm segment | n | mean abs error | off by 15° or more | gain (no jitter reference per band) |
+|---|---|---|---|---|
+| 0 to 30 px | 134 | 25.55° | 58.2% [49.7% to 66.2%] | 0.526 |
+| 30 to 60 px | 112 | 16.57° | 36.6% [28.3% to 45.8%] | 0.791 |
+| 60+ px | 76 | 13.36° | 27.6% [18.8% to 38.6%] | 0.911 |
+

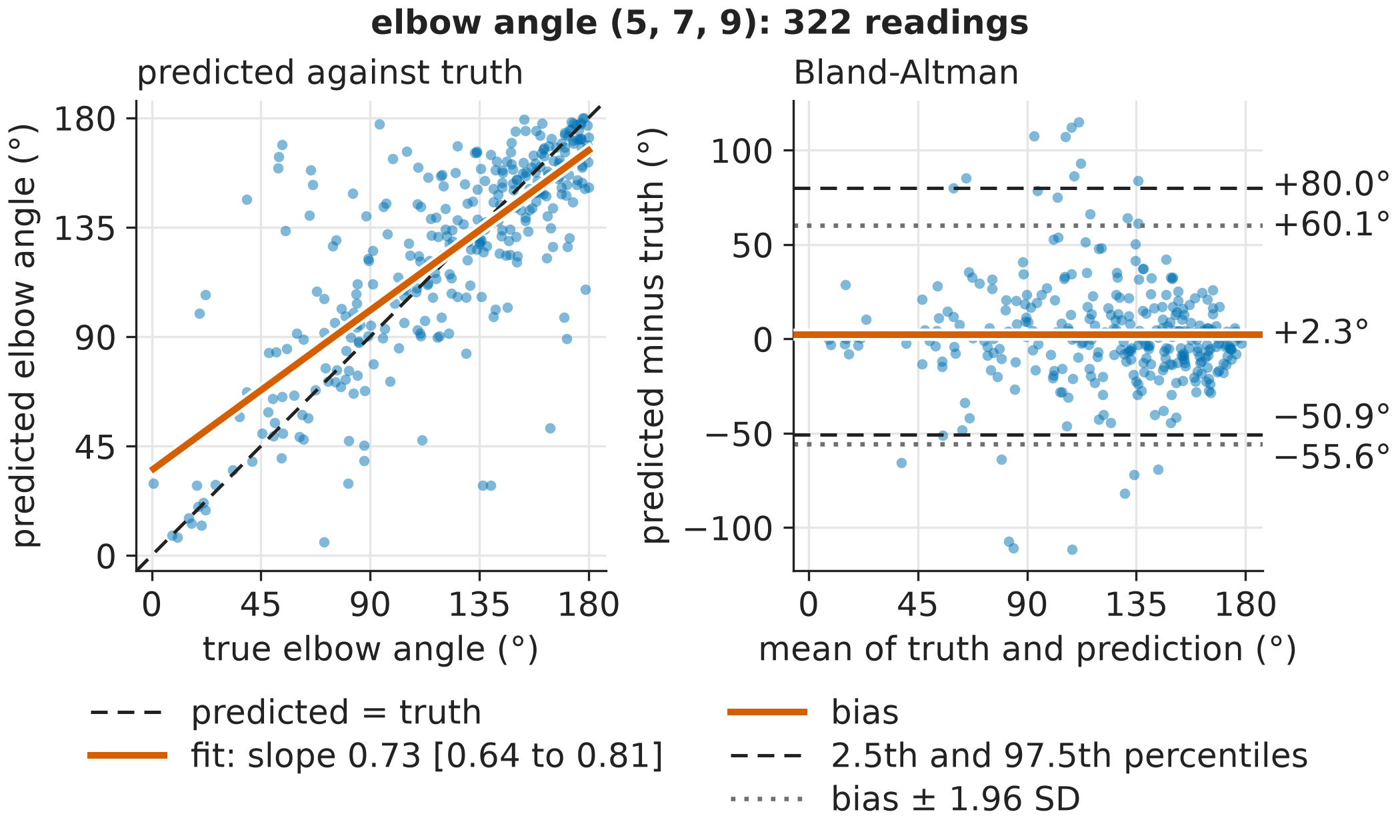

+![Left: predicted against true angle. Right: Bland-Altman plot](https://raw.githubusercontent.com/8rulerstar/poseaudit/main/docs/panels.png)
+
+## Which way you sort decides the story
+
+The natural next check is the bias in bands of angle. Sort the same readings
+three ways and you get three stories:
+

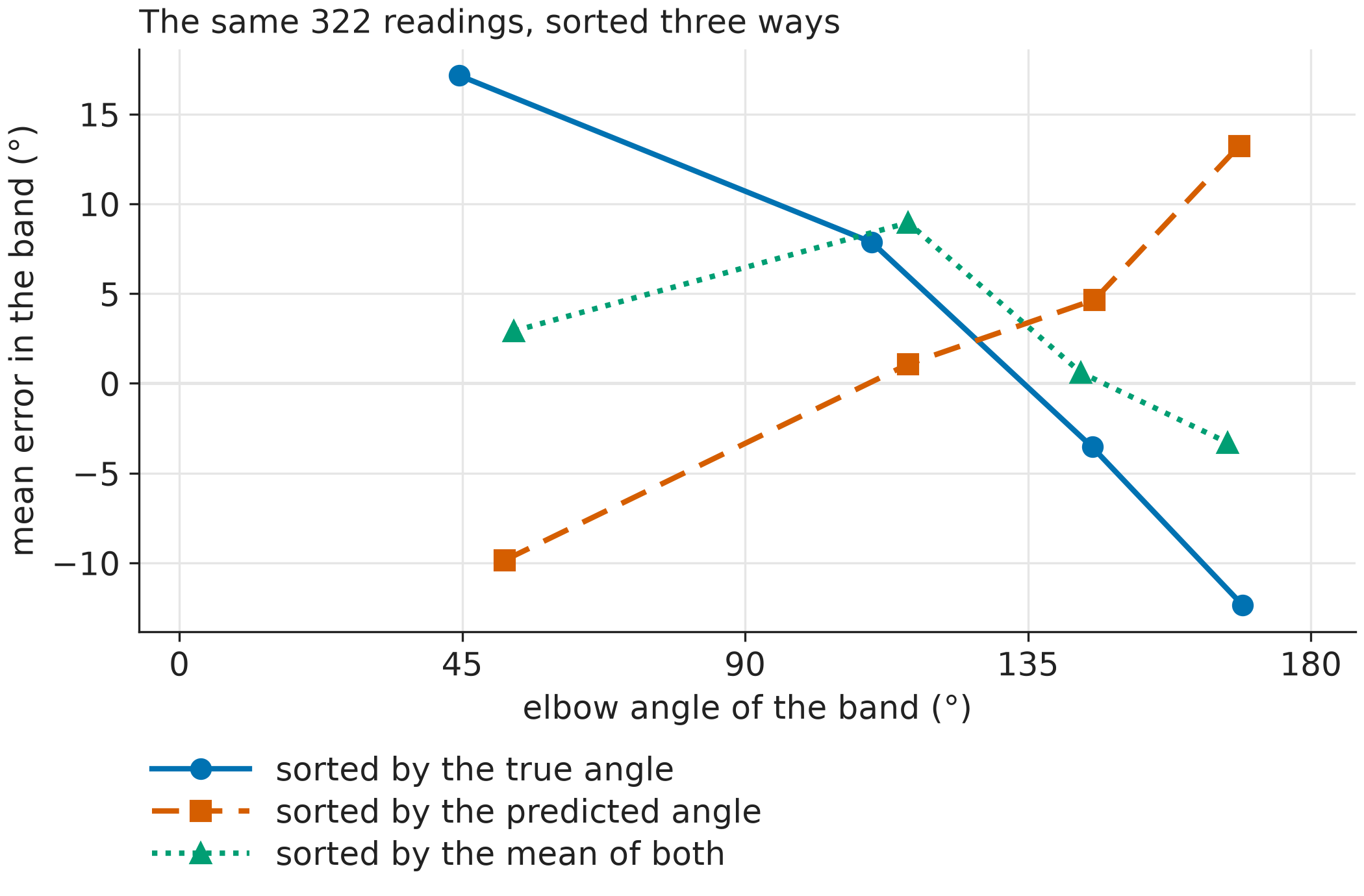

+![Mean error per band when sorting by the truth, the prediction, or their mean](https://raw.githubusercontent.com/8rulerstar/poseaudit/main/docs/trap.png)
+
+Whichever reading you sort by, its own noise puts its extreme values in the
+extreme bands, where they read as bias (regression to the mean). Trust the
+sort by the truth when the truth is much less noisy than the model (the
+default, `--band-by truth`); sort by the mean of both (`--band-by mean`) and
+read the Bland-Altman slope when the two are about equally noisy. Under the
+wrong assumption, either view misleads: with a model much noisier than its
+labels, the Bland-Altman slope calls an unbiased model expanding.
+
+## Options
+
+### Decisions at a threshold
+
+When a measurement feeds a rule (flag a tilt of 10° or more, an elbow bent past
+90°), what matters is whether the prediction lands on the same side of it. The
+"truth" side is the same rule applied to the truth keypoints, not a defect
+label: an inspector's pass or fail verdict can differ from any angle rule. A
+model that reads angles differently may need its own threshold: give one with
+`--pred-threshold`, and `poseaudit` also finds the one that flags as many
+instances as the truth does. That one is fitted on the data it is scored on,
+so its figures are optimistic until checked on other data. Only readings
+count: a labelled instance that was not read is neither caught nor missed.
+
+```text
+$ poseaudit audit ... --threshold 90 --side below --pred-threshold 100
+  below 90°: caught 53 of 84 (63% [52% to 73%]), false alarms 11 of 238
+  below 90°, predicted 100°: caught 63 of 84 (75% [65% to 83%]), false alarms 23 of 238
+  below 90°, predicted 98.40° (same count, fitted here): caught 61 of 84 (73% [62% to 81%]), false alarms 23 of 238
+```
+
+### Tilts relative to the rest of the photo
+
+If a rule compares each object with the others in its photo, a tilted camera
+moves every tilt together. `--relative-to median` reads each tilt against the
+median tilt of the other objects in the image, on the truth and the prediction
+separately, so a camera roll drops out. `--relative-to p20 --relative-abs`
+reads how much more each object leans than the 20th percentile of the others'
+absolute tilts. Each object's baseline leaves the object itself out, so none
+is scored against itself. With `--relative-abs` a value below 0 means
+straighter than the baseline, so band edges should start below 0. This is for
+tilts; an angle inside a limb does not change when the camera rolls, and the
+report says so.
+
+### Several readings of one subject
+
+Frames of one video, or photos of one subject, are not independent. Name the
+group with `--cluster REGEX` (its first capture group in the image name) or
+`cluster=` in Python, for example `cluster=lambda name: name.split("_")[0]`
+for names such as `athlete3_trial2_f0041`. Intervals then resample whole
+groups, and limits of agreement for repeated readings (Bland and Altman 2007)
+are added. Leave the groups out and every frame counts as independent: the
+intervals come out far too narrow, and nothing warns about it.
+
+By default the group is the image. With fewer than 20 groups the intervals are
+too narrow, and the report says so; nested groups (subject, trial, frame) are
+not supported. With named groups the jitter reference gives no p: it treats
+readings as independent, and when a subject carries the same error from
+reading to reading it would flag honest models as squashed far more often than
+it says. Read the gap's interval, which resamples whole groups.
+
+## Does the model squash large angles?
+
+The **gain** is the least-squares slope of the predicted angle on the true one:
+0.73 means that, on average over these readings, a 10° difference comes out as
+about 7°. Keypoint jitter alone pulls a gain below 1 too: a straight arm can
+only be read as more bent, a folded one only as more open. The **jitter
+reference** (`vs jitter`) is the gain of predictions rebuilt from the truth
+plus this model's own point displacements ([how](#the-jitter-reference)):
+0.87 here. The model's gain is 0.140 lower (interval 0.077 to 0.199, paired
+within resamples). With the default seed none of the 500 rebuilds comes out
+as low as the model's (`p(squash) <= 0.002`); with some other seeds one does
+(0.004).
+The model reads angle differences as smaller than its own scatter explains.
+What that is, the check cannot say:
+
+- **Gross failures and swaps.** Gross failures tied to the true angle (a
+  straight arm read as folded) and left and right swapped on one side lower
+  the gain just as squashing does; failures in random directions are part of
+  the rebuilds and do not widen the gap. Leaving out the 31 readings off by
+  45° or more leaves a gap of -0.069 [-0.109 to -0.028] (about half the gap),
+  and leaving out the 61 off by 30° or more, -0.038 [-0.073 to -0.003]. Those
+  subsets are chosen by the outcome, so they describe where the gap comes from
+  rather than test it, and trimming by the outcome changes a gap by itself, so
+  what is left is not a clean measure of squashing either. Some of the largest errors may be
+  the labels' (a point on the wrong limb), and the 58 instances not read may
+  not be a random part of the rest.
+- **Noise in the truth.** The rebuild takes its displacements against the
+  labels, so label noise is already in its scatter. On these same arms, honest
+  models with labels as noisy as COCO's annotators fell 0.02 to 0.04 below the
+  reference, far less than 0.140
+  ([`validation/label_noise.py`](https://github.com/8rulerstar/poseaudit/blob/main/validation/label_noise.py), with independent
+  normal noise on each point). Under that model label noise does not explain
+  this gap, but it does trip the p: those honest models got
+  `p(squash) <= 0.05` in 17 to 40% of 30 runs each. With noisy labels, read
+  the size of the gap, not the p.
+- **Squashing** is what remains, and it is not separated from the two above.
+  The slopes that suit equal noise, the Bland-Altman slope (-0.049 [-0.119 to
+  +0.017]) and Deming at a noise ratio of 1 (0.945 [0.870 to 1.019]), include
+  no squashing, but do not rule out a small one. Which to trust
+  depends on the noise ratio, which this data does not pin down. Deming for
+  other ratios (`--noise-ratio`, the variance of prediction noise over that
+  of label noise):
+
+  | noise ratio | 1 | 4 | 10 |
+  |---|---|---|---|
+  | Deming slope | 0.945 [0.870 to 1.019] | 0.797 [0.708 to 0.878] | 0.758 [0.667 to 0.842] |
+
+  On these arms honest models give a Deming slope at a ratio of 1 near 1
+  whether the labels are clean or as noisy as the model, with independent
+  normal noise and no gross failures
+  ([`validation/label_noise.py`](https://github.com/8rulerstar/poseaudit/blob/main/validation/label_noise.py)): there, jitter
+  at the ends of the range does not drag it down the way it drags the gain.
+
+For this demo, then: a real gap, about half of it in the largest errors.
+Whether the rest is squashing of a few percent or nothing, this data cannot
+tell.
+
+A few gross failures move a least-squares slope a lot. The **robust gain**, a
+Theil-Sen slope that they barely move, is 0.78 here against the least-squares
+0.73. Noise that grows with the angle, or on smaller arms, also separates the
+two, so their difference alone does not say how much comes from gross
+failures, and a gross failure can also be a label on the wrong limb.
+
+## Measures
+
+| measure | points | reads |
+|---|---|---|
+| `tilt(a, b)` | 2 | degrees of the axis through a and b from vertical, -90 to 90, positive when the upper end leans right; the axis has no direction, so errors wrap (89° vs -89° is 2° off) and a part read upside down is not an error |
+| `angle(a, b, c)` | 3 | interior angle at `b`, 0 to 180° (180 is straight; a flexion angle is 180 minus this, which flips the sign of the bias); unsigned, so an angle read bending the other way is not an error |
+| `length(a, b)` | 2 | pixels |
+| `ratio(a, b, c, d)` | 4 | \|a-b\| / \|c-d\|, independent of scale |
+
+The size of a reading is the mean length of its segments in the truth. There
+is no directed angle (0 to 360) and no fixed axis other than vertical yet;
+`--relative-to` reads tilts against the rest of the image instead.
+
+## Inputs
+
+| source | loader |
+|---|---|
+| COCO keypoint annotations | `load_coco(path, classes)` (crowd regions skipped) |
+| COCO results format | `load_coco_results(path, annotations_path, min_confidence, classes)` |
+| Ultralytics YOLO pose labels or predictions | `load_yolo(folder, image_size, num_keypoints, classes, min_confidence)` |
+| `sv.KeyPoints` (supervision 0.30.6+) | `from_supervision(keypoints_by_image, detections_by_image=None)` |
+| anything else | `Instance.from_keypoints(xy, visible)` per object, in a dict of image name to list |
+
+COCO annotations with no labelled keypoint (`num_keypoints` 0) and crowd
+regions are skipped as they load, so they appear in no count.
+
+- **Bad values.** NaN or infinite coordinates, scores or boxes stop the load
+  with the file and the row.
+- **Confidence.** In a results file or a YOLO prediction the third value of a
+  point is a confidence. Without a threshold every returned point counts as
+  seen, and a warning says so.
+- **Missing points.** A YOLO point written as `0 0` is missing, as in
+  supervision.
+- **Pixels.** Angles are measured on the coordinates given. YOLO coordinates
+  are fractions of width and height, so an angle measured on them is
+  distorted on any non-square image. Give one size, a function of the image
+  name, or `--images DIR` to read each image's size. A size given in the
+  wrong order (height, width) passes every check and quietly distorts the
+  figures (on upright parts it made them look better); `--images` avoids that.
+  Arrays passed to `Instance.from_keypoints` must be in pixels too.
+- **Classes.** Instances of different classes are not paired, and an audit
+  whose readings mix classes stops with an error: parts of different kinds can
+  hide each other's errors. Filter with `--classes` (any format), or allow it
+  with `--mixed-classes`. When the two sides number classes differently (COCO
+  calls a person 1, Ultralytics 0) they are matched ignoring classes, with a
+  warning. A class filter that keeps nothing names the classes that are
+  there.
+- **Wrong keypoint counts.** A YOLO load stops on coordinates outside the
+  image, which usually means `--keypoints` is wrong, and on a missing folder.
+  If every row could also be read as fewer points in x y v form with flags 0,
+  1 and 2, a warning asks you to check `--keypoints`.
+- **Skeletons** of different sizes on the two sides are refused.
+- **supervision.**
+  - The container's `visible` mask decides visibility: filter with
+    `kp.visible = kp.keypoint_confidence > 0.5`, not with a 2D mask such as
+    `kp[mask]`, which drops columns and so changes what each keypoint index
+    means.
+  - `from_ultralytics` drops the model's boxes; to match by box, pass
+    `sv.Detections.from_ultralytics` of the same result, row for row (not
+    `kp.as_detections()`, which drops rows with no visible point). Boxes a
+    model keeps in `kp.data["xyxy"]` (RF-DETR) are used when no detections
+    are given; RF-DETR also fills `visible` with confidence > 0, so set your
+    own threshold on it.
+  - When both carry the model's scores, rows whose scores rank differently
+    stop the load. Without scores only geometry is left: two rows whose
+    keypoints clearly fit each other's boxes better than their own give a
+    warning, which crowded human labels can also trip.
+
+## How pairs, counts and intervals are made
+
+- Predictions are matched to the truth within each image, by image name and
+  never by list position (a file extension is ignored when only that differs,
+  with a warning). Within an image the most similar pairs are matched first:
+  by box IoU (`--min-iou`, default 0.3), or by keypoint closeness when a side
+  has no box (`--min-similarity`, default 0.5). Detection scores are ignored
+  in matching: drop low-scoring detections first (`--min-score`, or
+  `min_score=` in the loaders), or a stray box that overlaps better can take
+  the pair.
+- A prediction too far off to reach the matching threshold counts as missed,
+  not as an error. When many such misses overlap a prediction that was left
+  over, a warning names the threshold to lower.
+- A reading needs every point of the measure in both. The report separates what
+  was not read: points **unlabelled in the truth** (not the model's doing, and
+  out of the denominator), no matching prediction, a predicted point missing,
+  or geometry that cannot be measured.
+- Intervals are percentile bootstraps over whole clusters (by default images),
+  2,000 resamples with a fixed seed. Rates of large errors and of decisions use
+  Wilson intervals, which treat readings as independent, unless clusters are
+  named; then the overall rate and the decision rates resample whole clusters
+  too (never narrower than Wilson's). Rates per size band stay Wilson.
+
+## The jitter reference
+
+Each rebuilt arm takes all its point shifts from one arm with a similar true
+angle (one of up to six equal-count groups; possibly itself), scaled to its
+own size. Shifts are expressed along and across each point's own segment, and
+mirrored for arms that bend the other way, so an error along the limb stays
+along it and one toward the inside of the bend stays there. The shift a whole
+group shares is removed first, because that shared shift is the tendency
+being tested. Drawing each point from a different arm instead would break the
+correlation within an arm (a whole limb shifting at once barely changes its
+angle) and set the reference too low.
+
+## Statistics used
+
+| figure | definition |
+|---|---|
+| gain | least-squares slope of predicted on truth |
+| robust gain | Theil-Sen slope: median of the slopes between pairs of readings |
+| vs jitter | median gain over 500 rebuilds (see [The jitter reference](#the-jitter-reference)); the gap's interval averages 10 rebuilds per resample; p(squash) = (1 + rebuilds with gain at or below the model's) / 501 |
+| BA slope | slope of the error on the mean of both readings (Bland and Altman 1999) |
+| Deming | slope of predicted on truth with a known ratio of noise variances (Deming 1943; Linnet 1993); the ratio is prediction over label |
+| limits | 2.5th and 97.5th percentiles of the error; normal limits are bias ± 1.96 SD (Bland and Altman 1986) |
+| repeated limits | bias ± 1.96 √(between + within variance) (Bland and Altman 2007) |
+| ICC(A,1) | two-way, absolute agreement, single rating (McGraw and Wong 1996); matches pingouin; its interval is the bootstrap, not the F interval |
+| CCC | Lin's concordance correlation (Lin 1989) |
+| intervals | percentile bootstrap over clusters (Davison and Hinkley 1997); Wilson score intervals for rates without named clusters (Wilson 1927) |
+
+The robust gain uses every pair of readings up to about 1,000 readings and
+500,000 random pairs above that.
+
+### References
+
+- Bland JM, Altman DG (1986). Statistical methods for assessing agreement between two methods of clinical measurement. *Lancet* 327(8476):307-310.
+- Bland JM, Altman DG (1999). Measuring agreement in method comparison studies. *Statistical Methods in Medical Research* 8(2):135-160.
+- Bland JM, Altman DG (2007). Agreement between methods of measurement with multiple observations per individual. *Journal of Biopharmaceutical Statistics* 17(4):571-582.
+- Davison AC, Hinkley DV (1997). *Bootstrap Methods and their Application*. Cambridge University Press.
+- Deming WE (1943). *Statistical Adjustment of Data*. Wiley.
+- Lin LI (1989). A concordance correlation coefficient to evaluate reproducibility. *Biometrics* 45(1):255-268.
+- Linnet K (1993). Evaluation of regression procedures for methods comparison studies. *Clinical Chemistry* 39(3):424-432.
+- McGraw KO, Wong SP (1996). Forming inferences about some intraclass correlation coefficients. *Psychological Methods* 1(1):30-46.
+- Sen PK (1968). Estimates of the regression coefficient based on Kendall's tau. *Journal of the American Statistical Association* 63(324):1379-1389.
+- Theil H (1950). A rank-invariant method of linear and polynomial regression analysis. *Indagationes Mathematicae* 12:85-91.
+- Wilson EB (1927). Probable inference, the law of succession, and statistical inference. *Journal of the American Statistical Association* 22(158):209-212.
+
+## Output for machines
+
+`--json` writes every figure, with `poseaudit` (the version) and `schema`
+(1) at the top and the settings used. NaN and infinity become `null`. Note
+that `limits` there are the normal limits; the percentile limits the summary
+prints are `empirical_limits`. Warnings, including those raised while
+loading, are in `warnings`. `--csv` writes one row per reading:
+`image, truth_index, predicted_index, class_id, cluster, size, truth,
+predicted, error, mean`. Same inputs and seed, same bytes.
+
+The command exits 0 on success (warnings included); 1 on bad input or
+settings, a failed write, or nothing read (the JSON and CSV are still
+written); and 2 when the arguments cannot be parsed. There is no pass or fail threshold built in; gate on the JSON, for
+example `jq -e '.mean_abs_error_ci[1] <= 3 and .n / .measurable >= 0.9'`.
+`--resamples` and `--jitter-repeats` trade precision for speed: 50,000
+readings take about three minutes at the defaults.
+
+## Limitations
+
+- The figures describe agreement with the ground truth, not with the world:
+  the truth's own error is inside them, and 2D angles are not 3D joint angles.
+- Every reading counts once: frames pooled from a few trials inflate ICC and
+  CCC, and there is no per-trial or per-subject summary (peak angle, range of
+  motion) yet.
+- Tilts near horizontal wrap from +90 to -90; the report warns when many are
+  close.
+- The jitter reference is new, not a published method, and was checked by
+  simulation only ([`validation/jitter_reference.py`](https://github.com/8rulerstar/poseaudit/blob/main/validation/jitter_reference.py),
+  seeded). For models with no tendency and clean labels, with 300 arms and
+  600 runs per case, the one-sided p was 0.05 or less in 2.3 to 5.7% of runs,
+  and the gap's interval lay wholly below 0 in 2.2 to 4.3% with the 200
+  resamples that table uses, and in 1.3 and 2.7% for the two cases rerun at
+  the tool's defaults (150 runs each; 2.5% nominal). With 40 arms and noise
+  that grows on straight arms the p ran to 8%, hence the warning under 60
+  readings (where exactly to draw that line was not tested). **With labels as
+  noisy as the model, honest models were flagged in about 35% of runs** (37%
+  at 200 resamples, 35% at the defaults): the check assumes labels much
+  cleaner than the model. A 7% squash was caught in every run, with point
+  noise of 8% of the arm; with noisier points it is caught less often (not
+  measured here). It assumes independent objects whose errors, apart from a
+  shift shared by similar angles, depend only on the true value and the
+  object's own frames. The p and the interval can disagree near the edge.
+- Matching is greedy and ignores scores (filter them first with `--min-score`);
+  in dense crowds an optimal assignment may pair differently.
+- One measure per run, one level of clusters, no time series.
+
+## Roadmap
+
+- a label-noise reference beside the jitter one (from annotator spread or
+  repeated labels)
+- left-right swap detection
+- several measures and several models per run, on the readings they share
+- auditing angles given directly (filtered or from inverse kinematics)
+- directed angles (0 to 360), signed joint angles, a chosen reference axis
+- regression-based limits of agreement; per-subject summaries
+
+## License and data
+
+Code: MIT. The demo's annotations are a subset of the
+[COCO](https://cocodataset.org) 2017 keypoint annotations (keypoint fields
+only), © COCO Consortium, licensed under
+[CC BY 4.0](https://creativecommons.org/licenses/by/4.0/); the images are not
+included. The demo's predictions were made with Ultralytics `yolo11n-pose`
+(AGPL-3.0), which this package does not depend on or include.
