+# 📊 Plotext+ - Modern Terminal Plotting
+
+[![PyPi](https://badge.fury.io/py/plotext_plus.svg)](https://badge.fury.io/py/plotext_plus)
+[![GitHub stars](https://img.shields.io/github/stars/piccolomo/plotext_plus.svg)](https://github.com/ccmitchellusa/plotext_plus/stargazers)
+[![Downloads](https://pepy.tech/badge/plotext_plus/month)](https://pepy.tech/project/plotext_plus)
+[![GitHubIssues](https://img.shields.io/badge/issue_tracking-github-blue.svg)](https://github.com/ccmitchellusa/plotext_plus/issues)
+[![GitTutorial](https://img.shields.io/badge/PR-Welcome-%23FF8300.svg?)](https://github.com/ccmitchellusa/plotext_plus/pulls)
+
+![logo](https://raw.githubusercontent.com/ccmitchellusa/plotext_plus/master/data/logo.png)
+
+**Plotext+ plots directly in your terminal** with stunning visuals, modern APIs, and professional styling.  Plotext+ is a redesigned version of the original [plotext](https://github.com/piccolomo/plotext) library by Savino Piccolomo. New features include an updated API with object oriented features, an MCP server to make the project easily usable with AI & LLM scenarios, new themes and integration with chuk-term to make sure it works in the awesome [mcp-cli](https://github.com/chrishayuk/mcp-cli) by Chris Hay.
+
+## ✨ Key Features
+
+🎯 **Multiple Plot Types**: [scatter](docs/basic.md#scatter-plot), [line](docs/basic.md#line-plot), [bar](docs/bar.md), [histogram](docs/bar.md#histogram-plot), [candlestick](docs/datetime.md#candlestick-plot), [heatmap](docs/special.md), [confusion matrix](docs/special.md#confusion-matrix), and more
+
+🎨 **Rich Visuals**: [Banner mode](docs/chart_classes.md), [themes](docs/themes.md), [colored text](docs/utilities.md#colored-text), automatic terminal width detection
+
+📊 **Advanced Features**: [Subplots](docs/subplots.md), [datetime plots](docs/datetime.md), [image/GIF display](docs/image.md), [video streaming](docs/video.md) (including YouTube)
+
+🔧 **Modern APIs**: Clean public API, object-oriented charts, quick functions, 100% backward compatible
+
+🤖 **AI Integration**: [MCP server](docs/mcp-server.md) for direct AI client access (Claude, etc.)
+
+⚡ **Zero Dependencies**: No required dependencies (optional packages for multimedia and AI integration)
+

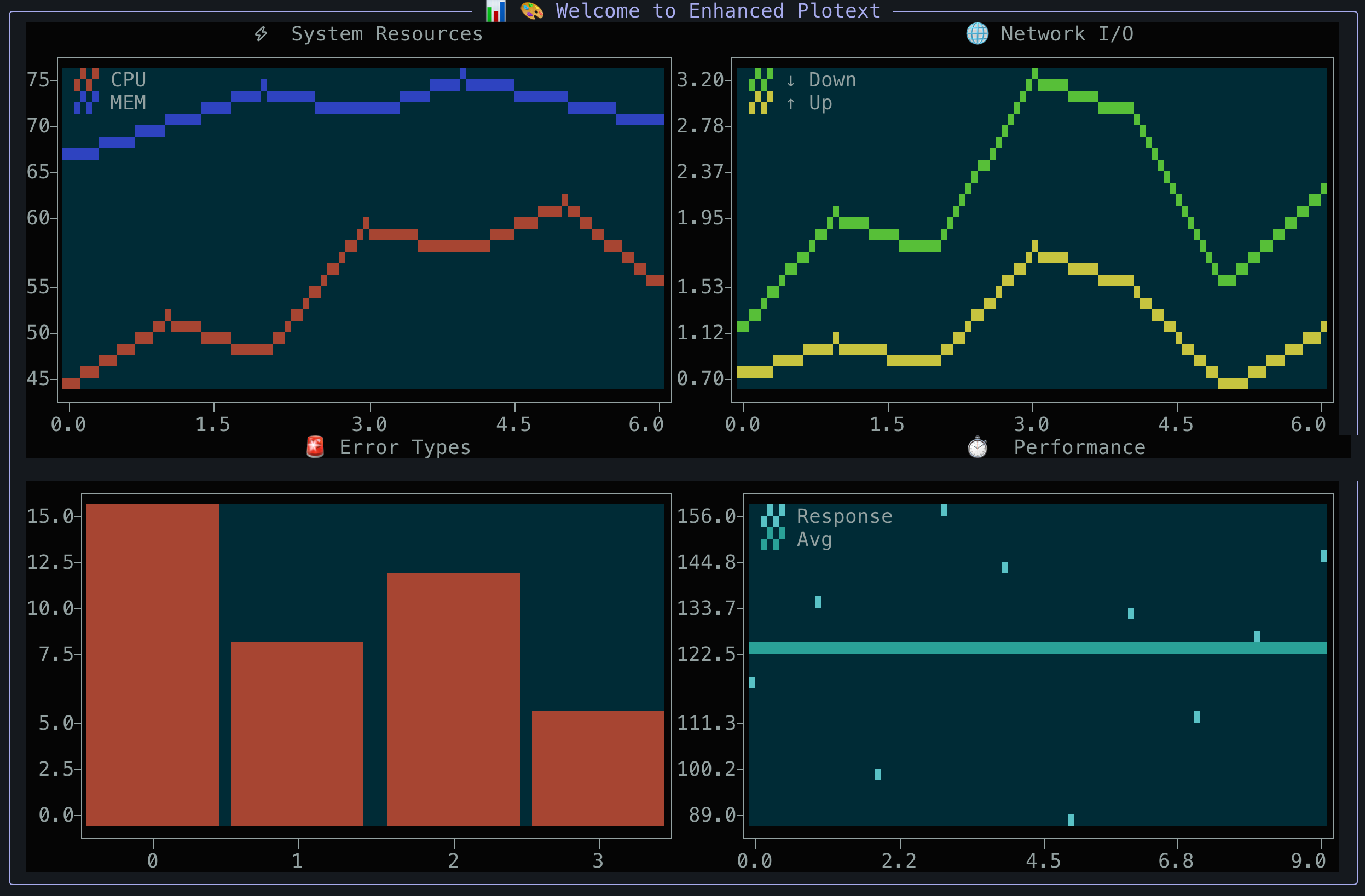

+![subplots](https://raw.githubusercontent.com/ccmitchellusa/plotext_plus/master/data/subplots.png)
+
+## 🚀 Quick Start
+
+### Installation
+
+```bash
+# Modern Python package management
+uv add plotext_plus
+
+# Traditional installation
+pip install plotext_plus
+
+# With optional dependencies
+pip install plotext_plus[image,video]      # Multimedia support
+pip install plotext_plus[mcp]              # AI integration (MCP server)
+pip install plotext_plus[image,video,mcp]  # All features
+```
+
+### Basic Usage
+
+```python
+import plotext_plus as plt
+
+# Simple scatter plot
+plt.scatter([1, 2, 3, 4], [1, 4, 9, 16])
+plt.title("My First Plot")
+plt.show()
+```
+
+### Enhanced Visual Styling ✨
+
+```python
+import plotext_plus as plt
+
+# Enable beautiful banner mode
+plt.banner_mode(True, "📊 Data Analysis Dashboard")
+
+# Apply professional themes
+plt.theme('professional')
+
+# Create styled plot
+plt.plot([1, 2, 3, 4], [1, 4, 2, 3], label="Data Series")
+plt.title("Enhanced Line Plot")
+plt.xlabel("Time")
+plt.ylabel("Values")
+plt.show()
+```
+
+### Modern Chart Classes 🎯
+
+```python
+import plotext_plus as plt
+
+# Object-oriented chart creation with method chaining
+chart = (plt.ScatterChart([1, 2, 3, 4], [1, 4, 9, 16])
+         .title("Scientific Analysis")
+         .xlabel("X Variable")
+         .ylabel("Y Variable")
+         .color('blue')
+         .show())
+
+# Quick one-liner plots
+plt.quick_scatter(x_data, y_data, title="Quick Analysis")
+```
+
+### Public API 🔧
+
+```python
+import plotext_plus as plt
+
+# Access organized functionality
+plt.plotting.bar(categories, values)      # Main plotting functions
+plt.themes.apply_theme('dark_mode')       # Theme management
+plt.utilities.log_success("Plot ready!")  # Helper utilities
+```
+
+### AI Integration 🤖
+
+```bash
+# Install with MCP (Model Context Protocol) support
+pip install plotext_plus[mcp]
+
+# Start the MCP server for AI clients like Claude
+plotext-mcp
+```
+
+**Use with Claude Desktop**: Add to your `claude_desktop_config.json`:
+
+```json
+{
+  "mcpServers": {
+    "plotext-plus": {
+      "command": "plotext-mcp",
+      "args": [],
+      "env": {}
+    }
+  }
+}
+```
+
+Now AI clients can create plots directly:
+
+```text
+"Create a scatter plot showing x=[1,2,3,4,5] vs y=[1,4,9,16,25] with title 'Quadratic Function'"
+```
+
+## 🏗️ Architecture & API
+
+### Public API Structure
+
+```python
+# 🎯 Main Modules (Public API - no underscores)
+plotext_plus.plotting    # Core plotting functions
+plotext_plus.charts      # Object-oriented chart classes
+plotext_plus.themes      # Theme and styling system
+plotext_plus.utilities   # Helper functions and tools
+
+# 📁 Internal Modules (Private - with underscores)
+plotext_plus._core       # Internal implementation
+plotext_plus._api        # Internal API details
+plotext_plus._themes     # Theme internals
+# ... other internal modules
+```
+
+### Project Structure
+
+```bash
+plotext_plus/
+├── src/plotext_plus/              # Modern src-layout
+│   ├── plotting.py           # 🎯 Main plotting functions (PUBLIC)
+│   ├── charts.py             # 🎯 Chart classes (PUBLIC)
+│   ├── themes.py             # 🎯 Theme system (PUBLIC)
+│   ├── utilities.py          # 🎯 Utilities (PUBLIC)
+│   └── _*.py                 # 🔒 Internal modules (PRIVATE)
+├── examples/                 # Interactive demos
+│   ├── interactive_demo.py   # Full interactive showcase
+│   └── theme_showcase_demo.py # Theme comparison tool
+├── tests/                    # Test suites
+├── docs/                     # Comprehensive documentation
+└── pyproject.toml            # Modern packaging
+```
+
+## 🎨 Enhanced Features
+
+### 🎭 Visual Enhancements
+
+- **Professional Banners**: Automatic width detection and border styling
+- **Advanced Theming**: Multiple built-in themes with chuk-term integration
+- **Smart Layouts**: Charts automatically resize to fit terminal dimensions
+- **Rich Colors**: 24-bit color support with automatic fallbacks
+
+### 🚀 Developer Experience
+
+- **Clean API**: Public modules clearly separated from internals
+- **Method Chaining**: Fluent interface for complex plot creation
+- **Quick Functions**: One-liner plots for rapid prototyping
+- **Type Safety**: Better IDE support and autocomplete
+- **Zero Breaking Changes**: 100% backward compatibility guaranteed
+
+## 🧪 Try It Now
+
+```bash
+# Install and run interactive demo
+pip install plotext_plus
+python -c "
+import plotext_plus as plt
+plt.banner_mode(True, '🎨 Plotext Plus Demo')
+plt.scatter([1,2,3,4], [1,4,2,3], color='blue')
+plt.title('Welcome to Plotext Plus!')
+plt.show()
+"
+
+# Run comprehensive demos
+git clone https://github.com/ccmitchellusa/plotext_plus.git
+cd plotext_plus
+python examples/interactive_demo.py      # Full interactive showcase
+python examples/theme_showcase_demo.py   # Theme comparison
+```
+
+## 📚 Complete Documentation
+
+### 🎯 **Core Plotting**
+
+- **[📊 Basic Plots](docs/basic.md)** - Scatter, line, and fundamental plotting
+- **[📈 Bar Charts](docs/bar.md)** - Bar plots, histograms, and variations
+- **[📅 DateTime Plots](docs/datetime.md)** - Time series and candlestick charts
+- **[🔬 Special Plots](docs/special.md)** - Heatmaps, confusion matrices, error bars
+- **[🎨 Decorator Plots](docs/decorator.md)** - Text, lines, and shape overlays
+
+### 🖼️ **Multimedia & Advanced**
+
+- **[🖼️ Image Plotting](docs/image.md)** - Display images and GIFs in terminal
+- **[🎬 Video Streaming](docs/video.md)** - Play videos and YouTube content
+- **[📐 Subplots](docs/subplots.md)** - Multiple plots and complex layouts
+
+### ⚙️ **Configuration & Styling**
+
+- **[🎨 Themes](docs/themes.md)** - Built-in themes and customization
+- **[⚙️ Settings](docs/settings.md)** - Plot configuration and options
+- **[📏 Aspect](docs/aspect.md)** - Size, scaling, and layout control
+- **[🔧 Chart Classes](docs/chart_classes.md)** - Object-oriented API reference
+
+### 🛠️ **Tools & Integration**
+
+- **[🔧 Utilities](docs/utilities.md)** - Helper functions and command-line tools
+- **[🤖 MCP Server](docs/mcp-server.md)** - AI integration via Model Context Protocol
+- **[🌐 Environments](docs/environments.md)** - IDE and platform compatibility
+- **[🏗️ API Structure](docs/api.md)** - Clean public API organization
+- **[📝 Notes](docs/notes.md)** - Installation, tips, and troubleshooting
+
+### 🚀 **Getting Started Guides**
+
+1. **[👋 Introduction](docs/basic.md#introduction)** - First steps with Plotext
+2. **[📦 Installation](docs/notes.md#install)** - Setup and dependencies
+3. **[🎯 Quick Examples](#-quick-start)** - Jump right in with code samples
+4. **[🎨 Theming Guide](docs/themes.md)** - Make your plots beautiful
+5. **[🔧 Modern API Guide](docs/api.md)** - Use the clean public interface
+
+## 💡 Migration & Compatibility
+
+**For Existing Users**: All your current code works unchanged! The new features are purely additive.
+
+**For New Users**: Take advantage of the modern APIs and enhanced styling while learning the fundamentals.
+
+```python
+# ✅ Your existing code still works
+import plotext_plus as plt
+plt.plot([1,2,3], [1,4,2])
+plt.show()
+
+# 🆕 Enhanced with new features
+plt.banner_mode(True, "📊 My Analysis")
+plt.theme('professional')
+plt.plot([1,2,3], [1,4,2])
+plt.show()
+```
