+# pikslide
+
+A text language for drawing **diagrams that live inside Office slides**.
+
+You don't write coordinates: you place objects one after another in a
+direction, and refer to earlier objects by name. A diagram becomes
+**native, editable PowerPoint objects** — shapes a person can select,
+restyle and move afterwards.
+
+The language is specified in [docs/spec.md](https://github.com/mkyutani/pikslide/blob/main/src/pikslide/docs/spec.md) and defined, in
+BNF, in [docs/grammar.md](https://github.com/mkyutani/pikslide/blob/main/src/pikslide/docs/grammar.md). (pikslide's own design traces
+back through two earlier languages; see Acknowledgments, below.)
+
+## Status
+
+v1 (docs/spec.md §1) is implemented: a parser, a layout stage, and
+PowerPoint output; colors as a type of their own, with theme colors
+(`theme "accent1"`, `lighter`/`darker`) rendered as real `schemeClr`,
+never resolved to RGB; fonts the same way — text set in the theme's own
+font by default, not a hard-coded family, with `major` selecting the
+heading font and `typeface` overriding both with one literal family;
+three fixed text sizes (`small`/`medium`/`large`); a prelude of built-in
+names (CSS color names, built-in defaults, the theme-color names); preset
+shapes (`shape roundRect`, any of the ~180 OOXML presets, matched
+case-insensitively); images (PNG/JPEG/GIF, and SVG — embedded together
+with a PNG fallback for older viewers, sized explicitly or by aspect
+ratio, path resolved and contained under the source file's own
+directory); `include "house.pik"` for shared definitions (contained the
+same way, with cycle detection); object identity — a label becomes the
+shape's real PowerPoint name (an unlabeled object gets a default `box
+1`-style name), and `behind X` places an object immediately below `X`
+in z-order — so the Selection Pane reads like the source (`[ ... ]`
+blocks are a source-level grouping construct only, flattened rather than
+turned into a PowerPoint group when written out); starting a new
+standalone deck from another file's theme instead of the built-in Office
+one (`--template`); a template's settings file (`<name>.theme.pik`, or
+`--settings FILE`), for its slide layout, font, accent colors and text
+sizes; and diagnostics — `file:line:column`, the source line and a caret
+for a syntax error (naming the right file even inside a nested
+`include`), "did you mean" suggestions for an unknown
+color/preset/image name, `--strict`, `--check`, and `--format json`.
+
+Deliberately out of v1 (docs/spec.md §7): inserting into an existing
+deck's slide, ` ```pikslide ` blocks in Markdown, connectors, SVG *output*,
+auto-layout, tables/charts/SmartArt, animation, multi-slide authoring,
+true Bézier curves, shape adjustment handles, arithmetic on colors.
+
+## How it works
+
+1. **Parse** — source is tokenized and parsed into an AST
+   (`pikslide.pik.ast.Document`).
+2. **Layout** — the AST is resolved into concrete 2-D geometry (box positions,
+   arrow paths, text placement).
+3. **Render** — the resolved geometry is written out as PowerPoint objects.
+
+## Requirements
+
+- Python 3.12+
+
+## Install
+
+From PyPI, as a standalone `pikslide` command:
+
+```sh
+uv tool install pikslide
+# or
+pipx install pikslide
+```
+
+`pikslide --version` prints the version installed. To remove it later:
+`uv tool uninstall pikslide` (or `pipx uninstall pikslide`).
+
+### From source
+
+To work on pikslide itself, clone the repository and use
+[uv](https://docs.astral.sh/uv/). The examples below call an installed
+`pikslide`; in a clone, `uv run pikslide ...` runs it with no install step.
+To install the clone as a standalone command instead (placed in
+`~/.local/bin`), from the project root:
+
+```sh
+uv tool install .
+```
+
+If `~/.local/bin` isn't on your `PATH` yet, run `uv tool update-shell`.
+
+## Usage
+
+Dump the parsed tree for a `.pik` file (useful for inspecting how a script was
+understood, or for debugging):
+
+```sh
+pikslide diagram.pik
+```
+
+Render a `.pik` file straight to PowerPoint:
+
+```sh
+pikslide diagram.pik diagram.pptx
+```
+
+The result is a new one-slide deck sized to the diagram; an existing
+OUTPUT is overwritten.
+
+To draw on a real template's slide, in its theme and fonts, instead of
+the built-in Office ones:
+
+```sh
+pikslide diagram.pik diagram.pptx --template corporate.potx
+pikslide diagram.pik diagram.pptx --template corporate.potx --layout "Two Content"
+```
+
+(OUTPUT may be omitted when `--template` is given: it then defaults to
+INPUT's own path with its extension changed to `.pptx`.) The slide is the
+template's own size, and the diagram goes at the top left of its content
+area, clear of the title and footer. Its layout is the template's Title
+and Content layout (the first with one placeholder besides its title,
+date, footer and slide number), unless `--layout` or the template's
+settings file names another, by its name or, where two layouts share a
+name, its id. `pikslide --help template` has the details: the content
+area, the settings file, and the defaults a template sets.
+
+`--check` parses and lays out a source without writing anything, and
+`--format json` emits diagnostics as one JSON object instead of plain
+text — see `pikslide --help` for every flag.
+
+`pikslide --help TOPIC` is the language reference: a keyword (`--help box`
+gives its synopsis, attributes and defaults), a list (`colors`, `shapes`,
+`keywords`, …), a color or a preset shape (`--help accent1`, `--help
+callout1`: what it looks like), or a manual (`grammar`, `spec`).
+`pikslide --help` lists the topics.
+
+With no arguments, `pikslide` prints its usage and points to
+`pikslide --help intro`, the language in one page.
+
+`--png` / `--pdf` also render the deck just written to a PNG or a PDF —
+beside OUTPUT with the extension changed, or at an explicit path:
+
+```sh
+pikslide diagram.pik diagram.pptx --png --pdf
+pikslide diagram.pik diagram.pptx --png images/diagram.png
+```
+
+(Give OUTPUT before `--png`/`--pdf`, since their PATH is optional.) This
+uses PowerPoint itself, through COM automation (via `powershell.exe`),
+when it's reachable — Windows, or WSL with a Windows PowerPoint install —
+since that's the actual renderer pikslide's output is meant for; otherwise
+it falls back to LibreOffice (`soffice`) and says so in a note: a
+different rendering engine, good for a quick look but not for verifying
+exact layout or text fit against real PowerPoint. `--renderer powerpoint`
+or `--renderer libreoffice` uses only that one.
+With no `--template`, pikslide sizes its slide exactly to the diagram, so
+the PNG is an image of just the diagram, no separate cropping needed; with
+one, it is the whole slide, as it will look in the deck. The PowerShell scripts
+behind this (`src/pikslide/ps/*.ps1`) also run on their own from Windows
+PowerShell.
+
+### Example
+
+`docs/examples/pipeline.pik`:
+
+```pikslide
+arrow "Markdown" "Source" right 200%
+box "pikslide" "Formatter" rad 10px fit
+arrow "PPTX" "Output" right 200%
+arrow <- down 70% from last box.s
+file "pikslide" "Language" fit
+```
+
+```sh
+pikslide docs/examples/pipeline.pik docs/examples/pipeline.pptx --png
+```
+

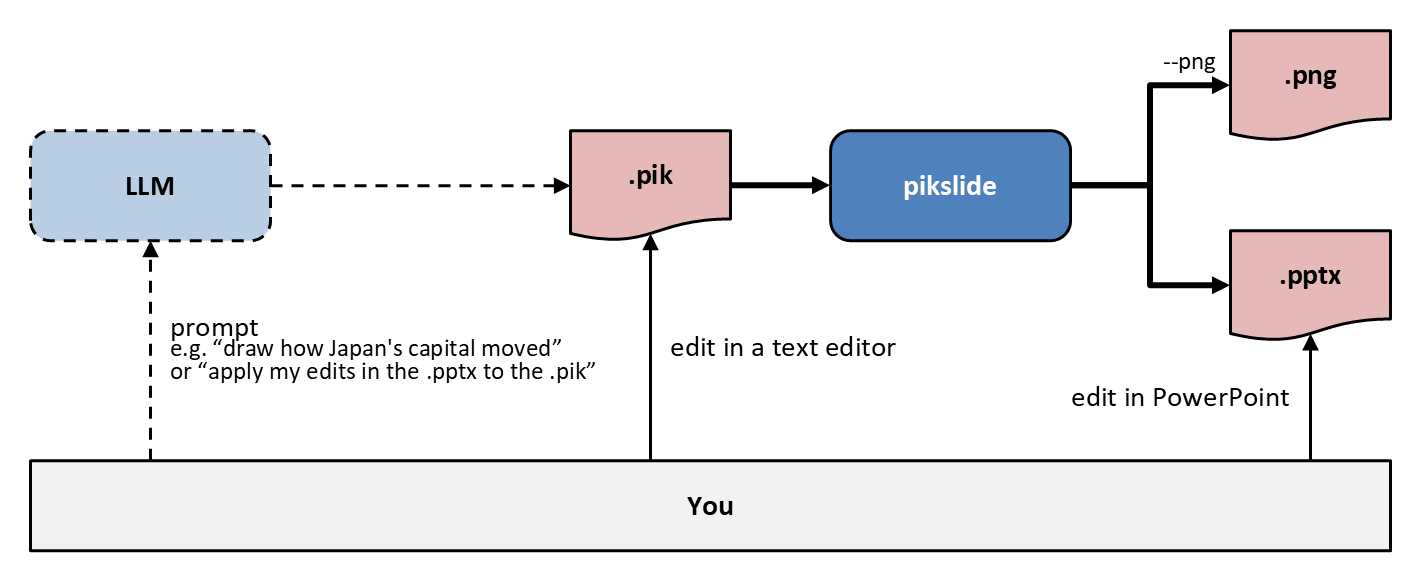

+![pipeline.png: the diagram as PowerPoint draws it](https://raw.githubusercontent.com/mkyutani/pikslide/main/docs/examples/pipeline.png)
+
+[docs/examples/](https://github.com/mkyutani/pikslide/tree/main/docs/examples) has more, each with the PPTX and PNG it
+renders to.
+[docs/examples/japan-capitals.md](https://github.com/mkyutani/pikslide/blob/main/docs/examples/japan-capitals.md) is one
+that Claude Code drew, with the prompt it was given.
+
+## Limits of the current layout stage
+
+The layout stage is a deliberately pragmatic subset of a full CAD-style
+layout engine, covering common diagrams well rather than every case:
+default object sizes, sequential chaining,
+`at`/`with`/`from`/`to`/`then`/`go`/`same`/`chop`, and box/ellipse/diamond
+edge geometry are all there, but a few things are simplified:
+
+- spline/arc curves are drawn as straight polylines,
+- `fit` text sizing measures with the deck's own fonts when rendering to
+  PowerPoint (docs/spec.md §3.3), but falls back to a flat per-character
+  estimate otherwise,
+- chopping against diamond/cylinder/file shapes uses a rectangle-like
+  approximation rather than each shape's true outline.
+
+See the module docstrings in `src/pikslide/pik/layout.py` for details.
+
+## Development
+
+```sh
+uv run pytest
+```
+
+Test fixtures under `tests/fixtures/examples/` are a corpus of official
+example diagrams inherited via the port described in Acknowledgments,
+kept as a regression net for behavior that hasn't deliberately changed.
+
+## Acknowledgments
+
+pikslide traces its lineage through two earlier languages. Brian
+Kernighan's `pic` (1984) introduced sequential, relative placement of
+named objects — draw one thing, then the next one relative to it — rather
+than absolute coordinates. D. Richard Hipp's [pikchr](https://pikchr.org/)
+carried that idea into a full, modern language, emitting SVG. pikslide's
+tokenizer, grammar, macro expansion, and layout engine began as a direct
+port of pikchr's own, and the port goes well beyond syntax — default
+object sizes, placement and chaining math, and edge geometry are all
+inherited from it, not rebuilt from scratch. pikslide's own design departs
+from there where a diagram that lives inside a PowerPoint slide, rather
+than becoming an SVG picture, calls for a different answer.
+
+pikchr's [source](https://pikchr.org/home/doc/tip/pikchr.y) states it is
+released under the Zero-Clause BSD license. See [NOTICE](https://github.com/mkyutani/pikslide/blob/main/NOTICE) for
+details.
+
+## License
+
+[0BSD](https://github.com/mkyutani/pikslide/blob/main/LICENSE)

pikslide-0.1.0/README.md

@@ -0,0 +1,228 @@
+# pikslide
+
+A text language for drawing **diagrams that live inside Office slides**.
+
+You don't write coordinates: you place objects one after another in a
+direction, and refer to earlier objects by name. A diagram becomes
+**native, editable PowerPoint objects** — shapes a person can select,
+restyle and move afterwards.
+
+The language is specified in [docs/spec.md](https://github.com/mkyutani/pikslide/blob/main/src/pikslide/docs/spec.md) and defined, in
+BNF, in [docs/grammar.md](https://github.com/mkyutani/pikslide/blob/main/src/pikslide/docs/grammar.md). (pikslide's own design traces
+back through two earlier languages; see Acknowledgments, below.)
+
+## Status
+
+v1 (docs/spec.md §1) is implemented: a parser, a layout stage, and
+PowerPoint output; colors as a type of their own, with theme colors
+(`theme "accent1"`, `lighter`/`darker`) rendered as real `schemeClr`,
+never resolved to RGB; fonts the same way — text set in the theme's own
+font by default, not a hard-coded family, with `major` selecting the
+heading font and `typeface` overriding both with one literal family;
+three fixed text sizes (`small`/`medium`/`large`); a prelude of built-in
+names (CSS color names, built-in defaults, the theme-color names); preset
+shapes (`shape roundRect`, any of the ~180 OOXML presets, matched
+case-insensitively); images (PNG/JPEG/GIF, and SVG — embedded together
+with a PNG fallback for older viewers, sized explicitly or by aspect
+ratio, path resolved and contained under the source file's own
+directory); `include "house.pik"` for shared definitions (contained the
+same way, with cycle detection); object identity — a label becomes the
+shape's real PowerPoint name (an unlabeled object gets a default `box
+1`-style name), and `behind X` places an object immediately below `X`
+in z-order — so the Selection Pane reads like the source (`[ ... ]`
+blocks are a source-level grouping construct only, flattened rather than
+turned into a PowerPoint group when written out); starting a new
+standalone deck from another file's theme instead of the built-in Office
+one (`--template`); a template's settings file (`<name>.theme.pik`, or
+`--settings FILE`), for its slide layout, font, accent colors and text
+sizes; and diagnostics — `file:line:column`, the source line and a caret
+for a syntax error (naming the right file even inside a nested
+`include`), "did you mean" suggestions for an unknown
+color/preset/image name, `--strict`, `--check`, and `--format json`.
+
+Deliberately out of v1 (docs/spec.md §7): inserting into an existing
+deck's slide, ` ```pikslide ` blocks in Markdown, connectors, SVG *output*,
+auto-layout, tables/charts/SmartArt, animation, multi-slide authoring,
+true Bézier curves, shape adjustment handles, arithmetic on colors.
+
+## How it works
+
+1. **Parse** — source is tokenized and parsed into an AST
+   (`pikslide.pik.ast.Document`).
+2. **Layout** — the AST is resolved into concrete 2-D geometry (box positions,
+   arrow paths, text placement).
+3. **Render** — the resolved geometry is written out as PowerPoint objects.
+
+## Requirements
+
+- Python 3.12+
+
+## Install
+
+From PyPI, as a standalone `pikslide` command:
+
+```sh
+uv tool install pikslide
+# or
+pipx install pikslide
+```
+
+`pikslide --version` prints the version installed. To remove it later:
+`uv tool uninstall pikslide` (or `pipx uninstall pikslide`).
+
+### From source
+
+To work on pikslide itself, clone the repository and use
+[uv](https://docs.astral.sh/uv/). The examples below call an installed
+`pikslide`; in a clone, `uv run pikslide ...` runs it with no install step.
+To install the clone as a standalone command instead (placed in
+`~/.local/bin`), from the project root:
+
+```sh
+uv tool install .
+```
+
+If `~/.local/bin` isn't on your `PATH` yet, run `uv tool update-shell`.
+
+## Usage
+
+Dump the parsed tree for a `.pik` file (useful for inspecting how a script was
+understood, or for debugging):
+
+```sh
+pikslide diagram.pik
+```
+
+Render a `.pik` file straight to PowerPoint:
+
+```sh
+pikslide diagram.pik diagram.pptx
+```
+
+The result is a new one-slide deck sized to the diagram; an existing
+OUTPUT is overwritten.
+
+To draw on a real template's slide, in its theme and fonts, instead of
+the built-in Office ones:
+
+```sh
+pikslide diagram.pik diagram.pptx --template corporate.potx
+pikslide diagram.pik diagram.pptx --template corporate.potx --layout "Two Content"
+```
+
+(OUTPUT may be omitted when `--template` is given: it then defaults to
+INPUT's own path with its extension changed to `.pptx`.) The slide is the
+template's own size, and the diagram goes at the top left of its content
+area, clear of the title and footer. Its layout is the template's Title
+and Content layout (the first with one placeholder besides its title,
+date, footer and slide number), unless `--layout` or the template's
+settings file names another, by its name or, where two layouts share a
+name, its id. `pikslide --help template` has the details: the content
+area, the settings file, and the defaults a template sets.
+
+`--check` parses and lays out a source without writing anything, and
+`--format json` emits diagnostics as one JSON object instead of plain
+text — see `pikslide --help` for every flag.
+
+`pikslide --help TOPIC` is the language reference: a keyword (`--help box`
+gives its synopsis, attributes and defaults), a list (`colors`, `shapes`,
+`keywords`, …), a color or a preset shape (`--help accent1`, `--help
+callout1`: what it looks like), or a manual (`grammar`, `spec`).
+`pikslide --help` lists the topics.
+
+With no arguments, `pikslide` prints its usage and points to
+`pikslide --help intro`, the language in one page.
+
+`--png` / `--pdf` also render the deck just written to a PNG or a PDF —
+beside OUTPUT with the extension changed, or at an explicit path:
+
+```sh
+pikslide diagram.pik diagram.pptx --png --pdf
+pikslide diagram.pik diagram.pptx --png images/diagram.png
+```
+
+(Give OUTPUT before `--png`/`--pdf`, since their PATH is optional.) This
+uses PowerPoint itself, through COM automation (via `powershell.exe`),
+when it's reachable — Windows, or WSL with a Windows PowerPoint install —
+since that's the actual renderer pikslide's output is meant for; otherwise
+it falls back to LibreOffice (`soffice`) and says so in a note: a
+different rendering engine, good for a quick look but not for verifying
+exact layout or text fit against real PowerPoint. `--renderer powerpoint`
+or `--renderer libreoffice` uses only that one.
+With no `--template`, pikslide sizes its slide exactly to the diagram, so
+the PNG is an image of just the diagram, no separate cropping needed; with
+one, it is the whole slide, as it will look in the deck. The PowerShell scripts
+behind this (`src/pikslide/ps/*.ps1`) also run on their own from Windows
+PowerShell.
+
+### Example
+
+`docs/examples/pipeline.pik`:
+
+```pikslide
+arrow "Markdown" "Source" right 200%
+box "pikslide" "Formatter" rad 10px fit
+arrow "PPTX" "Output" right 200%
+arrow <- down 70% from last box.s
+file "pikslide" "Language" fit
+```
+
+```sh
+pikslide docs/examples/pipeline.pik docs/examples/pipeline.pptx --png
+```
+
+![pipeline.png: the diagram as PowerPoint draws it](https://raw.githubusercontent.com/mkyutani/pikslide/main/docs/examples/pipeline.png)
+
+[docs/examples/](https://github.com/mkyutani/pikslide/tree/main/docs/examples) has more, each with the PPTX and PNG it
+renders to.
+[docs/examples/japan-capitals.md](https://github.com/mkyutani/pikslide/blob/main/docs/examples/japan-capitals.md) is one
+that Claude Code drew, with the prompt it was given.
+
+## Limits of the current layout stage
+
+The layout stage is a deliberately pragmatic subset of a full CAD-style
+layout engine, covering common diagrams well rather than every case:
+default object sizes, sequential chaining,
+`at`/`with`/`from`/`to`/`then`/`go`/`same`/`chop`, and box/ellipse/diamond
+edge geometry are all there, but a few things are simplified:
+
+- spline/arc curves are drawn as straight polylines,
+- `fit` text sizing measures with the deck's own fonts when rendering to
+  PowerPoint (docs/spec.md §3.3), but falls back to a flat per-character
+  estimate otherwise,
+- chopping against diamond/cylinder/file shapes uses a rectangle-like
+  approximation rather than each shape's true outline.
+
+See the module docstrings in `src/pikslide/pik/layout.py` for details.
+
+## Development
+
+```sh
+uv run pytest
+```
+
+Test fixtures under `tests/fixtures/examples/` are a corpus of official
+example diagrams inherited via the port described in Acknowledgments,
+kept as a regression net for behavior that hasn't deliberately changed.
+
+## Acknowledgments
+
+pikslide traces its lineage through two earlier languages. Brian
+Kernighan's `pic` (1984) introduced sequential, relative placement of
+named objects — draw one thing, then the next one relative to it — rather
+than absolute coordinates. D. Richard Hipp's [pikchr](https://pikchr.org/)
+carried that idea into a full, modern language, emitting SVG. pikslide's
+tokenizer, grammar, macro expansion, and layout engine began as a direct
+port of pikchr's own, and the port goes well beyond syntax — default
+object sizes, placement and chaining math, and edge geometry are all
+inherited from it, not rebuilt from scratch. pikslide's own design departs
+from there where a diagram that lives inside a PowerPoint slide, rather
+than becoming an SVG picture, calls for a different answer.
+
+pikchr's [source](https://pikchr.org/home/doc/tip/pikchr.y) states it is
+released under the Zero-Clause BSD license. See [NOTICE](https://github.com/mkyutani/pikslide/blob/main/NOTICE) for
+details.
+
+## License
+
+[0BSD](https://github.com/mkyutani/pikslide/blob/main/LICENSE)

pikslide-0.1.0/pyproject.toml

@@ -0,0 +1,54 @@
+[project]
+name = "pikslide"
+version = "0.1.0"
+description = "A text language for drawing diagrams as native, editable PowerPoint objects"
+readme = "README.md"
+license = "0BSD"
+license-files = [
+    "LICENSE",
+    "NOTICE",
+]
+requires-python = ">=3.12"
+keywords = [
+    "diagram",
+    "powerpoint",
+    "pptx",
+    "pic",
+    "pikchr",
+    "slides",
+]
+classifiers = [
+    "Development Status :: 3 - Alpha",
+    "Environment :: Console",
+    "Intended Audience :: End Users/Desktop",
+    "Operating System :: OS Independent",
+    "Programming Language :: Python :: 3",
+    "Programming Language :: Python :: 3 :: Only",
+    "Programming Language :: Python :: 3.12",
+    "Programming Language :: Python :: 3.13",
+    "Programming Language :: Python :: 3.14",
+    "Topic :: Multimedia :: Graphics :: Presentation",
+]
+dependencies = [
+    "pillow>=12.3.0",
+    "python-pptx>=1.0.2",
+]
+
+[[project.authors]]
+name = "Miki Yutani"
+email = "mkyutani@gmail.com"
+
+[project.urls]
+Repository = "https://github.com/mkyutani/pikslide"
+Issues = "https://github.com/mkyutani/pikslide/issues"
+Documentation = "https://github.com/mkyutani/pikslide/blob/main/src/pikslide/docs/spec.md"
+
+[project.scripts]
+pikslide = "pikslide:main"
+
+[build-system]
+requires = ["uv_build>=0.12.5,<0.13.0"]
+build-backend = "uv_build"
+
+[dependency-groups]
+dev = ["pytest>=9.1.1"]

pikslide-0.1.0/pyproject.toml.orig

@@ -0,0 +1,45 @@
+[project]
+name = "pikslide"
+version = "0.1.0"
+description = "A text language for drawing diagrams as native, editable PowerPoint objects"
+readme = "README.md"
+license = "0BSD"
+license-files = ["LICENSE", "NOTICE"]
+authors = [
+    { name = "Miki Yutani", email = "mkyutani@gmail.com" }
+]
+requires-python = ">=3.12"
+keywords = ["diagram", "powerpoint", "pptx", "pic", "pikchr", "slides"]
+classifiers = [
+    "Development Status :: 3 - Alpha",
+    "Environment :: Console",
+    "Intended Audience :: End Users/Desktop",
+    "Operating System :: OS Independent",
+    "Programming Language :: Python :: 3",
+    "Programming Language :: Python :: 3 :: Only",
+    "Programming Language :: Python :: 3.12",
+    "Programming Language :: Python :: 3.13",
+    "Programming Language :: Python :: 3.14",
+    "Topic :: Multimedia :: Graphics :: Presentation",
+]
+dependencies = [
+    "pillow>=12.3.0",
+    "python-pptx>=1.0.2",
+]
+
+[project.urls]
+Repository = "https://github.com/mkyutani/pikslide"
+Issues = "https://github.com/mkyutani/pikslide/issues"
+Documentation = "https://github.com/mkyutani/pikslide/blob/main/src/pikslide/docs/spec.md"
+
+[project.scripts]
+pikslide = "pikslide:main"
+
+[build-system]
+requires = ["uv_build>=0.12.5,<0.13.0"]
+build-backend = "uv_build"
+
+[dependency-groups]
+dev = [
+    "pytest>=9.1.1",
+]
