oboa 0.1.0__tar.gz

oboa-0.1.0/AUTHORS

@@ -0,0 +1,5 @@
+OBOA was created by Daniel Brosnan Blázquez.
+
+Major contributing authors include:
+
+- Daniel Brosnan Blázquez

oboa-0.1.0/LICENSE

@@ -0,0 +1,19 @@
+Copyright 2026-2026 BOA authors and contributors <see AUTHORS file>.
+
+Permission is hereby granted, free of charge, to any person obtaining a copy of
+this software and associated documentation files (the "Software"), to deal in
+the Software without restriction, including without limitation the rights to
+use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies
+of the Software, and to permit persons to whom the Software is furnished to do
+so, subject to the following conditions:
+
+The above copyright notice and this permission notice shall be included in all
+copies or substantial portions of the Software.
+
+THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
+IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
+FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
+AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
+LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
+OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
+SOFTWARE.

oboa-0.1.0/MANIFEST.in

@@ -0,0 +1,6 @@
+recursive-include src/oboa/config *.json *.xml
+recursive-include src/oboa/datamodel *.sql *.dbm
+recursive-include src/oboa/schemas *.xsd
+recursive-include src/oboa/scripts *.sh
+prune src/tests
+global-exclude __pycache__ *.py[cod] .coverage

oboa-0.1.0/PKG-INFO

@@ -0,0 +1,454 @@
+Metadata-Version: 2.4
+Name: oboa
+Version: 0.1.0
+Summary: Orchestrator for Business Operations Analysis
+Author: Daniel Brosnan Blázquez
+License-Expression: MIT
+Project-URL: Homepage, https://github.com/Daniel-Brosnan-Blazquez/oboa
+Project-URL: Repository, https://github.com/Daniel-Brosnan-Blazquez/oboa
+Project-URL: Issues, https://github.com/Daniel-Brosnan-Blazquez/oboa/issues
+Keywords: orchestration,archiving,file-processing,postgresql
+Classifier: Development Status :: 3 - Alpha
+Classifier: Environment :: Console
+Classifier: Operating System :: POSIX :: Linux
+Classifier: Programming Language :: Python :: 3
+Classifier: Programming Language :: Python :: 3 :: Only
+Classifier: Topic :: System :: Archiving
+Requires-Python: >=3.9
+Description-Content-Type: text/markdown
+License-File: LICENSE
+License-File: AUTHORS
+Requires-Dist: aboa==0.2.0
+Requires-Dist: sqlalchemy==1.3.22
+Requires-Dist: psycopg2-binary==2.9.11
+Requires-Dist: python-dateutil==2.9.0.post0
+Requires-Dist: lxml==6.0.2
+Provides-Extra: tests
+Requires-Dist: pytest==8.4.2; extra == "tests"
+Requires-Dist: pytest-cov==7.0.0; extra == "tests"
+Dynamic: license-file
+
+# OBOA
+
+Orchestrator for Business Operations Analysis.
+
+OBOA polls an input directory, matches ready files against XML orchestration
+rules, delegates archival storage to ABOA, optionally stages files for executable
+data processors, and keeps a PostgreSQL inventory of configuration history,
+orchestrated files, and failed operations. The current implementation exposes
+command line tools and Python interfaces through `oboa.engine.engine.Engine` and
+`oboa.engine.query.Query`.
+
+## Contents
+
+- [What OBOA Provides](#what-oboa-provides)
+- [Quick Start With Docker](#quick-start-with-docker)
+- [Install From PyPI](#install-from-pypi)
+- [Local Python Setup](#local-python-setup)
+- [Runtime Configuration](#runtime-configuration)
+- [Orchestration Configuration XML](#orchestration-configuration-xml)
+- [Command Line Tools](#command-line-tools)
+- [Python API](#python-api)
+- [Operation Flow Schematics](#operation-flow-schematics)
+- [Data Model](#data-model)
+- [Development Layout](#development-layout)
+- [Tests](#tests)
+- [Publishing To PyPI](#publishing-to-pypi)
+
+## What OBOA Provides
+
+- Poll an input directory once, continuously, or through a managed daemon.
+- Validate and activate XML orchestration configurations.
+- Match files by mask using lxml XPath evaluation and OBOA XPath helper
+  functions.
+- Sort ready files by configured orchestration priority before processing each
+  polling pass.
+- Delegate archival storage to ABOA and pass the matched OBOA file group as
+  archive metadata.
+- Optionally delete input files after successful archive delegation.
+- Stage processor-backed files into a configurable internal processing folder by
+  hard-linking when possible and copying when hard-linking is not available.
+- Execute configured data processors with OBOA environment variables describing
+  the orchestrated file, staged path, group, and configuration UUID.
+- Move failed archived or staged inputs out of the entry point into
+  `<error_dir>/<YEAR>/<MONTH>/<DAY>/<file_name>`, so failed inputs are not
+  orchestrated repeatedly.
+- Keep PostgreSQL inventory rows for active and historical orchestration
+  configurations and orchestrated files.
+- Record failed operations in `orchestration_operations` while successful
+  operations are written only to the log.
+
+## Quick Start With Docker
+
+The development compose file starts an OBOA container and a PostgreSQL/PostGIS
+database container. The source checkout is mounted into the OBOA container at
+`/oboa`, and the container user can be mapped to the host user with
+`UID_HOST_USER` and `GID_HOST_USER`.
+
+The development image copies the source and installs OBOA in editable mode into
+`/usr/local/oboa-venv` during its build, including the runtime and test
+dependencies declared in `pyproject.toml`. At runtime, the mounted checkout replaces
+the copied source, so source edits take effect immediately. Rebuild the image
+when dependencies change.
+
+```bash
+UID_HOST_USER=$(id -u) GID_HOST_USER=$(id -g) docker compose -f compose_dev.yml up -d --build
+docker compose -f compose_dev.yml exec oboa initialize_oboa_ddbb.sh
+docker compose -f compose_dev.yml exec oboa oboa_configure.py --configuration /oboa/src/tests/inputs/orchestrator_texts_without_processor.xml
+docker compose -f compose_dev.yml exec oboa oboa_query.py --configurations --active true
+```
+
+`initialize_oboa_ddbb.sh` calls `oboa_init.py -y` and recreates the configured
+database from `src/oboa/datamodel/oboa_data_model.sql`, so it deletes existing
+OBOA inventory data for that database.
+
+OBOA archives through ABOA by default. Both Docker images install
+`aboa==0.2.0` from PyPI during their builds.
+Both Compose files set these ABOA variables:
+
+- `ABOA_DDBB_HOST`: defaults to `oboa_db`; override it in the host environment
+  to use another PostgreSQL server.
+- `ABOA_LOG_PATH`: `/log`, shared with OBOA logs.
+- `ABOA_DEFAULT_ARCHIVE_PATH`: `/aboa_archive`, used as the fallback when
+  the XML archive configuration cannot be activated. The XML `root_directory`
+  takes precedence.
+
+ABOA uses its bundled configuration, including the `aboadb` database and `aboa`
+database user. Initialize its database before archiving:
+
+```bash
+docker compose -f compose_dev.yml exec oboa aboa_init.py
+```
+
+For custom configuration, mount a directory containing ABOA's `datamodel.json`,
+`engine.json`, and `archive_configurations.xml`, then set `ABOA_RESOURCES_PATH`
+to that container directory.
+
+## Install From PyPI
+
+OBOA requires Python 3.9 or newer and Linux with Bash. Install it in a virtual
+environment:
+
+```bash
+python3 -m venv .venv
+source .venv/bin/activate
+python -m pip install oboa
+oboa_poll.py --help
+```
+
+The package includes its default configuration, XML schema, SQL data model, and
+shell helpers. PostgreSQL client tools (`psql`) must be installed separately to
+initialize a database with `oboa_init.py`; a reachable PostgreSQL server is
+required for orchestration. Set `OBOA_DDBB_HOST` and `ABOA_DDBB_HOST` as needed,
+and follow the runtime configuration instructions below before processing files.
+
+## Local Python Setup
+
+For local development outside Docker, install from the repository root:
+
+```bash
+python3 -m venv .venv
+source .venv/bin/activate
+python -m pip install -e ".[tests]"
+```
+
+Installing OBOA automatically installs `aboa==0.2.0` from PyPI as a required
+runtime dependency and the default archive manager.
+
+Set the runtime paths before importing or running OBOA:
+
+```bash
+export OBOA_RESOURCES_PATH="$PWD/src/oboa/config"
+export OBOA_SCHEMAS_PATH="$PWD/src/oboa/schemas"
+export OBOA_LOG_PATH="$PWD/log"
+export OBOA_POLLING_DIR="/tmp/oboa_polling"
+export OBOA_PROCESSING_DIR="/tmp/oboa_processing"
+export OBOA_ERROR_DIR="/tmp/oboa_error"
+mkdir -p "$OBOA_LOG_PATH" "$OBOA_POLLING_DIR" "$OBOA_PROCESSING_DIR" "$OBOA_ERROR_DIR"
+```
+
+OBOA uses PostgreSQL for inventory persistence. For local runs outside Compose,
+point OBOA to the PostgreSQL host:
+
+```bash
+export OBOA_DDBB_HOST="localhost"
+```
+
+ABOA must also be configured when using the default archive delegation client.
+Tests can inject a mock archive client, but production orchestration uses ABOA.
+
+## Runtime Configuration
+
+OBOA reads JSON and XML runtime resources from the packaged `config` directory by
+default. The packaged resource and schema paths can be overridden when running in
+Docker, tests, or custom deployments.
+
+Path environment variables:
+
+- `OBOA_RESOURCES_PATH`: directory containing `datamodel.json`, `engine.json`,
+  and `orchestrator_configuration.xml`.
+- `OBOA_SCHEMAS_PATH`: directory containing
+  `oboa_orchestrator_configuration.xsd`.
+- `OBOA_LOG_PATH`: directory where rotating log files are written.
+
+Optional environment variables:
+
+- `OBOA_DDBB_HOST`: overrides the PostgreSQL host from `datamodel.json`.
+- `OBOA_LOG_LEVEL`: overrides the log level from `engine.json`.
+- `OBOA_STREAM_LOG`: enables stream logging in addition to the rotating file log.
+- `OBOA_LOG_MAX_BYTES` and `OBOA_LOG_MAX_BACKUP`: override log rotation limits.
+- `OBOA_POLLING_DIR`: overrides `ORCHESTRATION.polling_dir`.
+- `OBOA_POLLING_FREQUENCY`: overrides `ORCHESTRATION.polling_frequency`.
+- `OBOA_DELETE_AFTER_ARCHIVE`: overrides
+  `ORCHESTRATION.delete_after_archive`.
+- `OBOA_PROCESSING_DIR`: overrides `ORCHESTRATION.processing_dir`.
+- `OBOA_ERROR_DIR`: overrides `ORCHESTRATION.error_dir`.
+- `OBOA_DAEMON_PID_FILE`: overrides `DAEMON.pid_file`.
+- `OBOA_DAEMON_DATABASE_STARTUP_ATTEMPTS`: number of database readiness checks
+  before daemon startup fails.
+- `OBOA_DAEMON_DATABASE_STARTUP_WAIT_SECONDS`: delay between database readiness
+  checks.
+- `OBOA_DDBB_STARTUP_ATTEMPTS` and `OBOA_DDBB_STARTUP_WAIT_SECONDS`: accepted
+  aliases for the daemon database readiness retry settings.
+
+`src/oboa/config/engine.json` configures logging, polling, staging, failed-input
+storage, and daemon startup behavior:
+
+```json
+{
+  "LOG": {
+    "LEVEL": "INFO",
+    "MAX_BYTES": 50000000,
+    "MAX_BACKUP": 30
+  },
+  "ORCHESTRATION": {
+    "polling_dir": "/oboa_polling",
+    "polling_frequency": 30,
+    "delete_after_archive": true,
+    "processing_dir": "/oboa_processing",
+    "error_dir": "/oboa_error"
+  },
+  "DAEMON": {
+    "pid_file": "/tmp/oboa.pid",
+    "database_startup_attempts": 30,
+    "database_startup_wait_seconds": 2
+  }
+}
+```
+
+Failed input files are moved below the configured error folder using:
+
+```text
+<error_dir>/<YEAR>/<MONTH>/<DAY>/<file_name>
+```
+
+If a file with the same name already exists for the same day, OBOA appends a UUID
+suffix to keep the failed input collision-safe.
+
+## Orchestration Configuration XML
+
+The default configuration lives at
+`src/oboa/config/orchestrator_configuration.xml`. OBOA validates this file with
+`src/oboa/schemas/oboa_orchestrator_configuration.xsd`.
+
+```xml
+<orchestrator_configuration>
+  <data group="documents" priority="1">
+    <data_mask>*.pdf</data_mask>
+    <data_processor>eboa_triggering.py -r -f %F</data_processor>
+  </data>
+  <data group="images" priority="2">
+    <data_mask>*.png</data_mask>
+  </data>
+</orchestrator_configuration>
+```
+
+Each `data` rule has:
+
+- `group`: file group assigned to matching files and passed to ABOA metadata.
+- `priority`: positive integer used to sort ready files before orchestration.
+  Lower values run first.
+- `data_mask`: file-name mask evaluated by OBOA XPath helper functions.
+- `data_processor`: optional executable or command template invoked after
+  successful archive delegation.
+
+The group `unknown` is reserved. Files that do not match any configured rule are
+orchestrated with file group `unknown` and are processed after matched files.
+
+When two ready files match rules with the same priority, OBOA preserves XML rule
+order and then file-name order. OBOA logs the polled files and the priority-sorted
+files on every polling pass.
+
+Processor executables may be absolute paths, paths relative to the XML
+configuration file, or command names available in `PATH`. Processor command
+templates may include parameters. `%F` is replaced with the staged processing
+file path before execution:
+
+```xml
+<data_processor>eboa_triggering.py -r -f %F</data_processor>
+```
+
+For backward compatibility, a processor configured as a bare executable without
+`%F` receives the staged file path as its final argument. Processors also receive
+these environment variables:
+
+- `OBOA_FILE_UUID`
+- `OBOA_FILE_PATH`
+- `OBOA_INPUT_PATH`
+- `OBOA_PROCESSING_PATH`
+- `OBOA_FILE_NAME`
+- `OBOA_FILE_GROUP`
+- `OBOA_CONFIGURATION_UUID`
+
+## Command Line Tools
+
+The package installs these console commands:
+
+```bash
+oboa_init.py [-f /path/to/oboa_data_model.sql] [-y]
+oboa_configure.py [--configuration /path/to/orchestrator_configuration.xml]
+oboa_orchestrate.py --file /path/to/file [--configuration XML] [--delete-after-archive | --keep-input] [--processing-dir DIR]
+oboa_poll.py [--once] [--polling-dir DIR] [--polling-frequency SECONDS] [--configuration XML] [--delete-after-archive | --keep-input] [--processing-dir DIR]
+oboa_daemon.py {start|stop|restart|status} [--pid-file FILE] [--foreground] [--polling-dir DIR] [--polling-frequency SECONDS] [--configuration XML]
+oboa_query.py (--files | --configurations | --operations) [filters]
+```
+
+Common examples:
+
+```bash
+oboa_init.py -y
+oboa_configure.py --configuration /data/config/orchestrator_configuration.xml
+oboa_orchestrate.py --file /data/incoming/report.txt --keep-input
+oboa_poll.py --once --polling-dir /data/incoming
+oboa_poll.py --polling-dir /data/incoming --polling-frequency 5
+oboa_daemon.py start --foreground --polling-dir /data/incoming
+oboa_daemon.py status
+oboa_daemon.py stop
+oboa_query.py --files --name "%.txt" --order-by reception_date --descending
+oboa_query.py --operations --operation archive --status 10
+```
+
+`oboa_query.py` supports these entities:
+
+- `--files`: query `orchestrated_files`.
+- `--configurations`: query `orchestration_configurations`.
+- `--operations`: query failed operation rows in `orchestration_operations`.
+
+Common query controls include `--uuid`, `--name`, `--path`, `--file-group`,
+`--operation`, `--status`, `--active`, `--archived`, `--processed`,
+`--selection`, `--order-by`, `--descending`, `--group-by`, `--limit`, and
+`--offset`. Run any command with `--help` for the exact supported options.
+
+## Python API
+
+Use `Engine` for mutating orchestration operations and `Query` for read-only
+inventory access.
+
+```python
+from oboa.engine.engine import Engine
+from oboa.engine.query import Query
+
+engine = Engine()
+try:
+    engine.configure_orchestrator("/data/config/orchestrator_configuration.xml")
+    row = engine.orchestrate_file("/data/incoming/report.txt")
+finally:
+    engine.close_session()
+
+query = Query()
+try:
+    files = query.get_orchestrated_files(
+        names={"filter": "%.txt", "op": "like"},
+        order_by={"field": "reception_date", "descending": True},
+    )
+    failures = query.get_orchestration_operations(
+        operations={"filter": "archive", "op": "like"}
+    )
+finally:
+    query.close_session()
+```
+
+Important write-side methods include `configure_orchestrator`,
+`orchestrate_file`, `poll_once`, `run_polling_loop`, `run_daemon`,
+`validate_daemon_startup`, `prepare_processing_file`, and
+`move_to_error_folder`.
+
+Important query methods include `get_active_orchestration_configuration`,
+`get_orchestrated_files`, `get_orchestration_configurations`, and
+`get_orchestration_operations`.
+
+## Operation Flow Schematics
+
+### Operations Overview
+
+![OBOA operations overview flow](https://raw.githubusercontent.com/Daniel-Brosnan-Blazquez/oboa/main/doc/fig/oboa_operations_overview_flow.svg)
+
+### Configuration Activation
+
+![OBOA configuration activation flow](https://raw.githubusercontent.com/Daniel-Brosnan-Blazquez/oboa/main/doc/fig/oboa_configuration_activation_flow.svg)
+
+### Daemon Polling And Priority
+
+![OBOA daemon polling and priority flow](https://raw.githubusercontent.com/Daniel-Brosnan-Blazquez/oboa/main/doc/fig/oboa_daemon_polling_priority_flow.svg)
+
+### File Orchestration
+
+![OBOA file orchestration flow](https://raw.githubusercontent.com/Daniel-Brosnan-Blazquez/oboa/main/doc/fig/oboa_file_orchestration_flow.svg)
+

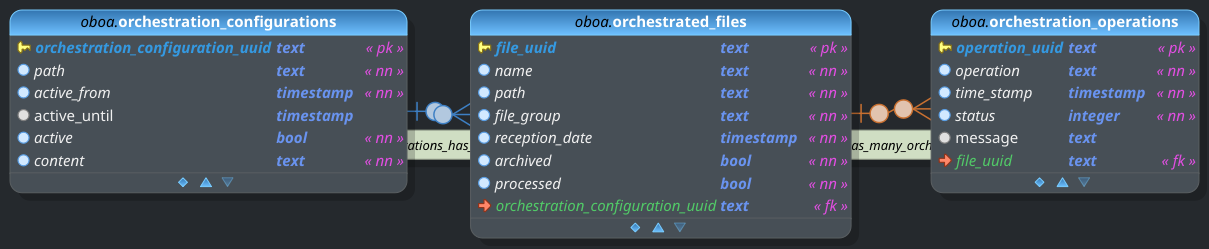

+## Data Model
+
+The DDBB model, stored in `src/oboa/datamodel/oboa_data_model.dbm`, is built
+using pgModeler. The tool is then used to generate the SQL instructions, stored
+in `src/oboa/datamodel/oboa_data_model.sql`, to initialize the DDBB.
+
+![OBOA data model](https://raw.githubusercontent.com/Daniel-Brosnan-Blazquez/oboa/main/doc/fig/oboa_data_model.png)
+
+Main inventory tables:
+
+- `orchestration_configurations`: active and historical XML configuration
+  snapshots.
+- `orchestrated_files`: input file inventory, matched group, archive status,
+  processor status, reception timestamp, and configuration UUID.
+- `orchestration_operations`: failed operation records for configuration,
+  polling, orchestration, archive, processing, and daemon-related failures.
+
+## Development Layout
+
+- `src/oboa/datamodel`: SQLAlchemy model, database configuration, exported SQL,
+  and pgModeler model.
+- `src/oboa/engine`: orchestration, archive delegation, query, daemon,
+  configuration, XPath, and CLI logic.
+- `src/oboa/processors`: executable data-processor helpers.
+- `src/oboa/config`: default runtime configuration.
+- `src/oboa/schemas`: bundled OBOA XML schemas.
+- `src/oboa/scripts`: console script entry points and database initialization
+  helpers.
+- `src/tests`: pytest-based test suite and persistent test inputs.
+- `development_plans`: design notes, requirements, and operation flow details.
+- `doc/fig`: data model and operation-flow diagrams.
+
+## Tests
+
+Install the test extra and run the suite from the repository root:
+
+```bash
+python -m pip install -e ".[tests]"
+export OBOA_RESOURCES_PATH="$PWD/src/oboa/config"
+export OBOA_SCHEMAS_PATH="$PWD/src/oboa/schemas"
+export OBOA_LOG_PATH="$PWD/log"
+export OBOA_POLLING_DIR="/tmp/oboa_polling"
+export OBOA_PROCESSING_DIR="/tmp/oboa_processing"
+export OBOA_ERROR_DIR="/tmp/oboa_error"
+mkdir -p "$OBOA_LOG_PATH" "$OBOA_POLLING_DIR" "$OBOA_PROCESSING_DIR" "$OBOA_ERROR_DIR"
+python -m pytest src/tests
+```
+
+The integration tests that exercise OBOA through ABOA are skipped when the ABOA
+package is not available.
+
+## Publishing To PyPI
+
+See [the publishing guide](https://github.com/Daniel-Brosnan-Blazquez/oboa/blob/main/doc/publishing.md)
+for local build checks, PyPI Trusted Publisher setup, and the GitHub release
+workflow. Package metadata lives in `pyproject.toml`; the release version is
+read from `src/oboa/__init__.py`.
