+# nnscope
+
+**Watch your NumPy neural network learn.** Add one line to the training loop of a network you wrote yourself, and nnscope
+shows it live in your browser: every weight, every gradient, every activation, the loss, and plain-language hints about
+what is going on. Afterwards you get a standalone HTML replay you can scrub through, share, or export as images.
+
+It was built for students implementing neural networks **from scratch** (forward pass, backprop and SGD in NumPy)
+who want to *see* what their code does: gradients flowing backwards, ReLUs dying, sigmoids saturating, a hidden layer slowly
+learning to separate the classes.
+

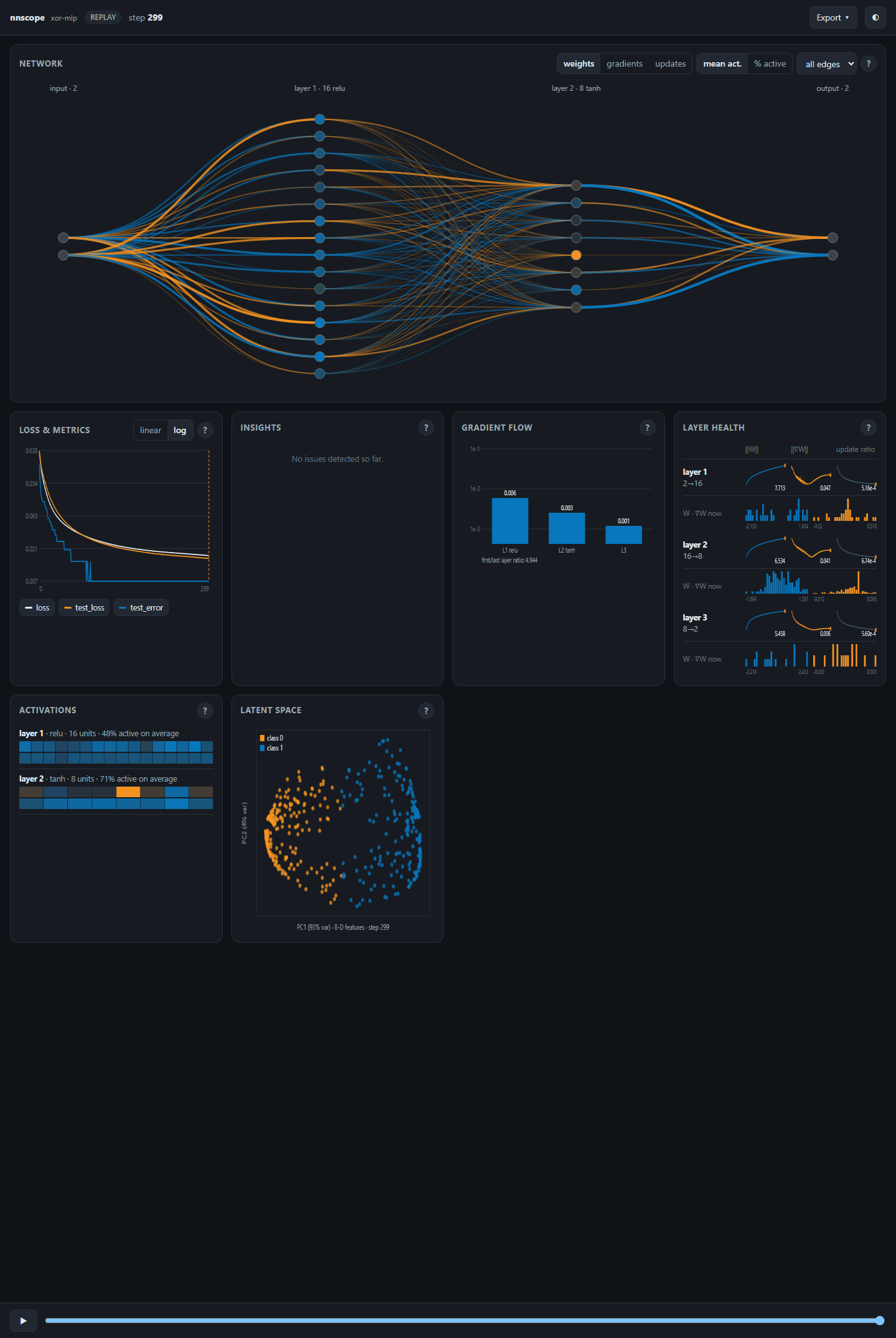

+![nnscope dashboard](https://raw.githubusercontent.com/Ashurali/nnscope/master/docs/dashboard.png)
+
+- **Zero setup:** depends only on NumPy. The dashboard is one self-contained HTML file served by Python's standard library.
+- **Works with your code:** auto-detects common NumPy model layouts, or pass plain arrays.
+- **Live and replay:** a live view while training, then `save_html()` for an offline replay with a timeline slider.
+- **Explains itself:** every panel has a (?) with the math behind it, and an insights feed diagnoses common problems.
+- **Responsive:** works on a phone (the network turns vertical), light and dark themes.
+
+## Install
+
+```bash
+pip install nnscope            # NumPy is the only dependency
+pip install "nnscope[png]"     # optional: PNG snapshots from Python via matplotlib
+```
+
+## Quickstart
+
+```python
+import nnscope
+
+scope = nnscope.Scope("my-mlp")                    # opens http://127.0.0.1:8765 in your browser
+for epoch in range(epochs):
+    ...                                             # your own forward pass, backprop and SGD step
+    scope.log(epoch, model=model, loss=train_loss, metrics={"test_loss": test_loss})
+
+scope.save_html("run.html")                         # standalone replay, no server needed
+scope.snapshot("run.svg")                           # network structure + loss curve as an image
+scope.wait()                                        # keep the live page up until Ctrl+C
+```
+
+In a Jupyter notebook, `scope.show()` puts the live dashboard inline. Use `nnscope.Scope(..., live=False)` to only record
+(for `save_html` / `snapshot`).
+
+## Connecting your network
+
+nnscope never runs your network; it only **reads arrays you already have**.
+
+**1. A model object (auto-detected).** Any object with a `.layers` list whose dense layers expose weights and biases,
+optionally with their gradients:
+
+| what | attribute names tried |
+|---|---|
+| weights | `W`, `weight`, `weights`, `kernel` |
+| biases | `b`, `bias` |
+| gradients | `dW`, `grad_W`, `W_grad`, `dweight`, … and `db`, `grad_b`, … |
+| cached input (→ activation stats of the previous layer) | `x`, `input`, `inputs`, `a_prev` |
+
+Layers without weights are recognised as activations by class name (`ReLU`, `Tanh`, `Sigmoid`, `LeakyReLU`, …), so the graph
+shows `relu`, `tanh`, … on each layer. CS231n-style parameter dicts (`{"W1": …, "b1": …}` plus a matching `grads` dict)
+and lists of `(W, b)` pairs work too.
+
+**2. Plain arrays.** No model object needed:
+
+```python
+scope.log(step, weights=[W1, W2], biases=[b1, b2], grads=[dW1, dW2], loss=loss)
+```
+
+Both `x @ W` (`W` is `(in, out)`) and `W @ x` (`W` is `(out, in)`) conventions are detected from how the shapes chain. Force
+one with `Scope(layout="in_out")` or `layout="out_in"` if a network is ambiguous (e.g. every layer square).
+
+**Optional extras for richer views:**
+
+```python
+scope.log(step, model=model, loss=loss,
+          activations=[a1, a2],     # per-layer outputs on a batch → activation statistics
+          deltas=[d1, d2, d3],      # per-layer ∂L/∂z on a batch → shown in the gradient-flow panel
+          latent=z, labels=y)       # features of any layer → latent-space scatter
+```
+
+## How to read the dashboard
+
+| Panel | What it shows | What to look for |
+|---|---|---|
+| **Network** | Neurons (circles) and weights (lines): blue positive, orange negative, thickness ∝ \|w\|. Toggle the lines to **gradients** ∂L/∂w or **updates** Δw, and the node colour to mean activation or % active. | Click a neuron: the **inspector** shows z = Σ wᵢ aᵢ + b with the real numbers from your batch, its strongest inputs, their gradients and how they changed. Dead ReLUs are ringed in red. |
+| **Loss & metrics** | Every scalar you log over time (log or linear scale). | Spikes: learning rate too high. Test loss rising while training loss falls: overfitting. |
+| **Insights** | Plain-language diagnoses, each at the step where it appeared. Click to jump there. | Vanishing/exploding gradients, dead or saturated units, learning rate too high/low, overfitting. |
+| **Gradient flow** | Mean \|∂L/∂W\| per layer, input → output, log scale. | Bars shrinking towards the input = vanishing gradients (e.g. deep sigmoid nets). |
+| **Layer health** | ‖W‖, ‖∇W‖ and the update ratio ‖ΔW‖/‖W‖ per layer over time, plus W and ∇W histograms. | Update ratio ≈ 10⁻³ per SGD step is healthy; ≈ 10⁻¹ is too high. |
+| **Activations** | Per neuron: mean activation and fraction of samples where it is active. | Neurons at 0 % active pass no gradient back and have stopped learning. |
+| **Latent space** | Any layer's features (PCA if wider than 2), coloured by label, along the timeline. | Classes starting mixed and ending linearly separable: the network is building a representation. |
+
+Use the **timeline** at the bottom (or ← → and space) to replay training. **Export** saves the network (SVG/PNG), the loss curve,
+the whole dashboard (PNG) or the raw run data (JSON).
+

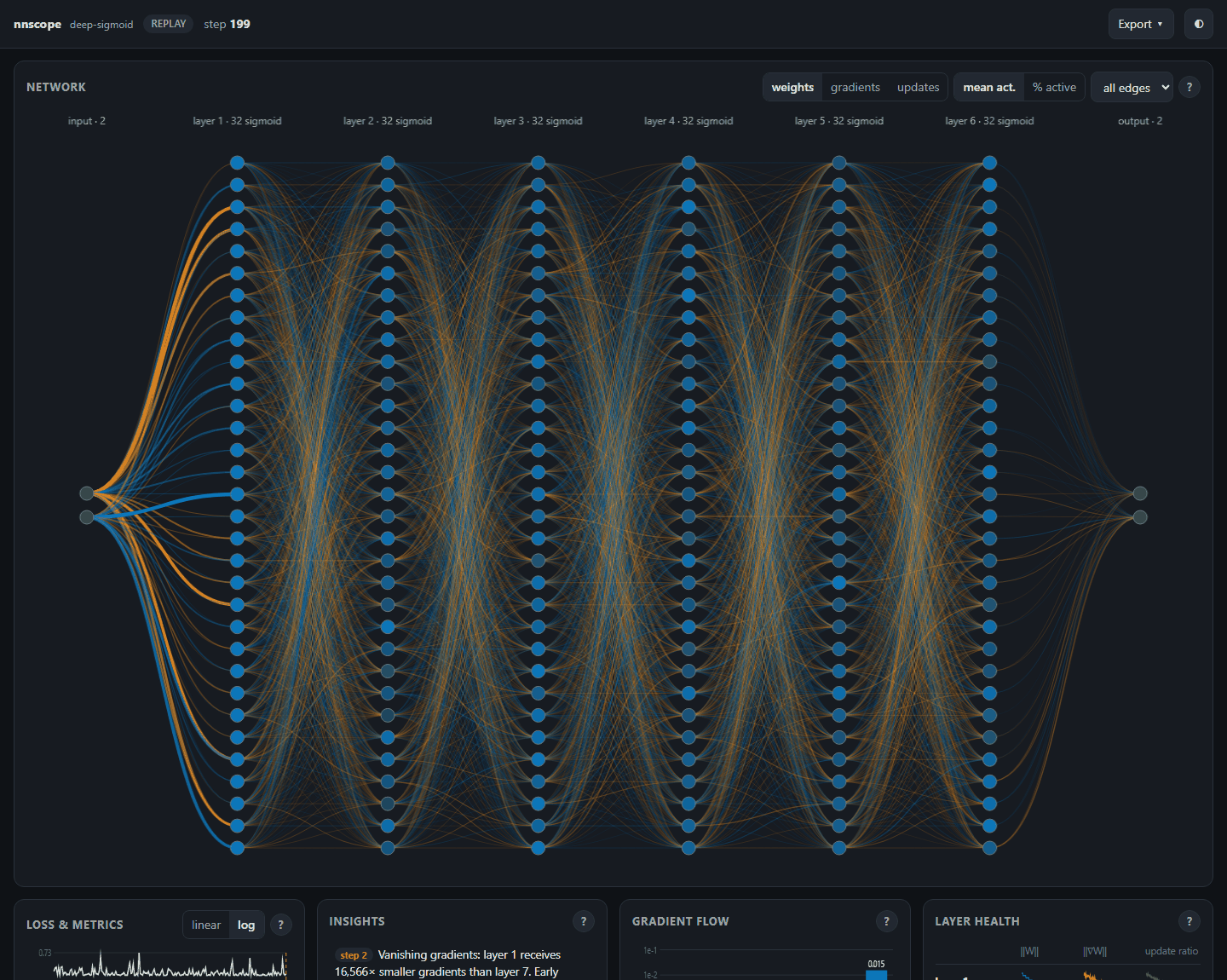

+![deep sigmoid network: vanishing gradients](https://raw.githubusercontent.com/Ashurali/nnscope/master/docs/vanishing.png)
+
+## Examples
+
+The [`examples/`](https://github.com/Ashurali/nnscope/tree/master/examples) folder uses a tiny homework-style NumPy MLP ([`_mlp.py`](https://github.com/Ashurali/nnscope/blob/master/examples/_mlp.py)). Run them from that folder;
+add `--no-open` to skip opening a browser tab, or `--headless` to only write `runs/*.html` and `runs/*.svg`.
+
+| script | story |
+|---|---|
+| `01_quickstart_xor.py` | the basics: an MLP on XOR-like data, live |
+| `02_plain_arrays.py` | no model object: raw `W1, b1, W2, b2`, hand-written backprop, `deltas=` |
+| `03_latent_bottleneck.py --k 2` | watch a k-unit bottleneck layer separate two classes (try `--k 32`) |
+| `04_vanishing_gradients.py --act sigmoid` | deep sigmoid net: gradients vanish, the insight explains why (compare `--act relu`) |
+| `05_inr_spectral_bias.py [--fourier]` | fit an image f(x, y) → rgb: raw coordinates plateau, Fourier features keep improving |
+
+## API
+
+```python
+nnscope.Scope(name="run", *, live=True, port=8765, host="127.0.0.1", open_browser=True, max_neurons=32,
+              snapshot_every=None, max_snapshots=300, max_records=5000, layout="auto", latent_points=1000, quiet=False)
+```
+
+- `log(step=None, *, model=None, loss=None, metrics=None, weights=None, biases=None, grads=None, bias_grads=None, activations=None, deltas=None, latent=None, labels=None, snapshot=None)`
+- `save_html(path)`: standalone replay. `snapshot(path, step=None)`: `.svg` (no dependencies) or `.png` (matplotlib).
+- `show(height=820)`: Jupyter IFrame. `wait()`: serve until Ctrl+C. `close()`; also usable as a context manager.
+- `data()`: everything recorded so far as a JSON-serialisable dict.
+
+**Keeping it light.** Scalars are recorded at every `log`; full snapshots (edges, histograms, latent points) are thinned
+adaptively so a run keeps at most `max_snapshots` of them. Layers wider than `max_neurons` draw an evenly spaced subset
+(statistics always use all neurons). The live stream batches updates to about 10 per second.
+
+**Limitations.** Dense (fully-connected) layers only for now; convolutional layers are not drawn. The server binds to
+localhost by default.
+
+## Development
+
+```bash
+uv sync --dev
+uv run --dev pytest
+```
+
+## License
+
+MIT
