+# nextion-tools
+
+Tools for [Nextion](https://nextion.tech) HMI displays: the Nextion Editor's project files, the
+TFTs it compiles, and an emulator of the display itself for testing the firmware that drives one.
+
+## Try it
+
+```
+git clone https://github.com/jamesmulcahy/nextion-tools
+cd nextion-tools
+pip install -e ".[images]"
+python demo/run.py
+```
+
+Then open http://127.0.0.1:8080/ and use the panel with your mouse.
+

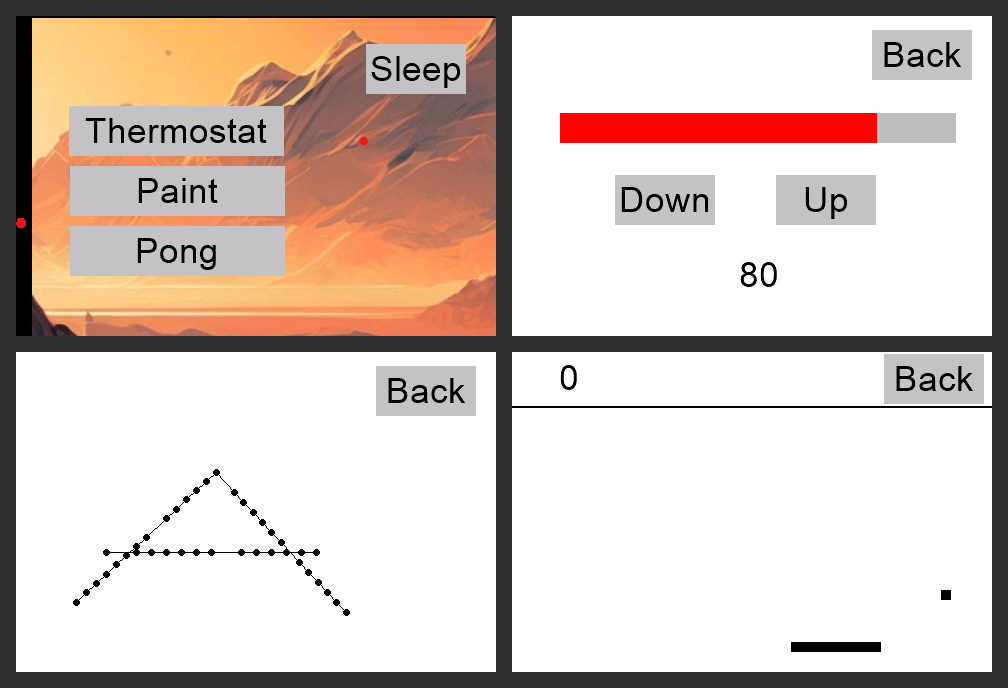

+![The demo's menu, thermostat, paint and pong pages, as the emulator draws them](https://raw.githubusercontent.com/jamesmulcahy/nextion-tools/main/docs/demo.png)
+
+That is an emulated Nextion display running a project made in the Nextion Editor
+(`demo/demo.HMI`), with its own touch handling, scripts and timers, and a small Python program
+(`demo/companion.py`) as the microcontroller behind it: the menu's buttons change page, the
+thermostat's bar turns red near the top, Paint draws where you drag, and Pong plays against a
+paddle that follows the pointer. The same companion drives a real display flashed with
+`demo/demo.tft`. See [The demo](#the-demo) and [demo/README.md](https://github.com/jamesmulcahy/nextion-tools/blob/main/demo/README.md).
+
+| Module | What |
+|---|---|
+| `nextion_tools.hmi` | `.HMI` projects: pages, components, ids, geometry, attributes, event code, `Program.s`; numeric edits with re-stamping |
+| `nextion_tools.fonts` | `.zi` fonts: metrics and glyph bitmaps, and which font a component's `font` index means |
+| `nextion_tools.images` | pictures as RGB arrays, and the panel's RGB565 |
+| `nextion_tools.tft` | a compiled `.tft`: its picture table, checksums and orientation, and same-size picture swaps |
+| `nextion_tools.crc` | the CRC behind TFT checksums and HMI page stamps |
+| `nextion_tools.render` | draws a page as the display shows it, from the HMI and the values its components hold |
+| `nextion_tools.emu` | an emulated display, driven by the project's HMI (below) |
+
+```
+pip install nextion-tools            # hmi, tft, crc and the emulator: no dependencies
+pip install nextion-tools[images]    # fonts, pictures, rendering and the viewer: numpy and Pillow
+pip install nextion-tools[serial]    # the emulator on a real serial port: pyserial
+```
+
+```python
+from nextion_tools.hmi import Project
+
+project = Project.load("gui.HMI")
+home = project.page("home")                 # KeyError if there is none; find_page() gives None
+print(home.id, [(c.id, c.name, c.kind, c.rect) for c in home.components])
+print(home.component("tm0").events["timer"])
+print(project.program)                      # Program.s, line by line
+```
+
+The format notes are in the module docstrings, and were checked against files the Editor saved.
+
+## The demo
+
+`demo/` holds a small project made in the Nextion Editor (`demo.HMI`, and `demo.tft` compiled
+from it) and `companion.py`, a Python program that plays the MCU. `python demo/run.py` runs the
+whole thing (the emulated display, the companion and the browser viewer) in one process, and
+takes `--http PORT` and `--rotation 90` (the screen as the LCD itself holds it).
+`python demo/companion.py --serial /dev/ttyUSB0 --fps 8` drives a real display running
+`demo.tft`, which needs the `serial` extra. [demo/README.md](https://github.com/jamesmulcahy/nextion-tools/blob/main/demo/README.md) has what each page does and what
+the project turned up.
+Nextion and the Nextion Editor are ITEAD's; this project is not affiliated with them.
+
+## The emulator
+
+An emulated Nextion HMI display, for testing the firmware that drives one. Point the MCU's UART
+at it (QEMU's `-serial tcp:`, a pty, or a real serial port). It executes what it is sent, keeps a
+model of what the screen would show, replies as a real display does, and lets a test act as the
+user.
+
+```python
+from nextion_tools.emu import Display, TcpServer
+from nextion_tools.hmi import Project
+
+display = Display(TcpServer(port=4000), hmi=Project.load("gui.HMI"))  # qemu ... -serial tcp:127.0.0.1:4000
+display.wait_for_page("home")
+display.press("h_ceiling")                  # a finger on it, by name or id: display.press(22)
+display.wait_for_value("home.room.txt", "Kitchen")
+assert not display.errors                   # nothing the display would have rejected
+```
+
+Or from a shell, to watch what firmware sends:
+
+```
+python -m nextion_tools.emu --tcp 4000
+python -m nextion_tools.emu --pty                 # prints /dev/pts/N
+python -m nextion_tools.emu --serial /dev/ttyUSB0 # needs pyserial: pip install nextion-tools[serial]
+python -m nextion_tools.emu --tcp 4000 --hmi gui.HMI   # with the project's pages and code
+python -m nextion_tools.emu.script gui.HMI        # can every event of this HMI be run?
+```
+
+## What it models
+
+Replies follow what an NX4832T035 (the Sonoff NSPanel's display) was measured to do, which differs
+from Nextion's documentation in places:
+
+| Instruction | `bkcmd=3` | `bkcmd=0` |
+|---|---|---|
+| assignment | `01` | nothing |
+| `get x` | `71` + 4 bytes (or `70` + text), **no** `01` | the same |
+| `printh …` | the bytes, **no** `01` | the same |
+| unknown component, variable, or bad syntax | `1a` (never `02`/`1b`) | nothing |
+| `page` / `ref` | `01` at once, then the redraw blocks the next instruction ~400 ms | — |
+| `delay=N` | `01` when it ends | — |
+
+`bkcmd` starts at 2, as on a display that has just powered on, and `power_cycle()` puts it back.
+
+**Ideal or flow model.** By default every instruction executes the moment it arrives, so tests
+see exactly what the firmware meant to draw. With `flow_model=True` the display behaves as the
+real one does:
+
+- input arrives at line rate (QEMU's UART does not pace writes);
+- it waits in a buffer of 1088 bytes;
+- the display stalls on page changes, `ref` and `delay`;
+- a burst that overruns the buffer during a stall loses commands (`display.lost`), and the
+  display sends `0x24` when it resumes.
+
+`tests/emu/test_calibration.py` replays the hardware measurements against the model, so it cannot
+drift from them unnoticed.
+
+**TFT uploads** (`whmi-wri`, `whmi-wris`): the display acknowledges 4096-byte chunks, answers
+v1.2's first chunk with a jump, and keeps the image in `display.flash`. It can be told to
+misbehave: slow, dropped or duplicated acks, jumps, stray bytes, a power cycle mid-upload.
+
+**The HMI.** Given the project (`hmi=Project.load(...)`, read straight from the Nextion Editor's
+`.HMI`), the display knows what exists and resolves names as the real one does:
+
+- `comp.attr` without a page means the current page;
+- `page.comp.attr` reaches another page only for a global component;
+- the attribute must be one the component has, and a literal must suit it (text or number);
+- page and component ids, for `page N` and touch events, are the HMI's;
+- `get` answers the HMI's value for anything not yet assigned (`display.value(key)`);
+- loading a page resets its local components;
+- the display starts on page 0.
+
+Anything that does not resolve fails with `1a` and is recorded in `display.errors`. On a real
+display running `bkcmd=0`, that is a label that is silently never drawn. Without an HMI every
+name is accepted. `resolver=` overrides the HMI with a function of your own.
+
+**The TFT's own code.** With an HMI, the display also runs the code in it (`emu/script.py`):
+
+- `Program.s` at `boot()`: its globals, then `page 0`, whose load code may print a banner;
+- each page's `unload`, `load` and `loadend` on a page change, whoever asked for it;
+- the current page's timers, every `tim` ms while `en` is set, on the display's clock;
+- touches. `touch_down(x, y)` / `touch_move` / `touch_up` are a finger on the screen, and
+  `press(name)`, `slide(name, value)`, `drag`, `swipe` and `tap` are built on them. The touch
+  lands on the visible component drawn last at that point (else the page). It sends the 0x65
+  edges the component's `sendkey` asks for, then runs the component's `down` / `up` (and a
+  slider's `slide`), then the page's touch capture's, with `tch0..3` and the capture's `val`
+  set as the display sets them. With `sendxy=1` each press and release is also reported with
+  its coordinates (0x67).
+- sleep: with `sleep=1` the screen is dark and touches reach nothing; with `thup=1` the first
+  one wakes the display (0x87) and is used up doing it.
+
+All of an HMI's code is compiled when the display loads it, and code outside what the
+interpreter supports is refused then (`UnsupportedCode`, naming the event and line).
+`python -m nextion_tools.emu.script gui.HMI` lists what an HMI uses and what it cannot run. An override
+(`overrides={"page.component.event": fn}`, logged at startup) runs Python instead of an event's
+code; `scripts=False` turns the code off, and touches are then bare 0x65 frames
+(`send_touch_event`). A statement that fails when it runs (an unknown name, say) is reported as
+an instruction would be (`1a`, `display.errors`, `display.script_errors`), and the code carries on.
+
+For tests that need timers to fire exactly, pass `clock=ManualClock()`, then `clock.advance(s)`
+and `display.tick()`. `expire_timer(name)` runs a timer out now, whatever the clock.
+
+Observed on a real NSPanel: assigning `en=1` to a running timer restarts its countdown (tapping
+keeps NSPanel Manager's screensaver off, and each tap runs `sleep_display.en=1`). The Editor's
+Debug simulator does not restart it, so it is not a guide to this. Assigning `tim` restarts it
+too, which is not observed either way.
+
+Not measured on hardware yet, so each is a choice (see `emu/script.py` and `display.py`):
+
+- the order on a touch: the 0x65 frame, then the component's code, then the touch capture's;
+- `&&` and `||` stop at the first operand that decides; a failed condition skips its `if`;
+- an expression mixing `+`/`-` with `*`/`/` is refused, since precedence is not known;
+- `page` ends the event that ran it;
+- a slider's value is linear in the touch position, ignoring the thumb's width;
+- whether a failed statement in event code sends `1a` at `bkcmd` 2 and 3 (assumed yes);
+- `sendxy` and sleep follow Nextion's instruction set: 0x67 on press and release only (whether
+  a drag streams them is not known), its order before the 0x65 frame, and the waking touch
+  going nowhere.
+
+**What the screen shows.** `display.snapshot()` draws the current page as a numpy array, and
+`display.save_png(path)` saves it (both need `[images]`). They draw from the HMI and what the
+display holds now: pictures, crop pictures, text in the HMI's own fonts, buttons in their
+pressed or second state, sliders, progress bars, hidden components left out, and the drawing
+instructions sent since the page was shown (`fill`, `cls`, `pic`, `xstr`, `line`, `draw`,
+`cir`, `cirs`). A sleeping display is black. See `render.py` for what is and is not drawn.
+
+**In a browser.** `python -m nextion_tools.emu.viewer --hmi gui.HMI --tcp 4000` runs a display
+and serves it on http://127.0.0.1:8080/. A press on the screen is a finger going down there, a
+drag moves it, and the side panel shows the page, the last instructions, rejected ones, and the
+input buffer when the flow model is on. `Viewer(display)` attaches one to a display a test or rig
+already has.
+
+**Orientation.** A page's coordinates are the view of someone looking at a panel mounted as its
+TFT intends (NSPanel's US pages are 320 x 480, its EU pages 480 x 320), and touches use the same
+frame, so pictures and the viewer are upright by default. `Display(rotation=90)` turns snapshots
+and the viewer clockwise, and maps clicks back, to show a panel as it actually hangs.
+`render.native_rotation(tft.orientation(data))` gives the rotation that shows the LCD's own
+frame, the one a TFT stores its pictures in: a TFT made at 90 holds them turned 90 degrees
+clockwise (`demo/demo.tft`). `Project.direction` is the same setting, read from the HMI.
+Fonts from recent Editors are stored turned that way too, and are read upright.
+
+## Not modelled (yet)
+
+- **Pixel-exact rendering.** Pictures and glyphs are exact; borders, the Editor's compressed
+  pictures (drawn from the file they were imported from) and some component types are not.
+- **Drawing instructions** in event code (`xstr`, `fill`, ...) and `click`, `tsw`, loops: the
+  HMIs tested do not use them, so they are refused rather than guessed at.
+
+## Tests
+
+```
+pip install -e ".[images,serial,test]"
+python -m pytest
+```
+
+Most tests build small projects in code (`tests/hmi_builder.py`), and some use the demo's
+files, which the Editor made. The rest need NSPanel Manager's project and TFT, and are skipped
+unless given them:
+
+```
+NEXTION_TOOLS_HMI=path/to/gui.HMI NEXTION_TOOLS_TFT=path/to/gui.tft python -m pytest
+```
+
+## License
+
+MIT; see [LICENSE](https://github.com/jamesmulcahy/nextion-tools/blob/main/LICENSE).

nextion_tools-0.1.0/README.md

@@ -0,0 +1,230 @@
+# nextion-tools
+
+Tools for [Nextion](https://nextion.tech) HMI displays: the Nextion Editor's project files, the
+TFTs it compiles, and an emulator of the display itself for testing the firmware that drives one.
+
+## Try it
+
+```
+git clone https://github.com/jamesmulcahy/nextion-tools
+cd nextion-tools
+pip install -e ".[images]"
+python demo/run.py
+```
+
+Then open http://127.0.0.1:8080/ and use the panel with your mouse.
+
+![The demo's menu, thermostat, paint and pong pages, as the emulator draws them](https://raw.githubusercontent.com/jamesmulcahy/nextion-tools/main/docs/demo.png)
+
+That is an emulated Nextion display running a project made in the Nextion Editor
+(`demo/demo.HMI`), with its own touch handling, scripts and timers, and a small Python program
+(`demo/companion.py`) as the microcontroller behind it: the menu's buttons change page, the
+thermostat's bar turns red near the top, Paint draws where you drag, and Pong plays against a
+paddle that follows the pointer. The same companion drives a real display flashed with
+`demo/demo.tft`. See [The demo](#the-demo) and [demo/README.md](https://github.com/jamesmulcahy/nextion-tools/blob/main/demo/README.md).
+
+| Module | What |
+|---|---|
+| `nextion_tools.hmi` | `.HMI` projects: pages, components, ids, geometry, attributes, event code, `Program.s`; numeric edits with re-stamping |
+| `nextion_tools.fonts` | `.zi` fonts: metrics and glyph bitmaps, and which font a component's `font` index means |
+| `nextion_tools.images` | pictures as RGB arrays, and the panel's RGB565 |
+| `nextion_tools.tft` | a compiled `.tft`: its picture table, checksums and orientation, and same-size picture swaps |
+| `nextion_tools.crc` | the CRC behind TFT checksums and HMI page stamps |
+| `nextion_tools.render` | draws a page as the display shows it, from the HMI and the values its components hold |
+| `nextion_tools.emu` | an emulated display, driven by the project's HMI (below) |
+
+```
+pip install nextion-tools            # hmi, tft, crc and the emulator: no dependencies
+pip install nextion-tools[images]    # fonts, pictures, rendering and the viewer: numpy and Pillow
+pip install nextion-tools[serial]    # the emulator on a real serial port: pyserial
+```
+
+```python
+from nextion_tools.hmi import Project
+
+project = Project.load("gui.HMI")
+home = project.page("home")                 # KeyError if there is none; find_page() gives None
+print(home.id, [(c.id, c.name, c.kind, c.rect) for c in home.components])
+print(home.component("tm0").events["timer"])
+print(project.program)                      # Program.s, line by line
+```
+
+The format notes are in the module docstrings, and were checked against files the Editor saved.
+
+## The demo
+
+`demo/` holds a small project made in the Nextion Editor (`demo.HMI`, and `demo.tft` compiled
+from it) and `companion.py`, a Python program that plays the MCU. `python demo/run.py` runs the
+whole thing (the emulated display, the companion and the browser viewer) in one process, and
+takes `--http PORT` and `--rotation 90` (the screen as the LCD itself holds it).
+`python demo/companion.py --serial /dev/ttyUSB0 --fps 8` drives a real display running
+`demo.tft`, which needs the `serial` extra. [demo/README.md](https://github.com/jamesmulcahy/nextion-tools/blob/main/demo/README.md) has what each page does and what
+the project turned up.
+Nextion and the Nextion Editor are ITEAD's; this project is not affiliated with them.
+
+## The emulator
+
+An emulated Nextion HMI display, for testing the firmware that drives one. Point the MCU's UART
+at it (QEMU's `-serial tcp:`, a pty, or a real serial port). It executes what it is sent, keeps a
+model of what the screen would show, replies as a real display does, and lets a test act as the
+user.
+
+```python
+from nextion_tools.emu import Display, TcpServer
+from nextion_tools.hmi import Project
+
+display = Display(TcpServer(port=4000), hmi=Project.load("gui.HMI"))  # qemu ... -serial tcp:127.0.0.1:4000
+display.wait_for_page("home")
+display.press("h_ceiling")                  # a finger on it, by name or id: display.press(22)
+display.wait_for_value("home.room.txt", "Kitchen")
+assert not display.errors                   # nothing the display would have rejected
+```
+
+Or from a shell, to watch what firmware sends:
+
+```
+python -m nextion_tools.emu --tcp 4000
+python -m nextion_tools.emu --pty                 # prints /dev/pts/N
+python -m nextion_tools.emu --serial /dev/ttyUSB0 # needs pyserial: pip install nextion-tools[serial]
+python -m nextion_tools.emu --tcp 4000 --hmi gui.HMI   # with the project's pages and code
+python -m nextion_tools.emu.script gui.HMI        # can every event of this HMI be run?
+```
+
+## What it models
+
+Replies follow what an NX4832T035 (the Sonoff NSPanel's display) was measured to do, which differs
+from Nextion's documentation in places:
+
+| Instruction | `bkcmd=3` | `bkcmd=0` |
+|---|---|---|
+| assignment | `01` | nothing |
+| `get x` | `71` + 4 bytes (or `70` + text), **no** `01` | the same |
+| `printh …` | the bytes, **no** `01` | the same |
+| unknown component, variable, or bad syntax | `1a` (never `02`/`1b`) | nothing |
+| `page` / `ref` | `01` at once, then the redraw blocks the next instruction ~400 ms | — |
+| `delay=N` | `01` when it ends | — |
+
+`bkcmd` starts at 2, as on a display that has just powered on, and `power_cycle()` puts it back.
+
+**Ideal or flow model.** By default every instruction executes the moment it arrives, so tests
+see exactly what the firmware meant to draw. With `flow_model=True` the display behaves as the
+real one does:
+
+- input arrives at line rate (QEMU's UART does not pace writes);
+- it waits in a buffer of 1088 bytes;
+- the display stalls on page changes, `ref` and `delay`;
+- a burst that overruns the buffer during a stall loses commands (`display.lost`), and the
+  display sends `0x24` when it resumes.
+
+`tests/emu/test_calibration.py` replays the hardware measurements against the model, so it cannot
+drift from them unnoticed.
+
+**TFT uploads** (`whmi-wri`, `whmi-wris`): the display acknowledges 4096-byte chunks, answers
+v1.2's first chunk with a jump, and keeps the image in `display.flash`. It can be told to
+misbehave: slow, dropped or duplicated acks, jumps, stray bytes, a power cycle mid-upload.
+
+**The HMI.** Given the project (`hmi=Project.load(...)`, read straight from the Nextion Editor's
+`.HMI`), the display knows what exists and resolves names as the real one does:
+
+- `comp.attr` without a page means the current page;
+- `page.comp.attr` reaches another page only for a global component;
+- the attribute must be one the component has, and a literal must suit it (text or number);
+- page and component ids, for `page N` and touch events, are the HMI's;
+- `get` answers the HMI's value for anything not yet assigned (`display.value(key)`);
+- loading a page resets its local components;
+- the display starts on page 0.
+
+Anything that does not resolve fails with `1a` and is recorded in `display.errors`. On a real
+display running `bkcmd=0`, that is a label that is silently never drawn. Without an HMI every
+name is accepted. `resolver=` overrides the HMI with a function of your own.
+
+**The TFT's own code.** With an HMI, the display also runs the code in it (`emu/script.py`):
+
+- `Program.s` at `boot()`: its globals, then `page 0`, whose load code may print a banner;
+- each page's `unload`, `load` and `loadend` on a page change, whoever asked for it;
+- the current page's timers, every `tim` ms while `en` is set, on the display's clock;
+- touches. `touch_down(x, y)` / `touch_move` / `touch_up` are a finger on the screen, and
+  `press(name)`, `slide(name, value)`, `drag`, `swipe` and `tap` are built on them. The touch
+  lands on the visible component drawn last at that point (else the page). It sends the 0x65
+  edges the component's `sendkey` asks for, then runs the component's `down` / `up` (and a
+  slider's `slide`), then the page's touch capture's, with `tch0..3` and the capture's `val`
+  set as the display sets them. With `sendxy=1` each press and release is also reported with
+  its coordinates (0x67).
+- sleep: with `sleep=1` the screen is dark and touches reach nothing; with `thup=1` the first
+  one wakes the display (0x87) and is used up doing it.
+
+All of an HMI's code is compiled when the display loads it, and code outside what the
+interpreter supports is refused then (`UnsupportedCode`, naming the event and line).
+`python -m nextion_tools.emu.script gui.HMI` lists what an HMI uses and what it cannot run. An override
+(`overrides={"page.component.event": fn}`, logged at startup) runs Python instead of an event's
+code; `scripts=False` turns the code off, and touches are then bare 0x65 frames
+(`send_touch_event`). A statement that fails when it runs (an unknown name, say) is reported as
+an instruction would be (`1a`, `display.errors`, `display.script_errors`), and the code carries on.
+
+For tests that need timers to fire exactly, pass `clock=ManualClock()`, then `clock.advance(s)`
+and `display.tick()`. `expire_timer(name)` runs a timer out now, whatever the clock.
+
+Observed on a real NSPanel: assigning `en=1` to a running timer restarts its countdown (tapping
+keeps NSPanel Manager's screensaver off, and each tap runs `sleep_display.en=1`). The Editor's
+Debug simulator does not restart it, so it is not a guide to this. Assigning `tim` restarts it
+too, which is not observed either way.
+
+Not measured on hardware yet, so each is a choice (see `emu/script.py` and `display.py`):
+
+- the order on a touch: the 0x65 frame, then the component's code, then the touch capture's;
+- `&&` and `||` stop at the first operand that decides; a failed condition skips its `if`;
+- an expression mixing `+`/`-` with `*`/`/` is refused, since precedence is not known;
+- `page` ends the event that ran it;
+- a slider's value is linear in the touch position, ignoring the thumb's width;
+- whether a failed statement in event code sends `1a` at `bkcmd` 2 and 3 (assumed yes);
+- `sendxy` and sleep follow Nextion's instruction set: 0x67 on press and release only (whether
+  a drag streams them is not known), its order before the 0x65 frame, and the waking touch
+  going nowhere.
+
+**What the screen shows.** `display.snapshot()` draws the current page as a numpy array, and
+`display.save_png(path)` saves it (both need `[images]`). They draw from the HMI and what the
+display holds now: pictures, crop pictures, text in the HMI's own fonts, buttons in their
+pressed or second state, sliders, progress bars, hidden components left out, and the drawing
+instructions sent since the page was shown (`fill`, `cls`, `pic`, `xstr`, `line`, `draw`,
+`cir`, `cirs`). A sleeping display is black. See `render.py` for what is and is not drawn.
+
+**In a browser.** `python -m nextion_tools.emu.viewer --hmi gui.HMI --tcp 4000` runs a display
+and serves it on http://127.0.0.1:8080/. A press on the screen is a finger going down there, a
+drag moves it, and the side panel shows the page, the last instructions, rejected ones, and the
+input buffer when the flow model is on. `Viewer(display)` attaches one to a display a test or rig
+already has.
+
+**Orientation.** A page's coordinates are the view of someone looking at a panel mounted as its
+TFT intends (NSPanel's US pages are 320 x 480, its EU pages 480 x 320), and touches use the same
+frame, so pictures and the viewer are upright by default. `Display(rotation=90)` turns snapshots
+and the viewer clockwise, and maps clicks back, to show a panel as it actually hangs.
+`render.native_rotation(tft.orientation(data))` gives the rotation that shows the LCD's own
+frame, the one a TFT stores its pictures in: a TFT made at 90 holds them turned 90 degrees
+clockwise (`demo/demo.tft`). `Project.direction` is the same setting, read from the HMI.
+Fonts from recent Editors are stored turned that way too, and are read upright.
+
+## Not modelled (yet)
+
+- **Pixel-exact rendering.** Pictures and glyphs are exact; borders, the Editor's compressed
+  pictures (drawn from the file they were imported from) and some component types are not.
+- **Drawing instructions** in event code (`xstr`, `fill`, ...) and `click`, `tsw`, loops: the
+  HMIs tested do not use them, so they are refused rather than guessed at.
+
+## Tests
+
+```
+pip install -e ".[images,serial,test]"
+python -m pytest
+```
+
+Most tests build small projects in code (`tests/hmi_builder.py`), and some use the demo's
+files, which the Editor made. The rest need NSPanel Manager's project and TFT, and are skipped
+unless given them:
+
+```
+NEXTION_TOOLS_HMI=path/to/gui.HMI NEXTION_TOOLS_TFT=path/to/gui.tft python -m pytest
+```
+
+## License
+
+MIT; see [LICENSE](https://github.com/jamesmulcahy/nextion-tools/blob/main/LICENSE).

nextion_tools-0.1.0/pyproject.toml

@@ -0,0 +1,41 @@
+[build-system]
+requires = ["setuptools>=77"]
+build-backend = "setuptools.build_meta"
+
+[project]
+name = "nextion-tools"
+version = "0.1.0"
+description = "Read and edit Nextion Editor projects, fonts and TFTs, and emulate the display they run on"
+readme = "README.md"
+license = "MIT"
+license-files = ["LICENSE"]
+requires-python = ">=3.9"
+dependencies = []
+authors = [{ name = "James Mulcahy" }]
+keywords = ["nextion", "hmi", "tft", "emulator", "display", "esp32"]
+classifiers = [
+    "Development Status :: 3 - Alpha",
+    "Intended Audience :: Developers",
+    "Programming Language :: Python :: 3",
+    "Topic :: Software Development :: Embedded Systems",
+    "Topic :: Software Development :: Testing",
+]
+
+[project.urls]
+Homepage = "https://github.com/jamesmulcahy/nextion-tools"
+Source = "https://github.com/jamesmulcahy/nextion-tools"
+Issues = "https://github.com/jamesmulcahy/nextion-tools/issues"
+
+[project.optional-dependencies]
+# Fonts, pictures and picture swaps in TFTs. Reading HMIs and the emulator need neither.
+images = ["numpy", "pillow"]
+serial = ["pyserial>=3.5"]
+test = ["pytest>=8", "pytest-timeout>=2"]
+
+[tool.setuptools.packages.find]
+where = ["src"]
+
+[tool.pytest.ini_options]
+testpaths = ["tests"]
+pythonpath = ["tests", "tests/emu"]
+timeout = 60

nextion_tools-0.1.0/setup.cfg

@@ -0,0 +1,4 @@
+[egg_info]
+tag_build =
+tag_date = 0
+

nextion_tools-0.1.0/src/nextion_tools/__init__.py

@@ -0,0 +1,14 @@
+"""Tools for Nextion HMI displays: the Editor's project files and the display itself.
+
+- `nextion_tools.hmi`: .HMI projects: pages, components, ids, geometry, event code, Program.s;
+  numeric edits and re-stamping
+- `nextion_tools.fonts`: .zi fonts: glyph bitmaps and metrics (numpy)
+- `nextion_tools.images`: pictures as RGB arrays, RGB565 (numpy, Pillow)
+- `nextion_tools.tft`: a compiled .tft's picture table, checksums and orientation
+- `nextion_tools.crc`: the CRC behind TFT checksums and HMI stamps
+- `nextion_tools.render`: draw a page as the display shows it (numpy, Pillow)
+- `nextion_tools.emu`: an emulated display, driven by an HMI, for testing MCU firmware, with a
+  browser viewer (`nextion_tools.emu.viewer`)
+"""
+
+__version__ = "0.1.0"

nextion_tools-0.1.0/src/nextion_tools/crc.py

@@ -0,0 +1,26 @@
+"""The CRC behind TFT checksums and HMI page stamps.
+
+Both are CRC-32/MPEG-2 (poly 0x04C11DB7, MSB first, init 0xFFFFFFFF, no final XOR) over the
+data with each byte widened to a big-endian 32-bit word, which is how an STM32's CRC unit
+checksums a byte stream. See https://github.com/UNUF/TFTTool for the TFT side.
+"""
+import zlib
+
+_REVERSED = bytes(int(f'{i:08b}'[::-1], 2) for i in range(256))
+
+
+def crc32_mpeg2(data):
+    """CRC-32/MPEG-2. zlib computes the bit-reflected CRC-32 with the same polynomial, so this is
+    zlib's CRC of the bit-reversed input, bit-reversed, without zlib's final XOR."""
+    return int(f'{zlib.crc32(data.translate(_REVERSED)) ^ 0xFFFFFFFF:032b}'[::-1], 2)
+
+
+def widen(data):
+    """Each byte as a big-endian 32-bit word."""
+    words = bytearray(4 * len(data))
+    words[3::4] = data
+    return bytes(words)
+
+
+def nextion(data):
+    return crc32_mpeg2(widen(data))

nextion_tools-0.1.0/src/nextion_tools/emu/__init__.py

@@ -0,0 +1,16 @@
+"""An emulated Nextion display, for testing the firmware that drives one. See display.py."""
+
+from .clock import ManualClock
+from .devices import NX4832T035, Device
+from .display import COMOK, REDRAW_S, Display
+from .flow import FlowModel
+from .model import Screen
+from .script import ScriptError, ScriptSyntaxError, UnsupportedCode
+from .transport import NotConnected, Pty, Serial, SocketTransport, TcpServer, Transport
+from .upload import Upload
+
+__all__ = [
+    "COMOK", "REDRAW_S", "Device", "Display", "NX4832T035", "FlowModel", "ManualClock", "NotConnected", "Screen", "ScriptError",
+    "ScriptSyntaxError", "UnsupportedCode", "Pty", "Serial", "SocketTransport",
+    "TcpServer", "Transport", "Upload",
+]
