neural-network-digits 1.2.0__tar.gz

neural_network_digits-1.2.0/.gitignore

@@ -0,0 +1,23 @@
+# Everything the program creates: downloaded photos (~11 MB), trained model, charts, settings.
+# It is created again from the interface (tabs 1 and 2) or with  start.bat download / start.bat train
+data/
+
+# Python
+__pycache__/
+*.py[cod]
+.pytest_cache/
+# The package for PyPI built by  python -m build
+dist/
+build/
+*.egg-info/
+.venv/
+venv/
+env/
+
+# Editor and system
+.vscode/
+.idea/
+*.code-workspace
+Thumbs.db
+Desktop.ini
+.DS_Store

neural_network_digits-1.2.0/CHANGELOG.md

@@ -0,0 +1,94 @@
+# Changelog
+
+All the versions of the program, newest first. The format is the one of
+[Keep a Changelog](https://keepachangelog.com/en/1.1.0/) and the version numbers follow
+[semantic versioning](https://semver.org/): MAJOR.MINOR.PATCH.
+
+The paragraph of each version becomes the text of its GitHub release and shows up in the program
+when the update is offered.
+
+## [1.2.0] - 2026-09-26
+
+- **On PyPI**: the program can be installed with `pipx install neural-network-digits` (or
+  `pip install neural-network-digits`) and started with the `neural-network-digits` command, on Windows,
+  Linux and macOS. Installed like this, the photos, the model and the settings go in the folder of the user,
+  and the program tells you to update with `pipx upgrade neural-network-digits`.
+- The code is now in the `nn_digits` folder. `start.bat`, `./start.sh` and `python start.py` work as before,
+  and `python -m nn_digits` works too. Updating from the program moves the files by itself: your photos,
+  model and settings in `data/` stay where they are.
+- The windows that talk about the photos show the folder where they really are.
+- Discussions are open on GitHub for questions and ideas, and there is a *Sponsor* button.
+
+## [1.1.1] - 2026-09-26
+
+- **Pick on single charts**: in every tab Pick frames and explains only the chart under the mouse (the loss
+  curve, the confusion matrix, one wrong photo, one step of the calculation...), not the whole figure. The
+  tiles with the numbers are explained one at a time too.
+- **The language** is chosen at the top right, next to *Pick (F1)*: EN or IT. It is no longer in the Info tab.
+- Before each answer the assistant "thinks" for a moment, with a short animation (at most 0.6 seconds).
+- Every chart with nothing to show is crossed out by a thin X: no photos yet, no epoch done, no noise,
+  curves still being computed, no wrong photo, nothing drawn, no neuron selected.
+- Fix: Pick called the numbers of the last epoch "seconds per epoch".
+
+## [1.1.0] - 2026-09-25
+

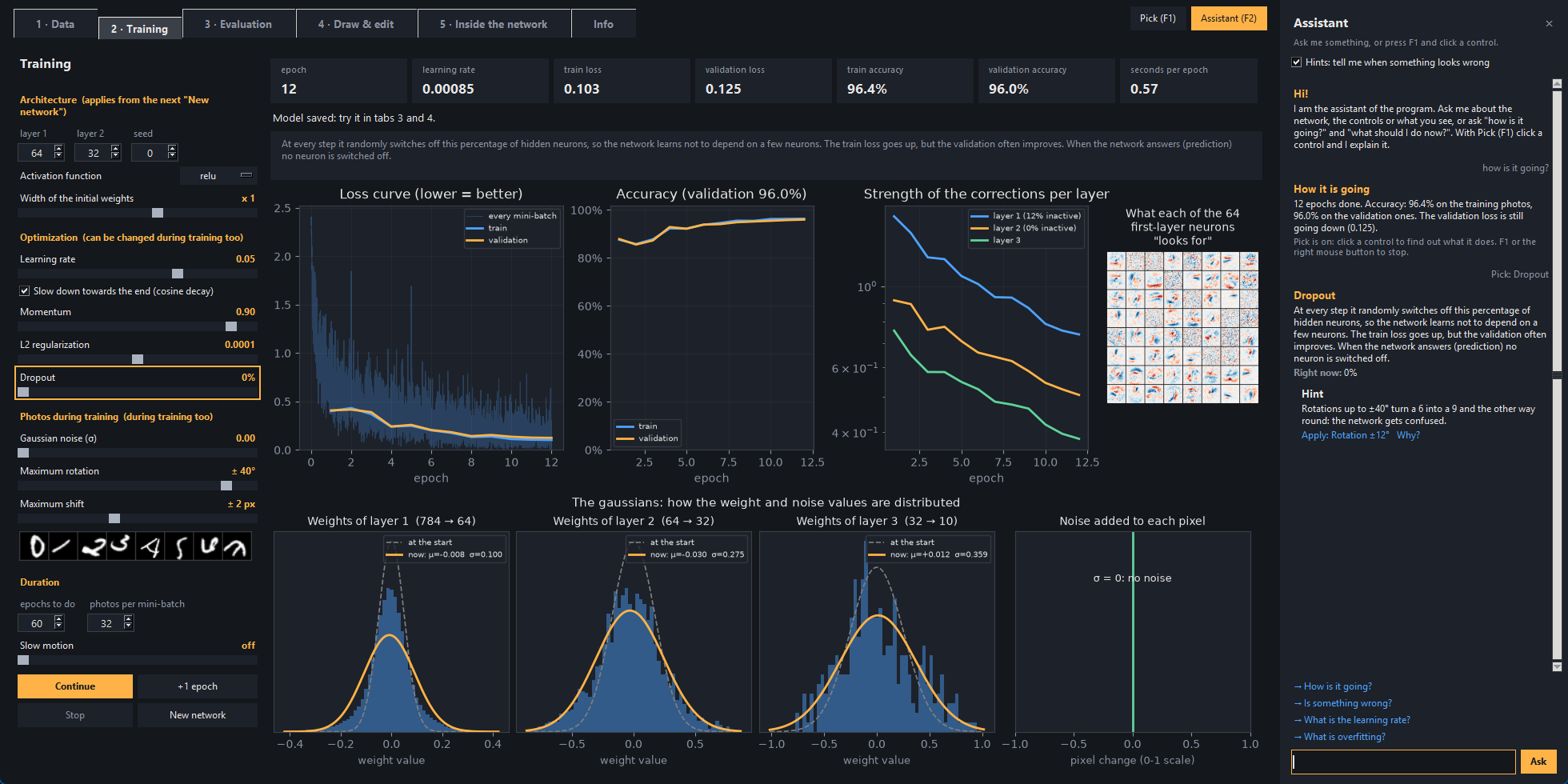

+- **The Assistant**: a panel on the right of the window (F2, or the *Assistant* button at the top right).
+  Ask it questions in English or Italian: "what is overfitting?", "how is it going?", "what should I do
+  now?", "is something wrong?". It answers looking at what is really happening in the open tab (epochs,
+  accuracy, learning rate in use, photos, drawing), tells you where to see each thing and suggests an
+  experiment to try.
+- **Pick** (F1): move the mouse over the controls and click one, and the assistant explains what it does and
+  what it is worth now. While Pick is on, the clicks do not move or start anything.
+- **Hints**: the assistant notices the most common mistakes (a learning rate too high or too low, a network
+  that explodes or does not learn, overfitting, too many inactive neurons, extreme settings, test photos
+  spoiled more than the training ones) and offers a fix you can apply with one click. They can be switched
+  off.
+- It is not an AI model: a small search engine written in NumPy and a few rules. Nothing to download, and it
+  answers instantly.
+
+## [1.0.3] - 2026-09-25
+
+- For who wants to contribute: CONTRIBUTING.md, CODE_OF_CONDUCT.md, SECURITY.md and the templates for
+  issues and pull requests.
+- README: the Info, Branches and CI/CD sections are gone.
+- The zip of the update no longer contains the README animation (7.5 MB less to download).
+
+## [1.0.2] - 2026-09-25
+
+- **The whole collection**: in the Data tab the new *Download the whole collection...* button saves all the
+  70,000 photos of MNIST. First a window tells you how much space they take. From the terminal:
+  `download --all`. With all the photos the network gets to about 98.5% on the test photos.
+- The photos load in a moment even when there are many: they are also saved in a single quick copy
+  (`data/photos/train.npz` and `test.npz`), because reading thousands of PNG files took minutes.
+- Evaluation tab: the robustness curves are computed in the background, so the window no longer freezes,
+  and the points map shows at most 1000 photos (t-SNE on 10,000 would take minutes).
+- README: animated intro at the top, new Data tab screenshot.
+
+## [1.0.1] - 2026-09-25
+
+- **Linux and macOS**: new `start.sh` launcher. The first time it creates a virtual environment in `.venv`
+  with the libraries, and if Tkinter or venv are missing it says what to install.
+- The updates installed from inside the program keep `start.sh` executable.
+- Data tab: every control and chart has its explanation when you hover it with the mouse.
+- The messages that suggest a command show the right one for the system (`start.bat` or `./start.sh`).
+- On macOS the right mouse button clears the drawing board too.
+- The explanation of the initial weights says "LeCun" (for sigmoid and tanh) instead of "Xavier".
+- README: macOS instructions and corrections.
+
+## [1.0.0] - 2026-09-25
+
+First public version.
+
+- Neural network written from scratch with NumPy: forward, softmax, cross-entropy, backpropagation, SGD with
+  momentum, L2, dropout, relu, leaky relu, sigmoid and tanh activations.
+- Graphical interface with 5 tabs, plus the Info page:
+  - **Data**: MNIST download, dataset exploration, reset;
+  - **Training**: live, with loss curve, weight gaussians and dozens of knobs;

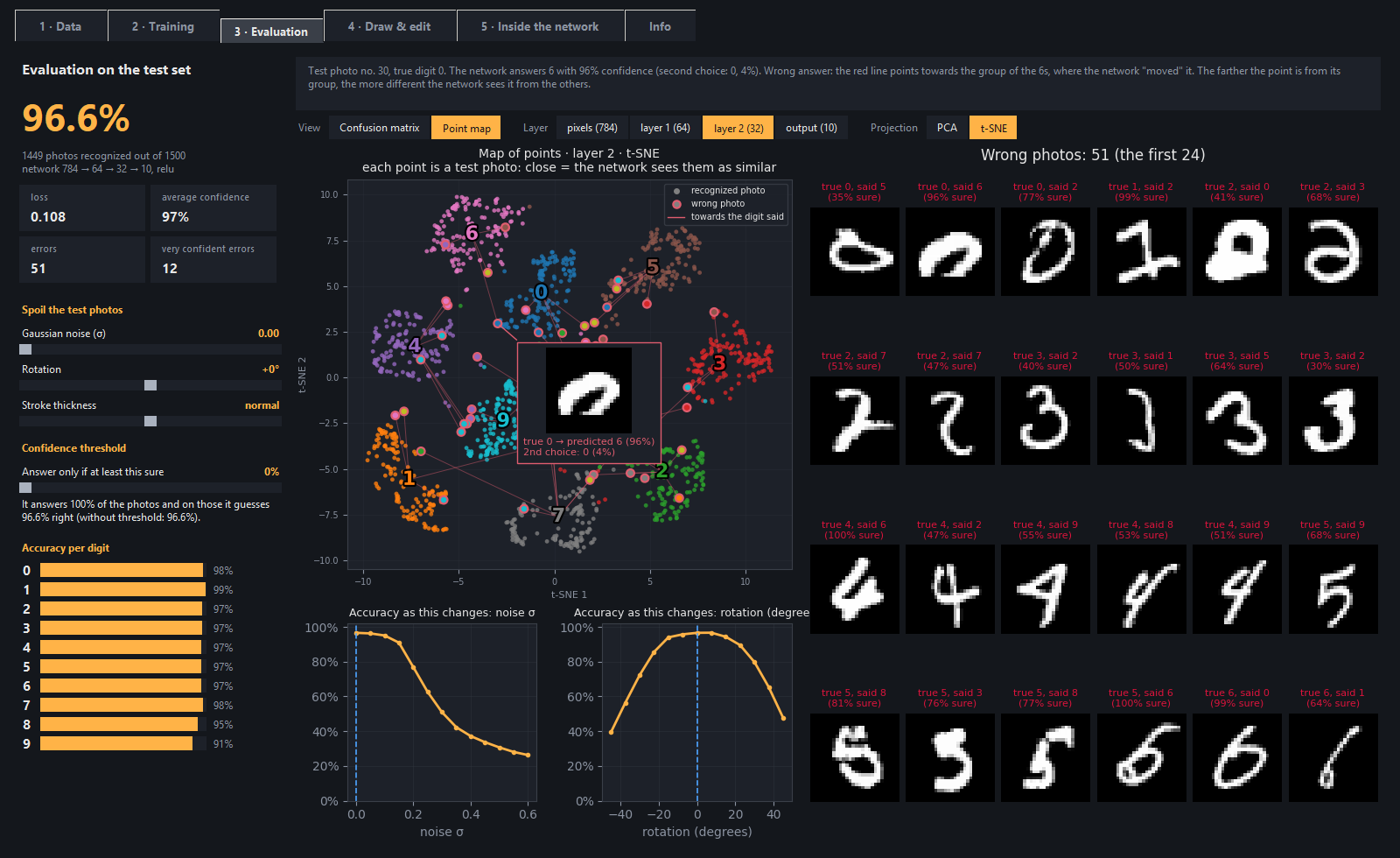

+  - **Evaluation**: photos damaged on purpose, confidence threshold, confusion matrix and points map
+    (PCA and t-SNE);

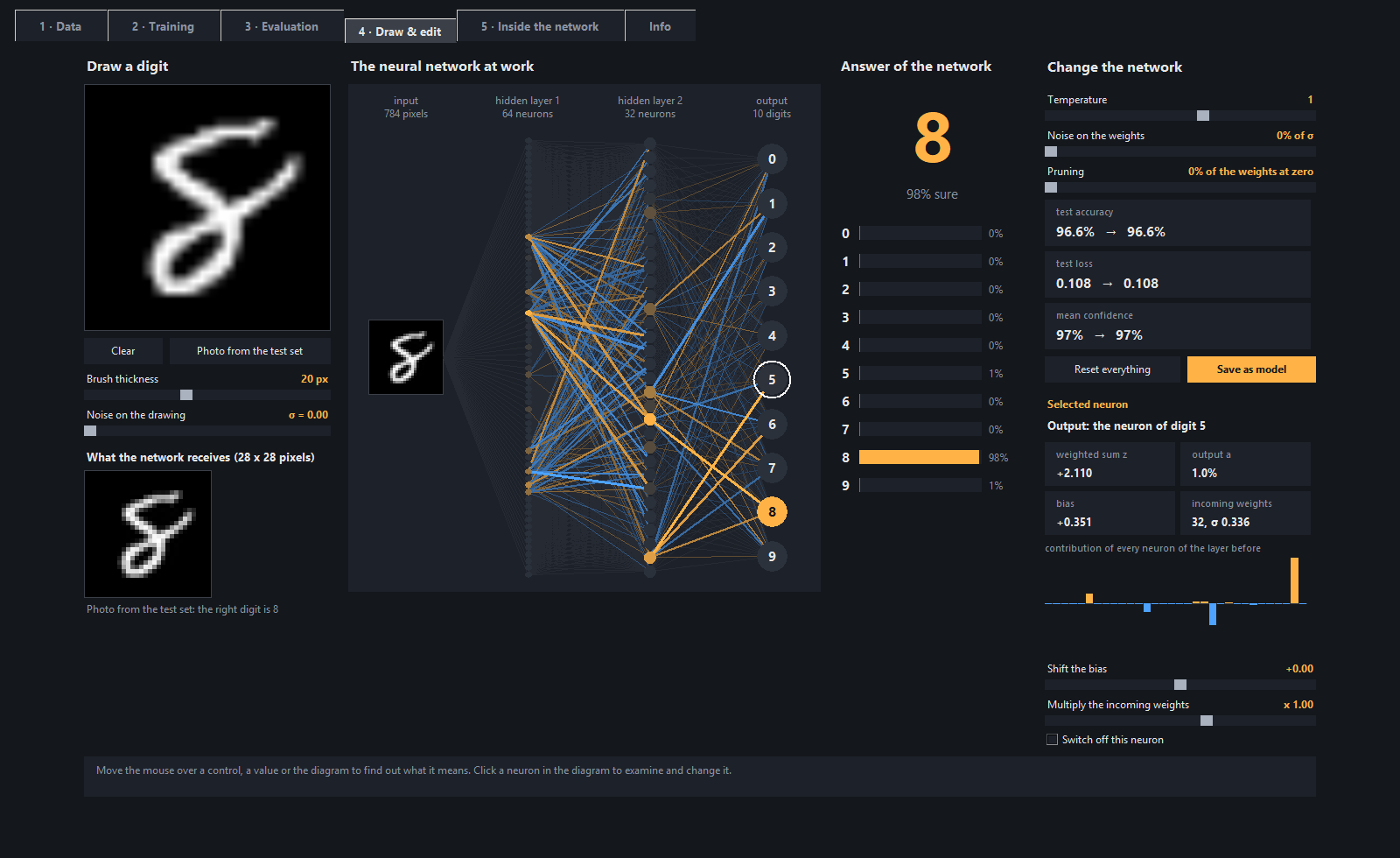

+  - **Draw & edit**: drawing board and lab to change biases, weights and neurons;

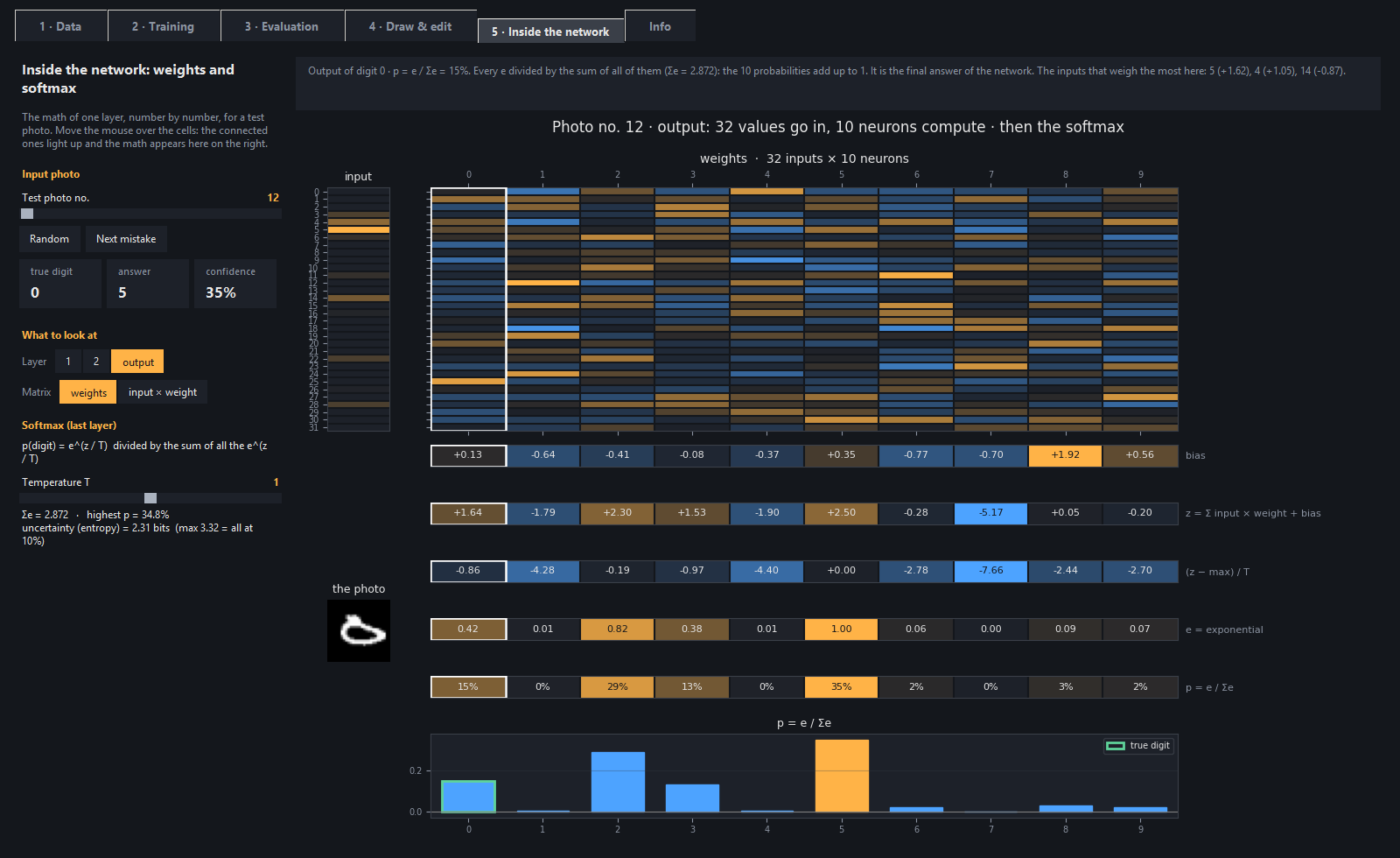

+  - **Inside the network**: the math of every layer and the softmax steps, with the temperature.
+- Every step from the terminal too (`start.bat <command>`).
+- English and Italian interface, with a language selector in the Info tab.
+- A Changelog page in the Info tab.
+- Update check at startup and one-click install of the new version.

neural_network_digits-1.2.0/LICENSE

@@ -0,0 +1,21 @@
+MIT License
+
+Copyright (c) 2026 Luigi Tanzillo
+
+Permission is hereby granted, free of charge, to any person obtaining a copy
+of this software and associated documentation files (the "Software"), to deal
+in the Software without restriction, including without limitation the rights
+to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
+copies of the Software, and to permit persons to whom the Software is
+furnished to do so, subject to the following conditions:
+
+The above copyright notice and this permission notice shall be included in all
+copies or substantial portions of the Software.
+
+THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
+IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
+FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
+AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
+LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
+OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
+SOFTWARE.

neural_network_digits-1.2.0/PKG-INFO

@@ -0,0 +1,454 @@
+Metadata-Version: 2.5
+Name: neural-network-digits
+Version: 1.2.0
+Summary: A neural network written from scratch in NumPy that learns handwritten digits (MNIST), with an educational interface to watch it learn and look inside it
+Project-URL: Homepage, https://github.com/dev-luigi/neural-network-digits
+Project-URL: Changelog, https://github.com/dev-luigi/neural-network-digits/blob/main/CHANGELOG.md
+Project-URL: Issues, https://github.com/dev-luigi/neural-network-digits/issues
+Project-URL: Discussions, https://github.com/dev-luigi/neural-network-digits/discussions
+Project-URL: Funding, https://github.com/sponsors/dev-luigi
+Author: Luigi Tanzillo
+License-Expression: MIT
+License-File: LICENSE
+Keywords: backpropagation,education,from scratch,machine learning,mnist,neural network,numpy,tkinter
+Classifier: Development Status :: 5 - Production/Stable
+Classifier: Environment :: MacOS X
+Classifier: Environment :: Win32 (MS Windows)
+Classifier: Environment :: X11 Applications
+Classifier: Intended Audience :: Education
+Classifier: Intended Audience :: Science/Research
+Classifier: Natural Language :: English
+Classifier: Natural Language :: Italian
+Classifier: Operating System :: OS Independent
+Classifier: Programming Language :: Python :: 3
+Classifier: Programming Language :: Python :: 3 :: Only
+Classifier: Programming Language :: Python :: 3.9
+Classifier: Programming Language :: Python :: 3.10
+Classifier: Programming Language :: Python :: 3.11
+Classifier: Programming Language :: Python :: 3.12
+Classifier: Programming Language :: Python :: 3.13
+Classifier: Topic :: Education
+Classifier: Topic :: Scientific/Engineering :: Artificial Intelligence
+Classifier: Topic :: Scientific/Engineering :: Image Recognition
+Requires-Python: >=3.9
+Requires-Dist: matplotlib>=3.6
+Requires-Dist: numpy>=1.22
+Requires-Dist: pillow>=9.1
+Description-Content-Type: text/markdown
+
+<h1 align="center">🧠 Neural network from scratch</h1>
+
+<p align="center"><strong>Handwritten digit recognition in pure Python + NumPy — watch the network learn, tweak it while it learns, and get your hands inside it.</strong></p>
+
+<p align="center">
+  <img alt="Training a network live — loss curve, accuracy and weight gaussians — then drawing digits in the Draw & edit tab and watching the network recognise them" src="https://raw.githubusercontent.com/dev-luigi/neural-network-digits/main/docs/intro.webp">
+</p>
+
+<p align="center">
+  <a href="https://github.com/dev-luigi/neural-network-digits/actions/workflows/ci.yml"><img alt="CI" src="https://github.com/dev-luigi/neural-network-digits/actions/workflows/ci.yml/badge.svg"></a>
+  <a href="https://github.com/dev-luigi/neural-network-digits/releases/latest"><img alt="Latest version" src="https://img.shields.io/github/v/release/dev-luigi/neural-network-digits?label=version&color=8B5CF6"></a>
+  <a href="https://pypi.org/project/neural-network-digits/"><img alt="PyPI" src="https://img.shields.io/pypi/v/neural-network-digits?label=PyPI&color=3775A9&logo=pypi&logoColor=white"></a>
+  <a href="https://www.python.org/"><img alt="Python 3.9+" src="https://img.shields.io/badge/Python-3.9%2B-3776AB?logo=python&logoColor=white"></a>
+  <a href="https://numpy.org/"><img alt="Only NumPy" src="https://img.shields.io/badge/only-NumPy-013243?logo=numpy&logoColor=white"></a>
+  <a href="https://matplotlib.org/"><img alt="Tkinter + matplotlib" src="https://img.shields.io/badge/GUI-Tkinter%20%2B%20matplotlib-11557C"></a>
+  <a href="https://docs.pytest.org/"><img alt="Tested with pytest" src="https://img.shields.io/badge/tested%20with-pytest-0A9EDC?logo=pytest&logoColor=white"></a>
+  <img alt="Platforms: Windows, Linux, macOS" src="https://img.shields.io/badge/platform-Windows%20%7C%20Linux%20%7C%20macOS-0078D6">
+  <img alt="Languages: English, Italian" src="https://img.shields.io/badge/UI-English%20%7C%20Italiano-06B6D4">
+  <a href="https://github.com/dev-luigi/neural-network-digits/blob/main/LICENSE"><img alt="License: MIT" src="https://img.shields.io/badge/License-MIT-22C55E"></a>
+</p>
+
+<p align="center">
+  <a href="#features">Features</a> •
+  <a href="#quick-start">Quick Start</a> •
+  <a href="#tech-stack">Tech Stack</a> •
+  <a href="#from-the-terminal">Terminal</a> •
+  <a href="#experiments-to-try">Experiments</a> •
+  <a href="#development">Development</a>
+</p>
+
+A small neural network written **from scratch in Python + NumPy** (no PyTorch or TensorFlow) that learns
+to recognize the handwritten digits of the MNIST dataset, with an **educational graphical interface** to
+watch it learn, change its parameters while it learns and get your hands inside the trained network.
+The interface is available in English and Italian (the **EN | IT** selector at the top right, next to Pick).
+
+---
+
+## Features
+
+- **The network, line by line**: forward, softmax, cross-entropy, backpropagation, SGD with momentum,
+  L2, dropout, 4 activation functions. All in a file of ~140 lines, commented in simple English
+  ([`nn_digits/neural_net/network.py`](https://github.com/dev-luigi/neural-network-digits/blob/main/nn_digits/neural_net/network.py)).
+- **Every step**: downloading the data, exploring it before training, training, evaluating, experimenting.
+- **An interface with 5 tabs**, with dozens of knobs and an explanation for every control (just
+  hover it with the mouse).
+- **A built-in assistant, without AI models**: it answers questions looking at the real state of the network,
+  explains any control you click and tells you when something looks wrong, with a fix to apply in one click.
+- **From the terminal too**: downloading, exploring, training, evaluating and the drawing board are also
+  commands.
+- **Installed in one line** with `pipx install neural-network-digits`, or as a zip with a double-click.
+- **Automatic updates** from the GitHub releases, with one click.
+

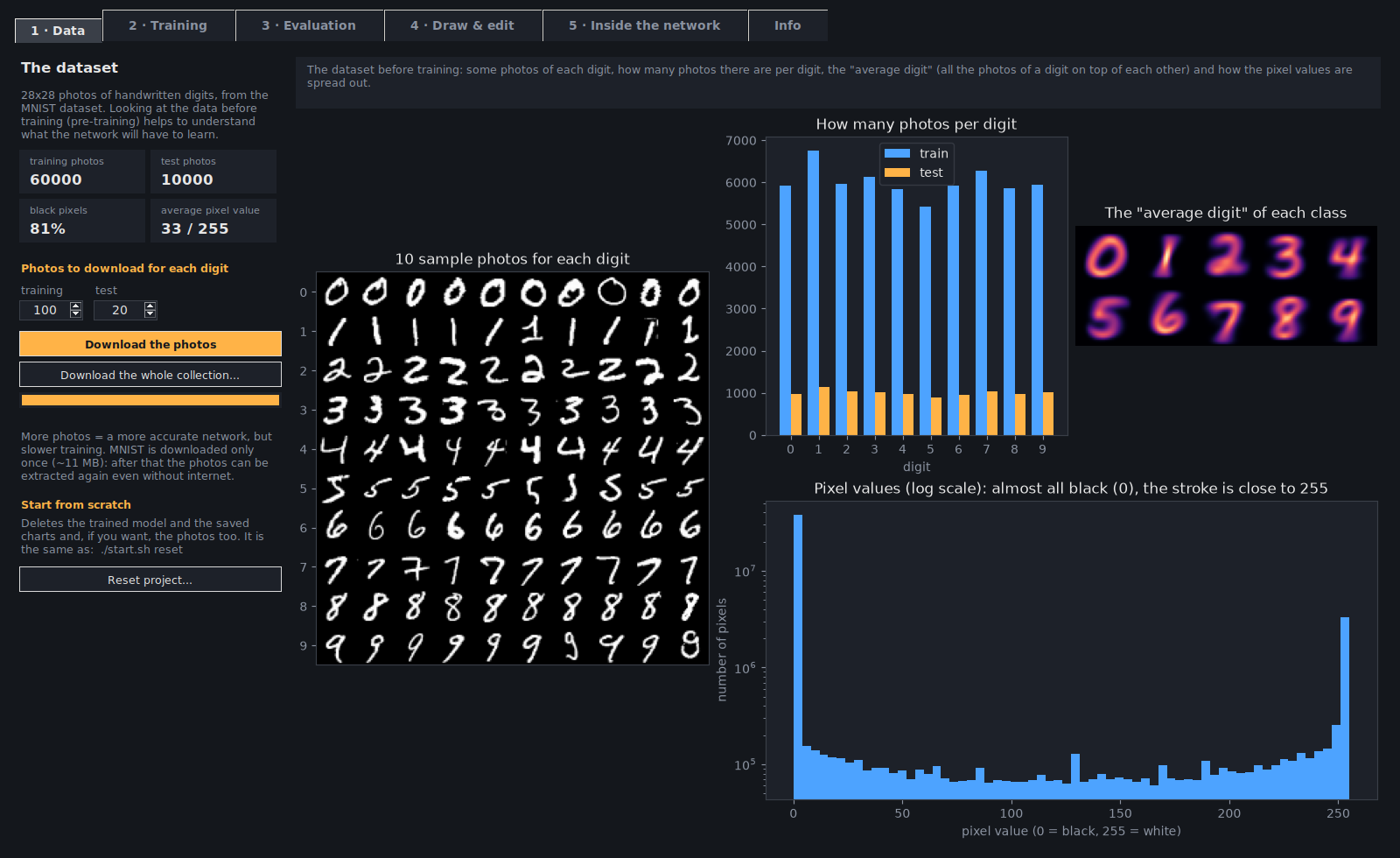

+### 1 · Data — the pre-training
+How many photos to download (or the whole collection: all the 70,000 photos of MNIST, after a window that tells
+you how much space they take), what the dataset looks like before training (examples, photos per digit,
+"average digit", pixel values) and the project reset.
+
+![Data tab — the whole collection: examples, photos per digit and the average digit](https://raw.githubusercontent.com/dev-luigi/neural-network-digits/main/docs/1_data.png)
+

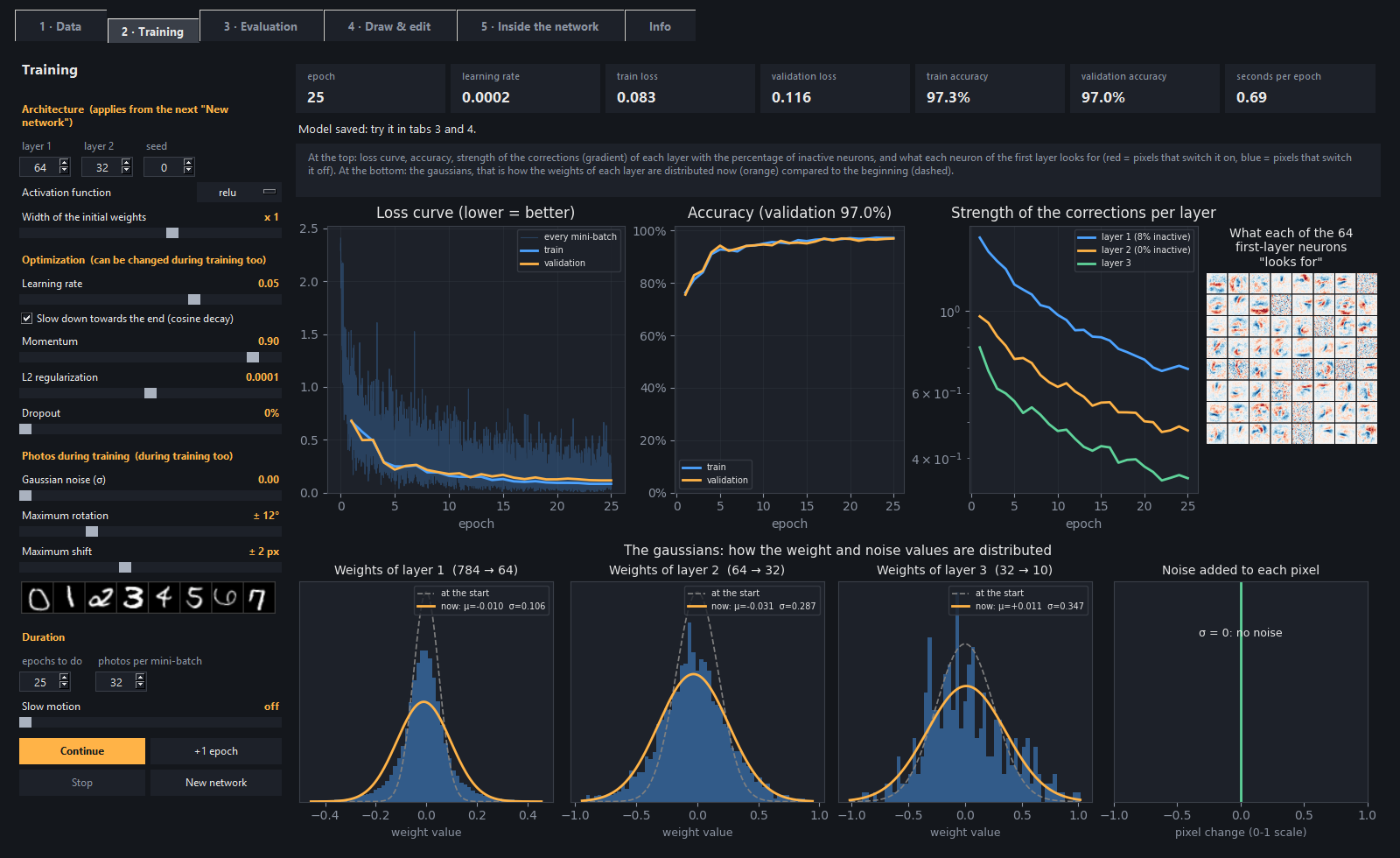

+### 2 · Training — watch it learn
+Loss curve (for every mini-batch and for every epoch), accuracy, strength of the corrections per layer with the
+inactive neurons, what every neuron of the first layer "looks for" and **the gaussians** of the weights (now
+compared with the start) and of the noise.
+
+- **Architecture**: neurons per layer, activation function (relu, leaky relu, sigmoid, tanh),
+  width of the initial weights, seed.
+- **Optimization**, which can be changed during training too: learning rate with
+  *cosine decay*, momentum, L2, dropout, mini-batch.
+- **Photos**, these too can be changed during training: gaussian noise, random rotation and shift, with
+  preview.
+- **Control**: pause, "+1 epoch" and slow motion.
+
+![Training tab — live loss curve, weight gaussians and the knobs](https://raw.githubusercontent.com/dev-luigi/neural-network-digits/main/docs/2_training.png)
+
+### 3 · Evaluation — confusion matrix and points map
+Accuracy on photos never seen before. The photos can be "damaged" (noise, rotation, stroke thickness)
+and you can set a confidence threshold: below it the network says "I don't know", and you see how many
+photos it still answers and how many of those it gets right. There are also the robustness curves and the
+wrong photos.
+
+The big chart switches from the **confusion matrix** to the **points map**: every photo is a point
+on a plane (PCA or t-SNE, written in NumPy), layer by layer. You can see the digits separate, and when you
+hover a point with the mouse the photo and the answer of the network show up.
+
+![Evaluation tab — points map, layer by layer](https://raw.githubusercontent.com/dev-luigi/neural-network-digits/main/docs/3_points_map.png)
+
+### 4 · Draw & edit — the lab
+You draw a digit and see the neurons light up. Click a neuron to see weighted sum, output,
+bias and weights, and you can shift its bias, multiply its weights or switch it off. There are also global
+knobs (temperature, noise on the weights, pruning), and the effect on the test accuracy shows up right away.
+The edited network can be saved.
+
+![Draw & edit tab — drawing board and network diagram](https://raw.githubusercontent.com/dev-luigi/neural-network-digits/main/docs/4_draw.png)
+
+### 5 · Inside the network — the math, cell by cell
+The math of a layer number by number, with colored cells like in the "LLM visualizers":
+- the input values and the weight matrix (or input × weight);
+- the bias, the weighted sum and the activation;
+- for the last layer, the **softmax steps** (z − max, exponential, division by the sum), with
+  the **temperature** knob.
+
+When you hover a cell, the connected ones light up and the math is explained.
+
+![Inside the network tab — the math of a layer cell by cell, with the softmax steps](https://raw.githubusercontent.com/dev-luigi/neural-network-digits/main/docs/5_inside_the_network.png)
+
+### The assistant — ask, pick, hints
+A side panel (**F2**, or the *Assistant* button at the top right) that knows the program and sees what is
+happening in it:
+
+- **Questions**, in English or Italian: "what is overfitting?", "how is it going?", "what should I do now?",
+  "is something wrong?". The answers use the real state of the open tab: the epochs done, the accuracy, the
+  learning rate in use, the photos downloaded, the drawing on the board. Every answer also says where to see
+  that thing in the program and suggests an experiment to try.
+- **Pick** (**F1**): hover the controls and they get an orange frame; click one and the assistant explains what it
+  does and what it is worth now. The charts are picked one at a time (the loss curve, one gaussian, one wrong
+  photo, one row of the math...), and so are the tiles with the numbers. While Pick is on, the clicks do not
+  reach the controls, so nothing starts by mistake.
+- **Hints** (they can be switched off): the assistant notices the most common mistakes, like a learning rate
+  that is too high (the network explodes or does not learn), overfitting, too many inactive neurons, extreme
+  settings, or test photos spoiled much more than the training ones. Each hint has an *Apply* link that
+  fixes it in one click and a *Why?* link that explains the concept behind it.
+
+It is not a language model, on purpose: the answers come from a small search engine (TF-IDF, written in NumPy
+in [`nn_digits/assistant/search.py`](https://github.com/dev-luigi/neural-network-digits/blob/main/nn_digits/assistant/search.py)) over a glossary of neural networks and
+the explanations of the controls, and the hints are simple rules
+([`nn_digits/assistant/rules.py`](https://github.com/dev-luigi/neural-network-digits/blob/main/nn_digits/assistant/rules.py)). It needs nothing
+to download, it answers in a moment and it never makes things up about the numbers it reads.
+
+![The assistant — the state of the training, Pick on the Dropout control and a hint with its fix](https://raw.githubusercontent.com/dev-luigi/neural-network-digits/main/docs/7_assistant.png)
+
+---
+
+## Quick Start
+
+You need **Python 3.9 or newer**. There are two ways to install the program.
+
+### With pip
+
+```bash
+pipx install neural-network-digits      # or:  pip install neural-network-digits
+neural-network-digits                   # opens the interface
+```
+
+[pipx](https://pipx.pypa.io) puts the program in an environment of its own and the `neural-network-digits`
+command in the PATH. On Linux Tkinter must be installed first (see the table below). The photos, the model and
+the settings go in the folder of your user: `%APPDATA%\neural-network-digits` on Windows,
+`~/Library/Application Support/neural-network-digits` on macOS and `~/.local/share/neural-network-digits`
+on Linux.
+
+### With the zip
+
+Download the zip of the latest version from the
+[Releases](https://github.com/dev-luigi/neural-network-digits/releases/latest) page and extract it.
+
+**Windows**: double-click **`start.bat`**. The first time it installs the libraries by itself (numpy, pillow,
+matplotlib), then it opens the interface.
+
+**Linux and macOS**: open a terminal in the extracted folder and run **`./start.sh`**. The first time it
+creates a virtual environment in `.venv` and installs the libraries there (the Python of the system is not
+touched), then it opens the interface. It needs Tkinter and venv: if one is missing, `start.sh` tells you
+what to install.
+
+| System | Once, before the first start |
+|---|---|
+| Ubuntu / Debian | `sudo apt install python3-venv python3-tk` |
+| Fedora | `sudo dnf install python3-tkinter` |
+| Arch | `sudo pacman -S tk` |
+| macOS | Python from [python.org](https://www.python.org/downloads/macos/) (Tkinter included; the Python that comes with macOS has a Tkinter that is too old) |
+
+Tested on Windows 11, Ubuntu 24.04, Debian 12, Fedora 44 and Arch Linux; on macOS the automatic tests
+and `start.sh` run at every push (CI).
+
+### The first start
+
+There are no photos yet:
+
+1. in the **1 · Data** tab press *Download the photos* (MNIST, ~11 MB, only once);
+2. in the **2 · Training** tab press *Start*: with the starting settings (1000 photos,
+   60 epochs) it takes less than half a minute and gets to about 91% on the test photos.
+   With more photos (for example 700 per digit) it gets to about 96%, and with the whole collection
+   (60,000 photos) to about 98.5%, but the training takes about 5 minutes.
+
+### Updates
+
+Every time the interface opens, the program asks GitHub whether a new version is out (you can turn this
+off in the **Info** tab). If there is one, it shows the changes and offers:
+- **Update now**: downloads the new version, replaces the program files and restarts. The
+  `data/` folder (photos, model, settings) is not touched, and if something goes wrong
+  the old files are put back.
+- **Later** or **Skip this version**.
+
+From the terminal it is `start.bat update` (on Linux and macOS `./start.sh update`). If you downloaded the project
+with `git clone`, update with `git pull` instead. If you installed it with pip, the program tells you when a new
+version is out and you update it with `pipx upgrade neural-network-digits` (or `pip install -U neural-network-digits`).
+
+---
+
+## Tech Stack
+
+| Component | Technology |
+|---|---|
+| Neural network | Python / NumPy — written from scratch, no ML framework |
+| Interface | Tkinter |
+| Charts | matplotlib (loss, gaussians, confusion matrix, PCA / t-SNE map) |
+| Images | Pillow |
+| Dataset | MNIST (downloaded by the program from the Data tab, not in the repository) |
+| Languages | English / Italian (`nn_digits/i18n.py` + `nn_digits/locales/it.json`) |
+| Tests | pytest (headless on Linux with xvfb) |
+| Package | [PyPI](https://pypi.org/project/neural-network-digits/), built with hatchling |
+| CI/CD | GitHub Actions — tests on Windows, Linux and macOS, automatic releases (GitHub and PyPI) from tags |
+
+---
+
+## From the terminal
+
+The same steps, without the interface (on Linux and macOS: `./start.sh` instead of `start.bat`; installed
+with pip: `neural-network-digits`):
+
+```text
+start.bat download --per-digit 100       1. downloads the photos (with --all the whole collection)
+start.bat explore                        2. pre-training: charts about the dataset
+start.bat train    --epochs 60 --lr 0.05 3. trains (also --noise --dropout --activation tanh ...)
+start.bat evaluate --noise 0.3           4. tests on the test photos (also --rotation --thickness --map t-SNE)
+start.bat draw                           5. only drawing board and lab
+start.bat reset    [--all]               deletes model and charts (with --all the photos too)
+start.bat update                         checks whether there is a new version and installs it
+start.bat --version                      shows the installed version
+```
+
+`start.bat train --help` shows all the options. The charts are saved in `data/charts/` (installed with pip,
+in the `charts` folder of the data).
+
+---
+
+## How the network works, in short
+
+```text
+784 pixels  →  64 neurons  →  32 neurons  →  10 outputs (one per digit)
+```
+
+1. **Forward**: every neuron makes a weighted sum of its inputs plus a bias (z) and applies
+   the activation (a). The last layer turns the 10 scores into probabilities with the **softmax**.
+2. **Loss**: the cross-entropy measures how low the probability given to the right digit is.
+3. **Backpropagation**: from the output back to the input, it computes how much every weight contributed
+   to the error, and corrects it a little (gradient descent with momentum).
+4. **The gaussians**: at the start the weights are random numbers taken from a gaussian (He initialization
+   for relu and leaky relu, LeCun for sigmoid and tanh); during training their distribution widens and
+   changes shape.
+
+---
+
+## Experiments to try
+
+- **Learning rate at 1**: the network stops learning. Look at the inactive neurons and at the
+  gaussians that widen out of all proportion.
+- **Sigmoid with 2 layers**: it learns more slowly. Look at the strength of the corrections of the first layer.
+- **Initial width x0.1 and x5**: the signal dies out or explodes.
+- **Noise 0 versus noise 0.3 in training**: train with noise 0 and try the damaged photos in the
+  Evaluation tab, then train again with noise 0.3 and compare.
+- **Maximum rotation 0 versus 30°**, then evaluate with the rotation at 25°.
+- **Dropout 50%**: the train loss goes up. And the validation one?
+- **Softmax and temperature**: in the Inside the network tab, with "Next mistake" find an uncertain photo,
+  then set the temperature to 0.1 and to 10. Does the answer change?
+- **Points map layer by layer** (pixels → layer 1 → layer 2 → output): watch the groups
+  of digits separate. Then raise the noise: where do the points end up?
+- **In the lab**:
+  - switch off the most active neurons while you draw a 7, until the answer changes;
+  - prune 90% of the weights;
+  - raise the temperature (the answer does not change, the confidence does).
+
+---
+
+## Development
+
+### Setup and tests
+
+```bash
+git clone https://github.com/dev-luigi/neural-network-digits.git
+cd neural-network-digits
+git checkout develop
+
+pip install -r requirements.txt -r requirements-dev.txt
+python -m pytest
+python start.py
+```
+
+On Linux and macOS let `./start.sh` create the `.venv` with the libraries, then use its Python:
+`.venv/bin/python -m pip install -r requirements-dev.txt` and `.venv/bin/python -m pytest`.
+
+The tests check:
+- backpropagation, compared with the gradient computed numerically;
+- learning with all the activations, and the softmax;
+- the saving of the photos and their quick copy, the preparation of the photos and all the charts;
+- the install of updates: `data/` is not touched, dangerous zips are refused
+  and the old files go back in place if something goes wrong, also coming from the versions before `nn_digits/`;
+- the package for PyPI: its files, the command, the libraries and where the data goes;
+- the release tool: the version and the changes in CHANGELOG.md;
+- the translations: every text has its Italian version;
+- the opening of all the tabs of the interface.
+
+### Publishing a new version
+
+Versions follow [semantic versioning](https://semver.org/) `MAJOR.MINOR.PATCH`:
+- **PATCH** to fix bugs;
+- **MINOR** for new features;
+- **MAJOR** for changes that break something (for example saved models that are no longer compatible).
+
+On the `develop` branch:
+
+```bash
+python tools/release.py prepare 1.1.0   # changes the version and opens the paragraph in CHANGELOG.md
+# ...write the changes in CHANGELOG.md, commit, push and merge develop into main with a pull request...
+```
+
+Then, from the `main` branch:
+
+```bash
+python tools/release.py publish         # tests, tag v1.1.0 and push: the CI/CD does the rest
+```
+
+The CI/CD publishes the release on GitHub with the zip, then the package on PyPI: that last step waits for
+your approval (Actions tab, the run of the release, *Review deployments*). PyPI trusts this repository's
+workflow (Trusted Publishing), so there is no password or token to keep.
+
+---
+
+## Project Structure
+
+```
+neural-network-digits/
+├── start.bat                # double-click = graphical interface (Windows)
+├── start.sh                 # ./start.sh = graphical interface (Linux, macOS), in its own .venv
+├── start.py                 # starts the zip and git copies: interface or a step from the terminal
+├── project.py               # only for the updates from version 1.1.1 and older (the real one is in nn_digits/)
+├── requirements.txt         # the libraries: numpy, pillow, matplotlib (requirements-dev.txt: pytest)
+├── pyproject.toml           # the package for PyPI and the settings of the tests
+├── CHANGELOG.md             # the changes of every version
+├── LICENSE                  # MIT
+├── nn_digits/               # the program: the package that pip installs
+│   ├── cli.py               #   the terminal commands (start.py and the neural-network-digits command start here)
+│   ├── project.py           #   name, version, author and addresses of the program
+│   ├── updater.py           #   check and install of new versions from GitHub
+│   ├── i18n.py              #   languages: tr() gives every text in the chosen language
+│   ├── locales/it.json      #   the Italian translations
+│   ├── neural_net/          #   the "brain", without windows
+│   │   ├── network.py       #     forward, softmax, loss, backpropagation (read this first!)
+│   │   ├── data.py          #     photos: download, loading, preparation, noise, alterations
+│   │   ├── training.py      #     the training loop, one epoch at a time, and the tests on the test photos
+│   │   ├── charts.py        #     all the charts (loss, gaussians, confusion, points map, softmax...)
+│   │   └── storage.py       #     where the files are saved (data/ or the folder of the user), and the reset
+│   ├── assistant/           #   the assistant, without windows
+│   │   ├── brain.py         #     how it answers a question, looking at the state of the program
+│   │   ├── knowledge.py     #     the glossary, what every tab shows, the experiments to try
+│   │   ├── rules.py         #     the hints: the rules that notice the common mistakes
+│   │   └── search.py        #     the small search engine (TF-IDF with NumPy)
+│   └── gui/                 #   the window (Tkinter + matplotlib)
+│       ├── window.py        #     the window with the 5 tabs and the Info tab
+│       ├── tab_*.py         #     one tab per file (tab_info.py also offers the updates)
+│       ├── drawing_board.py #     the drawing board and the diagram of the network (tab 4)
+│       ├── lab.py           #     the changes to the trained network (tab 4)
+│       ├── assistant.py     #     the assistant panel (F2)
+│       ├── pick.py          #     Pick (F1): click a control to have it explained
+│       ├── app_state.py     #     the state of the program, in a dictionary for the assistant
+│       └── base.py          #     colors and pieces of interface reused by all the tabs
+├── docs/                    # the screenshots of this README
+├── tests/                   # the automatic tests (pytest)
+├── tools/                   # release.py publishes a new version, check_package.py checks the package for PyPI
+├── .github/workflows/       # the CI/CD: tests at every push, release (GitHub and PyPI) at every tag
+└── data/                    # created by the program: photos, model, charts, settings (excluded from git)
+```
+
+The logic (`nn_digits/neural_net/`) does not depend on the interface: both the tabs and the terminal commands
+use it.
+
+---
+
+## Data
+
+The photos come from the [MNIST](https://yann.lecun.com/exdb/mnist/) dataset by Yann LeCun, Corinna Cortes and
+Christopher J.C. Burges, distributed under the
+[CC BY-SA 3.0](https://creativecommons.org/licenses/by-sa/3.0/) license. The program downloads them from the
+public copy used by Keras/TensorFlow and does not include them in the repository.
+
+---
+
+## Community
+
+Questions, ideas and what you did with the program go in the
+[Discussions](https://github.com/dev-luigi/neural-network-digits/discussions); bugs in the
+[issues](https://github.com/dev-luigi/neural-network-digits/issues/new/choose). If the project is useful to you,
+a star helps other people find it, and you can support it with
+[GitHub Sponsors](https://github.com/sponsors/dev-luigi).
+
+---
+
+## License
+
+The code is distributed under the [MIT](https://github.com/dev-luigi/neural-network-digits/blob/main/LICENSE) license.
+
+---
+
+## Author
+
+**Luigi Tanzillo** — [luigitanzillo.it](https://luigitanzillo.it) · [github.com/dev-luigi](https://github.com/dev-luigi)
+
+---
+
+## Star History
+
+<a href="https://www.star-history.com/?repos=dev-luigi%2Fneural-network-digits&type=date&legend=top-left">
+ <picture>
+   <source media="(prefers-color-scheme: dark)" srcset="https://api.star-history.com/chart?repos=dev-luigi/neural-network-digits&type=date&theme=dark&legend=top-left" />
+   <source media="(prefers-color-scheme: light)" srcset="https://api.star-history.com/chart?repos=dev-luigi/neural-network-digits&type=date&legend=top-left" />
+   <img alt="Star History Chart" src="https://api.star-history.com/chart?repos=dev-luigi/neural-network-digits&type=date&legend=top-left" />
+ </picture>
+</a>
