@@ -0,0 +1,21 @@
|
|
|
1
|
+
MIT License
|
|
2
|
+
|
|
3
|
+
Copyright (c) 2026 Melissa Colin
|
|
4
|
+
|
|
5
|
+
Permission is hereby granted, free of charge, to any person obtaining a copy
|
|
6
|
+
of this software and associated documentation files (the "Software"), to deal
|
|
7
|
+
in the Software without restriction, including without limitation the rights
|
|
8
|
+
to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
|
|
9
|
+
copies of the Software, and to permit persons to whom the Software is
|
|
10
|
+
furnished to do so, subject to the following conditions:
|
|
11
|
+
|
|
12
|
+
The above copyright notice and this permission notice shall be included in all
|
|
13
|
+
copies or substantial portions of the Software.
|
|
14
|
+
|
|
15
|
+
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
|
|
16
|
+
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
|
|
17
|
+
FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
|
|
18
|
+
AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
|
|
19
|
+
LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
|
|
20
|
+
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
|
|
21
|
+
SOFTWARE.
|
|
@@ -0,0 +1,295 @@
|
|
|
1
|
+
Metadata-Version: 2.4
|
|
2
|
+
Name: motion-studio
|
|
3
|
+
Version: 0.1.0
|
|
4
|
+
Summary: A clean, installable multi-person SMPL motion editor with pluggable auto-correction and metrics.
|
|
5
|
+
Author-email: Melissa Colin <github@melissacolin.ai>
|
|
6
|
+
License: MIT
|
|
7
|
+
Project-URL: Homepage, https://github.com/melissa-colin/motion-studio
|
|
8
|
+
Project-URL: Repository, https://github.com/melissa-colin/motion-studio
|
|
9
|
+
Project-URL: Documentation, https://github.com/melissa-colin/motion-studio#readme
|
|
10
|
+
Project-URL: Issues, https://github.com/melissa-colin/motion-studio/issues
|
|
11
|
+
Keywords: smpl,motion,motion-capture,3d,animation,pose,dance,editor,visualization
|
|
12
|
+
Classifier: License :: OSI Approved :: MIT License
|
|
13
|
+
Classifier: Programming Language :: Python :: 3
|
|
14
|
+
Classifier: Programming Language :: Python :: 3.9
|
|
15
|
+
Classifier: Programming Language :: Python :: 3.10
|
|
16
|
+
Classifier: Programming Language :: Python :: 3.11
|
|
17
|
+
Classifier: Programming Language :: Python :: 3.12
|
|
18
|
+
Classifier: Operating System :: POSIX :: Linux
|
|
19
|
+
Classifier: Intended Audience :: Science/Research
|
|
20
|
+
Classifier: Topic :: Multimedia :: Graphics :: 3D Modeling
|
|
21
|
+
Requires-Python: >=3.9
|
|
22
|
+
Description-Content-Type: text/markdown
|
|
23
|
+
License-File: LICENSE
|
|
24
|
+
Requires-Dist: numpy
|
|
25
|
+
Requires-Dist: flask>=3.0
|
|
26
|
+
Provides-Extra: smpl
|
|
27
|
+
Requires-Dist: torch; extra == "smpl"
|
|
28
|
+
Requires-Dist: smplx; extra == "smpl"
|
|
29
|
+
Provides-Extra: video
|
|
30
|
+
Requires-Dist: pillow; extra == "video"
|
|
31
|
+
Requires-Dist: torchvision; extra == "video"
|
|
32
|
+
Requires-Dist: librosa; extra == "video"
|
|
33
|
+
Requires-Dist: scipy; extra == "video"
|
|
34
|
+
Provides-Extra: all
|
|
35
|
+
Requires-Dist: torch; extra == "all"
|
|
36
|
+
Requires-Dist: smplx; extra == "all"
|
|
37
|
+
Requires-Dist: pillow; extra == "all"
|
|
38
|
+
Requires-Dist: torchvision; extra == "all"
|
|
39
|
+
Requires-Dist: librosa; extra == "all"
|
|
40
|
+
Requires-Dist: scipy; extra == "all"
|
|
41
|
+
Provides-Extra: dev
|
|
42
|
+
Requires-Dist: pytest; extra == "dev"
|
|
43
|
+
Dynamic: license-file
|
|
44
|
+
|
|
45
|
+
# Motion Studio
|
|
46
|
+
|
|
47
|
+
[](https://pypi.org/project/motion-studio/)
|
|
48
|
+
[](https://pypi.org/project/motion-studio/)
|
|
49
|
+
[](LICENSE)
|
|
50
|
+
[](https://github.com/melissa-colin/motion-studio/actions/workflows/ci.yml)
|
|
51
|
+
[](https://github.com/astral-sh/ruff)
|
|
52
|
+
[](https://github.com/psf/black)
|
|
53
|
+
|
|
54
|
+
A clean, installable **multi-person SMPL motion editor** for the browser, with
|
|
55
|
+
a 3D view (Three.js), a video/music background, frame-by-frame pose editing,
|
|
56
|
+
and **pluggable** auto-correction and metrics.
|
|
57
|
+
|
|
58
|
+
It started as an internal pose editor for the AIOZ-GDANCE dataset and was
|
|
59
|
+
rewritten as a small, modular, self-contained tool: no dependency on any
|
|
60
|
+
external research repo, a single save-file format, and a plugin contract so you
|
|
61
|
+
can drop in **your own** correction / metrics classes without touching the app.
|
|
62
|
+
|
|
63
|
+

|
|
64
|
+
|
|
65
|
+

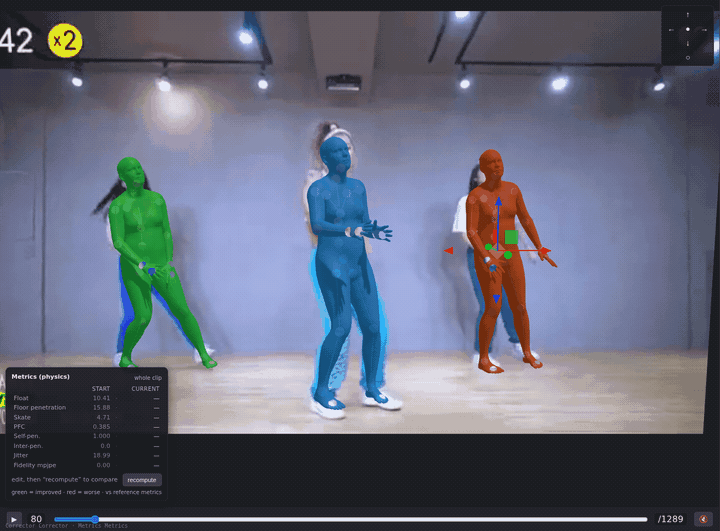

*Editing a multi-person clip: the SMPL motion and the source video play in sync while you orbit the camera.*
|
|
66
|
+
|
|
67
|
+
---
|
|
68
|
+
|
|
69
|
+
## Features
|
|
70
|
+
|
|
71
|
+
- **3D editor**: skeleton + SMPL mesh, per-joint and whole-body editing, undo/redo.
|
|
72
|
+
- **Video & music background**: place the source video in the scene (position,
|
|
73
|
+
scale, opacity, time offset), server-side background removal, audio playback
|
|
74
|
+
synced to the timeline.
|
|
75
|
+
- **Floor**: estimate / edit / recompute the ground plane.
|
|
76
|
+
- **Auto-correction & metrics**: run a correction pipeline and score the motion;
|
|
77
|
+
both are **plugins** (built-in by default, swappable for your own).
|
|
78
|
+
- **One save file**: a `.motion` bundle holds the original motion, your edits,
|
|
79
|
+
the video, the music, placement parameters, comments and a metrics snapshot.
|
|
80
|
+
- **Two ways to load**: open a single SMPL `.pkl` (with optional video/music),
|
|
81
|
+
or point at a whole `GDance/` folder and convert it into the workspace.
|
|
82
|
+
|
|
83
|
+
---
|
|
84
|
+
|
|
85
|
+
## Screenshots
|
|
86
|
+
|
|
87
|
+

|
|
88
|
+

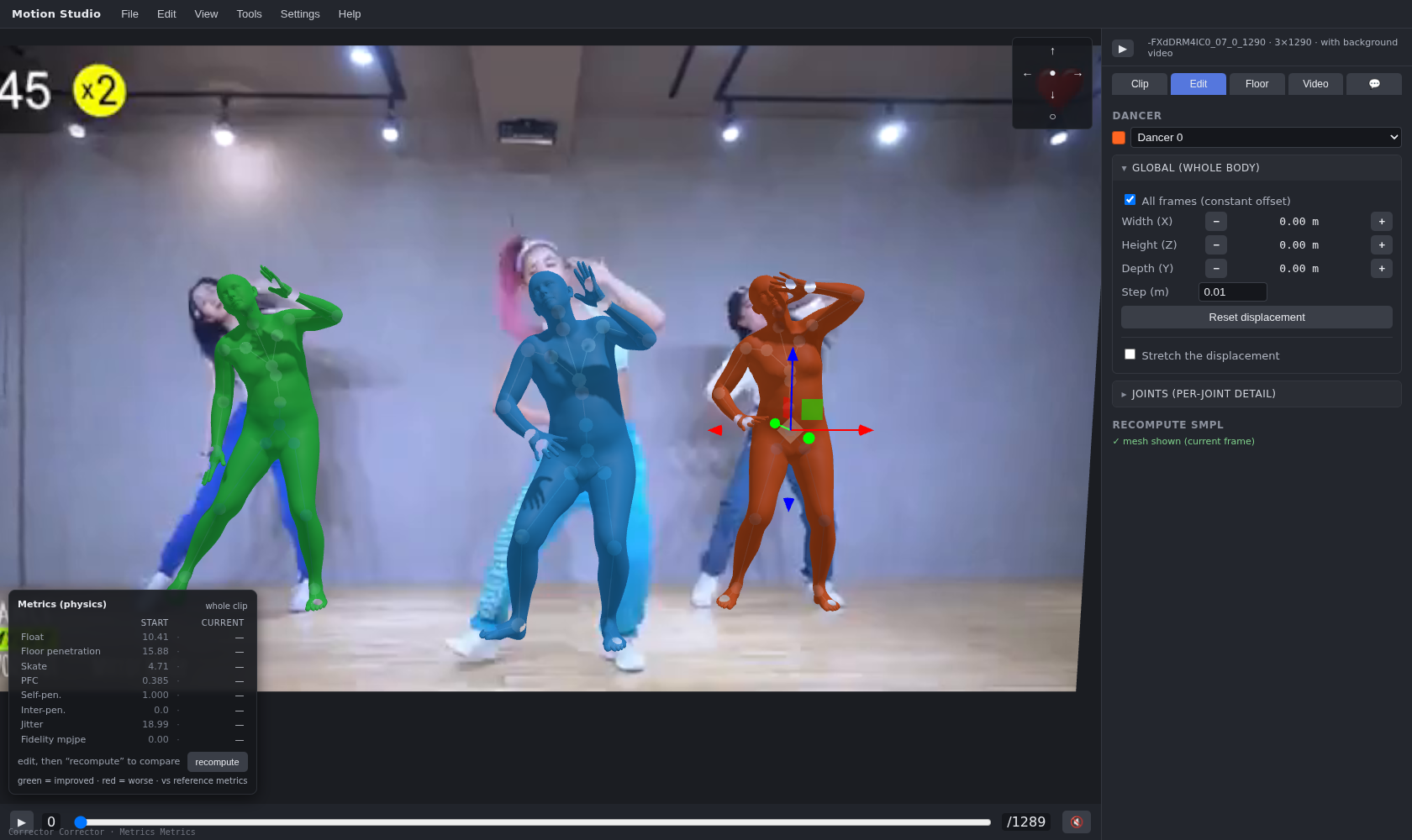

*The 3D editor: multiple SMPL dancers (mesh + skeleton), per-joint and
|
|
89
|
+
whole-body editing, the automatic corrector (a plugin), and the live metrics
|
|
90
|
+
panel. One **Save (.motion)** button and an **Export (.pkl)** button.*
|
|
91
|
+
|
|
92
|
+

|
|
93
|
+

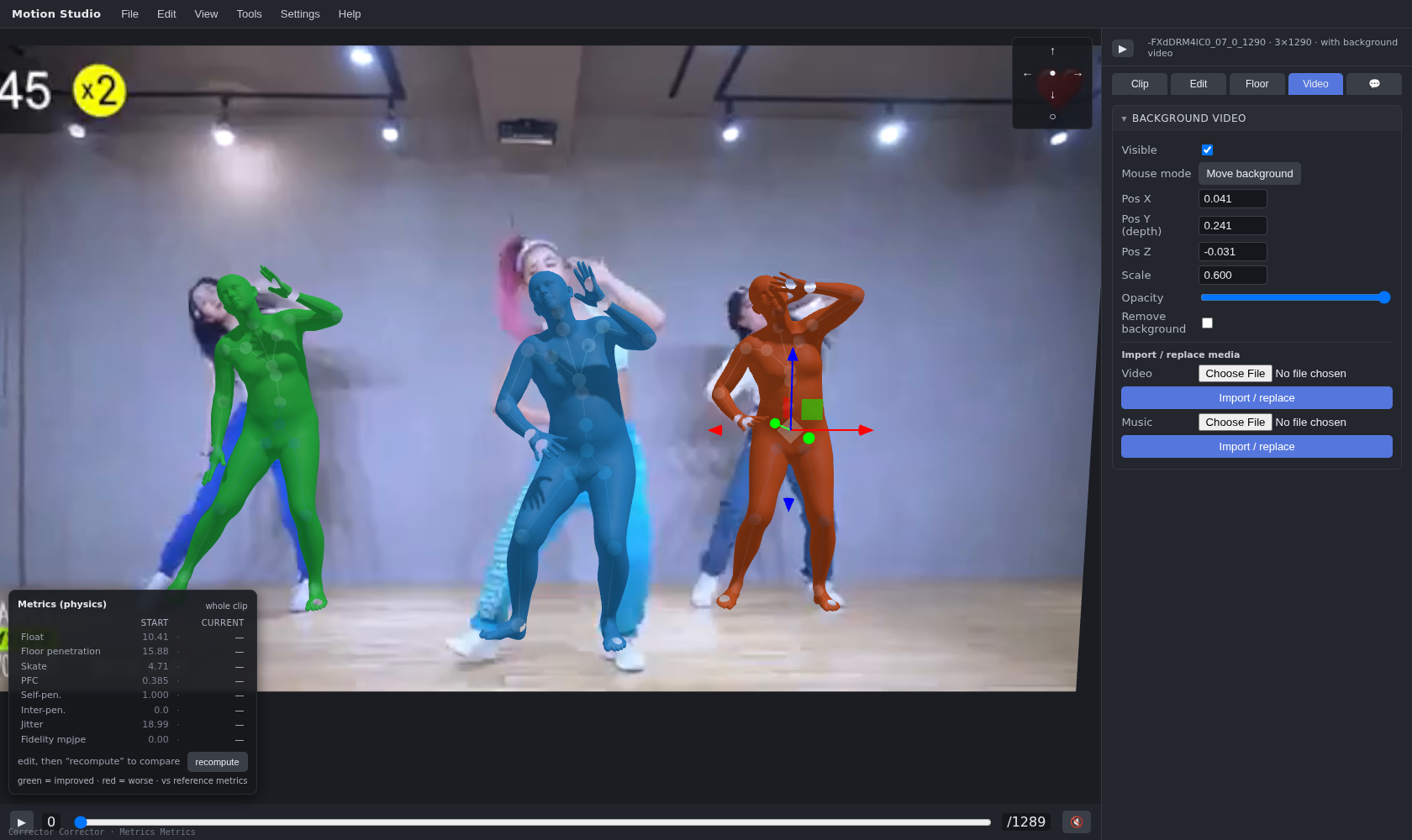

*The source video as a placeable background — position, scale, opacity, time
|
|
94
|
+
offset and server-side background removal — to check the motion against the
|
|
95
|
+
real footage.*
|
|
96
|
+
|
|
97
|
+

|
|
98
|
+

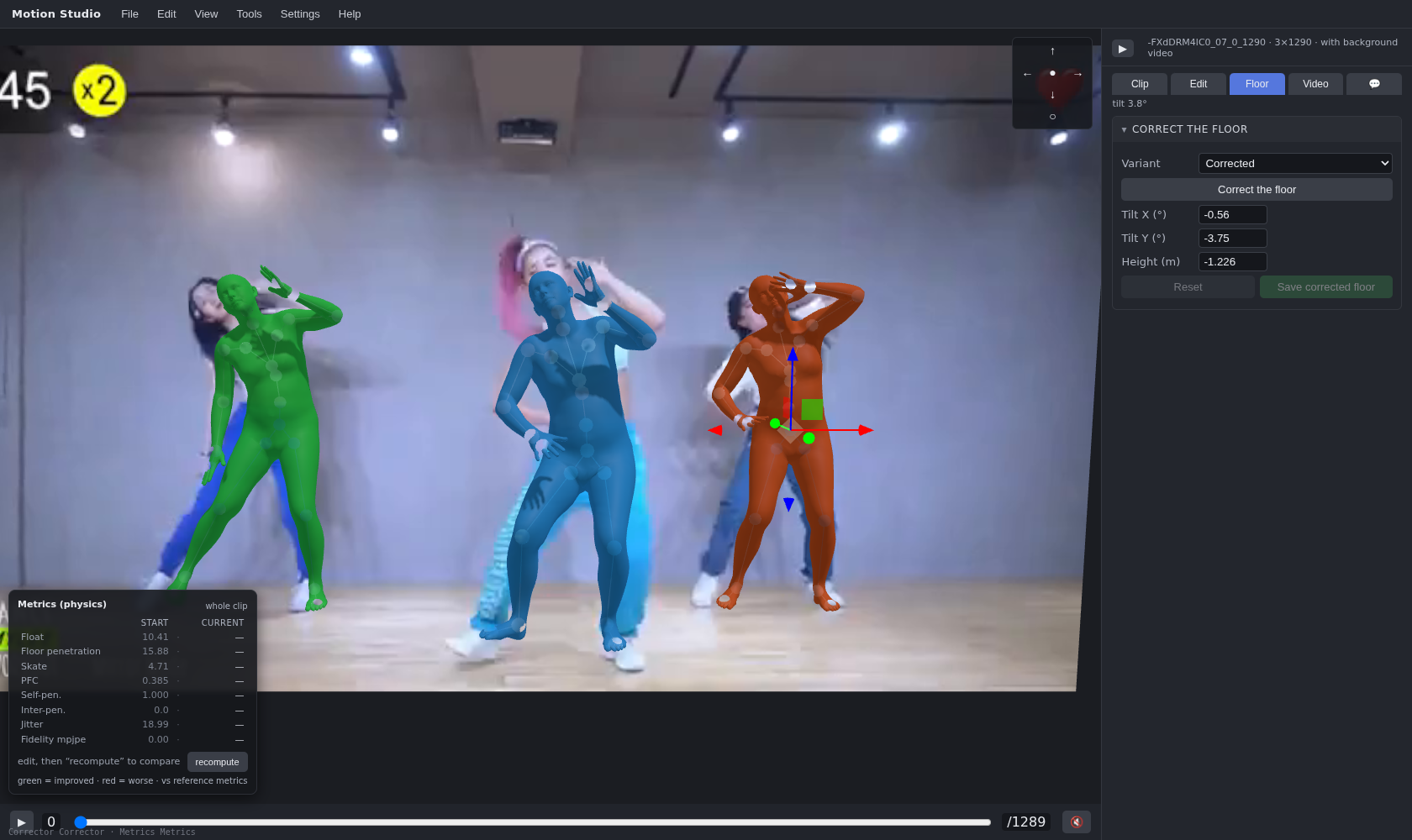

*The ground plane is estimated on load (RANSAC on foot contacts) and can be
|
|
99
|
+
edited or recomputed.*
|
|
100
|
+
|
|
101
|
+

|
|
102
|
+

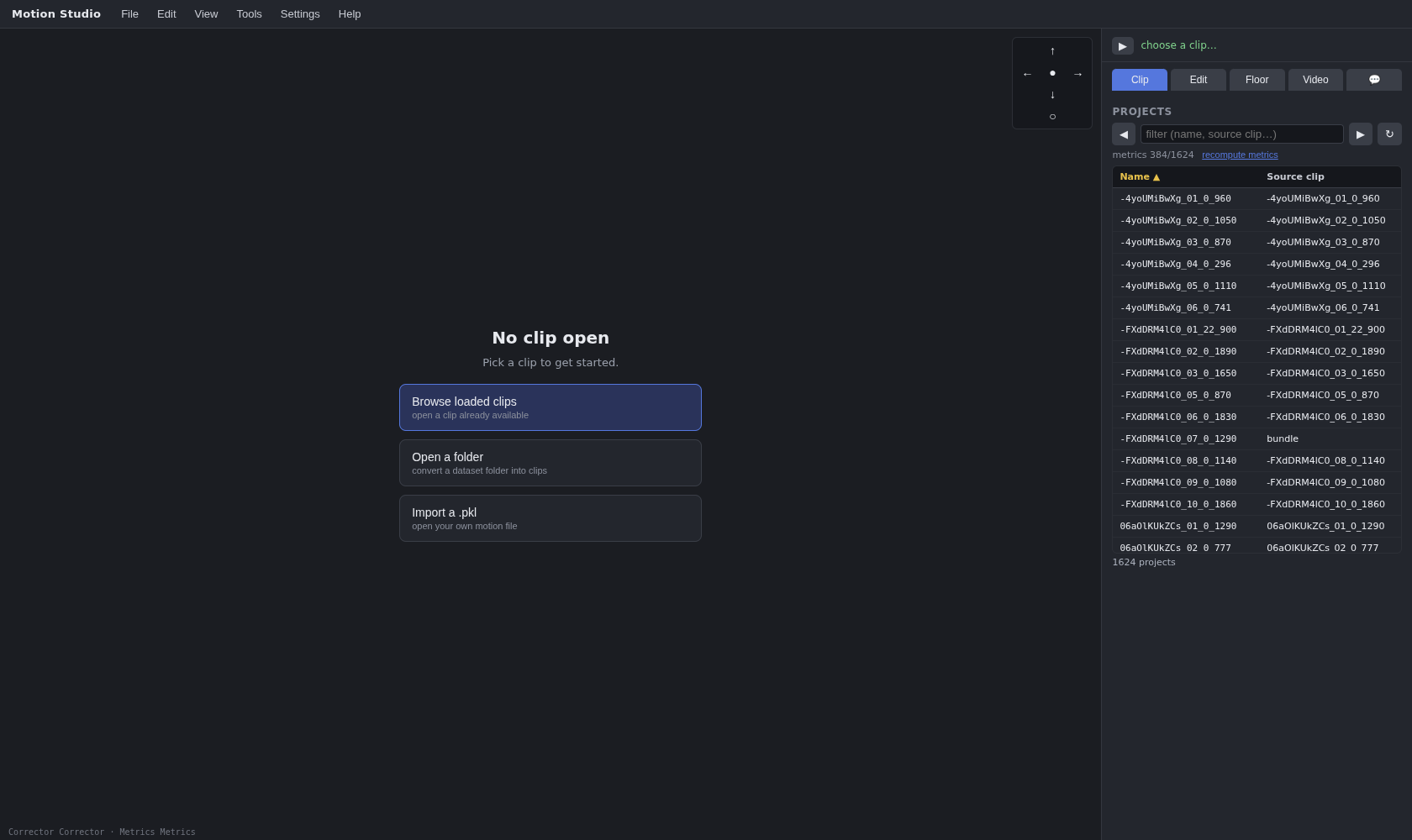

*On startup the editor is empty (no clip auto-loaded, no pop-up). From the
|
|
103
|
+
**Clip** tab you choose: browse loaded clips, open a folder, or import a .pkl.*
|
|
104
|
+
|
|
105
|
+
---
|
|
106
|
+
|
|
107
|
+
## Install
|
|
108
|
+
|
|
109
|
+
```bash
|
|
110
|
+
pip install "motion-studio[all]" # recommended: full feature set
|
|
111
|
+
```
|
|
112
|
+
|
|
113
|
+
`[all]` pulls in torch, smplx, torchvision, pillow, librosa and scipy — the SMPL
|
|
114
|
+
forward kinematics, pose refit, built-in corrector/metrics, server-side
|
|
115
|
+
background removal and music import. Narrower extras are available:
|
|
116
|
+
|
|
117
|
+
```bash
|
|
118
|
+
pip install motion-studio # core only (numpy + flask): no SMPL/video
|
|
119
|
+
pip install "motion-studio[smpl]" # + torch, smplx
|
|
120
|
+
pip install "motion-studio[video]" # + pillow, torchvision, librosa, scipy
|
|
121
|
+
pip install "motion-studio[dev]" # + pytest, ruff, black, pre-commit
|
|
122
|
+
```
|
|
123
|
+
|
|
124
|
+
Requires Python >= 3.9. The SMPL body models are **not** shipped; point the tool
|
|
125
|
+
at your local copy with `--smpl-dir`.
|
|
126
|
+
|
|
127
|
+
## Run
|
|
128
|
+
|
|
129
|
+
```bash
|
|
130
|
+
motion-studio --workspace ~/MotionStudio --smpl-dir ~/smpl/models --port 8815
|
|
131
|
+
# optional: import a raw dataset folder
|
|
132
|
+
motion-studio --data /path/to/GDance --smpl-dir ~/smpl/models
|
|
133
|
+
```
|
|
134
|
+
|
|
135
|
+
Then open <http://127.0.0.1:8815>.
|
|
136
|
+
|
|
137
|
+
The **workspace** is the root folder that holds your saved `.motion` bundles,
|
|
138
|
+
like any desktop app keeps its documents.
|
|
139
|
+
|
|
140
|
+
---
|
|
141
|
+
|
|
142
|
+
## Command line
|
|
143
|
+
|
|
144
|
+
The bare command (or `motion-studio serve`) starts the editor server. Two
|
|
145
|
+
headless subcommands run the same plugins from a terminal, no browser:
|
|
146
|
+
|
|
147
|
+
```bash
|
|
148
|
+
motion-studio serve --smpl-dir ~/smpl/models # start the editor (default)
|
|
149
|
+
|
|
150
|
+
# Run the auto-corrector on a .motion and write the corrected bundle:
|
|
151
|
+
motion-studio correct in.motion -o out.motion
|
|
152
|
+
motion-studio correct in.motion -o out.motion --corrector ./my.py:MyCorrector
|
|
153
|
+
|
|
154
|
+
# Compute metrics on a .motion and print them:
|
|
155
|
+
motion-studio metrics in.motion
|
|
156
|
+
motion-studio metrics in.motion --metrics ./my.py:MyMetrics
|
|
157
|
+
|
|
158
|
+
motion-studio --version
|
|
159
|
+
```
|
|
160
|
+
|
|
161
|
+
`--corrector` / `--metrics` take a plugin spec (`<module-or-path>:<Class>`),
|
|
162
|
+
the same as the server flags; omit them to use the built-in plugins.
|
|
163
|
+
|
|
164
|
+
---
|
|
165
|
+
|
|
166
|
+
## Docker
|
|
167
|
+
|
|
168
|
+
A `Dockerfile` is included. Build the image, then run it with your SMPL models
|
|
169
|
+
mounted in and the port published:
|
|
170
|
+
|
|
171
|
+
```bash
|
|
172
|
+
docker build -t motion-studio .
|
|
173
|
+
docker run -p 8815:8815 -v ~/smpl/models:/models -e SMPL_DIR=/models motion-studio
|
|
174
|
+
```
|
|
175
|
+
|
|
176
|
+
Then open <http://127.0.0.1:8815>. Mount a host folder to `/workspace` (and set
|
|
177
|
+
`MOTION_STUDIO_HOME=/workspace`) to persist your `.motion` bundles across runs.
|
|
178
|
+
|
|
179
|
+
---
|
|
180
|
+
|
|
181
|
+
## Python API
|
|
182
|
+
|
|
183
|
+
Motion Studio is also a library — import it and use the data model, bundle I/O
|
|
184
|
+
and plugin loaders directly, headless:
|
|
185
|
+
|
|
186
|
+
```python
|
|
187
|
+
import motion_studio as ms
|
|
188
|
+
|
|
189
|
+
bundle = ms.load_bundle("session.motion") # -> Bundle (original/edited + media)
|
|
190
|
+
motion = bundle.original # -> Motion(poses, trans, betas, …)
|
|
191
|
+
|
|
192
|
+
corrector = ms.load_corrector(
|
|
193
|
+
"motion_studio.plugins_builtin.corrector:Corrector",
|
|
194
|
+
smpl_dir="~/smpl/models",
|
|
195
|
+
)
|
|
196
|
+
fixed = corrector.correct(motion)
|
|
197
|
+
|
|
198
|
+
ms.save_bundle("fixed.motion", original=motion, edited=fixed)
|
|
199
|
+
```
|
|
200
|
+
|
|
201
|
+
The top-level surface (`__all__`) is: `Motion`, `Floor`, `load_bundle`,
|
|
202
|
+
`save_bundle`, `load_corrector`, `load_metrics`, `scan_dataset`, `Config`,
|
|
203
|
+
`__version__`. The library core imports with only numpy + flask (no torch).
|
|
204
|
+
|
|
205
|
+
---
|
|
206
|
+
|
|
207
|
+
## The `.motion` save file
|
|
208
|
+
|
|
209
|
+
A `.motion` file is a single ZIP archive bundling an entire editing session:
|
|
210
|
+
|
|
211
|
+
```
|
|
212
|
+
manifest.json format/version, comments, video placement params,
|
|
213
|
+
metrics snapshot, timestamps
|
|
214
|
+
motion_original.npz the original SMPL motion (poses, trans, betas, fps, gender)
|
|
215
|
+
motion_edited.npz your edited motion (omitted if you have not edited)
|
|
216
|
+
video.mp4 the source video (optional)
|
|
217
|
+
music.<ext> the music track (optional)
|
|
218
|
+
```
|
|
219
|
+
|
|
220
|
+
Open a `.motion` to **continue** where you left off; the SMPL `.pkl` is written
|
|
221
|
+
out only when you click **Export**.
|
|
222
|
+
|
|
223
|
+
---
|
|
224
|
+
|
|
225
|
+
## Plugins: bring your own correction / metrics
|
|
226
|
+
|
|
227
|
+
Motion Studio depends only on a small contract, not on any concrete
|
|
228
|
+
implementation. A plugin is any class matching one of these protocols
|
|
229
|
+
(`motion_studio/core/plugins.py`):
|
|
230
|
+
|
|
231
|
+
```python
|
|
232
|
+
class MotionCorrector(Protocol):
|
|
233
|
+
def __init__(self, *, smpl_dir, floor=None): ...
|
|
234
|
+
def correct(self, motion: Motion, log=print) -> Motion: ...
|
|
235
|
+
|
|
236
|
+
class MotionMetrics(Protocol):
|
|
237
|
+
def __init__(self, *, smpl_dir): ...
|
|
238
|
+
def compute(self, motion: Motion, floor: Floor) -> dict[str, float]: ...
|
|
239
|
+
```
|
|
240
|
+
|
|
241
|
+
`Motion` and `Floor` are the only types exchanged
|
|
242
|
+
(`motion_studio/core/types.py`):
|
|
243
|
+
|
|
244
|
+
```python
|
|
245
|
+
@dataclass
|
|
246
|
+
class Motion:
|
|
247
|
+
poses: np.ndarray # (N, T, 24, 3) axis-angle, z-up
|
|
248
|
+
trans: np.ndarray # (N, T, 3)
|
|
249
|
+
betas: np.ndarray | None
|
|
250
|
+
gender: str
|
|
251
|
+
fps: float
|
|
252
|
+
name: str
|
|
253
|
+
|
|
254
|
+
@dataclass
|
|
255
|
+
class Floor:
|
|
256
|
+
plane: tuple[float, float, float] # z = a*x + b*y + c
|
|
257
|
+
```
|
|
258
|
+
|
|
259
|
+
Point the tool at your own classes (a dotted module **or** a file path,
|
|
260
|
+
followed by the class name); they are re-imported on every run, so edits take
|
|
261
|
+
effect on the next click:
|
|
262
|
+
|
|
263
|
+
```bash
|
|
264
|
+
motion-studio --corrector ./my_corrector.py:MyCorrector \
|
|
265
|
+
--metrics ./my_metrics.py:MyMetrics
|
|
266
|
+
```
|
|
267
|
+
|
|
268
|
+
The built-in plugins live in `motion_studio/plugins_builtin/`.
|
|
269
|
+
|
|
270
|
+
**New to plugins?** See the full authoring guide in
|
|
271
|
+
[`docs/PLUGINS.md`](docs/PLUGINS.md) and the runnable, dependency-light
|
|
272
|
+
examples in [`examples/`](examples). For instance, the pure-numpy metrics
|
|
273
|
+
example (no torch / no SMPL needed) shows custom keys rendering end to end:
|
|
274
|
+
|
|
275
|
+
```bash
|
|
276
|
+
motion-studio --metrics ./examples/simple_metrics.py:SimpleMetrics
|
|
277
|
+
```
|
|
278
|
+
|
|
279
|
+
---
|
|
280
|
+
|
|
281
|
+
## Documentation
|
|
282
|
+
|
|
283
|
+
- [`docs/ARCHITECTURE.md`](docs/ARCHITECTURE.md) — module map, data model,
|
|
284
|
+
request flow, the heavy-lock model, the `.motion` format.
|
|
285
|
+
- [`docs/PLUGINS.md`](docs/PLUGINS.md) — the plugin authoring guide.
|
|
286
|
+
- [`docs/USAGE.md`](docs/USAGE.md) — day-to-day editor usage.
|
|
287
|
+
- [`docs/API.md`](docs/API.md) — the HTTP API.
|
|
288
|
+
- [`CONTRIBUTING.md`](CONTRIBUTING.md) — dev install, tests, lint/format.
|
|
289
|
+
- [`SECURITY.md`](SECURITY.md) — the threat model and `--allow-remote` risk.
|
|
290
|
+
|
|
291
|
+
---
|
|
292
|
+
|
|
293
|
+
## License
|
|
294
|
+
|
|
295
|
+
Released under the **MIT License** (see the `LICENSE` file in the repository).
|
|
@@ -0,0 +1,251 @@
|
|
|
1
|
+
# Motion Studio
|
|
2
|
+
|
|
3
|
+
[](https://pypi.org/project/motion-studio/)
|
|
4
|
+
[](https://pypi.org/project/motion-studio/)
|
|
5
|
+
[](LICENSE)
|
|
6
|
+
[](https://github.com/melissa-colin/motion-studio/actions/workflows/ci.yml)
|
|
7
|
+
[](https://github.com/astral-sh/ruff)
|
|
8
|
+
[](https://github.com/psf/black)
|
|
9
|
+
|
|
10
|
+
A clean, installable **multi-person SMPL motion editor** for the browser, with
|
|
11
|
+
a 3D view (Three.js), a video/music background, frame-by-frame pose editing,
|
|
12
|
+
and **pluggable** auto-correction and metrics.
|
|
13
|
+
|
|
14
|
+
It started as an internal pose editor for the AIOZ-GDANCE dataset and was
|
|
15
|
+
rewritten as a small, modular, self-contained tool: no dependency on any
|
|
16
|
+
external research repo, a single save-file format, and a plugin contract so you
|
|
17
|
+
can drop in **your own** correction / metrics classes without touching the app.
|
|
18
|
+
|
|
19
|
+

|
|
20
|
+
|
|
21
|
+
*Editing a multi-person clip: the SMPL motion and the source video play in sync while you orbit the camera.*
|
|
22
|
+
|
|
23
|
+
---
|
|
24
|
+
|
|
25
|
+
## Features
|
|
26
|
+
|
|
27
|
+
- **3D editor**: skeleton + SMPL mesh, per-joint and whole-body editing, undo/redo.
|
|
28
|
+
- **Video & music background**: place the source video in the scene (position,
|
|
29
|
+
scale, opacity, time offset), server-side background removal, audio playback
|
|
30
|
+
synced to the timeline.
|
|
31
|
+
- **Floor**: estimate / edit / recompute the ground plane.
|
|
32
|
+
- **Auto-correction & metrics**: run a correction pipeline and score the motion;
|
|
33
|
+
both are **plugins** (built-in by default, swappable for your own).
|
|
34
|
+
- **One save file**: a `.motion` bundle holds the original motion, your edits,
|
|
35
|
+
the video, the music, placement parameters, comments and a metrics snapshot.
|
|
36
|
+
- **Two ways to load**: open a single SMPL `.pkl` (with optional video/music),
|
|
37
|
+
or point at a whole `GDance/` folder and convert it into the workspace.
|
|
38
|
+
|
|
39
|
+
---
|
|
40
|
+
|
|
41
|
+
## Screenshots
|
|
42
|
+
|
|
43
|
+

|
|
44
|
+
*The 3D editor: multiple SMPL dancers (mesh + skeleton), per-joint and
|
|
45
|
+
whole-body editing, the automatic corrector (a plugin), and the live metrics
|
|
46
|
+
panel. One **Save (.motion)** button and an **Export (.pkl)** button.*
|
|
47
|
+
|
|
48
|
+

|
|
49
|
+
*The source video as a placeable background — position, scale, opacity, time
|
|
50
|
+
offset and server-side background removal — to check the motion against the
|
|
51
|
+
real footage.*
|
|
52
|
+
|
|
53
|
+

|
|
54
|
+
*The ground plane is estimated on load (RANSAC on foot contacts) and can be
|
|
55
|
+
edited or recomputed.*
|
|
56
|
+
|
|
57
|
+

|
|
58
|
+
*On startup the editor is empty (no clip auto-loaded, no pop-up). From the
|
|
59
|
+
**Clip** tab you choose: browse loaded clips, open a folder, or import a .pkl.*
|
|
60
|
+
|
|
61
|
+
---
|
|
62
|
+
|
|
63
|
+
## Install
|
|
64
|
+
|
|
65
|
+
```bash
|
|
66
|
+
pip install "motion-studio[all]" # recommended: full feature set
|
|
67
|
+
```
|
|
68
|
+
|
|
69
|
+
`[all]` pulls in torch, smplx, torchvision, pillow, librosa and scipy — the SMPL
|
|
70
|
+
forward kinematics, pose refit, built-in corrector/metrics, server-side
|
|
71
|
+
background removal and music import. Narrower extras are available:
|
|
72
|
+
|
|
73
|
+
```bash
|
|
74
|
+
pip install motion-studio # core only (numpy + flask): no SMPL/video
|
|
75
|
+
pip install "motion-studio[smpl]" # + torch, smplx
|
|
76
|
+
pip install "motion-studio[video]" # + pillow, torchvision, librosa, scipy
|
|
77
|
+
pip install "motion-studio[dev]" # + pytest, ruff, black, pre-commit
|
|
78
|
+
```
|
|
79
|
+
|
|
80
|
+
Requires Python >= 3.9. The SMPL body models are **not** shipped; point the tool
|
|
81
|
+
at your local copy with `--smpl-dir`.
|
|
82
|
+
|
|
83
|
+
## Run
|
|
84
|
+
|
|
85
|
+
```bash
|
|
86
|
+
motion-studio --workspace ~/MotionStudio --smpl-dir ~/smpl/models --port 8815
|
|
87
|
+
# optional: import a raw dataset folder
|
|
88
|
+
motion-studio --data /path/to/GDance --smpl-dir ~/smpl/models
|
|
89
|
+
```
|
|
90
|
+
|
|
91
|
+
Then open <http://127.0.0.1:8815>.
|
|
92
|
+
|
|
93
|
+
The **workspace** is the root folder that holds your saved `.motion` bundles,
|
|
94
|
+
like any desktop app keeps its documents.
|
|
95
|
+
|
|
96
|
+
---
|
|
97
|
+
|
|
98
|
+
## Command line
|
|
99
|
+
|
|
100
|
+
The bare command (or `motion-studio serve`) starts the editor server. Two
|
|
101
|
+
headless subcommands run the same plugins from a terminal, no browser:
|
|
102
|
+
|
|
103
|
+
```bash
|
|
104
|
+
motion-studio serve --smpl-dir ~/smpl/models # start the editor (default)
|
|
105
|
+
|
|
106
|
+
# Run the auto-corrector on a .motion and write the corrected bundle:
|
|
107
|
+
motion-studio correct in.motion -o out.motion
|
|
108
|
+
motion-studio correct in.motion -o out.motion --corrector ./my.py:MyCorrector
|
|
109
|
+
|
|
110
|
+
# Compute metrics on a .motion and print them:
|
|
111
|
+
motion-studio metrics in.motion
|
|
112
|
+
motion-studio metrics in.motion --metrics ./my.py:MyMetrics
|
|
113
|
+
|
|
114
|
+
motion-studio --version
|
|
115
|
+
```
|
|
116
|
+
|
|
117
|
+
`--corrector` / `--metrics` take a plugin spec (`<module-or-path>:<Class>`),
|
|
118
|
+
the same as the server flags; omit them to use the built-in plugins.
|
|
119
|
+
|
|
120
|
+
---
|
|
121
|
+
|
|
122
|
+
## Docker
|
|
123
|
+
|
|
124
|
+
A `Dockerfile` is included. Build the image, then run it with your SMPL models
|
|
125
|
+
mounted in and the port published:
|
|
126
|
+
|
|
127
|
+
```bash
|
|
128
|
+
docker build -t motion-studio .
|
|
129
|
+
docker run -p 8815:8815 -v ~/smpl/models:/models -e SMPL_DIR=/models motion-studio
|
|
130
|
+
```
|
|
131
|
+
|
|
132
|
+
Then open <http://127.0.0.1:8815>. Mount a host folder to `/workspace` (and set
|
|
133
|
+
`MOTION_STUDIO_HOME=/workspace`) to persist your `.motion` bundles across runs.
|
|
134
|
+
|
|
135
|
+
---
|
|
136
|
+
|
|
137
|
+
## Python API
|
|
138
|
+
|
|
139
|
+
Motion Studio is also a library — import it and use the data model, bundle I/O
|
|
140
|
+
and plugin loaders directly, headless:
|
|
141
|
+
|
|
142
|
+
```python
|
|
143
|
+
import motion_studio as ms
|
|
144
|
+
|
|
145
|
+
bundle = ms.load_bundle("session.motion") # -> Bundle (original/edited + media)
|
|
146
|
+
motion = bundle.original # -> Motion(poses, trans, betas, …)
|
|
147
|
+
|
|
148
|
+
corrector = ms.load_corrector(
|
|
149
|
+
"motion_studio.plugins_builtin.corrector:Corrector",
|
|
150
|
+
smpl_dir="~/smpl/models",
|
|
151
|
+
)
|
|
152
|
+
fixed = corrector.correct(motion)
|
|
153
|
+
|
|
154
|
+
ms.save_bundle("fixed.motion", original=motion, edited=fixed)
|
|
155
|
+
```
|
|
156
|
+
|
|
157
|
+
The top-level surface (`__all__`) is: `Motion`, `Floor`, `load_bundle`,
|
|
158
|
+
`save_bundle`, `load_corrector`, `load_metrics`, `scan_dataset`, `Config`,
|
|
159
|
+
`__version__`. The library core imports with only numpy + flask (no torch).
|
|
160
|
+
|
|
161
|
+
---
|
|
162
|
+
|
|
163
|
+
## The `.motion` save file
|
|
164
|
+
|
|
165
|
+
A `.motion` file is a single ZIP archive bundling an entire editing session:
|
|
166
|
+
|
|
167
|
+
```
|
|
168
|
+
manifest.json format/version, comments, video placement params,
|
|
169
|
+
metrics snapshot, timestamps
|
|
170
|
+
motion_original.npz the original SMPL motion (poses, trans, betas, fps, gender)
|
|
171
|
+
motion_edited.npz your edited motion (omitted if you have not edited)
|
|
172
|
+
video.mp4 the source video (optional)
|
|
173
|
+
music.<ext> the music track (optional)
|
|
174
|
+
```
|
|
175
|
+
|
|
176
|
+
Open a `.motion` to **continue** where you left off; the SMPL `.pkl` is written
|
|
177
|
+
out only when you click **Export**.
|
|
178
|
+
|
|
179
|
+
---
|
|
180
|
+
|
|
181
|
+
## Plugins: bring your own correction / metrics
|
|
182
|
+
|
|
183
|
+
Motion Studio depends only on a small contract, not on any concrete
|
|
184
|
+
implementation. A plugin is any class matching one of these protocols
|
|
185
|
+
(`motion_studio/core/plugins.py`):
|
|
186
|
+
|
|
187
|
+
```python
|
|
188
|
+
class MotionCorrector(Protocol):
|
|
189
|
+
def __init__(self, *, smpl_dir, floor=None): ...
|
|
190
|
+
def correct(self, motion: Motion, log=print) -> Motion: ...
|
|
191
|
+
|
|
192
|
+
class MotionMetrics(Protocol):
|
|
193
|
+
def __init__(self, *, smpl_dir): ...
|
|
194
|
+
def compute(self, motion: Motion, floor: Floor) -> dict[str, float]: ...
|
|
195
|
+
```
|
|
196
|
+
|
|
197
|
+
`Motion` and `Floor` are the only types exchanged
|
|
198
|
+
(`motion_studio/core/types.py`):
|
|
199
|
+
|
|
200
|
+
```python
|
|
201
|
+
@dataclass
|
|
202
|
+
class Motion:
|
|
203
|
+
poses: np.ndarray # (N, T, 24, 3) axis-angle, z-up
|
|
204
|
+
trans: np.ndarray # (N, T, 3)
|
|
205
|
+
betas: np.ndarray | None
|
|
206
|
+
gender: str
|
|
207
|
+
fps: float
|
|
208
|
+
name: str
|
|
209
|
+
|
|
210
|
+
@dataclass
|
|
211
|
+
class Floor:
|
|
212
|
+
plane: tuple[float, float, float] # z = a*x + b*y + c
|
|
213
|
+
```
|
|
214
|
+
|
|
215
|
+
Point the tool at your own classes (a dotted module **or** a file path,
|
|
216
|
+
followed by the class name); they are re-imported on every run, so edits take
|
|
217
|
+
effect on the next click:
|
|
218
|
+
|
|
219
|
+
```bash
|
|
220
|
+
motion-studio --corrector ./my_corrector.py:MyCorrector \
|
|
221
|
+
--metrics ./my_metrics.py:MyMetrics
|
|
222
|
+
```
|
|
223
|
+
|
|
224
|
+
The built-in plugins live in `motion_studio/plugins_builtin/`.
|
|
225
|
+
|
|
226
|
+
**New to plugins?** See the full authoring guide in
|
|
227
|
+
[`docs/PLUGINS.md`](docs/PLUGINS.md) and the runnable, dependency-light
|
|
228
|
+
examples in [`examples/`](examples). For instance, the pure-numpy metrics
|
|
229
|
+
example (no torch / no SMPL needed) shows custom keys rendering end to end:
|
|
230
|
+
|
|
231
|
+
```bash
|
|
232
|
+
motion-studio --metrics ./examples/simple_metrics.py:SimpleMetrics
|
|
233
|
+
```
|
|
234
|
+
|
|
235
|
+
---
|
|
236
|
+
|
|
237
|
+
## Documentation
|
|
238
|
+
|
|
239
|
+
- [`docs/ARCHITECTURE.md`](docs/ARCHITECTURE.md) — module map, data model,
|
|
240
|
+
request flow, the heavy-lock model, the `.motion` format.
|
|
241
|
+
- [`docs/PLUGINS.md`](docs/PLUGINS.md) — the plugin authoring guide.
|
|
242
|
+
- [`docs/USAGE.md`](docs/USAGE.md) — day-to-day editor usage.
|
|
243
|
+
- [`docs/API.md`](docs/API.md) — the HTTP API.
|
|
244
|
+
- [`CONTRIBUTING.md`](CONTRIBUTING.md) — dev install, tests, lint/format.
|
|
245
|
+
- [`SECURITY.md`](SECURITY.md) — the threat model and `--allow-remote` risk.
|
|
246
|
+
|
|
247
|
+
---
|
|
248
|
+
|
|
249
|
+
## License
|
|
250
|
+
|
|
251
|
+
Released under the **MIT License** (see the `LICENSE` file in the repository).
|
|
@@ -0,0 +1,52 @@
|
|
|
1
|
+
"""Motion Studio: a clean, installable multi-person SMPL motion editor.
|
|
2
|
+
|
|
3
|
+
The names re-exported here are the package's stable public API. Everything in
|
|
4
|
+
this top-level namespace is torch-free and safe to import in a numpy+flask-only
|
|
5
|
+
("core") install: the heavy server stack and the built-in torch/SMPL plugins
|
|
6
|
+
are imported lazily, never at package import time.
|
|
7
|
+
|
|
8
|
+
Typical use::
|
|
9
|
+
|
|
10
|
+
import motion_studio as ms
|
|
11
|
+
|
|
12
|
+
bundle = ms.load_bundle("session.motion")
|
|
13
|
+
motion = bundle.original # ms.Motion
|
|
14
|
+
corrector = ms.load_corrector(ms.Config().corrector_spec,
|
|
15
|
+
smpl_dir="~/smpl/models")
|
|
16
|
+
fixed = corrector.correct(motion)
|
|
17
|
+
ms.save_motion_pkl(fixed, "fixed.pkl")
|
|
18
|
+
"""
|
|
19
|
+
from __future__ import annotations
|
|
20
|
+
|
|
21
|
+
from .bundle import load_bundle, save_bundle
|
|
22
|
+
from .config import Config
|
|
23
|
+
from .core.plugins import (MotionCorrector, MotionMetrics, load_corrector,
|
|
24
|
+
load_metrics)
|
|
25
|
+
from .core.types import Floor, Motion
|
|
26
|
+
from .library import import_dataset, scan_dataset
|
|
27
|
+
from .smpl.io import load_motion_pkl, save_motion_pkl
|
|
28
|
+
|
|
29
|
+
__version__ = "0.1.0"
|
|
30
|
+
|
|
31
|
+
__all__ = [
|
|
32
|
+
# Core data types.
|
|
33
|
+
"Motion",
|
|
34
|
+
"Floor",
|
|
35
|
+
# Plugin contracts + loaders.
|
|
36
|
+
"MotionCorrector",
|
|
37
|
+
"MotionMetrics",
|
|
38
|
+
"load_corrector",
|
|
39
|
+
"load_metrics",
|
|
40
|
+
# SMPL pkl I/O.
|
|
41
|
+
"load_motion_pkl",
|
|
42
|
+
"save_motion_pkl",
|
|
43
|
+
# .motion bundle I/O.
|
|
44
|
+
"save_bundle",
|
|
45
|
+
"load_bundle",
|
|
46
|
+
# Dataset discovery / import.
|
|
47
|
+
"scan_dataset",
|
|
48
|
+
"import_dataset",
|
|
49
|
+
# Configuration.
|
|
50
|
+
"Config",
|
|
51
|
+
"__version__",
|
|
52
|
+
]
|
