manyhands 1.0.0__tar.gz

This diff represents the content of publicly available package versions that have been released to one of the supported registries. The information contained in this diff is provided for informational purposes only and reflects changes between package versions as they appear in their respective public registries.
Files changed (44) hide show
  1. manyhands-1.0.0/.gitignore +23 -0
  2. manyhands-1.0.0/CHANGELOG.md +31 -0
  3. manyhands-1.0.0/LICENSE +21 -0
  4. manyhands-1.0.0/PKG-INFO +596 -0
  5. manyhands-1.0.0/README.md +561 -0
  6. manyhands-1.0.0/pyproject.toml +75 -0
  7. manyhands-1.0.0/src/manyhands/__init__.py +7 -0
  8. manyhands-1.0.0/src/manyhands/__main__.py +5 -0
  9. manyhands-1.0.0/src/manyhands/align.py +209 -0
  10. manyhands-1.0.0/src/manyhands/backends.py +621 -0
  11. manyhands-1.0.0/src/manyhands/cli.py +526 -0
  12. manyhands-1.0.0/src/manyhands/evaluate.py +446 -0
  13. manyhands-1.0.0/src/manyhands/glossary.py +95 -0
  14. manyhands-1.0.0/src/manyhands/layout.py +268 -0
  15. manyhands-1.0.0/src/manyhands/pipeline.py +440 -0
  16. manyhands-1.0.0/src/manyhands/report.py +261 -0
  17. manyhands-1.0.0/src/manyhands/templates/index.html.j2 +51 -0
  18. manyhands-1.0.0/src/manyhands/templates/report.html.j2 +268 -0
  19. manyhands-1.0.0/src/manyhands/text.py +120 -0
  20. manyhands-1.0.0/src/manyhands/vote.py +232 -0
  21. manyhands-1.0.0/tests/conftest.py +66 -0
  22. manyhands-1.0.0/tests/data/groundtruth/alto-line.xml +28 -0
  23. manyhands-1.0.0/tests/data/groundtruth/alto-words.xml +35 -0
  24. manyhands-1.0.0/tests/data/groundtruth/page.xml +39 -0
  25. manyhands-1.0.0/tests/data/groundtruth/tei.xml +13 -0
  26. manyhands-1.0.0/tests/data/pages/.manyhands/transcripts/stub-a/journal-p001.json +10 -0
  27. manyhands-1.0.0/tests/data/pages/.manyhands/transcripts/stub-a/journal-p002.json +18 -0
  28. manyhands-1.0.0/tests/data/pages/.manyhands/transcripts/stub-b/journal-p001.json +14 -0
  29. manyhands-1.0.0/tests/data/pages/.manyhands/transcripts/stub-b/journal-p002.json +19 -0
  30. manyhands-1.0.0/tests/data/pages/.manyhands/transcripts/stub-c/journal-p001.json +14 -0
  31. manyhands-1.0.0/tests/data/pages/.manyhands/transcripts/stub-c/journal-p002.json +16 -0
  32. manyhands-1.0.0/tests/data/pages/SOURCE.md +27 -0
  33. manyhands-1.0.0/tests/data/pages/journal-p001.jpg +0 -0
  34. manyhands-1.0.0/tests/data/pages/journal-p002.jpg +0 -0
  35. manyhands-1.0.0/tests/test_align.py +119 -0
  36. manyhands-1.0.0/tests/test_backends.py +489 -0
  37. manyhands-1.0.0/tests/test_cli.py +452 -0
  38. manyhands-1.0.0/tests/test_evaluate.py +264 -0
  39. manyhands-1.0.0/tests/test_glossary.py +130 -0
  40. manyhands-1.0.0/tests/test_layout.py +152 -0
  41. manyhands-1.0.0/tests/test_pipeline.py +419 -0
  42. manyhands-1.0.0/tests/test_report.py +257 -0
  43. manyhands-1.0.0/tests/test_text.py +74 -0
  44. manyhands-1.0.0/tests/test_vote.py +240 -0
@@ -0,0 +1,23 @@
1
+ __pycache__/
2
+ *.py[cod]
3
+ *.egg-info/
4
+ build/
5
+ dist/
6
+ .venv/
7
+ venv/
8
+ .pytest_cache/
9
+ .ruff_cache/
10
+ .phase0/
11
+ # Generated report folders. tests/data/pages/.manyhands holds committed fixtures,
12
+ # so only the repo-root workspace is ignored.
13
+ /.manyhands/
14
+ manyhands-out/
15
+ # My own full-ensemble caches land next to the fixtures. Only the stubs are committed.
16
+ tests/data/pages/.manyhands/*
17
+ !tests/data/pages/.manyhands/transcripts/
18
+ tests/data/pages/.manyhands/transcripts/*
19
+ !tests/data/pages/.manyhands/transcripts/stub-*
20
+ # Scratch folder for my own full-ensemble runs; the numbers land in the README.
21
+ /runs/
22
+ *.swp
23
+ .DS_Store
@@ -0,0 +1,31 @@
1
+ # Changelog
2
+
3
+ ## 1.0.0
4
+
5
+ First release.
6
+
7
+ - `manyhands run <folder>` transcribes a folder of page images or PDFs with several local
8
+ vision-OCR models, aligns the transcripts, and writes `consensus.txt`, `agreement.json`
9
+ and a self-contained `report.html` per page, plus an index across the folder.
10
+ - The report highlights every disagreement in three bands by agreement ratio. Clicking one
11
+ shows the crop of the page beside each model's reading, `n` and `p` step through them, and
12
+ the reports link to each other and to the folder index.
13
+ - `manyhands confirm <page>` records accepted readings into `.manyhands/glossary.json`,
14
+ filed by the competing readings so one decision settles every later page that repeats it.
15
+ - `manyhands eval <dataset-dir>` scores flags against ALTO or PAGE-XML ground truth and
16
+ reports error-capture rate, flag rate and CER against a target set by `--target-capture`
17
+ and `--target-flag`. It scores the consensus text the run would write, character for
18
+ character, and warns when a ground-truth file names a page other than the one its stem
19
+ paired it with.
20
+ - Five permissively-licensed default models, driven through churro-ocr. `stanford-oval/churro-3B`
21
+ is opt-in and prints its licence notice.
22
+ - Anchor-based progressive alignment with null tokens, majority voting with agreement ratios,
23
+ and ties broken by a reading the glossary already confirms, then by backend rank.
24
+ - A model named twice, once by alias and once by id, votes once and the run says so. A model
25
+ cannot corroborate itself.
26
+ - `--json` on `run` writes a folder-level summary, slots and flags per page with the path to
27
+ each page's `agreement.json`, for anyone scripting over the output.
28
+ - Per-page transcript cache, so an interrupted run resumes and a re-report costs no GPU time.
29
+ - Backends that crash, loop, return nothing, or return a wildly different amount of text are
30
+ kept out of the vote and named in the report footer rather than failing the page. One that
31
+ fails to load, or fails three pages in a row, is not tried again for the rest of the run.
@@ -0,0 +1,21 @@
1
+ MIT License
2
+
3
+ Copyright (c) 2026 Booyaka101
4
+
5
+ Permission is hereby granted, free of charge, to any person obtaining a copy
6
+ of this software and associated documentation files (the "Software"), to deal
7
+ in the Software without restriction, including without limitation the rights
8
+ to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
9
+ copies of the Software, and to permit persons to whom the Software is
10
+ furnished to do so, subject to the following conditions:
11
+
12
+ The above copyright notice and this permission notice shall be included in all
13
+ copies or substantial portions of the Software.
14
+
15
+ THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
16
+ IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
17
+ FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
18
+ AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
19
+ LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
20
+ OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
21
+ SOFTWARE.
@@ -0,0 +1,596 @@
1
+ Metadata-Version: 2.5
2
+ Name: manyhands
3
+ Version: 1.0.0
4
+ Summary: Run several local OCR models over the same page and show a human exactly which words they disagree on.
5
+ Project-URL: Homepage, https://github.com/Booyaka101/manyhands
6
+ Project-URL: Repository, https://github.com/Booyaka101/manyhands
7
+ Project-URL: Issues, https://github.com/Booyaka101/manyhands/issues
8
+ Project-URL: Changelog, https://github.com/Booyaka101/manyhands/blob/main/CHANGELOG.md
9
+ Author-email: Booyaka101 <cbosch101@gmail.com>
10
+ License: MIT
11
+ License-File: LICENSE
12
+ Keywords: archives,ensemble,handwriting,historical-documents,htr,ocr,rover,transcription,vlm
13
+ Classifier: Development Status :: 4 - Beta
14
+ Classifier: Environment :: Console
15
+ Classifier: Intended Audience :: Science/Research
16
+ Classifier: License :: OSI Approved :: MIT License
17
+ Classifier: Programming Language :: Python :: 3.12
18
+ Classifier: Programming Language :: Python :: 3.13
19
+ Classifier: Topic :: Scientific/Engineering :: Image Recognition
20
+ Classifier: Topic :: Text Processing :: Linguistic
21
+ Requires-Python: >=3.12
22
+ Requires-Dist: churro-ocr<1,>=0.3.0
23
+ Requires-Dist: jinja2<4,>=3.1
24
+ Requires-Dist: markupsafe<4,>=2.1
25
+ Requires-Dist: numpy<3,>=1.26
26
+ Requires-Dist: pillow<12,>=10.4.0
27
+ Requires-Dist: pypdfium2<6,>=5
28
+ Requires-Dist: typer<1,>=0.12.3
29
+ Provides-Extra: dev
30
+ Requires-Dist: pytest>=8; extra == 'dev'
31
+ Requires-Dist: ruff>=0.6; extra == 'dev'
32
+ Provides-Extra: hf
33
+ Requires-Dist: churro-ocr[hf]<1,>=0.3.0; extra == 'hf'
34
+ Description-Content-Type: text/markdown
35
+
36
+ # manyhands
37
+
38
+ Run several local OCR models over the same handwritten page and show a human exactly which
39
+ words they disagree on.
40
+
41
+ A single vision model transcribing a parish register gives you a wall of confident text.
42
+ Some of it is wrong, and nothing in the output tells you where. manyhands runs the page
43
+ through several different models, aligns what they produced, and highlights every word
44
+ they did not all agree on. You read the highlights instead of proofreading the page.
45
+
46
+ Everything runs locally. No API keys, no uploads, no model weights in this package.
47
+
48

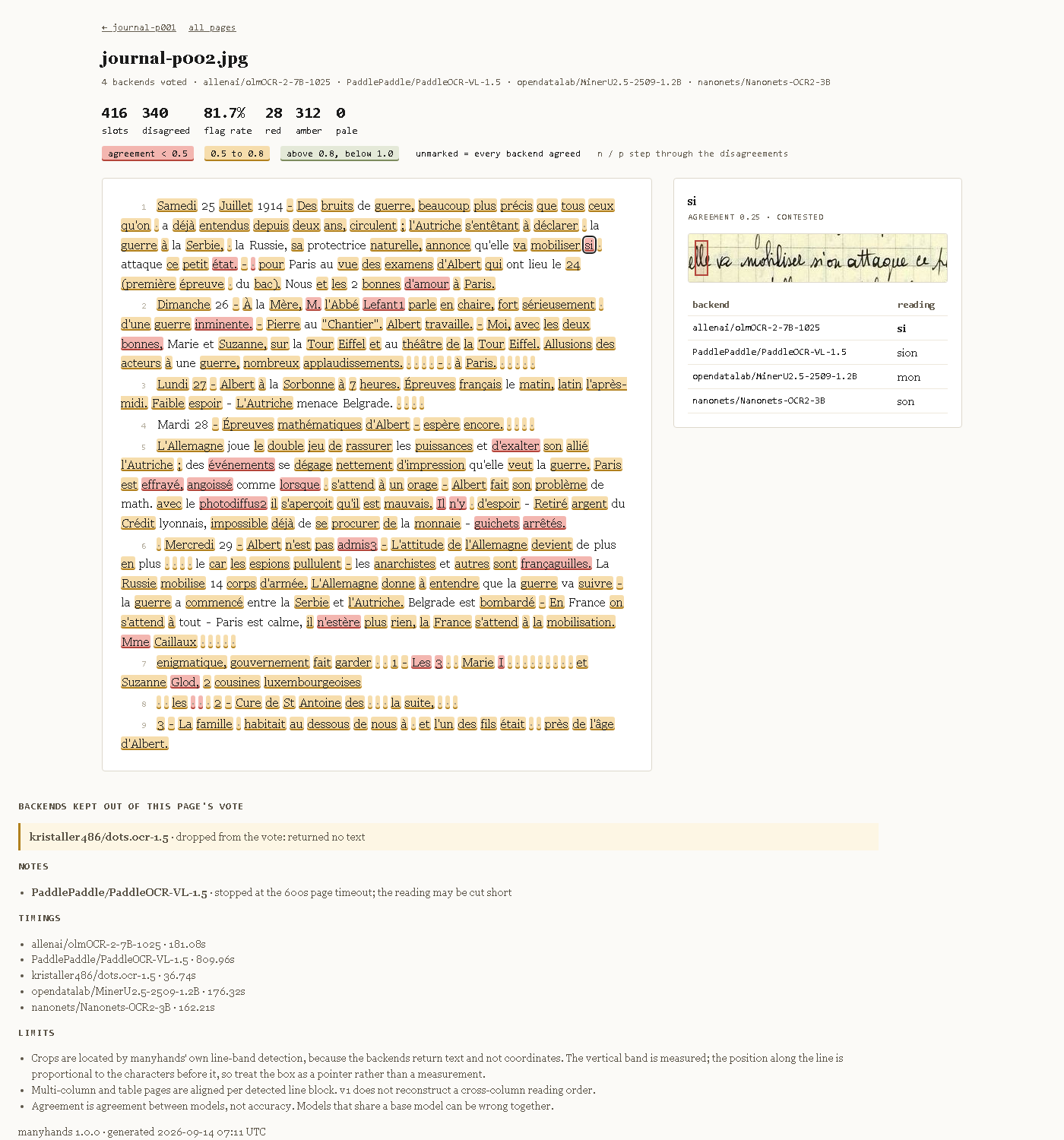

+ ![A manyhands report: consensus text with the disagreements highlighted, and a panel showing the crop of the page next to what each model read](https://raw.githubusercontent.com/Booyaka101/manyhands/main/docs/report.png)
49
+
50
+ Page two of the sample diary. `si` is highlighted red because the four models read it as `si`,
51
+ `sion`, `mon` and `son`. The panel shows the line it came from so you can settle it yourself.
52
+
53
+ ## What you get per page
54
+
55
+ ```
56
+ manyhands-out/
57
+ index.html
58
+ journal-p001/
59
+ consensus.txt the majority reading, one line per aligned line
60
+ agreement.json every slot, its vote counts, its agreement ratio, its bbox
61
+ report.html the consensus with disagreements highlighted, self-contained
62
+ ```
63
+
64
+ `report.html` opens in a browser with no server and no network. Click a highlighted word
65
+ and a panel shows the cropped region of the page image alongside one row per model. `n` and
66
+ `p` step through the disagreements without touching the mouse, and each report links to the
67
+ pages either side of it and back to `index.html`.
68
+
69
+ ## Install
70
+
71
+ ```
72
+ pip install manyhands
73
+ ```
74
+
75
+ That gives you the CLI and the alignment, voting and reporting code. It does not pull
76
+ torch, because the right torch build depends on your CUDA version. To actually run models:
77
+
78
+ ```
79
+ pip install torch --index-url https://download.pytorch.org/whl/cu128 # or your CUDA build
80
+ pip install 'manyhands[hf]'
81
+ ```
82
+
83
+ Model weights download from Hugging Face on first use, into the normal `HF_HOME` cache.
84
+ The five default weight sets are 34 GB together: 16.6, 7.5, 6.1, 2.3 and 1.9. On Windows
85
+ without developer mode the cache keeps two copies of each file, so budget double that.
86
+
87
+ `dots.ocr-1.5` is the exception. churro-ocr fetches it with `snapshot_download(local_dir=...)`
88
+ into `~/.cache/churro-ocr/hf/DotsOCR_1_5/`, so it ignores `HF_HOME` and lands on the system
89
+ drive whatever you set. That was 5.7 GB here.
90
+
91
+ Python 3.12 or newer.
92
+
93
+ ## Usage
94
+
95
+ ```
96
+ manyhands run <folder> transcribe every page and write the reports
97
+ manyhands confirm <page> record the readings you accept
98
+ manyhands eval <dataset-dir> score the flags against ALTO/PAGE-XML ground truth
99
+ ```
100
+
101
+ ### run
102
+
103
+ ```
104
+ manyhands run scans/parish-register
105
+ ```
106
+
107
+ Walks the folder for `.png .jpg .jpeg .tif .tiff .bmp .webp` and PDFs, rasterising PDF
108
+ pages at 300 dpi into `.manyhands/pdf-pages`. Each model is loaded once, run over the whole
109
+ folder, then released, because the default five do not fit in 24 GB together.
110
+
111
+ The two sample pages in this repo, run with the default five:
112
+
113
+ ```
114
+ $ manyhands run tests/data/pages
115
+ allenai/olmOCR-2-7B-1025 · journal-p001.jpg: 11 tokens (119.2s)
116
+ allenai/olmOCR-2-7B-1025 · journal-p002.jpg: 365 tokens (181.1s)
117
+ PaddlePaddle/PaddleOCR-VL-1.5 · journal-p001.jpg: 11 tokens (37.0s)
118
+ PaddlePaddle/PaddleOCR-VL-1.5 · journal-p002.jpg: 288 tokens (810.0s)
119
+ kristaller486/dots.ocr-1.5 · journal-p001.jpg: 0 tokens (63.0s)
120
+ kristaller486/dots.ocr-1.5 · journal-p002.jpg: 0 tokens (36.7s)
121
+ opendatalab/MinerU2.5-2509-1.2B · journal-p001.jpg: 11 tokens (47.2s)
122
+ opendatalab/MinerU2.5-2509-1.2B · journal-p002.jpg: 343 tokens (176.3s)
123
+ nanonets/Nanonets-OCR2-3B · journal-p001.jpg: 11 tokens (47.6s)
124
+ nanonets/Nanonets-OCR2-3B · journal-p002.jpg: 365 tokens (162.2s)
125
+ journal-p001.jpg: 0/11 flagged (0%)
126
+ kristaller486/dots.ocr-1.5: dropped from the vote: returned no text
127
+ journal-p002.jpg: 340/416 flagged (82%)
128
+ kristaller486/dots.ocr-1.5: dropped from the vote: returned no text
129
+
130
+ 2 pages, 340 of 427 slots flagged (79.6%)
131
+ reports: tests\data\pages\manyhands-out\index.html
132
+ ```
133
+
134
+ 82% on page two is not a bug, it is the answer. That page is dense 1914 French cursive, and
135
+ two of the four surviving models cannot read it: against `Samedi 25 Juillet 1914` they return
136
+ `Lamedi` and `Jameedi`, against `bruits` they return `briro` and `bulto`. Page one is a sparse
137
+ title page where the survivors agree on all eleven words, so nothing is highlighted. A high
138
+ flag rate means the ensemble is out of its depth on that hand, which is worth knowing before
139
+ you trust any single one of them on it.
140
+
141
+ Useful options:
142
+
143
+ | option | what it does |
144
+ | --- | --- |
145
+ | `--models N` | use the first N of the five defaults. Fewer models is faster, but flags more and reads worse, measured under eval below |
146
+ | `--backends a,b,c` | pick models by Hugging Face id, by alias, or by cached folder name |
147
+ | `--out DIR` | write reports somewhere other than `<folder>/manyhands-out` |
148
+ | `--page-timeout S` | stop a model after S seconds on one page and keep what it read. Default 600 |
149
+ | `--no-cache` | re-transcribe pages that are already in the cache |
150
+ | `--no-glossary` | ignore confirmed readings for this run |
151
+ | `--json FILE` | write a folder-level summary: slots, flags and the report path per page |
152
+
153
+ Every transcript is cached under `<folder>/.manyhands/transcripts/<model>/` as it lands,
154
+ and a page already in the cache is not read again. A run killed on page 80 of 200 picks up
155
+ at page 80. Re-running after a `confirm` costs no GPU time at all.
156
+
157
+ ### confirm
158
+
159
+ ```
160
+ manyhands confirm scans/parish-register/manyhands-out/journal-p001
161
+ ```
162
+
163
+ Walks the flagged slots one at a time and asks which reading is right. You can type a
164
+ number to accept one of the offered readings, type your own, press Enter to skip, or `q`
165
+ to stop. For scripting, `--slot 42 --reading Fenwick` does one slot without prompting.
166
+
167
+ Decisions go into `.manyhands/glossary.json`, filed under the set of competing readings
168
+ rather than under a page and a slot. Confirming `Fenwick` over `Renwick` once settles every
169
+ later page where the same models produce the same argument.
170
+
171
+ `confirm` writes the glossary and nothing else. Run `manyhands run <folder>` again to rebuild
172
+ the reports with the confirmed readings applied and ticked. That second run reads every
173
+ transcript from the cache, so it costs no GPU time.
174
+
175
+ ### eval
176
+
177
+ ```
178
+ manyhands eval datasets/celestine-doniau-danest/data --per-page
179
+ ```
180
+
181
+ Expects each page image next to an ALTO or PAGE-XML file with the same stem, which is how
182
+ [HTR-United](https://htr-united.github.io/) datasets ship. It answers the only question
183
+ that matters for this tool: if a human reads only the highlighted words, how many of the
184
+ real errors do they see, and how much do they have to read to see them.
185
+
186
+ It takes the same `--models`, `--backends`, `--page-timeout` and `--no-cache` options as
187
+ `run`, plus:
188
+
189
+ | option | what it does |
190
+ | --- | --- |
191
+ | `--per-page` | print a row per page as well as the totals |
192
+ | `--limit N` | score only the first N pages |
193
+ | `--out DIR` | also write the page reports and an index there |
194
+ | `--json FILE` | write the scores as JSON |
195
+ | `--target-capture F` | the capture the `[met]` line is judged against, default 0.70 |
196
+ | `--target-flag F` | the flag rate the `[met]` line is judged against, default 0.20 |
197
+
198
+ Two datasets, both published through HTR-United, both scored with the default five models on
199
+ an RTX 4090. Neither is bundled here; clone
200
+ [dataset-celestine-doniau-danest](https://github.com/HTR-United/dataset-celestine-doniau-danest)
201
+ and [tapuscorpus](https://github.com/HTR-United/tapuscorpus) if you want to reproduce these.
202
+ The model loading and per-page progress lines are cut from the blocks, everything else is what
203
+ the command printed.
204
+
205
+ #### 1914 French cursive, four pages
206
+
207
+ ```
208
+ $ manyhands eval datasets/celestine-doniau-danest/data --per-page
209
+ 10c3fa40-d683-4703-8bc4-94b48936ce85.jpg: capture 88%, flag 91%, CER 15.0%
210
+ 7f841dee-0d18-4eef-9966-f13cc9f4589c.jpg: capture 87%, flag 79%, CER 12.3%
211
+ 9ee628b4-e868-4236-a2bf-cd563acda597.jpg: capture 81%, flag 76%, CER 12.1%
212
+ e1c22fc0-d84b-4d17-96fb-e3269b4d048d.jpg: capture 0%, flag 40%, CER 8.3%
213
+
214
+ page slots flagged flag% capture% CER%
215
+ ----------------------------------------------------------------------------
216
+ 10c3fa40-d683-4703-8bc4-94b48936c 690 627 90.9% 87.8% 15.0%
217
+ 7f841dee-0d18-4eef-9966-f13cc9f45 402 316 78.6% 86.7% 12.3%
218
+ 9ee628b4-e868-4236-a2bf-cd563acda 669 511 76.4% 81.1% 12.1%
219
+ e1c22fc0-d84b-4d17-96fb-e3269b4d0 15 6 40.0% 0.0% 8.3%
220
+
221
+ pages scored 4
222
+ slots 1776
223
+ flagged slots 1460
224
+
225
+ error-capture rate 84.8% (1105 of 1303 wrong characters sit in a flagged word)
226
+ flag rate 82.2% (1460 of 1776 words highlighted for review)
227
+ consensus CER 13.2%
228
+
229
+ target capture >= 70%, flag rate < 20% [not met]
230
+ ```
231
+
232
+ #### 20th-century French typescript, four pages
233
+
234
+ Four pages of Franz Toussaint's *Le Jardin des Caresses* out of tapuscorpus, copied into one
235
+ folder. tapuscorpus is much larger. Four pages is what 80 minutes of GPU time buys.
236
+
237
+ ```
238
+ $ manyhands eval datasets/tapus-jardin --per-page
239
+ 16_7e494_default.jpg: capture 99%, flag 75%, CER 1311.1%
240
+ 18_9f102_default.jpg: capture 61%, flag 22%, CER 12.9%
241
+ 20_21abf_default.jpg: capture 54%, flag 25%, CER 23.2%
242
+ 22_c266f_default.jpg: capture 42%, flag 20%, CER 33.3%
243
+
244
+ page slots flagged flag% capture% CER%
245
+ ----------------------------------------------------------------------------
246
+ 16_7e494_default.jpg 20 15 75.0% 99.1% 1311.1%
247
+ 18_9f102_default.jpg 129 28 21.7% 61.4% 12.9%
248
+ 20_21abf_default.jpg 129 32 24.8% 54.4% 23.2%
249
+ 22_c266f_default.jpg 177 35 19.8% 41.9% 33.3%
250
+
251
+ pages scored 4
252
+ slots 455
253
+ flagged slots 110
254
+
255
+ error-capture rate 79.3% (1243 of 1568 wrong characters sit in a flagged word)
256
+ flag rate 24.2% (110 of 455 words highlighted for review)
257
+ consensus CER 63.9%
258
+
259
+ target capture >= 70%, flag rate < 20% [not met]
260
+ ```
261
+
262
+ #### Read that honestly
263
+
264
+ The bar is catching at least 70% of the wrong characters while highlighting under 20% of the
265
+ words. Neither dataset clears it, and they miss in opposite directions.
266
+
267
+ On the cursive the consensus is wrong about one character in eight, and the models disagree
268
+ about four words in five. Capture is genuinely 85%: re-read only the highlighted words and you
269
+ see five errors in six. But at an 82% flag rate you are re-reading nearly the whole page. On a
270
+ hand this hard manyhands orders your attention, it does not save you the reading. The fourth
271
+ page scoring 0% capture is fifteen words long with six wrong characters in them, which is
272
+ sample size, not signal.
273
+
274
+ The typescript inverts it. Flag rate falls to about a fifth of the words, which is the number
275
+ you want, and capture falls with it. Ignore the title page, discussed next, and the other three
276
+ come to 48.0% capture (292 of 608 wrong characters) at a 21.8% flag rate, over a 24.8% CER.
277
+ Half the errors are in words all five models agreed on, because on clean print the models are
278
+ good enough to make the same mistakes. Agreement is evidence only when the voters are
279
+ independent, and easy material makes them less so.
280
+
281
+ `16_7e494_default.jpg` and its 1311% CER is a ground-truth coverage artefact, not a transcription
282
+ failure. That page is a title page. The ALTO transcribes the seven-line title block and nothing
283
+ else, 72 characters, while the models read the whole page: the margin numbers `85 89 97 164 53`
284
+ and a long decorative rule of dashes. So 1013 consensus characters are scored against 72 of truth
285
+ and almost everything counts as an error. Those 960 characters are 61% of the dataset's error
286
+ total, and since they sit in flagged words they are what lifts the headline capture to 79.3%.
287
+ Quote the per-page rows, not that number.
288
+
289
+ Fewer models is worse on both axes except capture. The same cursive dataset with three backends
290
+ instead of five:
291
+
292
+ ```
293
+ $ manyhands eval datasets/celestine-doniau-danest/data --per-page --backends olmocr,paddle,mineru
294
+ 10c3fa40-d683-4703-8bc4-94b48936ce85.jpg: capture 92%, flag 91%, CER 17.4%
295
+ 7f841dee-0d18-4eef-9966-f13cc9f4589c.jpg: capture 90%, flag 77%, CER 15.6%
296
+ 9ee628b4-e868-4236-a2bf-cd563acda597.jpg: capture 90%, flag 96%, CER 16.0%
297
+ e1c22fc0-d84b-4d17-96fb-e3269b4d048d.jpg: capture 0%, flag 40%, CER 8.3%
298
+
299
+ page slots flagged flag% capture% CER%
300
+ ----------------------------------------------------------------------------
301
+ 10c3fa40-d683-4703-8bc4-94b48936c 684 620 90.6% 92.2% 17.4%
302
+ 7f841dee-0d18-4eef-9966-f13cc9f45 387 299 77.3% 89.9% 15.6%
303
+ 9ee628b4-e868-4236-a2bf-cd563acda 1835 1765 96.2% 90.0% 16.0%
304
+ e1c22fc0-d84b-4d17-96fb-e3269b4d0 15 6 40.0% 0.0% 8.3%
305
+
306
+ pages scored 4
307
+ slots 2921
308
+ flagged slots 2690
309
+
310
+ error-capture rate 90.5% (1465 of 1618 wrong characters sit in a flagged word)
311
+ flag rate 92.1% (2690 of 2921 words highlighted for review)
312
+ consensus CER 16.4%
313
+
314
+ target capture >= 70%, flag rate < 20% [not met]
315
+ ```
316
+
317
+ | backends | capture | flag rate | consensus CER |
318
+ | --- | --- | --- | --- |
319
+ | olmOCR-2, PaddleOCR-VL, MinerU2.5 | 90.5% | 92.1% | 16.4% |
320
+ | the default five | 84.8% | 82.2% | 13.2% |
321
+
322
+ Capture rises because the flags cover nearly everything, which is not a win. The transcript gets
323
+ worse and there is more of the page to re-read. Page `9ee628b4` shows where the extra 1166 slots
324
+ come from: MinerU2.5 returns 1725 tokens for that page against about 600 from every other model,
325
+ and with only three voters that run of repeated text survives into the consensus.
326
+
327
+ So: run it when the material is hard enough that models disagree usefully and your alternative
328
+ is reading every word yourself. On clean print, a single good model plus a spellchecker will
329
+ cost you a lot less.
330
+
331
+ ## How it works
332
+
333
+ **Transcribe.** Each backend returns the page as whatever it likes: markdown with tables,
334
+ HTML-ish layout markup, XML line elements, or a bare block of text. `backends.py` flattens
335
+ all of it to display lines so the aligner sees one grammar.
336
+
337
+ **Align.** `align.py` does anchor-based progressive multiple alignment, ROVER style. Tokens
338
+ whose normalised key occurs exactly once in every stream are certain matches, so they become
339
+ single-token columns and cut the page into independent gaps. Each gap is aligned the same
340
+ way recursively, because a key that was ambiguous over a whole page is usually unique inside
341
+ a twenty-token gap. When a gap has no anchors left it falls back to pairwise alignment
342
+ against the longest stream, which is where null tokens appear.
343
+
344
+ **Vote.** `vote.py` groups each column's readings by normalised key, takes the majority, and
345
+ records the agreement ratio. A tie goes to a reading the glossary already confirms, and
346
+ otherwise to the best-ranked backend holding it. The winner is marked `contested` in
347
+ `agreement.json`.
348
+
349
+ **Locate.** The models return text, not coordinates. `layout.py` finds the line bands itself:
350
+ Otsu threshold, a horizontal ink projection, a dense core per line grown out over its
351
+ ascenders and descenders, and the scanner's dark frame trimmed off first so it does not own
352
+ the profile. A document VLM returns a paragraph per entry rather than a line per line, so the
353
+ page is then treated as a ribbon: bands are handed to consensus lines in proportion to their
354
+ character count, and words are laid along the bands their line covers. The vertical band is
355
+ measured. The position along it is an estimate, which is why the report shows the whole line
356
+ crop with the slot boxed rather than a tight crop.
357
+
358
+ ### Worked example
359
+
360
+ Five models read a line of a parish register. Four return `Fenwick` and one returns
361
+ `Renwick`:
362
+
363
+ | model | reading |
364
+ | --- | --- |
365
+ | olmOCR-2 | Buried this day John **Fenwick** of the parish |
366
+ | PaddleOCR-VL | Buried this day John **Fenwick** of the parish |
367
+ | dots.ocr | Buried this day John **Fenwick** of the parish |
368
+ | MinerU2.5 | Buried this day John **Fenwick** of the parish |
369
+ | Nanonets-OCR2 | Buried this day John **Renwick** of the parish |
370
+
371
+ The consensus is `Fenwick`, agreement 0.8, drawn amber. Clicking it lists all five readings
372
+ next to the crop of that line.
373
+
374
+ Split the vote two ways and it gets more interesting. Two models read `Fenwick`, two read
375
+ `Fenwich`, one reads `Renwick`: agreement drops to 0.4, the word goes red, and the slot is
376
+ marked `"contested": true` because the plurality reading did not win outright.
377
+
378
+ ### Bands
379
+
380
+ | agreement | colour | meaning |
381
+ | --- | --- | --- |
382
+ | 1.0 | none | every model read the same word |
383
+ | above 0.8 | pale | one dissenter in a large ensemble |
384
+ | 0.5 to 0.8 | amber | four of five, or three of four |
385
+ | below 0.5 | red | no reading held a majority |
386
+
387
+ Four models out of five is 0.8 and reads as amber, so the top of the amber band is
388
+ inclusive.
389
+
390
+ ## Configuration
391
+
392
+ Default ensemble, in rank order. Rank breaks a tie the glossary does not.
393
+
394
+ | alias | model | params | weights |
395
+ | --- | --- | --- | --- |
396
+ | `olmocr` | `allenai/olmOCR-2-7B-1025` | 7B | 16.6 GB |
397
+ | `paddle` | `PaddlePaddle/PaddleOCR-VL-1.5` | 0.9B | 1.9 GB |
398
+ | `dots` | `kristaller486/dots.ocr-1.5` | 3B | 6.1 GB |
399
+ | `mineru` | `opendatalab/MinerU2.5-2509-1.2B` | 1.2B | 2.3 GB |
400
+ | `nanonets` | `nanonets/Nanonets-OCR2-3B` | 3B | 7.5 GB |
401
+
402
+ `dots.ocr-1.5` contributed nothing to any page reported here, in two different ways. On the two
403
+ sample pages it returns no text: no error, no timeout, zero tokens after 63s and 37s. On all
404
+ eight eval pages, cursive and typescript alike, it dies with `CUDA out of memory. Tried to
405
+ allocate 27.76 GiB` on a 24 GB card. It asks for the whole page at native resolution, so what
406
+ kills it is scan size rather than the hand. It is still in the default five because it is a
407
+ capable model on smaller images and on a bigger card, and because ten pages from two documents
408
+ is thin evidence for editing a default. If it does this to you, the footer will say so and it
409
+ will stop being tried after the third page. Drop it outright with `--backends` if you would
410
+ rather not pay for those three.
411
+
412
+ Other aliases that resolve to models churro-ocr knows: `olmocr-fp8`, `dots-mocr`, `chandra`,
413
+ `deepseek`, `glm`, `infinity`, `lfm`, `churro`. Any Hugging Face id works too.
414
+
415
+ `stanford-oval/churro-3B` is opt-in and prints a notice when you use it. Its weights are
416
+ under the Qwen-research licence, not a permissive open-source licence, so it is not in the
417
+ default five. Check the terms before you use its output.
418
+
419
+ Diversity comes only from using different models. Four of the five default churro-ocr
420
+ profiles resolve to `do_sample: False` and olmOCR-2 to `temperature: 0.1`, so sampling one
421
+ model five times would return one answer five times. There is deliberately no temperature
422
+ path.
423
+
424
+ ### Performance
425
+
426
+ Measured on an RTX 4090 (24 GB), CUDA 12.8, weights already in the cache. The two sample
427
+ pages with the default five took 28 minutes end to end, 12:16:08 to 12:44:15:
428
+
429
+ | page | five models | what dominates it |
430
+ | --- | --- | --- |
431
+ | `journal-p001.jpg`, a sparse title page, 11 words | 5m 14s | loading five sets of weights |
432
+ | `journal-p002.jpg`, dense cursive, ~400 words | 22m 46s | PaddleOCR-VL alone, 810s of it |
433
+
434
+ The eight eval pages above ran the same five models. Excluding a nearly blank page that took
435
+ 90 seconds, they ranged from 12 to 41 minutes each, median 15.6 minutes.
436
+
437
+ PaddleOCR-VL is usually more than half of that on its own. Over the seven dense eval pages it
438
+ spent 484s, 601s, 618s, 628s, 632s, 668s and 869s, against 42s to 418s for olmOCR-2 on the same
439
+ pages. Dropping it with `--backends` roughly halves the wall clock and costs you one vote.
440
+
441
+ manyhands runs one model over the whole folder, frees its weights, then loads the next, because
442
+ five 3B to 7B models do not fit in 24 GB at once. So a two-page folder pays for five weight
443
+ loads and a two-hundred-page folder also pays for five. Small folders carry a load tax that
444
+ large ones amortise away, which is why the sparse title page above cost five minutes.
445
+
446
+ Budget this for a folder overnight, not for someone waiting at a terminal. Transcripts are
447
+ cached under `.manyhands/transcripts`, so re-running to rebuild the reports after `confirm`
448
+ costs no GPU time. None of these numbers include the 34 GB of first-use weight downloads
449
+ described under Install.
450
+
451
+ ## When a model misbehaves
452
+
453
+ The failure modes are not hypothetical, so each one has a defined behaviour.
454
+
455
+ **A model crashes or will not download.** That page records the failure, the rest of the
456
+ ensemble votes without it, and the report footer says which model dropped out and why. A model
457
+ that fails to load is not retried on later pages, and neither is one that fails three pages in
458
+ a row. Running out of VRAM on an archive scan can cost ten minutes before it raises, so a
459
+ backend that cannot handle your pages is not allowed to charge you for every one of them.
460
+
461
+ **A model loops.** Document VLMs fail by latching onto a phrase and emitting it until they
462
+ run out of tokens. A transcript more than half covered by an immediately repeated n-gram is
463
+ dropped from the vote and named in the footer.
464
+
465
+ **A model runs long.** After `--page-timeout` seconds of generation the model is stopped and
466
+ whatever it produced is kept, with a note on the transcript. Default 600 seconds. Not every
467
+ backend honours it. The deadline goes in as a transformers stopping criterion, and some churro
468
+ profiles reach `generate` by a path that never consults one, so the footer says which of the
469
+ two happened rather than claiming a stop that never came.
470
+
471
+ **A model reads a different page.** A transcript over 3x the page's median token count, or
472
+ under a third of it, is dropped from the vote. Overshooting means it invented most of what it
473
+ returned, undershooting means it stopped partway down the page, and either way the rest of its
474
+ "reading" is silence rather than disagreement.
475
+
476
+ **A model reads nothing.** A backend that returns no text at all, on a page the others read
477
+ fine, is dropped exactly like one that crashed. Counting its silence as a dissenting vote
478
+ would flag every word on the page. `dots.ocr-1.5` does this on both sample pages.
479
+
480
+ **Too few models left.** Below three usable voters the outlier rules are suspended, everyone
481
+ is kept, and the notes say so. Dropping a model when only two are left is not a vote.
482
+
483
+ **A blank page.** If every model reads the page as empty, the consensus is empty and the page
484
+ is flagged `blank`. It does not emit whatever one model hallucinated.
485
+
486
+ **Every model failed.** `manyhands run` exits 3 rather than reporting a clean page with zero
487
+ flags.
488
+
489
+ **One model listed twice.** `--backends olmocr,allenai/olmOCR-2-7B-1025` names one model two
490
+ ways. It votes once, and the run says so on stderr. A model cannot corroborate itself, and
491
+ counting it twice would report a lone reading as agreed.
492
+
493
+ ## Limitations
494
+
495
+ - **Agreement is agreement, not accuracy.** Models that share a base model can be confidently
496
+ wrong together. An unflagged word is one nobody disagreed about, which is not the same as a
497
+ word that is right. The eval numbers above are the honest measure of this.
498
+ - **Case and edge punctuation are not disagreements.** One model reading `JOURNAL` and
499
+ another `Journal,` are grouped as the same word, because otherwise a page the models agree
500
+ on perfectly lights up red. Letters and diacritics are never folded, since those are exactly
501
+ the differences a palaeographer needs to see. Long s, ligatures and typographic quotes are
502
+ folded.
503
+ - **Bounding boxes are estimates.** The line band is measured from the ink. Which band a word
504
+ lands on, and where along it, is proportional to character counts, so a model that dropped
505
+ half a page drags its neighbours' boxes with it. Treat the box as a pointer at the line, not
506
+ a measurement of the word.
507
+ - **Multi-column and table pages** are aligned per detected line block. v1 does not reconstruct
508
+ a cross-column reading order, so a two-column page produces bands spanning both columns and
509
+ the alignment will fight the reading order.
510
+ - **No training, no cloud, no GUI.** By design. See the non-goals below.
511
+
512
+ ## Prior art
513
+
514
+ Cross-model confidence voting in OCR is not new. [Calamari-OCR](https://github.com/Calamari-OCR/calamari)
515
+ has shipped voting across an ensemble of models for years, and it is the reference
516
+ implementation for this idea in the HTR world. If you have segmented line images and can
517
+ train your own models, use Calamari.
518
+
519
+ manyhands differs in three ways.
520
+
521
+ It votes across heterogeneous third-party document VLMs with different output grammars,
522
+ rather than across a cross-fold ensemble of one architecture you trained yourself. Getting
523
+ five different models' markdown, XML and layout markup into one comparable token stream is
524
+ most of the work.
525
+
526
+ It works on whole page scans with no ground truth and no line segmentation, rather than on
527
+ pre-segmented line images.
528
+
529
+ Most of all, it spends the disagreement on the human rather than on the transcript. Calamari
530
+ uses the vote to produce one better line. manyhands shows you the vote, per word, next to
531
+ the image, because on historical material the value of knowing a word is uncertain is higher
532
+ than the value of a marginally better guess at it.
533
+
534
+ ## If you run it on your own material
535
+
536
+ The eval numbers above come from eight pages: four of one 1914 French diary and four of one
537
+ 20th-century French typescript. Two hands is not a corpus. Whether an ensemble catches errors
538
+ on your hand is an empirical question, and the answer changes with the script, the century and
539
+ the language. If you have an HTR-United dataset, or any folder of pages with ALTO or PAGE-XML
540
+ beside them, `manyhands eval` on it is one command.
541
+ Open an issue with the error-capture and flag rates you got, the hand, and the backends you
542
+ used. Numbers from other people's material are the most useful thing this project can
543
+ receive right now, and the ones that hold up go in this README.
544
+
545
+ ## Status
546
+
547
+ 1.0.0, and the trove classifier still says Beta, which is the honest pair. Everything documented
548
+ here runs and is covered by tests. What is thin is the evidence: eight scored pages from two
549
+ documents, one hand each, on one GPU. Nothing here has met a hand it was not developed against.
550
+
551
+ Distribution plan, such as it is. PyPI first, because every other step needs an install command
552
+ that works. Then one write-up in r/LocalLLaMA led with the numbers above, the 48.0% capture on
553
+ typescript included, since a post that only quotes 79.3% would be the exact overclaim this tool
554
+ exists to argue against.
555
+
556
+ ## Non-goals
557
+
558
+ No model training or fine-tuning. No cloud or API backends. No layout editor. No translation.
559
+ No GUI app. No hosted service. No model weights shipped in this package.
560
+
561
+ ## Development
562
+
563
+ ```
564
+ git clone https://github.com/Booyaka101/manyhands
565
+ cd manyhands
566
+ python -m venv .venv && .venv/Scripts/activate # or source .venv/bin/activate
567
+ pip install -e '.[dev]'
568
+ pytest
569
+ ruff check .
570
+ ```
571
+
572
+ `backends.py` carries one upstream workaround. Four of churro-ocr 0.3.0's preset backends,
573
+ two of them in the default five, combine `@dataclass(slots=True)` with a zero-argument
574
+ `super()`, which raises `TypeError` before any weights load. `repair_preset_super()` patches
575
+ the stale `__class__` cell at load time. It only matters on Python 3.12: 3.13 repoints the cell
576
+ itself when the slotted dataclass is rebuilt, so on 3.13 the function finds nothing to do and
577
+ the presets work unpatched. The draft issue is in
578
+ [docs/churro-issue.md](https://github.com/Booyaka101/manyhands/blob/main/docs/churro-issue.md),
579
+ and the workaround comes out when a churro-ocr release carries the fix.
580
+
581
+ The test suite runs without a GPU and without torch, on Linux and Windows, on 3.12 and 3.13.
582
+ `.github/workflows/ci.yml` runs ruff and pytest over that matrix. The integration tests drive the whole
583
+ pipeline from committed transcript fixtures under `tests/data/pages/.manyhands/transcripts/`,
584
+ which are real output from three of the default models, frozen. Those fixtures are test-only;
585
+ nothing in the shipped package reads them.
586
+
587
+ ## Licence
588
+
589
+ MIT. See [LICENSE](LICENSE).
590
+
591
+ The two sample pages under `tests/data/pages/` come from the
592
+ [Célestine Doniau-Danest journal](https://github.com/HTR-United/dataset-celestine-doniau-danest)
593
+ dataset, CC-BY-4.0. The eval numbers above also use
594
+ [tapuscorpus](https://github.com/HTR-United/tapuscorpus), CC-BY-4.0, which is not bundled here.
595
+ Both are published through HTR-United. Model weights are downloaded from Hugging Face and carry
596
+ their own licences.
