+# LLGS Simulation
+
+[![Tests](https://github.com/ianchung621/LLGS-simulation/actions/workflows/test.yml/badge.svg)](https://github.com/ianchung621/LLGS-simulation/actions/workflows/test.yml)
+[![Coverage](https://codecov.io/gh/ianchung621/LLGS-simulation/branch/main/graph/badge.svg)](https://codecov.io/gh/ianchung621/LLGS-simulation)
+![Python](https://img.shields.io/badge/python-3.9--3.13-blue)
+![OS](https://img.shields.io/badge/OS-Linux%20%7C%20macOS%20%7C%20Windows-lightgrey)
+
+This package provides tools for simulating and analyzing spin dynamics using
+the Landau-Lifshitz-Gilbert-Slonczewski (LLGS) equation on two-dimensional
+lattices. It supports antiferromagnetic exchange, DMI, anisotropy, external
+fields, and spin-orbit torque.
+
+## Install
+
+LLGS Simulation requires Python 3.9 or newer:
+
+```bash
+python -m venv .venv
+source .venv/bin/activate
+python -m pip install llgs-simulation
+```
+
+## Example Usage
+
+Below is a step-by-step demonstration of how to use the repository to simulate spin dynamics and visualize the results.
+

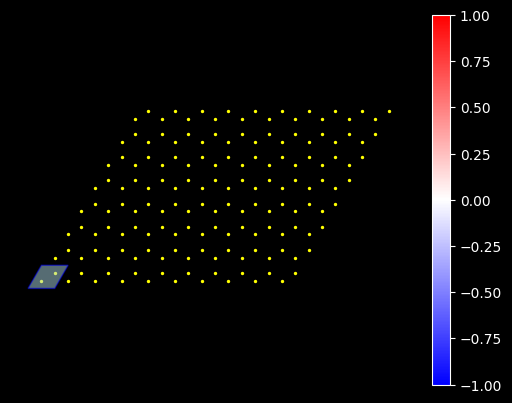

+### 1. Creating a Lattice Object
+
+The `lattice.py` module allows you to define a spin lattice. Here's an example of creating a hexagonal lattice:
+
+```python
+import numpy as np
+
+from llgs import Lattice_2D
+
+honeycomb = Lattice_2D(
+    n_a=10,
+    n_b=8,
+    n_site=2,
+    r_a=[np.sqrt(3), 0],
+    r_b=[0.5 * np.sqrt(3), 1.5],
+    r_site=[
+        [1 / 3, 1 / 3],
+        [2 / 3, 2 / 3],
+    ],
+)
+honeycomb.plot(draw_unitcell=True)
+```
+
+![Honeycomb lattice](https://raw.githubusercontent.com/ianchung621/LLGS-simulation/main/doc/lattice.png)
+

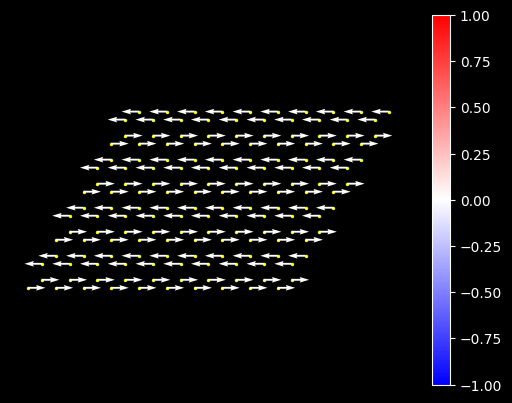

+### 2. Initializing Spins
+
+Initialize the spins on the lattice to a desired configuration:
+
+```python
+zigzag_config = {
+    "b % 2 == 0": np.array([1, 0, 0]),
+    "b % 2 == 1": np.array([-1, 0, 0]),
+}
+honeycomb.initialize_spin(zigzag_config)
+honeycomb.plot()
+```
+
+![Initialized spins](https://raw.githubusercontent.com/ianchung621/LLGS-simulation/main/doc/spin_initialized.png)
+
+### 3. Setting Up Parameters for Simulation
+
+Build the exchange matrix from exact lattice bonds, then configure the
+simulation. Each bond is `(source_site, target_site, cell_offset, coupling)`;
+the reverse bond is added automatically.
+
+```python
+from llgs import LLGS_Simulation_2D, build_exchange
+
+J1 = -11.2  # exchange-matrix coefficient, Tesla
+exchange_bonds = [
+    (0, 1, (0, 0), J1),
+    (1, 0, (0, 1), J1),
+    (1, 0, (1, 0), J1),
+]
+H_E = build_exchange(honeycomb, exchange_bonds)
+H_ext = np.array([5.0, 5.0, 0.0])
+
+sim = LLGS_Simulation_2D(
+    honeycomb,
+    H_E=H_E,
+    H_ext=H_ext,
+    alpha=0.1,
+    H_para=0.086,
+    H_perp=1.812,
+    io_foldername="Data",
+    io_filename="results_RK4",
+    method="RK4",
+)
+```
+
+`H_E` may be a dense `(N, N)` array or a SciPy sparse matrix. For sparse DMI,
+pass `H_DMI` as a sequence of three sparse `(N, N)` matrices, one for each
+Cartesian component. Dense DMI remains a `(3, N, N)` array. Use
+`matrix_type="sparse"` to convert both fields to CSR matrices,
+`matrix_type="dense"` to convert them to NumPy arrays, or the default
+`matrix_type="auto"` to preserve the supplied representation.
+
+### 4. Running the Simulation
+
+Run the simulation for a specified number of steps and save the results:
+
+```python
+sim.evolve(dt=2e-4, max_iters=1000)
+```
+
+### 5. Visualizing Spin Dynamics
+
+The `read_result.py` module reads the simulation results and creates visualizations. Here is how you can animate the spin dynamics:
+
+```python
+from llgs import ReadResult
+
+results = ReadResult("Data/results_RK4.h5")
+
+results.animate(period=50, save_fn="Data/movie.gif")
+```
+

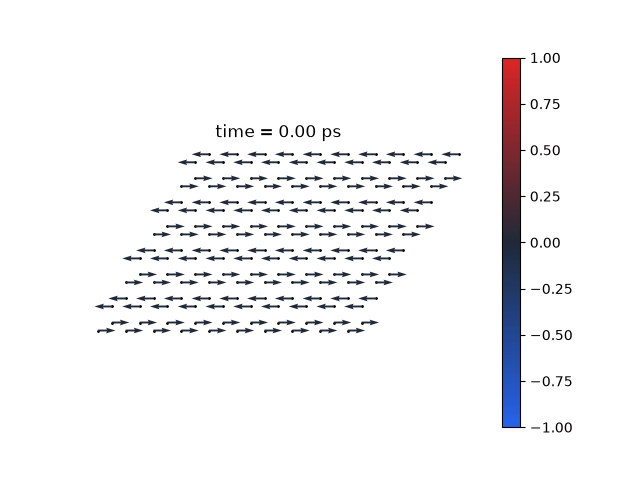

+### Example Output
+
+Here is an example of how the animation might look:
+
+![Spin dynamics animation](https://raw.githubusercontent.com/ianchung621/LLGS-simulation/main/doc/spin_animation.gif)
+
+### Additional Details
+
+For a comprehensive explanation of the methods, equations, and parameters,
+see the [example notebook](https://github.com/ianchung621/LLGS-simulation/blob/main/example.ipynb).
+
+This notebook includes:
+- Detailed descriptions of lattice construction.
+- Explanation of the exchange field matrix and LLGS simulation.
+- Mathematical derivations and parameter setups.
