+# labelimage-tools
+
+`labelimage-tools` is a small utility package for 2-D labeled tissue
+segmentation images. It provides loading, validation, preprocessing, adjacency
+and contact extraction, junction detection, graph coloring, contours, and
+matplotlib plotting helpers.
+
+## Conventions
+
+- Label images are 2-D NumPy arrays.
+- Image coordinates are represented as `(y, x)`.
+- The default background label is `0`.
+- Labels do not need to be consecutive.
+- Integer label values are preserved unless a function explicitly documents a
+  relabeling operation.
+
+## Installation
+
+### Light install
+
+```bash
+pip install labelimage-tools
+```
+
+The light install supports array-based preprocessing, adjacency/contact graph
+calculation, and native NPZ/JSON graph I/O.
+
+### TIFF image I/O
+
+For label-image I/O, installing the `tiff` extra is recommended because most
+scientific label images are TIFF files:
+
+```bash
+pip install "labelimage-tools[tiff]"
+```
+
+This installs `tifffile`, the recommended backend for scientific TIFF label
+images.
+
+### Recommended scientific-image install
+
+For most scientific label-image workflows, install TIFF support plus accelerated
+junction scanning:
+
+```bash
+pip install "labelimage-tools[recommended]"
+```
+
+### Other optional features
+
+```bash
+pip install "labelimage-tools[pillow]"          # PNG/JPEG/general image I/O
+pip install "labelimage-tools[plot]"            # plotting, contours, graph coloring
+pip install "labelimage-tools[graph-standard]"  # GraphML/GEXF graph I/O
+pip install "labelimage-tools[junctions-accelerated]"  # numba-accelerated junction scanning
+pip install "labelimage-tools[all]"             # everything
+```
+
+| Feature | Install |
+|---|---|
+| Core array processing, adjacency, NPZ/JSON graph I/O | `labelimage-tools` |
+| TIFF image I/O | `labelimage-tools[tiff]` |
+| TIFF image I/O + accelerated junction scanning | `labelimage-tools[recommended]` |
+| PNG/JPEG/general image I/O | `labelimage-tools[pillow]` |
+| Plotting, contours, graph coloring | `labelimage-tools[plot]` |
+| GraphML/GEXF graph I/O | `labelimage-tools[graph-standard]` |
+| Everything | `labelimage-tools[all]` |
+
+From a source checkout:
+
+```bash
+python -m pip install -e .
+```
+
+For tests:
+
+```bash
+python -m pip install -e '.[test]'
+python -m pytest
+```
+
+## Load and preprocess labels
+
+Use these helpers directly from scripts or notebooks. The intended starting
+point is `load_image_pipeline(...)`: with its defaults, it crops foreground,
+removes disconnected bits of repeated labels, and fills internal gaps. This
+prepares the image so labels are clean, self-connected, unique regions that are
+ready for adjacency, contour, and junction operations, with neighboring labels
+touching across filled internal gaps rather than being separated by stray
+background holes.
+
+```python
+import labelimage_tools as lit
+
+labels = lit.load_image_pipeline("segmentation.tif")
+```
+
+## Adjacency and contact graph
+
+Adjacency is computed by vectorized neighbor scanning. Contact values are
+neighboring pixel-pair counts, useful as weights but not exact geometric
+lengths. Original label IDs are preserved as graph node IDs.
+
+```python
+neighbors, contacts, centroids, pixel_counts = lit.graph_from_labels(labels)
+
+lit.save_label_graph(
+    "label_graph.npz",
+    neighbors,
+    contacts=contacts,
+    centroids=centroids,
+    pixel_counts=pixel_counts,
+    source_image="segmentation.tif",
+)
+
+neighbors, contacts, centroids, pixel_counts, metadata = lit.load_label_graph(
+    "label_graph.npz"
+)
+
+# JSON is a readable alternative for smaller graphs or inspection.
+lit.save_label_graph("label_graph.json", neighbors, contacts=contacts)
+```
+
+## Junction detection
+
+Junction pixels are pixels whose 3×3 neighborhood contains at least three
+distinct labels. Connected junction pixels are clustered into `Junction`
+objects with subpixel `(y, x)` centroids and the set of labels that meet there.
+
+```python
+junction_label_image, junctions = lit.junctions_from_labels(
+    labels,
+    background=None,
+    min_labels=3,
+    connectivity=2,
+)
+
+for junction in junctions:
+    print(junction.id, junction.yx, sorted(junction.labels))
+```
+
+## Graph-colored plotting
+
+Plotting helpers return matplotlib objects and never call `plt.show()`, so they
+compose cleanly in notebooks.
+
+```python
+fig, ax = lit.plot_label_image(
+    labels,
+    use_graph_coloring=True,
+    K=8,
+    seed=1,
+    title="Graph-colored labels",
+)
+
+fig, ax = lit.plot_junctions(labels, junctions=junctions, ax=ax)
+```
+
+You can also use the lower-level coloring helper:
+
+```python
+image, lut, ax = lit.show_map_with_colors(labels, K=8, seed=1)
+```
+
+## Examples and cookbook
+
+The `examples/` directory contains script-style examples. Edit the constants at
+the top of each script, run it, or copy sections into a notebook.
+
+```bash
+python examples/01_graph_coloring.py
+python examples/02_preprocessing_gallery.py
+python examples/03_junctions_and_contours.py
+python examples/04_graph_io.py
+```
+
+The cookbook walks through the same workflows and embeds the generated images
+in the GitHub/local documentation.
+
+- Examples: <https://github.com/zen-laboratory/labelimage-tools/tree/main/examples>
+- Cookbook: <https://github.com/zen-laboratory/labelimage-tools/blob/main/docs/cookbook.md>
+- Generated example plots: <https://github.com/zen-laboratory/labelimage-tools/tree/main/examples/plots>
+
+### Essential processing outputs
+
+The GitHub README and cookbook show rendered images for the graph-colored label
+image, detected junctions, and ordered contours. For PyPI/TestPyPI, those local
+relative image embeds are replaced with repository links so the long
+description renders safely.
+

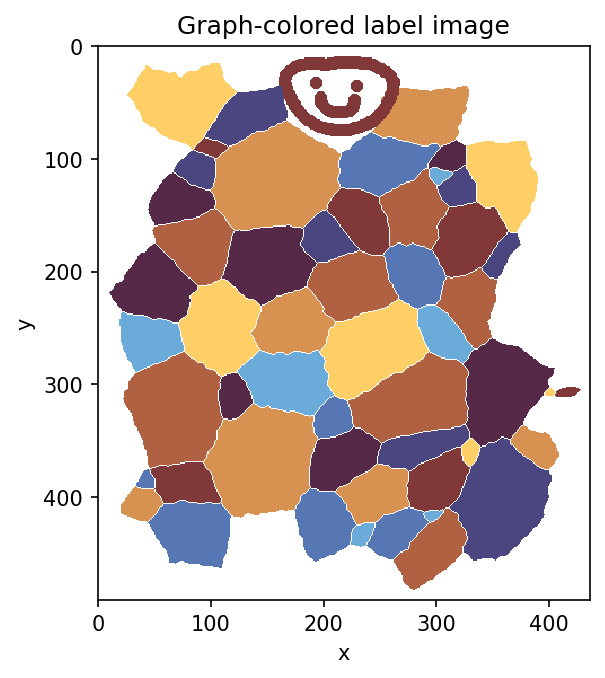

+Graph-colored label image using the cyclic `managua` colormap:
+
+```python
+labels = lit.load_image_pipeline("samples/test_cells2D.tif")
+
+fig, ax = lit.plot_label_image(
+    labels,
+    use_graph_coloring=True,
+    K=8,
+    seed=4,
+    cmap="managua",
+    cyclic_cmap=True,
+    title="Graph-colored label image",
+)
+```
+
+![Graph-colored labels](https://raw.githubusercontent.com/zen-laboratory/labelimage-tools/main/examples/plots/graph_colored_managua.png)
+

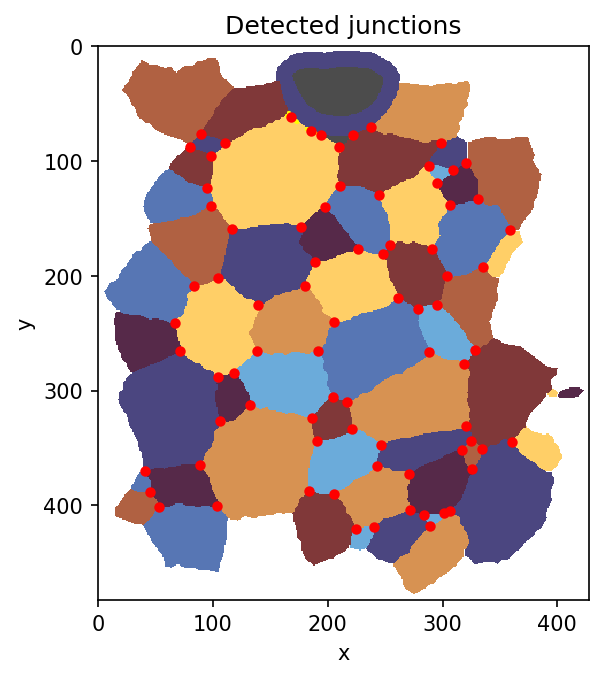

+Detected junctions:
+
+```python
+labels = lit.load_image_pipeline("samples/test_cells2D.tif")
+junction_label_image, junctions = lit.junctions_from_labels(
+    labels,
+    background=0,
+    min_labels=3,
+    connectivity=2,
+)
+fig, ax = lit.plot_label_image(labels, cmap="managua", cyclic_cmap=True)
+lit.plot_junctions(junctions=junctions, junction_mask=junction_label_image > 0, ax=ax)
+```
+
+![Detected junctions](https://raw.githubusercontent.com/zen-laboratory/labelimage-tools/main/examples/plots/junctions.png)
+

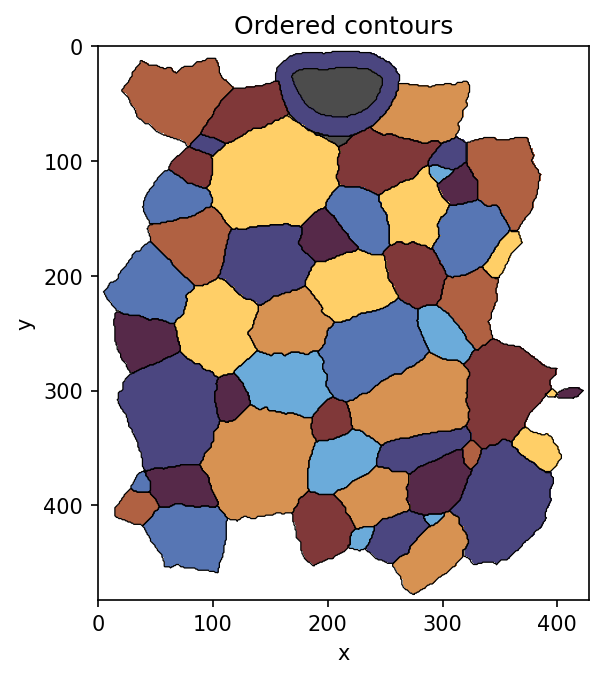

+Ordered contours:
+
+```python
+labels = lit.load_image_pipeline("samples/test_cells2D.tif")
+contours = lit.ordered_contours_from_labels(labels, background=0)
+fig, ax = lit.plot_label_image(labels, cmap="managua", cyclic_cmap=True)
+lit.plot_contours(labels, ax=ax, background=0, color="black", linewidth=0.6)
+```
+
+![Contours](https://raw.githubusercontent.com/zen-laboratory/labelimage-tools/main/examples/plots/contours.png)

labelimage_tools-0.1.3/README-pypi.md

@@ -0,0 +1,234 @@
+# labelimage-tools
+
+`labelimage-tools` is a small utility package for 2-D labeled tissue
+segmentation images. It provides loading, validation, preprocessing, adjacency
+and contact extraction, junction detection, graph coloring, contours, and
+matplotlib plotting helpers.
+
+## Conventions
+
+- Label images are 2-D NumPy arrays.
+- Image coordinates are represented as `(y, x)`.
+- The default background label is `0`.
+- Labels do not need to be consecutive.
+- Integer label values are preserved unless a function explicitly documents a
+  relabeling operation.
+
+## Installation
+
+### Light install
+
+```bash
+pip install labelimage-tools
+```
+
+The light install supports array-based preprocessing, adjacency/contact graph
+calculation, and native NPZ/JSON graph I/O.
+
+### TIFF image I/O
+
+For label-image I/O, installing the `tiff` extra is recommended because most
+scientific label images are TIFF files:
+
+```bash
+pip install "labelimage-tools[tiff]"
+```
+
+This installs `tifffile`, the recommended backend for scientific TIFF label
+images.
+
+### Recommended scientific-image install
+
+For most scientific label-image workflows, install TIFF support plus accelerated
+junction scanning:
+
+```bash
+pip install "labelimage-tools[recommended]"
+```
+
+### Other optional features
+
+```bash
+pip install "labelimage-tools[pillow]"          # PNG/JPEG/general image I/O
+pip install "labelimage-tools[plot]"            # plotting, contours, graph coloring
+pip install "labelimage-tools[graph-standard]"  # GraphML/GEXF graph I/O
+pip install "labelimage-tools[junctions-accelerated]"  # numba-accelerated junction scanning
+pip install "labelimage-tools[all]"             # everything
+```
+
+| Feature | Install |
+|---|---|
+| Core array processing, adjacency, NPZ/JSON graph I/O | `labelimage-tools` |
+| TIFF image I/O | `labelimage-tools[tiff]` |
+| TIFF image I/O + accelerated junction scanning | `labelimage-tools[recommended]` |
+| PNG/JPEG/general image I/O | `labelimage-tools[pillow]` |
+| Plotting, contours, graph coloring | `labelimage-tools[plot]` |
+| GraphML/GEXF graph I/O | `labelimage-tools[graph-standard]` |
+| Everything | `labelimage-tools[all]` |
+
+From a source checkout:
+
+```bash
+python -m pip install -e .
+```
+
+For tests:
+
+```bash
+python -m pip install -e '.[test]'
+python -m pytest
+```
+
+## Load and preprocess labels
+
+Use these helpers directly from scripts or notebooks. The intended starting
+point is `load_image_pipeline(...)`: with its defaults, it crops foreground,
+removes disconnected bits of repeated labels, and fills internal gaps. This
+prepares the image so labels are clean, self-connected, unique regions that are
+ready for adjacency, contour, and junction operations, with neighboring labels
+touching across filled internal gaps rather than being separated by stray
+background holes.
+
+```python
+import labelimage_tools as lit
+
+labels = lit.load_image_pipeline("segmentation.tif")
+```
+
+## Adjacency and contact graph
+
+Adjacency is computed by vectorized neighbor scanning. Contact values are
+neighboring pixel-pair counts, useful as weights but not exact geometric
+lengths. Original label IDs are preserved as graph node IDs.
+
+```python
+neighbors, contacts, centroids, pixel_counts = lit.graph_from_labels(labels)
+
+lit.save_label_graph(
+    "label_graph.npz",
+    neighbors,
+    contacts=contacts,
+    centroids=centroids,
+    pixel_counts=pixel_counts,
+    source_image="segmentation.tif",
+)
+
+neighbors, contacts, centroids, pixel_counts, metadata = lit.load_label_graph(
+    "label_graph.npz"
+)
+
+# JSON is a readable alternative for smaller graphs or inspection.
+lit.save_label_graph("label_graph.json", neighbors, contacts=contacts)
+```
+
+## Junction detection
+
+Junction pixels are pixels whose 3×3 neighborhood contains at least three
+distinct labels. Connected junction pixels are clustered into `Junction`
+objects with subpixel `(y, x)` centroids and the set of labels that meet there.
+
+```python
+junction_label_image, junctions = lit.junctions_from_labels(
+    labels,
+    background=None,
+    min_labels=3,
+    connectivity=2,
+)
+
+for junction in junctions:
+    print(junction.id, junction.yx, sorted(junction.labels))
+```
+
+## Graph-colored plotting
+
+Plotting helpers return matplotlib objects and never call `plt.show()`, so they
+compose cleanly in notebooks.
+
+```python
+fig, ax = lit.plot_label_image(
+    labels,
+    use_graph_coloring=True,
+    K=8,
+    seed=1,
+    title="Graph-colored labels",
+)
+
+fig, ax = lit.plot_junctions(labels, junctions=junctions, ax=ax)
+```
+
+You can also use the lower-level coloring helper:
+
+```python
+image, lut, ax = lit.show_map_with_colors(labels, K=8, seed=1)
+```
+
+## Examples and cookbook
+
+The `examples/` directory contains script-style examples. Edit the constants at
+the top of each script, run it, or copy sections into a notebook.
+
+```bash
+python examples/01_graph_coloring.py
+python examples/02_preprocessing_gallery.py
+python examples/03_junctions_and_contours.py
+python examples/04_graph_io.py
+```
+
+The cookbook walks through the same workflows and embeds the generated images
+in the GitHub/local documentation.
+
+- Examples: <https://github.com/zen-laboratory/labelimage-tools/tree/main/examples>
+- Cookbook: <https://github.com/zen-laboratory/labelimage-tools/blob/main/docs/cookbook.md>
+- Generated example plots: <https://github.com/zen-laboratory/labelimage-tools/tree/main/examples/plots>
+
+### Essential processing outputs
+
+The GitHub README and cookbook show rendered images for the graph-colored label
+image, detected junctions, and ordered contours. For PyPI/TestPyPI, those local
+relative image embeds are replaced with repository links so the long
+description renders safely.
+
+Graph-colored label image using the cyclic `managua` colormap:
+
+```python
+labels = lit.load_image_pipeline("samples/test_cells2D.tif")
+
+fig, ax = lit.plot_label_image(
+    labels,
+    use_graph_coloring=True,
+    K=8,
+    seed=4,
+    cmap="managua",
+    cyclic_cmap=True,
+    title="Graph-colored label image",
+)
+```
+
+![Graph-colored labels](https://raw.githubusercontent.com/zen-laboratory/labelimage-tools/main/examples/plots/graph_colored_managua.png)
+
+Detected junctions:
+
+```python
+labels = lit.load_image_pipeline("samples/test_cells2D.tif")
+junction_label_image, junctions = lit.junctions_from_labels(
+    labels,
+    background=0,
+    min_labels=3,
+    connectivity=2,
+)
+fig, ax = lit.plot_label_image(labels, cmap="managua", cyclic_cmap=True)
+lit.plot_junctions(junctions=junctions, junction_mask=junction_label_image > 0, ax=ax)
+```
+
+![Detected junctions](https://raw.githubusercontent.com/zen-laboratory/labelimage-tools/main/examples/plots/junctions.png)
+
+Ordered contours:
+
+```python
+labels = lit.load_image_pipeline("samples/test_cells2D.tif")
+contours = lit.ordered_contours_from_labels(labels, background=0)
+fig, ax = lit.plot_label_image(labels, cmap="managua", cyclic_cmap=True)
+lit.plot_contours(labels, ax=ax, background=0, color="black", linewidth=0.6)
+```
+
+![Contours](https://raw.githubusercontent.com/zen-laboratory/labelimage-tools/main/examples/plots/contours.png)
