+# HumanCalib
+
+**Extrinsic calibration of a multi-camera rig from a person walking through it.**
+No checkerboard, no wand: HumanCalib estimates the pose of every camera from the
+human pose seen by all of them, then gives the rig a metric scale and a vertical
+axis from the subject's height. The output is a
+[Pose2Sim](https://github.com/perfanalytics/pose2sim)-format calibration, ready
+for markerless motion capture.
+

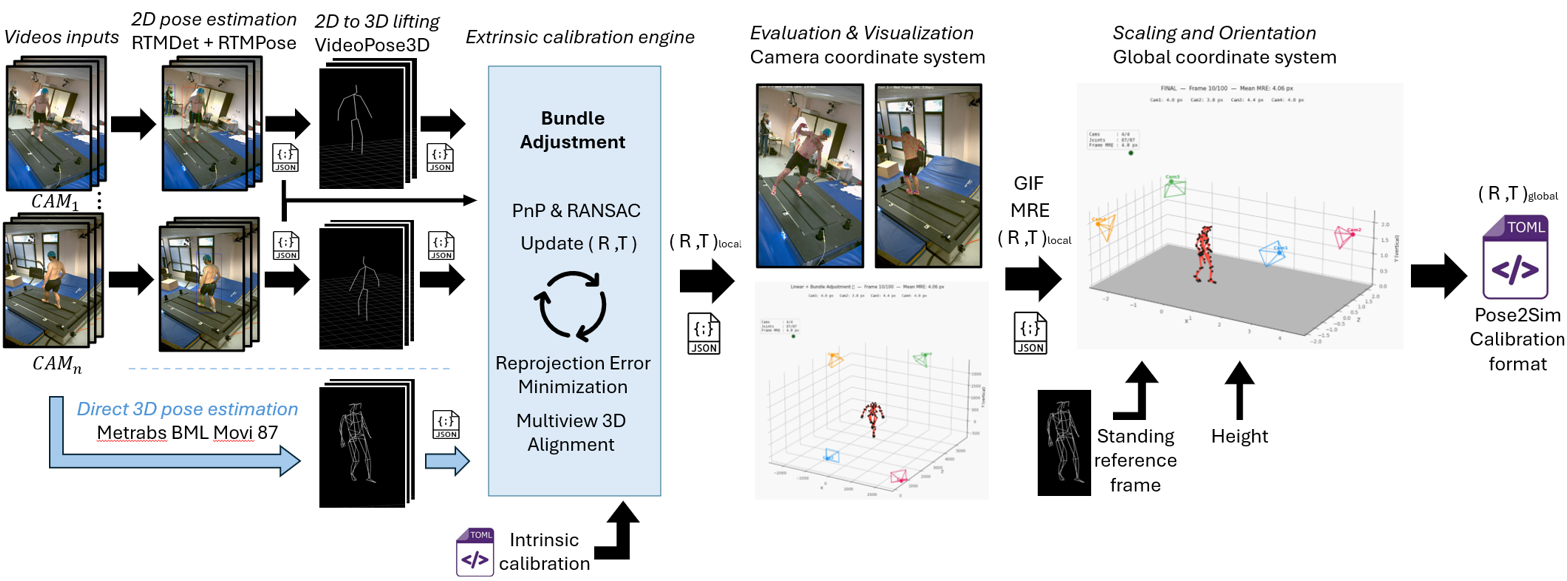

+![Overview](https://raw.githubusercontent.com/flodelaplace/HumanCalib/main/img/graphical_abstract.png)
+
+## How it works
+
+1. **Pose estimation** in every view with [MeTRAbs](https://github.com/isarandi/metrabs),
+   which predicts a metric 3D skeleton per camera.
+2. **Person selection**: the walking subject is kept in every camera, bystanders
+   are discarded.
+3. **Linear initialisation** by aligning the per-camera 3D skeletons (Procrustes).
+4. **Bundle adjustment** of all cameras on the 2D keypoints.
+5. **Metric scale and vertical** from the subject's height and walk.
+
+Details, design choices and what was measured to justify them:
+[docs/METHOD.md](https://github.com/flodelaplace/HumanCalib/blob/main/docs/METHOD.md).
+

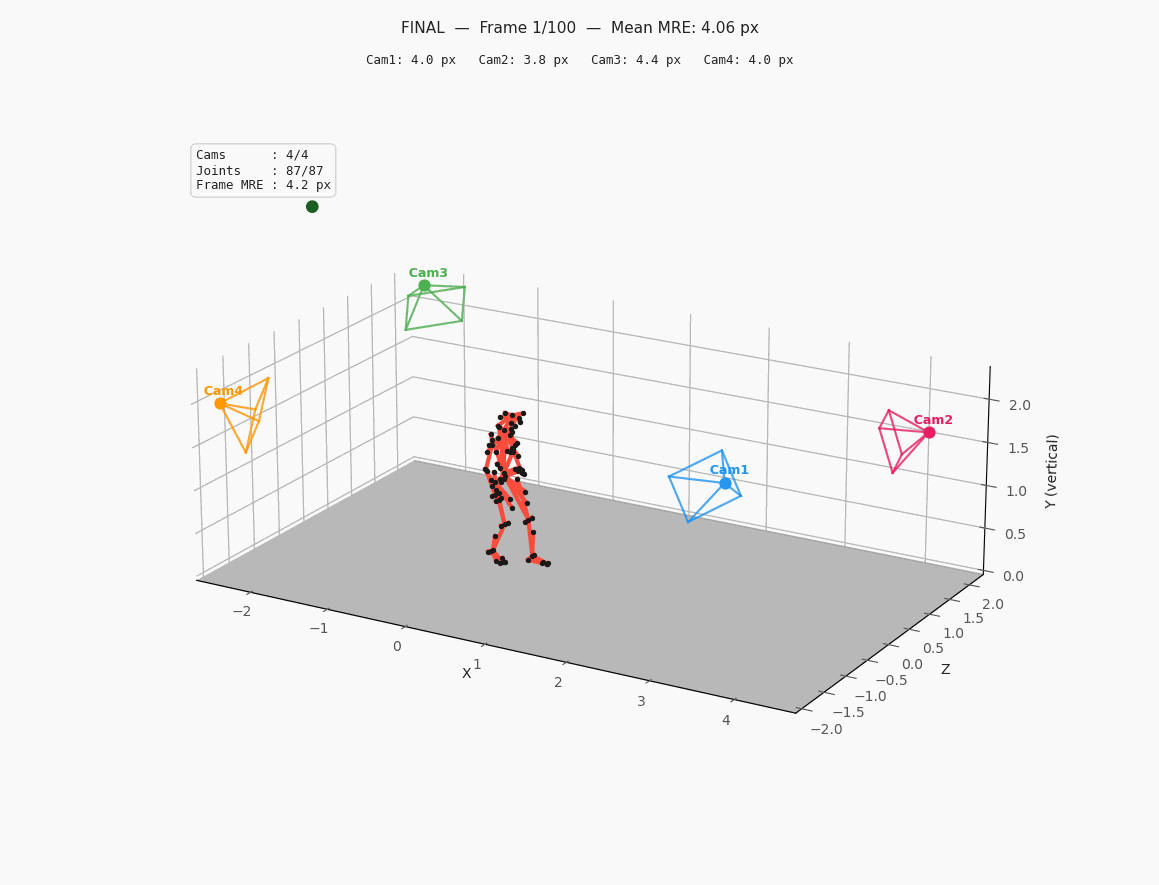

+![3D result](https://raw.githubusercontent.com/flodelaplace/HumanCalib/main/img/visu_3d_FINAL.gif)
+
+## Validation
+
+Five public datasets, 77 trials, default settings. The three reported here each
+provide a laboratory-grade reference calibration and enough trials to summarise.
+
+**Camera geometry.** Relative rotation between camera pairs, against the
+dataset's own calibration, and reprojection error of our own reconstruction,
+which needs no reference. Median over trials [min–max]:
+
+| Dataset | Cameras | Trials | Relative rotation error | Reprojection error (MRE) |
+|---|---|---|---|---|
+| IMOVE-23 | 10 | 11 | 0.40° [0.30–0.96] | 3.30 px [2.95–3.83] |
+| BioCV | 9 | 18 | 0.43° [0.25–0.95] | 2.77 px [2.35–4.07] |
+| OpenCap | 5 | 18 | 1.89° [0.56–2.31] | 1.69 px [1.38–2.16] |
+
+Pixels are not comparable between rigs of different focal lengths; in angular
+terms the same errors are 2.4, 2.1 and 1.8 mrad. A low reprojection error means
+the calibration is not broken, not that it is accurate: on OpenCap, five
+smartphones on a tight arc and a walk of about two seconds cap the accuracy
+while leaving the residual low.
+
+**What it changes for the biomechanist.** The same
+[Pose2Sim](https://github.com/perfanalytics/pose2sim) chain was run twice per
+trial on the same 2D detections, with the laboratory calibration and with
+HumanCalib's, changing nothing else. The table compares the joint angles the two
+runs produce. Equivalence is declared when the upper bound of the 95 %
+confidence interval stays below the margin, for each of the 9 degrees of freedom
+(pelvis, hip, knee, ankle, subtalar):
+
+| Dataset | Trials | RMSD between the two chains, median [min–max] | Worst degree of freedom | Equivalent within 2° |
+|---|---|---|---|---|
+| BioCV | 18 | 0.40° [0.20–2.45] | 0.94° | 9 / 9 |
+| OpenCap | 18 | 0.58° [0.35–1.13] | 0.98° | 9 / 9 |
+| IMOVE-23 | 11 | 0.82° [0.46–1.67] | 1.38° | 8 / 9 |
+
+Changing the calibration therefore moves the reported angles by about half a
+degree to one degree, below the 2° margin usually accepted in clinical gait
+analysis, and roughly ten times less than the 4–11° that separates such a chain
+from optical motion capture on the same trials.
+
+- No failed calibration out of 77 (with RTMPose + VideoPose3D instead of MeTRAbs: 30).
+- Metric scale within 1.1 % (median, on the four datasets not used to set it).
+
+The two remaining datasets are reported in the paper: LBMC, whose two treadmill
+trials are too few to summarise, and COMFI, where HumanCalib proved closer to
+the laboratory's own motion capture than that dataset's own calibration, which
+makes any comparison against that reference a measure of the reference rather
+than of HumanCalib.
+
+A paper is in preparation. The evaluation protocol is in
+[docs/EVALUATION_PROTOCOL.md](https://github.com/flodelaplace/HumanCalib/blob/main/docs/EVALUATION_PROTOCOL.md).
+
+## Installation
+
+An NVIDIA GPU is needed for pose estimation (driver ≥ 525). Linux, WSL2 and
+Windows are supported.
+
+### pip — Linux or WSL2
+
+Python 3.10 or 3.11. The CUDA libraries come from pip, nothing else to install.
+
+```bash
+python -m venv .venv && source .venv/bin/activate
+pip install "humancalib[gpu] @ https://github.com/flodelaplace/HumanCalib/archive/refs/tags/v0.3.1.zip"
+```
+
+### Windows
+
+Python 3.10, in a conda environment that provides CUDA: TensorFlow 2.10 is the
+last version with GPU support on native Windows. CUDA 11.8 also covers recent
+GPUs (RTX 40xx), which CUDA 11.2 does not.
+
+```bat
+conda create -n humancalib -c conda-forge python=3.10 cudatoolkit=11.8 cudnn=8.9
+conda activate humancalib
+pip install "humancalib[gpu] @ https://github.com/flodelaplace/HumanCalib/archive/refs/tags/v0.3.1.zip"
+```
+
+### Check the install
+
+The demo videos are in the repository: unzip the same
+[archive](https://github.com/flodelaplace/HumanCalib/archive/refs/tags/v0.3.1.zip)
+(or `git clone` the repository), then
+
+```bash
+humancalib run HumanCalib-0.3.1/demo HumanCalib-0.3.1/demo/Calib_scene.toml output/demo --height 1.78
+```
+
+It worked if the log shows `Compute device: GPU` and ends with an MRE summary
+table, and `output/demo/results/Calib_scene_calibrated.toml` exists. The first
+run downloads the MeTRAbs model (~700 MB, with a progress bar, resumed if
+interrupted) into `~/.cache/tfhub_modules`; set `TFHUB_CACHE_DIR` to put it
+elsewhere.
+
+### From Python (e.g. inside Pose2Sim)
+
+```python
+from humancalib import calibrate
+
+toml = calibrate("session/videos", "session/Calib_intrinsics.toml", "session/humancalib",
+                 height=1.78)
+```
+
+`calibrate` runs the same pipeline as `humancalib run`, with the same defaults,
+and returns the path of the calibrated TOML in Pose2Sim format. Any command-line
+option can be passed by name (`extract_fps=25`, `ref_frame=120`...); a failure
+raises `humancalib.CalibrationError`.
+
+### Docker
+
+The exact environment the published results were obtained with. Requires Docker
+with Compose v2 and the
+[NVIDIA Container Toolkit](https://docs.nvidia.com/datacenter/cloud-native/container-toolkit/latest/install-guide.html).
+
+```bash
+git clone https://github.com/flodelaplace/HumanCalib.git
+cd HumanCalib
+printf 'HOST_UID=%s\nHOST_GID=%s\n' "$(id -u)" "$(id -g)" > .env   # results owned by you, not root
+docker compose build                                                 # ~2 GB download, resumable
+docker compose run --rm calib demo
+```
+
+The model is kept in a Docker volume after the first run.
+
+### conda, exact environment
+
+Every version pinned, as validated (TensorFlow 2.12, CUDA 11.8 from conda):
+
+```bash
+git clone https://github.com/flodelaplace/HumanCalib.git
+cd HumanCalib
+conda env create -f envs/calib.yaml
+conda activate humancalib
+pip install --no-deps -e .                 # adds the `humancalib` command, keeps the pins
+```
+
+The pip installs above use TensorFlow 2.15 (Linux) and 2.10 (Windows); they give
+the same calibration as this environment: on the demo, 0.02° median difference in
+relative rotation and 1 mm in camera positions; on a BioCV trial, the same error
+against the laboratory calibration (0.43°).
+
+Without a GPU, `pip install "humancalib @ https://github.com/flodelaplace/HumanCalib/archive/refs/tags/v0.3.1.zip"`
+installs calibration, bundle adjustment, evaluation and scaling from existing
+pose files. The optional RTMPose + VideoPose3D backend has its own environment:
+see [HOWTO.md](https://github.com/flodelaplace/HumanCalib/blob/main/HOWTO.md#optional-backend-rtmpose--videopose3d).
+
+## Calibrating your own rig
+
+**1. Record.** Synchronised videos from static cameras, while one person walks
+across the capture volume for a few passes.
+
+**2. Prepare a session folder** with one video per camera and a
+`Calib_scene.toml` holding each camera's intrinsics in Pose2Sim format:
+
+```toml
+[camera01]
+name = "camera01"
+size = [1920.0, 1080.0]
+matrix = [[1057.46, 0.0, 942.23], [0.0, 1056.83, 535.6], [0.0, 0.0, 1.0]]
+distortions = [-0.041, 0.0086, -0.0002, 0.0002]
+fisheye = false
+```
+
+Video names (without extension) must match the TOML sections. Good intrinsics
+matter more than anything else: see [input/README.md](https://github.com/flodelaplace/HumanCalib/blob/main/input/README.md).
+
+**3. Run.**
+
+```bash
+humancalib run input/my_session input/my_session/Calib_scene.toml output/my_session \
+    --height 1.84
+
+# Docker: same arguments, with the container's paths
+docker compose run --rm calib \
+    /input/my_session /input/my_session/Calib_scene.toml /output/my_session --height 1.84
+```
+
+`--height` is the subject's height in metres; it sets the metric scale. The
+origin and horizontal axis come from a frame where every camera sees the head and
+both heels, chosen automatically (or `--ref_frame N`). On video faster than
+50 Hz, add `--extract_fps 25`: same calibration, 2 to 8 times faster. Every
+option is described in [HOWTO.md](https://github.com/flodelaplace/HumanCalib/blob/main/HOWTO.md).
+
+**4. Results**, in `output/my_session/results/`:
+
+| File | Contents |
+|---|---|
+| `Calib_scene_calibrated.toml` | The calibration: metric, gravity-aligned, Pose2Sim format |
+| `3d_skeleton_FINAL.trc` | Triangulated skeleton |
+| `camera/visu_3d_FINAL.gif` | 3D animation of the skeleton and cameras |
+| `MRE_visualizations/` | Best and worst reprojection per camera, for diagnosis |
+
+## Documentation
+
+| | |
+|---|---|
+| [HOWTO.md](https://github.com/flodelaplace/HumanCalib/blob/main/HOWTO.md) | Full command-line reference, examples, diagnosis |
+| [docs/METHOD.md](https://github.com/flodelaplace/HumanCalib/blob/main/docs/METHOD.md) | How each step works and why |
+| [docs/TROUBLESHOOTING.md](https://github.com/flodelaplace/HumanCalib/blob/main/docs/TROUBLESHOOTING.md) | Common errors and fixes |
+| [CONTRIBUTING.md](https://github.com/flodelaplace/HumanCalib/blob/main/CONTRIBUTING.md) | Development setup, tests, conventions |
+| [CHANGELOG.md](https://github.com/flodelaplace/HumanCalib/blob/main/CHANGELOG.md) | Changes between versions |
+| [docs/](https://github.com/flodelaplace/HumanCalib/blob/main/docs/README.md) | Evaluation protocol and research notes |
+
+## Repository layout
+
+```
+src/humancalib/     the Python package: cli.py (the `humancalib` command), core/, pose/,
+                    calibration/, pipeline/, postprocessing/, evaluation/
+tests/              pytest suite, runs on a CPU in seconds
+envs/               exact conda environments (calib, rtmpose, ci)
+Dockerfile, compose.yaml, docker/    container images and entry point
+demo/               4-camera demo session
+docs/               documentation and research notes
+input/, output/     your sessions and results (not tracked)
+```
+
+## Licensing
+
+The HumanCalib code is **MIT**. The pretrained pose models are **not free for
+commercial use**:
+
+| Component | Licence |
+|---|---|
+| HumanCalib | MIT ([LICENSE](https://github.com/flodelaplace/HumanCalib/blob/main/LICENSE)) |
+| MeTRAbs model (`metrabs_l`) | Non-commercial use only (training data licences) |
+| VideoPose3D code and weights (optional backend) | CC BY-NC 4.0 |
+| rtmlib (optional backend) | Apache-2.0; RTMPose weight licence not stated upstream |
+
+The Docker images contain no MeTRAbs weights unless built with `BAKE_MODELS=1`.
+This summary is not legal advice; check the upstream licences for your use.
+
+## Citation
+
+Use GitHub's *Cite this repository* button ([CITATION.cff](https://github.com/flodelaplace/HumanCalib/blob/main/CITATION.cff)). Please
+also cite the method HumanCalib builds on and the pose estimator:
+
+- S.-E. Lee, K. Shibata, S. Nonaka, S. Nobuhara, K. Nishino. *Extrinsic Camera
+  Calibration From a Moving Person.* IEEE Robotics and Automation Letters 7(4),
+  2022. [doi:10.1109/LRA.2022.3192629](https://doi.org/10.1109/LRA.2022.3192629) —
+  [original code](https://github.com/kyotovision-public/extrinsic-camera-calibration-from-a-moving-person)
+- I. Sárándi, T. Linder, K. O. Arras, B. Leibe. *MeTRAbs: Metric-Scale
+  Truncation-Robust Heatmaps for Absolute 3D Human Pose Estimation.* IEEE T-BIOM,
+  2021.

humancalib-0.3.1/README.md

@@ -0,0 +1,269 @@
+# HumanCalib
+
+**Extrinsic calibration of a multi-camera rig from a person walking through it.**
+No checkerboard, no wand: HumanCalib estimates the pose of every camera from the
+human pose seen by all of them, then gives the rig a metric scale and a vertical
+axis from the subject's height. The output is a
+[Pose2Sim](https://github.com/perfanalytics/pose2sim)-format calibration, ready
+for markerless motion capture.
+
+![Overview](https://raw.githubusercontent.com/flodelaplace/HumanCalib/main/img/graphical_abstract.png)
+
+## How it works
+
+1. **Pose estimation** in every view with [MeTRAbs](https://github.com/isarandi/metrabs),
+   which predicts a metric 3D skeleton per camera.
+2. **Person selection**: the walking subject is kept in every camera, bystanders
+   are discarded.
+3. **Linear initialisation** by aligning the per-camera 3D skeletons (Procrustes).
+4. **Bundle adjustment** of all cameras on the 2D keypoints.
+5. **Metric scale and vertical** from the subject's height and walk.
+
+Details, design choices and what was measured to justify them:
+[docs/METHOD.md](https://github.com/flodelaplace/HumanCalib/blob/main/docs/METHOD.md).
+
+![3D result](https://raw.githubusercontent.com/flodelaplace/HumanCalib/main/img/visu_3d_FINAL.gif)
+
+## Validation
+
+Five public datasets, 77 trials, default settings. The three reported here each
+provide a laboratory-grade reference calibration and enough trials to summarise.
+
+**Camera geometry.** Relative rotation between camera pairs, against the
+dataset's own calibration, and reprojection error of our own reconstruction,
+which needs no reference. Median over trials [min–max]:
+
+| Dataset | Cameras | Trials | Relative rotation error | Reprojection error (MRE) |
+|---|---|---|---|---|
+| IMOVE-23 | 10 | 11 | 0.40° [0.30–0.96] | 3.30 px [2.95–3.83] |
+| BioCV | 9 | 18 | 0.43° [0.25–0.95] | 2.77 px [2.35–4.07] |
+| OpenCap | 5 | 18 | 1.89° [0.56–2.31] | 1.69 px [1.38–2.16] |
+
+Pixels are not comparable between rigs of different focal lengths; in angular
+terms the same errors are 2.4, 2.1 and 1.8 mrad. A low reprojection error means
+the calibration is not broken, not that it is accurate: on OpenCap, five
+smartphones on a tight arc and a walk of about two seconds cap the accuracy
+while leaving the residual low.
+
+**What it changes for the biomechanist.** The same
+[Pose2Sim](https://github.com/perfanalytics/pose2sim) chain was run twice per
+trial on the same 2D detections, with the laboratory calibration and with
+HumanCalib's, changing nothing else. The table compares the joint angles the two
+runs produce. Equivalence is declared when the upper bound of the 95 %
+confidence interval stays below the margin, for each of the 9 degrees of freedom
+(pelvis, hip, knee, ankle, subtalar):
+
+| Dataset | Trials | RMSD between the two chains, median [min–max] | Worst degree of freedom | Equivalent within 2° |
+|---|---|---|---|---|
+| BioCV | 18 | 0.40° [0.20–2.45] | 0.94° | 9 / 9 |
+| OpenCap | 18 | 0.58° [0.35–1.13] | 0.98° | 9 / 9 |
+| IMOVE-23 | 11 | 0.82° [0.46–1.67] | 1.38° | 8 / 9 |
+
+Changing the calibration therefore moves the reported angles by about half a
+degree to one degree, below the 2° margin usually accepted in clinical gait
+analysis, and roughly ten times less than the 4–11° that separates such a chain
+from optical motion capture on the same trials.
+
+- No failed calibration out of 77 (with RTMPose + VideoPose3D instead of MeTRAbs: 30).
+- Metric scale within 1.1 % (median, on the four datasets not used to set it).
+
+The two remaining datasets are reported in the paper: LBMC, whose two treadmill
+trials are too few to summarise, and COMFI, where HumanCalib proved closer to
+the laboratory's own motion capture than that dataset's own calibration, which
+makes any comparison against that reference a measure of the reference rather
+than of HumanCalib.
+
+A paper is in preparation. The evaluation protocol is in
+[docs/EVALUATION_PROTOCOL.md](https://github.com/flodelaplace/HumanCalib/blob/main/docs/EVALUATION_PROTOCOL.md).
+
+## Installation
+
+An NVIDIA GPU is needed for pose estimation (driver ≥ 525). Linux, WSL2 and
+Windows are supported.
+
+### pip — Linux or WSL2
+
+Python 3.10 or 3.11. The CUDA libraries come from pip, nothing else to install.
+
+```bash
+python -m venv .venv && source .venv/bin/activate
+pip install "humancalib[gpu] @ https://github.com/flodelaplace/HumanCalib/archive/refs/tags/v0.3.1.zip"
+```
+
+### Windows
+
+Python 3.10, in a conda environment that provides CUDA: TensorFlow 2.10 is the
+last version with GPU support on native Windows. CUDA 11.8 also covers recent
+GPUs (RTX 40xx), which CUDA 11.2 does not.
+
+```bat
+conda create -n humancalib -c conda-forge python=3.10 cudatoolkit=11.8 cudnn=8.9
+conda activate humancalib
+pip install "humancalib[gpu] @ https://github.com/flodelaplace/HumanCalib/archive/refs/tags/v0.3.1.zip"
+```
+
+### Check the install
+
+The demo videos are in the repository: unzip the same
+[archive](https://github.com/flodelaplace/HumanCalib/archive/refs/tags/v0.3.1.zip)
+(or `git clone` the repository), then
+
+```bash
+humancalib run HumanCalib-0.3.1/demo HumanCalib-0.3.1/demo/Calib_scene.toml output/demo --height 1.78
+```
+
+It worked if the log shows `Compute device: GPU` and ends with an MRE summary
+table, and `output/demo/results/Calib_scene_calibrated.toml` exists. The first
+run downloads the MeTRAbs model (~700 MB, with a progress bar, resumed if
+interrupted) into `~/.cache/tfhub_modules`; set `TFHUB_CACHE_DIR` to put it
+elsewhere.
+
+### From Python (e.g. inside Pose2Sim)
+
+```python
+from humancalib import calibrate
+
+toml = calibrate("session/videos", "session/Calib_intrinsics.toml", "session/humancalib",
+                 height=1.78)
+```
+
+`calibrate` runs the same pipeline as `humancalib run`, with the same defaults,
+and returns the path of the calibrated TOML in Pose2Sim format. Any command-line
+option can be passed by name (`extract_fps=25`, `ref_frame=120`...); a failure
+raises `humancalib.CalibrationError`.
+
+### Docker
+
+The exact environment the published results were obtained with. Requires Docker
+with Compose v2 and the
+[NVIDIA Container Toolkit](https://docs.nvidia.com/datacenter/cloud-native/container-toolkit/latest/install-guide.html).
+
+```bash
+git clone https://github.com/flodelaplace/HumanCalib.git
+cd HumanCalib
+printf 'HOST_UID=%s\nHOST_GID=%s\n' "$(id -u)" "$(id -g)" > .env   # results owned by you, not root
+docker compose build                                                 # ~2 GB download, resumable
+docker compose run --rm calib demo
+```
+
+The model is kept in a Docker volume after the first run.
+
+### conda, exact environment
+
+Every version pinned, as validated (TensorFlow 2.12, CUDA 11.8 from conda):
+
+```bash
+git clone https://github.com/flodelaplace/HumanCalib.git
+cd HumanCalib
+conda env create -f envs/calib.yaml
+conda activate humancalib
+pip install --no-deps -e .                 # adds the `humancalib` command, keeps the pins
+```
+
+The pip installs above use TensorFlow 2.15 (Linux) and 2.10 (Windows); they give
+the same calibration as this environment: on the demo, 0.02° median difference in
+relative rotation and 1 mm in camera positions; on a BioCV trial, the same error
+against the laboratory calibration (0.43°).
+
+Without a GPU, `pip install "humancalib @ https://github.com/flodelaplace/HumanCalib/archive/refs/tags/v0.3.1.zip"`
+installs calibration, bundle adjustment, evaluation and scaling from existing
+pose files. The optional RTMPose + VideoPose3D backend has its own environment:
+see [HOWTO.md](https://github.com/flodelaplace/HumanCalib/blob/main/HOWTO.md#optional-backend-rtmpose--videopose3d).
+
+## Calibrating your own rig
+
+**1. Record.** Synchronised videos from static cameras, while one person walks
+across the capture volume for a few passes.
+
+**2. Prepare a session folder** with one video per camera and a
+`Calib_scene.toml` holding each camera's intrinsics in Pose2Sim format:
+
+```toml
+[camera01]
+name = "camera01"
+size = [1920.0, 1080.0]
+matrix = [[1057.46, 0.0, 942.23], [0.0, 1056.83, 535.6], [0.0, 0.0, 1.0]]
+distortions = [-0.041, 0.0086, -0.0002, 0.0002]
+fisheye = false
+```
+
+Video names (without extension) must match the TOML sections. Good intrinsics
+matter more than anything else: see [input/README.md](https://github.com/flodelaplace/HumanCalib/blob/main/input/README.md).
+
+**3. Run.**
+
+```bash
+humancalib run input/my_session input/my_session/Calib_scene.toml output/my_session \
+    --height 1.84
+
+# Docker: same arguments, with the container's paths
+docker compose run --rm calib \
+    /input/my_session /input/my_session/Calib_scene.toml /output/my_session --height 1.84
+```
+
+`--height` is the subject's height in metres; it sets the metric scale. The
+origin and horizontal axis come from a frame where every camera sees the head and
+both heels, chosen automatically (or `--ref_frame N`). On video faster than
+50 Hz, add `--extract_fps 25`: same calibration, 2 to 8 times faster. Every
+option is described in [HOWTO.md](https://github.com/flodelaplace/HumanCalib/blob/main/HOWTO.md).
+
+**4. Results**, in `output/my_session/results/`:
+
+| File | Contents |
+|---|---|
+| `Calib_scene_calibrated.toml` | The calibration: metric, gravity-aligned, Pose2Sim format |
+| `3d_skeleton_FINAL.trc` | Triangulated skeleton |
+| `camera/visu_3d_FINAL.gif` | 3D animation of the skeleton and cameras |
+| `MRE_visualizations/` | Best and worst reprojection per camera, for diagnosis |
+
+## Documentation
+
+| | |
+|---|---|
+| [HOWTO.md](https://github.com/flodelaplace/HumanCalib/blob/main/HOWTO.md) | Full command-line reference, examples, diagnosis |
+| [docs/METHOD.md](https://github.com/flodelaplace/HumanCalib/blob/main/docs/METHOD.md) | How each step works and why |
+| [docs/TROUBLESHOOTING.md](https://github.com/flodelaplace/HumanCalib/blob/main/docs/TROUBLESHOOTING.md) | Common errors and fixes |
+| [CONTRIBUTING.md](https://github.com/flodelaplace/HumanCalib/blob/main/CONTRIBUTING.md) | Development setup, tests, conventions |
+| [CHANGELOG.md](https://github.com/flodelaplace/HumanCalib/blob/main/CHANGELOG.md) | Changes between versions |
+| [docs/](https://github.com/flodelaplace/HumanCalib/blob/main/docs/README.md) | Evaluation protocol and research notes |
+
+## Repository layout
+
+```
+src/humancalib/     the Python package: cli.py (the `humancalib` command), core/, pose/,
+                    calibration/, pipeline/, postprocessing/, evaluation/
+tests/              pytest suite, runs on a CPU in seconds
+envs/               exact conda environments (calib, rtmpose, ci)
+Dockerfile, compose.yaml, docker/    container images and entry point
+demo/               4-camera demo session
+docs/               documentation and research notes
+input/, output/     your sessions and results (not tracked)
+```
+
+## Licensing
+
+The HumanCalib code is **MIT**. The pretrained pose models are **not free for
+commercial use**:
+
+| Component | Licence |
+|---|---|
+| HumanCalib | MIT ([LICENSE](https://github.com/flodelaplace/HumanCalib/blob/main/LICENSE)) |
+| MeTRAbs model (`metrabs_l`) | Non-commercial use only (training data licences) |
+| VideoPose3D code and weights (optional backend) | CC BY-NC 4.0 |
+| rtmlib (optional backend) | Apache-2.0; RTMPose weight licence not stated upstream |
+
+The Docker images contain no MeTRAbs weights unless built with `BAKE_MODELS=1`.
+This summary is not legal advice; check the upstream licences for your use.
+
+## Citation
+
+Use GitHub's *Cite this repository* button ([CITATION.cff](https://github.com/flodelaplace/HumanCalib/blob/main/CITATION.cff)). Please
+also cite the method HumanCalib builds on and the pose estimator:
+
+- S.-E. Lee, K. Shibata, S. Nonaka, S. Nobuhara, K. Nishino. *Extrinsic Camera
+  Calibration From a Moving Person.* IEEE Robotics and Automation Letters 7(4),
+  2022. [doi:10.1109/LRA.2022.3192629](https://doi.org/10.1109/LRA.2022.3192629) —
+  [original code](https://github.com/kyotovision-public/extrinsic-camera-calibration-from-a-moving-person)
+- I. Sárándi, T. Linder, K. O. Arras, B. Leibe. *MeTRAbs: Metric-Scale
+  Truncation-Robust Heatmaps for Absolute 3D Human Pose Estimation.* IEEE T-BIOM,
+  2021.
