+Metadata-Version: 2.1
+Name: golem-3dmcp
+Version: 0.1.dev8
+Summary: The most powerful MCP server for Rhinoceros 3D — 105 tools giving AI agents full read/write access to Rhino 8
+Project-URL: Homepage, https://github.com/TheKingHippopotamus/GOLEM-3DMCP-Rhino-
+Project-URL: Repository, https://github.com/TheKingHippopotamus/GOLEM-3DMCP-Rhino-
+Project-URL: Documentation, https://github.com/TheKingHippopotamus/GOLEM-3DMCP-Rhino-/tree/main/docs
+Project-URL: Issues, https://github.com/TheKingHippopotamus/GOLEM-3DMCP-Rhino-/issues
+Project-URL: Changelog, https://github.com/TheKingHippopotamus/GOLEM-3DMCP-Rhino-/blob/main/CHANGELOG.md
+Author: King Hippopotamus
+License: MIT
+License-File: LICENSE
+Keywords: 3d,ai,architecture,cad,claude,computational-design,grasshopper,mcp,model-context-protocol,parametric-design,rhino,rhinoceros
+Classifier: Development Status :: 4 - Beta
+Classifier: Intended Audience :: Developers
+Classifier: Intended Audience :: Science/Research
+Classifier: License :: OSI Approved :: MIT License
+Classifier: Operating System :: OS Independent
+Classifier: Programming Language :: Python :: 3
+Classifier: Programming Language :: Python :: 3.10
+Classifier: Programming Language :: Python :: 3.11
+Classifier: Programming Language :: Python :: 3.12
+Classifier: Programming Language :: Python :: 3.13
+Classifier: Topic :: Scientific/Engineering
+Classifier: Topic :: Software Development :: Libraries
+Classifier: Typing :: Typed
+Requires-Python: >=3.10
+Requires-Dist: click>=8.0.0
+Requires-Dist: httpx>=0.24.0
+Requires-Dist: mcp[cli]>=1.0.0
+Requires-Dist: pydantic>=2.0.0
+Requires-Dist: rich>=13.0.0
+Provides-Extra: dev
+Requires-Dist: mypy>=1.0; extra == 'dev'
+Requires-Dist: pre-commit>=3.0; extra == 'dev'
+Requires-Dist: pytest-asyncio>=0.21; extra == 'dev'
+Requires-Dist: pytest>=7.0; extra == 'dev'
+Requires-Dist: ruff>=0.4.0; extra == 'dev'
+Description-Content-Type: text/markdown
+
+# GOLEM-3DMCP
+
+> *"Shaped from clay, brought to life by words"*
+
+**The most powerful MCP server for Rhinoceros 3D — 105 tools giving Claude full read/write access to Rhino 8.**
+
+[![PyPI](https://img.shields.io/pypi/v/golem-3dmcp.svg)](https://pypi.org/project/golem-3dmcp/)
+[![License: MIT](https://img.shields.io/badge/License-MIT-yellow.svg)](LICENSE)
+[![Rhino 8](https://img.shields.io/badge/Rhino-8.x-blue.svg)](https://www.rhino3d.com/)
+[![Python 3.10+](https://img.shields.io/badge/Python-3.10+-green.svg)](https://python.org)
+[![MCP](https://img.shields.io/badge/Protocol-MCP-purple.svg)](https://modelcontextprotocol.io/)
+
+---
+
+GOLEM-3DMCP implements the [Model Context Protocol](https://modelcontextprotocol.io/) to give Claude Code direct, programmatic control of Rhino 8 — create geometry, run booleans, drive Grasshopper, capture viewports, and execute arbitrary Python scripts, all through natural language.
+
+---
+

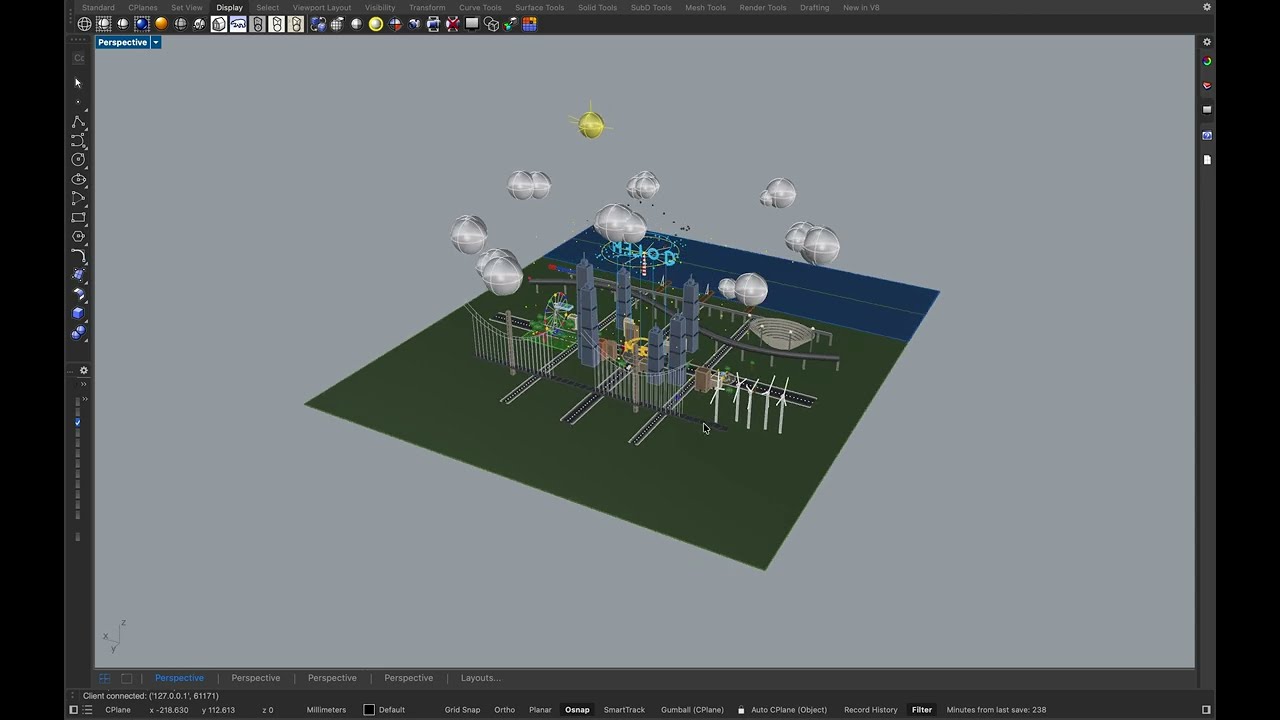

+## Demo — City Built Entirely by Claude
+
+> An entire city generated in Rhino 8 through GOLEM-3DMCP — roads, skyscrapers, houses, trees, people, vehicles, a stadium, bridge, ferris wheel, harbor, wind turbines, and a floating GOLEM hologram. All created by Claude Code using natural language commands.
+
+[![Watch the demo](https://img.youtube.com/vi/GoWN9vGlWCs/maxresdefault.jpg)](https://youtu.be/GoWN9vGlWCs)
+<p align="center"><strong>Watch the full demo video on YouTube</strong></p>
+
+<p align="center">
+  <img src="screenshots/city_wide.png" alt="GOLEM City — Wide Overview" width="800"/>
+</p>
+<p align="center"><em>Full city overview — ground, roads, buildings, park, harbor, sky</em></p>
+
+<p align="center">
+  <img src="screenshots/city_skyline.png" alt="GOLEM City — Skyline" width="800"/>
+</p>
+<p align="center"><em>Skyline view — skyscrapers, bridge, wind turbines, floating GOLEM hologram</em></p>
+
+<p align="center">
+  <img src="screenshots/city_monument.png" alt="GOLEM City — Monument" width="800"/>
+</p>
+<p align="center"><em>Close-up — GOLEM monument plaza, residential buildings, fountain</em></p>
+
+<p align="center">
+  <img src="screenshots/city_street.png" alt="GOLEM City — Street Level" width="800"/>
+</p>
+<p align="center"><em>Street level — vehicles, people, street lamps, stadium, harbor with boats</em></p>
+
+---
+
+## Install in 30 seconds
+
+### 1. Install the MCP server
+```bash
+pip install golem-3dmcp
+```
+
+### 2. Deploy the Rhino plugin (one-time)
+```bash
+golem install-rhino
+```
+
+### 3. Add to your AI agent
+
+**Claude Code / Cursor / Windsurf / any MCP host:**
+```json
+{
+  "mcpServers": {
+    "golem-3dmcp": {
+      "command": "uvx",
+      "args": ["golem-3dmcp"]
+    }
+  }
+}
+```
+
+### 4. Verify
+```bash
+golem doctor
+```
+
+That's it. Start talking to Rhino through AI.
+
+---
+
+## Architecture
+
+```
+ Claude Code
+      |
+      |  MCP (stdio, JSON-RPC)
+      v
++---------------------------+
+|     MCP Server            |
+|     Python 3.10+          |
+|     FastMCP + 9 tool      |
+|     modules               |
++---------------------------+
+      |
+      |  TCP 127.0.0.1:9876
+      |  Length-prefixed JSON
+      v
++---------------------------+
+|     Rhino Plugin          |
+|     Python 3.9 (embedded) |
+|     TCP Server            |
+|     Dispatcher            |
+|     9 handler modules     |
++---------------------------+
+      |
+      |  RhinoCommon + rhinoscriptsyntax
+      v
++---------------------------+       +-------------------------+
+|     Rhinoceros 3D         | <---> |   Grasshopper           |
+|     UI Thread             |       |   Sub-server :9877      |
+|     Document, Geometry,   |       |   Definitions, Params,  |
+|     Layers, Views         |       |   Components, Bake      |
++---------------------------+       +-------------------------+
+```
+
+---
+
+## 105 Tools Across 9 Categories
+
+| Category | Tools | Highlights |
+|----------|:-----:|------------|
+| **Scene Intelligence** | 10 | Document info, layers, objects, groups, blocks — no object cap, full pagination |
+| **Geometry Creation** | 38 | Points, curves, NURBS, solids, mesh, SubD, text, dimensions, hatches |
+| **Geometry Operations** | 19 | Boolean union/difference/intersection, trim, split, offset, fillet, chamfer, intersect, mesh from NURBS |
+| **Surface Operations** | 12 | Loft, sweep1/2, revolve, extrude, network surface, patch, edge surface, unroll |
+| **Object Manipulation** | 21 | Move, copy, rotate, scale, mirror, array (linear/polar/along curve), join, explode, group, properties |
+| **Grasshopper** | 9 | Open definitions, set/get parameters, recompute, bake, inspect component graph |
+| **Viewport & Visualization** | 13 | Capture screenshots (base64 PNG), camera control, named views, display modes |
+| **File Operations** | 9 | Save, open, import, export (STL, OBJ, STEP, IGES, FBX, 3MF, DWG, PDF, and more) |
+| **Script Execution** | 4 | Execute arbitrary Python with full RhinoCommon access, run Rhino commands, evaluate expressions |
+
+See [docs/TOOL_REFERENCE.md](docs/TOOL_REFERENCE.md) for the complete reference with parameters and examples.
+
+---
+
+## Quick Start
+
+### 1. Install and set up
+
+```bash
+pip install golem-3dmcp
+golem install-rhino
+```
+
+### 2. Load the plugin into Rhino
+
+Open Rhino 8, then open the Script Editor (`Tools > Python Script > Edit`).
+Open `startup.py` (deployed by `golem install-rhino`) and click **Run**.
+
+```
+GOLEM-3DMCP: Starting server on 127.0.0.1:9876...
+GOLEM-3DMCP: Server started successfully!
+GOLEM-3DMCP: 135 handler methods registered.
+```
+
+For auto-start on every Rhino launch: `Tools > Options > RhinoScript > Startup Scripts > Add startup.py`
+
+### 3. Register with Claude Code
+
+```bash
+claude mcp add --config .mcp.json
+```
+
+### 4. Start modeling with Claude
+
+Open Claude Code and try:
+
+> *"Create a 200 x 100 x 50 box at the origin, then create a sphere of radius 30 centred at [100, 50, 50]. Boolean-union the two objects."*
+
+---
+
+## Requirements
+
+| Requirement | Version |
+|-------------|---------|
+| Rhinoceros 3D | 8.x (macOS) |
+| Python | 3.10+ (for MCP server) |
+| macOS | 12 Monterey or newer |
+
+The Rhino plugin runs inside Rhino's embedded Python 3.9 with zero external dependencies.
+
+---
+
+## Configuration
+
+| Variable | Default | Description |
+|----------|---------|-------------|
+| `GOLEM_RHINO_HOST` | `127.0.0.1` | Rhino plugin host |
+| `GOLEM_RHINO_PORT` | `9876` | Rhino plugin TCP port |
+| `GOLEM_GH_PORT` | `9877` | Grasshopper sub-server port |
+| `GOLEM_TIMEOUT` | `30` | Command timeout (seconds) |
+| `GOLEM_HEAVY_TIMEOUT` | `120` | Heavy operation timeout (seconds) |
+
+---
+
+## Example Usage
+
+### Create and combine geometry
+```
+Create a 100 x 50 x 30 box on a layer called 'Structure',
+then boolean-union it with a sphere of radius 20 centred at [50, 25, 30].
+```
+
+### Query the scene
+```
+List all objects on the 'Walls' layer and tell me their volumes.
+```
+
+### Drive Grasshopper
+```
+Open parametric_facade.gh, set the 'PanelCount' slider to 24,
+recompute, and bake the result to a 'Facade' layer.
+```
+
+### Capture a viewport
+```
+Set perspective view to shaded mode, zoom to extents, and capture a screenshot.
+```
+
+### Execute arbitrary Python
+```python
+# Claude runs this inside Rhino via execute_python:
+import Rhino.Geometry as rg
+pts = [rg.Point3d(i*10, 0, i**2) for i in range(20)]
+crv = rg.Curve.CreateInterpolatedCurve(pts, 3)
+sc.doc.Objects.AddCurve(crv)
+__result__ = {"point_count": len(pts), "length": crv.GetLength()}
+```
+
+---
+
+## Project Structure
+
+```
+golem-3dmcp/
+├── src/golem_3dmcp/           # MCP Server package (Python 3.10+)
+│   ├── __init__.py            #   Package init + version
+│   ├── __main__.py            #   python -m entry point
+│   ├── cli.py                 #   CLI (golem command)
+│   ├── server.py              #   FastMCP entry point
+│   ├── connection.py          #   TCP client (singleton, thread-safe)
+│   ├── protocol.py            #   Wire format: 4-byte length prefix + JSON
+│   ├── config.py              #   Environment variable configuration
+│   ├── models/                #   Pydantic data models
+│   ├── tools/                 #   9 MCP tool modules
+│   └── _rhino_plugin/         #   Bundled Rhino plugin (deployed via golem install-rhino)
+│
+├── tests/                     # 226 tests (pytest)
+├── docs/                      # Architecture, protocol spec, tool reference
+├── .github/workflows/         # CI/CD (test + PyPI publish)
+├── pyproject.toml             # Package definition
+└── .mcp.json                  # Example MCP configuration
+```
+
+---
+
+## Documentation
+
+- [Architecture](docs/ARCHITECTURE.md) — System design, threading model, data flow
+- [Tool Reference](docs/TOOL_REFERENCE.md) — All 105 tools with parameters and examples
+- [Protocol Specification](docs/PROTOCOL.md) — TCP wire format, message framing, error codes
+- [Troubleshooting](docs/TROUBLESHOOTING.md) — Common issues and solutions
+
+---
+
+## Testing
+
+```bash
+# Unit tests (no Rhino needed)
+pytest tests/ -v --ignore=tests/test_integration.py
+
+# Full suite (integration tests auto-skip if Rhino not running)
+pytest tests/ -v
+
+# Integration tests only (requires Rhino + plugin running)
+pytest tests/test_integration.py -v -m integration
+```
+
+---
+
+## Troubleshooting
+
+| Problem | Quick Fix |
+|---------|-----------|
+| Connection refused | Start Rhino + run `startup.py` |
+| Port already in use | `lsof -i :9876` then kill the process |
+| MCP server not in Claude | Run `claude mcp add --config .mcp.json` |
+| Grasshopper tools fail | Open Grasshopper in Rhino first |
+| Python version error | Need Python 3.10+ for MCP server |
+
+See [docs/TROUBLESHOOTING.md](docs/TROUBLESHOOTING.md) for detailed solutions.
+
+---
+
+## License
+
+MIT License. See [LICENSE](LICENSE) for details.
+
+---
+
+## Credits
+
+<p align="center">
+  <img src="nexus-svgs/king-hippo.svg" alt="King Hippopotamus" width="250"/>
+</p>
+
+<p align="center">
+  Created by <strong>King Hippopotamus</strong><br/>
+  Built by <strong>NEXUS AI</strong> — 30 parallel agents across 3 phases
+</p>
+
+### The NEXUS Team That Built GOLEM
+
+<p align="center">
+  <img src="nexus-svgs/CEO.svg" alt="CEO — The Lion" width="120" title="CEO — The Lion"/>
+  <img src="nexus-svgs/CTO.svg" alt="CTO — The Owl" width="120" title="CTO — The Owl"/>
+  <img src="nexus-svgs/CPO.svg" alt="CPO — The Fox" width="120" title="CPO — The Fox"/>
+  <img src="nexus-svgs/COO.svg" alt="COO — The Bear" width="120" title="COO — The Bear"/>
+  <img src="nexus-svgs/CFO.svg" alt="CFO — The Cobra" width="120" title="CFO — The Cobra"/>
+  <img src="nexus-svgs/CISO.svg" alt="CISO — The Scorpion" width="120" title="CISO — The Scorpion"/>
+</p>
+<p align="center">
+  <img src="nexus-svgs/CMO.svg" alt="CMO — The Peacock" width="120" title="CMO — The Peacock"/>
+  <img src="nexus-svgs/CRO.svg" alt="CRO — The Wolf" width="120" title="CRO — The Wolf"/>
+  <img src="nexus-svgs/CHRO.svg" alt="CHRO — The Elephant" width="120" title="CHRO — The Elephant"/>
+  <img src="nexus-svgs/CLO.svg" alt="CLO — The Raven" width="120" title="CLO — The Raven"/>
+  <img src="nexus-svgs/CAIO.svg" alt="CAIO — The Octopus" width="120" title="CAIO — The Octopus"/>
+</p>
+
+
+
+<p align="center"><em>195 autonomous agents | 20 departments | 11 tiers</em></p>
+
+---
+
+**GOLEM-3DMCP** uses:
+- [FastMCP](https://github.com/jlowin/fastmcp) — MCP server framework
+- [RhinoCommon](https://developer.rhino3d.com/api/rhinocommon/) — Rhino geometry API
+- [rhinoscriptsyntax](https://developer.rhino3d.com/api/RhinoScriptSyntax/) — Python scripting for Rhino
+- [Grasshopper SDK](https://developer.rhino3d.com/api/grasshopper/) — Parametric design control
+
+---
+
+*"From formless clay, through the power of words, form emerges."*
