+<div align="center">
+
+# cutmap
+
+**Read a video like a document.**
+Skim a long video in minutes to learn fast — or study it frame-by-frame to see exactly how it's cut.
+
+[![English](https://img.shields.io/badge/lang-English-2b7489?style=flat-square)](https://github.com/xykong36/cutmap/blob/main/README.md)
+[![简体中文](https://img.shields.io/badge/lang-简体中文-lightgrey?style=flat-square)](https://github.com/xykong36/cutmap/blob/main/README.zh-CN.md)
+[![PyPI](https://img.shields.io/pypi/v/cutmap?style=flat-square&color=3775a9)](https://pypi.org/project/cutmap/)
+[![CI](https://github.com/xykong36/cutmap/actions/workflows/ci.yml/badge.svg)](https://github.com/xykong36/cutmap/actions/workflows/ci.yml)
+[![License: MIT](https://img.shields.io/badge/license-MIT-blue?style=flat-square)](https://github.com/xykong36/cutmap/blob/main/LICENSE)
+[![Python](https://img.shields.io/badge/python-3.9+-3776ab?style=flat-square&logo=python&logoColor=white)](https://www.python.org)
+[![No LLM](https://img.shields.io/badge/LLM-not%20required-success?style=flat-square)](#)
+
+</div>
+
+Watching a video is slow and linear — you can't skim it the way you skim an article,
+and you can't Ctrl-F a moment. cutmap fixes that. Give it a video (and subtitles if you
+have them) and it builds a single HTML page you can actually **read**: every visually
+distinct frame laid out in order, each captioned with what was being said. Click a frame
+to jump the player there; search the subtitles to find a moment.
+

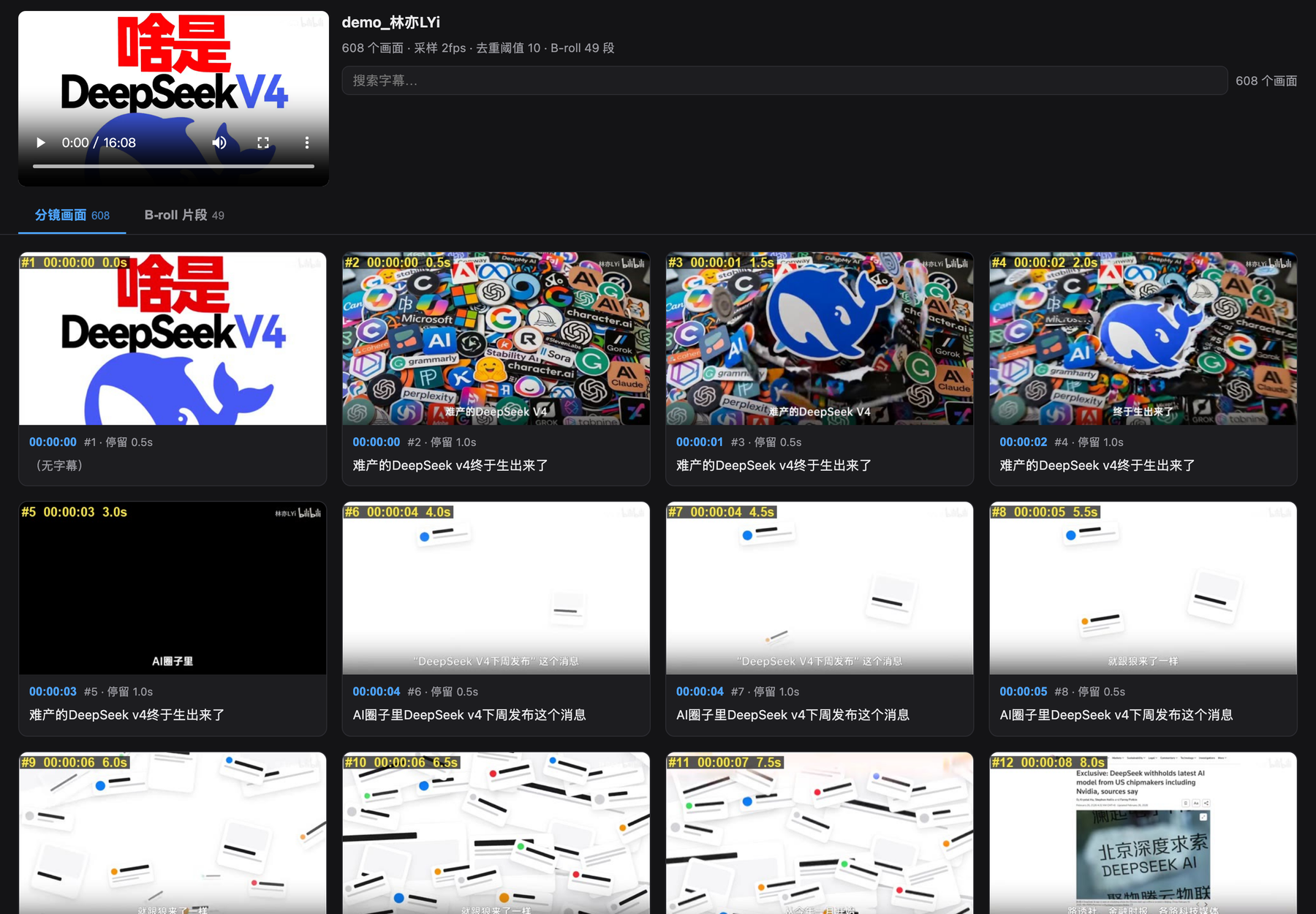

+![storyboard](https://raw.githubusercontent.com/xykong36/cutmap/main/examples/storyboard.png)
+
+<sub>Demo footage: [@林亦LYi](https://www.youtube.com/@lyi) — [《一个视频搞懂 DeepSeek V4！》](https://www.youtube.com/watch?v=WDQjRzVcX-A), all rights reserved by the creator</sub>
+
+Two things people use it for:
+
+- 📖 **Learn faster.** Turn a one-hour talk or tutorial into a page you scroll in a few
+  minutes. See the whole structure at a glance, search the transcript, and only play the
+  parts you actually need.
+- 🎬 **Study the edit ("拉片").** If you make videos, see exactly how someone cut theirs —
+  every shot change, every B-roll insert, every on-screen graphic — laid out as one storyboard.
+
+It runs entirely on your machine. **No LLM, no API key, no network.**
+
+---
+
+## Quick start
+
+### The easy way — just ask your AI agent
+
+cutmap ships with a [Claude Code](https://claude.com/claude-code) skill. Install it once,
+then talk in plain language — the agent downloads the video, runs cutmap, reads the
+result, and answers you:
+
+```bash
+pip install cutmap yt-dlp          # cutmap + video downloader
+brew install ffmpeg                # the video engine  (Linux: apt install ffmpeg)
+
+# install the bundled skill for Claude Code
+git clone https://github.com/xykong36/cutmap
+cp -r cutmap/skills/cutmap ~/.claude/skills/
+```
+
+Then just say things like:
+
+> **Download** `https://youtu.be/…` **and use cutmap to summarize what it covers**
+>
+> **Use cutmap on** `lecture.mp4` **and give me the section-by-section breakdown**
+>
+> **What's on screen around 3:41 in that video?** (process it with cutmap first)
+
+The agent handles the download, the flags, and reading the frames for you — you never
+touch the command line.
+
+### The manual way — command line
+
+```bash
+pip install cutmap
+brew install ffmpeg                # macOS   (Linux: apt install ffmpeg)
+
+cutmap video.mp4 --srt video.srt   # or just: cutmap video.mp4  (finds video.srt)
+open video/browse.html             # ← open this in your browser
+```
+
+That's it. Everything you need is in the `video/` folder next to your file.
+
+---
+
+## What you get
+
+Output lands in a directory named after the video:
+
+```
+video/
+├── browse.html        ← open this: the interactive storyboard
+├── frames/            every distinct frame, labelled #index timecode seconds
+├── sheet_01..NN.jpg   4×4 contact sheets for scanning at a glance
+├── index.json         frame timestamps + aligned subtitles (machine readable)
+└── broll/             extracted B-roll clips + broll.json
+```
+
+### The browse page
+
+One self-contained HTML file — all CSS and JS inlined. Two tabs:
+
+**Storyboard** — every distinct frame with its caption
+**B-roll** — auto-looping clips (reads like a GIF wall)
+

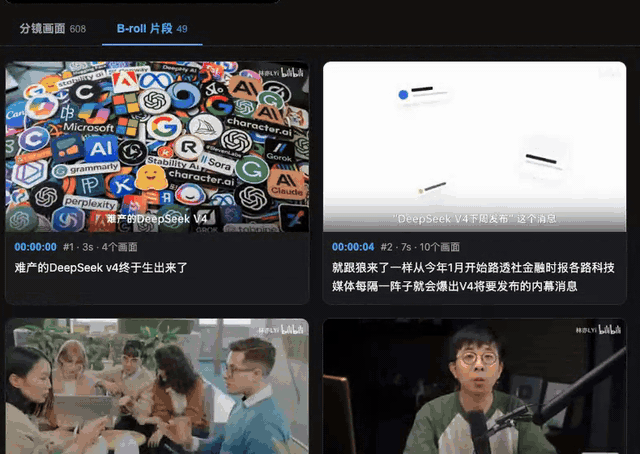

+![B-roll clips auto-looping](https://raw.githubusercontent.com/xykong36/cutmap/main/examples/broll-demo.gif)
+
+<sub>The B-roll tab in motion: clips auto-loop like a GIF wall, but they are MP4 under the hood — 1/24 the size of actual GIFs</sub>
+
+What you can do on it:
+
+- **Click any frame or timecode** to seek the embedded player there (local file, no network)
+- **Search the subtitles** — matches the *normalised* text, so searching `DeepSeek` also
+  finds frames where the auto-transcription wrote `deep sick`
+- Long captions collapse behind `…expand`
+- Follows your system light / dark mode
+

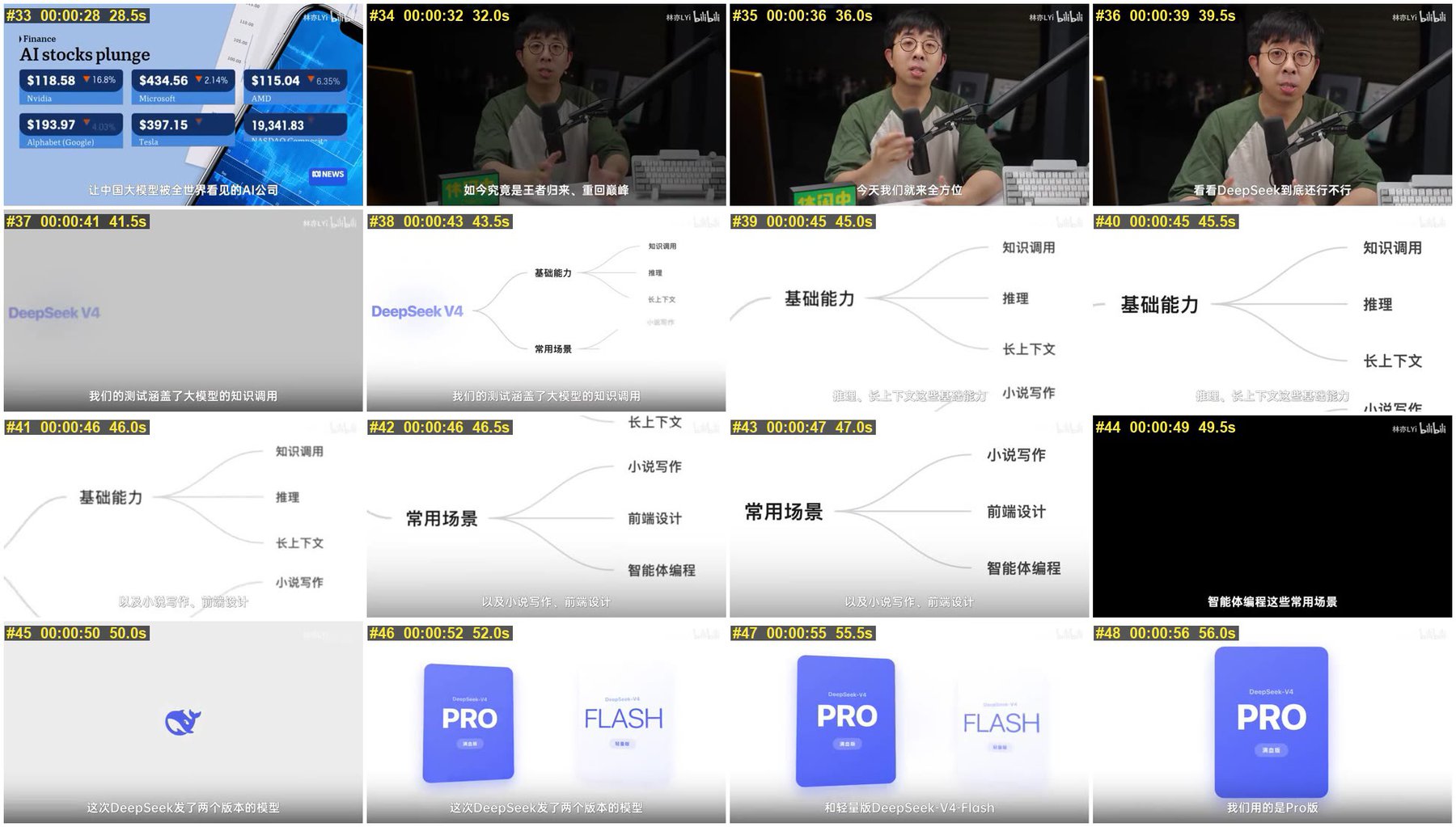

+Contact sheets are also written on their own, for scanning a whole video in a few images:
+
+![contact sheet](https://raw.githubusercontent.com/xykong36/cutmap/main/examples/contact-sheet.jpg)
+
+---
+
+## How it works
+
+The interesting part is *which* frames it keeps. Sampling every N seconds is both
+redundant and lossy: a 30-second talking-head passage gives you ten identical stills;
+a fast montage cutting five shots in three seconds gives you one.
+
+cutmap asks a different question — not *"how often should I sample"* but
+**"which frames actually differ"**:
+
+```
+dense sample  →  perceptual hash each frame  →  compare against last kept frame
+                                             →  keep only if different enough
+```
+
+Static passages collapse to a single frame. Every visual change gets one.
+
+<details>
+<summary><b>Why not ffmpeg's built-in scene detection?</b></summary>
+
+<br>
+
+`select='gt(scene,0.3)'` only catches **hard cuts**. Two things slip past it:
+
+1. **Low-contrast transitions** — white slide to white webpage. Similar overall
+   luminance structure, so the difference score never crosses the threshold.
+2. **Intra-shot evolution** — text appearing line by line, charts animating,
+   table rows highlighting. Not a "cut" by any definition, but visually distinct.
+
+Measured on one 16-minute video: scene detection found **104** frames,
+perceptual dedup found **608**. One 25-second stretch that scene detection called
+a single shot actually contained three completely different pages.
+
+</details>
+
+<details>
+<summary><b>The algorithm's blind spot</b></summary>
+
+<br>
+
+dHash compares **relative brightness between adjacent pixels**, so it measures spatial
+structure, not colour. Two different flat colours produce an identical (all-zero)
+fingerprint and cannot be told apart. Footage that is largely flat-coloured or
+near-black will therefore dedup more aggressively than you might expect. (This is also
+why transition cards are detected by mean luminance rather than by hash.)
+
+</details>
+
+---
+
+## Options
+
+Most people never need these — the defaults are tuned for slides, screencasts, and
+talks. Reach for them when the frame count comes out too dense or too sparse.
+
+| Flag | Meaning |
+|---|---|
+| `--threshold N` | Frame density. **Lower = more frames.** `6` dense / `10` default / `14` sparse / `24` structure-only |
+| `--fps N` | Dense sampling rate (default 2 — finest resolvable gap is 0.5s) |
+| `--seg-max N` | Max seconds per B-roll segment (default 45) |
+| `--clip-format` | `mp4` (default) / `gif` / `webp` |
+| `--no-broll` | Skip B-roll extraction (much faster) |
+| `--no-frames` | Keep only contact sheets, drop individual frames |
+| `--cols/--rows` | Contact sheet grid (default 4×4) |
+| `--thumb-width` | Thumbnail width in px (default 480) |
+| `--terms FILE` | Custom subtitle term-normalisation table |
+
+**Rule of thumb for density:** screencasts and slides → keep the default `10`. Real
+handheld / vlog / interview footage → start at `--threshold 20` (camera shake makes
+every frame look "different" otherwise).
+
+<details>
+<summary><b>Density, measured</b></summary>
+
+<br>
+
+On a 969-second video (2 fps sampling → 1936 raw frames):
+
+| Threshold | Kept | Avg gap | Good for |
+|---|---|---|---|
+| 6 | 892 | 1.1s | Reconstructing every visual step (tutorial walkthroughs) |
+| **10** | **597** | **1.6s** | **Default** — balances coverage and readability |
+| 14 | 463 | 2.1s | Style study, quick scanning |
+| 24 | 241 | 4.0s | Structure only, close to a traditional shot list |
+
+The curve is smooth — there is no natural breakpoint. This is an aesthetic choice,
+not a parameter with a computable optimum.
+
+</details>
+
+---
+
+## B-roll detection
+
+Frames are sorted into three buckets by three plain rules — no model involved:
+
+| Bucket | Rule |
+|---|---|
+| **Main shot** | A cluster of near-identical frames recurring across >50% of the runtime — i.e. a locked-off camera |
+| **Transition card** | Mean luminance below 8 (black) or above 245 (white) |
+| **B-roll** | Everything else |
+
+Screencast-style videos with no talking head degrade gracefully — no main shot is
+found, everything becomes B-roll, and `--seg-max` keeps it segmented.
+
+Clips default to **MP4** (`loop muted`), which looks identical to a GIF in the page but
+is ~24× smaller (0.08 MB vs 1.96 MB for a 9-second segment). Use `--clip-format gif`
+only when pasting into chat apps or note tools.
+
+---
+
+## Subtitle term normalisation
+
+Auto-transcription mangles proper nouns. A built-in table normalises them:
+
+```
+大家对deep sick新模型的期待值   →   大家对DeepSeek新模型的期待值
+用grock测试                    →   用Grok测试
+```
+
+The real payoff is **search**: querying `DeepSeek` finds every frame whose subtitle
+was transcribed as `deep sick`. The default table targets AI / tech content; bring your
+own with `--terms my_terms.txt` (one `regex => replacement` per line, see
+[`src/cutmap/terms.txt`](https://github.com/xykong36/cutmap/blob/main/src/cutmap/terms.txt)).
+
+This is term normalisation, not proofreading — it will not fix grammar or one-off errors.
+
+---
+
+## Getting footage manually
+
+If you're not using the agent skill, cutmap itself doesn't download anything — it works
+on local files. For YouTube / Bilibili, grab the video and subtitles with
+[yt-dlp](https://github.com/yt-dlp/yt-dlp):
+
+```bash
+yt-dlp --write-auto-subs --sub-langs "en,zh-Hans" --convert-subs srt \
+       -f "bv*[height<=720]+ba/b" -o "%(id)s.%(ext)s" "<URL>"
+cutmap <id>.mp4
+```
+
+Respect the terms of service and copyright of wherever your footage comes from; use
+downloaded material for personal study and research only.
+
+---
+
+<details>
+<summary><b>Troubleshooting — bugs I hit building this</b></summary>
+
+<br>
+
+Most of these **never raised an error** — they just quietly produced wrong output:
+
+**`\b` word boundaries fail in mixed CJK/Latin text.** CJK characters are `\w` in Python,
+so in `用grock测试` there is no boundary between `用` and `g`. `\bgrock\b` never matches.
+The term table uses `(?<![A-Za-z0-9])…(?![A-Za-z0-9])` instead.
+
+**Flat frames can't be detected by standard deviation.** Black transition cards usually
+have burned-in white subtitles, pushing stddev to 23–33. Use mean luminance, kept tight
+(`<8`): loosening to `<25` misclassifies merely-dark footage as transitions.
+
+**Subtitle time windows must not overlap.** A look-back to avoid empty captions makes
+adjacent frames claim the same cue. Hence two fields: `subtitle` (display, may repeat)
+and `subtitle_own` (concatenation, strict half-open).
+
+**ffmpeg concat resolves relative paths against the list file's directory** — contact
+sheet file lists must contain absolute paths.
+
+**`-v error` suppresses `showinfo` output** — any ffmpeg statistics gathered with it
+silently come back as zero.
+
+**Multi-threaded downloads corrupt files on exFAT.** Pre-allocating and writing at
+multiple offsets over exFAT-on-USB yields files with the right size and wrong contents
+(`moov atom not found`). Download to local disk, then move.
+
+</details>
+
+---
+
+## Credits
+
+Built on [ffmpeg](https://ffmpeg.org) and [Pillow](https://python-pillow.org).
+
+Special thanks to **[@林亦LYi](https://www.youtube.com/@lyi)**. This project started as an
+attempt to study the editing in his videos — dense cutting, interleaved infographics and
+animated demos — exactly the material naive interval-screenshotting handles worst. The
+screenshots in this README are from
+**[《一个视频搞懂 DeepSeek V4！》](https://www.youtube.com/watch?v=WDQjRzVcX-A)**, used solely
+to demonstrate this tool's output; all rights remain with the original creator. If he
+would prefer them removed, please open an issue and they will be replaced immediately.
+
+| | |
+|---|---|
+| Source video | <https://www.youtube.com/watch?v=WDQjRzVcX-A> |
+| Creator | YouTube <https://www.youtube.com/@lyi> · Bilibili <https://space.bilibili.com/4401694> |
+
+## License
+
+MIT

cutmap-0.2.0/README.md

@@ -0,0 +1,317 @@
+<div align="center">
+
+# cutmap
+
+**Read a video like a document.**
+Skim a long video in minutes to learn fast — or study it frame-by-frame to see exactly how it's cut.
+
+[![English](https://img.shields.io/badge/lang-English-2b7489?style=flat-square)](https://github.com/xykong36/cutmap/blob/main/README.md)
+[![简体中文](https://img.shields.io/badge/lang-简体中文-lightgrey?style=flat-square)](https://github.com/xykong36/cutmap/blob/main/README.zh-CN.md)
+[![PyPI](https://img.shields.io/pypi/v/cutmap?style=flat-square&color=3775a9)](https://pypi.org/project/cutmap/)
+[![CI](https://github.com/xykong36/cutmap/actions/workflows/ci.yml/badge.svg)](https://github.com/xykong36/cutmap/actions/workflows/ci.yml)
+[![License: MIT](https://img.shields.io/badge/license-MIT-blue?style=flat-square)](https://github.com/xykong36/cutmap/blob/main/LICENSE)
+[![Python](https://img.shields.io/badge/python-3.9+-3776ab?style=flat-square&logo=python&logoColor=white)](https://www.python.org)
+[![No LLM](https://img.shields.io/badge/LLM-not%20required-success?style=flat-square)](#)
+
+</div>
+
+Watching a video is slow and linear — you can't skim it the way you skim an article,
+and you can't Ctrl-F a moment. cutmap fixes that. Give it a video (and subtitles if you
+have them) and it builds a single HTML page you can actually **read**: every visually
+distinct frame laid out in order, each captioned with what was being said. Click a frame
+to jump the player there; search the subtitles to find a moment.
+
+![storyboard](https://raw.githubusercontent.com/xykong36/cutmap/main/examples/storyboard.png)
+
+<sub>Demo footage: [@林亦LYi](https://www.youtube.com/@lyi) — [《一个视频搞懂 DeepSeek V4！》](https://www.youtube.com/watch?v=WDQjRzVcX-A), all rights reserved by the creator</sub>
+
+Two things people use it for:
+
+- 📖 **Learn faster.** Turn a one-hour talk or tutorial into a page you scroll in a few
+  minutes. See the whole structure at a glance, search the transcript, and only play the
+  parts you actually need.
+- 🎬 **Study the edit ("拉片").** If you make videos, see exactly how someone cut theirs —
+  every shot change, every B-roll insert, every on-screen graphic — laid out as one storyboard.
+
+It runs entirely on your machine. **No LLM, no API key, no network.**
+
+---
+
+## Quick start
+
+### The easy way — just ask your AI agent
+
+cutmap ships with a [Claude Code](https://claude.com/claude-code) skill. Install it once,
+then talk in plain language — the agent downloads the video, runs cutmap, reads the
+result, and answers you:
+
+```bash
+pip install cutmap yt-dlp          # cutmap + video downloader
+brew install ffmpeg                # the video engine  (Linux: apt install ffmpeg)
+
+# install the bundled skill for Claude Code
+git clone https://github.com/xykong36/cutmap
+cp -r cutmap/skills/cutmap ~/.claude/skills/
+```
+
+Then just say things like:
+
+> **Download** `https://youtu.be/…` **and use cutmap to summarize what it covers**
+>
+> **Use cutmap on** `lecture.mp4` **and give me the section-by-section breakdown**
+>
+> **What's on screen around 3:41 in that video?** (process it with cutmap first)
+
+The agent handles the download, the flags, and reading the frames for you — you never
+touch the command line.
+
+### The manual way — command line
+
+```bash
+pip install cutmap
+brew install ffmpeg                # macOS   (Linux: apt install ffmpeg)
+
+cutmap video.mp4 --srt video.srt   # or just: cutmap video.mp4  (finds video.srt)
+open video/browse.html             # ← open this in your browser
+```
+
+That's it. Everything you need is in the `video/` folder next to your file.
+
+---
+
+## What you get
+
+Output lands in a directory named after the video:
+
+```
+video/
+├── browse.html        ← open this: the interactive storyboard
+├── frames/            every distinct frame, labelled #index timecode seconds
+├── sheet_01..NN.jpg   4×4 contact sheets for scanning at a glance
+├── index.json         frame timestamps + aligned subtitles (machine readable)
+└── broll/             extracted B-roll clips + broll.json
+```
+
+### The browse page
+
+One self-contained HTML file — all CSS and JS inlined. Two tabs:
+
+**Storyboard** — every distinct frame with its caption
+**B-roll** — auto-looping clips (reads like a GIF wall)
+
+![B-roll clips auto-looping](https://raw.githubusercontent.com/xykong36/cutmap/main/examples/broll-demo.gif)
+
+<sub>The B-roll tab in motion: clips auto-loop like a GIF wall, but they are MP4 under the hood — 1/24 the size of actual GIFs</sub>
+
+What you can do on it:
+
+- **Click any frame or timecode** to seek the embedded player there (local file, no network)
+- **Search the subtitles** — matches the *normalised* text, so searching `DeepSeek` also
+  finds frames where the auto-transcription wrote `deep sick`
+- Long captions collapse behind `…expand`
+- Follows your system light / dark mode
+
+Contact sheets are also written on their own, for scanning a whole video in a few images:
+
+![contact sheet](https://raw.githubusercontent.com/xykong36/cutmap/main/examples/contact-sheet.jpg)
+
+---
+
+## How it works
+
+The interesting part is *which* frames it keeps. Sampling every N seconds is both
+redundant and lossy: a 30-second talking-head passage gives you ten identical stills;
+a fast montage cutting five shots in three seconds gives you one.
+
+cutmap asks a different question — not *"how often should I sample"* but
+**"which frames actually differ"**:
+
+```
+dense sample  →  perceptual hash each frame  →  compare against last kept frame
+                                             →  keep only if different enough
+```
+
+Static passages collapse to a single frame. Every visual change gets one.
+
+<details>
+<summary><b>Why not ffmpeg's built-in scene detection?</b></summary>
+
+<br>
+
+`select='gt(scene,0.3)'` only catches **hard cuts**. Two things slip past it:
+
+1. **Low-contrast transitions** — white slide to white webpage. Similar overall
+   luminance structure, so the difference score never crosses the threshold.
+2. **Intra-shot evolution** — text appearing line by line, charts animating,
+   table rows highlighting. Not a "cut" by any definition, but visually distinct.
+
+Measured on one 16-minute video: scene detection found **104** frames,
+perceptual dedup found **608**. One 25-second stretch that scene detection called
+a single shot actually contained three completely different pages.
+
+</details>
+
+<details>
+<summary><b>The algorithm's blind spot</b></summary>
+
+<br>
+
+dHash compares **relative brightness between adjacent pixels**, so it measures spatial
+structure, not colour. Two different flat colours produce an identical (all-zero)
+fingerprint and cannot be told apart. Footage that is largely flat-coloured or
+near-black will therefore dedup more aggressively than you might expect. (This is also
+why transition cards are detected by mean luminance rather than by hash.)
+
+</details>
+
+---
+
+## Options
+
+Most people never need these — the defaults are tuned for slides, screencasts, and
+talks. Reach for them when the frame count comes out too dense or too sparse.
+
+| Flag | Meaning |
+|---|---|
+| `--threshold N` | Frame density. **Lower = more frames.** `6` dense / `10` default / `14` sparse / `24` structure-only |
+| `--fps N` | Dense sampling rate (default 2 — finest resolvable gap is 0.5s) |
+| `--seg-max N` | Max seconds per B-roll segment (default 45) |
+| `--clip-format` | `mp4` (default) / `gif` / `webp` |
+| `--no-broll` | Skip B-roll extraction (much faster) |
+| `--no-frames` | Keep only contact sheets, drop individual frames |
+| `--cols/--rows` | Contact sheet grid (default 4×4) |
+| `--thumb-width` | Thumbnail width in px (default 480) |
+| `--terms FILE` | Custom subtitle term-normalisation table |
+
+**Rule of thumb for density:** screencasts and slides → keep the default `10`. Real
+handheld / vlog / interview footage → start at `--threshold 20` (camera shake makes
+every frame look "different" otherwise).
+
+<details>
+<summary><b>Density, measured</b></summary>
+
+<br>
+
+On a 969-second video (2 fps sampling → 1936 raw frames):
+
+| Threshold | Kept | Avg gap | Good for |
+|---|---|---|---|
+| 6 | 892 | 1.1s | Reconstructing every visual step (tutorial walkthroughs) |
+| **10** | **597** | **1.6s** | **Default** — balances coverage and readability |
+| 14 | 463 | 2.1s | Style study, quick scanning |
+| 24 | 241 | 4.0s | Structure only, close to a traditional shot list |
+
+The curve is smooth — there is no natural breakpoint. This is an aesthetic choice,
+not a parameter with a computable optimum.
+
+</details>
+
+---
+
+## B-roll detection
+
+Frames are sorted into three buckets by three plain rules — no model involved:
+
+| Bucket | Rule |
+|---|---|
+| **Main shot** | A cluster of near-identical frames recurring across >50% of the runtime — i.e. a locked-off camera |
+| **Transition card** | Mean luminance below 8 (black) or above 245 (white) |
+| **B-roll** | Everything else |
+
+Screencast-style videos with no talking head degrade gracefully — no main shot is
+found, everything becomes B-roll, and `--seg-max` keeps it segmented.
+
+Clips default to **MP4** (`loop muted`), which looks identical to a GIF in the page but
+is ~24× smaller (0.08 MB vs 1.96 MB for a 9-second segment). Use `--clip-format gif`
+only when pasting into chat apps or note tools.
+
+---
+
+## Subtitle term normalisation
+
+Auto-transcription mangles proper nouns. A built-in table normalises them:
+
+```
+大家对deep sick新模型的期待值   →   大家对DeepSeek新模型的期待值
+用grock测试                    →   用Grok测试
+```
+
+The real payoff is **search**: querying `DeepSeek` finds every frame whose subtitle
+was transcribed as `deep sick`. The default table targets AI / tech content; bring your
+own with `--terms my_terms.txt` (one `regex => replacement` per line, see
+[`src/cutmap/terms.txt`](https://github.com/xykong36/cutmap/blob/main/src/cutmap/terms.txt)).
+
+This is term normalisation, not proofreading — it will not fix grammar or one-off errors.
+
+---
+
+## Getting footage manually
+
+If you're not using the agent skill, cutmap itself doesn't download anything — it works
+on local files. For YouTube / Bilibili, grab the video and subtitles with
+[yt-dlp](https://github.com/yt-dlp/yt-dlp):
+
+```bash
+yt-dlp --write-auto-subs --sub-langs "en,zh-Hans" --convert-subs srt \
+       -f "bv*[height<=720]+ba/b" -o "%(id)s.%(ext)s" "<URL>"
+cutmap <id>.mp4
+```
+
+Respect the terms of service and copyright of wherever your footage comes from; use
+downloaded material for personal study and research only.
+
+---
+
+<details>
+<summary><b>Troubleshooting — bugs I hit building this</b></summary>
+
+<br>
+
+Most of these **never raised an error** — they just quietly produced wrong output:
+
+**`\b` word boundaries fail in mixed CJK/Latin text.** CJK characters are `\w` in Python,
+so in `用grock测试` there is no boundary between `用` and `g`. `\bgrock\b` never matches.
+The term table uses `(?<![A-Za-z0-9])…(?![A-Za-z0-9])` instead.
+
+**Flat frames can't be detected by standard deviation.** Black transition cards usually
+have burned-in white subtitles, pushing stddev to 23–33. Use mean luminance, kept tight
+(`<8`): loosening to `<25` misclassifies merely-dark footage as transitions.
+
+**Subtitle time windows must not overlap.** A look-back to avoid empty captions makes
+adjacent frames claim the same cue. Hence two fields: `subtitle` (display, may repeat)
+and `subtitle_own` (concatenation, strict half-open).
+
+**ffmpeg concat resolves relative paths against the list file's directory** — contact
+sheet file lists must contain absolute paths.
+
+**`-v error` suppresses `showinfo` output** — any ffmpeg statistics gathered with it
+silently come back as zero.
+
+**Multi-threaded downloads corrupt files on exFAT.** Pre-allocating and writing at
+multiple offsets over exFAT-on-USB yields files with the right size and wrong contents
+(`moov atom not found`). Download to local disk, then move.
+
+</details>
+
+---
+
+## Credits
+
+Built on [ffmpeg](https://ffmpeg.org) and [Pillow](https://python-pillow.org).
+
+Special thanks to **[@林亦LYi](https://www.youtube.com/@lyi)**. This project started as an
+attempt to study the editing in his videos — dense cutting, interleaved infographics and
+animated demos — exactly the material naive interval-screenshotting handles worst. The
+screenshots in this README are from
+**[《一个视频搞懂 DeepSeek V4！》](https://www.youtube.com/watch?v=WDQjRzVcX-A)**, used solely
+to demonstrate this tool's output; all rights remain with the original creator. If he
+would prefer them removed, please open an issue and they will be replaced immediately.
+
+| | |
+|---|---|
+| Source video | <https://www.youtube.com/watch?v=WDQjRzVcX-A> |
+| Creator | YouTube <https://www.youtube.com/@lyi> · Bilibili <https://space.bilibili.com/4401694> |
+
+## License
+
+MIT
