+# coxmunk
+
+Simple sunglint computation based on [Cox & Munk](https://www.osapublishing.org/josa/abstract.cfm?uri=josa-44-11-838) model.

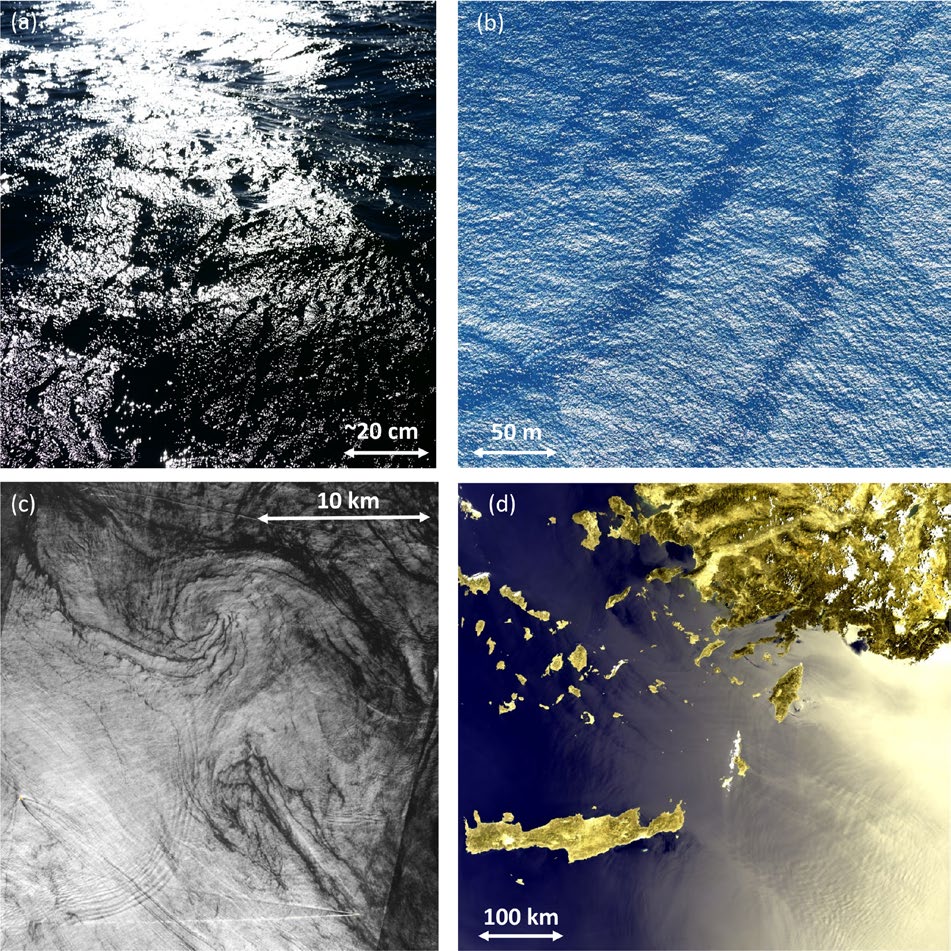

+The sunglint, sunlight reflected by the waves, induces different patterns at different spatial
+(or temporal) scales, as in these examples:
+
+- (a) sea surface under gust wind conditions (reflex digital camera);
+- (b) aerial photograph of the sea surface with visible surfactant filaments;
+- (c\) Sentinel-2A image (4 July 2015) in the 2190-nm channel, where sunglint is the most intense
+  signal over water; the glint highlights eddies, ship wakes and wave packets;
+- (d) Sentinel-3 RGB image (10 May 2016) over the eastern Mediterranean Sea, with high sunglint on
+  the right side.
+
+![Sunglint patterns at different spatial scales](https://raw.githubusercontent.com/Tristanovsk/coxmunk/main/illustration/research/neukermans2018_fig11_sunglint_scales.jpg)
+
+Credits: Neukermans, Harmel, Galí et al. (2018). Harnessing remote sensing to address critical
+science questions on ocean-atmosphere interactions. *Elementa*, 6, 71,
+[doi:10.1525/elementa.331](https://doi.org/10.1525/elementa.331) (Fig. 11, CC BY 4.0).
+
+For more details on the statistics of the wave slopes (i.e., *Probability Distribution Function*), please refer to [Munk 2009](https://www.annualreviews.org/doi/abs/10.1146/annurev.marine.010908.163940).
+

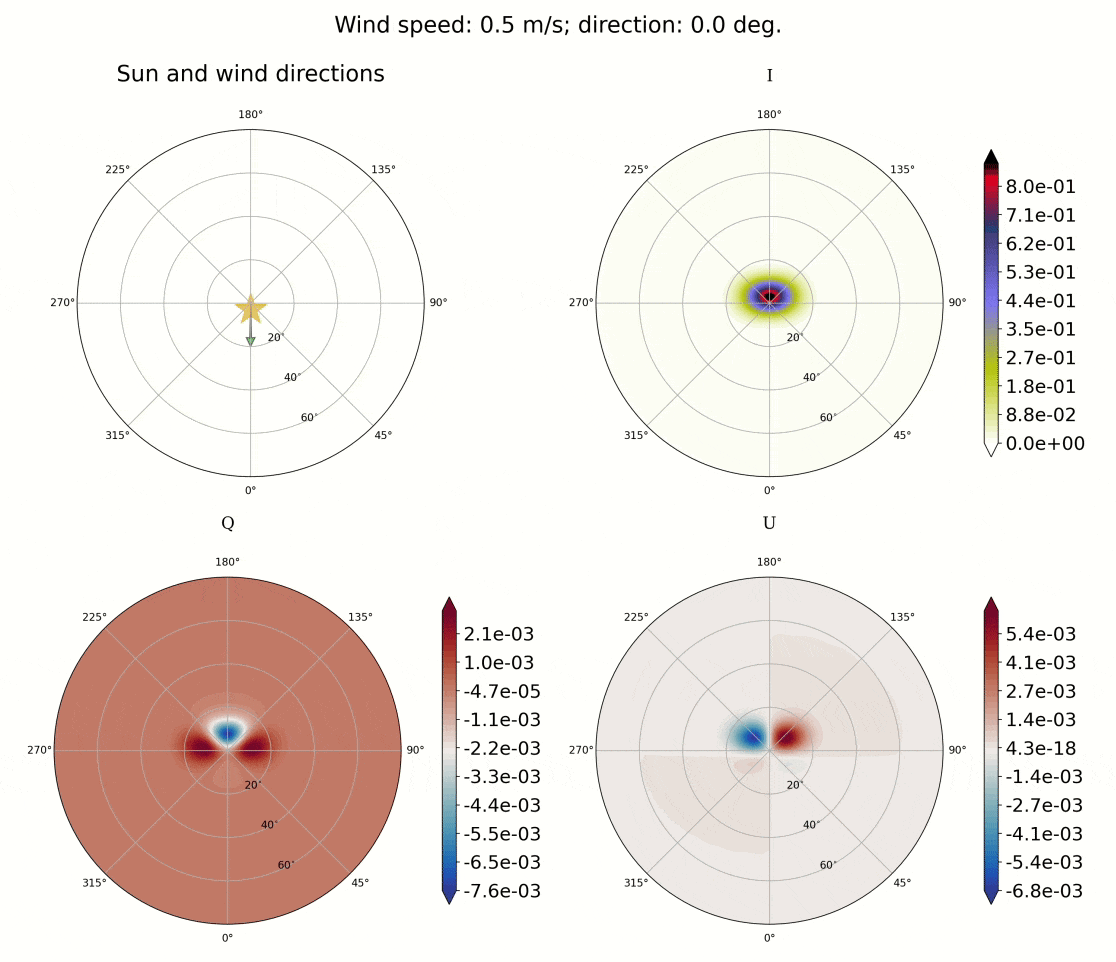

+![image_output](https://raw.githubusercontent.com/Tristanovsk/coxmunk/main/illustration/sunglint_examples_sza3_optimized.gif)
+
+## Installation
+
+`coxmunk` requires Python >= 3.9. Its dependencies (numpy, scipy, pandas, xarray, netCDF4,
+matplotlib, cmocean, docopt) are installed automatically by `pip`.
+
+It is best installed in a virtual environment:
+
+```
+python3 -m venv .venv
+source .venv/bin/activate          # Windows: .venv\Scripts\activate
+python -m pip install --upgrade pip
+```
+
+or in a conda environment:
+
+```
+conda create -n coxmunk python=3.12
+conda activate coxmunk
+```
+
+### From PyPI
+
+```
+python -m pip install coxmunk
+```
+
+### Development version from GitHub
+
+The `develop` branch contains the latest changes not yet released:
+
+```
+python -m pip install "git+https://github.com/Tristanovsk/coxmunk.git@develop"
+```
+
+### From source, for development
+
+Clone [the repository](https://github.com/Tristanovsk/coxmunk) and install it in editable mode
+(code changes are picked up without reinstalling):
+
+```
+git clone https://github.com/Tristanovsk/coxmunk.git
+cd coxmunk
+python -m pip install -e .
+```
+
+Run the tests with:
+
+```
+python -m pip install pytest
+python -m pytest tests
+```
+
+and build the documentation with:
+
+```
+python -m pip install -r docs/requirements.txt
+make -C docs html                  # output in docs/build/html
+```
+
+### Check the installation
+
+The installation provides the `coxmunk` command:
+
+```
+$ coxmunk --version
+coxmunk 1.2.1
+$ coxmunk
+Usage:
+  coxmunk <sza> <wind_speed> [--stats <stats>] [--wind_azi <wind_azi>] [--shadow] [--slope] [--figname <figname>]
+  coxmunk -h | --help
+  coxmunk -v | --version
+```
+
+The model can also be used from Python:
+
+```python
+from coxmunk import sunglint
+
+# geometry in degrees: solar zenith, viewing zenith, relative azimuth (180° = Sun and sensor in opposition)
+I, Q, U, V = sunglint(sza=30, vza=30, azi=180).sunglint(ws=5, wazi=0, stats='bh2006', shadow=True)
+```
+
+The full documentation, with the API reference and tutorials, is on
+[Read the Docs](https://coxmunk.readthedocs.io).
+
+## Model description
+
+The sea surface is described as a collection of plane facets whose slopes follow the
+statistics of Cox & Munk (1954). The glint observed in a given direction comes from the
+facets tilted so that the Sun is specularly reflected toward the sensor.
+
+### Reflecting facet
+
+With the solar and viewing zenith angles $\theta_s$, $\theta_v$ ($\mu = \cos\theta$) and the
+relative azimuth $\phi$ (180° when Sun and sensor are in opposition), the scattering angle
+$\Theta$, the angle of incidence on the facet $\omega$ and the facet tilt $\theta_n$ are
+
+```math
+\cos\Theta = -\mu_s\mu_v - \sin\theta_s\sin\theta_v\cos\phi, \qquad
+\omega = \frac{\pi - \Theta}{2}, \qquad
+\cos\theta_n = \frac{\mu_s + \mu_v}{2\cos\omega}
+```
+
+The facet slopes are computed in the Sun frame and rotated into the wind frame, with
+$\phi_w$ the downwind direction counted counterclockwise from the Sun:
+
+```math
+z_x = -\frac{\sin\theta_v \cos\phi + \sin\theta_s}{\mu_s + \mu_v}, \quad
+z_y = -\frac{\sin\theta_v \sin\phi}{\mu_s + \mu_v}, \quad
+z_{up} = \cos\phi_w \, z_x + \sin\phi_w \, z_y, \quad
+z_{cr} = -\sin\phi_w \, z_x + \cos\phi_w \, z_y
+```
+
+### Wave slope statistics
+
+For the isotropic statistics (`cm_iso`), with the wind speed $U$ in m/s:
+
+```math
+\sigma^2 = 0.003 + 5.12\times10^{-3}\,U, \qquad
+P = \frac{1}{\pi\sigma^2} \exp\left(-\frac{\tan^2\theta_n}{\sigma^2}\right)
+```
+
+For the anisotropic statistics (`cm_dir`, `bh2006`), the Gram-Charlier expansion is written
+with the convention of Munk (2009), with $\xi = z_{up}/\sigma_{up}$ and $\eta = z_{cr}/\sigma_{cr}$:
+
+```math
+P(\xi, \eta) = \frac{e^{-(\xi^2 + \eta^2)/2}}{2\pi\,\sigma_{up}\,\sigma_{cr}}
+\Big[ 1
++ \tfrac{c_{12}}{2}\,\xi\,(1 - \eta^2)
+- \tfrac{c_{30}}{6}\,\xi\,(3 - \xi^2)
++ \tfrac{c_{40}}{24}\,(3 - 6\xi^2 + \xi^4)
++ \tfrac{c_{22}}{4}\,(1 - \xi^2)(1 - \eta^2)
++ \tfrac{c_{04}}{24}\,(3 - 6\eta^2 + \eta^4)
+\Big]
+```
+
+where $c_{12} = -c_{21}$ and $c_{30} = -c_{03}$, with the coefficients:
+
+| Parameter | `cm_dir` (Cox & Munk, 1954) | `bh2006` (Bréon & Henriot, 2006) |
+|---|---|---|
+| $\sigma_{cr}^2$ | $0.003 + 1.92\times10^{-3}\,U$ | $0.003 + 1.85\times10^{-3}\,U$ |
+| $\sigma_{up}^2$ | $3.16\times10^{-3}\,U$ | $0.001 + 3.16\times10^{-3}\,U$ |
+| $c_{21}$ | $0.01 - 8.6\times10^{-3}\,U$ | $-9\times10^{-4}\,U^2$ |
+| $c_{03}$ | $0.04 - 0.033\,U$ | $-0.45 / (1 + e^{7 - U})$ |
+| $c_{40}$ | 0.40 | 0.30 |
+| $c_{22}$ | 0.12 | 0.12 |
+| $c_{04}$ | 0.23 | 0.40 |
+
+### Fresnel reflection
+
+With the refractive index of water $m$ (default 1.334), the reflection coefficients
+parallel and perpendicular to the plane of incidence are
+
+```math
+r_l = \frac{\sqrt{m^2 - \sin^2\omega} - m^2\cos\omega}{\sqrt{m^2 - \sin^2\omega} + m^2\cos\omega},
+\qquad
+r_r = \frac{\cos\omega - \sqrt{m^2 - \sin^2\omega}}{\cos\omega + \sqrt{m^2 - \sin^2\omega}}
+```
+
+giving the Mueller reflection matrix
+
+```math
+\mathbf{R}_F(\omega) = \frac{1}{2}
+\begin{pmatrix}
+r_l^2 + r_r^2 & r_l^2 - r_r^2 & 0 & 0 \\
+r_l^2 - r_r^2 & r_l^2 + r_r^2 & 0 & 0 \\
+0 & 0 & 2 r_l r_r & 0 \\
+0 & 0 & 0 & 2 r_l r_r
+\end{pmatrix}
+```
+
+which is rotated from the meridian planes into the scattering plane,
+$\mathbf{R} = \mathbf{L}(\pi - \sigma_2)\,\mathbf{R}_F\,\mathbf{L}(-\sigma_1)$.
+
+### Shadowing and hiding
+
+With `--shadow` (`shadow=True` in Python), the facets hidden by the waves are removed
+with the Smith function (Ross & Dion, 2005, 2007):
+
+```math
+\Lambda(\theta, \varphi) = \frac{e^{-\nu^2} - \nu\sqrt{\pi}\,\mathrm{erfc}(\nu)}{2\,\nu\sqrt{\pi}},
+\qquad
+\nu = \frac{1}{\sqrt{2}\,\sigma(\varphi)\tan\theta},
+\qquad
+\sigma^2(\varphi) = \sigma_{up}^2\cos^2\varphi + \sigma_{cr}^2\sin^2\varphi
+```
+
+```math
+SH = \frac{1}{1 + \Lambda(\theta_s, -\phi_w) + \Lambda(\theta_v, \phi - \phi_w)}
+```
+
+where $\varphi$ is the azimuth of the direction relative to the upwind axis.
+
+### Sunglint Stokes vector
+
+The sunglint, in reflectance units, is finally
+
+```math
+\begin{pmatrix} I \\ Q \\ U \\ V \end{pmatrix}
+= \frac{\pi \, P \, SH}{4 \, \mu_s \, \mu_v \cos^4\theta_n}
+\begin{pmatrix} R_{11} \\ R_{21} \\ R_{31} \\ R_{41} \end{pmatrix}
+```
+
+### References
+
+- Cox, C. and Munk, W. (1954). Measurement of the roughness of the sea surface from photographs of the Sun's glitter. *J. Opt. Soc. Am.*, 44(11), 838-850.
+- Bréon, F.-M. and Henriot, N. (2006). Spaceborne observations of ocean glint reflectance and modeling of wave slope distributions. *J. Geophys. Res.*, 111, C06005.
+- Munk, W. (2009). An inconvenient sea truth: spread, steepness, and skewness of surface slopes. *Annu. Rev. Mar. Sci.*, 1, 377-415.
+- Ross, V., Dion, D. and Potvin, G. (2005). Detailed analytical approach to the Gaussian surface bidirectional reflectance distribution function specular component applied to the sea surface. *J. Opt. Soc. Am. A*, 22(11), 2442-2453.
+- Harmel, T. and Chami, M. (2012). Determination of sea surface wind speed using the polarimetric and multidirectional properties of satellite measurements in visible bands. *Geophys. Res. Lett.*, 39, L19611, doi:10.1029/2012GL053508.
+- Harmel, T. and Chami, M. (2013). Estimation of the sunglint radiance field from optical satellite imagery over open ocean: multidirectional approach and polarization aspects. *J. Geophys. Res. Oceans*, 118, doi:10.1029/2012JC008221.
+- Ross, V. and Dion, D. (2007). Sea surface slope statistics derived from Sun glint radiance measurements and their apparent dependence on sensor elevation. *J. Geophys. Res.*, 112, C09015.
+
+## Polarization and wind speed retrieval
+
+Since the polarization of the glint only depends on the geometry while its amount depends on the
+sea state, multidirectional and polarized measurements (e.g., POLDER/PARASOL) can be used to
+retrieve the sunglint Stokes vector (Harmel & Chami, 2013) and the sea surface wind speed
+(Harmel & Chami, 2012). The `coxmunk.wind` module implements the forward model (sunglint plus
+whitecaps) and the Levenberg-Marquardt inversion of Harmel & Chami (2012):
+
+```python
+import numpy as np
+from coxmunk.wind import glint_whitecap, retrieve_wind_speed
+
+# 14 viewing directions along a satellite track: (sza, vza, azi) in degrees
+geometries = np.array([(30, abs(v), 150 if v >= 0 else 330) for v in np.linspace(-55, 55, 14)])
+observed = glint_whitecap(geometries, ws=8)          # synthetic I, Q, U measurements
+res = retrieve_wind_speed(observed, geometries)       # -> res.ws, res.sigma, res.flag
+```
+
+See the [polarization](https://coxmunk.readthedocs.io/en/latest/polarization.html) and
+[wind speed](https://coxmunk.readthedocs.io/en/latest/wind_speed.html) chapters of the documentation.
+
+## Kumatage: from noise to signal
+

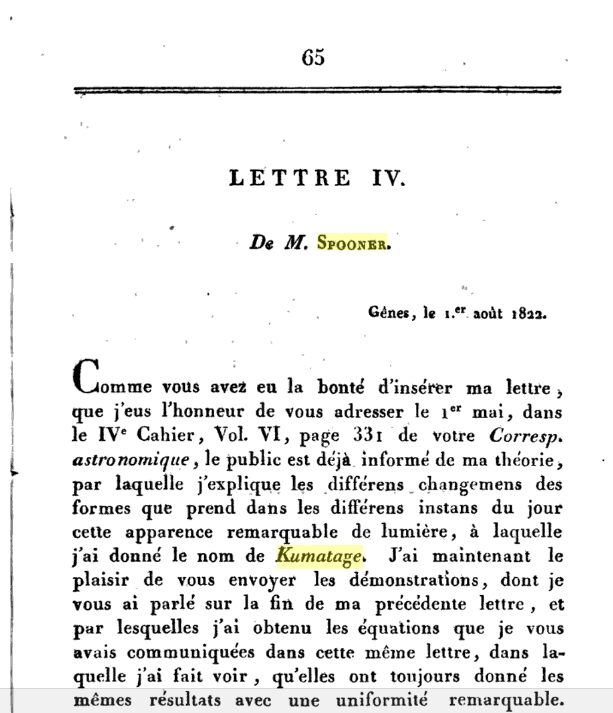

+![Spooner 1822](https://raw.githubusercontent.com/Tristanovsk/coxmunk/main/illustration/kumatage/spooner_1822_lettre_IV.jpg)
+
+In 1822, Spooner named *Kumatage* (from the Greek κυμάτων, *of the waves*, and αὐγή, *splendour*)
+"this remarkable appearance of light" of the Sun reflected by the waves, and established its first
+equations. Navigators filtered it out as a glare, painters made it a subject, Cox & Munk turned it
+into a measurement of the sea surface slopes, ocean color remote sensing removed it as a noise, and
+it is now exploited as a signal on winds, waves, currents and slicks. The
+[History section](https://coxmunk.readthedocs.io/en/latest/history/kumatage.html) of the documentation
+retraces this history (adapted from Harmel, Bary, Gernez & Morin, OCEANEXT 2019), with paintings,
+Cox & Munk and Sentinel-2 images.
+
+## Examples
+
+Examples for [Cox & Munk](https://www.osapublishing.org/josa/abstract.cfm?uri=josa-44-11-838) model with [Bréon & Henriot](https://agupubs.onlinelibrary.wiley.com/doi/full/10.1029/2005JC003343) statistics for:
+- solar zenith angle = 39°
+- wind azimuth from Sun = 75°
+- wind speed = 0.2, 7.2, 14.2 m.s<sup>-1</sup>
+
+```

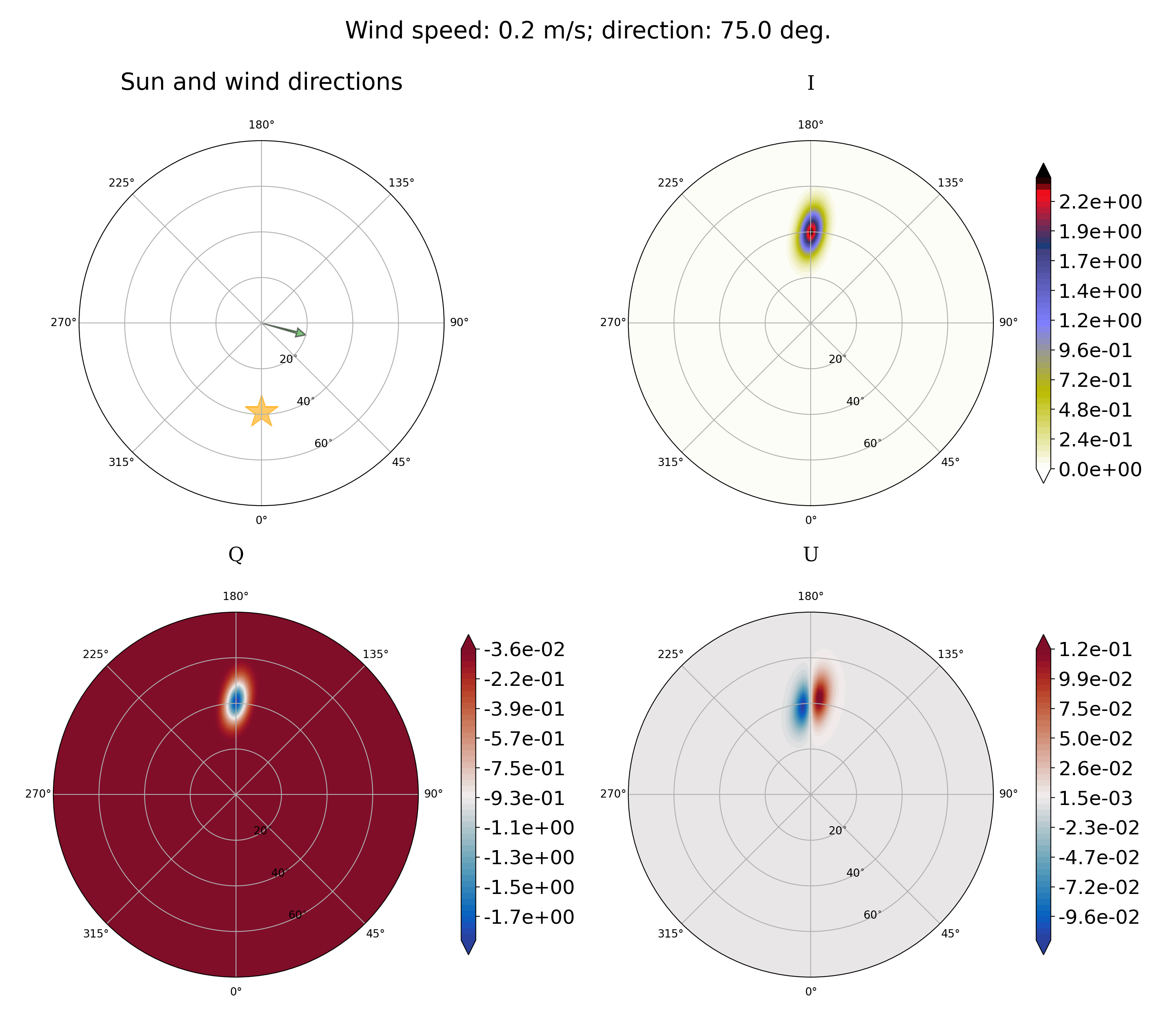

+$ coxmunk 39 0.2 --stats bh2006 --wind_azi 75 --figname illustration/coxmunk_fig_39_0.2_bh2006_75.png
+```
+
+![image_output](https://raw.githubusercontent.com/Tristanovsk/coxmunk/main/illustration/coxmunk_fig_39_0.2_bh2006_75.png)
+
+
+```

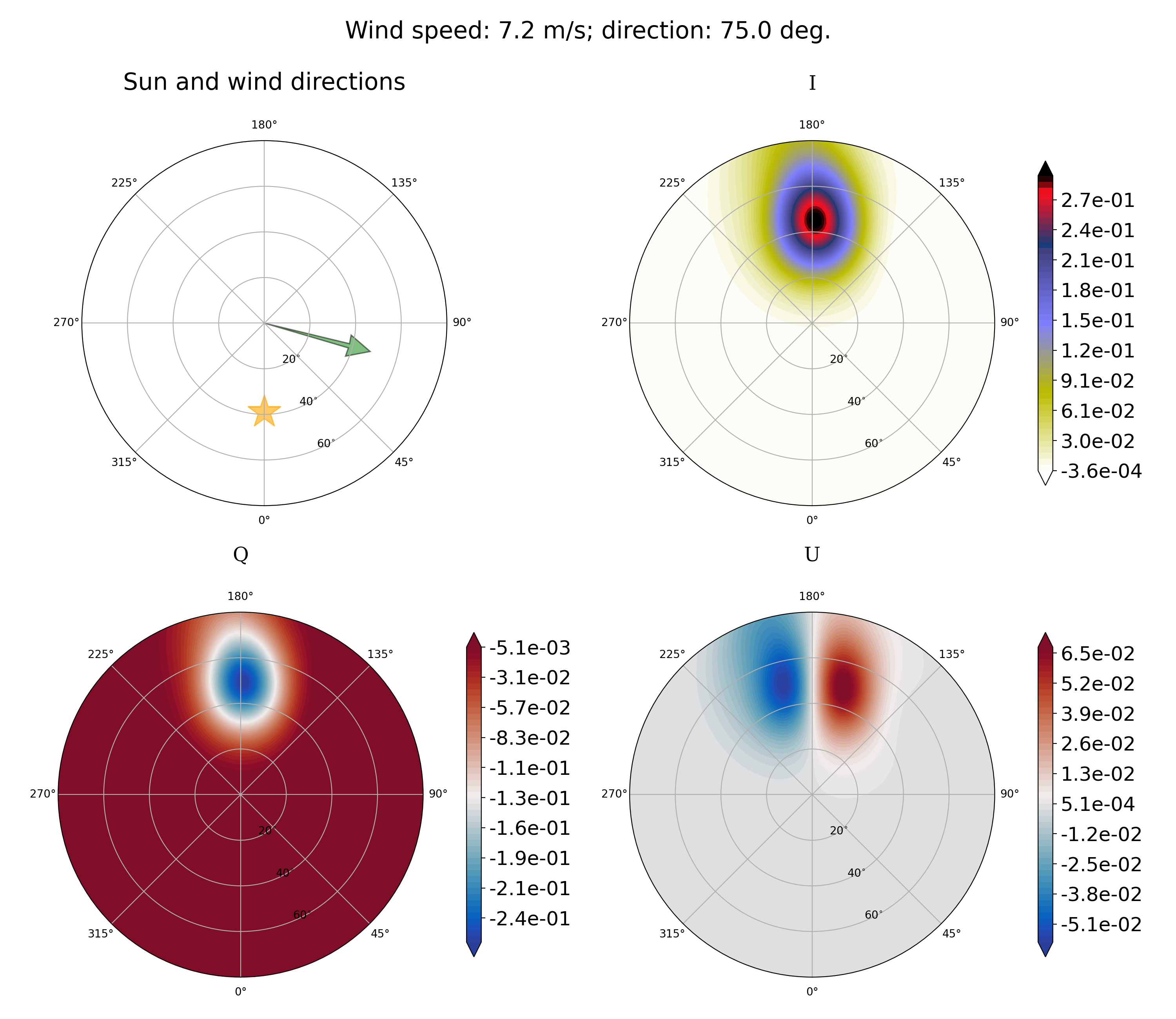

+$ coxmunk 39 7.2 --stats bh2006 --wind_azi 75
+```
+
+![image_output](https://raw.githubusercontent.com/Tristanovsk/coxmunk/main/illustration/coxmunk_fig_39_7.2_bh2006_75.png)
+
+
+
+```
+$ coxmunk 39 14.2 --stats bh2006 --wind_azi 75
+```
+
+![image_output](https://raw.githubusercontent.com/Tristanovsk/coxmunk/main/illustration/coxmunk_fig_39_14.2_bh2006_75.png)
+
+With the option `--slope` you can also check
+ the values of wave slopes upwind and crosswind,
+ the first term of the Fresnel matrix and the probability distribution function:
+
+```
+$ coxmunk 20 5 --stats bh2006 --wind_azi 60 --slope
+```
+
+![image_output](https://raw.githubusercontent.com/Tristanovsk/coxmunk/main/illustration/coxmunk_fig_sza20_ws5_wazi60_bh2006--slope.png)

coxmunk-1.2.1/README.md

@@ -0,0 +1,307 @@
+# coxmunk
+
+Simple sunglint computation based on [Cox & Munk](https://www.osapublishing.org/josa/abstract.cfm?uri=josa-44-11-838) model.
+The sunglint, sunlight reflected by the waves, induces different patterns at different spatial
+(or temporal) scales, as in these examples:
+
+- (a) sea surface under gust wind conditions (reflex digital camera);
+- (b) aerial photograph of the sea surface with visible surfactant filaments;
+- (c\) Sentinel-2A image (4 July 2015) in the 2190-nm channel, where sunglint is the most intense
+  signal over water; the glint highlights eddies, ship wakes and wave packets;
+- (d) Sentinel-3 RGB image (10 May 2016) over the eastern Mediterranean Sea, with high sunglint on
+  the right side.
+
+![Sunglint patterns at different spatial scales](https://raw.githubusercontent.com/Tristanovsk/coxmunk/main/illustration/research/neukermans2018_fig11_sunglint_scales.jpg)
+
+Credits: Neukermans, Harmel, Galí et al. (2018). Harnessing remote sensing to address critical
+science questions on ocean-atmosphere interactions. *Elementa*, 6, 71,
+[doi:10.1525/elementa.331](https://doi.org/10.1525/elementa.331) (Fig. 11, CC BY 4.0).
+
+For more details on the statistics of the wave slopes (i.e., *Probability Distribution Function*), please refer to [Munk 2009](https://www.annualreviews.org/doi/abs/10.1146/annurev.marine.010908.163940).
+
+![image_output](https://raw.githubusercontent.com/Tristanovsk/coxmunk/main/illustration/sunglint_examples_sza3_optimized.gif)
+
+## Installation
+
+`coxmunk` requires Python >= 3.9. Its dependencies (numpy, scipy, pandas, xarray, netCDF4,
+matplotlib, cmocean, docopt) are installed automatically by `pip`.
+
+It is best installed in a virtual environment:
+
+```
+python3 -m venv .venv
+source .venv/bin/activate          # Windows: .venv\Scripts\activate
+python -m pip install --upgrade pip
+```
+
+or in a conda environment:
+
+```
+conda create -n coxmunk python=3.12
+conda activate coxmunk
+```
+
+### From PyPI
+
+```
+python -m pip install coxmunk
+```
+
+### Development version from GitHub
+
+The `develop` branch contains the latest changes not yet released:
+
+```
+python -m pip install "git+https://github.com/Tristanovsk/coxmunk.git@develop"
+```
+
+### From source, for development
+
+Clone [the repository](https://github.com/Tristanovsk/coxmunk) and install it in editable mode
+(code changes are picked up without reinstalling):
+
+```
+git clone https://github.com/Tristanovsk/coxmunk.git
+cd coxmunk
+python -m pip install -e .
+```
+
+Run the tests with:
+
+```
+python -m pip install pytest
+python -m pytest tests
+```
+
+and build the documentation with:
+
+```
+python -m pip install -r docs/requirements.txt
+make -C docs html                  # output in docs/build/html
+```
+
+### Check the installation
+
+The installation provides the `coxmunk` command:
+
+```
+$ coxmunk --version
+coxmunk 1.2.1
+$ coxmunk
+Usage:
+  coxmunk <sza> <wind_speed> [--stats <stats>] [--wind_azi <wind_azi>] [--shadow] [--slope] [--figname <figname>]
+  coxmunk -h | --help
+  coxmunk -v | --version
+```
+
+The model can also be used from Python:
+
+```python
+from coxmunk import sunglint
+
+# geometry in degrees: solar zenith, viewing zenith, relative azimuth (180° = Sun and sensor in opposition)
+I, Q, U, V = sunglint(sza=30, vza=30, azi=180).sunglint(ws=5, wazi=0, stats='bh2006', shadow=True)
+```
+
+The full documentation, with the API reference and tutorials, is on
+[Read the Docs](https://coxmunk.readthedocs.io).
+
+## Model description
+
+The sea surface is described as a collection of plane facets whose slopes follow the
+statistics of Cox & Munk (1954). The glint observed in a given direction comes from the
+facets tilted so that the Sun is specularly reflected toward the sensor.
+
+### Reflecting facet
+
+With the solar and viewing zenith angles $\theta_s$, $\theta_v$ ($\mu = \cos\theta$) and the
+relative azimuth $\phi$ (180° when Sun and sensor are in opposition), the scattering angle
+$\Theta$, the angle of incidence on the facet $\omega$ and the facet tilt $\theta_n$ are
+
+```math
+\cos\Theta = -\mu_s\mu_v - \sin\theta_s\sin\theta_v\cos\phi, \qquad
+\omega = \frac{\pi - \Theta}{2}, \qquad
+\cos\theta_n = \frac{\mu_s + \mu_v}{2\cos\omega}
+```
+
+The facet slopes are computed in the Sun frame and rotated into the wind frame, with
+$\phi_w$ the downwind direction counted counterclockwise from the Sun:
+
+```math
+z_x = -\frac{\sin\theta_v \cos\phi + \sin\theta_s}{\mu_s + \mu_v}, \quad
+z_y = -\frac{\sin\theta_v \sin\phi}{\mu_s + \mu_v}, \quad
+z_{up} = \cos\phi_w \, z_x + \sin\phi_w \, z_y, \quad
+z_{cr} = -\sin\phi_w \, z_x + \cos\phi_w \, z_y
+```
+
+### Wave slope statistics
+
+For the isotropic statistics (`cm_iso`), with the wind speed $U$ in m/s:
+
+```math
+\sigma^2 = 0.003 + 5.12\times10^{-3}\,U, \qquad
+P = \frac{1}{\pi\sigma^2} \exp\left(-\frac{\tan^2\theta_n}{\sigma^2}\right)
+```
+
+For the anisotropic statistics (`cm_dir`, `bh2006`), the Gram-Charlier expansion is written
+with the convention of Munk (2009), with $\xi = z_{up}/\sigma_{up}$ and $\eta = z_{cr}/\sigma_{cr}$:
+
+```math
+P(\xi, \eta) = \frac{e^{-(\xi^2 + \eta^2)/2}}{2\pi\,\sigma_{up}\,\sigma_{cr}}
+\Big[ 1
++ \tfrac{c_{12}}{2}\,\xi\,(1 - \eta^2)
+- \tfrac{c_{30}}{6}\,\xi\,(3 - \xi^2)
++ \tfrac{c_{40}}{24}\,(3 - 6\xi^2 + \xi^4)
++ \tfrac{c_{22}}{4}\,(1 - \xi^2)(1 - \eta^2)
++ \tfrac{c_{04}}{24}\,(3 - 6\eta^2 + \eta^4)
+\Big]
+```
+
+where $c_{12} = -c_{21}$ and $c_{30} = -c_{03}$, with the coefficients:
+
+| Parameter | `cm_dir` (Cox & Munk, 1954) | `bh2006` (Bréon & Henriot, 2006) |
+|---|---|---|
+| $\sigma_{cr}^2$ | $0.003 + 1.92\times10^{-3}\,U$ | $0.003 + 1.85\times10^{-3}\,U$ |
+| $\sigma_{up}^2$ | $3.16\times10^{-3}\,U$ | $0.001 + 3.16\times10^{-3}\,U$ |
+| $c_{21}$ | $0.01 - 8.6\times10^{-3}\,U$ | $-9\times10^{-4}\,U^2$ |
+| $c_{03}$ | $0.04 - 0.033\,U$ | $-0.45 / (1 + e^{7 - U})$ |
+| $c_{40}$ | 0.40 | 0.30 |
+| $c_{22}$ | 0.12 | 0.12 |
+| $c_{04}$ | 0.23 | 0.40 |
+
+### Fresnel reflection
+
+With the refractive index of water $m$ (default 1.334), the reflection coefficients
+parallel and perpendicular to the plane of incidence are
+
+```math
+r_l = \frac{\sqrt{m^2 - \sin^2\omega} - m^2\cos\omega}{\sqrt{m^2 - \sin^2\omega} + m^2\cos\omega},
+\qquad
+r_r = \frac{\cos\omega - \sqrt{m^2 - \sin^2\omega}}{\cos\omega + \sqrt{m^2 - \sin^2\omega}}
+```
+
+giving the Mueller reflection matrix
+
+```math
+\mathbf{R}_F(\omega) = \frac{1}{2}
+\begin{pmatrix}
+r_l^2 + r_r^2 & r_l^2 - r_r^2 & 0 & 0 \\
+r_l^2 - r_r^2 & r_l^2 + r_r^2 & 0 & 0 \\
+0 & 0 & 2 r_l r_r & 0 \\
+0 & 0 & 0 & 2 r_l r_r
+\end{pmatrix}
+```
+
+which is rotated from the meridian planes into the scattering plane,
+$\mathbf{R} = \mathbf{L}(\pi - \sigma_2)\,\mathbf{R}_F\,\mathbf{L}(-\sigma_1)$.
+
+### Shadowing and hiding
+
+With `--shadow` (`shadow=True` in Python), the facets hidden by the waves are removed
+with the Smith function (Ross & Dion, 2005, 2007):
+
+```math
+\Lambda(\theta, \varphi) = \frac{e^{-\nu^2} - \nu\sqrt{\pi}\,\mathrm{erfc}(\nu)}{2\,\nu\sqrt{\pi}},
+\qquad
+\nu = \frac{1}{\sqrt{2}\,\sigma(\varphi)\tan\theta},
+\qquad
+\sigma^2(\varphi) = \sigma_{up}^2\cos^2\varphi + \sigma_{cr}^2\sin^2\varphi
+```
+
+```math
+SH = \frac{1}{1 + \Lambda(\theta_s, -\phi_w) + \Lambda(\theta_v, \phi - \phi_w)}
+```
+
+where $\varphi$ is the azimuth of the direction relative to the upwind axis.
+
+### Sunglint Stokes vector
+
+The sunglint, in reflectance units, is finally
+
+```math
+\begin{pmatrix} I \\ Q \\ U \\ V \end{pmatrix}
+= \frac{\pi \, P \, SH}{4 \, \mu_s \, \mu_v \cos^4\theta_n}
+\begin{pmatrix} R_{11} \\ R_{21} \\ R_{31} \\ R_{41} \end{pmatrix}
+```
+
+### References
+
+- Cox, C. and Munk, W. (1954). Measurement of the roughness of the sea surface from photographs of the Sun's glitter. *J. Opt. Soc. Am.*, 44(11), 838-850.
+- Bréon, F.-M. and Henriot, N. (2006). Spaceborne observations of ocean glint reflectance and modeling of wave slope distributions. *J. Geophys. Res.*, 111, C06005.
+- Munk, W. (2009). An inconvenient sea truth: spread, steepness, and skewness of surface slopes. *Annu. Rev. Mar. Sci.*, 1, 377-415.
+- Ross, V., Dion, D. and Potvin, G. (2005). Detailed analytical approach to the Gaussian surface bidirectional reflectance distribution function specular component applied to the sea surface. *J. Opt. Soc. Am. A*, 22(11), 2442-2453.
+- Harmel, T. and Chami, M. (2012). Determination of sea surface wind speed using the polarimetric and multidirectional properties of satellite measurements in visible bands. *Geophys. Res. Lett.*, 39, L19611, doi:10.1029/2012GL053508.
+- Harmel, T. and Chami, M. (2013). Estimation of the sunglint radiance field from optical satellite imagery over open ocean: multidirectional approach and polarization aspects. *J. Geophys. Res. Oceans*, 118, doi:10.1029/2012JC008221.
+- Ross, V. and Dion, D. (2007). Sea surface slope statistics derived from Sun glint radiance measurements and their apparent dependence on sensor elevation. *J. Geophys. Res.*, 112, C09015.
+
+## Polarization and wind speed retrieval
+
+Since the polarization of the glint only depends on the geometry while its amount depends on the
+sea state, multidirectional and polarized measurements (e.g., POLDER/PARASOL) can be used to
+retrieve the sunglint Stokes vector (Harmel & Chami, 2013) and the sea surface wind speed
+(Harmel & Chami, 2012). The `coxmunk.wind` module implements the forward model (sunglint plus
+whitecaps) and the Levenberg-Marquardt inversion of Harmel & Chami (2012):
+
+```python
+import numpy as np
+from coxmunk.wind import glint_whitecap, retrieve_wind_speed
+
+# 14 viewing directions along a satellite track: (sza, vza, azi) in degrees
+geometries = np.array([(30, abs(v), 150 if v >= 0 else 330) for v in np.linspace(-55, 55, 14)])
+observed = glint_whitecap(geometries, ws=8)          # synthetic I, Q, U measurements
+res = retrieve_wind_speed(observed, geometries)       # -> res.ws, res.sigma, res.flag
+```
+
+See the [polarization](https://coxmunk.readthedocs.io/en/latest/polarization.html) and
+[wind speed](https://coxmunk.readthedocs.io/en/latest/wind_speed.html) chapters of the documentation.
+
+## Kumatage: from noise to signal
+
+![Spooner 1822](https://raw.githubusercontent.com/Tristanovsk/coxmunk/main/illustration/kumatage/spooner_1822_lettre_IV.jpg)
+
+In 1822, Spooner named *Kumatage* (from the Greek κυμάτων, *of the waves*, and αὐγή, *splendour*)
+"this remarkable appearance of light" of the Sun reflected by the waves, and established its first
+equations. Navigators filtered it out as a glare, painters made it a subject, Cox & Munk turned it
+into a measurement of the sea surface slopes, ocean color remote sensing removed it as a noise, and
+it is now exploited as a signal on winds, waves, currents and slicks. The
+[History section](https://coxmunk.readthedocs.io/en/latest/history/kumatage.html) of the documentation
+retraces this history (adapted from Harmel, Bary, Gernez & Morin, OCEANEXT 2019), with paintings,
+Cox & Munk and Sentinel-2 images.
+
+## Examples
+
+Examples for [Cox & Munk](https://www.osapublishing.org/josa/abstract.cfm?uri=josa-44-11-838) model with [Bréon & Henriot](https://agupubs.onlinelibrary.wiley.com/doi/full/10.1029/2005JC003343) statistics for:
+- solar zenith angle = 39°
+- wind azimuth from Sun = 75°
+- wind speed = 0.2, 7.2, 14.2 m.s<sup>-1</sup>
+
+```
+$ coxmunk 39 0.2 --stats bh2006 --wind_azi 75 --figname illustration/coxmunk_fig_39_0.2_bh2006_75.png
+```
+
+![image_output](https://raw.githubusercontent.com/Tristanovsk/coxmunk/main/illustration/coxmunk_fig_39_0.2_bh2006_75.png)
+
+
+```
+$ coxmunk 39 7.2 --stats bh2006 --wind_azi 75
+```
+
+![image_output](https://raw.githubusercontent.com/Tristanovsk/coxmunk/main/illustration/coxmunk_fig_39_7.2_bh2006_75.png)
+
+
+
+```
+$ coxmunk 39 14.2 --stats bh2006 --wind_azi 75
+```
+
+![image_output](https://raw.githubusercontent.com/Tristanovsk/coxmunk/main/illustration/coxmunk_fig_39_14.2_bh2006_75.png)
+
+With the option `--slope` you can also check
+ the values of wave slopes upwind and crosswind,
+ the first term of the Fresnel matrix and the probability distribution function:
+
+```
+$ coxmunk 20 5 --stats bh2006 --wind_azi 60 --slope
+```
+
+![image_output](https://raw.githubusercontent.com/Tristanovsk/coxmunk/main/illustration/coxmunk_fig_sza20_ws5_wazi60_bh2006--slope.png)

coxmunk-1.2.1/coxmunk/__init__.py

@@ -0,0 +1,7 @@
+
+__package__ = 'coxmunk'
+__version__ = '1.2.1'
+
+from .coxmunk import sunglint
+from .visu import plot
+from .wind import whitecap_coverage, glint_whitecap, retrieve_wind_speed, glint_directions
