+# cocotbext-ospi
+
+OSPI flash verification for [cocotb](https://www.cocotb.org/): a bus driver,
+a device-level API over the JEDEC command set, and a NOR flash model to test
+against — single, dual, quad and **octal** I/O.
+
+Requires **cocotb 2.0+**. Tests run on Icarus Verilog.
+
+```
+pip install cocotbext-ospi
+```
+
+## Why another SPI extension
+
+[`cocotbext-spi`](https://github.com/schang412/cocotbext-spi) covers
+single-lane SPI. This one covers flash specifically, up to an eight-lane
+data bus, with the write-enable latch, status polling, page program and
+sector erase — and it targets cocotb 2.x.
+
+## Pointing a testbench at the models
+
+The Verilog ships inside the package, so there is nothing to vendor. Ask the
+package where it is:
+
+```make
+VERILOG_DIR := $(shell python3 -c \
+    "import cocotbext.ospi as o; print(o.verilog_dir())")
+
+VERILOG_SOURCES  = $(VERILOG_DIR)/devices/mx25um51345g.v
+VERILOG_SOURCES += $(VERILOG_DIR)/devices/mx25um51345g_test.v
+COMPILE_ARGS    += -I$(VERILOG_DIR)/devices
+```
+
+Or from Python, `cocotbext.ospi.verilog_dir()` returns a `pathlib.Path`.
+
+## Usage
+
+```python
+import cocotb
+from cocotb.clock import Clock
+from cocotbext.ospi import OspiFlash, CMD_OIOR
+
+@cocotb.test()
+async def test_flash(dut):
+    cocotb.start_soon(Clock(dut.clk, 20, unit="ns").start())
+
+    flash = OspiFlash(dut)
+    await flash.initialize()
+
+    assert await flash.read_id() == [0xC2, 0x80, 0x39]
+
+    # program() sets WEL, then polls the status register until WIP clears.
+    await flash.program(0x1000, [0xDE, 0xAD, 0xBE, 0xEF])
+
+    assert await flash.read(0x1000, 4) == [0xDE, 0xAD, 0xBE, 0xEF]
+    assert await flash.read(0x1000, 4, opcode=CMD_OIOR) == [0xDE, 0xAD, 0xBE, 0xEF]
+
+    await flash.erase_sector(0x1000)
+    assert await flash.read(0x1000, 4) == [0xFF] * 4
+```
+
+## The protocol, and two things that catch people out
+
+SPI mode 0: the master launches data while the clock is low, the device
+samples it on the rising edge, and vice versa.
+
+**How wide the opcode is depends on the protocol, and this trips people up.**
+The names say it: in **1-4-4** — a quad read issued to a part still in
+ordinary SPI — the leading `1` means the opcode goes out on one lane and only
+the address and data widen. In **8-8-8** the part has been switched into
+octal wholesale, so the opcode is eight lanes too, and it comes as a pair
+with its extension byte.
+
+Mixing these up is the most common reason a controller talks to nothing, and
+it is why `xspi_controller` takes a separate lane count for the command
+phase rather than assuming either. (The sibling `cocotbext-qspi` is the
+1-4-4 case throughout, so there the opcode really is always single-lane.)
+
+**Programming only clears bits.** NOR flash needs an erase to set a bit back
+to 1. Programming `0x0F` over `0xF0` gives `0x00`, not `0x0F`.
+
+### What it looks like on the wire
+
+All three diagrams below are generated from a real simulation — `capture.py`
+runs the transactions, Icarus dumps a VCD, and `render.py` draws it. Nothing
+is drawn by hand, so they cannot drift away from what the model does.
+

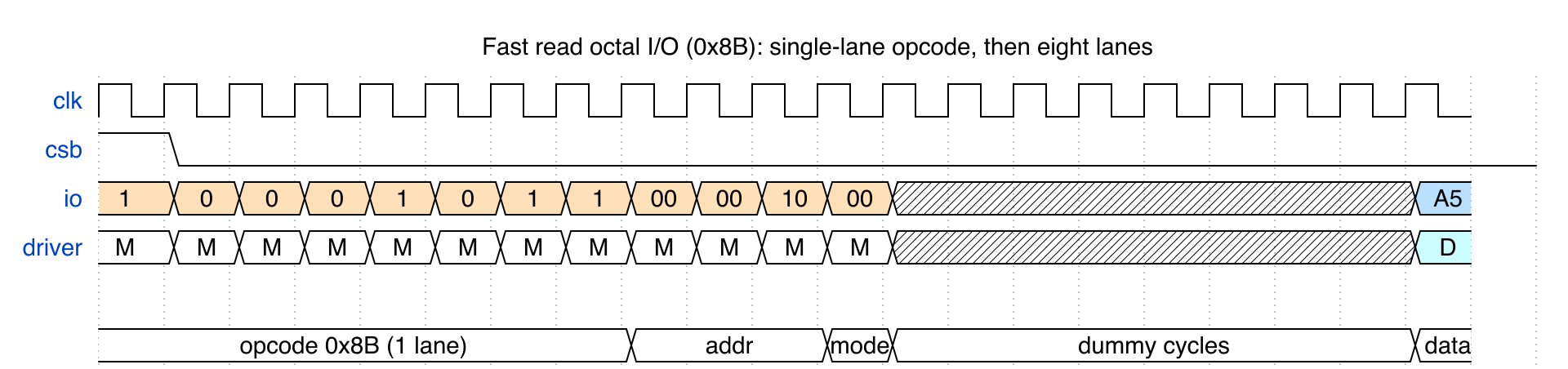

+An octal I/O read. The opcode goes out one bit per clock on a single lane;
+only then does the bus widen to all eight for the address and data — a whole
+byte per clock. Note the dummy cycles, where neither side drives while the
+bus turns around:
+
+![Fast read octal I/O](https://raw.githubusercontent.com/JitheshVijay/cocotbext-ospi/v0.2.0/docs/waveforms/octal-read.png)
+

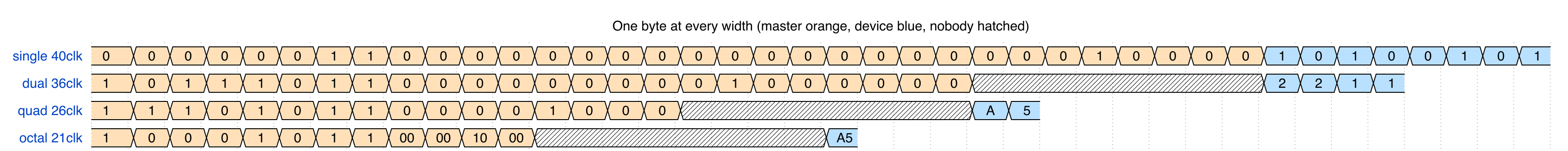

+The same byte read at every width. This is what the wide modes buy you —
+40 clocks single-lane down to 21 octal, for one byte at the same address:
+
+![One byte at every width](https://raw.githubusercontent.com/JitheshVijay/cocotbext-ospi/v0.2.0/docs/waveforms/width-comparison.png)
+

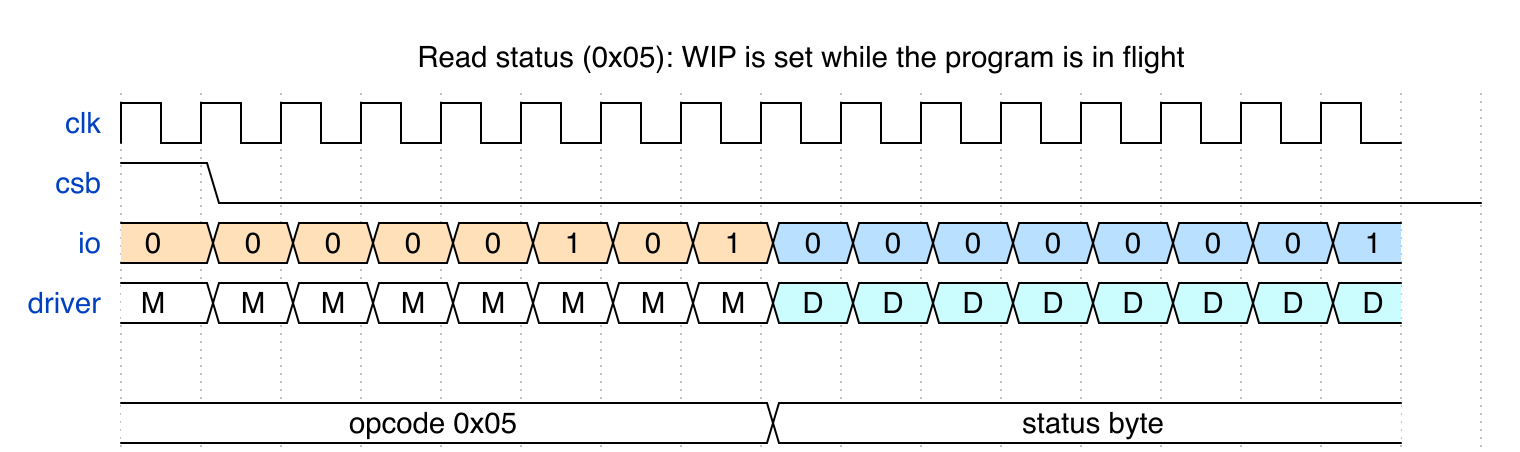

+A status read while a program is in flight. The device answers `0x01` — WIP
+set — which is what `wait_ready()` polls for:
+
+![Read status](https://raw.githubusercontent.com/JitheshVijay/cocotbext-ospi/v0.2.0/docs/waveforms/read-status.png)
+
+To regenerate them:
+
+```
+make -C docs/waveforms        # run the sim, dump capture.vcd
+make -C docs/waveforms svg    # capture.vcd -> *.svg
+```
+
+### Commands
+
+| Opcode | Name | Address | Data |
+|---|---|---|---|
+| `0x06` | Write enable | — | — |
+| `0x04` | Write disable | — | — |
+| `0x05` | Read status | — | 1 lane, repeats |
+| `0x9F` | JEDEC id | — | 1 lane, 3 bytes |
+| `0x03` | Read | 1 lane | 1 lane |
+| `0xBB` | Fast read dual I/O | 2 lanes | 2 lanes, after mode byte + dummy |
+| `0xEB` | Fast read quad I/O | 4 lanes | 4 lanes, after mode byte + dummy |
+| `0x8B` | Fast read octal I/O | 8 lanes | 8 lanes, after mode byte + dummy |
+| `0x02` | Page program | 1 lane | 1 lane; needs WEL, sets WIP |
+| `0x20` | Sector erase (4 KB) | 1 lane | — ; needs WEL, sets WIP |
+
+Status register: bit 0 `WIP` (write in progress), bit 1 `WEL` (write enable
+latch). `wait_ready()` polls it rather than assuming a fixed delay, which is
+what a real controller must do.
+
+`HOLD_N` is **active low**: high is normal operation, and pulling it low
+freezes the interface mid-transaction without losing state.
+
+## Real device models
+
+Alongside the generic model there are models of specific parts, built from
+their datasheets and cross-checked against Linux's `drivers/mtd/spi-nor`:
+
+| Part | Protocols | Command extension | Octal entry |
+|---|---|---|---|
+| **Macronix MX25UM51345G** | 1S-1S-1S, 8S-8S-8S, 8D-8D-8D | **inverted** (`~opcode`) | CR2 `0x00000000` |
+| **Micron MT35XU512ABA** | 1S-1S-1S, 8D-8D-8D | **repeated** (`opcode`) | CFR1V then CFR0V |
+
+```python
+from cocotbext.ospi.devices import MX25UM51345G
+from cocotbext.ospi.xspi_flash import XspiFlash
+
+flash = XspiFlash(dut, MX25UM51345G)
+await flash.initialize()                       # the part boots single-lane
+assert await flash.read_id() == [0xC2, 0x81, 0x3A]
+
+await flash.enter_octal()                      # writes CR2, switches protocol
+assert await flash.read_id() == [0xC2, 0x81, 0x3A]   # now over eight lanes
+```
+
+### Three things real parts do that a generic octal model does not
+
+**Octal commands come in pairs.** In 8-8-8 the opcode goes out eight lanes
+wide, immediately followed by an extension byte. Macronix sends the
+bitwise complement (`8READ` is `EC`/`13`), Micron repeats the opcode. Linux
+calls these `SPI_NOR_EXT_INVERT` and `SPI_NOR_EXT_REPEAT`. Send the wrong
+one and the model rejects the command — the two disagree about this
+deliberately, and each has a test proving it refuses the other's form.
+
+That rejection is a modelling choice, flagged as such in both models. The
+datasheets and Linux say what a controller must *send*; neither says what
+silicon does with a mismatched extension. Refusing it is what turns a
+controller configured for the wrong vendor into an obvious failure instead
+of undefined behaviour.
+
+**Commands change shape with the protocol.** `RDSR` takes no address and no
+dummy cycles in SPI, but on the Macronix part in OPI it grows a 4-byte
+address and four dummy cycles. `RDID` likewise. Addresses are 4 bytes, not
+3.
+
+**Dummy cycles are configurable and you must track them.** `DC[2:0]` in
+Macronix CR2 `0x300` selects 20/18/16/14/12/10/8/6 cycles depending on clock
+frequency; Micron's CFR1V holds the count directly. A controller that does
+not follow the register reads garbage — there is a test that walks the whole
+table.
+
+### 8D-8D-8D
+
+Both parts run at double transfer rate: a bit per lane on **both** clock
+edges, so eight lanes move two bytes per clock. That is why an odd number of
+bytes cannot be transferred in that mode, and why leaving it means writing
+CFR0V and CFR1V together in one 2-byte write — which is exactly what Linux
+does.
+
+Macronix has separate STR and DTR octal reads (`8READ` = `EC`/`13`,
+`8DTRD` = `EE`/`11`) selected by CR2 bit 0 or bit 1; `enter_octal()` takes
+the protocol you want. Its DTR mode also enforces datasheet note 5: **the
+start address must be even**. An odd one is rejected rather than quietly
+returning the neighbouring byte.
+
+The DTR edge handling is validated against PicoSoC's `spiflash.v` quad-DTR
+read (`0xED`), an independently written model, for the same reason the rest
+of the interop suite exists.
+
+### DQS
+
+A separate pin, not part of `SIO[7:0]`. The device strobes it alongside read
+data so a controller can capture with the data rather than with its own
+clock, which is what makes high-speed DTR reads timing-closable.
+
+The shape is taken from the Rev 1.3 timing figures, read from the artwork —
+the text extraction carries only bare `DQS` row labels:
+
+| Phase | DQS |
+|---|---|
+| Command, extension, address | **held high** |
+| Dummy | low |
+| Data | toggles with the clock |
+
+It is **not** parked low while busy, which matters to a controller that
+gates on it: *DQS low* means dummy-or-idle, not idle alone. Getting this
+backwards is exactly the sort of thing a model tested only against its own
+driver never notices — the tests would assert whatever the model did.
+
+DTR always strobes. STR only does so if `DOS` (CR2 `0x200` bit 1) asks, and
+a controller that enables DQS capture without setting it waits for edges
+that never come.
+
+Two things the datasheet does not settle, flagged in the model and pinned by
+tests so the choices are visible:
+
+- Only **one** STR-OPI figure carries a DQS row at all — the array read.
+  Every STR-OPI register read is drawn without one, so whether `DOS` makes
+  `RDSR` or `RDID` strobe is undocumented. The model says yes.
+- No figure shows DQS after the final data byte, so returning low at the end
+  of a burst is an assumption.
+
+### SFDP
+
+Both models carry a real SFDP image, so a driver can discover a part instead
+of being told about it:
+
+```python
+info = await flash.discover()
+info.size_bytes          # 67108864  (512 Mb)
+info.address_bytes_name  # '4 only'
+info.dtr                 # True
+info.page_size           # 256
+info.erase_types         # [(4096, 0x21), (65536, 0xDC)]
+```
+
+`RDSFDP` (`0x5A`) changes shape with the protocol — 3 address bytes and 8
+dummy cycles in SPI, 4 and 20 in OPI — so discovery has to know which mode
+it is in. Both profiles carry both shapes, and a test reads the same table
+each way.
+
+Both parts also carry an **xSPI Profile 1.0 table** (JESD251, id `0xFF05`),
+which is how a part advertises its octal DTR capability rather than being
+told: the fast-read opcode, the dummy cycles needed at each frequency, and
+the shape `RDSR` takes in octal.
+
+```python
+info = await flash.configure_from_sfdp(mhz=200)
+# reads Profile 1.0 and points the driver's octal read at the advertised
+# opcode and dummy count -- no profile constants involved
+```
+
+That the two parts disagree here is the point: Macronix `RDSR` takes a
+4-byte address and 4 dummy cycles in octal, Micron's takes none and 8. A
+controller hardcoded for one misreads the other, which is what Profile 1.0
+exists to prevent. Each part has a test asserting its own shape and the
+other's.
+
+The tests also check the table is not lying: every advertised dummy count is
+programmed into CR2 and the read has to still work.
+
+The tables are built by `cocotbext/ospi/sfdp.py` and emitted into the models
+by `cocotbext/ospi/verilog/devices/generate_sfdp.py`. Defining them once and generating the
+Verilog is what stops the model and the parser drifting apart — and the
+tests read back through the parser exactly what the generator put in.
+
+```
+python3 cocotbext/ospi/verilog/devices/generate_sfdp.py   # regenerate the ROMs
+```
+
+### Reset
+
+`initialize()` issues the `RSTEN`/`RST` pair. A part left in octal by a
+previous run cannot understand a single-lane command, so the sequence is
+sent in every protocol the profile supports; the one the part is actually in
+takes effect and the rest are ignored as malformed. Without this, tests
+quietly depend on whatever mode the previous one left behind.
+
+### What is not modelled
+
+Micron's suspend/resume and its lock registers; Macronix's SPB and lock
+register (the volatile DPB layer is modelled, the non-volatile one is not);
+ECC and CRC; the secured OTP array; and SFDP tables beyond BFPT, Profile 1.0
+and 4BAIT. Timing parameters are simulation-convenient rather than
+datasheet-accurate — `PROGRAM_NS` and `ERASE_NS` are parameters, not the
+real tPP/tSE.
+
+The arrays are a small window rather than the full 64 MB so simulations stay
+fast; capacity is reported honestly in both the JEDEC ID and SFDP.
+
+```
+make -C tests -f Makefile.mx25          # Macronix, 38 tests
+make -C tests -f Makefile.mt35          # Micron, 24 tests
+make -C tests -f Makefile.controller    # controller DUT, 8 tests
+```
+
+## A controller as DUT
+
+Everything above points a driver at a flash model. `cocotbext/ospi/verilog/controller/`
+inverts that: an `xspi_controller` is the RTL under test, driving the
+MX25UM51345G model, with cocotb poking only its command interface. It never
+touches the flash pins — if the controller gets a phase wrong, the bytes come
+back wrong and nothing in Python can paper over it.
+
+```
+make -C tests -f Makefile.controller    # 8 tests
+```
+
+One command per handshake: opcode, optional extension byte, address, address
+width, dummy cycles, lane counts, direction and length. Nothing in it is
+specific to a particular flash, so the same RTL drives the part in
+single-lane SPI and in octal.
+
+It is deliberately small — a sequencer, not a product. What it is for is
+being something real to point the models at, and it earned that immediately:
+writing it exposed an opcode-width error in this README, because the driver
+and the model both happened to be right while the prose was wrong. A closed
+loop of our own components could not have surfaced that.
+
+Single transfer rate only. DTR needs data on both edges and two sample
+points per period, and the counters step once per `sclk` period, so it is a
+real change rather than a parameter.
+
+## Bus signals
+
+`OspiBus.from_entity(dut)` picks up `clk`, `csb`, `io` and `HOLD_N`, plus
+`io_out` and `io_oe`.
+
+A simulator will not let a testbench drive an `inout` net, so the top level
+splits the master's half into a value and a **per-lane** output enable:
+
+```verilog
+wire [7:0] io;
+genvar g;
+generate
+    for (g = 0; g < 8; g = g + 1) begin : lane
+        assign io[g] = io_oe[g] ? io_out[g] : 1'bz;
+    end
+endgenerate
+```
+
+Per-lane, not bus-wide: in single-lane mode the master drives `io0` while
+the device answers on `io1`.
+
+Note also that `csb` is left uninitialised in `ospi_flash_test.v`. The model
+frames transactions on chip-select edges, and an initialiser there races
+cocotb's first write at time 0 — the edge is lost and the device never
+starts. `initialize()` drives the sequence explicitly.
+
+## Testing
+
+Two suites, and the split matters:
+
+```
+make -C tests                      # against our own JEDEC model: 12 tests
+make -C tests -f Makefile.interop  # against PicoSoC's spiflash.v: 5 tests
+```
+
+The interop suite drives
+[`spiflash.v`](https://github.com/YosysHQ/picorv32) — a model this project
+did not write — and checks the bytes against known `$readmemh` content.
+
+That distinction earned its keep. Testing only against our own model proves
+the driver and the model agree; it does not prove either is right. Driving
+somebody else's model immediately found that the master was dropping the
+first bit of every byte — our model had the same off-by-one assumption, so
+the closed loop had been happily agreeing with itself.
+
+**Scope of that check:** `spiflash.v` is a four-lane part, so interop covers
+the single, dual and quad paths. There is no comparable open-source octal
+model, so the eight-lane path is exercised only against our own model. Treat
+octal as less hardened than the rest.
+
+## Layout
+
+| Path | Contents |
+|---|---|
+| `cocotbext/ospi/ospi_flash.py` | `OspiFlash` — JEDEC command set, status polling, hold |
+| `cocotbext/ospi/ospi_master.py` | `OspiMaster` — byte transfers at 1/2/4/8 lanes |
+| `cocotbext/ospi/ospi_bus.py` | `OspiBus` — signal bundle |
+| `cocotbext/ospi/ospi_config.py` | `OspiConfig`, `lanes_for_mode` |
+| `cocotbext/ospi/verilog/ospi_flash.v` | NOR flash model: WEL, WIP, page program, sector erase, hold |
+| `cocotbext/ospi/verilog/ospi_flash_test.v` | cocotb top level |
+| `tests/reference/` | third-party model for interop (ISC, see its README) |
+
+## Licence
+
+MIT. `tests/reference/spiflash.v` is ISC, © Claire Xenia Wolf.
