+# atspm-detector
+
+Give it a signal controller's hi-res event log; for every vehicle detector it returns the **phase**, **function**,
+**lanes**, **setback** from the stop bar and **health**. No cabinet print needed: the answers come from how each
+detector behaves. Use it to **build** a signal's ATSPM detector configuration, or to **check** the one you have.
+
+* **Tested on 115 signals it never trained on:** phase right for **98.0 %** of detectors, function **91.7 %**
+  (30 minutes or more of log).
+* **More accurate than hand-labled configuration:** phase wrong on 1.3 % of detectors, against 2.6 % by hand.
+* **Fast and light:** one second per signal on CPU.
+
+**Contents:** [Detector functions](#detector-functions) · [Install](#install) · [Usage](#usage) · [Input](#input) ·
+[How much data](#how-much-data) · [How it works](#how-it-works) · [Accuracy](#accuracy) ·
+[Detector health](#detector-health) · [License](#license)
+
+## Detector functions
+
+| Function | ATSPM | What it is |
+|---|---|---|
+| Presence | yes | Stop-bar presence zone. The presence zones used in training were about 20 ft long at the stop bar. |
+| Advance | yes | Advance count zone, upstream. Single lane or spanning several lanes. |
+| Count | yes | Stop-bar count zone. Usually set to pulse, one per lane. |
+| Yellow_Red | yes | At the stop bar; may span several lanes. Configure it in the field with a 5 mph speed threshold. |
+| Mid | no | Zone between the advance and the stop bar. A class of its own because it helps the model. |
+| Bike | no | Bicycle detection zone. |
+| Other | no | Everything else that drives operations but is not an ATSPM zone. |
+
+## Install
+
+```bash
+pip install atspm-detector   # Python 3.10 or newer
+```
+
+## Usage
+
+```python
+import pandas as pd
+from atspm_detector import predict
+
+events = pd.read_csv("events.csv")   # or pd.read_parquet (needs pyarrow)
+events.head()
+```
+
+```text
+                               DeviceId                Timestamp  EventId  Parameter
+0  d2d0de72-c8aa-45ca-ae1a-8fc626c5afc9  2024-12-03 12:00:00.000      150          7
+1  d2d0de72-c8aa-45ca-ae1a-8fc626c5afc9  2024-12-03 12:00:00.000      320          0
+2  d2d0de72-c8aa-45ca-ae1a-8fc626c5afc9  2024-12-03 12:00:00.000      318          3
+3  d2d0de72-c8aa-45ca-ae1a-8fc626c5afc9  2024-12-03 12:00:00.000      316        120
+4  d2d0de72-c8aa-45ca-ae1a-8fc626c5afc9  2024-12-03 12:00:00.600       13          6
+```
+
+```python
+results = predict(events)
+results[["Detector", "phase_pred", "phase_prob", "function_pred", "function_prob",
+         "lanes", "distance_ft", "health_status"]].round(2).head()
+```
+
+```text
+   Detector  phase_pred  phase_prob function_pred  function_prob lanes  distance_ft    health_status
+0         2           2        0.99       Advance           0.90     2        164.0               ok
+1         3           2        1.00       Advance           0.64   1,2        153.0               ok
+2         4           2        1.00      Presence           0.40   1,2          0.0               ok
+3         5           2        1.00       Advance           0.53     1        152.0               ok
+4         6        <NA>         NaN           NaN            NaN   NaN          NaN  not_enough_data
+```
+
+From the bundled 30-minute sample; detector 6 had one actuation, too few to judge. One row per detector; main columns:
+
+| Column | What |
+|---|---|
+| `phase_pred`, `phase_prob` | phase and its probability (`phase_2nd`, `phase_2nd_prob`: runner-up) |
+| `function_pred`, `function_prob` | function (table above) and its probability |
+| `lanes`, `phase_n_lanes` | lane(s) the detector covers, number of lanes on its phase |
+| `distance_ft`, `night_speed_mph` | setback from the stop bar (ft); typical night speed on the phase |
+| `health_status`, `health_reason` | ok / watch / suspect / bad / not_enough_data, and why |
+| `status`, `review_flag` | "ok", or why an answer is missing or weak; `True` = worth a look |
+
+Under 5 actuations: no answer (guess in `phase_guess`, `function_guess`). `return_phases=True` also returns a phase table.
+
+**One signal or many.** `DeviceId` separates signals. Each is processed on its own, so its answers are the same alone
+or in a batch. `predict` also takes a parquet or CSV path or glob, and `start` / `end` times. To build it into an
+application, see [docs/embedding.md](https://github.com/ShawnStrasser/atspm-detector/blob/main/docs/embedding.md).
+
+## Input
+
+One row per event, standard Indiana hi-res format: `DeviceId` (any signal id), `Timestamp` (controller local time),
+`EventId`, `Parameter`. Give it the whole log; unused event codes are dropped.
+
+## How much data
+
+| Sample length | Phase | Function | Notes |
+|---|---|---|---|
+| 5 minutes | 94.1 % | 86.4 % | works, but weaker; no lanes |
+| 30 minutes | 97.7 % | 91.7 % | **recommended minimum**; lanes from here on |
+| 1 hour | 98.0 % | 91.8 % | |
+| 3 hours | 98.2 % | 92.9 % | best for phase and function (3 to 24 hours) |
+| 24 hours | 98.4 % | 92.5 % | full health check |
+
+On the 115 test signals. Health runs on any length; time-of-day checks need a full day, night speed midnight to 5 am.
+
+## How it works
+
+* **In:** detector on / off, signal colors and phase calls. The model never sees a phase or channel number; it scores
+  each detector against every phase that turned green, from behavior alone.
+* **Models:** gradient-boosted trees and a small neural network score each detector against each phase and function.
+  A final step looks at the whole intersection to keep at most one detector of each ATSPM function per lane. Small
+  models give lanes and setback. Health is checked last, by rules, and never changes an answer. All on the CPU with
+  onnxruntime (8.5 MB of weights).
+
+## Accuracy
+
+Measured once, on the final model, on **115 locked signals** never used for training or tuning (30 minutes to 24 hours
+of log). Phase truth: controller timing (21,341 detector samples, 113 signals). Function truth: configuration export
+checked against cabinet prints (87 signals). Detectors with no actuations or no green on their phase are not scored.
+All labels come from one agency; other agencies' conventions may differ.
+
+* **Phase: 98.0 %** (95 % interval 97.0-98.9 %). Most errors are between through phases nearly always green together
+  (2 and 6, 4 and 8).
+* **Function: 91.7 %** (88.7-94.0 %), ATSPM errors only, excluding detectors whose label the model picked (print vs
+  hand label). By true class: Advance 93.9 %, Presence 95.2 %, Count 96.6 %, Yellow_Red 89.5 %, Other 81.8 %.
+* **Lanes:** lane count per phase exact for 82.5 % of phases, within one for 97.5 % (298 phases).
+* **Setback:** median error 36 ft (59.9 % within 50 ft; Advance, 25 signals); 23.9 ft in cross-validation.
+* **Night speed:** an approach speed, not the posted speed; two nights agree to a median of 1.5 mph.
+* **Speed:** 0.8 s per signal for 30 minutes of log, 1.7 s for 24 hours; 250-400 MB of memory.
+
+**Against hand labels** (signals not trained on): phase wrong on 1.3 % of 4,636 detectors (hand labels 2.6 %); function
+off the cabinet print on about 6 % of 5,254 (hand labels 9.7 %). Where model and hand label differed, the timing backed
+the model 104 times to 24, the print 398 to 177. Prints can be out of date.
+
+**Health:** flagged 19 of 20 detectors a traffic engineer judged faulty, and none of the 12 judged fine.
+Flagged (suspect or bad) per 100 detectors: 0.4 on 30 minutes, 1.2 on 3 hours, 3.9 on 24 hours. Not field-verified.
+
+## Detector health
+
+Each detector gets a status, a plain-words reason, the periods affected and the categories, judged against what is
+normal for its type (function x lanes x sample length). Checks: stuck on, goes silent, count drops, misses vehicles at
+night, erratic counts, too-fast actuations, chattering, too many for the traffic, erratic time ON, busy at night,
+unusual daily pattern, Count zone held ON. **Bad** = one strong finding, two checks agreeing, or 4+ hours of the day.
+

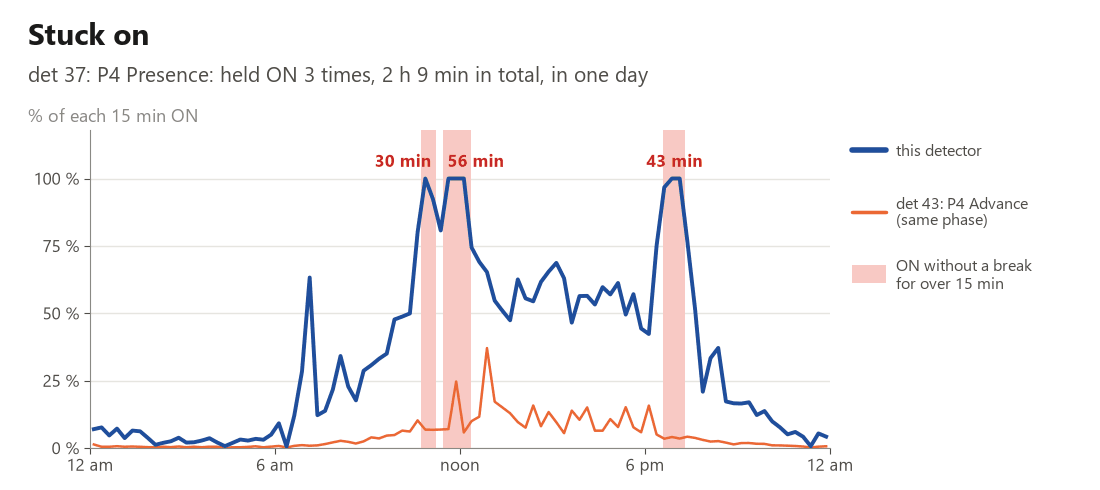

+![Stuck on: a Presence detector held ON three times in one day](https://raw.githubusercontent.com/ShawnStrasser/atspm-detector/main/docs/images/health_stuck_on.png)
+

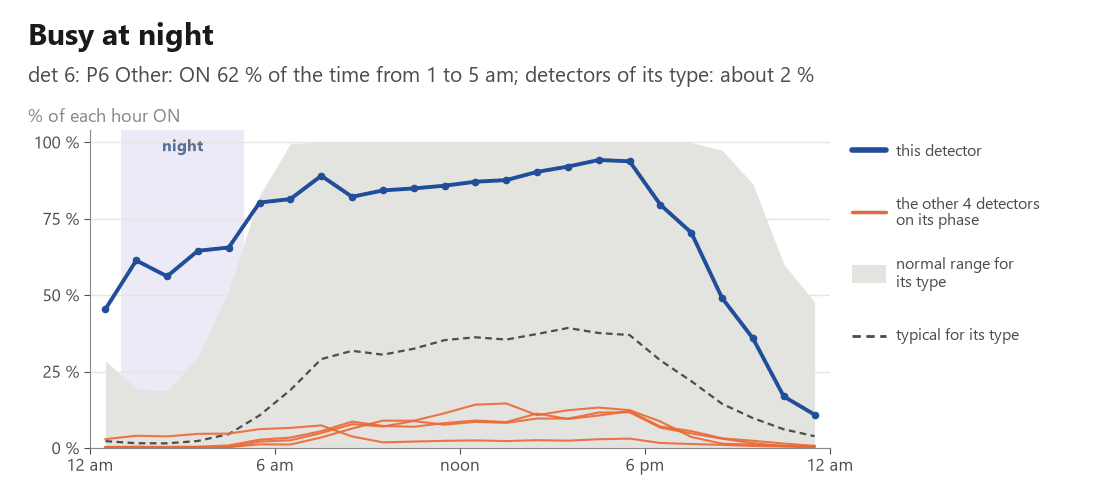

+![Busy at night: a detector ON 62 % of the time from 1 to 5 am](https://raw.githubusercontent.com/ShawnStrasser/atspm-detector/main/docs/images/health_busy_at_night.png)
+

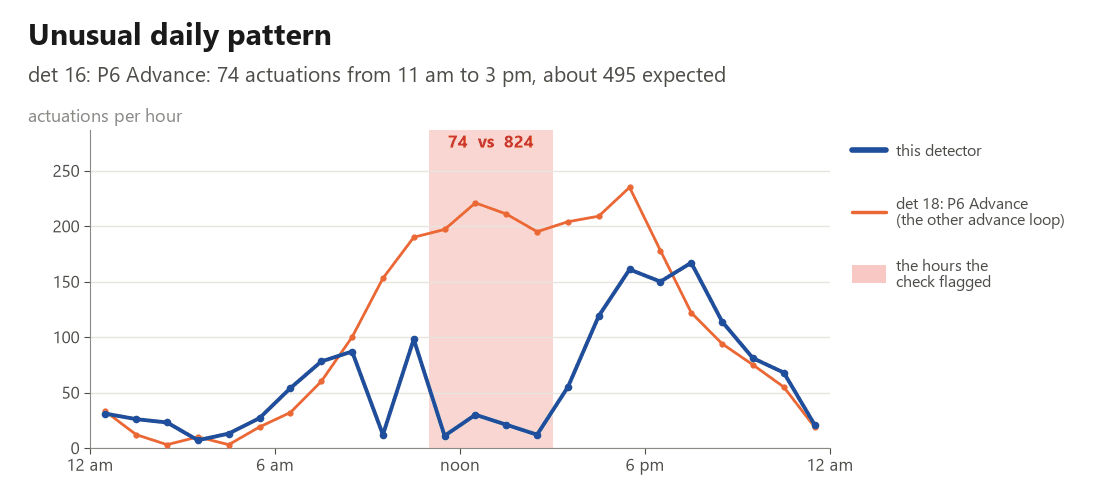

+![Unusual daily pattern: an advance loop goes quiet at midday while its partner keeps counting](https://raw.githubusercontent.com/ShawnStrasser/atspm-detector/main/docs/images/health_unusual_day.png)
+
+## License
+
+MIT
