+# ARPES viewer
+
+**Version 1.2.1** (last modified 29 October 2026) — see
+[CHANGELOG.md](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/CHANGELOG.md) for what changed. The version is in
+`arpes_viewer/version.py` and is shown in the main window's title bar and at its foot,
+with a link to this repository for bug reports and the latest version
+(<https://github.com/DingPei1995/ARPES-data-browser>). Please quote it when
+reporting a bug, and upload the error log with the report ([below](#bug-reports)).
+
+> **Terms of use.** This program is for **non-commercial use only**
+> (academic research and teaching); any commercial use is not permitted.
+> New and updated loaders cover data from **public large-scale facilities**
+> (synchrotrons and similar user facilities) only -- formats of individual
+> laboratories' own set-ups are not supported. If you use this program for
+> a paper on ARPES experiments, please cite this repository in its
+> references (<https://github.com/DingPei1995/ARPES-data-browser>). A paper
+> related to AI that uses this program or its code **must** first be
+> discussed with the author by e-mail. For collaborations, or
+> questions about the details, contact
+> [ding.pei@synchrotron-soleil.fr](mailto:ding.pei@synchrotron-soleil.fr).
+>
+> **Licence and authorship.** Copyright (c) 2026 Ding Pei. Licensed under
+> the [PolyForm Noncommercial License 1.0.0](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/LICENSE.md); see also
+> [NOTICE](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/NOTICE). This is the author's personal work, developed from the
+> author's own earlier code; no institution funded it. The requirements, design
+> decisions, trade-offs, physics, the testing on real experimental data
+> and the feedback from it (drawing on
+> [Phys. Rev. B 103, 245121 (2021)](https://doi.org/10.1103/PhysRevB.103.245121) and
+> [Phys. Rev. B 95, 125126 (2017)](https://doi.org/10.1103/PhysRevB.95.125126)),
+> and the review and acceptance of every change are Ding Pei's; the
+> implementation was assisted by Claude (Anthropic), credited as co-author
+> in the commits.
+
+A Python/PyQt5 program for ARPES data: browse the measurements of a
+beamtime, open them in their own windows, convert to momentum, cut, fit,
+process, compare with a band-structure calculation, and lay the results out
+as a publication figure.
+
+---
+
+## From raw data to a publication figure -- and an AI agent can drive it
+

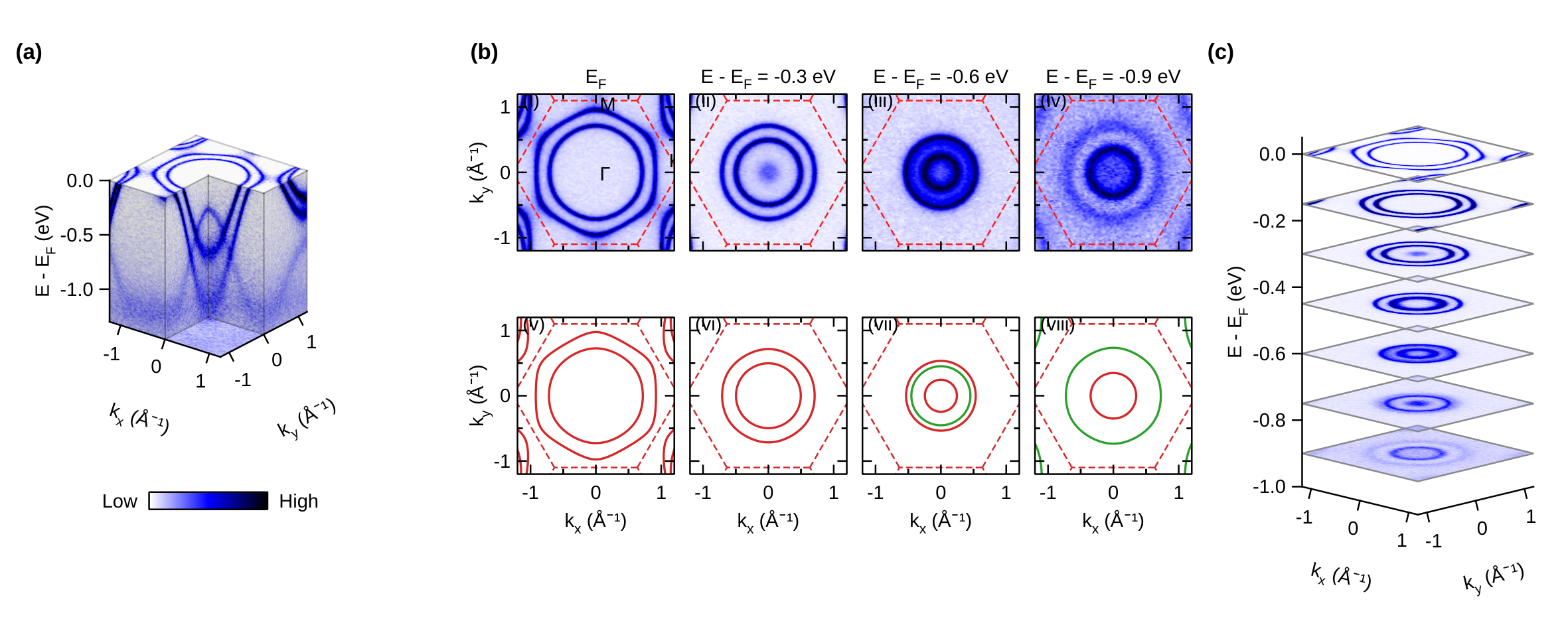

+![Example figure 1: a notched cube, measured and calculated constant-energy contours, stacked contours](https://raw.githubusercontent.com/DingPei1995/ARPES-data-browser/v1.2.1/docs/images/example_figure_1.png)
+
+> **These are not real experimental data.** Every panel above is made from
+> the program's **synthetic demo data** (`devtools/demo_data.py`): an
+> invented tight-binding toy model -- a triangular lattice, a = 3.3 Å,
+> stacked with c = 6 Å, a few bands with orbital labels and a k_z
+> dispersion -- turned into spectra with a Fermi-Dirac cut-off, the
+> analyser resolution and Poisson counting noise, and written as beamline
+> files. The "calculation" in panel (b) is the same toy Hamiltonian made
+> deliberately 1/0.8 times wider and 50 meV higher, so that comparing it
+> with the "measurement" has something to find. **No published data or
+> literature were used to generate them**: the model and its parameters are
+> invented, and names such as "Se-pxy" or "1T-TiSe₂-like" are labels for the
+> toy, not a description of a real material. (The only tabulated values in
+> the demo set are the X-ray line energies of its synthetic EDS spectrum,
+> standard emission energies as listed in the X-ray Data Booklet; that
+> spectrum is not part of this figure.)
+
+<p align="center">
+  <img src="https://raw.githubusercontent.com/DingPei1995/ARPES-data-browser/v1.2.1/docs/images/composer_colour_bar.png" width="96%"
+       alt="Example figure 1 in the figure composer, its colour bar being set">
+</p>
+<p align="center">
+  <img src="https://raw.githubusercontent.com/DingPei1995/ARPES-data-browser/v1.2.1/docs/images/main_window_advanced.png" width="50%"
+       alt="The main panel: the beamtime's datasets and the tools for the selected ones">
+  <img src="https://raw.githubusercontent.com/DingPei1995/ARPES-data-browser/v1.2.1/docs/images/map_k_contour.png" width="47%"
+       alt="A Fermi-surface map converted to momentum, in its viewer">
+</p>
+<p align="center"><sub>Example figure 1 in the figure composer (top); the
+main panel and a Fermi-surface map in momentum, in its viewer (bottom) --
+also on the synthetic demo data.</sub></p>
+
+Every step from the files to the finished figure is the program's own,
+and every step is plain Python that a script -- or an **AI agent** -- can
+run, without a screen:
+
+| Step | In the program | In code |
+|---|---|---|
+| 1. Raw data | the beamline files, as the main panel lists them | `arpes_viewer.loader.registry.load(path, entry)` |
+| 2. To momentum | the Γ-plane Fermi-surface map → k-map | `arpes_viewer.tools.momentum.kspace.convert_map(...)` |
+| 3. The calculation | **Calculated bands**: a Wannier Hamiltonian; Z and the shift fitted on a cut | `BandsDialog.open_file(...)`, `.fit_alignment()` |
+| 4. Measured vs calculated | constant-energy maps over the calculated contours, coloured by orbital weight (b) | `BandsDialog.series_panels(...)` |
+| 5. 3-D views | the notched cube (a), the stacked contours (c) | `VolumeWindow(...).figure_panel()` |
+| 6. The figure | the **figure composer**: arranged, lettered, exported as PNG / PDF, saved as `.afig` with the data and the files it came from | `FigureWindow(...)`, `.arrange(...)`, `.write(...)` |
+
+`devtools/figure_tests.py` is exactly this script -- it writes the demo
+files, reads them back, and builds this figure (and its companion, example
+figure 2) in under a minute:
+
+```
+python devtools/figure_tests.py out_png/ out_afig/
+```
+
+In the step 3 fit it recovers what was built into the demo calculation
+(Z = 0.798 ± 0.001 and a shift of −49.8 ± 0.4 meV, against 0.8 and −50 meV).
+
+**Why an AI agent can drive it.** The computations live in `arpes_viewer/tools/`,
+free of any user interface; the windows can run off-screen
+(`QT_QPA_PLATFORM=offscreen`) and be driven call by call as a user drives
+them; each step is documented in the [user guide](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/USER_GUIDE_en.md)
+and in the technical references beside the code; and a saved figure records
+the data and the original files behind every panel. So a coding agent given
+this repository and a folder of data can be asked in plain words -- *"convert
+the Γ-plane map to momentum, compare it with the Wannier calculation in
+`calc/`, and make a figure like example figure 1, with constant-energy maps
+at E_F, −0.3, −0.6 and −0.9 eV"* -- write and run the script, look at the
+PNG it made, and refine it, through to a figure ready for a manuscript. The
+user guide's [worked example](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/USER_GUIDE_en.md#30-worked-example-two-figures-in-the-figure-composer)
+does the same by hand, step by step. As with any analysis, check what an
+agent produced before you publish it -- and see the terms of use above for
+papers related to AI.
+
+---
+
+## What it does
+
+- **Reads** SOLEIL ANTARES and CASSIOPEE (including whole folders and the
+  spin end station), ALS MAESTRO, ALBA LOREA, Diamond I05 and I05-1, MAX IV
+  Bloch, Elettra APE, BESSY One Cube / One Square, SOLARIS URANOS, ASTRID2
+  SGM4, and its own saved format ([loading data](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/USER_GUIDE_en.md#4-loading-data)).
+- **Shows** cuts, Fermi-surface maps, photon-energy scans, spatially resolved
+  scans and spin-resolved curves, each in its own window with linked cursors
+  ([the viewers](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/USER_GUIDE_en.md#5-what-the-viewers-have-in-common)).
+- **Converts** maps and cuts to momentum, photon-energy scans to k_z, with the
+  Brillouin zone drawn over them
+  ([§13](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/USER_GUIDE_en.md#13-converting-a-map-to-momentum),
+  [§14](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/USER_GUIDE_en.md#14-photon-energy-scans-kz),
+  [§15](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/USER_GUIDE_en.md#15-brillouin-zone)).
+- **Analyses**: Fermi-edge fits, Fermi-surface correction, MDC / EDC fits,
+  ridge detection, curvature and second derivatives, dichroism, core levels,
+  spin, de-gridding, detector corrections
+  ([§7–§24](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/USER_GUIDE_en.md#7-arbitrary-cuts-and-fermi-surface-correction)).
+- **Compares with theory**: crystal structures, tight-binding fits, and
+  calculated bands from Wien2k, VASP, Quantum ESPRESSO, Wannier90 and the
+  FPLO + Wannier tools -- along a path, as constant-energy contours on any
+  (hkl) plane, or as a 3-D Fermi surface
+  ([§25–§27](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/USER_GUIDE_en.md#27-calculated-bands)).
+- **Makes figures**: the figure composer, laid out like a manuscript page,
+  exported as PNG, PDF or SVG, and saved with its data
+  ([§28–§30](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/USER_GUIDE_en.md#28-the-figure-composer)).
+- **Loses nothing**: every derived dataset is autosaved, a crash is recovered
+  from, and long steps show a progress bar
+  ([§31](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/USER_GUIDE_en.md#31-autosave-memory-and-recovery)).
+
+---
+
+## Installing and starting
+
+Needs Python 3.9+. With pip, which installs PyQt5, pyqtgraph, numpy,
+h5py and scipy with it:
+
+```
+pip install arpes-viewer
+arpes-viewer
+```
+
+(`python -m arpes_viewer` does the same; for the latest, unreleased
+version: `pip install git+https://github.com/DingPei1995/ARPES-data-browser`.)
+Installed this way, the error logs go to `~/.arpes_viewer/error_logs/`.
+
+From a downloaded copy of this repository, with those packages installed:
+
+```
+python ARPES_viewer.py
+```
+
+- **Windows:** double-click **`ARPES viewer.pyw`** in this folder: no
+  console window to close by mistake (the output goes to
+  `~/.arpes_viewer/launcher.log`).
+- **macOS:** double-click **`ARPES viewer.app`** in this folder. It finds a
+  Python that has the packages (conda included), remembers it, and says what
+  to install if none has. The first time, if macOS calls it an app from an
+  unidentified developer: **System Settings → Privacy & Security → Open
+  Anyway**.
+- **No beamtime at hand?** `python devtools/demo_data.py` writes the
+  synthetic demo data above to `demo_data/`
+  ([trying it with demo data](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/USER_GUIDE_en.md#2-trying-it-with-demo-data)).
+
+---
+
+## Bug reports
+
+The program saves what went wrong by itself, in
+`error_logs/errors_<date>_<time>.txt` in its folder (in `~/.arpes_viewer/` when installed with pip), and keeps running. With
+a bug report on [GitHub Issues](https://github.com/DingPei1995/ARPES-data-browser/issues),
+**upload that file** (drag it into the text box) **or paste its text** -- the
+main panel's foot has **Copy the newest error log** and **Open the error
+logs** -- and give the version number.
+
+---
+
+## Documentation
+
+- **User guide**, with screenshots: [English](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/USER_GUIDE_en.md) ·
+  [中文](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/USER_GUIDE_zh.md) · [Français](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/USER_GUIDE_fr.md); as PDF:
+  [English](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/pdf/ARPES_viewer_user_guide_en.pdf) ·
+  [中文](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/pdf/ARPES_viewer_user_guide_zh.pdf) ·
+  [Français](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/pdf/ARPES_viewer_user_guide_fr.pdf).
+- **What changed, and why**: [CHANGELOG.md](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/CHANGELOG.md).
+- **Technical references**, beside the code they describe -- the formulas,
+  the file layouts, the assumptions and the tests behind each step:
+  - [Reading data](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/arpes_viewer/loader/README.md) -- every facility's files, the data
+    kinds, adding a beamline, the assumptions the formats force;
+  - [The windows](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/arpes_viewer/ui/README.md) -- the main panel, the viewers, autosave
+    and recovery, long operations;
+  - [Analysis](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/arpes_viewer/tools/README.md) -- what each tool does and what it assumes;
+    the tools ported from the MATLAB programs;
+  - [Momentum conversion](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/arpes_viewer/tools/momentum/README.md) -- k conversion, k_z
+    maps;
+  - [Spectra](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/arpes_viewer/tools/spectra/README.md) -- core levels, curves, curve fits,
+    spin;
+  - [Processing](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/arpes_viewer/tools/processing/README.md) -- de-gridding, cut
+    arithmetic;
+  - [Figures, export and the experiment log](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/arpes_viewer/tools/output/README.md);
+  - [For developers](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/DEVELOPER.md) -- the layout of the code, and the
+    tests (`python -m pytest`).

arpes_viewer-1.2.1/README.md

@@ -0,0 +1,218 @@
+# ARPES viewer
+
+**Version 1.2.1** (last modified 29 October 2026) — see
+[CHANGELOG.md](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/CHANGELOG.md) for what changed. The version is in
+`arpes_viewer/version.py` and is shown in the main window's title bar and at its foot,
+with a link to this repository for bug reports and the latest version
+(<https://github.com/DingPei1995/ARPES-data-browser>). Please quote it when
+reporting a bug, and upload the error log with the report ([below](#bug-reports)).
+
+> **Terms of use.** This program is for **non-commercial use only**
+> (academic research and teaching); any commercial use is not permitted.
+> New and updated loaders cover data from **public large-scale facilities**
+> (synchrotrons and similar user facilities) only -- formats of individual
+> laboratories' own set-ups are not supported. If you use this program for
+> a paper on ARPES experiments, please cite this repository in its
+> references (<https://github.com/DingPei1995/ARPES-data-browser>). A paper
+> related to AI that uses this program or its code **must** first be
+> discussed with the author by e-mail. For collaborations, or
+> questions about the details, contact
+> [ding.pei@synchrotron-soleil.fr](mailto:ding.pei@synchrotron-soleil.fr).
+>
+> **Licence and authorship.** Copyright (c) 2026 Ding Pei. Licensed under
+> the [PolyForm Noncommercial License 1.0.0](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/LICENSE.md); see also
+> [NOTICE](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/NOTICE). This is the author's personal work, developed from the
+> author's own earlier code; no institution funded it. The requirements, design
+> decisions, trade-offs, physics, the testing on real experimental data
+> and the feedback from it (drawing on
+> [Phys. Rev. B 103, 245121 (2021)](https://doi.org/10.1103/PhysRevB.103.245121) and
+> [Phys. Rev. B 95, 125126 (2017)](https://doi.org/10.1103/PhysRevB.95.125126)),
+> and the review and acceptance of every change are Ding Pei's; the
+> implementation was assisted by Claude (Anthropic), credited as co-author
+> in the commits.
+
+A Python/PyQt5 program for ARPES data: browse the measurements of a
+beamtime, open them in their own windows, convert to momentum, cut, fit,
+process, compare with a band-structure calculation, and lay the results out
+as a publication figure.
+
+---
+
+## From raw data to a publication figure -- and an AI agent can drive it
+
+![Example figure 1: a notched cube, measured and calculated constant-energy contours, stacked contours](https://raw.githubusercontent.com/DingPei1995/ARPES-data-browser/v1.2.1/docs/images/example_figure_1.png)
+
+> **These are not real experimental data.** Every panel above is made from
+> the program's **synthetic demo data** (`devtools/demo_data.py`): an
+> invented tight-binding toy model -- a triangular lattice, a = 3.3 Å,
+> stacked with c = 6 Å, a few bands with orbital labels and a k_z
+> dispersion -- turned into spectra with a Fermi-Dirac cut-off, the
+> analyser resolution and Poisson counting noise, and written as beamline
+> files. The "calculation" in panel (b) is the same toy Hamiltonian made
+> deliberately 1/0.8 times wider and 50 meV higher, so that comparing it
+> with the "measurement" has something to find. **No published data or
+> literature were used to generate them**: the model and its parameters are
+> invented, and names such as "Se-pxy" or "1T-TiSe₂-like" are labels for the
+> toy, not a description of a real material. (The only tabulated values in
+> the demo set are the X-ray line energies of its synthetic EDS spectrum,
+> standard emission energies as listed in the X-ray Data Booklet; that
+> spectrum is not part of this figure.)
+
+<p align="center">
+  <img src="https://raw.githubusercontent.com/DingPei1995/ARPES-data-browser/v1.2.1/docs/images/composer_colour_bar.png" width="96%"
+       alt="Example figure 1 in the figure composer, its colour bar being set">
+</p>
+<p align="center">
+  <img src="https://raw.githubusercontent.com/DingPei1995/ARPES-data-browser/v1.2.1/docs/images/main_window_advanced.png" width="50%"
+       alt="The main panel: the beamtime's datasets and the tools for the selected ones">
+  <img src="https://raw.githubusercontent.com/DingPei1995/ARPES-data-browser/v1.2.1/docs/images/map_k_contour.png" width="47%"
+       alt="A Fermi-surface map converted to momentum, in its viewer">
+</p>
+<p align="center"><sub>Example figure 1 in the figure composer (top); the
+main panel and a Fermi-surface map in momentum, in its viewer (bottom) --
+also on the synthetic demo data.</sub></p>
+
+Every step from the files to the finished figure is the program's own,
+and every step is plain Python that a script -- or an **AI agent** -- can
+run, without a screen:
+
+| Step | In the program | In code |
+|---|---|---|
+| 1. Raw data | the beamline files, as the main panel lists them | `arpes_viewer.loader.registry.load(path, entry)` |
+| 2. To momentum | the Γ-plane Fermi-surface map → k-map | `arpes_viewer.tools.momentum.kspace.convert_map(...)` |
+| 3. The calculation | **Calculated bands**: a Wannier Hamiltonian; Z and the shift fitted on a cut | `BandsDialog.open_file(...)`, `.fit_alignment()` |
+| 4. Measured vs calculated | constant-energy maps over the calculated contours, coloured by orbital weight (b) | `BandsDialog.series_panels(...)` |
+| 5. 3-D views | the notched cube (a), the stacked contours (c) | `VolumeWindow(...).figure_panel()` |
+| 6. The figure | the **figure composer**: arranged, lettered, exported as PNG / PDF, saved as `.afig` with the data and the files it came from | `FigureWindow(...)`, `.arrange(...)`, `.write(...)` |
+
+`devtools/figure_tests.py` is exactly this script -- it writes the demo
+files, reads them back, and builds this figure (and its companion, example
+figure 2) in under a minute:
+
+```
+python devtools/figure_tests.py out_png/ out_afig/
+```
+
+In the step 3 fit it recovers what was built into the demo calculation
+(Z = 0.798 ± 0.001 and a shift of −49.8 ± 0.4 meV, against 0.8 and −50 meV).
+
+**Why an AI agent can drive it.** The computations live in `arpes_viewer/tools/`,
+free of any user interface; the windows can run off-screen
+(`QT_QPA_PLATFORM=offscreen`) and be driven call by call as a user drives
+them; each step is documented in the [user guide](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/USER_GUIDE_en.md)
+and in the technical references beside the code; and a saved figure records
+the data and the original files behind every panel. So a coding agent given
+this repository and a folder of data can be asked in plain words -- *"convert
+the Γ-plane map to momentum, compare it with the Wannier calculation in
+`calc/`, and make a figure like example figure 1, with constant-energy maps
+at E_F, −0.3, −0.6 and −0.9 eV"* -- write and run the script, look at the
+PNG it made, and refine it, through to a figure ready for a manuscript. The
+user guide's [worked example](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/USER_GUIDE_en.md#30-worked-example-two-figures-in-the-figure-composer)
+does the same by hand, step by step. As with any analysis, check what an
+agent produced before you publish it -- and see the terms of use above for
+papers related to AI.
+
+---
+
+## What it does
+
+- **Reads** SOLEIL ANTARES and CASSIOPEE (including whole folders and the
+  spin end station), ALS MAESTRO, ALBA LOREA, Diamond I05 and I05-1, MAX IV
+  Bloch, Elettra APE, BESSY One Cube / One Square, SOLARIS URANOS, ASTRID2
+  SGM4, and its own saved format ([loading data](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/USER_GUIDE_en.md#4-loading-data)).
+- **Shows** cuts, Fermi-surface maps, photon-energy scans, spatially resolved
+  scans and spin-resolved curves, each in its own window with linked cursors
+  ([the viewers](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/USER_GUIDE_en.md#5-what-the-viewers-have-in-common)).
+- **Converts** maps and cuts to momentum, photon-energy scans to k_z, with the
+  Brillouin zone drawn over them
+  ([§13](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/USER_GUIDE_en.md#13-converting-a-map-to-momentum),
+  [§14](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/USER_GUIDE_en.md#14-photon-energy-scans-kz),
+  [§15](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/USER_GUIDE_en.md#15-brillouin-zone)).
+- **Analyses**: Fermi-edge fits, Fermi-surface correction, MDC / EDC fits,
+  ridge detection, curvature and second derivatives, dichroism, core levels,
+  spin, de-gridding, detector corrections
+  ([§7–§24](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/USER_GUIDE_en.md#7-arbitrary-cuts-and-fermi-surface-correction)).
+- **Compares with theory**: crystal structures, tight-binding fits, and
+  calculated bands from Wien2k, VASP, Quantum ESPRESSO, Wannier90 and the
+  FPLO + Wannier tools -- along a path, as constant-energy contours on any
+  (hkl) plane, or as a 3-D Fermi surface
+  ([§25–§27](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/USER_GUIDE_en.md#27-calculated-bands)).
+- **Makes figures**: the figure composer, laid out like a manuscript page,
+  exported as PNG, PDF or SVG, and saved with its data
+  ([§28–§30](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/USER_GUIDE_en.md#28-the-figure-composer)).
+- **Loses nothing**: every derived dataset is autosaved, a crash is recovered
+  from, and long steps show a progress bar
+  ([§31](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/USER_GUIDE_en.md#31-autosave-memory-and-recovery)).
+
+---
+
+## Installing and starting
+
+Needs Python 3.9+. With pip, which installs PyQt5, pyqtgraph, numpy,
+h5py and scipy with it:
+
+```
+pip install arpes-viewer
+arpes-viewer
+```
+
+(`python -m arpes_viewer` does the same; for the latest, unreleased
+version: `pip install git+https://github.com/DingPei1995/ARPES-data-browser`.)
+Installed this way, the error logs go to `~/.arpes_viewer/error_logs/`.
+
+From a downloaded copy of this repository, with those packages installed:
+
+```
+python ARPES_viewer.py
+```
+
+- **Windows:** double-click **`ARPES viewer.pyw`** in this folder: no
+  console window to close by mistake (the output goes to
+  `~/.arpes_viewer/launcher.log`).
+- **macOS:** double-click **`ARPES viewer.app`** in this folder. It finds a
+  Python that has the packages (conda included), remembers it, and says what
+  to install if none has. The first time, if macOS calls it an app from an
+  unidentified developer: **System Settings → Privacy & Security → Open
+  Anyway**.
+- **No beamtime at hand?** `python devtools/demo_data.py` writes the
+  synthetic demo data above to `demo_data/`
+  ([trying it with demo data](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/USER_GUIDE_en.md#2-trying-it-with-demo-data)).
+
+---
+
+## Bug reports
+
+The program saves what went wrong by itself, in
+`error_logs/errors_<date>_<time>.txt` in its folder (in `~/.arpes_viewer/` when installed with pip), and keeps running. With
+a bug report on [GitHub Issues](https://github.com/DingPei1995/ARPES-data-browser/issues),
+**upload that file** (drag it into the text box) **or paste its text** -- the
+main panel's foot has **Copy the newest error log** and **Open the error
+logs** -- and give the version number.
+
+---
+
+## Documentation
+
+- **User guide**, with screenshots: [English](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/USER_GUIDE_en.md) ·
+  [中文](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/USER_GUIDE_zh.md) · [Français](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/USER_GUIDE_fr.md); as PDF:
+  [English](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/pdf/ARPES_viewer_user_guide_en.pdf) ·
+  [中文](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/pdf/ARPES_viewer_user_guide_zh.pdf) ·
+  [Français](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/pdf/ARPES_viewer_user_guide_fr.pdf).
+- **What changed, and why**: [CHANGELOG.md](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/CHANGELOG.md).
+- **Technical references**, beside the code they describe -- the formulas,
+  the file layouts, the assumptions and the tests behind each step:
+  - [Reading data](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/arpes_viewer/loader/README.md) -- every facility's files, the data
+    kinds, adding a beamline, the assumptions the formats force;
+  - [The windows](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/arpes_viewer/ui/README.md) -- the main panel, the viewers, autosave
+    and recovery, long operations;
+  - [Analysis](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/arpes_viewer/tools/README.md) -- what each tool does and what it assumes;
+    the tools ported from the MATLAB programs;
+  - [Momentum conversion](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/arpes_viewer/tools/momentum/README.md) -- k conversion, k_z
+    maps;
+  - [Spectra](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/arpes_viewer/tools/spectra/README.md) -- core levels, curves, curve fits,
+    spin;
+  - [Processing](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/arpes_viewer/tools/processing/README.md) -- de-gridding, cut
+    arithmetic;
+  - [Figures, export and the experiment log](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/arpes_viewer/tools/output/README.md);
+  - [For developers](https://github.com/DingPei1995/ARPES-data-browser/blob/v1.2.1/docs/DEVELOPER.md) -- the layout of the code, and the
+    tests (`python -m pytest`).

arpes_viewer-1.2.1/arpes_viewer/__init__.py

@@ -0,0 +1,11 @@
+"""ARPES viewer: browse, convert, analyse and lay out ARPES data as
+publication figures. ``arpes-viewer`` (or ``python -m arpes_viewer``)
+starts the program; :mod:`arpes_viewer.tools` holds the computations, free
+of any user interface, for scripts.
+
+Copyright (c) 2026 Ding Pei. Licensed under the PolyForm Noncommercial
+License 1.0.0 (LICENSE.md).
+"""
+from arpes_viewer.version import VERSION as __version__
+
+__all__ = ["__version__"]

arpes_viewer-1.2.1/arpes_viewer/__main__.py

@@ -0,0 +1,6 @@
+"""``python -m arpes_viewer``: start the program."""
+import sys
+
+from arpes_viewer.app import main
+
+sys.exit(main())
