agentglow 0.1.0__tar.gz

agentglow-0.1.0/.gitignore

@@ -0,0 +1,4 @@
+dist/
+.venv/
+__pycache__/
+.pytest_cache/

agentglow-0.1.0/PKG-INFO

@@ -0,0 +1,110 @@
+Metadata-Version: 2.5
+Name: agentglow
+Version: 0.1.0
+Summary: Live 3D views of agent systems, driven only by OpenTelemetry spans
+Project-URL: Homepage, https://github.com/Nideesh1/agentglow
+License: MIT
+Keywords: agents,deepagents,langgraph,observability,openai-agents,opentelemetry,visualization
+Requires-Python: >=3.10
+Requires-Dist: fastapi>=0.110
+Requires-Dist: httpx>=0.27
+Requires-Dist: opentelemetry-proto>=1.25
+Requires-Dist: opentelemetry-sdk>=1.25
+Requires-Dist: protobuf>=4.21
+Requires-Dist: uvicorn[standard]>=0.27
+Provides-Extra: falkordb
+Requires-Dist: falkordb>=1.0; extra == 'falkordb'
+Provides-Extra: hatchet
+Requires-Dist: hatchet-sdk[otel]>=1.0; extra == 'hatchet'
+Provides-Extra: langchain
+Requires-Dist: openinference-instrumentation-langchain>=0.1.30; extra == 'langchain'
+Provides-Extra: openai-agents
+Requires-Dist: openinference-instrumentation-openai-agents>=1.0; extra == 'openai-agents'
+Description-Content-Type: text/markdown
+
+# AgentGlow
+
+**Live 3D views of your agent system, driven only by OpenTelemetry.** Every agent is a glowing instance that is
+born when its span starts, pulses on each LLM call, fires tool/MCP/graph packets, delegates to subagents, and fades
+when its span ends. Works with LangChain, LangGraph (incl. `langgraph-supervisor`), deepagents, the OpenAI Agents SDK
+(`agentglow[openai-agents]`), Hatchet workflows, Claude Code (via hooks), and any agent framework that emits OTel spans.
+

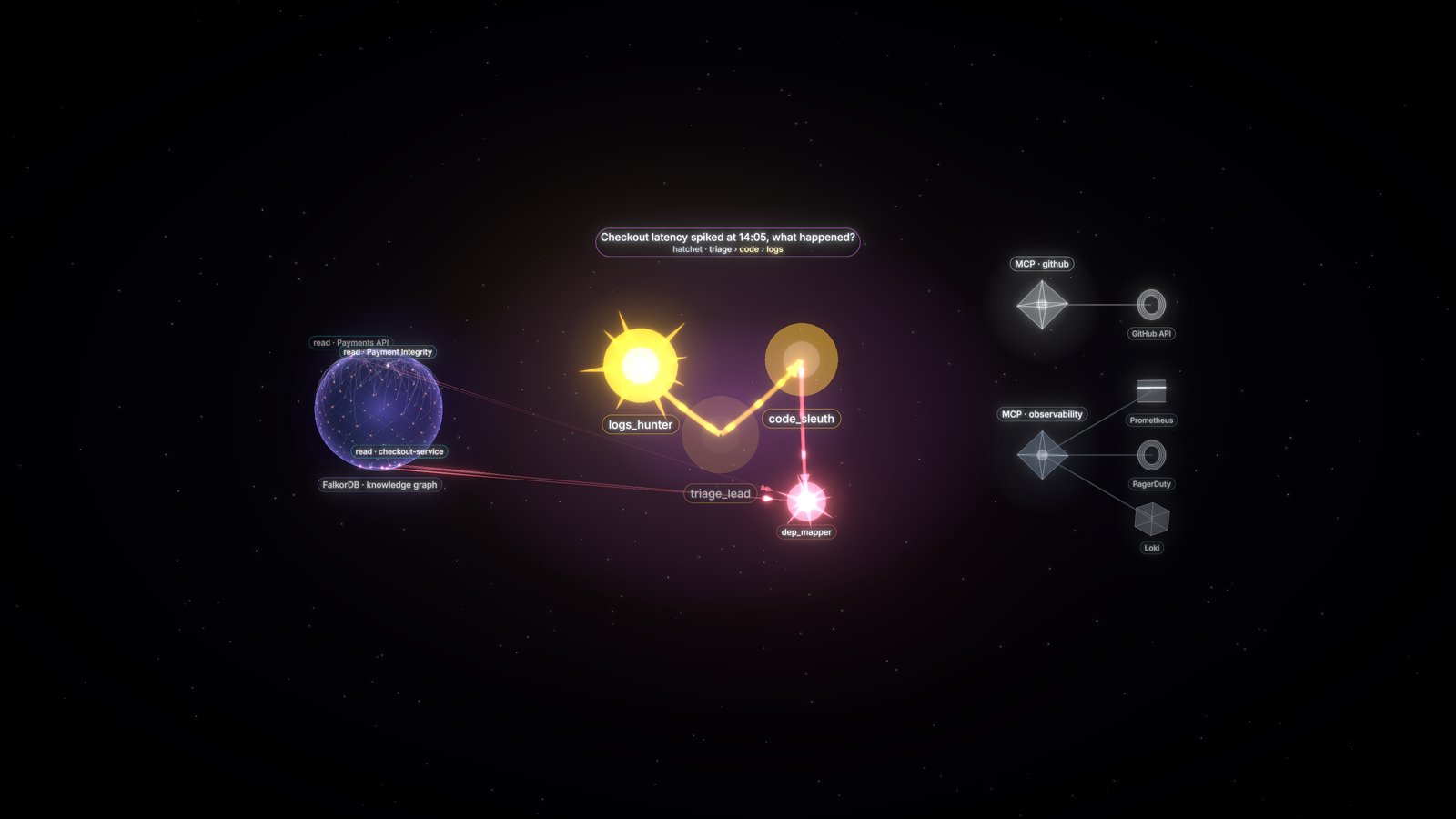

+![AgentGlow - neural theme](https://raw.githubusercontent.com/Nideesh1/agentglow/main/docs/media/hero.gif)
+
+15 themes:
+
+| | | |
+|:-:|:-:|:-:|
+| ![neural](https://raw.githubusercontent.com/Nideesh1/agentglow/main/docs/media/neural.jpg) **neural** | ![hive](https://raw.githubusercontent.com/Nideesh1/agentglow/main/docs/media/hive.jpg) **hive** | ![constellation](https://raw.githubusercontent.com/Nideesh1/agentglow/main/docs/media/constellation.jpg) **constellation** |

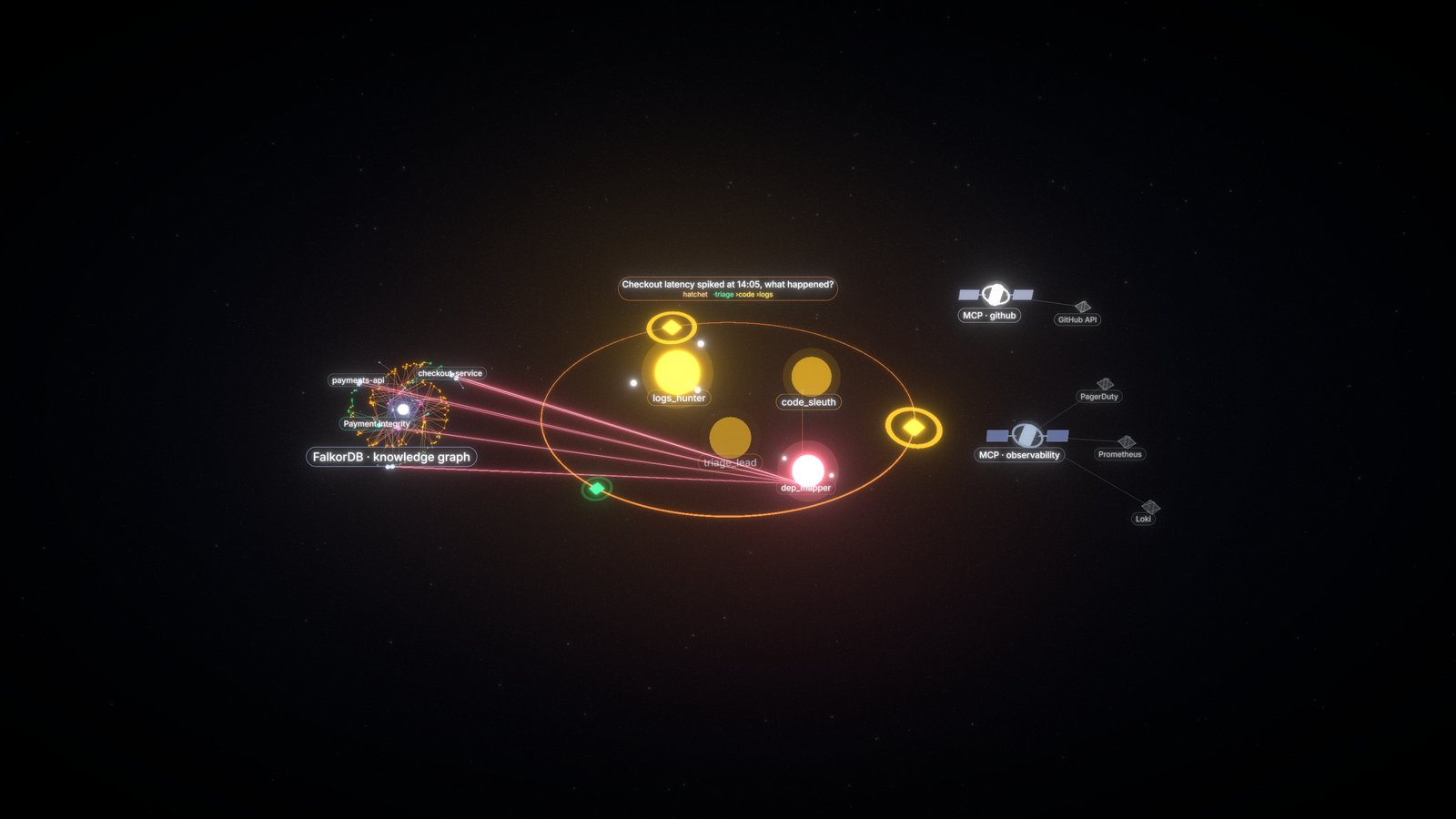

+| ![orbit](https://raw.githubusercontent.com/Nideesh1/agentglow/main/docs/media/orbit.jpg) **orbit** | ![forest](https://raw.githubusercontent.com/Nideesh1/agentglow/main/docs/media/forest.jpg) **forest** | ![mycelium](https://raw.githubusercontent.com/Nideesh1/agentglow/main/docs/media/mycelium.jpg) **mycelium** |

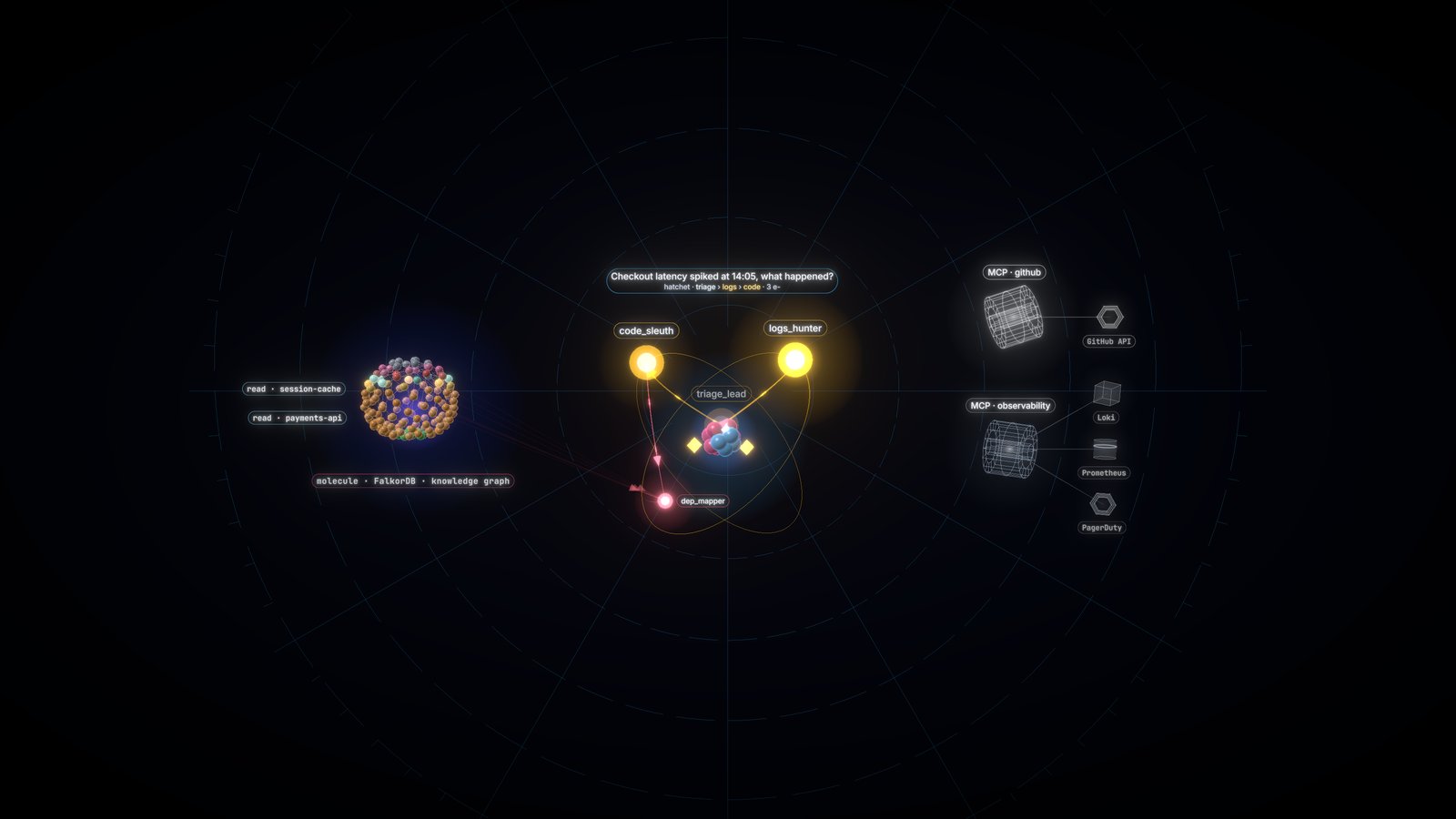

+| ![atom](https://raw.githubusercontent.com/Nideesh1/agentglow/main/docs/media/atom.jpg) **atom** | ![airport](https://raw.githubusercontent.com/Nideesh1/agentglow/main/docs/media/airport.jpg) **airport** | ![factory](https://raw.githubusercontent.com/Nideesh1/agentglow/main/docs/media/factory.jpg) **factory** |
+| ![city](https://raw.githubusercontent.com/Nideesh1/agentglow/main/docs/media/city.jpg) **city** | ![ocean](https://raw.githubusercontent.com/Nideesh1/agentglow/main/docs/media/ocean.jpg) **ocean** | ![subway](https://raw.githubusercontent.com/Nideesh1/agentglow/main/docs/media/subway.jpg) **subway** |
+| ![circuit](https://raw.githubusercontent.com/Nideesh1/agentglow/main/docs/media/circuit.jpg) **circuit** | ![tunnel](https://raw.githubusercontent.com/Nideesh1/agentglow/main/docs/media/tunnel.jpg) **tunnel** | ![flow](https://raw.githubusercontent.com/Nideesh1/agentglow/main/docs/media/flow.jpg) **flow** |
+
+## Quickstart
+
+```bash
+uvx agentglow serve                  # → http://localhost:8100 (gallery at /, scenes at /neural, /orbit, …)
+uv add "agentglow[langchain]"        # in your agent project (or: uv pip install "agentglow[langchain]")
+# pip install "agentglow[langchain]" also works
+```
+
+```python
+import agentglow
+agentglow.watch()                    # call once, before your agents run
+
+# ... run your LangGraph / deepagents / Hatchet code as usual
+```
+
+That's it. `watch()` reuses your global OpenTelemetry `TracerProvider` (Langfuse or other exporters keep working),
+or installs one, adds a `LiveSpanProcessor` that streams span **starts and ends** to the server in ~50 ms batches
+from a background thread (never blocks, drops silently if the server is down), and turns on OpenInference
+LangChain instrumentation and Hatchet instrumentation when those packages are installed.
+
+## What gets drawn
+
+| Span | Becomes |
+|---|---|
+| LangGraph / deepagents agent graph (span named after `create_deep_agent(name=...)`) | an agent instance |
+| deepagents subagent (runs under the `task` tool) | a smaller child instance, with delegation + result messages |
+| LLM span (OpenInference `LLM`, `gen_ai.operation.name=chat`) | "thinking" + a pulse sized by tokens |
+| Tool span | a tool event on the owning agent |
+| `mcp.server.name` / `agentglow.mcp.server` (+ `agentglow.mcp.resource`, `agentglow.mcp.resource_kind`) | an MCP satellite with a live tether while the call is pending |
+| `db.system` (+ `agentglow.graph.nodes`, `agentglow.db.op`) | graph read/write flares |
+| Hatchet step run (`hatchet.workflow_run_id`, `hatchet.step_name`) or `agentglow.step` | run lanes and steps |
+
+Optional attributes you can set on your own spans: `agentglow.agent` (mark a span as an agent, value = name),
+`agentglow.run.id`, `agentglow.run.topic`, `agentglow.step`, `agentglow.final` (final answer text).
+
+Announce MCP servers before they are called: `agentglow.register_mcp("analytics", {"snowflake": "warehouse", "spark": "spark"})`.
+
+## Options
+
+```
+agentglow serve [--host 0.0.0.0] [--port 8100] [--falkor redis://localhost:6379/<graph>]
+```
+
+| | |
+|---|---|
+| `agentglow.watch(url="http://localhost:8100", *, instrument=True, service_name=None)` | `url` also from `AGENTGLOW_URL` |
+| `POST /v1/live` | span start/end batches from `watch()` |
+| `POST /v1/traces` | standard OTLP/HTTP (protobuf or JSON) - point any OTel SDK or Collector here (ended spans only) |
+| `GET /live/stream` | SSE world events; new viewers get MCP topology + runs still in progress |
+| `GET /live/graph` | graph sample for the scenes from FalkorDB (`--falkor` / `AGENTGLOW_FALKOR_URL`), else an empty graph |
+| `POST /v1/claude-code` | Claude Code HTTP hooks → its main agent + subagents in 3D (see `examples/claude-code`) |
+| `GET /live/health` | status |
+| `POST /live/run` `{topic}` | optional: forwards to `AGENTGLOW_RUN_WEBHOOK` (your trigger endpoint) and returns its JSON, e.g. `{run_id}`; health reports `run: true` and the UI shows "▶ Run agents" only when it is set |
+
+Embed in your own React app: `npm i agentglow` → `<AgentScene theme="neural" source="http://localhost:8100" />`.
+
+## Scale
+
+Above 12 live agents the scenes auto-group older runs into clickable clusters and keep the newest ~10 in full
+detail (~60 fps with 500 live agents).
+
+## Deploying
+
+State is in memory (no Redis). Run **exactly one** server per environment - on Kubernetes a Deployment with
+`replicas: 1` plus a Service; point every worker's `AGENTGLOW_URL` at that Service.
+
+MIT licensed · https://github.com/Nideesh1/agentglow

agentglow-0.1.0/README.md

@@ -0,0 +1,86 @@
+# AgentGlow
+
+**Live 3D views of your agent system, driven only by OpenTelemetry.** Every agent is a glowing instance that is
+born when its span starts, pulses on each LLM call, fires tool/MCP/graph packets, delegates to subagents, and fades
+when its span ends. Works with LangChain, LangGraph (incl. `langgraph-supervisor`), deepagents, the OpenAI Agents SDK
+(`agentglow[openai-agents]`), Hatchet workflows, Claude Code (via hooks), and any agent framework that emits OTel spans.
+
+![AgentGlow - neural theme](https://raw.githubusercontent.com/Nideesh1/agentglow/main/docs/media/hero.gif)
+
+15 themes:
+
+| | | |
+|:-:|:-:|:-:|
+| ![neural](https://raw.githubusercontent.com/Nideesh1/agentglow/main/docs/media/neural.jpg) **neural** | ![hive](https://raw.githubusercontent.com/Nideesh1/agentglow/main/docs/media/hive.jpg) **hive** | ![constellation](https://raw.githubusercontent.com/Nideesh1/agentglow/main/docs/media/constellation.jpg) **constellation** |
+| ![orbit](https://raw.githubusercontent.com/Nideesh1/agentglow/main/docs/media/orbit.jpg) **orbit** | ![forest](https://raw.githubusercontent.com/Nideesh1/agentglow/main/docs/media/forest.jpg) **forest** | ![mycelium](https://raw.githubusercontent.com/Nideesh1/agentglow/main/docs/media/mycelium.jpg) **mycelium** |
+| ![atom](https://raw.githubusercontent.com/Nideesh1/agentglow/main/docs/media/atom.jpg) **atom** | ![airport](https://raw.githubusercontent.com/Nideesh1/agentglow/main/docs/media/airport.jpg) **airport** | ![factory](https://raw.githubusercontent.com/Nideesh1/agentglow/main/docs/media/factory.jpg) **factory** |
+| ![city](https://raw.githubusercontent.com/Nideesh1/agentglow/main/docs/media/city.jpg) **city** | ![ocean](https://raw.githubusercontent.com/Nideesh1/agentglow/main/docs/media/ocean.jpg) **ocean** | ![subway](https://raw.githubusercontent.com/Nideesh1/agentglow/main/docs/media/subway.jpg) **subway** |
+| ![circuit](https://raw.githubusercontent.com/Nideesh1/agentglow/main/docs/media/circuit.jpg) **circuit** | ![tunnel](https://raw.githubusercontent.com/Nideesh1/agentglow/main/docs/media/tunnel.jpg) **tunnel** | ![flow](https://raw.githubusercontent.com/Nideesh1/agentglow/main/docs/media/flow.jpg) **flow** |
+
+## Quickstart
+
+```bash
+uvx agentglow serve                  # → http://localhost:8100 (gallery at /, scenes at /neural, /orbit, …)
+uv add "agentglow[langchain]"        # in your agent project (or: uv pip install "agentglow[langchain]")
+# pip install "agentglow[langchain]" also works
+```
+
+```python
+import agentglow
+agentglow.watch()                    # call once, before your agents run
+
+# ... run your LangGraph / deepagents / Hatchet code as usual
+```
+
+That's it. `watch()` reuses your global OpenTelemetry `TracerProvider` (Langfuse or other exporters keep working),
+or installs one, adds a `LiveSpanProcessor` that streams span **starts and ends** to the server in ~50 ms batches
+from a background thread (never blocks, drops silently if the server is down), and turns on OpenInference
+LangChain instrumentation and Hatchet instrumentation when those packages are installed.
+
+## What gets drawn
+
+| Span | Becomes |
+|---|---|
+| LangGraph / deepagents agent graph (span named after `create_deep_agent(name=...)`) | an agent instance |
+| deepagents subagent (runs under the `task` tool) | a smaller child instance, with delegation + result messages |
+| LLM span (OpenInference `LLM`, `gen_ai.operation.name=chat`) | "thinking" + a pulse sized by tokens |
+| Tool span | a tool event on the owning agent |
+| `mcp.server.name` / `agentglow.mcp.server` (+ `agentglow.mcp.resource`, `agentglow.mcp.resource_kind`) | an MCP satellite with a live tether while the call is pending |
+| `db.system` (+ `agentglow.graph.nodes`, `agentglow.db.op`) | graph read/write flares |
+| Hatchet step run (`hatchet.workflow_run_id`, `hatchet.step_name`) or `agentglow.step` | run lanes and steps |
+
+Optional attributes you can set on your own spans: `agentglow.agent` (mark a span as an agent, value = name),
+`agentglow.run.id`, `agentglow.run.topic`, `agentglow.step`, `agentglow.final` (final answer text).
+
+Announce MCP servers before they are called: `agentglow.register_mcp("analytics", {"snowflake": "warehouse", "spark": "spark"})`.
+
+## Options
+
+```
+agentglow serve [--host 0.0.0.0] [--port 8100] [--falkor redis://localhost:6379/<graph>]
+```
+
+| | |
+|---|---|
+| `agentglow.watch(url="http://localhost:8100", *, instrument=True, service_name=None)` | `url` also from `AGENTGLOW_URL` |
+| `POST /v1/live` | span start/end batches from `watch()` |
+| `POST /v1/traces` | standard OTLP/HTTP (protobuf or JSON) - point any OTel SDK or Collector here (ended spans only) |
+| `GET /live/stream` | SSE world events; new viewers get MCP topology + runs still in progress |
+| `GET /live/graph` | graph sample for the scenes from FalkorDB (`--falkor` / `AGENTGLOW_FALKOR_URL`), else an empty graph |
+| `POST /v1/claude-code` | Claude Code HTTP hooks → its main agent + subagents in 3D (see `examples/claude-code`) |
+| `GET /live/health` | status |
+| `POST /live/run` `{topic}` | optional: forwards to `AGENTGLOW_RUN_WEBHOOK` (your trigger endpoint) and returns its JSON, e.g. `{run_id}`; health reports `run: true` and the UI shows "▶ Run agents" only when it is set |
+
+Embed in your own React app: `npm i agentglow` → `<AgentScene theme="neural" source="http://localhost:8100" />`.
+
+## Scale
+
+Above 12 live agents the scenes auto-group older runs into clickable clusters and keep the newest ~10 in full
+detail (~60 fps with 500 live agents).
+
+## Deploying
+
+State is in memory (no Redis). Run **exactly one** server per environment - on Kubernetes a Deployment with
+`replicas: 1` plus a Service; point every worker's `AGENTGLOW_URL` at that Service.
+
+MIT licensed · https://github.com/Nideesh1/agentglow

agentglow-0.1.0/agentglow/__init__.py

@@ -0,0 +1,7 @@
+"""AgentGlow: live 3D views of agent systems, driven only by OpenTelemetry spans."""
+__version__ = "0.1.0"
+
+from .otel import LiveSpanProcessor  # noqa: E402
+from .watch import register_mcp, watch  # noqa: E402
+
+__all__ = ["watch", "register_mcp", "LiveSpanProcessor", "__version__"]

agentglow-0.1.0/agentglow/claude_code.py

@@ -0,0 +1,367 @@
+"""Claude Code hooks → synthetic live spans, so the regular span mapper renders Claude Code's own activity.
+
+Point Claude Code's `"type": "http"` hooks at `POST /v1/claude-code` (see examples/claude-code/). Each hook payload
+becomes `{"kind": "start"|"end", "span": {...}}` items (the `/v1/live` shape), shaped to hit the mapper's rules:
+
+- One user prompt = one run (`agentglow.run.id` = `<session>:<n>`, topic = the prompt, workflow `claude-code`).
+- Main agent = agent span `claude` (`agentglow.agent`), opened on UserPromptSubmit, closed on Stop
+  (`last_assistant_message` → `agentglow.final`).
+- Agent/Task tool call = TOOL span named `task` under the calling agent; SubagentStart opens an agent span named
+  after `agent_type` under that tool span (→ `spawn` with `subagent: true`); SubagentStop closes it (its
+  `last_assistant_message` is the result message back to the parent).
+- Any other tool = TOOL span under the agent that called it (`agent_id` present → that subagent, else main).
+  `mcp__<server>__<tool>` also sets `agentglow.mcp.server`/`agentglow.mcp.tool` (→ `mcp` call/result).
+- Hooks carry no token counts, so the time between tool calls is an LLM span with no usage attributes: the mapper
+  shows the agent thinking and emits an `llm` pulse with 0 tokens (no invented numbers).
+
+Hooks may be async (delivered out of order): a PostToolUse seen before its PreToolUse is remembered and the late
+start is emitted already ended; events for an unknown/closed turn are dropped. State is per session, bounded, and
+dangling spans are ended on SessionEnd or after `idle_ms` without events.
+"""
+from __future__ import annotations
+
+import json
+import os
+import re
+from collections import OrderedDict
+from dataclasses import dataclass, field
+from typing import Any
+
+AGENT_TOOLS = {"Agent", "Task"}
+MAX_SESSIONS = 64
+MAX_DONE_IDS = 512
+PREVIEW = 600
+HOLD_MS = 1000  # a SubagentStart that beat its Agent PreToolUse (async hooks) waits this long for it
+GRACE_MS = 8000  # main agent outlives its Stop while background subagents run, then this long for their wrap-up turn
+NOTIFY_RE = re.compile(r"^\s*<task-notification>", re.I)
+SUMMARY_RE = re.compile(r"<summary>(.*?)</summary>", re.S)
+
+
+def _hex(n: int) -> str:
+    return os.urandom(n).hex()
+
+
+def _meta(path: Any) -> dict:
+    """Claude Code writes `<agent transcript>.meta.json` next to a subagent's transcript: {agentType, description,
+    toolUseId, ...}. toolUseId pairs the subagent with its exact Agent tool call (parallel same-type subagents)."""
+    if not isinstance(path, str) or not path.endswith(".jsonl"):
+        return {}
+    try:
+        with open(path[:-6] + ".meta.json", "rb") as f:
+            d = json.loads(f.read(65536))
+        return d if isinstance(d, dict) else {}
+    except Exception:
+        return {}
+
+
+def _preview(v: Any) -> str:
+    s = v if isinstance(v, str) else json.dumps(v, default=str)
+    return s if len(s) <= PREVIEW else s[:PREVIEW] + " …"
+
+
+@dataclass
+class _Agent:
+    name: str
+    span: dict
+    turn: "_Turn"
+    llm: dict | None = None
+    tools: dict = field(default_factory=dict)  # tool_use_id -> span
+    closed: bool = False
+
+
+@dataclass
+class _Turn:
+    run_id: str
+    trace_id: str
+    main: _Agent | None = None
+    subs: dict = field(default_factory=dict)  # agent_id -> _Agent
+    tasks: list = field(default_factory=list)  # [tool_use_id, subagent_type, task span, claimed]
+    stopped: bool = False
+    deferred: bool = False  # Stop seen but background subagents still run: main stays on screen, waiting
+    final: str = ""
+
+
+@dataclass
+class _Session:
+    id: str
+    last: int
+    n: int = 0
+    turn: _Turn | None = None  # current main-thread turn
+    agents: dict = field(default_factory=dict)  # agent_id -> _Agent (outlives its turn's Stop: background agents)
+    done_ids: OrderedDict = field(default_factory=OrderedDict)  # tool_use_ids whose PostToolUse came first
+    held: dict = field(default_factory=dict)  # agent_id -> (SubagentStart payload, meta, ts) awaiting its Agent call
+    model: str = ""
+
+
+class ClaudeCodeAdapter:
+    def __init__(self, idle_ms: int = 30 * 60_000, max_sessions: int = MAX_SESSIONS) -> None:
+        self.sessions: OrderedDict[str, _Session] = OrderedDict()
+        self.idle_ms = idle_ms
+        self.max_sessions = max_sessions
+
+    # ------------------------------------------------------------------ public
+    def handle(self, p: dict, now: int) -> list[dict]:
+        """One hook payload → live items for Hub.ingest_live. Never raises on odd input."""
+        if not isinstance(p, dict):
+            return []
+        sid = str(p.get("session_id") or "default")
+        ev = str(p.get("hook_event_name") or "")
+        out: list[dict] = []
+        s = self.sessions.get(sid)
+        if s is None:
+            if ev == "SessionEnd":
+                return out
+            s = self.sessions[sid] = _Session(sid, now)
+            while len(self.sessions) > self.max_sessions:
+                _, old = self.sessions.popitem(last=False)
+                self._close_session(old, now, out)
+        self.sessions.move_to_end(sid)
+        s.last = now
+        aid = p.get("agent_id")
+        if aid and str(aid) in s.held and ev != "SubagentStart":  # the subagent is active: show it now
+            self._spawn_sub(s, *s.held.pop(str(aid)), now, out)
+        fn = getattr(self, f"_on_{ev}", None)
+        if fn:
+            fn(s, p, now, out)
+        return out
+
+    def tick(self, now: int) -> list[dict]:
+        out: list[dict] = []
+        for sid, s in list(self.sessions.items()):
+            for aid, (hp, meta, ts) in list(s.held.items()):
+                if now - ts >= HOLD_MS:
+                    del s.held[aid]
+                    self._spawn_sub(s, hp, meta, ts, now, out)
+            t = s.turn
+            if t and t.deferred and not t.subs and now - s.last >= GRACE_MS:
+                self._stop_turn(s, t, t.final, now, out, force=True)
+            if now - s.last >= self.idle_ms:
+                self._close_session(s, now, out)
+                self.sessions.pop(sid, None)
+        return out
+
+    # ------------------------------------------------------------------ events
+    def _on_SessionStart(self, s: _Session, p: dict, now: int, out: list) -> None:
+        s.model = str(p.get("model") or s.model)
+
+    def _on_UserPromptSubmit(self, s: _Session, p: dict, now: int, out: list) -> None:
+        prompt = str(p.get("user_message") or p.get("prompt") or "").strip()
+        t = s.turn
+        if t and t.deferred and NOTIFY_RE.match(prompt):  # a background subagent reported back: same run continues
+            t.stopped = t.deferred = False
+            assert t.main is not None
+            self._start_llm(t.main, now, out)
+            return
+        if t and t.deferred:
+            self._stop_turn(s, t, t.final, now, out, force=True)
+        elif t and not t.stopped:  # previous turn never got its Stop (interrupted)
+            self._stop_turn(s, t, "", now, out, status="error", force=True)
+        if NOTIFY_RE.match(prompt):
+            m = SUMMARY_RE.search(prompt)
+            prompt = f"background task done: {m[1].strip()}" if m else "background task done"
+        self._open_turn(s, prompt, now, out)
+
+    def _on_PreToolUse(self, s: _Session, p: dict, now: int, out: list) -> None:
+        ag = self._agent_for(s, p, now, out, open_turn=True)
+        if ag is None:
+            return
+        tid = str(p.get("tool_use_id") or _hex(8))
+        if tid in ag.tools:
+            return
+        name = str(p.get("tool_name") or "tool")
+        tin = p.get("tool_input") if isinstance(p.get("tool_input"), dict) else {}
+        self._end_llm(ag, now, out)
+        if name in AGENT_TOOLS:
+            sub = str(tin.get("subagent_type") or "general-purpose")
+            desc = str(tin.get("description") or tin.get("prompt") or "")
+            span = self._span(ag.turn, ag.span, "task", now, {
+                "openinference.span.kind": "TOOL",
+                "input.value": json.dumps({"subagent_type": sub, "description": desc[:300]}),
+                "agentglow.claude_code.prompt": _preview(tin.get("prompt") or desc),
+            })
+            # a SubagentStart that arrived first (async hooks) created a stand-in task span: adopt it instead
+            for t in ag.turn.tasks:
+                if t[0] is None and t[1] == sub:
+                    t[0] = tid
+                    ag.tools[tid] = t[2]
+                    return
+            ag.turn.tasks.append([tid, sub, span, False])
+            out.append({"kind": "start", "span": span})
+            ag.tools[tid] = span
+            for aid, (hp, meta, ts) in list(s.held.items()):  # its SubagentStart came first: spawn it now
+                if meta.get("toolUseId") == tid or (not meta.get("toolUseId") and str(hp.get("agent_type")) == sub):
+                    del s.held[aid]
+                    self._spawn_sub(s, hp, meta, ts, now, out)
+                    break
+            if s.done_ids.pop(tid, None) is not None:
+                self._end_tool(ag, tid, now, out)
+            return
+        else:
+            attrs = {"openinference.span.kind": "TOOL", "tool.name": name, "input.value": _preview(tin)}
+            if name.startswith("mcp__"):
+                parts = name.split("__", 2)
+                if len(parts) == 3 and parts[1] and parts[2]:
+                    attrs.update({"agentglow.mcp.server": parts[1], "agentglow.mcp.tool": parts[2], "tool.name": parts[2]})
+                    name = parts[2]
+            span = self._span(ag.turn, ag.span, name, now, attrs)
+        out.append({"kind": "start", "span": span})
+        ag.tools[tid] = span
+        if s.done_ids.pop(tid, None) is not None:  # its PostToolUse already came (async reorder)
+            self._end_tool(ag, tid, now, out)
+
+    def _on_PostToolUse(self, s: _Session, p: dict, now: int, out: list, status: str = "ok") -> None:
+        tid = str(p.get("tool_use_id") or "")
+        ag = self._agent_for(s, p, now, out, open_turn=False)
+        if ag is None or tid not in ag.tools:
+            if tid:
+                s.done_ids[tid] = None
+                while len(s.done_ids) > MAX_DONE_IDS:
+                    s.done_ids.popitem(last=False)
+            return
+        extra = {}
+        if status == "error" and p.get("error"):
+            extra["exception.message"] = _preview(str(p["error"]))
+        self._end_tool(ag, tid, now, out, status, extra)
+        if not ag.tools and not ag.closed and not (ag is ag.turn.main and ag.turn.stopped):
+            self._start_llm(ag, now, out)
+
+    def _on_PostToolUseFailure(self, s: _Session, p: dict, now: int, out: list) -> None:
+        self._on_PostToolUse(s, p, now, out, status="error")
+
+    def _on_SubagentStart(self, s: _Session, p: dict, now: int, out: list) -> None:
+        aid = str(p.get("agent_id") or "")
+        if not aid or aid in s.agents or aid in s.held:
+            return
+        meta = _meta(p.get("agent_transcript_path"))
+        turn = s.turn
+        tid = meta.get("toolUseId")
+        has_task = turn is not None and any(not t[3] and (t[0] == tid if tid else True) for t in turn.tasks)
+        if not has_task:  # async hooks: its Agent PreToolUse may still be in flight
+            s.held[aid] = (p, meta, now)
+            return
+        self._spawn_sub(s, p, meta, now, now, out)
+
+    def _spawn_sub(self, s: _Session, p: dict, meta: dict, ts: int, now: int, out: list) -> None:
+        aid = str(p.get("agent_id") or "")
+        typ = str(p.get("agent_type") or meta.get("agentType") or "subagent")
+        turn = s.turn if s.turn and not s.turn.stopped else None
+        turn = turn or s.turn or self._open_turn(s, "", now, out)
+        tid = meta.get("toolUseId")
+        free = [t for t in turn.tasks if not t[3]]
+        task = (next((t for t in free if tid and t[0] == tid), None) or next((t for t in free if t[1] == typ), None)
+                or (free[0] if free else None))
+        if task is None:  # no Agent call seen for it: stand-in task span under main
+            assert turn.main is not None
+            span = self._span(turn, turn.main.span, "task", ts, {
+                "openinference.span.kind": "TOOL",
+                "input.value": json.dumps({"subagent_type": typ, "description": str(meta.get("description") or "")})})
+            out.append({"kind": "start", "span": span})
+            task = [None, typ, span, False]
+            turn.tasks.append(task)
+        task[3] = True
+        desc = (json.loads(task[2]["attributes"].get("input.value") or "{}").get("description")
+                or meta.get("description") or f"delegate → {typ}")
+        span = self._span(turn, task[2], typ, now, {"agentglow.agent": typ, "input.value": str(desc),
+                                                    "agentglow.claude_code.agent_id": aid})
+        out.append({"kind": "start", "span": span})
+        ag = s.agents[aid] = _Agent(typ, span, turn)
+        turn.subs[aid] = ag
+        self._start_llm(ag, now, out)
+
+    def _on_SubagentStop(self, s: _Session, p: dict, now: int, out: list) -> None:
+        aid = str(p.get("agent_id") or "")
+        ag = s.agents.pop(aid, None)
+        if ag is None:
+            return
+        text = str(p.get("last_assistant_message") or "").strip()
+        self._close_agent(ag, now, out, {"agentglow.output_text": text[:2000]} if text else {})
+        ag.turn.subs.pop(aid, None)
+
+    def _on_Stop(self, s: _Session, p: dict, now: int, out: list) -> None:
+        if s.turn and not s.turn.stopped:
+            self._stop_turn(s, s.turn, str(p.get("last_assistant_message") or "").strip(), now, out, force=False)
+
+    def _on_SessionEnd(self, s: _Session, p: dict, now: int, out: list) -> None:
+        self._close_session(s, now, out)
+        self.sessions.pop(s.id, None)
+
+    # ------------------------------------------------------------------ helpers
+    def _span(self, turn: _Turn, parent: dict | None, name: str, now: int, attrs: dict) -> dict:
+        return {"trace_id": turn.trace_id, "span_id": _hex(8), "parent_span_id": parent["span_id"] if parent else None,
+                "name": name, "start_time_ms": now, "end_time_ms": None, "status": "unset", "attributes": attrs}
+
+    @staticmethod
+    def _end(span: dict, now: int, out: list, status: str = "ok", extra: dict | None = None) -> None:
+        out.append({"kind": "end", "span": {**span, "end_time_ms": max(now, span["start_time_ms"]), "status": status,
+                                            "attributes": {**span["attributes"], **(extra or {})}}})
+
+    def _open_turn(self, s: _Session, prompt: str, now: int, out: list) -> _Turn:
+        s.n += 1
+        turn = s.turn = _Turn(f"{s.id}:{s.n}", _hex(16))
+        topic = " ".join(prompt.split())[:200] or "Claude Code"
+        span = self._span(turn, None, "claude", now, {
+            "agentglow.agent": "claude", "agentglow.run.id": turn.run_id, "agentglow.run.topic": topic,
+            "agentglow.run.workflow": "claude-code", "agentglow.claude_code.session": s.id})
+        out.append({"kind": "start", "span": span})
+        turn.main = _Agent("claude", span, turn)
+        self._start_llm(turn.main, now, out)
+        return turn
+
+    def _agent_for(self, s: _Session, p: dict, now: int, out: list, open_turn: bool) -> _Agent | None:
+        aid = p.get("agent_id")
+        if aid:
+            return s.agents.get(str(aid))
+        if s.turn and not s.turn.stopped:
+            return s.turn.main
+        return self._open_turn(s, "", now, out).main if open_turn else None
+
+    def _start_llm(self, ag: _Agent, now: int, out: list) -> None:
+        if ag.llm is None and not ag.closed:
+            ag.llm = self._span(ag.turn, ag.span, f"{ag.name} · thinking", now, {"openinference.span.kind": "LLM"})
+            out.append({"kind": "start", "span": ag.llm})
+
+    def _end_llm(self, ag: _Agent, now: int, out: list) -> None:
+        if ag.llm is not None:
+            self._end(ag.llm, now, out)
+            ag.llm = None
+
+    def _end_tool(self, ag: _Agent, tid: str, now: int, out: list, status: str = "ok", extra: dict | None = None) -> None:
+        span = ag.tools.pop(tid, None)
+        if span is not None:
+            self._end(span, now, out, status, extra)
+
+    def _close_agent(self, ag: _Agent, now: int, out: list, extra: dict, status: str = "ok") -> None:
+        if ag.closed:
+            return
+        self._end_llm(ag, now, out)
+        for tid in list(ag.tools):
+            self._end_tool(ag, tid, now, out, "unset")
+        ag.closed = True
+        self._end(ag.span, now, out, status, extra)
+
+    def _stop_turn(self, s: _Session, turn: _Turn, text: str, now: int, out: list, status: str = "ok",
+                   force: bool = True) -> None:
+        """End the main agent's turn: its thinking span, tools still open (denied/interrupted) and stand-in task spans.
+        With background subagents still running (and not `force`), the main agent stays open (deferred) until they
+        report back: their `<task-notification>` prompt resumes this same run; tick() closes it after GRACE_MS."""
+        turn.stopped = True
+        if not force and turn.subs and turn.main is not None:
+            turn.deferred, turn.final = True, text or turn.final
+            self._end_llm(turn.main, now, out)
+            return
+        turn.deferred = False
+        for t in turn.tasks:
+            if t[0] is None:
+                t[0] = "standin"
+                self._end(t[2], now, out, "unset")
+        if turn.main is not None:
+            extra = {"agentglow.final": text[:2000], "agentglow.output_text": text[:2000]} if text else {}
+            self._close_agent(turn.main, now, out, extra, status)
+
+    def _close_session(self, s: _Session, now: int, out: list) -> None:
+        for ag in list(s.agents.values()):
+            self._close_agent(ag, now, out, {}, "unset")
+        s.agents.clear()
+        if s.turn and (s.turn.deferred or not s.turn.stopped):
+            self._stop_turn(s, s.turn, s.turn.final, now, out, status="ok" if s.turn.deferred else "unset")
+        s.turn = None

agentglow-0.1.0/agentglow/cli.py

@@ -0,0 +1,33 @@
+"""`agentglow serve [--host 0.0.0.0] [--port 8100] [--falkor URL]`"""
+from __future__ import annotations
+
+import argparse
+import os
+
+from . import __version__
+
+
+def main(argv: list[str] | None = None) -> None:

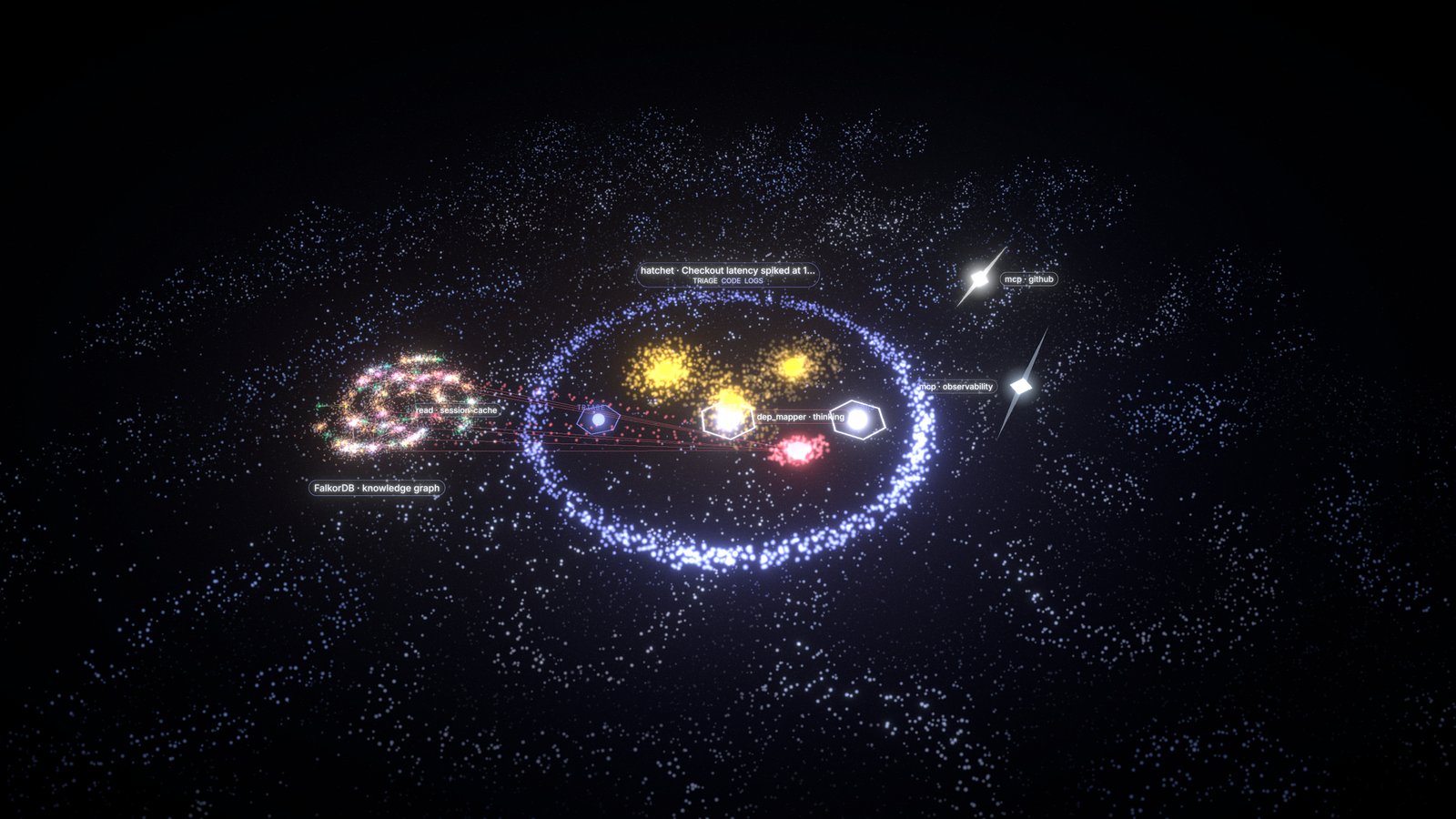

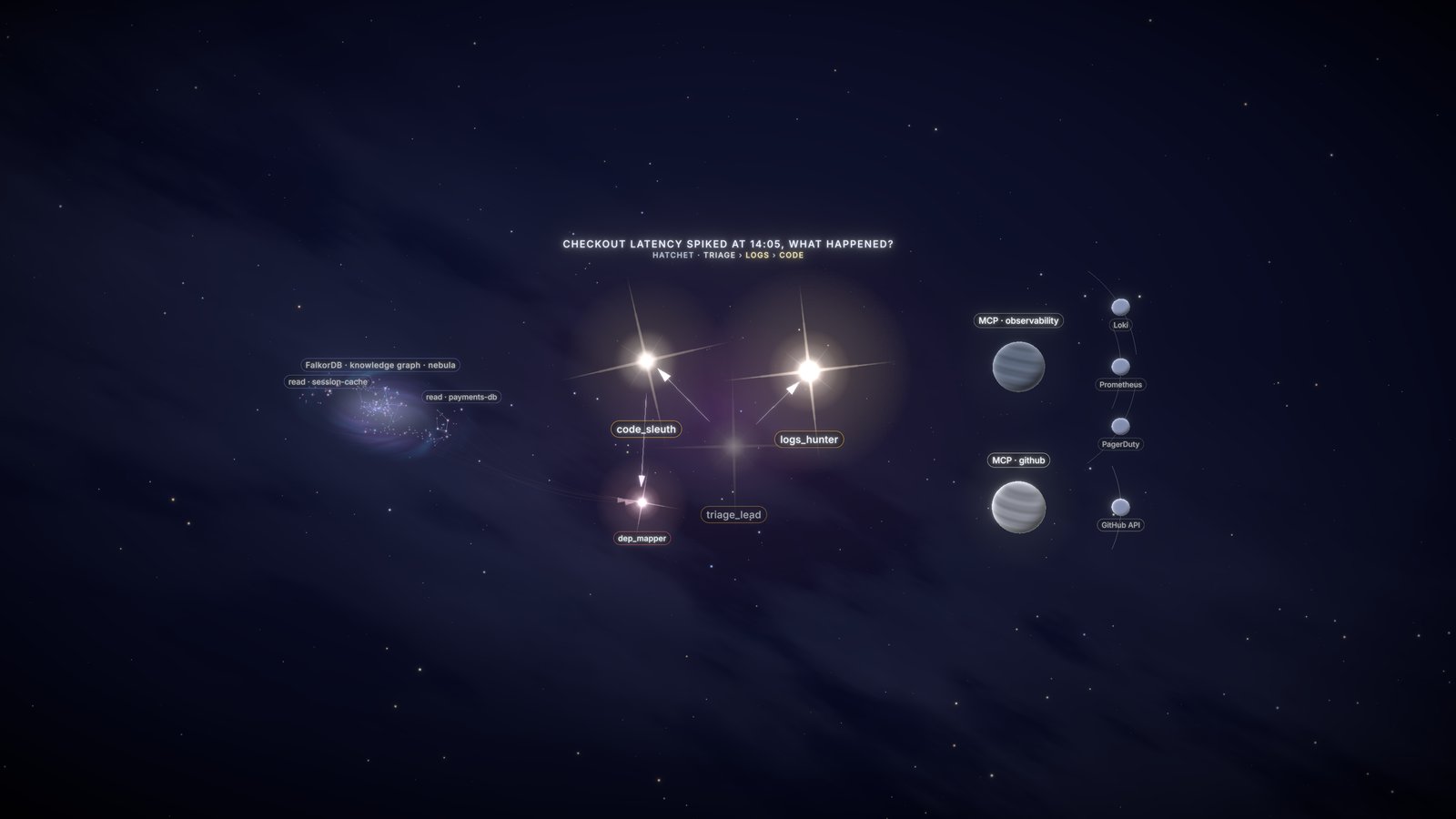

+    ap = argparse.ArgumentParser(prog="agentglow", description="Live 3D views of agent systems from OpenTelemetry spans")
+    ap.add_argument("--version", action="version", version=f"agentglow {__version__}")
+    sub = ap.add_subparsers(dest="cmd")
+    s = sub.add_parser("serve", help="run the server + UI (one per environment)")
+    s.add_argument("--host", default=os.environ.get("AGENTGLOW_HOST", "0.0.0.0"))
+    s.add_argument("--port", type=int, default=int(os.environ.get("AGENTGLOW_PORT", "8100")))
+    s.add_argument("--falkor", default=os.environ.get("AGENTGLOW_FALKOR_URL"), help="FalkorDB URL for /live/graph, e.g. redis://localhost:6379/demo")
+    args = ap.parse_args(argv)
+    if args.cmd != "serve":
+        ap.print_help()
+        return
+
+    import uvicorn
+
+    from .server import create_app
+
+    shown = "localhost" if args.host in ("0.0.0.0", "::") else args.host
+    print(f"agentglow {__version__} → http://{shown}:{args.port}   (spans: POST /v1/live, OTLP: /v1/traces)", flush=True)
+    uvicorn.run(create_app(falkor_url=args.falkor), host=args.host, port=args.port, log_level="warning")
+
+
+if __name__ == "__main__":
+    main()
