+# abspc — Python SPC Charts
+
+The `abspc` Python package provides publication-ready Statistical Process
+Control (SPC) charts following the NHS
+[Making Data Count](https://www.england.nhs.uk/publication/making-data-count/)
+methodology.
+
+Built on **matplotlib**, it produces high-quality static images suitable for
+board reports, dashboards, and quality-improvement publications.
+
+---
+
+## Installation
+
+```bash
+pip install abspc
+```
+
+Or install the development version from source:
+
+```bash
+git clone https://github.com/Aneurin-Bevan-University-Health-Board/biu_Making_Data_Count_CustomVisuals
+cd biu_Making_Data_Count_CustomVisuals
+pip install -e ".[dev]"
+```
+
+---
+
+## Quick Start
+
+```python
+import pandas as pd
+from abspc import plot_spc_chart, plot_run_chart
+
+# Minimal XmR chart
+data = pd.DataFrame({"value": [48, 52, 49, 55, 47, 51, 53, 50, 48, 54]})
+fig, ax = plot_spc_chart(data, chart_type="XmR")
+fig.savefig("my_xmr_chart.png")
+```
+
+---
+
+## Chart Types
+
+### XmR Chart
+
+The XmR (individuals / moving-range) chart is the most common SPC chart type.
+It is suitable for individual measurements collected over time.
+
+```python
+import numpy as np
+import pandas as pd
+from abspc import plot_spc_chart
+
+data = pd.DataFrame({"value": np.random.normal(50, 3, 24)})
+
+fig, ax = plot_spc_chart(
+    data,
+    chart_type="XmR",
+    title="XmR Chart – Individual Measurements",
+    xlabel="Month",
+    ylabel="Value",
+    shade_band=True,
+    improvement_direction="high",
+)
+```
+

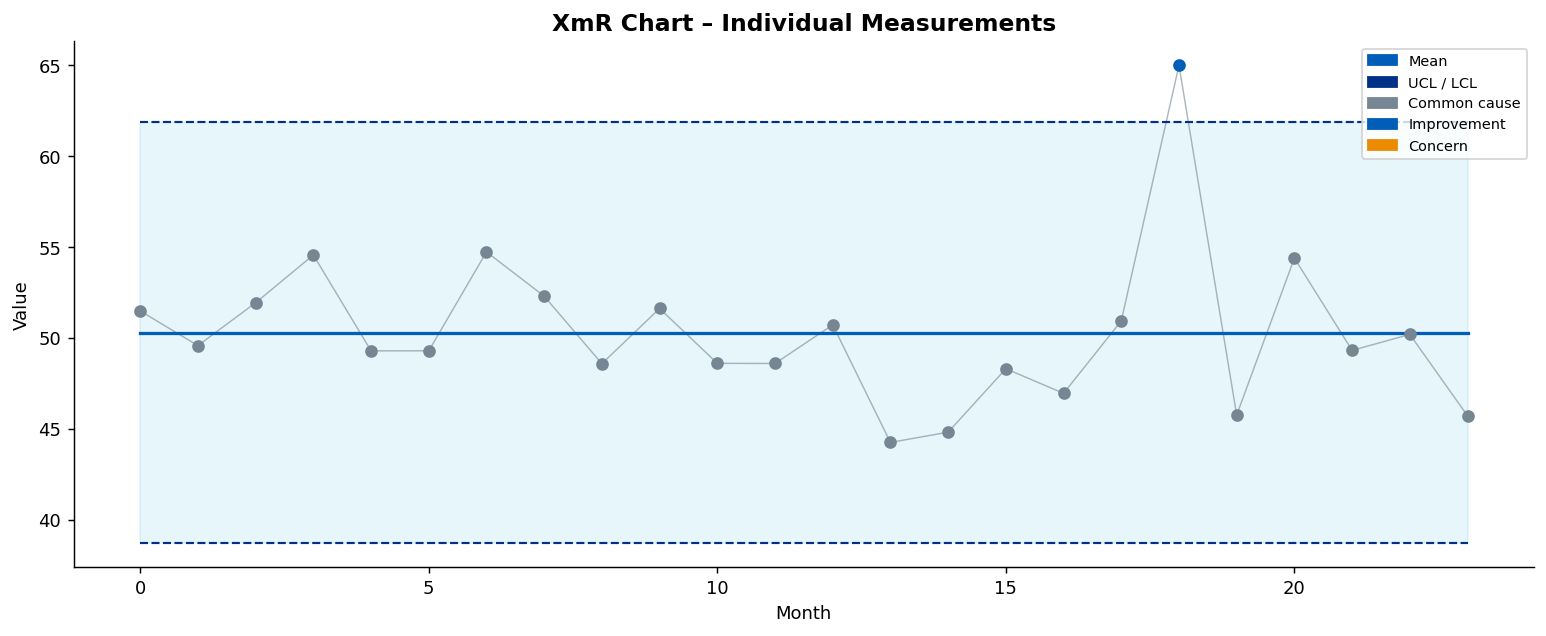

+![XmR Chart](https://raw.githubusercontent.com/Aneurin-Bevan-University-Health-Board/biu_Making_Data_Count_CustomVisuals/main/docs/images/chart_xmr.png)
+
+---
+
+### p Chart
+
+The p chart is for proportion data (e.g., percentage of patients waiting
+> 4 hours). It requires a `subgroup_size` column containing the denominator.
+
+```python
+data = pd.DataFrame({
+    "value": [0.10, 0.12, 0.08, 0.15, 0.09, 0.11, 0.10, 0.13, 0.07, 0.12,
+              0.09, 0.11, 0.10, 0.08, 0.14, 0.12, 0.09, 0.11, 0.08, 0.10,
+              0.12, 0.09, 0.11, 0.10],
+    "subgroup_size": [200] * 24,
+})
+
+fig, ax = plot_spc_chart(
+    data,
+    chart_type="p",
+    title="p Chart – Proportion",
+    xlabel="Month",
+    ylabel="Proportion",
+    improvement_direction="low",
+)
+```
+

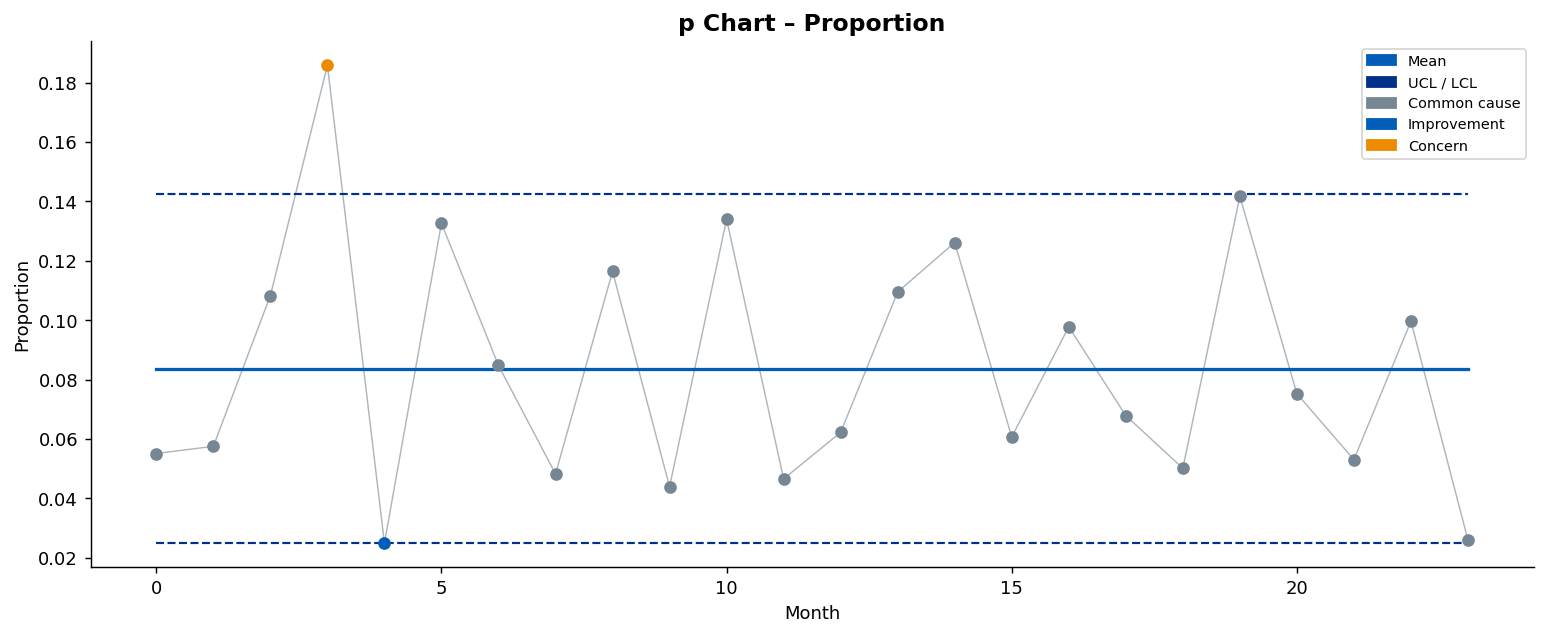

+![p Chart](https://raw.githubusercontent.com/Aneurin-Bevan-University-Health-Board/biu_Making_Data_Count_CustomVisuals/main/docs/images/chart_p.png)
+
+You can also pass a **numerator column** and a **denominator column**:
+
+```python
+data = pd.DataFrame({
+    "events":     [20, 24, 16, 30, 18],
+    "population": [200, 200, 200, 200, 200],
+})
+fig, ax = plot_spc_chart(
+    data,
+    chart_type="p",
+    value_col="population",
+    numerator_col="events",
+    improvement_direction="low",
+)
+```
+
+---
+
+### c Chart
+
+The c chart is for counts of events in a fixed sample size (e.g., adverse
+events per ward per month).
+
+```python
+data = pd.DataFrame({"value": [3, 5, 2, 6, 4, 3, 7, 5, 4, 6,
+                                 5, 3, 4, 6, 5, 4, 3, 5, 6, 4,
+                                 3, 5, 4, 6]})
+
+fig, ax = plot_spc_chart(
+    data,
+    chart_type="c",
+    title="c Chart – Count of Events",
+    xlabel="Month",
+    ylabel="Count",
+    improvement_direction="low",
+)
+```
+

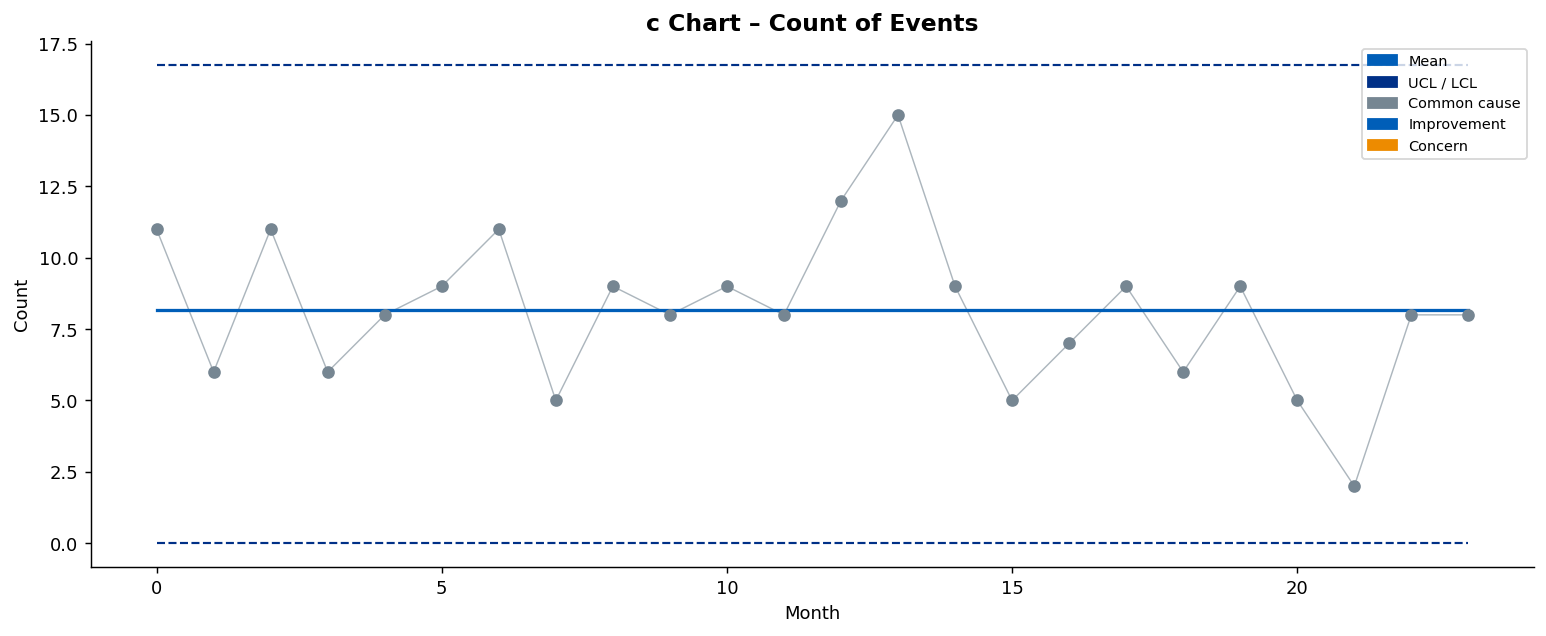

+![c Chart](https://raw.githubusercontent.com/Aneurin-Bevan-University-Health-Board/biu_Making_Data_Count_CustomVisuals/main/docs/images/chart_c.png)
+
+---
+

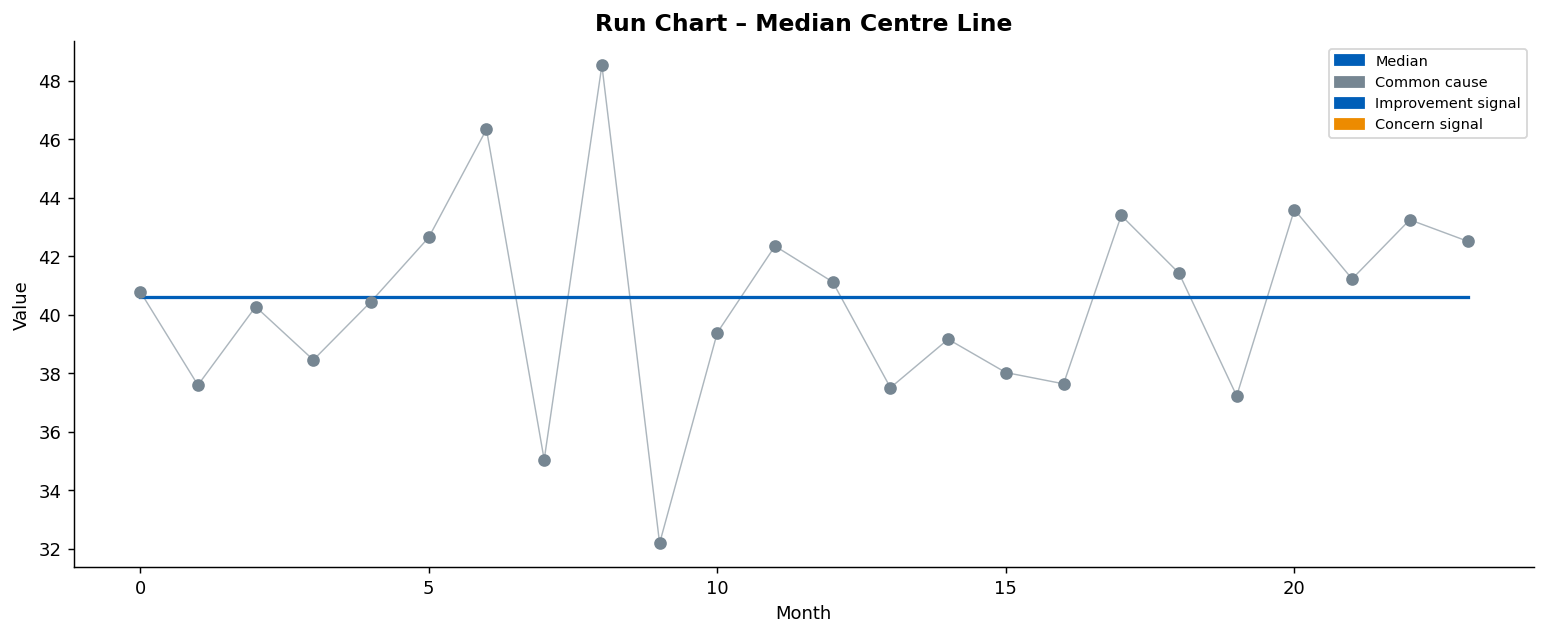

+### Run Chart
+
+The run chart plots data against time with a **median** centre line and no
+control limits. It uses run-chart rules to detect signals (8-point shift and
+6-point trend).
+
+```python
+from abspc import plot_run_chart
+
+data = pd.DataFrame({"value": np.random.normal(40, 4, 24)})
+
+fig, ax = plot_run_chart(
+    data,
+    title="Run Chart – Median Centre Line",
+    xlabel="Month",
+    ylabel="Value",
+    improvement_direction="high",
+)
+```
+
+![Run Chart](https://raw.githubusercontent.com/Aneurin-Bevan-University-Health-Board/biu_Making_Data_Count_CustomVisuals/main/docs/images/chart_run.png)
+
+`plot_spc_chart` also accepts `chart_type="run"` and will automatically
+delegate to `plot_run_chart`:
+
+```python
+fig, ax = plot_spc_chart(data, chart_type="run")
+```
+
+---
+
+## Features
+
+### Logo Placement
+
+Pass any image (PNG, JPEG, etc.) via `logo_path` to display your
+organisation's logo at the **top-right of the chart, level with the title**.
+
+```python
+fig, ax = plot_spc_chart(
+    data,
+    chart_type="XmR",
+    title="A&E 4-Hour Waits – Aneurin Bevan UHB",
+    logo_path="path/to/logo.png",
+    logo_zoom=0.08,
+)
+```
+
+![Chart with Logo](https://raw.githubusercontent.com/Aneurin-Bevan-University-Health-Board/biu_Making_Data_Count_CustomVisuals/main/docs/images/chart_with_logo.png)
+
+> **Note:** `logo_path` places the logo in the title margin (top-right).
+> The legacy `nhs_logo_path` parameter places an image inside the plot area.
+
+---
+
+### Date Axis
+
+All chart functions automatically detect datetime data on the x-axis and
+apply smart date tick formatting.
+
+**Option 1 — `DatetimeIndex` (auto-detected):**
+
+```python
+dates = pd.date_range("2022-01-01", periods=30, freq="MS")
+data  = pd.DataFrame({"value": np.random.normal(75, 6, 30)}, index=dates)
+
+fig, ax = plot_spc_chart(data, chart_type="XmR", title="Monthly Date Axis")
+```
+

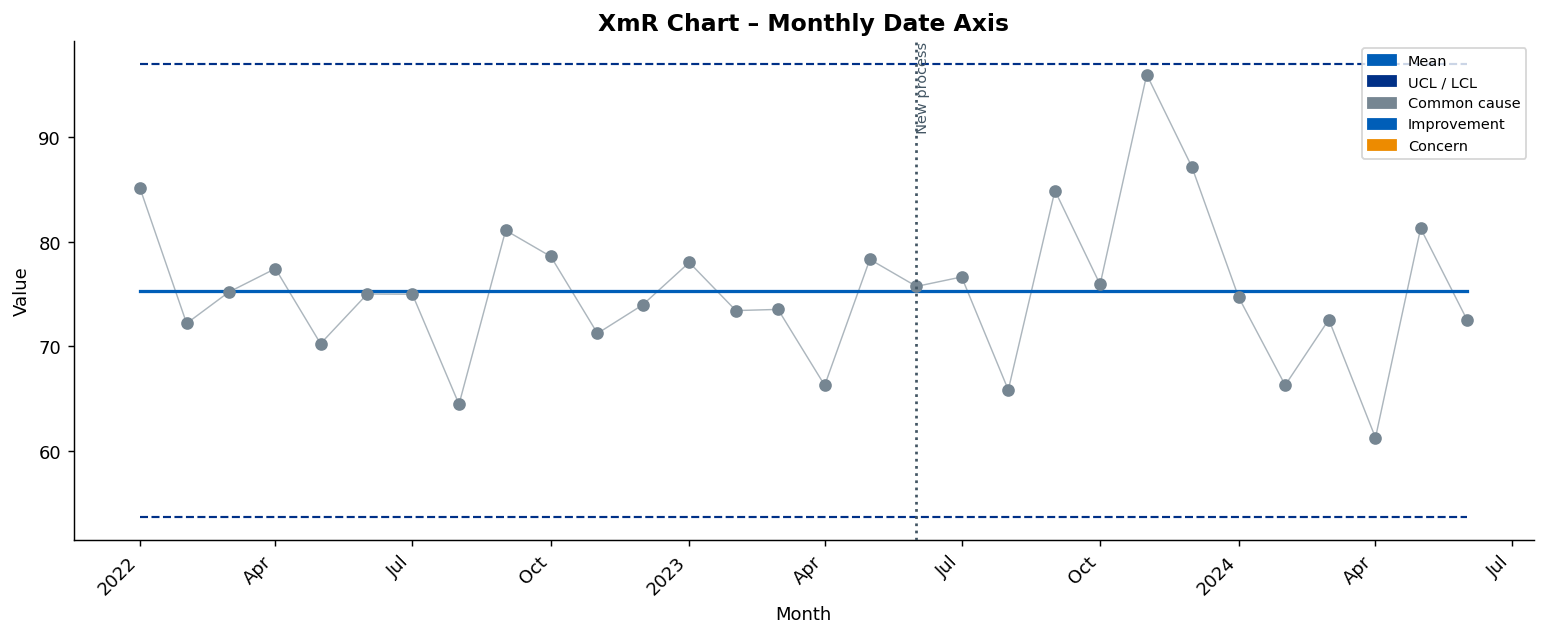

+![Date Axis](https://raw.githubusercontent.com/Aneurin-Bevan-University-Health-Board/biu_Making_Data_Count_CustomVisuals/main/docs/images/chart_date_axis.png)
+
+**Option 2 — Explicit date column:**
+
+```python
+fig, ax = plot_run_chart(data, x_col="period", date_format="%b %Y")
+```
+
+| `date_format` | Example output |
+|---------------|----------------|
+| `"%b %Y"` | Jan 2024 |
+| `"%Y-%m"` | 2024-01 |
+| `"%d/%m/%Y"` | 01/01/2024 |
+| `None` *(default)* | Auto (ConciseDateFormatter) |
+
+---
+
+### Change-Point Annotations
+
+Mark known process changes with vertical lines and labels:
+
+```python
+fig, ax = plot_spc_chart(
+    data,
+    chart_type="XmR",
+    change_points=[
+        {"x": 9,  "label": "New protocol"},
+        {"x": 20, "label": "Staff training"},
+    ],
+)
+```
+

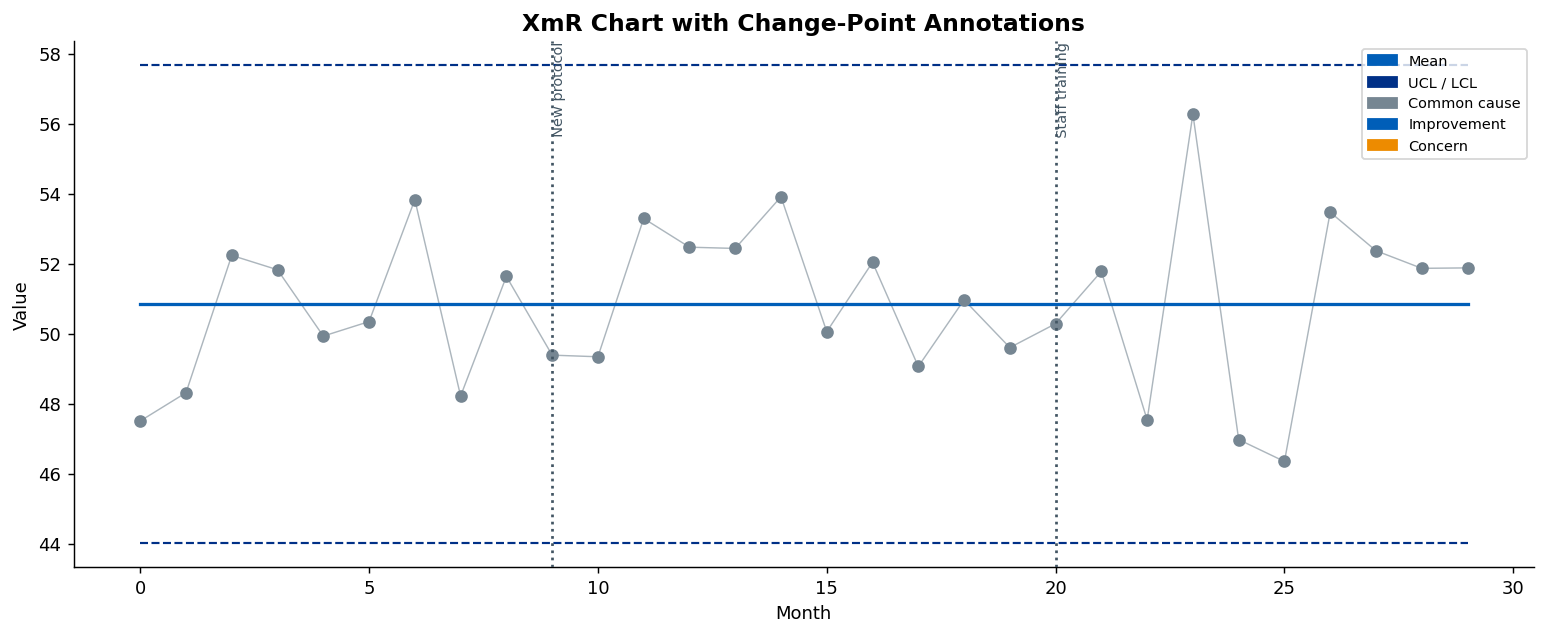

+![Change Points](https://raw.githubusercontent.com/Aneurin-Bevan-University-Health-Board/biu_Making_Data_Count_CustomVisuals/main/docs/images/chart_change_points.png)
+
+---
+
+### Auto-Rebase on Sustained Improvement
+
+When ≥ 8 consecutive points show sustained improvement, control limits can be
+automatically recalculated for the new phase:
+
+```python
+fig, ax = plot_spc_chart(
+    data,
+    chart_type="XmR",
+    improvement_direction="high",
+    auto_rebase=True,
+)
+```
+

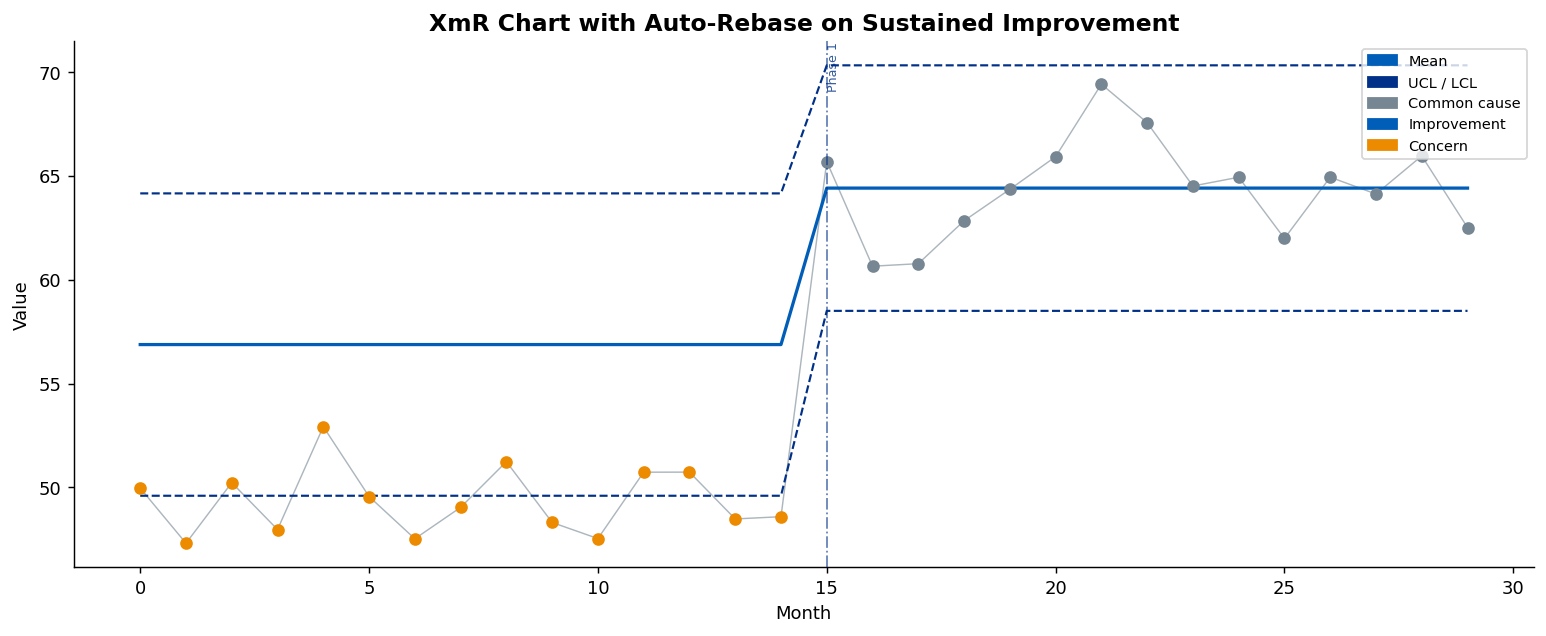

+![Auto-Rebase](https://raw.githubusercontent.com/Aneurin-Bevan-University-Health-Board/biu_Making_Data_Count_CustomVisuals/main/docs/images/chart_auto_rebase.png)
+
+Use `rebase_control_limits` for programmatic access without plotting:
+
+```python
+from abspc import rebase_control_limits
+
+result = rebase_control_limits(data, chart_type="XmR", improvement_direction="high")
+```
+
+> Auto-rebase is supported for XmR, p, u, and c charts (not run charts).
+
+---
+
+### MDC Variation & Assurance Icons
+
+Set `show_icons=True` to display the official Making Data Count variation and
+assurance icons at the top-left of the chart:
+
+```python
+fig, ax = plot_spc_chart(
+    data,
+    chart_type="XmR",
+    improvement_direction="high",
+    target=60,
+    show_target=True,
+    show_icons=True,
+)
+```
+
+**Programmatic access:**
+
+```python
+from abspc import (
+    calculate_control_limits,
+    detect_special_causes,
+    determine_variation_type,
+    determine_assurance_type,
+)
+
+result = detect_special_causes(calculate_control_limits(data, chart_type="XmR"))
+variation = determine_variation_type(result, value_col="value", improvement_direction="high")
+assurance = determine_assurance_type(result, target=60, improvement_direction="high")
+```
+
+> For run charts only the variation icon is shown (no control limits means
+> assurance cannot be calculated).
+
+---
+
+### MDC Summary Table
+
+`plot_mdc_summary_table` renders an NHS MDC-style summary table showing
+multiple measures at a glance:
+
+```python
+from abspc import plot_mdc_summary_table
+
+fig, ax = plot_mdc_summary_table(
+    [
+        {
+            "data": df,
+            "chart_type": "XmR",
+            "measure": "A&E 4-Hour Waits",
+            "description": "% patients seen within 4 hours",
+            "value_col": "value",
+            "improvement_direction": "high",
+            "target": 95,
+        },
+        {
+            "data": df_infections,
+            "chart_type": "p",
+            "measure": "Infection Rate",
+            "description": "Proportion of infections per month",
+            "value_col": "value",
+            "improvement_direction": "low",
+            "target": 0.05,
+            "subgroup_col": "subgroup_size",
+        },
+    ],
+    title="MDC Summary — Board Report",
+)
+```
+
+---
+
+## Special-Cause Rules
+
+Four NHS MDC rules (aligned with NHSRplotthedots):
+
+| Rule | Name | Description |
+|------|------|-------------|
+| **1** | Astronomical point | Single value outside 3σ limits |
+| **2** | Shift | ≥ 8 consecutive points above or below the mean |
+| **3** | Trend | ≥ 6 consecutive points all rising or all falling |
+| **4** | Two-in-three | 2 of 3 consecutive points in the warning zone |
+
+Use the detection functions directly:
+
+```python
+from abspc import calculate_control_limits, detect_special_causes
+
+result = calculate_control_limits(data, chart_type="XmR")
+flags  = detect_special_causes(result)
+print(flags[["value", "mean", "ucl", "lcl", "rule1", "rule2", "rule3", "rule4", "special_cause"]])
+```
+
+---
+
+## API Reference
+
+### `plot_spc_chart`
+
+```python
+fig, ax = plot_spc_chart(
+    data,
+    chart_type,                     # "XmR" | "p" | "u" | "c" | "run"
+    value_col="value",
+    subgroup_col="subgroup_size",
+    numerator_col=None,
+    x_col=None,
+    title=None,
+    xlabel="Observation",
+    ylabel="Value",
+    improvement_direction="high",
+    target=None,
+    show_target=False,
+    shade_band=False,
+    shade_color="#41B6E6",
+    nhs_logo_path=None,
+    ax=None,
+    figsize=(12, 5),
+    show_legend=True,
+    change_points=None,
+    auto_rebase=False,
+    date_format=None,
+    logo_path=None,
+    logo_zoom=0.07,
+    show_icons=False,
+    icon_zoom=0.06,
+)
+```
+
+| Parameter | Type | Default | Description |
+|-----------|------|---------|-------------|
+| `data` | `pd.DataFrame` | *(required)* | Input DataFrame with at least the `value_col` column. |
+| `chart_type` | `str` | *(required)* | `"XmR"`, `"p"`, `"u"`, `"c"`, or `"run"` (case-insensitive). |
+| `value_col` | `str` | `"value"` | Column containing the measured values. |
+| `subgroup_col` | `str \| None` | `"subgroup_size"` | Column with subgroup sizes. Required for `"p"` and `"u"`. |
+| `numerator_col` | `str \| None` | `None` | For `"p"` charts: column with event counts when `value_col` holds the denominator. |
+| `x_col` | `str \| None` | `None` | Column for the x-axis. Auto-detects `DatetimeIndex` if `None`. |
+| `title` | `str \| None` | `None` | Chart title. Auto-generated if omitted. |
+| `xlabel` | `str` | `"Observation"` | X-axis label. |
+| `ylabel` | `str` | `"Value"` | Y-axis label. |
+| `improvement_direction` | `str` | `"high"` | `"high"` or `"low"`. Controls point colouring. |
+| `target` | `float \| None` | `None` | Optional target value for the target line and assurance calculation. |
+| `show_target` | `bool` | `False` | Draw a dashed target line at `target`. |
+| `shade_band` | `bool` | `False` | Fill between UCL and LCL with a translucent band. |
+| `shade_color` | `str` | `"#41B6E6"` | Colour for tolerance-band shading. |
+| `nhs_logo_path` | `str \| None` | `None` | Logo inside the axes (legacy). Use `logo_path` instead. |
+| `ax` | `Axes \| None` | `None` | Existing axes to draw on. Creates a new figure when `None`. |
+| `figsize` | `tuple` | `(12, 5)` | Figure size in inches. Ignored when `ax` is provided. |
+| `show_legend` | `bool` | `True` | Add a colour legend. |
+| `change_points` | `list[dict] \| None` | `None` | Vertical annotation lines. Each dict needs `"x"` and `"label"`. |
+| `auto_rebase` | `bool` | `False` | Auto-detect sustained improvement and recalculate limits. |
+| `date_format` | `str \| None` | `None` | `strftime`-style format for datetime x-axis. |
+| `logo_path` | `str \| None` | `None` | Logo image at top-right of figure. |
+| `logo_zoom` | `float` | `0.07` | Logo height as fraction of figure height. |
+| `show_icons` | `bool` | `False` | Display MDC variation & assurance icons. |
+| `icon_zoom` | `float` | `0.06` | Icon height as fraction of figure height. |
+
+**Returns:** `(fig, ax)` — `matplotlib.figure.Figure` and `matplotlib.axes.Axes`.
+
+---
+
+### `plot_run_chart`
+
+```python
+fig, ax = plot_run_chart(
+    data,
+    value_col="value",
+    x_col=None,
+    title=None,
+    xlabel="Observation",
+    ylabel="Value",
+    improvement_direction="high",
+    target=None,
+    show_target=False,
+    nhs_logo_path=None,
+    ax=None,
+    figsize=(12, 5),
+    show_legend=True,
+    change_points=None,
+    date_format=None,
+    logo_path=None,
+    logo_zoom=0.07,
+    show_icons=False,
+    icon_zoom=0.06,
+)
+```
+
+Same parameter semantics as `plot_spc_chart` (without `chart_type`,
+`subgroup_col`, `numerator_col`, `shade_band`, `shade_color`, `auto_rebase`).
+
+**Returns:** `(fig, ax)`.
+
+---
+
+### `calculate_control_limits`
+
+Returns the input DataFrame extended with `mean`, `ucl`, `lcl`, `uwl`, `lwl`
+columns (or just `mean` for run charts).
+
+### `detect_special_causes`
+
+Returns the DataFrame extended with boolean columns `rule1`, `rule2`, `rule3`,
+`rule4`, and `special_cause`.
+
+### `detect_run_chart_signals`
+
+Returns the DataFrame extended with `run_shift`, `run_trend`, and `run_signal`.
+
+### `rebase_control_limits`
+
+Returns the DataFrame with limits recalculated per improvement phase and a
+`rebase_phase` integer column.
+
+### `show_summary`
+
+Generates a programmatic summary dictionary for a chart, including variation
+type, assurance status, descriptive statistics, triggered SPC rules, and a
+list of signal points. Pass `show_summary=True` to `plot_spc_chart` or
+`plot_run_chart` to render the summary as an additional figure.
+
+```python
+from abspc import show_summary
+
+summary = show_summary(data, chart_type="XmR", improvement_direction="high", target=60)
+print(summary["variation"], summary["assurance"])
+```
+
+### `plot_mdc_summary_table`
+
+Renders an NHS MDC-style summary table for one or more measures (see the
+[MDC Summary Table](#mdc-summary-table) section above).
+
+---
+
+## Running Tests
+
+```bash
+pip install -e ".[dev]"
+pytest
+```
+
+160 unit tests covering all chart types, SPC rules, run-chart signals,
+auto-rebase, change-point annotations, summary generation, and plotting.
