@@ -0,0 +1,23 @@
|
|
|
1
|
+
# Changelog
|
|
2
|
+
|
|
3
|
+
All notable changes to `ablechart` will be documented in this file.
|
|
4
|
+
|
|
5
|
+
## 0.1.0 - 2026-06-21
|
|
6
|
+
|
|
7
|
+
Initial public package candidate.
|
|
8
|
+
|
|
9
|
+
Supported scope:
|
|
10
|
+
|
|
11
|
+
- editable native PowerPoint combo charts
|
|
12
|
+
- waterfall, scatter, bubble, and range snapshot chart families
|
|
13
|
+
- semantic metadata round-trip for generated charts
|
|
14
|
+
- chart inventory and template-safe data replacement for the first-batch native chart types
|
|
15
|
+
- experimental semantic component families for single-slide financial report panels
|
|
16
|
+
|
|
17
|
+
Packaging:
|
|
18
|
+
|
|
19
|
+
- MIT license
|
|
20
|
+
- Python `>=3.10`
|
|
21
|
+
- PyPI metadata and source distribution manifest prepared
|
|
22
|
+
- Release-readiness tests for license, package metadata, README positioning, and sdist manifest
|
|
23
|
+
- GitHub Actions CI plus TestPyPI / PyPI Trusted Publishing workflow prepared
|
ablechart-0.1.0/LICENSE
ADDED
|
@@ -0,0 +1,21 @@
|
|
|
1
|
+
MIT License
|
|
2
|
+
|
|
3
|
+
Copyright (c) 2026 ablechart contributors
|
|
4
|
+
|
|
5
|
+
Permission is hereby granted, free of charge, to any person obtaining a copy
|
|
6
|
+
of this software and associated documentation files (the "Software"), to deal
|
|
7
|
+
in the Software without restriction, including without limitation the rights
|
|
8
|
+
to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
|
|
9
|
+
copies of the Software, and to permit persons to whom the Software is
|
|
10
|
+
furnished to do so, subject to the following conditions:
|
|
11
|
+
|
|
12
|
+
The above copyright notice and this permission notice shall be included in all
|
|
13
|
+
copies or substantial portions of the Software.
|
|
14
|
+
|
|
15
|
+
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
|
|
16
|
+
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
|
|
17
|
+
FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
|
|
18
|
+
AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
|
|
19
|
+
LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
|
|
20
|
+
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
|
|
21
|
+
SOFTWARE.
|
ablechart-0.1.0/PKG-INFO
ADDED
|
@@ -0,0 +1,279 @@
|
|
|
1
|
+
Metadata-Version: 2.4
|
|
2
|
+
Name: ablechart
|
|
3
|
+
Version: 0.1.0
|
|
4
|
+
Summary: Editable PowerPoint chart engine for dual-axis financial charts
|
|
5
|
+
Author: ablechart contributors
|
|
6
|
+
License-Expression: MIT
|
|
7
|
+
Project-URL: Homepage, https://github.com/hanlinlibham/ablechart
|
|
8
|
+
Project-URL: Repository, https://github.com/hanlinlibham/ablechart
|
|
9
|
+
Project-URL: Issues, https://github.com/hanlinlibham/ablechart/issues
|
|
10
|
+
Project-URL: Changelog, https://github.com/hanlinlibham/ablechart/blob/main/CHANGELOG.md
|
|
11
|
+
Keywords: powerpoint,pptx,charts,finance,openxml
|
|
12
|
+
Classifier: Development Status :: 3 - Alpha
|
|
13
|
+
Classifier: Intended Audience :: Developers
|
|
14
|
+
Classifier: Operating System :: OS Independent
|
|
15
|
+
Classifier: Programming Language :: Python :: 3
|
|
16
|
+
Classifier: Programming Language :: Python :: 3.10
|
|
17
|
+
Classifier: Programming Language :: Python :: 3.11
|
|
18
|
+
Classifier: Programming Language :: Python :: 3.12
|
|
19
|
+
Classifier: Topic :: Office/Business :: Office Suites
|
|
20
|
+
Classifier: Topic :: Scientific/Engineering :: Visualization
|
|
21
|
+
Classifier: Topic :: Software Development :: Libraries :: Python Modules
|
|
22
|
+
Requires-Python: >=3.10
|
|
23
|
+
Description-Content-Type: text/markdown
|
|
24
|
+
License-File: LICENSE
|
|
25
|
+
Requires-Dist: python-pptx<1.1,>=1.0.2
|
|
26
|
+
Requires-Dist: pandas<3,>=2.2
|
|
27
|
+
Requires-Dist: numpy<2,>=1.26
|
|
28
|
+
Requires-Dist: lxml<6,>=5
|
|
29
|
+
Requires-Dist: openpyxl<4,>=3.1
|
|
30
|
+
Provides-Extra: test
|
|
31
|
+
Requires-Dist: pytest; extra == "test"
|
|
32
|
+
Requires-Dist: tomli; python_version < "3.11" and extra == "test"
|
|
33
|
+
Dynamic: license-file
|
|
34
|
+
|
|
35
|
+
# ablechart
|
|
36
|
+
|
|
37
|
+
`ablechart` is a focused Python SDK for creating, inspecting, parsing,
|
|
38
|
+
and updating editable PowerPoint chart assets.
|
|
39
|
+
|
|
40
|
+
It is built for workflows where a chart must stay a real PowerPoint chart,
|
|
41
|
+
not a screenshot:
|
|
42
|
+
|
|
43
|
+
- editable in Microsoft PowerPoint after generation
|
|
44
|
+
- backed by an embedded workbook
|
|
45
|
+
- able to carry semantic metadata for round-trip parsing
|
|
46
|
+
- replaceable in an existing `.pptx` without rebuilding the whole slide
|
|
47
|
+
- shaped around financial reporting chart families rather than a generic chart zoo
|
|
48
|
+
|
|
49
|
+
The project is intentionally narrow. It is a chart asset kernel, not a full
|
|
50
|
+
presentation generation framework, report builder, template library, or AI
|
|
51
|
+
slide generator.
|
|
52
|
+
|
|
53
|
+

|
|
54
|
+
|
|
55
|
+

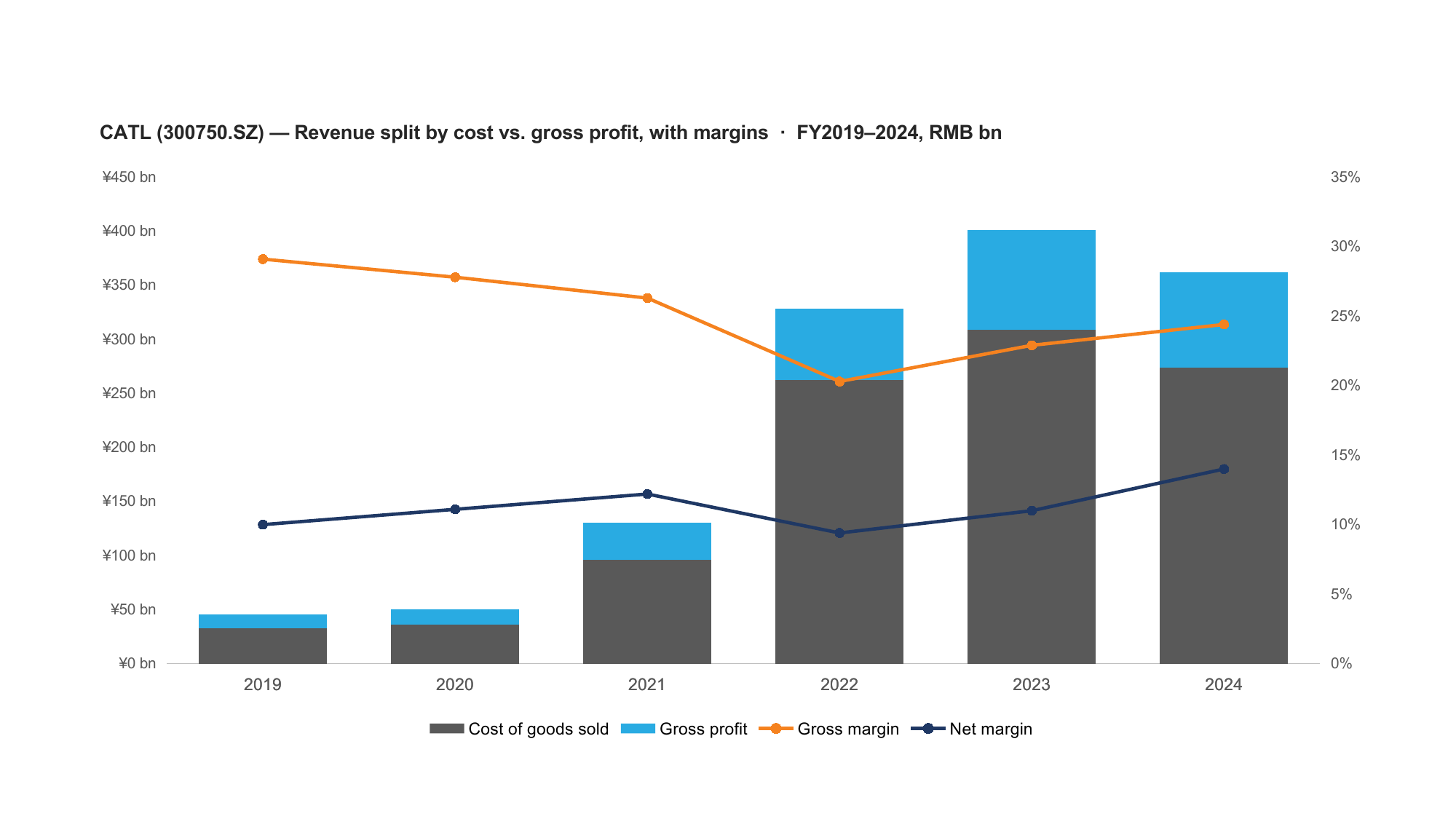

*A real, editable PowerPoint chart rendered from a `.pptx` produced by `ablechart` — stacked columns and two lines on a second value axis, with per-axis number formats. Data: CATL (300750.SZ) FY2019–2024 annual filings (source: Tushare).*
|
|
56
|
+
|
|
57
|
+
## Install
|
|
58
|
+
|
|
59
|
+
```bash
|
|
60
|
+
pip install ablechart
|
|
61
|
+
```
|
|
62
|
+
|
|
63
|
+
Python `>=3.10` is required.
|
|
64
|
+
|
|
65
|
+
Core dependencies:
|
|
66
|
+
|
|
67
|
+
- `python-pptx>=1.0.2,<1.1`
|
|
68
|
+
- `pandas>=2.2,<3`
|
|
69
|
+
- `numpy>=1.26,<2`
|
|
70
|
+
- `lxml>=5,<6`
|
|
71
|
+
- `openpyxl>=3.1,<4`
|
|
72
|
+
|
|
73
|
+
For local development:
|
|
74
|
+
|
|
75
|
+
```bash
|
|
76
|
+
git clone https://github.com/hanlinlibham/ablechart.git
|
|
77
|
+
cd ablechart
|
|
78
|
+
pip install -e .
|
|
79
|
+
python -m pytest
|
|
80
|
+
```
|
|
81
|
+
|
|
82
|
+
## Quickstart
|
|
83
|
+
|
|
84
|
+
### Create an editable combo chart
|
|
85
|
+
|
|
86
|
+
```python
|
|
87
|
+
import pandas as pd
|
|
88
|
+
from pptx import Presentation
|
|
89
|
+
from ablechart import create_combo_chart
|
|
90
|
+
|
|
91
|
+
df = pd.DataFrame(
|
|
92
|
+
{
|
|
93
|
+
"Year": [2021, 2022, 2023, 2024],
|
|
94
|
+
"Revenue": [100, 110, 120, 140],
|
|
95
|
+
"Profit": [10, 12, 15, 18],
|
|
96
|
+
}
|
|
97
|
+
)
|
|
98
|
+
|
|
99
|
+
prs = Presentation()
|
|
100
|
+
slide = prs.slides.add_slide(prs.slide_layouts[6])
|
|
101
|
+
|
|
102
|
+
create_combo_chart(
|
|
103
|
+
slide=slide,
|
|
104
|
+
df=df,
|
|
105
|
+
categories_col="Year",
|
|
106
|
+
series_config=[
|
|
107
|
+
{"key": "Revenue", "name": "Revenue", "type": "bar", "axis": "primary"},
|
|
108
|
+
{"key": "Profit", "name": "Profit", "type": "line", "axis": "secondary"},
|
|
109
|
+
],
|
|
110
|
+
title="Revenue and profit",
|
|
111
|
+
)
|
|
112
|
+
|
|
113
|
+
prs.save("combo-demo.pptx")
|
|
114
|
+
```
|
|
115
|
+
|
|
116
|
+
### Parse a chart back into data and metadata
|
|
117
|
+
|
|
118
|
+
```python
|
|
119
|
+
from ablechart import parse_chart_from_pptx
|
|
120
|
+
|
|
121
|
+
df, series_config, chart_type, layout_info = parse_chart_from_pptx("combo-demo.pptx")
|
|
122
|
+
|
|
123
|
+
print(chart_type)
|
|
124
|
+
print(df.head())
|
|
125
|
+
print(series_config)
|
|
126
|
+
```
|
|
127
|
+
|
|
128
|
+
### Inspect and update charts in an existing deck
|
|
129
|
+
|
|
130
|
+
```python
|
|
131
|
+
from ablechart import SeriesData, inspect_pptx_charts, replace_pptx_chart_data
|
|
132
|
+
|
|
133
|
+
inventory = inspect_pptx_charts("template.pptx")
|
|
134
|
+
target = next(item for item in inventory if item.replaceable)
|
|
135
|
+
|
|
136
|
+
result = replace_pptx_chart_data(
|
|
137
|
+
input_pptx="template.pptx",
|
|
138
|
+
output_pptx="updated.pptx",
|
|
139
|
+
selector=target.selector,
|
|
140
|
+
categories=["2026Q1", "2026Q2", "2026Q3"],
|
|
141
|
+
series=[
|
|
142
|
+
SeriesData(name="Revenue", values=[120.0, 132.0, 141.0]),
|
|
143
|
+
SeriesData(name="Cost", values=[82.0, 88.0, 91.0]),
|
|
144
|
+
],
|
|
145
|
+
)
|
|
146
|
+
|
|
147
|
+
assert result.status == "ok", result.error_detail
|
|
148
|
+
```
|
|
149
|
+
|
|
150
|
+
## What It Supports
|
|
151
|
+
|
|
152
|
+
### Chart families
|
|
153
|
+
|
|
154
|
+
| Family | Entry point | Notes |
|
|
155
|
+
| --- | --- | --- |
|
|
156
|
+
| Combo | `create_combo_chart()` | Bar, line, area, stacked, percent-stacked, dual-axis, date-axis presets |
|
|
157
|
+
| Waterfall | `create_waterfall_chart()` | Editable bridge chart with total and relative measures |
|
|
158
|
+
| Scatter | `create_scatter_chart()` | Native scatter chart with parse helpers |
|
|
159
|
+
| Bubble | `create_bubble_chart()` | Native bubble chart with parse helpers |
|
|
160
|
+
| Range snapshot | `create_range_snapshot_chart()` | Valuation range snapshot with min/max/average/current markers |
|
|
161
|
+
|
|
162
|
+

|
|
163
|
+
|
|
164
|
+

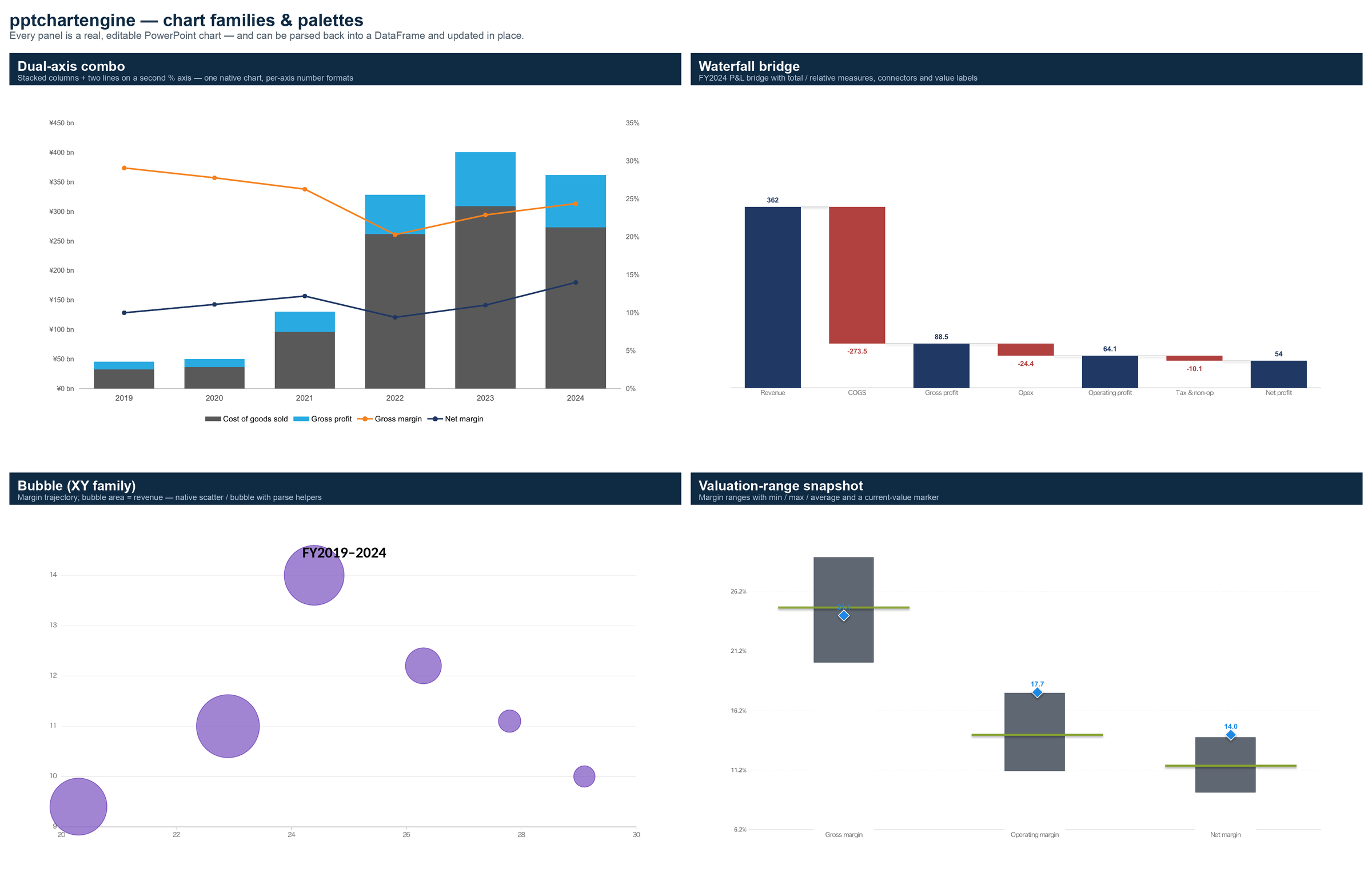

*Each panel is a real, editable PowerPoint chart produced by `ablechart`, then rendered to an image. Every one can be parsed back into a DataFrame and updated in place. All four use the same real dataset (CATL 300750.SZ, source: Tushare); regenerate with `python scripts/make_gallery.py`.*
|
|
165
|
+
|
|
166
|
+
### Semantic financial families
|
|
167
|
+
|
|
168
|
+
`create_semantic_chart()` and the family-specific helpers provide a higher
|
|
169
|
+
level mapping from financial-report concepts to native chart or shape
|
|
170
|
+
composition primitives.
|
|
171
|
+
|
|
172
|
+
Currently exposed families include:
|
|
173
|
+
|
|
174
|
+
- `performance_compare`
|
|
175
|
+
- `distribution_plus_history`
|
|
176
|
+
- `style_box`
|
|
177
|
+
- `style_allocation`
|
|
178
|
+
- `factor_exposure`
|
|
179
|
+
- `score_overlay`
|
|
180
|
+
- `concentration`
|
|
181
|
+
- `event_timeline`
|
|
182
|
+
- `attribution_decomposition`
|
|
183
|
+
- `ranked_tile_matrix`
|
|
184
|
+
- `heatmap_matrix`
|
|
185
|
+
- `table_plus_chart_composite`
|
|
186
|
+
- `factor_attribution_panel`
|
|
187
|
+
- `regime_table_panel`
|
|
188
|
+
- `manager_timeline_profile`
|
|
189
|
+
- `award_timeline_panel`
|
|
190
|
+
- `selection_timing_grid`
|
|
191
|
+
- `dual_chart_panel`
|
|
192
|
+
- `holding_detail`
|
|
193
|
+
|
|
194
|
+
This layer is useful for single-slide financial report components. It is not
|
|
195
|
+
a report orchestration engine.
|
|
196
|
+
|
|
197
|
+
## Public API Shape
|
|
198
|
+
|
|
199
|
+
The public API is organized around the chart asset lifecycle:
|
|
200
|
+
|
|
201
|
+
| Lifecycle | Representative APIs |
|
|
202
|
+
| --- | --- |
|
|
203
|
+
| Create | `create_combo_chart()`, `create_waterfall_chart()`, `create_semantic_chart()` |
|
|
204
|
+
| Parse | `parse_chart_from_pptx()`, `parse_all_charts_from_pptx()`, `get_semantic_chart_spec()` |
|
|
205
|
+
| Metadata | `ChartMetadataV1`, `write_chart_metadata`, `METADATA_SCHEMA_VERSION` |
|
|
206
|
+
| Inspect | `inspect_pptx_charts()`, `ChartInventoryItem`, `ChartSelector` |
|
|
207
|
+
| Replace | `replace_pptx_chart_data()`, `SeriesData`, `ReplaceResult` |
|
|
208
|
+
|
|
209
|
+
The design goal is that a generated chart can become a durable asset:
|
|
210
|
+
created once, opened and edited in PowerPoint, parsed again later, and updated
|
|
211
|
+
without losing its position, size, identity, or basic editability.
|
|
212
|
+
|
|
213
|
+
## How This Differs From Similar Packages
|
|
214
|
+
|
|
215
|
+
`ablechart` is not trying to replace broad PowerPoint SDKs. It is a
|
|
216
|
+
small layer for high-quality chart assets and template-safe chart updates.
|
|
217
|
+
|
|
218
|
+
| Project | Main strength | How `ablechart` differs |
|
|
219
|
+
| --- | --- | --- |
|
|
220
|
+
| [`python-pptx`](https://python-pptx.readthedocs.io/en/latest/user/charts.html) | General Python library for creating and updating `.pptx` files, including adding charts and replacing chart data. | `ablechart` builds on the PowerPoint-native path but adds financial chart families, semantic metadata, chart round-trip parsing, inventory, and template-safe replacement contracts. |
|
|
221
|
+
| [`PptxGenJS`](https://gitbrent.github.io/PptxGenJS/) | Broad JavaScript presentation generation for Node.js, browser, React, Electron, charts, tables, images, and HTML-to-PPTX workflows. | `ablechart` is Python-only and intentionally narrower: it does not generate full decks from layouts, but focuses on editable chart assets and parse/update lifecycles. |
|
|
222
|
+
| [`mschart`](https://ardata-fr.github.io/mschart/) | R package for native editable Microsoft Office charts, commonly used with `officer`. | `ablechart` targets Python financial-report workflows and adds inspect/replace and metadata round-trip APIs for existing `.pptx` chart assets. |
|
|
223
|
+
| [`Aspose.Slides for Python via .NET`](https://docs.aspose.com/slides/python-net/) | Commercial, full-featured presentation processing SDK with broad PowerPoint manipulation, chart modules, export, animation, SmartArt, VBA, and conversion features. | `ablechart` is MIT-licensed and much smaller. It does not aim to cover the whole PowerPoint object model or rendering/export conversion. |
|
|
224
|
+
| [`Spire.Presentation for Python`](https://www.e-iceblue.com/Introduce/presentation-for-python.html) | Commercial presentation API covering creation, editing, conversion, and chart operations. | `ablechart` avoids broad document processing scope and concentrates on deterministic chart creation, chart metadata, and safe data replacement. |
|
|
225
|
+
|
|
226
|
+
In short:
|
|
227
|
+
|
|
228
|
+
- Use `python-pptx` when you need a general Python PowerPoint building block.
|
|
229
|
+
- Use `PptxGenJS` when your stack is JavaScript or browser-side PPTX generation.
|
|
230
|
+
- Use Aspose or Spire when you need broad commercial document processing,
|
|
231
|
+
conversion, or complete PowerPoint object-model coverage.
|
|
232
|
+
- Use `ablechart` when your hard problem is editable, updateable,
|
|
233
|
+
inspectable PowerPoint charts for data-heavy reports.
|
|
234
|
+
|
|
235
|
+
## Current Limits
|
|
236
|
+
|
|
237
|
+
`ablechart` does not currently provide:
|
|
238
|
+
|
|
239
|
+
- full report assembly
|
|
240
|
+
- slide template management
|
|
241
|
+
- data connectors
|
|
242
|
+
- CLI job orchestration
|
|
243
|
+
- PDF or image export
|
|
244
|
+
- AI prompt-to-deck generation
|
|
245
|
+
- complete coverage of every PowerPoint chart type
|
|
246
|
+
- HTML or interactive web output
|
|
247
|
+
|
|
248
|
+
Unsupported chart replacement cases fail explicitly rather than silently
|
|
249
|
+
rebuilding the chart. The first-batch replacement path is focused on common
|
|
250
|
+
embedded-workbook chart types such as bar, line, combo, area, pie, scatter,
|
|
251
|
+
and bubble charts.
|
|
252
|
+
|
|
253
|
+
## Development
|
|
254
|
+
|
|
255
|
+
Run the test suite:
|
|
256
|
+
|
|
257
|
+
```bash
|
|
258
|
+
python -m pytest
|
|
259
|
+
```
|
|
260
|
+
|
|
261
|
+
Build the distribution artifacts:
|
|
262
|
+
|
|
263
|
+
```bash
|
|
264
|
+
python -m build --sdist --wheel
|
|
265
|
+
python -m twine check dist/*
|
|
266
|
+
```
|
|
267
|
+
|
|
268
|
+
The repository keeps contract tests for:
|
|
269
|
+
|
|
270
|
+
- public exports
|
|
271
|
+
- generated chart round-trips
|
|
272
|
+
- semantic metadata recovery
|
|
273
|
+
- existing-deck chart inspection
|
|
274
|
+
- in-place chart data replacement
|
|
275
|
+
- checked-in `.pptx` fixture behavior
|
|
276
|
+
|
|
277
|
+
## License
|
|
278
|
+
|
|
279
|
+
MIT License. See [LICENSE](./LICENSE).
|
|
@@ -0,0 +1,245 @@
|
|
|
1
|
+
# ablechart
|
|
2
|
+
|
|
3
|
+
`ablechart` is a focused Python SDK for creating, inspecting, parsing,
|
|
4
|
+
and updating editable PowerPoint chart assets.
|
|
5
|
+
|
|
6
|
+
It is built for workflows where a chart must stay a real PowerPoint chart,
|
|
7
|
+
not a screenshot:
|
|
8
|
+
|
|
9
|
+
- editable in Microsoft PowerPoint after generation
|
|
10
|
+
- backed by an embedded workbook
|
|
11
|
+
- able to carry semantic metadata for round-trip parsing
|
|
12
|
+
- replaceable in an existing `.pptx` without rebuilding the whole slide
|
|
13
|
+
- shaped around financial reporting chart families rather than a generic chart zoo
|
|
14
|
+
|
|
15
|
+
The project is intentionally narrow. It is a chart asset kernel, not a full
|
|
16
|
+
presentation generation framework, report builder, template library, or AI
|
|
17
|
+
slide generator.
|
|
18
|
+
|
|
19
|
+

|
|
20
|
+
|
|
21
|
+
*A real, editable PowerPoint chart rendered from a `.pptx` produced by `ablechart` — stacked columns and two lines on a second value axis, with per-axis number formats. Data: CATL (300750.SZ) FY2019–2024 annual filings (source: Tushare).*
|
|
22
|
+
|
|
23
|
+
## Install
|
|
24
|
+
|
|
25
|
+
```bash
|
|
26
|
+
pip install ablechart
|
|
27
|
+
```
|
|
28
|
+
|
|
29
|
+
Python `>=3.10` is required.
|
|
30
|
+
|
|
31
|
+
Core dependencies:
|
|
32
|
+
|
|
33
|
+
- `python-pptx>=1.0.2,<1.1`
|
|
34
|
+
- `pandas>=2.2,<3`
|
|
35
|
+
- `numpy>=1.26,<2`
|
|
36
|
+
- `lxml>=5,<6`
|
|
37
|
+
- `openpyxl>=3.1,<4`
|
|
38
|
+
|
|
39
|
+
For local development:
|
|
40
|
+
|
|
41
|
+
```bash
|
|
42
|
+
git clone https://github.com/hanlinlibham/ablechart.git
|
|
43
|
+
cd ablechart
|
|
44
|
+
pip install -e .
|
|
45
|
+
python -m pytest
|
|
46
|
+
```
|
|
47
|
+
|
|
48
|
+
## Quickstart
|
|
49
|
+
|
|
50
|
+
### Create an editable combo chart
|
|
51
|
+
|
|
52
|
+
```python
|
|
53
|
+
import pandas as pd
|
|
54
|
+
from pptx import Presentation
|
|
55
|
+
from ablechart import create_combo_chart
|
|
56
|
+
|
|
57
|
+
df = pd.DataFrame(
|
|
58
|
+
{
|
|
59
|
+
"Year": [2021, 2022, 2023, 2024],
|
|
60
|
+
"Revenue": [100, 110, 120, 140],
|
|
61
|
+
"Profit": [10, 12, 15, 18],
|
|
62
|
+
}
|
|
63
|
+
)
|
|
64
|
+
|
|
65
|
+
prs = Presentation()
|
|
66
|
+
slide = prs.slides.add_slide(prs.slide_layouts[6])
|
|
67
|
+
|
|
68
|
+
create_combo_chart(
|
|
69
|
+
slide=slide,
|
|
70
|
+
df=df,
|
|
71
|
+
categories_col="Year",
|
|
72
|
+
series_config=[
|
|
73
|
+
{"key": "Revenue", "name": "Revenue", "type": "bar", "axis": "primary"},
|
|
74
|
+
{"key": "Profit", "name": "Profit", "type": "line", "axis": "secondary"},
|
|
75
|
+
],
|
|
76
|
+
title="Revenue and profit",
|
|
77
|
+
)
|
|
78
|
+
|
|
79
|
+
prs.save("combo-demo.pptx")
|
|
80
|
+
```
|
|
81
|
+
|
|
82
|
+
### Parse a chart back into data and metadata
|
|
83
|
+
|
|
84
|
+
```python
|
|
85
|
+
from ablechart import parse_chart_from_pptx
|
|
86
|
+
|
|
87
|
+
df, series_config, chart_type, layout_info = parse_chart_from_pptx("combo-demo.pptx")
|
|
88
|
+
|
|
89
|
+
print(chart_type)
|
|
90
|
+
print(df.head())
|
|
91
|
+
print(series_config)
|
|
92
|
+
```
|
|
93
|
+
|
|
94
|
+
### Inspect and update charts in an existing deck
|
|
95
|
+
|
|
96
|
+
```python
|
|
97
|
+
from ablechart import SeriesData, inspect_pptx_charts, replace_pptx_chart_data
|
|
98
|
+
|
|
99
|
+
inventory = inspect_pptx_charts("template.pptx")
|
|
100
|
+
target = next(item for item in inventory if item.replaceable)
|
|
101
|
+
|
|
102
|
+
result = replace_pptx_chart_data(
|
|
103
|
+
input_pptx="template.pptx",
|
|
104
|
+
output_pptx="updated.pptx",
|
|
105
|
+
selector=target.selector,
|
|
106
|
+
categories=["2026Q1", "2026Q2", "2026Q3"],
|
|
107
|
+
series=[
|
|
108
|
+
SeriesData(name="Revenue", values=[120.0, 132.0, 141.0]),
|
|
109
|
+
SeriesData(name="Cost", values=[82.0, 88.0, 91.0]),
|
|
110
|
+
],
|
|
111
|
+
)
|
|
112
|
+
|
|
113
|
+
assert result.status == "ok", result.error_detail
|
|
114
|
+
```
|
|
115
|
+
|
|
116
|
+
## What It Supports
|
|
117
|
+
|
|
118
|
+
### Chart families
|
|
119
|
+
|
|
120
|
+
| Family | Entry point | Notes |
|
|
121
|
+
| --- | --- | --- |
|
|
122
|
+
| Combo | `create_combo_chart()` | Bar, line, area, stacked, percent-stacked, dual-axis, date-axis presets |
|
|
123
|
+
| Waterfall | `create_waterfall_chart()` | Editable bridge chart with total and relative measures |
|
|
124
|
+
| Scatter | `create_scatter_chart()` | Native scatter chart with parse helpers |
|
|
125
|
+
| Bubble | `create_bubble_chart()` | Native bubble chart with parse helpers |
|
|
126
|
+
| Range snapshot | `create_range_snapshot_chart()` | Valuation range snapshot with min/max/average/current markers |
|
|
127
|
+
|
|
128
|
+

|
|
129
|
+
|
|
130
|
+
*Each panel is a real, editable PowerPoint chart produced by `ablechart`, then rendered to an image. Every one can be parsed back into a DataFrame and updated in place. All four use the same real dataset (CATL 300750.SZ, source: Tushare); regenerate with `python scripts/make_gallery.py`.*
|
|
131
|
+
|
|
132
|
+
### Semantic financial families
|
|
133
|
+
|
|
134
|
+
`create_semantic_chart()` and the family-specific helpers provide a higher
|
|
135
|
+
level mapping from financial-report concepts to native chart or shape
|
|
136
|
+
composition primitives.
|
|
137
|
+
|
|
138
|
+
Currently exposed families include:
|
|
139
|
+
|
|
140
|
+
- `performance_compare`
|
|
141
|
+
- `distribution_plus_history`
|
|
142
|
+
- `style_box`
|
|
143
|
+
- `style_allocation`
|
|
144
|
+
- `factor_exposure`
|
|
145
|
+
- `score_overlay`
|
|
146
|
+
- `concentration`
|
|
147
|
+
- `event_timeline`
|
|
148
|
+
- `attribution_decomposition`
|
|
149
|
+
- `ranked_tile_matrix`
|
|
150
|
+
- `heatmap_matrix`
|
|
151
|
+
- `table_plus_chart_composite`
|
|
152
|
+
- `factor_attribution_panel`
|
|
153
|
+
- `regime_table_panel`
|
|
154
|
+
- `manager_timeline_profile`
|
|
155
|
+
- `award_timeline_panel`
|
|
156
|
+
- `selection_timing_grid`
|
|
157
|
+
- `dual_chart_panel`
|
|
158
|
+
- `holding_detail`
|
|
159
|
+
|
|
160
|
+
This layer is useful for single-slide financial report components. It is not
|
|
161
|
+
a report orchestration engine.
|
|
162
|
+
|
|
163
|
+
## Public API Shape
|
|
164
|
+
|
|
165
|
+
The public API is organized around the chart asset lifecycle:
|
|
166
|
+
|
|
167
|
+
| Lifecycle | Representative APIs |
|
|
168
|
+
| --- | --- |
|
|
169
|
+
| Create | `create_combo_chart()`, `create_waterfall_chart()`, `create_semantic_chart()` |
|
|
170
|
+
| Parse | `parse_chart_from_pptx()`, `parse_all_charts_from_pptx()`, `get_semantic_chart_spec()` |
|
|
171
|
+
| Metadata | `ChartMetadataV1`, `write_chart_metadata`, `METADATA_SCHEMA_VERSION` |
|
|
172
|
+
| Inspect | `inspect_pptx_charts()`, `ChartInventoryItem`, `ChartSelector` |
|
|
173
|
+
| Replace | `replace_pptx_chart_data()`, `SeriesData`, `ReplaceResult` |
|
|
174
|
+
|
|
175
|
+
The design goal is that a generated chart can become a durable asset:
|
|
176
|
+
created once, opened and edited in PowerPoint, parsed again later, and updated
|
|
177
|
+
without losing its position, size, identity, or basic editability.
|
|
178
|
+
|
|
179
|
+
## How This Differs From Similar Packages
|
|
180
|
+
|
|
181
|
+
`ablechart` is not trying to replace broad PowerPoint SDKs. It is a
|
|
182
|
+
small layer for high-quality chart assets and template-safe chart updates.
|
|
183
|
+
|
|
184
|
+
| Project | Main strength | How `ablechart` differs |
|
|
185
|
+
| --- | --- | --- |
|
|
186
|
+
| [`python-pptx`](https://python-pptx.readthedocs.io/en/latest/user/charts.html) | General Python library for creating and updating `.pptx` files, including adding charts and replacing chart data. | `ablechart` builds on the PowerPoint-native path but adds financial chart families, semantic metadata, chart round-trip parsing, inventory, and template-safe replacement contracts. |
|
|
187
|
+
| [`PptxGenJS`](https://gitbrent.github.io/PptxGenJS/) | Broad JavaScript presentation generation for Node.js, browser, React, Electron, charts, tables, images, and HTML-to-PPTX workflows. | `ablechart` is Python-only and intentionally narrower: it does not generate full decks from layouts, but focuses on editable chart assets and parse/update lifecycles. |
|
|
188
|
+
| [`mschart`](https://ardata-fr.github.io/mschart/) | R package for native editable Microsoft Office charts, commonly used with `officer`. | `ablechart` targets Python financial-report workflows and adds inspect/replace and metadata round-trip APIs for existing `.pptx` chart assets. |
|
|
189
|
+
| [`Aspose.Slides for Python via .NET`](https://docs.aspose.com/slides/python-net/) | Commercial, full-featured presentation processing SDK with broad PowerPoint manipulation, chart modules, export, animation, SmartArt, VBA, and conversion features. | `ablechart` is MIT-licensed and much smaller. It does not aim to cover the whole PowerPoint object model or rendering/export conversion. |
|
|
190
|
+
| [`Spire.Presentation for Python`](https://www.e-iceblue.com/Introduce/presentation-for-python.html) | Commercial presentation API covering creation, editing, conversion, and chart operations. | `ablechart` avoids broad document processing scope and concentrates on deterministic chart creation, chart metadata, and safe data replacement. |
|
|
191
|
+
|
|
192
|
+
In short:
|
|
193
|
+
|
|
194
|
+
- Use `python-pptx` when you need a general Python PowerPoint building block.
|
|
195
|
+
- Use `PptxGenJS` when your stack is JavaScript or browser-side PPTX generation.
|
|
196
|
+
- Use Aspose or Spire when you need broad commercial document processing,
|
|
197
|
+
conversion, or complete PowerPoint object-model coverage.
|
|
198
|
+
- Use `ablechart` when your hard problem is editable, updateable,
|
|
199
|
+
inspectable PowerPoint charts for data-heavy reports.
|
|
200
|
+
|
|
201
|
+
## Current Limits
|
|
202
|
+
|
|
203
|
+
`ablechart` does not currently provide:
|
|
204
|
+
|
|
205
|
+
- full report assembly
|
|
206
|
+
- slide template management
|
|
207
|
+
- data connectors
|
|
208
|
+
- CLI job orchestration
|
|
209
|
+
- PDF or image export
|
|
210
|
+
- AI prompt-to-deck generation
|
|
211
|
+
- complete coverage of every PowerPoint chart type
|
|
212
|
+
- HTML or interactive web output
|
|
213
|
+
|
|
214
|
+
Unsupported chart replacement cases fail explicitly rather than silently
|
|
215
|
+
rebuilding the chart. The first-batch replacement path is focused on common
|
|
216
|
+
embedded-workbook chart types such as bar, line, combo, area, pie, scatter,
|
|
217
|
+
and bubble charts.
|
|
218
|
+
|
|
219
|
+
## Development
|
|
220
|
+
|
|
221
|
+
Run the test suite:
|
|
222
|
+
|
|
223
|
+
```bash
|
|
224
|
+
python -m pytest
|
|
225
|
+
```
|
|
226
|
+
|
|
227
|
+
Build the distribution artifacts:
|
|
228
|
+
|
|
229
|
+
```bash
|
|
230
|
+
python -m build --sdist --wheel
|
|
231
|
+
python -m twine check dist/*
|
|
232
|
+
```
|
|
233
|
+
|
|
234
|
+
The repository keeps contract tests for:
|
|
235
|
+
|
|
236
|
+
- public exports
|
|
237
|
+
- generated chart round-trips
|
|
238
|
+
- semantic metadata recovery
|
|
239
|
+
- existing-deck chart inspection
|
|
240
|
+
- in-place chart data replacement
|
|
241
|
+
- checked-in `.pptx` fixture behavior
|
|
242
|
+
|
|
243
|
+
## License
|
|
244
|
+
|
|
245
|
+
MIT License. See [LICENSE](./LICENSE).
|
|
@@ -0,0 +1,54 @@
|
|
|
1
|
+
[build-system]
|
|
2
|
+
requires = ["setuptools>=77"]
|
|
3
|
+
build-backend = "setuptools.build_meta"
|
|
4
|
+
|
|
5
|
+
[project]
|
|
6
|
+
name = "ablechart"
|
|
7
|
+
version = "0.1.0"
|
|
8
|
+
description = "Editable PowerPoint chart engine for dual-axis financial charts"
|
|
9
|
+
readme = "README.md"
|
|
10
|
+
requires-python = ">=3.10"
|
|
11
|
+
authors = [{ name = "ablechart contributors" }]
|
|
12
|
+
license = "MIT"
|
|
13
|
+
license-files = ["LICENSE"]
|
|
14
|
+
keywords = ["powerpoint", "pptx", "charts", "finance", "openxml"]
|
|
15
|
+
classifiers = [
|
|
16
|
+
"Development Status :: 3 - Alpha",
|
|
17
|
+
"Intended Audience :: Developers",
|
|
18
|
+
"Operating System :: OS Independent",
|
|
19
|
+
"Programming Language :: Python :: 3",
|
|
20
|
+
"Programming Language :: Python :: 3.10",
|
|
21
|
+
"Programming Language :: Python :: 3.11",
|
|
22
|
+
"Programming Language :: Python :: 3.12",
|
|
23
|
+
"Topic :: Office/Business :: Office Suites",
|
|
24
|
+
"Topic :: Scientific/Engineering :: Visualization",
|
|
25
|
+
"Topic :: Software Development :: Libraries :: Python Modules",
|
|
26
|
+
]
|
|
27
|
+
dependencies = [
|
|
28
|
+
# Upper bounds pinned 2026-05-24: pandas 3.0 broke chart metadata round-trip
|
|
29
|
+
# (categories_col read back as NaN). Treat this as a conservative published
|
|
30
|
+
# baseline; when relaxing, re-run full `pytest tests/` and install-from-wheel
|
|
31
|
+
# smoke tests under the target dependency set.
|
|
32
|
+
"python-pptx>=1.0.2,<1.1",
|
|
33
|
+
"pandas>=2.2,<3",
|
|
34
|
+
"numpy>=1.26,<2",
|
|
35
|
+
"lxml>=5,<6",
|
|
36
|
+
"openpyxl>=3.1,<4",
|
|
37
|
+
]
|
|
38
|
+
|
|
39
|
+
[project.optional-dependencies]
|
|
40
|
+
test = ["pytest", "tomli; python_version < '3.11'"]
|
|
41
|
+
|
|
42
|
+
[project.urls]
|
|
43
|
+
Homepage = "https://github.com/hanlinlibham/ablechart"
|
|
44
|
+
Repository = "https://github.com/hanlinlibham/ablechart"
|
|
45
|
+
Issues = "https://github.com/hanlinlibham/ablechart/issues"
|
|
46
|
+
Changelog = "https://github.com/hanlinlibham/ablechart/blob/main/CHANGELOG.md"
|
|
47
|
+
|
|
48
|
+
[tool.setuptools.packages.find]
|
|
49
|
+
where = ["src"]
|
|
50
|
+
include = ["ablechart*"]
|
|
51
|
+
|
|
52
|
+
[tool.pytest.ini_options]
|
|
53
|
+
addopts = ["-p", "no:asyncio"]
|
|
54
|
+
pythonpath = ["src"]
|
